Page 1
Always there to help you
Question?
Contact
Philips
Register your product and get support at
www.philips.com/support
HTL5160B
User manual
Page 2
Page 3
Contents
1 Important 2
Safety 2
Care for your product 3
Care of the environment 3
Compliance 3
Help and support 4
Open source software 4
2 Your product 4
Main unit 4
Remote control 5
Connectors 6
Wireless subwoofer 7
3 Connect 7
Network setup prompt 7
Placement 8
Pair up with the subwoofer 8
Connect audio from TV 8
Connect audio from other devices 9
Connect digital devices through HDMI 10
4 Google Cast™ and Spotify Connect 11
Connect this product to network 11
Stream music to this product 11
Navigate the App home menu 12
6 Update software 16
Check software version 16
Update software via Internet 16
Update software via USB 17
7 Wall mount 18
8 Productspecications 18
9 Troubleshooting 20
5 Use your product 12
Adjust the volume 12
Choose your sound 12
Play audio through Bluetooth 13
Connect Bluetooth via NFC 14
MP3 player 14
USB storage devices 14
Auto standby 15
Set display brightness 15
Apply factory settings 15
Set up EasyLink (HDMI-CEC control) 16
1EN
Page 4
1 Important
Read and understand all instructions before you
use your product. If damage is caused by failure
to follow instructions, the warranty does not
apply.
Safety
Riskofelectricshockorre!
• Before you make or change any
connections, make sure that all devices are
disconnected from the power outlet.
• Never expose the product and accessories
to rain or water. Never place liquid
containers, such as vases, near the product.
If liquids are spilt on or into the product,
disconnect it from the power outlet
immediately. Contact Consumer Care to
have the product checked before use.
• Never place the product and accessories
near naked ames or other heat sources,
including direct sunlight.
• Never insert objects into the ventilation
slots or other openings on the product.
• Where the mains plug or an appliance
coupler is used as the disconnect device,
the disconnect device shall remain readily
operable.
• Batteries (battery pack or batteries
installed) shall not be exposed to excessive
heat such as sunshine, re or the like.
• Disconnect the product from the power
outlet before lightning storms.
• When you disconnect the power cord,
always pull the plug, never the cable.
Riskofshortcircuitorre!
• For identication and supply ratings, see
the type plate at the back or bottom of
the product.
• Before you connect the product to the
power outlet, ensure that the power
voltage matches the value printed on the
back or bottom of the product. Never
connect the product to the power outlet if
the voltage is different.
Riskofinjuryordamagetothisproduct!
• For wall mounting, this product must be
securely attached to the wall in accordance
with the installation instructions. Use
only the supplied wall mount bracket (if
available). Improper wall mounting may
result in accident, injury or damage. If you
have any query, contact Consumer Care in
your country.
• Never place the product or any objects
on power cords or on other electrical
equipment.
• If the product is transported in
temperatures below 5°C, unpack the
product and wait until its temperature
matches room temperature before
connecting it to the power outlet.
• Parts of this product can be made of
glass. Handle with care to avoid injury and
damage.
Riskofoverheating!
• Never install this product in a conned
space. Always leave a space of at least four
inches around the product for ventilation.
Ensure curtains or other objects never
cover the ventilation slots on the product.
Riskofcontamination!
• Do not mix batteries (old and new or
carbon and alkaline, etc.).
• Danger of explosion if batteries are
incorrectly replaced. Replace only with the
same or equivalent type.
• Remove batteries if they are exhausted or
if the remote control is not to be used for
a long time.
• Batteries contain chemical substances, they
should be disposed of properly.
Riskofswallowingbatteries!
• The product/remote control may contain
a coin/button type battery, which can be
swallowed. Keep the battery out of reach
of children at all times! If swallowed, the
2 EN
Page 5
battery can cause serious injury or death.
Severe internal burns can occur within two
hours of ingestion.
• If you suspect that a battery has been
swallowed or placed inside any part of the
body, seek immediate medical attention.
• When you change the batteries, always
keep all new and used batteries out of
reach of children. Ensure that the battery
compartment is completely secure after
you replace the battery.
• If the battery compar tment cannot be
completely secured, discontinue use of the
product. Keep out of reach of children and
contact the manufacturer.
This is CLASS II apparatus with double
insulation, and no protective earth provided.
Use only the power supplies listed in the user
manual.
This symbol on a product means that the
product is covered by European Directive
2012/19/EU.
This symbol means that the product contains
batteries covered by European Directive
2013/56/EU which cannot be disposed of with
normal household waste.
Inform yourself about the local separate
collection system for electrical and electronic
products and batteries. Follow local rules and
never dispose of the product and batteries
with normal household waste. Correct disposal
of old products and batteries helps prevent
negative consequences for the environment and
human health.
Removing the disposable batteries
To remove the disposable batteries, see battery
installation section.
Compliance
Care for your product
Use only microber cloth to clean the product.
Care of the environment
Disposal of your old product and battery
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
This product complies with the radio
interference requirements of the European
Community.
Hereby, Gibson Innovations declares that
this product is in compliance with the
essential requirements and other relevant
provisions of Directive 1999/5/EC. You
can nd the Declaration of Conformity on
www.p4c.philips.com.
3EN
Page 6
Help and support
2 Your product
For extensive online support, visit
www.philips.com/support to:
• download the user manual and the quick
start guide
• watch video tutorials (available only for
selected models)
• nd answers to frequently answered
questions (FAQs)
• email us a question
• chat with our support representative.
Follow the instructions on the website to select
your language, and then enter your product
model number.
Alternatively, you can contact Consumer Care
in your country. Before you contact, note down
the model number and serial number of your
product. You can nd this information on the
back or bottom of your product.
Open source software
Gibson Innovations Limited hereby offers
to deliver, upon request, a copy of the
corresponding source code for the open source
software packages used in this product for
which such offer is requested by the respective
licenses. This offer is valid up to three years
after product purchase. To obtain source code,
please contact open.source@philips.com. If
you prefer not to use email or if you do not
receive conrmation receipt within a week after
mailing to this email address, please write to
Open Source Team, Gibson Innovations Limited,
5/F Philips Electronics Building, 5 Science Park
East Avenue, Hong Kong Science Park, Shatin,
N.T. Hong Kong. The texts of the licenses and
acknowledgements for open source software
used in this product are included on a separate
leaet.
Congratulations on your purchase, and
welcome to Philips! To fully benet from the
support that Philips offers(e.g. notication
of product software upgrade), register your
product at www.philips.com/welcome.
Main unit
This section includes an overview of the main
unit.
a b e fdc
a
• Switch this product on.
• Switch this product to ECO standby
when this product is not connected to
the network.
• Switch this product to networked
standby when this product is
connected to the network.
b SOURCE
• Select an input source for this product.
• For Spotify Premium users, quickly
resume Spotify Connect play.
c Volume +/-
Increase or decrease volume.
d Red/white/orange LEDs
Red LED
• Lights up when this product is in
ECO standby (not connected to the
network).
4 EN
Page 7
White LED
b
a
c
d
f
h
i
j
k
e
g
l
• Lights up when this product is
connected to the network.
• Lights up when this product is in
networked standby (connected to the
network).
• Blinks when this product is connecting
to the network.
Orange LED
• Lights up when software update is
detected.
• Blinks when software update fails.
e Display panel
f NFC tag
Tap the NFC-enabled device on the tag for
Bluetooth connection.
Remote control
This section includes an overview of the
remote control.
a (Standby-On)
• Switch this product on.
• Switch this product to ECO standby
when this product is not connected to
the network.
• Switch this product to networked
standby when this product is
connected to the network.
• When EasyLink is enabled, press
and hold for at least three seconds
to switch all connected HDMI CEC
compliant devices to standby.
5EN
Page 8
b Source buttons
HDMI IN: Switch your source to the
HDMI IN connection.
HDMI ARC: Switch your source to HDMI
ARC connection.
OPTICAL: Switch your audio source to
the optical connection.
AUDIO IN: Switch your audio source to
the MP3 connection (3.5mm jack).
USB: Switch to USB mode.
: Switch to Bluetooth mode.
SOURCE: Select an input source for this
product. Or for Spotify Premium users,
quickly resume Spotify Connect play.
c
/ (Previous/Next)
Skip to the previous or next track.
d
(Play/Pause)
Start, pause or resume play.
e TREBLE +/-
Increase or decrease treble.
f Volume control
• +/-: Increase or decrease volume.
•
: Mute or restore volume.
g Sound mode control
SMART: Automatically select a predened
sound mode to suit your video or music.
MUSIC: Select stereo sound mode.
VOICE: Select voice clarity sound mode.
SURR: Select surround sound mode.
h AUDIO SYNC +/-
Increase or decrease audio delay.
i AUTO VOL ON/OFF
Turn auto volume on or off.
j NIGHT ON/OFF
Turn night mode on or off.
k DIM
Set the brightness of the display panel for
this product.
l BASS +/-
Increase or decrease bass.
Connectors
This section includes an overview of the
connectors available on this product.
a b c d e f
a HDMI OUT (ARC) - TO TV
Connect to the HDMI (ARC) input on the
TV.
b HDMI IN
Connect to the HDMI output on a digital
device.
c DC IN
Connect to the power supply.
d RESET
Press with a pin to reset this product to
the factory settings.
e OPTICAL
Connect to an optical audio output on the
TV or a digital device.
f ETHERNET
Connect to the ethernet port on a
broadband modem or router.
g AUDIO IN
Audio input from, for example, an
MP3 player (3.5mm jack).
h
(USB)
• Connect to a USB storage device for
audio media play.
• Upgrade software of this product.
• Charge a USB device.
h
g
6 EN
Page 9
Wireless subwoofer
3 Connect
This product comes with a wireless subwoofer.
a
b
c
a Subwoofer indicator
• When the power is turned on, the
indicator lights up.
• During wireless pairing between the
subwoofer and the main unit, the
indicator blinks white quickly.
• When the pairing succeeds, the
indicator lights up white.
• When the pairing fails, the indicator
blinks white slowly.
• When wireless connection is
disconnected for 1 minute, the
indicator turns off.
b CONNECT (connect)
Press to to enter the pairing mode for the
subwoofer.
c AC MAINS~
Connect to the power supply.
This section helps you connect this product to a
TV and other devices.
For information about the basic connections of
this product and accessories, see the quick start
guide.
Note
For identication and supply ratings, see the type plate
•
at the back or bottom of the product.
• Before you make or change any connections, make sure
that all devices are disconnected from the power outlet.
Network setup prompt
When this product is turned on for the rst time,
or this product is not connected to the network,
you are prompted to set up the network to
stream music from the online music apps.
» SETUP (setup) is displayed on the display
panel of this product.
» White LED on this product blinks.
• To initialize network setup, see “Google
Cast™ and Spotify Connect”.
• To skip network setup, select other audio
input source.
7EN
Page 10
Placement
Place the subwoofer at least 1 meter (3 feet)
away from the main unit, and 10 centimeters
(4 inches) away from the wall.
For best results, place your subwoofer as shown
below.
3 In HDMI ARC mode (press HDMI ARC),
on the remote control, within six seconds,
press
twice then Volume + once, and
then hold down BASS +.
» If the pairing succeeds, the indicator on
the subwoofer lights up white.
» If the pairing fails, the indicator on the
subwoofer blinks white slowly.
4 If the pairing fails, repeat the steps above.
Note
If the wireless dis-connection or pairing up lasts
•
1 minute, the subwoofer automatically switches to
standby and the LED on the subwoofer turns off.
Connect audio from TV
Connect this product to a TV. You can listen to
audio from TV programs through the speakers
of this product.
Pair up with the subwoofer
The wireless subwoofer automatically pairs
up with the main unit for wireless connection
when you turn on the main unit and the
subwoofer.
If no audio from the wireless subwoofer can be
heard, manually pair up the subwoofer.
1 Turn on the main unit and the subwoofer.
» If the connection to the main unit is
lost, the indicator on the subwoofer
blinks white slowly.
2 Press the CONNECT (connect) button
on the subwoofer to enter the pairing
mode.
» The indicator on the subwoofer blinks
white quickly.
8 EN
Option 1: Connect to TV through
HDMI (ARC)
Best quality audio
This product supports HDMI with Audio
Return Channel (ARC). With the ARC feature,
you can hear the TV audio through this product
by using a single HDMI cable.
What you need
• A High Speed HDMI Cable.
• Your TV supports both HDMI ARC and
HDMI-CEC (see the TV user manual for
details).
• For some TV models, enable the external
speaker output from the TV setting menu
(see the TV user manual for details).
Page 11
TV
1 Using a High Speed HDMI cable, connect
the HDMI OUT (ARC) connector on this
product to the HDMI ARC connector on
the TV.
• The HDMI ARC connector on the TV
might be labeled differently. For details,
see the TV user manual.
2 On your TV, turn on HDMI-CEC
operations.
• For HDMI-CEC issues on your TV, see
the TV user manual to make sure that
the HDMI-CEC setup is correct, or
contact the TV manufacturer if needed.
3 Press HDMI ARC on the remote control
of this product to enable the HDMI ARC
connection.
Note
100% interoperability with all HDMI-CEC devices is not
•
guaranteed.
• If your TV is not HDMI ARC compliant, connect an
audio cable to hear the TV audio through this product.
Option 2: Connect to TV through
optical cable
Best quality audio
1 Using an optical cable, connect the
OPTICAL connector on this product to
the optical output on the TV.
• The digital optical output on the TV
might be labeled OPTICAL OUT,
SPDIF or SPDIF OUT.
2 Press OPTICAL on the remote control
of this product to enable the optical
connection.
Option 3: Connect to TV through
analog audio cables
Basic quality audio
AUDIO OUT
RL
TV
1 Using an analog cable, connect the AUDIO
IN (3.5mm jack) on this product to the
analog audio output (red and white) on
the TV.
• The analog audio output on the
external device might be labeled
AUDIO OUT.
2 Press AUDIO IN on the remote control
of this product to enable the analog audio
connection.
Connect audio from other devices
You may also play audio from other devices
TV
through the speakers of this product.
9EN
Page 12

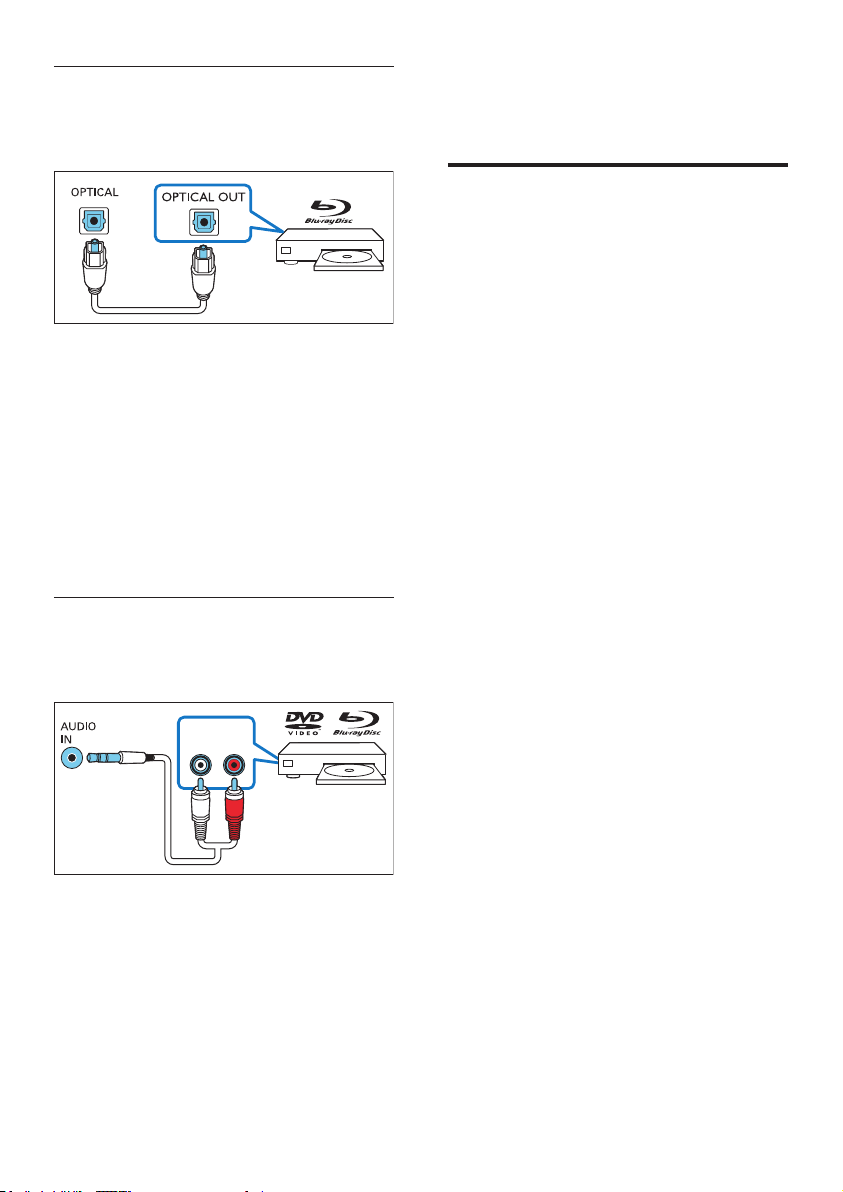

Option 1: Connect to other device
through optical cable
Best quality audio
1 Using an optical cable, connect the
OPTICAL connector on this product to
the optical output on the external device.
• The digital optical output on the
external device might be labeled
OPTICAL OUT, SPDIF or SPDIF
OUT.
2 Press OPTICAL on the remote control
of this product to enable the optical
connection.
Option 2: Connect to other device
through analog audio cables
Basic quality audio
AUDIO OUT
RL
1 Using an analog cable, connect the AUDIO
IN (3.5mm jack) on this product to the
analog audio output (red and white) on
the external device.
• The analog audio output on the
external device might be labeled
AUDIO OUT.
2 Press AUDIO IN on the remote control
of this product to enable the analog audio
connection.
Connect digital devices through HDMI
Connect a digital device such as a set-top box,
DVD/Blu-ray player, or games console to this
product through a single HDMI connection.
When you connect the devices in this way and
play a le or game, the
• video is automatically displayed on your
TV, and
• audio is automatically played on this
product.
1 Using a High Speed HDMI cable, connect
the HDMI OUT connector on your digital
device to the HDMI IN on this product.
• A High Speed HDMI cable is
recommended.
2 Connect this product to TV through HDMI
OUT (ARC).
• If the TV is not HDMI CEC compliant,
select the correct video input on your
TV.
3 On the connected device, turn on HDMI-
CEC operations.
• For HDMI-CEC issues on your TV, see
the TV user manual and ensure the
HDMI-CEC setup is correct, or contact
the TV manufacturer if needed.
4 Press HDMI IN on the remote control
of this product to enable the HDMI IN
connection.
10 EN
Page 13
4 Google Cast™
and Spotify
Connect
Through the speakers of this product, you can
listen to music from the following online music
services.
• Google Cast-enabled apps
• Spotify Connect
What you need
• Smartphone/tablet with Android 4.3 or
above; iPhone/iPad with iOS 8.0 or above.
• Download Philips “HCWeSet“ application
from Google Play or iOS App Store.
• A network router.
• A network cable (for wired connection).
Connect this product to network
To use Google Cast and Spotify Connect
services, you need to setup the network to
connect this product to the network.
Before you start
• Make sure that this product and your
mobile device share the same network.
• For wired network, connect a network
cable to the LAN connector on this
product to the network router.
• For wireless network, this product has
built-in Wi-Fi.
1 Launch Philips “HCWeSet” app on your
mobile device.
2 Follow the on-screen App instructions to
complete the setup.
• At the initial setup page, select “Setup
New Speaker” to initialize the setup.
• For iOS users: When prompted, go
to the Wi-Fi list of the iOS device to
select this product, then return to the
App to continue the network setup.
• When this product is connecting
to the network, white LED on this
product blinks.
• When this product is connected to the
network, white LED on this product
lights up.
Note
During network setup, accept the Google service and
•
privacy agreement to enable Google Cast-enabled apps.
• During network setup, if the network connection fails,
follow the on-screen instructions to retry.
Stream music to this product
After the successful network setup, you can
stream music from online Google Cast and
Spoty Connect services to this product.
1 Launch Philips “HCWeSet” app on your
mobile device.
2 Go to the App home page.
» On the home page, Google cast
enabled apps and Spotify app is
displayed.
3 Tap a music service icon, and play music.
• If a music app is already installed
on your mobile device, the app is
launched.
• If a music app is not installed on
your mobile device, you are routed
to Google Play or iOS App Store to
install the app.
• To learn how to use Google Cast and
Spotify Connect, see “Navigate the
App home menu”.
» The music which is played on your
mobile device is streamed to this
product.
11EN
Page 14
Note
After network setup, you may also directly launch
•
Google Cast enabled apps (such as Google Play Music,
TuneIn Radio, etc.) or Spotify app to stream music to
this product.
• To use Spotify Connect, a Spotify Premium user is
required.
• When software update is detected, the orange LED on
this product lights up.
Navigate the App home menu
1
Launch Philips “HCWeSet” app on your
mobile device.
2 Go to the App home page.
3 Tap to access the menu options for the
following features.
• Through “My Speakers” option, update
the software of this product, and reset
the factory default settings of this
product, etc.
• Learn how to use Google Cast.
• Learn how to use Spotify Connect.
• Access legal information and notice.
• Access customer support.
5 Use your
product
This section helps you use this product to play
media from a wide range of sources.
Before you start
• Make the necessary connections
described in the quick start guide
or download the user manual from
www.philips.com/support.
• Switch this product to the correct source
for other devices.
Adjust the volume
Press Volume +/- to increase or decrease a
1
volume level.
• To mute sound, press
• To restore the sound, press
press Volume +/-.
Choose your sound
.
again or
12 EN
This section helps you choose the ideal sound
for your video or music.
Sound mode
Select predened sound modes to suit your
video or music.
• Press SURR to create a surround listening
experience. Ideal for watching movie.
• Press MUSIC to create two-channel or multichannel stereo. Ideal for listening to music.
• Press VOICE to create sound effect
which makes human voice more clear and
outstanding for listening.
• Press SMART to automatically select a
predened sound mode (SURR, MUSIC or
VOICE) based on input audio content to
optimize audio performance.
Page 15
Equalizer
Change the high frequency (treble) and low
frequency (bass) settings of this product.
1 Press TREBLE +/- or BASS +/- to change
the frequency.
Synchronize video and sound
If the audio and video are not synchronized,
delay the audio to match the video.
1 Press AUDIO SYNC +/- to synchronize
the audio with the video.
• AUDIO SYNC + increases the sound
delay, and AUDIO SYNC - decreases
the sound delay.
Play audio through Bluetooth
Through Bluetooth, connect this product with
your Bluetooth device (such as an iPad, iPhone,
iPod touch, Android phone, or laptop), and then
you can listen to the audio les stored on the
device through the speakers of this product.
What you need
• A Bluetooth device which supports:
• Bluetooth proles: A2DP, AVRCP
• Bluetooth version: Bluetooth V4.1 with
Bluetooth Low Energy
• The maximum operational range between
the main unit and a Bluetooth device is
approximately 10 meters (30 feet).
Auto volume
Turn the auto volume on to keep the volume
constant when you switch to a different source
or to a TV channel with a different content
volume level.
1 Press AUTO VOL ON/OFF to turn auto
volume on or off.
Night mode
For quiet listening, night mode decreases the
volume of loud sounds when audio is played.
Night mode is only available for Dolby Digital
soundtracks.
1 Press NIGHT ON/OFF to turn night
mode on or off.
Note
If auto volume is set to turned on, you cannot enable
•
the night mode.
1 Press on the remote control to switch
this product to Bluetooth mode.
» BT is displayed on the display panel,
blinking.
2 On the Bluetooth device, switch on
Bluetooth, search for and select Philips
HTL5160 to start connection (see the
user manual of the Bluetooth device on
how to enable Bluetooth).
» During connection, BT on the display
panel blinks.
3 Wait until this product beeps.
» When the Bluetooth connection
succeeds, BT is displayed on the display
panel.
» If the connection fails, BT on the
display panel blinks continuously.
4 Select and play audio les or music on
your Bluetooth device.
• During play, if a call is coming, music
play is paused. Play resumes when the
call ends (this feature is dependent on
the connected mobile phone).
• If your Bluetooth device supports
AVRCP prole, on the remote control
you can press
or press
/ to skip to a track,
to pause/resume play.
13EN
Page 16
5 To exit Bluetooth, select other source.
• When your switch back to Bluetooth
mode, Bluetooth connection remains
active.
Note
The music streaming may be interrupted by obstacles
•
between the device and this product, such as wall,
metallic casing that covers the device, or other devices
nearby that operate in the same frequency.
• If you want to connect this product with another
Bluetooth device, press and hold
control to disconnect the currently connected
Bluetooth device.
on the remote
Connect Bluetooth via NFC
NFC (Near Field Communication) is a
technology that enables short-range wireless
communication between NFC-enabled devices,
such as mobile phones.
What you need
• A Bluetooth device with NFC function.
• For pairing, tap the NFC device on the
NFC tag of this product.
1 Enable NFC on the Bluetooth device (see
the device' s user manual for details).
2 Tap the NFC device onto the NFC tag of
this product until this product beeps.
• For rst time connection, on some
mobile devices prompt for pair-up
appears, select "YES" for connection.
» When the Bluetooth connection
succeeds, BT is displayed on the display
panel.
» If the connection fails, BT on the
display panel blinks continuously.
3 Select and play audio les or music on
your NFC device.
• To break the connection, tap again the
NFC device onto the NFC tag on this
product.
MP3 player
Connect your MP3 player to play your audio
les or music.
What you need
• An MP3 player.
• A 3.5mm stereo audio cable.
1 Using the 3.5mm stereo audio cable,
connect the MP3 player to the AUDIO IN
connector on this product.
2 Press AUDIO IN on the remote control.
3 Press the buttons on the MP3 player to
select and play audio les or music.
USB storage devices
Enjoy audio on a USB storage device, such as an
MP3 player and USB ash memory, etc.
What you need
• A USB storage device that is formatted for
FAT or NTFS le systems, and complies
with the Mass Storage Class.
1 Connect a USB storage device to this
product.
2 Press USB on the remote control.
3 Use the remote control to control play.
• Press
play.
• Press
next track.
• During USB play, press and hold USB to
enter repeat mode, then press USB to
select one of the following play modes.
• RPT-TRACK: repeat the current
• RPT-ALL: repeat all the tracks in
• RPT-RAND: play randomly in one
• RPT-OFF: exit repeat or shufe
to start, pause or resume
/ to skip to the previous or
track.
one folder.
folder.
play mode.
14 EN
Page 17
Note
This product may not be compatible with certain types
•
of USB storage device.
• If you use a USB extension cable, USB HUB, or USB
multi-reader, the USB storage device may not be
recognized.
• Digital camera PTP and MTP protocols are not
supported.
• Do not remove the USB storage device while it is
being read.
• DRM-protected music les (MP3) are not supported.
• Support a USB por t: 5V , 1A.
Auto standby
Networked standby
When this product is connected to the
network, this product automatically switches to
networked standby after 15 minutes of inactivity.
Networked standby shortens the startup time
from standby, optimized for streaming music
from mobile apps.
ECO standby
When this product is not connected to the
network, this product automatically switches to
ECO standby after 15 minutes of inactivity. ECO
standby lengthens startup from standby, and less
power is consumed.
In the network status, you may also press and
hold
on the remote control to switch this
product to ECO standby.
Note
If this product is in ECO standby, the red LED lights up.
•
• If this product is in networked standby, the white LED
lights up and the red LED turns off.
Set display brightness
You can press DIM repeatedly to select a
different brightness level of the display panel on
this product.
If you select AUTO OFF, LED message is
switched off after 10 seconds of button
inactivity.
Apply factory settings
In case of no response from this product or
network setup issue, you may reset this product
to the default settings programmed at the
factory.
Note
When the factory settings restore is complete, the
•
product automatically switches off and restarts.
Option 1:
1 Launch Philips “HCWeSet” app on your
mobile device.
• Make sure that you connect this
product to the network.
2 Go to the App home page.
3 Tap to access the menu options.
4 Select “My Speakers”.
» The connected devices are listed.
5 Then select “Factory Reset”, and follow the
on-screen instructions to nish.
Option 2:
1 On the bottom of this product, press
RESET with a pin to reset this product.
Option 3:
1 In HDMI ARC mode (press HDMI ARC),
press
twice then Volume - once, and
then hold down BASS -.
15EN
Page 18
Set up EasyLink (HDMI-CEC control)
6 Update software
This product supports Philips EasyLink, which
uses the HDMI-CEC (Consumer Electronics
Control) protocol. EasyLink-compliant devices
that are connected through HDMI can be
controlled by a single remote control.
Note
100% interoperability with all HDMI-CEC devices is not
•
guaranteed.
• Depending on the manufacturer, HDMI-CEC is known
by many names. For information on your device, see
the user manual of the device.
Before you start
• Connect this product to the HDMICEC compliant device through HDMI
connection.
• Make the necessary connections described
in the quick start guide, and then select the
correct audio source for the connected
device.
• On your TV and other connected devices,
turn on HDMI-CEC control. For details, see
the user manual of the TV or other devices.
EasyLink controls
With EasyLink, you can control this product, TV,
and other connected HDMI-CEC compliant
devices with a single remote control.
• One-touch standby: This product can
switch to standby with the remote control
of the TV or other HDMI-CEC devices.
On the remote control of this product,
press and hold
to switch all connected HDMI-CEC
compliant devices to standby.
for at least three seconds
To get the best features and support, update
your product with the latest software.
Check software version
1
Launch Philips “HCWeSet” app on your
mobile device.
• Make sure that you connect this
product to the network.
2 Go to the App home page.
3 Tap to access the menu options.
4 Select “My Speakers”.
» The connected devices are listed.
5 Then select “About”.
» The software version number together
with other product information is
displayed.
Note
With this product connected to the network, when
•
software update is detected, the orange LED on this
product lights up.
• The upgrade time may take around 3 minutes.
Update software via Internet
1
Launch Philips “HCWeSet” app on your
mobile device.
• Make sure that you connect this
product to the network.
2 Go to the App home page.
3 Tap to access the menu options.
4 Select “My Speakers”.
» The connected devices are listed.
5 Select the name of this product, then select
“Software Update” > “Network”.
16 EN
Page 19
6 Follow the on-screen instructions to
complete the update.
» During upgrade, “UPG XX” (upgrade)
is displayed on the display panel,
and “XX” indicates a percentage of
upgrade completion.
» If the update is complete, this product
automatically turns off and on again.
» If the update fails, “ERROR”(error) is
displayed on the display panel, then this
product automatically turns off and on
again, and prompts you to re-trigger
the upgrade.
Update software via USB
What you need
• A USB storage device that is formatted
with FAT16, FAT32 or NTFS.
1 Check the latest software version on
www.philips.com/support.
• Search for your model and click on
“Software and drivers”.
2 Download the software into a USB storage
device.
a Unzipthedownloadedle,andmake
sure that the unzipped folder is
named “UPG”.
b Putthe“UPG”leintheroot
directory.
8 Select the name of this product, then select
“Software Update” > “USB”.
9 Follow the on-screen instructions to
complete the update.
» During upgrade, “UPG XX” (upgrade)
is displayed on the display panel,
and “XX” indicates a percentage of
upgrade completion.
» If the update is complete, this product
automatically turns off and on again.
» If the update fails, “ERROR”(error) is
displayed on the display panel, then this
product automatically turns off and on
again, and prompts you to re-trigger
the upgrade.
Caution
Do not turn off the power or remove the USB storage
•
device when the software update is in progress because
you might damage this player.
3 Connect the USB storage device to the
(USB) connector on this product.
4 Launch Philips “HCWeSet” app on your
mobile device.
• Make sure that you connect this
product to the network.
5 Go to the App home page.
6 Tap to access the menu options.
7 Select “My Speakers”.
» The connected devices are listed.
17EN
Page 20
7 Wall mount
Note
Before wall mounting, make sure the wall can suppor t
•
the weight of this product.
• For wall mounting, this product must be securely
attached to the wall in accordance with the installation
instructions. Improper wall mounting may result in
accident, injury or damage. If you have any query,
contact Consumer Care in your country.
8 Product
specifications
Note
Specications and design are subject to change without
•
notice.
Screw length/diameter
Depending on the type of wall mounting this
product, make sure that you use screws of a
suitable length and diameter.
2.2~2.5 mm/0.09”- 0.10”
≤9 mm/
0.35”
See the illustration in the quick start guide on
how to wall mount this product.
1) Use the supplied paper marker to mark two
holes on the wall, then secure two suitable
screws in the holes.
2) Fix the two supplied wall brackets on this
product.
3) Hang this product on the wall.
>25 mm/0.98”
3.5-4 mm/
0.14”-0.16”
Amplier
• Total output power: 320W RMS
(+/- 0.5 dB, 10% THD)
• Frequency response:
20 Hz-20 kHz / +/- 3 dB
• Signal-to-noise ratio:
> 65 dB (CCIR) / (A-weighted)
• Input sensitivity:
• AUDIO IN: 1 V
Audio
• S/PDIF Digital audio input:
• Optical: TOSLINK
USB
• Compatibility: Hi-Speed USB (2.0)
• Class support: USB Mass Storage Class
(MSC)
• File system: FAT16, FAT32, NTFS
File formats
• .aac, .mka, .mp3, .wav, .m4a, .ac, .ogg, .ape,
.dsf, .dff
18 EN
Bluetooth
• Bluetooth proles: A2DP, AVRCP
• Bluetooth version: Bluetooth V4.1 with
Bluetooth Low Energy
Page 21
Main unit
• Power supply:
• Model (Philips branded AC power
adapter): TNUA3202003
• Input: 100-240 V~, 50/60 Hz 1.65 A
• Output: 32 V
• Standby power consumption
• ECO standby: ≤ 0.5 W
• Networked standby: < 6 W
• Dimensions (W x H x D):
1100 x 51 x 69 mm
• Weight: 2.2 kg
• Built-in speakers:
• Left/Right channel: 4 x woofer
(90mm/3.5" x 34mm/1.3", 6 ohm) +
2 x tweeter ( 25.4mm/1" , 4 ohm)
• Center channel: 1 x woofer
(90mm/3.5" x 34mm/1.3", 3 ohm) +
1 x tweeter ( 25.4mm/1" , 4 ohm)
• Operating temperature and humidity:
0°C to 45°C, 5% to 90% humidity for all
climates
• Storage temperature and humidity:
-40°C to 70°C, 5% to 95%
, 2.0 A
Standby power management
• When the product remains inactive for
15 minutes, it automatically switches to
standby or networked standby.
• To deactivate Bluetooth connection, press
and hold the Bluetooth button on the
remote control.
• To activate Bluetooth connection, enable
Bluetooth connection on your Bluetooth
device, or enable Bluetooth connection via
the NFC tag (if available).
Subwoofer
• Power supply: 220-240 V~, 50-60 Hz
• Power consumption: 30 W
• Standby power consumption: ≤ 0.5 W
• Impedance: 2 ohm
• Speaker driver: 1 x 203 mm (8") woofer
• Dimensions (W x H x D):
205 x 316 x 401 mm
• Weight: 7.0 kg
Remote control batteries
• 2 x AAA-R03-1.5 V
19EN
Page 22
9 Troubleshooting
Warning
•
Risk of electric shock. Never remove the casing of the
product.
To keep the warranty valid, never try to repair
the product yourself.
If you have problems using this product, check
the following points before you request service.
If you still have a problem, get support at
www.philips.com/support.
Main unit
The buttons on this proudct do not work.
• Disconnect this product from the power
supply for a few minutes, then reconnect.
Sound
No sound from the speakers of this product.
• Connect the audio cable from this product
to your TV or other devices.
• Make sure that you connect the audio
input on this product to the audio output
on your TV or other devices.
• Reset this product to its factory settings.
• On the remote control, select the correct
audio input.
• Make sure that this product is not muted.
Distorted sound or echo.
• If you play audio from the TV through this
product, make sure that the TV is muted.
Audio and video are not synchronized.
• Press AUDIO SYNC +/- to synchronize
the audio with the video.
Error message is displayed on the display
panel.
• When "ERROR" is displayed, it indicates
that an input audio format is not
supported.
• When "ARC" blinks, it indicates that the
connected TV is not HDMI ARC compliant
or an unsupported audio format is
detected.
Bluetooth
A device cannot connect with this product.
• The device does not support the
compatible proles required for this
product.
• You have not enabled the Bluetooth
function of the device. See the user manual
of the device on how to enable the
function.
• The device is not correctly connected.
Connect the device correctly.
• This product is already connected with
another Bluetooth device. Disconnect the
connected device, then try again.
Quality of audio play from a connected
Bluetooth device is poor.
• The Bluetooth reception is poor. Move the
device closer to this product, or remove
any obstacle between the device and this
product.
The connected Bluetooth device connects and
disconnects constantly.
• The Bluetooth reception is poor. Move the
device closer to this product, or remove
any obstacle between the device and this
product.
• Turn off Wi-Fi function on the Bluetooth
device to avoid interference.
• For some Bluetooth, the Bluetooth
connection can be deactivated
automatically to save power. This does not
indicate any malfunction of this product.
20 EN
Page 23
NFC
A device cannot connect with this product via
NFC.
• Make sure that the device is supported by
NFC.
• Make sure that NFC is enabled on the
device (see the device' s user manual for
details).
• For pairing, tap the NFC device on the
NFC tag of this product.
Internet services
Cannot stream music from Google Cast or
Spotify Connect services to this product.
• This product is not connected to the
network, and perform the rst time setup
if the setup is not completed.
Cannot connect this product to the network.
• Make sure that the wireless network is
not disturbed by microwave ovens, DECT
phones, or other neighboring Wi-Fi devices.
• Place the wireless router and this product
within ve meters of each other.
• Make sure that this product and your
mobile device share the same network.
• Reset this product to its factory settings.
EN
21
Page 24
Manufactured under license from Dolby
Laboratories. Dolby, Pro Logic, and the
double-D symbol are trademarks of Dolby
Laboratories.
Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol
are trademarks of Dolby Laboratories.
The terms HDMI and HDMI High-Denition
Multimedia Interface, and the HDMI Logo are
trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other
countries.
The Bluetooth® word mark and logos are
registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by Gibson
Innovations Limited is under license. Other
trademarks and trade names are those of their
respective owners.
The Spotify Software is subject to third party
licenses found here: www.spotify.com/connect/
third-party-licenses.
The N Mark is a trademark or registered
trademark of NFC Forum, Inc. in the United
States and in other countries.
Google Cast and the Google Cast badge are
trademarks of Google Inc.
22
Page 25
Page 26
Specifications are subject to change without notice
2016 © Gibson Innovations Limited. All rights reserved.
Thisproducthasbeenmanufacturedby,andissoldundertheresponsibilityofGibsonInnovationsLtd.,and
Gibson Innovations Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are
registered trademarks of Koninklijke Philips N.V. and are used under license from Koninklijke Philips N.V.
HTL5160B_12_UM_V4.0
Loading...
