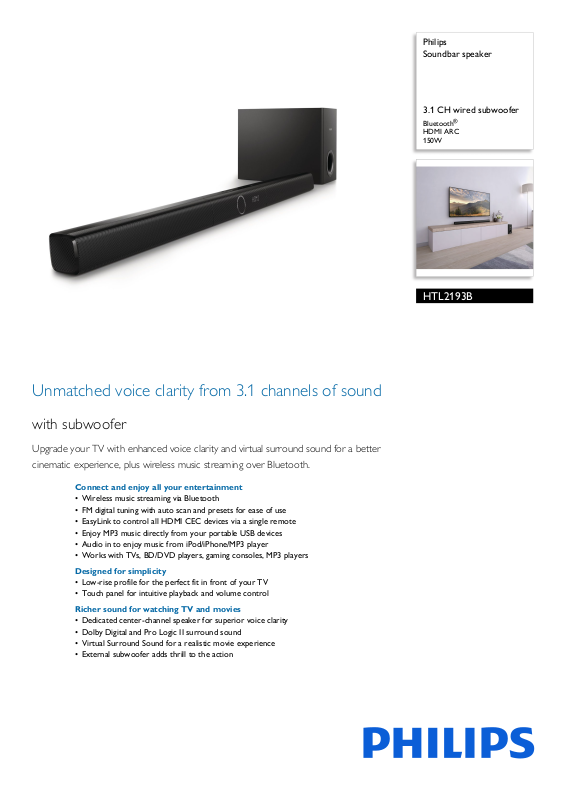

Philips
Soundbar speaker
3.1 CH wired subwoofer
Bluetooth
HDMI ARC
150W
HTL2193B
®
Unmatched voice clarity from 3.1 channels of sound
with subwoofer
Upgrade your TV with enhanced voice clarity and virtual surround sound for a better
cinematic experience, plus wireless music streaming over Bluetooth.
Connect and enjoy all your entertainment
• Wireless music streaming via Bluetooth
• FM digital tuning with auto scan and presets for ease of use
• EasyLink to control all HDMI CEC devices via a single remote
• Enjoy MP3 music directly from your portable USB devices
• Audio in to enjoy music from iPod/iPhone/MP3 player
• Works with TVs, BD/DVD players, gaming consoles, MP3 players
Designed for simplicity
• Low-rise profile for the perfect fit in front of your TV
• Touch panel for intuitive playback and volume control
Richer sound for watching TV and movies
• Dedicated center-channel speaker for superior voice clarity
• Dolby Digital and Pro Logic II surround sound
• Virtual Surround Sound for a realistic movie experience
• External subwoofer adds thrill to the action
Page 2
HTL2193B/79
Soundbar speaker
3.1 CH wired subwoofer Bluetooth®, HDMI ARC, 150W
Highlights
Virtual Surround Sound
Philips Virtual Surround Sound produces rich
and immersive surround sound from less than
five-speaker system. Highly advanced spatial
algorithms faithfully replicate the sonic
characteristics that occur in an ideal 5.1channel environment. Any high quality stereo
source is transformed into true-to-life, multichannel surround sound. No need to purchase
extra speakers, wires or speaker stands to
appreciate room-filling sound.
Bluetooth
easy wireless connection to other Bluetooth
devices, so you can play your favorite music
from any smartphone, tablet or laptop,
including the iPod or iPhone with a Bluetoothenabled speaker.
FM digital tuning
Digital FM radio delivers new music options
and entertainment to your soundbar speaker,
speaker system and home theater system.
Auto scan is available for radio stations, so
searching for your favorite channel will never
take more than a few seconds. Preset radio
stations can be stored, giving you instant access
to all your favorite stations without manual
tuning each time.
Audio in
Audio in allows you to easily play your music
directly from your iPod/iPhone/iPad, MP3
player, or laptop via a simple connection to
your Philips home cinema system. Simply
connect your audio device to the Audio in jack
to enjoy your music with the superior sound
quality of the Philips home cinema system.
External subwoofer
Bluetooth is a short range wireless
communication technology that is both stable
and energy efficient. The technology allows for
Enjoy MP3 music directly
Enjoy MP3 music directly from your portable
USB devices
External subwoofer adds thrill to the action
Page 3
HTL2193B/79
Soundbar speaker
3.1 CH wired subwoofer Bluetooth®, HDMI ARC, 150W
Specifications
Sound
• Sound Enhancement: Virtual Surround Sound,
Treble and Bass Control, Night Mode, Audio sync,
Movie, Music, Voice
• Sound System: Dolby Digital,
• Speaker output power: 32W x 3
• Subwoofer output power: 55 W
• Total Power RMS @ 10% THD: 150 W
Dolby pro-logic 2
Loudspeakers
• Loudspeaker types: Integrated with main unit
• Speaker Impedance: 4 ohm
• Subwoofer type: Passive
• Subwoofer driver: 1 x 5.25" woofer
• Subwoofer freq range: 45 - 200 Hz
• Subwoofer impedance: 2 ohm
• Drivers per Soundbar: 3 x race track woofers
Connectivity
• Integrated Connections: Bluetooth
• iPod/iPhone: via 3.5mm Audio In, via bluetooth
• Rear Connections: Digital coaxial in, Digital optical
in, Subwo
(ARC), FM Antenna Socket
• Top connections: Audio In (3.5mm), USB 2.0
ofer out, AUX in, HDMI 1.4 output
Design
• Wall mountable
Power
• Power consumption: 30 W
• Power supply: 100-240VAC, 50-60Hz
• Standby power consumption: < 0.5 W
Dimensions
• Main Unit (W x H x D): 950 x 51 x 69 mm
• Main Unit Weight: 1.62 kg
• Subwoofer Weight: 2.78 kg
• Subwoofer cable length: 3 m
• Packaging (W x H x D): 395 x 418 x 295 mm
• Subwoofer (W x H x D): 165 x 240 x 295 mm
• Weight incl. Packaging: 6.6 kg
Accessories
• Included accessories: AAA Battery (x1), Power
cord, Quick start guide, Remote Control, Safety &
Legal Leaflet, Trademarks Sheet, AC Adapter, FM
antenna, Screws (x6)
Convenience
• EasyLink (HDMI-CEC): Audio Return Channel,
Automatic audio input mapping, One touch play,
One touch standby, Remote Control-Passthrough,
System standby
Audio Playback
•Compression format: MP3
•
Issue date 2020-07-08
Version: 3.0.4
12 NC: 8670 001 29345
EAN: 48 95185 61606 3
© 2020 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
