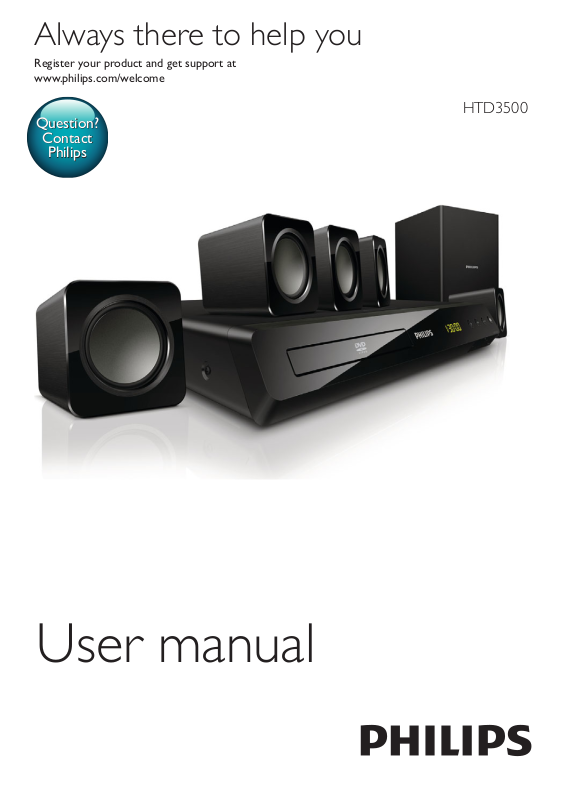

Philips HTD3500 12 User Manual
Question?
Contact
Philips
Always there to help you
Register your product and get support at
www.philips.com/welcome
HTD3500
User manual
Contents
1 Important 3
Safety 3
Care for your product 4
Care of the environment 4
2 Your home theater 5
Main unit 5
Remote control 5
3 Connect and setup 8
Speakers 8
Connectors 9
Connect to TV 10
Connect audio from TV and other
devices 11
4 Use your home theater 13
Choose sound 13
Discs 13
USB storage devices 14
DivX 15
Audio, video, and picture options 16
Radio 17
MP3 player 17
Create MP3 les 18
EasyLink 18
8 Troubleshooting 27
9 Notice 29
Copyright 29
Compliance 29
Trademarks 29
10 Language code 30
11 Index 31
5 Change settings 20
Picture 20
Sound 20
Language 21
Parental control 21
Energy saving 22
Apply factory settings 23
6 Update software 24
Check software version 24
Update software through USB or CD-R 24
7 Productspecications 25
2EN
1 Important
Read and understand all instructions before you
use your home theater. If damage is caused by
failure to follow instructions, the warranty does
not apply.
Safety
Riskofelectricshockorre!
• Never expose the product and accessories
to rain or water. Never place liquid
containers, such as vases, near the product.
If liquids are spilt on or into the product,
disconnect it from the power outlet
immediately. Contact Philips Consumer
Care to have the product checked before
use.
• Never place the product and accessories
near naked ames or other heat sources,
including direct sunlight.
• Never insert objects into the ventilation
slots or other openings on the product.
• Where the mains plug or an appliance
coupler is used as the disconnect device,
the disconnect device shall remain readily
operable.
• Disconnect the product from the power
outlet before lightning storms.
• When you disconnect the power cord,
always pull the plug, never the cable.
Riskofshortcircuitorre!
• Before you connect the product to the
power outlet, ensure that the power
voltage matches the value printed on the
back or bottom of the product. Never
connect the product to the power outlet if
the voltage is different.
Riskofinjuryordamagetothehometheater!
• For wall-mountable products, use only the
supplied wall mount bracket. Secure the
wall mount to a wall that can support the
combined weight of the product and the
wall mount. Koninklijke Philips Electronics
N.V. bears no responsibility for improper
wall mounting that results in accident,
injury or damage.
• For speakers with stands, use only the
supplied stands. Secure the stands to the
speakers tightly. Place the assembled stands
on at, level surfaces that can support the
combined weight of the speaker and stand.
• Never place the product or any objects
on power cords or on other electrical
equipment.
• If the product is transported in
temperatures below 5°C, unpack the
product and wait until its temperature
matches room temperature before
connecting it to the power outlet.
• Visible and invisible laser radiation when
open. Avoid exposure to beam.
• Do not touch the disc optical lens inside
the disc compartment.
• Parts of this product can be made of
glass. Handle with care to avoid injury and
damage.
Riskofoverheating!
• Never install this product in a conned
space. Always leave a space of at least four
inches around the product for ventilation.
Ensure curtains or other objects never
cover the ventilation slots on the product.
Riskofcontamination!
• Do not mix batteries (old and new or
carbon and alkaine, etc.).
• Danger of explosion if batteries are
incorrectly replaced. Replace only with the
same or equivalent type.
• Remove batteries if they are exhausted or
if the remote control is not to be used for
a long time.
• Batteries contain chemical substances, they
should be disposed of properly.
Riskofswallowingbatteries!
• The product/remote control may contain
a coin/button type battery, which can be
swallowed. Keep the battery out of reach
3 EN
of children at all times! If swallowed, the
battery can cause serious injury or death.
Severe internal burns can occur within two
hours of ingestion.
• If you suspect that a battery has been
swallowed or placed inside any part of the
body, seek immediate medical attention.
• When you change the batteries, always
keep all new and used batteries out of
reach of children. Ensure that the battery
compartment is completely secure after
you replace the battery.
• If the battery compar tment cannot be
completely secured, discontinue use of the
product. Keep out of reach of children and
contact the manufacturer.
This is CLASS II apparatus with double
insulation, and no protective earth provided.
Care for your product
• Do not insert any objects other than discs
into the disc compartment.
• Do not insert warped or cracked discs into
the disc compartment.
• Remove discs from the disc compartment
if you are not using the product for an
extended period of time.
• Use only microber cloth to clean the
product.
When this crossed-out wheeled bin symbol is
attached to a product it means that the product
is covered by the European Directive 2002/96/
EC. Please inform yourself about the local
separate collection system for electrical and
electronic products.
Please act according to your local rules and
do not dispose of your old products with your
normal household waste.
Correct disposal of your old product helps to
prevent potential negative consequences for the
environment and human health.
Your product contains batteries covered by the
European Directive 2006/66/EC, which cannot
be disposed with normal household waste.
Please inform yourself about the local rules
on separate collection of batteries because
correct disposal helps to prevent negative
consequences for the environmental and
human health.
Care of the environment
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
4EN
2 Your home
Remote control
theater
Congratulations on your purchase, and
welcome to Philips! To fully benet from the
support that Philips offers, register your home
theater at www.philips.com/welcome.
Main unit
a Disc compartment
b Display panel
c (Open/Close)
Open or close the disc compartment, or
eject the disc.
d (Play/Pause)
Start, pause or resume play.
e SOURCE
Select an audio or video source for the
home theater.
f (Standby-On)
Switch the home theater on or to standby.
This section includes an overview of the
remote control.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
24
23
22
21
20
19
18
17
16
15
5 EN
a (Standby-On)
• Switch the home theater on or to
standby.
• When EasyLink is enabled, press
and hold for at least three seconds
to switch all connected HDMI CEC
compliant devices to standby.
b (Open/Close)
Open or close the disc compartment, or
eject the disc.
c Source buttons
• DISC: Switch to disc source.Access
or exit the disc menu when you play
a disc.
• AUDIO SOURCE: Select an audio
input source.
• RADIO: Switch to FM radio.
• USB: Switch to USB storage device.
d Navigation buttons
• Navigate menus.
• In video mode, press left or right to
fast backward or fast forward; press
up or down to slow forward or slow
backward.
• In radio mode, press left or right to
search a radio station; press up or
down to ne tune a radio frequency.
e OK
Conrm an entry or selection.
f BACK
Return to a previous menu screen.
g / (Previous/Next)
• Skip to the previous or next track,
chapter or le.
• In radio mode, select a preset radio
station.
h (Mute)
Mute or restore volume.
i VOL +/-
Increase or decrease volume.
j SOUND
Select a sound mode.
k Numeric buttons
Select an item to play.
l ANGLE
Select video scenes recorded in different
camera angels.
m REPEAT / PROGRAM
• Select or turn off repeat mode.
• In radio mode, set a radio station.
n REPEAT A-B
Mark two points within a chapter or track
to repeat play, or turn off the repeat mode.
o CREATE MP3/ZOOM
• Access the create MP3 menu.
• Zoom into a video scene or picture.
Press the Navigation buttons (left/
right) to select a zoom factor.
p SCREEN FIT
Fit the picture format to the TV screen.
q SUBTITLE
Select subtitle language for video.
r AUDIO SYNC
• Select an audio language or channel.
• Press and hold to access audio delay
setting, then press +/- to delay the
audio to match the video.
s SURR
Select surround sound or stereo sound.
t (Stop)
Stop play.
u (Play/Pause)
Start, pause or resume play.
v INFO
Access more play options while playing a
disc or a USB storage device.
w SETUP
Access or exit the setup menu.
x SLEEP
Switch the home theater to standby mode
after the elapsed time.
6EN
EasyLink controls
With Easylink, you can control your home
theater and the TV with the following buttons
on your home theater remote control (see
'EasyLink' on page 18).
• (Standby-On): Press and hold to switch
your home theater, TV and the connected
devices to standby.
• (Play/Pause): When a video disc is in
the disc compartment, wake up the TV
from standby, and then play a disc.
7 EN
3 Connect and
setup
This section helps you connect your home
theater to a TV and other devices, and then set
it up.
For information about the basic connections
of your home theater and accessories, see the
quick start guide.
Note
• For identication and supply ratings, refer to the type
plate at the back or bottom of the product.
• Before you make or change any connections, make sure
that all devices are disconnected from the power outlet.
Speakers
Position, connect, and set up your speakers for
best surround sound.
Position
Speaker position plays a critical role in setting
up a surround sound effect.
For best results, place your speakers and the
subwoofer as shown below.
Note
• Surround sound depends on factors such as room
shape and size, type of wall and ceiling, windows and
reective surfaces, and speaker acoustics. Experiment
with the speaker positions to nd the optimum setting
for you.
Follow these general guidelines, and then set up
your speakers.
1 Seating position:
This is the center of your listening area.
2 FRONT CENTER (front center) speaker :
Place the center speaker directly in front of
the seating position, either above or below
your TV. Make sure that it is close to your
ear height when you are seated.
3 FRONT LEFT (front left) and FRONT
RIGHT (front right) speakers:
Place the left and right speakers in the
front, and equidistant from the center
speaker in an arc, so that all the three
speakers are at same distance from your
seating position. For best effect, point the
speakers towards the seating position and
place the speakers close to the ear level
(when seated).
4 REAR LEFT (rear left) and REAR RIGHT
(rear right) speakers:
8EN
Place the rear surround speakers to the
left and right side of your seating position,
either in line with it or slightly behind it. For
best effect, point the speakers towards the
seating position and place the speakers just
above the ear level (when seated).
5 SUBWOOFER (subwoofer):
Place the subwoofer at least one meter to
the left or right of the TV. Leave about ten
centimeter clearance from the wall.
Connect
Connect your speakers and the subwoofer to
your home theater as described in the quick
start guide.
Front
a (USB)
Audio, video or picture input from a USB
storage device.
b MUSIC iLINK
Audio input from an MP3 player.
Setup
Set up your speakers through the speaker setup
menu.
1 Connect your speakers and subwoofer as
described in the Quick start guide.
2 Turn on your TV, and switch to the correct
source for the home theater.
3 Press SETUP on your home theater
remote control.
4 Select [Audio Setup], and then press OK.
5 Change the following settings, and then
press OK.
• [Speakers Volume]: Set the volume
level of each speaker.
• [Speakers Delay]: Set the delay time
for speakers which are placed closer to
the seating position in order to obtain
equal audio transmission from all the
speakers.
Connectors
Connect other devices to your home theater.
Back connectors
a AC MAINS
Connect to the power supply.
b SPEAKERS
Connect to the supplied speakers and
subwoofer.
c HDMI OUT
Connect to the HDMI input on the TV.
d OPTICAL
Connect to an optical audio output on the
TV or a digital device.
e VIDEO OUT
Connect to the composite video input on
the TV.
f AUDIO IN-AUX
Connect to an analog audio output on the
TV or an analog device.
g ANTENNA FM
Signal input from an antenna, cable or
satellite.
9 EN
Connect to TV
Connect your home theater to a TV to
watch videos. You can listen to audio from TV
programs through your home theater speakers.
Use the best quality connection available on
your home theater and TV.
Option 1: Connect to TV through
HDMI (ARC)
Best quality video
Your home theater supports HDMI version
with Audio Return Channel (ARC). If your TV
is HDMI ARC compliant, connect your home
theater to the TV through the HDMI ARC
connection for easy and quick setup.
With HDMI ARC, you do not need an
additional audio cable to play audio from TV
through your home theater.
1 Using a High Speed HDMI cable, connect
the HDMI OUT (ARC) connector on
your home theater to the HDMI ARC
connector on the TV.
The HDMI ARC connector on the TV
might be labeled HDMI IN or HDMI. For
details on TV connectors, see the TV user
manual.
3 If audio from the TV does not play
automatically on your home theater, set up
the audio manually (see 'Set up audio for
connected devices' on page 12).
Option 2: Connect to TV through
HDMI
Best quality video
If your TV is not HDMI ARC compliant, connect
your home theater to the TV through a
standard HDMI connection.
With a standard HDMI connection, you need
an additional audio cable to play the audio
from the TV through your home theater (see
'Connect audio from TV and other devices' on
page 11).
1 Using a High Speed HDMI cable, connect
the HDMI OUT (ARC) connector on your
home theater to the HDMI connector on
the TV.
The HDMI connector on the TV might be
labeled HDMI IN.
TV
TV
2 On your TV, turn on HDMI-CEC. For
details, see the TV user manual.
» When you play a disc on your home
theater, the video is automatically
displayed on TV and the audio is
automatically played on the home
theater.
2 On your TV, turn on HDMI-CEC. For
details, see the TV user manual.
» When you play a disc on your home
theater, the video is automatically
displayed on TV and the audio is
automatically played on the home
theater.
3 To play audio from TV programs through
your home theater, connect an additional
audio cable (see 'Connect audio from TV
and other devices' on page 11).
4 If audio from the TV does not play
automatically on your home theater, set up
10EN
the audio manually (see 'Set up audio for
connected devices' on page 12).
Note
• If your TV has a DVI connector, you can use an HDMI/
DVI adapter to connect to TV.
Connect audio from TV and other devices
Play audio from TV or other devices through
your home theater.
Use the best quality connection available on
your TV, home theater, and other devices.
Option 3: Connect to the TV through
composite video
Basic quality video
If your TV does not have HDMI connectors,
connect your home theater to the TV through a
composite connection. A composite connection
does not support high-denition video.
With a composite connection, you need
an additional audio cable to play the audio
from the TV through your home theater (see
'Connect audio from TV and other devices' on
page 11).
1 Using a composite video cable, connect
the VIDEO OUT connector on your
home theater to the composite video
connector on the TV.
The composite video connector might be
labeled AV IN, VIDEO IN, COMPOSITE,
or BASEBAND.
TV
Note
• The audio connections in this user manual are only
recommendations. You can use other connections too.
Option 1: Connect audio through a
digital optical cable
Best quality audio
Using an optical cable, connect the OPTICAL
connector on your home theater to the
OPTICAL OUT connector on the TV or other
device.
The digital optical connector might be labeled
SPDIF, SPDIF OUT, or OPTICAL.
TV
Option 2: Connect audio through
analog audio cables
2 On your TV, switch to the correct video
input.
3 To play audio from TV programs through
your home theater, connect an additional
audio cable (see 'Connect audio from TV
and other devices' on page 11).
On your home theater, press SOURCE
repeatedly to select the correct audio
input.
11 EN
Basic quality audio
Using an analog cable, connect the AUX
connectors on your home theater to the
AUDIO OUT connectors on the TV or other
device.
Loading...
