Philips HSB4383 93 User Manual

Register your product and get support at

www.philips.com/welcome

HSB4383/93

EN User manual

=+&1 Ⴌ߀൱Ҭ 

5 Play 19

Contents

1 Important 5

Safety 5
Notice 6

2 Your DVD Home Theater System 8

Introduction 8
What’s in the box 8
Overview of the main unit 9
Overview of the remote control 10

3 Connect 12

Place the unit 12
Attach speakers to the main unit 12
Connect TV 12

Connect video cables 12
Option 1: Connect through HDMI 13
Option 2: Connect through
component video 13
Option 3: Connect through
composite video 14

Connect audio cables 14
Connect FM antenna 14
Connect power 14

4 Get started 16

Prepare the remote control 16
Turn on 16

Set up wireless connection

manually 16
Find the correct viewing channel 17
Select the correct TV system 17
Select menu display language 17
Turn on Progressive Scan 17

Turn off progressive scan manually 18
Use Philips EasyLink 18

Play discs 19

Use the disc menu 19
Select an audio language 19
Select a subtitle language 19

Sync audio output with video play 19
Play from USB 20
Play DivX video 20
Play MP3/WMA/picture fi les 20
Play control 21

Select repeat/shuffl e play options 21

Repeat A-B (DVD/VCD/CD/MP3/

WMA) 21

Search forward/backward 21

Resume video play from last

stopped point 21
Play options 21

Display play information 21

Zoom in/out image 21

Change the audio channel 21
Picture view options 22

Start slideshow of pictures 22

Rotate picture 22

Start musical slideshow 22

6 Adjust settings 23

General setup 23

Switch to standby mode 23
Audio setup 24
Video setup 24
Preference setup 25

7 Tune to FM radio stations 27

Program radio stations automatically 27
Program radio stations manually 27
Tune to a preset radio station 27

English

EN

3

8 Adjust volume level and sound effect

28
Adjust volume level 28
Select a sound effect 28

Select a preset sound effect 28
Select surround sound effect 28
Adjust treble/bass level 28

Mute sound 28

9 Other features 29

Connect other devices 29

Listen to an audio player 29

10 Product information 30

Specifi cations 30

Amplifi er 30
Disc 30
Tuner (FM) 30
Speakers 30

General information 31
Supported disc formats 31
USB playability information 31

11 Troubleshooting 32

12 Appendix 34

Mount to a wall 34

What’s in the supplied mounting kit 34

What else you’ll need 34

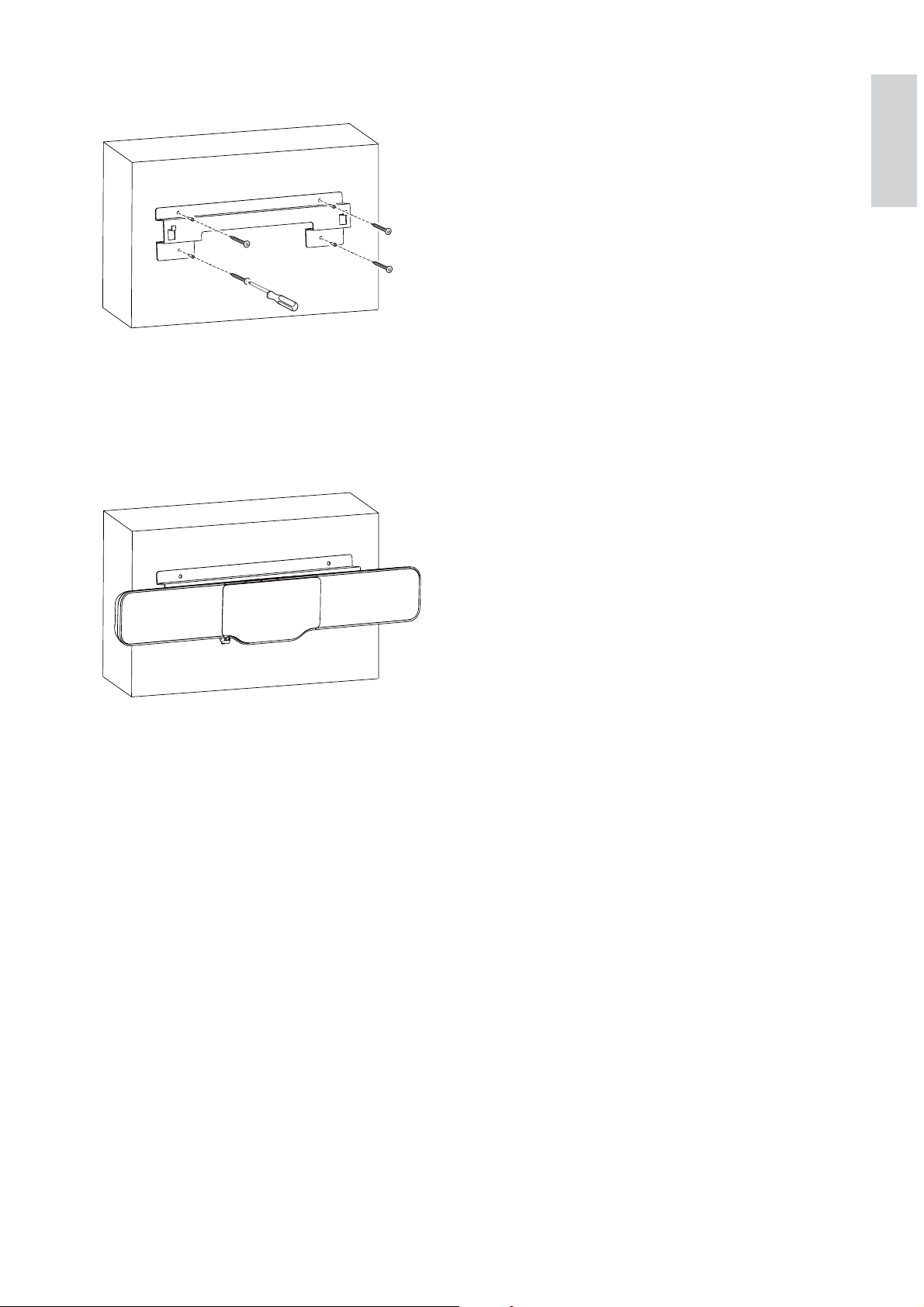

Mount the main unit and speakers 34

4

EN

1 Important

Know these safety symbols

This ‘bolt of lightning’ indicates uninsulated
material within your unit may cause an electrical
shock. For the safety of everyone in your
household, please do not remove product
covering.
The ‘exclamation point’ calls attention to
features for which you should read the enclosed
literature closely to prevent operating and
maintenance problems.
WARNING: To reduce the risk of fi re or electric
shock, this apparatus should not be exposed to
rain or moisture and objects fi lled with liquids,
such as vases, should not be placed on this
apparatus.
CAUTION: To prevent electric shock, match

wide blade of plug to wide slot, fully insert.

Safety

h Do not install near any heat sources such

as radiators, heat registers, stoves, or
other apparatus (including amplifi ers) that
produce heat.

i For countries with a polarized mains,

do not defeat the safety purpose of
the polarized or grounding-type plug. A
polarized plug has two blades with one
wider than the other. A grounding type
plug has two blades and a third grounding
prong. The wide blade or the third prong
is provided for your safety. If the provided
plug does not fi t into your outlet, consult
an electrician for replacement of the
obsolete outlet.
Caution: To prevent electric shock, match
the wide blade of the plug to the wide

slot, fully insert.

j Protect the power cord from being

walked on or pinched, particularly at
plugs, convenience receptacles, and the
point where they exit from the apparatus.

k Only use attachments/accessories

specifi ed by the manufacturer.

l Use only with the cart, stand, tripod,

bracket, or table specifi ed by the
manufacturer or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination to
avoid injury from tip-over.

English

a Read these instructions.
b Keep these instructions.
c Heed all warnings.
d Follow all instructions.
e Do not use this apparatus near water.
f Clean only with dry cloth.
g Do not block any ventilation openings.

Install in accordance with the
manufacturer’s instructions.

m Unplug this apparatus during lightning

storms or when unused for long periods
of time.

EN

5

n Refer all servicing to qualifi ed service

personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug
is damaged, liquid has been spilled or
objects have fallen into the apparatus, the
apparatus has been exposed to rain or
moisture, does not operate normally, or
has been dropped.

o Battery usage CAUTION – To prevent

battery leakage which may result in bodily
injury, property damage, or damage to the
apparatus:

Install all batteries correctly, + and - as •
marked on the apparatus.
Do not mix batteries (old and new or •
carbon and alkaline, etc.).
Remove batteries when the unit is not •
used for a long time.
The batteries shall not be exposed to •
excessive heat such as sunshine, fi re
or the like.

p Apparatus shall not be exposed to

dripping or splashing.

q Do not place any sources of danger on

the apparatus (e.g. liquid fi lled objects,
lighted candles).

r This product may contain lead and

mercury. Disposal of these materials
may be regulated due to environmental
considerations. For disposal or recycling
information, please contact your local
authorities or the Electronic Industries

Alliance: www.eiae.org.

Warning

Where the MAINS plug or an appliance coupler is used •
as the disconnect device, the disconnect device shall
remain readily operable.

Wall mounting of the unit should only be
performed by qualifi ed personnel. The unit
must only be mounted on an appropriate wall
bracket and on a wall that can safely hold the
weight of the unit. Improper wall mounting
can result in severe injury or damage. Do not
attempt to wall mount the unit yourself.

Notice

Any changes or modifi cations made to this
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.

Environmental information

All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and old
equipment.

Warning

Never remove the casing of this unit. •
Never lubricate any part of this unit.•
Place this unit on a fl at, hard and stable surface.•
Never place this unit on other electrical equipment.•
Only use this unit indoors. Keep this unit away from •
water, moisture and liquid-fi lled objects.

•

Keep this unit away from direct sunlight, naked fl ames
or heat.

•

Never look into the laser beam inside the unit.

6

EN

The making of unauthorized copies of copy­protected material, including computer
programs, fi les, broadcasts and sound
recordings, may be an infringement of
copyrights and constitute a criminal offence.
This equipment should not be used for such
purposes.

HDMI, and HDMI logo and High-Defi nition
Multimedia Interface are trademarks or
registered trademarks of HDMI licensing LLC.

Dolby and the double-D symbol are
trademarks of Dolby Laboratories.

English

ENERGY STAR and the ENERGY STAR mark
are registered U.S. marks.

DivX, DivX Certifi ed, and associated logos are
trademarks of DivX, Inc. and are used under
license.
Offi cial DivX® Ultra Certifi ed product.
Plays all versions of DivX® video (including
DivX® 6) with enhanced playback of DivX®
media fi les and the DivX® Media Format.

Manufactured under license under U.S. Patent
#’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762;
6,487,535 & other U.S. and worldwide patents
issued & pending. DTS and DTS Digital
Surround are registered trademarks and the
DTS logos and Symbol are trademarks of DTS,
Inc. © 1996-2007 DTS, Inc. All Rights Reserved.

The USB-IF Logos are trademarks of Universal
Serial Bus Implementers Forum, inc.

Note

This equipment has been tested and found to comply •
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation.

If this equipment does cause harmful
interference to radio or television reception,
which can be determined by turning the
equipment off and on, the user is encouraged
to try to correct the interference by one or
more of the following measures:

Reorient or relocate the receiving antenna.•
Increase the separation between the •
equipment and receiver.
Connect the equipment into an outlet on •
a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced •
radio/TV technician for help.

This apparatus includes this label:

Manufactured under license from Dolby
Laboratories. Dolby, Pro Logic and the
double-D symbol are trademarks of Dolby
Laboratories.

Manufactured under license from Dolby
Laboratories.

Note

The type plate is located on the bottom of the •
apparatus.

EN

7

2 Your DVD

Home Theater

The unit supports these media/disc formats:

System

Congratulations on your purchase, and
welcome to Philips! To fully benefi t from the
support that Philips offers, register your product
at www.Philips.com/welcome.
This DVD Home Theater System is designed
to complement your home perfectly. Enjoy the
DVD Home Theater System with multi-channel
surround sound and excellent picture quality.

Introduction

With this unit, you can:

watch video from DVD/VCD/SVCD or •
USB devices
enjoy audio from discs or USB devices•
view pictures from discs or USB devices•
listen to FM radio•
Control EasyLink-compliant devices •
through a single remote control
Sync audio output with the video output•

You can enrich sound output with these
sound effects:

Surround sound exprience•
Preset sound modes•

Recordable

ReWritable

You can play DVD discs with the following
region codes:

DVD region code Countries

China

What’s in the box

Check and identify the contents of your
package:

Main unit•
Speakers (x 2)•
Digital wireless subwoofer•
Power adapter for the main unit•
Remote control (with batteries)•
FM wire antenna•
AV cable (red/white/yellow)•
USB extension cable•
Wall mount bracket and screws (x4)•

8

EN

Overview of the main unit

i

jl k

b ca e hd gf

English

HSB4383

iR

Caution

Use of controls or adjustments or performance of •
procedures other than herein may result in hazardous
radiation exposure or other unsafe operation.

a SOURCE

Select a source.•

b MP3 LINK

Jack for an external audio device.•

c

Turn on the unit or switch to standby •
mode.

d

Stop play.•
Erase a preset radio station.•

e VOL -/+

Adjust volume.•

g

Open the disc compartment.•

h

Start or pause play.•

i Disc compartment
j Remote control sensor
k Display panel

Display current status.•

l

USB socket.•

f

/

Skip to the previous/next title/•
chapter/track.
Select a preset radio station.•

EN

9

Overview of the remote
control

b Source selection keys

Select a source.•

c

OPTIONS

Access or exit the system setup menu.•

w

v

u

a

b

c
d
e

f

g
h

i
j

d

/

e OK

f

/ ( / )

g

For menus: navigate up/down.•
Move an enlarged picture up/down.•
Rotate or invert pictures.•

Confi rms an entry or selection.•

For menus, navigate left/right.•
Search within a track or disc.•
Move an enlarged picture left/right.•
Tune to a radio station.•

INFO

For video/audio play, display •
information about the current status
or the disc.
For pictures, display a thumbnail view •
of picture fi les.

t

s

r

q

p

a

Turn on the unit or switch to standby •
mode.

k

l

m

n

o

h

/

Skip to the previous/next title/•
chapter/track.
Select a preset radio station.•

i

Start or pause play.•

j

Stop play.•
Erase a preset radio station.•

k TREBLE / BASS

Selects treble or bass mode. Press •
+/- to set the level for treble or bass.

l Numeric keypad

Select a title/chapter/track directly.•
Select a preset radio station directly.•

m AUDIO SYNC

Access audio delay setting.•

n SOUND

Selects a predefi ned sound effect.•

10

EN

o ZOOM

For pictures or video: zoom in/out.•

p REPEAT A-B

Repeat a specifi c section within a •
track/disc.

q REPEAT /PROGRAM

Selects or turns off repeat or shuffl e •
mode.
Program radio stations.•

r SUBTITLE

Select DVD or DivX subtitle language.•

s SURROUND

Enable/disable Dolby Virtual Speakers •
(DVS) sound effect.

English

t

+/-

Adjust volume.•

u

Mute or restore volume.•

v MENU/BACK

Return to the previous screen.•
For video discs: access or exit the disc •
menu.
For video discs with playback •
control(PBC): turn on/off PBC.

w AUDIO

For VCD, select stereo, mono-left or •
mono-right channel.
For DVD/DivX video, select an audio •
language.

EN

11

3 Connect

Place the unit

Place the unit near to the TV.

1
2 Keep the speakers at the normal listening

ear-level and directly parallel to the
listening area.

2 Attach the left speaker to the left side of

the main unit.

3 Repeat step 2 to attach the right speaker.

3 Place the subwoofer at the corner of the

room or at least one meter away from the
TV.

Note

To avoid magnetic interference or unwanted noise, •
never place this apparatus and speakers too close to
any radiation devices.

•

Never place this unit in an enclosed cabinet.
Install this unit near the AC outlet where the AC power •
plug can be easily reached.

Attach speakers to the main
unit

Place the main unit on a soft and fl at

1

surface.

Ensure that the rear side faces •
upwards.

4 Insert the supplied studs into the holes.

Connect TV

Connect video cables

With this connection, you can watch video from
the unit on the TV screen.
You can select the best video connection that
your TV supports.

Option 1: Connect through HDMI •
(for a HDMI, DVI or HDCP-compliant
TV).

12

EN
