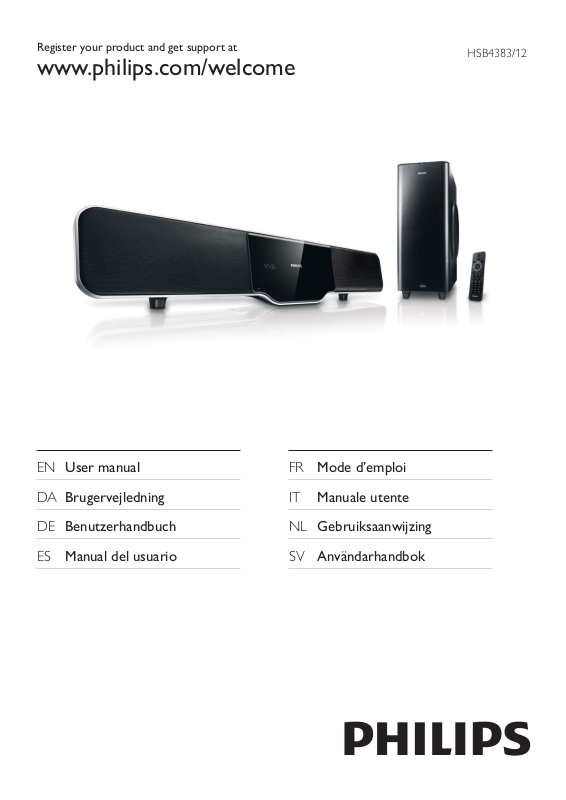

Philips HSB4383-12 User Manual
Register your product and get support at
www.philips.com/welcome
HSB4383/12
EN User manual
DA Brugervejledning
DE Benutzerhandbuch
ES Manual del usuario
FR Mode d’emploi
IT Manuale utente
NL Gebruiksaanwijzing
SV Användarhandbok
5 Play 20
Contents
1 Important 5
Safety 5
Important Safety Instructions 5
Safety-Important notes for users in
the U.K. 6
Notice 7
Recycling 7
2 Your DVD Home Theater System 9
Introduction 9
What’s in the box 9
Overview of the main unit 10
Overview of the remote control 11
3 Connect 13
Place the unit 13
Attach speakers to the main unit 13
Connect TV 13
Connect video cables 13
Option 1: Connect through HDMI 14
Option2: Connect through SCART 14
Option 3: Connect through
component video 14
Option 4: Connect through
composite video 15
Connect audio cables 15
Connect FM antenna 15
Connect power 16
Play discs 20
Use the disc menu 20
Select an audio language 20
Select a subtitle language 20
Sync audio output with video play 20
Play from USB 21
Play DivX video 21
Play MP3/WMA/picture fi les 21
Play control 22
Select repeat/shuffl e play options 22
Repeat A-B (DVD/VCD/CD/
MP3/WMA) 22
Search forward/backward 22
Resume video play from last
stopped point 22
Play options 22
Display play information 22
Zoom in/out image 22
Change the audio channel 22
Picture view options 23
Start slideshow of pictures 23
Rotate picture 23
Start musical slideshow 23
6 Adjust settings 24
General setup 24
Switch to standby mode 24
Audio setup 25
Video setup 25
Preference setup 26
English
4 Get started 17
Prepare the remote control 17
Turn on 17
Set up wireless connection
manually 17
Find the correct viewing channel 18
Select the correct TV system 18
Select menu display language 18
Turn on Progressive Scan 18
Turn off progressive scan
manually 19
Use Philips EasyLink 19
7 Tune to FM radio stations 28
Program radio stations automatically 28
Program radio stations manually 28
Tune to a preset radio station 28
Set RDS clock 28
Show RDS information 29
EN
3
8 Adjust volume level and sound effect
30
Adjust volume level 30
Select a sound effect 30
Select a preset sound effect 30
Select surround sound effect 30
Adjust treble/bass level 30
Mute sound 30
9 Other features 31
Connect other devices 31
Listen to an audio player 31
10 Product information 32
Specifi cations 32
Amplifi er 32
Disc 32
Tuner (FM) 32
Speakers 32
General information 33
Supported disc formats 33
USB playability information 33
11 Troubleshooting 34
12 Appendix 36

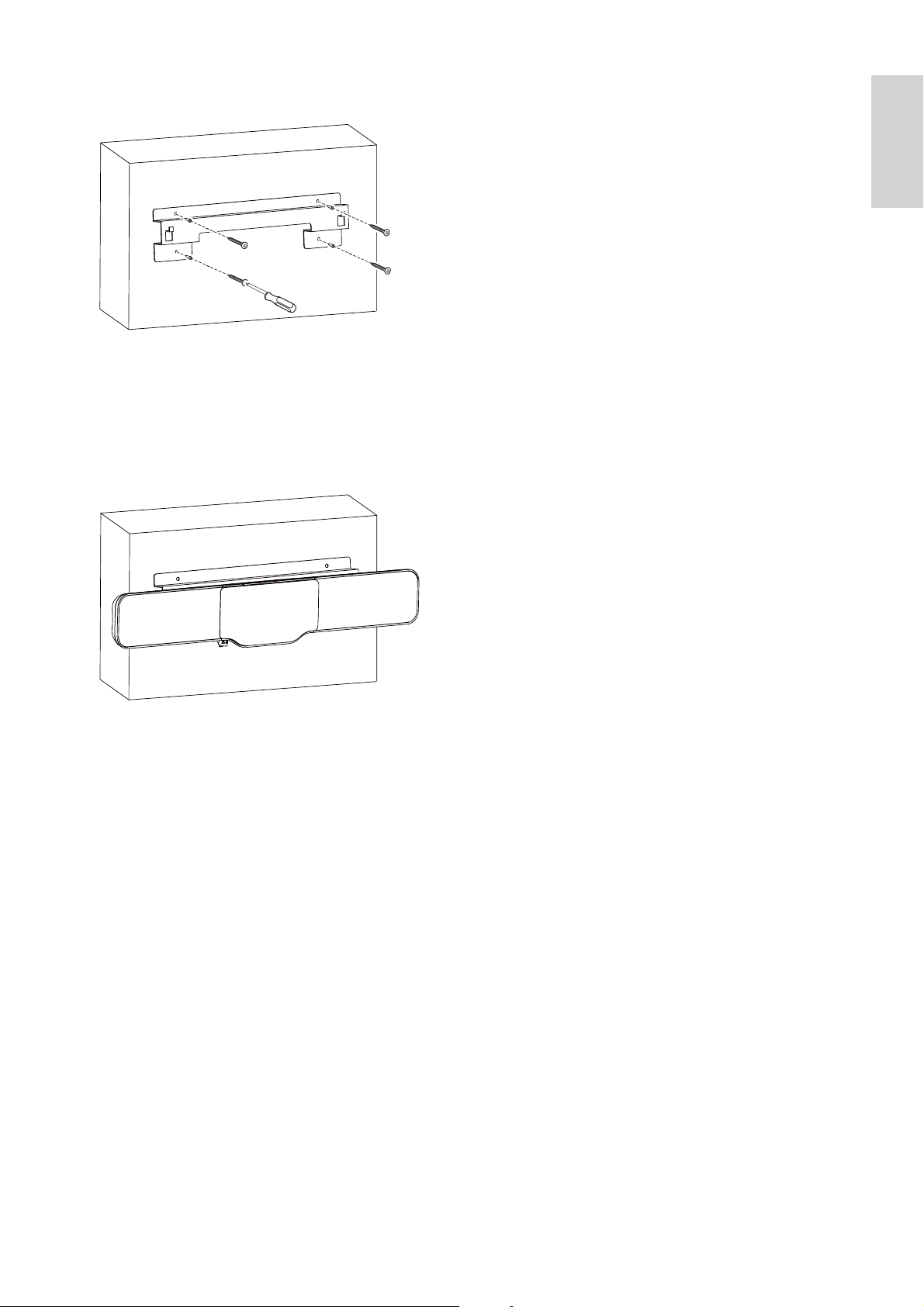

Mount to a wall 36
What’s in the supplied mounting kit 36
What else you’ll need 36
Mount the main unit and speakers 36
4
EN
1 Important
Know these safety symbols
f Clean only with dry cloth.
g Do not block any ventilation openings.
Install in accordance with the
manufacturer’s instructions.
h Do not install near any heat sources such
as radiators, heat registers, stoves, or
other apparatus (including amplifi ers) that
produce heat.
i Protect the power cord from being
walked on or pinched, particularly at
plugs, convenience receptacles, and the
point where they exit from the apparatus.
j Only use attachments/accessories
specifi ed by the manufacturer.
English
This ‘bolt of lightning’ indicates uninsulated
material within your unit may cause an electrical
shock. For the safety of everyone in your
household, please do not remove product
covering.
The ‘exclamation point’ calls attention to
features for which you should read the enclosed
literature closely to prevent operating and
maintenance problems.
WARNING: To reduce the risk of fi re or electric
shock, this apparatus should not be exposed to
rain or moisture and objects fi lled with liquids,
such as vases, should not be placed on this
apparatus.
CAUTION: To prevent electric shock, match
wide blade of plug to wide slot, fully insert.
Safety
Important Safety Instructions
a Read these instructions.
b Keep these instructions.
c Heed all warnings.
d Follow all instructions.
e Do not use this apparatus near water.
k Use only with the cart, stand, tripod,
bracket, or table specifi ed by the
manufacturer or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination to
avoid injury from tip-over.
l Unplug this apparatus during lightning
storms or when unused for long periods
of time.
m Refer all servicing to qualifi ed service
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug
is damaged, liquid has been spilled or
objects have fallen into the apparatus, the
apparatus has been exposed to rain or
moisture, does not operate normally, or
has been dropped.
n Battery usage CAUTION – To prevent
battery leakage which may result in bodily
injury, property damage, or damage to the
unit:
EN
5
Install all batteries correctly, + and - as •
marked on the unit.
Do not mix batteries (old and new or •
carbon and alkaline, etc.).
Remove batteries when the unit is not •
used for a long time.
o Apparatus shall not be exposed to
dripping or splashing.
p Do not place any sources of danger on
the apparatus (e.g. liquid fi lled objects,
lighted candles).
q This product may contain lead and
mercury. Disposal of these materials
may be regulated due to environmental
considerations. For disposal or recycling
information, please contact your local
authorities or the Electronic Industries
Alliance: www.eiae.org.
As these colours may not correspond with the
colour markings identifying the terminals in your
plug, proceed as follows:
Connect the blue wire to the terminal •
marked N or coloured black.
Connect the brown wire to the terminal •
marked L or coloured red.
Do not connect either wire to the earth •
terminal in the plug, marked E (or e) or
coloured green (or green and yellow).
Before replacing the plug cover, make certain
that the cord grip is clamped over the sheath of
the lead - not simply over the two wires.
Copyright in the U.K.
Recording and playback of material may require
consent. see Copyright Act 1956 and The
performer’s Protection Acts 1958 to 1972.
Warning
Safety-Important notes for users in
the U.K.
Mains plug
This apparatus is fi tted with an approved 13
Amp plug. To change a fuse in this type of plug
proceed as follows:
a Remove fuse cover and fuse.
b Fix new fuse which should be a BS1362 5
Amp, A.S.T.A. or BSI approved type.
c Refi t the fuse cover.
If the fi tted plug is not suitable for your socket
outlets, it should be cut off and an appropriate
plug fi tted in its place.
If the mains plug contains a fuse, this should
have a value of 5 Amp. If a plug without a fuse
is used, the fuse at the distribution board should
not be greater than 5 Amp.
Note: The severed plug must be disposed off
to avoid a possible shock hazard should it be
inserted into a 13 Amp socket elsewhere.
How to connect a plug
The wires in the mains lead are coloured with
the following code: blue = neutral (N), brown
= live (L).
Never remove the casing of this unit. •
Never lubricate any part of this unit.•
Place this unit on a fl at, hard and stable surface.•
Never place this unit on other electrical equipment.•
Only use this unit indoors. Keep this unit away from •
water, moisture and liquid-fi lled objects.
•
Keep this unit away from direct sunlight, naked fl ames
or heat.
•
Never look into the laser beam inside the unit.
Warning
Where the MAINS plug or an appliance coupler is used •
as the disconnect device, the disconnect device shall
remain readily operable.
Wall mounting of the unit should only be
performed by qualifi ed personnel. The unit
must only be mounted on an appropriate wall
bracket and on a wall that can safely hold the
weight of the unit. Improper wall mounting
can result in severe injury or damage. Do not
attempt to wall mount the unit yourself.
6
EN
Notice
This product complies with the radio
interference requirements of the European
Community.
This product complies with the requirements
of the following directives and guidelines:
2004/108/EC + 2006/95/EC
Any changes or modifi cations made to this
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
Recycling
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When you see the crossed-out wheel bin
symbol attached to a product, it means the
product is covered by the European Directive
2002/96/EC:
Please inform yourself about the local rules on
separate collection of batteries. The correct
disposal of batteries helps prevent potentially
negative consequences on the environment and
human health.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and old
equipment.
The making of unauthorized copies of copyprotected material, including computer
programs, fi les, broadcasts and sound
recordings, may be an infringement of
copyrights and constitute a criminal offence.
This equipment should not be used for such
purposes.
English
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products. The correct
disposal of your old product helps prevent
potentially negative consequences on the
environment and human health.
Your product contains batteries covered by the
European Directive 2006/66/EC, which cannot
be disposed of with normal household waste.
When you see the crossed-out wheel bin
symbol with the chemical symbol ‘Pb’, it means
that the batteries comply with the requirement
set by the directive for lead:
HDMI, and HDMI logo and High-Defi nition
Multimedia Interface are trademarks or
registered trademarks of HDMI licensing LLC.
DivX, DivX Certifi ed, and associated logos are
trademarks of DivX, Inc. and are used under
license.
EN
7
Offi cial DivX® Ultra Certifi ed product.
Plays all versions of DivX® video (including
DivX® 6) with enhanced playback of DivX®
media fi les and the DivX® Media Format.
Manufactured under license under U.S. Patent
#’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762;
6,487,535 & other U.S. and worldwide patents
issued & pending. DTS and DTS Digital
Surround are registered trademarks and the
DTS logos and Symbol are trademarks of DTS,
Inc. © 1996-2007 DTS, Inc. All Rights Reserved.
The USB-IF Logos are trademarks of Universal
Serial Bus Implementers Forum, inc.
Manufactured under license from Dolby
Laboratories. Dolby, Pro Logic and the
double-D symbol are trademarks of Dolby
Laboratories.
Note
This equipment has been tested and found to comply •
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful
interference to radio or television reception,
which can be determined by turning the
equipment off and on, the user is encouraged
to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.•
Increase the separation between the •
equipment and receiver.
Connect the equipment into an outlet on •
a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced •
radio/TV technician for help.
This apparatus includes this label:
Manufactured under license from Dolby
Laboratories.
Dolby and the double-D symbol are
trademarks of Dolby Laboratories.
ENERGY STAR and the ENERGY STAR mark
are registered U.S. marks.
8
EN
Note
The type plate is located on the bottom of the •
apparatus.
2 Your DVD
The unit supports these media/disc formats:
Home Theater
System
Congratulations on your purchase, and
welcome to Philips! To fully benefi t from the
support that Philips offers, register your product
at www.Philips.com/welcome.
This DVD Home Theater System is designed
to complement your home perfectly. Enjoy the
DVD Home Theater System with multi-channel
surround sound and excellent picture quality.
Introduction
With this unit, you can:
watch video from DVD/VCD/SVCD or •
USB devices
enjoy audio from discs or USB devices•
view pictures from discs or USB devices•
listen to FM radio•
Control EasyLink-compliant devices •
through a single remote control
Sync audio output with the video output•
You can enrich sound output with these
sound effects:
Surround sound exprience•
Preset sound modes•
English
Recordable
ReWritable
You can play DVD discs with the following
region codes:
DVD region code Countries
Europe
What’s in the box
Check and identify the contents of your
package:
Main unit•
Speakers (x 2)•
Digital wireless subwoofer•
Power adapter for the main unit•
Remote control (with batteries)•
FM wire antenna•
AV cable (red/white/yellow)•
USB extension cable•
SCART adapter•
Wall mount bracket and screws (x4)•
EN
9
Overview of the main unit
i
jl k
b ca e hd gf
HSB4383
iR
Caution
Use of controls or adjustments or performance of •
procedures other than herein may result in hazardous
radiation exposure or other unsafe operation.
a SOURCE
Select a source.•
b MP3 LINK
Jack for an external audio device.•
c
Turn on the unit or switch to standby •
mode.
d
Stop play.•
Erase a preset radio station.•
e VOL -/+
Adjust volume.•
g
Open the disc compartment.•
h
Start or pause play.•
i Disc compartment
j Remote control sensor
k Display panel
Display current status.•
l
USB socket.•
f
10
/
Skip to the previous/next title/•
chapter/track.
Select a preset radio station.•
EN
Overview of the remote
control
b Source selection keys
Select a source.•
c
OPTIONS
Access or exit the system setup menu.•
English
w
v
u
a
b
c
d
e
f
g
h
i
j
d
/
e OK
f
/ ( / )
g
For menus: navigate up/down.•
Move an enlarged picture up/down.•
Rotate or invert pictures.•
Confi rms an entry or selection.•
For menus, navigate left/right.•
Search within a track or disc.•
Move an enlarged picture left/right.•
Tune to a radio station.•
INFO
For video/audio play, display •
information about the current status
or the disc.
For pictures, display a thumbnail view •
of picture fi les.
For FM radio, display RDS clock.•
t
s
r
q
p
a
Turn on the unit or switch to standby •
mode.
k
l
m
n
o
h
/
Skip to the previous/next title/•
chapter/track.
Select a preset radio station.•
i
Start or pause play.•
j
Stop play.•
Erase a preset radio station.•
k TREBLE / BASS
Selects treble or bass mode. Press •
+/- to set the level for treble or bass.
l Numeric keypad
Select a title/chapter/track directly.•
Select a preset radio station directly.•
m AUDIO SYNC
Access audio delay setting.•
n SOUND
Selects a predefi ned sound effect.•
EN
11
o ZOOM
For pictures or video: zoom in/out.•
p REPEAT A-B
Repeat a specifi c section within a •
track/disc.
q REPEAT /PROGRAM
Selects or turns off repeat or shuffl e •
mode.
Program radio stations.•
r SUBTITLE
Select DVD or DivX subtitle language.•
s SURROUND
Enable/disable Dolby Virtual Speakers •
(DVS) sound effect.
t
+/-
Adjust volume.•
u
Mute or restore volume.•
v MENU/BACK
Return to the previous screen.•
For video discs: access or exit the disc •
menu.
For video discs with playback •
control(PBC): turn on/off PBC.
w AUDIO
For VCD, select stereo, mono-left or •
mono-right channel.
For DVD/DivX video, select an audio •
language.
12
EN
3 Connect
Place the unit
Place the unit near to the TV.
1
English
2 Attach the left speaker to the left side of
the main unit.
2 Keep the speakers at the normal listening
ear-level and directly parallel to the
listening area.
3 Place the subwoofer at the corner of the
room or at least one meter away from the
TV.
Note
To avoid magnetic interference or unwanted noise, •
never place this apparatus and speakers too close to
any radiation devices.
•
Never place this unit in an enclosed cabinet.
Install this unit near the AC outlet where the AC power •
plug can be easily reached.
Attach speakers to the main
unit
3 Repeat step 2 to attach the right speaker.
4 Insert the supplied studs into the holes.
Connect TV
Connect video cables
Place the main unit on a soft and fl at
1
surface.
Ensure that the rear side faces •
upwards.
With this connection, you can watch video from
the unit on the TV screen.
You can select the best video connection that
your TV supports.
Option 1: Connect through HDMI •
(for a HDMI, DVI or HDCP-compliant
TV).
13
EN
Loading...
