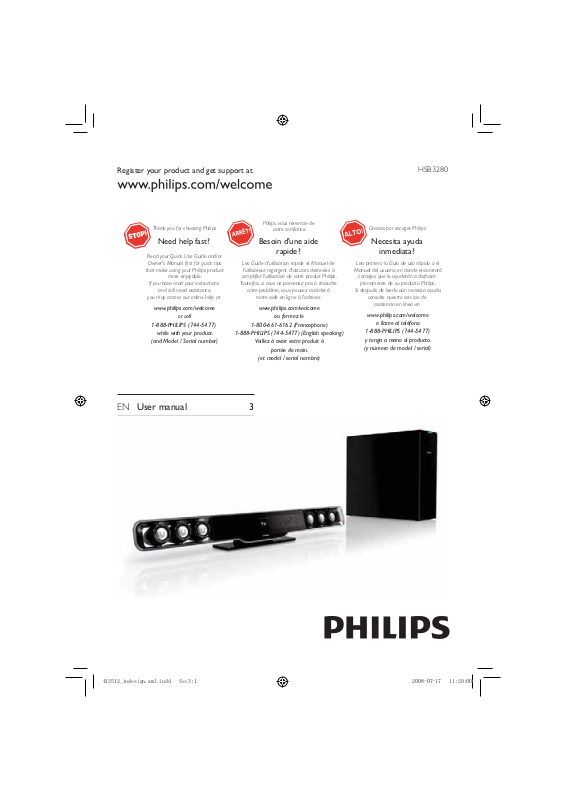

Philips HSB3280MU, HSB3280SW User Manual

Register your product and get support at

HSB3280

Thank you for choosing Philips.	Philips vous remercie de	Gracias por escoger Philips
	votre confiance.

	Need help fast?	Besoin d'une aide	Necesita ayuda
	Read your Quick Use Guide and/or	rapide?	inmediata?
	Owner's Manual first for quick tips	Les Guide d'utilisation rapide et Manuel de	Lea primero la Guía de uso rápido o el
	that make using your Philips product	l'utilisateur regorgent d'astuces destinées à	Manual del usuario, en donde encontrará
	more enjoyable.	simplifier l'utilisation de votre produit Philips.	consejos que le ayudarán a disfrutar
	If you have read your instructions	Toutefois, si vous ne parvenez pas à résoudre	plenamente de su producto Philips.
	and still need assistance,	votre probléme, vous pouvez accéder à	Si después de leerlo aún necesita ayuda,
	you may access our online help at	notre aide en ligne à l'adresse	consulte nuestro servicio de
	www.philips.com/welcome	www.philips.com/welcome	asistencia en línea en
			www.philips.com/welcome
	or call	ou formez le
	1-888-PHILIPS (744-5477)	1-800-661-6162 (Francophone)	o llame al teléfono
	while with your product.	1-888-PHILIPS (744-5477) (English speaking)	1-888-PHILIPS (744-5477)
	(and Model / Serial number)	Veillez à avoir votre produit à	y tenga a mano el producto.
		portée de main.	(y número de model / serial)
		(et model / serial nombre)

EN User manual	3

BLQGHVLJQ [PO LQGG 6HF

BLQGHVLJQ [PO LQGG 6HF

Return your Product Registration Card or register online at

www.philips.com/welcome today to get the very most from your purchase.

Registering your model with PHILIPS makes you eligible for all of the valuable benefits listed below, so don't miss out. Complete and return your Product Registration Card at once, or register online at www.philips.com/welcome to ensure:

*Proof of Purchase	*Product Safety	*Additional Benefits
Returning the enclosed card	Notification	Registering your product guar-
guarantees that your date of	By registering your product,	antees that you'll receive all of
purchase will be on file, so no	you'll receive notification -	the privileges to which you're
additional paperwork will be	directly from the manufacturer	entitled, including special
required from you to obtain	- in the rare case of a product	money-saving offers.
warrranty service.	recall or safety defect.

Congratulations on your purchase, and welcome to the “family!”

Dear PHILIPS product owner:

Thank you for your confidence in PHILIPS. You’ve selected one of the best-built, bestbacked products available today. We’ll do everything in our power to keep you happy with your purchase for many years to come.

As a member of the PHILIPS “family,” you’re entitled to protection by one of the most comprehensive warranties and outstanding service networks in the industry. What’s more, your purchase guarantees you’ll receive all the information and special offers for which you qualify, plus easy access to accessories from our convenient home shopping network.

Most importantly, you can count on our uncompromising commitment to your total satisfaction.

All of this is our way of saying welcome - and thanks for investing in a PHILIPS product.

P.S. To get the most from your PHILIPS purchase, be sure to complete and return your Product Registration Card at once, or register online at:

www.philips.com/welcome

Know these safetysymbols

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This “bolt of lightning” indicates uninsulated material within your unit may

cause an electrical shock. For the safety of everyone in your household, please do not remove product covering.

The “exclamation point” calls attention to features for which you should read

the enclosed literature closely to prevent operating and maintenance problems.

WARNING: To reduce the risk of fire or electric shock, this apparatus should not be exposed to rain or moisture and objects filled with liquids, such as vases, should not be placed on this apparatus.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert.

ATTENTION: Pour éviter les choc électriques, introduire la lame la plus large de la fiche dans la borne correspondante de la prise et pousser jusqu’au fond.

For Customer Use

Enter below the Serial No. which is located on the rear of the cabinet. Retain this information for future reference.

Model No. __________________________

Serial No. __________________________

Visit our World Wide Web Site at http://www.philips.com/welcome

EN 3

BLQGHVLJQ [PO LQGG 6HF

PHILIPS LIMITED WARRANTY

ONE (1) YEAR

WARRANTY COVERAGE:

PHILIPS warranty obligation is limited to the terms set forth below.

WHO IS COVERED:

Philips, or (d) if any Philips serial number has been removed or defaced, or (e) product, accessories or consumables sold “AS IS” without warranty of any kind by including refurbished Philips product sold “AS IS” by some retailers.

Philips warrants the product to the original purchaser or the person receiving the product as a gift against defects in materials and workmanship as based on the date of original purchase (“Warranty Period”) from an Authorized Dealer. The original sales receipt showing the product name and the purchase date from an authorized retailer is considered such proof.

WHAT IS COVERED:

The Philips warranty covers new products if a defect in material or workmanship occurs and a valid claim is received by Philips within the Warranty Period. At its option, Philips will either (1) repair the product at no charge, using new or refurbished replacement parts, or (2) exchange the product with a product that is new or which has been manufactured from new, or serviceable used parts and is at least functionally equivalent or most comparable to the original product in Philips current inventory, or (3) refund the original purchase price of the product.

Philips warrants replacement products or parts provided under this warranty against defects in materials and workmanship from the date of the replacement or repair for ninety (90) days or for the remaining portion of the original product’s warranty, whichever provides longer coverage for you. When a product or part is exchanged, any replacement item becomes your property and the replaced item becomes Philips’ property. When a refund is given, your product becomes Philips’ property.

Note: Any product sold and identified as refurbished or renewed carries a ninety (90) day limited warranty.

Replacement product can only be sent if all warranty requirements are met. Failure to follow all requirements can result in delay.

WHAT IS NOT COVERED - EXCLUSIONS AND LIMITATIONS:

This Limited Warranty applies only to the new products manufactured by or for Philips that can be identified by the trademark, trade name, or logo affixed to it. This Limited Warranty does not apply to any non-Philips hardware product or any software, even if packaged or sold with the product. Non-Philips manufacturers, suppliers, or publishers may provide a separate warranty for their own products packaged with the bundled product.

Philips is not liable for any damage to or loss of any programs, data, or other information stored on any media contained within the product, or any non-Philips product or part not covered by this warranty. Recovery or reinstallation of programs, data or other information is not covered under this Limited Warranty.

This warranty does not apply (a) to damage caused by accident, abuse, misuse, neglect, misapplication, or non-Philips product, (b) to damage caused by service performed by anyone other than Philips or Philips Authorized Service Location, (c) to a product or a part that has been modified without the written permission of

This Limited Warranty does not cover:

•Shipping charges to return defective product to Philips.

•Labor charges for installation or setup of the product, adjustment of customer controls on the product, and installation or repair of antenna/signal source systems outside of the product.

•Product repair and/or part replacement because of improper installation or maintenance, connections to improper voltage supply, power line surge, lightning damage, retained images or screen markings resulting from viewing fixed stationary content for extended periods, product cosmetic appearance items due to normal wear and tear, unauthorized repair or other cause not within the control of Philips.

•Damage or claims for products not being available for use, or for lost data or lost software.

•Damage from mishandled shipments or transit accidents when returning product to Philips.

•A product that requires modification or adaptation to enable it to operate in any country other than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications.

•A product used for commercial or institutional purposes (including but not limited to rental purposes).

•Product lost in shipment and no signature verification receipt can be provided.

•Failure to operate per Owner’s Manual.

TO OBTAIN ASSISTANCE IN THE U.S.A., PUERTO RICO, OR U.S. VIRGIN ISLANDS…

Contact Philips Customer Care Center at: 1-888-PHILIPS (1-888-744-5477)

TO OBTAIN ASSISTANCE IN CANADA…

1-800-661-6162 (French Speaking)

1-888-PHILIPS (1-888-744-5477) - (English or Spanish Speaking)

REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY FOR THE CONSUMER. PHILIPS SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.

Some states do not allow the exclusions or limitation of incidental or consequential damages, or allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you.

This warranty gives you specific legal rights. You may have other rights which vary from state/province to state/province.

Philips, P.O. Box 671539, Marietta, GA. 30006-0026

3121 233 48802

4EN

BLQGHVLJQ [PO LQGG 6HF

6

6

7

8

Contents

1 Important

Important safety instructions Notice

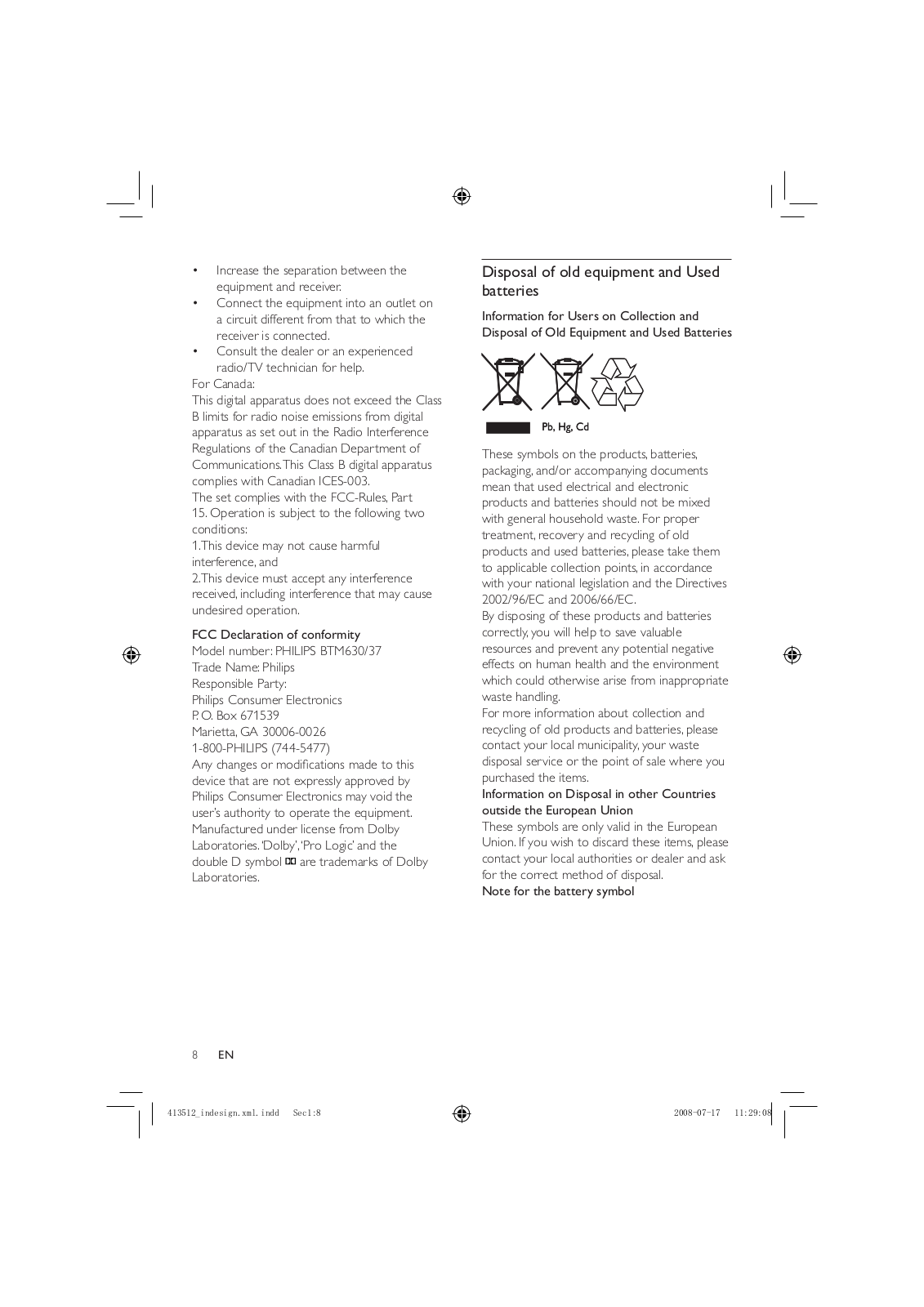

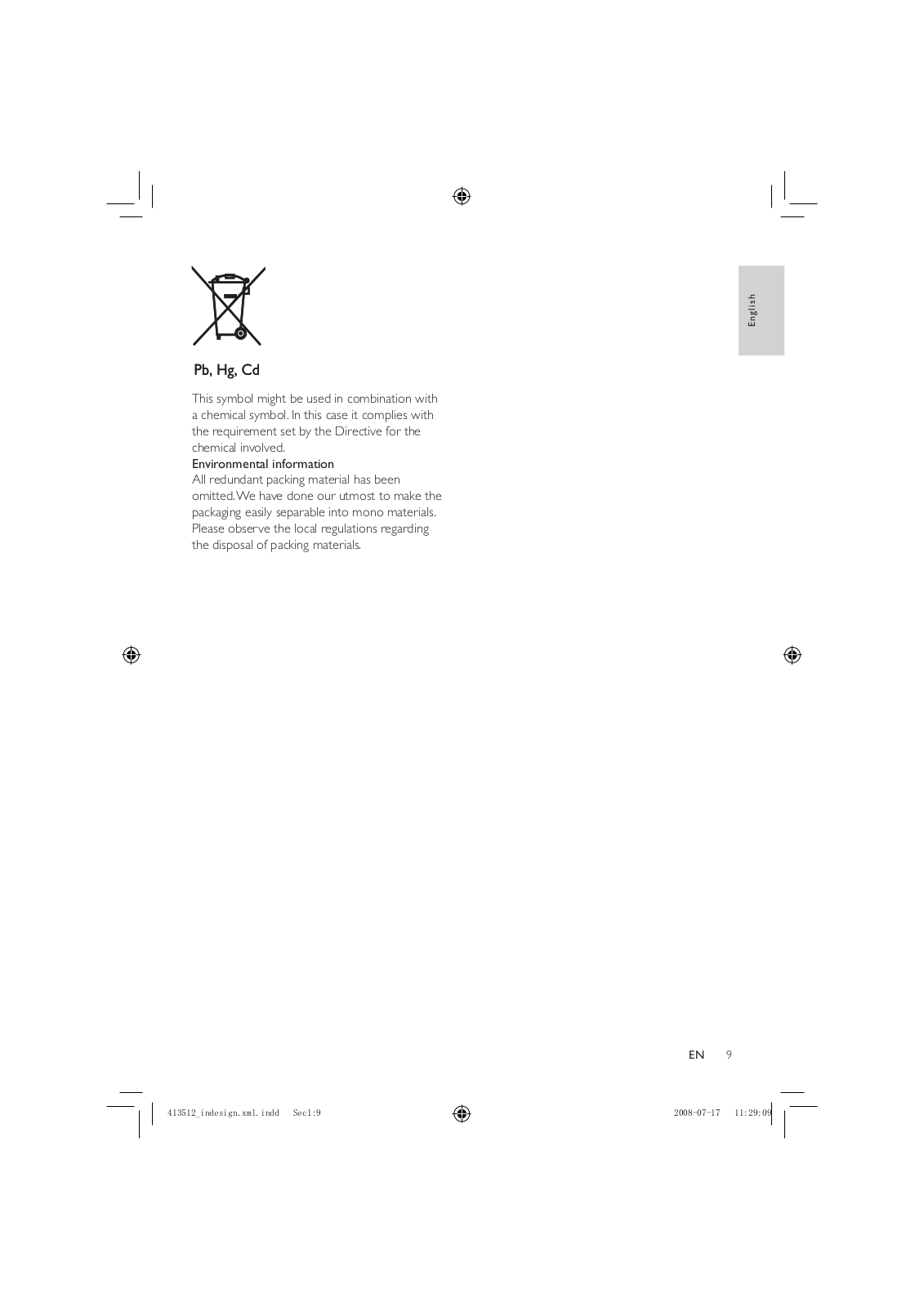

Disposal of old equipment and Used batteries

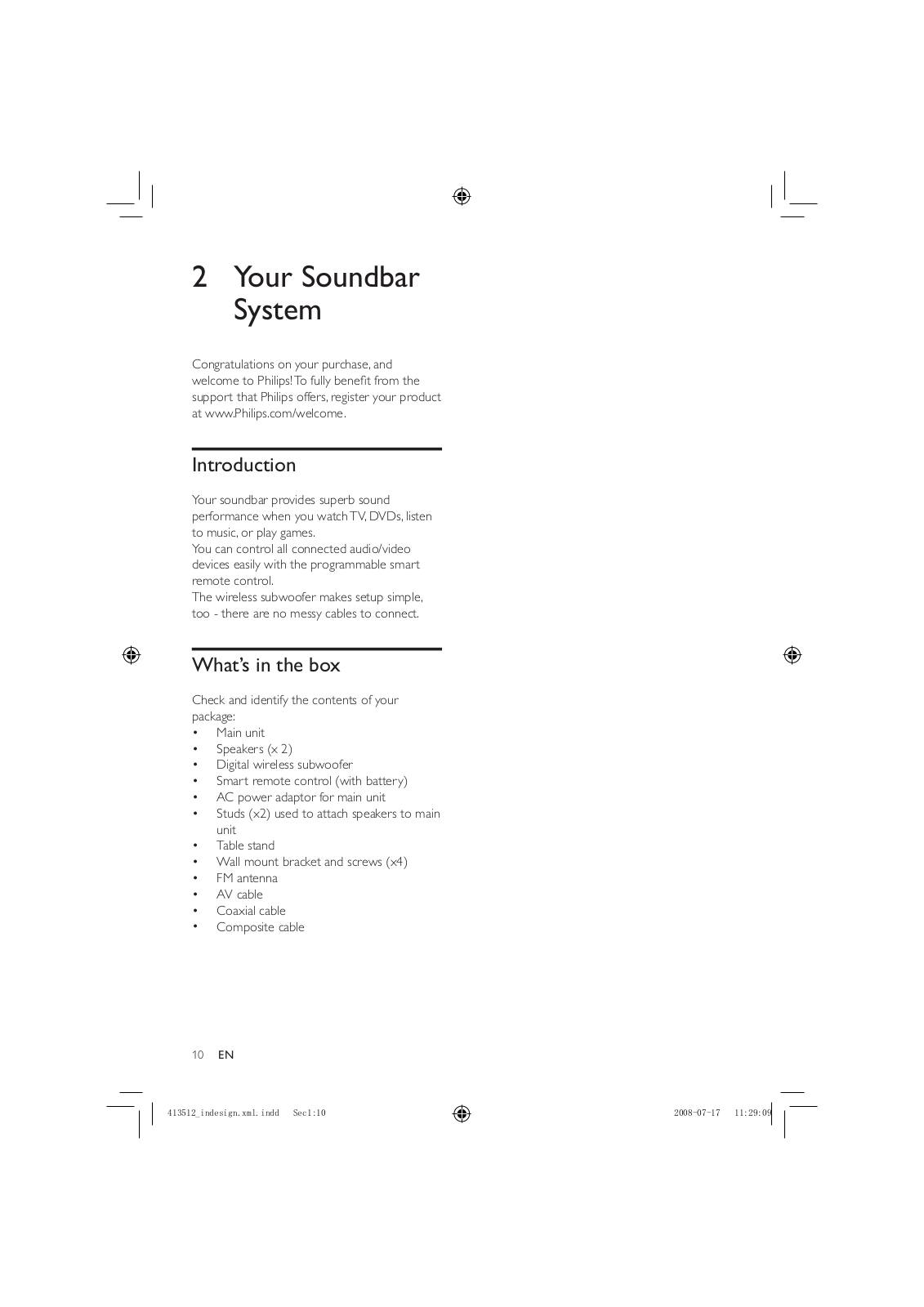

2	Your Soundbar System	10
	Introduction	10
	What’s in the box	10

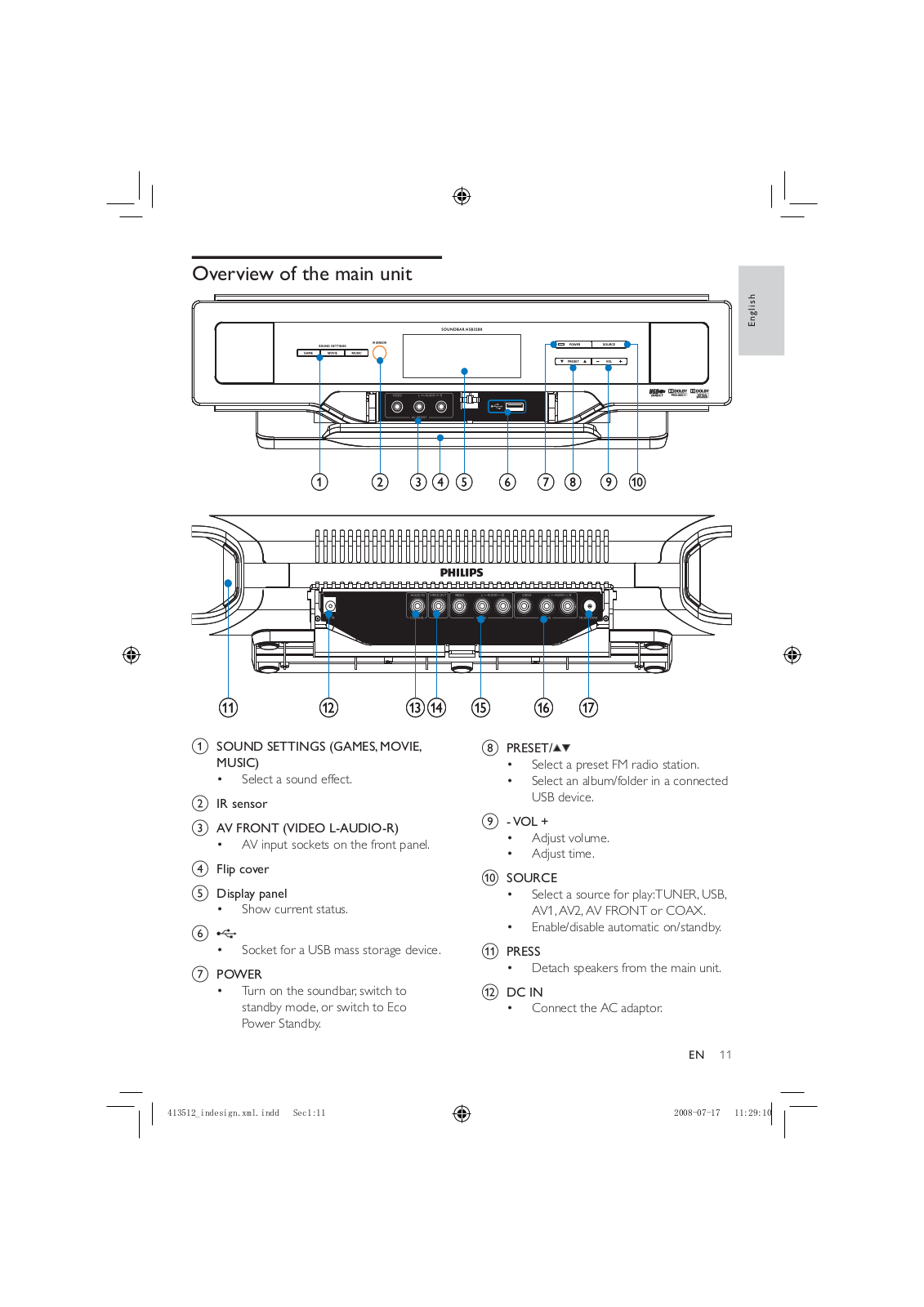

	Overview of the main unit	11

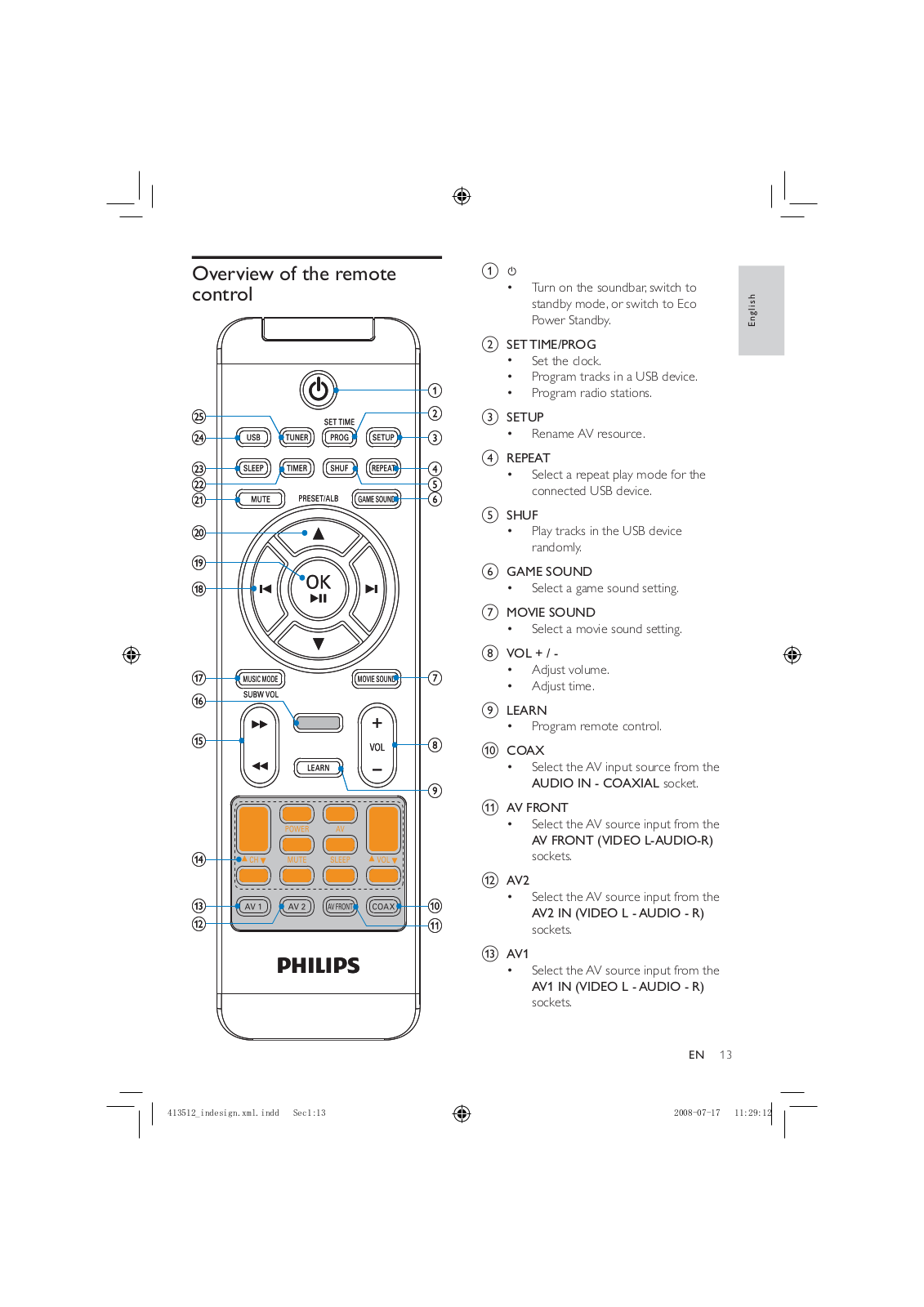

	Overview of the remote control	12

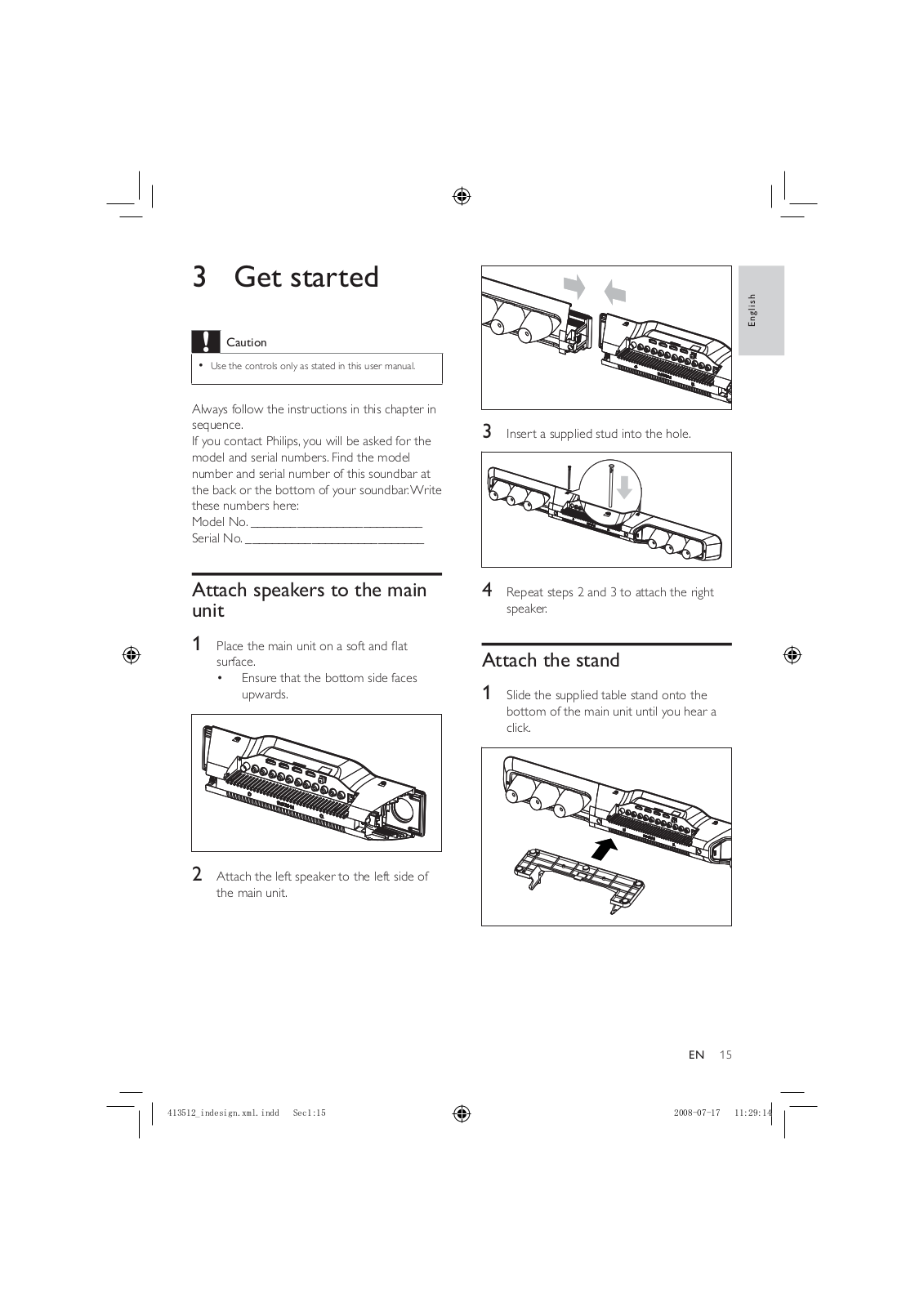

3	Get started	15
	Attach speakers to the main unit	15
	Attach the stand	15

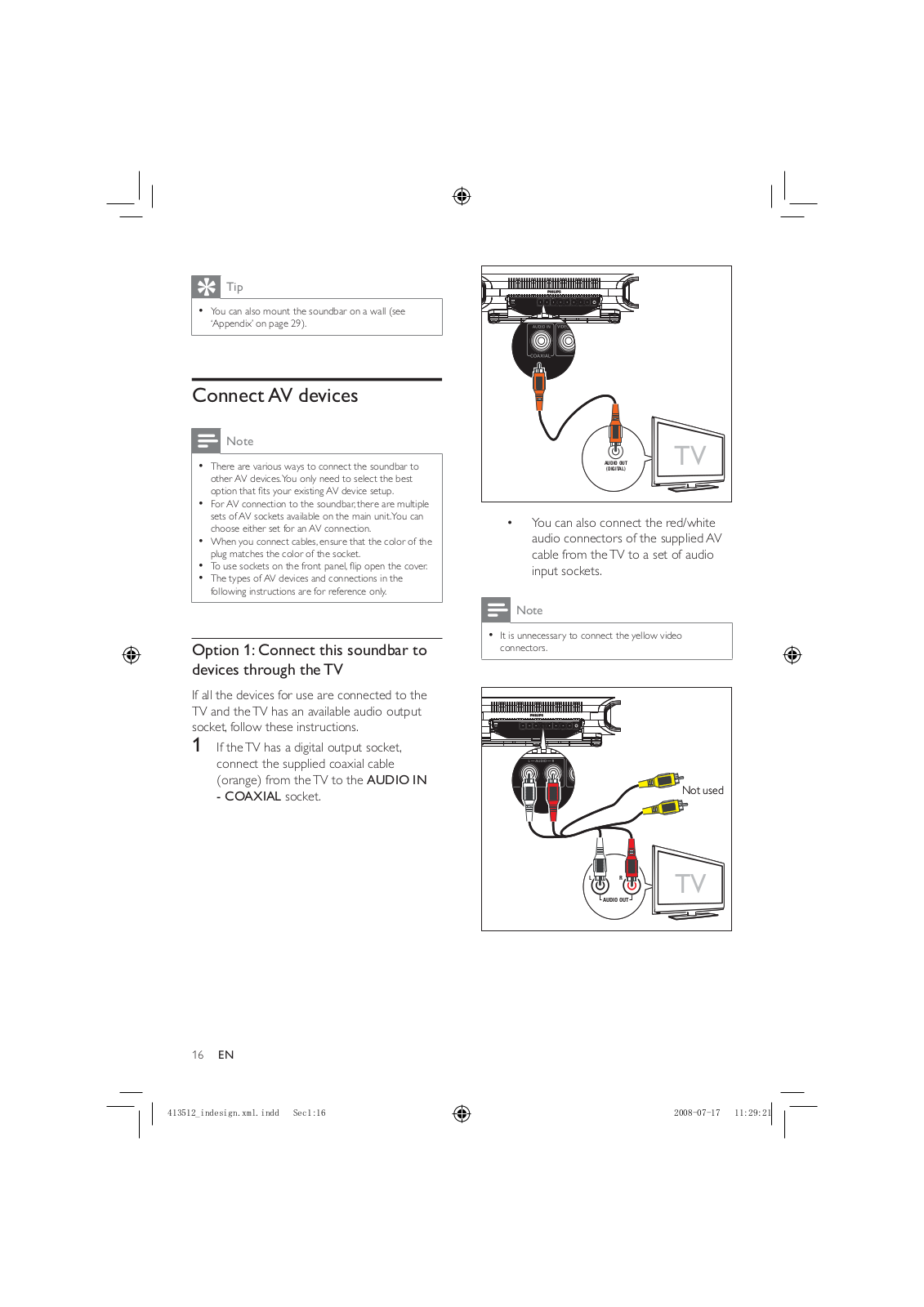

	Connect AV devices	16
	Option 1: Connect this soundbar to
	devices through theTV	16

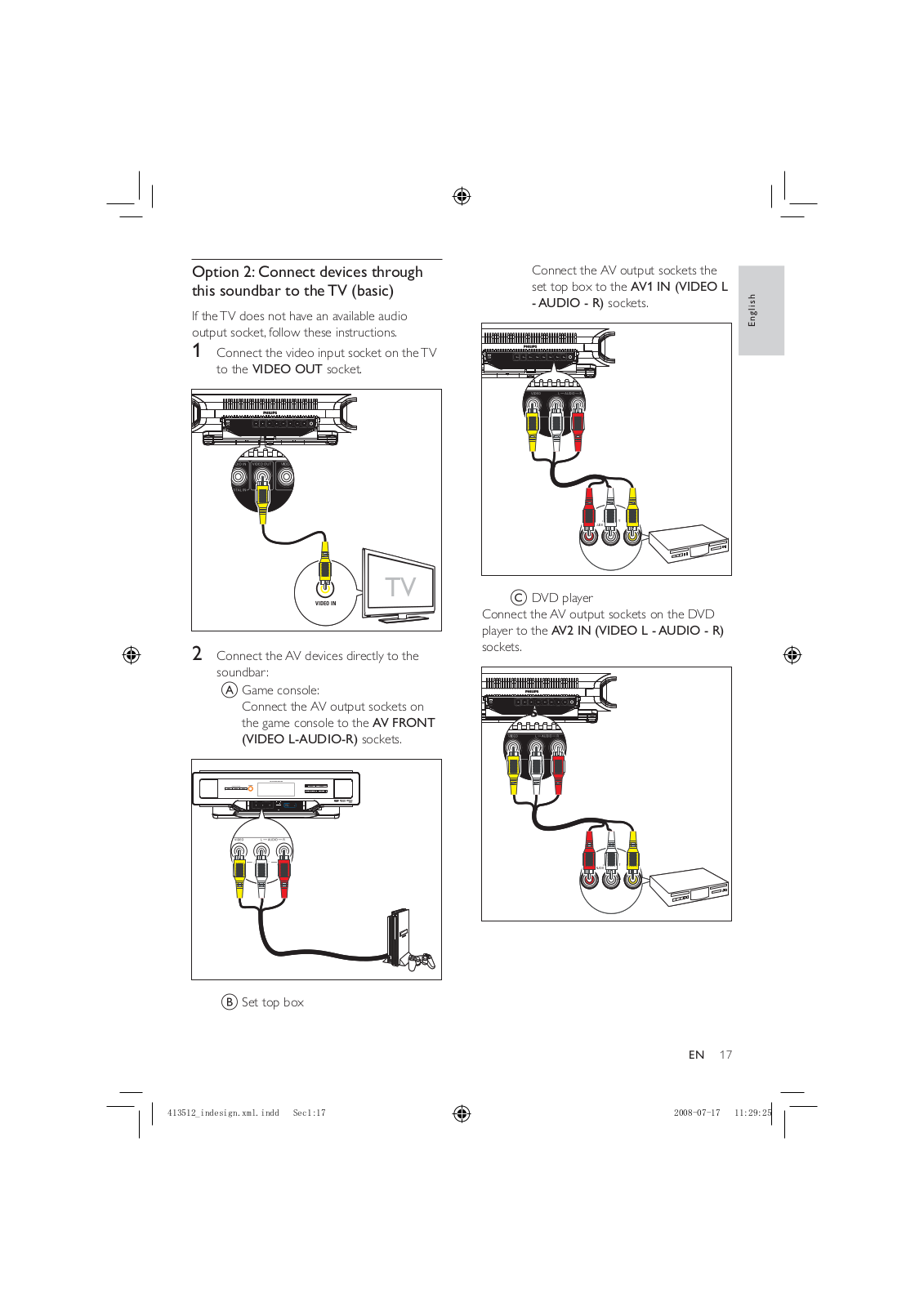

	Option 2: Connect devices through this
	soundbar to theTV (basic)	17
	Option 3: Connect devices through this
	soundbar to theTV (advanced)	18
	Connect FM antenna	19
	Connect power	19
	Install remote control batteries	20
	Set clock	20
	Turn on	21
	Switch to standby mode	21
	Set up wireless connection manually	21
4	Play	22
	Play an AV source through this soundbar 22
	Play from USB	22
5	Control USB play	23
	Skip to a track	23
	Pause/resume play	23
	Search within a track	23
	Repeat play	23
	Random play	23
	Program tracks	23

6 Adjust volume level and sound effect

24

		h
Adjust volume level	24	Englis
Adjust subwoofer volume	24
Select a sound effect	24
Select a game sound effect	24
Select a movie sound effect	24
Select a music mode (for USB only)	24
Mute sound	24

7 Tune to FM radio stations	25
Program radio stations automatically	25
Program radio stations manually	25
Tune to a preset radio station	25
8 Use more of your soundbar	26
Program remote control	26
Rename an AV source	26
Enable/disable automatic on/standby	26
Set the alarm timer	27
Set the sleep timer	27
9 Product information	28
Product information	28
Specifi cations	28
Amplifi er	28
Tuner (FM)	28
L/R speakers	28
Subwoofer	28
General information	28
USB playability information	28
10 Troubleshooting	30
11 Appendix	31
Mount to a wall	31
What’s in the supplied mounting kit	31
What else you’ll need	31
Mount the main unit and speakers	31

EN 5

BLQGHVLJQ [PO LQGG 6HF

1 Important

Important safety instructions

Know these safety symbols

This ‘bolt of lightning’ indicates uninsulated material within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering.

The ‘exclamation point’ calls attention to features for which you should read the enclosed literature closely to prevent operating and maintenance problems.

WARNING:To reduce the risk of fi re or electric shock, this apparatus should not be exposed to rain or moisture and objects fi lled with liquids, such as vases, should not be placed on this apparatus.

CAUTION:To prevent electric shock, match wide blade of plug to wide slot, fully insert.

a Read these instructions.

b Keep these instructions.

c Heed all warnings.

d Follow all instructions.

6EN

e Do not use this apparatus near water.

f Clean only with dry cloth.

gDo not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

hDo not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifi ers) that produce heat.

iFor countries with a polarized mains, do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other.A grounding type plug has two blades and a third grounding prong.The wide blade or the

third prong are provided for your safety. If the provided plug does not fi t into your outlet, consult an electrician for replacement of the obsolete outlet. Caution:To prevent electric shock, match the wide blade of the plug to the wide slot, fully insert.

jProtect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

kOnly use attachments/accessories specifi ed by the manufacturer.

lUse only with the cart, stand, tripod, bracket, or table specifi ed by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
