Philips HSB2351-51 User Manual

Download

Page 1

www.philips.com/welcome

HSB2351/51

EN User manual

RU ǝȀǷǻǯǻǱǾǿǯǻ ǼǻǸȉǴǻǯǭǿǲǸȌ

Page 2

7 Tune to FM radio stations 26

Contents

Program radio stations automatically 26 Program radio stations manually 26 Tune to a preset radio station 26

1 Important 4

Safety 4 Notice 5

2 Your DVD Home Theater System 7

Introduction 7 What’s in the box 7 Overview of the main unit 8 Overview of the remote control 9

8 Adjust volume level and sound effect

27 Adjust volume level 27 Select a sound effect 27 Mute sound 27

9 Connect other devices 28

Listen to an audio player 28

English

3 Connect 11

Place the unit 11 Attach speakers to the main unit 11 Connect TV 12 Connect audio cables 13 Connect FM antenna 13 Connect power 13

4 Get started 15

Prepare the remote control 15 Turn on 15 Find the correct viewing channel 15 Select the correct TV system 15 Select menu display language 16 Turn on Progressive Scan 16 Use Philips EasyLink 16

5 Play 18

Play discs 18 Play from USB 19 Play DivX video 19 Play MP3/WMA/picture ﬁ les 19 Play control 20 Play options 20 Picture view options 21

10 Product information 29

Speciﬁ cations 29 Supported disc formats 30 USB playability information 30

11 Troubleshooting 31

12 Appendix 33

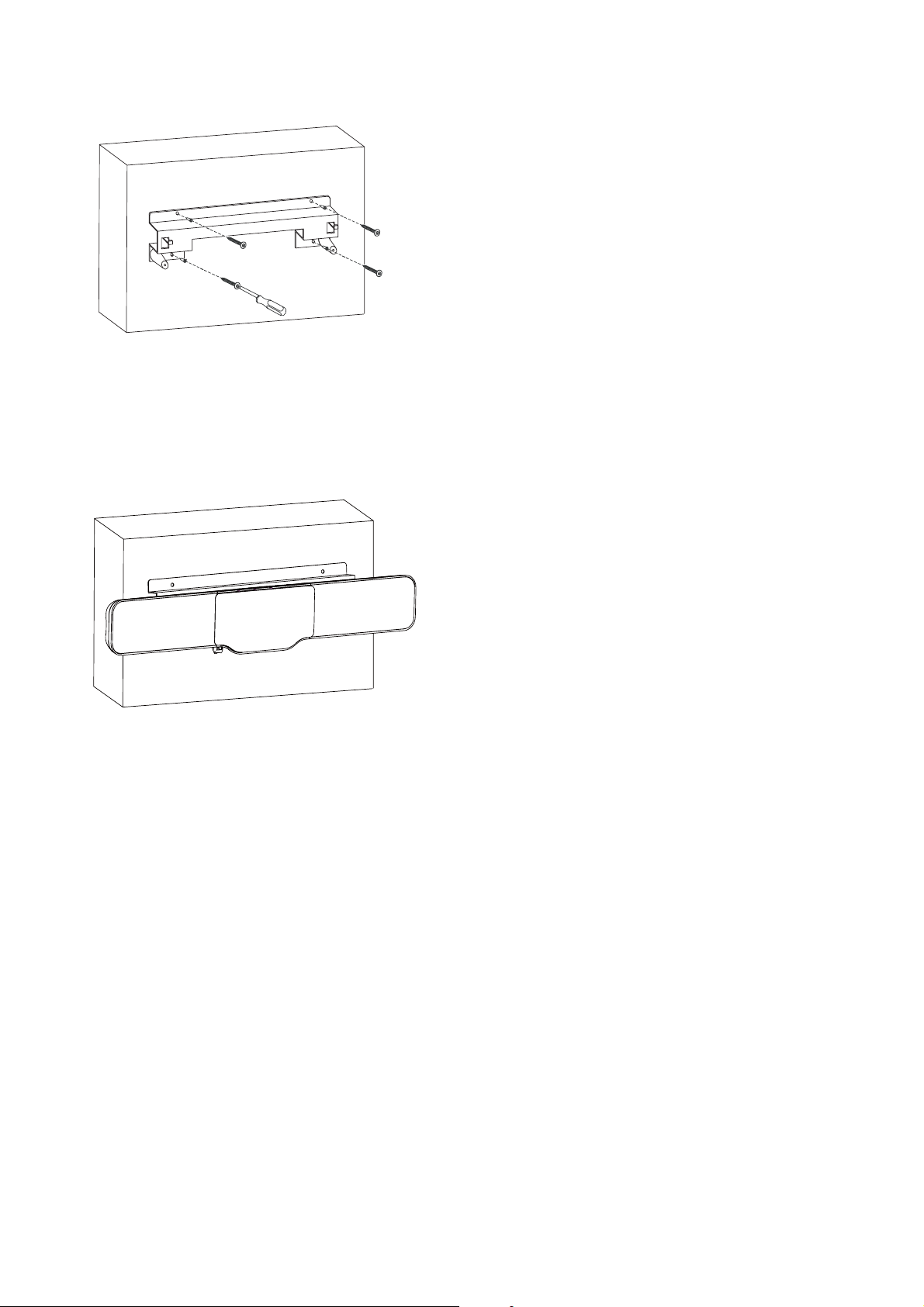

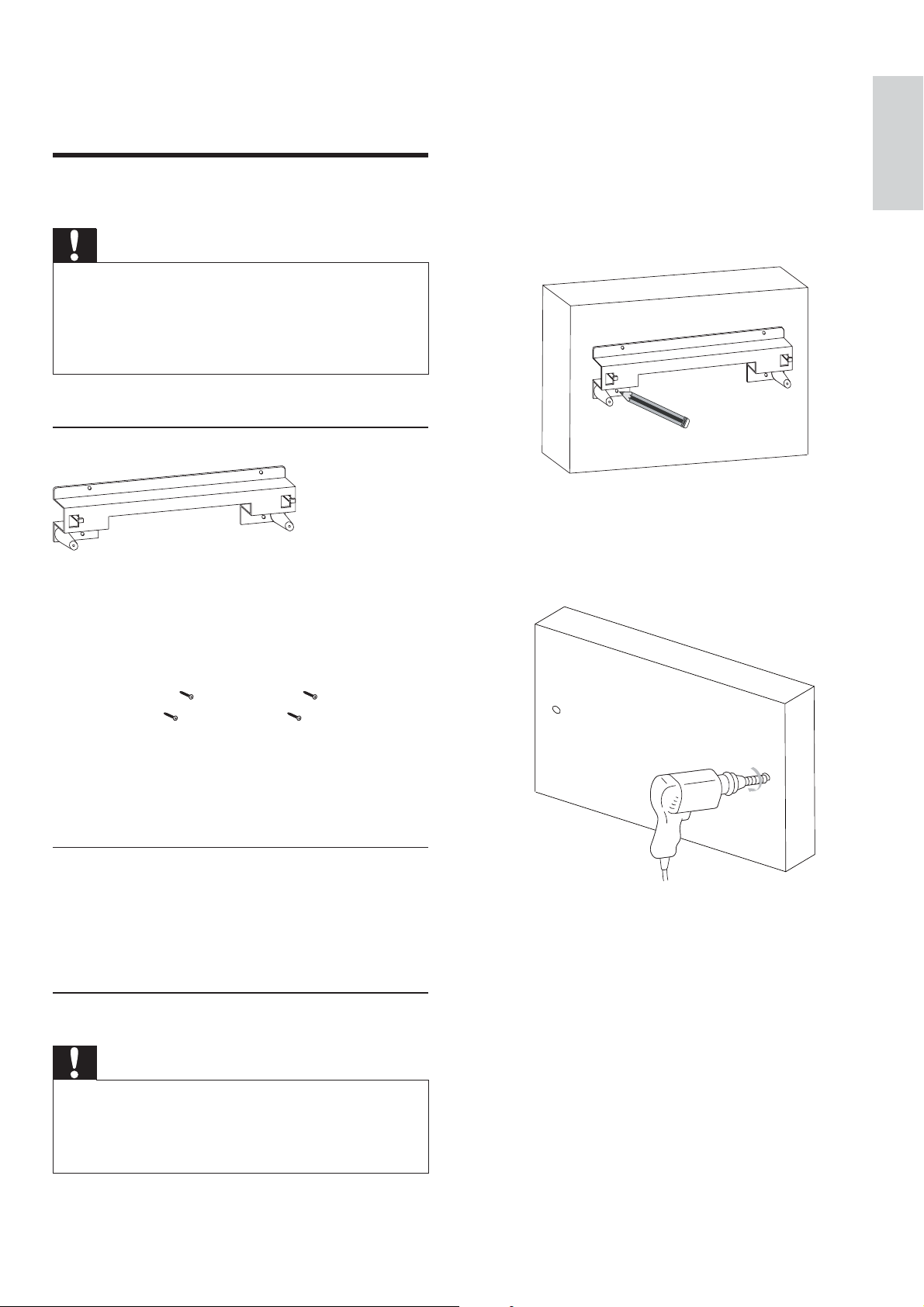

Mount to a wall 33

13 Glossary 35

6 Adjust settings 22

General setup 22 Audio setup 23 Video setup 23 Preference setup 24

Page 3

1 Important

Safety

Know these safety symbols

This ‘bolt of lightning’ indicates uninsulated material within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering. The ‘exclamation point’ calls attention to features for which you should read the enclosed literature closely to prevent operating and maintenance problems. WARNING: To reduce the risk of ﬁ re or electric shock, this apparatus should not be exposed to rain or moisture and objects ﬁ lled with liquids, such as vases, should not be placed on this apparatus. CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert.

Warning

Where the MAINS plug or an appliance coupler is used • as the disconnect device, the disconnect device shall remain readily operable.

Warning

Never remove the casing of this unit. • Never lubricate any part of this unit.• Place this unit on a ﬂ at, hard and stable surface.• Never place this unit on other electrical equipment.• Only use this unit indoors. Keep this unit away from • water, moisture and liquid-ﬁ lled objects.

•

Keep this unit away from direct sunlight, naked ﬂ ames or heat.

•

Never look into the laser beam inside the unit.

Hearing safety

Listen at a moderate volume.

Using headphones at a high volume can • impair your hearing. This product can produce sounds in decibel ranges that may cause hearing loss for a normal person, even for exposure less than a minute. The higher decibel ranges are offered for those that may have already experienced some hearing loss. Sound can be deceiving. Over time your • hearing ‘comfort level’ adapts to higher volumes of sound. So after prolonged listening, what sounds ‘normal’ can actually be loud and harmful to your hearing. To guard against this, set your volume to a safe level before your hearing adapts and leave it there.

To establish a safe volume level:

Set your volume control at a low setting. • Slowly increase the sound until you can • hear it comfortably and clearly, without distortion.

Listen for reasonable periods of time:

Prolonged exposure to sound, even at • normally ‘safe’ levels, can also cause hearing loss. Be sure to use your equipment reasonably • and take appropriate breaks.

Be sure to observe the following guidelines when using your headphones.

Listen at reasonable volumes for • reasonable periods of time.

Page 4

Be careful not to adjust the volume as your • hearing adapts. Do not turn up the volume so high that • you can’t hear what’s around you. You should use caution or temporarily • discontinue use in potentially hazardous situations. Do not use headphones while operating a motorized vehicle, cycling, skateboarding, etc.; it may create a trafﬁ c hazard and is illegal in many areas.

Caution

Use of controls or adjustments or performance of • procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

Wall mounting of the unit should only be performed by qualiﬁ ed personnel. The unit must only be mounted on an appropriate wall bracket and on a wall that can safely hold the weight of the unit. Improper wall mounting can result in severe injury or damage. Do not attempt to wall mount the unit yourself.

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. When you see the crossed-out wheel bin symbol attached to a product, it means the product is covered by the European Directive 2002/96/EC:

Never dispose of your product with other household waste. Please inform yourself about the local rules on the separate collection of electrical and electronic products. The correct disposal of your old product helps prevent potentially negative consequences on the environment and human health.

English

Notice

Any changes or modiﬁ cations made to this device that are not expressly approved by Philips Consumer Lifestyle may void the user’s authority to operate the equipment.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.) Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.

Environmental information

Page 5

The making of unauthorized copies of copyprotected material, including computer programs, ﬁ les, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence. This equipment should not be used for such purposes.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Manufactured under license from Dolby Laboratories. Dolby, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

HDMI, and HDMI logo and High-Deﬁ nition Multimedia Interface are trademarks or registered trademarks of HDMI licensing LLC.

DivX, DivX Certiﬁ ed, and associated logos are trademarks of DivX, Inc. and are used under license. Ofﬁ cial DivX® Ultra Certiﬁ ed product. Plays all versions of DivX® video (including DivX® 6) with enhanced playback of DivX® media ﬁ les and the DivX® Media Format.

Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and DTS Digital Surround are registered trademarks and the DTS logos and Symbol are trademarks of DTS, Inc. © 1996-2008 DTS, Inc. All Rights Reserved.

Other trademarks and trade names are those of their respective owners.

This apparatus includes this label:

Note

The type plate is located on the bottom of the • apparatus.

The USB-IF Logos are trademarks of Universal Serial Bus Implementers Forum, inc.

ENERGY STAR and the ENERGY STAR mark are registered U.S. marks.

Page 6

2 Your DVD

The unit supports these media/disc formats:

Home Theater System

Congratulations on your purchase, and welcome to <brand>! To fully beneﬁ t from the support that <brand> offers, register your product at www.<brand>.com/welcome. This DVD Home Theater System is designed to complement your home perfectly. Enjoy the DVD Home Theater System with multi-channel surround sound and excellent picture quality.

Introduction

With this unit, you can:

watch video from DVD/VCD/SVCD or • USB devices enjoy audio from discs or USB devices• view pictures from discs or USB devices• listen to FM radio• Control EasyLink-compliant devices • through a single remote control Sync audio output with the video output•

You can enrich sound output with these sound effects:

Surround sound experience• Preset sound modes•

English

Recordable

ReWritable

You can play DVD discs with the following region codes:

DVD region code Countries

Russia

What’s in the box

Check and identify the contents of your package:

Main unit• Speakers (x 2)• Power adapter for the main unit• Power cord• Remote control (with batteries)• FM wire antenna• AV cable (red/white/yellow)• USB extension cable• Wall mount bracket and screws (x4)•

Page 7

Overview of the main unit

ijl k

b ca e hd gf

Caution

Use of controls or adjustments or performance of • procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

a SOURCE

Select a source.•

b MP3 LINK

Jack for an external audio device.•

Turn on the unit or switch to standby • mode.

Stop play.• Erase a preset radio station.•

e VOL -/+

Adjust volume.•

Open the disc compartment.•

Start or pause play.•

i Disc compartment j Remote control sensor k Display panel

Display current status.•

USB socket.•

Skip to the previous/next title/• chapter/track. Select a preset radio station.•

Page 8

Overview of the remote control

b Source selection keys

Select a source.•

OPTIONS

Access or exit the system setup menu.•

English

c d e

g h

i j

e OK

/ ( / )

For menus: navigate up/down.• Move an enlarged picture up/down.• Rotate or invert pictures.•

Conﬁ rms an entry or selection.•

For menus, navigate left/right.• Search within a track or disc.• Move an enlarged picture left/right.• Tune to a radio station.•

INFO

For video/audio play, display • information about the current status or the disc. For pictures, display a thumbnail view • of picture ﬁ les.

Turn on the unit or switch to standby • mode.

Skip to the previous/next title/• chapter/track. Select a preset radio station.•

Start or pause play.•

Stop play.• Erase a preset radio station.•

k TREBLE / BASS

Change treble or bass. Use with • +/-.

l Numeric keypad

Select a title/chapter/track directly.• Select a preset radio station directly.•

m AUDIO SYNC

Access audio delay setting.•

n SOUND

Selects a predeﬁ ned sound effect.•

Page 9

o ZOOM

For pictures or video: zoom in/out.•

p REPEAT A-B

Repeat a speciﬁ c section within a • track/disc.

q REPEAT /PROGRAM

Selects or turns off repeat or shufﬂ e • mode. Program radio stations.•

r SUBTITLE

Select DVD or DivX subtitle language.•

s SURROUND

Enable/disable Dolby Virtual Speakers • (DVS) sound effect.

+/-

Adjust volume.•

Mute or restore volume.•

v MENU/BACK

Return to the previous screen.• For video discs: access or exit the disc • menu. For video discs with playback • control(PBC): turn on/off PBC.

w AUDIO

For VCD, select stereo, mono-left or • mono-right channel. For DVD/DivX video, select an audio • language.

Page 10

3 Connect

Place the unit

Place the unit near to the TV.

English

2 Attach the left speaker to the left side of

the main unit.

2 Keep the speakers at the normal listening

ear-level and directly parallel to the listening area.

Note

To avoid magnetic interference or unwanted noise, • never place this apparatus and speakers too close to any radiation devices.

•

Never place this unit in an enclosed cabinet. Install this unit near the AC outlet where the AC power • plug can be easily reached.

Attach speakers to the main unit

Place the main unit on a soft and ﬂ at

surface.

Ensure that the rear side faces • upwards.

3 Repeat step 2 to attach the right speaker. 4 Insert the supplied studs into the holes.

Page 11

Connect TV

Note

Option 1: Connect through AV cable Basic quality

AV out provides basic analogue connectivity.

VIDEO IN

To use Philips EasyLink, you must use HDMI connection • (see “Use Phlips EasyLink”).

•

This unit is HDMI CEC compatible. It enables the connected TV/device to control each other over HDMI.

HDMI IN

1 Connect one end of the AV cable (red/

white/yellow) to the AV input sockets on the TV.

2 Connect the other end to the AV OUT

(VIDEO , AUDIO L/R) sockets on the unit.

Note

If you want to listen to sound from the unit instead of • from TV, connect the video cable (yellow) only. Do not connect the audio cable (red and white).

Option 2: Connect through HDMI Highest quality

If you want to experience full high-deﬁ nition video, use HDMI connection. HDMI provides an uncompressed, digital interface between your TV and the unit. Both audio and video signals are combined in one HDMI cable.

a Connect an HDMI cable (not supplied)

to:

- the• HDMI socket on this unit.

- the HDMI input socket on the TV.•

Tip

If your TV has only a DVI connection, connect through • a HDMI/DVI adaptor. An extra audio connection is needed to complete this connection.

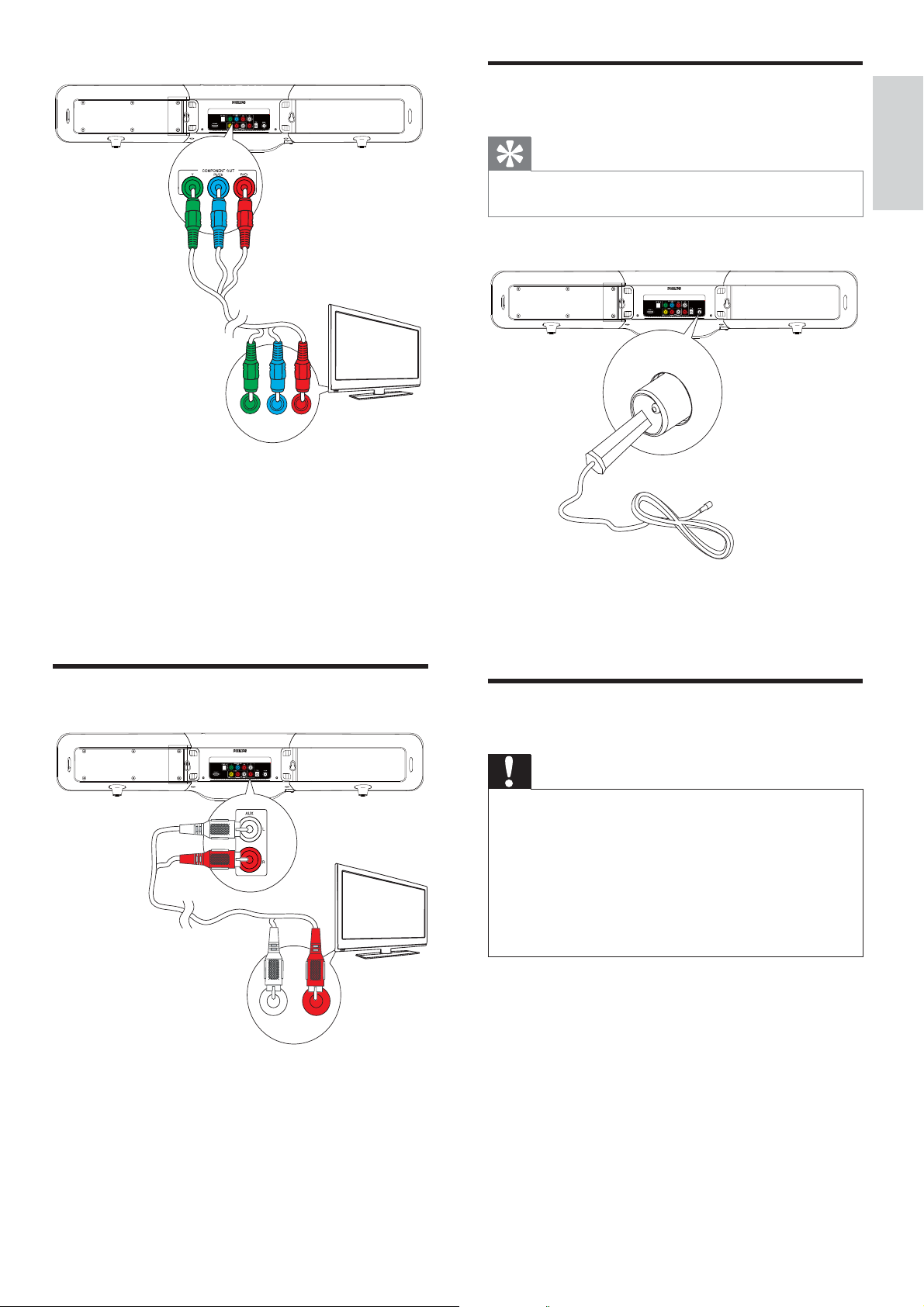

Option 3: Connect through component - Higher quality

Component video provides better picture quality than AV out connections.Though component video supports high-deﬁ nition signals, picture quality is lower than HDMI and is analogue.

Page 12

Connect FM antenna

Pr/Cr Pb/Cb Y

COMPONENT VIDEO IN PUT

a Connect a component video cable (red/

blue/green - not supplied) to:

- the • COMPONENT (Pr/Cr Pb/Cb Y) sockets on this unit.

- the component input sockets on • the TV.

Tip

This unit does not support MW radio reception.•

FM ANT

1 Connect the supplied FM antenna to the

FM ANT socket on the unit.

English

Connect audio cables

L AUDIO OUT R

To play sound from the TV through this

unit, connect audio cables (red/white - not supplied) to:

the• AUX L/R sockets on this unit. the audio output sockets on the TV.•

Connect power

Caution

Risk of product damage! Ensure that the power supply • voltage corresponds to the voltage printed on the back or the underside of the unit.

•

Risk of electric shock! When you unplug the AC power, always pull the plug from the socket. Never pull the cord.

•

Before you connect the AC power, ensure you have completed all other connections.

Page 13

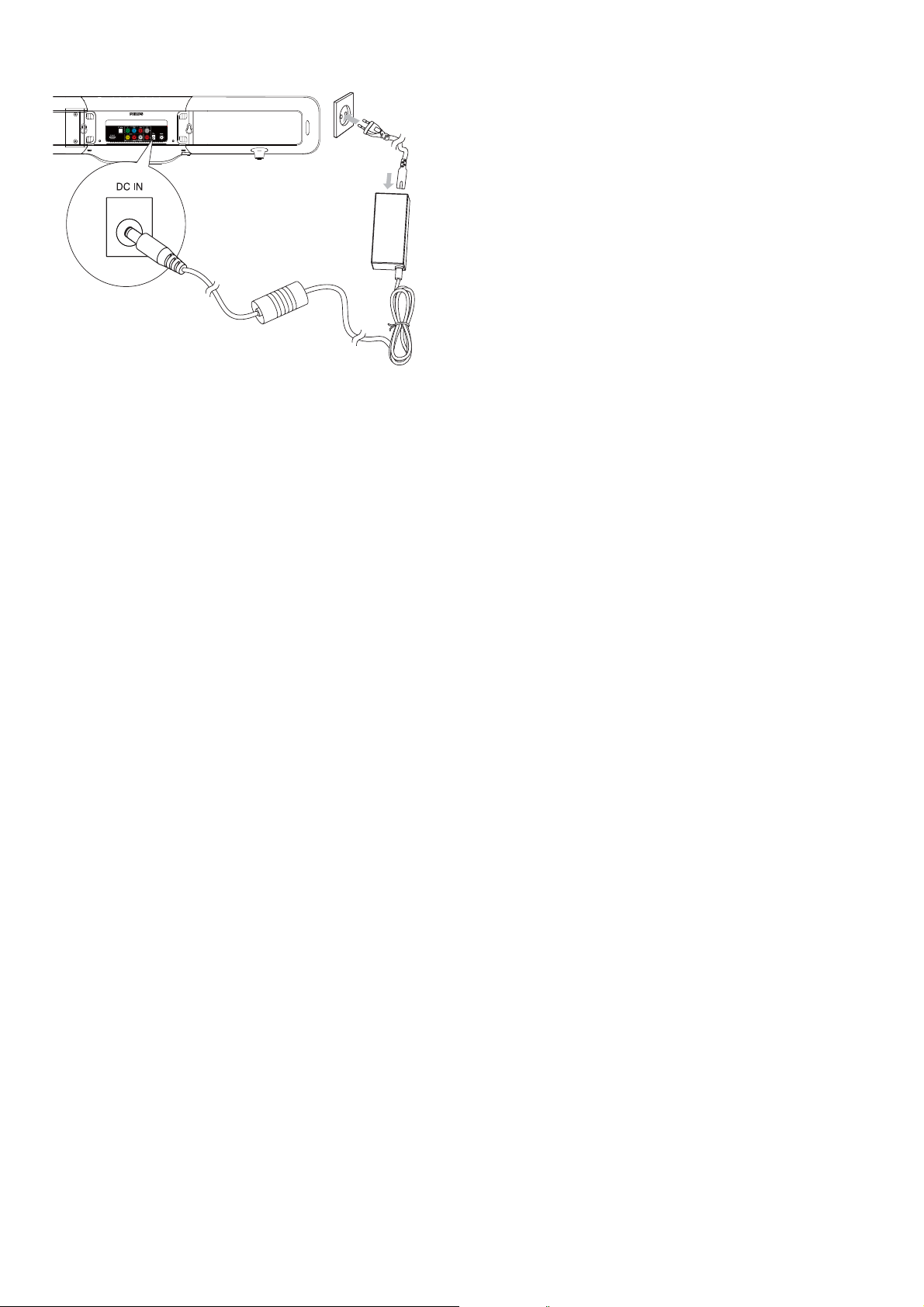

Connect the power adaptor with main unit and power cord, then connect the plug to the wall outlet.

Page 14

4 Get started

English

Caution

Use of controls or adjustments or performance of • procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

Always follow the instructions in this chapter in sequence. If you contact Philips, you will be asked for the model and serial number of this apparatus. The model number and serial number are on the back of the apparatus. Write the numbers here: Model No. __________________________ Serial No. ___________________________

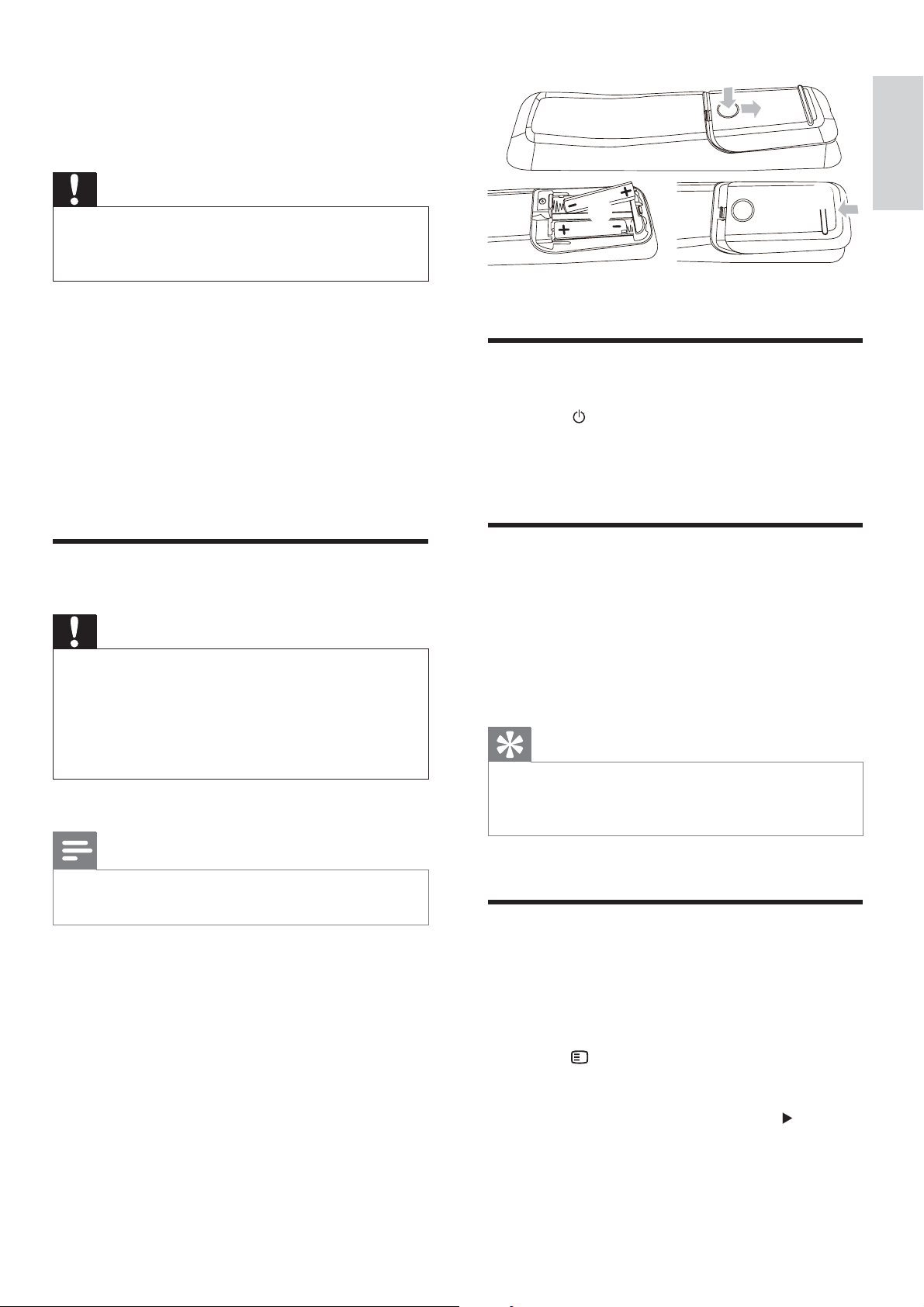

Prepare the remote control

Caution

Turn on

Press .

The unit switches to the last selected » source.

Find the correct viewing channel

Press DISC to switch to disc mode.

Risk of explosion! Keep batteries away from heat, • sunshine or ﬁ re. Never discard batteries in ﬁ re.

•

Risk of decreased battery life! Never mix different brands or types of batteries.

•

Risk of product damage! When the remote control is not used for long periods, remove the batteries.

Note

Perchlorate Material - special handling may apply. See • www.dtsc.ca.gov/hazardouswaste/perchlorate.

1 Open the battery compartment. 2 Insert two R03 or AAA batteries with

correct polarity (+/-) as indicated.

3 Close the battery compartment.

2 Press the source button repeatedly on the

remote control of your TV.

Tip

The video-in channel may be called AV, VIDEO, HDMI • etc. See the TV user manual on how to select the correct input on the TV.

Select the correct TV system

Change this setting if the video does not appear correctly. By default, this setting matches the most common setting for TVs in your country.

1 Press OPTIONS. 2 Select [Video Setup]. 3 Select [TV Type] and then press . 4 Select a setting and then press OK.

• [PAL] - For TV with PAL color system.

Page 15

• [NTSC] - For TV with NTSC color system.

• [Multi] - For TV that is compatible with both PAL and NTSC.

5 To exit the menu, press OPTIONS.

Select menu display language

Note

If a blank/distorted screen is displayed, wait for 15 • seconds for auto recovery or turn off progressive scan manually.

9 Turn on the progressive scan mode on the

TV.

Press OPTIONS.

1 2 Select [General Setup]. 3 Select [OSD Language] and then press . 4 Select a setting and then press OK. 5 To exit the menu, press OPTIONS.

Turn on Progressive Scan

Progressive scan displays twice the number of frames per seconds than interlaced scanning (ordinary TV system). With nearly double the number of lines, progressive scan offers higher picture resolution and quality. Before you turn on this feature, ensure that:

The TV suppor ts progressive scan • signals. You have connected this unit with the • TV through component video.

Turn off progressive scan manually

1 Turn off the progressive scan mode on the

TV.

2 Press OPTIONS. 3 Press / to select [Video Setup] in the

menu, then press

4 Select [Progressive] > [Off], then press

OK.

5 To exit the menu, press OPTIONS.

Use Philips EasyLink

This unit supports Philips EasyLink, which uses the HDMI CEC (Consumer Electronics Control) protocol. EasyLink-compliant devices that are connected through HDMI connectors can be controlled by a single remote control.

1 Turn on the TV. 2 Ensure that the TV progressive scan mode

is deactivated (see the TV user manual).

3 Switch the TV to the correct viewing

channel for this unit.

4 Press DISC. 5 Press OPTIONS. 6 Press / to select [Video Setup] in the

menu, then press

7 Select [Progressive] > [On], then press

OK.

A warning message is displayed.»

8 To proceed, select [Ok] and press OK.

The progressive setup is complete.»

Note

Philips does not guarantee 100% interoperability with • all HDMI CEC devices.

1 Turn on the HDMI CEC operations on the

TV or other connected devices. See TVs/ devices manual for details.

2 You can now enjoy the following Philips

EasyLink controls.

Page 16

One touch play[Auto Wakeup TV]

When you press

, this unit will wake up from standby mode and start disc play (if a video disc is found in the disc compartment). At the same time, your TV will also be turned on and be switched to the correct viewing channel.

One touch power-off[System Standby]

When you connect this unit to devices that support standby mode, you can use the remote control of this unit to switch this unit and all connected HDMI devices to standby mode. You can also use the remote control from any of the connected HDMI devices to perform one-touch standby .

One touch audio play[System Audio Control]

When you connect this unit to HDMI CEC compliant devices, the unit can switch automatically to play audio from the connected device.

English

Page 17

5 Play

Note

With some disc/ﬁ le types, play may differ.•

To return to the menu during play:

1 Press MENU/BACK.

Note

To see the disc menu of a VCD disc, you must turn on • PlayBack Control (PBC) feature of the disc.

Select an audio language

Play discs

Caution

Never look at the laser beam inside the unit.• Risk of product damage! Never play discs with • accessories such as disc stabilizer rings or disc treatment sheets.

•

Never put any objects other than discs into the disc compartment.

1 Press DISC to select the DISC source. 2 Press on the main set to open the disc

compartment.

3 Place a disc into the disc compartment and

press

Ensure that the label faces outwards.»

4 Play starts automatically.

To stop play, press • To pause or resume play, press • To skip to the previous/next title/• chapter/track, press

If play does not start automatically:

Select a title/chapter/track and then press •

/ .

You can select an audio language on DVDs, DiVx video or VCDs.

1 During disc play, press AUDIO.

The language options appear. If the » selected audio channels is unavailable, the default disc audio channel is used.

Note

For some DVDs, the language can only be changed • from the disc menu. Press MENU/BACK to access the menu.

Select a subtitle language

You can select a subtitle language on DVDs or DivX® Ultra discs.

During play, press • SUBTITLE.

Tip

For some DVDs, the language can only be changed • from the disc menu. Press MENU/BACK to access the menu.

Tip

To play a locked DVD, enter the 4-digit parental control • password.

Use the disc menu

When you load a DVD/(S)VCD disc, a menu may be displayed on the TV screen.

Sync audio output with video play

If the video play is slower than the audio output (sound does not match with the pictures), you can delay the audio output to match the video.

1 Press and hold AUDIO SYNC until

‘AUDIO SYNC XXX’ is displayed.

‘XXX’ denotes the delay time.»

Page 18

2 Within ﬁ ve seconds, press +/- to set

the delay time for audio output.

Play DivX video

You can play DivX ﬁ les copied onto a CD-R/ RW, recordable DVD or USB device.

English

Play from USB

Note

Ensure that the USB device contains playable music, • pictures or video.

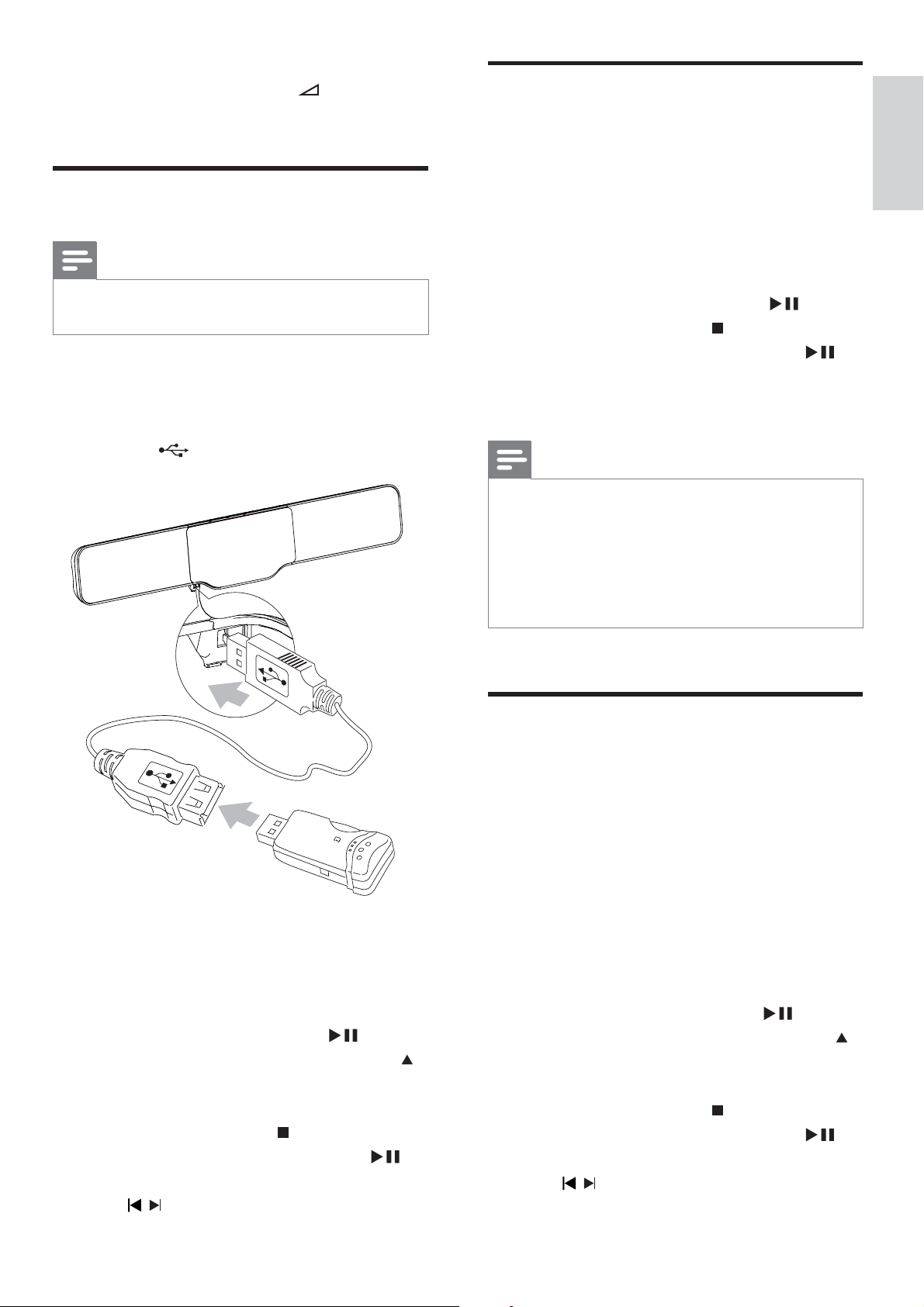

1 Connect the supplied USB extension cable

to:

the USB device• the•

socket

1 Insert a disc or connect a USB device. 2 Select a source:

For discs, press • DISC. For USB devices, press • USB.

3 Select a title to play, then press .

To stop play, press • To pause or resume play, press • To change a subtitle language, press •

SUBTITLE.

Note

You can only play DivX videos rented or purchased • through the DivX registration code of this unit.

•

Subtitle ﬁ les with the following ﬁ lename extensions (.srt, .smi, .sub, .ssa, .ass) are supported but do not appear on the ﬁ le navigation menu.

•

The subtitle ﬁ lename has to be the same as the ﬁ le name of the video.

2 Press USB to select the USB source.

A contents menu is displayed.»

3 Select a folder, then press OK. 4 Select a ﬁ le to play, then press .

To return to the main menu, press • until the ‘Previous’ folder is selected, then press OK. To stop play, press • To pause or resume play, press • To skip to the previous/next ﬁ le, press •

/ .

Play MP3/WMA/picture ﬁ les

You can play MP3/WMA/picture ﬁ les copied onto a CD-R/RW, recordable DVD or USB device.

1 Insert a disc or connect a USB device. 2 Select a source:

For discs, press • DISC. For USB devices, press • USB. A contents menu is displayed.•

3 Select a folder, then press OK. 4 Select a ﬁ le to play, then press .

To return to the main menu, press • until the ‘Previous’ folder is selected, then press OK. To stop play, press • To pause or resume play, press •

To skip to the previous/next ﬁ le, press •

/ .

Page 19

Play control

To cancel resume mode and stop play completely:

Select repeat/shufﬂ e play options

1 During play, press REPEAT/PROGRAM

repeatedly to select a repeat option or the shufﬂ e play mode.

To resume normal play, press •

REPEAT/PROGRAM repeatedly until [Repeat Off] is displayed.

Repeat A-B (DVD/VCD/CD/MP3/ WMA)

1 During music or video play, press REPEAT

A-B at the start point.

2 Press REPEAT A-B at the end point.

The selected section starts to play » repeatedly.

To cancel repeat play, press • REPEAT

A-B again.

1 In stop mode, press .

Play options

Display play information

1 During play, press INFO repeatedly to

display play information.

Zoom in/out image

1 During video/picture play, press ZOOM

repeatedly to zoom in/out the image.

When the image is zoomed in, you • can press the image.

Change the audio channel

/ / / to pan through

Note

The section A and B can be set only within the same • track/title.

Search forward/backward

1 During play, press / ( / ) repeatedly

to select a search speed.

To resume play at normal speed, press •

Resume video play from last stopped point

Note

This feature is only available for video play. •

Note

This feature is only available for VCD/DivX play.•

1 During play, press AUDIO repeatedly to

select an audio channel available on the disc:

Mono Left• Mono Right• Stereo•

Select an audio language

Note

This feature is only available for DVDs/DivX videos • recorded with multiple audio languages.

1 Press AUDIO repeatedly to select an

audio language.

1 In stop mode and when the disc has not

been removed, press OK.

Page 20

Select a subtitle language

To return to the menu, press » MENU/ BACK.

Note

This feature is only available for DVDs/DivX videos • recorded with multiple audio languages.

1 Press SUBTITLE repeatedly to select an

available subtitle language.

Picture view options

Start slideshow of pictures

1 During play, press .

The thumbnails of 12 pictures are » displayed.

2 Select a ﬁ le, then press to start

slideshow play.

To go to previous or next screen • display, press To select a picture, press the cursor • buttons. To display the selected photo only, • press OK.

/ .

3 To stop slideshow play, press .

English

4 To stop music play, press again.

Rotate picture

1 During play, press / to rotate the

picture anti-clockwise/clockwise.

Start musical slideshow

You can play MP3/WMA music ﬁ les and JPEG photo ﬁ les simultaneously to create musical slideshow. The MP3/WMA and JPEG ﬁ les must be stored on the same disc or USB device.

1 Play MP3/WMA music. 2 Navigate to the photo folder/album and

press

to start slideshow play.

Slideshow begins and continues till the » end of the photo folder or album.

Audio continues to play till the end of » the disc.

Page 21

6 Adjust settings

1 Press OPTIONS . 2 Select a setup page. 3 Select an option and then press . 4 Select a setting and then press OK.

To return to the previous menu, press •

To exit the menu, press • OPTIONS

General setup

On [General Setup Page], you can set the following options:

[EasyLink]

If this unit is connected to HDMI CEC compliant TV/devices, all connected devices can respond to the following commands simultaneously:

Option Description

[One Touch Play]

[System Standby]

[System Audio Control]

When you press this unit are turned on. Disc play starts if there is a disc in the unit.

When you press and hold , connected HDMI CEC devices simultaneously switch to standby. To disable this feature, select [Decline].

When you play audio that is routed from the connected devices, this unit switches to the corresponding audio source automatically. To enable this feature, select [On]. Then proceed to [Audio Input Mapping] to scan and map all the connected devices.

, the TV and

Note

You must turn on the HDMI CEC operations on the • TV/devices before you can enjoy the EasyLink controls. See the TV/devices manual for details.

Philips does not guarantee 100% interoperability with all HDMI CEC compliant devices.

[Disc Lock]

Set play restriction for speciﬁ c discs. Before you

start, place the disc in the disc compartment (maximum 40 discs can be locked).

• [Lock] – Restrict access to the current disc. You need to enter a password to unlock and play the disc.

• [Unlock] – Play all discs.

Tip

To set or change the password, go to • [Preference

Setup] > [Password].

[Display Dim]

Changes the brightness level of the display panel on this unit.

• [100%] – Normal brightness.

• [70%] – Medium brightness.

• [40%] – Dimmest display.

[OSD Language]

Select the preferred language for on-screen display.

[Screen Saver]

The screen saver protects the TV screen damage due to prolonged exposure to a static image.

• [On] – Enable the screen saver.

• [Off] – Disable the screen saver.

[Audio Input Mapping]

When you map the audio input correctly, this unit switches to the audio from the played device automatically.

[Sleep Timer]

Switches to standby automatically after the preset time.

Page 22

• [15 mins], [30 mins], [45 mins], [60 mins] – select the count down time before the apparatus switches to standby.

• [Off] – disable sleep mode.

[DivX(R) VOD Code]

Display the DivX® registration code.

Tip

Enter this DivX registration code when you rent or • purchase video from www.divx.com/vod. The DivX videos rented or purchased through the DivX® VOD (Video On Demand) service can be played only on the device to which it is registered.

Video setup

On [Video Setup Page], you can set the following options:

[TV Type]

Change this setting if the video does not appear correctly. By default, this setting matches the most common setting for TVs in your country.

• [PAL] – For TV with PAL color system.

• [NTSC] – For TV with NTSC color system.

• [Multi] – For TV that is compatible with both PAL and NTSC.

[TV Display]

The TV format determines the aspect ratio of display according to the type of TV you have connected.

English

Audio setup

On [Audio Setup Page], you can set the following options:

[HDMI Audio]

When you connect this apparatus and TV with an HDMI cable, select the audio output setting for this connection.

• [On] – the sound is output through both your TV and this apparatus. If the audio format on the disc is not supported, it is downmixed to twochannel sound (Linear-PCM).

• [Off] – disable audio output from the TV. The sound is only output through this apparatus.

[Night Mode]

Make loud sound level softer and soft sound level louder so that you can watch the DVD movies at a low volume, without disturbing others.

• [Off] – enjoy surround sound with its full dynamic range.

• [On] – enjoy quiet viewing at night (DVDs only).

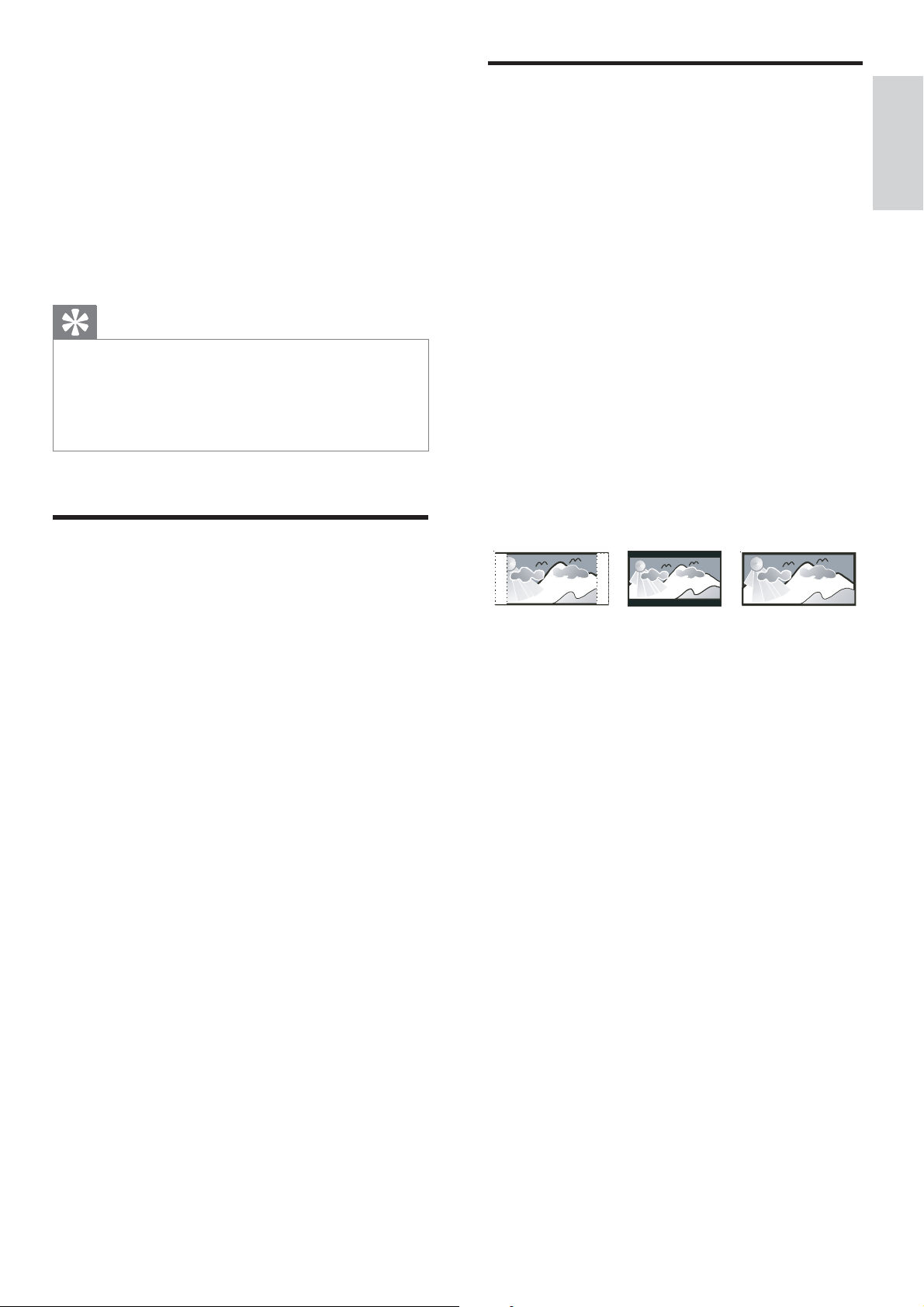

4:3 Pan Scan (PS)

4:3 Letter Box (LB)

16:9 (Wide Screen)

• [4:3 Pan Scan] – For 4:3 screen TV: full-height display with the trimmed sides.

• [4:3 Letter Box] – For 4:3 screen TV: wide-screen display with black bars on the top and bottom of the screen.

• [16:9 Wide Screen] – For widescreen TV: display ratio 16:9.

[Progressive]

Turn on or off progressive scan mode.

[Picture Settings]

Select a predeﬁ ned set of picture color settings or customize your personal setting.

• [Standard] – original color setting.

• [Bright] – vibrant color setting.

• [Soft] – warm color setting.

• [Personal] – customize the color setting. Adjust the level of brightness, contrast, sharpness/tint and color saturation.

Page 23

[HDMI Video] – Select the HDMI video output resolution that is compatible with your TV display capability.

Option Description

[Auto] Detect and select

the best supported video resolution automatically.

[Parental]

Restricts access to discs that are unsuitable for children. These types of discs must be recorded with ratings.

1) Press OK.

2) Select a rating level, then press OK.

3) Press the numeric keys to enter the password.

[480p], [576p], [720p], [1080i], [1080p]

Select a video resolution that is best supported by your TV. See your TV manual for details.

[Closed Caption]

Turn off or on display captions.

• [On] – show the sound effects in subtitles. Applicable only to discs with Closed Caption information included and the TV that suppor ts this feature.

• [Off] – turn off closed caption.

Preference setup

On [Preference Page], you can set the following options:

[Audio]

Select the preferred audio language for disc play.

Note

Rated discs above the level you set in • [Parental] require a password to be played.

•

The ratings are country-dependent. To allow all discs to play, select ‘ 8’.

•

Some discs have ratings printed on them but are not recorded with ratings. This function has no effect on such discs.

Tip

You can set or change the password (see • [Preference

Setup] > [Password]).

[PBC]

Turns on or off the content menu of VCDs/ SVCDs with PBC (playback control) feature.

• [On] - display index menu when you load a disc for play.

• [Off] - skip the menu and start play from the ﬁ rst title.

[Subtitle]

Select the preferred subtitle language for disc play.

[Disc Menu]

Select the preferred disc menu language.

Note

If the language you have set is not available on the disc, • the disc uses its own default language.

•

For some discs, the subtitle/audio language can only be changed from the disc menu.

•

To select the languages that are not listed in the menu, select [Others]. Then check the Language Code list at the back of this user manual and enter the respective 4-digit language code.

[MP3/JPEG Nav]

Select to display the folders or display all the ﬁ les.

• [With Menu] – display the folders of MP3/ WMA ﬁ les.

• [Without Menu] – display all the ﬁ les.

[Password]

Set or change the password for locked discs and play restricted DVDs.

Page 24

1) Press the numeric keys to enter ‘0000’ or your last set password at [Old Password] ﬁ eld.

2) Enter the new password at [New Password] ﬁ eld.

3) Enter the new password again at [Conﬁ rm PWD] ﬁ eld.

4) Press OK to exit the menu.

[Version Info]

Display the software version of this apparatus.

Tip

This information is required when you want to ﬁ nd out • if a newest software version is available at the Philips website that you may download and install on this apparatus.

English

Note

If you forget the password, enter ‘0000’ before you set • a new password.

[DivX Subtitle]

Select a character set that supports the DivX subtitle.

[Standard] English, Irish, Danish, Estonian,

Finnish, French, German, Italian, Portuguese, Luxembourgish, Norwegian (Bokmål and Nynorsk), Spanish, Swedish, Turkish

[Central Europe]

Polish, Czech, Slovak, Albanian, Hungarian, Slovene, Croatian, Serbian (Latin script), Romanian

[Cyrillic] Belarusian, Bulgarian, Ukrainian,

Macedonian, Russian, Serbian

[Default]

Resets all the settings of this apparatus to factory default, except for [Disc Lock],

[Password] and [Parental] settings.

[Greek] Greek [Hebrew] Hebrew

Note

Ensure that the subtitle ﬁ le has the exact same ﬁ le • name as the movie ﬁ le. If for example the ﬁ le name of the movie is ‘Movie.avi’, then you will need to name the text ﬁ le ‘Movie.sub’ or ‘Movie.sr t’.

Page 25

7 Tune to FM

radio stations

Program radio stations manually

Note

1 Ensure that you have connected and fully

extended the supplied FM antenna.

2 Press RADIO. 3 Press and hold / ( / ). 4 When the frequency indication starts to

change, release the button.

The FM tuner tunes to a station with » strong reception automatically.

5 Repeat steps 3-4 to tune to more stations.

To tune to a weak station:

Press optimal reception.

/ ( / ) repeatedly until you ﬁ nd

Program radio stations automatically

You can program a maximum of 20 preset radio • stations.

1 Tune to a radio station. 2 Press REPEAT/PROGRAM to activate

programming.

3 Press / to allocate a number from

1 to 20 to this radio station, then press REPEAT/PROGRAM to conﬁ rm.

The preset number and the frequency » of the preset station are displayed.

4 Repeat the above steps to program other

stations.

Note

To overwrite a programmed station, store another • station in its place.

Note

You can program a maximum of 20 preset radio • stations.

1 Press / to select a preset number to

start programing.

2 Press and hold REPEAT/PROGRAM

for 2 seconds to activate automatic programming. » [AUTO] (auto) is displayed brieﬂ y.

All available stations are programmed » in the order of waveband reception strength.

The last programed radio station is » broadcast automatically.

Tune to a preset radio station

Press / to select a preset number

that you want.

Tip

You can also use the numerical keypad to select a • preset station directly.

Page 26

8 Adjust volume

level and sound effect

Adjust volume level

During play, press +/- to increase/

decrease the volume level.

Select a sound effect

Note

You cannot use different sound effects at the same • time.

2 Within 5 seconds, press +/- to set the

level for high tones (treble) or low tones (bass).

Mute sound

During play, press to mute/unmute

sound.

English

Select a preset sound effect

1 During play, press SOUND repeatedly to

select:

• [CLASSIC] (Concert)

• [ROCK] (Action)

• [Sports] (Gaming)

• [Lounge] (Drama)

• [Night]

Select surround sound effect

DVS (Dolby Vir tual Speaker) technology creates a highly compelling 5.1-channel listening experience from as few as two speakers. It is an ideal entertainment solution for locations where space for multiple speaker setup is limited.

1 During play, press SURROUND to turn

on/off surround sound effect.

Adjust treble/bass level

1 Press TREBLE or BASS.

Page 27

9 Connect other

devices

Listen to an audio player

You can listen to an audio player through this unit.

1 Connect the audio player.

For audio players with red/white • audio output sockets: Connect a red/white audio cable (not supplied) to the AUX IN L/R sockets and to the audio output sockets on the audio player. For audio players with headphone • sockets: Connect a 3.5mm audio cable (not supplied) to the MP3 LINK socket and to the headphone socket on the audio player. For audio players with optical sockets:• Connect an optical cable (not supplied) to the OPTICAL IN socket and to the optical output socket on the audio player.

2 Select the AUDIO SOURCE or MP3 LINK

source.

3 Start play on the audio player.

Page 28

10 Product

Tuner (FM)

Tuning Range 87.5 - 108MHz

information

Note

Product information is subject to change without prior • notice.

Speciﬁ cations

Ampliﬁ er

Rated Output Power 2X50WRMS Frequency Response 20 -20kHz, ±3dB Signal to Noise Ratio >67dB Aux Input 500mv RMS, 20kohm

Tuning grid 50KHz Sensitivity

- Mono, 26dB S/N Ratio <22 dBf Search Selectivity >28dBf Total Harmonic Distortion <3% Signal to Noise Ratio >50dB

Speakers

Speaker Impedance 2x8ohm Speaker Driver, base 3” woofer Speaker Driver,

tweeter Sensitivity >83dB/m/W ±

19mm tweeter

4dB/m/W

General information

English

Disc

Laser Type Semiconductor Disc Diameter 12cm/8cm Video Decoding MPEG-1 / MPEG-2 /

DivX Video DAC 12Bits Signal System PAL / NTSC Video Format 4:3 / 16:9 Video S/N >48dB Audio DAC 24Bits / 96kHz Total Harmonic

Distortion Frequency

Response

S/N Ratio >67dBA

<1%

4Hz - 20kHz (44.1kHz)

4Hz - 22kHz (48kHz)

4Hz - 24kHz (96kHz)

AC power 120/230V,

50/60Hz

Operation Power Consumption

Normal Standby power Consumption

Low Power Standby power Consumption

Composite Video Output 1.0Vp-p, 75ohm HDMI (CEC) Output 1.3a USB Direct Version 2.0 Dimensions

- Main Unit (W x H x D) Weight

- With Packing 5 kg

45W

<4W

<1W

800 x 140 x 97 mm

Page 29

Supported disc formats

Digital Video Discs (DVDs)• Video CDs (VCDs)• Super Video CDs (SVCDs)• Digital Video Discs + Rewritable • (DVD+RW) Compact Discs (CDs)• Picture (Kodak, JPEG) ﬁ les on CDR(W)• DivX(R) disc on CD-R(W):• DivX 3.11, 4.x and 5.x• WMA•

Supported MP3-CD formats:

ISO 9660• Max. title/album name: 12 characters• Max. title number plus album: 255.• Max. nested directory: 8 levels.• Max. album number: 32.• Max. MP3 track number: 999.• Supported sampling frequencies for MP3 • disc: 32 kHz, 44.1 kHz, 48 kHz. Supported Bit-rates of MP3 disc are: 32, 64, • 96, 128, 192, 256 (kbps). The following formats are not supported:•

Files like *.VMA, *.AAC, *.DLF, *.M3U,• *.PLS, *.WAV• Non-English Album/Title name• Discs recorded in Joliet format• MP3 Pro and MP3 with ID3 tag•

Supported formats:

USB or memory ﬁ le format FAT12, • FAT16, FAT32 (sector size: 512 bytes) MP3 bit rate (data rate): 32-320 Kbps • and variable bit rate WMA v9 or earlier• Directory nesting up to a maximum • of 8 levels Number of albums/ folders: maximum • 99 Number of tracks/titles: maximum 999• ID3 tag v2.0 or later• File name in Unicode UTF8 • (maximum length: 128 bytes)

Unsupported formats:

Empty albums: an empty album is an • album that does not contain MP3/ WMA ﬁ les, and is not be shown in the display. Unsupported ﬁ le formats are skipped. • For example, Word documents (.doc) or MP3 ﬁ les with extension .dlf are ignored and not played. AAC, WAV, PCM audio ﬁ les• DRM protected WMA ﬁ les (.wav, • .m4a, .m4p, .mp4, .aac) WMA ﬁ les in Lossless format•

USB playability information

Compatible USB devices:

USB ﬂ ash memory (USB 2.0 or • USB1.1) USB ﬂ ash players (USB 2.0 or USB1.1)• memory cards (requires an additional • card reader to work with this apparatus)

Page 30

11 Troubleshooting

Warning

Never remove the casing of this apparatus. •

To keep the warranty valid, never try to repair the system yourself. If you encounter problems when using this apparatus, check the following points before requesting service. If the problem remains unsolved, go to the Philips web site www. philips.com/welcome. When you contact Philips, ensure that the apparatus is nearby and the model number and serial number are available.

No power

Ensure that the AC cord of the unit is • connected properly. Ensure that there is power at the AC • outlet. As a power-saving feature, the system • switches off automatically 15 minutes after track play reaches the end and no control is operated.

No picture

Check the video connection.• Turn on the TV to the correct Video-In • channel. Progressive scan is activated but the TV • does not support progressive scan.

USB device not supported

The USB device is incompatible with the • unit. Try another one.

Cannot display some ﬁ les in USB device

The number of folders or ﬁ les in the USB • device has exceeded a certain limit. This phenomenon is not a malfunction. The formats of these ﬁ les are not • supported.

No picture on HDMI connection.

Check if the HDMI cable is faulty. Replace a • new HDMI cable. If this happens when you change the • HDMI video resolution, select the correct resolution until the picture appears.

No disc detected

Insert a disc.• Check if the label side of the disc faces • outwards. Wait until the moisture condensation at • the lens has cleared. Replace or clean the disc.• Use a ﬁ nalized CD or correct format disc.•

Black and white or distorted picture

The disc does not match the TV color • system standard (PAL/NTSC). Sometimes a slight picture distortion may • appear. This is not a malfunction. Clean the disc.• A distorted picture may appear during • progressive scan setup.

The aspect ratio of the TV screen cannot be changed even though you have set the TV display format.

The aspect ratio if ﬁ xed on the loaded • DVD disc. The aspect ratio may not be changed for • some TV systems.

No sound

Adjust the volume.• Check that the speakers are connected • correctly. If there is no sound in the USB mode, • ensure that you have connected a USB device that contains playable music. If there is no sound in the AV mode, • ensure that you have connected AV devices to the system correctly.

Remote control does not work

Before you press any function button, ﬁ rst • select the correct source with the remote control. Reduce the distance between the remote • control and the unit. Insert the battery with its polarities (+/– • signs) aligned as indicated. Replace the batteries.• Aim the remote control directly at the • sensor on the front of the unit.

English

Page 31

Disc does not play

Insert a readable disc and ensure that the • label side faces outwards. Check the disc type, color system and • regional code. Check for any scratches or smudges on the disc. Press•

OPTIONS to exit the system setup menu. Disable the password for parental control • or change the rating level. Moisture has condensed inside the system. • Remove the disc and leave the system turned on for about an hour. Disconnect and reconnect the AC power plug, and then turn on the system again. As a power-saving feature, the system • turns off automatically 15 minutes after disc play reaches the end and no control is operated.

Poor radio reception

Increase the distance between the unit and • your TV or VCR. Fully extend the FM antenna.• Connect an outdoor FM antenna instead.•

Unable to select Progressive Scan

Ensure the component video mode is set • to [YUV].

No sound on HDMI connection.

You may not hear any sound if the • connected device is non-HDCP compliant or only DVI-compatible.

Audio or subtitle languages cannot be set

The disc is not recorded with sound or • subtitles in multiple languages. The audio or subtitle language setting is • prohibited on the disc.

Page 32

12 Appendix

Mount to a wall

Caution

Risk of product damage! Always consult professional • personnel to safely mount the product to a wall.

•

Risk of injury! Ensure that no supply ducts such as gas, water or electricity are harmed when you drill the holes.

What’s in the supplied mounting kit

You can use the supplied bracket to mount the main unit and speakers to the wall.

1 Align the bracket in the chosen location

on a wall. Use a pencil to mark the drilling positions.

English

1 x wall mount bracket for the main unit and speakers

4 x screws

What else you’ll need

Electric drill• Screwdriver• Pencil•

2 Drill holes as marked.

3 Secure the wall mount bracket onto the

wall with 4 supplied screws.

Mount the main unit and speakers

Caution

To ﬁ nd a suitable mounting location, make the • necessary physical and wireless connections.

•

Mount the main unit and speakers to a solid concrete wall or plaster board wall only!

Page 33

4 Hook the main unit and speakers in place.

Page 34

13 Glossary

DivX®

The DivX® codec is a patent-pending, MPEG-4 based video compression technology developed by DivX®, Inc. It can shrink the ﬁ le size of digital video and still maintain the high visual quality.

English

Analog audio

Sound that has not been turned into numbers. Analog sound is available when you use the AUDIO LEFT/RIGHT. These red and white jacks send audio through two channels, the left and right.

Aspect ratio

Aspect ratio refers to the length to height ratio of TV screens. The ratio of a standard TV is 4:3, while the ratio of a high-deﬁ nition or wide TV is 16:9. The letter box allows you to enjoy a picture with a wider perspective on a standard 4:3 screen.

AUX

Auxiliary input that allows you to connect portable audio devices.

Dolby Digital Pro Logic II

An advanced, matrix decoding technology that expands any two channel audio, such as CDs and stereo encoded videocassettes, video games and TV broadcasts to a ﬁ ve channel full bandwidth (range) playback (Left/Center/Right/ Left Surround/Right Surround), resulting in a surround sound experience.

EasyLink

Philips Easylink complies to the HDMI CEC industry standard protocal to share functionalities between this unit and its connected devices. This feature is only available if you connect this unit to a HDMI compliant device with a HDMI cable.

Composite video (CVBS)

A single video signal commonly used in most consumer video products.

Digital Audio

Digital Audio is a sound signal that has been converted into numerical values. Digital sound can be transmitted through multiple channels. Analog sound can only be transmitted through two channels.

Disc menu

A screen display that allows election of images, sounds, subtitles, multi-angles, etc., recorded on a DVD.

HDCP

High-bandwidth Digital Content Protection. This is a speciﬁ cation that provides a secure transmission of digital contents between different devices (to prevent unauthorized copyright.)

HDMI

High-Deﬁ nition Multimedia Interface is a high-speed digital interface that can transmit uncompressed high deﬁ nition video and digital multichannel audio. It delivers high quality picture and sound quality, completely free from noise. HDMI is fully backward-compatible with DVI. As required by the HDMI standard, connecting to HDMI or DVI products without HDCP (High-bandwidth Digital Content Protection) will result in no Video or Audio output.

Page 35

JPEG

A very common digital still picture format. A still-picture data compression system proposed by the Joint Photographic Expert Group, which features small decrease in image quality in spite of its high compression ratio. Files are recognized by their ﬁ le extension ‘.jpg’ or ‘.jpeg.’

MP3

A ﬁ le format with a sound data compression system. MP3 is the abbreviation of Motion Picture Experts Group 1 (or MPEG-1) Audio Layer 3. With the MP3 format, one CD-R or CD-RW can contain about 10 times more data than a regular CD.

Surround

A system that creates realistic, threedimensional sound ﬁ elds. It is usually achieved with multiple speakers that are arranged around the listener.

Parental control

A function of the DVD to limit playback of the disc by the age of the users according to the limitation level in each country. The limitation varies from disc to disc; when it is activated, playback will be prohibited if the software’s level is higher than the user-set level.

PBC

Playback Control. A system where you navigate through a Video CD/Super VCD with on-screen menus that are recorded onto the disc. You can enjoy interactive playback and search.

Progressive scan

The progressive scan displays twice the number of frames per second than in an ordinary TV system. It offers higher picture resolution and quality.

Page 36

Document order number: HSB2351_51_UM_V1.0
