Philips HR1757/6, HR1754/6 User Manual [ar]

HR1757/6, HR1754/6

2

ENGLISH 4

FRANÇAIS 20

48

64

HR1757, HR1754

áá««HHôô©©ddGG

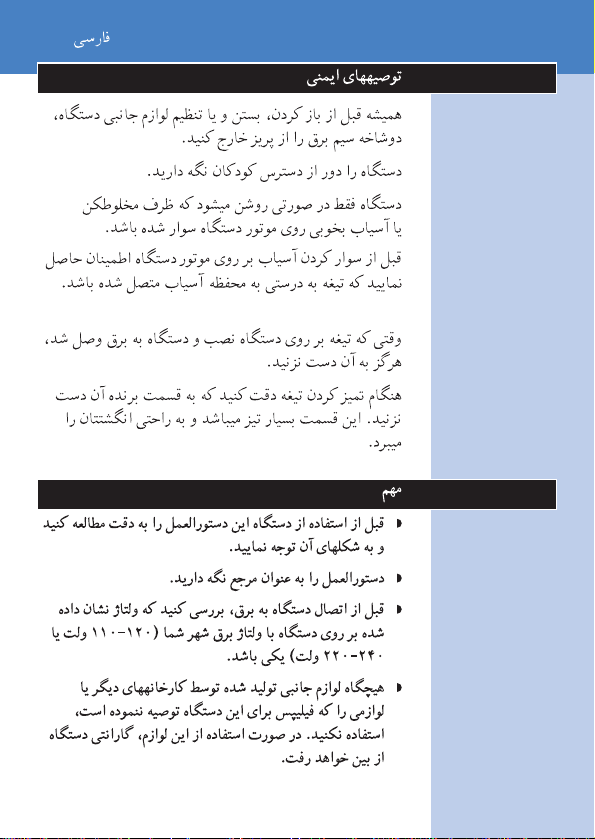

Safety notice

Always unplug the appliance from the mains
before assembling, disassembling or making
adjustments to any of the accessories.

Keep the appliance out of the reach of children.

HR1757 only:The motor only star ts if the blender
jar or the mill attachment has been correctly
assembled onto the motor unit.

HR1757 only: Make sure the blade unit is securely
fastened onto the mill beaker before you screw
the mill attachment onto the motor unit.

Never touch the blade unit when it is assembled
on the appliance and the appliance is plugged in.

Avoid touching the cutting edges of the blade
units when cleaning them.They are very sharp
and you could easily cut your fingers on them.

Important

◗ Read these instructions for use carefully and

look at the illustrations before using the
appliance.

◗ Keep these instructions for future reference.
◗ Check if the voltage indicated on the

appliance corresponds to the local mains
voltage (110-127V or 220-240V) before you
connect the appliance.

◗ Never use any accessories or parts from

ENGLISH4

other manufacturers or that have not been
specifically advised by Philips.Your guarantee
will become invalid if such accessories or
parts have been used.

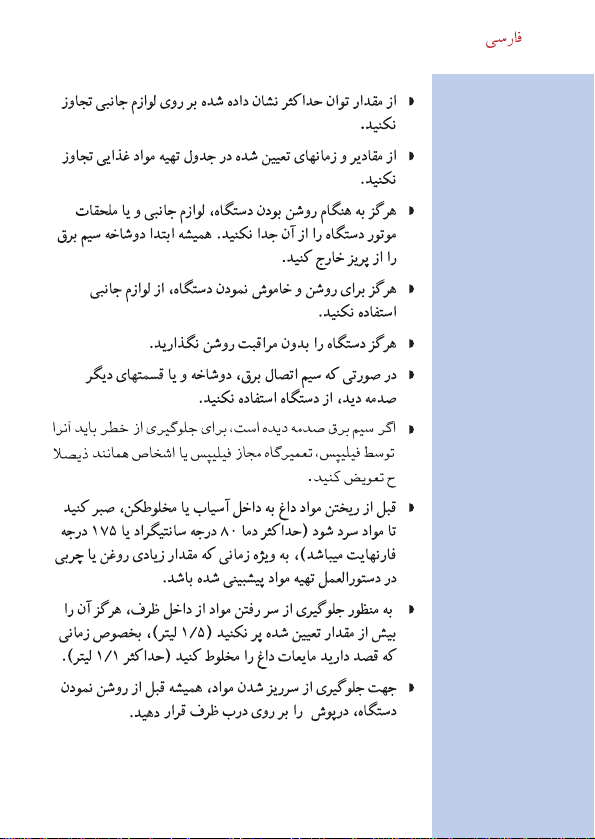

◗ Do not exceed the maximum level indicated

on the accessories.

◗ Do not exceed the quantities and preparation

times indicated in the table.

◗ Never remove accessories or parts from the

motor unit while the appliance is running.
Always unplug the appliance first.

◗ Never use the accessories to switch the

appliance on and off!

◗ Never let the appliance run unattended.
◗ Do not use the appliance if the mains cord,

the plug or other parts are damaged.

◗ If the mains cord of this appliance is damaged,

it must always be replaced by Philips or a
service centre authorised by Philips in order
to avoid hazardous situations.

◗ Let hot ingredients cool down before

chopping them or pouring them into the jar
(max. temperature 80cC/175cF), especially for
recipes that require large quantities of oil or
fat.

◗ To avoid spillage, never fill the jar beyond the

maximum level indication (1.5 litres),
particularly not if you are blending hot liquids
(maximum 1.1 litres).

◗ To avoid spillage, always assemble the stopper

with securing clip on the lid before you start
processing.

ENGLISH 5

◗ Never reach into the jar with your fingers or

an object while the appliance is running or
when the appliance is connected to the mains.

◗ If the ingredients stick to the wall of the

blender, switch the appliance off, unplug the
appliance and loosen the ingredients from the
wall by adding liquid or using a spatula.

Preparing the appliance for use

Wash all accessories and detachable parts (see
'Cleaning').

C

◗ Wind excess mains cord round the base of

the appliance.

Using the appliance

Blender

◗ The blender is intended for:

- Blending fluids, e.g. dairy products, sauces, fruit
juices, soups, mixed drinks, shakes.

-Mixing soft ingredients, e.g. pancake batter or
mayonnaise.

- Pureeing cooked ingredients, e.g. for making
baby food.

C

1 Mount the jar onto the motor unit. Fasten

it by turning it in the direction of the
arrow.The jar is properly fixed when the
notch in its lower rim is in line with the
line above the buttons on the motor
housing.

ENGLISH6

Do not exert too much pressure on the handle
of the jar.

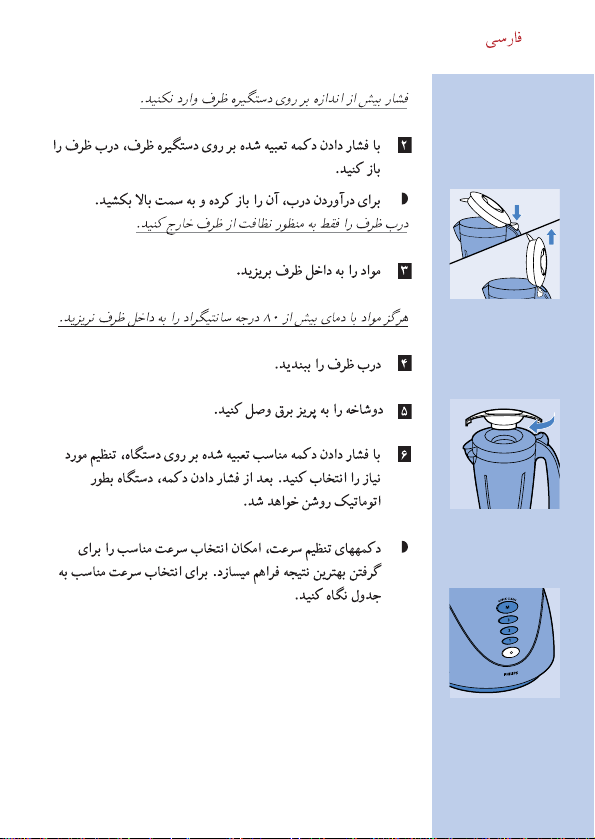

2 Open the lid by pressing the projection on

the side of the handle.

C

◗ To remove the lid, open it and then pull it

upwards.

Only remove the lid for cleaning purposes.

3 Put the ingredients in the jar.

Never fill the jar with ingredients that have a
temperature of over 80cC.

4 Close the lid.

C

5 Assemble the stopper with securing clip

onto the lid and turn it in the direction of
the arrow.

To avoid spillage, always assemble the stopper
with securing clip onto the lid before you start
processing.

6 Put the mains plug in the wall socket.

C

7 Select the required setting by pressing the

appropriate button and the appliance will
switch on automatically.

◗ The speed buttons allow you to choose the

right speed to obtain optimal results. See the
table for the recommended speeds.

ENGLISH 7

C

◗ Press the pulse button (M-button) a few times

to let the appliance run for only a few
seconds at a time.The appliance will stop
when you release the button. Press the pulse
button as often as is necessary.

Always switch the appliance off before you open
the lid.

8 Press the 0-switch to switch the appliance

off.

Never switch the appliance on or off by turning
the jar.

Recipes can be found in the 'Recipes' chapter
below.

Tips

To avoid spillage, never fill the jar above the
maximum level indication (1.5 litres), particularly
not if you are blending hot liquids (maximum 1.1
litres).

ENGLISH8

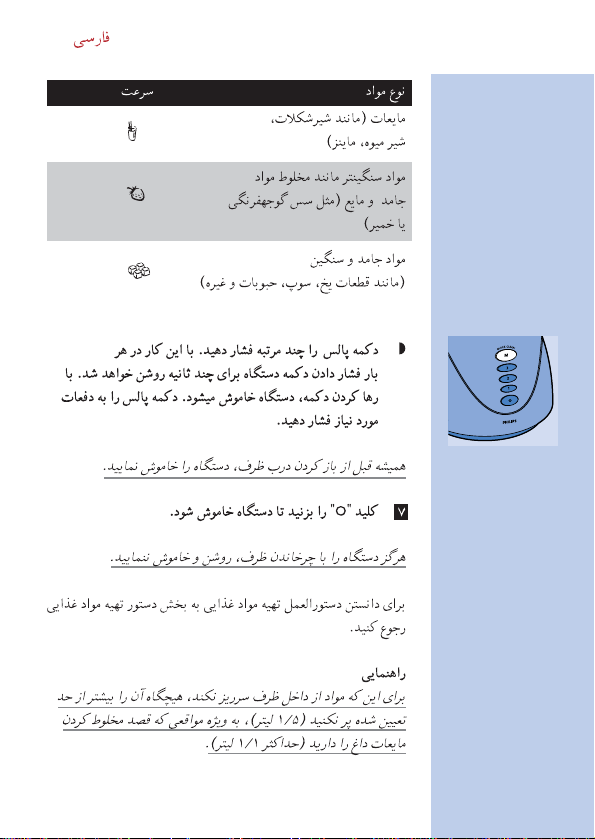

Speed

speed 1

speed 2

speed 3

Ingredients

liquid ingredients (e.g. chocolate milk,
milk with fruit, mayonnaise)

heavier ingredients e.g. a combination of
liquid and solid ingredients (e.g. tomato
sauce or pate)

heavy, mainly solid ingredients (e.g. ice
cubes, soups, beans, etc.)

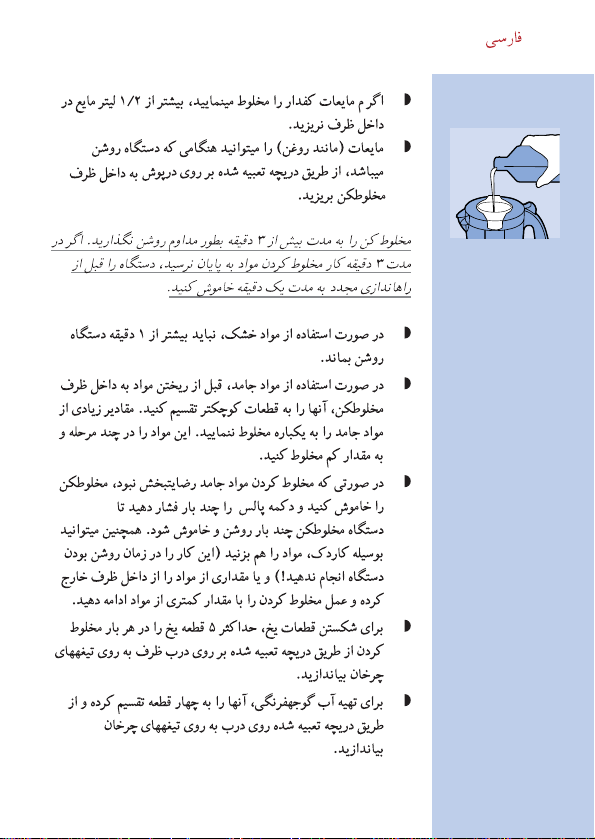

◗ If you are blending foaming liquids, never fill

the jar beyond the 1.2 l indication.

C

◗ Liquid ingredients (e.g. oil) can be poured into

the blender jar through the opening in the
stopper with securing clip while the appliance
is running.

Do not let the blender run for more than 3
minutes at a time. If you have not finished
blending after 3 minutes, switch the appliance off
for one minute before you continue blending.

◗ Dry ingredients must not be processed for

more than 1 minute.

◗ Cut solid ingredients into smaller pieces

before putting them in the blender jar. Do not
process a large quantity of solid ingredients at
the same time. Process these ingredients in a
series of small batches instead.

◗ If you are not satisfied with the result when

blending solid ingredients, switch the blender
off and press the pulse button (M-button) a
few times to let the blender run briefly.You
can also stir the ingredients with a spatula
(not while the blender is running!) or pour
out some of the contents of the jar and
process smaller amounts.

◗ To crush ice cubes, drop max. 5 cubes per

batch through the opening in the lid onto the
rotating blades.

◗ To make tomato juice, cut the tomatoes in

four and drop the pieces through the opening
in the lid onto the rotating blades.

ENGLISH 9

Never reach into the jar with your fingers or an
object (e.g. a spatula) while the blender is running.

◗ If you are processing solid and liquid

ingredients at the same time, pour the liquid
ingredients in the jar before switching the
appliance on.Add the solid ingredients while
the appliance is running.

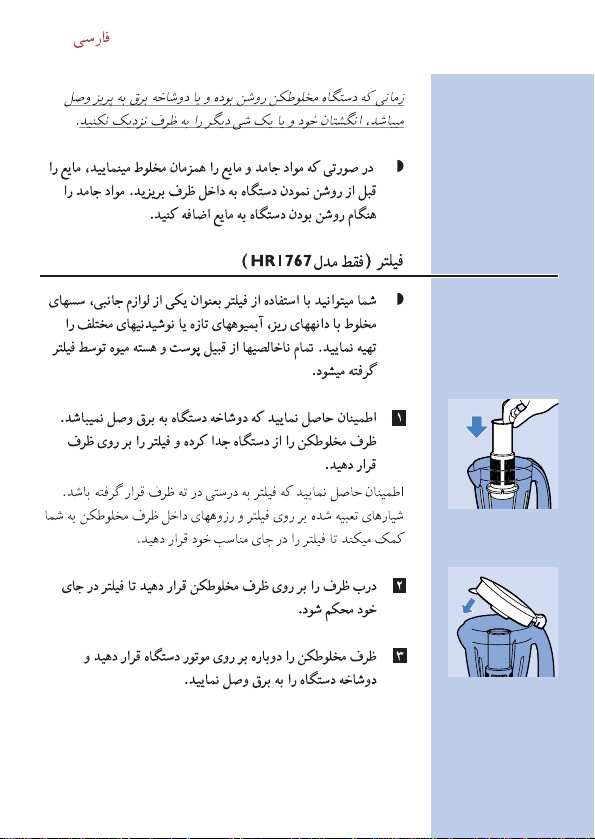

Filter

◗ You can use the filter accessory to obtain

extra finely blended sauces, fresh fruit juices
or cocktails.All pips and skins will be caught in
the filter.

C

1 Make sure the appliance is unplugged.

Remove the blender jar from the appliance
and put the filter in the blender jar.

Make sure the filter is properly fitted onto the
bottom of the jar.The grooves of the filter and the
ribs inside the blender jar will help you put the
filter in the right position.

C

2 Put the lid on the jar to fix the filter in its

proper position.

3 Put the blender jar back on the motor unit

and insert the plug into the wallsocket.

ENGLISH10

C

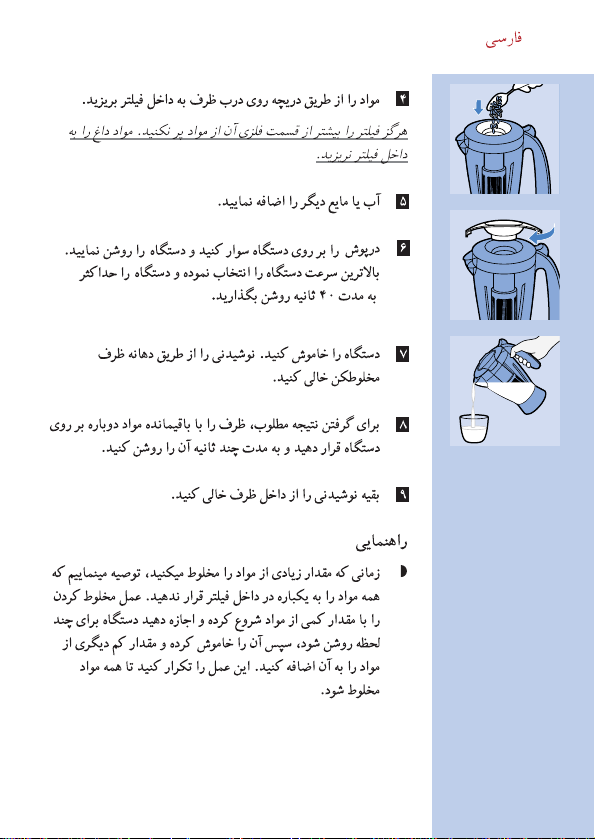

4 Put the ingredients in the filter through the

opening in the lid.

Never fill the filter beyond its metal part. Do not
use the filter to process hot ingredients.

5 Add water or another liquid.

C

6 Assemble the stopper with securing clip

and switch the appliance on. Select the
highest speed and let the appliance run for
max. 40 seconds.

C

7 Switch the appliance off. Pour out the

drink through the spout of the blender jar.

8 For optimal results, put the jar with the

remaining ingredients back onto the
appliance and let it run for a few more
seconds.

9 Pour out the rest of the drink.

Tips

◗ Particularly when you are processing large

quantities, we advise you not to put all the
ingredients in the filter at the same time. Start
processing a small quantity, let the appliance
run for a moment, switch it off and then add
another small quantity. Repeat this procedure
until you have processed all the ingredients.

ENGLISH 11

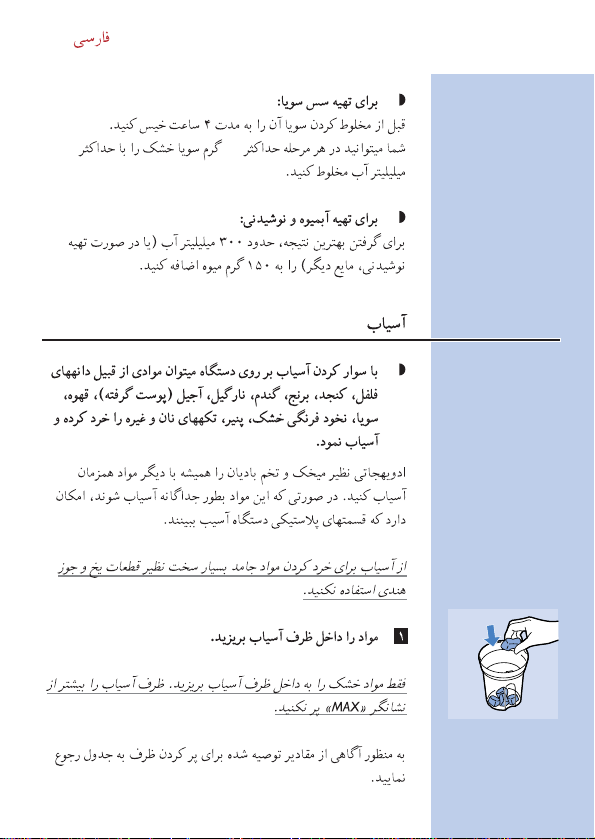

◗ For making soy milk:

Soak soy beans for 4 hours before processing
them.
You can process max. 50 g. of dry soy beans with
max. 500 ml. water at a time.

◗ For making fruit juices and cocktails:

For the best results, add approx. 300 ml water (or
another liquid if you are making e.g. cocktails, etc.)
to 150 g fruit.

Mill (only type HR1757)

◗ The mill attachment can be used for grinding

and chopping ingredients such as
peppercorns, sesame seeds, rice, wheat,
coconut flesh, nuts (shelled), coffee beans, soy
beans, dried peas, cheese, breadcrumbs, etc.

Always process cloves, star anise and aniseed
together with other ingredients. If processed
separately, these ingredients may attack the
plastic materials of the appliance.

The mill is not suitable for chopping very hard
ingredients like nutmeg and ice cubes.

C

1 Put the ingredients in the beaker.

Process only dry ingredients. Do not fill the
beaker beyond the 'MAX' indication.
See the table for the advised quantities.

ENGLISH12

Quantities and preparation times

C

2 Make sure the rubber ring on the blade

unit is properly placed.

C

3 Screw the blade unit onto the beaker.

If this requires some effort, moisten the rubber
ring with a drop of water.

ENGLISH 13

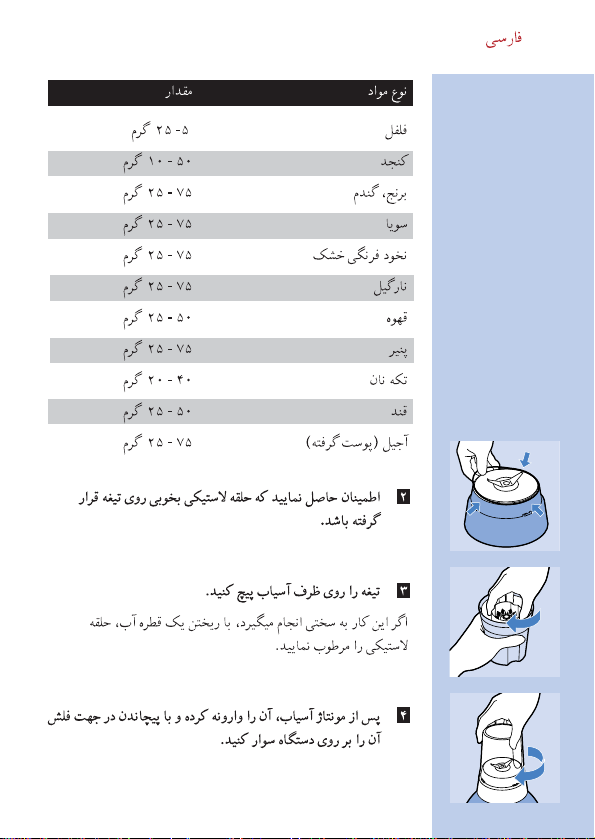

Quantities

5-25 g

10-50 g

25-75 g

25-75 g

25-75 g

25-75 g

25-50 g

25-75 g

20-40 g

25-50 g

25-75 g

Ingredients

pepper corns

sesame seed

rice, wheat

soy beans

dried peas

coconut flesh

coffee beans

cheese

bread crumbs

sugar cubes

nuts (shelled)

C

4 Turn the assembled mill upside down and

screw it onto the motor unit in the
direction of the arrow.

C

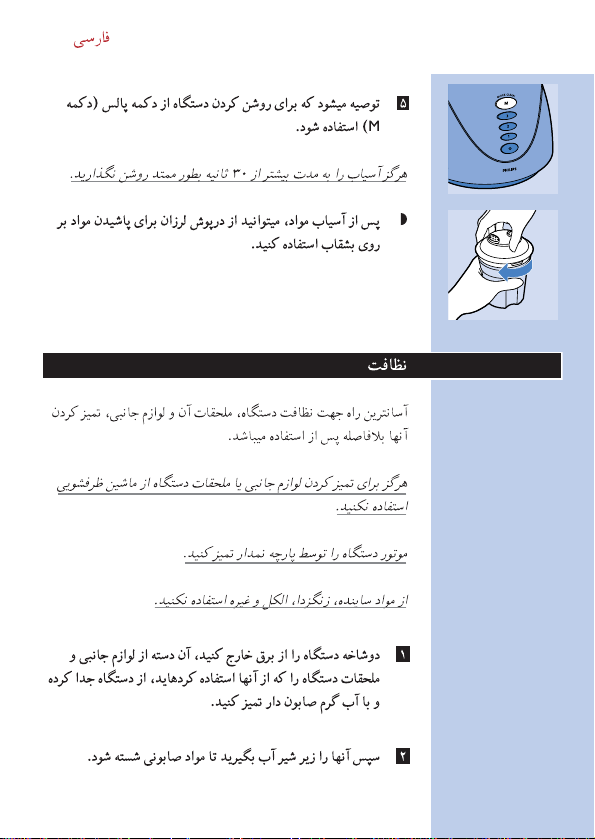

5 We advise you to operate the mill by

means of the pulse button (M-button).

Never use the mill for more than 30 seconds
without interruption.

C

◗ After processing, you can use the shaker lid to

sprinkle the ingredients evenly onto a dish.

Cleaning

Cleaning of the appliance, its parts and the
accessories is easiest immediately after use.

Never clean the accessories or parts of the
appliance in the dishwasher.

Clean the motor unit with a moist cloth.

Do not use abrasives, scourers, alcohol, etc.

1 Unplug the appliance, detach the

accessories and parts you have used and
clean them in warm, soapy water.

ENGLISH14

2 Then rinse them under the tap to wash

away soap residues.

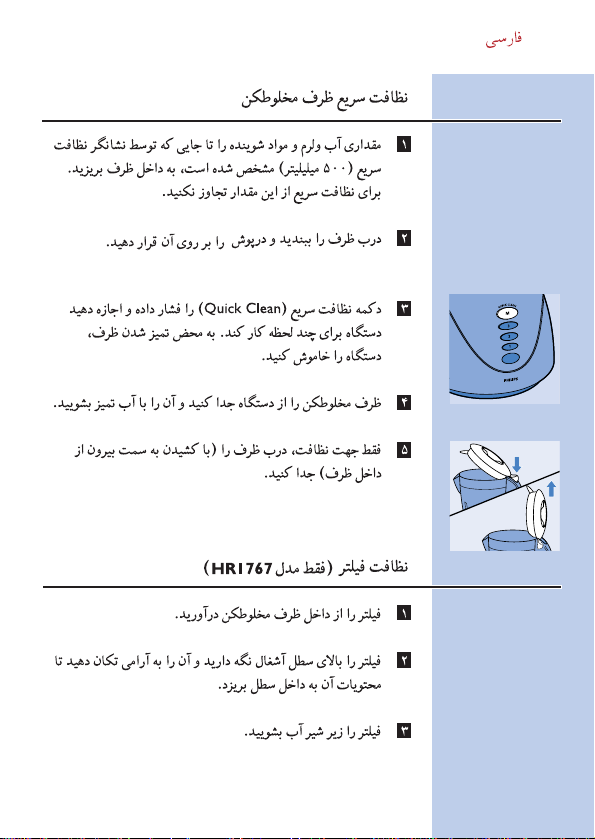

Quick cleaning of the blender jar

1 Pour lukewarm water and some washing-

up liquid into the blender jar, up to the
Quick Clean level indication (500 ml) on
the jar. Do not exceed this level when
using the Quick Clean function.

2 Close the lid and assemble the stopper

with securing clip.

C

3 Press the Quick Clean button and let the

appliance run for a few moments. Stop as
soon as the jar is clean.

4 Detach the blender jar and rinse it with

clean water.

C

5 Only remove the lid (by pulling it off the

blender jar) for cleaning purposes!

Cleaning the filter

1 Ta ke the filter out of the blender jar.

2 Hold the filter over a waste bin and gently

shake out its contents.

3 Rinse the filter under the tap.

ENGLISH 15

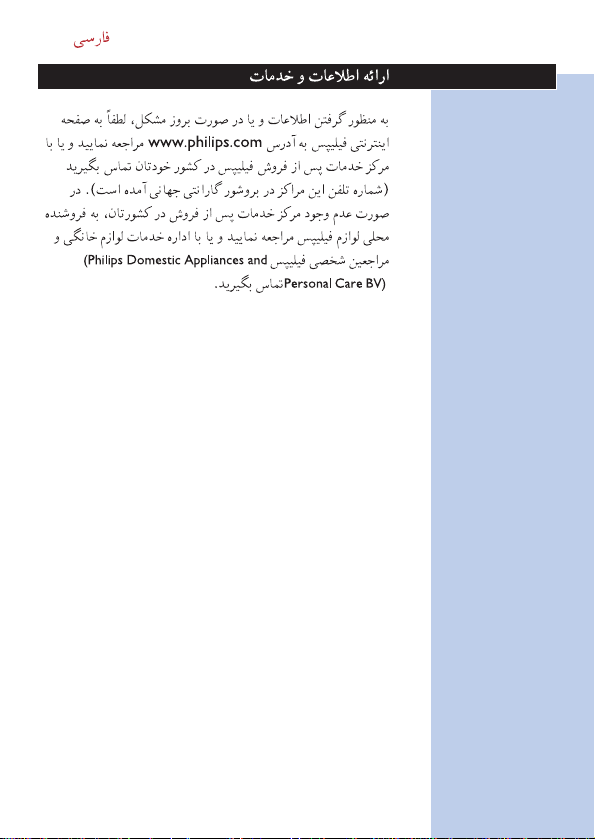

Information & service

If you need information or if you have a problem,
please visit the Philips Web site at
www.philips.com or contact the Philips Customer
Care Centre in your country (you will find its
phone number in the worldwide guarantee
leaflet). If there is no Customer Care Centre in
your country, turn to your local Philips dealer or
contact the Service Depar tment of Philips
Domestic Appliances and Personal Care BV.

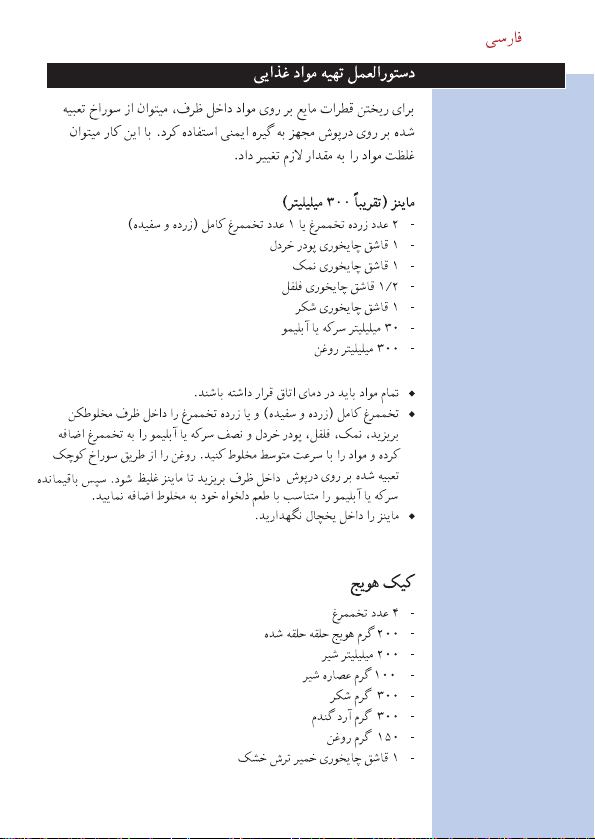

Recipes

The hole in the stopper with securing clip can be
used to add drops of liquid to the ingredients in
the jar in order to obtain the required level of
consistency.

Mayonnaise (about 300 ml)

-2 egg yolks or 1 whole egg

-1 tsp mustard powder

-1 tsp salt

- 1/2 tsp pepper

-1 tsp sugar

- 30 ml vinegar or lemon juice

- 300 ml oil

B

All the ingredients have to be at room
temperature.

B

Put the egg or egg yolks in the blender jar, add
salt, pepper and mustard powder and half of the
vinegar or lemon juice and blend at average
speed. Pour oil through the small hole in the

ENGLISH16

stopper with securing clip until the mayonnaise
becomes thick.Then add the remaining vinegar or
lemon juice and season according to taste.

B

Store in the refrigerator.

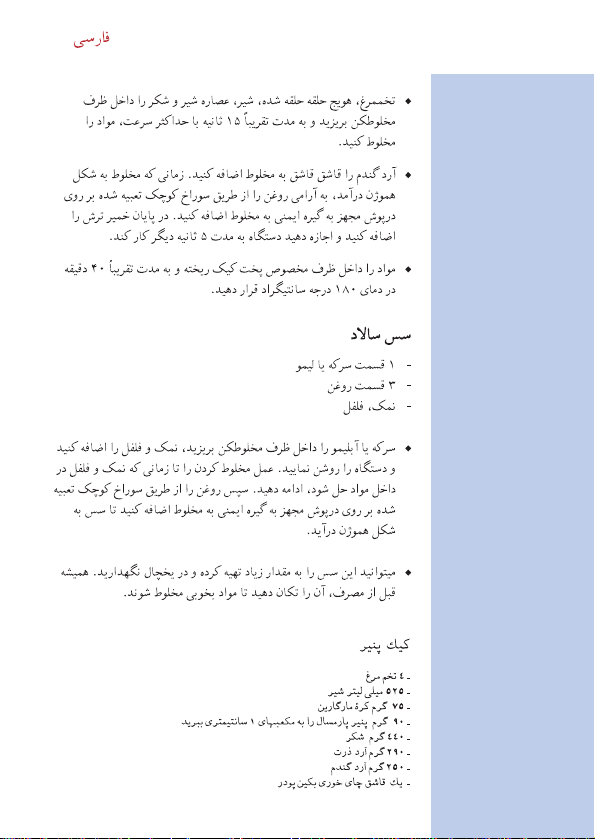

Carrot cake

-4 eggs

- 200 g sliced carrot

- 200 ml milk

- 100 g condensed milk

- 300 g sugar

- 300 g wheat flour

- 150 g oil

-1 tsp dried yeast

B

Put the eggs, the sliced carrots, the milk, the
condensed milk and the sugar in the blender jar
and process it for approx. 15 seconds at max.
speed.

B

Add the wheat flour spoon by spoon.When the
mixture has become homogeneous, gradually add
the oil through the small hole in the stopper with
securing clip. Finally add the dried yeast and let
the appliance run for another 5 seconds.

B

Put the mixture in a baking tin and bake it at
180c for approx. 40 minutes.

Salad dressing

-1 part vinegar or lemon

-3 parts oil

- salt, pepper

B

Pour vinegar or lemon juice into the blender jar,
add salt and pepper and switch the appliance on.

ENGLISH 17

Process until the salt and pepper have dissolved.
Then add the oil through the small hole in the
stopper with securing clip until a homogeneous
dressing has formed.

B

You can also prepare a larger quantity of this
basic dressing and store it in the refrigerator.
Always shake before use to mix the ingredients.

ENGLISH18

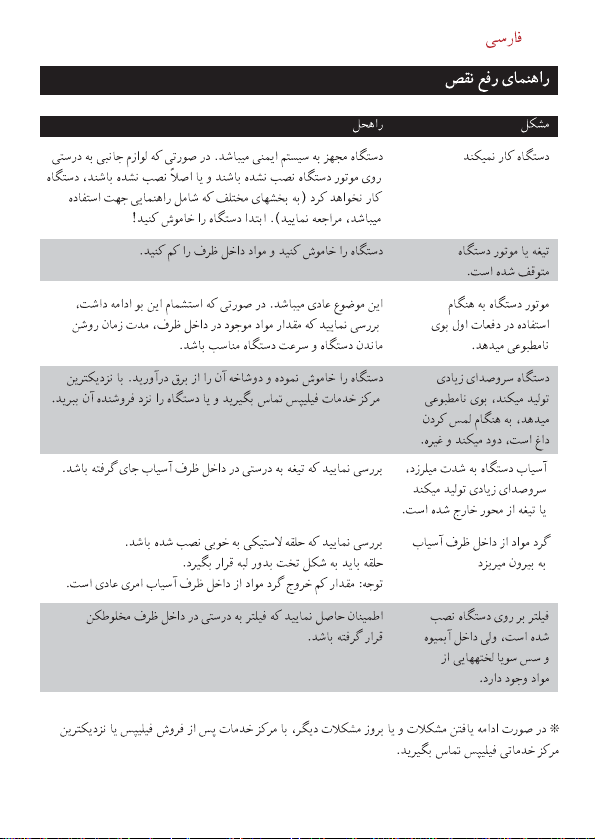

Tr oubleshooting guide

* If problems persist or if other problems occur, please contact the Philips

Customer Care Centre or the nearest Philips service centre.

Solution

The appliance is provided with a safety system.The
appliance will not work if the accessories have not
been assembled properly on the motor unit or have
not been assembled at all. Check whether the
accessories have been assembled properly (see
various sections of these direction for use). Switch off
the appliance first!

Switch off the appliance and process a smaller
quantity.

This is normal. If the appliance continues to give off
this smell after you have used it a few times, check
whether the quantity you are processing, the
processing time or the processing speed are correct.

Switch off the appliance and unplug it. Contact the
nearest Philips service or take the appliance to your
dealer.

Check whether the blade unit has been properly
assembled onto the beaker.

Check whether the rubber ring has been properly
assembled.

Make sure the rubber ring has been assembled
properly.The ring should lie flat round the interface.
Note: a small amount of leakage is normal.

Make sure that the filter has been assembled properly
in the blender jar.

Problem

The appliance does not
work

The blade unit or motor
unit is blocked.

The motor unit gives off
an unpleasant smell the
first few times the
appliance is used.

The appliance makes a
lot of noise, smells, feels
hot to touch, emits
smoke, etc.

The mill vibrates strongly,
produces a lot of noise
or the blade unit is out of
alignment.

Powder leaks from the
mill

Although the filter has
been assembled, the fruit
juice or soy milk contains
pulp.

ENGLISH 19

Mesures de sécurité

Débranchez toujours l'appareil avant d'assembler,
désassembler ou de retirer les accessoires.

Tenez l'appareil hors de portée des enfants.

HR1757 uniquement: Le moteur ne fonctionne
pas si le bol mixer ou le moulin n'ont pas été
correctement fixés sur le bloc moteur.

HR1757: Assurez-vous que l'ensemble couteaux
est correctement fixé sur le moulin avant de
visser le moulin sur le bloc moteur.

Ne touchez jamais l'ensemble couteaux s'il est
assemblé sur l'appareil branché.

Faites attention à ne jamais toucher les lames de
l'ensemble couteau pendant le nettoyage.Vous
pourriez vous couper les doigts.

Important

◗ Lisez ces recommandations ainsi que les

illustrations avant d'utiliser votre appareil.

◗ Conservez ce mode d'emploi pour usage

ultérieur.

◗ Avant de brancher l'appareil, vérifiez que la

tension indiquée sur l'appareil correspond à la
tension du secteur de votre logement (110­127V ou 220-240V).

◗ N'utilisez jamais des accessoires ou des

composants autres que ceux d'origine et

FRANÇAIS20

recommandés par Philips. Philips décline toute
résponsabilité si ce n'était pas le cas et la
garantie ne serait pas considérée comme
valable.

◗ Ne dépassez pas le repère de remplissage

maximum indiqué sur les accessoires.

◗ Ne dépassez pas les quantités maximums et

les temps d'utilisation indiqués dans le tableau.

◗ N'ôtez jamais les accessoires ou les

composants du bloc moteur pendant que
l'appareil fonctionne. Débranchez toujours
l'appareil.

◗ N'utilisez jamais les accessoires pour mettre

en marche ou pour arrêter l'appareil!

◗ Ne laissez jamais l'appareil fonctionner sans

surveillance.

◗ N'utilisez pas l'appareil si le cordon

d'alimentation, la fiche ou d'autres pièces sont
détériorés.

◗ Si le cordon d'alimentation est endommagé, il

ne doit être remplacé que par Philips ou par
un Centre Service Agréé, pour éviter tout
accident.

◗ Laissez les aliments cuits refroidir avant de les

hacher ou de les verser dans le bol
(température maximale 80cC/175cF), surtout
si les recettes nécessitent une grande quantité
d'huile ou de graisse.

◗ Pour éviter tout débordement, ne dépassez

jamais le niveau maximum (1,5 l), surtout si
vous préparez des ingrédients liquides chauds
(dans ce cas le niveau max. est 1,2 l).

FRANÇAIS 21
