Philips HP6403/30 User Manual

www.philips.com/welcome

HP6403/30

4203.000.7197.1

2 3 4

17 18 19

20 21 22

23 24 25

15 16

ENGLISH

Introduction

Congratulations on your purchase and welcome to

Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/ welcome.

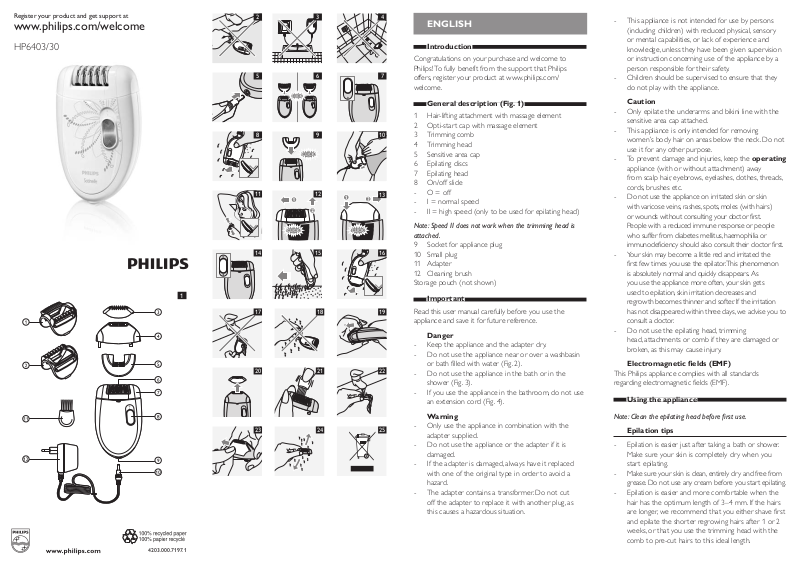

General description (Fig. 1)

1 Hair-lifting attachment with massage element 2 Opti-start cap with massage element 3 Trimming comb 4 Trimming head 5 Sensitive area cap 6 Epilating discs 7 Epilating head 8 On/off slide

- O = off

- I = normal speed

- II = high speed (only to be used for epilating head)

Note: Speed II does not work when the trimming head is attached.

9 Socket for appliance plug 10 Small plug 11 Adapter 12 Cleaning brush Storage pouch (not shown)

Important

Read this user manual carefully before you use the appliance and save it for future reference.

Danger

- Keep the appliance and the adapter dry.

- Do not use the appliance near or over a washbasin or bath filled with water (Fig. 2).

- Do not use the appliance in the bath or in the shower (Fig. 3).

- If you use the appliance in the bathroom, do not use an extension cord (Fig. 4).

Warning

- Only use the appliance in combination with the adapter supplied.

- Do not use the appliance or the adapter if it is damaged.

- If the adapter is damaged, always have it replaced with one of the original type in order to avoid a hazard.

- The adapter contains a transformer. Do not cut off the adapter to replace it with another plug, as this causes a hazardous situation.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance.

Caution

- Only epilate the underarms and bikini line with the sensitive area cap attached.

- This appliance is only intended for removing women’s body hair on areas below the neck. Do not use it for any other purpose.

- To prevent damage and injuries, keep the operating appliance (with or without attachment) away from scalp hair, eyebrows, eyelashes, clothes, threads, cords, brushes etc.

- Do not use the appliance on irritated skin or skin with varicose veins, rashes, spots, moles (with hairs) or wounds without consulting your doctor first. People with a reduced immune response or people who suffer from diabetes mellitus, haemophilia or immunodeficiency should also consult their doctor first.

- Your skin may become a little red and irritated the first few times you use the epilator. This phenomenon is absolutely normal and quickly disappears. As you use the appliance more often, your skin gets used to epilation, skin irritation decreases and regrowth becomes thinner and softer. If the irritation has not disappeared within three days, we advise you to consult a doctor.

- Do not use the epilating head, trimming head, attachments or comb if they are damaged or broken, as this may cause injury.

Electromagnetic elds (EMF)

This Philips appliance complies with all standards regarding electromagnetic fields (EMF).

Using the appliance

Note: Clean the epilating head before rst use.

Epilation tips

- Epilation is easier just after taking a bath or shower. Make sure your skin is completely dry when you start epilating.

- Make sure your skin is clean, entirely dry and free from grease. Do not use any cream before you start epilating.

- Epilation is easier and more comfortable when the hair has the optimum length of 3–4 mm. If the hairs are longer, we recommend that you either shave first and epilate the shorter regrowing hairs after 1 or 2 weeks, or that you use the trimming head with the comb to pre-cut hairs to this ideal length.

- When you epilate for the first time, we advise you to epilate in the evening, so that any reddening that develops can disappear overnight.

- On some areas, e.g. the underarms, hair may grow in different directions. In this case, it may be helpful to move the appliance in different directions to achieve optimal results.

Connecting the appliance

1 Insert the appliance plug into the appliance (Fig. 5).

2 Insert the adapter into the wall socket.

Epilating the legs

We advise you to start epilating with the opti-start cap with massage element. This cap ensures maximum skin contact and allows you to epilate your legs more quickly and efficiently. The hair-lifting attachment with massage element ensures optimal hair lifting, relaxes the skin and minimises the pulling sensation of epilation.

Only use the opti-start cap and hair-lifting attachment on your legs.

1 Put the opti-start cap or hair-lifting attachment on

the epilating head (Fig. 6).

The procedure for placing the attachments onto the appliance is the same for all attachments.

2 Select the desired speed to switch on the

appliance (Fig. 7).

Preferably use speed II. Switch to speed I for areas with little hair growth, for hard-to-reach areas and for areas where bones are located directly beneath the skin, such as knees and ankles.

3 Stretch the skin with your free hand to make the

hairs stand upright. Then place the epilator on the skin at an angle of 90° with the on/off slide pointing in the direction in which you are going to move the appliance (Fig. 8).

4 Move the appliance slowly over the skin, against the

direction of hair growth.

Press the appliance lightly onto the skin.

Epilating the underarms and bikini line

Your epilator comes with a sensitive area cap that reduces the number of active epilating discs.

Note: You get the best results in the most comfortable

way when the hairs are not too long (approx. 4mm). If the

hairs are longer, you can trim them to this length with the

trimming head and comb (see section ‘Trimming sensitive areas with the trimming head and comb’ in this chapter).

1 Thoroughly clean the area to be epilated to remove

any residues of deodorant, cream etc. Then dab the area dry.

2 Put the sensitive area cap on the epilating head (Fig. 9).

3 Switch on the appliance.

4 Stretch the skin with your free hand to make the

hairs stand upright. Then place the epilator on the skin at an angle of 90° with the on/off slide pointing in the direction in which you are going to move the appliance.

5 Move the appliance slowly over the skin, against the

direction of the hair growth.

- Epilate your bikini line as shown in the figure (Fig. 10).

- Epilate your underarms as shown in the figure. Move the appliance in different directions (Fig. 11).

Trimming sensitive areas with the trimming head and comb

Use the trimming head to trim the hair on your underarms and bikini line to a length of 4mm.

Note: The trimming head can only be used at speed setting I.

1 Push the epilating head in the direction of the

arrows on the back of the appliance (1) and remove it from the appliance (2) (Fig. 12).

2 Put the trimming head on the appliance (1) and

push it against the direction of the arrows on the

back of the appliance (2) to x it (Fig. 13).

3 Put the comb on the trimming head.

4 Switch on the appliance (Fig. 14).

Note: Speed II does not work when the trimming head is attached.

5 Stretch the skin with your free hand.

6 Move the appliance against the direction of hair

growth. Make sure the surface of the comb always stays in contact with the skin (Fig. 15).

Styling with the trimming head.

To style your bikini line, use the trimming head without the comb. Styling without the comb results in a hair length of approx. 0.5-1mm. You can be as creative as you like when you style your bikini line.

Note: The trimming head can only be used at speed setting I.

1 Push the epilating head in the direction of the

arrows on the back of the appliance (1) and remove it from the appliance (2) (Fig. 12).

2 Put the trimming head on the appliance (1) and

push it against the direction of the arrows on the

back of the appliance (2) to x it (Fig. 13).

3 Switch on the appliance.

Note: Speed II does not work when the trimming head is attached.

4 Move the appliance towards the desired contour

of your bikini line, against the direction of hair growth. Touch the skin lightly with the trimming head (Fig. 16).

Cleaning and maintenance

Note: Make sure the appliance is switched off and unplugged before you start to clean it.

Never use scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.

- Never rinse the appliance or the adapter under the tap (Fig. 17).

- Keep the appliance and the adapter dry (Fig. 18).

Cleaning the attachments

1 Remove any attachment from the epilating

head (Fig. 19).

- Remove the trimming comb by pulling it off the trimming head (Fig. 20).

2 Remove loose hairs from the attachment with the

cleaning brush.

3 Rinse the attachment under the tap while turning it.

4 Dry the attachment before you use or store it.

Cleaning the epilating head/trimming head

1 Push the epilating head/trimming head in the

direction of the arrows on the back of the appliance (1) and remove it (2) (Fig. 12).

2 Remove loose hairs with the cleaning

brush (Fig. 21).

3 Rinse the epilating head/trimming head under the

tap while turning it (Fig. 22).

- Pull the front cover off the trimming head to remove any hair that has accumulated inside the trimming head (Fig. 23).

4 Shake the epilating head/trimming

head rmly (Fig. 24).

Dry the epilating/trimming head thoroughly with a tea towel.

Note: Make sure the epilating head/trimming head is completely dry before you place it back onto the appliance.

Ordering accessories

To purchase accessories for this appliance, please visit our online shop at www.shop.philips.com/service. If the online shop is not available in your country, go to your Philips dealer or a Philips service centre. If you have any difficulties obtaining accessories for your appliance, please contact the Philips Consumer Care Centre in your country. You find its contact details in the worldwide guarantee leaflet.

Environment

- Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment (Fig. 25).

Guarantee and service Guarantee

- Philips Consumer Lifestyle guarantees its products for a period of two years after the date of purchase. If any defect due to faulty materials and workmanship occurs within this two-year guarantee period, Philips Consumer Lifestyle will repair or replace the product at its expense.

- Philips Consumer Lifestyle will only pay for repair or replacement if convincing proof is provided, for instance by means of a receipt, that the day on which service is claimed is within the guarantee period.

- The guarantee does not cover products and/or product parts that are subject to wear, that can be considered as consumable parts by their nature or that are made of glass.

- The guarantee is not valid if a defect is due to damage caused by incorrect use, poor maintenance (e.g. parts blocked by scale) or if alterations or repairs have been carried out by persons not authorised by Philips Consumer Lifestyle.

- For the appliance to be used correctly, the user should strictly adhere to all instructions included in this user manual and should abstain from any actions or uses that are described as undesired or which are warned against in this user manual.

- For some products, the guarantee may be subject to certain restrictions, for instance as a result of the type of material used.

- These guarantee restrictions do not affect your statutory rights.

Service

Service during and after the guarantee period can be obtained in all countries where the product is officially distributed by Philips. In countries where the product is not distributed by Philips, service is provided by the national Philips organisation. In this case there may be some delay if the required spare parts are not readily available. If you need service or information or if you have a problem, please visit the Philips website at www.philips.com/ support or contact the Philips Consumer Care Centre in your country. You find its contact details below. If there is no Consumer Care Centre in your country, go to your local Philips dealer or contact an authorised Philips service centre. Addresses and phone numbers of these service centres can be found in the separate repair-shop leaflet.
