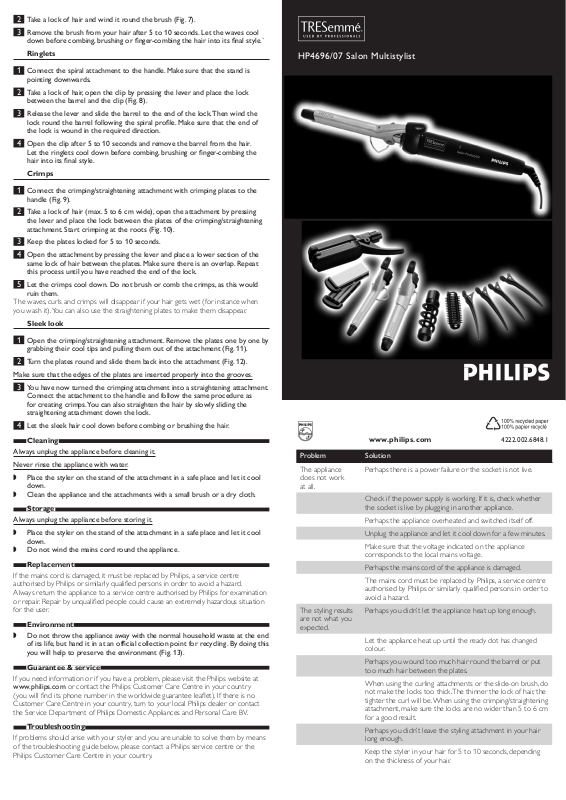

Philips HP4696/07 BROCHURE
2 Take a lock of hair and wind it round the brush (Fig. 7).
3 Remove the brush from your hair after 5 to 10 seconds. Let the waves cool
down before combing, brushing or nger-combing the hair into its nal style.`
Ringlets
1 Connect the spiral attachment to the handle. Make sure that the stand is
pointing downwards.
2 Take a lock of hair, open the clip by pressing the lever and place the lock
between the barrel and the clip (Fig. 8).
3 Release the lever and slide the barrel to the end of the lock. Then wind the
lock round the barrel following the spiral prole. Make sure that the end of
the lock is wound in the required direction.
4 Open the clip after 5 to 10 seconds and remove the barrel from the hair.
Let the ringlets cool down before combing, brushing or nger-combing the
hair into its nal style.
Crimps
1 Connect the crimping/straightening attachment with crimping plates to the
handle (Fig. 9).
2 Take a lock of hair (max. 5 to 6 cm wide), open the attachment by pressing
the lever and place the lock between the plates of the crimping/straightening
attachment. Start crimping at the roots (Fig. 10).
3 Keep the plates locked for 5 to 10 seconds.
4 Open the attachment by pressing the lever and place a lower section of the
same lock of hair between the plates. Make sure there is an overlap. Repeat
this process until you have reached the end of the lock.
5 Let the crimps cool down. Do not brush or comb the crimps, as this would
ruin them.
The waves, curls and crimps will disappear if your hair gets wet (for instance when
you wash it). You can also use the straightening plates to make them disappear.
Sleek look
HP4696/07 Salon Multistylist
1 Open the crimping/straightening attachment. Remove the plates one by one by
grabbing their cool tips and pulling them out of the attachment (Fig. 11).
2 Turn the plates round and slide them back into the attachment (Fig. 12).
Make sure that the edges of the plates are inserted properly into the grooves.
3 You have now turned the crimping attachment into a straightening attachment.
Connect the attachment to the handle and follow the same procedure as
for creating crimps. You can also straighten the hair by slowly sliding the
straightening attachment down the lock.
4 Let the sleek hair cool down before combing or brushing the hair.
Cleaning
Always unplug the appliance before cleaning it.
Never rinse the appliance with water.
Place the styler on the stand of the attachment in a safe place and let it cool
,
down.
Clean the appliance and the attachments with a small brush or a dry cloth.
,
Storage
Always unplug the appliance before storing it.
Place the styler on the stand of the attachment in a safe place and let it cool
,
down.
Do not wind the mains cord round the appliance.
,
Replacement
If the mains cord is damaged, it must be replaced by Philips, a service centre
authorised by Philips or similarly qualied persons in order to avoid a hazard.
Always return the appliance to a service centre authorised by Philips for examination
or repair. Repair by unqualied people could cause an extremely hazardous situation
for the user.
Environment
Do not throw the appliance away with the normal household waste at the end
,
of its life, but hand it in at an ofcial collection point for recycling. By doing this
you will help to preserve the environment (Fig. 13).
Guarantee & service
If you need information or if you have a problem, please visit the Philips website at
www.philips.com or contact the Philips Customer Care Centre in your country
(you will nd its phone number in the worldwide guarantee leaet). If there is no
Customer Care Centre in your country, turn to your local Philips dealer or contact
the Service Depar tment of Philips Domestic Appliances and Personal Care BV.
Troubleshooting
If problems should arise with your styler and you are unable to solve them by means
of the troubleshooting guide below, please contact a Philips service centre or the
Philips Customer Care Centre in your country.
www.philips.com
Problem Solution
The appliance
does not work
at all.
The styling results
are not what you
expected.
Perhaps there is a power failure or the socket is not live.
Check if the power supply is working. If it is, check whether
the socket is live by plugging in another appliance.
Perhaps the appliance overheated and switched itself off.
Unplug the appliance and let it cool down for a few minutes.
Make sure that the voltage indicated on the appliance
corresponds to the local mains voltage.
Perhaps the mains cord of the appliance is damaged.
The mains cord must be replaced by Philips, a service centre
authorised by Philips or similarly qualied persons in order to
avoid a hazard.
Perhaps you didn’t let the appliance heat up long enough.
Let the appliance heat up until the ready dot has changed
colour.
Perhaps you wound too much hair round the barrel or put
too much hair between the plates.
When using the curling attachments or the slide-on brush, do
not make the locks too thick. The thinner the lock of hair, the
tighter the curl will be. When using the crimping/straightening
attachment, make sure the locks are no wider than 5 to 6 cm
for a good result.
Perhaps you didn’t leave the styling attachment in your hair
long enough.
Keep the styler in your hair for 5 to 10 seconds, depending
on the thickness of your hair.
u
4222.002.6848.1
ENGLISH
Introduction
With the new Salon Multistylist you can create a new look for every occasion. It
offers unlimited versatility in hairstyling.
You can visit our website at www.philips.com for more information about this
product or any other Philips product.
General description (Fig. 1)
A Brush
B Small curling attachment
C Spiral
D Large curling attachment
E Crimping/straightening attachment
F Crimping/straightening plates
G Handle
H Storage pouch
I Hair clips
Important
Read this user manual carefully before you use the appliance and save it for future
reference.
Check if the voltage indicated on the appliance corresponds to the local mains
voltage before you connect the appliance.
Check the condition of the mains cord regularly. Do not use the appliance if the
plug, the cord or the appliance itself is damaged.
If the mains cord is damaged, it must be replaced by Philips, a service centre
-
authorised by Philips or similarly qualied persons in order to avoid a hazard.
Keep this appliance away from water! Do not use this product near or over
water contained in baths, washbasins, sinks etc. When used in a bathroom, unplug
the appliance after use since the proximity of water presents a risk.
For additional protection, we advise you to install a residual current device
(RCD) with a rated residual operating current not exceeding 30mA in the
electrical circuit supplying the bathroom. Ask your installer for advice.
Do not connect the handle to the mains without attaching an attachment rst.
-
Make sure the attachment is properly xed to the handle before you put the
plug in the wall socket.
Keep the attachments clean and free of dust, dirt, styling spray and gel. Never use
the appliance in combination with styling mousse, styling spray, gel etc.
The attachments have a ceramic coating. This coating will wear in the course of
time. When this happens, the appliance will still function normally.
The ceramic-coated parts of the attachments will become hot during use.
Prevent contact with the skin. Do not allow the mains cord to touch any hot parts.
Always return the appliance to a service centre authorised by Philips for
-
examination or repair. Repair by unqualied people could cause an extremely
hazardous situation for the user.
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Only use the appliance on dry or damp hair.
Always unplug the appliance after use.
Wait until the appliance has cooled down before storing it.
Do not wind the mains cord round the appliance.
-
Electromagnetic elds (EMF)
This Philips appliance complies with all standards regarding electromagnetic elds
(EMF). If handled properly and in accordance with the instructions in this instruction
manual, the appliance is safe to use according to scientic evidence available today.
Preparing for use
Before you start styling, comb or brush the hair so that it is untangled and
,
smooth.
Connecting the attachments
1
2 3 4 5
6
10 11 12 13
7 8 9
4 How long you have to keep the styler in your hair depends on the thickness of
your hair. If you have ne hair, 5 seconds will be long enough for a good result.
Leave the styler in your hair longer (max. 10 seconds) if your hair is thicker.
Large or tight curls
1 Insert one of the attachments into the handle. Make sure that the stand is
pointing downwards (Fig. 2).
2 Turn the locking ring on the handle to the right until the bold arrow on the
locking ring is in line with the arrow on the handle. The attachment is now
securely xed to the handle (Fig. 3).
Follow this procedure for all attachments. To detach the attachments, turn the
,
locking ring to the left and pull the attachment out of the handle.
Unplug the appliance when you remove an attachment after or during styling. Avoid
touching the metal and ceramic parts of the attachment, as they are hot.
Using the appliance
With the Salon Multistylist you can create tight curls, large curls, waves, ringlets, crimps
and a sleek look.
1 After having connected the attachment to the handle, place the appliance on
the stand of the attachment and put the mains plug in the wall socket. The
pilot light goes on and the appliance starts heating up (Fig. 4).
2 Start styling when the ready dot on the attachment changes colour (Fig. 5).
3 When using one of the curling attachments or the brush attachment, always
make sure the end of the lock is wound in the required direction.
1 Connect the large or small curling attachment to the handle. Make sure that
the stand is pointing downwards.
2 Take a lock of hair, open the clip by pressing the lever and place the lock
between the barrel and the clip (Fig. 6).
3 Release the lever and slide the barrel to the end of the lock. Then wind the
lock round the barrel.
Make sure that the end of the lock is wound in the required direction.
4 Open the clip after 5 to 10 seconds and remove the barrel from the hair. Let
the curls cool down before combing, brushing or nger-combing the hair into
its nal style.
You can comb the curls with your ngers to add volume.
,
Waves
Prevent the brush from getting tangled in the hair in the following way:
Do not put too much hair in one lock.
Do not wind a lock of hair more than twice round the brush.
When unwinding a lock of hair, make sure that you hold the brush away from the
underlying hair.
1 Connect the small curling attachment to the handle and slide the brush onto
the curling attachment.
