Philips HP4633/00 User Manual [zh]

Airstylist duo 300

HP4633

ENGLISH 4

BAHASA MELAYU 13

HP4633

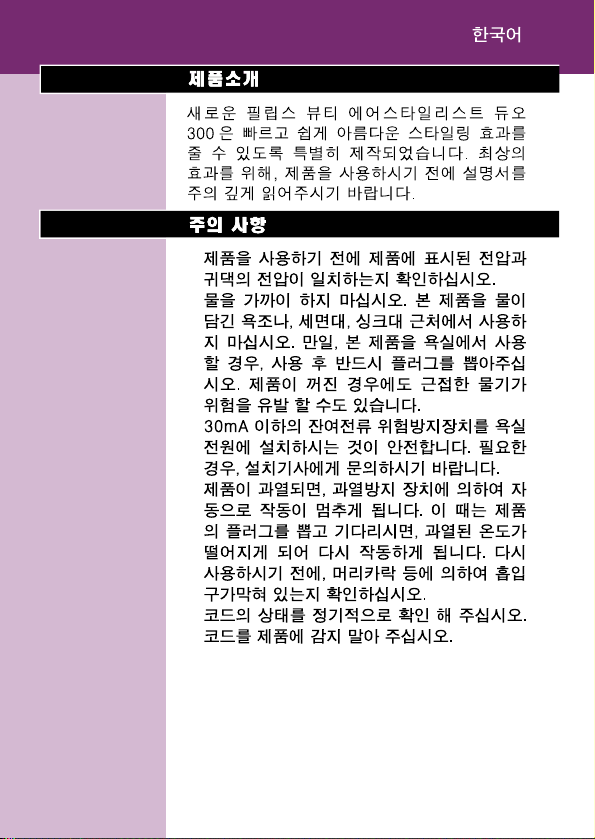

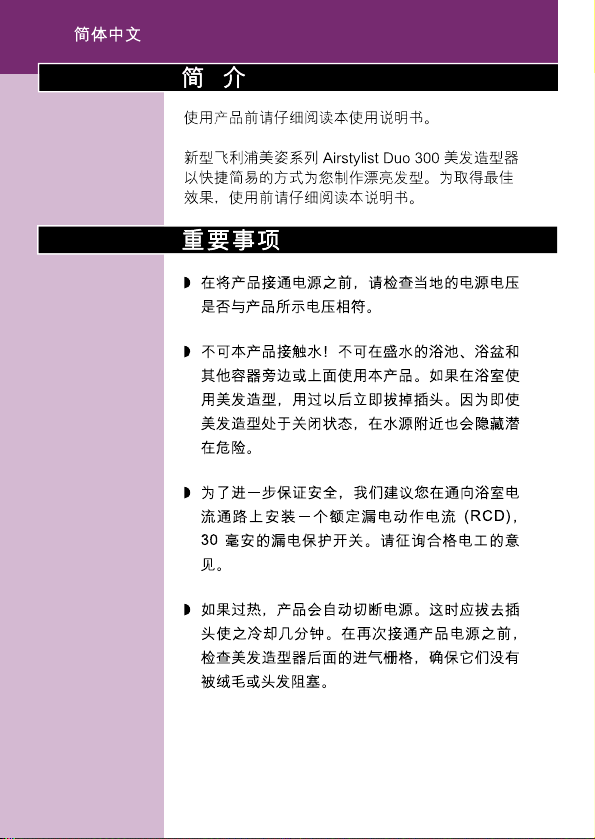

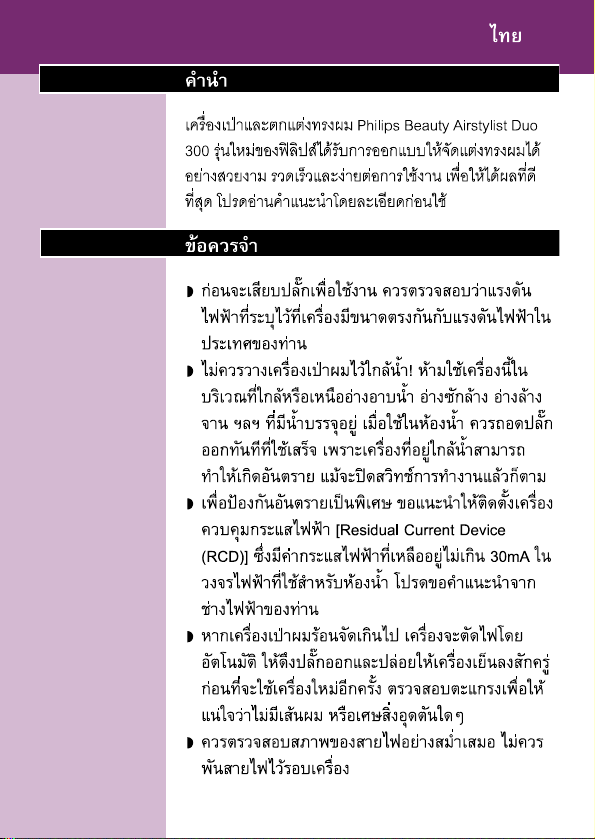

Introduction

Please read this instructions carefully before using the appliance.

This new Philips beauty Airstylist Duo 300 has been specially designed to give beautiful styling results in a quick and easy way. In order to get the best results, please read the instructions carefully before use.

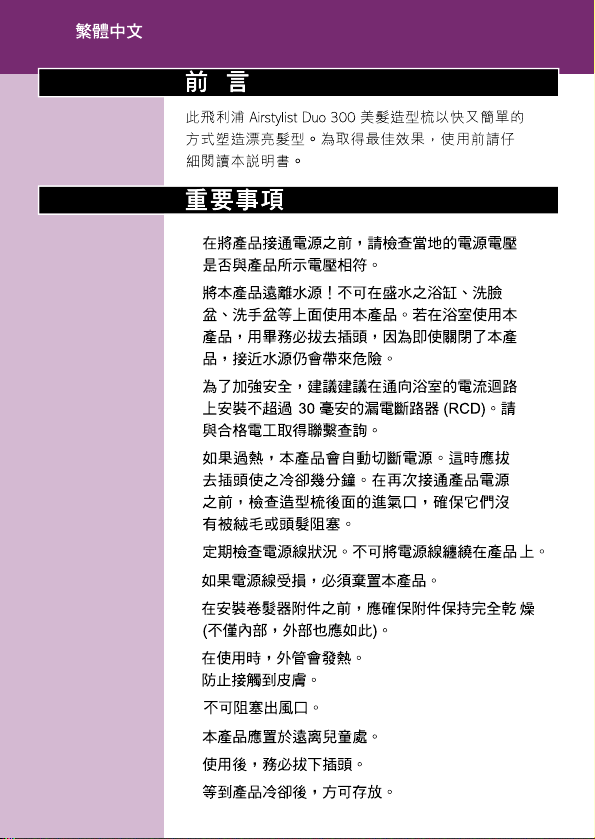

Important

◗ Before you connect the appliance, check if the

voltage indicated on the appliance corresponds to your local mains voltage.

◗ Keep this appliance away from water! Do not

use this product near or over water contained in baths, washbasins, sinks etc. If you use it in a bathroom, unplug the appliance after use, since the proximity of water presents a risk, even when the hairdryer is switched off.

◗ For additional protection we advise you to

install a residual current device (RCD) with a rated residual operating current not exceeding 30mA in the electrical circuit supplying the bathroom.Ask your installer for advice.

◗ If the appliance overheats, it will switch off

automatically. Unplug the appliance and let it cool down for a few minutes. Before you switch the appliance on again, check the grille to make sure it is not blocked by fluff, hair, etc.

ENGLISH4

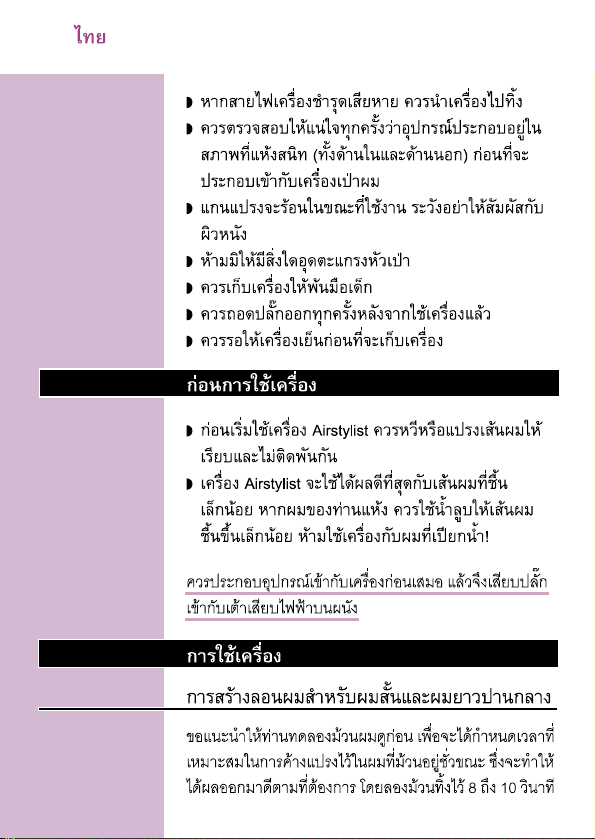

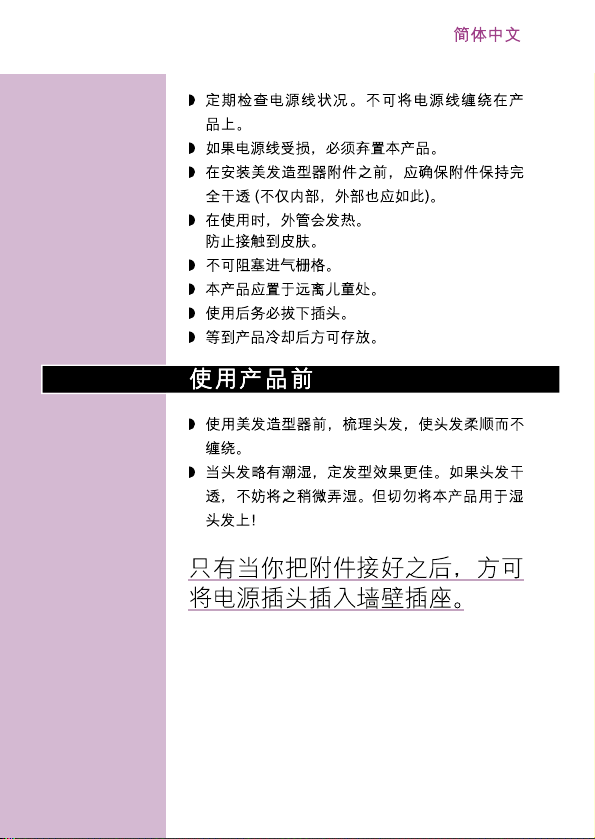

◗ Check the condition of the mains cord

regularly. Do not wind the mains cord around the appliance.

◗ If the mains cord is damaged, the appliance

should be discarded.

◗ Always ensure that the attachments are

completely dry (on the inside as well as at the outside!) before affixing them to the styler.

◗ The barrel will become hot during use.

Prevent contact with the skin.

◗ Never block the air grilles. ◗ Keep the appliance away from children. ◗ Always unplug the appliance after use. ◗ Wait until the appliance is cool before storing

it.

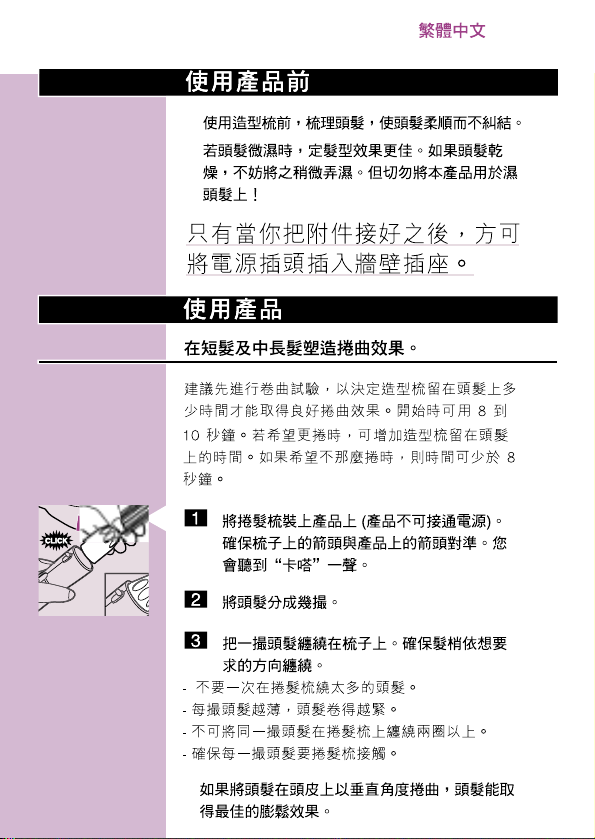

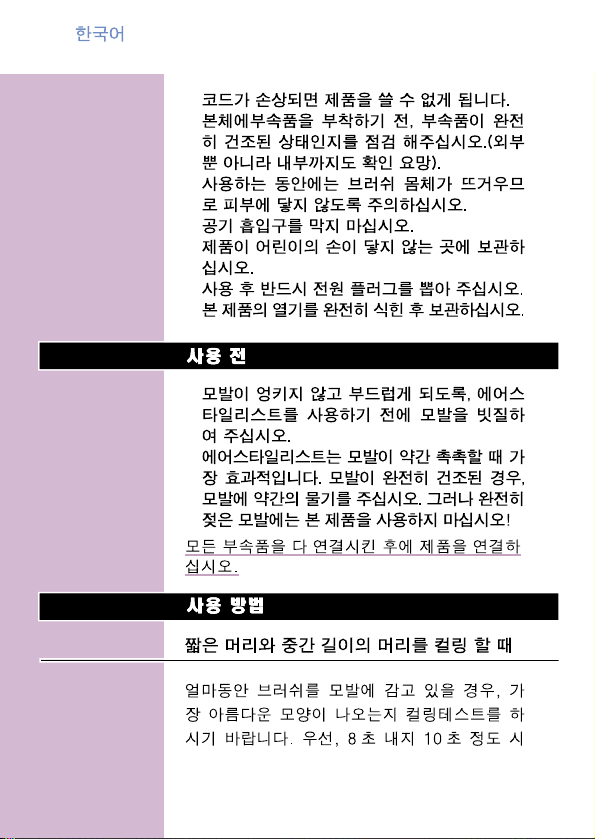

Before using the appliance

◗ Before you start using the Airstylist, comb or

brush the hair so that it is untangled and smooth.

◗ The Airstylist is most effective when the hair

is slightly damp.When your hair is dry, slightly dampen your hair. Never use the appliance on wet hair!

Always insert the mains plug into the wall socket after having connected the accessories.

ENGLISH 5

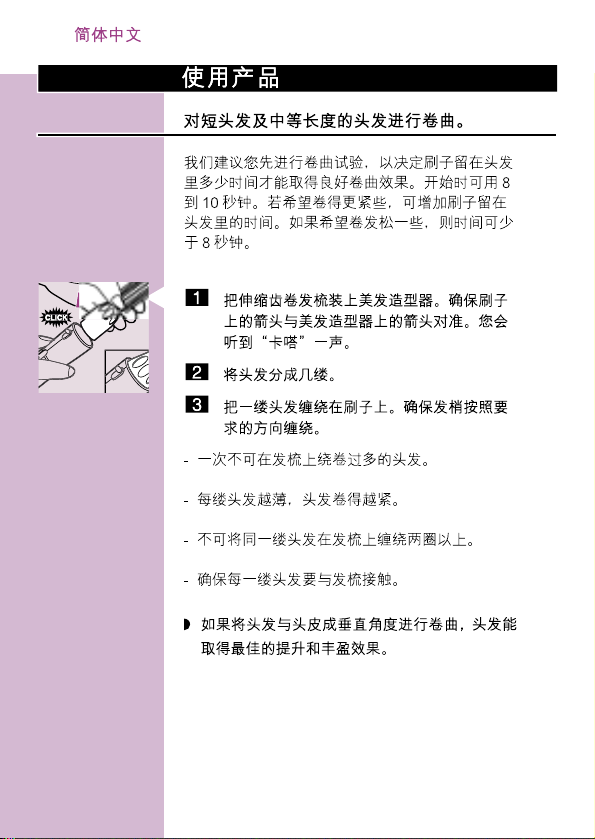

Using the appliance

Making curls in short and medium hair length

We advise you to perform a curl test to determine how long the brush should be held in your hair to achieve a good result. Star t with 8 to 10 seconds.You may have to hold the brush longer in your hair for tighter curls. Less tight curls will require less than 8 seconds.

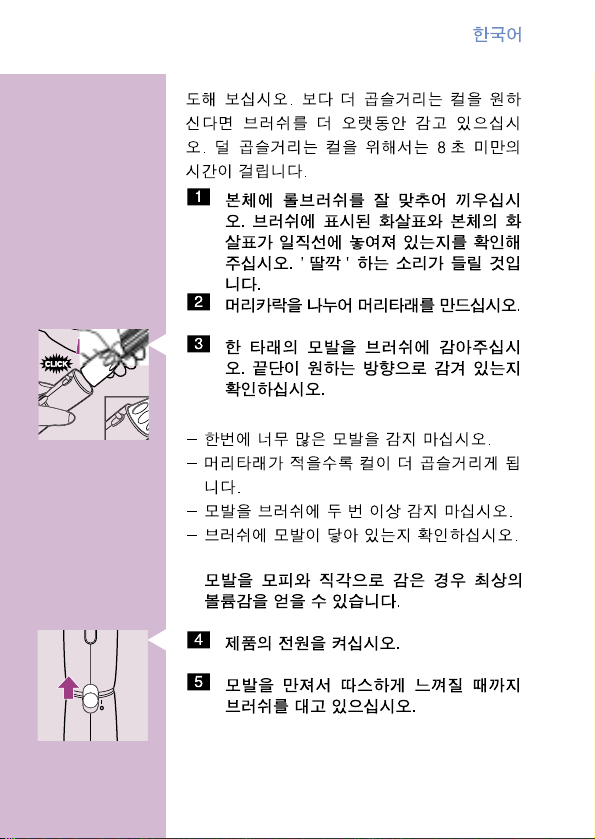

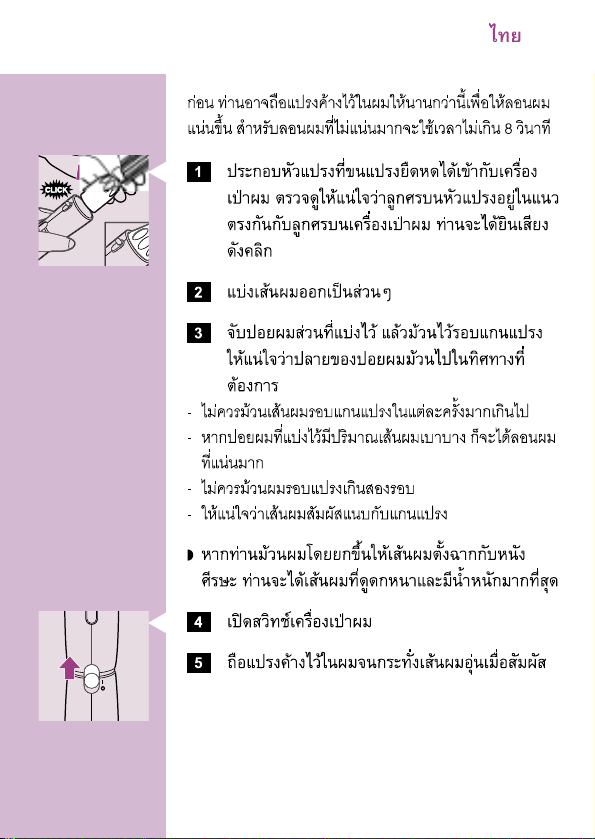

1 Align the retractable bristle brush with the

styler. Make sure the arrows on the brush are in line with the arrows on the styler.A 'click' will be heard.

2 Divide the hair into locks.

3 Take a lock of hair and wind it round the

brush. Make sure the end of the lock is wound in the required direction.

- Do not wind too much hair around the barrel at a time.

- The thinner the lock of hair, the tighter the curl will be.

- Do not wind a lock of hair more than twice round the barrel.

- Make sure the lock of hair is in contact with the barrel.

◗ If you wind the hair at right angles to the

scalp, you will give your hair optimum lift and volume.

ENGLISH6

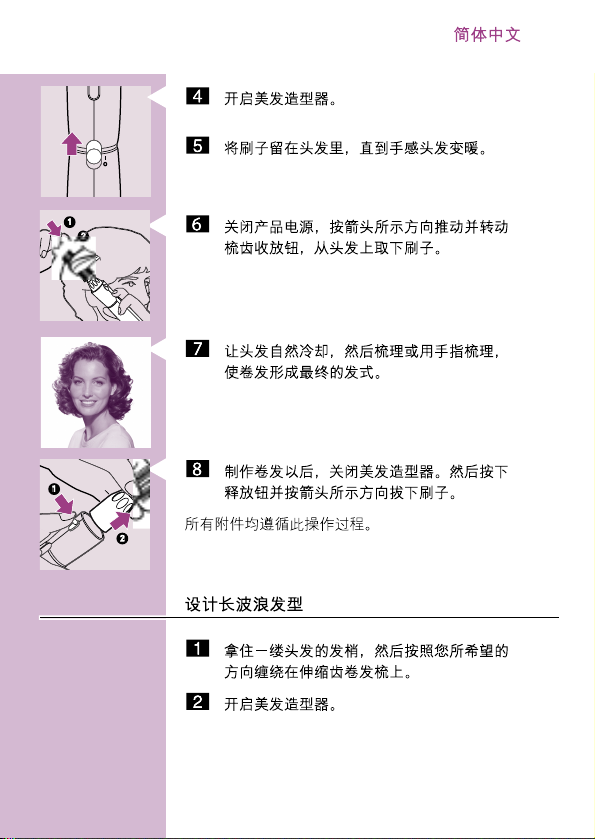

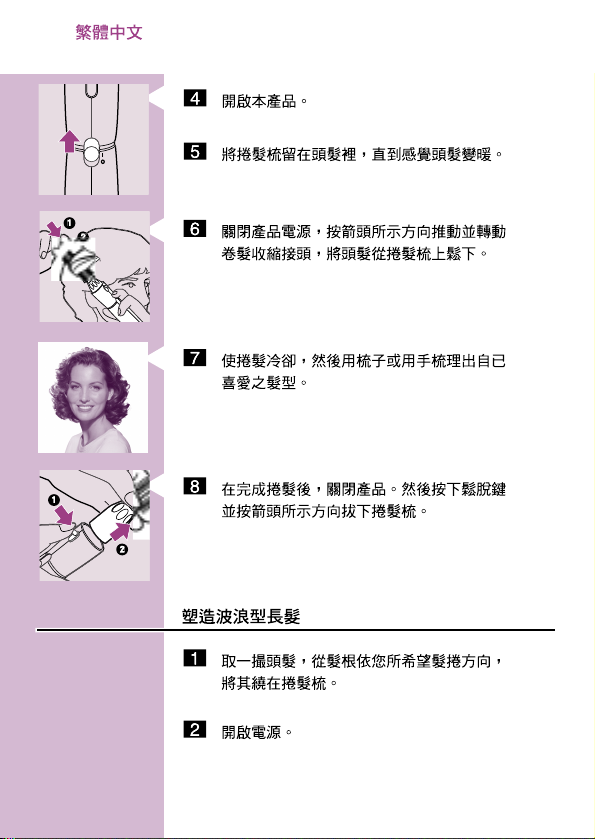

4 Switch the appliance on.

5 Keep the brush in your hair until the hair

is warm to touch.

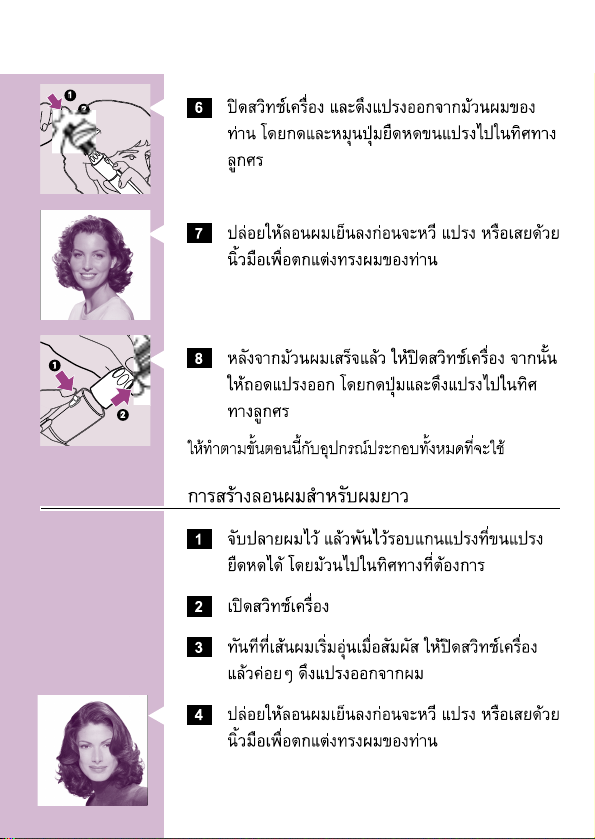

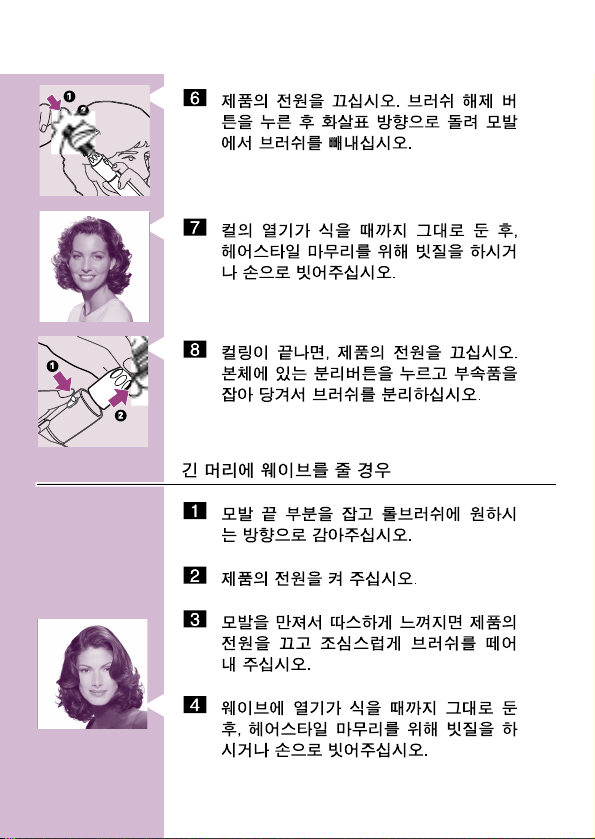

6 Switch the appliance off and remove the

brush from your hair by pushing and turning the bristle retraction knob in the direction of the arrows.

7 Leave the curls to cool down,before

finishing by combing, brushing or fingercombing the hair into its final style.

8 Having finished the curling, switch off the

appliance.Then remove the brush by pressing the release button and pulling the brush in the direction of the arrow.

Follow this procedure for all attachments.

Making waves in long hair

1 Take the ends of the hair and wind them

around the retractable bristle brush in the desired direction.

2 Switch the appliance on.

ENGLISH 7

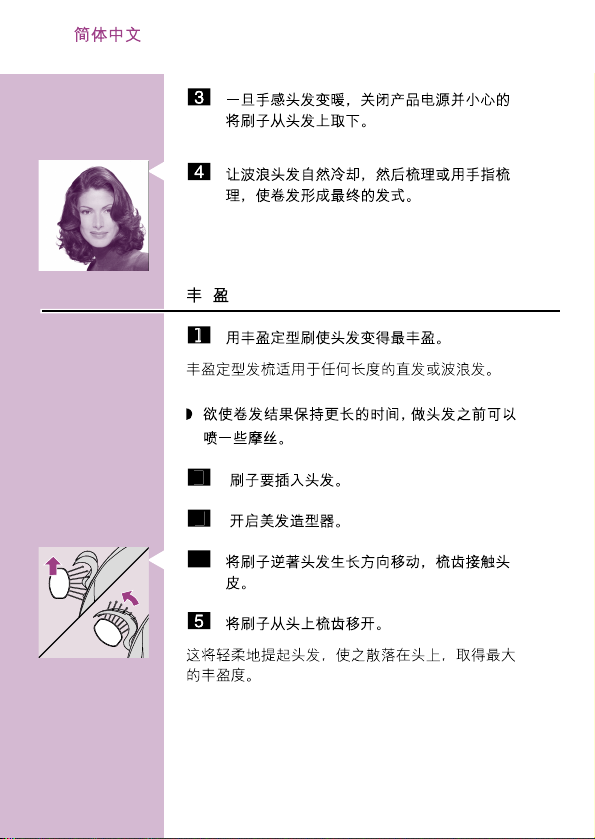

3 As soon as the hair is warm to touch,

switch the appliance off and carefully remove the brush from the hair.

4 Leave the waves to cool down, before

finishing by combing, brushing or fingercombing the hair into its final style.

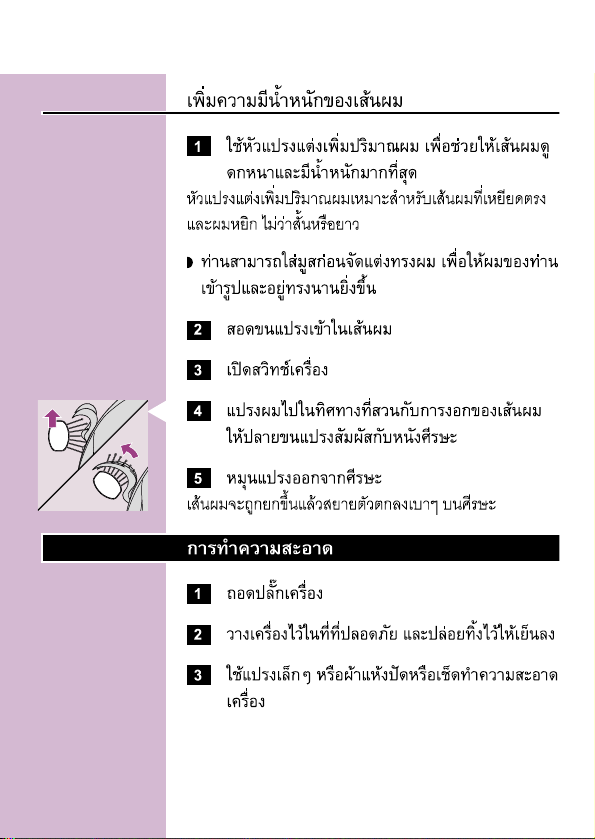

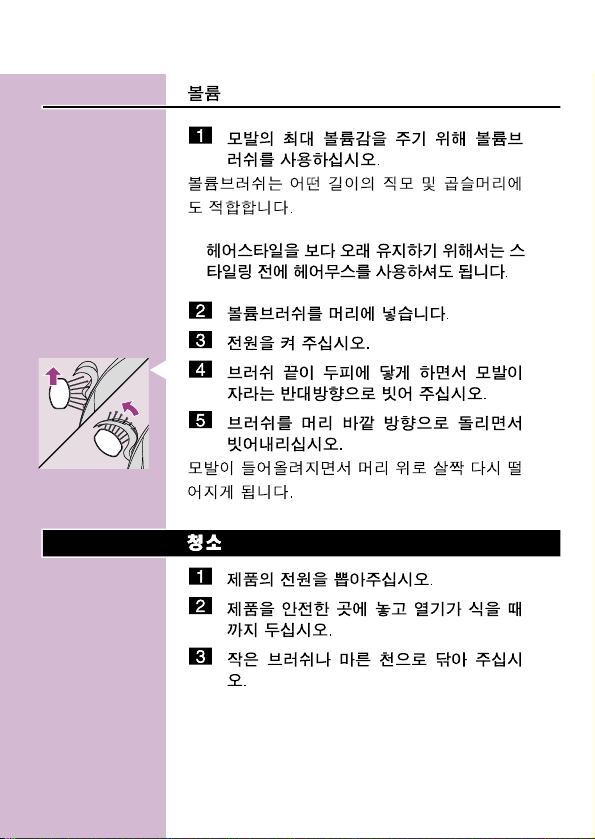

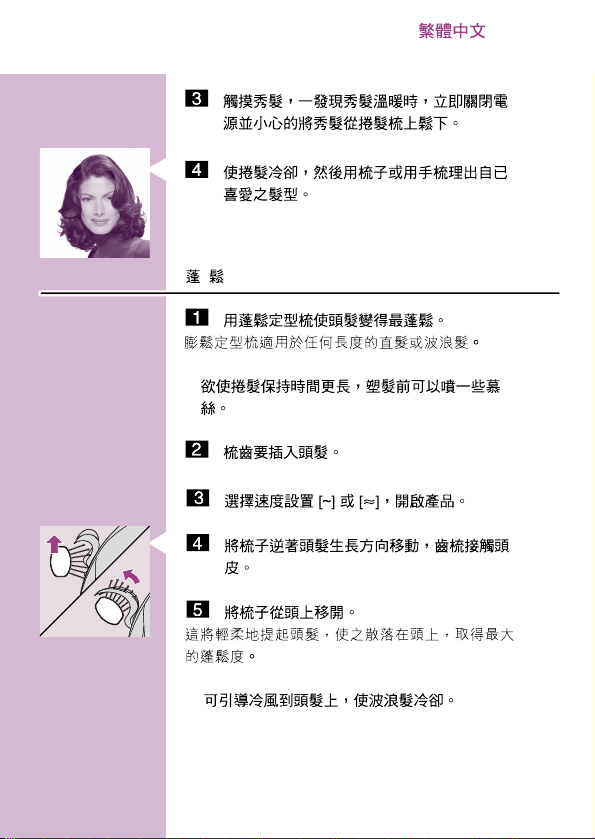

Volume

1 Use the shape brush to add maximum

volume and body to your hair.

The shape brush is suitable for straight and wavy hair of any length.

◗ For longer lasting result you can apply some

mousse before styling your hair.

2 Insert the brush into the hair.

3 Switch the appliance on.

4 Brush against the direction of hairgrowth,

touching the scalp with the brush pins.

5 Rotate the brush away from the head.

The hair will be lifted and fall lightly back onto the head.

ENGLISH8

Cleaning

1 Unplug the appliance.

2 Put the appliance in a safe place and let it

cool down.

3 Clean the appliance with a small brush or a

dry cloth.

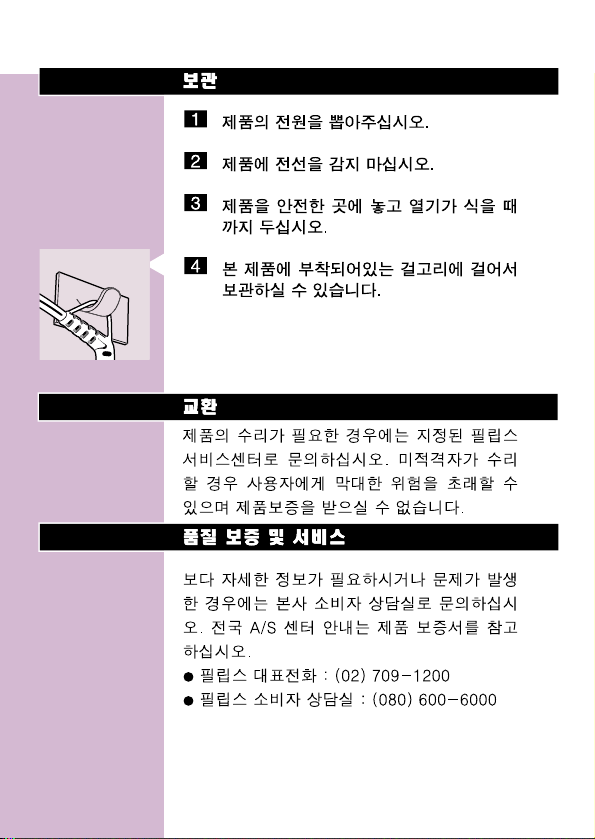

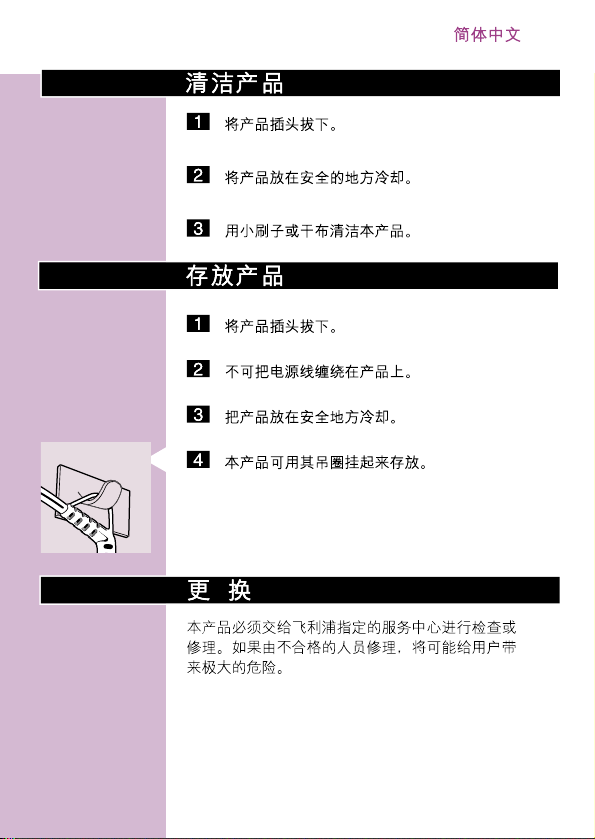

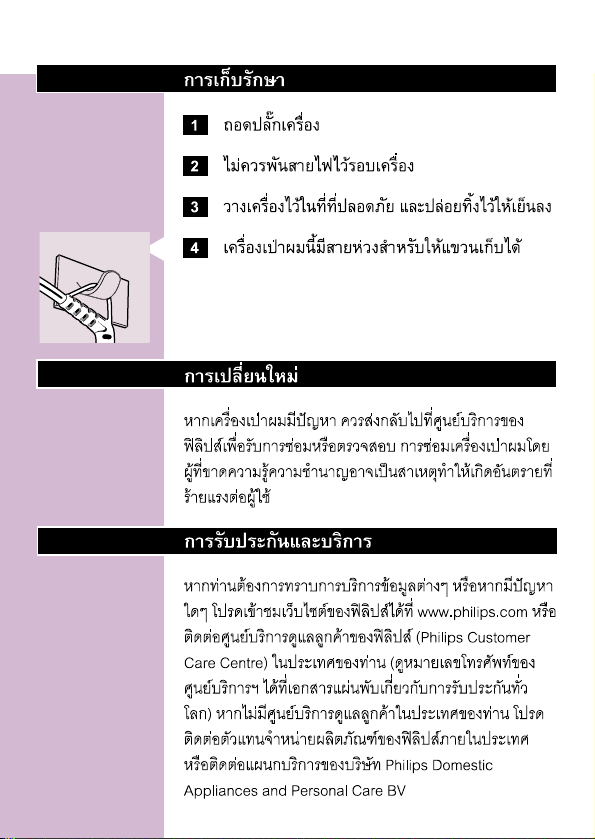

Storage

1 Unplug the appliance.

2 Do not wind the mains cord round the

appliance.

3 Put the appliance in a safe place and let it

cool down.

4 The appliance can be stored by hanging it

from its hanging loop.

Replacement

Always return the appliance to an authorised Philips service centre for examination or repair. Repairs by unqualified people could cause an extremely hazardous situation for the user.

ENGLISH 9

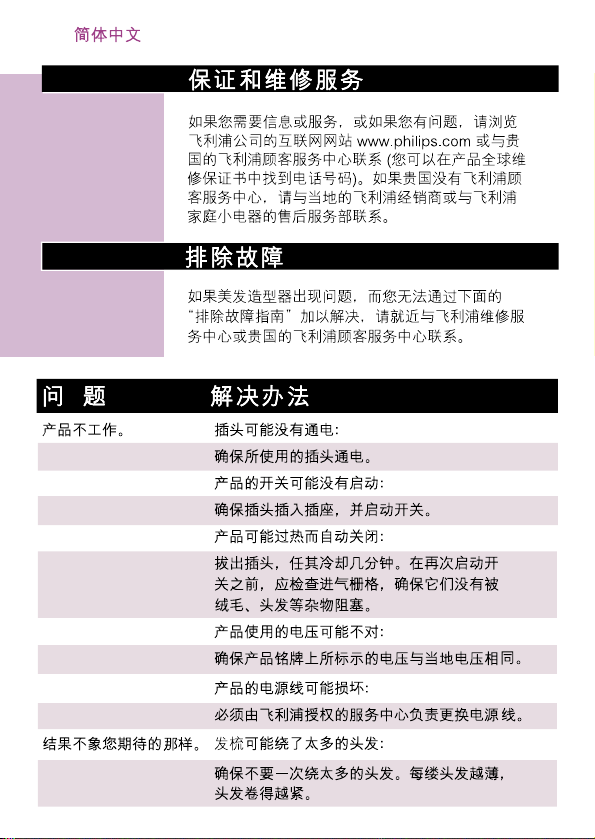

Guarantee & service

If you need information or if you have a problem, please visit the Philips Web site at www.philips.com or contact the Philips Customer Care Centre in your country (you will find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, turn to your local Philips dealer or contact the Service Depar tment of Philips Domestic Appliances and Personal Care BV.

Trouble Shooting Guide

If problems should arise with your Airstyler and you are unable to solve them by means of the troubleshooting guide below, please contact the nearest Philips service centre or the Philips Customer Care Centre in your country.

ENGLISH10

Solution

It can be that the plug has no electricity:

Make sure the plug you use delivers electricity.

It can be that the appliance was not switched on:

Make sure that the appliance is plugged in and switch the appliance on.

It can be the appliance was overheated and turned itself off:

Unplug the appliance and let it cool down for a few mintutes. Before you switch the appliance on again, check the grilles to make sure they are not blocked by fluff, hair, etc.

It can be that the appliance is of a wrong voltage:

Make sure that the voltage indicated on the typeplate corresponds to the local mains voltage.

It can be that the mains cord of the appliance is damaged:

The mains cord always has to be replaced by a service centre authorised by Philips.

It can be that too much hair was wound around the barrel:

Make sure you don't take a too big tress of hair.The thinner the tress of hair you take, the firmer the curl will be.

Problem

The appliance does not work at all

Results are not what you expected

ENGLISH 11

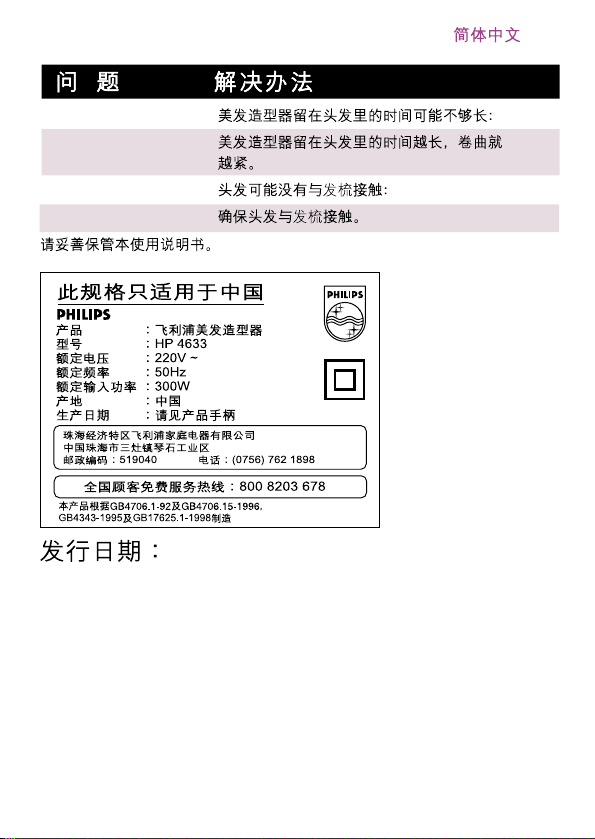

Solution

It can be that the styler wasn't long enough in your hair:

The longer you keep the styler in your hair the firmer the curls will become.

It can be that the hair wasn't in contact with the barrel:

Make sure that the tress of hair is in contact with the barrel.

Problem

ENGLISH12

Pendahuluan

Peralatan ini, Philips beauty Airstylist Duo 300 telah direka khas untuk memberikan hasil penggayaan cantik dengan cepat dan mudah. Untuk mendapat hasil yang terbaik, sila baca arahan-arahan dengan cermat sebelum menggunakannya.

Penting

◗ Sebelum alat disambung, memeriksa apakah

voltan yang ditunjukkan di alat sama dengan voltan wayar setempat.

◗ Jangan sampai alat kena air! Jangan

menggunakan barang ini dekat atau di atas air yang ada di dalam takung mandi, sink cuci tangan, sink, dll. Kalau menggunakannya di bilik mandi, mencabut penyumbat alat setelah penggunaan, kerana dekatnya air juga merupakan risiko kalau pengering rambut dimatikan.

◗ Sebagai perlindungan tambahan lebih baik

untuk melindungi litar elektrik yang membekalkan bilik mandi dengan suis penutup litar elektrik yang menghentikan arus lebih dari 30 mA. Menanyai nasihat pemasang.

◗ Jika peralatan menjadi terlalu panas, ia akan

memadamkan diri sendiri secara automatik. Tanggalkan plag peralatan dan biarkan ia menyejuk selama beberapa minit. Sebelum anda pasang peralatan itu sekali lagi, periksa gril untuk memastikan ianya tidak dihalang oleh bulu, rambut dan sebagainya.

BAHASA MELAYU 13

◗ Periksa keadaan wayar utama selalu. Jangan lilit

wayar utama keliling peralatan.

◗ Jika wayar utama rosak,peralatan tidak boleh

digunakan lagi.

◗ Sentiasa pastikan yang sambungan adalah

dalam keadaan kering (di bahagian dalaman juga di bahagian luaran!) sebelum menyambungkannya kepada penggaya berkenaan.

◗ Semasa penggunaan batang menjadi panas. Jaga

supaya tidak kena kulit.

◗ Jangan sekali-kali menghalang gril udara. ◗ Jaga supaya alat di luar jangkauan anak-anak. ◗ Selalu mencabut palam alat setelah

penggunaannya.

◗ Tunggu sampai alat dingin sebelum

penyimpanannya.

Sebelum penggunaan peralatan

◗ Sebelum anda mula menggunakan penggaya

udara ini, sikat atau berus rambut supaya ianya tidak kusut dan sempurna.

◗ Penggunaan Airstylish adalah lebih berkesan

jikalau rambut lembab sedikit.Jikalau rambut anda kering, lembapkan sedikit rambut anda. Jangan gunakan peralatan pada rambut yang basah!

Sentiasa masukkan plug utama dalam soket dinding setelah semua aksesori disambungkan.

BAHASA MELAYU14

Menggunakan Peralatan

Mendandan rambut kerinting pendek dan rambut paras sederhana.

Kami nasihatkan anda membuat ujian kerinting bagi menentukan berapa lama berus perlu berada di rambut anda untuk menghasilkan keputusan yang baik. Mulakan dengan 8 hingga 10 saat. Anda mungkin perlu membiarkan berus lama sedikit di rambut supaya kerintingnya kuat. Kerinting yang sedikit memerlukan kurang dari 8 saat.

1 Satukan berus bristle tertarik dengan

styler. Pastikan anak panah pada berus adalah sebaris dengan anak panah pada penggaya. Satu bunyi 'klik' akan kedengaran.

2 Bahagikan rambut kepada beberapa jambul.

3 Ambil sejambul rambut dan lilitkan pada

berus. Pastikan hujung jambul rambut digulung mengikut arah yang diperlukan.

- Jangan lilitkan rambut terlalu tebal pada setiap satu gulungan.

- Semakin nipis gulungan rambut, semakin kukuh kerintingan rambut.

- Jangan melilit jambulan rambut lebih dari dua kali pada batang.

- Jaga supaya gelung rambut bersentuhan dengan batang.

◗ Jikalau anda melilit rambut bersudut tepat

dengan kulit kepala, anda memberi rambut anda luakan dan ruang yang optimum.

BAHASA MELAYU 15
