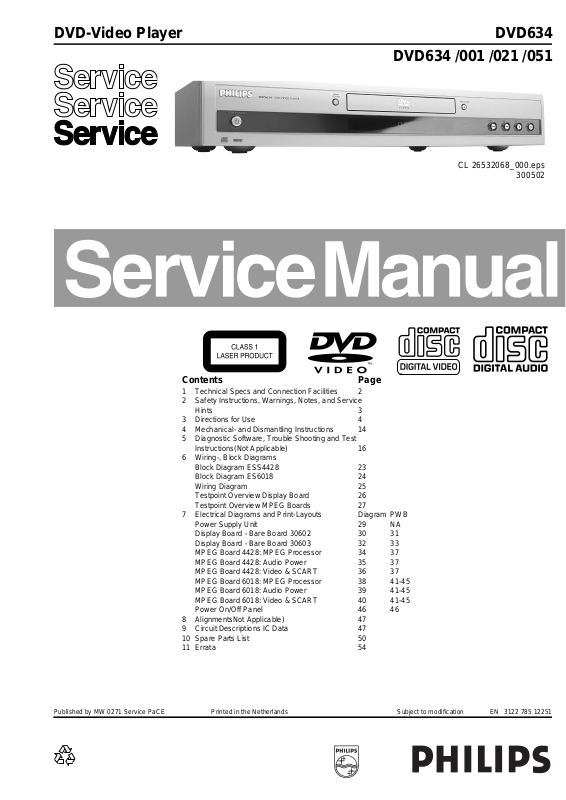

DVD-Video Player DVD634

DVD634 /001 /021 /051

CL 26532068_000.eps

300502

Contents Page

1 Technical Specs and Connection Facilities 2
2 Safety Instructions, Warnings, Notes, and Service

Hints 3
3 Directions for Use 4
4 Mechanical- and Dismantling Instructions 14

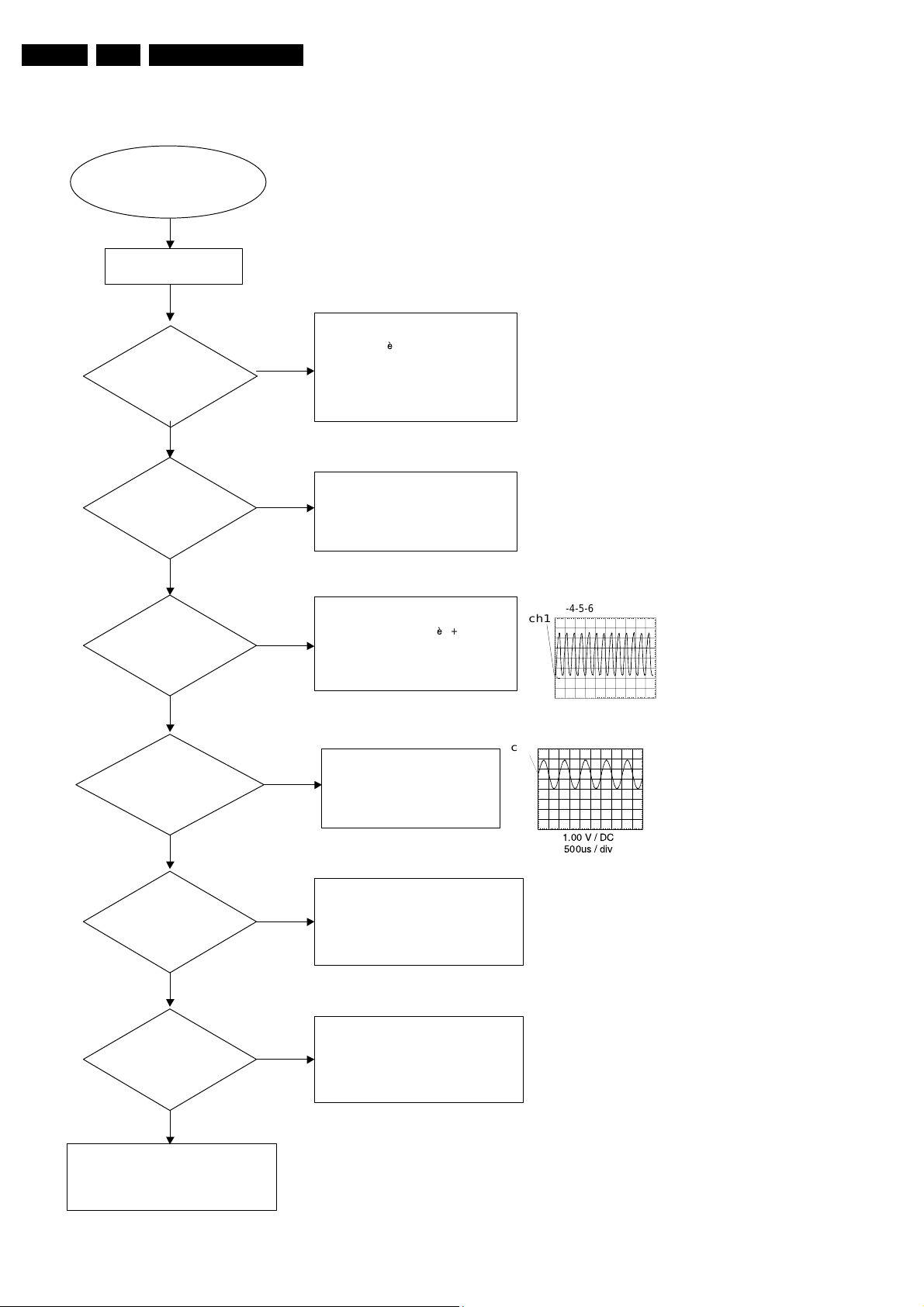

5 Diagnostic Software, Trouble Shooting and Test

Instructions(Not Applicable) 16

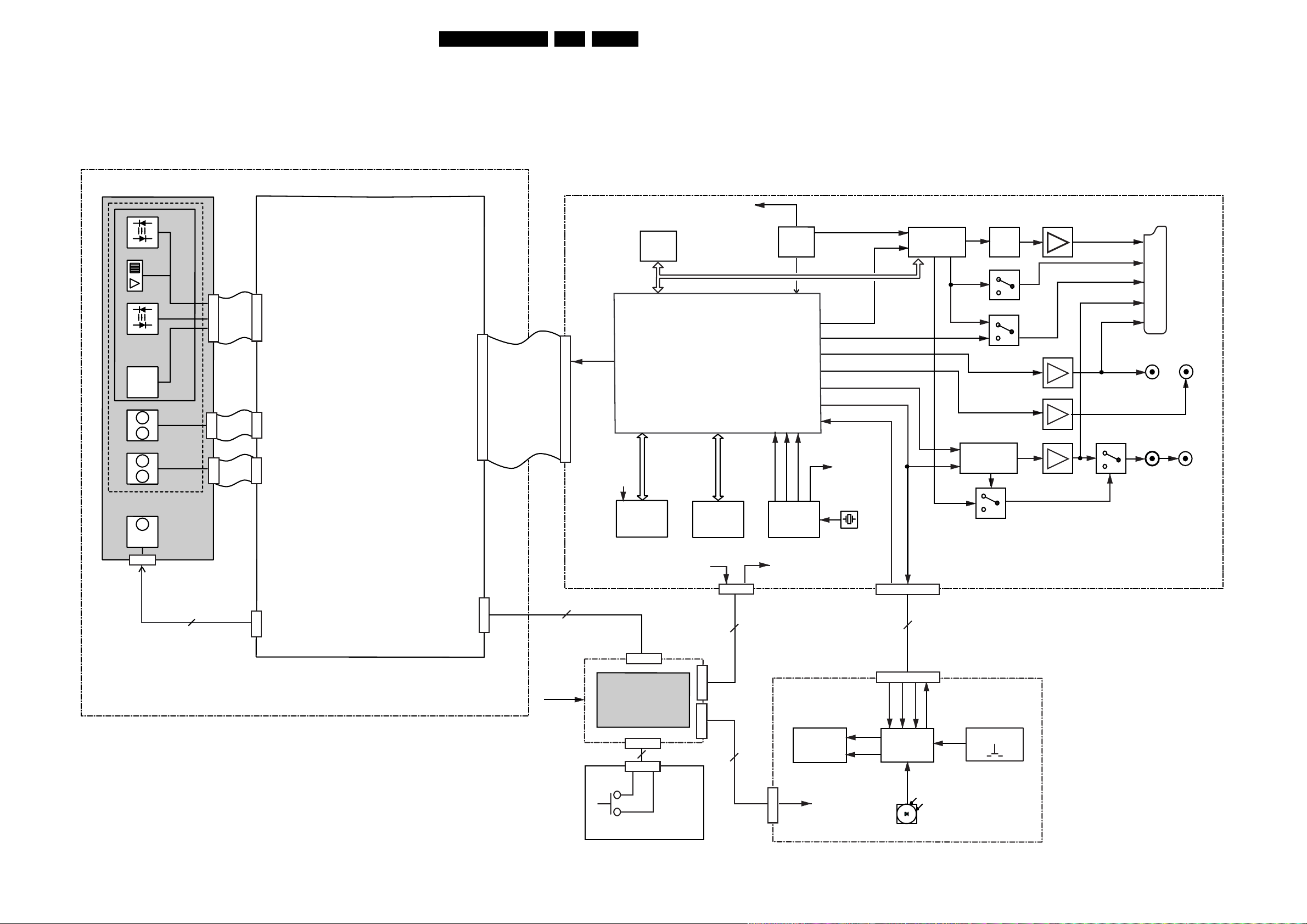

6 Wiring-, Block Diagrams

Block Diagram ESS4428 23

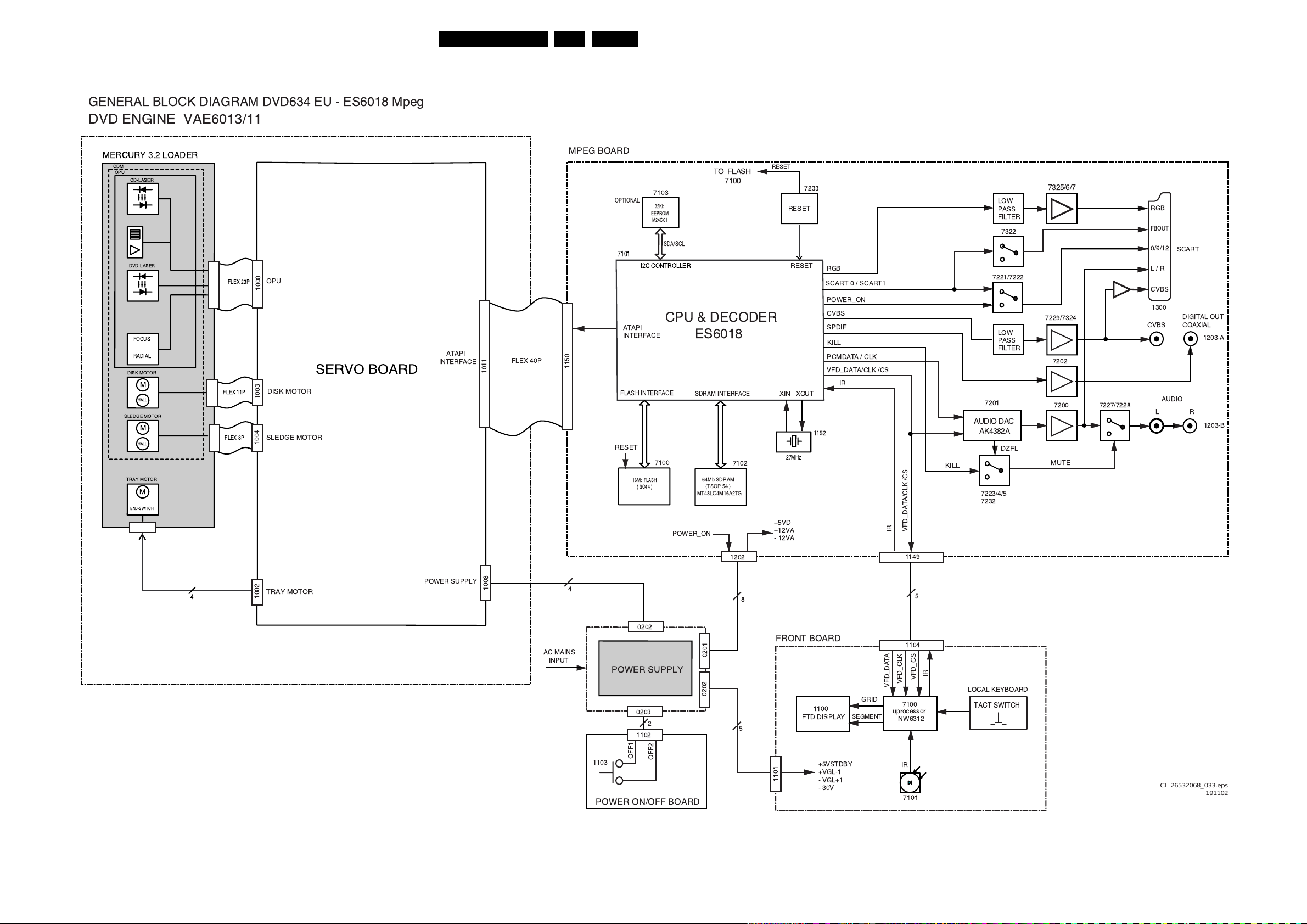

Block Diagram ES6018 24

Wiring Diagram 25

Testpoint Overview Display Board 26

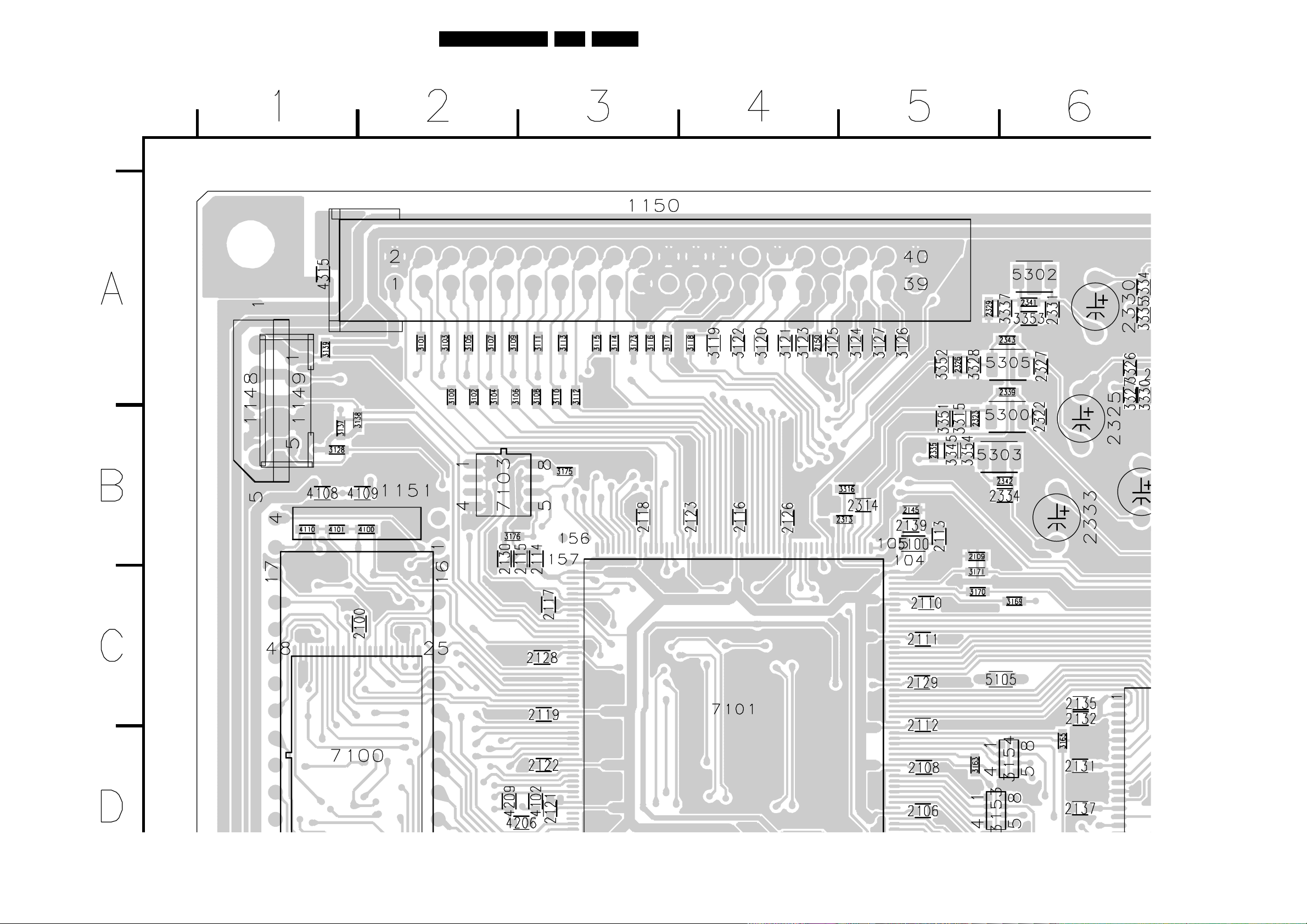

Testpoint Overview MPEG Boards 27
7 Electrical Diagrams and Print-Layouts Diagram PWB

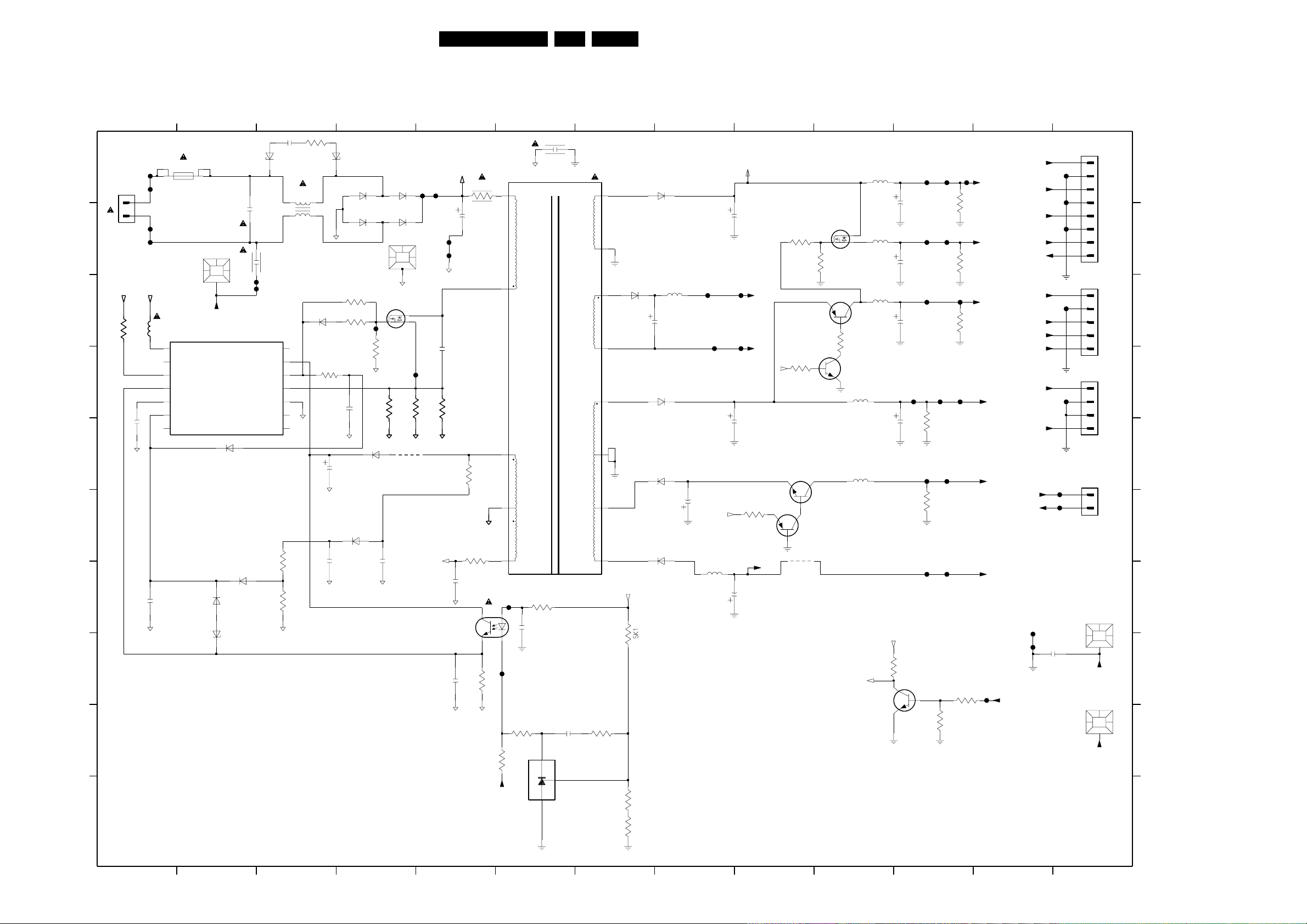

Power Supply Unit 29 NA

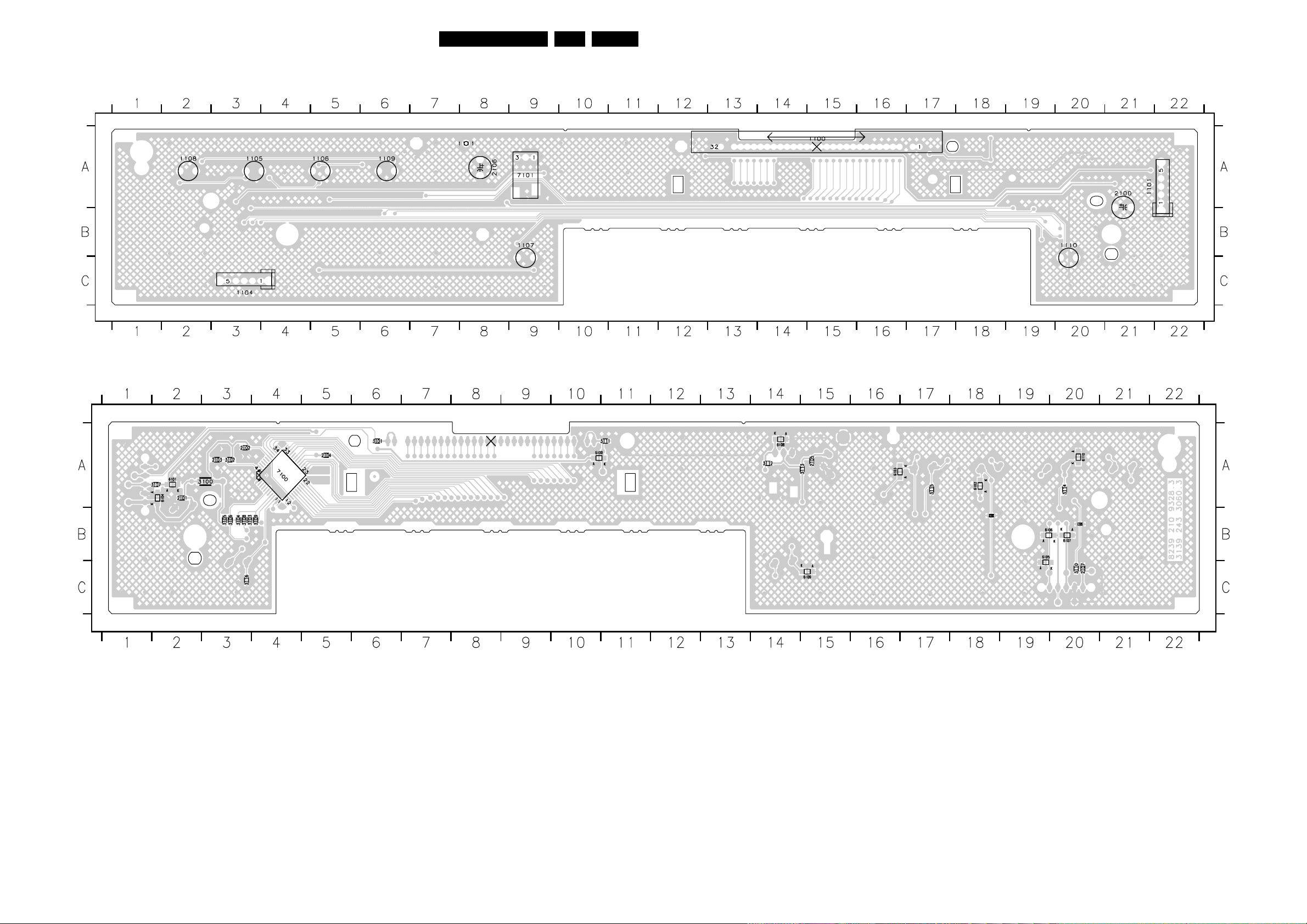

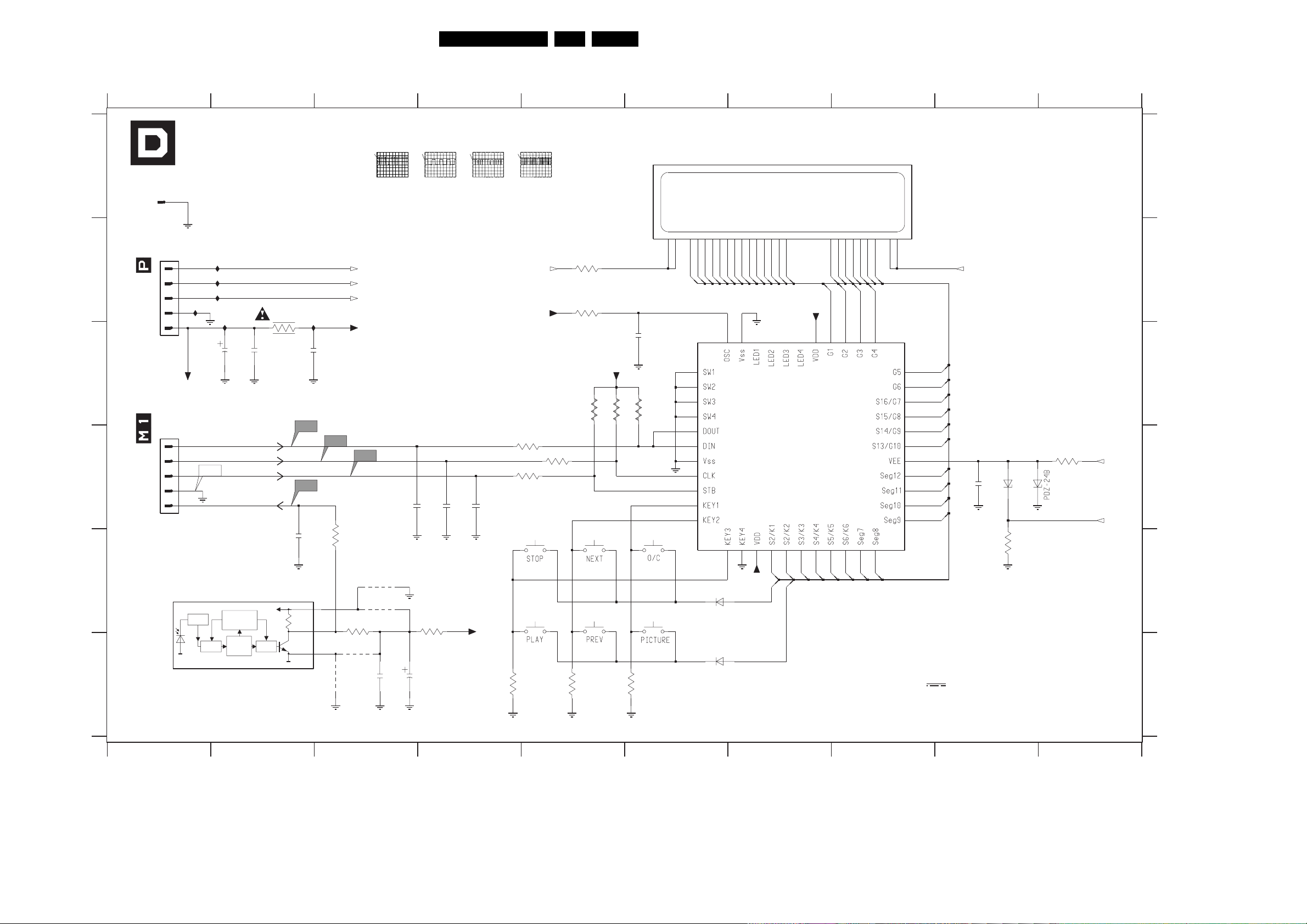

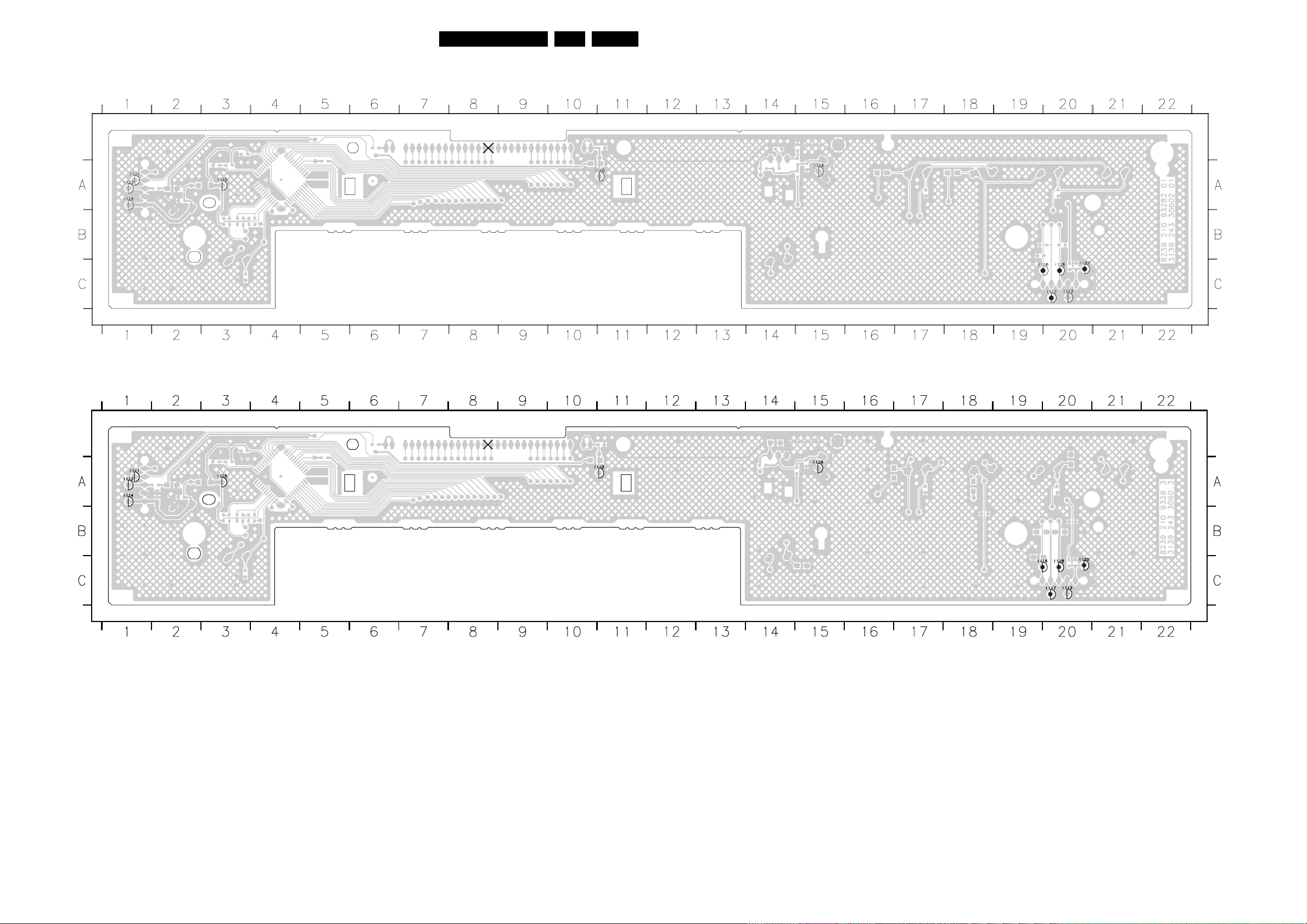

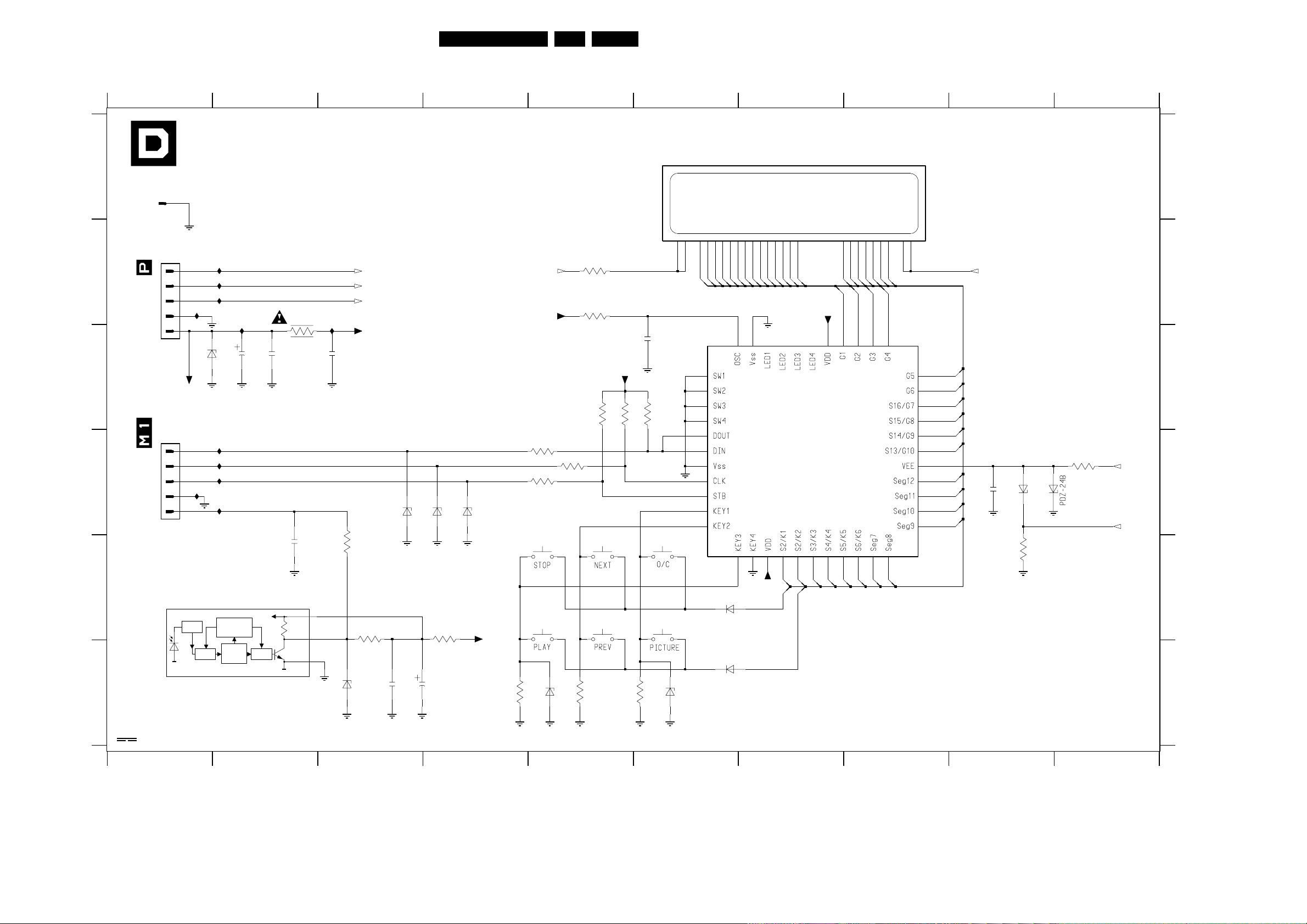

Display Board - Bare Board 30602 30 31

Display Board - Bare Board 30603 32 33

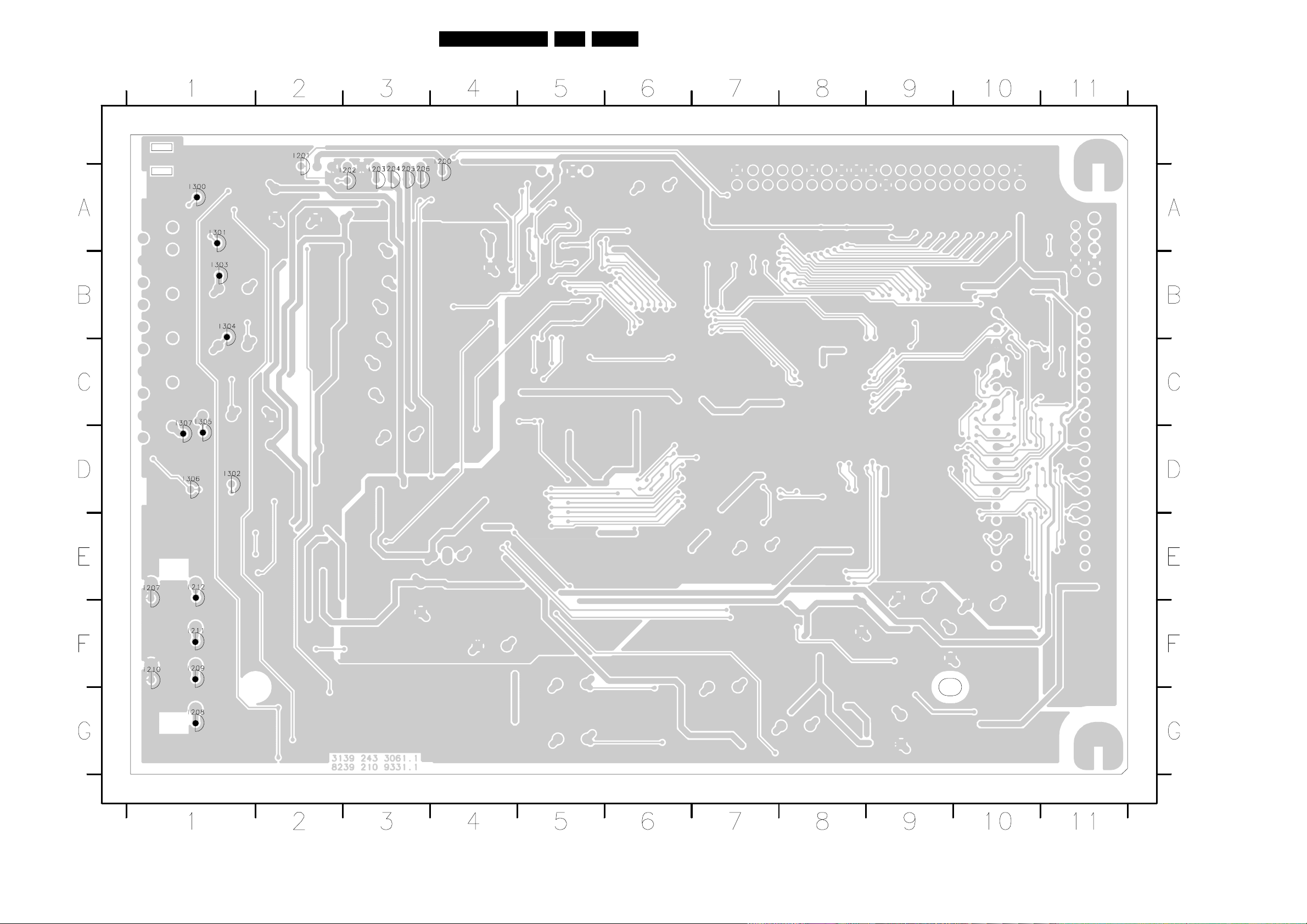

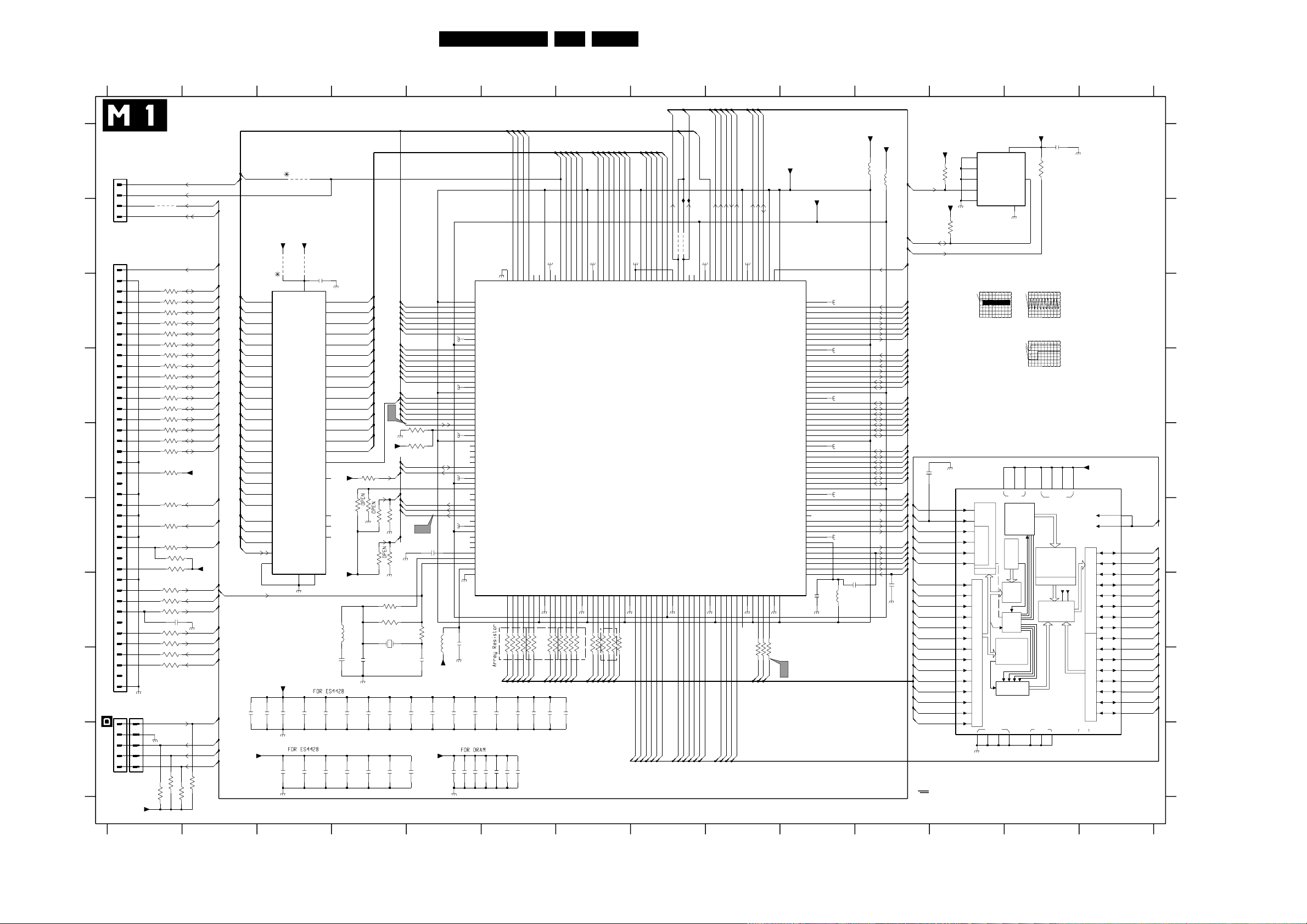

MPEG Board 4428: MPEG Processor 34 37

MPEG Board 4428: Audio Power 35 37

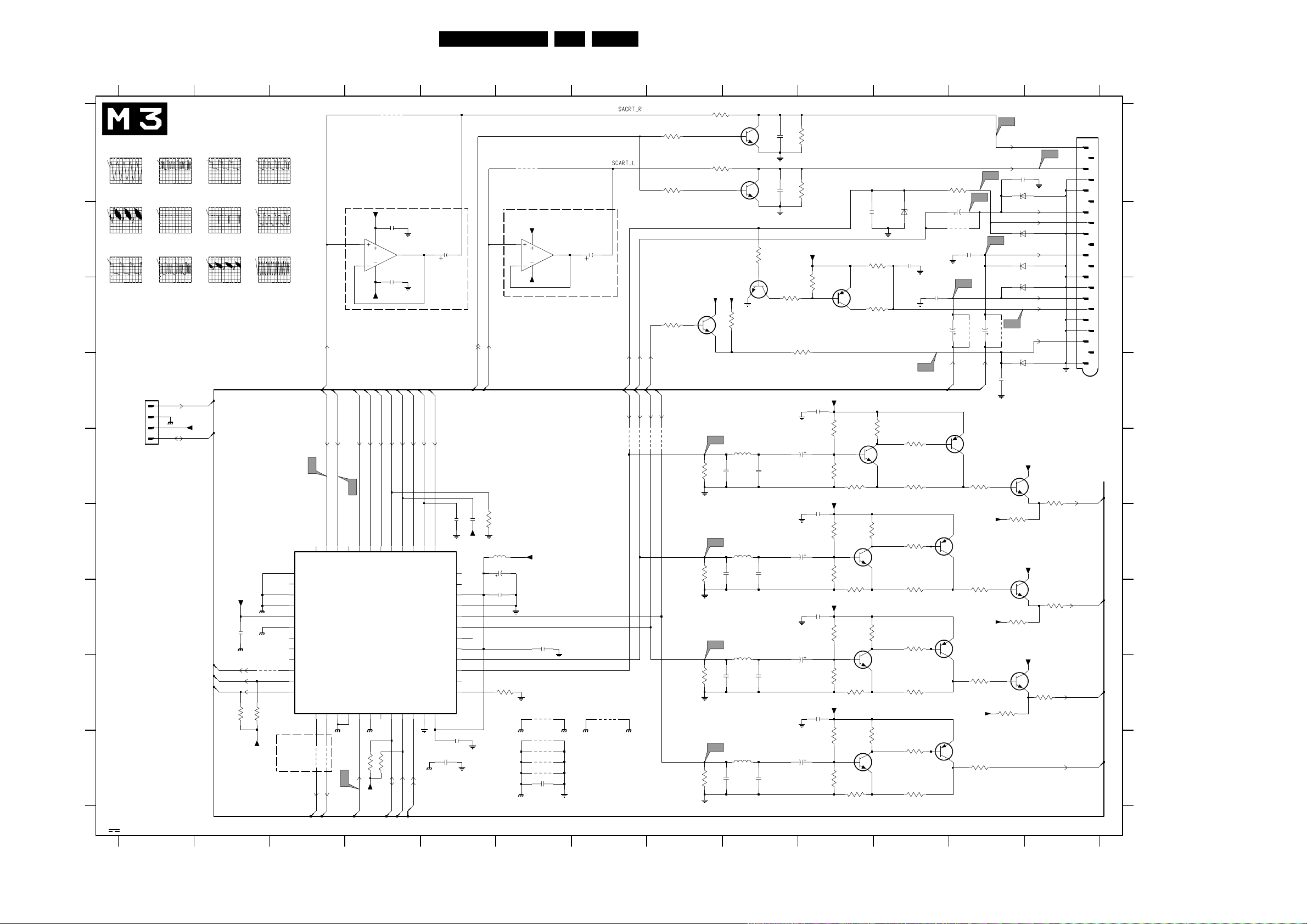

MPEG Board 4428: Video & SCART 36 37

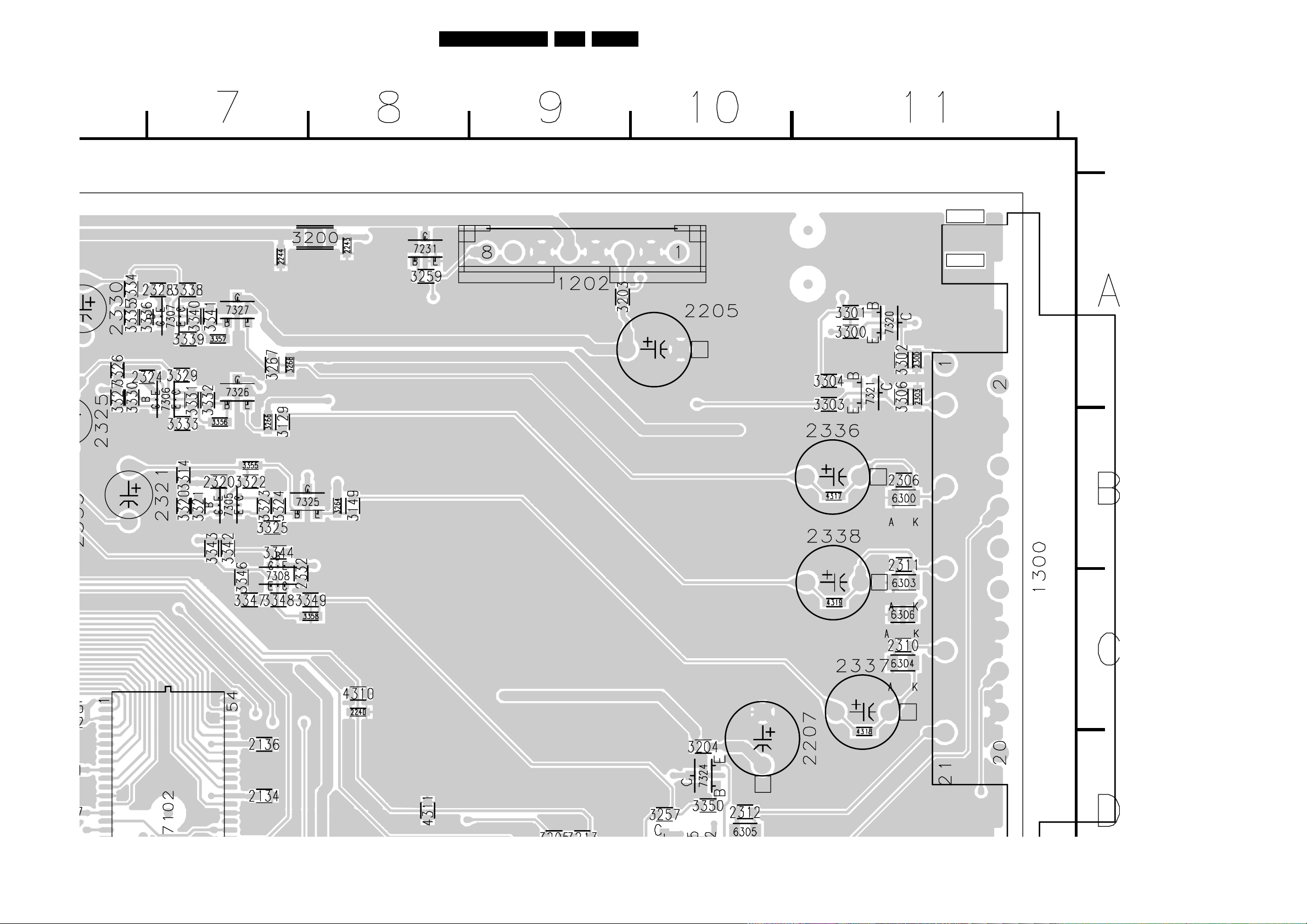

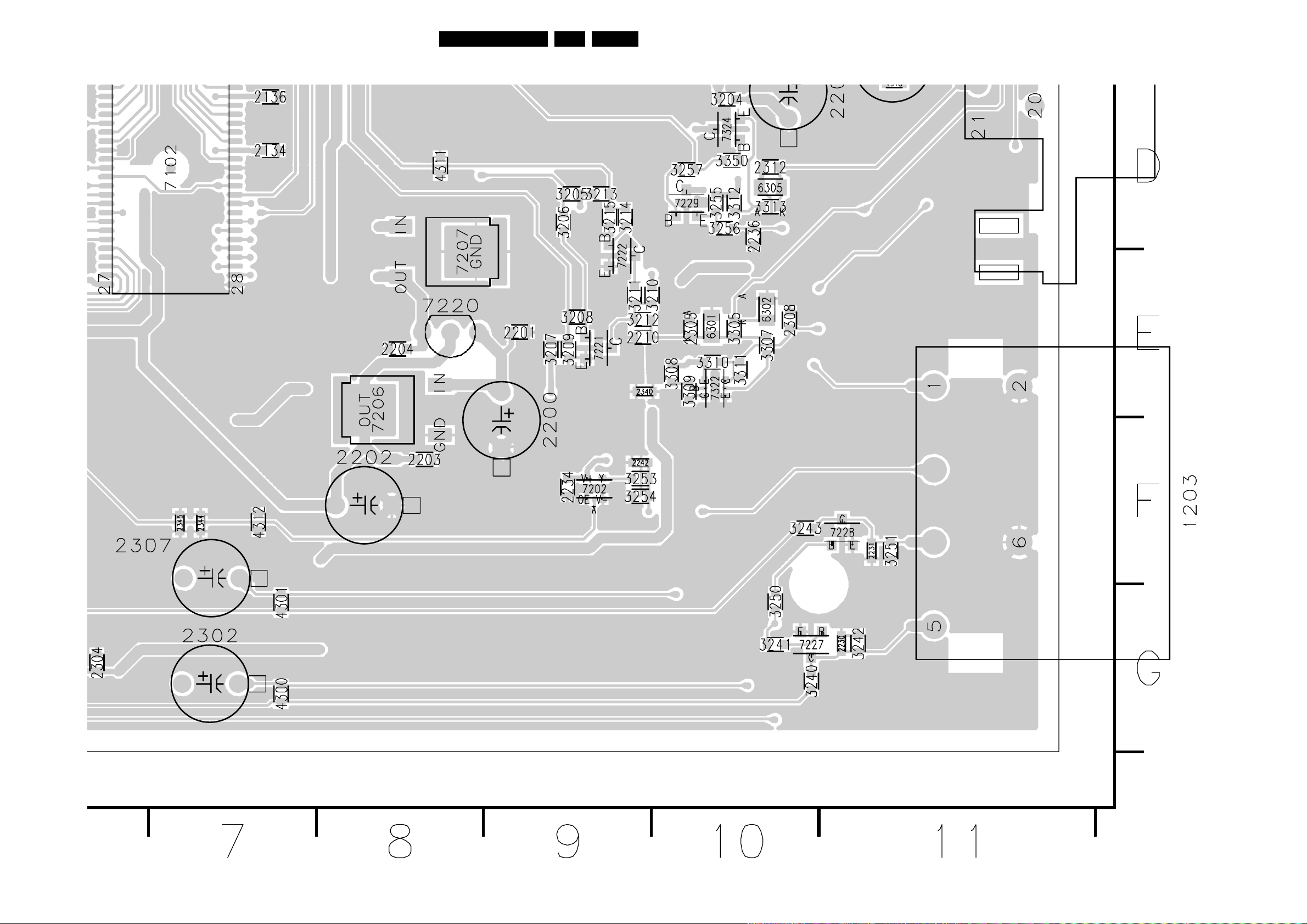

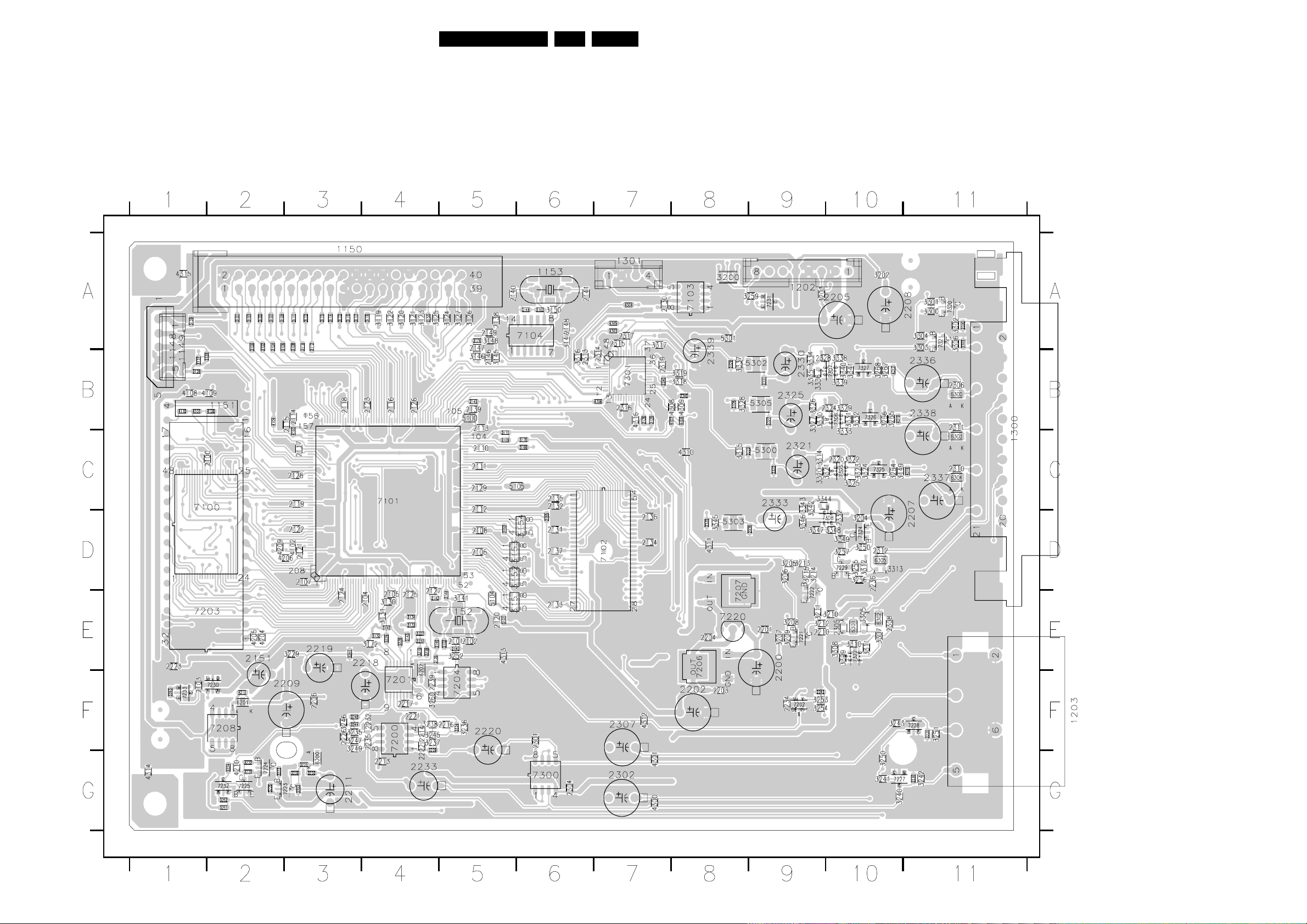

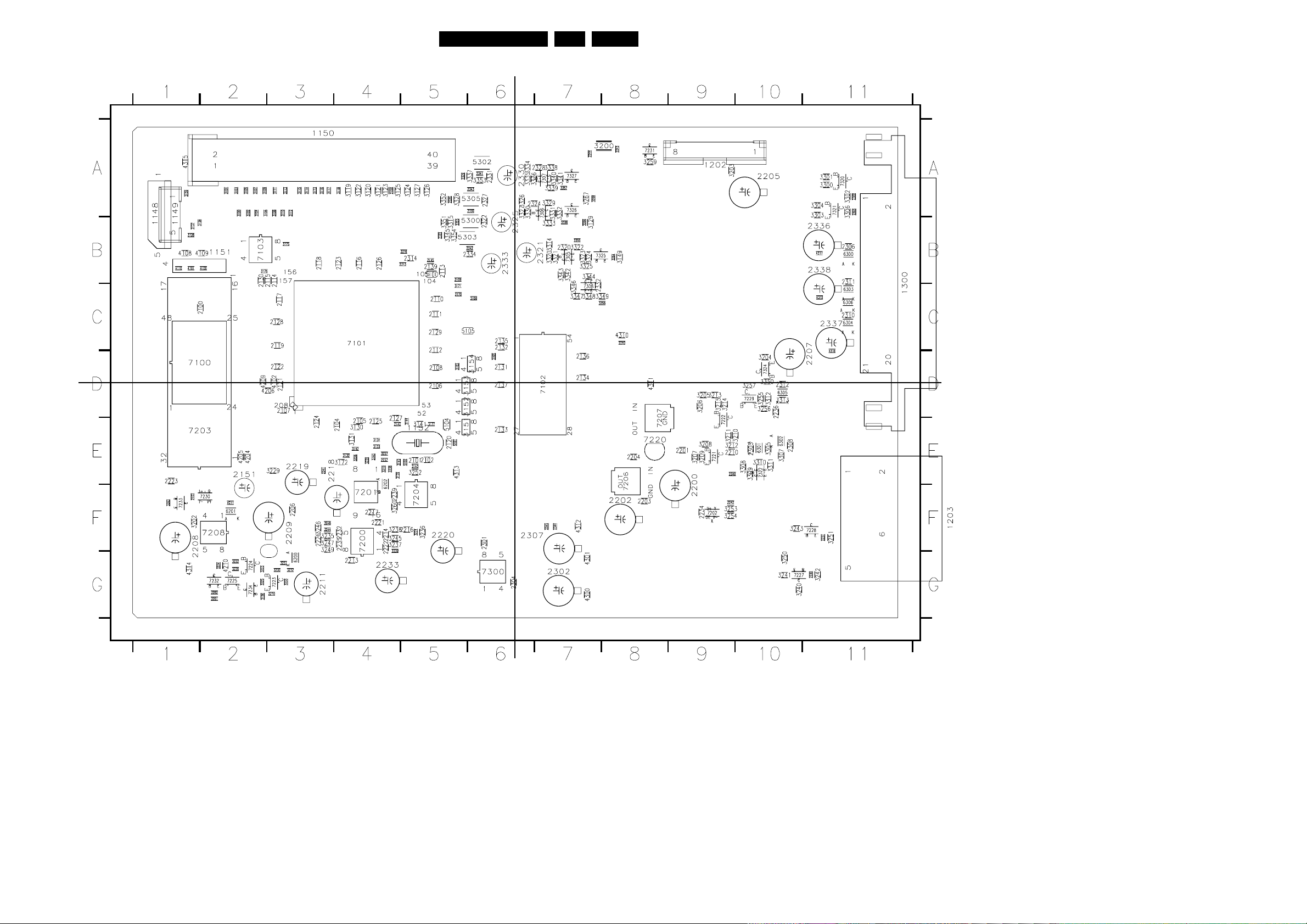

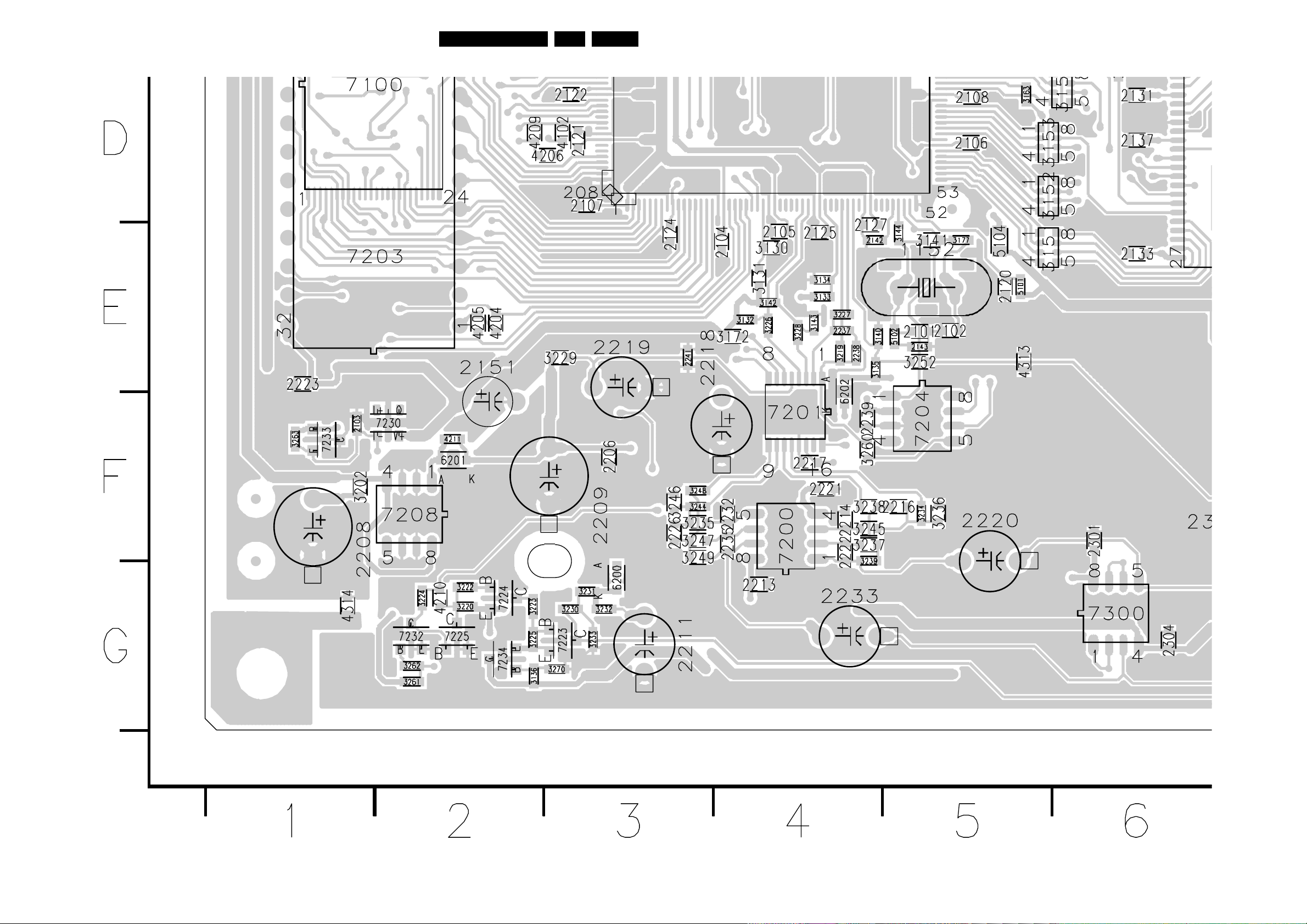

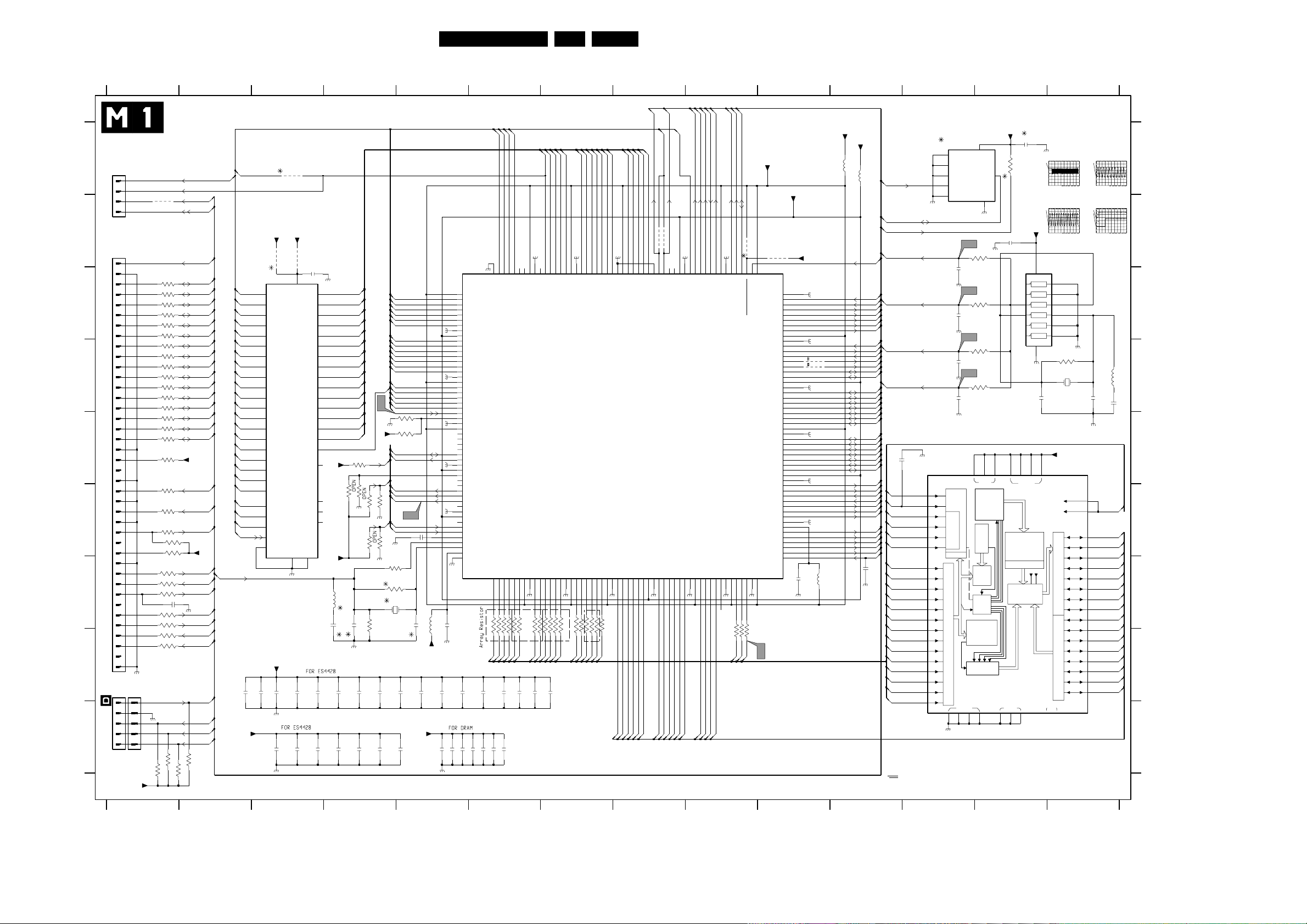

MPEG Board 6018: MPEG Processor 38 41-45

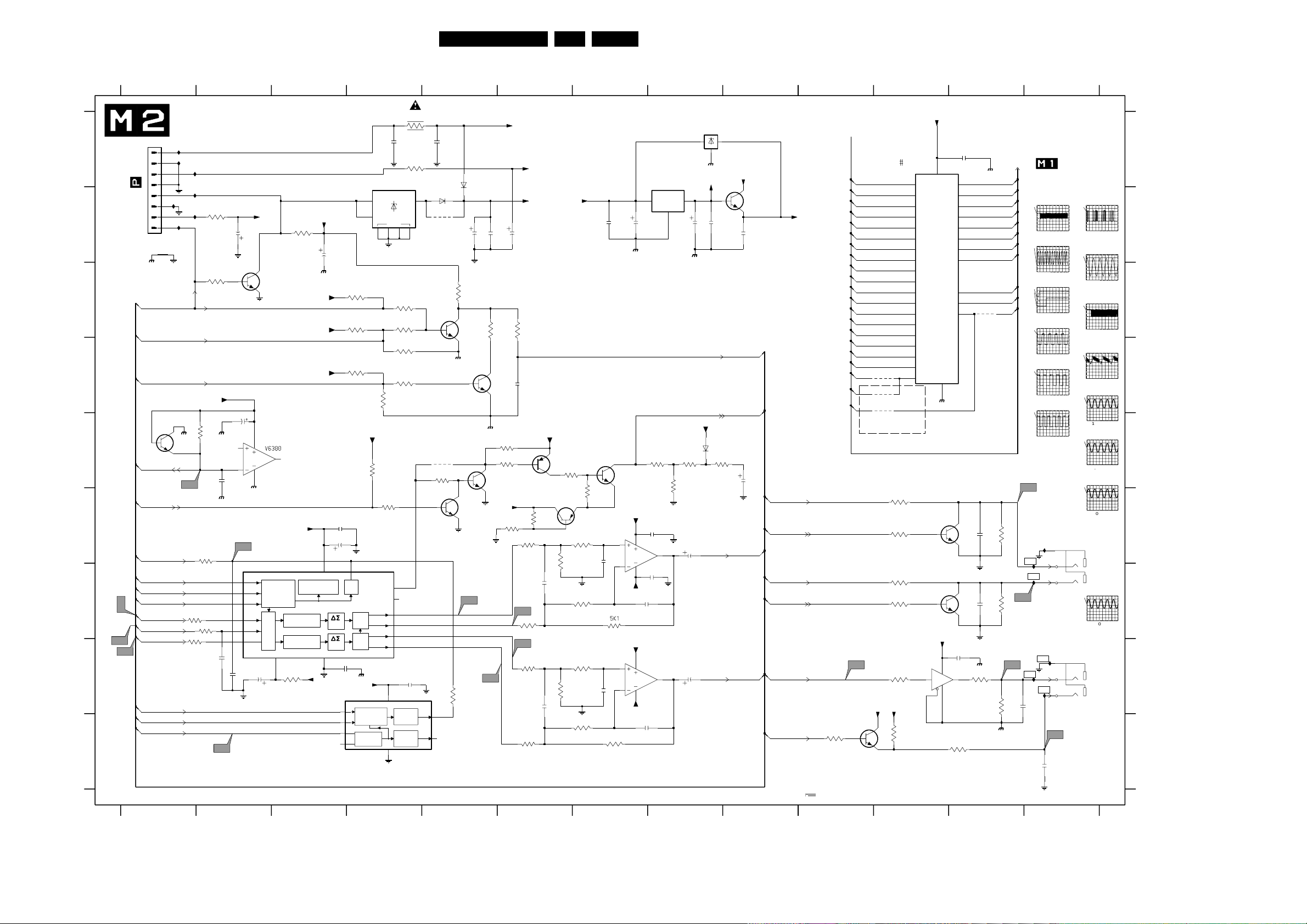

MPEG Board 6018: Audio Power 39 41-45

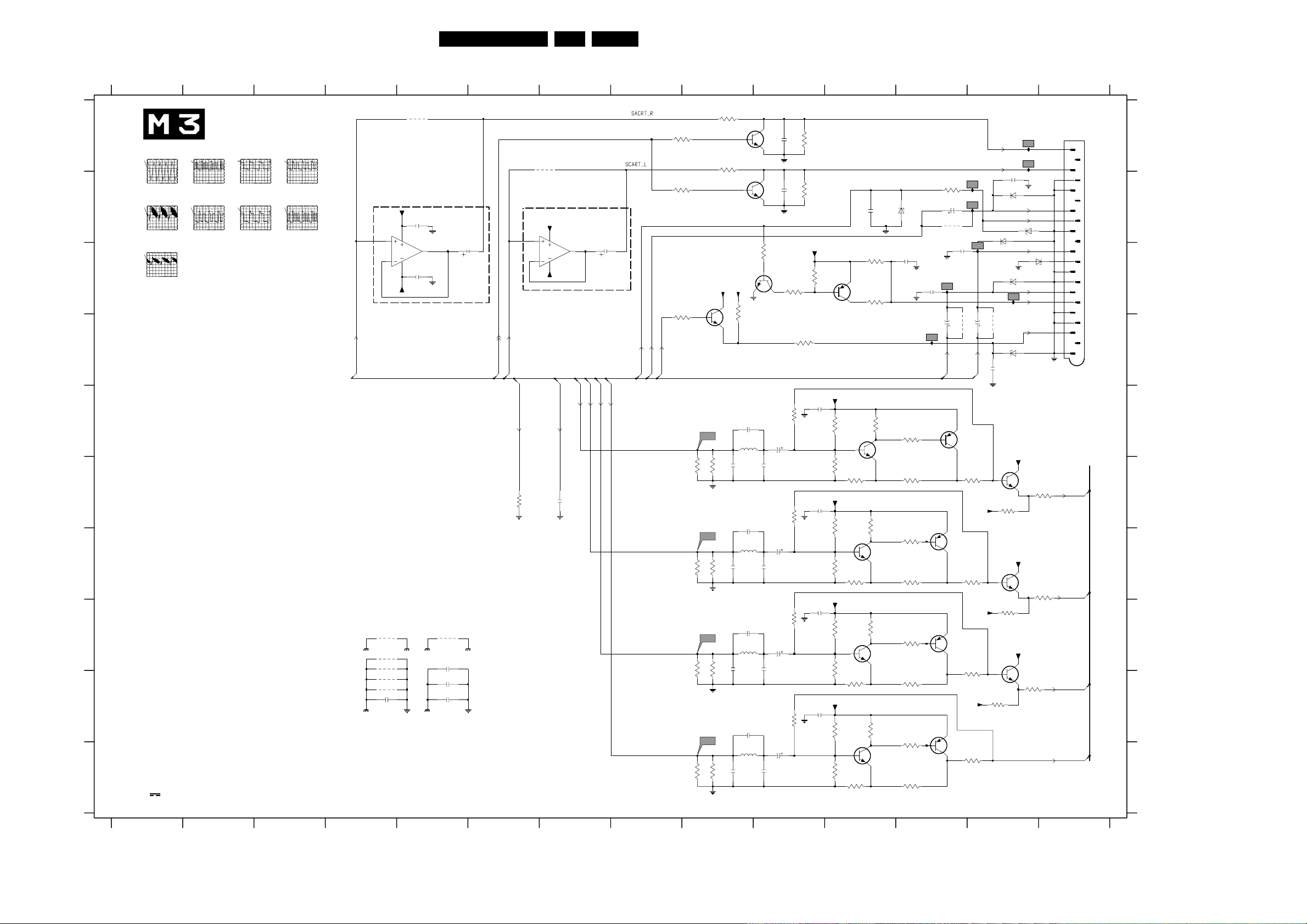

MPEG Board 6018: Video & SCART 40 41-45

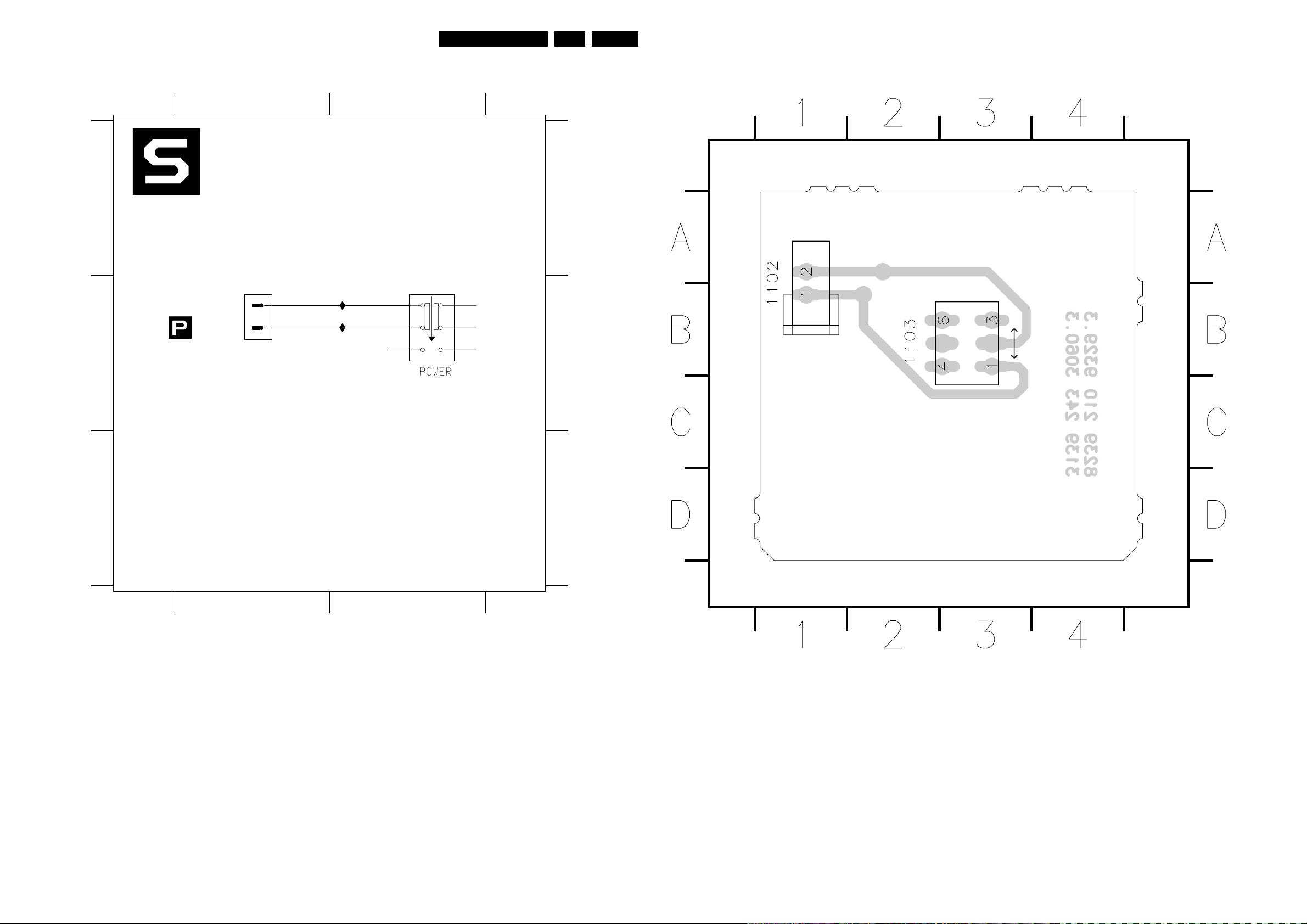

Power On/Off Panel 46 46
8 AlignmentsNot Applicable) 47

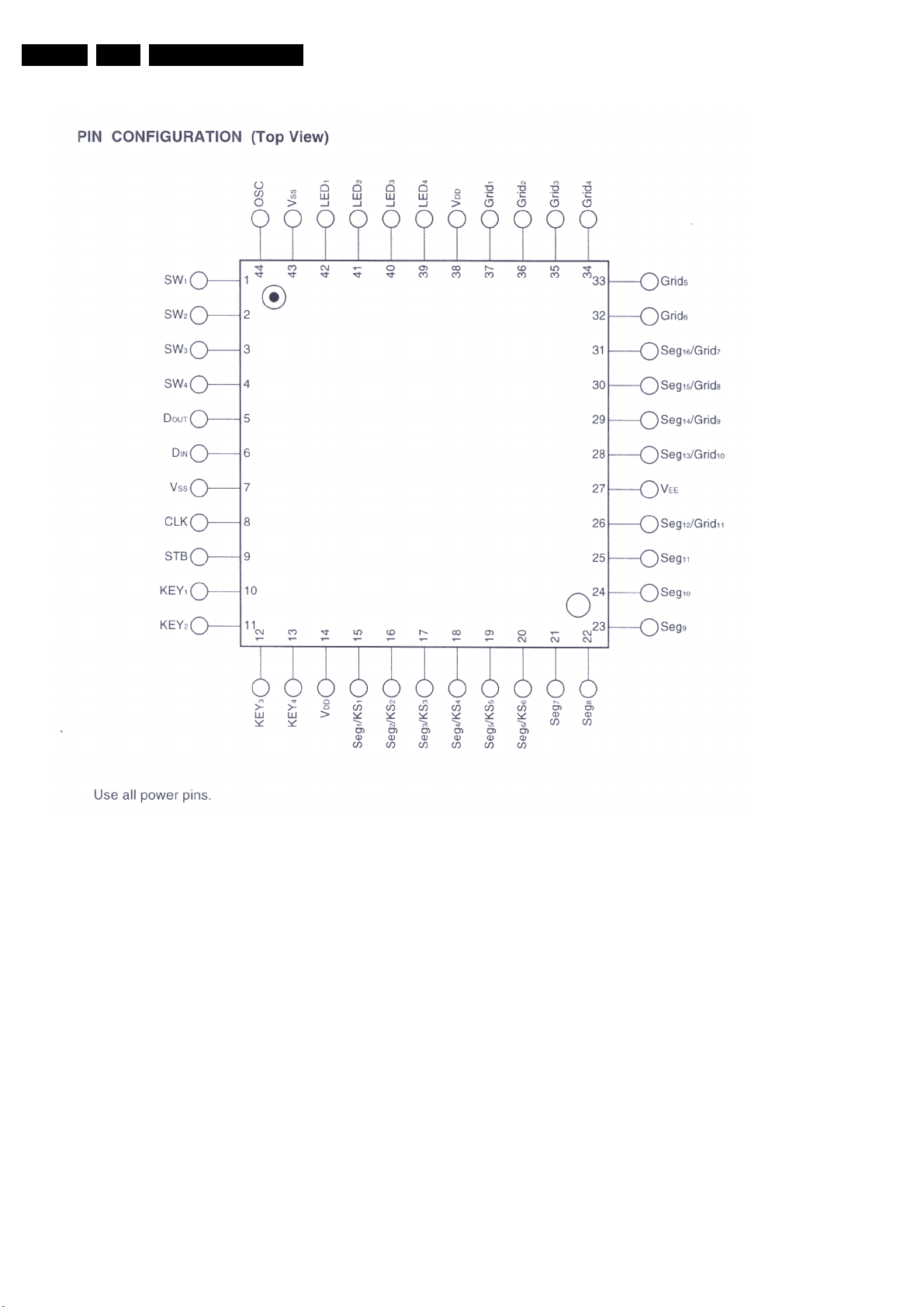

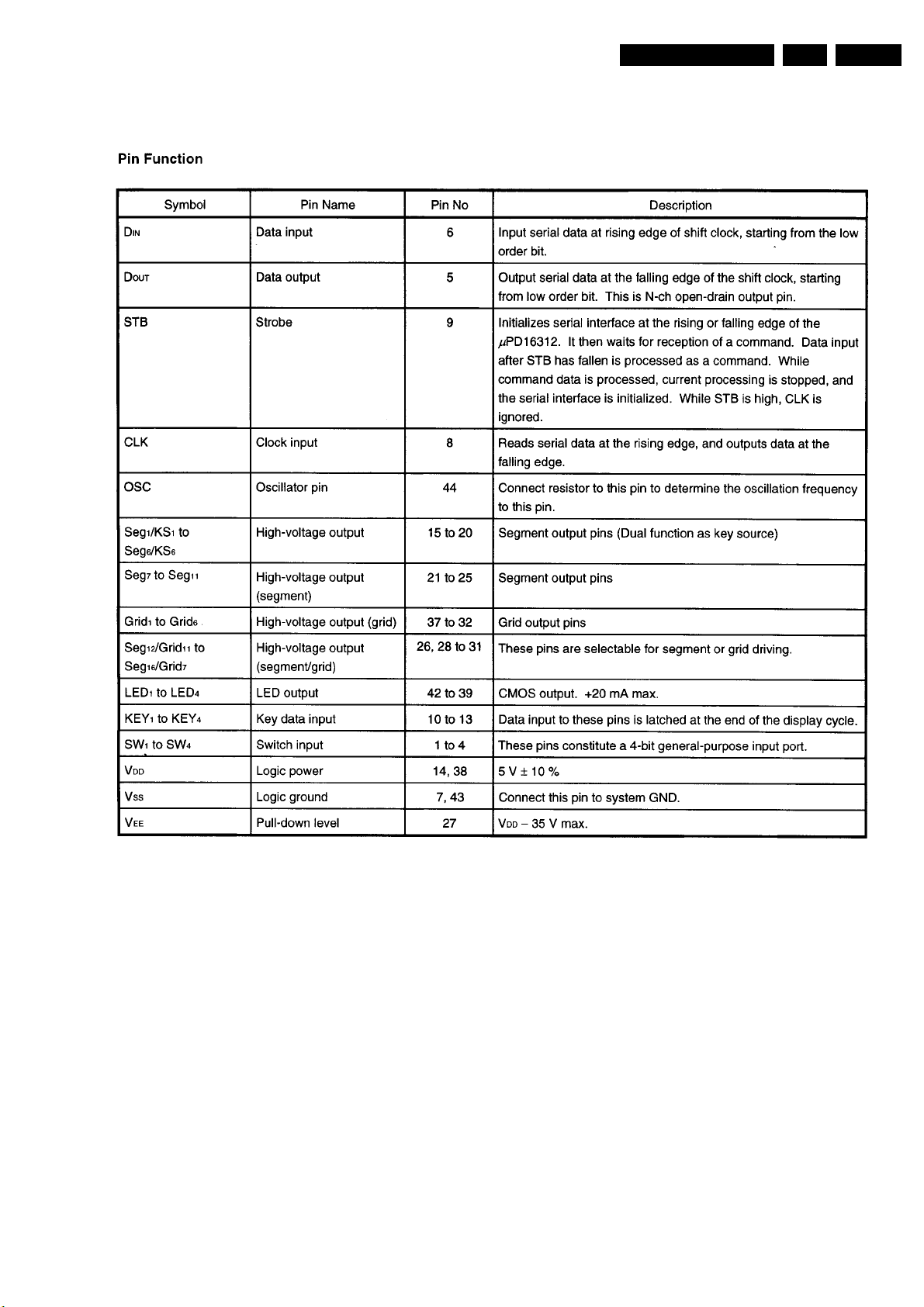

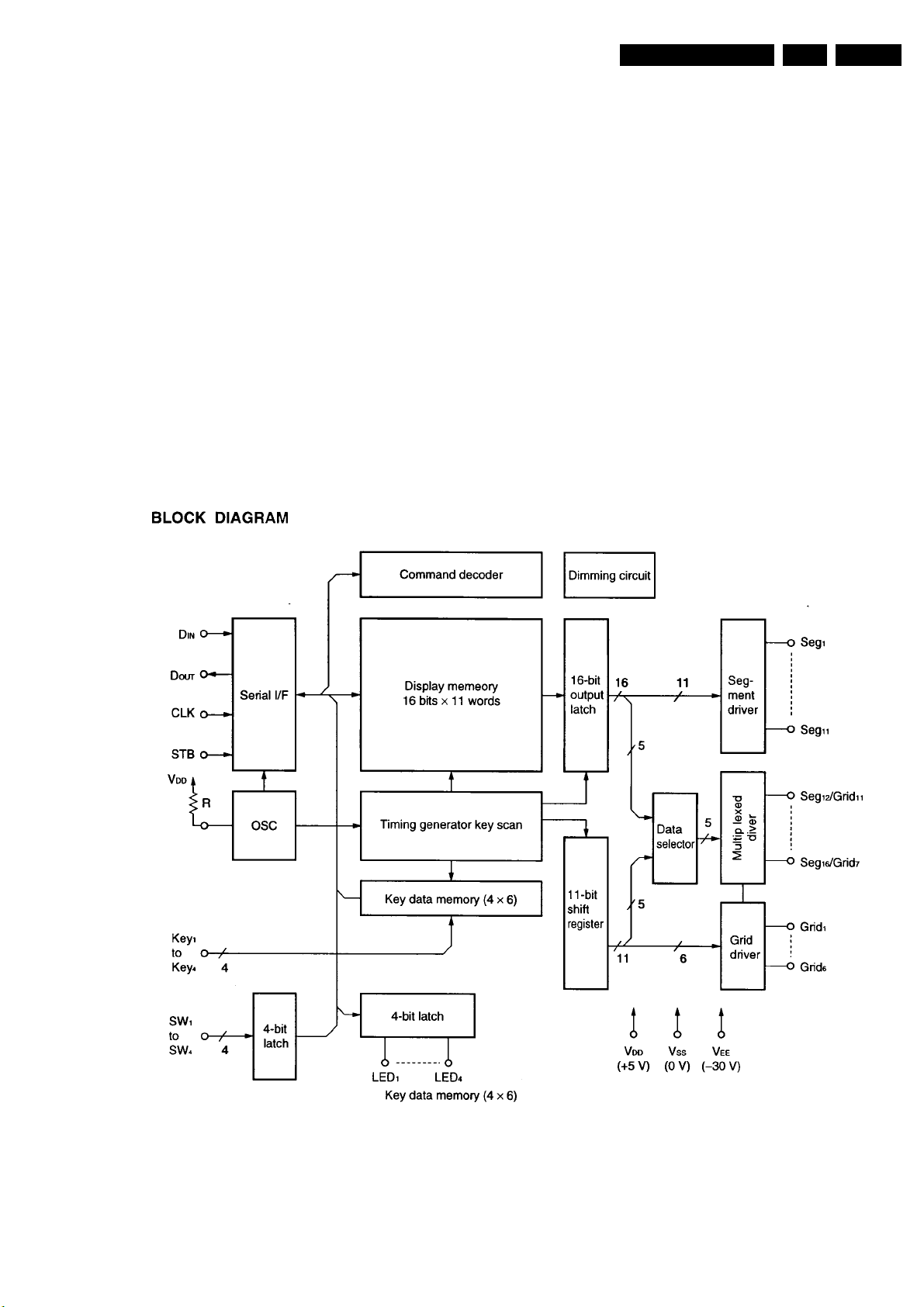

9 Circuit Descriptions IC Data 47
10 Spare Parts List 50
11 Errata 54

Published by MW 0271 Service PaCE Printed in the Netherlands Subject to modification EN 3122 785 12251

EN 2 DVD634 /0X11.

Technical Specifications

1. Technical Specifications

PLAYBACK SYSTEM
DVD Video
Video CD & SVCD
CD (CD-Recordable and CD-Rewritable)
MP3 CD
DVD-R & D VD+RW

VIDEO PERFORMANCE
CVBS 1 Vpp into 75 ohm
RGB (SCART) 0.7 Vpp into 75 ohm
Black Level Shift On/Off
Video Shift Left/Right

AUDIO FORMAT
Digital MPEG/AC-3/DTS Compressed

Digital

PCM 16, 20, 24 bits

fs, 44.1, 48, 96 kHz
MPEG MP3 MPEG Audio L3
Analogue Stereo Sound
Full decoding of Dolby Digital multi-channel surround sound

A UDIO PERFORMANCE
DA Converter 24 bits
Signal-Noise (1kHz) 90 dB
Dynamic Range (1kHz) 80 dB
DVD fs 96 kHz 4 Hz - 44 kHz
DVD/SVCD fs 48 kHz 4 Hz - 22 kHz
SVCD/VCD/CD fs 44.1 kHz 4 Hz - 20 kHz
MPEG MP3 MPEG Audio L3

TV STANDARD (P AL/50Hz) (NTSC/60Hz)
Number of lines 625 525
Playback Multistandard (PAL/NTSC)

CONNECTIONS
SCART Euroconnector
Video Output Cinch (yellow)
Audio L+R output Cinch (white/red)
Digital Output 1 coaxial

IEC958 for CDD A / LPCM/
MPEG1
IEC1937 for MPEG2, Dolb y
Digital and DTS

CABINET
Dimensions (w x h x d) 435 x 293 x 75 mm
Weight Appro ximately 2.7 Kg

* typical playing time for movie with 2 spoken languages and
3 subtitle languages

Specifications subject to change without prior notice

CL 26532068_017.eps

110702

Safety Instructions, Warnings, Notes, and Ser vice Hints

2. Safety Instructions, Warnings, Notes, and Service Hints

EN 3DVD634 /0X1 2.

2.1 Safety Instructions

2.1.1 General Safety

Safety regulations require that during a repair:

• Connect the unit to the mains via an isolation transformer.

• Replace safety components, indicated by the symbol ,
only by components identical to the original ones. Any
other component substitution (other than original type) may
increase risk of fire or electrical shock hazard.

Safety regulations require that after a repair, you must return
the unit in its original condition. Pay, in particular, attention to
the following points:

• Route the wires/cables correctly, and fix them with the
mounted cable clamps.

• Check the insulation of the mains lead for external
damage.

• Check the electrical DC resistance between the mains plug
and the secondary side:

1. Unplug the mains cord, and connect a wire between

the two pins of the mains plug.

2. Set the mains switch to the 'on' position (keep the

mains cord unplugged!).

3. Measure the resistance value between the mains plug

and the front panel, controls, and chassis bottom.

4. Repair or correct unit when the resistance

measurement is less than 1 MΩ.

5. Verify this, before you return the unit to the customer/

user (ref. UL-standard no. 1492).

6. Switch the unit ‘off’, and remove the wire between the

two pins of the mains plug.

2.1.2 Laser Safety

This unit employs a laser. Only qualified service personnel may
remove the cover, or attempt to service this device (due to
possible eye injury).

2.2 Warnings

2.2.1 General

• All ICs and many other semiconductors are susceptible to
electrostatic discharges (ESD, ). Careless handling
during repair can reduce life drastically. Make sure that,
during repair, you are at the same potential as the mass of
the set by a wristband with resistance. Keep components
and tools at this same potential. Available ESD protection
equipment:
– Complete kit ESD3 (small tablemat, wristband,

connection box, extension cable and earth cable) 4822
310 10671.

– Wristband tester 4822 344 13999.

• Be careful during measurements in the live voltage section.
The primary side of the power supply (pos. 1005), including
the heatsink, carries live mains voltage when you connect
the player to the mains (even when the player is 'off'!). It is
possible to touch copper tracks and/or components in this
unshielded primary area, when you service the player.
Service personnel must take precautions to prevent
touching this area or components in this area. A 'lightning
stroke' and a stripe-marked printing on the printed wiring
board, indicate the primary side of the power supply.

• Never replace modules, or components, while the unit is
‘on’.

2.2.2 Laser

• The use of optical instruments with this product, will
increase eye hazard.

• Only qualified service personnel may remove the cover or
attempt to service this device, due to possible eye injury.

• Repair handling should take place as much as possible
with a disc loaded inside the player.

• Text below is placed inside the unit, on the laser cover
shield:

Laser Device Unit

Type : Semiconductor laser

GaAlAs

Wavelength : 650 nm (DVD)

: 780 nm (VCD/CD)

Output Power : 20 mW (DVD+RW

writing)

: 0.8 mW (DVD

reading)

: 0.3 mW (VCD/CD

reading)

Beam divergence : 60 degree

Figure 2-1

Note: Use of controls or adjustments or performance of

procedure other than those specified herein, may result in
hazardous radiation exposure. Avoid direct exposure to beam.

CAUTION VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AVOID EXPOSURE TO BEAM
ADVARSEL SYNLIG OG USYNLIG LASERSTRÅLING VED ÅBNING UNDGÅ UDSÆTTELSE FOR STRÅLING
ADVARSEL SYNLIG OG USYNLIG LASERSTRÅLING NÅR DEKSEL ÅPNES UNNGÅ EKSPONERING FOR STRÅLEN
VARNING SYNLIG OCH OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD BETRAKTA EJ STRÅLEN
VARO! AVATTAESSA OLET ALTTIINA NÄKYVÄLLE JA NÄKYMÄTTÖMÄLLE LASER SÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN
VORSICHT SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG WENN ABDECKUNG GEÖFFNET NICHT DEM STRAHL AUSSETSEN
DANGER VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AVOID DIRECT EXPOSURE TO BEAM
ATTENTION RAYONNEMENT LASER VISIBLE ET INVISIBLE EN CAS D'OUVERTURE EXPOSITION DANGEREUSE AU FAISCEAU

!

Figure 2-2

2.2.3 Notes

Dolby

Manufactered under licence from Dolby Laboratories. “Dolby”,
“Pro Logic” and the double-D symbol are trademarks of Dolby
Laboratories. Confidential Unpublished Works. ©1992-1997
Dolby Laboratories, Inc. All rights reserved.

Figure 2-3

Trusurround

TRUSURROUND, SRS and symbol (fig 2-4) are trademarks of
SRS Labs, Inc. TRUSURROUND technology is manufactured
under licence frm SRS labs, Inc.

Figure 2-4

EN 4 DVD634 /0X13.

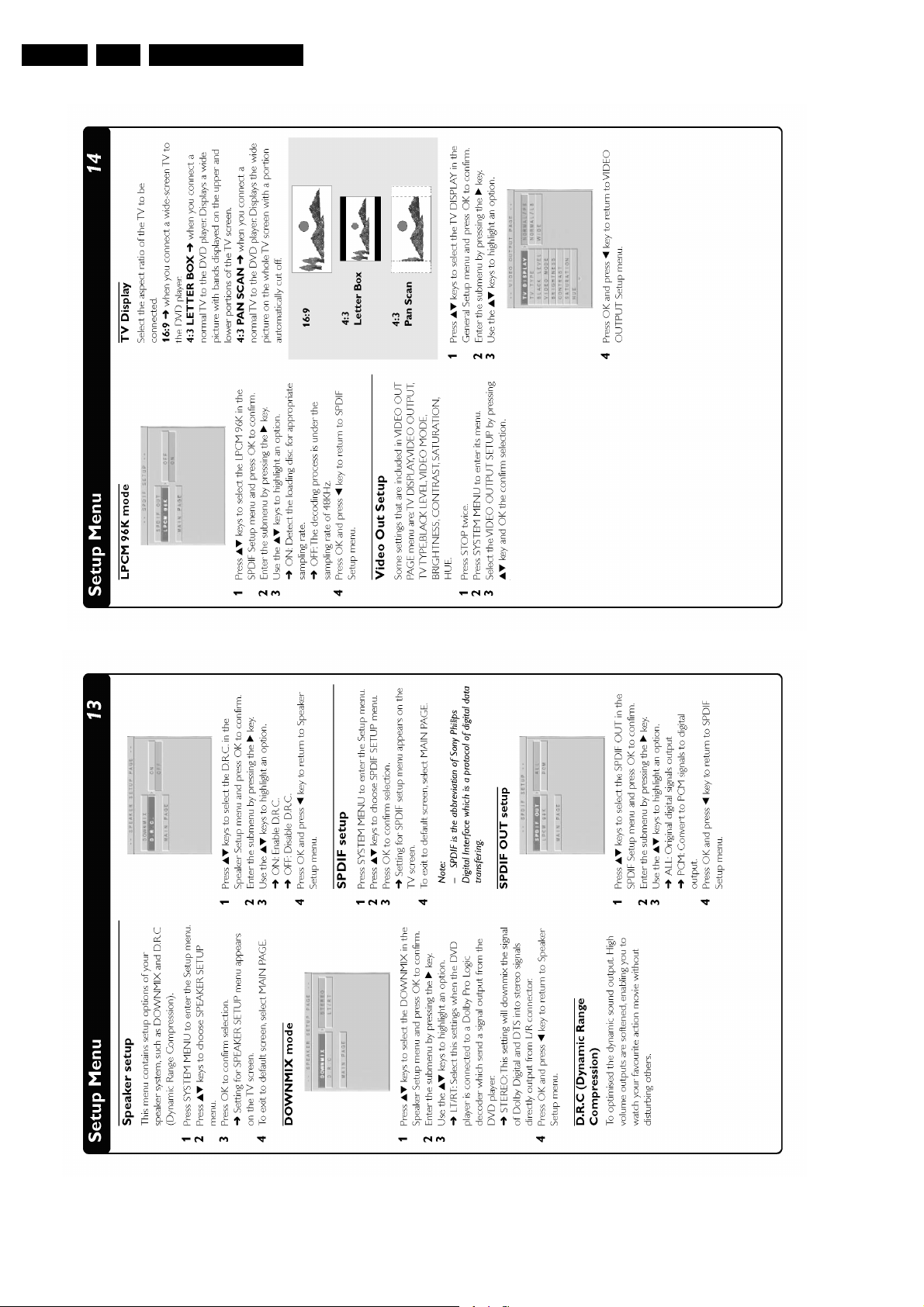

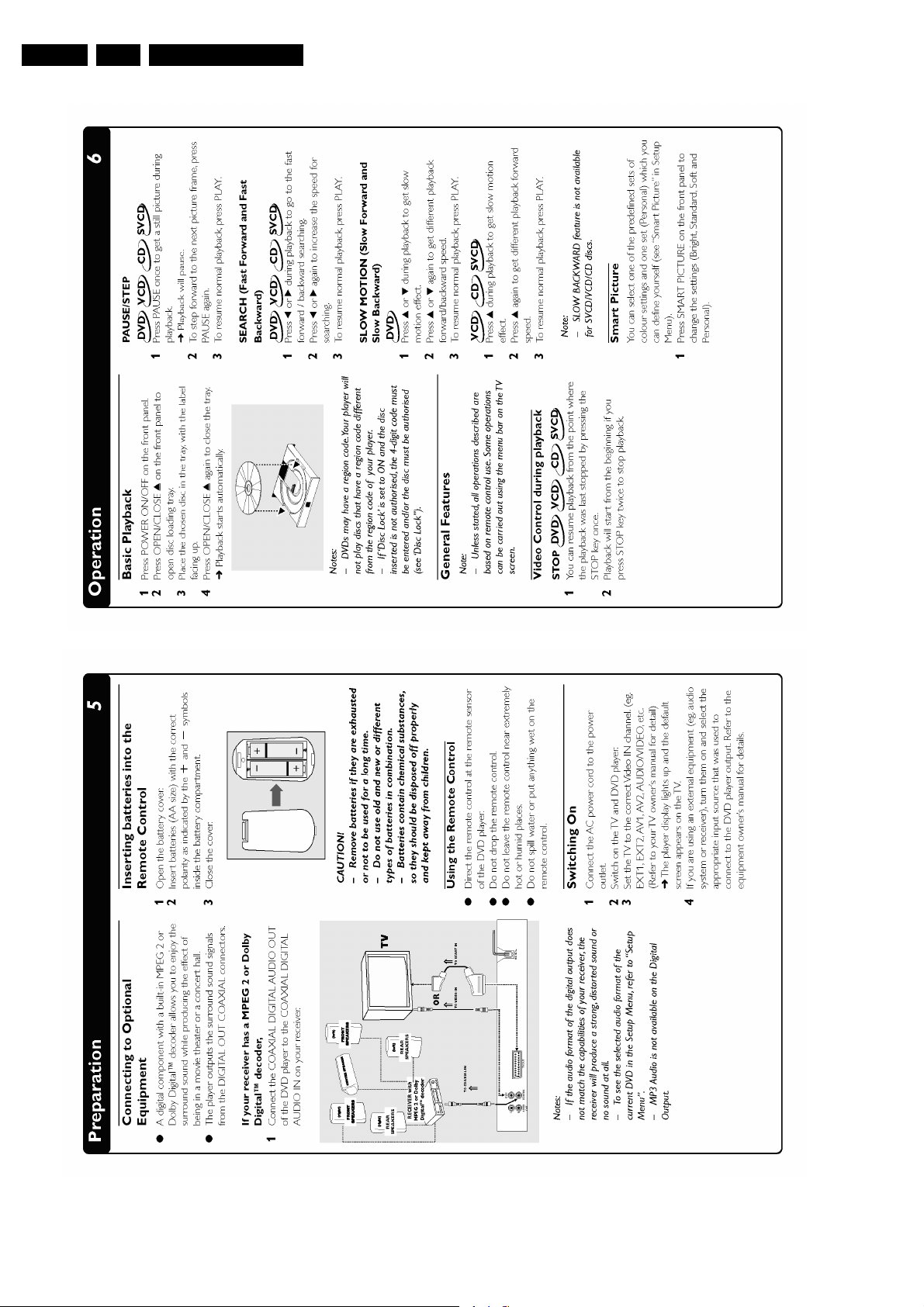

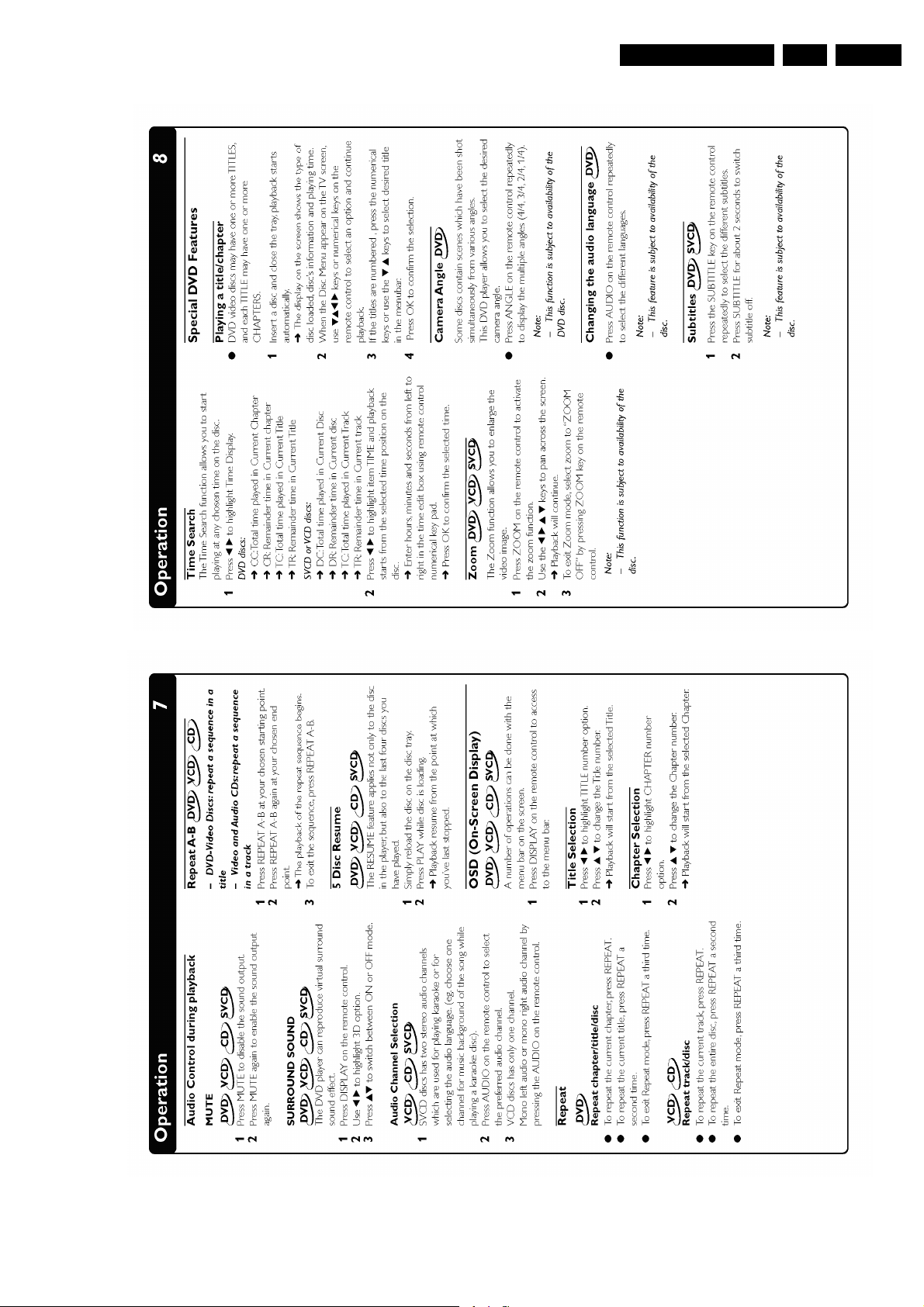

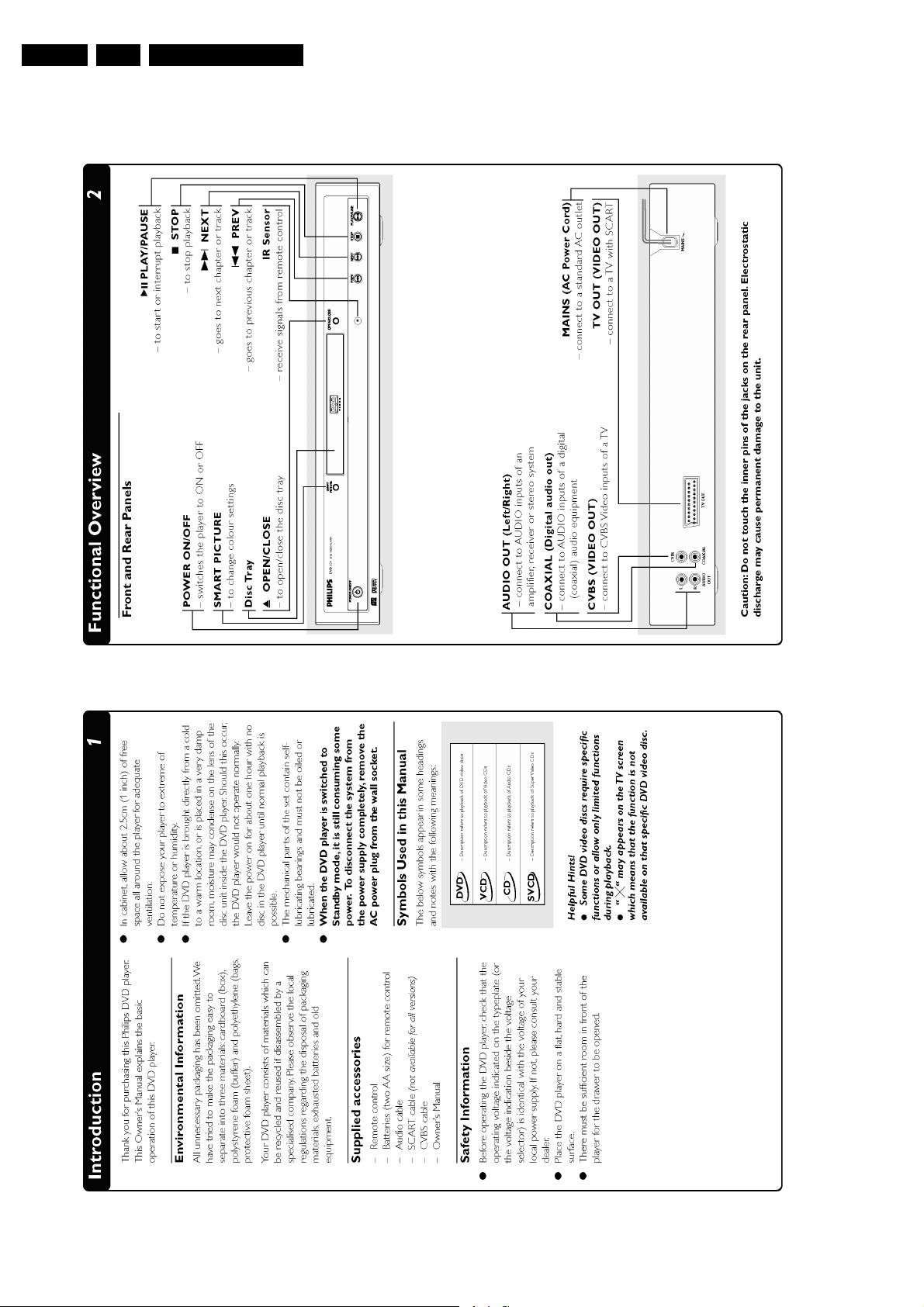

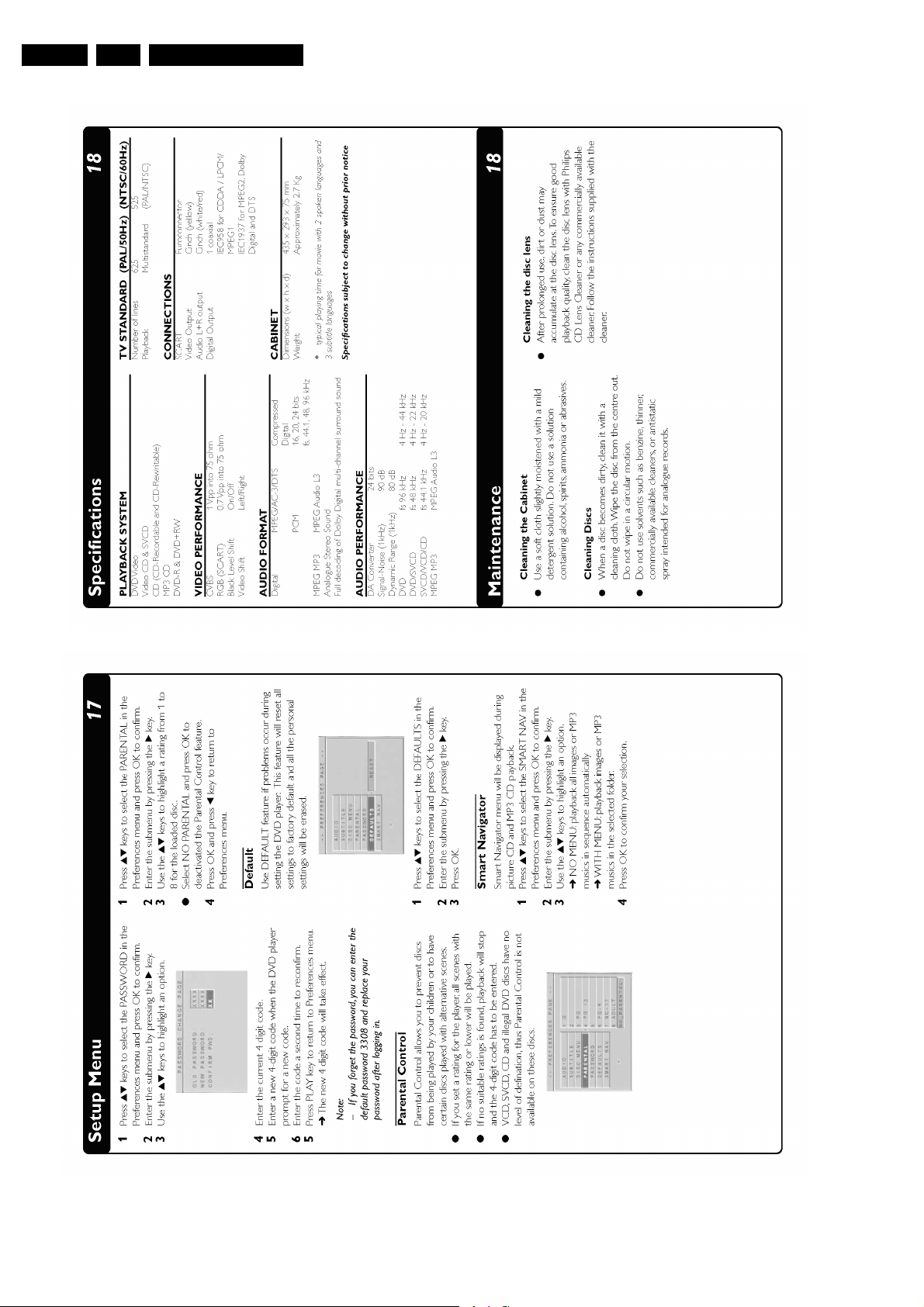

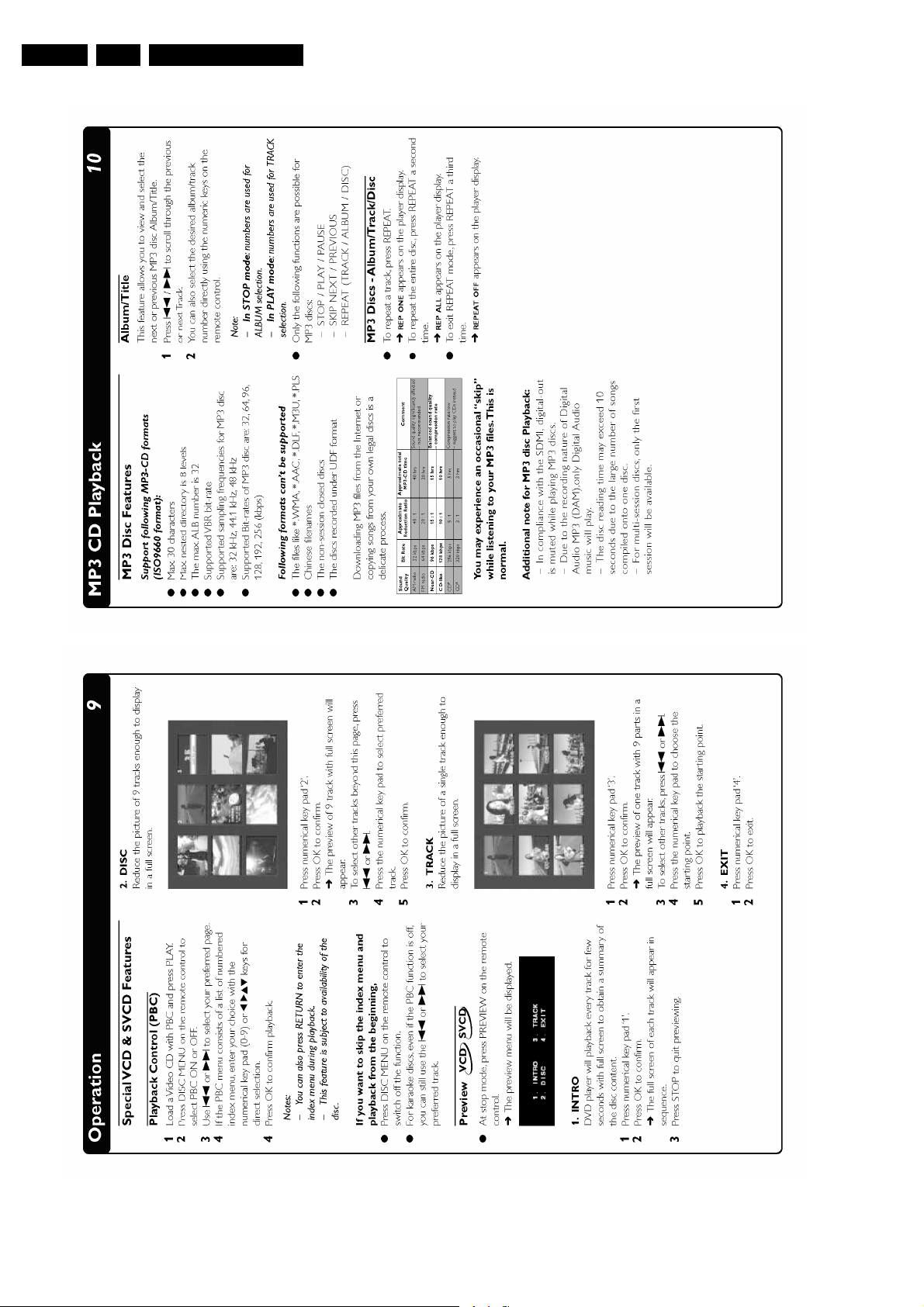

3. Directions for Use

Directions for Use

Directions for Use

EN 5DVD634 /0X1 3.

EN 6 DVD634 /0X13.

Directions for Use

Directions for Use

EN 7DVD634 /0X1 3.

EN 8 DVD634 /0X13.

Directions for Use

Directions for Use

EN 9DVD634 /0X1 3.

EN 10 DVD634 /0X13.

Directions for Use

Directions for Use

EN 11DVD634 /0X1 3.

EN 12 DVD634 /0X13.

Directions for Use

Directions for Use

EN 13DVD634 /0X1 3.

Personal Notes:

EN 14 DVD634 /0X14.

Mechanical- and Dismantling Instructions

4. Mechanical- and Dismantling Instructions

Power supply unit 1005

⇒ Remove cable connections

⇒ Remove 2 screws 190

(board to bottom frame)

⇒ Release 2 spacer locking

( board to bottom frame)

⇒ Dismount board

Mounting

Dismounting

Remove 4 screws to remove loader.

TopCover 300

⇒ Remove 4 screws 310 and

3 screws 305

⇒ Lift cover from rearside to

remove

Mpeg board 1002

⇒ Remove cable connections

⇒ Remove 3 screws 255

(skt cinch and scart to back-

plate) and 2 screws 290

(Mpeg board to bottom frame)

⇒ Dismount board

DVD Engine 145

⇒ Removes cable connections.

⇒ Open tray (see instruction below)

⇒ Unlock Tray cover 055

⇒ Remove 4 screws 185

(Engine to bottom frame)

⇒ Close tray

⇒ Lift module up slightly and move

it backward to remove.

When a disc is loaded, unlock the tray by pushing the slide inwards with

Power ON/OFF board 1001

⇒ Remove cable connection

⇒ Remove 2 screws 100

( board to Front cabinet )

⇒ Dismount board

a screwdriver and pull tray outwards.

Front cabinet 001

⇒ Remove cable connections

⇒ Open Tray (see instruction below)

⇒ Unlock Tray cover 055 and

close tray

⇒ Unlock Front panel from frame by

releasing successively 4 snaps

(2 on the side and 2 on the bottom )

DISMANTLING INSTRUCTIONS

See exploded view of DVD634 for item numbers

⇒ Place Front panel in front of

the set ( service position )

Front control board 1001

⇒ Remove cable connections.

⇒ Remove 5 screws 110

Figure 4-1 Dismantling Instructions

(board to Front cabinet )

⇒ Dismount board

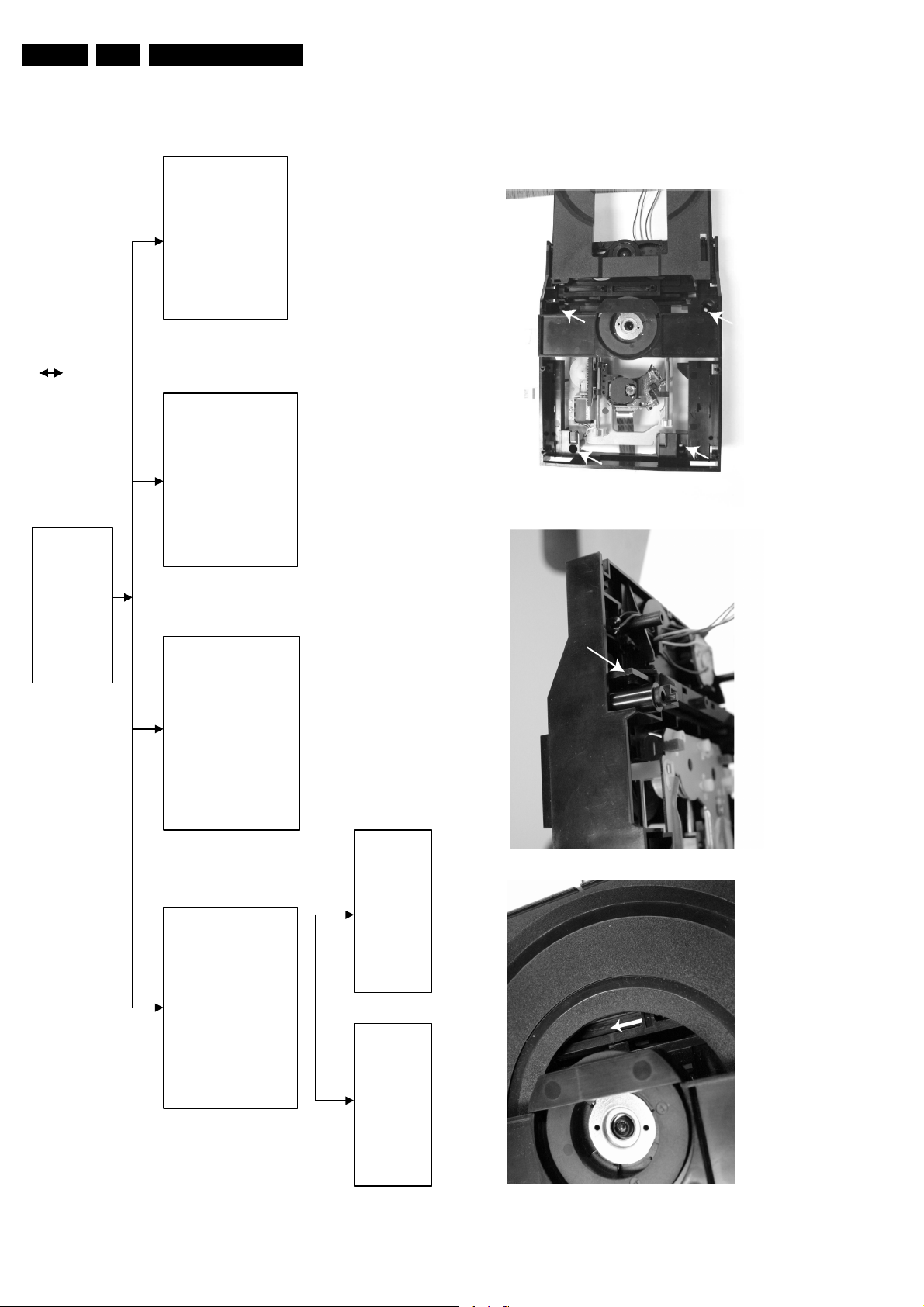

When it is not possible to open the tray with the EJECT button,

the tray can manually be opened.

When no disc is loaded, unlock the tray by moving the slide from left

Manually opening of tray

to right and pull tray outwards.

CL 26532068_003.eps

010702

Mechanical- and Dismantling Instructions

EN 15DVD634 /0X1 4.

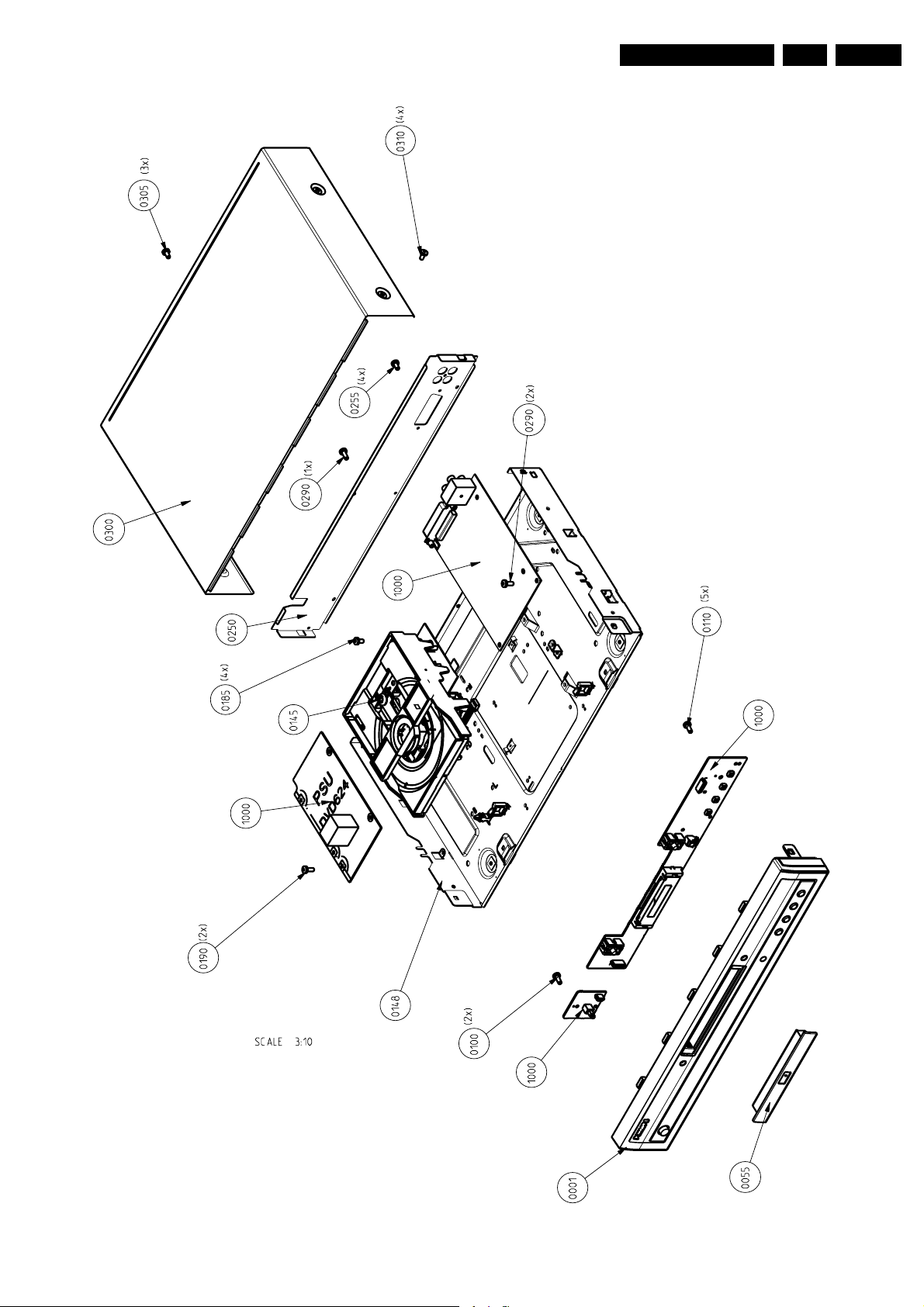

Figure 4-2 Exploded View

CL 26532068_002.eps

300502

EN 16 DVD634 /0X15.

Diagnostic Software, Trouble Shooting and Test Instructions

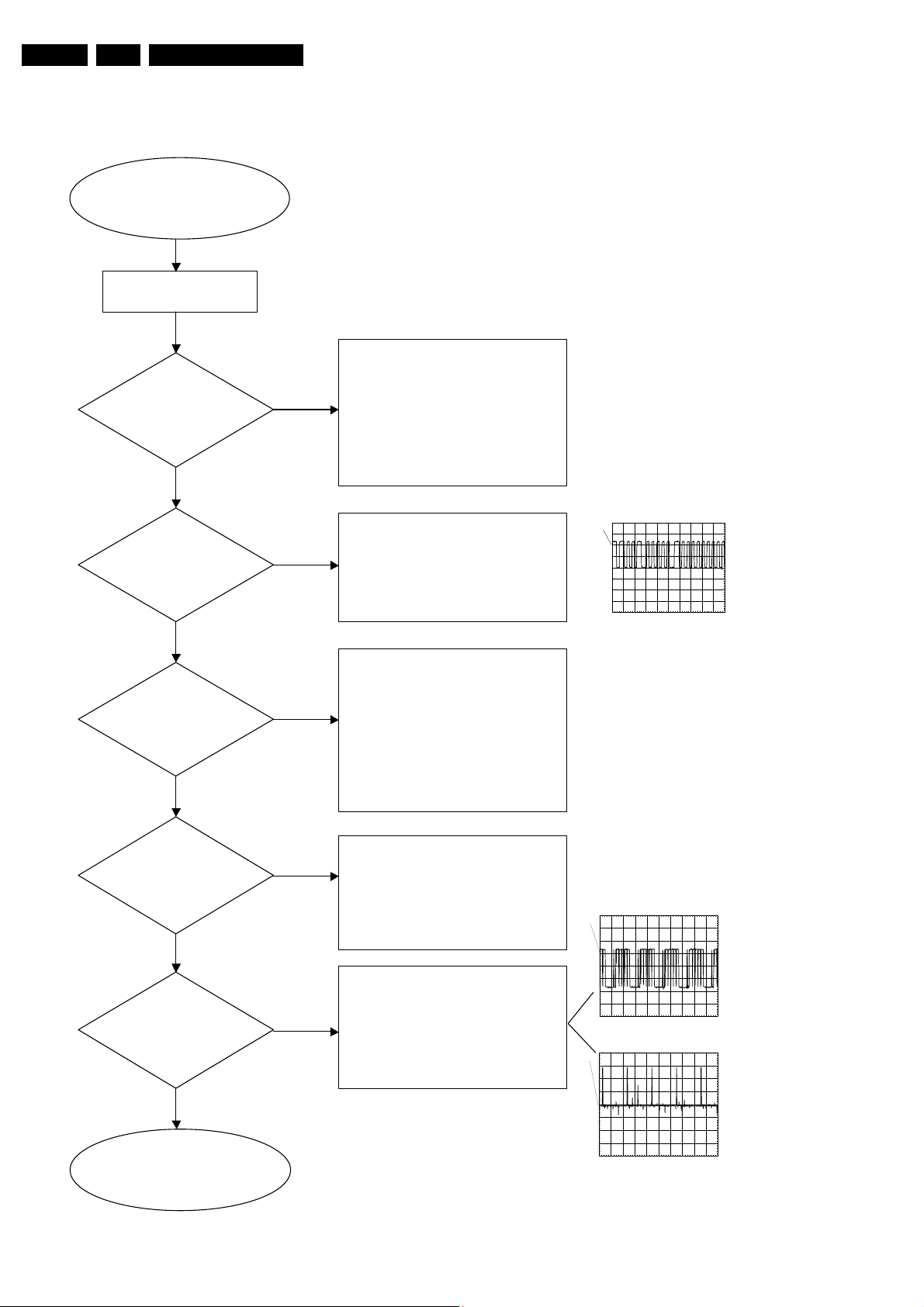

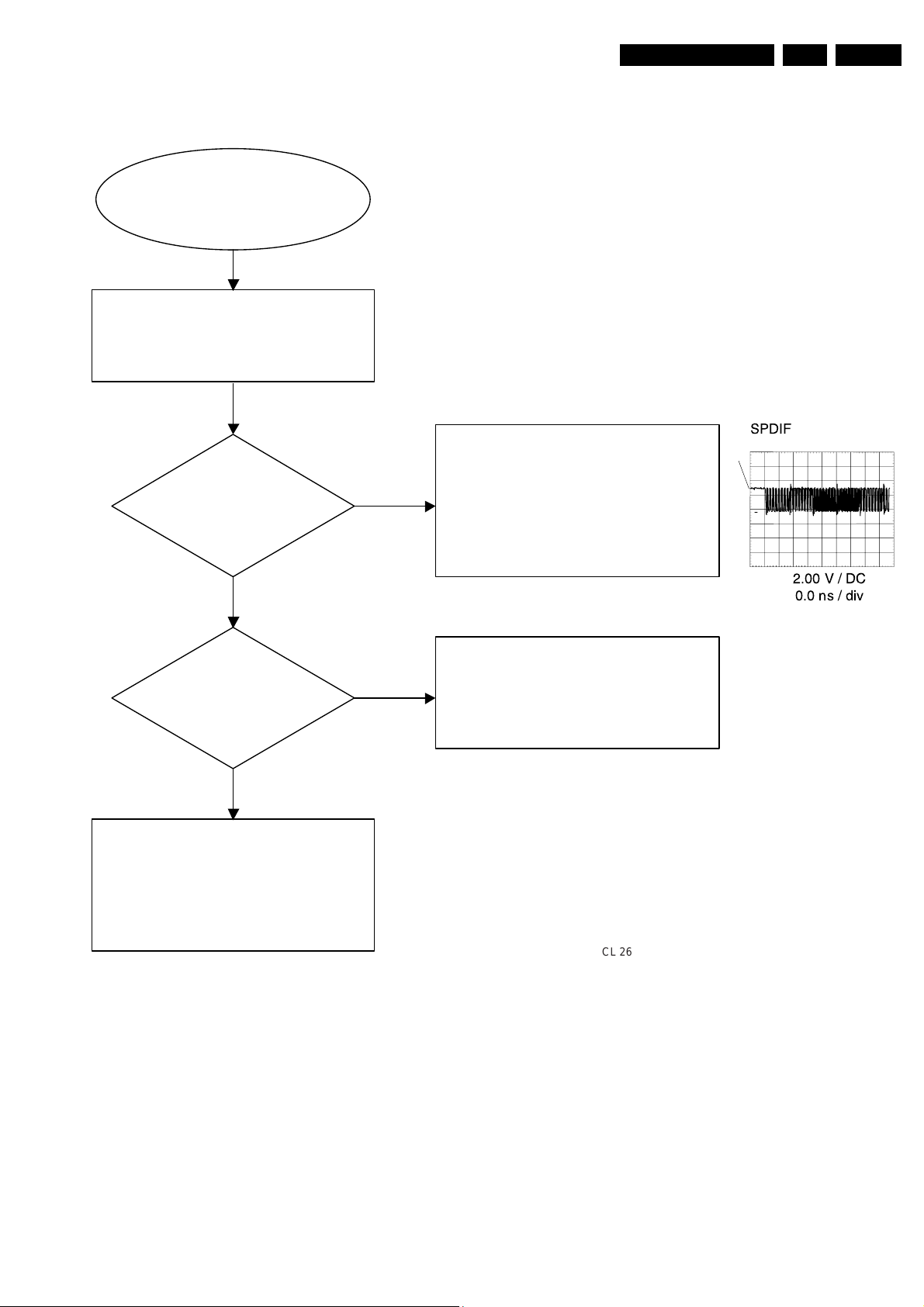

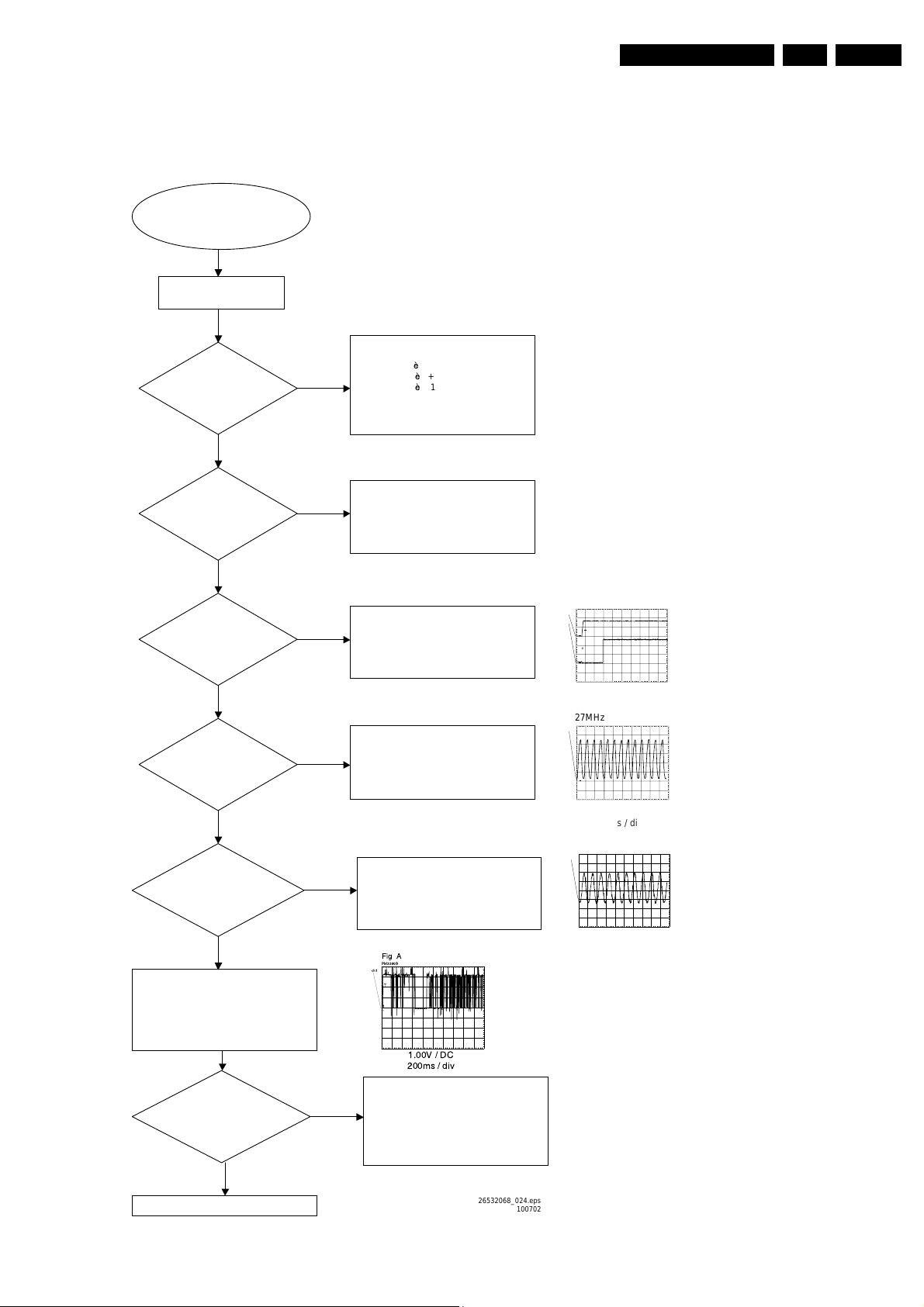

5. Diagnostic Software, Trouble Shooting and Test Instructions

5.1 Service Hints

5.1.1 Repair tips

Switched mode power supply

The power supply unit has to be replaced in case of failure. The
schematic diagram provided in the service manual is only for
information and no service parts will be available.

M3.2 Atapi Engine

The M3.2 Atapi Engine is an integrated unit of VAL6013/03
loader and servo board purchase from POS. According to POS
service policy, the loader and servo board are non-repairable
unit and in case of failure, it has to be replaced with a complete
DVD Atapi Engine.

Mpeg board and Front Display

The Mpeg board and Front display has to be repaired down to
component level.

5.1.2 Change of Software setting

The software setting can be change according to the following
procedure:

1. Press ( OPEN/CLOSE) button on the front of the player or
(1) on the remote control to open the disc tray.

2. Enter the 4-digit code (0) (0) (0) (0) on the remote control.

3. Enter one of the keys below to change the software setting.
– REGION CODE: USA ==> 1
– EUROPE ==> 2
–AP==>3
– LATAM ==> 4
– INDIA / RUSSIA==> 5
– CHINA ==> 6
– (SUBTITLE) Set to Picture CD Off (Off = DVD634)
– (ANGLE) Set to Picture CD On

(On = DVD640 / 733)
– (ZOOM) Set to 3 front key matrix (for DVD640)
– (AUDIO) Set to 6 front key matrix (for DVD634)

– (REPEAT A-B)Set to 4 front key matrix (for DVD733)

4. The change should effect immediately with information
indicated on TV screen.

5.1.3 Software upgrade via Download disc

Both the application and servo software can be flashed into the
DVD player by means
of a CD-ROM disc. The CD-ROM disc has to be made with a
CD writer SW.

Application software

1. Open disc tray on the player.

2. Insert the DOWNLOAD DISC into the player and close disc
tray.

3. The upgrading operation will start automatically.

4. Once the DOWNLOAD DISC is recognized, the player will
automatically eject the disc tray.

5. Remove the DOWNLOAD DISC.

6. Upgrading of the software will continue with the status
being shown on the FTD.

7. Once when the software is upgraded, the disc tray will
automatically close.

8. The player will be restarted automatically and display on
FTD will show (NO DISC)

2. Insert the DOWNLOAD DISC into the player and close disc
tray. The player should identify this file as MP3 format.

3. Press (MENU), followed by (SUBTITLE)(AUDIO)(ANGLE)
to enter Update Menu for the loader.

4. From the menu, use arrow keys to move down and select
UPGRADE menu item.

5. Press right arrow button and then 'OK' to start upgrading.

6. A flashing digit in the bottom line indicates the progress. It
will start from 1 and upgrading will be completed when it
reaches 30.

7. The player will restart and upgrading is completed.

5.1.4 Verify setting

To check that the setting has change successfully.

1. Press (DISPLAY) button on the remote control while disc
tray is open.

2. Two lines text will appear on the TV screen. That is how it
looks like.

DVD640/634_V319_0522
RG 2 LD 0836 F6 Jpeg-0 3000

In text, the following numbers refer to:

• V319_0522 ==> refer to Application software version

• RG 2 ==> refer to region code

• LD 0836 ==> refer to servo software version

• F6 ==> refer to DVD634/640 front key matrix

• Jpeg-0 ==> refer to Picture CD On/Off

5.1.5 ComPair

There is no ComPair available for DVD634

5.2 Trouble Shooting

In this paragraph some troubleshooting tips are given to
diagnos the DVD634 player. For detailed diagnostics, check
the faulting tree since no built-in diagnostic software is
available in the player.

5.2.1 M3.2 Atapi Engine

The M3.2 Atapi engine is a non-repairable component. Hence,
it is necessary to determine if any fault condition of the player
are caused by the DVD engine before replacing it.
The engine is a stand-alone system, an integrated unit of
VAL6013/03 loader and servo board, which does not need to
be connected to the Mpeg board to perform it basic operation.
Once a stable voltage is supplied to the engine,some
mechanical movement will be observed. Hence, to determine
whether the engine is faulty, remove the 40 pins flex cable and
observe the mechanical movement. If no mechanical
movement is observed, the engine should be faulty and it
should be reconfirm with a working engine.
The Mercury 3 Loader has an optical unit consisting of two
lasers, one for CD with a wavelength of 780 nm, and one for,
DVD with a wavelength of 650 nm. If any one type of disc (DVD
or VCD / CD) cannot be identified by the player, it can be sure
that the fault is due to the engine.

Servo software

1. Open disc tray on the player

Diagnostic Software, Trouble Shooting and Test Instructions

N

/

N

N

N

p

N

5.3 Fault Finding Trees

5.3.1 No Operation

The player does not operate

No OSD and FTD display

No pix and sound

Put the Mains switch to ON

Check Power

supply +5V and

+/-12V to the

Mpeg board

YES

• Check supply voltages at connector
1202
Pin 1&3 è +5V

O

Pin 5 è +12V
Pin 7 è -12V

• Check / Replace cable connection to
con 1202

• Check / Replace Power Supply Unit

EN 17DVD634 /0X1 5.

Check Power
supply +3V3 and
+2V5 to IC 7101

board

YES

Check RESET

signal at pin 24 /

7101 and pin 12

7100

YES

Check 27MHz clk

input at

pin 105 /116 /117

of IC 7101

YES

Check SDRAM

CLK 108MHz at

pin 38 / 7102

YES

Measure waveform at pin 16 of Flash
IC 7100 at Power-on and the waveform
should look like in Fig A:

• During initialization –waveform
appear for 1 sec and go low for next 1
sec.

• After start-u

-continuous waveform.

Is the waveform

present ?

NO

• Check / Replace safety resistor 3200

• Check / Replace 3V3 regulator 7206

and transistor 7220

• Check +5V supply to IC 7230

• Check / Replace RESET IC 7230

O

• Check +5V supply voltage to IC 7104

• Check / Replace IC 7104

O

• Check / Replace crystal 1153

• Check / Replace C2140 and C2141

• Check / Replace resistor

3145,3146,3147 3148 and 3150

• Check +3V3 supply voltage to IC

O

O

7102

• Check / Replace resistors 3171

• Check / Replace processor IC 7101

Note: There should be mechanical

Fig A

PM3380B

ch1

T

1

1.00V / DC
200ms / div

• Check +3V3 supply voltage to IC
7100

• Check / Replace jumper 4109

• Check / Replace Flash IC 7100

• Check HSYNC at pin 10 / 7301

Check +5VAV supply to IC 7301

•

•

Check / Replace Video DAC IC 7301

ch1

ch2

ch1

ch1

RESET

T

1

2

2V / div DC

20ms / div

27MHz CLK

1

1V / div DC

50ns / div

SDRAM CLK

ch1:freq=108MHz

1

1V / div DC

10ns / div

YES

• Check / Replace processor IC 7101

CL 26532068_024.eps

100702

Figure 5-1 No operation

EN 18 DVD634 /0X15.

N

N

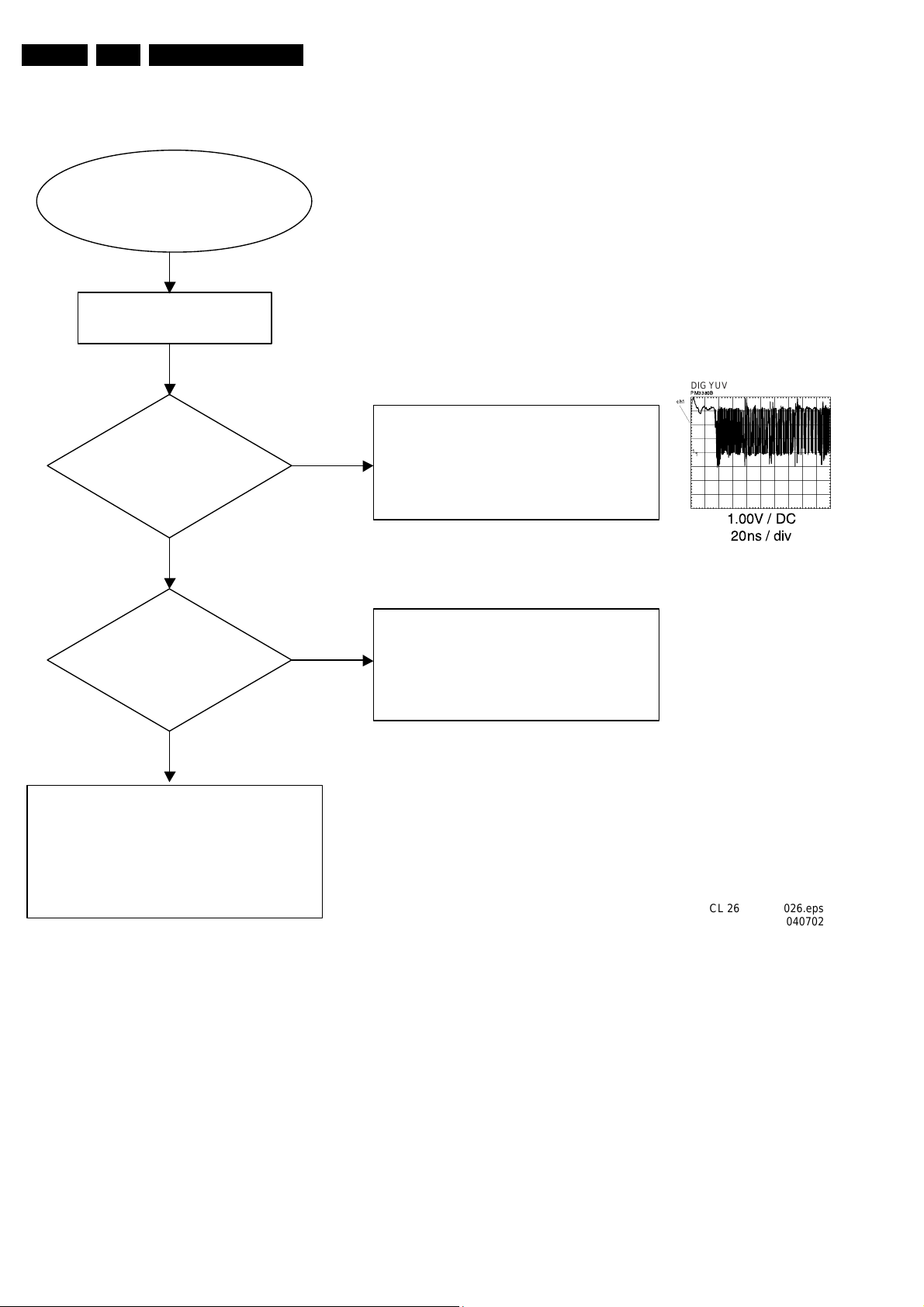

5.3.2 No Picture

Diagnostic Software, Trouble Shooting and Test Instructions



No Picture Sound and FTD

display OK

Put the Mains switch to ON

and play a DVD disc

DIG YUV

PM3380B

ch1

• Check YUV data lines connection

Check digital

YUV input to

Video DAC

O

from processor IC 7101 to Video DAC
IC7301

• Check / Replace processor IC 7101

1

1

IC7301

1.00V / DC
20ns / div

YES

Check Video

output from

Video DAC IC

7301 input

YES

• Check +5VAV to the Video buffer
circuitry

• Check / Replace the components in the
Video buffer circuitry.

• Check +5V supply at pin 36/41/46 of

O

• Check / Replace coil 5301

• Check /Replace Video DAC IC 7301

Figure 5-2 No Picture

Video DAC IC 7301

CL 26532068_026.eps

040702

5.3.3 No Color

and CBVS Sound and FTD

Put the Mains switch to ON

Diagnostic Software, Trouble Shooting and Test Instructions

Picture No Color on RGB

display O K

and play a DVD disc

• Check / Replace C2140 and C2141

Check 27 MHz

crystal freq

NO

• Check / Replace crystal 1153

within 2 7MHz ±

30ppm.

EN 19DVD634 /0X1 5.

YES

• Check / Replace Video DAC IC7301

CL 26532068_027.eps

040702

Figure 5-3 Pix no color

EN 20 DVD634 /0X15.

5.3.4 No Sound

No sound

Pix and FTD display OK

Put the Mains switch to ON

and play a DVD disc

Check Power

supply -12V to

the Mpeg board

YES

Diagnostic Software, Trouble Shooting and Test Instructions

• Check supply voltage at connector
1202
Pin 7 è -12V

NO

• Check / Replace resistor 3204

• Check / Replace cable connection to

con 1202

• Check / Replace Power Supply Unit

Check I2S signal
at Audio DAC IC

7201 input

YES

Check Audio
output at pin 9­12/7201 Audio

DAC

YES

Check Audio

output at pin 1 & 7

of Audio buffer

IC7220

YES

Check Audio

DAC input detect

at pin 16 of IC

7201= HIGH

NO

NO

NO

• Check I2S data lines connection from
processor IC 7101 to Audio DAC
IC7201

• Check / Replace processor IC 7101

• Check +5V supply to IC 7201

• Check PDN (Power Down Mode )

voltage at pin 5/ 7201è +5V

• Check /Replace R3229 and C2219

• Check control data input at pin 6 -8 of

Audio DAC IC 7201

• Check / Replace IC 7201

• Check +/-12V supply to IC 7200

NO

• Check / Replace buffer IC7220

• Check / Replace IC 7201

ch1

S3-4-5-6

ch1

1

Audio Output

PM3380B

1

1V / div DC

50ns / div

1.00V/DC
500us / div

YES

Check the Kill

signal at Pin 22 / 7301

--> LOW

YES

• Check +5 V and -12 V supply to the
mute circuitry

• Check the components in the
mute circuitry

NO

• Check / ReplaceVide DAC IC7301

• Check the mute circuitry

Figure 5-4 No sound

CL 26532068_023.eps

100702

Diagnostic Software, Trouble Shooting and Test Instructions

5.3.5 No Digital Audio Out

EN 21DVD634 /0X1 5.

No Digital audio out

from coaxial

Put the Mains switch to ON and play a

DVD disc.

Ensure that SPDIF set -up in the Setup

Menu is set to PCM.

Check

waveform at

Pin 41 / 7101

Mpeg Board

YES

NO

• Check / Replace Decoder IC 7101

ch1

SPDIF

PM3380B

1

2.00V/DC

0.0 ns / div

Check

waveform at

output of buffer

IC 7202

YES

• Check continuity from output of IC
7202 to pin 3 of con 1203A

• Check /Replace R3253,R3254 and
C2242

• Check +5VAV supply to buffer IC
7202

NO

• Check / Replace buffer IC 7202

Figure 5-5 No Digital audio out

CL 26532068_022.eps

030702

EN 22 DVD634 /0X15.

5.3.6 No RC and FTD Display

Front board no function FTD

no display or Remote

control no function

Put the Mains switch to ON

Check Power

supply to Front

board

YES

Diagnostic Software, Trouble Shooting and Test Instructions

• Check supply voltage at connector
1101

-->

+5V

-->

-30V ( VKK )

-->

-20V ( VGL+1 )

-->

-23V ( VGL-1 )

NO

Pin 1
Pin 3
Pin 4
Pin 5

• Check / Replace cable connection to
con 1101

• Check / Replace Power Supply Unit

Check IR signal

at pin 5 of con

1104 of Front Bd

with a Remote

YES

Check VFD

controller grid

and segment

output

YES

Check filament

voltage VGL+1 &

VGL-1 to FTD

YES

Check local

keyboard key

functionality

NO

NO

NO

NO

• Check +5V to pin 2 of IR receiver
7101 on the Front board

• Check / Replace resistor 3113.

• Check / Replace IR receiver IC 7101

on the Front board

• Check +5V supply at pin 38/44 of
IC 7100 on Front Board

• Check /Replace R3100 and R3102

• Check VEE voltage at pin 27 of

-25V

IC 7100 -->

• Check /Replace R3107

• Check serial data input at pin 6/8/9 of

VFD controller IC 7100

• Check / Replace VFD controller IC
7100 on the Front Bd



• Check filament voltage at FTD
Pin 1/2 --> -20V ( VGL+1 )
Pin 31/32 --> -24V ( VGL-1 )

• Check / Replace R3101 and D6100
on the front board

• Check / Replace FTD display 1100 on
the Front board

• Check pulses at pin 15/16 of VFD
controller IC 7100

• Check / Replace diode D6102 and
D6103 on the front bd

• Check / Replace VFD controller IC
7100 on the Front bd

ch1

ch1

ch1

Pin 15

PM3380B

Pin 16

PM3380B

IR SIGNAL

1

2V / div DC

2ms / div

1 T

10V / AC
2ms / div

YES

END

1 T



10V / AC
2ms / div

CL 26532068_025.eps

100702

Figure 5-6 No RC and FTD display

Block and Wiring Diagram.

6. Block and Wiring Diagram.

Block Diagram

GENERAL BLOCK DIAGRAM DVD634 EU

DVD ENGINE VAE6013/11

23DVD634 /0X1 6.

MERCURY 3.2 LOADER

CDM

OPU

CD-LASER

DVD-LASER

FOCUS

RADIAL

DISK MOTOR

M

HALL

SLEDGE MOTOR

M

HALL

TRAY MOTOR

M

END-SWITCH

FLEX 23P

FLEX 11P

FLEX 8P

OPU

1000

DISK MOTOR

1003

SLEDGE MOTOR

1004

SERVO BOARD

ATAPI
INTERFACE

2

1011

FLEX 40P

MPEG BOARD

OPTIONAL

EEPROM
M24C01

7101

I2C CONTROLLER

ATAPI
INTERFACE

1150

FLASH INTERFACE

RESET

16Mb FLASH
( SO44 )

TO FLASH
7100

7103

32Kb

SDA/SCL

CPU & DECODER
ESS4428

SDRAM INTERFACE

7100

64Mb SDRAM

(TSOP 54 )
MT48LC4M16A2TG

POWER_ON

7102

5

4

RESET

CLOCK

CLK_27M

74HCU04

+5VD
+12VA

- 12VA

RESET
V6300

RESET

XIN

PCLKCLK

7104

7230

DIGITAL YUV
POWER_ON

CVBS

SPDIF
PCMDATA / CLK

VFD_DATA/CLK /CS

TO VIDEO DAC
7301

VIDEO_CLK

IR

1153

27MHz

RESET

IR

7301

VIDEO DAC
CS4954

SCART 0
SCART1

KILL

VFD_DATA/CLK /CS

LOW
PASS
FILTER

7332

7221/7222

7201

AUDIO DAC
AK4382A

DZFL

7223/4/5
7232

7325/6/7

7229/7324

7202

7200

MUTE

7227/7228

RGB

FBOUT

0/6/12

L / R

CVBS

1300

CVBS

L

AUDIO

SCART

DIGITAL OUT
COAXIAL

1203-A

R

1203-B

1202

TRAY MOTOR

4

1002

POWER SUPPLY

1008

4

8

0202

FRONT BOARD

AC MAINS
INPUT

POWER ON/OFF
BOARD

POWER SUPPLY

0203

1102

1103

OFF1

2

OFF2

0201

0202

1100

FTD DISPLAY

5

+5VSTDBY

1101

+VGL-1

- VGL+1

- 30V

GRID

SEGMENT

1149

1104

VFD_CLK

VFD_DATA

7100
uprocessor

NW6312

IR

7101

5

IR

VFD_CS

LOCAL KEYBOARD

TACT SWITCH

CL 26532068_021.eps

020702

Block Diagram

Block and Wiring Diagram.

24DVD634 /0X1 6.

GENERAL BLOCK DIAGRAM DVD

DVD ENGINE VAE6013/11

MERCURY 3.2 LOADER

CDM

OPU

CD-LASER

DVD-LASER

OPU

1000

DISK MOTOR

1003

SLEDGE MOTOR

1004

FOCUS

RADIAL

DISK MOTOR

M

HALL

SLEDGE MOTOR

M

HALL

TRAY MOTOR

M

END-SWITCH

FLEX 23P

FLEX 11P

FLEX 8P

634

EU

- ES6018 Mpeg

SERVO BOARD

ATAPI

INTERFACE

2

1011

FLEX 40P

MPEG BOARD

OPTIONAL

7101

1150

FLASH INTERFACE

RESET

EEPROM

M24C01

I2C CONTROLLER

ATAPI
INTERFACE

16Mb FLASH

( SO44 )

TO FLASH

7100

7103

32Kb

SDA/SCL

CPU & DECODER

ES6018

SDRAM INTERFACE

7100

MT48LC4M16A2TG

POWER_ON

64Mb SDRAM

(TSOP 54 )

7102

5

4

RESET

RESET

XIN XOUT

27MHz

+5VD
+12VA

- 12VA

RESET

7233

RGB

SCART 0 / SCART1

POWER_ON

CVBS

SPDIF

KILL

PCMDATA / CLK

VFD_DATA/CLK /CS

1152

7325/6/7

LOW
PASS
FILTER

7322

7221/7222

7229/7324

LOW
PASS
FILTER

7202

IR

7201

7200

7227/7228

AUDIO DAC

AK4382A

DZFL

KILL

7223/4/5
7232

VFD_DATA/CLK /CS

IR

MUTE

RGB

FBOUT

0/6/12

L/R

CVBS

1300

CVBS

L

AUDIO

SCART

DIGITAL OUT
COAXIAL

1203-A

R

1203-B

1202

TRAY MOTOR

4

1002

POWER SUPPLY

1008

4

8

0202

FRONT BOARD

AC MAINS

INPUT

0201

POWER SUPPLY

1103

0203

1102

OFF1

2

OFF2

0202

1100

FTD DISPLAY

5

+5VSTDBY

1101

+VGL-1

- VGL+1

- 30V

GRID

SEGMENT

POWER ON/OFF BOARD

1149

1104

VFD_CLK

VFD_DATA

7100

uprocessor

NW6312

IR

7101

5

IR

VFD_CS

LOCAL KEYBOARD

TACT SWITCH

CL 26532068_033.eps

191102

Wiring Diagram

WIRING DIAGRAM FOR DVD634 EU

Block and Wiring Diagram.

25DVD634 /0X1 6.

1 +5VD
2 GND
3 +5VD

8P

4 GND
5 +12VA
6 GND
7 -12VA

1 1202 8

8 STBY

1 OFF1
2 OFF2

1 0203 2

2P

POWER SUPPLY UNIT

1 +5VD
2 GND

1 +5VD
2 GND
3 -30V
4 +3V5
5 -3V5

1 0202 5

5P

3 +5VD
4 GND
5 +12VA
6 GND
7 -12VA
8 STBY

1 0201 8

8P

1 +5VL
2 GND
3 GND
4 +12VL

1 0200 4

4P

1 1008 4

1 +5VL
2 GND
3 GND
4 +12VL

M3.2
DVD ENGINE

4P

V AE6013/11

40P

1 10111 40

ATAPI INTERFACE

ATAPI INTERFACE

40P

1 1150 40

MPEG BOARD

1 VFD_DATA
2 VFD_CLK
3 VFD_CS
4 GND
5 IR

1 1149 5

5P

2P

1 1102 2

1 OFF1
2 OFF2

POWER
ON/OFF

5P

1 1105 5

1 +5VD
2 GND
3 -30V
4 +3V5
5 -3V5

FRONT BOARD

5P

1 1104 5

1 VFD_DATA
2 VFD_CLK
3 VFD_CS
4 GND
5 IR

CL 26532068_004.eps

300502

Block and Wiring Diagram.

26DVD634 /0X1 6.

Test Point Overview Display Board - Bare Board 30602

I110 A11 I111 A1 I112 A1 I113 C20 I114 A1 I115 A3 I116 C19 I117 C20 I118 C20 I119 A15 I120 C20

Test Point Overview Display Board - Bare Board 30603

I110 A11 I111 A1 I112 A1 I113 C20 I114 A1 I115 A3 I116 C19 I117 C20 I118 C20 I119 A15 I120 C20

CL 26532068_008.eps

CL 26532068_034.eps

100702

211102

Block and Wiring Diagram.

Test Point Overview MPEG Board 4428

27DVD634 /0X1 6.

I200 A4
I201 A2
I202 A3
I203 A3
I204 A3
I205 A3
I206 A3
I207 E1
I208 G1
I209 F1
I210 F1
I211 F1
I212 E1
I300 A1
I301 A1
I302 D1
I303 B1
I304 B1
I305 D1
I306 D1
I307 D1

CL 26532068_014.eps

100702

Block and Wiring Diagram.

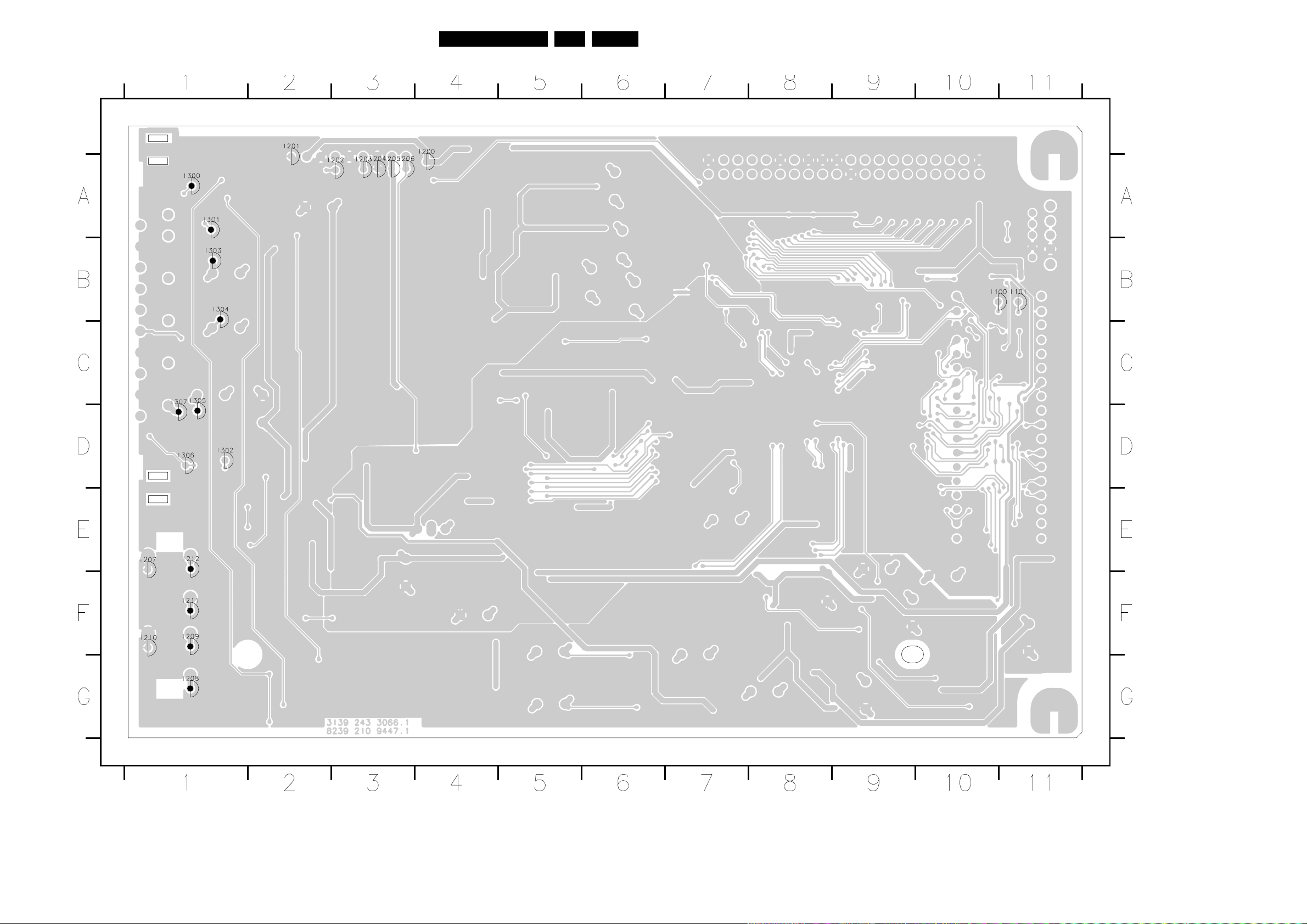

Test Point Overview MPEG Board 6018

28DVD634 /0X1 6.

I100 B10
I101 B11
I200 A4
I201 A2
I202 A3
I203 A3
I204 A3
I205 A3
I206 A3
I207 E1
I208 G1
I209 F1
I210 F1
I211 F1
I212 E1
I300 A1
I301 A1
I302 D1
I303 B1
I304 B1
I305 D1
I306 D1
I307 D1

CL 26532068_036.eps

201102

7. Electrical Diagrams

Power Supply Unit

Electrical Diagrams

29DVD634 /0X1 7.

A

B

C

D

E

F

G

H

F295
F296

1312111098

0201

1
2
3
4
5
6
7
8

0202

1

2

3

4

5

0200

1

2

3

4

0203

1

2

CHASSIS

CHASSIS

0208

0207

EH-B

EH-B

EH-B

EH-B

A

B

C

D

E

F

G

H

I

654321

2116

3116

220R

33n

BZX79-C15

6110

1N4006

6112

1N4006

3127

330R

3126

33R

2128

22u

6130

BAV21

100n

6117

Heatsink

3125

100n

6131

1N4006

6111

1N4006

6113

1N4006

0125

7125

STP3NC60FP

F122

4K7

1R8

3120

4134

2136

100p

F118

F123

3121

DEMAG

F119

1R8

HV

2114

F120
F121

220p

2120

1R8

3122

2135

TCET1102

2139

3137

7190

68p

22n

3123

22u

3135

2K2

1R

1K5

3139

4K7

5

2

7

8

9

F290

F291

3294

5190
CT282d3

3293
220R

220R

2110

6128

6135

BAS216

BAS216

BZX79-C5V6

6116

2111

ISENSE

100n

F125
F124

DRIVE

BZX79-C15

12

4

1n

14

NC5

13

VCC

12
11
10

GND

9

NC4

8

NC3

3133

3132

UF29000

5115

27K

6K8

3

6125

1N4148

3128

47K

2131

2132

VA

DEMAG

0100

3131

F101

33K

2130

2

1

HV

5130

1n

2133

F102

F103
F104

22n

2u2

1
2
3
4
5
6
7

1110

HT 2.50A 250V

7130
TY72011P2

HV
NC1
DEMAG
FB
CT
OVP
NC2

0206

CHASSIS

BAS216

6133

6132

I

2295

22n

3295
22R

1

2190

1n

2292
220n

7290
TL431CZ

3

3292

220R

14

15

11

12

17

13

16

18

10

7

BYV10-40

Vreg1

3297

6230

6250

STPS745FP

5235

10u

220u

2230

6210

BYV27-200

6280

BAV21

6240

BYD33J

2280

F230

100u

Not_STBY

5240

90R

2250

F231

2210

2240

Vreg1

1m

F236F235

Not_STBY

470u

22u

3282

22K

+3V5

-3V5

off1

3250

1K

3212

10K

4241

3251

BC337-40

7282
BC857B

7250

SI2302DS

10K

3210

7280

Not_STBY

BC327-25

1K

7212
BC847B

5215

2u2

5280

10u

7210

BC847B

5255

6u8

5250

6u8

5212

10u

7255

2255

2252

2212

2215

Vreg1

3254

220u

F250 F251

220u100u

F210

F215 F216

3216

100u

F280

3285

F240 F241

470R

F256F255

2K2

F281

5K6

3257

F211

F217

56K

F257

3258

3253

3213

3256

10K

1K

1K

5K6

+5VD

+5VL

+12VA

+12VL

-12VA

F292

-30V

STBY

F205
F206

+5VD

F200

+5VD

F201

+12VA

F202

-12VA
STBY

+5VD

F203

-30V
+3V5

-3V5

+5VL

F204

+12VL

off1

off2

2200

33n

off2

J

FOR INFORMATION ONLY

2

3291

3290

3K9

J

1K

(NO SERVICE PARTS WILL BE AVAILABLE)

CL 26532068_001.eps

1

65432 1312111098

7

300502

Display Board - Bare Board 30602

Electrical Diagrams

30DVD634 /0X1 7.

A

B

C

D

E

F

DISPLAY

1

RT-01T

1111

1101

5

4

3

I113

2

1

+5V

FROM 0202 OF PSU

+5V

1104

DIPMATE

1

2

3

4

TO/FROM 1149 OF

MPEG BOARD

5

7101
TSOP2236

INP

PIN

I119

AGC

I110
I111
I112

2100

I114

CTRL

CIRCUIT

BAND
PASS

21

47u

2101

VFD_DATA
VFD_CLK

VFD_CS

IR

DEM

100n

3100

4R7

I116

I120

2107

OUT

GND

VS

I115

2102

2n2

2

1

3

-23V

-20V

-30V

+5V

100n

I117

3110

345678910

ch1

I116

1

2V / div DC

10ms / div

I117

ch1 ch1

1 1 1

2V / div DC
500ns / div

I118

2V / div DC

10ms / div

I120

ch1

2V / div DC

2ms / div

1100
HNV-07SS41T

FTD

G(3)

G(3)

324 5 6 7 8 9 16 17 18 192 2 0212223242526272829 31

32
31
30
29
28
27
26
25
2410
23

-23V

G(5)

G(6)

G(7)

P(15)

P(14)

P(13)

25V

P(12)

P(11)

P(10)

P(9)

G(2)

G(1)

G(4)

3438404144

35

21

P(8)

VGL-1

2104

100n

25V

6100

3111

6101

PDZ-2.4B

-23V

47K

3107

330R

VKK

VGL-1

* OPTION

V

DC vtg measured in STOP-MODE

4103

0R

*

3112

10K

4102

VGL-1
VGL+1
VKK

VCC1

I118

*

4100

4101

2105

100n

2106

2108

3113

47u

22p

47R

2109

22p

2110

+5V

22p

3114

VGL+1

VCC1

3106

100R

3108

100R

1105

1108

4K7

3109
100R

3115

3101

10R

3102

56K

1106

1109

4K7

3103

VCC1

10K

3104

*

10K

3116

1 1 01112131415

2103

3105

-20V

1n

10K

1107

1110

4K7

4V8
4V8

3V3
3V3
0V

0V

P(1)

P(2)

7100
NW6312

13 3
2
3
4
5
6
7
8
9

11

P(9)

P(10)

P(11)

P(12)

P(3)

P(4)

P(5)

P(6)

P(7)

P(8)

+5V

12 17 22

0V

6102

BAS316

6103

BAS316

P(13)

P(14)

VCC1

42 3637

43

13 16 19 20

14

P(1)

VCC1

P(1)

39

P(3)

18

P(4)

15

P(2)

P(2)

G(7)

P(5)

G(1)

G(6)

G(5)

G(2)

P(6)

G(4)

P(7)

A

B

C

D

E

F

1100 A6
1101 B1
1104 C1
1105 E5
1106 E5
1107 E6
1108 E5
1109 E5
1110 E6
1111 A1
2100 C2
2101 C2
2102 C2
2103 C6
2104 D9
2105 F3
2106 F3
2107 E2
2108 D3
2109 D4
2110 D4
3100 B2
3101 B5
3102 B5
3103 C5
3104 C5
3105 C6
3106 D5
3107 D10
3108 D5
3109 D5
3110 E3
3111 E9
3112 E3
3113 E4
3114 F4
3115 F5
3116 F6
4100 E3
4101 E3
4102 F3
4103 F3
6100 D9
6101 D9
6102 E6
6103 F6
7100 C6
7101 E1
I110 B2
I111 B2
I112 B2
I113 B1
I114 B2
I115 B2
I116 D2
I117 D2
I118 D2
I119 D1
I120 D2

12

BARE BOARD 3139 243 30602

543 67

CL 26532068_005.eps

080702

8910

Electrical Diagrams

31DVD634 /0X1 7.

Layout Display Board (Top Side) - Bare Board 30602

1100 A15 1101 A21 1104 C3 1105 A3 1106 A5 1107 B9 1108 A2 1109 A6 1110 B20 1111 A8 2100 A21 2106 A8 7101 A9

Layout Display Board (BottomSide) - Bare Board 30602

2101 A2
2102 A3

2103 A3
2104 A5

2105 A15
2107 C20

3100 A3
3101 A6

3102 A3
3103 B3

3104 B3
3105 B3

3106 B3
3107 A2

3108 B3
3109 B4

3110 C20
3111 A11

3112 A14
3113 A15

3114 A20
3115 A17

3116 C3
4104 B18

4105 B20
6100 A10

6101 A2
6102 A18

6103 A16
6104 A2

6105 B19
6106 B19

6107 B20
6108 A14

4104

6109 C15
6110 A20

4105

7100 A4

CL 26532068_006.eps

CL 26532068_007.eps

311002

311002

Display Board - Bare Board 30603

Electrical Diagrams

32DVD634 /0X1 7.

A

B

C

D

E

F

RT-01T

1

1111

1101

FROM 0202 OF PSU

1104

DIPMATE

TO/FROM 1149 OF

MPEG BOARD

7101
TSOP2236

* RESERVED

DISPLAY

I110

5

I111

4

I112

3

I113

2

1

+5V

6104

2100

PDZ-5.6B

+5V

I116

PIN

1

2

3

4

5

I119

INP

AGC

I117
I118

I120

CTRL

CIRCUIT

BAND
PASS

VFD_DATA
VFD_CLK
VFD_CS

IR

47u

DEM

2101

100n

2107

OUT

GND

3100

4R7

VS

2n2

321

VGL-1
VGL+1
VKK

I115I114

2102

2

1

3

100n

3110

6108

VCC1

0R

3112

10K

PDZ-5.6B

2105

6105

100n

PDZ-5.6B

2106

6106

*

3113
47R

47u

45678910

1100
HNV-07SS41T

FTD DISPLAY

6107

PDZ-5.6B

PDZ-5.6B

+5V

3114

VGL+1

VCC1

3106
100R
3108
100R

1105

1108

4K7

6110

3109

100R

3115

PDZ-5.6B

3101

10R

3102

56K

1106

1109

4K7

3103

VCC1

10K

3104

2103

*

10K

3116

3105

4K7

-20V

1n

10K

1107

1110

4V8
4V8

3V3
3V3
0V

0V

6109

9

P(9)

P(10)

P(11)

P(12)

P(1)

P(2)

P(3)

P(4)

P(5)

P(6)

P(7)

P(8)

+5V

7100
NW6312

133
2
3
4
5
6
7
8
9

11

12 17 22

0V

6102

BAS316

6103

BAS316

PDZ-5.6B

P(13)

42 363743

13 16 19 20

15

14

P(1)

VCC1

P(1)

21 22 23 24 2526 27 28 29 31 32456781 10111213141516171819220

G(7)

G(6)

G(5)

G(4)

G(3)

P(6)

G(2)

G(3)

P(7)

3539

21

G(2)

G(1)

G(4)

P(8)

P(14)

P(2)

P(2)

P(3)

VCC1

P(4)

G(1)

18

P(5)

-23V

3438404144

G(5)

32

G(6)

31

G(7)

30

P(15)

29

P(14)

28

P(13)

27

25V

26

P(12)

25

P(11)

2410

P(10)

23

P(9)

VGL-1

2104

100n

25V

6100

3111

6101

PDZ-2.4B

-23V

47K

3107

330R

VKK

VGL-1

A

B

C

D

E

F

1100 A6
1101 B1
1104 C1
1105 E5
1106 E5
1107 E6
1108 E5
1109 E5
1110 E6
1111 A1
2100 C2
2101 C2
2102 C3
2103 C6
2104 D9
2105 F3
2106 F3
2107 E2
3100 B2
3101 B5
3102 B5
3103 C5
3104 C5
3105 C6
3106 D5
3107 D10
3108 D5
3109 D5
3110 E3
3111 E9
3112 E3
3113 E4
3114 F4
3115 F5
3116 F6
6100 D9
6101 D9
6102 E6
6103 F6
6104 C1
6105 D3
6106 D4
6107 D4
6108 F3
6109 F6
6110 F5
7100 C6
7101 E1
I110 B2
I111 B2
I112 B2
I113 B1
I114 B2
I115 B3
I116 D2
I117 D2
I118 D2
I119 D1
I120 D2

V

DC vtg measured in STOP-MODE

1234

BARE BOARD 3139 243 30603

56

78

CL 26532068_035.eps

201102

910

Electrical Diagrams

33DVD634 /0X1 7.

Layout Display Board (Top Side) - Bare Board 30603

1100 A15 1101 A21 1104 C3 1105 A3 1106 A5 1107 B9 1108 A2 1109 A6 1110 B20 1111 A8 2100 A21 2106 A8 7101 A9

Layout Display Board (BottomSide) - Bare Board 30603

2101 A2
2102 A3

2103 A3
2104 A5

2105 A15
2107 C20

3100 A3
3101 A6

3102 A3
3103 B3

3104 B3
3105 B3

3106 B3
3107 A2

3108 B3
3109 B4

3110 C20
3111 A11

3112 A14
3113 A15

3114 A20
3115 A17

3116 C3
4104 B18

4105 B20
6100 A10

6101 A2
6102 A18

6103 A16
6104 A2

6105 B19
6106 B19

6107 B20
6108 A14

4104

6109 C15
6110 A20

4105

7100 A4

CL 26532068_006.eps

CL 26532068_007.eps

311002

311002

MPEG Board 4428: Processor

1234567

MPEG PROCESSOR

For Dev Evaluation

A

*

From Emulator

LA(21)

4

3

ROM_WE

2

4110

LCS2
RESET

1

1151

B

1150

1

HRST

2

HD(15)

HD(0)
HD(14)

HD(1)

HD(13)
HD(2)

HD(12)

HD(3)

HD(11)

HD(4)

HD(10)
HD(5)

HD(9)

HD(6)
HD(8)

HD(7)

47R
47R

47R
47R
47R
47R
47R
47R
47R
47R

47R
47R
47R
47R
47R
47R

47R

3100
3101
3102
3103
3104
3105
3106
3107
3108
3109
3110
3111
3112
3113
3114
3115

3173

3
4

C

5
6
7
8

9
10
11

D

12
13
14
15
16
17
18

E

19
20
21
22
23

HWR

47R 3116

24
25

HRD

TO/FROM ATAPI ENGINE

F

26
27

HIORDY

47R 3118

28

4K7 3119

29
30

1148

HIRQ
HIOCS16

HA(1)

HA(0)

HA(2)

HCS1
HCS3

5

4

3

2

1

47R
47R
47R

47R
47R
47R
47R

3121
3122
3123

2150 47p

3124
3125
3126
3127

IR

VFD_CS

VFD_CLK

VFD_DATA

3138

G

H

I

1149

5

4

3

2

To 1104 of

1

Display Board

31
32
33
34
35
36
37
38
39
40

+5VD

1234

M1-53

M2-61

M1-26

M1-16
M1-1

M1-15
M1-2

M1-14
M1-3
M1-13
M1-4
M1-12
M1-5

M1-11

M1-6
M1-10
M1-7
M1-9
M1-8

+5VD

M1-24

M1-23

311747R

M1-25

+5VD

31204K7

M1-56

M1-39

M1-22
M1-18

M1-17
M1-19
M1-20
M1-21

M1-48

M1-46
M1-45

VCC_2V5_V

M1-50

4K7

4K7

3128

3137

4K7

4K7

3139

LA(18)

LA(1)

LA(2)
LA(3)

LA(4)

LA(5)
LA(6)

LA(7)

LA(8)
LA(9)

LA(10)

LA(11)
LA(12)

LA(13)

LA(14)
LA(15)

LA(16)

LA(17)
LA(18)

LA(19)

LA(20)

ROM_CE
ROM_OE

ROM_WE
RESET

M2-61

100n2107

+5VD

4108

7100
Am29LV160B

25

A0

24

A1

23

A2

22

A3

21

A4

20

A5

19

A6

18

A7

8

A8

7

A9

6

A10

5

A11

4

A12

3

A13

2

A14

1

A15

48

A16

17

A17

16

A18

9

A19

26

CE_

28

OE_

11

WE_

12

RESET_

47

BYTE_

XIN

VCC_3V3_V

100n2105

2104 100n

100n 2124

4102

VCC_3V3

4109

37

VCC

DQ10
DQ11
DQ12
DQ13
DQ14

DQ15|A-1

RY|BY_

VSS146VSS2

27

2106 100n

2125100n

Electrical Diagrams

2100
220n

29

DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9

NC2
NC3
NC4

100n2108

100n 2127

LD(0)

31

LD(1)

33

LD(2)

35

LD(3)

38

LD(4)

40

LD(5)

42

LD(6)

44

LD(7)

30

LD(8)

32

LD(9)

34

LD(10)

36

LD(11)

39

LD(12)

41

LD(13)

43

LD(14)

45

+5VD

4K7

3132

4K73133

3134

PCM_DATA0

15

10
13
14

+5VD

3u3

5102

1n0

22p

2143

2101

100n2111

2112 100n

2129100n

100n 2126

LA(0)

S7

+5VD

PCM_LRCLK

SPDIF

3135

3140 4K7

4K7

3142

3143

3174

100R

2110 100n

100n 2123

LA(4)
LA(5)
LA(6)
LA(7)
LA(8)
LA(9)

LA(10)
LA(11)
LA(12)
LA(13)
LA(14)
LA(15)
LA(16)

M2-61

3131

M2-40,M1-40

PCM_LRCLK
PCM_DATA0

M2-41

M2-42
M2-43
M2-44

M1-40
M1-43

3144

33R

3141

1M

1152

HC-49/U

27M

LA(0)

LA(1)

LA(2)

LA(3)

LD(12)

LD(13)

LD(14)

LD(15)

ROM_WE

202

203

201

206

LA1

DMA(3)

205

LA0

DMA(4)

2119 100n

204

CAMYUV1

DMA(5)

VC33_17

CAMYUV0

VSS_6

VC33_4

60

59

10R

3152-B

DMA(6)

100n

2122

200

VSS_23

DMA(7)

LWRHL#

199

198

194

195

196

197

LD12

LD13

LD14

LD15

LWRLL#

VC33_16

DMA863DMA964DOE#|DSCK_EN

VSS_7

VC33_5

DMA1065DMA11

62

67

66

10R

3153-D

DMA(10)

DMA(11)

DMA(9)

DMA(8)

2121 100n

LA(17)
LA(18)
LA(19)
LA(20)
LA(21)

3130

4K7

2142 150p

2113 100n

RESET

OPEN

PCM_CLK
PCM_BCK
SPDIF

S1

PCM_LRCLK
PCM_BCK

2102

100n2116

22p

5101

VCC_3V3

2u2

2118 100n

220n

1V6
0V

0V

1V6
0V
1V6

1V6
0V
0V
2V3
1V3
3V3

10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52

2120

1
2
3
4
5
6
7
8
9

100n2114

VC33_1
LA4
LA5
LA6
LA7
LA8
LA9
VSS_1
VC25_1
LA10
LA11
LA12
LA13
LA14
LA15
LA16
VSS_2
VC33_2
LA17
LA18
LA19
LA20
LA21
RESET#
TDMX|RSEL
VSS_3
VC33_3
TDMDR
TDMCLK
TDMFS
TDMSC#
TWS
TSD0|SEL_PLL0
VSS_4
VC25_2
TSD1|SEL_PLL2
TSD2
TSD3
MCLK
TBCK
SPDIF|SEL_PLL3
NC
VSS_5
VC25_3
RSD
RWS
RBCK
APLLCAP
XIN
XOUT
AVCC|PLL
AVSS|PLL

2115 100n

208

207

LA2

LA3

VSS_24

DMA053DMA1

DMA255DMA356DMA457DMA558DMA661DMA7

54

10R3151-D

DMA(0)

DMA(1)

DMA(2)

100n2117

VCC_3V3

2128100n

100n2136

2134 100n

100n2131

2132 100n

100n2133

2137 100n

2135 100n

BARE BOARD : 3139 243 30611

567

193

VSS_22

DCAS#

68

33R3154-D

CAS

LD(11)

192

69

3163 33R

CKE

LD(10)

191

LD11

70

33R3154-C

WE

34DVD634 /0X1 7.

LD(5)

LD(6)

LD(7)

LD(8)

LD(9)

188

189

190

186

187

LD9

LD5

LD6

LD7

LD8

LD10

DRAS0#72DRAS1#|DBANKSEL0

DRAS2#|DBANKSEL1

DWE#

VSS_8

VC33_6

73

74

71

75

3165 33R

RAS0

BANK0

BANK1

8 9 10 11 12

M2-54

M1-53

M1-48

M1-49,M2-49

M1-45,M2-45

M1-46

M2-47

LD(0)

LD(1)

LD(2)

LD(3)

LD(4)

183

184

185

LD4

VSS_21

VC33_15

DB0

DB1

DB279DB380DB481DB582DB685DB786DB8

76

77

78

DB(0)

DB(1)

DB(2)

182

DB(3)

ROM_CE

ROM_OE

LCS2

LCS3

4100

4101

3V3

3V3

174

175

176

178

179

180

181

177

LD0

LD1

LD2

LD3

DB(4)

DB(5)

VC25_4

83

VSS_20

VSS_9

84

DB(6)

LCS3#

LCS2#

DB(7)

LCS1#

DB(8)

87

LCS0#

DB9

DB(9)

IR

VFD_CS

VFD_CLK

POWER_ON

0V

4V6

3V3

0V

3V3

167

168

169

173

172

170

171

LOE#

AUX4

AUX5

AUX6

AUX7

VC25_7

VSS_19

VSS_10

VC33_7

DB1089DB1190DB1293DB1394DB1495DB15

88

91

92

DB(10)

DB(11)

DB(12)

DB(13)

DB(14)

DAC_CS

3V3

3V3

165

166

AUX3|IOR#

96

DB(15)

89

M1-50,M2-50

M1-51,M3-51

SCL

VFD_DATA

3V3

4V8

162

164

163

VSS_18

VC33_14

AUX2|IOW#

VSS_11

VC33_8

DCS1#

99

98

97

33R3169

M1-52,M3-52

VCC_3V3_V

SDA

4103

5V

3V3

0V

160

161

157

159

158

AUX0

AUX1

VC33_12

VC33_13

HA2|EAUX4_4

HA1|EAUX4_3

HA0|EAUX4_2
HCS3FX#|EAUX3_6
HCS1FX#|EAUX3_7
HIOCS16#|EAUX3_4

HRD#|DCI_ACK#

HWR#|DCI_CLK#

HIORDY|EAUX3_3

HRST#|EAUX3_5

HIRQ|DCI_ERR#

HRDQ#|EAUX4_0

HWRQ#|DCI_REQ#

HD15|EAUX2_7
HD14|EAUX2_6

HD13|EAUX2_5
HD12|EAUX2_4
HD11|EAUX2_3
HD10|EAUX2_2

HD9|EAUX2_1

HD8|DCI_FDS

HSYNC#|CAMYUV7
VSYNC#|CAMYUV6

PCLKQSCN|CAMYUV5

PCLK2XSCN|CAMYUV4

YUV_7|CAMYUV3

YUV_6|YDAC
YUV_5|YDAC

AVSS|VDAC
AVCC|VDAC
YUV_4|RSET

YUV_3|COMP

YUV_2|CDAC

YUV_1|VREF

YUV_0|CAMYUV2

VC33_9

DQM

DSCK

VSS_12

DCS0#

104

101

102

103

100

33R3171

3170 33R

S2

CS0

DQMX

CLK

VCC_2V5_V

4104

7101

ESS4428

156

VSS_17

155

0V M1-18

154

0V

153

3V3

152

3V3

151

5V

150

3V3

149

3V3

148

3V3

VC33_11

147

VSS_16

146

4V8

145

3V3

144

0V

143

3V3

142

3V3

141

0V

140

0V

139

2V5

VC25_6

138

VSS_15

137

0V M1-14

136

0V

135

0V

134

0V

133

0V

132

0V

131

0V

HD7|DC7

130

3V3

VC33_10

129

VSS_14

128

0V M1-7

HD6|DC6

127

0V

HD5|DC5

126

0V

HD4|DC4

125

0V

HD3|DC3

124

0V

HD2|DC2

123

0V

HD1|DC1

122

0V

HD0|DC0

121

2V5

VC25_5

120

VSS_13

119

4V8

118

4V8

117

2V3

116

2V3

115

1V

114

0V5

113

0V5

112
111

3V3

110

2V

109

0V5

108

0V5

107

0V5

106

0V5

105

2V3

DCLK

100n

10 11 12 13 14

+5VD

4106
4107

2139

5100

VCC_3V3

HA(2)

HA(1)

HA(0)
HCS3
HCS1

HIOCS16

HRD

HWR

HIORDY

HRST

HIRQ

SCART1
SCART0

HD(15)
HD(14)

HD(13)
HD(12)
HD(11)
HD(10)

HD(9)
HD(8)
HD(7)

HD(6)

HD(5)

HD(4)

HD(3)

HD(2)

HD(1)

HD(0)

HSYNC

VSYNC
PCLKCLK
PCLKCLK

YUV(7)
YUV(6)
YUV(5)

YUV(4)
YUV(3)
YUV(2)
YUV(1)
YUV(0)

CLK_27M

2u2

VCC_2V5

2u2

5104

5105

2u2

M1-19

M1-17
M1-21
M1-20
M1-22
M1-23
M1-24

M1-25
M1-26
M1-56
M2-58
M2-57
M1-16
M1-15

M1-13
M1-12
M1-11
M1-10
M1-9
M1-8

M1-6
M1-5
M1-4
M1-3
M1-2
M1-1

M3-27
M3-28
M1-29
M1-29
M3-37
M3-36
M3-35

M3-34
M3-33
M3-32
M3-31
M3-30
M1-38

2145

13 14

+5VD

8

VCC

5

SDA

VSS

4

2138
100n

3145

33R

3146

33R

3147

33R

3148

33R

11427 394349

VDD

BANK0

ROW-

ADDR

LATCH &

DECODER

REFRESH

COUNTER

ROW

ADDR

MUX

BANK
CTRL

LOGIC

ADDR

LATCH

28 41 546

M1-51

M1-52
M1-49

M1-38

M2-39,M1-39

M3-55

M1-29

MT48LC4M16A2TG

CKE

CLK
CS0

WE
CAS

RAS0

BANK0

BANK1

15p

DMA(0)
DMA(1)

DMA(2)

DMA(3)
DMA(4)

DMA(5)

DMA(6)
DMA(7)

DMA(8)

DMA(9)
DMA(10)

DMA(11)

7103
M24C01

1

E0

2

E1

3

E2

6

SCL

SDA

DAC_CS

SCL

7

WC_

S3

CLK_27M

2146

S4

XIN

2147

S5

VIDEO_CLK

15p 15p

21482149

S6

PCLKCLK

15p 15p

15p

2109

7102

37 CKE

CTRL

CLK38

LOGIC

19 CS_
16 WE_
17 CAS_
18 RAS_

DECODE

COMMAND

MODE REG

20 BA0
21 BA1

A023
24 A1
25 A2
26 A3
29 A4
30 A5

COLUMN

COUNTER/

31A6
32 A7

ADDRESS REGISTER

33 A8
34 A9

COLUMN

DEDCODER

22 A10
35

A11

VSSQ VSS

12 46 52

* OPTION

DC vtg measured in STOP-MODE

V

# ONLY AVAILABLE ON ES60X8

2130
220n

4K7

3172

+5VD

14

1Y

2

2Y

4

3Y

6

2V3

4Y

8

5Y

10

6Y

12

GND

7

VDDQ

BANK0

MEMORY

ARRAY

(4,096x256x16)

SENSE AMPLIFIERS

DQML

I/O GATING

DQM DATA LOGIC

READ DATA LATCH

WRITE DRIVERS

S1

ch1

1

2V / div DC

50ns / div

S3-4-5-6

ch1 ch1

ch1: freq= 27.0MHz

1

1V / div DC

50ns / div

7104

74HCU04D

VCC

1A

1

2A

3

3A

5

2V3

4A

9

2V3

5A

11

6A

13

3150

1M

1153

HC-49/U

27M

22p

2141

VCC_3V3

DQML

DQ1

DQMH

DQ8 42

DATA INPUT REGISTER DATA OUTPUT REGISTER

NC

36 40

CL 26532068_009.eps

ch1

ch2

2140

15
39DQMH

2DQ0
4
5DQ2
7DQ3
8DQ4
10DQ5
11DQ6
13DQ7

44DQ9
45DQ10
47DQ11
48DQ12
50DQ13
51DQ14
53DQ15

S2

ch1: freq= 108MHz

1

1V / div DC

10ns / div

S7

T

1

2

2V / div DC

20ms / div

5103

22p

2144

DQMX

DB(0)

DB(1)

DB(2)
DB(3)

DB(4)

DB(5)
DB(6)

DB(7)

DB(8)
DB(9)

DB(10)

DB(11)
DB(12)

DB(13)

DB(14)
DB(15)

080702

1148 H1
1149 H1
1150 B1
1151 B1
1152 G4
1153 D13
2100 C3
2101 G4
2102 G5
2104 H3
2105 H3
2106 H3

A

2107 H2
2108 H3
2109 E11
2110 H4
2111 H4
2112 H4
2113 H4
2114 H5
2115 H6
2116 H5
2117 H6
2118 H5

B

2119 H6
2120 G5
2121 H7
2122 H6
2123 I4
2124 I3
2125 I3
2126 I4
2127 I3
2128 I4
2129 I4

C

2130 A13
2131 I6
2132 I6
2133 I6
2134 I5
2135 I6
2136 I5
2137 I6
2138 B13
2139 G10
2140 D14
2141 D13

D

3u3

1n0

2142 F5
2143 G4
2144 D14
2145 G11
2146 C12
2147 C12
2148 D12
2149 D12
2150 G1
3100 C1
3101 C1
3102 C1

E

3103 C1
3104 C1
3105 C1
3106 D1
3107 D1
3108 D1
3109 D1
3110 D1
3111 D1
3112 D1
3113 E1

F

3114 E1
3115 E1
3116 F1
3117 F1
3118 F1
3119 F1
3120 G1
3121 G1
3122 G1
3123 G1
3124 G1
3125 G1

G

3126 H1
3127 H1
3128 I1
3130 E5
3131 E5
3132 E4
3133 F4
3134 F4
3135 F4
3137 I1
3138 I1
3139 I1

H

3140 F4
3141 G4
3142 F4
3143 F4
3144 G4
3145 B12
3146 C12
3147 D12
3148 D12
3150 D13
3151-D H6

I

3152-B G6
3153-D G7
3154-C H7
3154-D H7
3163 H7
3165 H7
3169 G9
3170 G9
3171 G9
3172 A13
3173 E1

3174 G4
4100 B8
4101 B8
4102 B3
4103 B9
4104 B10
4106 D10
4107 D10
4108 B3
4109 B3
4110 B1
5100 G10
5101 G5
5102 G4
5103 D14
5104 B10
5105 A11
7100 C3
7101 C10
7102 E12
7103 A12
7104 B13

MPEG Board 4428: Audio Power

1 678910

234

AUDIO/POWER

I200

A

FROM 0201 OF

B

C

D

E

F

G

S9

S10

S11

H

I

1

I201

2

I202

3
4

DGND

I203

5

I204

6

PSU

1202

DGND

I205

7

I206

8

3204
150R

220u

3259

10K

DGND

RESET

S7

KILL

3263

POWER_ON

SCART1

SCART0

+5VD

4K7

DGND

5V

2103

DGND

2151

10u

3

4

100n

M1-47

M1-58,M3-75

M1-57,M3-74

M1-61,M3-61

M3-71

7233
BC847B

S8

3226

3228

3219
47R

3V3

7201 AK4382A

6

3V3
4V8

1V6

47R

3227

0V

47R

0V

47R

15p

2237

15p

2238

M1-42

M1-49
M1-45
M1-50

M1-40
M1-43
M1-41

M3-72
M3-73
M1-39

PCM_CLK

DAC_CS
VFD_CLK

VFD_DATA

PCM_LRCLK

PCM_BCK
PCM_DATA0

S0
S1

XIN

S4

123

2207

DGND

CSN
CCLK7

CDTI8

LRCK4
BICK2
SDTI3

-12V

+12V

7231
BC817-25

7230

5

2

INTERFACE

DATA AUDIO

47u

2219

1

uP

INTERPOLATOR

INTERPOLATOR

INTERFACE

PDN

5

5V

3229

3202

150R

8 x

8 x

4K7

+12V

2208

+5VD

+5VD

+5VD

+5VA

14

VDD

DE-AMPHASIS

CONTROL

VSS

13

+5VA

Electrical Diagrams

3200

3203

7208
MC78L05

8

IN

OUT

NC14NC2

GND

2673

220u

3205

4K7

3206

10K

3207

10K

3208

10K

3209

18K

3213

10K

3214

10K

18K

3215

+5VD

4K7

3261

3262
4K7

2217
100n

10u

2218

MOD

MOD

CLK

DIV.

2241

100p

7204

*

MK2703S

S0

7

S1

6

X1

1

X2

8

1
MCLK

SCF

SCF

DGND

+5VA

PLL

CLK SYNTHESIS

CTRL CIRC.

AND

CRYSTAL

OSC

1V5

DZFR 15

AOUTL+ 12

AOUTL- 11

AOUTR+ 10

2

VDD

GND

3

16DZFL

0V

2V4
2V4
2V4

9AOUTR-

2V4

2239
100n

OUTPUT
BUFFER

OUTPUT
BUFFER

4

35DVD634 /0X1 7.

5

7207

1

680K

DGND

3233

3231

2K2

2220

100u

1IN3

DGND

2

2202

LF27CDT

GND

2

VCC_3V3

220n

100u

0|6|12

MUTE

+5VD

6200

BAS316

AUDIO_LEFT

OUT

2203

3232
220R

+5VD

7220
BC337-40

2204

220n

M3-62

M2-63,M3-63

1647u

2211

M2-64,M3-64

M2-65

M2-63

M2-64

M2-63

VCC_2V5

LA(0)

LA(1)
LA(2)

LA(3)

LA(4)
LA(5)

LA(6)

LA(7)
LA(8)

LA(9)

LA(10)
LA(11)

LA(12)

LA(13)
LA(14)

LA(15)

LA(16)
LA(17)

LA(18)

LA(19)

LA(18)

FOR 27C040 EPROM

AUDIO_RIGHT

MUTE

AUDIO_LEFT

MUTE

220n

3211

12V

2206

470R

2205

+5VD

220R

100u

3212

+5VAV

+5VA

+5VD

2201

220n

2200

DGND

7206
LD1117

IN3OUT

220u

GND

1R

0R

6202

470R

2209

3210

BAS316

220u

BAS316

1

6201

5

4211

0V

7221
BC847B

DGND

12V

0V

7222
BC847B

4210

*

5K6

0V

3224

7232
BC847B

S12

DGND

*

7225
BC847B

3220
3222

220n

2210

S13

4V4

3234

4K7

7224

BC857B

3n3

+5VD

2216

3236

3223

+12V

-12V

8

4

470p
2222

3230
470R

100n
2213

LM833D

7200-A

2221

100n

1

-8V

33K

5K6

200R

3225

1V2

-12V

7223
BC847B

3

3245

1V2

470p

2214

2

5K1

1V2

200R
3237

5K6

10K

4K7

CLK

27M

3238

S14

4K7

S15

47R

3260

5

4

3244

4K7

3n3

2226

5K1

3246

3248

BARE BOARD : 3139 243 30611

200R
3235

200R
3247

1V2

470p

3239

2232

5K1

3249

1V2

+12V

7200-B

5

8

LM833D

6

4

100u

7

AUDIO_RIGHT

M2-65,M3-65

M1-44

SPDIF

2233

-12V

S1

+5VAV

470p
2235

M3-79

CVBS

3257
100R

2V6

7229
BC847B

* OPTION

DC vtg measured in STOP-MODE

V

5678910

11 12 13

+5VD

220n

DGND

13
14
15
17
18
19
20
21

22
24
31

4209

LD(0)

LD(1)
LD(2)

LD(3)

LD(4)
LD(5)

LD(6)

LD(7)

LCS3

ROM_OE

ROM_WE

4204

4205
4206

3240

7203
AM29F040B

12

A0

11

A1

10

A2

9

A3

8

A4

7

A5

6

A6

5

A7

27

A8

26

A9

23

A10

25

A11

4

A12

28

A13

29

A14

3

A15

2

A16

30

A17

1

A18

VCC

VSS

2223

32

DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7

CE_
OE_

WE_

16

DGND

0V

470R

3241

2K7

3243

7227

BC817-25

0V7

3242

680p

2230

0V
470R
3250

2K7

3252

1K

-12V

3255

2V

BC817-25

74HCT1G125

1V6

2K2

7228

7202

0V7

+5VD

100n
2234

3256

68R

1V8

2231

3253

330R

DGND

680p

3251

100R

DGND

11

For Development

Evaluation

ch1

ch1

ch1

ch2

ch1

ch1

ch1

I208

10K

I209

10K

I211

2242

100p

3254

DiagramTo

S1

1

2V / div DC

S4

ch1: freq= 27.0MHz

1

1V / div DC

50ns / div

S7

T

1

2

2V / div DC

20ms / div

S8

ch1: freq= 24.5MHz

1

1V / div DC

20ns / div

S9

ch1: freq= 96.2kHz

1

1V / div DC

5us / div

S10

ch1: freq= 6.13MHz

1

1V / div DC

100ns / div

S11

ch1

1

CH1 1.00 V= MTB2.00us ch1+

I208-209

ch1

1

CH1 1.00 V= MTB 500us ch1+

I211

ch1

1

CH1 500mV= MTB50.0ns ch1+

500mV / div DC

I212

ch1

1

CH1 500mV= MTB20.0us ch1+

500mV / div DC

S12

ch1

1

S13

ch1

1

S14

ch1

1

AUDIO L/R

S15

ch1

1203-B

YKC21-4105

6

1

5

4

1203-A

SPDIF

YKC21-4105

2

3

I212

1

CVBS

I212

2236

220p

CL 26532068_010.eps

1312

1V / div DC

1V / div DC

500us / div

50ns / div

20us / div

1.00V / DC
500us / div

1.00V / DC
500us / div

1.00V / DC
500us / div

1.00V / DC
500us / div

110702

1202 B1
1203-A H13
1203-B F13
2103 E2
2151 D2
2200 B7
2201 B7
2202 B8
2203 B8
2204 B9
2205 B6

A

2206 B5
2207 B2
2208 B3
2209 B5
2210 D6
2211 E9
2213 F8
2214 F7
2216 G6
2217 F3
2218 F3
2219 H2

B

2220 F8
2221 G8
2222 G7
2223 A12
2226 H6
2230 F12
2231 G12
2232 H7
2233 H8
2234 H12
2235 I7

C

2236 I13
2237 H2
2238 H2
2239 H4
2241 H3
2242 H12
3200 A4
3202 B3
3203 A4
3204 B2
3205 C4
3206 C4

D

3207 C4
3208 C4
3209 D4
3210 C5
3211 C5
3212 C6
3213 D4
3214 D4
3215 D4
3219 F2
3220 E6
3222 E6

E

3223 E6
3224 E5
3225 F7
3226 G1
3227 G2
3228 G1
3229 H3
3230 E8
3231 E8
3232 E8
3233 E8

F

3234 F6
3235 H7
3236 F6
3237 G7
3238 G6
3239 G7
3240 F11
3241 F11
3242 F12
3243 G11
3244 H6
3245 F7

G

3246 H6
3247 I7
3248 I6
3249 I7
3250 G11
3251 G12
3252 H11
3253 H12
3254 H12
3255 I11
3256 I12
3257 I10

H

3259 C2
3260 H5
3261 E4
3262 F4
3263 E2
4204 D11
4205 D11
4206 D11
4209 C12
4210 E5
4211 B5

I

6200 E8
6201 B5
6202 A5
7200-A G7
7200-B H7
7201 G2
7202 H11
7203 A11

7204 H3
7206 A8
7207 A9
7208 A4
7220 B9
7221 D5
7222 D5
7223 E7
7224 E6
7225 E5
7227 F11
7228 G11
7229 I10
7230 E2
7231 C2
7232 F5
7233 E1
I200 A1
I201 A1
I202 A1
I203 B1
I204 B1
I205 B1
I206 B1
I207 F13
I208 F13
I209 G13
I210 H13
I211 H13
I212 H13

MPEG Board 4428: Video & Scart

123456789

VIDEO & SCART

M1-51

+5VD
M1-52

I304

1

500mV / div DC

20us / div

ch1: freq= 15.6kHz

1

200mV / div DC

20us / div

1

500mV / div DC

20us / div

M2-71
M2-73
M2-72

+5VAV

100n

3129

2316

KILL
S1

S0

4K7

+5VAV

I300-301

A

1

1V / div DC

500us / div

I307

1

500mV / div DC

B

20us / div

S19 S20 S21

1

200mV / div DC

20us / div

C

D

1301

Evaluation

For Develpoment

E

F

G

H

I

# ONLY AVAILABLE

ON ES60X8

* OPTION

DC vtg measured in STOP-MODE

V

I303

1

500mV / div DC

20us / div

S16 S17

ch1: freq= 50.0 Hz

1

2V / div DC
10ms / div

1

200mV / div DC

20us / div

*

1

SCL

2

3

4

SDA

123456

I305

1

500mV / div DC

20us / div

S18

1

200mV / div DC

20us / div

S5

ch1: freq= 27.0MHz

1

1V / div DC

50ns / div

4316

4K7

3136

7301

CS4954

TEST

13

XTAL_OUT
XTAL_IN

15 14

PADDR

16

VDD

17

GNDD

18

PDAT7

19

PDAT6

20

PDAT5

21

0V

PDAT4

22

0V3

PDAT3

0V3

PDAT2

24 23

* For ES4428

Electrical Diagrams

+12V

*

3

8

2

4

AUDIO_RIGHT

M2-65M1-28

M1-27

M1-37

M1-36

YUV(6)

YUV(7)

VSYNC

HSYNC

S16

S17

4V8

4V8

1V

0V5

10

12

9

11

VSYNC_

HSYNC_|CB_

RD_

PDAT0

27

26

S5

V7

FIELD|CB

WR_

CLK

28

29

2V3

1K3318

VIDEO_CLK

+5VD

M1-55

TTXDAT31TTXRQ

30

1K

3319

INT

PDAT1

0V

4309

SCART1

M2-75

25

0V

4308

SCART0

M2-74

4300

2301
100n

7300-A
LM833D

1

2304
100n

-12V

M1-34

M1-33

M1-35

YUV(3)

YUV(4)

YUV(5)

0V52V0V5

6V57V68

V4

5V

5V

SCL

SDA

M1-52

M1-51

SCL32SDA

M1-32

YUV(2)

0V5

33

5VM2-61

RESET

4301

*

+12V

7300-B

5

8

LM833D

6

4

-12V

+5VAV

100n
2317

4314

4313
4312
4311
4310

2240

100p

100u

7

2307

M1-31

YUV(1)

0V5

3V24V35

V1

GNDA_1

RESET_

34

100u

2302

M1-30

YUV(0)

0V5

2

V0

VAA_3

GNDA_3

CVBS

GNDA_2

VAA_2

VREF

VAA_1

35

1

ISET

36

2340
100p

5V

100n2314

Y
C

B

G
R

2319
100n

2313 100n

+5VAV

48
47

5V

46

0V
0V3

44

0V

43
42 45

5V

41

0V

40

0V

39
38

1V2

37

MUTE

M2-63

1K3316

AUDIO_LEFT

M2-64

5301

2u2

25V

10u

2339

2315
100n

3317
3K9

BARE BOARD : 3139 243 30611

36DVD634 /0X1 7.

10 11 12 13

4315

0|6|12

M2-62

M1-32

YUV(2)

4303

#

B

M3-78

M1-35

YUV(5)

4304

CVBS

M3-79

M1-30

YUV(0)

4305

3301

2K7

3304

2K7

3350
100R

M1-36

YUV(6)

4306

###

R_OUT

G_OUT

B_OUT

CVBS_OUT

2V6

7324
BC847B

3315

3328

3337

3345

S18

150R

S19

150R

S20

150R

S21

150R

3300

470R

3303

470R

7320
BC817-25

7321
BC817-25

2323

2326

2329

2335

-12V+5VAV

3312

0V7

0V7

2V

5300

100p

5305

100p

5302

100p

5303

100p

2K2

2u2

2u2

2u2

2u2

1

0V7

3307

2

2322

2327

2331

2334

0V

0V

47K

BC847BPN

6

100p

100p

100p

100p

2300

2303

7322-A

0V

680p

680p

3309

1K

3302

3306

3313

68R

2321

2325

10u 25V

2330

10u 25V

2333

10u

10K

10K

22n

2305

+5VD

22K

3308

0V

5

+5VAV

2320
100n

3314

25V10u

3322

+5VAV

2324
100n

3326

3329

+5VAV

2328
100n

3334

3338

+5VAV

2332
100n

3343

25V

2V

3346

68K

47K

68K

47K

68K

2V

47K

68K

47K

3

2V

4

5V

220R

3325

2V

220R

3333

3339

220R

3347

220R

3310

*

75R

7322-B
BC847BPN

3311
75R

3320

3327

7306-A
BC847BPN

3335

7307-A
BC847BPN

3342

7308-A
BC847BPN

470R

4V4

7305-A
BC847BPN

470R

4V4

470R

4V4

470R

4V4

1V3

78910

I300

SCART_R
I301
SCART_L

2306

I302

68R

68R

68R

68R

470u

6.3V

I304

G

M3-77

-12V

-12V

2338

2312

220p

BZX284-C15

BZX284-C15

BZX284-C15

BZX284-C15

I306

4319

BZX284-C15

220p

3264

2K2

3266

2K2

3268
2K2

6300

6302

6303

6304

6305

+5VAV

+5VAV

+5VAV

1V8

7325
BC847B

1V8

7326

BC847B

1V8

7327
BC847B

3267

68R

BLUE
0|6|12

GREEN

RED
FBOUT

CVBS

6301

100n
2308

BZX284-C15

I307

3321

100R

3323

220R

3330

100R

3331

220R

3336

100R

3340

220R

3344

100R

3348

220R

2310
220p

2V6

2V6

2V6

3305

220R

470u6.3V

2336
4317

2311
220p

I305

470u

2337

6.3V

R

M3-76

BC847BPN
7306-B

2V6

BC847BPN
7307-B

BC847BPN
7308-B

2V6

I303

4318

BC847BPN
7305-B

3324

3332

3341

-12V

3349

11 12 13

SCART

1300

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

3149

R

M3-76

68R

3265

M3-77

G

68R

M3-78

B

M2-79,M3-79

CVBS

CL 26532068_011.eps

080702

1300 A13
1301 D1
2240 I6
2300 A9
2301 B4
2302 B5
2303 A9
2304 C4
2305 B10
2306 A12
2307 B7
2308 B11

A

2310 C11
2311 B12
2312 D12
2313 F5
2314 F5
2315 G6
2316 G2
2317 G6
2319 I5
2320 D10
2321 E10
2322 E9
2323 E8

B

2324 F10
2325 F10
2326 F8
2327 F9
2328 G10
2329 H8
2330 H10
2331 H9
2332 H10
2333 I10
2334 I9
2335 I8

C

2336 B12
2337 C12
2338 C12
2339 F6
2340 I5
3129 H2
3136 H2
3149 E13
3264 F12
3265 G13
3266 G12

D

3267 H13
3268 H12
3300 A8
3301 A8
3302 A10
3303 A8
3304 A8
3305 A12
3306 A10
3307 B9
3308 C10
3309 C9

E

3310 B11
3311 C11
3312 C9
3313 C10
3314 D10
3315 E8
3316 F5
3317 H6
3318 I4
3319 I4
3320 D11
3321 E11

F

3322 E10
3323 E11
3324 E12
3325 E10
3326 F10
3327 F10
3328 F8
3329 F10
3330 F11
3331 G11
3332 G12

G

3333 G10
3334 G10
3335 G10
3336 G11
3337 H8
3338 H10
3339 H10
3340 H11
3341 H12
3342 I10
3343 I10
3344 I11

H

3345 I8
3346 I10
3347 I10
3348 I11
3349 I12
3350 C8
4300 A4
4301 A6
4303 E7
4304 E7
4305 E8
4306 E8

I

4308 I3
4309 I3
4310 I6
4311 I6
4312 I6
4313 I6
4314 H6
4315 H7
4316 H2

4317 B12
4318 C12
4319 C12
5300 E9
5301 F6
5302 H9
5303 I9
5305 F9
6300 A12
6301 B11
6302 B12
6303 B12
6304 C12
6305 D12
7300-A B4
7300-B B6
7301 F3
7305-A E11
7305-B E12
7306-A F10
7306-B F12
7307-A H10
7307-B G12
7308-A I10
7308-B I12
7320 A8
7321 A8
7322-A B9
7322-B C10
7324 C8
7325 E13
7326 G13
7327 H13
I300 A13
I301 A13
I302 A12
I303 B12
I304 B12
I305 C12
I306 C12
I307 C11

Layout MPEG Board 4428 (Top Side)

1148 A1
1149 A1
1150 A3
1151 B1
1152 E5
1153 A6
1202 A9
1300 B11
1301 A7
2100 C2
2101 E5

2102 E5
2103 F1
2104 E4
2105 E4
2106 D5
2107 D3
2108 D5
2109 C5
2110 C5
2111 C5
2112 C5

2113 B5
2114 B3
2115 B3
2116 B4
2117 C3
2118 B3
2119 C3
2120 E5
2121 D3
2122 D3
2123 B4

Electrical Diagrams

2124 E3
2125 E4
2126 B4
2127 E4
2128 C3
2129 C5
2130 A7
2131 D6
2132 C6
2133 E6
2134 D7

2135 C6
2136 D7
2137 D6
2138 A5
2139 B5
2140 A5
2141 A6
2142 E4
2143 E5
2144 A6
2145 B5

2146 B5
2147 A5
2148 A6
2149 A5
2150 A4
2151 E2
2200 E9
2201 E9
2202 F8
2203 F8
2204 E8

37DVD634 /0X1 7.

2205 A10
2206 F3
2207 D11
2208 A11
2209 F3
2210 E9
2211 G3
2213 G4
2214 F4
2216 F5
2217 F4

2218 F4
2219 E3
2220 F5
2221 F4
2222 F4
2223 E1
2226 F3
2230 G11
2231 F11
2232 F4
2233 G4

2234 F9
2235 F4
2236 D10
2237 E4
2238 E4
2239 F4
2240 B7
2241 E3
2242 F9
2300 A11
2301 F6

2302 G7
2303 A11
2304 G6
2305 E10
2306 B11
2307 F7
2308 E10
2310 C11
2311 B11
2312 D10
2313 B6

2314 B7
2315 A7
2316 B7
2317 A7
2319 B7
2320 C10
2321 C9
2322 C9
2323 C8
2324 B10
2325 B9

2326 B8
2327 B9
2328 B9
2329 B8
2330 B9
2331 B9
2332 D10
2333 C9
2334 D9
2335 D8
2336 B11

CL 26532068_012.eps

100602

2337 C11
2338 B11
2339 B8
2340 B8
3100 A2
3101 A2
3102 A2
3103 A2
3104 A2
3105 A2
3106 A2
3107 A2
3108 A3
3109 A2
3110 A3
3111 A3
3112 A3
3113 A3
3114 A3
3115 A3
3116 A3
3117 A3
3118 A4
3119 A4
3120 A4
3121 A4
3122 A4
3123 A4
3124 A5
3125 A4
3126 A5
3127 A5
3128 B1
3129 B7
3130 E4
3131 E4
3132 E4
3133 E4
3134 E4
3135 E4
3136 B7
3137 B1
3138 B1
3139 A1
3140 E4
3141 E5
3142 E4
3143 E4
3144 E5
3145 B5
3146 B5
3147 A6
3148 A5
3149 C10
3150 A6
3151 E5
3152 D5
3153 D5
3154 D6
3163 D5
3165 D6
3169 C6
3170 C6
3171 C5
3172 E4
3173 A3
3174 A5
3200 A8
3202 A10
3203 A9
3204 D10
3205 D9
3206 D9
3207 E9
3208 E9
3209 E9
3210 E10
3211 E9
3212 E9
3213 D9
3214 D9
3215 D9
3219 E4
3220 G2
3222 G2
3223 G2
3224 G2
3225 G2

3226 E4
3227 E4
3228 E4
3229 E3
3230 G3
3231 G3
3232 G3
3233 G3
3234 F5
3235 F3
3236 F5
3237 F4
3238 F4
3239 F4
3240 G10
3241 G10
3242 G11
3243 F10
3244 F3
3245 F4
3246 F3
3247 F3
3248 F3
3249 F3
3250 G10
3251 F11
3252 E5
3253 F9
3254 F9
3255 D10
3256 D10
3257 D10
3259 A9
3260 F4
3261 G2
3262 G2
3263 F1
3264 C10
3265 B10
3266 B10
3267 B10
3268 B10
3300 A11
3301 A11
3302 A11
3303 A11
3304 A11
3305 E10
3306 A11
3307 E10
3308 E10
3309 E10
3310 E10
3311 E10
3312 D10
3313 D10
3314 C9
3315 C8
3316 B6
3317 A7
3318 B8
3319 B8
3320 C9
3321 C10
3322 C10
3323 C10
3324 C10
3325 C10
3326 B9
3327 B9
3328 B8
3329 B10
3330 B9
3331 B10
3332 B10
3333 C10
3334 B9
3335 B9
3336 B9
3337 B8
3338 B10
3339 B10
3340 B10
3341 B10
3342 C9
3343 C9
3344 C9
3345 D8

3346 D9
3347 D9
3348 D10
3349 D10
3350 D10
4100 B2
4101 B1
4102 D3
4103 C3
4104 B2
4106 B8
4107 B8
4108 B1
4109 B2
4110 B1
4204 E2
4205 E2
4206 D3
4209 D2
4210 G2
4211 F2
4300 G7
4301 G7
4303 A7
4304 A7
4305 A7
4306 B7
4308 B8
4309 B8
4310 C8
4311 D8
4312 F7
4313 E5
4314 G1
4315 A1
4316 B7
4317 B10
4318 C11
4319 B10
5100 B5
5101 E5
5102 E5
5103 A6
5104 E5
5105 C6
5300 C9
5301 A8
5302 B9
5303 D8
5305 B9
6200 G3
6201 F2
6202 E4
6300 B11
6301 E10
6302 E10
6303 C11
6304 C11
6305 D10
7100 D1
7101 C4
7102 D7
7103 A8
7104 A6
7200 F4
7201 F4
7202 F9
7203 D1
7204 F5
7206 E8
7207 E8
7208 F2
7220 E8
7221 E9
7222 E9
7223 G3
7224 G2
7225 G2
7227 G10
7228 F11
7229 D10
7230 F2
7231 A9
7232 G2
7233 F1
7300 G6
7301 B7
7305 C10

MPEG Board 6018: Processor

1234

MPEG PROCESSOR

For Dev Evaluation

A

*

From Emulator

LA(21)

4

3

ROM_WE

B

C

D

E

F

G

H

I

2

1

1151

1150

1
2

4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21

22

23

24

25

TO/FROM ATAPI ENGINE

26

27
28
29

30
31

32

33

34

35

36

37

38

39

40

1149

5

4

3

2

To 1104 of

1

Display Board

4110

LCS2
RESET

HRST

3

HD(15)

47R

HD(0)

47R

HD(14)

47R

HD(1)

47R

HD(13)

47R

HD(2)

47R

HD(12)

47R

HD(3)

47R

HD(11)

47R

HD(4)

47R

HD(10)

47R

HD(5)

47R

HD(9)

47R

HD(6)

47R

HD(8)

47R

HD(7)

47R

*

HWR

HRD

47R 3117

HIORDY

3100
3101
3102
3103
3104
3105
3106
3107
3108
3109
3110
3111
3112
3113
3114
3115

3173

M1-53
M2-61

M1-26

M1-16
M1-1

M1-15
M1-2

M1-14
M1-3
M1-13
M1-4
M1-12
M1-5
M1-11

M1-6
M1-10
M1-7
M1-9
M1-8

+5VD

M1-24

311647R

M1-23

M1-25

311847R
31194K7

+5VD

4K7 3120

3121

1148

HIRQ
HIOCS16

HA(1)

HA(0)

HA(2)

HCS1

HCS3

5

4

3

2

1

47R
47R
47R

47R
47R
47R
47R

IR

VFD_CS
VFD_CLK

VFD_DATA

3138

3122
3123

*

3124
3125
3126
3127

3137

4K7

2150

M1-56

M1-38

M1-22
M1-18

M1-17
M1-19
M1-20
M1-21

M1-48

M1-46
M1-45

VCC_2V5_V

M1-50

4K7

33K

3128

4K7

3139

+5VD

1234

LA(18)

7100

M29W400BT-55N1

25

LA(1)

A0

24

LA(2)

A1

23

LA(3)

A2

22

LA(4)

A3

21

LA(5)

A4

20

LA(6)

A5

19

LA(7)

A6

18

LA(8)

A7

8

LA(9)

A8

7

LA(10)

A9

6

LA(11)

A10

5

LA(12)

A11

4

LA(13)

A12

3

LA(14)

A13

2

LA(15)

A14

1

LA(16)

A15

48

LA(17)

A16

17

LA(18)

A17

16

LA(19)

A18

9

LA(20)

A19

26

ROM_CE

CE_

28

ROM_OE

OE_

11

ROM_WE

WE_

12

RESET

RESET_

M2-61

47

BYTE_

M2-38

CLK_27M

VCC_3V3_V

100n2104

2107 100n

+5VD

4108

2105 100n

2124100n

4102

VCC_3V3

4109

37

VCC

DQ10
DQ11
DQ12
DQ13
DQ14

DQ15|A-1

RY|BY_

VSS127VSS2

100n2106

100n 2125

Electrical Diagrams

2100
220n

29

DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9

NC2
NC3
NC4

46

100n

2108

2127100n

LD(0)

31

LD(1)

33

LD(2)

35

LD(3)

38

LD(4)

40

LD(5)

42

LD(6)

44

LD(7)

30

LD(8)

32

LD(9)

34

LD(10)

36

LD(11)

39

LD(12)

41

LD(13)

43

LD(14)

45

PCM_LRCLK

+5VD

4K7

3132

3133 4K7

3134

PCM_DATA0

3135

4K7

3142

15

10
13
14

+5VD

3u3

5102

1n0

22p

2143

2101

100n2112

2111 100n

2126100n

100n 2129

38DVD634 /0X1 7.

5 6 7 8 9 10 11

LA(2)

LA(3)

LA(0)

LA(1)

LD(4)

LD(5)

LD(6)

LD(7)

LD(8)

LD(9)

LD(10)

LD(11)

LD(12)

LD(13)

LD(14)

LD(15)

ROM_WE

*

LA(0)

SPDIF

3140 4K7

3143

3144

S7

+5VD

LA(4)
LA(5)
LA(6)
LA(7)
LA(8)
LA(9)

LA(10)
LA(11)
LA(12)
LA(13)
LA(14)
LA(15)
LA(16)

LA(17)
LA(18)
LA(19)
LA(20)
LA(21)

M2-61

3130

3131

4K7

M2-40,M1-40

PCM_LRCLK
PCM_DATA0

M2-41

M2-42
M2-43
M2-44

S1

*

RESET

OPEN

PCM_CLK
PCM_BCK
SPDIF

2142

1V6
0V

0V

1V6
0V
1V6

0V
2V3
1V3
3V3

1

VC33_1

2

LA4

3

LA5

4

LA6

5

LA7

6

LA8

7

LA9

8

VSS_1

9

VC25_1

10

LA10

11

LA11

12

LA12

13

LA13

14

LA14

15

LA15

16

LA16

17

VSS_2

18

VC33_2

19

LA17

20

LA18

21

LA19

22

LA20

23

LA21

24

RESET#

25

TDMX|RSEL

26

VSS_3

27

VC33_3

28

TDMDR

29

TDMCLK

30

TDMFS

31

TDMSC#

32

TWS

33

TSD0|SEL_PLL0

34

VSS_4

35

VC25_2

36

TSD1|SEL_PLL2

37

TSD2

38

TSD3

39

MCLK

40

TBCK

41

SPDIF|SEL_PLL3

42

NC

43

VSS_5

44

VC25_3

45

RSD

46

RWS

47

RBCK

48

APLLCAP

49

XIN

50

XOUT

51

AVCC|PLL

52

AVSS|PLL

206

208

205

207

204

202

203

LA2

LA1

LA3

LA0

VSS_24

DMA054DMA1

53

VC33_17

CAMYUV0

CAMYUV1

VSS_6

VC33_4

DMA256DMA357DMA458DMA561DMA662DMA763DMA864DMA9

59

55

201

VSS_23

60

200

LWRHL#

199

198

LWRLL#

197

LD15

195

196

LD13

LD14

DMA1066DMA11

65

LD12

VSS_7

194

VC33_16

VC33_5

67

193

68

192

191

LD10

LD11

VSS_22

DWE#

DOE#|DSCK_EN

DCAS#

70

69

184

185

186

187

188

189

190

LD5

LD6

LD7

LD8

LD9

VSS_21

DB0

VC33_6

DRAS0#73DRAS1#|DBANKSEL0

DRAS2#|DBANKSEL1

VSS_8

71

77

75

72

74

76

183

LD4

VC33_15

DB1

DB280DB381DB482DB585DB686DB787DB888DB9

78

3141

1M

1152

HC-49/U

27M

100n2110

2123100n

100n2113

100n 2128

3177

2102

VCC_3V3

220R

22p

VCC_3V3

2116 100n

5101

2u2

100n2118

220n

2136 100n

2120

2114 100n

100n2134

2131 100n

100n2115

100n2132

3151-D 10R

DMA(0)

2133 100n

DMA(1)

DMA(2)

2117 100n

100n2137

DMA(3)

DMA(4)

100n2135

3152-B

DMA(5)

100n2119

10R

2122 100n

DMA(6)

DMA(7)

DMA(8)

100n2121

DMA(10)

DMA(9)

10R

DMA(11)

3153-D

33R3165

33R3163

3154-D 33R

3154-C 33R

RAS0

BANK0

CKE

CAS

BANK1

WE

DB(0)

DB(1)

DB(2)

BARE BOARD 3139 243 30661

567

182

79

LD(3)

LD3

DB(3)

181

LD(2)

LD2

DB(4)

180

LD(1)

LD1

DB(5)

LD(0)

179

8

M2-54

LCS3

178

LD0

VC25_4

83

4100

3V3

177

VSS_20

VSS_9

84

DB(6)

LCS3#

M1-53

ROM_CE

I101

I100

LCS2

4101

3V3

175

176

LCS2#

DB(7)

DB(8)

LCS1#

174

LCS0#

DB(9)

M1-45,M2-45

M2-47

M1-46

ROM_OE

VFD_CS

VFD_CLK

POWER_ON

0V

3V3

3V3

0V

171

172

170

173

168

169

LOE#

AUX6

AUX7

VC25_7

VSS_19

DB1090DB1193DB1294DB1395DB14

VC33_7

VSS_10

89

92

91

DB(10)

DB(11)

DB(12)

DB(13)

VCC_3V3

HA(2)

HA(1)

HA(0)
HCS3
HCS1

HIOCS16

HWR

HIORDY

HRST

HIRQ

SCART1
SCART0

HD(15)
HD(14)

HD(13)
HD(12)
HD(11)
HD(10)

HD(9)
HD(8)
HD(7)

HD(6)

HD(5)

HD(4)

HD(3)

HD(2)

HD(1)

HD(0)

CAMIN3

CVBS_OUT

G_OUT

RSET

COMP
R_OUT
V_REF
B_OUT

CLK_27M

2313

100n

2u2

HRD

VCC_2V5

2u2

5104

2u2

5105

M1-51

M1-52
M1-49

M1-19

M1-17
M1-21
M1-20
M1-22
M1-23
M1-24

M1-25
M1-26
M1-56
M2-58
M2-57
M1-16
M1-15

M1-14
M1-13
M1-12
M1-11
M1-10
M1-9
M1-8

M1-7
M1-6
M1-5
M1-4
M1-3
M1-2
M1-1

S1

M2-73

KILL

M2-71

S0

M2-72
M3-37

M3-36
M3-35

M3-34
M3-33
M3-32
M3-31
M3-30
M1-382V3

15p

CKE

CLK
CS0

WE
CAS

RAS0

BANK0

2145

BANK1

*

DMA(0)
DMA(1)

DMA(2)

DMA(3)
DMA(4)

DMA(5)

DMA(6)
DMA(7)

DMA(8)

DMA(9)
DMA(10)

DMA(11)

M1-48

M1-49,M2-49

IR

DAC_CS

3V3

4V6

165

166

167

AUX4

AUX5

AUX3|IOR#

DB15

96

DB(14)

DB(15)

M1-50,M2-50

VFD_DATA

3V3

4V8

163

164

VSS_18

VC33_14

VSS_11

DCS1#

98

97

M1-52

M1-51

VCC_3V3_V

SCL

SDA

3V3

3V3

159

160

161

162

AUX0

AUX1

VC33_13

AUX2|IOW#

HA2|EAUX4_4

HCS3FX#|EAUX3_6
HCS1FX#|EAUX3_7

HIOCS16#|EAUX3_4

HRD#|DCI_ACK#
HWR#|DCI_CLK#

HIORDY|EAUX3_3

HRST#|EAUX3_5

HIRQ|DCI_ERR#

HRDQ#|EAUX4_0

HWRQ#|DCI_REQ#

HSYNC#|CAMYUV7
VSYNC#|CAMYUV6

PCLKQSCN|CAMYUV5

PCLK2XSCN|CAMYUV4

YUV_7|CAMYUV3

YUV_0|CAMYUV2

VC33_8

VSS_12

DQM

DSCK

DCS0#

99

101

102

100

33R3170

3169 33R

3171 33R

CS0

DQMX

CLK

3V3

0V

157

158

VC33_12

VSS_17
HA1|EAUX4_3
HA0|EAUX4_2

VC33_11

VSS_16

HD15|EAUX2_7
HD14|EAUX2_6

VC25_6

VSS_15

HD13|EAUX2_5
HD12|EAUX2_4
HD11|EAUX2_3
HD10|EAUX2_2

HD9|EAUX2_1

HD8|DCI_FDS

HD7|DC7

VC33_10

VSS_14

HD6|DC6
HD5|DC5
HD4|DC4
HD3|DC3
HD2|DC2
HD1|DC1
HD0|DC0

VC25_5

VSS_13

YUV_6|YDAC
YUV_5|YDAC

AVSS|VDAC
AVCC|VDAC

YUV_4|RSET
YUV_3|COMP
YUV_2|CDAC

YUV_1|VREF

DCLK

VC33_9

104

103

S2

VCC_2V5_V

7101

ESS6018F

156
155

0V M1-18

154

0V

153

3V3

152

3V3

151

5V

150

3V3

149

3V3

148

3V3

147
146

4V8

145

3V3

144

0V

143

3V3

142

3V3

141

0V

140

0V

139

2V5

138
137

0V

136

0V

135

0V

134

0V

133

0V

132

0V

131

0V

130

3V3

129
128

0V

127

0V

126

0V

125

0V

124

0V

123

0V

122

0V

121

2V5

120
119
118

4V8

117
116
115

1V

114

0V5

113

0V5

112
111

3V3

110

2V

109

0V5

108

0V5

107

0V5

106

0V5

105

100n

2139

5100

* OPTION

V

91011

12 13 14

+5VD

3172

5

S2

ch1: freq= 108MHz

1

1V / div DC

10ns / div

S7

T

1

2

2V / div DC

20ms / div

BANK0

MEMORY

ARRAY

(4,096x256x16)

SENSE AMPLIFIERS

I/O GATING

DQM DATA LOGIC

READ DATA LATCH

WRITE DRIVERS

*

4K7

VDDQ

2130
220n

DQML

DQMH

*

+5VD

4K7

3175

SCL

+5VD

4K7

3176

SDA

DAC_CS

ch1

2109

7102

MT48LC4M16A2TG

CKE37

38 CLK

CS_19
WE_16
CAS_17
RAS_18

BA020
BA121

23 A0

A124
A225
A326
A429
A530
A631
A732
A833
A934

7103
M24C01

1
2
3
6
7

E0
E1
E2
SCL
WC_

VCC

8

SDA

VSS

S1

1

2V / div DC

50ns / div

11427 394349

VDD

BANK0

CTRL

LOGIC

MODE REG

ROW­ADDR

LATCH &

DECODER

DECODE

COMMAND

REFRESH

ROW

ADDR

MUX

BANK

CTRL

LOGIC

COLUMN

ADDR

COUNTER/

LATCH

ADDRESS REGISTER

COLUMN

DEDCODER

4

ch1

ch1

ch2

COUNTER

A1022
A1135

VSSQ VSS

28 41 546124652

NC
36 40

DC vtg measured in STOP-MODE

12 13 14

VCC_3V3

DQML 15

DQMH 39

DQ10 45
DQ11 47
DQ12 48
DQ13 50
DQ14 51
DQ15 53

DATA INPUT REGISTER DATA OUTPUT REGISTER

CL 26532068_028.eps

DQ0 2
DQ1 4
DQ2 5
DQ3 7
DQ4 8
DQ5 10
DQ6 11
DQ7 13

DQ9 44

42DQ8

DQMX

DB(0)

DB(1)

DB(2)
DB(3)

DB(4)

DB(5)
DB(6)

DB(7)

DB(8)
DB(9)

DB(10)

DB(11)
DB(12)

DB(13)

DB(14)
DB(15)

311002

1148 H1
1149 H1
1150 B1
1151 B1
1152 G4
2100 C3
2101 H4
2102 H5
2104 H3
2105 H3
2106 H3
2107 H2
2108 H3

A

2109 E12
2110 H4
2111 H4
2112 H4
2113 H4
2114 H5
2115 H6
2116 H5
2117 H6
2118 H5
2119 H6
2120 G5

B

2121 H7
2122 H6
2123 I4
2124 I3
2125 I3
2126 I4
2127 I3
2128 I4
2129 I4
2130 A13
2131 I6

C

2132 I6
2133 I6
2134 I5
2135 I6
2136 I5
2137 I6
2139 G10
2142 F5
2143 H4
2145 G11
2150 G1
2313 G10

D

3100 C1
3101 C1
3102 C1
3103 C1
3104 C1
3105 C1
3106 D1
3107 D1
3108 D1
3109 D1
3110 D1
3111 D1

E

3112 D1
3113 E1
3114 E1
3115 E1
3116 F1
3117 F1
3118 F1
3119 F1
3120 G1
3121 G1
3122 G1

F

3123 G1
3124 G1
3125 G1
3126 H1
3127 H1
3128 I2
3130 E5
3131 E5
3132 E4
3133 F4
3134 F4
3135 F4

G

3137 I1
3138 I1
3139 I1
3140 F4
3141 G4
3142 F4
3143 F4
3144 G4
3151-D H6
3152-B G6
3153-D G7
3154-C H7

H

3154-D H7
3163 H7
3165 H7
3169 G9
3170 G9
3171 G9
3172 A13
3173 E1
3175 A12
3176 B12
3177 G5

I

4100 B8
4101 B8
4102 A3
4108 B3
4109 B3
4110 B1
5100 G10
5101 G5
5102 G4
5104 A11

MPEG Board 6018: Audio Power

AUDIO/POWER

I200

PSU

1202

DGND

M1-47

M1-58,M3-75

M1-57,M3-74

M1-61,M3-61

M1-71

M1-42

M1-49
M1-45
M1-50

M1-40

PCM_LRCLK
PCM_BCK

M1-43

PCM_DATA0

M1-41

M1-72
M1-73
M1-39

1

1
2
3
4
5

I204

6
7
8

PCM_CLK

DAC_CS
VFD_CLK

VFD_DATA

S0
S1

CLK_27M

I201

I206

DGND

7233
BC847B

RESET

S7

I202

I203

I205

KILL

3226
47R

3228
47R

3263

3204

22R

220u

3259

10K

POWER_ON

SCART1

SCART0

+5VD

2151

*

10u

DGND

2103

16V

3

4

5V

1n0

4K7

*

DGND

S8

3219

47R

6

3V3

7 CCLK

3V3

8 CDTI

4V8

4 LRCK

1V6

3227

47R

2 BICK

0V

3 SDTI

0V

15p

2237

15p

2238

S4

23456789101112

A

B

FROM 0201 OF

C

D

E

F

G

S9

S10

S11

H

I

CSN

2207

DGND

2219

-12V

*

7231
BC817-25

7230

5

*

2

AK4382A7201

INTERFACE

47u

DATA AUDIO

PDN

5V

INTERFACE

1

uP

INTERPOLATOR

INTERPOLATOR

5

3229

3202

22R

DE-AMPHASIS

8 x

8 x

4K7

Electrical Diagrams

+12V

2208

220u

DGND

3205

*

+5VD

+5VD

+5VD

+5VA

VDD

CONTROL

VSS

+5VA

4K7

3207

10K

3213

10K

2217
100n

10u

2218

14

1
MCLK

CLK

DIV.

SCF

MOD

SCF

MOD

13

2241

100p

DGND

+5VA

7204

*

MK2703S

7

S0

CLK SYNTHESIS

6

S1

AND

1

X1

CRYSTAL

8

X2

7208
MC78L05

8

IN

4

NC15NC2

26

18K

+5VD

4K7

3261

1V5

DZFL 16

AOUTR- 9

PLL

CTRL CIRC.

OSC

3262

VDD

GND

4K7

2243

GND

3215

2

3

100n

OUT

3206

*

10K

3208

10K

3209

18K

3214

10K

0V

15DZFR

12AOUTL+

2V4

11AOUTL-

2V4

10AOUTR+

2V4
2V4

2239
100n

OUTPUT
BUFFER

OUTPUT
BUFFER

3200

3203

0R

73

39DVD634 /0X1 7.

1202 B1
1203-A H13
1203-B F13
2103 E2
2151 E2
2200 B7
2201 B7
2202 B8
2203 B8
2204 B9
2205 B6

A

2206 B5
2207 B2
2208 B3
2209 B5
2210 D6
2211 E9
2213 F8
2214 F7
2216 G6

2217 F3
2218 F3
2219 H2

B

2220 F8
2221 G8
2222 G7
2223 A12
2226 H6

2230 F12
2231 G12
2232 H7
2233 H8
2234 H12
2235 I7

C

2236 I13
2237 H2
2238 H2
2239 H4
2241 H3
2242 H12
2243 A4
2244 A5

3136 F6

3200 A4

3202 B3

3203 A4

D

3204 B2
3205 C4
3206 C4
3207 C4
3208 C4

3209 D4

3210 C5

3211 C5

3212 C6

3213 D4

3214 D4

3215 D4

E

3219 F2

3220 E6

3222 E6

3223 E6

3224 E5
3225 F7
3226 G1
3227 G2
3228 H1
3229 H3
3230 E8

F

3231 E8
3232 E8
3233 E8
3234 F6
3235 H7
3236 F6
3237 G7
3238 G6
3239 G7
3240 F11
3241 F11
3242 F12

G

3243 G11

3244 H6

3245 F7

3246 H6

3247 I7

3248 I6

3249 I7

3250 G11

3251 G12

3252 H11

3253 H12

3254 H12

H

3255 I11

3256 I12

3257 I10

3259 C2

3260 H5
3261 E4
3262 F4
3263 E2
3270 F6
4204 D11
4205 D11

I

4206 D11
4209 C12
4210 E5
4211 B5
6200 E8
6201 B5
6202 A5
7200-A G7

7206
LD1117

IN2OUT

GND

812345

7207

LF27CDT

IN OUT

GND

DGND

VCC_3V3

1

DGND

2202

100u

0|6|12

220n

2203

6

220n

3211

12V

2206

470R

2205

+5VD

220R

100u

3212

+5VAV

+5VA

+5VD

0R

100n

2244

6202

470R

2209

3210

BAS316

220u

BAS316

1

6201
4211

0V

7221
BC847B

DGND

7

2201

220n

2200

3

220u

DGND

+5VD

220n

7220
BC337-40

2204

M3-62

9

12V

0V

7222
BC847B

DGND

4210

*

5K6
3224

0V

7232
BC847B

7225
BC847B

S12

2210

220n

M2-63,M3-63

MUTE

680K

3233

3231

2K2

2220

100u

+5VD

6200

BAS316

AUDIO_LEFT

3232

220R

2211

47u 16

M2-64,M3-64

M2-65

M2-63

M2-64

M2-63

5K6

3220

*

3222

10K

-12V

3270

2K7

+5VD

+12V

-12V

8

4

470p
2222

3230
470R

100n
2213

LM833D

7200-A

2221

100n

1

4V4

3234

4K7

7224

BC857B

4K7

3n3

2216

BC857B

7234

3236

3223

33K

200R
3245

5K1

1V2

-8V

5K6

3225

470p

1V2

2214

7223
BC847B

3

2

1V2

200R

S1

3237

4K7

CLK

27M

3238

S14

4K7

S15

47R

3260

5

4

3244

4K7

3n3

2226

5K1

3246

3248

200R
3235

200R
3247

1V2

470p

3239

5K1

3249

2232

1V2

+12V

7200-B

5

8

LM833D

6

4

100u

7

AUDIO_RIGHT

M1-44M2-65,M3-65

2233

-12V

470p
2235

M3-79

BARE BOARD 3139 243 30661

10 11 12 13

+5VD

220n

DGND

13
14
15
17
18
19
20
21

22
24
31

4209

LD(0)

LD(1)
LD(2)

LD(3)

LD(4)
LD(5)

LD(6)

LD(7)

LCS3

ROM_OE

ROM_WE

VCC_2V5

LA(0)

LA(1)
LA(2)

LA(3)

LA(4)
LA(5)

LA(6)

LA(7)
LA(8)

LA(9)

LA(10)
LA(11)

LA(12)

LA(13)
LA(14)

LA(15)

LA(16)
LA(17)

LA(18)

LA(19)

LA(18)

4204

4205

4206

7203
AM29F040B

12

A0

11

A1

10

A2

9

A3

8

A4

7

A5

6

A6

5

A7

27

A8

26

A9

23

A10

25

A11

4

A12

28

A13

29

A14

3

A15

2

A16

30

A17

1

A18

VCC

VSS

2223

32

DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7

CE_
OE_
WE_

16

DGND

FOR 27C040 EPROM

AUDIO_RIGHT

MUTE

AUDIO_LEFT

MUTE

SPDIF

CVBS

3257

100R

S1

2V6

7229
BC847B

+5VAV

3240

470R

3241

2K7

BC817-25

3243

470R

3250

2K7

BC817-25

74HCT1G125

3252

1V6

1K

-12V

2K2

3255

2V

7227

7228

7202

0V7

0V7

+5VD

100n
2234

3256
68R

0V

3242

680p

2230

0V

3251

680p

2231

DGND

3253

1V8

330R

100R

DGND

* OPTION

DC vtg measured in STOP-MODE

V

For Development
Evaluation

S1

ch1

1

S4

ch1: freq= 27.0MHz

ch1

1

1V / div DC

S7

ch1

ch2

T

1

2

2V / div DC

S8

ch1: freq= 24.5MHz

ch1

1

1V / div DC

S9

ch1: freq= 96.2kHz

ch1

1

1V / div DC

S10

ch1

ch1: freq= 6.13MHz

1

1V / div DC

I208

AUDIO L/R

10K

I207

I208

I209

I209

10K

3254

2242

I210

I211

I212

100p

2236

I211

DiagramTo

S11

ch1

1

CH1 1.00 V= MTB2.00us ch1+

I208-209

ch1

1

50ns / div

20ms / div

20ns / div

5us / div

100ns / div

1203-B

YKC21-4105

6

CH1 1.00 V= MTB 500us ch1+

I211

ch1

1

CH1 500mV= MTB50.0ns ch1+

500mV / div DC

I212

ch1

1

CH1 500mV= MTB20.0us ch1+

500mV / div DC

S12

ch1

1

S13

ch1

1

S14

ch1

1

1V / div DC
500us / div

50ns / div

20us / div

1.00V / DC
500us / div

1.00V / DC
500us / div

1.00V / DC
500us / div

5

4

S15

ch1

1

1.00V / DC
500us / div

1203-A

SPDIF

YKC21-4105

2

3

1

CVBS

I212

220p

CL 26532068_029.eps

311002

7200-B H7
7201 G2
7202 H11
7203 A11
7204 H3
7206 A8
7207 A9
7208 A4
7220 B9
7221 D5
7222 D5
7223 E7
7224 E6
7225 E5
7227 F11
7228 G11
7229 I10
7230 E2
7231 C2
7232 F5
7233 E1
7234 F6
I200 A1
I201 A1
I202 A1
I203 B1
I204 B1
I205 B1
I206 B1
I207 F13
I208 F13
I209 G13
I210 H13
I211 H13
I212 H13

13

MPEG Board 6018: Video & Scart

1 2 3 4 5 6 7 8 9 1011121314

VIDEO & SCART

A

I300-301

1

1V / div DC

500us / div

B

C

I307

1

500mV / div DC

20us / div

S21

1

500mV / div DC

20us / div

I303

1

500mV / div DC

20us / div

S18

1

200mV / div DC

20us / div

D

E

F

G

H

I

J

* OPTION

DC vtg measured in STOP-MODE

V

12345

I304

1

500mV / div DC

20us / div

S19 S20

1

200mV / div DC

20us / div

I305

1

500mV / div DC

20us / div

1

200mV / div DC

20us / div

Electrical Diagrams

4300

+12V

2301

*

100n
7300-A

3

8

LM833D

2

4

2304
100n

-12V

AUDIO_RIGHT

M2-65

4314

4313
4312
4311
4310

2240
100p

BARE BOARD 3139 243 30661

40DVD634 /0X1 7.

1300 A14
2240 I4
2300 A10
2301 B5
2302 C6

3300

2V6

7324
BC847B

3351

*

3352

S18

S19

3315

3328

470R

3303
470R

82R

82R

3301

2K7

4301

3304

2K7

*

+12V

7300-B

5

8

270R

LM833D

6

4

-12V

M1-31

YUV(1)

2314

1

100u

2302

MUTE

M2-63

AUDIO_LEFT

M2-64

M1-34

YUV(4)

3316

100n

7

M1-32

M1-35

100u

2307

M1-30

M1-36

0|6|12

M2-62

B

M3-78

3350

100R

CVBS

M3-79

R_OUT

G_OUT

*

4315

4315

2344
100n

2345
100n

2340
100n

CVBS_OUT

B_OUT

S20

82R

3337

*

S21

82R

3354 3353

3345

*

6789

0V7

7320
BC817-25

0V7

7321
BC817-25

-12V+5VAV

3312

*

2323

390p

*

390p

2326

*

390p

2329

*

2335

390p

0V

SCART

10K

2300

680p

3302

0V

I302

2310
220p

I307

2V6

2V6

3305

220R

6.3V 470u

2336

4317

I305

6.3V 470u

R

M3-76

2V6

*

2V6

*

*

2V6

2311
220p

2337

*

7306-B

7307-B

7308-B

4318

7305-B

*

*

*

*

3324

3332

3341

-12V

3349

I303

I304

BZX284-C15

470u6.3V

2338

G

M3-77

2312

-12V

-12V

10K

2303

680p

3306

22n

6301

2305

47K

3307

0V7

7322-A

BC847BPN

2

1

6

2K2

2V

2339

5300

2321

2u2

10u 25V

82p

2322

2343

5305

2325

2u2

82p

2327

2341

5302

2330

2u2

82p

2331

2342

5303

2333

2u2

10u 25V

82p

2334

+5VD

22K

3308

3309

0V

1K

3355

3356

25V10u

3357

25V10u

3358

3313

68R

68R

68R

68R

68R

0V

5

+5VAV

2320

*

3314

3322

+5VAV

2324

*

3326

3329

+5VAV

*

2328

*

3334

3338

+5VAV

2332

*

3343

3346

3310

*

75R

4

7322-B
BC847BPN

3311

5V

3

75R

10K

3320

*

2V

10K

3325

*

10K

3327

*

2V

*

10K

3333

*

10K

3335

*

2V

*

10K

3339

*

10K

3342

*

2V

10K

7308-A

*

3347

*

4V4

7305-A

*

4V4

7306-A

4V4

7307-A

4V4

1V3

BZX284-C15

100n
2308

3321

*

3323

*

3330

*

3331

*

3336

*

3340

*

3344

*

3348

*

220p

BZX284-C15

6303

BZX284-C15

4319

BZX284-C15

220p

3264
680R

3266
680R

3268

680R

2306

6300

BZX284-C15

6304

I306

6305

+5VAV

1V8

+5VAV

+5VAV

7327
BC847B

1V8

I300

I301

6302

BZX284-C56

7325
BC847B

7326

BC847B

1V8

3267

68R

1300

SCART_R

SCART_L

BLUE
0|6|12

GREEN
6306

RED
FBOUT

CVBS

3149

R

68R

3129

G

68R

B

CVBS

M2-79,M3-79

CL 26532068_030.eps

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

M3-76

M3-77

M3-78

311002

10 11 12 13 14

2303 B10
2304 C5
2305 B11
2306 B13

A

2307 C7
2308 C12
2310 C12
2311 C12
2312 D13
2314 F7
2320 E10
2321 E10
2322 F10
2323 F9
2324 F10
2325 G10

B

2326 G9
2327 G10
2328 H10
2329 H9
2330 H10
2331 H10
2332 I10
2333 J10
2334 J10
2335 J9
2336 B12
2337 D12

C

2338 D13
2339 E9
2340 I5
2341 H9
2342 I9
2343 G9
2344 H5
2345 I5
3129 G14
3149 F14
3264 F13

D

3266 H13
3267 I13
3268 I13
3300 A9
3301 A9
3302 A10
3303 A9
3304 B9
3305 B12
3306 B10
3307 C10
3308 C10

E

3309 C10
3310 C11
3311 C11
3312 C9
3313 D10
3314 E11
3315 F9
3316 F6
3320 E11
3321 E12
3322 F11
3323 F12

F

3324 F13
3325 F11
3326 F11
3327 F11
3328 G9
3329 G11
3330 G12
3331 G12
3332 G13
3333 G11
3334 H11

G

3335 H11
3336 H12
3337 H9
3338 H11
3339 I11
3340 I12
3341 I13
3342 I11
3343 I11
3344 J12
3345 J9
3346 J11

H

3347 J11
3348 J12
3349 J13
3350 D9
3351 F9
3352 G9
3353 H9
3354 J9
3355 E10
3356 F10
3357 H10
3358 I10

I

4300 A5
4301 B7
4310 I4
4311 I4
4312 H4
4313 H4
4314 H4
4315 H5
4317 B12
4318 D12
4319 D13

J

5300 E9
5302 H9
5303 J9
5305 G9
6300 B13
6301 B12

6302 B13
6303 B13
6304 C13
6305 D13
6306 C14
7300-A B5
7300-B B7
7305-A E11
7305-B E12
7306-A G11
7306-B G12
7307-A H11
7307-B H12
7308-A J11
7308-B J12
7320 A9
7321 B9
7322-A C10
7322-B C11
7324 D9
7325 F13
7326 G13
7327 I13
I300 A13
I301 A13
I302 B13
I303 B13
I304 C13
I305 C12
I306 C13
I307 D12

Electrical Diagrams

Layout MPEG Board 6018 ( Overview Top Side)

41DVD634 /0X1 7.

Part 3

Part 1

Par 4

Part 2

CL 26532068_031.eps

311002

1148 A1
1149 A1
1150 A3
1151 B2
1152 E5
1202 A9
1300 B11
2100 C2
2101 E5
2102 E5
2103 F1
2104 E4
2105 E4
2106 D5
2107 D3
2108 D5
2109 B5
2110 C5
2111 C5
2112 C5
2113 B5
2114 B3
2115 B3
2116 B4
2117 C3
2118 B3
2119 C3
2120 E5
2121 D3
2122 D3
2123 B4
2124 E3
2125 E4
2126 B4
2127 E4
2128 C3
2129 C5
2130 B2
2131 D6
2132 C6
2133 E6
2134 D7
2135 C6
2136 D7
2137 D6
2139 B5
2142 E4
2143 E5
2145 B5
2150 A4
2151 E2
2200 F9
2201 E9
2202 F8
2203 F8
2204 E8
2205 A10
2206 F3
2207 D11
2208 F1
2209 F3
2210 E9
2211 G3
2213 G4
2214 F4
2216 F5

2217 F4
2218 E3
2219 E3
2220 F5
2221 F4
2222 F4
2223 E1
2226 F3
2230 G11
2231 F11
2232 F4
2233 G4
2234 F9
2235 F4
2236 D10
2237 E4
2238 E4
2239 F4
2240 C8
2241 E3
2242 F9
2243 A8
2244 A7
2300 A11
2301 F6
2302 G7
2303 A11
2304 G6
2305 E10
2306 B11
2307 F6
2308 E10
2310 C11
2311 B11
2312 D10
2313 B5
2314 B5
2320 B7
2321 B7
2322 B6
2323 B5
2324 A6
2325 B6
2326 A5
2327 A6
2328 A7
2329 A5
2330 A6
2331 A6
2332 C7
2333 B6
2334 B6
2335 B5
2336 B11
2337 C11
2338 B11
2339 A6
2340 E9
2341 A6
2342 B6
2343 A6
2344 F7
2345 F7
3100 A2
3101 A2
3102 A2

3103 A2
3104 A2
3105 A2
3106 A2
3107 A2
3108 A3
3109 A2
3110 A3
3111 A3
3112 A3
3113 A3
3114 A3
3115 A3
3116 A3
3117 A3
3118 A4
3119 A4
3120 A4
3121 A4
3122 A4
3123 A4
3124 A5
3125 A4
3126 A5
3127 A5
3128 B1
3129 B7
3130 E4
3131 E4
3132 E4
3133 E4
3134 E4
3135 E4
3136 G2
3137 B1
3138 B1
3139 A1
3140 E4
3141 E5
3142 E4
3143 E4
3144 E5
3149 B8
3151 E5
3152 D5
3153 D5
3154 D6
3163 D5
3165 D6
3169 C6
3170 C5
3171 C5
3172 E4
3173 A3
3175 B3
3176 B2
3177 E5
3200 A8
3202 F1
3203 A9
3204 D10
3205 D9
3206 D9
3207 E9
3208 E9
3209 E9

3210 E10
3211 E9
3212 E9
3213 D9
3214 D9
3215 D9
3219 E4
3220 G2
3222 G2
3223 G2
3224 G2
3225 G2
3226 E4
3227 E4
3228 E4
3229 E3
3230 G3
3231 G3
3232 G3
3233 G3
3234 F5
3235 F3
3236 F5
3237 F4
3238 F4
3239 F4
3240 G10
3241 G10
3242 G11
3243 F10
3244 F3
3245 F4
3246 F3
3247 F3
3248 F3
3249 F3
3250 G10
3251 F11
3252 E5
3253 F9
3254 F9
3255 D10
3256 D10
3257 D10
3259 A8
3260 F4
3261 G2
3262 G2
3263 F1
3264 B8
3266 B7
3267 A7
3268 A7
3270 G3
3300 A11
3301 A11
3302 A11
3303 A11
3304 A11
3305 E10
3306 A11
3307 E10
3308 E10
3309 E10
3310 E10
3311 E10

3312 D10
3313 D10
3314 B7
3315 B5
3316 B5
3320 B7
3321 B7
3322 B7
3323 B7
3324 B7
3325 B7
3326 A6
3327 A6
3328 A5
3329 A7
3330 A6
3331 A7
3332 A7
3333 B7
3334 A6
3335 A6
3336 A6
3337 A6
3338 A7
3339 A7
3340 A7
3341 A7
3342 B7
3343 B7
3344 B7
3345 B5
3346 C7
3347 C7
3348 C7
3349 C8
3350 D10
3351 B5
3352 A5
3353 A6
3354 B5
3355 B7
3356 B7
3357 A7
3358 C8
4100 B2
4101 B1
4102 D3
4108 B1
4109 B2
4110 B1
4204 E2
4205 E2
4206 D3
4209 D2
4210 G2
4211 F2
4300 G7
4301 G7
4310 C8
4311 D8
4312 F7
4313 E5
4314 G1
4315 A1
4317 B11
4318 D11

4319 C11
5100 B5
5101 E5
5102 E5
5104 E5
5105 C6
5300 B6
5302 A6
5303 B5
5305 A6
6200 G3
6201 F2
6202 E4
6300 B11
6301 E10
6302 E10
6303 C11
6304 C11
6305 D10
6306 C11
7100 D1
7101 C4
7102 D7
7103 B2
7200 F4
7201 F4
7202 F9
7203 E1
7204 F5
7206 E8
7207 E8
7208 F2
7220 E8
7221 E9
7222 E9
7223 G3
7224 G2
7225 G2
7227 G10
7228 F11
7229 D10
7230 F2
7231 A8
7232 G2
7233 F1
7234 G2
7300 G6
7305 B7
7306 A7
7307 A7
7308 C7
7320 A11
7321 A11
7322 E10
7324 D10
7325 B7
7326 A7
7327 A7

Electrical Diagrams

Layout MPEG Board 6018 (Top Side Part 1)

42DVD634 /0X1 7.

CL 26532068_31a.eps

201102

Electrical Diagrams

Layout MPEG Board 6018 (Top Side Part 2)

43DVD634 /0X1 7.

CL 26532068_31b.eps

201102

Electrical Diagrams

Layout MPEG Board 6018 (Top Side Part 3)

44DVD634 /0X1 7.

CL 26532068_31c.eps

201102

Electrical Diagrams

Layout MPEG Board 6018 (Top Side Part 4)

45DVD634 /0X1 7.

201102

Electrical Diagrams

46DVD634 /0X1 7.

Power On/Off Panel

A

To 0203 of PSU

B

12

POWER ON/OFF

1102

1

2

Off 1
Off 2

I200

I201

1103

14

25

36

A

B

1102 B1
1103 A2
I200 B2
I201 B2

Layout Power On/Off Panel

1102 B1

1103 B2

C

CLOSE = POWER OFF

BARE BOARD 3139 243 30603

1

2

CL 26532068_015.eps

311002

C

CL 26532068_016.eps

311002

Alignments

8. Alignments

Not applicable.

9. Circuit Descriptions, List of Abbreviations, and IC Data

9.1 Circuit Descriptions

Not applicable.

9.2 List of abbreviations

Not applicable.

9.3 IC Data

9.3.1 uPD16312

EN 47DVD634 /0X1 8.

Figure 9-1 Block Diagram uPD16312

EN 48 DVD634 /0X19.

Circuit Descriptions, List of Abbreviations, an d IC Data

Figure 9-2 Pinning uPD16312

Circuit Descriptions, List of Abbreviations, and IC Data

EN 49DVD634 /0X1 9.

Figure 9-3 Pin Description uPD16312

EN 50 DVD634 /0X110.

10. Spare Parts List

Spare Parts List

Mechanical DVD634 /001

Various

0001 3139 247 56151 FRONT COMPLETE
0145 9305 026 61311 VAE6013/11/V042 (PHOS) B

0250 3139 247 56041 PLATE BACK DVD624 PNT
0300 3139 247 55511 COVER TOP DVD743 PPT

 4822 321 11196 MAINS CORD 20/21"

0361
0365 3103 308 92610 CABLE AUDIO 2X2 RCA

0373 2422 076 00445 CORD SCART 1M1 M 20P
0375 3139 246 11941 IFU DVD624/001
0390 3141 017 90220 REMOTE CONTROL DVD-

1001 3139 248 82071 PCBAS FRONT DVD624
1002 3139 248 82121 PCBAS MPEG DVD624

 3122 427 23271 PSU DVD DRAGON EURO

1005

DVD634

PRT

MALE 1.5

Q30/751

B

Mechanical DVD634 /021

Various

0001 3139 247 56151 FRONT COMPLETE
0145 9305 026 61311 VAE6013/11/V042 (PHOS) B

0250 3139 247 56041 PLATE BACK DVD624 PNT
0300 3139 247 55511 COVER TOP DVD743 PPT

 4822 321 11196 MAINS CORD 20/21"

0361
0365 3103 308 92610 CABLE AUDIO 2X2 RCA

0373 2422 076 00445 CORD SCART 1M1 M 20P
0375 3139 246 11931 IFU DVD624/021
0390 3141 017 90220 REMOTE CONTROL DVD-

1001 3139 248 82071 PCBAS FRONT DVD624
1002 3139 248 82121 PCBAS MPEG DVD624

 3122 427 23271 PSU DVD DRAGON EURO

1005

DVD634

PRT

MALE 1.5

Q30/751

B

Mechanical DVD634 /051

Various

0001 3139 247 56151 FRONT COMPLETE
0145 9305 026 61311 VAE6013/11/V042 (PHOS) B

0250 3139 247 56041 PLATE BACK DVD624 PNT
0300 3139 247 55511 COVER TOP DVD743 PPT

 4822 321 11207 MAINS CORD & FUSE 14"

0361
0365 3103 308 92610 CABLE AUDIO 2X2 RCA
0373 2422 076 00445 CORD SCART 1M1 M 20P

0375 3139 246 11921 IFU DVD624/051
0390 3141 017 90220 REMOTE CONTROL DVD-

1001 3139 248 82071 PCBAS FRONT DVD624
1002 3139 248 82121 PCBAS MPEG DVD624

 3122 427 23271 PSU DVD DRAGON EURO

1005

DVD634

PRT

GB /05
MALE 1.5

Q30/751

B

Front PWB

Various

0002 3141 014 24852 FTD HOLDER
1100 3139 240 50341 FTD HNV-07SS44T DVD624
1101 4822 265 30735 5 PINS
1102 2422 025 04849 CON BMT 2P
1103 2422 128 03063 SWI PUSH 2P 2POS 30V V

1104 4822 265 30735 5 PINS
1105 4822 276 13775 SWITCH
1106 4822 276 13775 SWITCH
1107 4822 276 13775 SWITCH
1108 4822 276 13775 SWITCH
1109 4822 276 13775 SWITCH
1110 4822 276 13775 SWITCH

18MM B



2100 4822 124 81286 47µF 20% 16V
2101 2238 586 59812 0603 50V 100NP80M
2102 2238 586 59812 0603 50V 100NP80M
2104 2238 586 59812 0603 50V 100NP80M
2104 3198 024 44730 47nF 50V 0603
2105 2238 586 59812 0603 50V 100NP80M
2106 4822 124 81286 47µF 20% 16V
2107 4822 126 14238 0603 50V 2N2 COL R



3100 4822 117 11152 4Ω7 5%
3101 4822 051 30109 10Ω 5% 0.062W
3102 4822 051 30563 56k 5% 0.062W
3103 4822 051 30103 10k 5% 0.062W
3104 4822 051 30103 10k 5% 0.062W
3105 4822 051 30103 10k 5% 0.062W
3106 4822 051 30101 100Ω 5% 0.062W
3107 4822 051 30331 330Ω 5% 0.062W
3108 4822 051 30101 100Ω 5% 0.062W
3109 4822 051 30101 100Ω 5% 0.062W
3110 4822 051 30008 0Ω jumper
3111 4822 117 12925 47k 1% 0.063W 0603
3112 4822 051 30103 10k 5% 0.062W
3113 4822 051 30479 47Ω 5% 0.062W
3114 4822 051 30472 4k7 5% 0.062W
3115 4822 051 30472 4k7 5% 0.062W
3116 4822 051 30472 4k7 5% 0.062W



6100 9340 548 42115 PDZ2.4B
6101 9340 548 68115 DIO REG SM PDZ24B

6102 4822 130 11397 BAS316
6103 4822 130 11397 BAS316
6104 3198 020 55680 DIO REG SM BZX384-C5V6

6105 3198 020 55680 DIO REG SM BZX384-C5V6
6107 3198 020 55680 DIO REG SM BZX384-C5V6
6108 3198 020 55680 DIO REG SM BZX384-C5V6
6109 3198 020 55680 DIO REG SM BZX384-C5V6
6110 3198 020 55680 DIO REG SM BZX384-C5V6

(PHSE) R

COL R
COL R
COL R
COL R
COL R
COL R



7100 9322 186 03671 IC SM UPD16312GB-3B4
7101 9322 155 82667 IR RECEIVER TSOP2236

(NEC0) Y

MPEG ES4428 PWB

Various

1149 4822 267 10734 B5B-EH-A
1150 2422 025 17682 CON BM V 40P M 2.54

1153 4822 242 81246 27MHz 20P HC49/UT
1202 4822 267 10574 CON BM V 8P 2.50
1203 2422 026 05353 SOC CINCH H 4P F

1300 2422 025 12352



2100 4822 126 13879 220nF 20% 16V
2104 2238 586 59812
2105 2238 586 59812
2106 2238 586 59812
2107 2238 586 59812
2108 2238 586 59812
2109 4822 122 33752 15pF 5% 50V
2110 2238 586 59812
2111 2238 586 59812
2112 2238 586 59812
2113 2238 586 59812
2114 2238 586 59812

440094 B

WHYERDBK Y

2115 2238 586 59812
2116 2238 586 59812
2117 2238 586 59812
2118 2238 586 59812
2119 2238 586 59812
2120 4822 126 13879 220nF 20% 16V
2121 2238 586 59812
2122 2238 586 59812
2123 2238 586 59812
2124 2238 586 59812
2125 2238 586 59812
2126 2238 586 59812
2127 2238 586 59812
2128 2238 586 59812
2129 2238 586 59812
2131 2238 586 59812
2132 2238 586 59812
2133 2238 586 59812
2134 2238 586 59812
2135 2238 586 59812
2136 2238 586 59812
2137 2238 586 59812
2138 2238 586 59812
2139 2238 586 59812
2140 4822 122 33761 22pF 5% 50V
2141 4822 122 33761 22pF 5% 50V
2142 4822 122 33753 150pF 5% 50V
2144 3198 016 31020
2145 4822 122 33752 15pF 5% 50V
2146 4822 122 33752 15pF 5% 50V
2147 4822 122 33752 15pF 5% 50V
2148 4822 122 33752 15pF 5% 50V
2149 4822 122 33752 15pF 5% 50V
2200 4822 124 40196 220µF 20% 16V
2201 4822 126 13879 220nF 20% 16V
2202 4822 124 23052 100µF 20% 16V
2203 4822 126 13879 220nF 20% 16V
2204 4822 126 13879 220nF 20% 16V
2205 4822 124 23052 100µF 20% 16V
2206 4822 126 13879 220nF 20% 16V
2207 4822 124 40196 220µF 20% 16V
2208 4822 124 40196 220µF 20% 16V
2209 4822 124 40196 220µF 20% 16V
2210 4822 126 13879 220nF 20% 16V
2211 4822 124 80231 47µF 20% 16V
2213 2238 586 59812
2214 4822 126 13881 470pF 5% 50V
2216 5322 126 11579 3.3nF 10% 63V
2217 2238 586 59812
2218 4822 124 11947 10µF 20% 16V
2219 4822 124 80231 47µF 20% 16V
2220 4822 124 23052 100µF 20% 16V
2221 2238 586 59812
2222 4822 126 13881 470pF 5% 50V
2223 4822 126 13879 220nF 20% 16V
2226 5322 126 11579 3.3nF 10% 63V
2230 4822 126 13909 680pF 10% 50V
2231 4822 126 13909 680pF 10% 50V
2232 4822 126 13881 470pF 5% 50V
2233 4822 124 23052 100µF 20% 16V
2234 2238 586 59812
2235 4822 126 13881 470pF 5% 50V
2236 4822 126 13883 220pF 5% 50V
2237 4822 122 33752 15pF 5% 50V
2238 4822 122 33752 15pF 5% 50V
2240 2238 586 59812
2241 2238 586 59812
2300 4822 126 13909 680pF 10% 50V
2303 4822 126 13909 680pF 10% 50V
2305 4822 126 14494 22nF 10% 25V 0603
2306 4822 126 13883 220pF 5% 50V
2308 2238 586 59812
2310 4822 126 13883 220pF 5% 50V
2311 4822 126 13883 220pF 5% 50V
2312 4822 126 13883 220pF 5% 50V
2315 2238 586 59812
2316 2238 586 59812
2317 2238 586 59812
2319 2238 586 59812
2320 2238 586 59812
2321 4822 124 11947 10µF 20% 16V
2322 2020 552 94427
2323 2020 552 94427
2324 2238 586 59812
2325 4822 124 11947 10µF 20% 16V
2326 2020 552 94427
2327 2020 552 94427
2328 2238 586 59812
2329 2020 552 94427

Spare Parts List

EN 51DVD634 /0X1 10.

2330 4822 124 11947 10µF 20% 16V
2331 2020 552 94427
2332 2238 586 59812
2333 4822 124 11947 10µF 20% 16V
2334 2020 552 94427
2335 2020 552 94427
2339 4822 124 11947 10µF 20% 16V
2340 2238 586 59812



3100 4822 051 30479 47Ω 5% 0.062W
3101 4822 051 30479 47Ω 5% 0.062W
3102 4822 051 30479 47Ω 5% 0.062W
3103 4822 051 30479 47Ω 5% 0.062W
3104 4822 051 30479 47Ω 5% 0.062W
3105 4822 051 30479 47Ω 5% 0.062W
3106 4822 051 30479 47Ω 5% 0.062W
3107 4822 051 30479 47Ω 5% 0.062W
3108 4822 051 30479 47Ω 5% 0.062W
3109 4822 051 30479 47Ω 5% 0.062W
3110 4822 051 30479 47Ω 5% 0.062W
3111 4822 051 30479 47Ω 5% 0.062W
3112 4822 051 30479 47Ω 5% 0.062W
3113 4822 051 30479 47Ω 5% 0.062W
3114 4822 051 30479 47Ω 5% 0.062W
3115 4822 051 30479 47Ω 5% 0.062W
3116 4822 051 30479 47Ω 5% 0.062W
3117 4822 051 30479 47Ω 5% 0.062W
3118 4822 051 30479 47Ω 5% 0.062W
3119 4822 051 30472 4k7 5% 0.062W
3120 4822 051 30472 4k7 5% 0.062W
3121 4822 051 30479 47Ω 5% 0.062W
3122 4822 051 30479 47Ω 5% 0.062W
3123 4822 051 30479 47Ω 5% 0.062W
3124 4822 051 30479 47Ω 5% 0.062W
3125 4822 051 30479 47Ω 5% 0.062W
3126 4822 051 30479 47Ω 5% 0.062W
3127 4822 051 30479 47Ω 5% 0.062W
3128 4822 051 30472 4k7 5% 0.062W
3131 4822 051 30472 4k7 5% 0.062W
3132 4822 051 30472 4k7 5% 0.062W
3133 4822 051 30472 4k7 5% 0.062W
3136 4822 051 30472 4k7 5% 0.062W
3137 4822 051 30472 4k7 5% 0.062W
3138 4822 051 30472 4k7 5% 0.062W
3139 4822 051 30472 4k7 5% 0.062W
3140 4822 051 30472 4k7 5% 0.062W
3142 4822 051 30472 4k7 5% 0.062W
3144 4822 051 30339 33Ω 5% 0.062W
3145 4822 051 30339 33Ω 5% 0.062W
3146 4822 051 30339 33Ω 5% 0.062W
3147 4822 051 30339 33Ω 5% 0.062W
3148 4822 051 30339 33Ω 5% 0.062W
3149 4822 051 30689 68Ω 5% 0.063W 0603 RC21

3150 4822 051 30105 1M 5% 0.062W
3151 4822 117 12662 10Ω X4 5%
3152 4822 117 12662 10Ω X4 5%
3153 4822 117 12662 10Ω X4 5%
3154 4822 117 13576 NETW 4 X 33Ω 5% 1206
3163 4822 051 30339 33Ω 5% 0.062W
3165 4822 051 30339 33Ω 5% 0.062W
3169 4822 051 30339 33Ω 5% 0.062W
3170 4822 051 30339 33Ω 5% 0.062W
3171 4822 051 30339 33Ω 5% 0.062W
3172 4822 051 30472 4k7 5% 0.062W
3200 4822 051 20008 0Ω jumper . (0805)
3202 4822 051 30151 150Ω 5% 0.062W
3203 4822 051 30008 0Ω jumper
3204 4822 117 12139 22Ω 5% 0.062W
3207 4822 051 30103 10k 5% 0.062W
3208 4822 051 30103 10k 5% 0.062W
3209 4822 051 30183 18k 5% 0.062W
3210 4822 051 30471 470Ω 5% 0.062W
3211 4822 051 30471 470Ω 5% 0.062W
3212 4822 051 30221 220Ω 5% 0.062W
3213 4822 051 30103 10k 5% 0.062W
3214 4822 051 30103 10k 5% 0.062W
3215 4822 051 30183 18k 5% 0.062W
3219 4822 051 30101 100Ω 5% 0.062W
3220 4822 051 30562 5k6 5% 0.063W 0603 RC21

3222 4822 051 30103 10k 5% 0.062W
3223 4822 051 30333 33k 5% 0.062W
3224 4822 051 30562 5k6 5% 0.063W 0603 RC21

3225 4822 051 30562 5k6 5% 0.063W 0603 RC21
3226 4822 051 30479 47Ω 5% 0.062W

3227 4822 051 30479 47Ω 5% 0.062W
3228 4822 051 30479 47Ω 5% 0.062W
3229 4822 051 30472 4k7 5% 0.062W

RST SM

RST SM

RST SM
RST SM

3230 4822 051 30471 470Ω 5% 0.062W
3231 4822 051 30222 2k2 5% 0.062W
3232 4822 051 30221 220Ω 5% 0.062W
3233 4822 051 30684 680k 5% 0.062W
3234 5322 117 13026 4k7 1% 0.063W 0603 RC22H
3235 2322 704 62001
3236 2322 704 65102
3237 2322 704 62001
3238 5322 117 13026 4k7 1% 0.063W 0603 RC22H
3239 2322 704 65102
3240 4822 051 30471 470Ω 5% 0.062W
3241 4822 051 30272 2k7 5% 0.062W
3242 4822 051 30103 10k 5% 0.062W
3243 4822 051 30471 470Ω 5% 0.062W
3244 5322 117 13026 4k7 1% 0.063W 0603 RC22H
3245 2322 704 62001
3246 2322 704 65102
3247 2322 704 62001
3248 5322 117 13026 4k7 1% 0.063W 0603 RC22H
3249 2322 704 65102
3250 4822 051 30272 2k7 5% 0.062W
3251 4822 051 30103 10k 5% 0.062W
3252 4822 051 30102 1k 5% 0.062W
3253 4822 051 30331 330Ω 5% 0.062W
3254 4822 051 30101 100Ω 5% 0.062W
3255 4822 051 30222 2k2 5% 0.062W
3256 4822 051 30689 68Ω 5% 0.063W 0603 RC21

3257 4822 051 30101 100Ω 5% 0.062W
3259 4822 051 30103 10k 5% 0.062W
3261 4822 051 30472 4k7 5% 0.062W
3262 4822 051 30472 4k7 5% 0.062W
3263 4822 051 30472 4k7 5% 0.062W
3264 4822 051 30222 2k2 5% 0.062W
3265 4822 051 30689 68Ω 5% 0.063W 0603 RC21

3266 4822 051 30222 2k2 5% 0.062W
3267 4822 051 30689 68Ω 5% 0.063W 0603 RC21

3268 4822 051 30222 2k2 5% 0.062W
3300 4822 051 30471 470Ω 5% 0.062W
3301 4822 051 30272 2k7 5% 0.062W
3302 4822 051 30103 10k 5% 0.062W
3303 4822 051 30471 470Ω 5% 0.062W
3304 4822 051 30272 2k7 5% 0.062W
3305 4822 051 30221 220Ω 5% 0.062W
3306 4822 051 30103 10k 5% 0.062W
3307 4822 117 12925 47k 1% 0.063W 0603
3308 4822 051 30223 22k 5% 0.062W
3309 4822 051 30102 1k 5% 0.062W
3311 4822 051 30759 75Ω 5% 0.062W
3312 4822 051 30222 2k2 5% 0.062W
3313 4822 051 30689 68Ω 5% 0.063W 0603 RC21

3314 4822 051 30683 68k 5% 0.062W
3315 5322 117 13058 150Ω 1% 0.063W 0603

3317 4822 051 30392 3k9 5% 0.063W 0603
3318 4822 051 30102 1k 5% 0.062W
3319 4822 051 30102 1k 5% 0.062W
3320 4822 051 30471 470Ω 5% 0.062W
3321 4822 051 30101 100Ω 5% 0.062W
3322 4822 117 12925 47k 1% 0.063W 0603
3323 4822 051 30221 220Ω 5% 0.062W
3324 4822 051 30689 68Ω 5% 0.063W 0603 RC21

3325 4822 051 30221 220Ω 5% 0.062W
3326 4822 051 30683 68k 5% 0.062W
3327 4822 051 30471 470Ω 5% 0.062W
3328 5322 117 13058 150Ω 1% 0.063W 0603

3329 4822 117 12925 47k 1% 0.063W 0603
3330 4822 051 30101 100Ω 5% 0.062W
3331 4822 051 30221 220Ω 5% 0.062W
3332 4822 051 30689 68Ω 5% 0.063W 0603 RC21

3333 4822 051 30221 220Ω 5% 0.062W
3334 4822 051 30683 68k 5% 0.062W
3335 4822 051 30471 470Ω 5% 0.062W
3336 4822 051 30101 100Ω 5% 0.062W
3337 5322 117 13058 150Ω 1% 0.063W 0603

3338 4822 117 12925 47k 1% 0.063W 0603
3339 4822 051 30221 220Ω 5% 0.062W
3340 4822 051 30221 220Ω 5% 0.062W
3341 4822 051 30689 68Ω 5% 0.063W 0603 RC21

3342 4822 051 30471 470Ω 5% 0.062W
3343 4822 051 30683 68k 5% 0.062W
3344 4822 051 30101 100Ω 5% 0.062W
3345 5322 117 13058 150Ω 1% 0.063W 0603

3346 4822 117 12925 47k 1% 0.063W 0603
3347 4822 051 30221 220Ω 5% 0.062W

RST SM

RST SM

RST SM

RST SM

RC22H

RST SM

RC22H

RST SM

RC22H

RST SM

RC22H

3348 4822 051 30221 220Ω 5% 0.062W
3349 4822 051 30689 68Ω 5% 0.063W 0603 RC21

3350 4822 051 30101 100Ω 5% 0.062W

RST SM



5100 4822 157 10586 2.2µH 10% 0805
5101 3198 018 52280 FXDIND SM 0603 2U2 PM10

5103 3198 018 53380 FXDIND SM 0603 3U3 PM10
5104 4822 157 10586 2.2µH 10% 0805

5105 4822 051 20008 0R00 JUMP. (0805)
5300 4822 157 70299 2.2µH (NL322522T-2R2J)
5301 3198 018 52280 FXDIND SM 0603 2U2 PM10

5302 4822 157 70299 2.2µH (NL322522T-2R2J)
5303 4822 157 70299 2.2µH (NL322522T-2R2J)
5305 4822 157 70299 2.2µH (NL322522T-2R2J)

COL R
COL R

COL R



6200 4822 130 11397 BAS316
6202 4822 130 11397 BAS316
6300 4822 130 11522 UDZ15B
6301 4822 130 11522 UDZ15B
6302 4822 130 11522 UDZ15B
6303 4822 130 11522 UDZ15B
6304 4822 130 11522 UDZ15B
6305 4822 130 11522 UDZ15B



7101 3141 018 51080
7102 9322 166 67668
7104 5322 209 11517 PC74HCU04T
7200 4822 209 30095 LM833D
7201 9322 177 09685
7202 9352 456 80115 74HCT1G125GW
7206 4822 209 17398 LD1117DT33
7208 4822 209 33411 MC78L05ACD
7220 4822 130 40855 BC337
7221 5322 130 60159 BC846B
7222 5322 130 60159 BC846B
7223 5322 130 60159 BC846B
7224 4822 130 60373 BC856B
7225 5322 130 60159 BC846B
7227 4822 130 42804 BC817-25
7228 4822 130 42804 BC817-25
7229 5322 130 60159 BC846B
7230 3141 018 51120
7231 4822 130 42804 BC817-25
7232 5322 130 60159 BC846B
7301 3141 018 51100
7305 9340 425 30115
7306 9340 425 30115
7307 9340 425 30115
7308 9340 425 30115
7320 4822 130 42804 BC817-25
7321 4822 130 42804 BC817-25
7322 9340 425 30115
7324 5322 130 60159 BC846B
7325 5322 130 60159 BC846B
7326 5322 130 60159 BC846B
7327 5322 130 60159 BC846B

MPEG ES 6018 PWB

Various

1149 4822 267 10734 B5B-EH-A
1150 2422 025 17682 CON BM V 40P M 2.54

1152 4822 242 81246 27MHz 20P HC49/UT
1202 4822 267 10574 CON BM V 8P 2.50
1203 2422 026 05353 SOC CINCH H 4P F

1300 2422 025 12352 CON BM EURO H 21P F BK



2100 4822 126 13879 220nF 20% 16V
2101 4822 122 33761 22pF 5% 50V
2102 4822 122 33761 22pF 5% 50V
2104 2238 586 59812 0603 50V 100NP80M
2105 2238 586 59812 0603 50V 100NP80M
2106 2238 586 59812 0603 50V 100NP80M
2107 2238 586 59812 0603 50V 100NP80M

440094 B

WHYERDBK Y
GRND-L

EN 52 DVD634 /0X110.

Spare Parts List

2108 2238 586 59812 0603 50V 100NP80M
2109 4822 122 33752 15pF 5% 50V
2110 2238 586 59812 0603 50V 100NP80M
2111 2238 586 59812 0603 50V 100NP80M
2112 2238 586 59812 0603 50V 100NP80M
2113 2238 586 59812 0603 50V 100NP80M
2114 2238 586 59812 0603 50V 100NP80M
2115 2238 586 59812 0603 50V 100NP80M
2116 2238 586 59812 0603 50V 100NP80M
2117 2238 586 59812 0603 50V 100NP80M
2118 2238 586 59812 0603 50V 100NP80M
2119 2238 586 59812 0603 50V 100NP80M
2120 4822 126 13879 220nF 20% 16V
2121 2238 586 59812 0603 50V 100NP80M
2122 2238 586 59812 0603 50V 100NP80M
2123 2238 586 59812 0603 50V 100NP80M
2124 2238 586 59812 0603 50V 100NP80M
2125 2238 586 59812 0603 50V 100NP80M
2126 2238 586 59812 0603 50V 100NP80M
2127 2238 586 59812 0603 50V 100NP80M
2128 2238 586 59812 0603 50V 100NP80M
2129 2238 586 59812 0603 50V 100NP80M
2131 2238 586 59812 0603 50V 100NP80M
2132 2238 586 59812 0603 50V 100NP80M
2133 2238 586 59812 0603 50V 100NP80M
2134 2238 586 59812 0603 50V 100NP80M
2135 2238 586 59812 0603 50V 100NP80M
2136 2238 586 59812 0603 50V 100NP80M
2137 2238 586 59812 0603 50V 100NP80M
2139 2238 586 59812 0603 50V 100NP80M
2143 3198 016 31020 0603 25V 1nF
2200 4822 124 40196 220µF 20% 16V
2201 4822 126 13879 220nF 20% 16V
2202 4822 124 23052 100µF 20% 16V
2203 4822 126 13879 220nF 20% 16V
2204 4822 126 13879 220nF 20% 16V
2205 4822 124 23052 100µF 20% 16V
2206 4822 126 13879 220nF 20% 16V
2207 4822 124 40196 220µF 20% 16V
2208 4822 124 40196 220µF 20% 16V
2209 4822 124 40196 220µF 20% 16V
2210 4822 126 13879 220nF 20% 16V
2211 4822 124 80231 47µF 20% 16V
2213 2238 586 59812 0603 50V 100NP80M
2214 4822 126 13881 470pF 5% 50V
2216 5322 126 11579 3.3nF 10% 63V
2217 2238 586 59812 0603 50V 100NP80M
2218 4822 124 11947 10µF 20% 16V
2219 4822 124 80231 47µF 20% 16V
2220 4822 124 23052 100µF 20% 16V
2221 2238 586 59812 0603 50V 100NP80M
2222 4822 126 13881 470pF 5% 50V
2223 4822 126 13879 220nF 20% 16V
2226 5322 126 11579 3.3nF 10% 63V
2230 4822 126 13909 680pF 10% 50V
2231 4822 126 13909 680pF 10% 50V
2232 4822 126 13881 470pF 5% 50V
2233 4822 124 23052 100µF 20% 16V
2234 2238 586 59812 0603 50V 100NP80M
2235 4822 126 13881 470pF 5% 50V
2236 4822 126 13883 220pF 5% 50V
2237 4822 122 33752 15pF 5% 50V
2238 4822 122 33752 15pF 5% 50V
2239 2238 586 59812 0603 50V 100NP80M
2240 2238 586 59812 0603 50V 100NP80M
2241 2238 586 59812 0603 50V 100NP80M
2300 4822 126 13909 680pF 10% 50V
2301 2238 586 59812 0603 50V 100NP80M
2303 4822 126 13909 680pF 10% 50V
2305 4822 126 14494 22nF 10% 25V 0603
2306 4822 126 13883 220pF 5% 50V
2308 2238 586 59812 0603 50V 100NP80M
2310 4822 126 13883 220pF 5% 50V
2311 4822 126 13883 220pF 5% 50V
2312 4822 126 13883 220pF 5% 50V
2313 2238 586 59812 0603 50V 100NP80M
2314 2238 586 59812 0603 50V 100NP80M
2321 4822 124 11947 10µF 20% 16V
2322 2020 552 94427 0603 50V 100P 5%
2323 4822 126 14315 390pF 5% 50V 0603
2325 4822 124 11947 10µF 20% 16V
2326 4822 126 14315 390pF 5% 50V 0603
2327 2020 552 94427 0603 50V 100P 5%
2329 4822 126 14315 390pF 5% 50V 0603
2330 4822 124 11947 10µF 20% 16V
2331 2020 552 94427 0603 50V 100P 5%
2333 4822 124 11947 10µF 20% 16V
2334 2020 552 94427 0603 50V 100P 5%
2335 4822 126 14315 390pF 5% 50V 0603
2336 4822 124 80791 470µF 16V 20% 105C

2337 4822 124 80791 470µF 16V 20% 105C

DXH=8X11.5
DXH=8X11.5

2338 4822 124 80791 470µF 16V 20% 105C
2340 2238 586 59812 0603 50V 100NP80M

2344 2238 586 59812 0603 50V 100NP80M
2345 2238 586 59812 0603 50V 100NP80M

DXH=8X11.5



3100 4822 051 30479 47Ω 5% 0.062W
3101 4822 051 30479 47Ω 5% 0.062W
3102 4822 051 30479 47Ω 5% 0.062W
3103 4822 051 30479 47Ω 5% 0.062W
3104 4822 051 30479 47Ω 5% 0.062W
3105 4822 051 30479 47Ω 5% 0.062W
3106 4822 051 30479 47Ω 5% 0.062W
3107 4822 051 30479 47Ω 5% 0.062W
3108 4822 051 30479 47Ω 5% 0.062W
3109 4822 051 30479 47Ω 5% 0.062W
3110 4822 051 30479 47Ω 5% 0.062W
3111 4822 051 30479 47Ω 5% 0.062W
3112 4822 051 30479 47Ω 5% 0.062W
3113 4822 051 30479 47Ω 5% 0.062W
3114 4822 051 30479 47Ω 5% 0.062W
3115 4822 051 30479 47Ω 5% 0.062W
3116 4822 051 30479 47Ω 5% 0.062W
3117 4822 051 30479 47Ω 5% 0.062W
3118 4822 051 30479 47Ω 5% 0.062W
3119 4822 051 30472 4k7 5% 0.062W
3120 4822 051 30472 4k7 5% 0.062W
3121 4822 051 30479 47Ω 5% 0.062W
3122 4822 051 30479 47Ω 5% 0.062W
3123 4822 051 30479 47Ω 5% 0.062W
3124 4822 051 30479 47Ω 5% 0.062W
3125 4822 051 30479 47Ω 5% 0.062W
3126 4822 051 30479 47Ω 5% 0.062W
3127 4822 051 30479 47Ω 5% 0.062W
3128 4822 051 30333 33k 5% 0.062W
3129 4822 051 30689 68Ω 5% 0.063W 0603 RC21

3131 4822 051 30472 4k7 5% 0.062W
3132 4822 051 30472 4k7 5% 0.062W
3133 4822 051 30472 4k7 5% 0.062W
3136 4822 051 30472 4k7 5% 0.062W
3137 4822 051 30472 4k7 5% 0.062W
3138 4822 051 30472 4k7 5% 0.062W
3139 4822 051 30472 4k7 5% 0.062W
3140 4822 051 30472 4k7 5% 0.062W
3141 4822 051 30105 1M 5% 0.062W
3142 4822 051 30472 4k7 5% 0.062W
3144 4822 051 30008 0Ω jumper
3149 4822 051 30689 68Ω 5% 0.063W 0603 RC21

3151 4822 117 12662 10Ω X4 5%
3152 4822 117 12662 10Ω X4 5%
3153 4822 117 12662 10Ω X4 5%
3154 4822 117 13576 NETW 4 X 33Ω 5% 1206
3163 4822 051 30339 33Ω 5% 0.062W
3165 4822 051 30339 33Ω 5% 0.062W
3169 4822 051 30339 33Ω 5% 0.062W
3170 4822 051 30339 33Ω 5% 0.062W
3171 4822 051 30339 33Ω 5% 0.062W
3172 4822 051 30472 4k7 5% 0.062W
3175 4822 051 30472 4k7 5% 0.062W
3176 4822 051 30472 4k7 5% 0.062W
3177 4822 051 30221 220Ω 5% 0.062W
3200 4822 051 20008 0Ω jumper . (0805)
3202 4822 117 12139 22Ω 5% 0.062W
3203 4822 051 30008 0Ω jumper
3204 4822 117 12139 22Ω 5% 0.062W
3207 4822 051 30103 10k 5% 0.062W
3208 4822 051 30103 10k 5% 0.062W
3209 4822 051 30183 18k 5% 0.062W
3210 4822 051 30471 470Ω 5% 0.062W
3211 4822 051 30471 470Ω 5% 0.062W
3212 4822 051 30221 220Ω 5% 0.062W
3213 4822 051 30103 10k 5% 0.062W
3214 4822 051 30103 10k 5% 0.062W
3215 4822 051 30183 18k 5% 0.062W
3219 4822 051 30101 100Ω 5% 0.062W
3220 4822 051 30562 5k6 5% 0.063W 0603 RC21

3222 4822 051 30103 10k 5% 0.062W
3223 4822 051 30333 33k 5% 0.062W
3224 4822 051 30562 5k6 5% 0.063W 0603 RC21

3225 4822 051 30562 5k6 5% 0.063W 0603 RC21
3226 4822 051 30479 47Ω 5% 0.062W

3227 4822 051 30479 47Ω 5% 0.062W
3228 4822 051 30479 47Ω 5% 0.062W
3229 4822 051 30472 4k7 5% 0.062W
3230 4822 051 30471 470Ω 5% 0.062W
3231 4822 051 30222 2k2 5% 0.062W

RST SM

RST SM

RST SM

RST SM
RST SM

3232 4822 051 30221 220Ω 5% 0.062W
3233 4822 051 30684 680k 5% 0.062W
3234 5322 117 13026 4k7 1% 0.063W 0603 RC22H
3235 2322 704 62001 RST SM 0603 RC22H 200Ω

3236 2322 704 65102 RST SM 0603 RC22H 5k1
3237 2322 704 62001 RST SM 0603 RC22H 200Ω
3238 5322 117 13026 4k7 1% 0.063W 0603 RC22H

3239 2322 704 65102 RST SM 0603 RC22H 5k1
3240 4822 051 30471 470Ω 5% 0.062W

3241 4822 051 30272 2k7 5% 0.062W
3242 4822 051 30103 10k 5% 0.062W
3243 4822 051 30471 470Ω 5% 0.062W
3244 5322 117 13026 4k7 1% 0.063W 0603 RC22H
3245 2322 704 62001 RST SM 0603 RC22H 200Ω

3246 2322 704 65102 RST SM 0603 RC22H 5k1
3247 2322 704 62001 RST SM 0603 RC22H 200Ω
3248 5322 117 13026 4k7 1% 0.063W 0603 RC22H

3249 2322 704 65102 RST SM 0603 RC22H 5k1
3250 4822 051 30272 2k7 5% 0.062W

3251 4822 051 30103 10k 5% 0.062W
3252 4822 051 30102 1k 5% 0.062W
3253 4822 051 30331 330Ω 5% 0.062W
3254 4822 051 30101 100Ω 5% 0.062W
3255 4822 051 30222 2k2 5% 0.062W
3256 4822 051 30689 68Ω 5% 0.063W 0603 RC21

3257 4822 051 30101 100Ω 5% 0.062W
3259 4822 051 30103 10k 5% 0.062W
3260 4822 051 30479 47Ω 5% 0.062W
3261 4822 051 30472 4k7 5% 0.062W
3262 4822 051 30472 4k7 5% 0.062W
3263 4822 051 30472 4k7 5% 0.062W
3264 4822 051 30222 2k2 5% 0.062W
3266 4822 051 30222 2k2 5% 0.062W
3267 4822 051 30689 68Ω 5% 0.063W 0603 RC21

3268 4822 051 30222 2k2 5% 0.062W
3270 4822 051 30272 2k7 5% 0.062W
3300 4822 051 30471 470Ω 5% 0.062W
3301 4822 051 30272 2k7 5% 0.062W
3302 4822 051 30103 10k 5% 0.062W
3303 4822 051 30471 470Ω 5% 0.062W
3304 4822 051 30272 2k7 5% 0.062W
3305 4822 051 30221 220Ω 5% 0.062W
3306 4822 051 30103 10k 5% 0.062W
3307 4822 117 12925 47k 1% 0.063W 0603
3308 4822 051 30223 22k 5% 0.062W
3309 4822 051 30102 1k 5% 0.062W
3311 4822 051 30759 75Ω 5% 0.062W
3312 4822 051 30222 2k2 5% 0.062W
3313 4822 051 30689 68Ω 5% 0.063W 0603 RC21

3314 4822 051 30103 10k 5% 0.062W
3315 4822 117 13501 82Ω 5% 0.62W 0603
3316 4822 051 30271 270Ω 5% 0.062W
3322 4822 051 30103 10k 5% 0.062W
3326 4822 051 30103 10k 5% 0.062W
3328 4822 117 13501 82Ω 5% 0.62W 0603
3329 4822 051 30103 10k 5% 0.062W
3334 4822 051 30103 10k 5% 0.062W
3337 4822 117 13501 82Ω 5% 0.62W 0603
3338 4822 051 30103 10k 5% 0.062W
3343 4822 051 30103 10k 5% 0.062W
3345 4822 117 13501 82Ω 5% 0.62W 0603
3346 4822 051 30103 10k 5% 0.062W
3350 4822 051 30101 100Ω 5% 0.062W
3355 4822 051 30689 68Ω 5% 0.063W 0603 RC21

3356 4822 051 30689 68Ω 5% 0.063W 0603 RC21
3357 4822 051 30689 68Ω 5% 0.063W 0603 RC21
3358 4822 051 30689 68Ω 5% 0.063W 0603 RC21

PM1 R
PM1
PM1 R

PM1

PM1 R
PM1
PM1 R

PM1

RST SM

RST SM

RST SM

RST SM
RST SM
RST SM
RST SM



5100 4822 157 10586 2.2µH 10% 0805
5101 3198 018 52280 FXDIND SM 0603 2U2 PM10

5102 3198 018 53380 FXDIND SM 0603 3U3 PM10
5104 4822 157 10586 2.2µH 10% 0805

5105 4822 051 20008 0R00 JUMP. (0805)
5300 4822 157 70299 2.2µH (NL322522T-2R2J)

COL R
COL R

5302 4822 157 70299 2.2µH (NL322522T-2R2J)
5303 4822 157 70299 2.2µH (NL322522T-2R2J)
5305 4822 157 70299 2.2µH (NL322522T-2R2J)



6200 4822 130 11397 BAS316
6202 4822 130 11397 BAS316
6300 4822 130 11522 UDZ15B
6301 4822 130 11522 UDZ15B
6302 4822 130 11522 UDZ15B
6303 4822 130 11522 UDZ15B
6304 4822 130 11522 UDZ15B
6305 4822 130 11522 UDZ15B
6306 4822 130 83206 BZX79-B5V6



7100 9965 000 15979 M29W400BT/DVD640/
7101 9322 185 42671 IC SM ES6018F (ESST) Y

7102 9322 166 67668 IC SM MT48LC4M16A2TG­7200 4822 209 30095 LM833D

7201 9322 177 09685 IC SM AK4382AVT (AKM0)
7202 9352 456 80115 74HCT1G125GW

7206 4822 209 17398 LD1117DT33
7208 4822 209 33411 MC78L05ACD
7220 4822 130 40855 BC337
7221 5322 130 60159 BC846B
7222 5322 130 60159 BC846B
7223 5322 130 60159 BC846B
7224 4822 130 60373 BC856B
7225 5322 130 60159 BC846B
7227 4822 130 42804 BC817-25
7228 4822 130 42804 BC817-25
7229 5322 130 60159 BC846B
7231 4822 130 42804 BC817-25
7232 5322 130 60159 BC846B
7233 9322 189 96685 IC SM M62720GP (MITJ) R
7234 4822 130 60373 BC856B
7320 4822 130 42804 BC817-25
7321 4822 130 42804 BC817-25
7322 9340 425 30115 TRA SIG SM BC847BPN

7324 5322 130 60159 BC846B
7325 5322 130 60159 BC846B
7326 5322 130 60159 BC846B
7327 5322 130 60159 BC846B

634_V322_0909

7E(MRN0)R

R

(PHSE) R

Spare Parts List

EN 53DVD634 /0X1 10.

EN 54 DVD634 /0X111.

11. Errata

11.1 Revision List

11.1.1 Manual 3122 785 12251

During production, the ES6018 Mpeg board (3139 248

82364) was introduced from production code VN02
onwards.

• In this service manual the circuit diagrams, print layout,
block diagram and the belonging parts list are added.

During production, the print layout of the Front Panel has
been changed to solve Electro-Static Discharge (ESD)
problem.

• This new print layout is introduced as a running change
from wk245 onward. In this service manual the new circuit
diagrams,

• print layout and the belonging parts list are added

Errata
