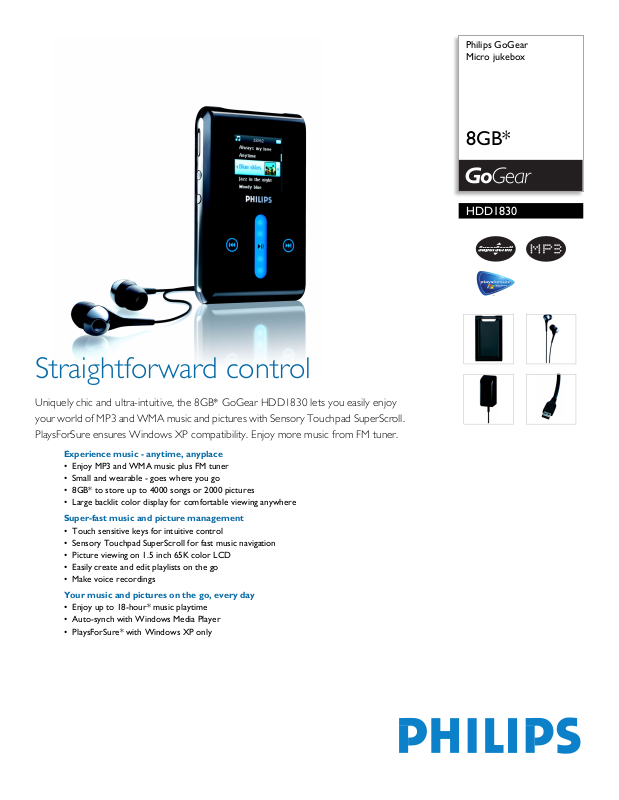

Page 1
For preview purpose only
Philips GoGear
Micro jukebox
8GB*
HDD1830
Straightforward control
Uniquely chic and ultra-intuitive, the 8GB* GoGear HDD1830 lets you easily enjoy
your world of MP3 and WMA music and pictures with Sensory Touchpad SuperScroll.
PlaysForSure ensures Windows XP compatibility. Enjoy more music from FM tuner.
Experience music - anytime, anyplace
• Enjoy MP3 and WMA music plus FM tuner
• Small and wearable - goes where you go
• 8GB* to store up to 4000 songs or 2000 pictures
• Large backlit color display for comfortable viewing anywhere
Super-fast music and picture management
• Touch sensitive keys for intuitive control
• Sensory Touchpad SuperScroll for fast music navigation
• Picture viewing on 1.5 inch 65K color LCD
• Easily create and edit playlists on the go
• Make voice recordings
Your music and pictures on the go, every day
• Enjoy up to 18-hour* music playtime
• Auto-synch with Windows Media Player
• PlaysForSure* with Windows XP only
Page 2
Micro jukebox
8GB*
Technical specifications
For preview purpose only
HDD1830/17
Picture/Display
• Type: CSTN-Transmissive
• Diagonal screen size (inch): 1.5 inch
• Resolution: 128 x 128 pixels, 65K color
• Lines of text: 7
• Backlight color: White
Sound
• Equalizer: 5-bands
• Equalizer settings: Classic, Jazz, Hip Hop,
Spoken word, Rock, Pop, RnB, Dance,
Electronica, Lounge
• Frequency response: 20 - 16 000 Hz
• THD: 0.1%
• Signal to noise ratio: >82 dB
• Output Power: 2x5mW (16 Ohm)
• Sensitivity: < 100dB
• Equalizer customizable
• Bass enhancement: SRS WOW
Audio Playback
• Compression format: MP3, Windows
Media™ Audio, WAV
• MP3 bit rates: 8-320 kbps and VBR
• WMA bit rates: 32-192 kbps
• WMA sample rates:
8,11.025,16,22.050,32,44.1,48
• Buffer memory: 32 MB
• ID3 Tag support: Album title and artist
name, Gen re tit le, Tr ack ti tle an d artist nam e
Audio Capturing
• Voice recording
• Built-in microphone: mono
• Audio file format: WAV
Accessories
• AC/DC Adaptor/Charger: Multi-voltage
(AY4109)
• USB cable: combined with AC/ DC adaptor
in Y cable
• Headphones: SHE9500BI/00
• Pouch: Protective rubber pouch (AY4237)
• CD-ROM: with installer, PC software,
manuals
• User Guide on CD-ROM: EN, FR, ES, NL,
DE, PO, SV, IT, SU, DA, CS, RU, HU, EL, PL,
SL
Green Specifications
• Lead-free soldered product
System Requirements
• PC OS: Windows XP (SP1 or above)
• Processor: Pentium II or better
• Hard disk space: 100 MB
• RAM memory: 64 MB
•CD-ROM drive
• Sound card
•Video card
Dimensions
• Master carton quantity: 3
• Packaging dimensions (WxHxD):
153 x 95 x 153 mm
• Product dimension (WxDxH) inch: 2.11 x
3.39 x 0.64 inch
• Packaging type: Clamshell
• Master carton dimensions:
165x305x165mm
• Product weight: 0.087 kg
Tuner/Reception/Transmission
• Frequency range: 87.5 - 108 MHz MHz
• Station presets: 20
• Tuner Bands: FM Stereo
•
Storage Media
• Built-in memory type: Hard disk
• Hard Disk Capacity: 8* GB
• Music memory capacity: Up to 4000 songs*
Connectivity
• DC in: 5V
• Headphone: 3.5 mm
• USB: USB 2.0
• Connector: Philips dock connector
Convenience
• Battery charging indication
• Battery full indication
• Battery low indication
• Function: Keypad lock
• Language support:
Eng,Fr,Spa,Dutch,Ge,Port,Swe, It, Ch smpl,
Ch trad, Jap, Korean
•Superscroll
Date of issue 2006-09-18
Version: 2.0
12 NC: 9073 101 02701
UPC: 6 09585 11353 4
Power
• Battery capacity: 610 mAh
• Battery Type: Li-ion
• Charging time: 1 hour fast charge (70%), 4
hrs full charge hr
• Rechargeable
• Playtime on internal battery: up to 17 hours*
Still Picture Playback
• Picture compression format: JPEG
• Slide show
Software
• Windows Media Player 10
•Device manager
• PlaysForSure: Audio Download, Audio
Subscription
Audio Recording
• FM recording
• Recording formats: PCM
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2006 Koninklijke Philips Electronics N.V.
All Rights reserved.
www.philips.com
Page 3
Micro jukebox
8GB*
For preview purpose only
HDD1830/17
Product highlights
Sensory Touchpad SuperScroll
Navigate through hundreds of songs easily and smoothly
- or one at a time - in just a few seconds. The scroll key
senses your finger movements on the touchpad and will
adju st the spe ed to y our navig ation thr ough t he menus o r
tracks accordingly. An enlarged alphabetical letter helps
you keep track of your position in the menu while scrolling
for songs and artists so you know exactly when to release
your finger from the touchpad.
PlaysForSure*
Enjoying your GoGear device is simple with PlaysForSure
which ensures compatibility with Windows Media Player
10 and Windows XP. Using Windows Media player you
can easily manage music on your GoGear digital audio
player and auto-synchronize your PC music collection.
Also, enjoy the widest online shopping selection by simply
looking for the PlaysForSure logo at your choice of online
store. Then rest assured knowing any music you purchase
there will work with your GoGear player.
* 1GB = 1 billion bytes; available storage capacity will be less.
* Rechargeable batteries have a limited number of charge cycles and
may eventually need to be replaced. Battery life and number of
charge cycles vary by use and settings.
* Storage capacity based on 5 Mpixel pictures.
* The PlaysForSure, Windows Media and the Windows logo are
trademarks, or registered trademarks of Microsoft Corporation in
the United States and/or other countries.
* Actual transfer speed may vary based on your operating system and
software configuration.
* Storage capacity based on 4 minutes per song and 64 kbps WMA
encoding.
