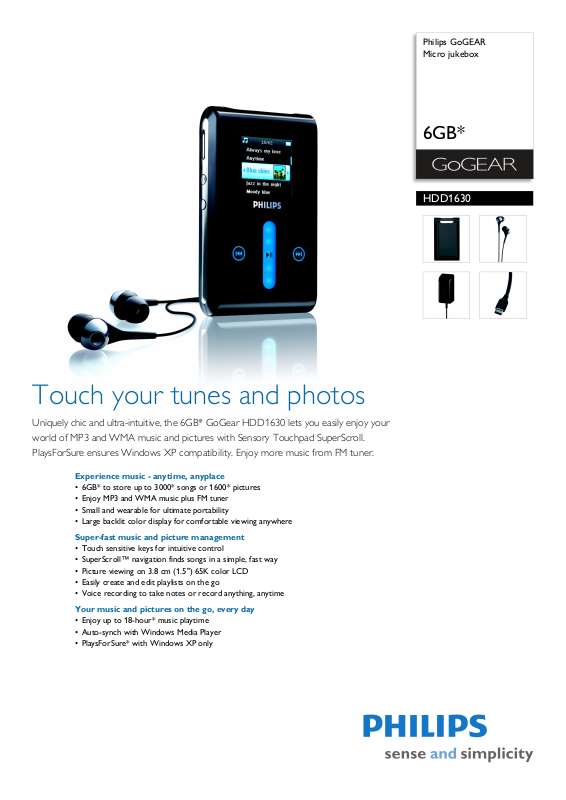

Page 1
Philips GoGEAR
Micro jukebox
6GB*
HDD1630
Touch your tunes and photos
Uniquely chic and ultra-intuitive, the 6GB* GoGear HDD1630 lets you easily enjoy your
world of MP3 and WMA music and pictures with Sensory Touchpad SuperScroll.
PlaysForSure ensures Windows XP compatibility. Enjoy more music from FM tuner.
Experience music - anytime, anyplace
• 6GB* to store up to 3000* songs or 1600* pictures
• Enjoy MP3 and WMA music plus FM tuner
• Small and wearable for ultimate portability
• Large backlit color display for comfortable viewing anywhere
Super-fast music and picture management
• Touch sensitive keys for intuitive control
• SuperScroll™ navigation finds songs in a simple, fast way
• Picture viewing on 3.8 cm (1.5") 65K color LCD
• Easily create and edit playlists on the go
• Voice recording to take notes or record anything, anytime
Your music and pictures on the go, every day
• Enjoy up to 18-hour* music playtime
• Auto-synch with Windows Media Player
• PlaysForSure* with Windows XP only
Page 2
Micro jukebox
6GB*
HDD1630/17
Specifications
Picture/Display
• Type: CSTN-Transmissive
• Diagonal screen size (inch): 1.5 inch
• Resolution: 128 x 128 pixels, 65K color
•Lines of text: 7
• Backlight color: White
Sound
• Equalizer: 5-bands
• Equalizer settings: Classic, Jazz, Hip Hop, Spoken
rd, Rock, Pop, RnB, Dance, Electronica, Lounge
wo
• Frequency response: 20 - 16 000 Hz
•THD: 0.1%
• Signal to noise ratio: >82 dB
• Output Power: 2x5mW (16 Ohm)
• Sensitivity: < 100dB
• Equalizer customizable
• Bass enhancement: SRS WOW
Audio Playback
• Compression format: MP3, Windows Media™
Audio, WAV
• MP3 bit rates: 8-320 kbps and VBR
• WMA bit rates: 32-192 kbps
• WMA sample rates: 8,11.025
• Buffer memory: 32 MB
• ID3 Tag support: Album title and artist name,
enre title, Track title and artist name
G
Audio Capturing
• Voice recording
• Built-in microphone: mono
• Audio file format: WAV
Storage Media
• Built-in memory type: Hard disk
• Hard Disk Capacity: 6* GB
• Music memory capacity: Up to 3000 songs*
Connectivity
• DC in: 5V
• Headphone: 3.5 mm
• USB: USB 2.0
• Connector: Philips dock connector
Convenience
• Battery charging indication
• Battery full indication
• Battery low indication
• Function: Keypad lock
• Language support: Eng,Fr,Spa,Dutch,Ge,Port,Swe,
t, Ch smpl, Ch trad, Jap, Korean
I
•Superscroll
Accessories
• AC/DC Adaptor/Charger: Multi-voltage (AY4109)
,16,22.050,32,44.1,48
• USB cable: combined with AC/ DC adaptor in Y
ble
ca
• Headphones: SHE9500BI/00
• Pouch: Protective rubber pouch (AY4237)
• CD-ROM: with installer, PC softw
• User Guide on CD-ROM: EN, FR, ES, NL, DE, PO,
, IT, SU, DA, CS, RU, HU, EL, PL, SL
SV
are, manuals
Green Specifications
• Lead-free soldered product
System Requirements
• PC OS: Windows XP (SP1 or above)
• Processor: Pentium II or better
• Hard disk space: 100 MB
•RAM memory: 64 MB
•CD-ROM drive
•Sound card
•Video card
Dimensions
• Master carton quantity: 3
• Packaging dimensions (W x H x D):
3 x 95 x 153 mm
15
• Product dimension (WxDxH) inch: 2.11 x 3.39 x
inch
0.64
• Packaging type: Clamshell
• Master carton dimensions: 165 x 305 x 165 mm
• Product weight: 0.087 kg
Power
• Battery capacity: 610 mAh
•Battery Type: Li-ion
• Charging time: 1 hour fast charge (70%), 4 hrs full
arge hr
ch
• Rechargeable
• Playtime on internal battery: up to 17 hours*
Still Picture Playback
• Picture Compression Format: JPEG
•Slide show
Software
• Windows Media Player 10
• Device manager
• PlaysForSure: Audio Download, Audio
cription
Subs
Audio Recording
• FM recording
• Recording formats: PCM
Tuner/Reception/Transmission
• Frequency range: 87.5 - 108 MHz MHz
• Station presets: 20
• Tuner Bands: FM Stereo
•
Highlights
SuperScroll™ navigation
Double action search keys allow easy speed control
when scrolling through large libraries. You can
choose to move through your playlist one song at a
time or just press and hold down a little harder to
SuperScroll™ swiftly to your desired track.
PlaysForSure*
Enjoying your GoGear device is simple with
PlaysForSure which ensures compatibility with
Windows Media Player 10 and Windows XP. Using
Windows Media player you can easily manage music
on your GoGear digital audio player and autosynchronize your PC music collection. Also, enjoy
the widest online shopping selection by simply
looking for the PlaysForSure logo at your choice of
online store. Then rest assured knowing any music
you purchase there will work with your GoGear
player.
Issue date 2013-02-06
Version: 3.0.5
12 NC: 9073 101 02185
© 2013 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
* 1GB = 1 billion bytes; available storage capacity will be less.
* Rechargeable batteries have a limited number of charge cycles and
ay eventually need to be replaced. Battery life and number of
m
charge cycles vary by use and settings.
* Storage capacity based on 4 minutes per song and 64 kbps WMA or
128 kbps MP3 encoding
* Storage capacity based on 5 Mpixel pictures.
* The PlaysForSure, Windows Media and the Windows logo are
trademarks, or registered trademarks of Microsoft Corporation in
the United States and/or other countries.
* Actual transfer speed may vary based on your operating system and
software configuration.
* This feature requires an additional accessory which is sold
separately.
.
