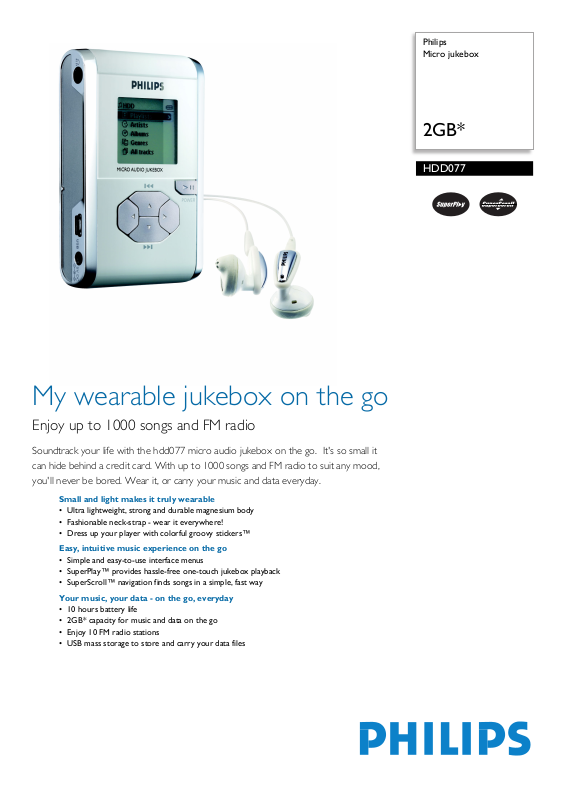

Philips
Micro jukebox
2GB*
HDD077
My wearable jukebox on the go
Enjoy up to 1000 songs and FM radio
Soundtrack your life with the hdd077 micro audio jukebox on the go. It's so small it
can hide behind a credit card. With up to 1000 songs and FM radio to suit any mood,
you'll never be bored. Wear it, or carry your music and data everyday.
Small and light makes it truly wearable
• Ultra lightweight, strong and durable magnesium body
• Fashionable neck-strap - wear it everywhere!
• Dress up your player with colorful groovy stickers™
Easy, intuitive music experience on the go
• Simple and easy-to-use interface menus
• SuperPlay™ provides hassle-free one-touch jukebox playback
• SuperScroll™ navigation finds songs in a simple, fast way
Your music, your data - on the go, everyday
• 10 hours battery life
• 2GB* capacity for music and data on the go
• Enjoy 10 FM radio stations
• USB mass storage to store and carry your data files
Page 2
For preview purpose only
Micro jukebox
2GB*
Technical specifications Product highlights
Picture/Display
• Backlight
• Backlight color: White
• Indications: Battery status, DBB
• Lines of text: 5
• Resolution: 128 x 96
• Type: LCD
Sound
• Bass enhancement: Digital Bass Boost
• Equalizer: 5-bands
• Equalizer customizable
• Equalizer settings: Classic, Jazz, Pop, Rock
• Frequency response: 20 - 20 000
• Output Power: 2x5mW (16 Ohm)
• Sensitivity: < 100dB
• THD: 0.01-0.1%
• Volume Control: digital, Volume Control up/
down
Audio Playback
• Buffer memory: 32
• Compression format: MP3, Windows Media™
Audio
• ID3 Tag support: Album indication, Album title
and artist name, Genre title, Track title and artist
name
• ID3-tag support
• MP3 bit rates: 8-320 kbps and VBR
• WMA bit rates: 32-192 kbps
• WMA sample rates:
8,11.025,16,22.050,32,44.1,48
Audio Capturing
• Audio file format: MP3
Storage Media
• Built-in memory type: Hard disk
• Hard Disk Capacity: 2
• Mass storage class compliant
• Music memory capacity: Up to 1,000 songs
Tuner/Reception/Transmission
• Frequency range: 87.5 - 108
• Station presets: 10
• Tuner Bands: FM Stereo
Connectivity
• Computer support: PC
• Connector: 3.5 mm stereo
• DC in: 5V
• Front / Side connections: DC-in, Headphone
out, USB type B port
• Headphone: 3.5 mm
• Internet connection options: Upgradeable
• USB: USB 1.1
Convenience
• Backlight: White superbright LED
• Battery charging indication
• Battery full indication
• Battery low indication
• Comfort: Album title and artist name
• Function: Keypad lock
• Headphone jack
• Language support:
Eng,Fr,Spa,NL,Ge,Port,Swe+more
• Lines of text: 5
• Superscroll
•Volume control
Accessories
• AC/DC Adaptor/Charger: Multi-voltage AY3192
• CD-ROM: with installer, PC SW, manuals
• Headphones: SBC HE570/77T
• Included Accessories: CD-ROM with software +
manual, Hi-quality in-ear headphones, Multi
voltage adapter/charger
•Printed User Guide
• USB cable: AY3911
• User Guide on CD-ROM:
Eng,Fr,Spa,NL,Ge,Port,Swe
• Warranty Card
Software
• DMM: for PC
Green Specifications
• Lead-free soldered product
System Requirements
•CD-ROM drive
• Hard disk space: 100 MB
• PC OS: Windows 98, 2000, ME, XP
• Processor: Pentium II or better
• RAM memory: 64 MB
•Sound card
•Video card
Dimensions
• Blister dimensions (WxDxH): 7.9 x 11.8 x 3.0
inches
• Box dimensions (W x H x D): 0x0x0
• Outer carton dimensions WxDxH: 13.4 x 10 x
10.3
• Master carton dimensions: 0x0x0
• Master carton quantity: 3
• Product dimensions (W x H x D):
54.3 x 84.5 x 18.3
• Product weight: 0.093
Power
• Adaptor type: 100 - 240 V
• Battery capacity: 750 mAh
• Battery Type: Li-ion
• Charging time: 4 hrs full, 2 hrs fast charge
• Rechargeable
• Removable/ replaceable
•
HDD077/17
Magnesium body
Fashionable neck-strap
Colorful groovy stickers
Easy-to-use interface menus
SuperPlay™
SuperPlay™ lets you start enjoying your music quickly
without the hassle of first selecting playlists or individual
tracks. You can listen to all the music under top-level
music library categories, such as Artists or Albums, by
simply highlighting the category and pressing the Play
bu tt on. Th e j ukeb ox plays al l the m us ic ac co rding to the
category sort order. You can also combine SuperPlay™
with Shuffle and Repeat to further enhance your music
enjoyment.
SuperScroll™ navigation
Double action search keys allow easy speed control
when scrolling through large libraries. You can choose
to move through your playlist one song at a time or just
press and hold down a little harder to SuperScroll™
swiftly to your desired track.
10 hrs battery life
2GB* capacity
Enjoy 10 FM radio stations
USB mass storage device
USB mass storage devices offer a convenient way to
save, backup and move your files around. The devices
connect to your computer using a USB connection and
do not re quire any special soft ware to be installed (o nl y
Windows 98 and Me need drivers). The device
automatically shows up as a removable drive in
Wi ndow s Exp lorer all owing you t o sim ply d rag a nd dr op
files to and from the device.
Date of issue 2006-07-07
Version: 1.0
12 NC: 9073 101 01957
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2006 Koninklijke Philips Electronics N.V.
All Rights reserved.
www.philips.com
* 1GB = 1 billion bytes; available storage capacity will be less.
* Rechargeable batteries have a limited number of charge cycles and
may eventually need to be replaced. Battery life and number of
charge cycles vary by use and settings.
* Storage capacity based on 4 minutes per song and 64 kbps WMA
or 128 kbps MP3 encoding.
* Windows Media and the Windows logo are trademarks, or
registered trademarks of Microsoft Corporation in the United
States and/or other countries.
* Actual transfer speed may vary based on your operating system
and software configuration.
