IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions.

2. Do not touch hot surfaces. Use handles or knobs.

3. To protect against fire, electric shock and injury to persons do not immerse

cord, plugs, or appliance in water or other liquid.

4. Close supervision is necessary when the appliance is used by or near children.

5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.

6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment.

7. The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock or injury to persons.

8. Do not use outdoors.

9. Do not let cord hang over edge of table or counter, or touch hot surfaces.

10. Do not place on or near a hot gas or electric burner, or in a heated oven.

11. Always attach plug to appliance first, then plug cord into wall outlet. To

disconnect, turn any control to “off”, then remove plug from wall outlet.

12. Do not use appliance for other than intended use.

13. Save these instructions.

SAVE THESE INSTRUCTIONS

CAUTION

This appliance is for household use only. Any servicing, other than cleaning and user maintenance, should be performed by an authorized service center. Do not immerse machine in water. To reduce the risk of fire or electric shock, do not disassemble the machine. There are no parts inside the machine serviceable by the user. Repair should be done by authorized service personnel only.

1. Check voltage to be sure that the voltage indicated on the nameplate corresponds with your voltage.

2. Never use warm or hot water to fill the water tank. Use cold water only.

3. Keep your hands and the cord away from hot parts of the appliance during

operation.

4. Never clean with scrubbing powders or harsh cleaners. Simply use a soft cloth dampened with water.

5. For optimal taste of your coffee, use purified or bottled water. Periodic descaling is still recommended every 2-3 months.

6. Do not use caramelized or flavored coffee beans.

INSTRUCTIONS FOR THE POWER

SUPPLY CORD

A. A short power-supply cord (or detachable power-supply cord) is to be

provided to reduce risks resulting from becoming entangled in or tripping over a longer cord.

B. Longer detachable power-supply cords or extension cords are available

and may used if care is exercised in their use.

C. If a long detachable power-supply cord or extension cord is used,

1. The marked electrical rating of the detachable power-supply cord or

extension cord should be at least as great as the electrical rating of the appliance

2. If the appliance is of the grounded type, the extension cord should be a

grounding-type 3-wire cord, and

3. The longer cord should be arranged so that it will not drape over the

counter top or table top where it can be pulled on by children or tripped over.

ENGLISH

Congratulations on your purchase of a Saeco Moltio One Touch Cappuccino full automatic co ee machine! To fully bene t from the support that Saeco o ers, please register your product at www.philips.com/welcome. This user manual applies to HD8769. The machine is suitable for preparing espresso co ees using whole co ee beans, and it is supplied with a milk carafe so you can prepare your perfect Cappuccino or Latte Macchiato in a quick and easy way. In this user manual you will  nd all the information you need to install, use, clean and descale your machine.

CONTENTS

IMPORTANT..................................................................................................... 4

Safety instructions ....................................................................................................................................4

Warning ....................................................................................................................................................4

Caution .....................................................................................................................................................5

Compliance with standards ...................................................................................................................... 7

INSTALLATION ................................................................................................. 8

Product overview ......................................................................................................................................8

General description ................................................................................................................................... 9

PREPARING FOR USE .......................................................................................10

Machine Packaging ................................................................................................................................. 10

Machine Installation ...............................................................................................................................10

USING THE MACHINE FOR THE FIRST TIME ........................................................13

Circuit priming ........................................................................................................................................13

Automatic rinse/self-cleaning cycle ........................................................................................................14

Manual rinse cycle...................................................................................................................................14

Measuring and Programming Water Hardness ........................................................................................ 18

“INTENZA+” water  lter installation .......................................................................................................19

Replacing the “INTENZA+” water  lter ....................................................................................................21

CHANGING COFFEE BEANS ...............................................................................22

Removing the co ee bean hopper .......................................................................................................... 22

Inserting the co ee bean hopper ............................................................................................................ 23

Co ee bean selection ..............................................................................................................................25

Co ee emptying cycle .............................................................................................................................26

ADJUSTMENTS ................................................................................................27

Saeco Adapting System ...........................................................................................................................27

Adjusting the Ceramic Co ee Grinder .....................................................................................................27

Adjusting the aroma (co ee strength) ....................................................................................................28

Adjusting the co ee dispensing spout .................................................................................................... 29

Adjusting the Co ee Length ...................................................................................................................30

ESPRESSO AND COFFEE BREWING ....................................................................31

Espresso and co ee brewing using co ee beans .....................................................................................31

Espresso and co ee brewing using pre-ground co ee ............................................................................32

ENGLISH

MILK CARAFE..................................................................................................33

Filling the Milk Carafe .............................................................................................................................33

Inserting the Milk Carafe ......................................................................................................................... 34

Removing the Milk Carafe .......................................................................................................................34

Emptying the Milk Carafe ........................................................................................................................35

CAPPUCCINO BREWING ...................................................................................36

Adjusting the cappuccino length ............................................................................................................. 38

LATTE MACCHIATO BREWING ...........................................................................39

Adjusting the Latte Macchiato length .....................................................................................................41

MAKING FROTHED MILK ..................................................................................42

Adjusting the frothed milk length ...........................................................................................................44

HOT WATER DISPENSING .................................................................................45

CLEANING AND MAINTENANCE ........................................................................47

Daily Cleaning of the Machine .................................................................................................................47

Daily cleaning of the water tank..............................................................................................................49

Daily cleaning of the milk carafe .............................................................................................................49

Weekly Cleaning of the Machine ............................................................................................................. 52

Weekly cleaning of the milk carafe..........................................................................................................52

Weekly Cleaning of the Brew Group ........................................................................................................54

Weekly cleaning of the co ee bean hopper, the tray and the compartment ...........................................57

Monthly cleaning of the milk carafe ........................................................................................................58

Monthly Lubrication of the Brew Group ..................................................................................................61

Monthly Cleaning of the Brew Group with “Co ee Oil Remover” .............................................................62

DESCALING .....................................................................................................65

PROGRAMMING ..............................................................................................69

The following parameters can be adjusted .............................................................................................. 69

How to program your machine ................................................................................................................ 71

MEANING OF THE DISPLAY SYMBOLS ................................................................73

TROUBLESHOOTING ........................................................................................77

ENERGY SAVING ..............................................................................................79

Stand-by .................................................................................................................................................79

Disposal .................................................................................................................................................. 79

TECHNICAL SPECIFICATION ..............................................................................80

GUARANTEE AND SERVICE ...............................................................................80

Warranty .................................................................................................................................................80

Service .................................................................................................................................................... 80

ORDERING MAINTENANCE PRODUCTS ..............................................................81

MACHINE ACCESSORIES ...................................................................................82

ENGLISH

IMPORTANT

Safety instructions

This machine is equipped with safety features. Nevertheless read the safety instructions carefully and only use the machine as described in these instructions to avoid accidental injury or damage. Keep this user manual for future reference.

The term WARNING and this sign warn against possible severe injuries, danger to life and/or damage to the machine.

The term CAUTION and this sign warn against slight injuries and/or damage to the machine.

Warning

• Connect the machine to a wall socket which is properly wired. Its main voltage should comply with the technical data of the appliance.

• Do not let the mains cord hang over the edge of a table or counter, or touch hot surfaces.

• Never immerse the machine, mains plug or mains cord in water (danger of electrical shock).

• Never direct the hot water jet towards body parts (danger of burning).

• Do not touch hot surfaces. Use handles and knobs.

ENGLISH

• Remove the mains plug from the wall socket:

- If a disturbance occurs.

- If the machine will not be used for a long time.

- Before cleaning the machine.

Pull on the plug, not on the mains cord. Do not touch the

mains plug with wet hands.

• Do not use the machine if the mains plug, the mains cord or the machine itself is damaged.

• Do not make any modi cations to the machine or its mains cord. Only have repairs carried out by a service centre authorized by Philips to avoid a hazard.

• This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the machine by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the machine.

• Never insert  ngers or other objects into the co ee grinder.

Caution

• The machine is for household use only. It is not intended for use in environments such as sta kitchens of shops, o ces, farms or other work environments.

• Always put the machine on a  at and stable surface.

ENGLISH

• Do not place the machine on a hot plate, directly next to a hot oven, heater or similar source of heat.

• Only put co ee beans into the co ee bean hopper. If ground co ee, instant co ee or any other substance is put in, it may damage the machine.

• Allow the machine to cool before putting on or taking o .

• Never use warm or hot water to  ll the water tank. Use cold water only.

• Never clean with scrubbing powders or harsh cleaners. Simply use a soft cloth dampened with water.

• Descale your machine regularly. The machine indicates when descaling is needed. Not doing this will make your appliance stop working properly. In this case repair is not covered under your warranty!

• Do not keep the machine at temperature below 0 degree Celsius. Residue water in the heating system may freeze and cause damage.

• Do not leave water in the water tank when the machine is not used over a longer period of time. The water can become contaminated. Use fresh water every time you use the machine.

ENGLISH

Compliance with standards

The machine complies with art.13 of the Italian Legislative Decree dated 25 July 2005, no. 151 “Implementation of the directives 2005/95/EC, 2002/96/EC and 2003/108/EC on the restriction of the use of certain hazardous substances in electrical and electronic equipment, as well as waste disposal”.

This machine complies with EU directive 2002/96/EC.

INSTALLATION

Product overview

7 8

1110 12 13 14

2930

ENGLISH

General description

1. Co ee bean hopper locking/removal selector switch

2. Pre-ground co ee compartment

3. Storage area for cups 4a. Co ee bean hopper 4b. Co ee bean hopper tray 4c. Co ee bean hopper lid

5. Control Panel

6. Co ee dispensing spout

7. Cup holder grill

8. Full drip tray indicator

9. Drip tray

10. Water dispensing spout (removable)

11. Co ee grounds drawer

12. Brew group

13. Co ee residues drawer

14. Service door

15. Milk carafe

16. Water Tank

17. Power cord socket

18. Power button

19. Co ee grinder adjustment key + Pre-ground co ee scoop

20. Cleaning brush

21. Grease for the brew group

22. Power cord

23. Water hardness test strip

24. Espresso brew button

25. Co ee brew button

26. "Aroma" - Pre-ground co ee button

27. Cappuccino brew button

28. Latte Macchiato brew button

29. ON/OFF button

30. "MENU" button

31. Descaling solution (to be purchased separately)

32. Filter (INTENZA+) (to be purchased separately)

33. Protection cover.

ENGLISH

PREPARING FOR USE

Machine Packaging

The original packaging has been designed and constructed to protect the machine during transport. We recommend keeping the packaging material for possible future transport.

Machine Installation

Remove the drip tray with grill from the packaging.

Remove the machine from the packaging.

For best use, it is recommended to:

• Choose a safe, level surface, where there is no danger of overturning the machine or being injured.

• Choose a location that is su ciently well-lit, clean and near an easily reachable socket;

• Allow for a minimum distance from the sides of the machine as shown in the illustration.

Insert the drip tray with grill into the machine. Make sure it is fully

inserted.

Note: The drip tray collects the water that comes out of the dispensing spout during each rinse/self-cleaning cycle, as well as co ee that might be spilled during beverage preparation. Empty and wash the drip tray daily and each time the full drip tray indicator is raised.

Caution: NEVER remove the drip tray when the machine has just been turned on. Wait a couple of minutes for the machine to carry out a rinse/selfcleaning cycle.

ENGLISH

Push gently on the edge of the water tank door to release the hand-

grip.

Remove the water tank by pulling the handgrip.

Rinse the water tank with fresh water.

Fill the water tank with fresh water up to the MAX level and reinsert it

back into the machine. Make sure it is fully inserted.

Caution: Never  ll the water tank with warm, hot, sparkling water or any other liquid as this may cause damage to the water tank and the machine.

Note: Always carry the full water tank as shown in the picture.

ENGLISH

Remove the co ee bean hopper lid. Slowly pour the co ee beans into

the co ee bean hopper.

Note: The co ee bean hopper contains a tray which vibrates during grinding. This supports the  ow of beans into the grinder.

Caution: Only co ee beans must be put into the co ee bean hopper. Ground co ee, instant co ee, caramelized co ee or any other object may damage the machine.

Put back the co ee bean hopper lid on the co ee bean hopper.

Insert the plug into the socket located on the back of the machine.

Insert the plug of the other end of the power cord into a wall socket

with suitable power voltage.

Switch the power button to “I” to turn on the machine. The red led next

to the “

To turn on the machine, simply press the “ ” button. The control panel

Yellow

indicates that the circuit must be primed.

” button blinks.

ENGLISH

USING THE MACHINE FOR THE FIRST TIME

When using the machine for the  rst time, the following activities need to happen:

1) You need to prime the circuit;

2) The machine will perform an automatic rinse/ self-cleaning cycle;

3) You need to initiate a manual rinse cycle.

Circuit priming

During this process fresh water  ows through the internal circuit of the machine and the machine warms up. This takes a few minutes.

Place a container under the co ee dispensing spout.

Press the “ ” button to start the cycle. The machine starts the auto-

matic priming of the circuit by dispensing some water through the co ee dispensing spout.

The bar under the icon shows the operation progress. When the pro-

cess is completed, the machine stops dispensing automatically.

Yellow

Then the control panel shows the machine warm-up icon.

Yellow

ENGLISH

Automatic rinse/self-cleaning cycle

When warm-up is completed, the machine automatically performs a rinse/ self- cleaning cycle of the internal circuit with fresh water. This takes less than a minute.

Place a container under the co ee dispensing spout to catch the small

amount of water which will be dispensed.

The machine shows this display. Wait for the cycle to  nish automati-

cally.

Yellow

Note: You can stop dispensing by pressing the “

When the above steps have been completed, the machine shows this

display. You can now proceed with the manual rinse cycle.

Green

” button.

Manual rinse cycle

During this process you activate the co ee brewing cycle and fresh water  ows through the water circuit. This takes a few minutes.

Place a container under the co ee dispensing spout.

Check that the machine shows this display.

Green

Select the pre-ground co ee brewing function by pressing the “ ”

button. The machine shows this display.

Green

Note: Do not add pre-ground co ee into the compartment.

Press the “ ” button. The machine starts dispensing water.

When the dispensing has  nished, empty the container. Repeat the

operations from step 1 to step 4 twice, then continue with step 6.

Place a container under the water dispensing spout.

ENGLISH

Press the “ ” MENU button. The machine shows this display.

Green

Press the “ ” button.

ENGLISH

Green

The following icon is displayed.

Press the “ ” button to start dispensing hot water.

This icon is displayed. The machine reminds you to install the water

dispensing spout. Check that the water dispensing spout is correctly installed. Press “ water.

” to con rm. The machine will start dispensing hot

Once the water has been dispensed, remove and empty the container.

Note: You can stop the manual rinsing by pressing the “

Repeat step 7 to 12 until the water tank is empty and the no water

Red

icon appears.

” button.

ENGLISH

At the end,  ll the water tank again up to the MAX level. Now the ma-

chine is ready for brewing co ee.

You will see the display as shown at the left.

Green

Note: When you haven’t used the machine for 2 or more weeks, the machine will automatically perform an automatic rinse/self-cleaning cycle after you switch it on. Thereafter you need to initiate the manual rinse cycle as described above.

The automatic rinse/self-cleaning cycle is also initiated when the machine has been in stand-by mode, or switched o , for more than 15 minutes. After this cycle has been completed, you can brew a co ee.

ENGLISH

Measuring and Programming Water Hardness

Measuring water hardness is very important for de ning the frequency in which the machine has to be descaled and to install the “INTENZA+” water  lter (for more detail on the water  lter see next chapter). To measure the water hardness follow the steps below:

Immerse the water hardness test strip (supplied with the machine) in

water for 1 second.

Note: The test strip can only be used for one measurement.

Wait for one minute.

Check how many squares have changed the colour to red and then

consult the table.

Note: The numbers on the water hardness test strip correspond to the water hardness adjustment settings.

More precisely: 1 = 1 (very soft water) 2 = 2 (soft water) 3 = 3 (hard water) 4 = 4 (very hard water)

Intenza Aroma System

23 4

The letters correspond to the references that are located at the base of the “INTENZA+” water  lter (see next chapter).

Machine Water Hardness Setting

Press the “ ” MENU button. The machine shows this display.

Green

Press the “ ” button to access the programming menu. Scroll the

pages by pressing the “

Yellow

Note: The machine is supplied with standard water hardness setting, suitable for most types of water.

Press the “ ” button to increase the value or the “ ” button to de-

crease the value.

Press the “ ” button to con rm the setting.

Press the “ ” button to exit the programming menu. Now the ma-

chine is ready to brew.

Green Yellow

” button until the following icon is displayed.

ENGLISH

“INTENZA+” water  lter installation

We recommend you to install the “INTENZA+” water  lter as this prevents limescale to build up in your machine and preserves a more intense aroma to your co ee. You can purchase separately the “INTENZA+” water  lter. Please refer to the maintenance products page in this user manual for further details. Water is a crucial part of every co ee, so it’s most important to always have it professionally  ltered. Using the “INTENZA+” water  lter will prevent mineral deposits from building up and improve your water quality.

Remove the small white  lter from the water tank and store it in a dry

place.

ENGLISH

Remove the “INTENZA+” water  lter from its packaging, immerse it ver-

tically (with the opening positioned upwards) in cold water and gently press the sides so as to let the air bubbles out.

Set the “INTENZA+” water  lter according to the measurements per-

formed (see previous chapter) and indicated on the base of the  lter:

A = soft water – equals 1 or 2 on the test strip B = hard water (standard) – equals 3 on the test strip C = very hard water – equals 4 on the test strip

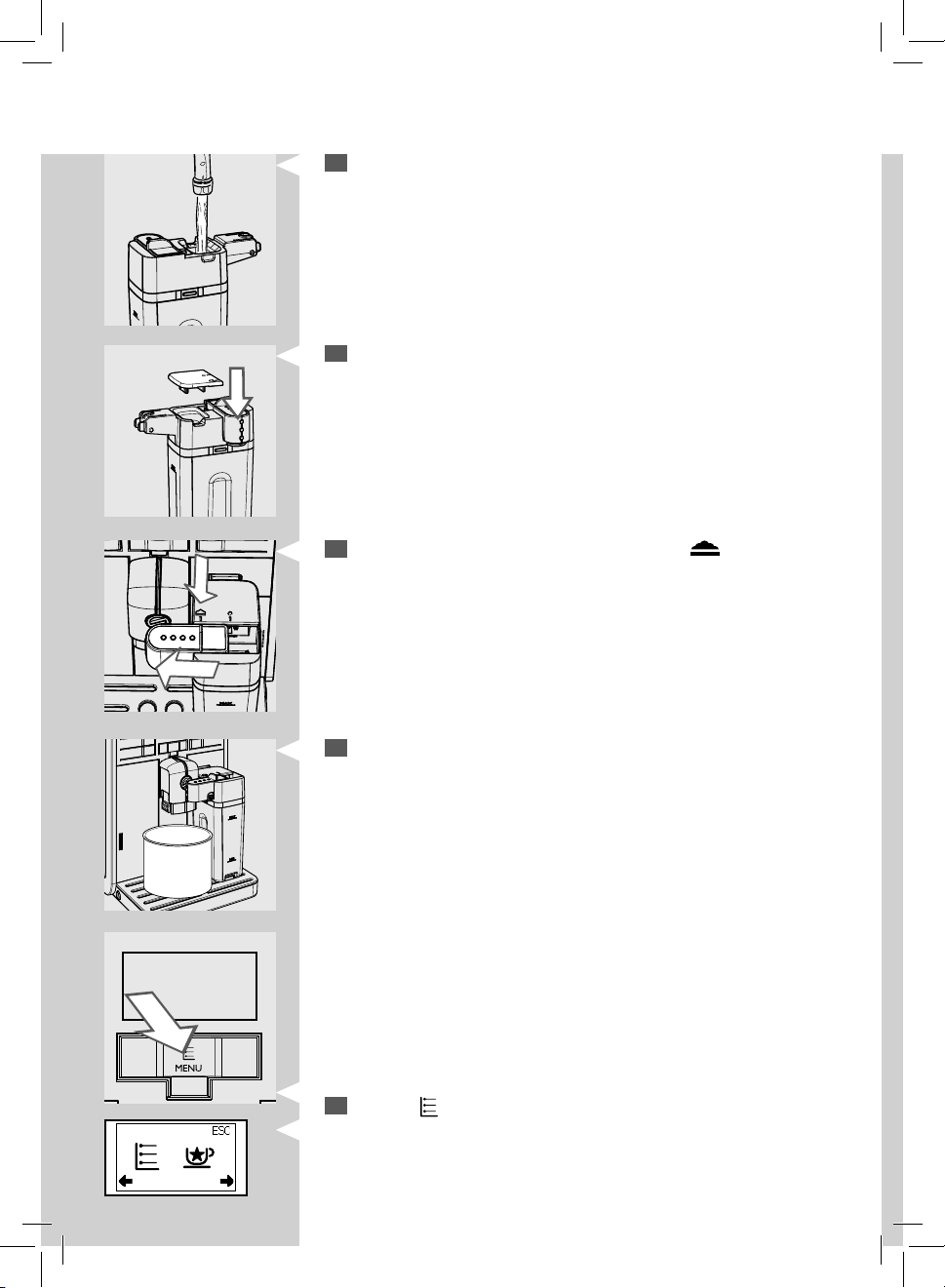

Insert the “INTENZA+ “water  lter into the empty water tank. Press it

until it cannot move further down.

Green

Yellow

Fill the water tank with fresh water and reinsert it into the machine.

Dispense all the water of the tank by using the hot water function (see

chapter “Hot water dispensing”).

Fill the water tank again.

Press the “ ” MENU button. The machine shows this display.

Press the “ ” button to access the programming menu. Scroll the

pages by pressing the “

” button until the following icon is displayed.

ENGLISH

Press the “ ” button to select “ON” and press the “ ” button to con-

 rm.

Yellow

To exit, press the “ ” button. Now the machine is ready to brew.

GreenYellow

In this way the machine has been programmed to inform the user of the need to replace the “INTENZA+” water  lter.

Replacing the “INTENZA+” water  lter

When the “INTENZA+” water  lter needs to be replaced with a new one, the following icon is displayed.

Yellow

Green

Replace the “INTENZA+” water  lter as described in the previous chap-

ter.

Press the “ ” MENU button. The machine shows this display.

Press the “ ” button to access the programming menu. Scroll the

pages by pressing the “

Select the “RESET” option. Press the " " button to con rm.

” button until the following icon is displayed.

ENGLISH

To exit, press the “ ” button. Now the machine is ready to brew.

The machine is now programmed to manage a new  lter.

Note: If the “INTENZA+” water  lter is already installed and you want to remove but not replace it, select the “OFF” option instead.

Yellow Green

If there is no “INTENZA+” water  lter installed, insert the small white  lter previously removed into the water tank.

CHANGING COFFEE BEANS

The machine comes with a removable co ee bean hopper so you can switch easily from one type of co ee bean to another and enjoy a di erent co ee taste.

Note: You can buy an additional co ee bean hopper as accessory (CA6803). To preserve it’s taste you can store co ee beans in the bean hopper in the refrigerator.

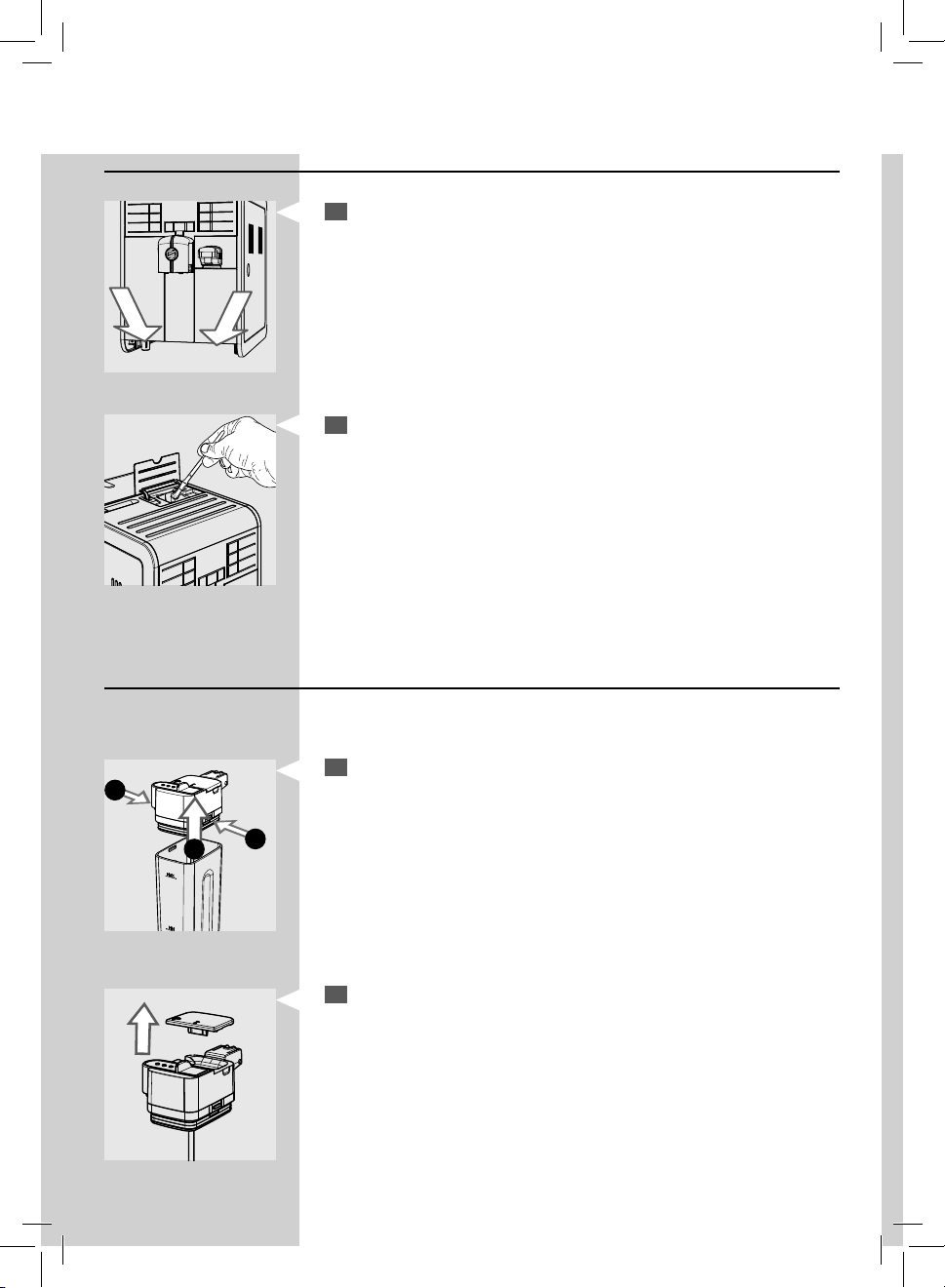

Removing the co ee bean hopper

To remove the co ee bean hopper follow the steps below:

Turn the selector to the “ ” position.

Caution: It may happen that the selector can not be switched as it is blocked by co ee beans. In this case move the selector back and forth until the beans are released.

ENGLISH

Lift the sides of the co ee bean hopper with both hands as shown in

the image.

Caution: Do not remove the bean hopper in a di erent way to avoid spilling co ee beans.

After removal put the protection cover on the machine to prevent

dust.

Note: If you turn on the machine while the co ee bean hopper has not been

Red

inserted, the following icon appears. You need to insert the bean hopper  rst.

Inserting the co ee bean hopper

To insert the co ee bean hopper follow the steps below:

Remove the protection cover from the machine.

Switch the selector to the “ ” position.

ENGLISH

Remove any beans from the co ee bean hopper compartment.

Insert the co ee bean hopper into the compartment as shown on the

image.

Switch the selector to the “ ” position.

Warning: Please be aware that when you change co ee blend and switch to deca einated co ee, still some ca eine traces might be present even after having run the emptying cycle.

ENGLISH

Co ee bean selection

This function allows you to optimize the grinding for selected type of coffee beans.

Press the “ ”

Green

Press the “ ” button to access the programming menu. Scroll the

pages by pressing the “

YellowGreenGreen Green

Press the “ ” button or the “ ” button to select the type of co ee

beans in the co ee bean hopper.

Press the “ ” button to con rm the setting.

To exit, press the “ ” button.

The machine is now programmed to optimise the grinding of your co ee beans.

The display shows the type of co ee beans chosen when the machine is ready for brewing.

MENU button. The machine shows this display

” button until the following icon is displayed.

- for “ARABICA” co ee beans

- for “ROBUSTA” co ee beans

- for a “MIX” of co ee beans.

ENGLISH

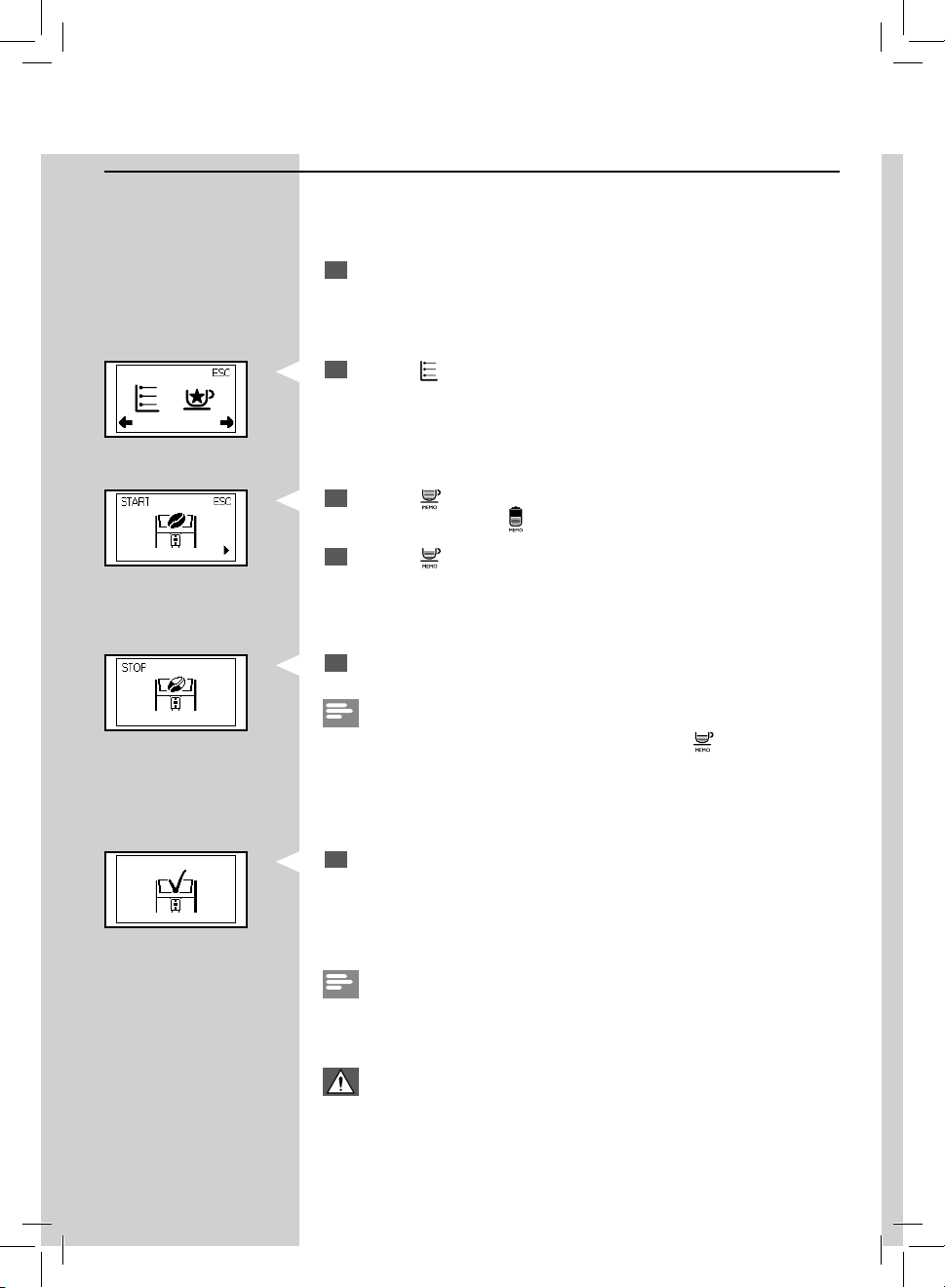

Co ee emptying cycle

If you want to change co ee beans, we recommend that you empty the co ee duct and grinder. In this way you will taste the full aroma of the new co ee beans. For this follow the steps below.

Insert the co ee bean hopper with the new co ee beans.

Press the “ ”

Green

Press the “ ” button to access the programming menu. Scroll the

pages by pressing the “

YellowYellowGreen

Press the “ ” button.

The machine performs two grinding cycles without brewing co ee.

Note: You can stop the grinding cycle early by pressing the “ the  rst and second grinding cycle.

When the grinding cycles have been  nished, the following icon is

displayed.

MENU button. The machine shows this display

” button until the following icon is displayed.

” button between

Note: If you have not emptied the co ee duct and grinder, you need to brew at least two co ees before you can taste the new co ee beans.

Warning: Please be aware that when you change co ee blend and switch to deca einated co ee, still some ca eine traces might be present even after having run the emptying cycle.

ENGLISH

ADJUSTMENTS

The machine allows for certain adjustments so that you can brew the best tasting co ee possible.

Saeco Adapting System

Co ee is a natural product and its characteristics may change according to its origin, blend and roast. The machine is equipped with a self-adjusting system that allows the use of all types of co ee beans available on the market apart from caramelized and  avored co ee beans. The machine automatically adjusts itself after brewing several cups of coffee to optimize the extraction of the co ee .

Adjusting the Ceramic Co ee Grinder

Ceramic co ee grinders always guarantee accurate and perfect grinding and coarseness for every co ee specialty. This provides for full aroma preservation, delivering the truly Italian taste in every cup.

Warning: The ceramic co ee grinder contains moving parts that may be dangerous. Therefore, do not insert  ngers and/or other objects. Only adjust the ceramic co ee grinder using the grinder adjustment key.

You can adjust the ceramic grinders to set the co ee grinding to your personal taste.

Remove the co ee bean hopper as shown in the section “Removing

the co ee bean hopper”.

ENGLISH

Press and turn the grinder adjustment knob under the co ee bean

hopper one notch at a time. Use the co ee grinder adjustment key provided with the machine. You will taste the di erence after brewing 2-3 cups of co ee.

Warning: Do not turn the grinder more than 1 notch at the time to prevent damage.

The reference marks in the compartment for the co ee bean hopper

indicate the grind setting. There are 5 di erent grind settings to choose from position1 for coarse grind - lighter taste to position 2 for  ne grind - bolder taste.

When you adjust the ceramic co ee grinder to a  ner setting, your co ee will taste stronger. For a milder co ee taste, adjust the ceramic co ee grinder to a coarser setting.

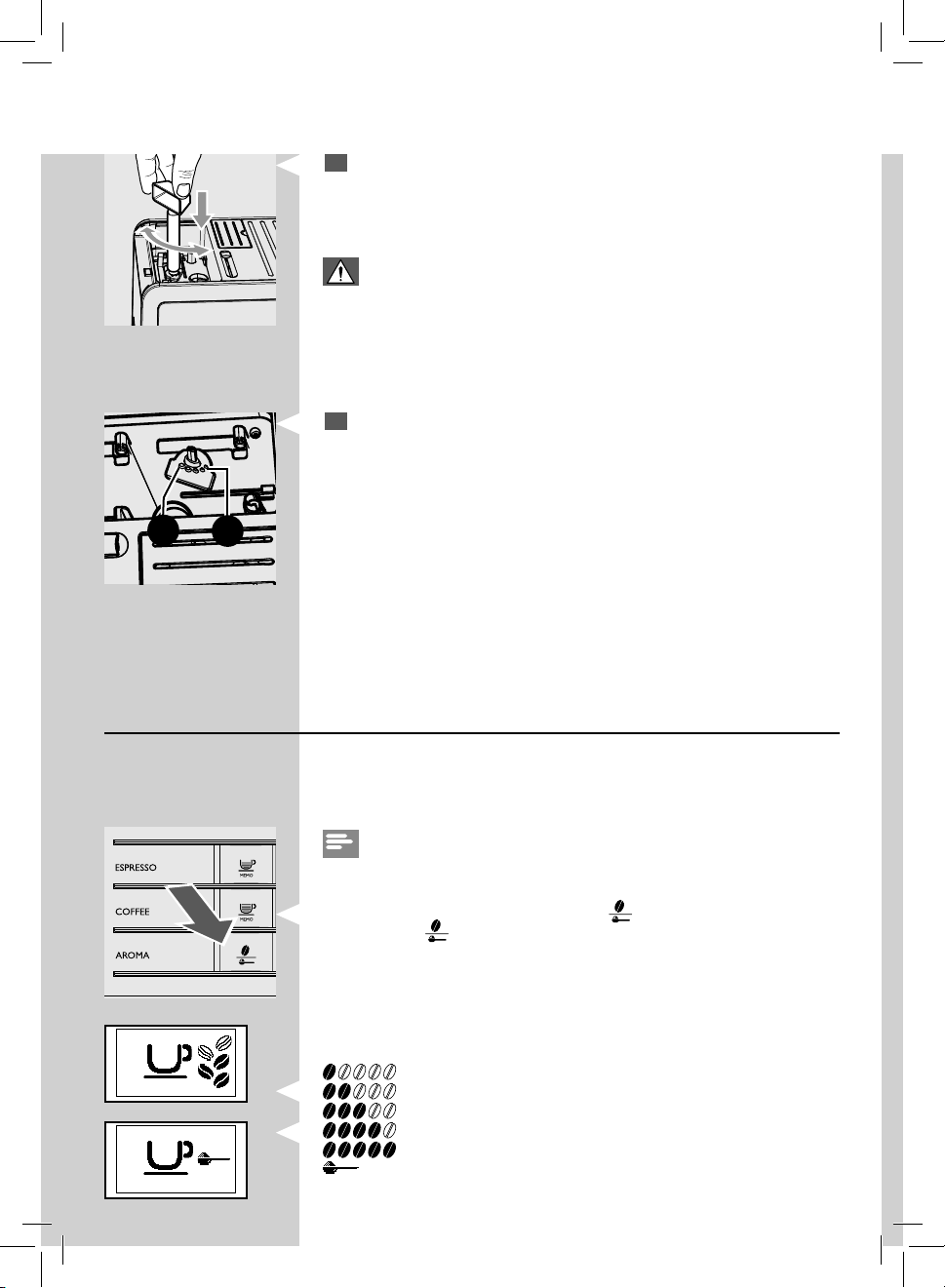

Adjusting the aroma (co ee strength)

Choose your favourite co ee blend and adjust the amount of co ee to be ground until they meet your personal taste. You can also select the preground co ee function.

Note: Selection must be made prior to selecting co ee.

Five choices are possible by pressing the “ Each time the “ according to the selected amount:

GreenGreen

” button is pressed, the aroma changes by one degree,

= extra mild aroma = mild aroma = medium aroma = strong aroma = extra strong aroma = pre-ground co ee

” button.

ENGLISH

Adjusting the co ee dispensing spout

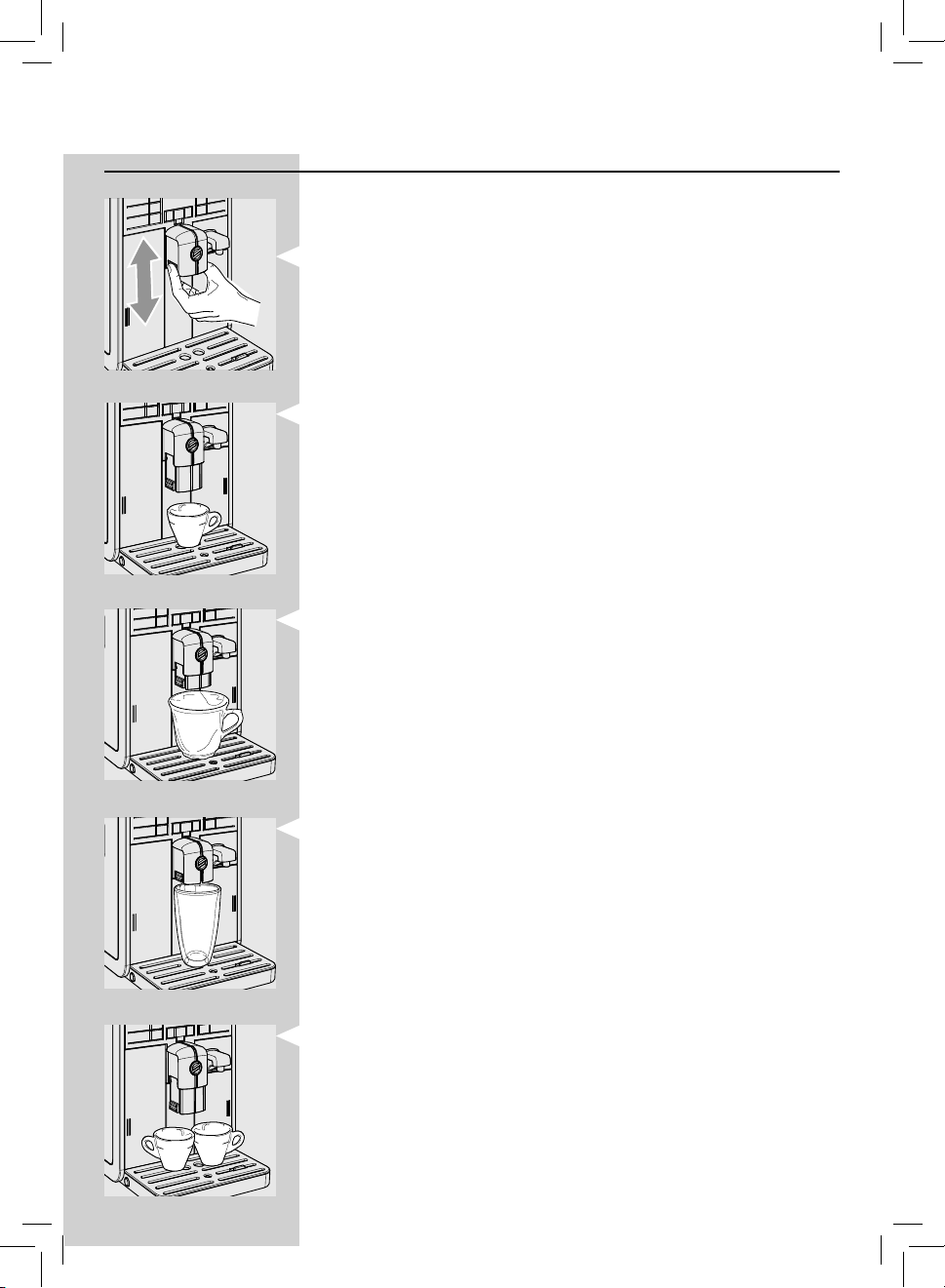

The height of the dispensing spout can be adjusted to better  t the dimensions of the cups that you wish to use.

Move the dispensing spout up or down with your  ngers to adjust its height as shown in the image.

The recommended positions are: For the use of small cups.

For the use of large cups.

For the use of glasses for the Latte Macchiato.

Two cups can be placed under the dispensing spout to brew two co ees at the same time.

ENGLISH

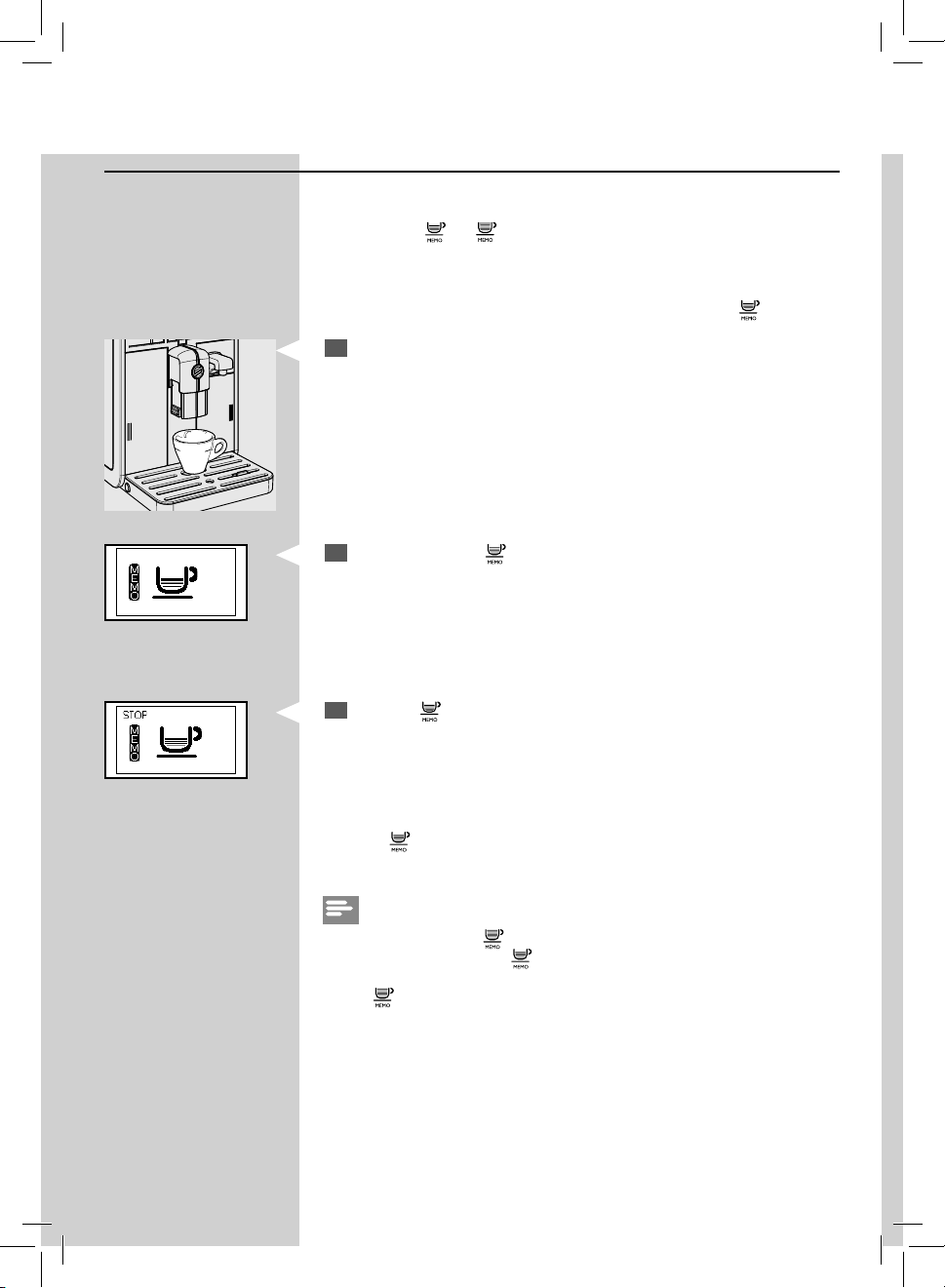

Adjusting the Co ee Length

The machine allows you to adjust the amount of brewed co ee according to your taste and/or the size of your cups. Each time the “ amount of co ee. Each button may be individually programmed for a speci c brew setting.

” or “ ” button is pressed, the machine brews a pre-set

The following procedure describes the programming of the “

Place a cup under the dispensing spout.

Press and hold the “ ” button until the “MEMO”icon is displayed.

Then release the button. The machine is now programming.

The machine starts brewing co ee.

GreenGreen

Press the “ ” button as soon as the desired amount of co ee is

reached.

Now the “ will brew the same amount of espresso that was just programmed.

” button is programmed; each time it is pressed, the machine

” button.

Note: To program the co ee “ You should always use the “ desired amount of co ee is reached even when you are programming the co ee “

” button.

” button, the same steps should be followed.

” button to stop brewing co ee when the

ENGLISH

ESPRESSO AND COFFEE BREWING

Before brewing the co ee, make sure that there are no warnings shown on the control panel, and that the water tank and co ee bean hopper are  lled.

Espresso and co ee brewing using co ee beans

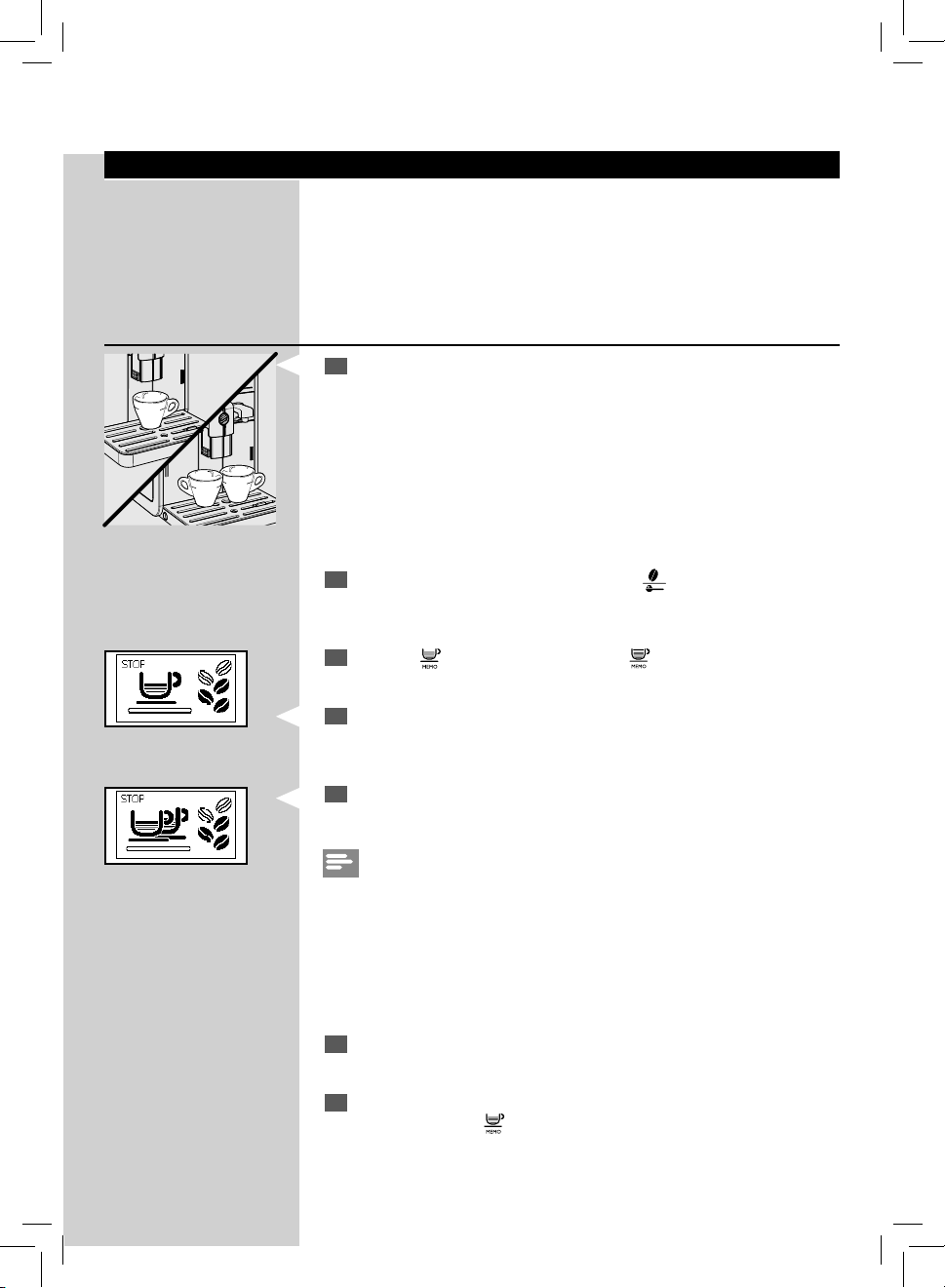

Place 1 or 2 cups under the dispensing spout.

To brew an espresso or a co ee, press the “ ” button to select the

desired aroma.

Press the “ ” button for an espresso or “ ” button for a co ee.

GreenGreen

To brew 1 cup of espresso or co ee, press the desired button once. This

icon will be displayed.

To brew 2 cups of espresso or co ee, press the desired button twice

consecutively. This icon will be displayed.

Note: In this operating mode, the machine automatically grinds and doses the correct amount of co ee. Brewing two espressos or two co ees requires two grinding and brewing cycles, automatically carried out by the machine.

After the pre-brewing cycle, co ee begins to pour out of the dispens-

ing spout.

Co ee brewing automatically stops when the pre-programmed level is

reached; press the “

” button to stop it earlier.

ENGLISH

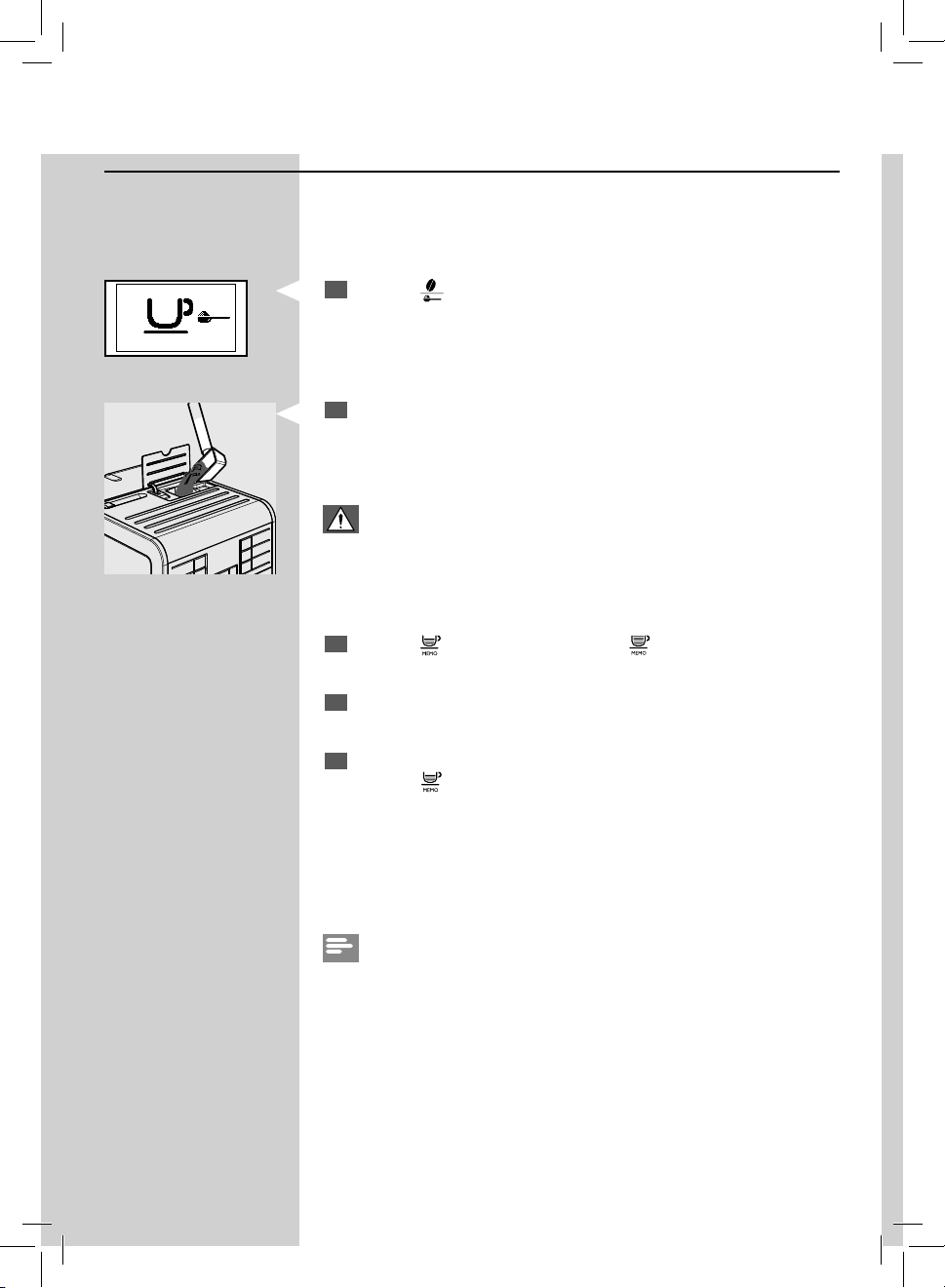

Espresso and co ee brewing using pre-ground co ee

This function allows you to use pre-ground and deca einated co ee.

With the pre-ground co ee function you can only brew one co ee at a time.

Press the “ ” button to select the pre-ground co ee function.

Green

Lift the pre-ground co ee compartment lid and add one scoop of

pre-ground co ee to the compartment. Use only the measuring scoop supplied with the machine. Then close the pre-ground co ee compartment lid.

Warning: Add only pre-ground co ee to the pre-ground co ee compartment. Other substances and objects may cause severe damages to the machine. Such damages will not be covered by warranty.

Press the “ ” button for an espresso or “ ” button for a co ee. The

brewing cycle starts.

After the pre-brewing cycle, co ee begins to pour out of the dispens-

ing spout.

Co ee brewing automatically stops when the preset level is reached;

press the “

After brewing, the machine returns to the main menu.

Repeat the steps described above to brew more co ees using pre-ground co ee.

Note: If no pre-ground co ee is poured into the pre-ground co ee compartment, only water will be dispensed. If more scoops have been added, the machine will not brew the product and any ground co ee will be discharged into the co ee grounds drawer.

” button to stop it earlier.

ENGLISH

MILK CARAFE

This chapter explains how to use the milk carafe to prepare a cappuccino or frothed milk.

Note: Before using the milk carafe, clean it thoroughly as described in the “Cleaning and Maintenance” chapter. We recommend  lling it with cold milk (approx. 5°C).

Warning: Do not pour any other liquids than water for cleaning or milk.

Filling the Milk Carafe

The milk carafe can be  lled before use or even during use.

Lift the carafe lid as shown in the  gure.

Pour the milk into the milk carafe: the milk level must be between the

minimum (MIN) and maximum (MAX) level indicator shown on the milk carafe.

The milk carafe is now ready to use.

ENGLISH

Inserting the Milk Carafe

If installed, remove the water dispensing spout as shown in the  gure:

- Press the two buttons on the side to unlock it and lift it slightly;

- Pull the water dispensing spout to remove it.

Slightly tilt the milk carafe. Insert it all the way into the guides of the

machine.

Push the carafe towards the bottom while rotating at the same time,

until it is locked at the drip tray.

Do not use force while inserting the carafe.

Removing the Milk Carafe

Rotate the carafe upwards until it releases from the insert in the drip

tray. Thereafter remove it.

ENGLISH

Emptying the Milk Carafe

Press the release buttons to allow the removal of the top of the carafe.

Lift the top of the carafe. Empty the milk carafe and clean it properly.

Note: After each use, clean the milk carafe as described in the “Cleaning and Maintenance” chapter.

ENGLISH

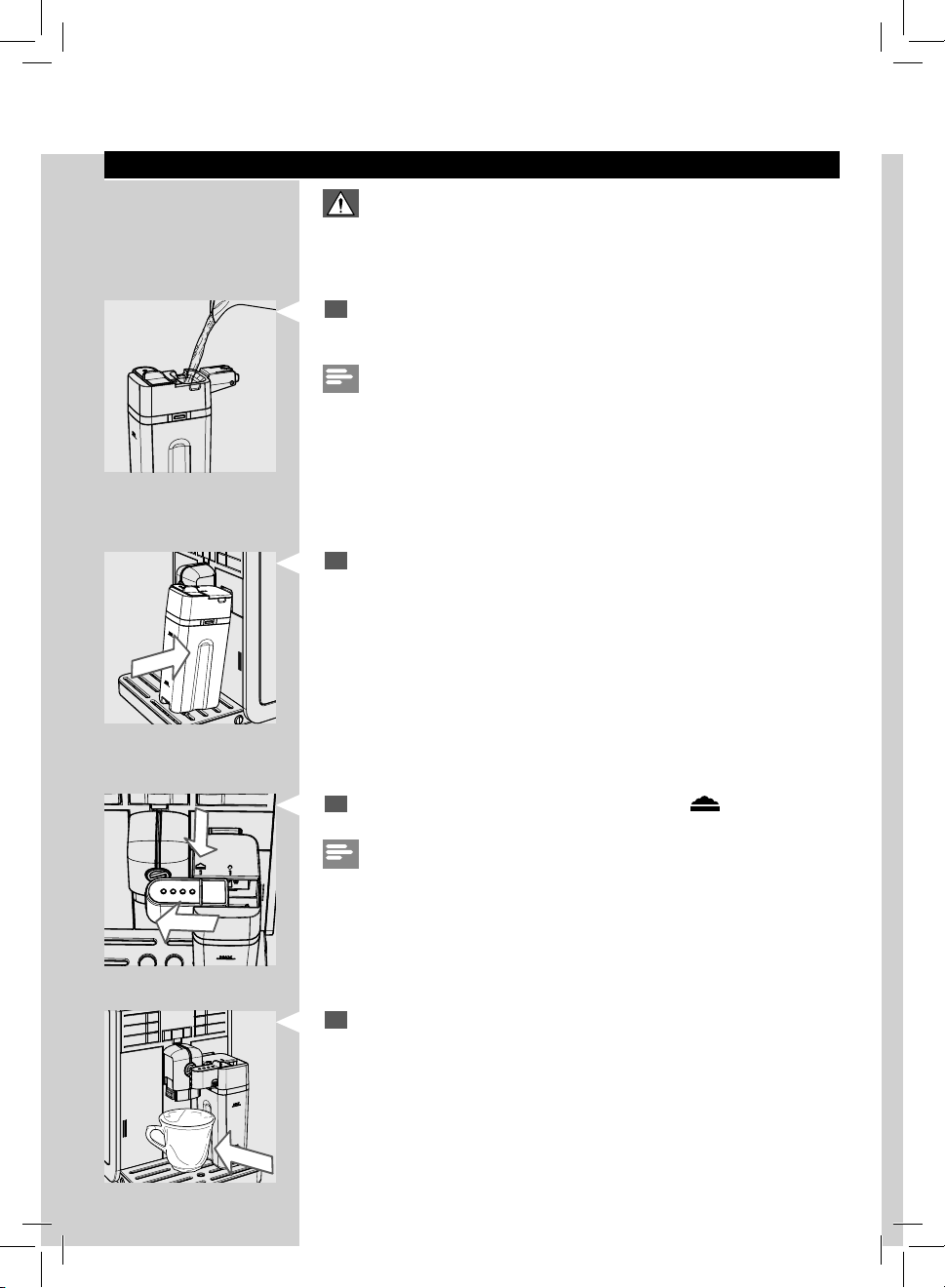

CAPPUCCINO BREWING

Warning: Danger of scalding! Dispensing may be preceded by short sprays of milk and steam. Danger of burns! Wait until the end of the cycle before removing the milk carafe.

Fill the milk carafe with milk. The level must be between the minimum

(MIN) and maximum (MAX) indication on the milk carafe.

Note: Use cold (~5 °C / 41°F) milk with a protein content of at least 3% to ensure optimum results when preparing a cappuccino. You can use whole milk or low-fat milk depending on your personal taste.

Insert the carafe into the machine.

Pull the milk carafe dispenser to the left up to the " " icon.

Note: If the milk carafe dispenser is not completely pulled out , steam may come out and it does not froth milk properly.

Place a cup under the dispensing spout.

ENGLISH

Press the " "button to start the dispensing.

The machine reminds you to insert the carafe and pull out the milk

carafe dispenser.

The following icon is displayed during pre-heating time required by

the machine.

Yellow

When the machine shows the following icon, the machine pours the

milk. The pouring can be stopped by pressing the “

Green

” button.

Once the milk froth has been poured, the machine brews co ee. The

Green Green

brewing can be stopped by pressing the “

Put back the milk carafe dispenser shifting it up to the " " icon.

” button.

Note: After using the milk carafe, clean it as described in the "Cleaning and Maintenance" chapter.

It is possible to prepare a cappuccino with pre-ground co ee. Press the “

” button to select pre-ground co ee and pour the pre-ground

co ee into the compartment.

ENGLISH

Adjusting the cappuccino length

Each time the “ ” button is pressed, the machine pours a pre-set quantity of cappuccino into the cup. The machine allows you to adjust the amount of brewed cappuccino according to your taste and the size of your cups.

Fill the milk carafe with milk and install it into the machine.

Pull the milk carafe dispenser to the left up to the " " icon. Place a

cup under the dispensing spout.

Press and hold the “ ” button until the “MEMO” icon appears on the

display. Then release the button. The machine is now programming.

The machine reminds you to insert the carafe and pull out the milk

carafe dispenser.

Green

The following icon is displayed during pre-heating time required by

the machine.

YellowGreen

When the machine shows the following icon, the machine starts to

dispense milk froth into the cup. When the desired amount of frothed milk is reached, press the “

Once the milk froth has been poured, the machine starts brewing cof-

fee. When the desired co ee quantity is reached, press the “

Green

Now the “ will brew the same amount of cappuccino that was programmed.

” button is programmed. Every time it is pressed, the machine

” button.

ENGLISH

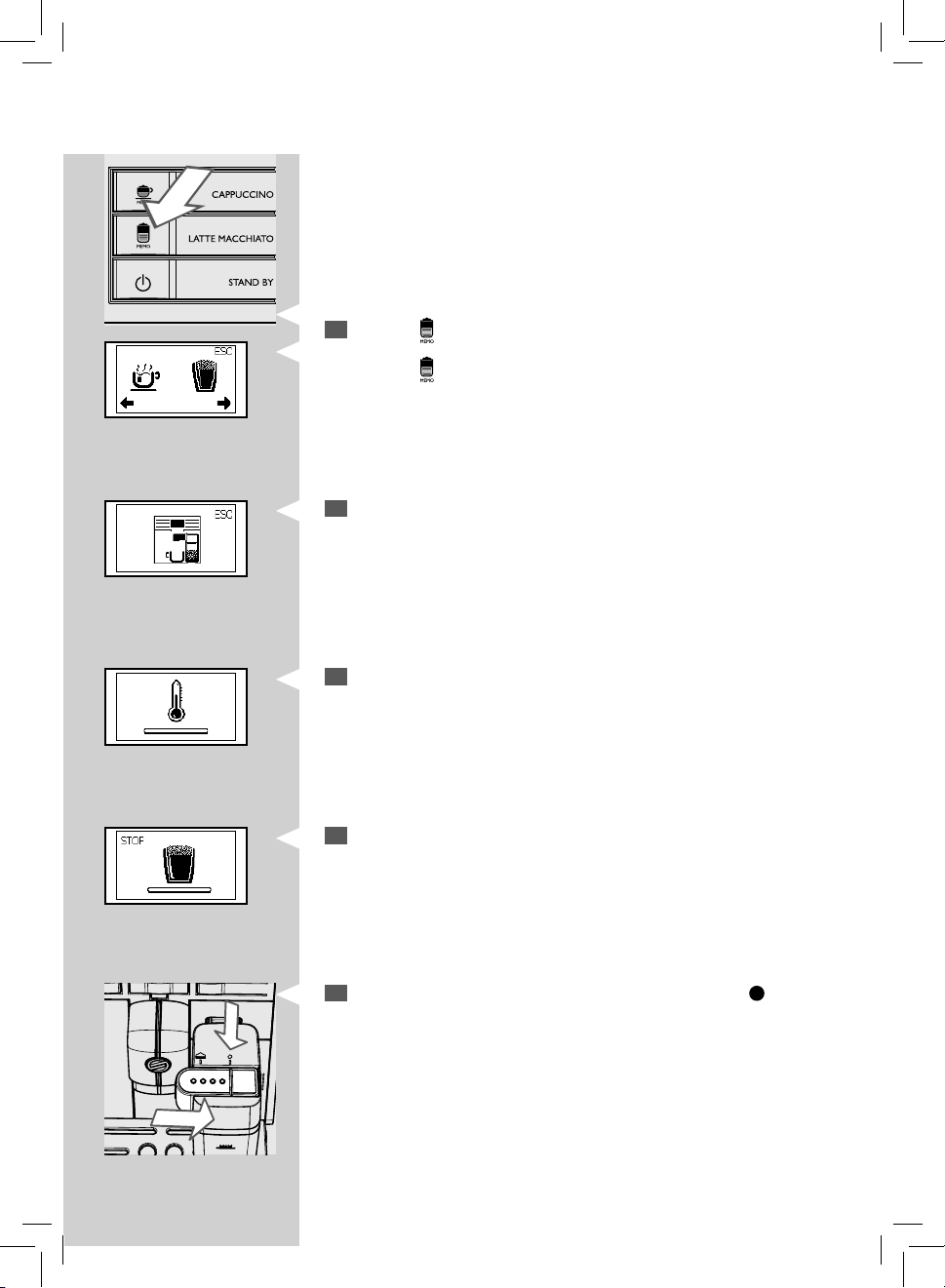

LATTE MACCHIATO BREWING

Warning: Danger of scalding! Dispensing may be preceded by short sprays of milk and steam. Danger of burns! Wait until the end of the cycle before removing the milk carafe.

Fill the milk carafe with milk. The level must be between the minimum

(MIN) and maximum (MAX) indication on the milk carafe.

Insert the carafe into the machine.

Pull the milk carafe dispenser to the left up to the “ ” icon.

Note: If the milk carafe dispenser is not completely pulled out , steam may come out and it does not froth milk properly.

Place a cup under the dispensing spout.

ENGLISH

Green

Yellow

GreenGreen

Press the “ ” button to select Latte Macchiato brewing.

The machine reminds you to insert the carafe and pull out the milk

carafe dispenser.

The following icon is displayed during pre-heating time required by

the machine.

When the machine shows the following icon, the machine pours the

milk. The pouring can be stopped by pressing the “

” button.

Once the milk froth has been poured, the machine brews co ee. The

brewing can be stopped by pressing the “

Put back the milk carafe dispenser by shifting it up to the " " icon.

” button.

Note: After using the milk carafe, clean it as described in the "Cleaning and Maintenance" chapter.

It is possible to prepare a Latte Macchiato with pre-ground co ee. Press the “

” button to select pre-ground co ee and pour the pre-ground

co ee into the compartment.

ENGLISH

Adjusting the Latte Macchiato length

Each time the “ ” button is pressed, the machine pours a pre-set quantity of Latte Macchiato into the cup. The machine allows you to adjust the amount of brewed Latte Macchiato according to your taste and the size of your cups.

Fill the milk carafe with milk and install it into the machine.

Pull the milk carafe dispenser to the left up to the “ ” icon. Place a

cup under the dispensing spout.

Press and hold the “ ” button until the “MEMO” icon appears on the

display. Then release the button. The machine is now programming.

The machine reminds you to insert the carafe and pull out the milk

carafe dispenser.

Green

The following icon is displayed during pre-heating time required by

the machine.

YellowGreenGreen

When the machine shows the following icon, the machine starts to

dispense milk froth into the cup. When the desired amount of frothed milk is reached, press the “

Once the milk froth has been poured, the machine starts brewing cof-

fee. When the desired co ee quantity is reached, press the “

Now the “ will brew the same amount of Latte Macchiato that was programmed.

” button is programmed. Every time it is pressed, the machine

” button.

ENGLISH

MAKING FROTHED MILK

Warning: Danger of scalding! Dispensing may be preceded by short sprays of milk and steam. Danger of burns! Wait until the end of the cycle before removing the milk carafe.

Fill the milk carafe with milk. The level must be between the minimum

(MIN) and maximum (MAX) indication on the milk carafe.

Insert the carafe into the machine.

Pull the milk carafe dispenser to the left up to the “ ” icon.

Note: If the milk carafe dispenser is not completely pulled out , steam may come out and it does not froth milk properly.

Place a cup under the dispensing spout.

Green Green

Green

ENGLISH

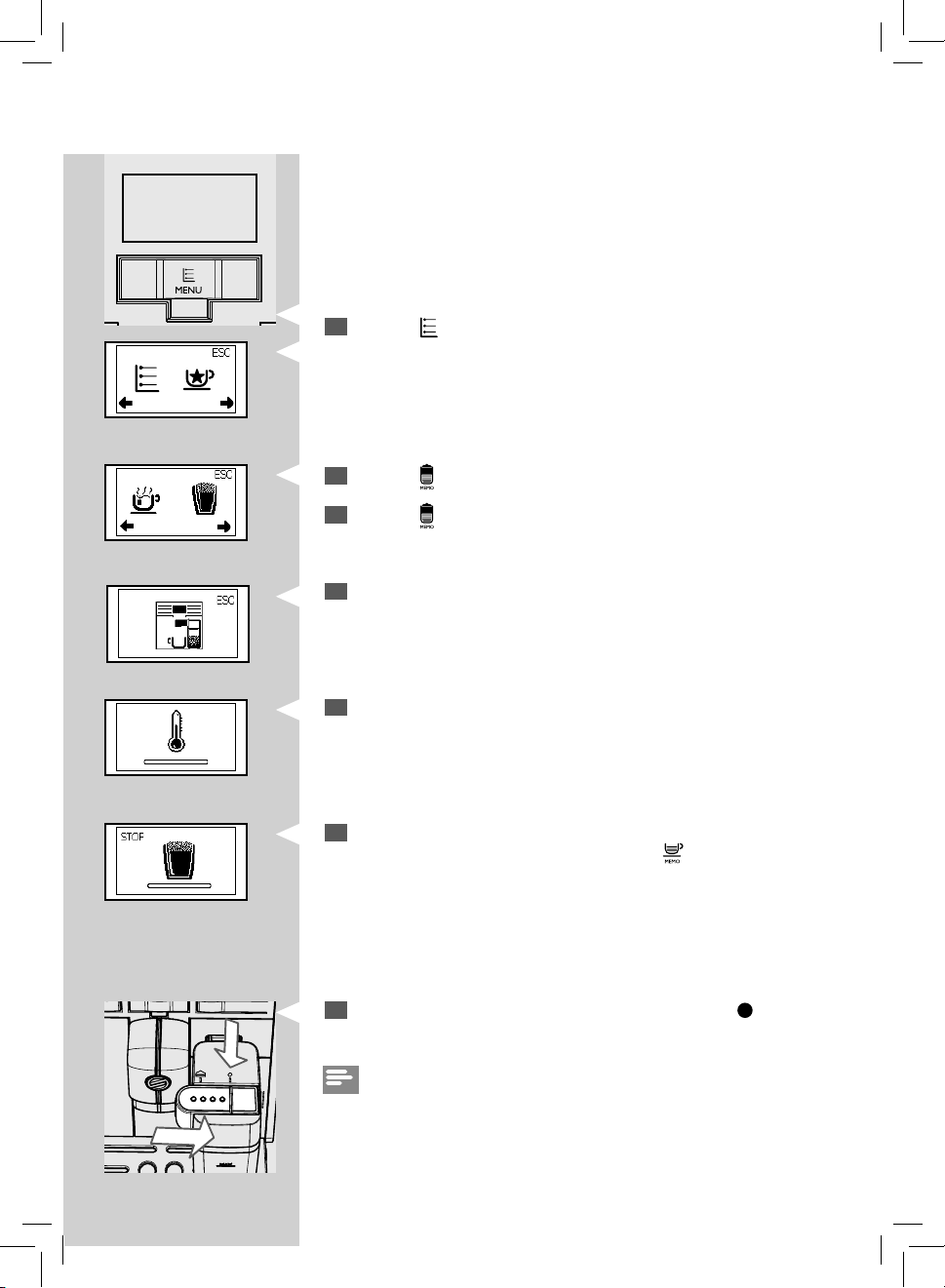

Press the “ ” MENU button. The following icon is displayed.

Press the “ ” button. The following icon is displayed.

Press the “ ” button to select frothed milk.

The machine reminds you to insert the carafe and pull out the milk

carafe dispenser.

The following icon is displayed during pre-heating time required by

the machine.

Yellow

The machine pours a pre-de ned amount of frothed milk into the cup.

The pouring can be stopped by pressing the “

Green

Put back the milk carafe dispenser by shifting up to the " " icon.

Note: After using the milk carafe, clean it as described in the "Cleaning and Maintenance" chapter.

” button.

ENGLISH

Adjusting the frothed milk length

Each time this function is selected, the machine pours a pre-set amount of frothed milk into the cup. The machine allows you to adjust the amount of frothed milk according to your taste and the size of your cups.

Fill the milk carafe with milk and install it into the machine.

Pull the milk carafe dispenser to the left up to the “ ” icon. Place a

cup under the dispensing spout.

Press the “ ” MENU button. The following icon is displayed.

Press the “ ” button. The following icon is displayed.

Green Green

Press and hold the “ ” button to select frothed milk until the “MEMO”

icon appears on the display. Then release the button. The machine is now programming.

The machine reminds you to insert the carafe and pull out the milk

carafe dispenser.

Green

The following icon is displayed during pre-heating time required by

the machine.

Yellow

When the desired amount of frothed milk is reached, press the “ ”

button.

Green

Now the “frothed milk” button is programmed. Every time it is pressed, the machine will brew the same amount of frothed milk that was programmed.

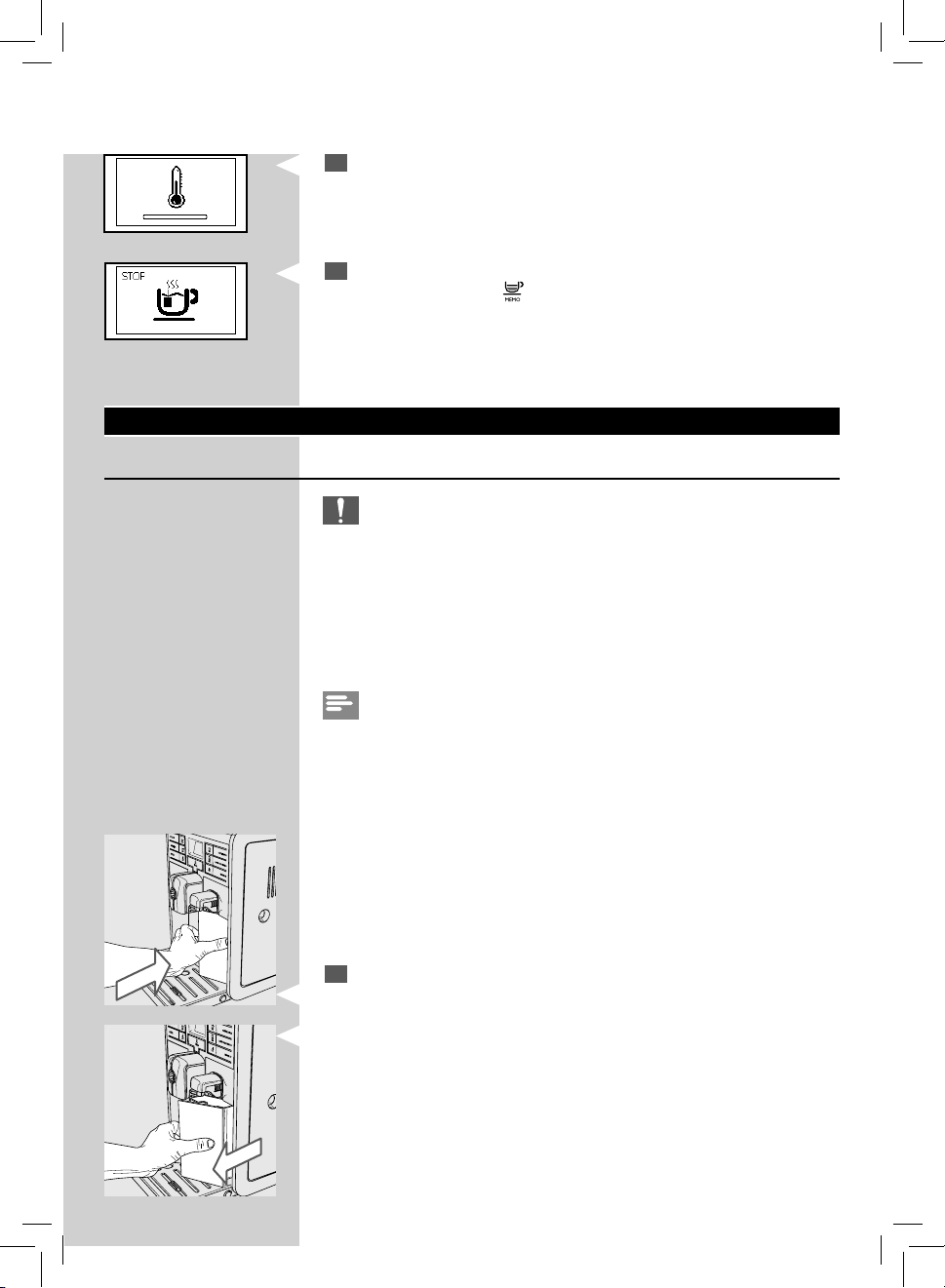

HOT WATER DISPENSING

ENGLISH

Warning: Danger of scalding! Dispensing may be preceded by sprays of hot water and steam. Danger of burns! Wait until the end of the cycle before removing the water dispensing spout.

Slightly tilt the water dispensing spout and then insert it all the way in

into the guides of the machine.

Push the water dispensing spout towards the bottom while rotating at

the same time, until it is locked in the machine as shown in the  gure.

ENGLISH

Place a container under the hot water dispensing spout.

Press the “ ” MENU button. The following icon is displayed.

Press the “ ” button. The following icon is displayed.

Green Green Green

Press the " "button to start the dispensing.

This icon is displayed. The machine reminds you to install the water

dispensing spout. Check that the water dispensing spout is correctly installed. Press “ water.

” to con rm. The machine will start dispensing hot

The following icon is displayed during pre-heating time required by

the machine.

Pour the desired amount of hot water. To stop the hot water dispens-

ing process press the “

Green Yellow

” button.

CLEANING AND MAINTENANCE

Daily Cleaning of the Machine

Caution: Timely cleaning and maintenance of your machine is very important as it prolongs the life of your machine. Your machine gets exposed to moist, co ee and lime scale continuously! In this chapter it is described in detail which activities you need to perform at which frequency. Not doing this will ultimately make your machine stop working properly. This repair is NOT covered by your warranty.

ENGLISH

Note:

- Use a soft, dampened cloth to clean the machine.

- You may only wash the cup holder grill in the washing machine; the other parts need to be washed in lukewarm water.

- Do not immerse the machine in water.

- Do not use alcohol, solvents, and/or abrasive objects to clean the machine.

- Do not dry the machine and/or its components using a microwave and/or standard oven.

Empty and clean the co ee grounds drawer daily with the machine

turned on.

- Push gently on the edge of the door of the co ee grounds drawer to release the handgrip.

- Remove the co ee grounds drawer by pulling the handgrip.

Other maintenance operations can only be carried out when the machine is turned o and unplugged.

ENGLISH

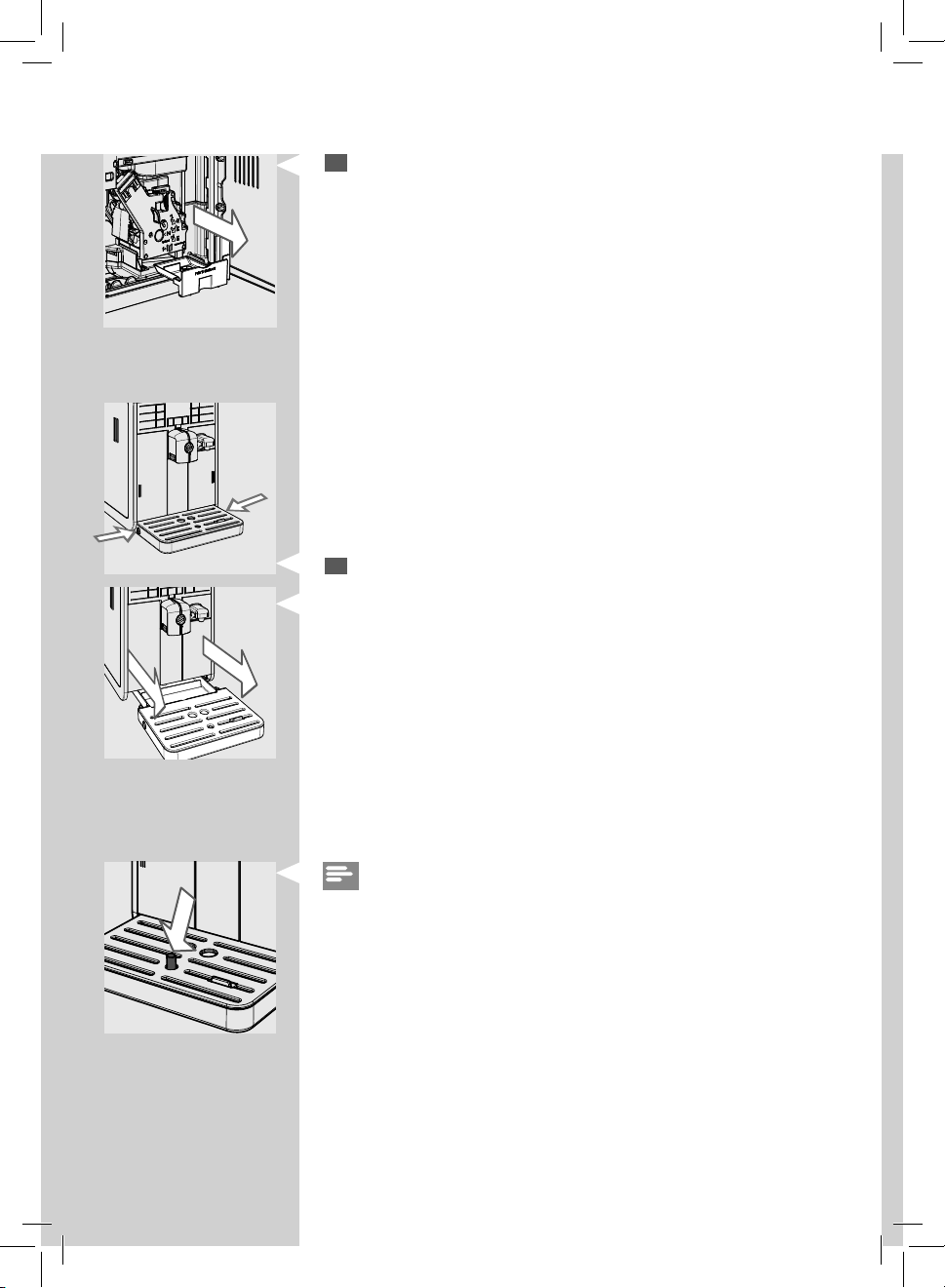

Empty and clean the co ee residues drawer located inside of the ma-

chine. Open the service door, remove the drawer and empty it.

Empty and clean the drip tray:

- Press the side buttons.

- Remove the drip tray.

Note:

Empty the drip tray also when the full drip tray indicator is raised.

ENGLISH

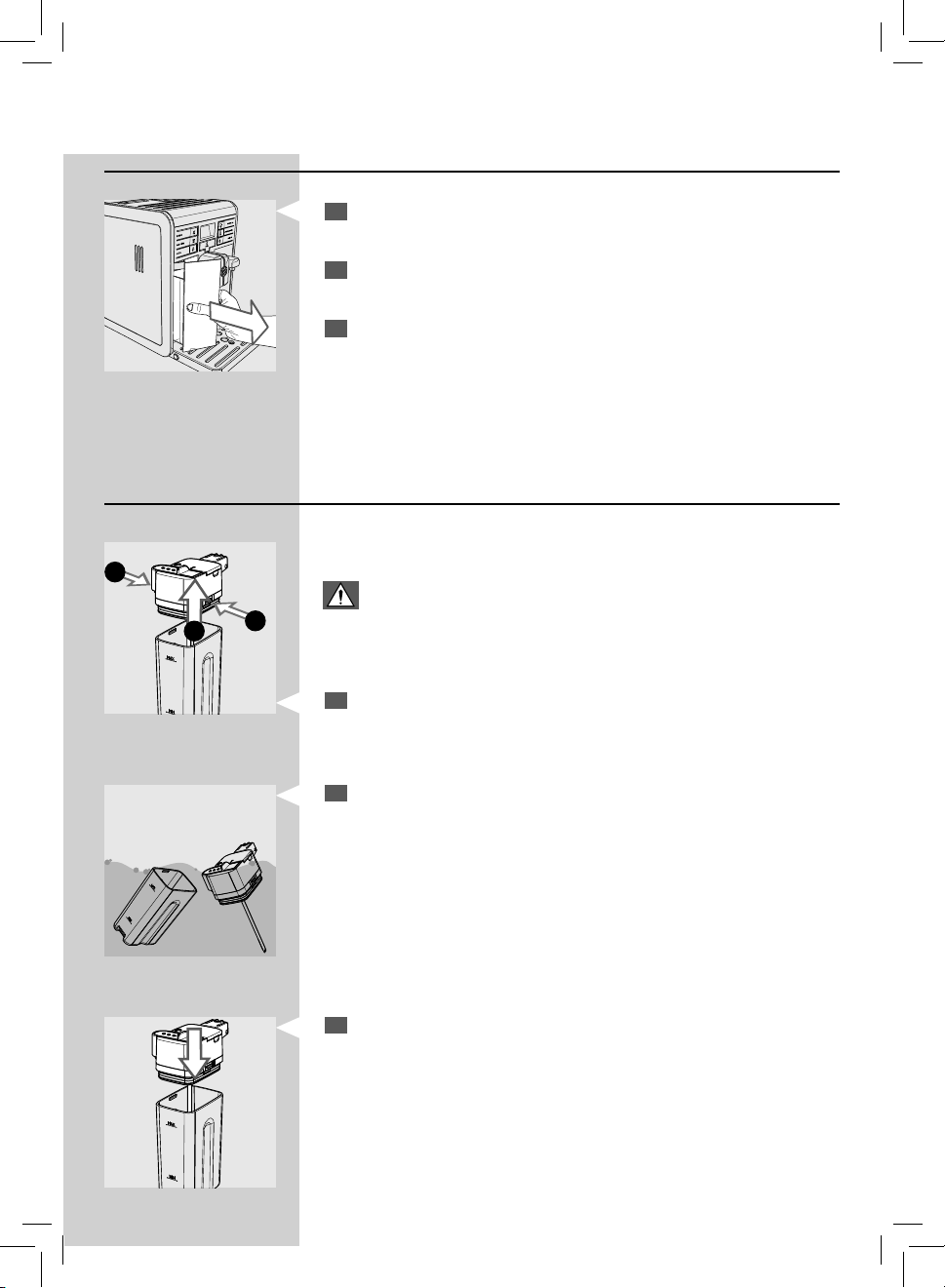

Daily cleaning of the water tank

Remove the small white  lter or the INTENZA+ water  lter (if installed)

from the water tank and wash it with fresh water.

Put the small white  lter back or the INTENZA+ water  lter (if installed)

in its housing by gently pressing and turning it at the same time.

Fill the water tank with fresh water.

Daily cleaning of the milk carafe

It is important that you clean the milk carafe daily or after each use as it preserves hygiene and ensures perfect milk froth consistency.

Warning: Danger of scalding! Dispensing may be preceded by short sprays of hot water and steam. Danger of burns! Wait until the end of the cycle before removing the milk carafe.

Press the release buttons and remove the top of the carafe.

Rinse the top of the carafe and the milk carafe with lukewarm water.

Remove all milk residues.

Attach the top on the milk carafe; ensure it is locked into place.

ENGLISH

Remove the lid and  ll the milk carafe up to the MAX level with fresh

water.

Put the lid back onto the milk carafe.

Pull the milk carafe dispenser to the left up to the “ ” icon.

Green

Place a container under the dispensing spout.

Press the “ ” MENU button. The following icon is displayed.

ENGLISH

Press the “ ” button. The following icon is displayed.

Green

YellowGreen Green

Press the “

The machine reminds you to insert the carafe and pull out the milk

” button to select frothed milk.

carafe dispenser.

The following icon is displayed during pre-heating time required by

the machine.

Once the machine stops dispensing water, the cleaning is  nished.

Put back the milk carafe dispenser by shifting it up to the “ ” icon.

Remove the milk carafe and empty it.

ENGLISH

Weekly Cleaning of the Machine

Clean the seat of the drip tray.

Clean the pre-ground co ee compartment with the cleaning brush.

Weekly cleaning of the milk carafe

The weekly cleaning is more thorough as it removes any milk residues from the dispenser.

Press the release buttons and remove the top of the carafe.

Remove the lid.

ENGLISH

Lift the milk carafe dispenser to remove it from the top of the carafe.

The milk carafe dispenser is composed of  ve parts that must be removed. Each part is identi ed by capital letters (A, B, C, D, E) shown below in the images.

Remove the suction tube (A).

Remove the  tting (B) from the milk frother by pulling it outwards.

Detach the lid (C) from the milk carafe dispenser by pulling it down

while slightly pressing on the sides.

Further disassemble as shown in the image.

ENGLISH

Pull the  tting (E) outwards from the milk frothing device.

Clean all the parts thoroughly with lukewarm water.

Note: You can also clean these parts in the dishwasher.

Reassemble the parts following the reverse order.

Weekly Cleaning of the Brew Group

The brew group should be cleaned every time the co ee bean hopper is  lled or at least once a week.

Turn o the machine by pressing the “ ” button and unplug the

power cord.

Remove the co ee grounds drawer. Open the service door.

Remove and clean the co ee residues drawer.

ENGLISH

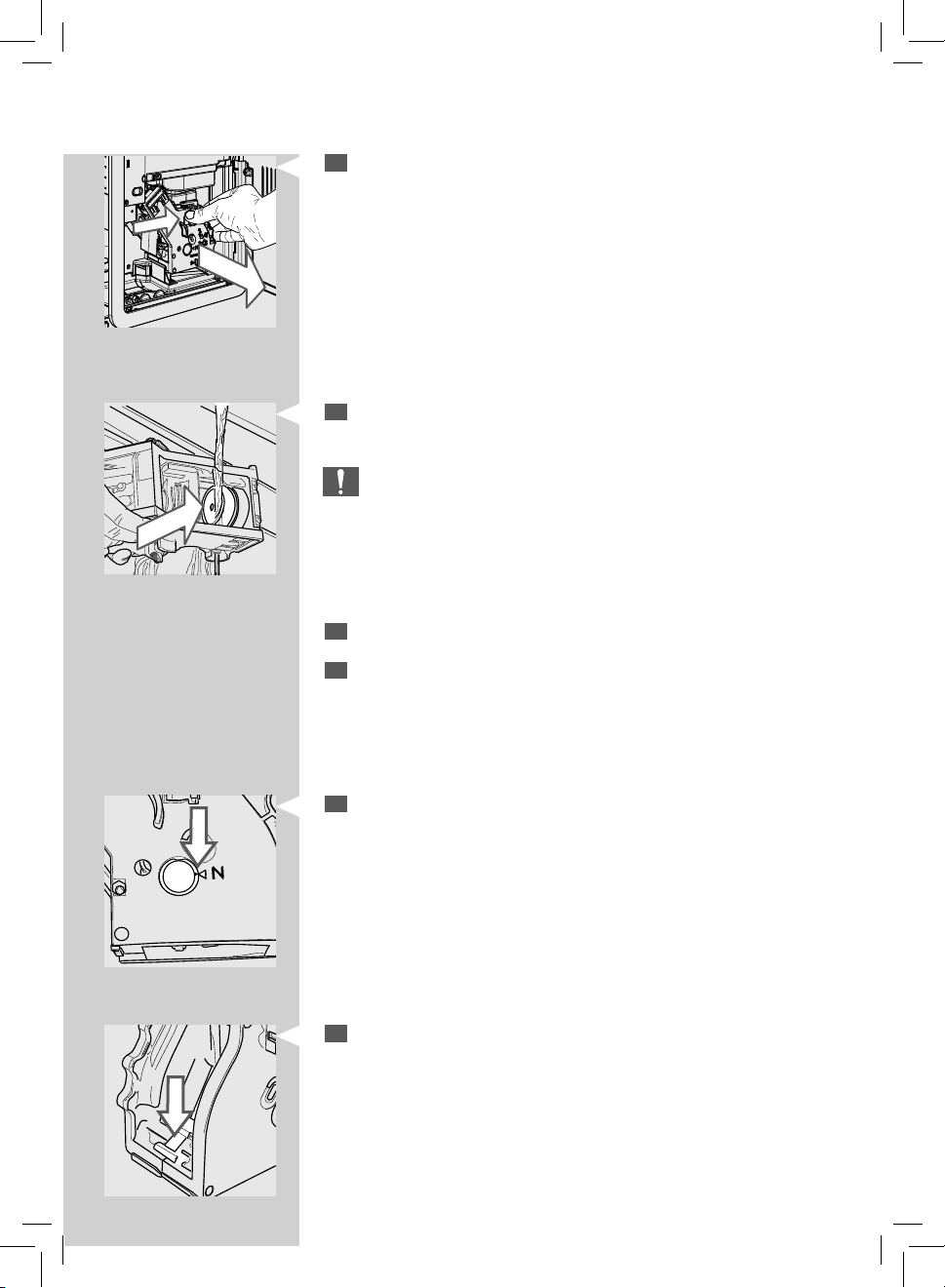

To remove the brew group, press the «PUSH» button and pull it by the

handle.

Thoroughly wash the brew group with fresh, lukewarm water and care-

fully clean the upper  lter.

Caution: do not use detergent/soap to clean the brew group.

Let the brew group air-dry thoroughly.

Thoroughly clean the inside of the machine using a soft, dampened

cloth.

Make sure the brew group is in the rest position; the two reference

signs must match. If they do no match, proceed as described in step (9).

Gently pull down the lever until it touches the brew group base and

the two reference signs on the side of the brew group do match.

ENGLISH

Make sure the hook to lock the brew group is in the correct position by

 rmly pressing the “PUSH” button until it locks into place. Check if the hook is at the top end position. If it is not, please try again.

Insert the brew group in its seat again until it locks into place without

pressing the “PUSH” button.

Insert the co ee residues drawer and close the service door.

Insert the co ee grounds drawer.

ENGLISH

Weekly cleaning of the co ee bean hopper, the tray and the compartment

Clean the co ee bean hopper, the tray and the co ee bean hopper compartment once a week with a cloth to remove any co ee residuals or dust.

To remove the tray push the hooks on the bottom of the co ee bean hopper. This is shown in the picture on the left.

After cleaning put the tray back into the co ee bean hopper.

ENGLISH

Monthly cleaning of the milk carafe

In the monthly cleaning cycle we recommend using the “Saeco Milk Circuit Cleaner” to keep the entire circuit clean of milk residues. You can purchase separately the “Saeco Milk Circuit Cleaner”. Please refer to the maintenance products page for further details.

Warning: Danger of scalding! Dispensing may be preceded by short sprays of hot water and steam. Danger of burns! Wait until the end of the cycle before removing the milk carafe.

Note: Before starting the procedure, make sure that the water tank is  lled up to the MAX level.

Fill the milk carafe with water up to the maximum level (MAX).

Pour the milk cleaner bag into the milk carafe and let it dissolve com-

pletely.

Insert the carafe into the machine.

left up to the “

Place a container under the dispensing spout.

” icon.

Pull the milk carafe dispenser to the

ENGLISH

Press the “ ” MENU button. The following icon is displayed.

Green

Press the “ ” button. The following icon is displayed.

Green

Press the “

The machine reminds you to insert the carafe and pull out the milk

” button to select frothed milk.

carafe dispenser.

Green

The following icon is displayed during pre-heating time required by

the machine.

Yellow

Once the machine stops dispensing water, repeat steps 5 - 8 until the

carafe is emptied.

Green

Warning: Never drink the solution dispensed during the procedure.

ENGLISH

Put back the milk carafe dispenser by shifting it up to the " " icon.

Remove the milk carafe and empty it.

Remove the milk carafe and the container from the machine.

Rinse and  ll the milk carafe with fresh water up to the MAX level.

Green

Insert the milk carafe into the machine.

the left up to the “ spout to start the rinse cycle.

Press the “ ” MENU button. The following icon is displayed.

Press the “ ” button. The following icon is displayed.

Press the “

The machine reminds you to insert the carafe and pull out the milk

carafe dispenser.

” button to select frothed milk.

” icon.

Place a container under the dispensing

Pull the milk carafe dispenser to

The following icon is displayed during pre-heating time required by

the machine.

Yellow

Once the machine stops dispensing water, repeat steps 13 - 16 until

the carafe is emptied.

Green

Remove the milk carafe and the container from the machine. Repeat

steps 11 - 16 one more time.

Disassemble and wash the milk carafe as described in the “Weekly

Cleaning of the Milk Carafe” chapter.

Monthly Lubrication of the Brew Group

Lubricate the brew group after approximately 500 cups of co ee or once a month. You can purchase separately the Saeco grease to lubricate the brew group. For further details, please refer to the maintenance products page in this manual.

ENGLISH

Caution: Before lubricating the brew group, clean it with fresh water and dry it as described in the “Weekly Cleaning of the Brew Group” chapter.

Apply the grease evenly on both side guides.

ENGLISH

Lubricate the shaft too.

Insert the brew group in its seat until it locks into place (see “Weekly

Cleaning of the Brew Group” chapter). Insert the co ee residues drawer.

Close the service door. Insert the co ee grounds drawer.

Monthly Cleaning of the Brew Group with “Co ee Oil Remover”

Besides weekly cleaning, we recommend running the cleaning cycle with “Co ee Oil Remover” after approximately 500 cups of co ee or once a month. This operation completes the maintenance process of the brew group. You can purchase separately the “Co ee Oil Remover”. For further details, please refer to the maintenance products page in this manual.

Caution: The “Co ee Oil Remover” tablets are to be used for cleaning only and do not have a descaling function. For the descaling procedure use the Saeco descaling solution and follow the procedure described in the “Descaling” chapter.

ENGLISH

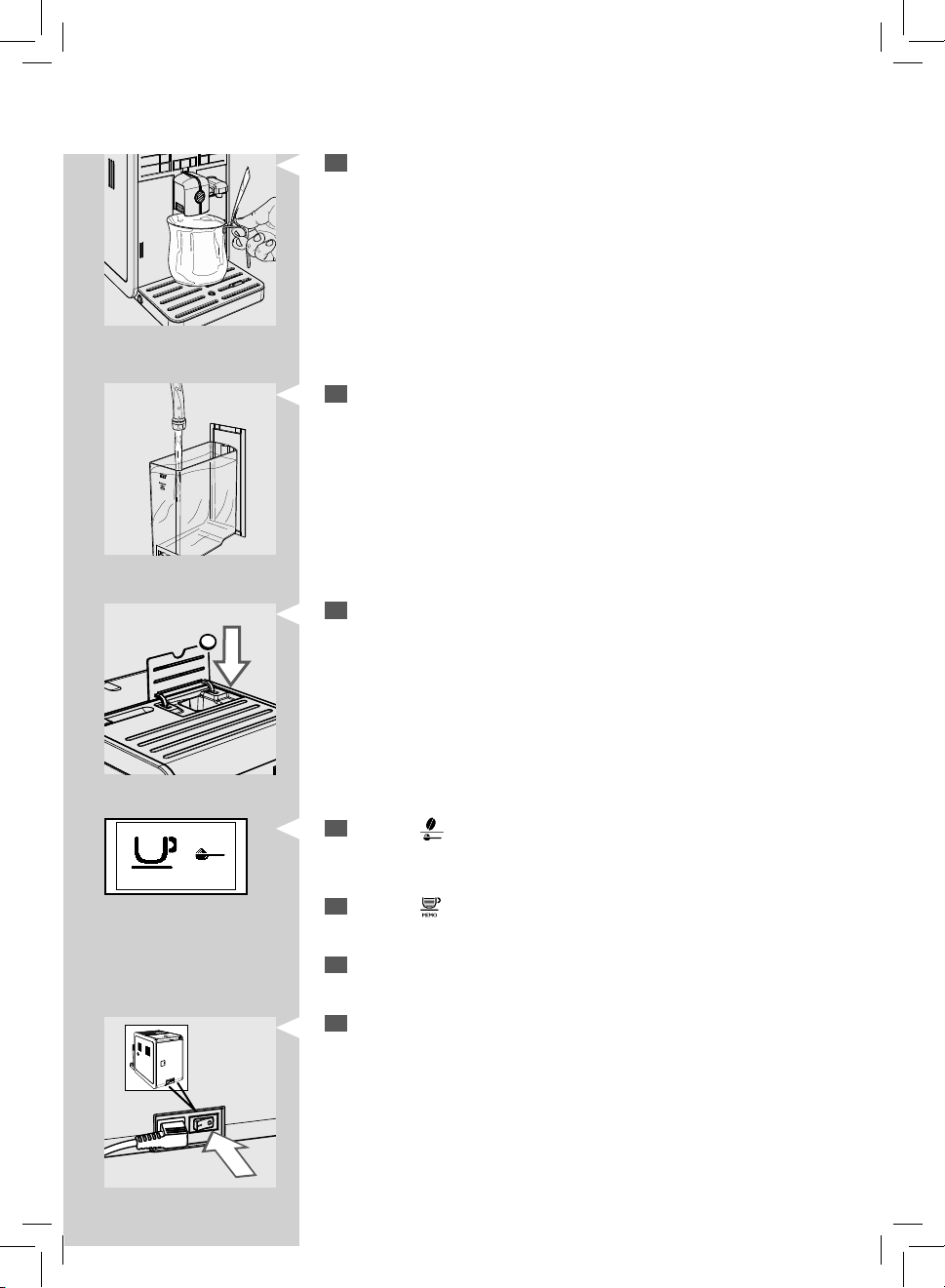

Place a container under the co ee dispensing spout.

Make sure the water tank is  lled with fresh water up to the “MAX”

level.

Put a “Co ee Oil Remover” tablet in the pre-ground co ee compart-

ment.

Green

Press the “ ” button one or more times to select the pre-ground cof-

fee function. Do not add ground co ee.

Press the “ ” button to start a co ee brewing cycle.

Wait until the machine has dispensed half a cup of water.

Switch the power button on the back of the machine to “0”.

ENGLISH

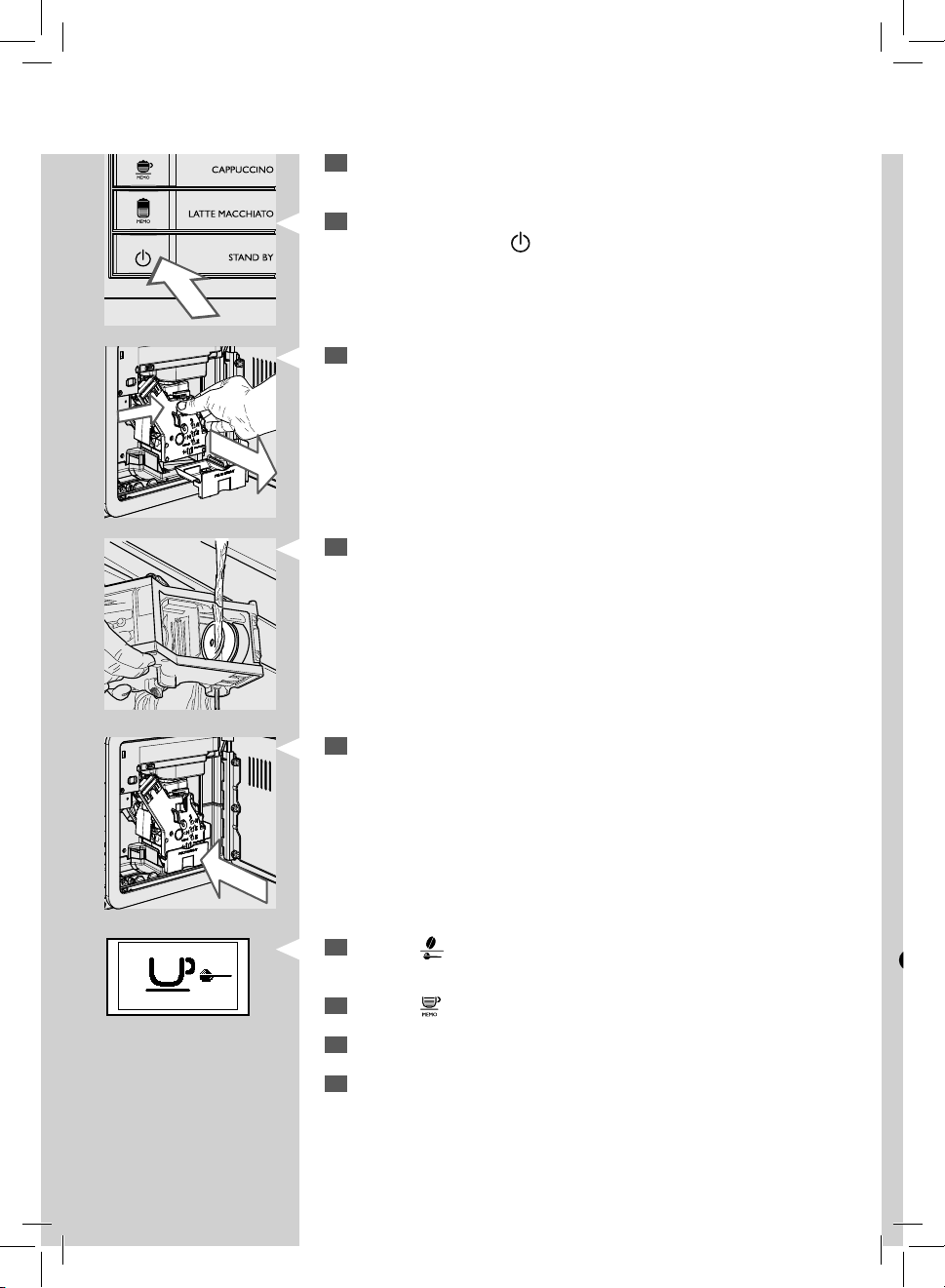

Let the solution take e ect for approximately 15 minutes. Make sure

you discard the dispensed water.

Switch the power button on the back of the machine to “I”. To turn on

the machine press the “

Wait until the automatic rinse cycle has been completed.

Remove the co ee grounds drawer and open the service door. Remove

the co ee residues drawer and then the brew group.

Wash the brew group thoroughly with fresh water.

” button.

Green

After rinsing the brew group, insert it again in its seat until it locks into

place (see the “Weekly Cleaning of the Brew Group” chapter). Insert the co ee residues drawer and the co ee grounds drawer. Close the service door.

Press the “ ” button to select the pre-ground co ee function. Do not

add co ee to the pre-ground co ee compartment.

Press the “ ” button to start a co ee brewing cycle.

Repeat steps 13-14 twice. Empty the container.

To clean the drip tray, place “Co ee Oil Remover” tablet inside and  ll

it 2/3rds full with hot water. Let the cleaning solution take e ect for about 30 minutes, then rinse thoroughly.

ENGLISH

DESCALING

The descaling process takes approx. 35 minutes.

Limescale builds up inside the machine during use. It needs to be removed regularly as it may clog the water and co ee circuit of your machine. The machine tells you when descaling is needed. If the machine display shows

Yellow

the CALC CLEAN icon, it means that you need to descale.

Caution: Not doing this will ultimately make your machine stop working properly, and in this case repair is NOT covered by your warranty.

Use the Descaling solution only. Its formula has been designed to ensure better machine performance. You can purchase separately the Descaling solution. Please refer to the maintenance products page in this user manual for further details.

Warning: Never drink the descaling solution or any products dispensed until the cycle has been carried out to the end. Never use vinegar as a decalci er.

Note: During the descaling cycle do not switch o the machine. If this has happened you have to restart the descaling cycle to fully complete it. It will restart from the point the descaling cycle had previously been left.

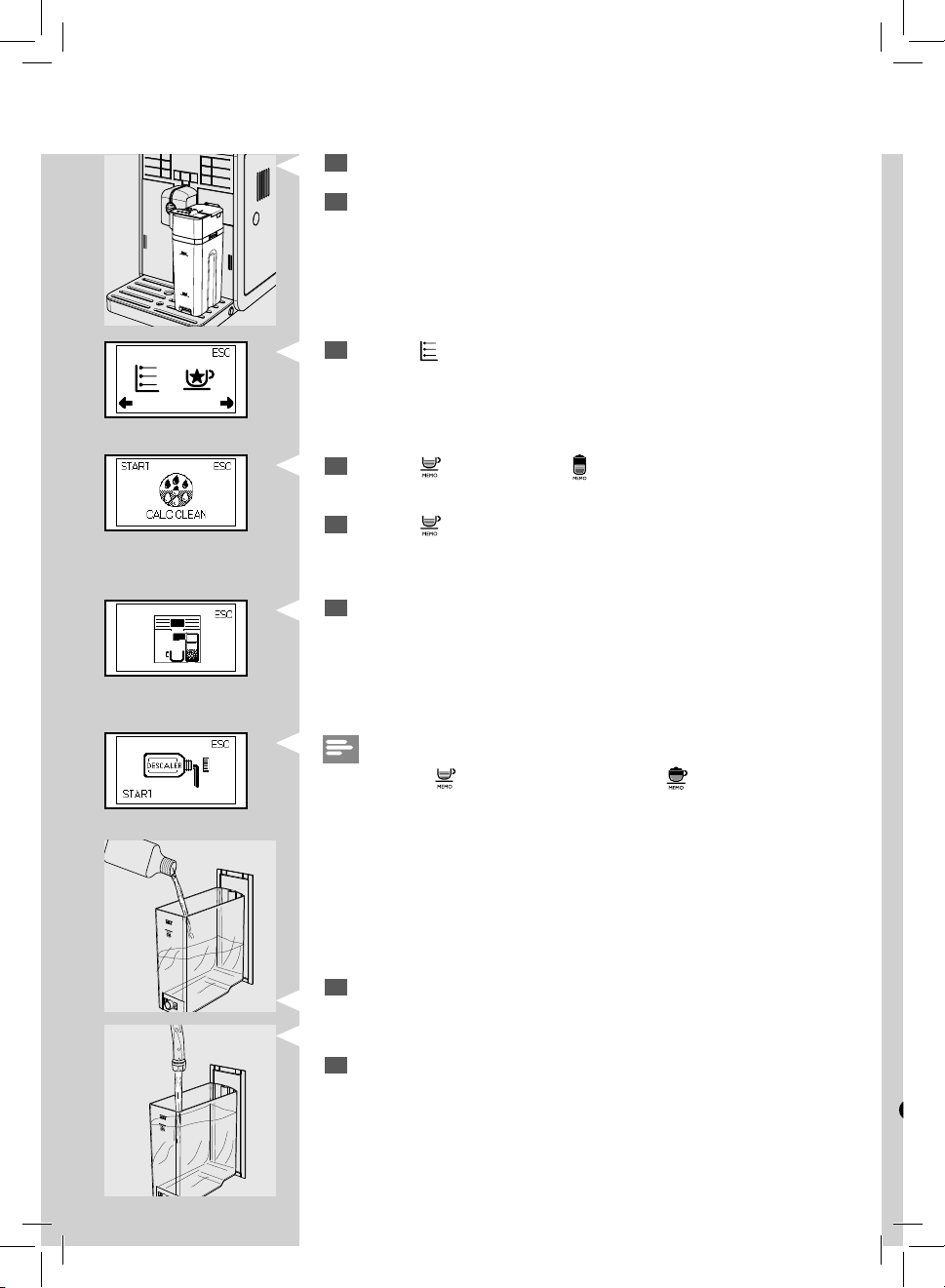

To perform the descaling cycle, follow the steps below:

Before descaling:

Empty the drip tray.

ENGLISH

Green

Insert the empty milk carafe.

Remove the “INTENZA+” water  lter from the water tank if it was in-

stalled and replace it with the small white original one. Place the water tank back into the machine.

Press the “ ” MENU button. The following icon is displayed.

Press the “ ” button. Press the “ ” button until the following display is

shown.

Press the “ ” button to start the descaling process.

The machine reminds you to insert the carafe and pull out the milk

carafe dispenser.

Yellow Yellow Green

Note: if you press the “

Remove the water tank and pour the entire content of the descal-

ing solution. Then  ll the water tank with fresh water up to the CALC CLEAN level.

Place the water tank back into the machine.

” button by mistake, press the “ ” button to quit.

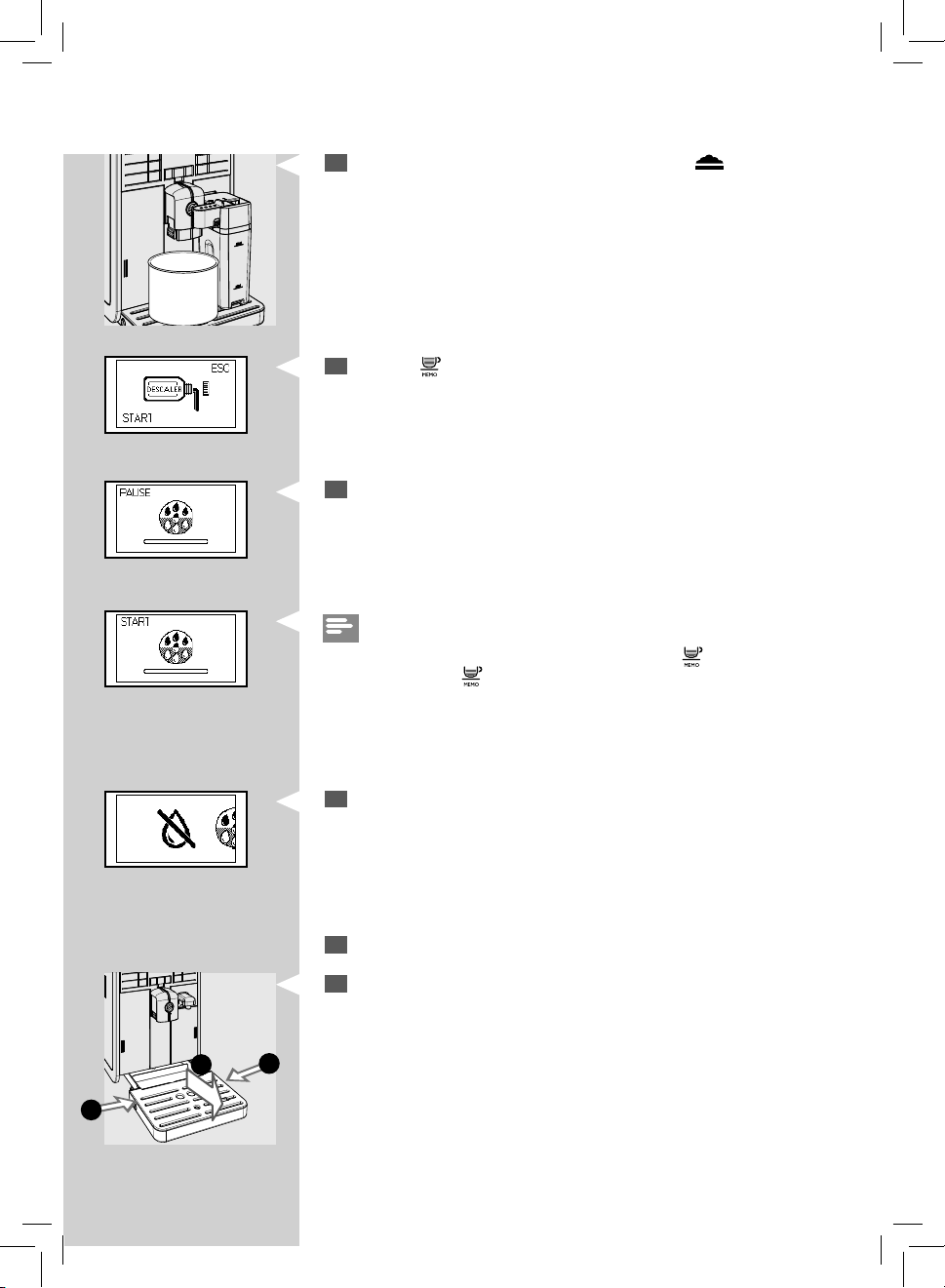

Pull the milk carafe dispenser to the left up to the " " icon. Place

a large container (1.5lt) under both the milk carafe dispenser and the dispensing spout.

Press the “ ” button to start the descaling cycle.

Yellow YellowRed Yellow

The machine will start dispensing the descaling solution at intervals.

The bar on the display shows the cycle progress.

Note: The descaling cycle may be paused by pressing the “ the cycle, press the “ tainer or to stay away from the machine for a brief period of time.

” button again. This allows you to empty the con-

ENGLISH

” button .To resume

When this icon is displayed, the water tank is empty.

Remove and empty the container and the milk carafe.

Empty the drip tray and place it back.

ENGLISH

YellowRedGreen

Remove the water tank, rinse it and  ll it up to the MAX level with fresh

water. Place it back into the machine. When inserting the water tank into the machine, the display on the left is shown.

Install the milk carafe into the machine. Place back the container under

both the milk carafe dispenser and the dispensing spout.

Press the “ ” button to start the rinsing cycle.

When this icon is displayed, the water tank is empty. Repeat steps 14-

18. Then continue to step 20.

When the water tank is empty, remove the water tank, rinse it and  ll it

up to the MAX level with fresh water. Place it back into the machine.

Empty the container and place it back under the dispensing spout.

When the amount of water needed for the rinse cycle has been

completely dispensed, this icon on the side is displayed. Press the " button to quit the descaling cycle.

The machine automatically primes the circuit.

The machine now carries out the warm-up and automatic rinse cycle to

Yellow

prepare for product brewing.

ENGLISH

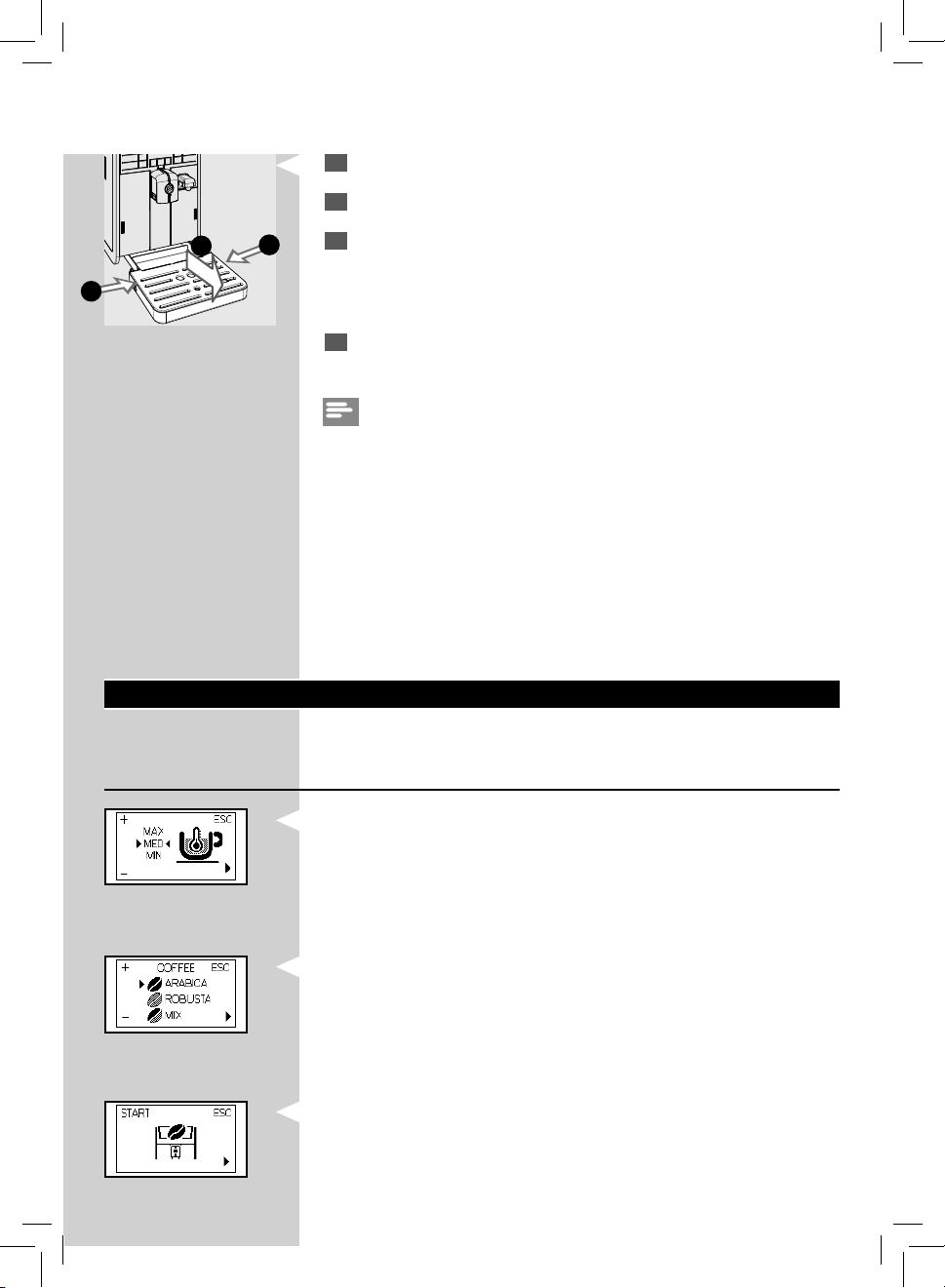

Remove and empty the container

Empty the drip tray and place it back.

The descaling cycle is now complete.

Remove the small white water  lter and place back the “INTENZA+”

water  lter into the water tank if it was installed.

Note: At the end of the descaling cycle, wash the brew group as described in the “Weekly Cleaning of the Brew Group” chapter.

The two rinse cycles are performed in order to have the circuit cleaned with a preset amount of water and ensure proper machine operation. If the water tank is not  lled up to MAX level, the machine might require three or more cycles.

PROGRAMMING

You can adjust the machine functions to your personal preference by accessing the program menu.

The following parameters can be adjusted

Co ee temperature

This function allows you to adjust the co ee brewing temperature.

Yellow

Co ee bean selection

This function allows you to optimize the grinding for selected type of coffee bean.

YellowYellow

Co ee duct emptying cycle.

This function allows you to empty the co ee duct and grinder before changing co ee beans.

ENGLISH

Water hardness

This function allows you to adjust the water hardness setting according to the area where you live. 1 = very soft water 2 = soft water 3 = hard water 4 = very hard water For more details please see the “Measuring and Programming Water Hardness” chapter.

"INTENZA+" Water Filter

This function allows you to manage the “INTENZA+” water  lter. For more details, see the chapter related to  lter handling.

Descaling cycle

This function allows you to run the descaling cycle.

Timer (stand-by)

This function allows you to adjust the time the machine will go into standby mode after the last brewing.

YellowYellow YellowYellowYellowYellow

Contrast

This function allows you to adjust the contrast of the display to better view the messages.

Factory Settings

This function allows you to reset all factory values.

ENGLISH

How to program your machine

In this example, it is shown how to program the display contrast. Proceed in the same way to program the other functions. The programming menu can only be accessed when the machine is on and shows this display.

Green

Press the " " button to enter the menu.

Press the “ ” button to access programming.

Green

The  rst page is displayed.

Yellow

Press the “ ” button to scroll the function pages until the display con-

trast function is displayed.

Yellow

ENGLISH

Press the “ ” and “ ” buttons to increase or decrease the value of the

function.

Yellow

When the display value is changed, the “OK” message appears. Press

” button to con rm the change.

the “

Press the “ ” button to exit the programming menu.

Note: The machine will automatically exit the programming menu if you do not push any button for 3 minutes. The values that have been changed but not con rmed won’t be saved.

Ready Signals (Green Colour)

The machine is ready to brew co ee with Arabica co ee beans

The machine is ready to brew co ee with Robusta co ee beans

The machine is ready to brew co ee with a mix of co ee beans

The machine is ready to brew pre-ground co ee.

Select the programming menu or special beverages menu

ENGLISH

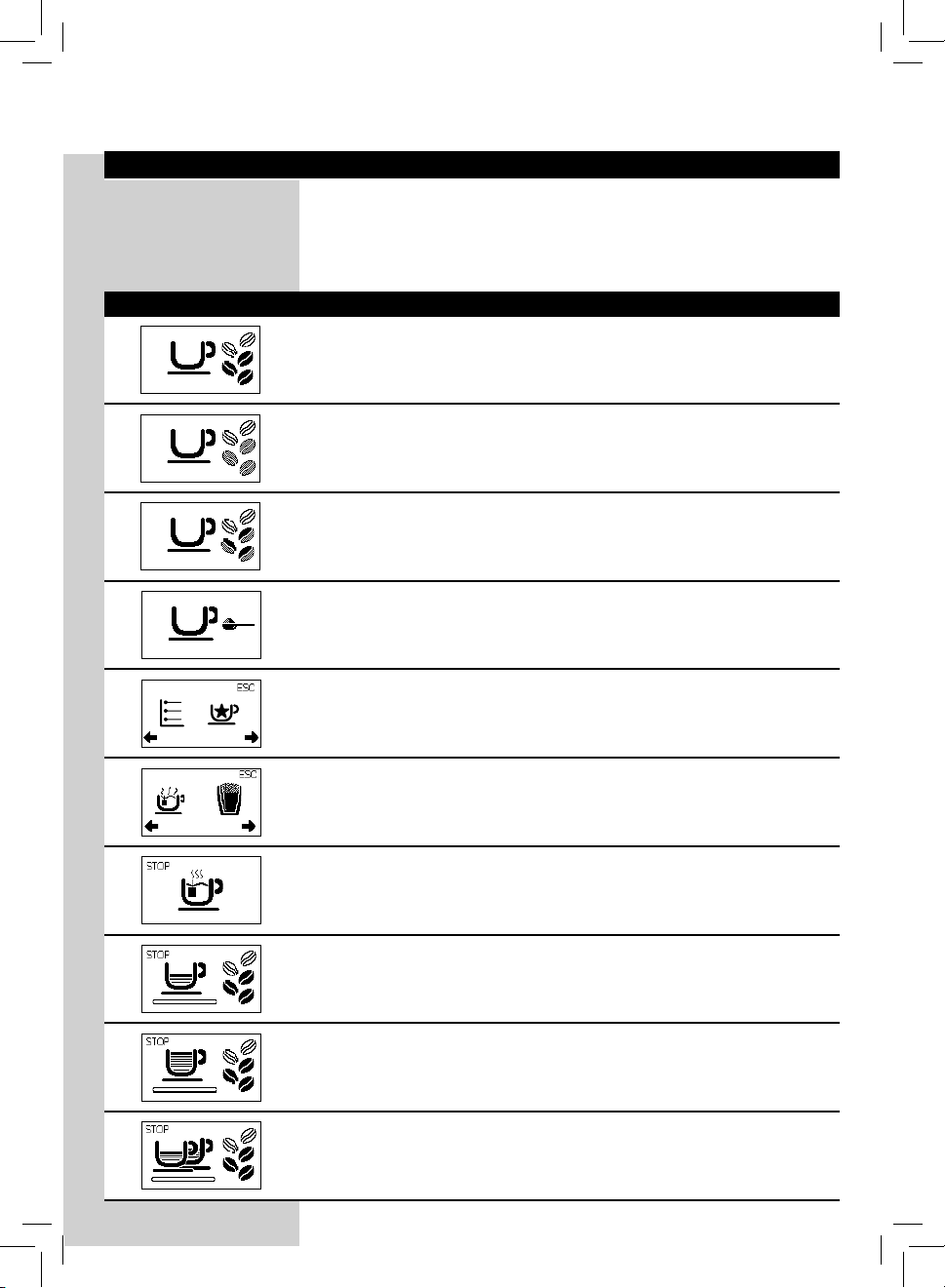

MEANING OF THE DISPLAY SYMBOLS

This machine is equipped with a colour-coded system to make the user’s understanding of the display signals easier. The icons are colour-coded according to the tra c light principle.

Frothed milk or hot water selection.

Hot water dispensing.

The machine is brewing one cup of espresso.

The machine is brewing one cup of co ee.

The machine is brewing two cups of espresso.

ENGLISH

Ready Signals (Green Colour)

The machine is brewing two cups of co ee.

Co ee brewing using pre-ground co ee in progress.

The machine is programming the amount of co ee to brew.

Frothed milk brewing.

The machine is brewing cappuccino.

The machine is programming the amount of milk to dispense for the cappuccino.

The machine is programming the amount of co ee to dispense for the cappuccino.

The machine is brewing Latte Macchiato.

The machine is programming the amount of milk to dispense for the Latte Macchiato.

The machine is programming the amount of co ee to dispense for the Latte Macchiato.

The machine is programming the amount of milk to dispense for the frothed milk.

Ready Signals (Green Colour)

Insert the water dispensing spout and press the “ ” button to start dispensing.

Press “

The machine will remind the user that the carafe must be inserted.

Warning Signals (Yellow Colour)

The machine is heating up to brew beverages or dispense hot water.

The machine is heating up during beverages programming.

The machine is performing the rinse cycle. Wait until the machine has completed the cycle.

” to exit.

ENGLISH

The machine needs the “INTENZA+” water  lter to be replaced.

The brew group is being reset due to machine reset.

Re ll the co ee bean hopper with co ee beans and restart the cycle.

Prime the circuit.

The machine needs to be descaled. Press the “ ” button to start the descaling process. Follow the steps described in the descaling chapter of this manual. If you want to descale later, press the “ machine. Please note that not descaling your machine will ultimately make it stop working properly. In this case repair is NOT covered under your warranty.

” button to continue using the

ENGLISH

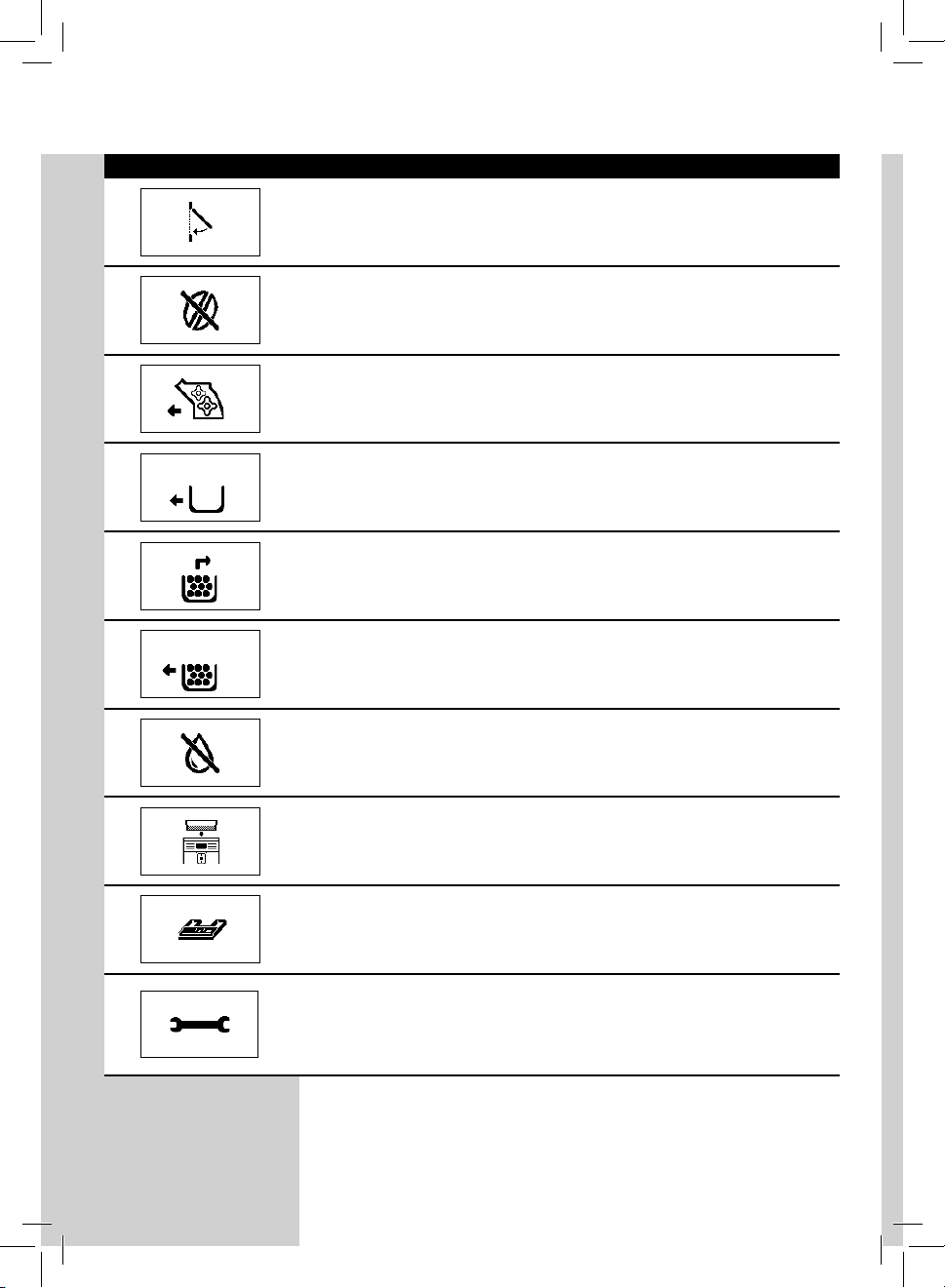

Warning Signals (Red Colour)

Close the service door.

Fill the co ee bean hopper.

The brew group must be inserted into the machine.

Insert the co ee grounds drawer.

Empty the co ee grounds drawer and the co ee residues drawer.

Fully insert the co ee grounds drawer before turning the machine o .

Exx

Fill the water tank.

Insert the co ee bean hopper.

Insert drip tray.

Turn o the machine. After 30-seconds, turn it back on. Try this 2 or 3 times. If the machine does not start, contact the Philips SAECO hotline in your country and communicate the Error-code which you see on the display. You can  nd its contact details in the warranty booklet by-packed separately or on www.philips.com/support.

ENGLISH

TROUBLESHOOTING

This chapter summarizes the most common problems you could encounter with your machine. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Philips Saeco hotline in your country. The contact details can be found in the warranty booklet by-packed separately or on www.philips.com/support.

Machine actions Causes Solutions

The machine does not switch on. The machine is not connected to the

The drip tray gets  lled although no water is drained.

The red played on the machine.

Co ee is not hot enough. The cups are cold. Preheat the cups with hot water.

No hot water is dispensed. The hole of the water dispensing spout

Co ee does not have enough crema (see note).

Milk does not froth. The milk carafe is dirty or not inserted

The machine takes a long time to warm up or the amount of water dispensed from the wand is too little.

The brew group cannot be removed.

There is a lot of ground co ee under the brew group.

The machine grinds the co ee beans but no co ee comes out. (see note).

icon is always dis-

electric network.

The power button is on position "0". Check that the power button is set to "I".

Sometimes water is drained automatically by the machine into the drip tray to manage the rinsing of the circuits and ensure optimum machine performance.

The co ee grounds drawer has been emptied with the machine o .

is clogged.

The blend is unsuitable, co ee is not freshly roasted or the grind is too coarse.

correctly.

The milk carafe dispenser has not been correctly pulled out.

The machine circuit is clogged by limescale.

The brew group is out of place. Turn on the machine. Close the service

The co ee grounds drawer is inserted. Remove the co ee grounds drawer

Co ee is not suitable for automatic machines.

There is no water. Fill the water tank and prime the circuit

The brew group is dirty. Clean the brew group ("Weekly Cleaning

This might occur when the machine is automatically adjusting the dose.

The circuit is not primed. Prime the circuit (chapter “Using the

The dispensing spout is dirty. Clean the dispensing spout.

Connect the machine to the electric network.

This is seen as normal machine behavior.

The co ee grounds drawer must always be emptied with the machine on. Wait until the re tting the drawer.

Clean the hole of the dispensing spout using a pin.

Make sure that the machine is o and cold before performing this operation.

Change co ee blend or adjust the grind as explained in chapter “Adjusting the Ceramic Co ee Grinder”.

Clean the carafe and insert it correctly.

Check that the milk dispenser has been pulled out correctly.

Descale the machine.

door. The brew group automatically returns to the initial position.

before removing the brew group.

It may be necessary to change the type of co ee or the co ee grinder settings.

(chapter "Using the Machine for the First Time").

of the Brew Group" chapter).

Brew a few co ees as described in chapter “Saeco Adapting System”.

machine for the  rst time”).

icon is displayed before

ENGLISH

Machine actions Causes Solutions

Co ee is too weak (see note).

Co ee is brewed slowly (see note).

Co ee leaks out of the dispensing spout.

The selector is locked. Some co ee beans may have got stuck. Move the selector and repeat this move-

The co ee bean hopper cannot be inserted.

Co ee does not taste according to the new beans.

The

is displayed.

This might occur when the machine is automatically adjusting the dose.

The co ee is too coarse. Change co ee blend or adjust the grind

The co ee bean hopper selector has been shifted.

The co ee grind is too  ne. Change co ee blend or adjust the grind

Circuits clogged. Perform a descaling cycle.

The circuit is not primed. Prime the circuit (chapter “Using the

The brew group is dirty. Clean the brew group ("Weekly Cleaning

The dispensing spout is clogged. Clean the dispensing spout and its holes.

The blade placed under the co ee bean hopper has been shifted.

There may be some co ee beans left in the co ee bean hopper compartment.

The selector is not in the correct position.

You have not emptied the co ee duct and grinder.

The co ee bean hopper selector has been shifted.

The co ee bean hopper and tray are dirty.

Brew a few co ees as described in chapter “Saeco Adapting System”.

as explained in chapter "Adjusting the Ceramic Co ee Grinder".

Switch the selector to the “

as explained in chapter “Adjusting the Ceramic Co ee Grinder”.

machine for the  rst time”).

of the Brew Group" chapter).

ment until the bean is released.

Shift the blade to the end of its guide covering the hole.

Remove the beans.

Put the selector in the open position.

You need to brew at least two co ees before you can taste the new co ee beans.

Switch the selector to the “

Clean the co ee bean hopper and tray from any co ee residuals. (Chapter “Weekly cleaning of the co ee bean hopper, the tray and the compartment).

” position.

Note: These problems can be considered normal if the co ee blend has been changed or if the machine has just been installed. In this case wait until the machine performs a self-adjusting operation as described in section "Saeco Adapting System".

ENGLISH

ENERGY SAVING

Stand-by

The Saeco full automatic espresso machine is designed for energy saving, as stated by the Class A energy label.

After 30 minutes of inactivity the machine turns o automatically (unless you have di erently programmed the stand-by time). If a product has been brewed the machine performs a rinsing cycle.

In stand-by mode, the energy consumption is below 1Wh. To turn on the machine, press the

“ ” button (if the power button on the

back of the machine is set to “I”). If the boiler is cold, the machine performs a rinse cycle.

Disposal

Do not throw away the machine with the normal household waste at the end of its life, but hand it in at an o cial waste collection centre for recycling. By doing this, you help to preserve the environment.

- The packing materials can be recycled.

- Machine: unplug the machine and cut the power cord.

- Deliver the appliance and the power cord to a service centre or public waste disposal facility.

This product complies with EU Directive 2002/96/EC. The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable waste collection centre for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city o ce, your household waste disposal service or the shop where you purchased the product.

ENGLISH

TECHNICAL SPECIFICATION

The manufacturer reserves the right to make changes to the technical speci cations of the product.

Nominal Voltage - Power Rating Power Supply

Housing Material ABS - Thermoplastic

Size (w x h x d) 256 x 350 x 470 mm

Weight 8.5 kg

Power Cord Length 1.2 m

Control Panel On the front

Cup Size 142

Water Tank 1.9 litres - Removable type

Co ee Bean Hopper Capacity 300 g

Co ee Grounds Drawer Capacity 14

Pump Pressure 15 bar

Boiler Stainless Steel

Safety Devices Thermal Fuse

See label on the inside of the service door

GUARANTEE AND SERVICE

Warranty

For detailed information on your warranty and related conditions, please read the warranty booklet by-packed separately.

Service

We want to ensure that you remain satis ed with your machine. If not done already, please register your product at www.philips.com/welcome. By doing so, we can stay in contact with you and send you cleaning and descaling reminders.

If you need service or support, please visit the Philips website at www. philips.com/support or contact the Philips Saeco hotline in your country. The contact details can be found in the warranty booklet by-packed separately or on www.philips.com/support.

ENGLISH

ORDERING MAINTENANCE PRODUCTS

For cleaning and descaling, use Saeco maintenance products only. purchase these at the Philips online shop at www.shop.philips.com/service, your local dealer or at authorised service centres. If you have any di culties obtaining maintenance products for your machine, please contact the Philips Saeco hotline in your country.

The contact details can be found in the warranty booklet by-packed separately or on www.philips.com/support. Overview of Maintenance Products

- Decalci er CA6700

- INTENZA+ Water Filter CA6702

You can

- Grease HD5061

- Co ee Oil Remover CA6704
