USER MANUAL
Type HD8769, HD8777, HD8778, HD8869, HD8886
Read carefully before using the machine.
02
English
EN
02
Register your product and get support at
www.saeco.com/welcome
Page 2
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always be
followed, including the following:
1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against fire, electric shock and injury to persons do not immerse
cord, plugs, or appliance in water or other liquid.
4. Close supervision is necessary when the appliance is used by or near
children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool
before putting on or taking off parts, and before cleaning the appliance.
6. Do not operate any appliance with a damaged cord or plug or after the
appliance malfunctions, or has been damaged in any manner. Return
appliance to the nearest authorized service facility for examination, repair
or adjustment.
7. The use of accessory attachments not recommended by the appliance
manufacturer may result in fire, electric shock or injury to persons.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot surfaces.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. Always attach plug to appliance first, then plug cord into wall outlet. To
disconnect, turn any control to “off”, then remove plug from wall outlet.
12. Do not use appliance for other than intended use.
13. Save these instructions.
SAVE THESE INSTRUCTIONS
Page 3
CAUTION
This appliance is for household use only. Any servicing, other than cleaning
and user maintenance, should be performed by an authorized service center.
Do not immerse machine in water. To reduce the risk of fire or electric shock,
do not disassemble the machine. There are no parts inside the machine
serviceable by the user. Repair should be done by authorized service personnel
only.
1. Check voltage to be sure that the voltage indicated on the nameplate
corresponds with your voltage.
2. Never use warm or hot water to fill the water tank. Use cold water only.
3. Keep your hands and the cord away from hot parts of the appliance during
operation.
4. Never clean with scrubbing powders or harsh cleaners. Simply use a soft
cloth dampened with water.
5. For optimal taste of your coffee, use purified or bottled water. Periodic
descaling is still recommended every 2-3 months.
6. Do not use caramelized or flavored coffee beans.
INSTRUCTIONS FOR THE POWER
SUPPLY CORD
A. A short power-supply cord (or detachable power-supply cord) is to be
provided to reduce risks resulting from becoming entangled in or tripping
over a longer cord.
B. Longer detachable power-supply cords or extension cords are available
and may used if care is exercised in their use.
C. If a long detachable power-supply cord or extension cord is used,
1. The marked electrical rating of the detachable power-supply cord or
extension cord should be at least as great as the electrical rating of the
appliance
2. If the appliance is of the grounded type, the extension cord should be a
grounding-type 3-wire cord, and
3. The longer cord should be arranged so that it will not drape over the
counter top or table top where it can be pulled on by children or tripped
over.
Page 4
2
ENGLISH
Congratulations on your purchase of a Saeco Moltio One
Touch Milk Carafe fully automatic co ee machine!
To fully bene t from the support that Saeco o ers, please
register your product at www.saeco.com/welcome.
The machine is suitable for preparing espresso co ee using
whole co ee beans, and it is supplied with a milk carafe
to prepare a perfect Cappuccino or Latte Macchiato in a
quick and easy way. In this user manual you will nd all the
information you need to install, use, clean and descale your
machine.
CONTENTS
IMPORTANT..................................................................................................... 4
Safety Instructions ....................................................................................................................................4
Warnings ...................................................................................................................................................4
Cautions ....................................................................................................................................................6
Electromagnetic Fields .............................................................................................................................7
Disposal ....................................................................................................................................................7
INSTALLATION ................................................................................................. 8
Product Overview ......................................................................................................................................8
General Description ...................................................................................................................................9
PREPARING FOR USE .......................................................................................10
Machine Packaging ................................................................................................................................. 10
Machine Installation ...............................................................................................................................10
USING THE MACHINE FOR THE FIRST TIME ........................................................13
Circuit Priming ........................................................................................................................................13
Automatic Rinse/Cleaning Cycle .............................................................................................................. 15
Manual Rinse Cycle..................................................................................................................................15
Measuring and Programming Water Hardness ........................................................................................ 19
“INTENZA+” Water Filter Installation ......................................................................................................20
Replacing the “INTENZA+” Water Filter ...................................................................................................22
CHANGING COFFEE BEANS ...............................................................................23
Removing the Co ee Bean Hopper ..........................................................................................................23
Inserting the Co ee Bean Hopper ........................................................................................................... 24
Selecting Co ee Beans ............................................................................................................................26
Co ee Emptying Cycle ............................................................................................................................. 27
ADJUSTMENTS ................................................................................................28
Saeco Adapting System ...........................................................................................................................28
Adjusting the Ceramic Co ee Grinder .....................................................................................................28
Adjusting the Aroma (Co ee Strength) ...................................................................................................29
Adjusting the Co ee Dispensing Spout ................................................................................................... 30
Adjusting the Co ee Length ...................................................................................................................31
BREWING ESPRESSO AND COFFEE ....................................................................32
Brewing Espresso and Co ee Using Co ee Beans ....................................................................................32
Brewing Espresso and Co ee Using Pre-Ground Co ee ...........................................................................33
Page 5
ENGLISH
MILK CARAFE..................................................................................................34
Filling the Milk Carafe .............................................................................................................................34
Inserting the Milk Carafe ......................................................................................................................... 35
Removing the Milk Carafe .......................................................................................................................35
Emptying the Milk Carafe ........................................................................................................................36
BREWING A CAPPUCCINO ................................................................................37
Adjusting the Cappuccino Length ............................................................................................................ 39
LATTE MACCHIATO BREWING ...........................................................................41
Adjusting the Latte Macchiato length .....................................................................................................43
FROTHING MILK..............................................................................................45
Adjusting the Frothed Milk Length .......................................................................................................... 47
QUICK CARAFE RINSE CYCLE ............................................................................49
DISPENSING HOT WATER .................................................................................50
CLEANING AND MAINTENANCE ........................................................................52
Daily Cleaning of the Machine .................................................................................................................52
Daily Cleaning of the Water Tank ............................................................................................................. 53
Daily Cleaning of the Milk Carafe ............................................................................................................. 54
Weekly Cleaning of the Machine ............................................................................................................. 56
Weekly Cleaning of the Milk Carafe .........................................................................................................56
Weekly Cleaning of the Brew Group ........................................................................................................61
Weekly Cleaning of the Co ee Bean Hopper, Tray and Co ee Compartment ........................................... 64
Monthly Cleaning of the Milk Carafe .......................................................................................................65
Monthly Lubrication of the Brew Group ..................................................................................................70
Monthly Cleaning of the Brew Group with “Co ee Oil Remover” .............................................................71
DESCALING .....................................................................................................74
ACCIDENTAL INTERRUPTION OF THE DESCALING CYCLE .....................................80
PROGRAMMING ..............................................................................................81
The following settings can be adjusted ................................................................................................... 81
How to Program the Machine .................................................................................................................83
MEANING OF THE DISPLAY ICONS .....................................................................85
TROUBLESHOOTING ........................................................................................90
ENERGY SAVING ..............................................................................................94
Stand-by .................................................................................................................................................94
TECHNICAL SPECIFICATIONS ............................................................................95
WARRANTY AND SERVICE ................................................................................95
Warranty .................................................................................................................................................95
Service .................................................................................................................................................... 95
ORDERING MAINTENANCE PRODUCTS ..............................................................96
MACHINE ACCESSORIES ...................................................................................97
3
Page 6
4
ENGLISH
IMPORTANT
Safety Instructions
This machine is equipped with safety devices. Nevertheless,
read and follow the safety instructions carefully and only use
the machine properly as described in these instructions to
avoid accidental injury or damage due to improper use of the
machine. Keep this user manual for future reference.
The term WARNING and this icon warn against possible
severe injuries, danger to life and/or damage to the machine.
The term CAUTION and this icon warn against slight
injuries and/or damage to the machine.
Warnings
• Connect the machine to a wall socket with a voltage
matching the technical speci cations of the machine.
• Connect the machine to an earthed wall socket.
• Do not let the power cord hang over the edge of a table or
counter, or touch hot surfaces.
• Never immerse the machine, the mains plug or power cord
in water: Danger of electrical shock!
• Do not pour liquids on the power cord connector.
• Never direct the hot water jet towards body parts: Danger
of burning!
• Do not touch hot surfaces. Use handles and knobs.
• After switching o the machine by pressing the power
button on the back of the machine, remove the mains plug
from the wall socket:
- if a malfunction occurs;
Page 7
ENGLISH
- if the machine will not be used for a long time;
- before cleaning the machine.
• Pull on the mains plug, not on the power cord.
• Do not touch the mains plug with wet hands.
• Do not use the machine if the mains plug, the power cord
or the machine itself is damaged.
• Do not make any modi cations to the machine or its
power cord. Only have repairs carried out by a service
centre authorised by Philips to avoid any hazard.
• The machine should not be used by children younger than
8 years old.
• The machine can be used by children of 8 years and upwards
if they have previously been instructed on the correct use of
the machine and made aware of the associated dangers or if
they are supervised by an adult.
• Cleaning and maintenance should not be carried out by
children unless they are more than 8 years old and supervised by an adult.
5
5
• Keep the machine and its power cord out of reach of children under 8 years old.
• The machine may be used by persons with reduced physical, sensory or mental capabilities or lacking su cient
experience and/or skills if they have previously been
instructed on the correct use of the machine and made
aware of the associated dangers or if they are supervised
by an adult.
• Children should be supervised to ensure that they do not
play with the machine.
• Never insert ngers or other objects into the co ee
grinder.
Page 8
6
ENGLISH
Cautions
• The machine is for household use only. It is not intended
for use in environments such as canteens, sta kitchens of
shops, o ces, factories or other work environments.
• Always put the machine on a at and stable surface.
• Do not place the machine on hot surfaces, directly next to
a hot oven, heater units or similar sources of heat.
• Only put roasted co ee beans into the co ee bean hopper.
If ground co ee, instant co ee, raw co ee or any other
substance is put in the co ee bean hopper, it may damage
the machine.
• Let the machine cool down before inserting or removing
any parts. The heating surfaces may retain residual heat
after use.
• Never use warm or hot water to ll the water tank. Use
only cold non-sparkling drinking water.
• Never clean with scrubbing powders or harsh cleaners.
Simply use a soft cloth dampened with water.
• Descale your machine regularly. Not doing this will make
your appliance stop working properly. In this case repair is
not covered under your warranty!
• Do not keep the machine at temperature below 0 °C.
Residue water in the heating system may freeze and cause
damage.
• Do not leave water in the water tank if the machine is
not used over a long period of time. The water can get
contaminated. Use fresh water every time you use the
machine.
Page 9
ENGLISH
7
7
Electromagnetic Fields
This appliance complies with all the applicable standards and
regulations relating to the exposure to electromagnetic elds.
Disposal
This symbol on a product indicates that the product is covered
by EU Directive 2012/19/EU. Please inform yourself about the
local separate collection system for electrical and electronic
products. Follow local regulations and do not dispose of
the product as household waste. Appropriate disposal of
old products helps prevent negative consequences for the
environment and human health.
Page 10
8
INSTALLATION
Product Overview
12
33
20
4c.
4b.
3
4a.
5
6
7
8
9
1110 12 13 14
22
19
31
17
18
25
23
21
24
26
16
27
2930
15
32
28
Page 11
ENGLISH
General Description
1. Co ee bean hopper locking/removal selector switch
2. Pre-ground co ee compartment
3. Cup stacking surface
4a. Co ee bean hopper
4b. Co ee bean hopper tray
4c. Co ee bean hopper lid
5. Control panel
6. Co ee dispensing spout
7. Cup holder grill
8. Full drip tray indicator
9. Drip tray
10. Water dispensing spout (removable)
11. Co ee grounds drawer
12. Brew group
13. Co ee residues drawer
14. Service door
15. Milk carafe
16. Water tank
17. Power cord socket
18. Power button
19. Co ee grinder adjustment key + Pre-ground co ee measuring scoop
+ Tool to clean the co ee outlet duct
20. Cleaning brush (optional)
21. Grease for brew group (optional)
22. Power cord
23. Water hardness test strip
24. Espresso brew button
25. Co ee brew button
26. "Aroma" - Pre-ground co ee button
27. Cappuccino brew button
28. Latte Macchiato brew button
29. ON/OFF button
30. "MENU" button
31. Descaling solution
32. Filter (INTENZA+) (to be purchased separately)
33. Protection cover (optional)
(to be purchased separately)
9
9
Page 12
10
ENGLISH
PREPARING FOR USE
Machine Packaging
The original packaging has been designed and constructed to protect the
machine during transport. We recommend keeping the packaging material
for possible future transport.
Machine Installation
Remove the drip tray with grill from the packaging.
1
Remove the machine from the packaging.
2
For best use, it is recommended to:
3
• Choose a safe, level surface, where there will be no danger of overturning the appliance or being injured;
• Choose a location that is su ciently well-lit, clean and near an easily reachable socket.
• Allow for a minimum distance from the sides of the machine as
shown in the gure.
Insert the drip tray with grill into the machine. Make sure it is fully
4
inserted.
Note:
The drip tray collects the water that comes out of the co ee dispensing
spout during each rinse/self-cleaning cycle, as well as any co ee that
might be spilled during beverage brewing. Empty and wash the drip tray
daily and each time the full drip tray indicator is raised.
Caution:
NEVER remove the drip tray when the machine has just been turned
on. Wait a couple of minutes for the machine to carry out a rinse/selfcleaning cycle.
Page 13
ENGLISH

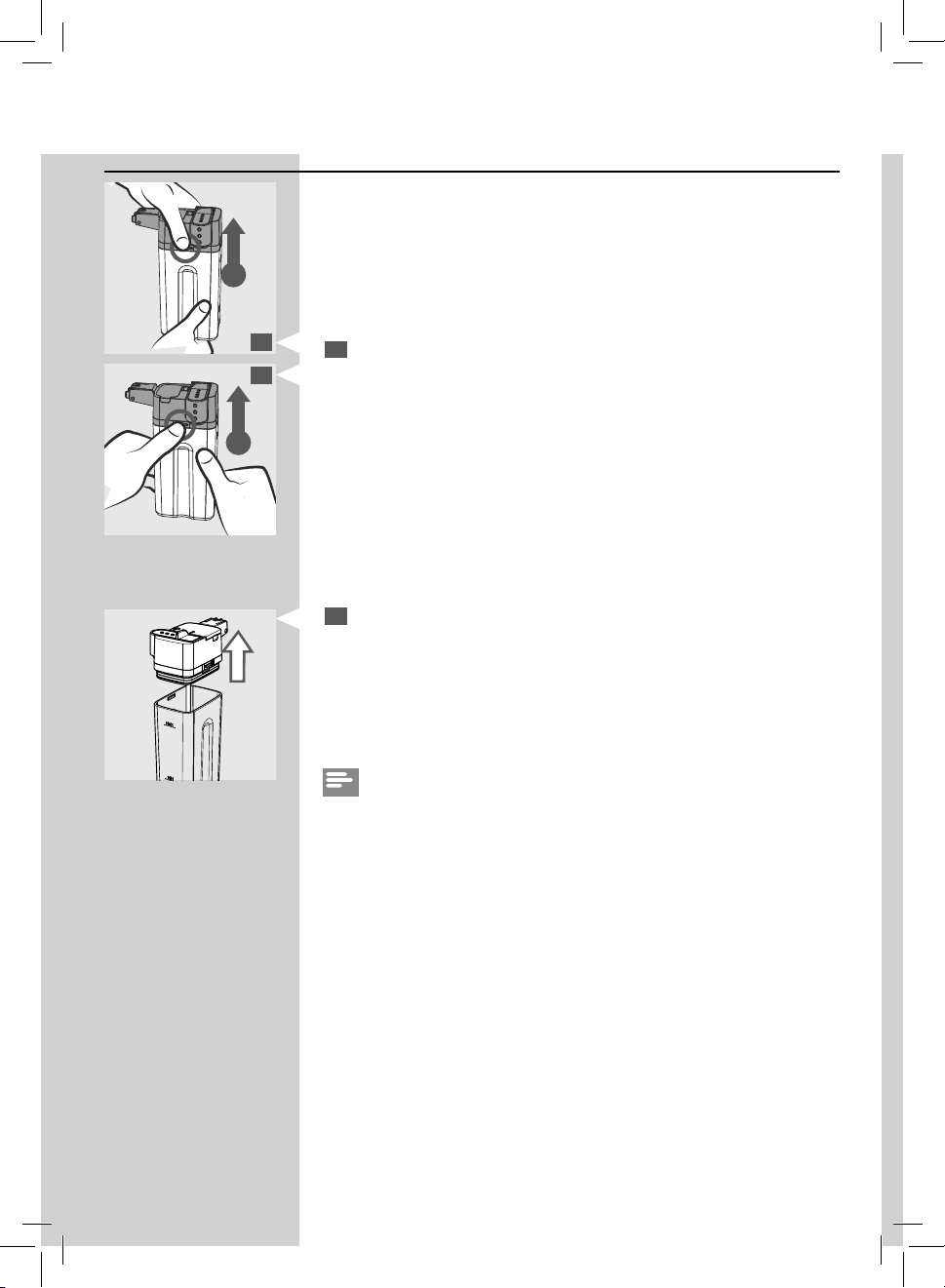

Press gently on the side of the water tank door to release the handgrip.
5
Remove the water tank by pulling it by the handgrip.
6
Rinse the water tank with fresh water.
7
11
11
Fill the water tank with fresh water up to the MAX level and reinsert it
8
into the machine. Make sure it is fully inserted.
Caution:
Never ll the water tank with warm, hot, sparkling water or any other
liquid, as this may cause damage to the water tank and the machine.
Note:
When the water tank is full, it must be transported as shown in the gure.
Page 14
12
1
ENGLISH

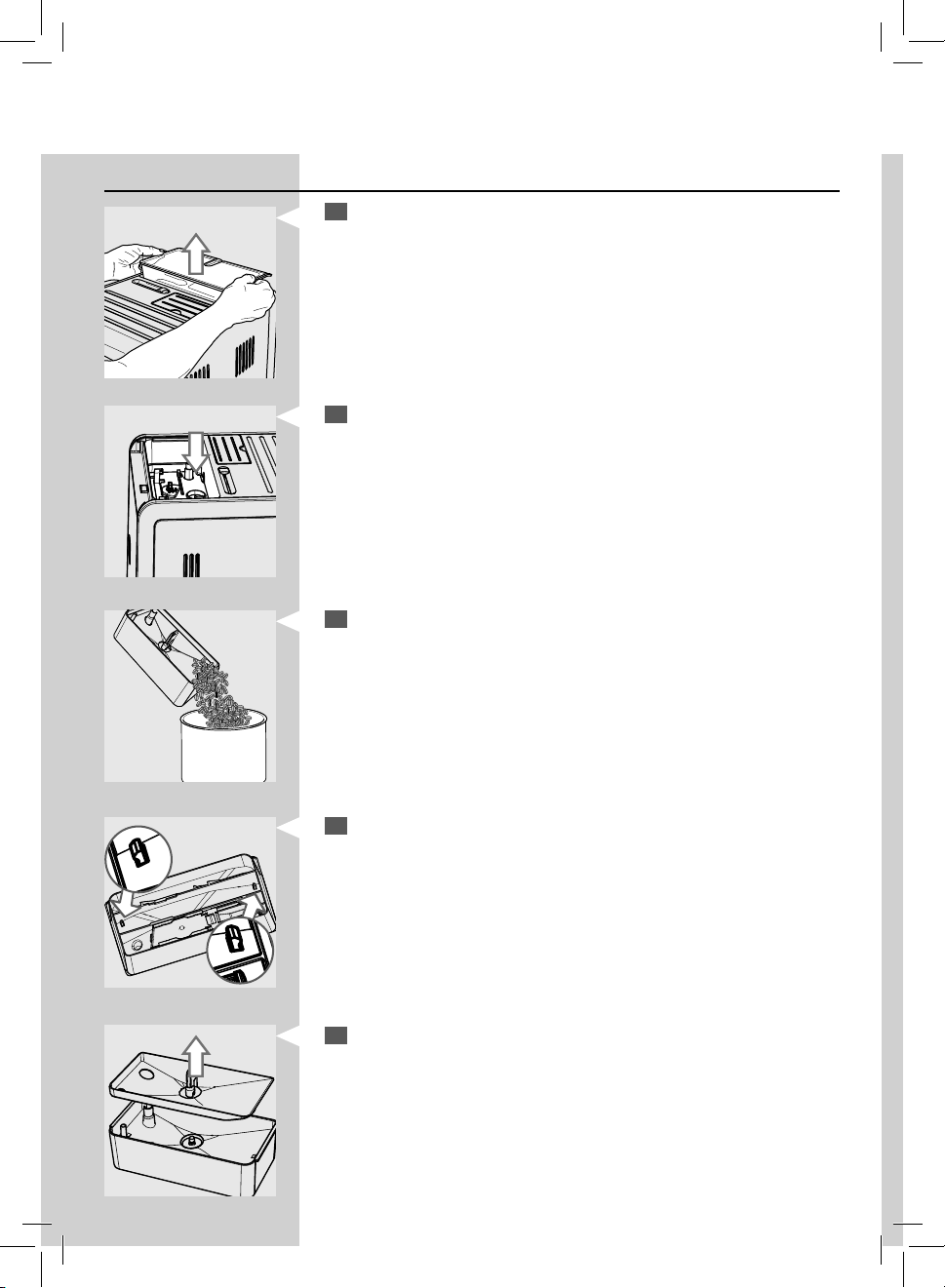

Remove the co ee bean hopper lid. Slowly pour in the co ee beans.
9
Note:
The co ee bean hopper contains a tray that vibrates during grinding and
conveys the beans into the co ee grinder.
Caution:
Only co ee beans must be put into the co ee bean hopper. If ground
co ee, instant co ee, caramelized co ee, raw co ee or any other substance is put into the co ee bean hopper, it may damage the machine.
Put the lid back on the co ee bean hopper.
10
Insert the plug into the socket located on the back of the machine.
11
Insert the plug at the other end of the power cord into a wall socket
12
with suitable power voltage.
2
Switch the power button to “I” to turn on the machine. The red light
13
next to the "
To turn on the machine, simply press the “ ” button.
14
" button ashes.
Page 15
Note:
By keeping the
enters the demo mode. To exit the demo, disconnect the power cord and
turn the machine back on.
The control panel indicates that the circuit must be primed.
15
Yellow
button pressed for more than 8 seconds, the machine
USING THE MACHINE FOR THE FIRST TIME
When using the machine for the rst time, the following activities need to
happen:
1) You need to prime the circuit.
2) The machine will perform an automatic rinse/cleaning cycle.
3) You need to perform a manual rinse cycle.
ENGLISH
13
13
Circuit Priming
During this process, fresh water ows through the internal circuit of the
machine and the machine warms up. This takes a few minutes.
Place a container under the hot water dispensing spout.
1
Page 16
14
ENGLISH
Yellow
Press the “ ” button to start the circuit priming cycle.
2
The machine reminds you to install the water dispensing spout.
3
Press the "
The machine will start dispensing hot water.
The bar under the icon shows the operation progress. When the pro-
4
cess has been completed, the machine stops dispensing automatically.
Yellow Yellow
" button to con rm.
The control panel now shows the machine warm-up icon.
5
Yellow
Page 17
Automatic Rinse/Cleaning Cycle
When warm-up has been completed, the machine automatically performs
a rinse/self-cleaning cycle of the internal circuits with fresh water. This
takes less than a minute.
Place a container under the co ee dispensing spout to catch the small
1
amount of water which will be dispensed.
The machine shows this display. Wait for the cycle to nish automati-
2
cally.
Yellow
Note:
You can stop dispensing by pressing the “
” button.
ENGLISH
15
15
When the operations described above have been completed, the ma-
3
chine shows this display. You can now perform the manual rinse cycle.
Green
Manual Rinse Cycle
During this process you activate the co ee brewing cycle and fresh water
ows through the water circuit. This takes a few minutes.
Place a container under the co ee dispensing spout.
1
Page 18
16
ENGLISH
Check that the machine shows this display.
2
Green
Select the pre-ground co ee brewing function by pressing the “ ”
3
button. The machine shows this display.
Green
Note:
Do not add any pre-ground co ee into the compartment.
Press the " " button. The machine starts dispensing water.
4
When dispensing has nished, empty the container. Repeat the opera-
5
tions from step 1 to step 4 three times, then continue with step 6.
Place a container under the hot water dispensing spout.
6
Green
Press the “ ” MENU button. The machine shows this display.
7
Page 19
Green
Press the " " button.
8
This icon is displayed.
9
Press the “ ” button to start dispensing hot water.
10
ENGLISH
17
17
Green
This icon is displayed. The machine reminds you to install the water
11
dispensing spout. Check that the water dispensing spout is correctly
installed. Press “
water.
After dispensing water, remove and empty the container.
12
Note:
Press the “
” button to stop the manual rinse cycle.
” to con rm. The machine will start dispensing hot
Page 20
18
ENGLISH
Repeat steps 6 to 12 until the water tank is empty and the no water
13
Red
warning sign appears.
At the end of this operation, ll the water tank again up to the MAX
14
level. Now the machine is ready to brew co ee.
This icon will be displayed.
Green
Note:
The automatic rinse/self-cleaning cycle starts when the machine has been
in stand-by mode, or turned o , for more than 15 minutes.
When you have not used the machine for 2 or more weeks, you will need to
perform a manual rinse cycle.
At the end of the cycle, you can brew a co ee.
Page 21
ENGLISH
19
19
Measuring and Programming Water Hardness
Water hardness measuring is very important in order to de ne the descaling frequency and to install the “INTENZA+” water lter (for more details on
the water lter, see next chapter).
To measure the water hardness follow the steps below:
Immerse the water hardness test strip (supplied with the machine) in
1
water for 1 second.
Note:
The test strip can only be used for one single measurement.
Wait for one minute.
2
Check how many squares have changed to red, then consult the table.
3
C
Note:
The numbers on the water hardness test strip correspond to the water
hardness adjustment settings.
B
More precisely:
1 = 1 (very soft water)
2 = 2 (soft water)
3 = 3 (hard water)
4 = 4 (very hard water)
Intenza Aroma System
A
23 4
1
The letters correspond to the references that are located at the base of the
“INTENZA+” water lter (see next chapter).
Machine Water Hardness Setting
Press the “ ” MENU button. The machine shows this icon.
4
Green
Page 22
20
ENGLISH
Press the “ ” button to access the programming menu. Press the “ ”
5
button to scroll the functions until this icon appears.
Yellow
Note:
The machine is supplied with a standard water hardness setting, suitable
for most types of water.
Press the “ ” button to increase the value and the “ ” button to
6
decrease the value.
Press the “ ” button to con rm the setting.
7
Press the “ ” button twice to exit the programming menu. Now the
8
machine is ready for brewing.
Green Yellow
“INTENZA+” Water Filter Installation
We recommend you to install the “INTENZA+” water lter as this prevents
limescale build-up in your machine and preserves a more intense aroma of
your co ee.
The “INTENZA+” water lter can be purchased separately. For further details, please refer to the maintenance products page in this user manual.
Water is a crucial part of every co ee, so it is very important to always have
it professionally ltered. Using the “INTENZA+” water lter will prevent
mineral deposits from building up and improve your water quality.
Remove the small white lter from the water tank and store it in a dry
1
place.
Page 23
ENGLISH
Remove the “INTENZA+” water lter from its packaging, immerse it ver-
2
tically (with the opening positioned upwards) in cold water and gently
press the sides so as to let the air bubbles out.
Set the “INTENZA+” water lter according to the measurements per-
3
formed (see previous chapter) and indicated on the base of the lter:
A = soft water – equals 1 or 2 on the test strip
B = hard water (standard) – equals 3 on the test strip
C = very hard water – equals 4 on the test strip
Put the “INTENZA+” water lter into the empty water tank. Press it
4
down until it cannot move any further.
21
21
Green
Yellow
Fill the water tank with fresh water and put it into the machine.
5
Dispense all the water in the tank by using the hot water function (see
6
the “Dispensing Hot Water” section).
Fill the water tank again.
7
Press the “ ” MENU button. The machine shows this icon.
8
Press the “ ” button to access the programming menu. Press the “ ”
9
button to scroll the functions until this icon appears.
Page 24
22
ENGLISH
Press the “ ” button to select “ON” and press the “ ” button to con-
10
rm.
Yellow
To exit, press the “ ” button twice. Now the machine is ready for brew-
11
ing.
GreenYellow
In this way the machine has been programmed to inform the user of the
need to replace the “INTENZA+” water lter.
Replacing the “INTENZA+” Water Filter
When the “INTENZA+” water lter needs to be replaced with a new one,
this icon is displayed.
Yellow
Green
Replace the “INTENZA+” water lter as described in the previous chap-
1
ter.
Press the “ ” MENU button. The machine shows this icon.
2
Press the “ ” button to access the programming menu. Press the “ ”
3
button to scroll the functions until this icon appears.
Select the “RESET” option. Press the " " button to con rm.
4
Page 25
To exit, press the “ ” button twice. Now the machine is ready for brew-
5
ing.
The machine is now programmed to manage a new lter.
Note:
If the “INTENZA+” water lter is already installed and you want to remove,
but not replace it, select the “OFF” option instead.
Yellow Green
If there is no “INTENZA+” water lter installed, insert the small white lter
previously removed into the water tank.
CHANGING COFFEE BEANS
The machine comes with a removable co ee bean hopper so you can
easily switch from one type of co ee bean to another and enjoy a di erent
co ee taste.
ENGLISH
23
23
Note:
You can buy an additional co ee bean hopper as an accessory (CA6803).
To preserve their taste, you can store co ee beans in the bean hopper in
the refrigerator.
Removing the Co ee Bean Hopper
To remove the co ee bean hopper follow the steps below:
Move the selector switch to the “ ” position.
1
Caution:
It may happen that the selector switch can not be shifted as it is
blocked by co ee beans. In this case, move the selector switch back
and forth until the co ee beans are released.
Page 26
24
ENGLISH
Lift the sides of the co ee bean hopper with both hands as shown in
2
the gure.
Caution:
Do not remove the co ee bean hopper in a di erent way to avoid spilling co ee beans.
After removing it, put the protection cover (if any) on the machine to
3
keep it dust-free.
Note:
If the machine is turned on without the co ee bean hopper being inserted,
Red
this icon will appear. You need to insert the co ee bean hopper rst.
Inserting the Co ee Bean Hopper
To insert the co ee bean hopper, follow the steps below:
Remove the protection cover from the machine (if any).
1
Move the selector switch to the “ ” position.
2
Page 27
ENGLISH
Remove any beans from the co ee bean hopper compartment.
3
Insert the co ee bean hopper into its compartment as shown in the
4
gure.
Move the selector switch to the “ ” position.
5
25
25
Warning:
Please be aware that when you change co ee beans and switch to
deca einated co ee, some ca eine traces might still be present even
after performing an emptying cycle.
Page 28
26
ENGLISH

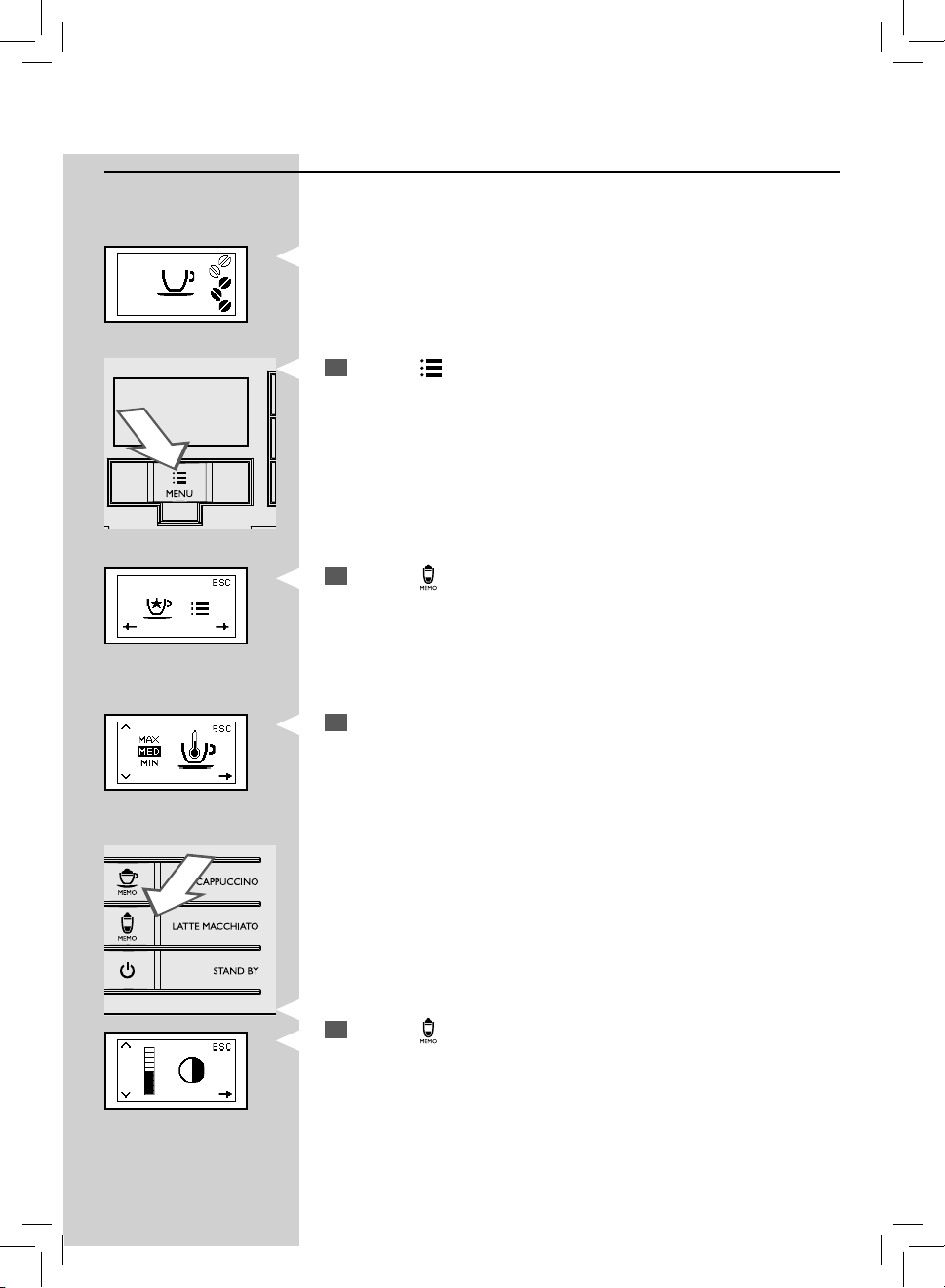

Selecting Co ee Beans
This function allows you to optimize grinding according to the selected
type of co ee beans.
Press the “ ”
1
Green
Press the “ ” button to access the programming menu. Press the “ ”
2
button to scroll the functions until this icon appears.
YellowGreenGreen Green
Press the “ ” button or the “ ” button to select the type of co ee
3
beans in the co ee bean hopper.
Press the “ ” button to con rm the setting.
4
To exit, press the “ ” button twice.
5
The machine is now programmed to optimise co ee bean grinding.
The display shows the selected type of co ee beans when the machine is
ready for brewing.
MENU button. The machine shows this icon.
- for "ARABICA" co ee beans;
- for "ROBUSTA" co ee beans;
- for "MIXED" co ee beans.
Page 29
ENGLISH
Co ee Emptying Cycle
When you change co ee beans, it is recommended to empty the co ee
outlet duct and grinder. In this way, you will be able to fully taste the new
co ee beans aroma. For this, follow the steps below:
Fill the co ee bean hopper with co ee beans.
1
27
27
Press the “ ”
2
Green
Press the “ ” button to access the programming menu. Press the “ ”
3
button to scroll the functions until this icon appears.
YellowYellowGreen
Press the " " button.
4
The machine performs two grinding cycles without brewing co ee.
5
Note:
If you press the “
you can stop the grinding cycle earlier.
When the grinding cycles have been completed, the machine shows
6
this icon.
MENU button. The machine shows this icon.
” button between the rst and second grinding cycle,
Note:
If you have not emptied the co ee duct and grinder, you need to brew at
least two co ees before you can taste the new co ee beans.
Warning:
Please be aware that when you change co ee beans and switch to
deca einated co ee, some ca eine traces might still be present even
after performing an emptying cycle.
Page 30
28
ENGLISH
ADJUSTMENTS
The machine allows for certain adjustments so that you can brew the best
tasting co ee possible.
Saeco Adapting System
Co ee is a natural product and its characteristics may change according to
its origin, blend and roast. The machine is equipped with a self-adjusting
system that allows the use of all types of co ee beans available on the
market, except for raw, caramelized and avoured co ee beans.
The machine automatically adjusts itself after brewing several cups of coffee to optimize co ee extraction.
Adjusting the Ceramic Co ee Grinder
Ceramic co ee grinders always guarantee accurate and perfect grinding
and coarseness for every co ee speciality.
This provides full aroma preservation, delivering a truly Italian taste in
every cup.
Warning:
The ceramic co ee grinder contains moving parts that may be dangerous. Do not insert ngers or other objects. Only adjust the ceramic
co ee grinder using the grinder adjustment key.
You can adjust the ceramic grinders to set the co ee grinding to your
personal taste.
Remove the co ee bean hopper as shown in the “Removing the Co ee
1
Bean Hopper” section.
Page 31
ENGLISH
Press and turn the grinder adjustment knob under the co ee bean
2
hopper one notch at a time. Use the co ee grinder adjustment key
provided with the machine. You will taste the di erence after brewing
2-3 cups of co ee.
Warning:
Do not turn the co ee grinder more than one notch at a time to prevent damage.
The reference marks in the co ee bean hopper compartment indicate
3
the grind setting. There are 5 di erent grind settings to choose from,
from position 1 for coarse grind - lighter taste to position 2 for ne
grind - stronger taste. If co ee is watery or is brewed slowly, change
the co ee grinder settings.
29
29
1
2

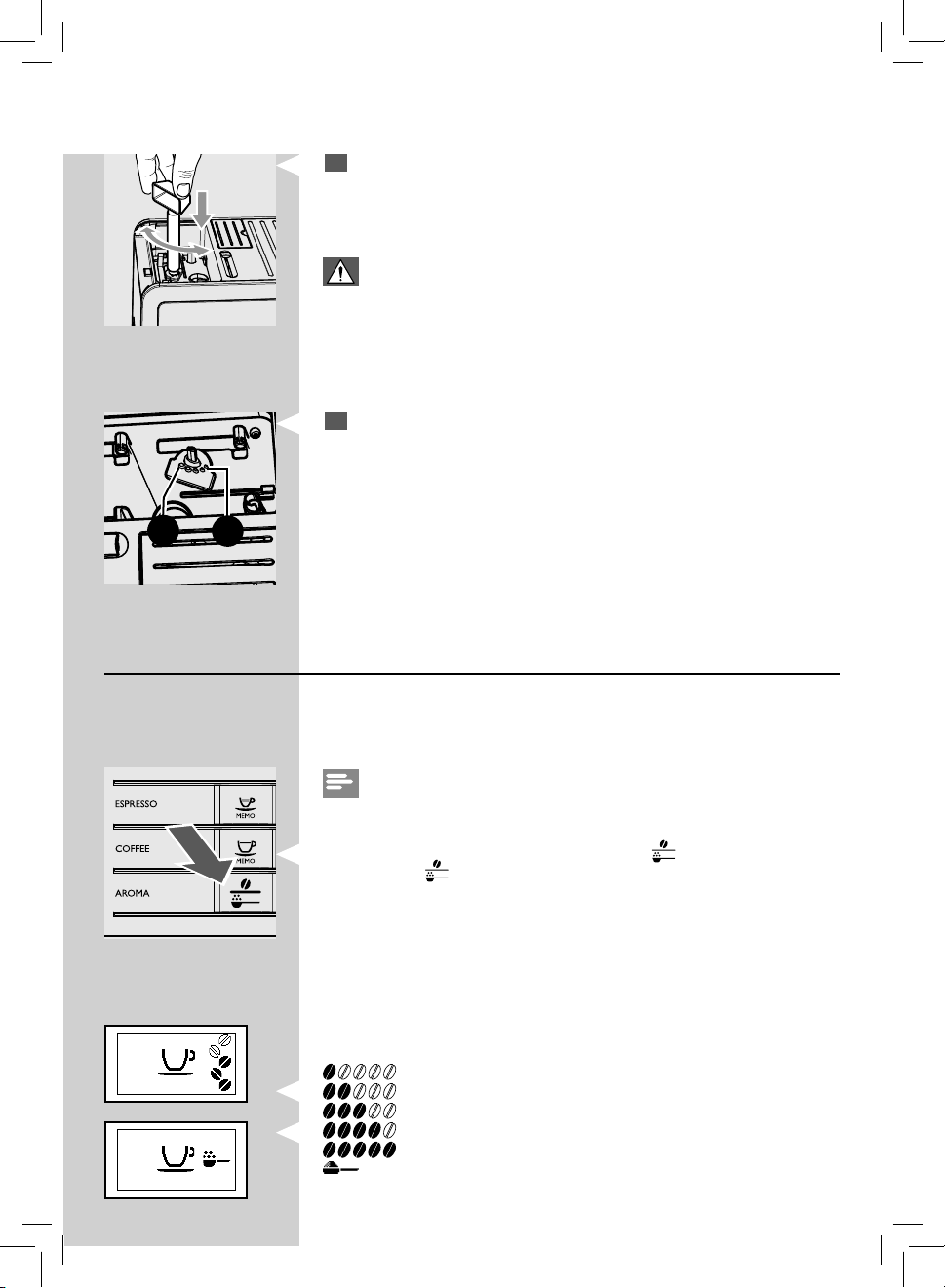

Adjusting the Aroma (Co ee Strength)
Choose your favourite co ee blend and adjust the amount of co ee to
be ground according to your personal taste. You can also select the preground co ee function.
Note:
Selection must be made prior to selecting co ee.
You can choose from 5 options by pressing the “
Each time the “
according to the selected amount:
GreenGreen
” button is pressed, the aroma changes by one degree
= extra mild aroma
= mild aroma
= medium aroma
= strong aroma
= extra strong aroma
= pre-ground co ee
” button.
Page 32
30
ENGLISH
Adjusting the Co ee Dispensing Spout

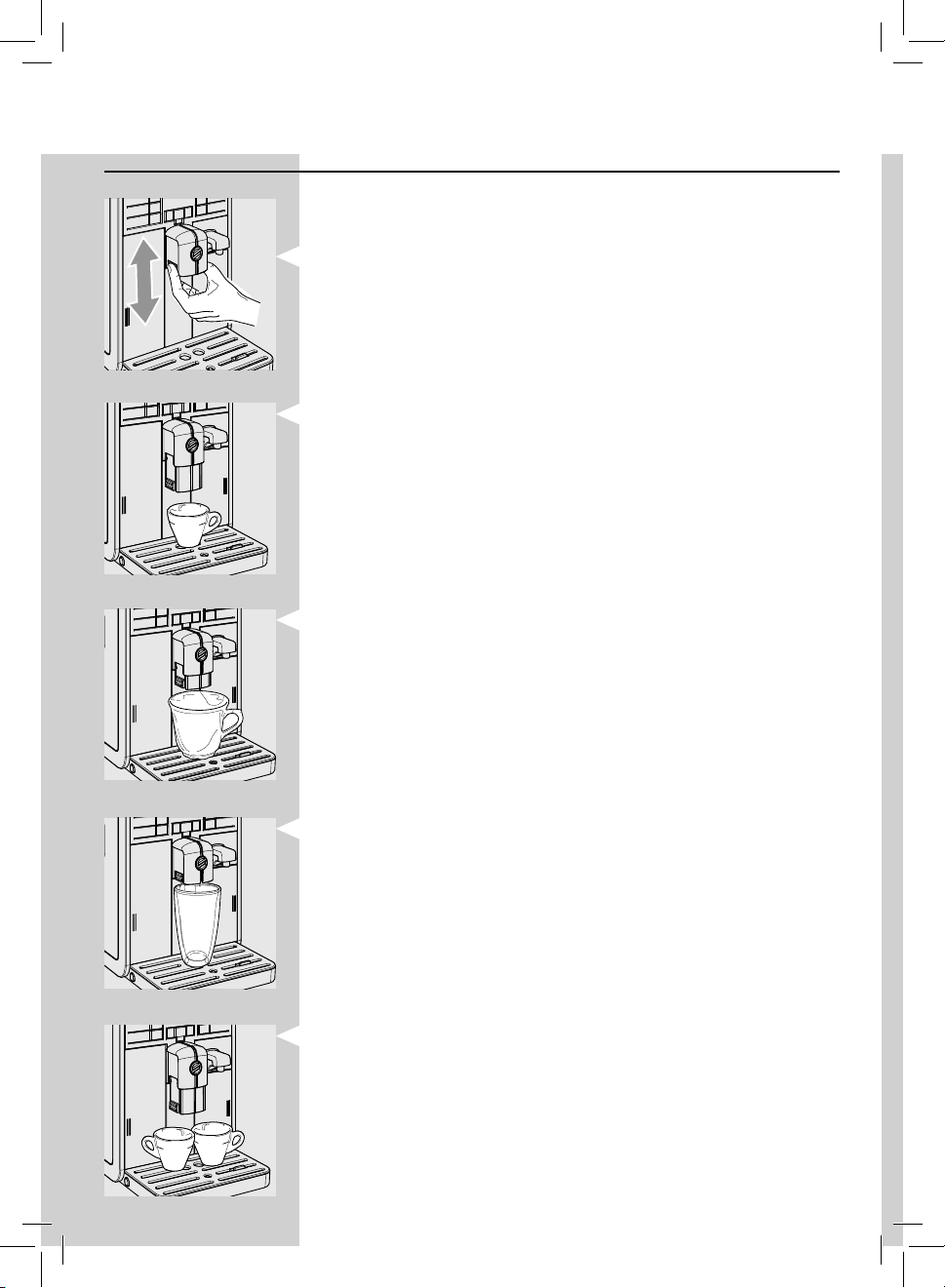

The height of the co ee dispensing spout can be adjusted to better t the
dimensions of the cups that you wish to use.
Move the co ee dispensing spout up or down with your ngers to adjust
its height as shown in the gure.
The recommended positions are:
For the use of small cups.
For the use of large cups.
For the use of glasses for the Latte Macchiato.
Two cups can be placed under the co ee dispensing spout to brew two
co ees at the same time.
Page 33

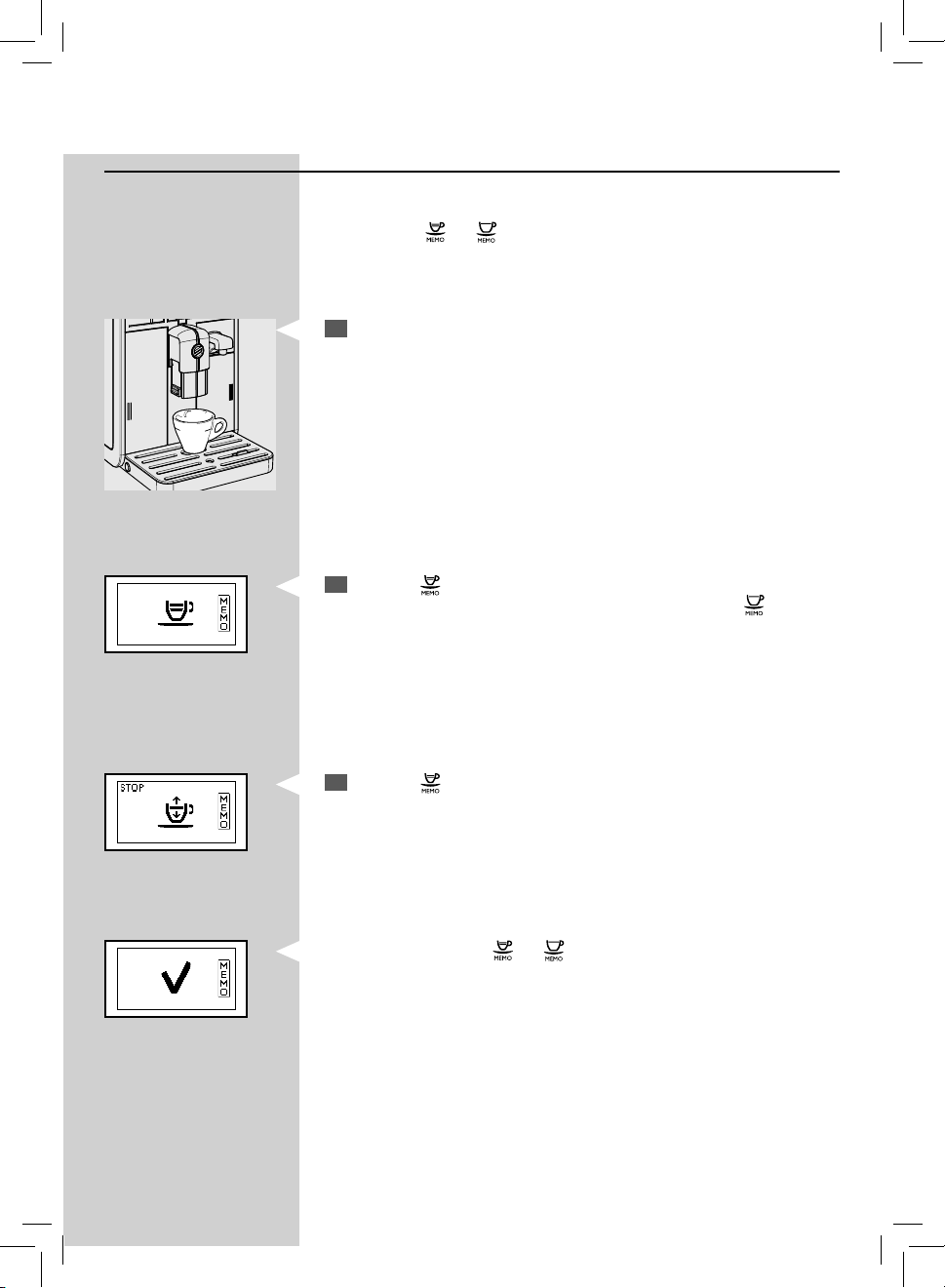

Adjusting the Co ee Length
The machine allows you to adjust the amount of brewed co ee according
to your taste and/or the size of your cups.
Each time the “
amount of co ee. Each button may be individually programmed for a
speci c brew setting.
Place a cup under the co ee dispensing spout.
1
Keep the “ ” button pressed until the “MEMO” icon appears on the
2
display to program an espresso, or do the same with the “
GreenGreenGreen
program a co ee. Then release the button. The machine is in programming mode and starts brewing the selected product.
” or “ ” button is pressed, the machine brews a pre-set
ENGLISH
” button to
31
31
Press the “ ” button as soon as the desired amount of espresso or cof-
3
fee is reached.
The previously selected “
it is pressed, the machine will brew the same amount of espresso or co ee
that was just programmed.
” or “ ” button is now programmed; each time
Page 34
32
ENGLISH
BREWING ESPRESSO AND COFFEE
Before brewing co ee, make sure that there are no warnings shown on the
control panel, and that the water tank and co ee bean hopper are lled.

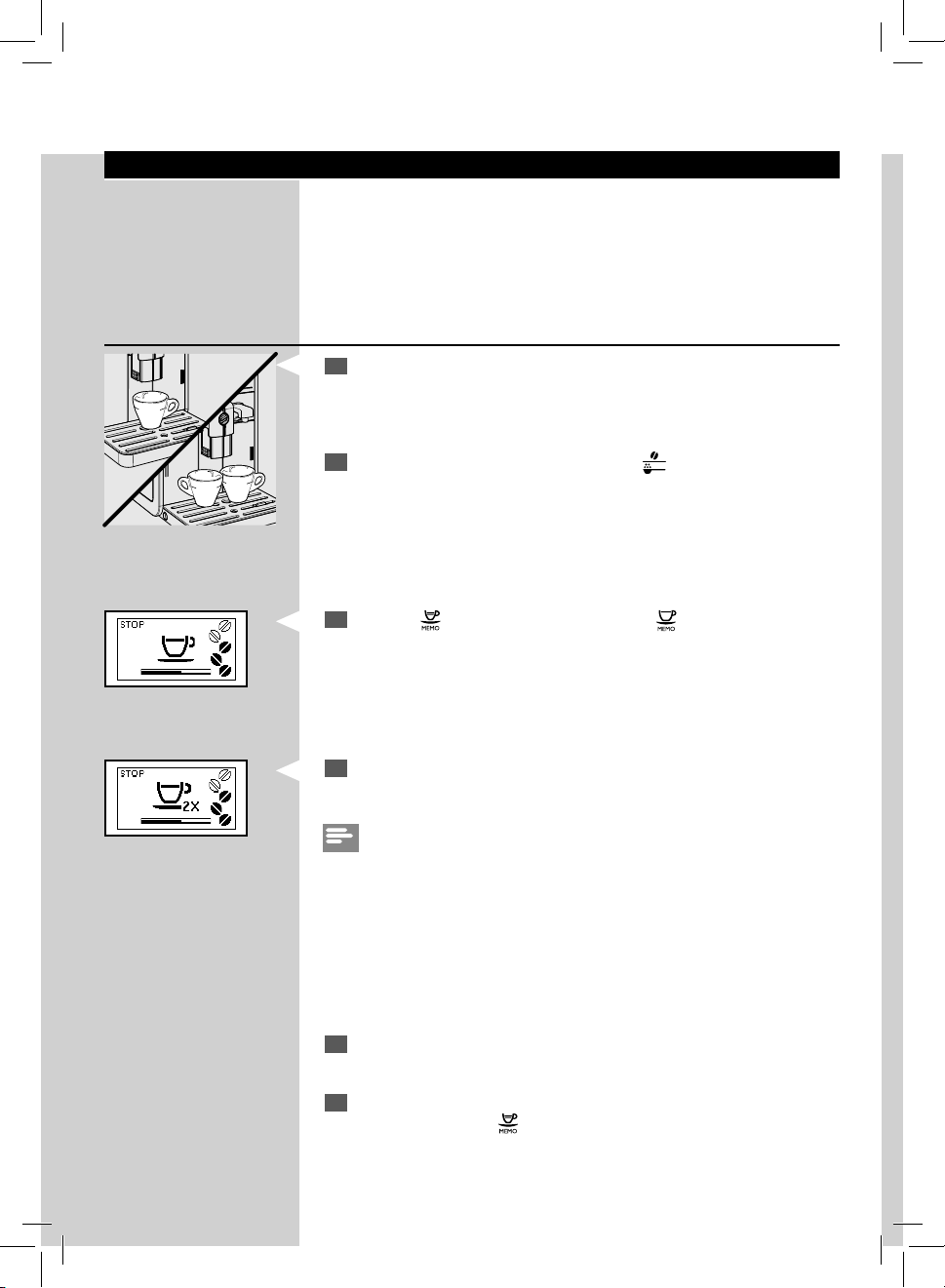

Brewing Espresso and Co ee Using Co ee Beans
Place 1 or 2 cups under the co ee dispensing spout.
1
To brew an espresso or a co ee, press the “ ” button to select the
2
desired aroma.
Press the “ ” button for an espresso or the “ ” button for a co ee.
3
GreenGreen
To brew 2 cups of espresso or co ee, press the desired button twice
4
consecutively. This icon will be displayed.
Note:
In this operating mode, the machine automatically grinds and doses the
correct amount of co ee. Brewing two espressos or two co ee requires
two grinding and brewing cycles, automatically carried out by the machine.
After the prebrewing cycle, co ee begins to pour out of the co ee
5
dispensing spout.
Co ee or espresso brewing automatically stops when the preset level
6
is reached; press the “
” button to stop it earlier.
Page 35
Brewing Espresso and Co ee Using Pre-Ground Co ee
This function allows you to use pre-ground and deca einated co ee.
With the pre-ground co ee function you can only brew one co ee at a
time.

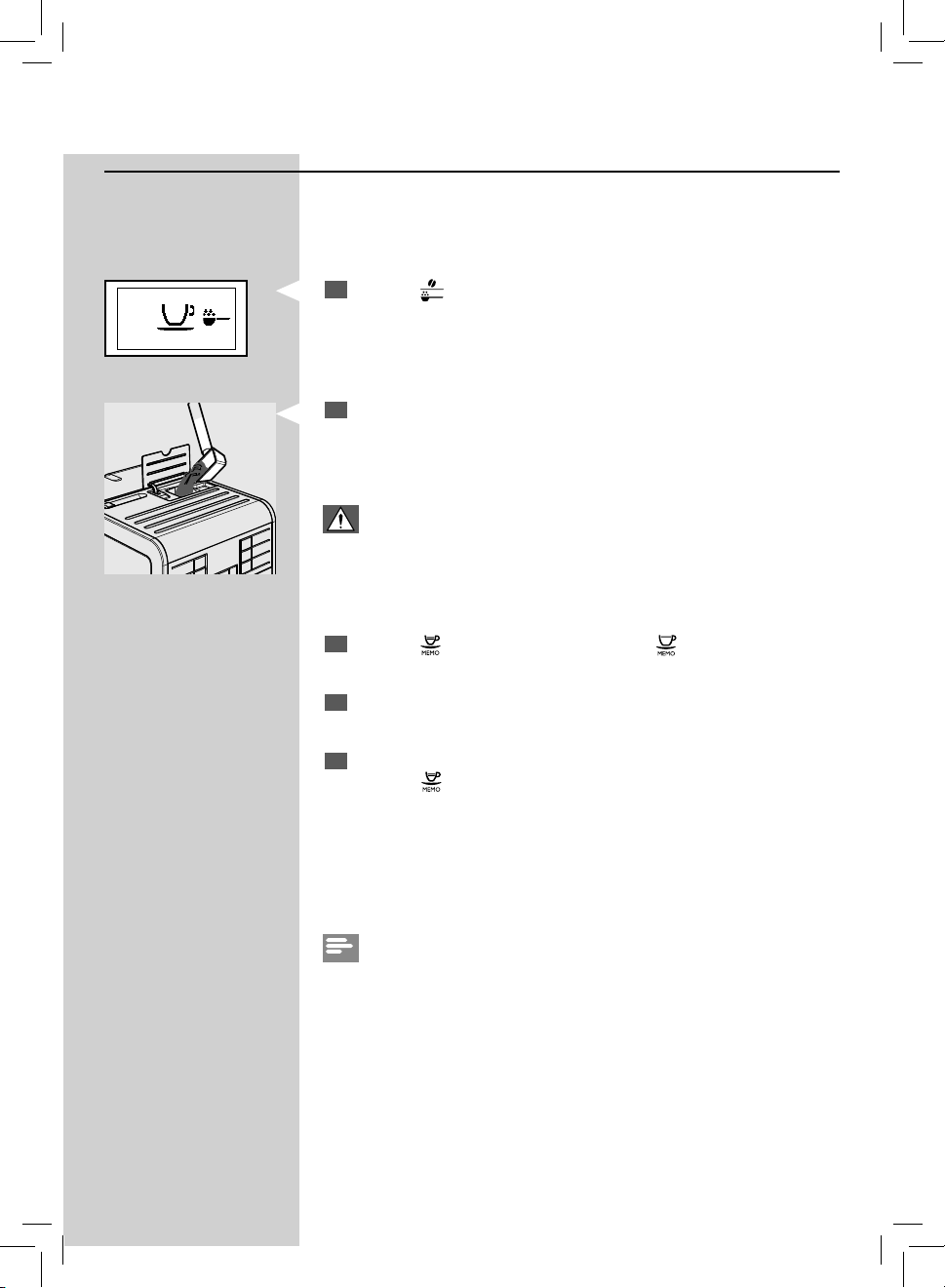

Press the “ ” button to select the pre-ground co ee function.
1
Green
Lift the pre-ground co ee compartment lid and add one level measur-
2
ing scoop of pre-ground co ee. Use only the measuring scoop supplied with the machine. Then close the pre-ground co ee compartment lid.
Warning:
Add only pre-ground co ee to the pre-ground co ee compartment.
Other substances and objects may cause severe damage to the machine. Such damage will not be covered by warranty.
Press the “ ” button for an espresso or the “ ” button for a co ee.
3
The brewing cycle starts.
ENGLISH
33
33
After the prebrewing cycle, co ee begins to pour out of the co ee
4
dispensing spout.
Co ee brewing automatically stops when the preset level is reached;
5
press the “
After brewing, the machine returns to the main menu.
Repeat the steps described above to brew more co ees using pre-ground
co ee.
Note:
If no pre-ground co ee is poured into the pre-ground co ee compartment, only water will be dispensed.
If more measuring scoops have been added, the machine will not brew the
product and the ground co ee in the compartment will be discharged into
the co ee grounds drawer.
” button to stop it earlier.
Page 36
34
ENGLISH

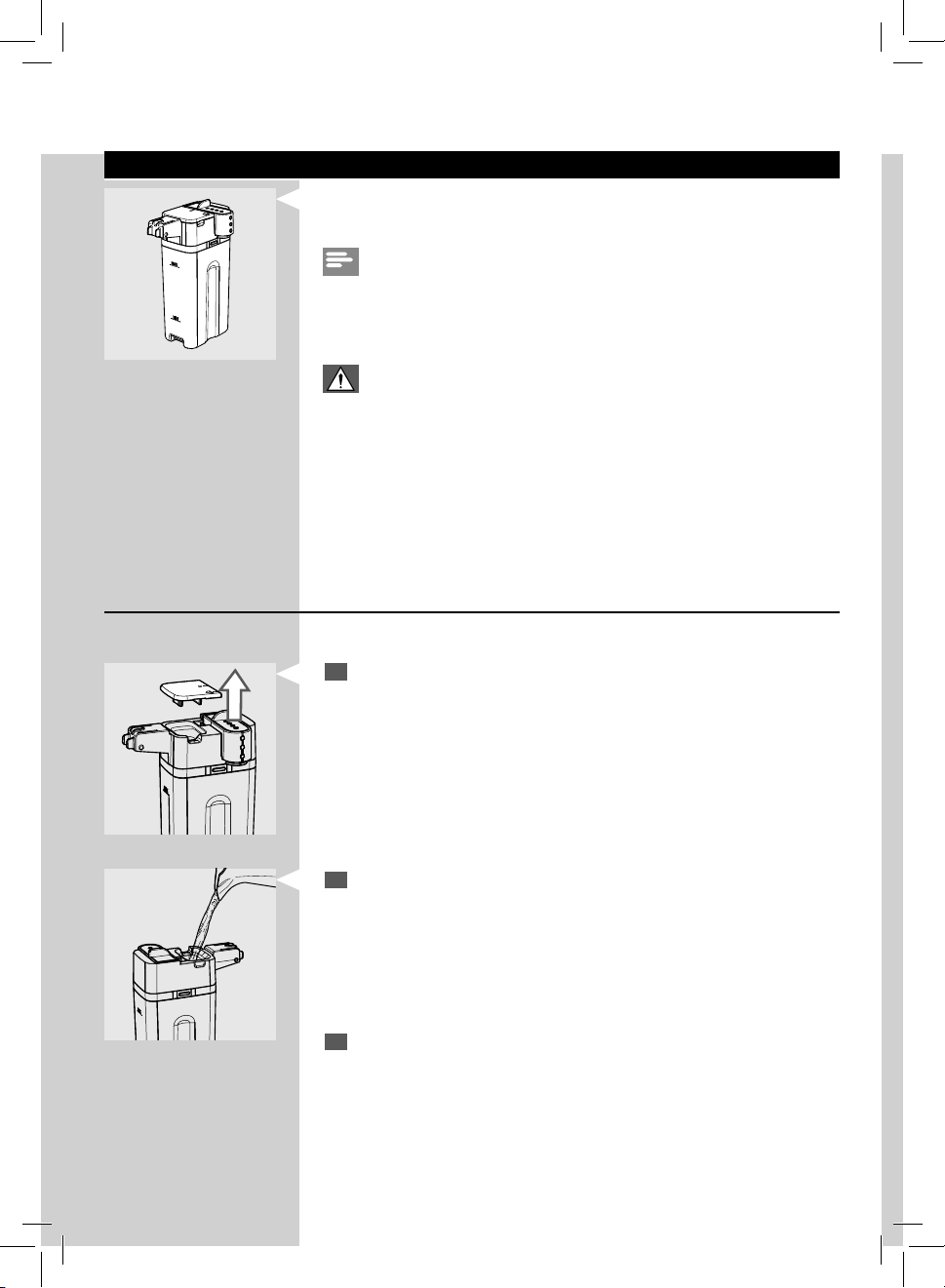

MILK CARAFE
This chapter explains how to use the milk carafe to prepare a cappuccino
or to froth milk.
Note:
Before using the milk carafe, clean it thoroughly as described in the “Cleaning and Maintenance” chapter.
We recommend lling it with cold milk (approx. 5°C).
Warning:
Do not use any other liquids than water for cleaning or milk.
Filling the Milk Carafe
The milk carafe can be lled before or during use.
Lift the carafe lid as shown in the gure.
1
Pour the milk into the milk carafe: the milk level must be between the
2
minimum (MIN) and maximum (MAX) level indicators shown on the
milk carafe.
The milk carafe is now ready for use.
3
Page 37
ENGLISH

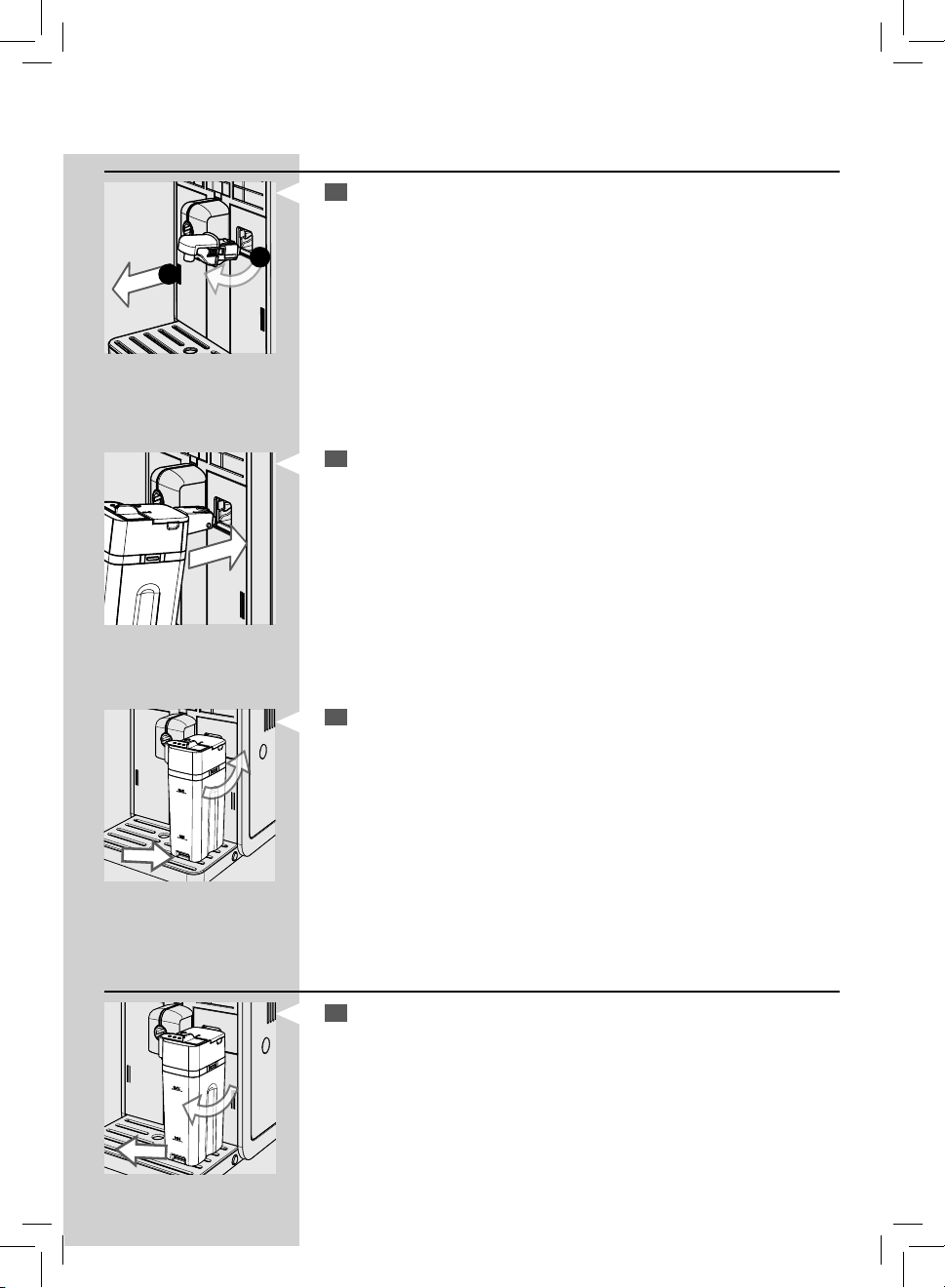

Inserting the Milk Carafe
If installed, remove the water dispensing spout as shown in the gure:
1
- Press the two buttons on the side to unlock the water dispensing
spout and lift it slightly;
1
- Pull the water dispensing spout to remove it.
35
35
2
Slightly tilt the milk carafe. Insert it all the way into the guides of the
2
machine.
Push the carafe towards the bottom while rotating it at the same time,
3
until it is locked onto the drip tray.
Do not force the carafe while inserting it.
Removing the Milk Carafe
Rotate the carafe upwards until it is released from the insert in the drip
1
tray. Then remove it.
Page 38
36
ENGLISH
Emptying the Milk Carafe
1
A
B
Press one of the release buttons to remove the top of the carafe as
1
shown in the gures (A or B).
1
Lift the top of the carafe. Empty the milk carafe and clean it properly.
2
Note:
After each use, clean the milk carafe as described in the “Cleaning and
Maintenance” chapter.
Page 39
ENGLISH

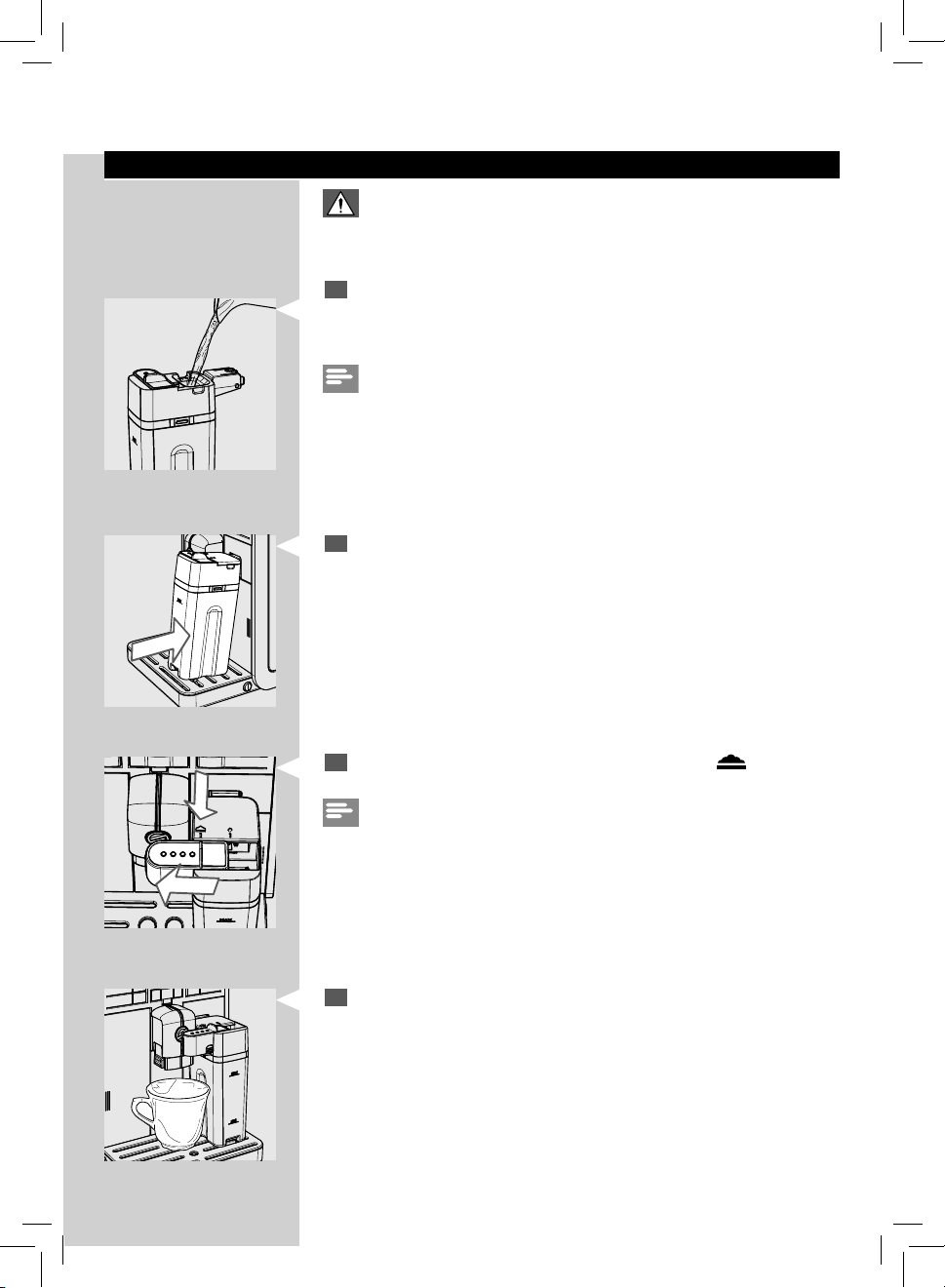

BREWING A CAPPUCCINO
Warning:
Danger of scalding! Dispensing may be preceded by jets of milk and
steam. Wait until the end of the cycle before removing the milk carafe.
Fill the milk carafe with milk. The milk level must be between the mini-
1
mum (MIN) and maximum (MAX) level indicators shown on the milk
carafe.
Note:
Use cold (~5 °C / 41°F) milk with a protein content of at least 3% to ensure
optimum results when preparing a cappuccino. Whole milk or skimmed
milk may be used depending on individual taste.
Insert the carafe into the machine.
2
37
37
Pull out the milk carafe dispenser to the left up to the “ ” icon.
3
Note:
If the milk carafe dispenser has not been pulled all the way out, milk may
not be properly frothed.
Place a cup under the carafe dispenser.
4
Page 40

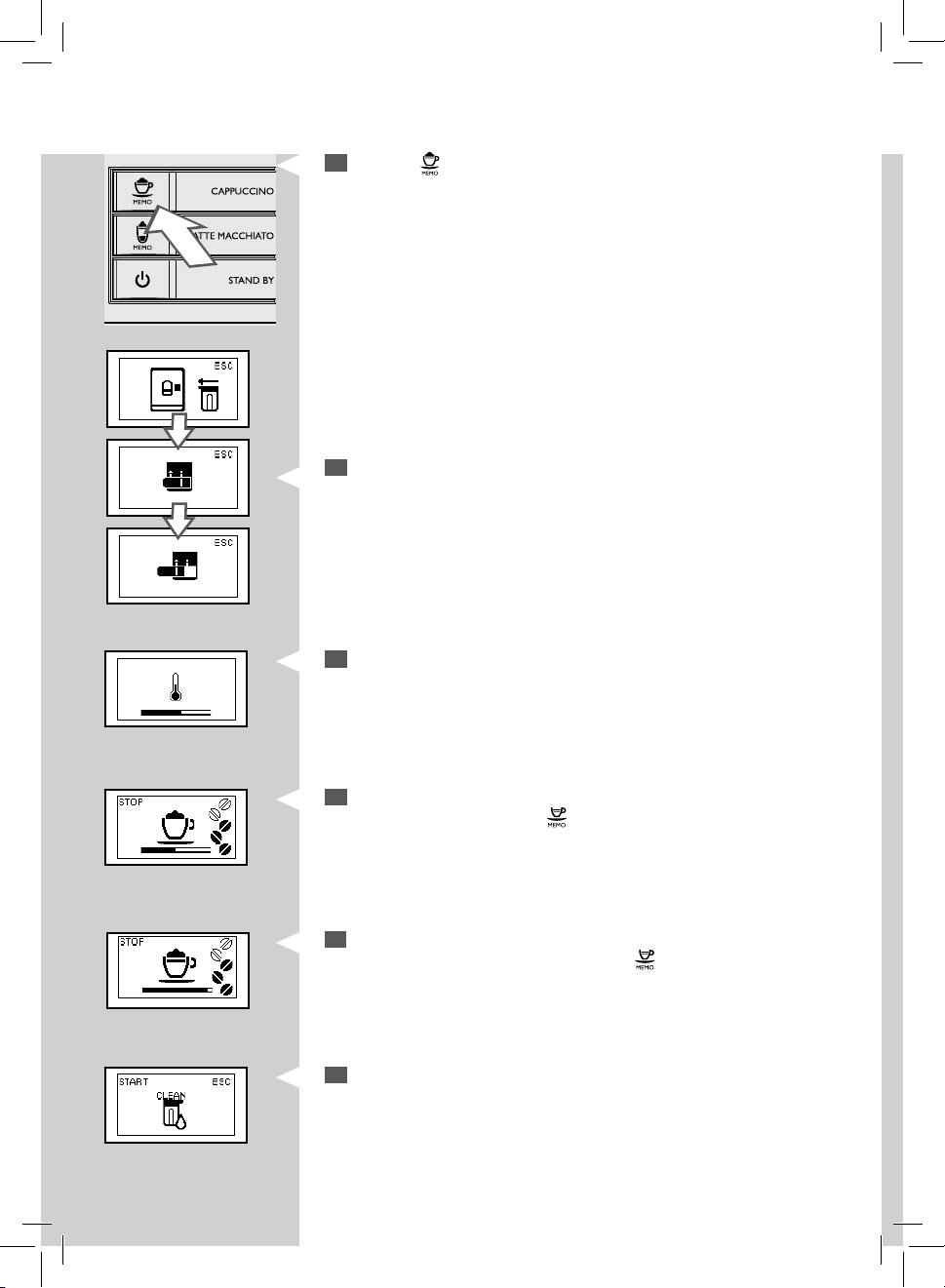

38
ENGLISH
GreenGreenGreen
Green
Press the “ ” button to start dispensing.
5
The machine reminds you to insert the carafe and remove the carafe
6
dispenser by showing the following icons.
This icon is displayed during the preheating time required by the
7
machine.
When this icon is shown, the machine dispenses milk. Dispensing can
Green
Green
8
be stopped by pressing the “
Once frothed milk has been dispensed, the machine brews co ee.
9
Brewing can be stopped by pressing the “
Once brewing has been completed, this display is shown to prompt
10
” button.
” button.
you to start the quick carafe rinse cycle. You must react within 10 sec-
Yellow
10
onds as described in the "Quick carafe rinse cycle" chapter.
Page 41

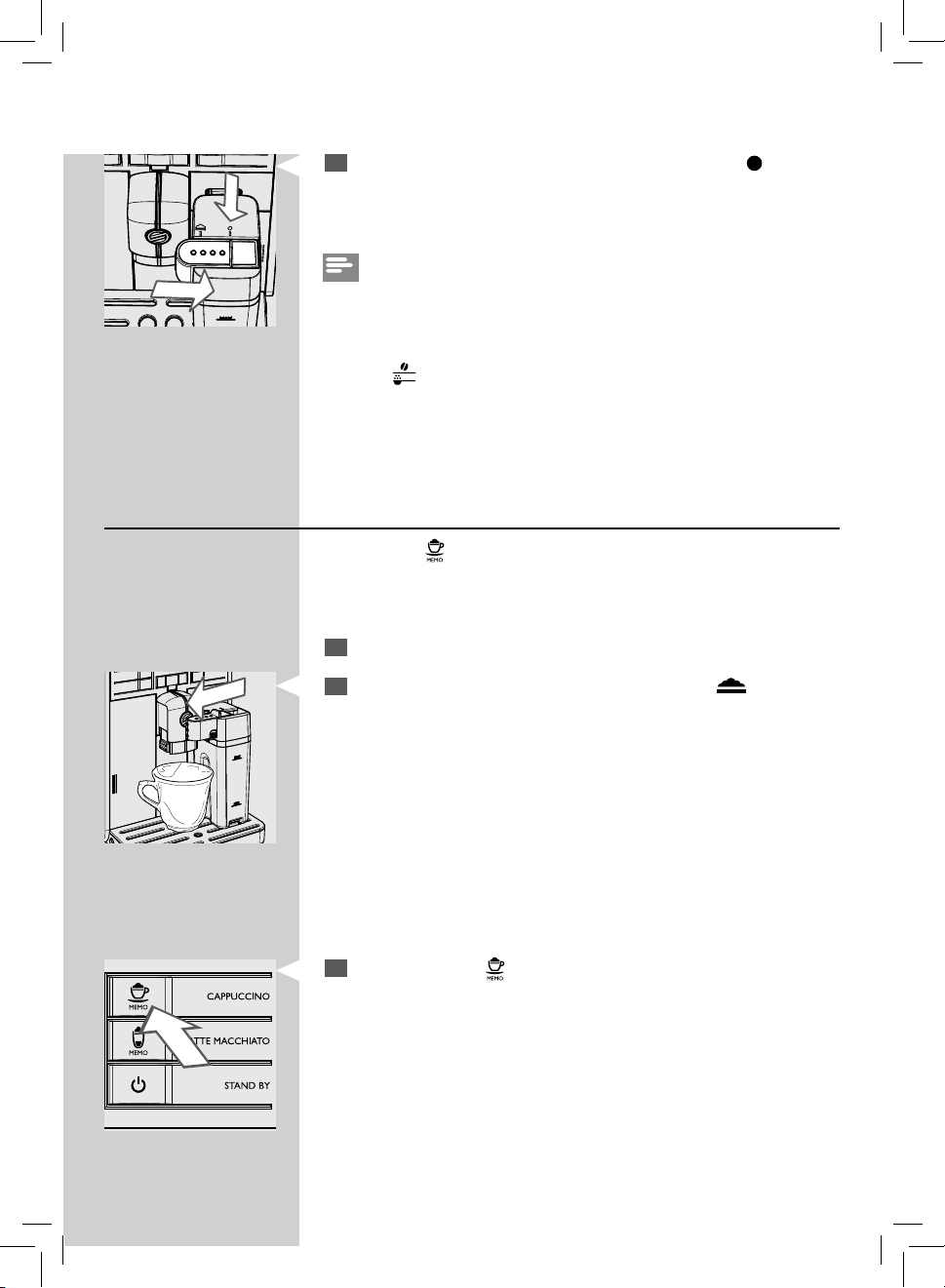

ENGLISH
Insert the milk carafe dispenser back by sliding it up to the “ ” icon.
11
Note:
After using the milk carafe, clean it as described in the "Cleaning and Maintenance" chapter.
39
39
You can prepare a cappuccino with pre-ground co ee.
Press the “
co ee into the compartment.
” button to select pre-ground co ee and pour pre-ground
Adjusting the Cappuccino Length
Each time the “ ” button is pressed, the machine brews a pre-set quantity
of cappuccino into the cup.
The machine allows you to adjust the amount of cappuccino brewed according to your taste and the size of your cups.
Fill the carafe with milk and place it into the machine.
1
Pull out the milk carafe dispenser to the left up to the “ ” icon. Place a
2
cup under the carafe dispenser.
Press and hold the “ ” button until the “MEMO” icon appears on the
3
display. Then release the button. The machine is now in programming
mode.
Page 42

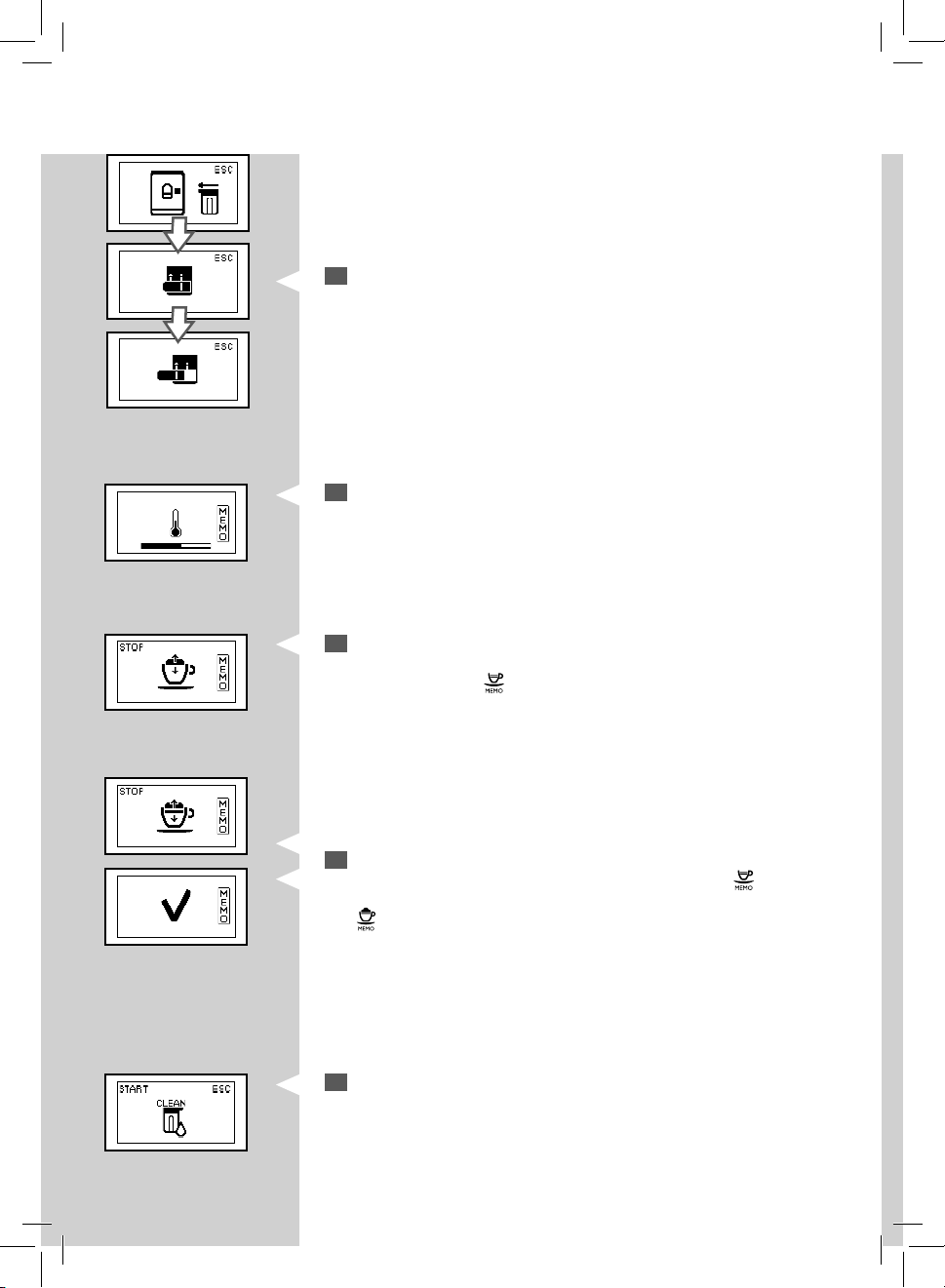

40
ENGLISH
GreenGreenGreen
GreenGreen
The machine reminds you to insert the carafe and remove the carafe
4
dispenser by showing the following icons.
This icon is displayed during the preheating time required by the
5
machine.
When the machine shows this icon, the machine starts dispensing
6
frothed milk into the cup. When the desired quantity of frothed milk is
reached, press the “
” button.
Green
Once frothed milk has been dispensed, the machine starts brewing
Green
7
co ee. When the desired quantity is reached, press the “
The “
” button is now programmed. Every time it is pressed, the machine
” button.
will brew the same amount of cappuccino that was programmed.
Once brewing has been completed, this display is shown to prompt
8
you to start the quick carafe rinse cycle. You must react within 10 sec-
Yellow
10
onds as described in the "Quick carafe rinse cycle" chapter.
Page 43
ENGLISH

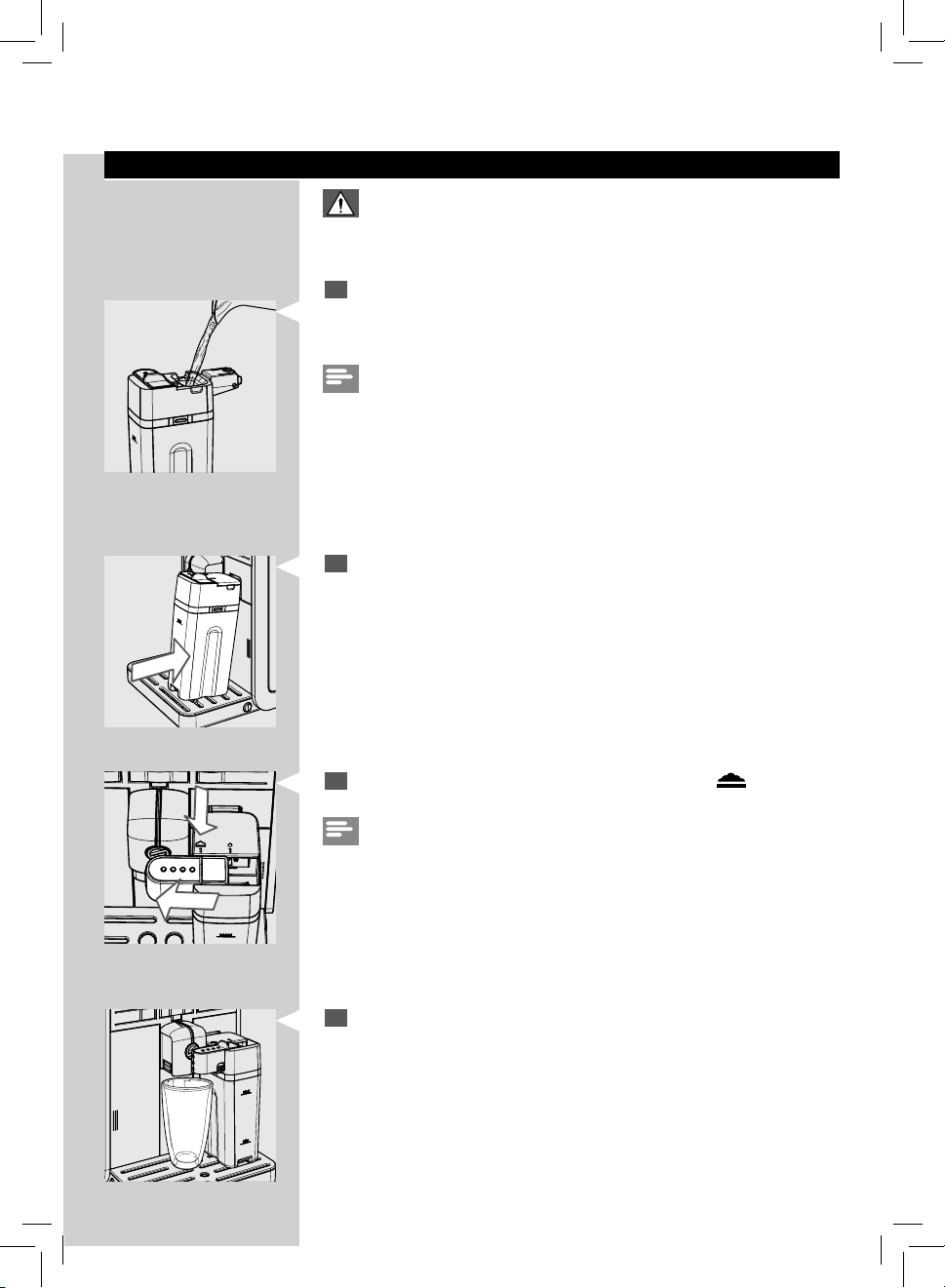

LATTE MACCHIATO BREWING
Warning:
Danger of scalding! Dispensing may be preceded by jets of milk and
steam. Wait until the end of the cycle before removing the milk carafe.
Fill the milk carafe with milk. The milk level must be between the mini-
1
mum (MIN) and maximum (MAX) level indicators shown on the milk
carafe.
Note:
Use cold (~5 °C / 41°F) milk with a protein content of at least 3% to ensure
optimum results when preparing a cappuccino. Whole milk or skimmed
milk may be used depending on individual taste.
Insert the carafe into the machine.
2
41
41
Pull out the milk carafe dispenser to the left up to the “ ” icon.
3
Note:
If the milk carafe dispenser has not been pulled all the way out, milk may
not be properly frothed.
Place a cup under the carafe dispenser.
4
Page 44
42
ENGLISH
GreenGreenGreen
Green

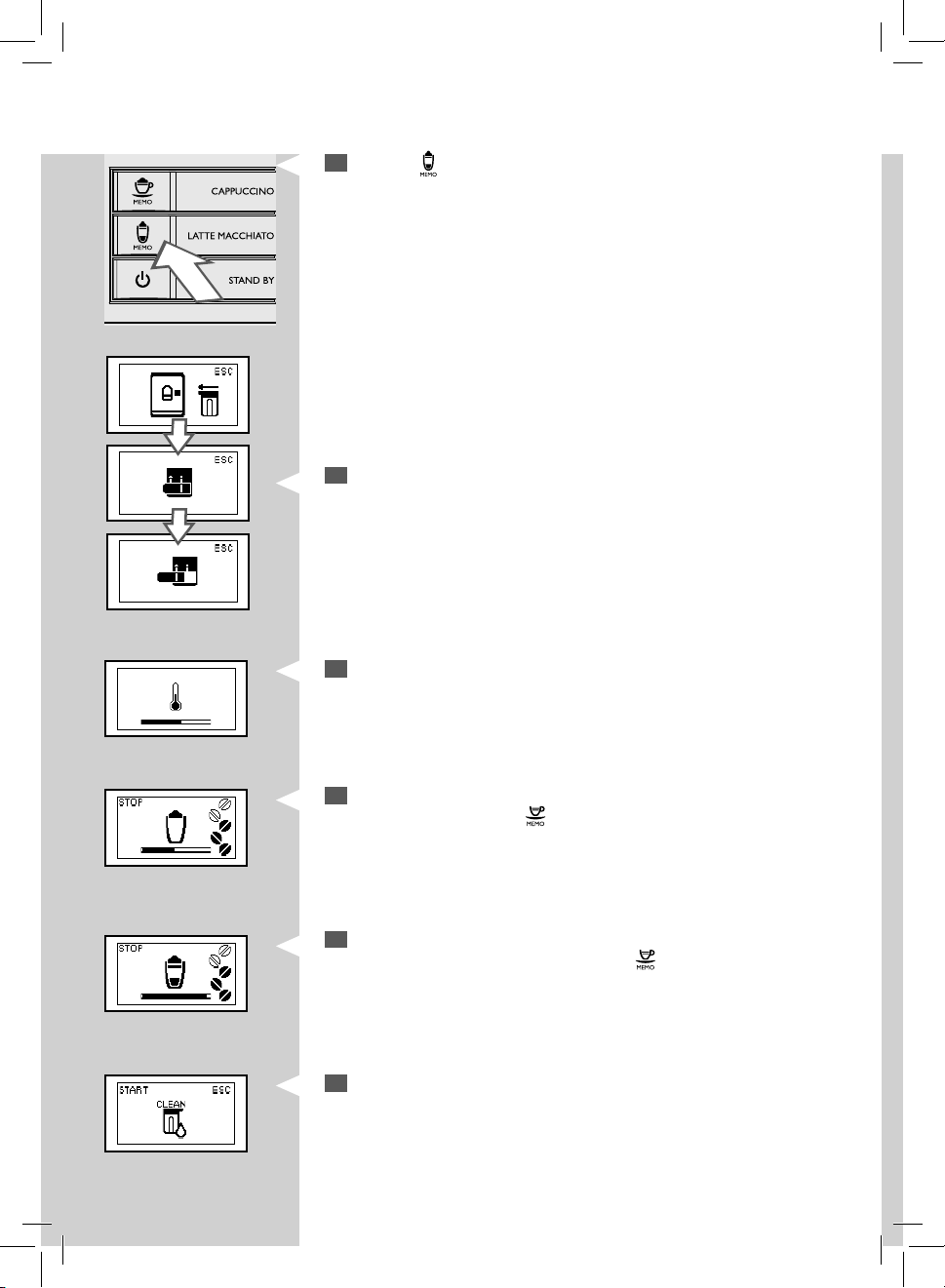

Press the “ ” button to select Latte Macchiato brewing.
5
The machine reminds you to insert the carafe and remove the carafe
6
dispenser by showing the following icons.
This icon is displayed during the preheating time required by the
7
machine.
When this icon is shown, the machine dispenses milk. Brewing can be
GreenGreen
8
stopped by pressing the “
Once frothed milk has been dispensed, the machine brews co ee.
9
Brewing can be stopped by pressing the “
Once brewing has been completed, this display is shown to prompt
10
” button.
” button.
you to start the quick carafe rinse cycle. You must react within 10 sec-
Yellow
10
onds as described in the "Quick carafe rinse cycle" chapter.
Page 45
ENGLISH
Note:
After using the milk carafe, clean it as described in the "Cleaning and Maintenance" chapter.
You can prepare a Latte Macchiato with pre-ground co ee.
Press the “
co ee into the compartment.

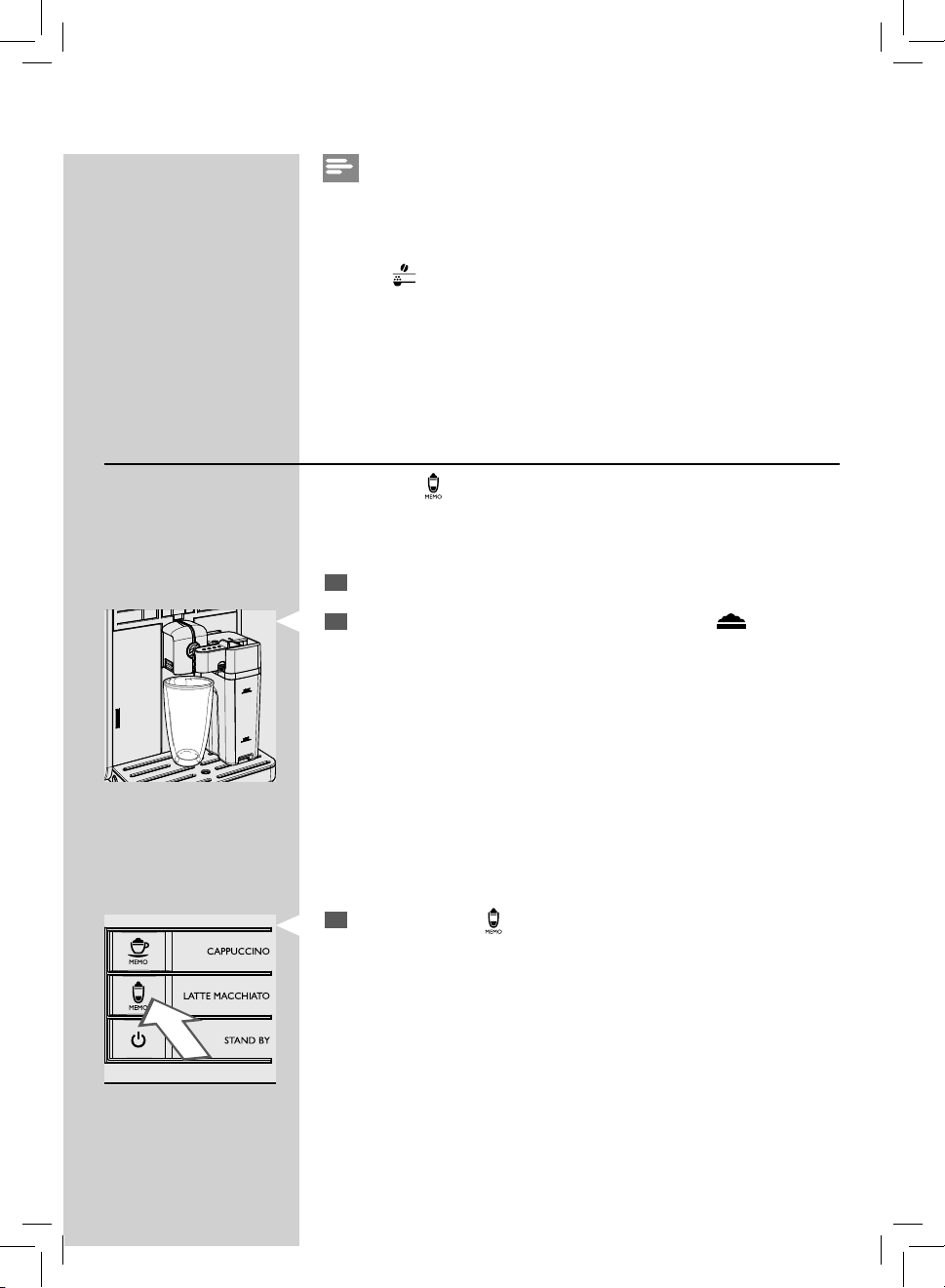

Adjusting the Latte Macchiato length
Each time the “ ” button is pressed, the machine brews a pre-set quantity
of Latte Macchiato into the cup.
The machine allows you to adjust the dispensed amount of Latte Macchiato according to your taste and the size of your cups.
Fill the carafe with milk and place it into the machine.
1
Pull out the milk carafe dispenser to the left up to the “ ” icon. Place a
2
cup under the carafe dispenser.
” button to select pre-ground co ee and pour pre-ground
43
43
Press and hold the “ ” button until the “MEMO” icon appears on the
3
display. Then release the button. The machine is now in programming
mode.
Page 46
44
ENGLISH
GreenGreenGreen
GreenGreenGreen

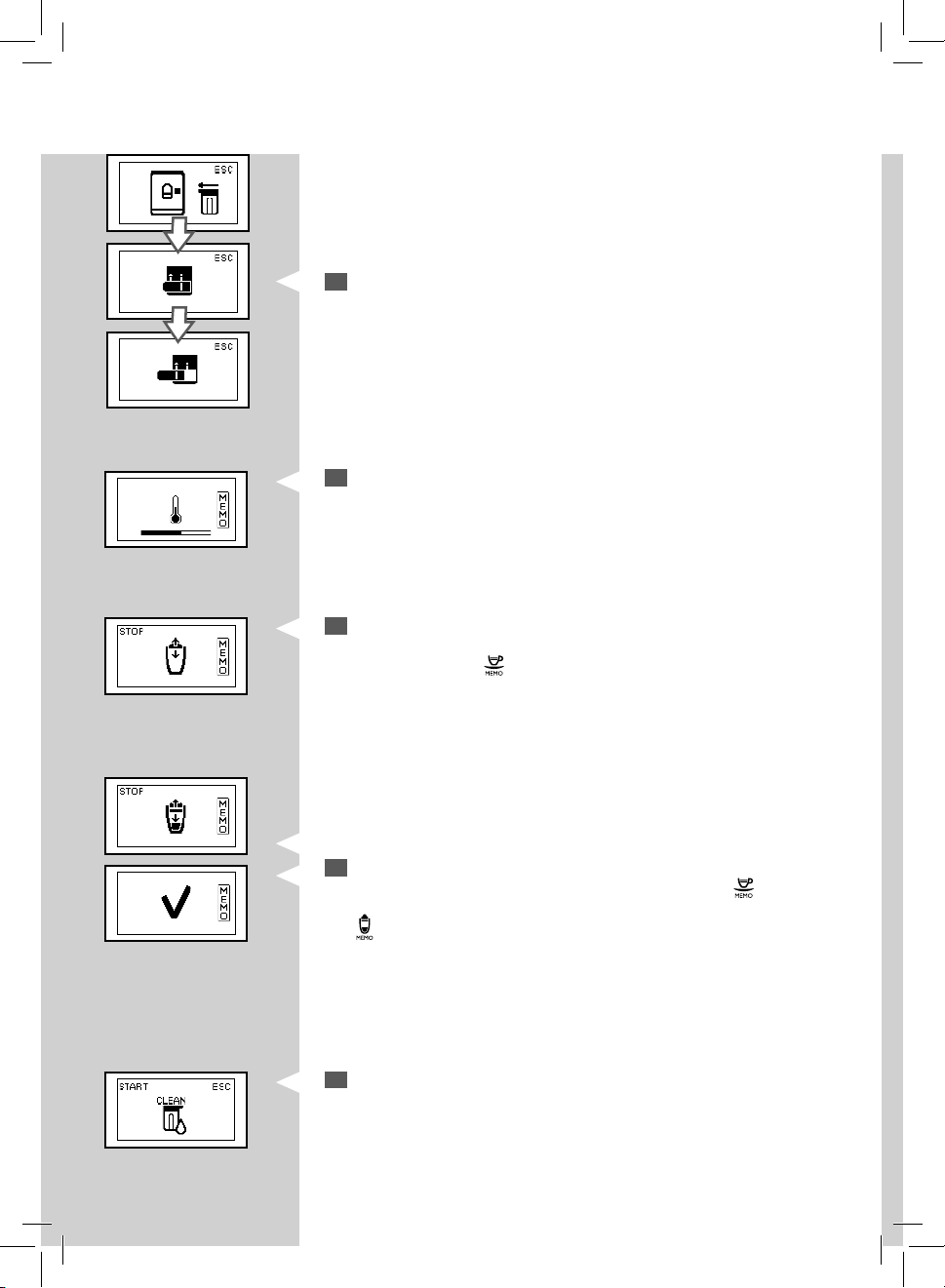

The machine reminds you to insert the carafe and remove the carafe
4
dispenser by showing the following icons.
This icon is displayed during the preheating time required by the
5
machine.
When the machine shows this icon, the machine starts dispensing
6
frothed milk into the cup. When the desired quantity of frothed milk is
reached, press the “
” button.
Once frothed milk has been dispensed, the machine starts brewing
Green
7
co ee. When the desired quantity is reached, press the “
The “
” button is now programmed. Every time it is pressed, the machine
” button.
will brew the same amount of Latte Macchiato that was programmed.
Once brewing has been completed, this display is shown to prompt
8
you to start the quick carafe rinse cycle. You must react within 10 sec-
Yellow
10
onds as described in the "Quick carafe rinse cycle" chapter.
Page 47
ENGLISH

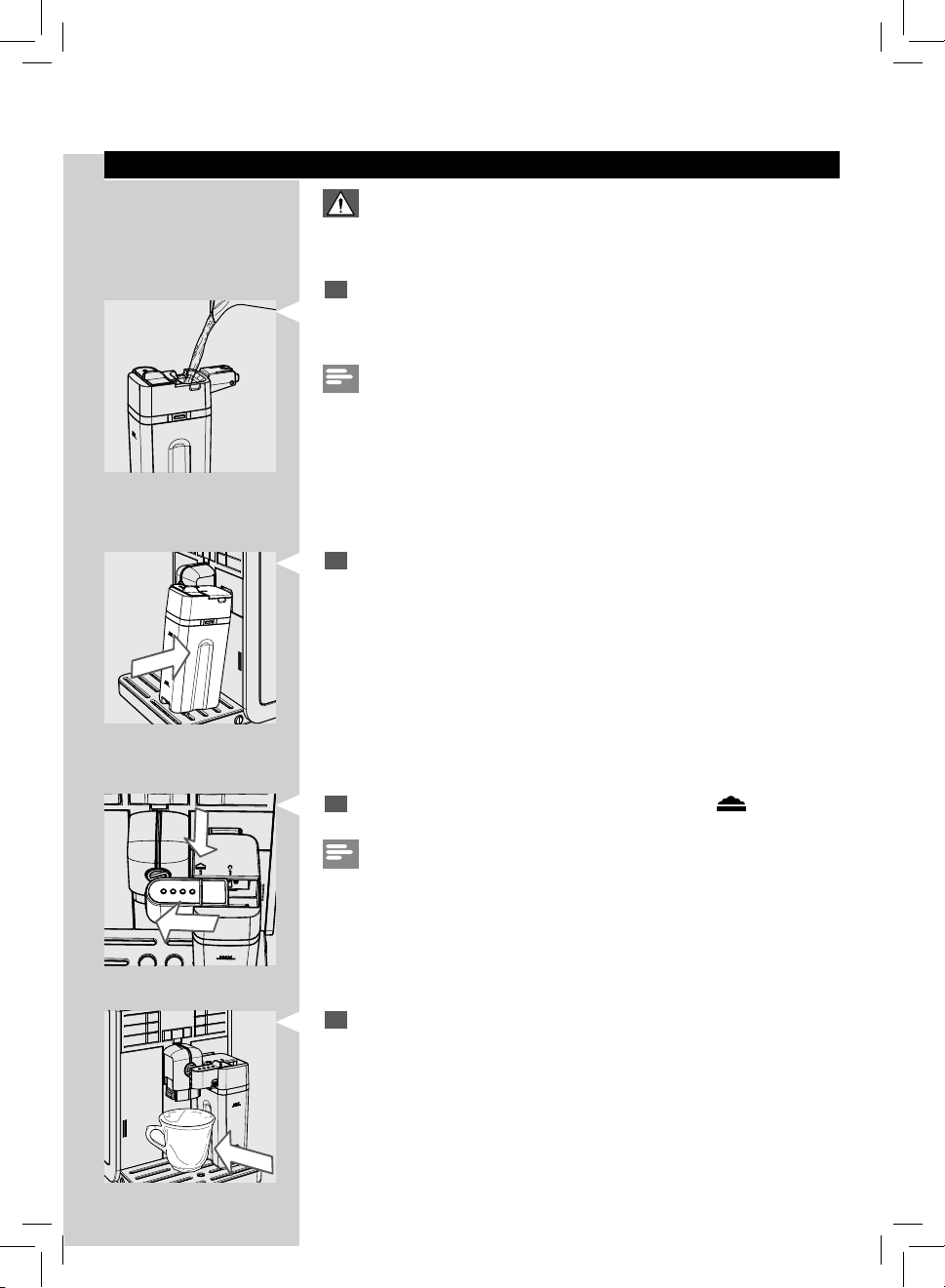

FROTHING MILK
Warning:
Danger of scalding! Dispensing may be preceded by jets of milk and
steam. Wait until the end of the cycle before removing the milk carafe.
Fill the milk carafe with milk. The milk level must be between the mini-
1
mum (MIN) and maximum (MAX) level indicators shown on the milk
carafe.
Note:
Use cold (~5 °C / 41°F) milk with a protein content of at least 3% to ensure
optimum results when preparing a cappuccino. Whole milk or skimmed
milk may be used depending on individual taste.
Insert the carafe into the machine.
2
45
45
Pull out the milk carafe dispenser to the left up to the “ ” icon.
3
Note:
If the milk carafe dispenser has not been pulled all the way out, milk may
not be properly frothed.
Place a cup under the carafe dispenser.
4
Page 48
46
ENGLISH
Green Green
GreenGreenGreen

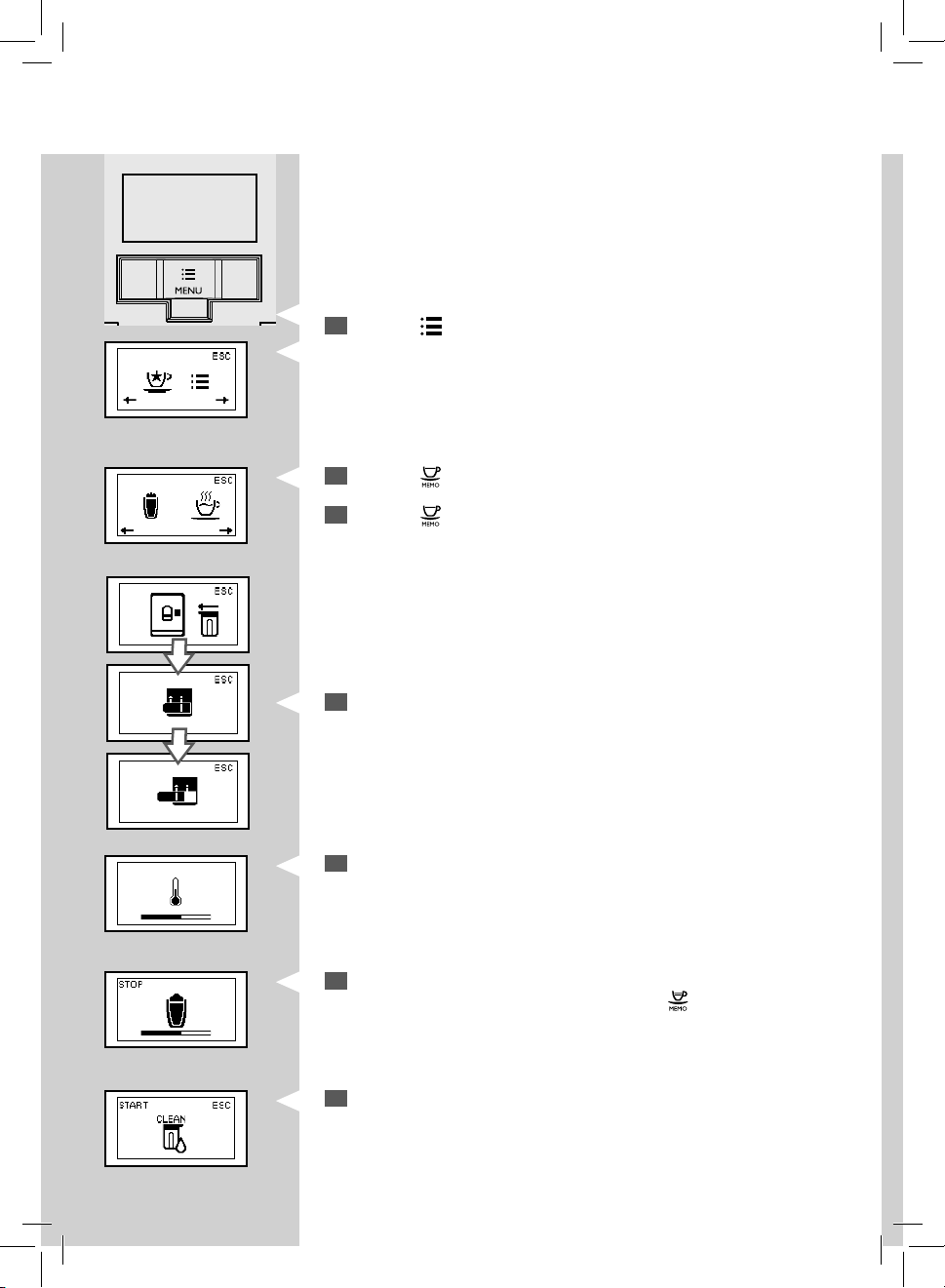

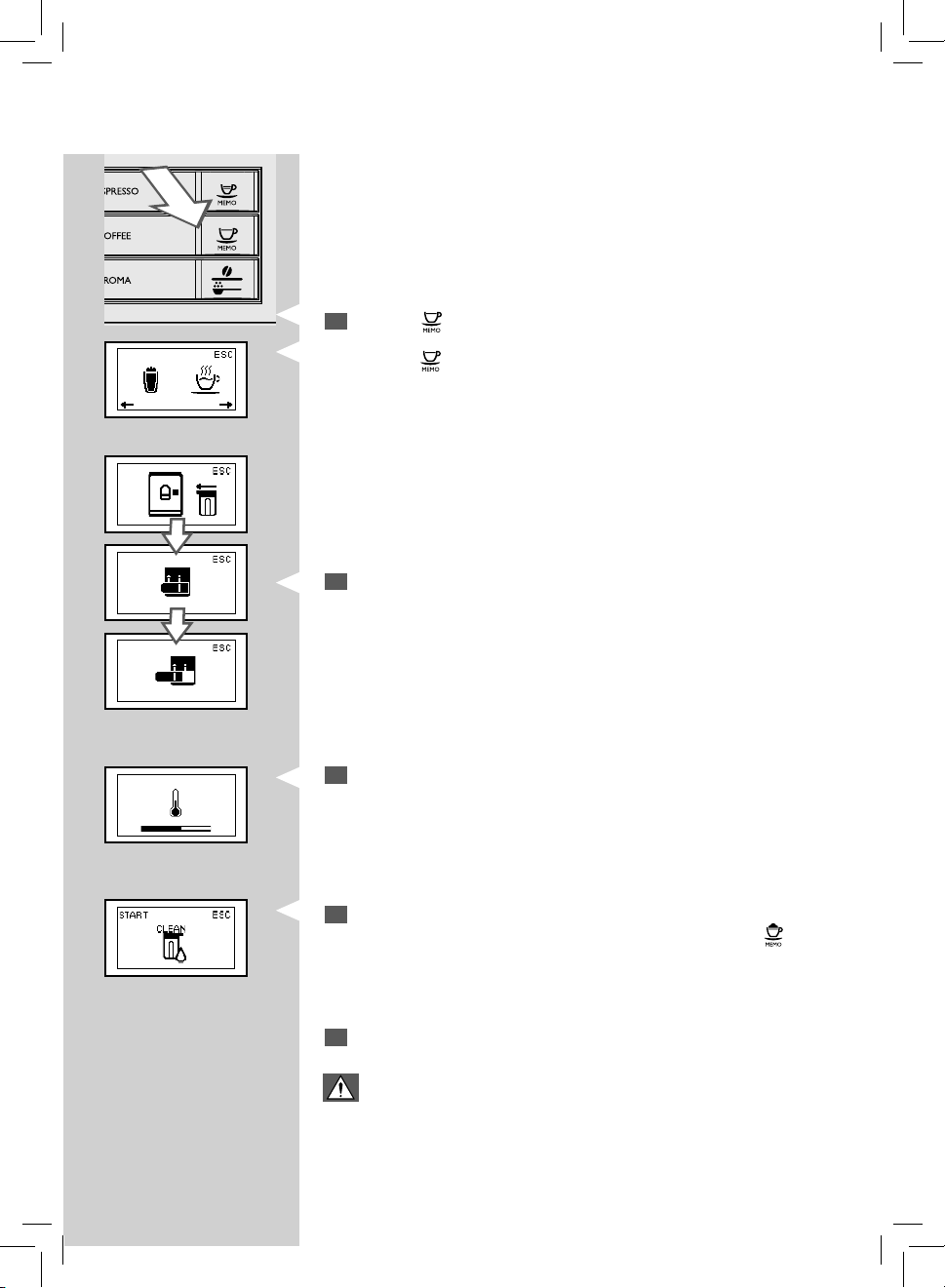

Press the “ ” MENU button. This icon is displayed.
5
Press the “ ” button. This icon is displayed.
6
Press the “ ” button to select frothed milk.
7
The machine reminds you to insert the carafe and remove the carafe
8
dispenser by showing the following icons.
This icon is displayed during the preheating time required by the
9
machine.
Green
The machine dispenses a prede ned quantity of frothed milk into the
Green
10
cup. Brewing can be stopped by pressing the “
Once brewing has been completed, this display is shown to prompt
11
” button.
you to start the quick carafe rinse cycle. You must react within 10 sec-
Yellow
10
onds as described in the "Quick carafe rinse cycle" chapter.
Page 49

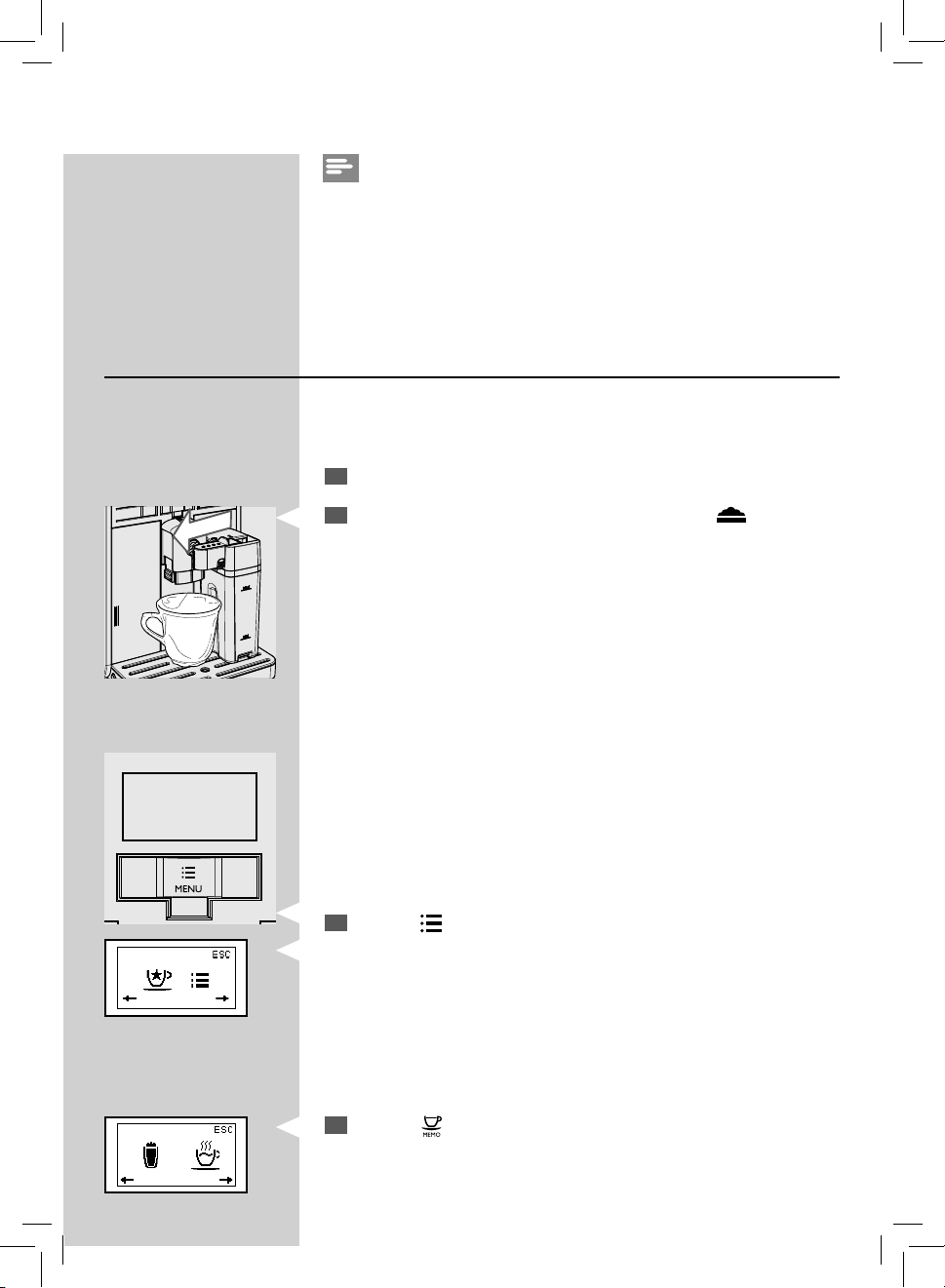

ENGLISH
Note:
After using the milk carafe, clean it as described in the "Cleaning and Maintenance" chapter.
47
47
Adjusting the Frothed Milk Length
Each time this function is selected, the machine dispenses a preset amount
of frothed milk into the cup. The machine allows you to adjust the amount
of frothed milk according to your taste and the size of your cups.
Fill the carafe with milk and place it into the machine.
1
Pull out the milk carafe dispenser to the left up to the “ ” icon. Place a
2
cup under the carafe dispenser.
Green Green
Press the “ ” MENU button. This icon is displayed.
3
Press the " " button. This icon is displayed.
4
Page 50
48
ENGLISH
GreenGreenGreen
Green
Press and hold the “ ” button to select frothed milk until the “MEMO”
5
icon appears on the display. Then release the button. The machine is
now in programming mode.
The machine reminds you to insert the carafe and remove the carafe
6
dispenser by showing the following icons.
This icon is displayed during the preheating time required by the
7
machine.
GreenGreen
When the desired amount of frothed milk is reached, press the “ ”
8
button.
Now the “frothed milk” button is programmed. Every time it is pressed, the
machine will brew the same amount of frothed milk that was programmed.
Once brewing has been completed, this display is shown to prompt
9
you to start the quick carafe rinse cycle. You must react within 10 sec-
Yellow
10
onds as described in the "Quick carafe rinse cycle" chapter.
Page 51
ENGLISH
49
49

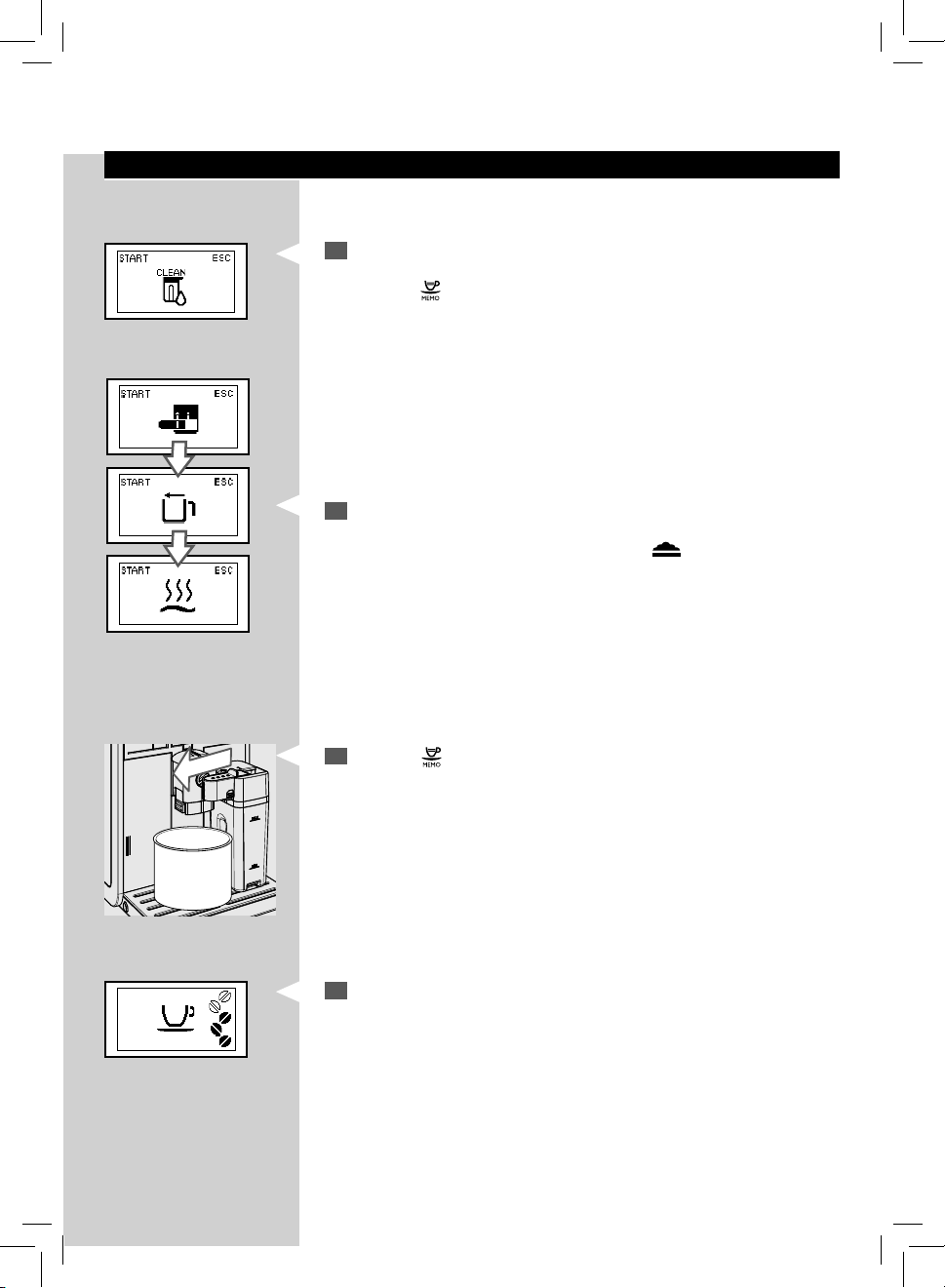

QUICK CARAFE RINSE CYCLE
After one or more milk-based products have been prepared, the machine
allows for a quick cleaning of the carafe ducts.
This screen is displayed for 10 seconds to prompt you to perform the
1
quick rinse cycle.
10
YellowYellowYellow
cycle.
The following screens are displayed in sequence until
2
Press the “
YellowGreen
” button within the following 10 seconds to start the
the cycle starts.
“ ”
1. Pull out the carafe dispenser up to the
icon.
2. Place a container under the carafe dispenser.
3. Be careful when starting the cycle. Hot water is dispensed.
Press the " " button. The rinse cycle starts.
3
Once rinsing has been completed, the following screen is displayed
4
and the machine is ready for use.
Remove the container and the milk carafe.
Page 52
50
ENGLISH

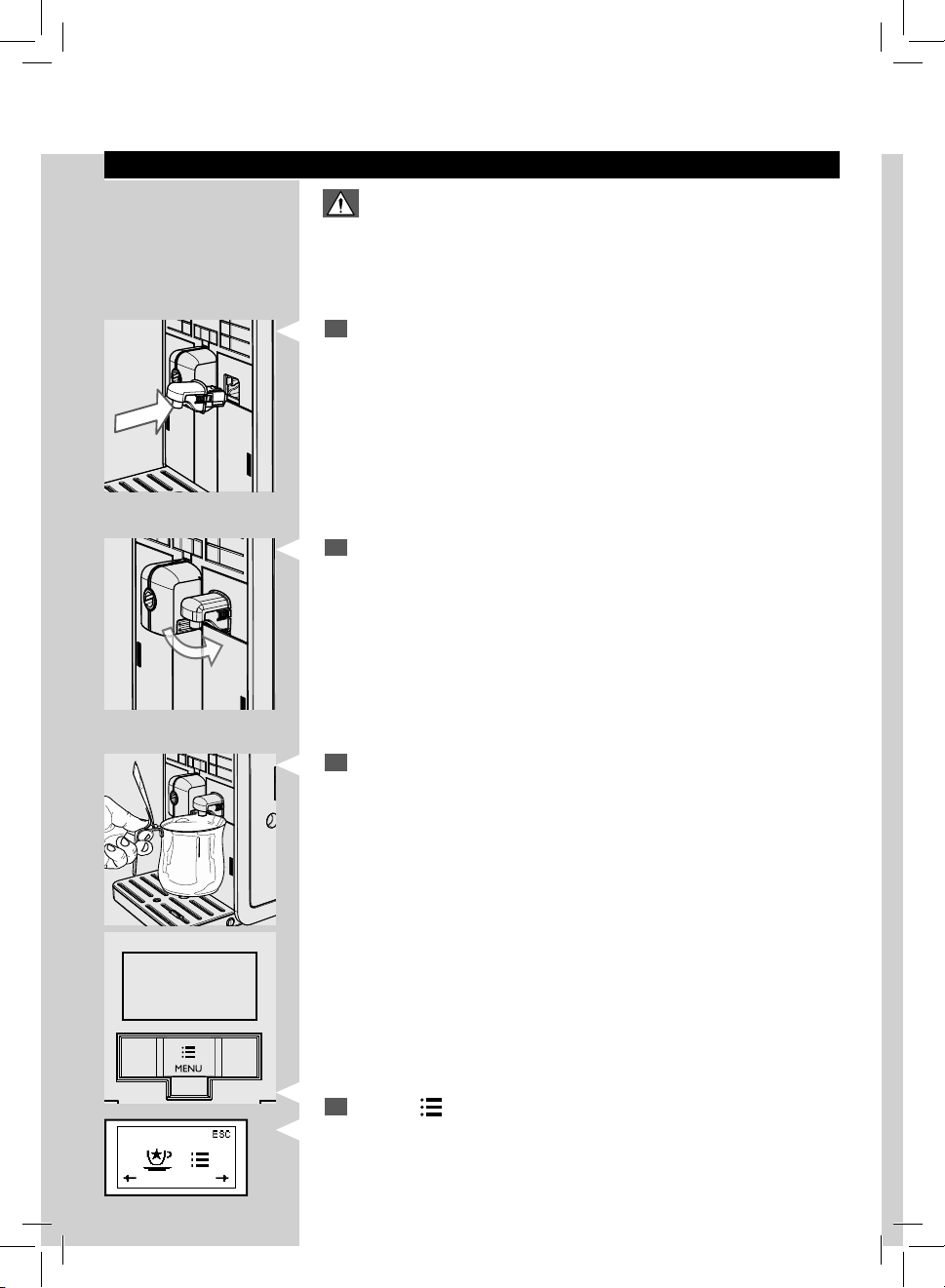

DISPENSING HOT WATER
Warning:
Danger of scalding! Dispensing may be preceded by small jets of hot
water and steam. Wait until the end of the cycle before removing the
water dispensing spout.
Slightly tilt the water dispensing spout and insert it all the way in into
1
the guides of the machine.
Push the water dispensing spout towards the bottom while rotating
2
it at the same time, until it is locked in the machine as shown in the
gure.
Green
Place a container under the hot water dispensing spout.
3
Press the “ ” MENU button. This icon is displayed.
4
Page 53
Green Green
ENGLISH

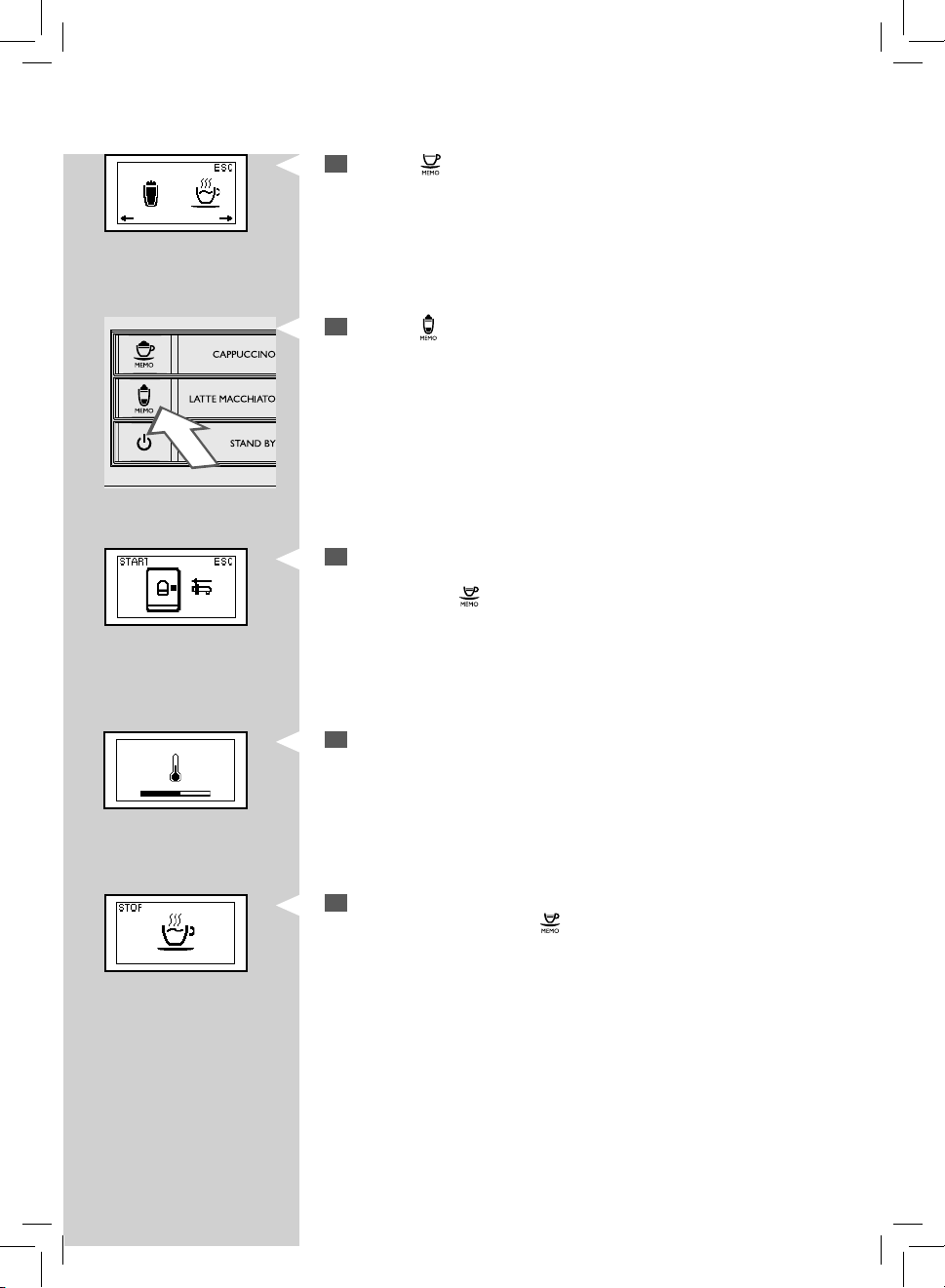

Press the “ ” button. This icon is displayed.
5
Press the “ ” button to start dispensing.
6
This icon is displayed. The machine reminds you to install the water
7
dispensing spout. Check that the water dispensing spout is correctly
installed. Press “
water.
” to con rm. The machine will start dispensing hot
51
51
Green Green
This icon is displayed during the preheating time required by the
8
machine.
Dispense the desired amount of hot water. To stop the hot water dis-
9
pensing process, press the “
” button.
Page 54
52
ENGLISH

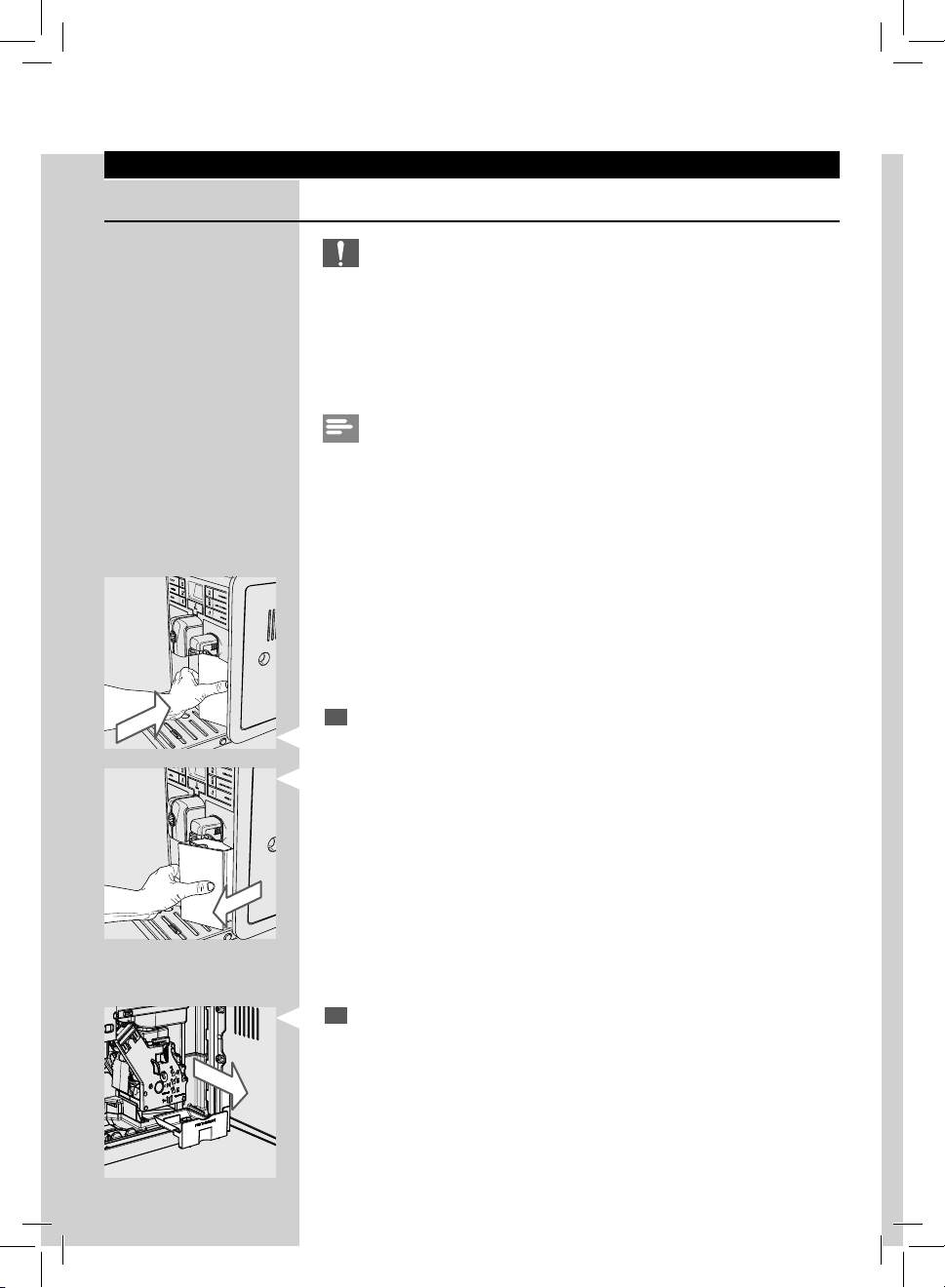

CLEANING AND MAINTENANCE
Daily Cleaning of the Machine
Caution:
Timely cleaning and maintenance of your machine is very important
as it prolongs the life of your machine. The machine is continuously
exposed to humidity, co ee and limescale!
The activities you need to perform and their frequency are described
in detail in this chapter. Not doing this will ultimately make your machine stop working properly. This repair is NOT covered by warranty!
Note:
- Use a soft, dampened cloth to clean the machine.
- Only the parts of the carafe described in the "Weekly Cleaning of the
Milk Carafe" section can be washed in the dishwasher. Any other components must be washed with lukewarm water.
- Do not immerse the machine in water.
- Do not use alcohol, solvents, and/or abrasive objects to clean the
machine.
- Do not dry the machine and/or its components using a microwave
and/or standard oven.
Empty and clean the co ee grounds drawer daily with the machine
1
turned on.
- Press gently on the side of the co ee grounds drawer door to
release the handgrip.
- Remove the co ee grounds drawer by pulling it by the handle.
Other maintenance operations can only be carried out when the machine
is turned o and unplugged.
Empty and clean the co ee residues drawer located inside of the ma-
2
chine. Open the service door, remove the drawer and empty it.
Page 55
ENGLISH

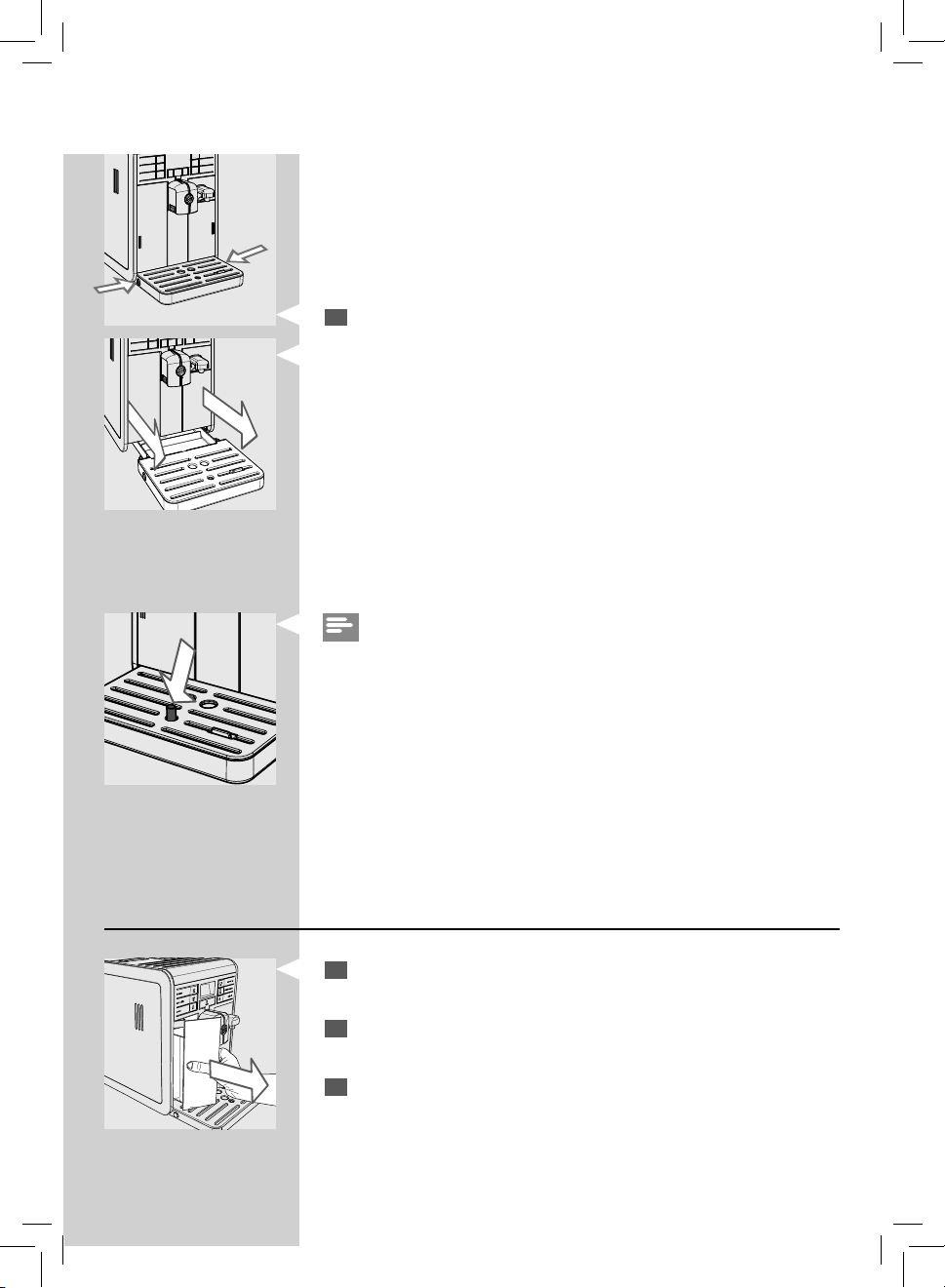

Empty and wash the drip tray:
3
- Press the side buttons.
- Remove the drip tray.
Note:
Empty and wash the drip tray also when the full drip tray indicator is raised.
53
53
Daily Cleaning of the Water Tank
Remove the small white lter or the INTENZA+ water lter (if installed)
1
from the water tank and wash it with fresh water.
Put the small white lter back or the INTENZA+ water lter (if installed)
2
in its housing by gently pressing and turning it at the same time.
Fill the water tank with fresh water.
3
Page 56
54
ENGLISH

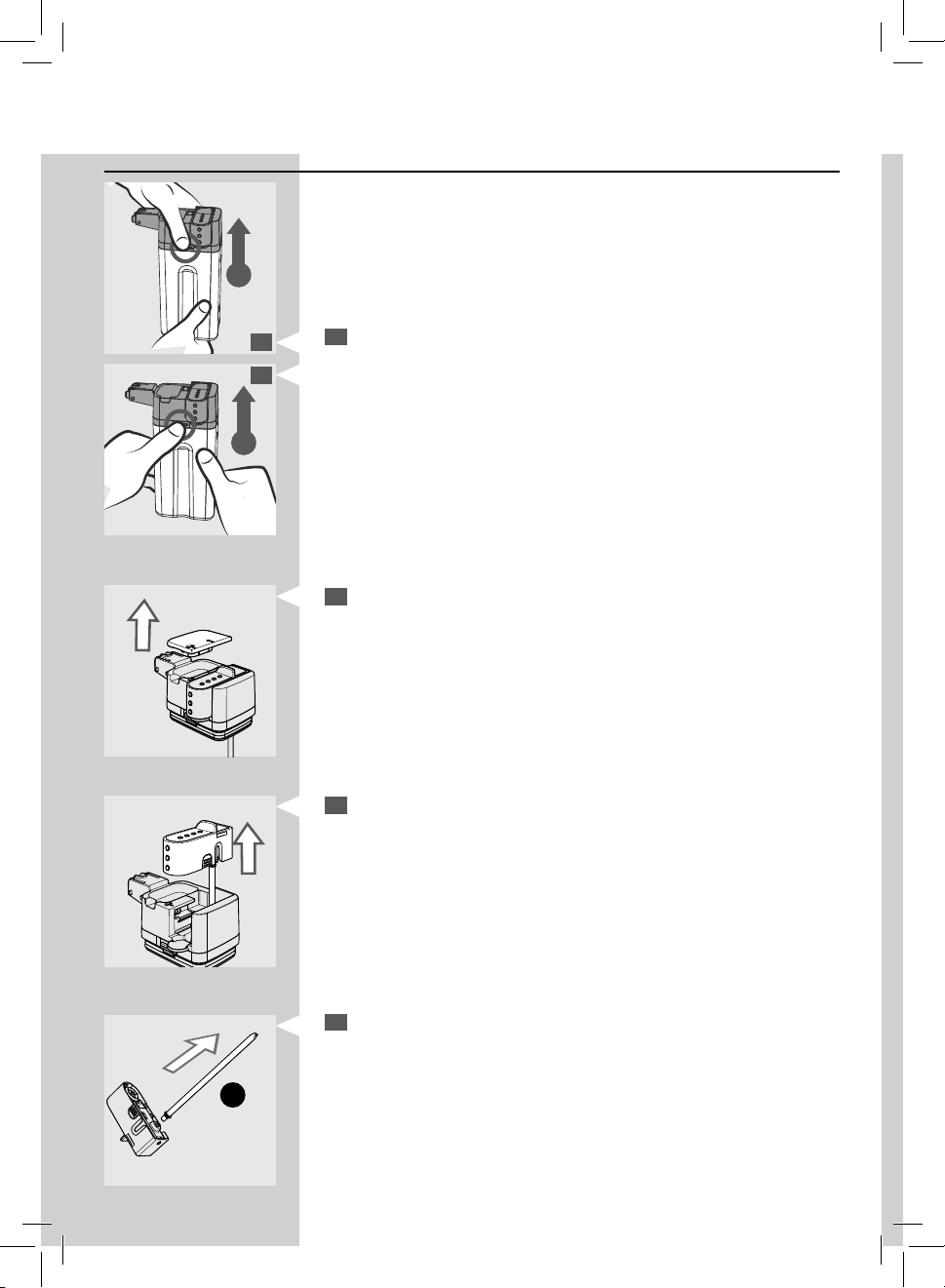

Daily Cleaning of the Milk Carafe
In addition to the quick carafe rinse cycle, we recommend that you also
clean the carafe daily as described below. This preserves hygiene and
ensures a perfect frothed milk consistency.
1
Press one of the release buttons to remove the top of the carafe as
A
1
shown in the gures (A or B).
B
1
Remove the lid.
2
Lift the carafe dispenser to remove it from the top of the carafe.
3
Remove the suction tube with the tting (A) from the milk frother.
4
A
Page 57
ENGLISH

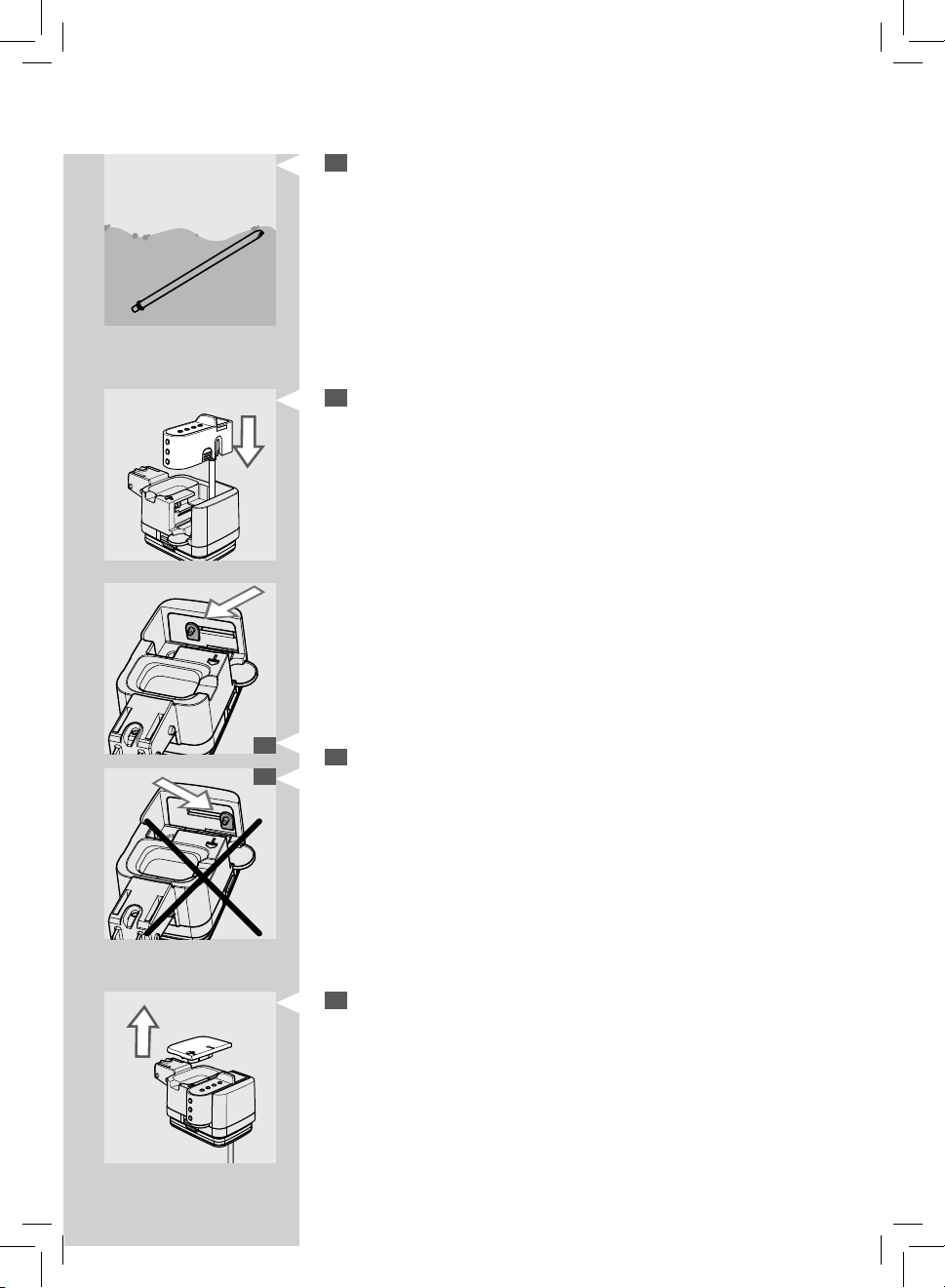

Wash the suction tube with the tting thoroughly with fresh water.
5
After installing the suction tube with the tting, insert the dispensing
6
spout on the top of the carafe.
55
55
A
B
If you cannot install the dispenser at the top of the carafe, the pin is in
7
the wrong position (B). Before installing the dispenser, manually push
the pin to the (A) position.
Insert the lid.
8
Page 58

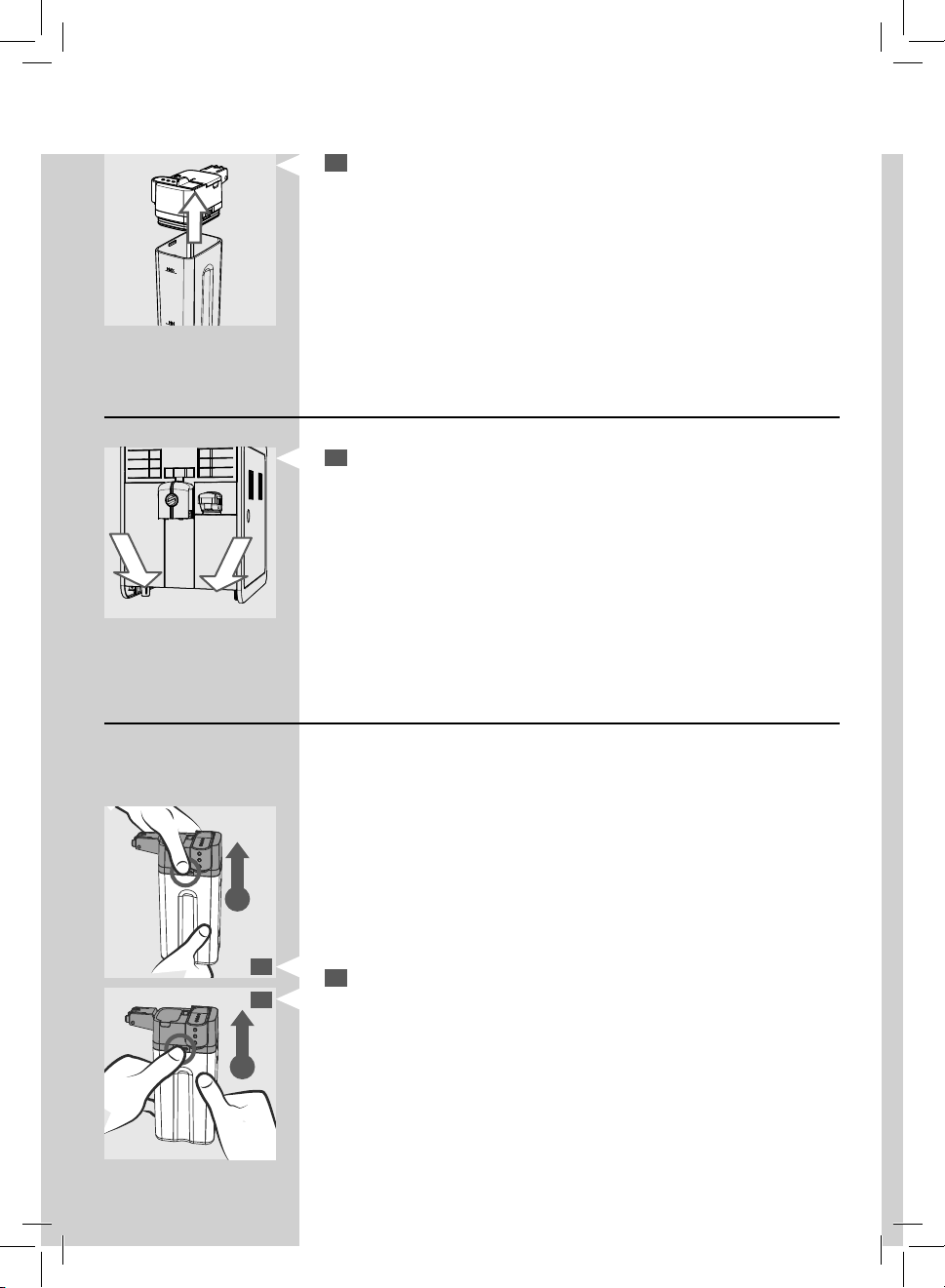

56
ENGLISH
Place the top of the carafe back in position.
9
Weekly Cleaning of the Machine
Clean the seat of the drip tray.
1
Weekly Cleaning of the Milk Carafe
The weekly cleaning is more thorough since all milk residues are removed
from the carafe dispenser.
1
A
B
Press one of the release buttons to remove the top of the carafe as
1
shown in the gures (A or B).
1
Page 59
ENGLISH

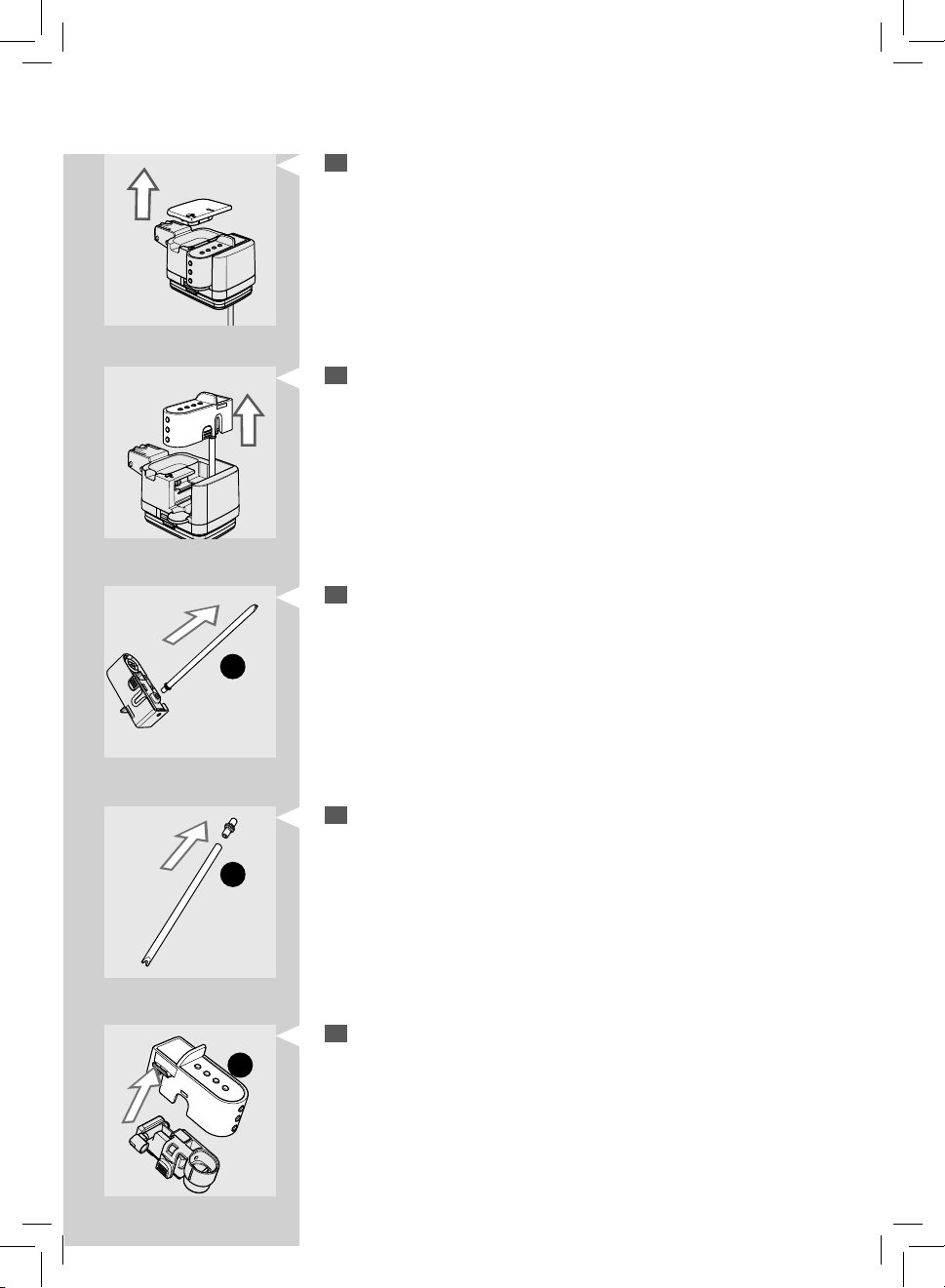

Remove the lid.
2
Lift the dispensing spout to remove it from the top of the carafe. The
3
milk carafe dispenser is made up of six parts that must be disassembled. Each part is indicated by a capital letter (A, B, C, D, E, F) as shown
in the gures below.
Remove the suction tube with the tting (A) from the milk frother.
4
57
57
A
Remove the tting (B) from the suction tube.
5
B
Detach the lid (C) from the milk carafe dispenser by pushing down-
6
C
wards while slightly pressing on the sides.
Page 60
58
E
ENGLISH

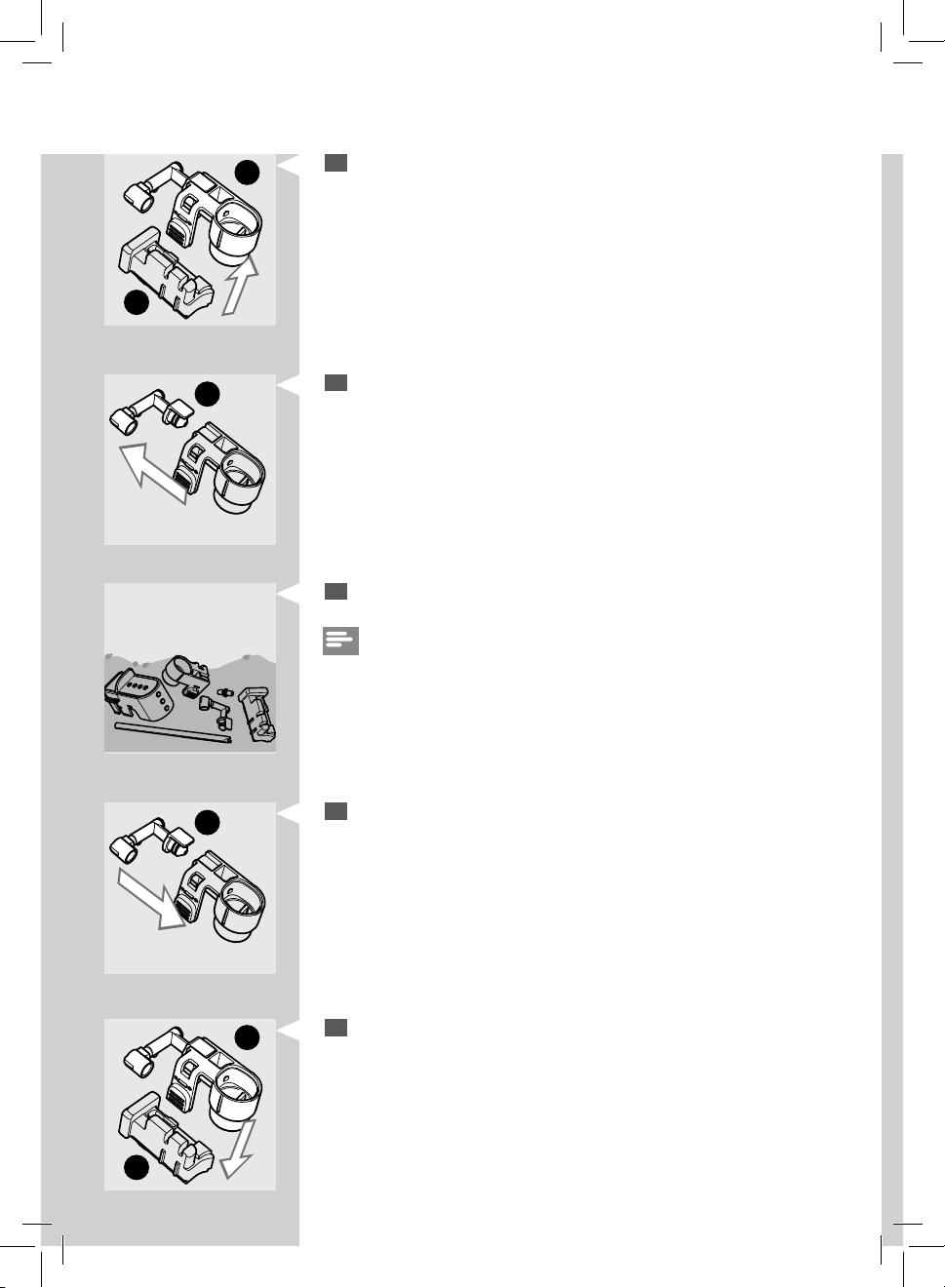

Remove the milk frothing device (D) from the support (E).
D
F
7
Remove the tting (F) from the milk frothing device by pulling it out-
8
wards.
Clean all the parts thoroughly with lukewarm water.
9
Note:
You can also clean these parts in the dishwasher.
Insert the tting (F) into the milk frothing device by pressing it up to its
F
D
10
limit.
Insert the milk frothing device (D) into the support (E).
11
E
Page 61
59
59

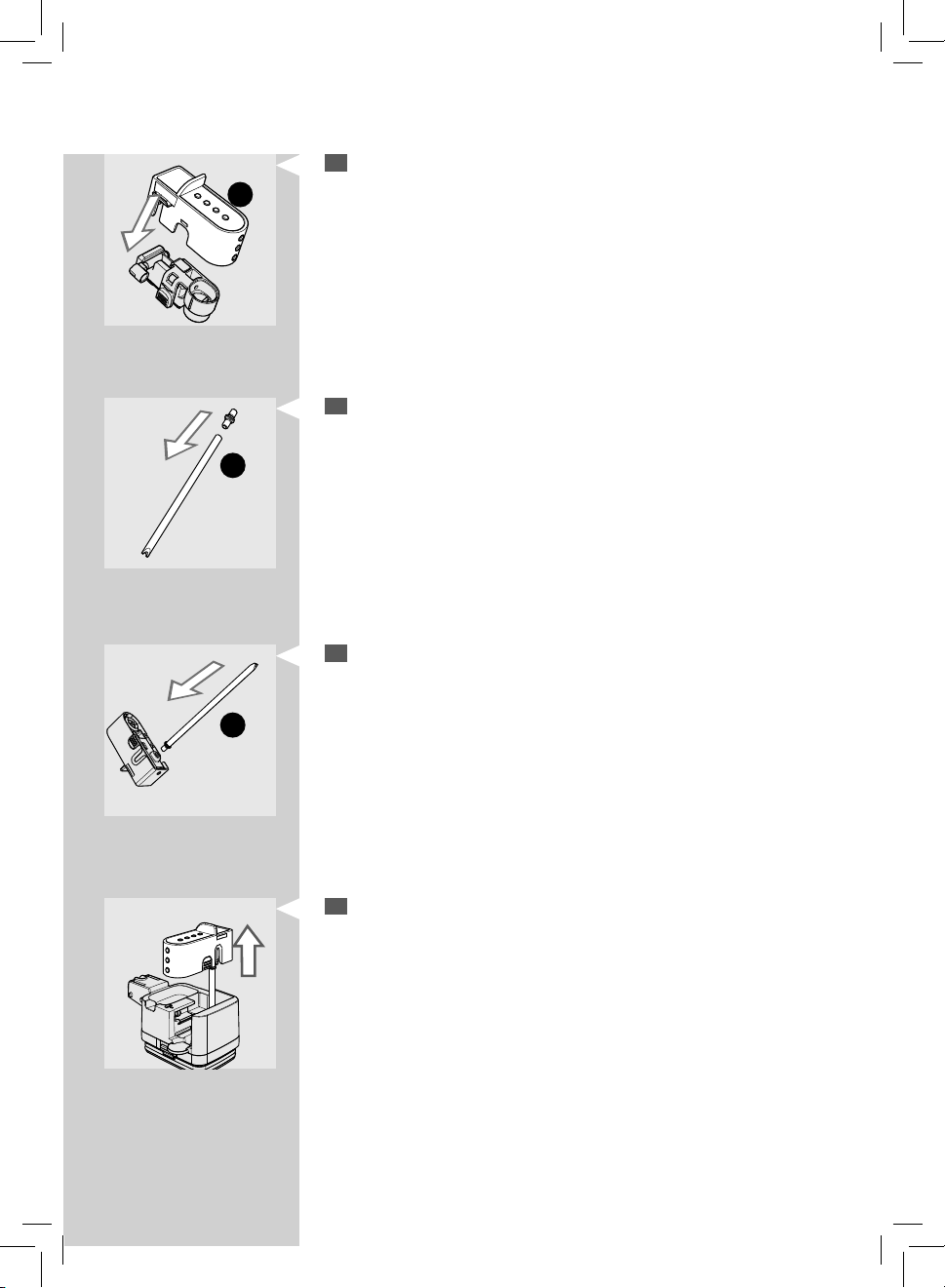

Attach the top (C) to the carafe dispenser.
12
ENGLISH
C
Insert the tting (B) into the suction tube.
13
B
Insert the suction tube with the tting (A) into the milk frother.
14
A
Insert the dispenser into the top part of the carafe.
15
Page 62
60
ENGLISH

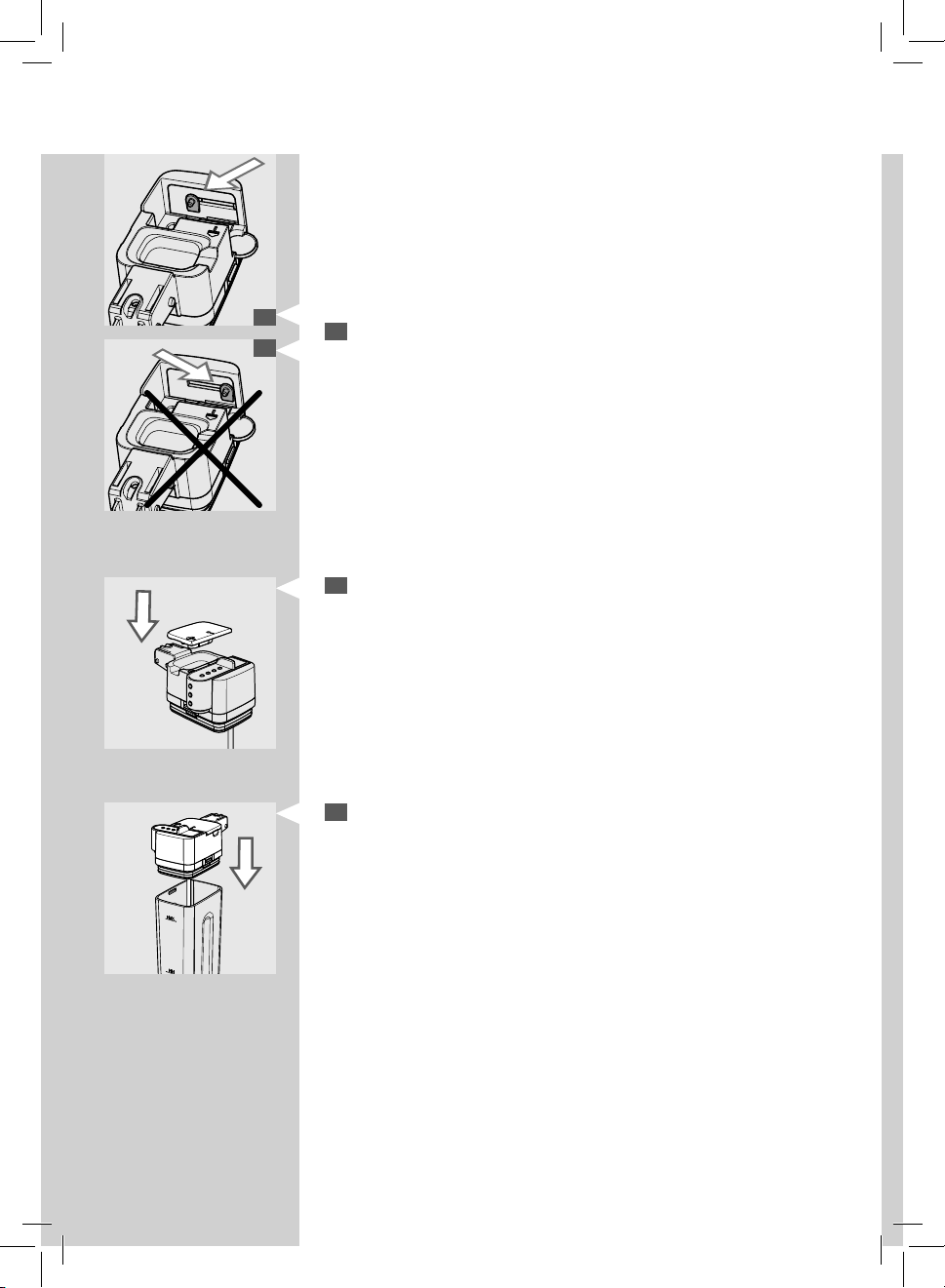

A
B
If you cannot install the dispenser at the top of the carafe, the pin is in
16
the wrong position (B). Before installing the dispenser, manually push
the pin to the (A) position.
Insert the lid.
17
Attach the top of the milk carafe, ensuring it is locked into place.
18
Page 63
ENGLISH

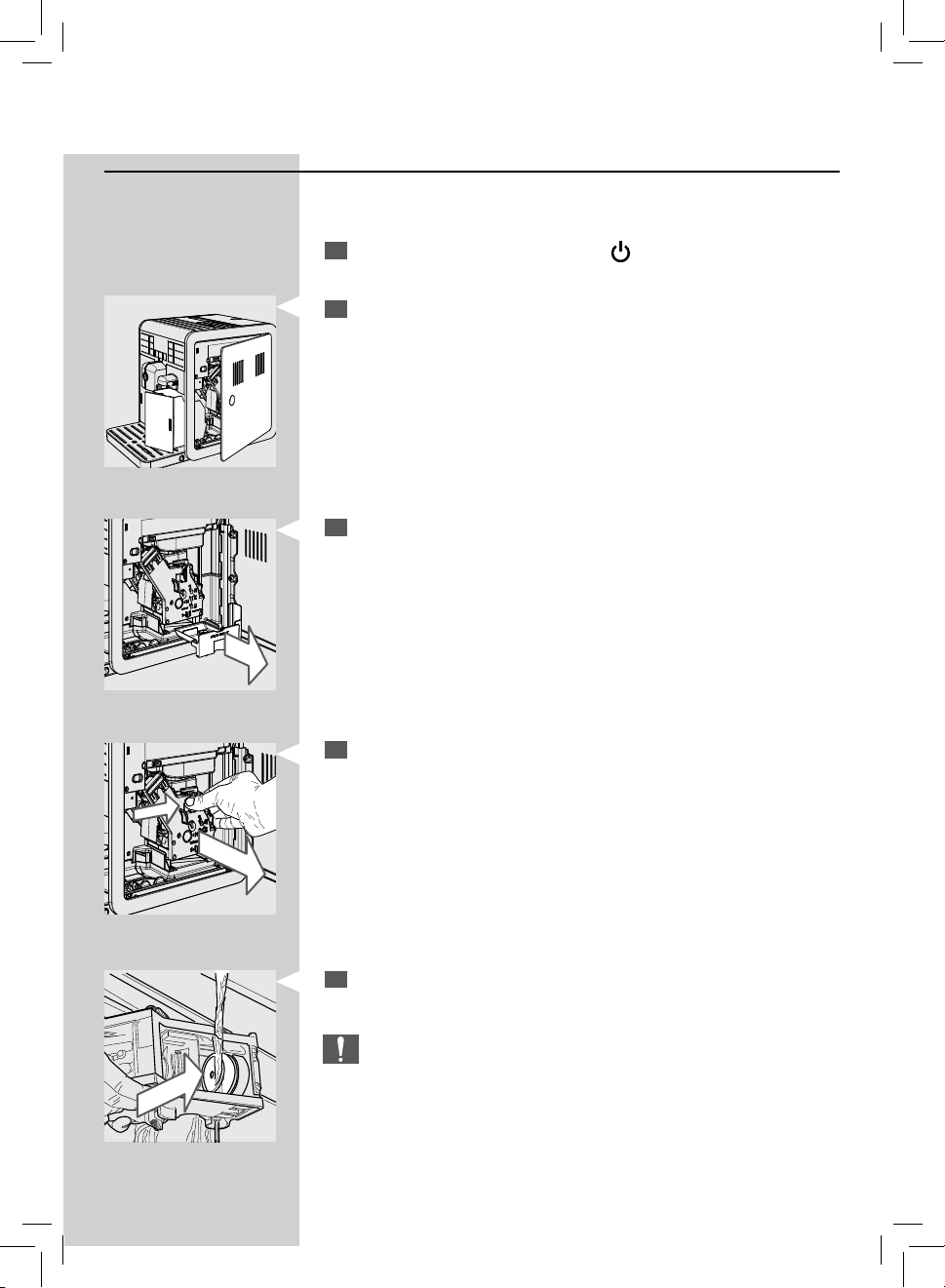

Weekly Cleaning of the Brew Group
The brew group should be cleaned every time the co ee bean hopper is
lled or at least once a week.
Turn o the machine by pressing the “ ” button and unplug the
1
power cord.
Remove the co ee grounds drawer. Open the service door.
2
Remove and clean the co ee residues drawer.
3
61
61
To remove the brew group, press the «PUSH» button and pull it by the
4
handle.
Thoroughly wash the brew group with fresh, lukewarm water and care-
5
fully clean the upper lter.
Caution:
Do not use any detergent or soap to clean the brew group.
Page 64
62
ENGLISH

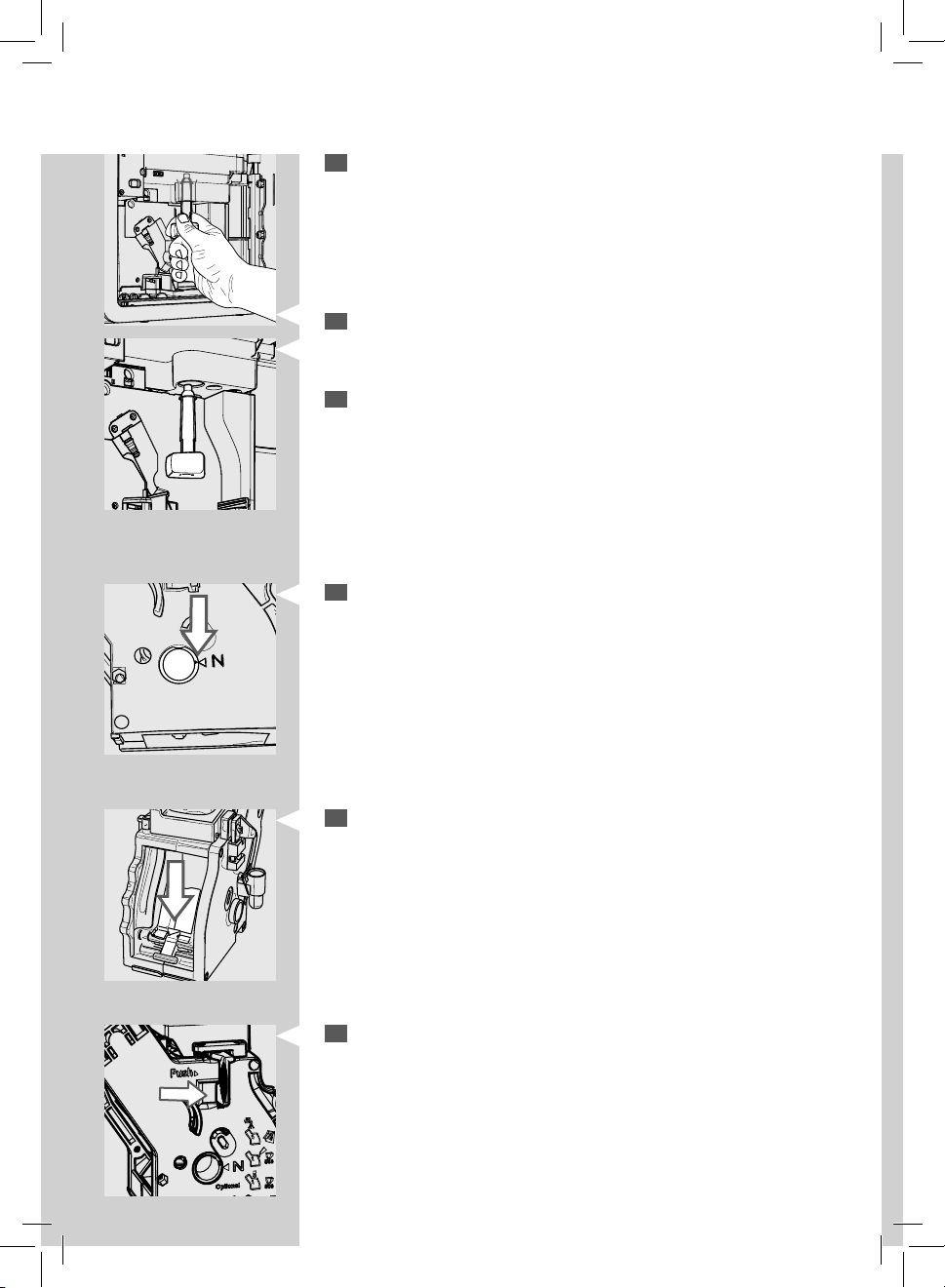

Let the brew group air-dry thoroughly.
6
Thoroughly clean the co ee duct outlet with the special cleaning tool
7
supplied with the machine or with a spoon handle. Make sure that the
cleaning tool is inserted as shown in the gure.
Thoroughly clean the inside of the machine using a soft, dampened
8
cloth.
Make sure that the brew group is in the o position; the two reference
9
marks must match. If they do not match, proceed as described in step
(10).
Make sure that the lever on the back of the brew group is completely
10
lowered.
Press the “PUSH” button rmly.
11
Page 65
ENGLISH

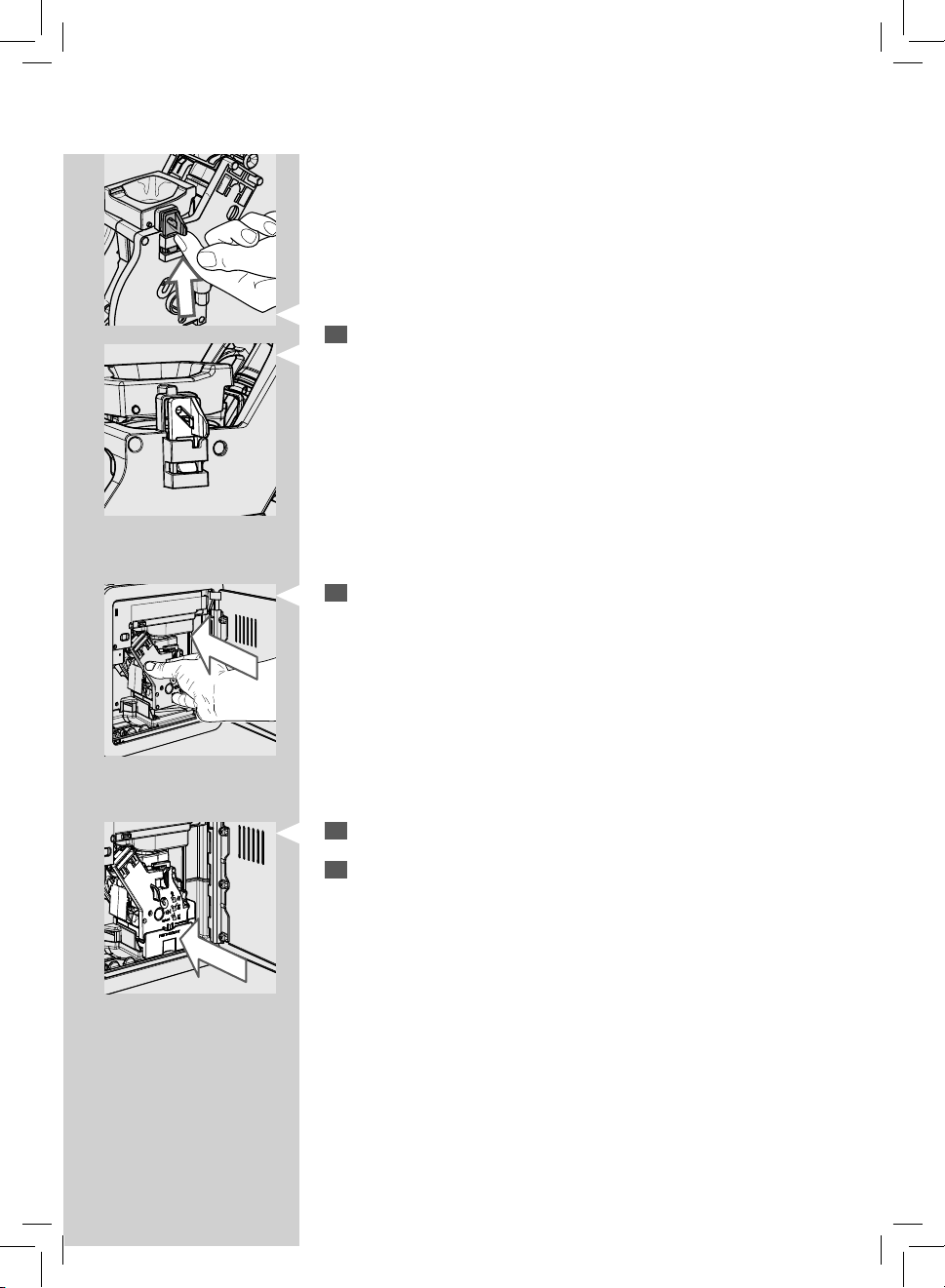

Make sure that the hook which locks the brew group is in the correct
12
position. If it is still in the downward position push it upward until it
locks correctly into place.
Insert the brew group back into its seat until it locks into place without
13
pressing the “PUSH” button.
63
63
Insert the co ee residues drawer and close the service door.
14
Insert the co ee grounds drawer.
15
Page 66
64
ENGLISH
Weekly Cleaning of the Co ee Bean Hopper, Tray and Co ee Compartment
Remove the co ee bean hopper.
1
Clean the co ee bean hopper, tray and co ee compartment once a
2
week with a cloth to remove any co ee residues and dust.
Empty any beans out of the co ee bean hopper.
3
To remove the tray, press on the hooks on the bottom of the co ee
4
bean hopper as shown in the gure.
Remove the tray. Clean the tray and the co ee bean hopper with a
5
cloth.
Page 67
ENGLISH

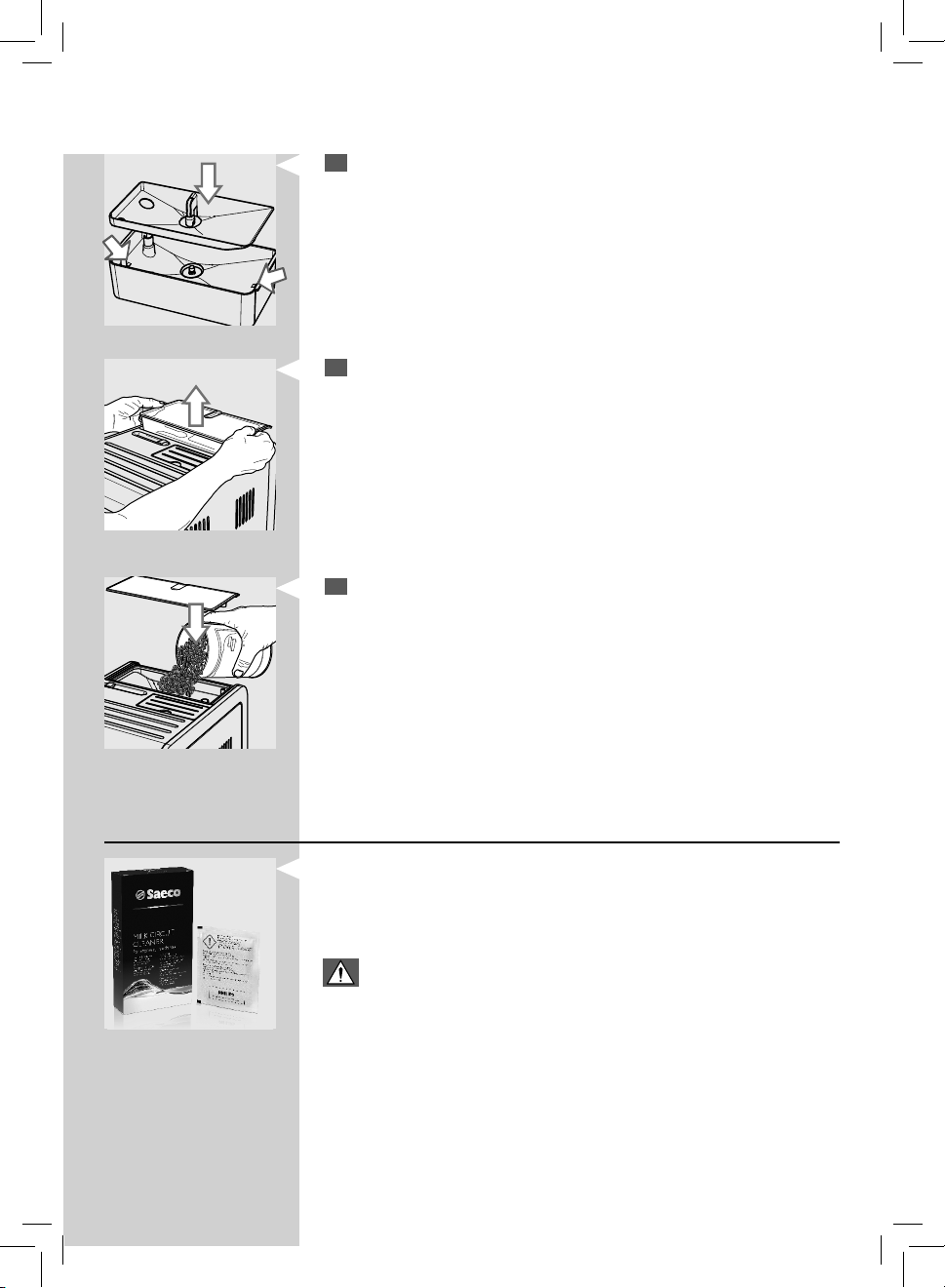

After cleaning, insert the tray back into the co ee bean hopper. Insert
6
the tray hooks into their seats on the co ee bean hopper.
Insert the co ee bean hopper into the compartment.
7
Slowly pour in the co ee beans. Put the lid.
8
65
65
Monthly Cleaning of the Milk Carafe
For the monthly cleaning cycle we recommend using the “Saeco Milk
Circuit Cleaner” to keep the entire circuit clean of milk residues. The “Saeco
Milk Circuit Cleaner” can be purchased separately. Please refer to the maintenance products page for further details.
Warning:
Danger of scalding! Dispensing may be preceded by small jets of hot
water and steam. Wait until the end of the cycle before removing the
milk carafe.
Page 68
66
ENGLISH

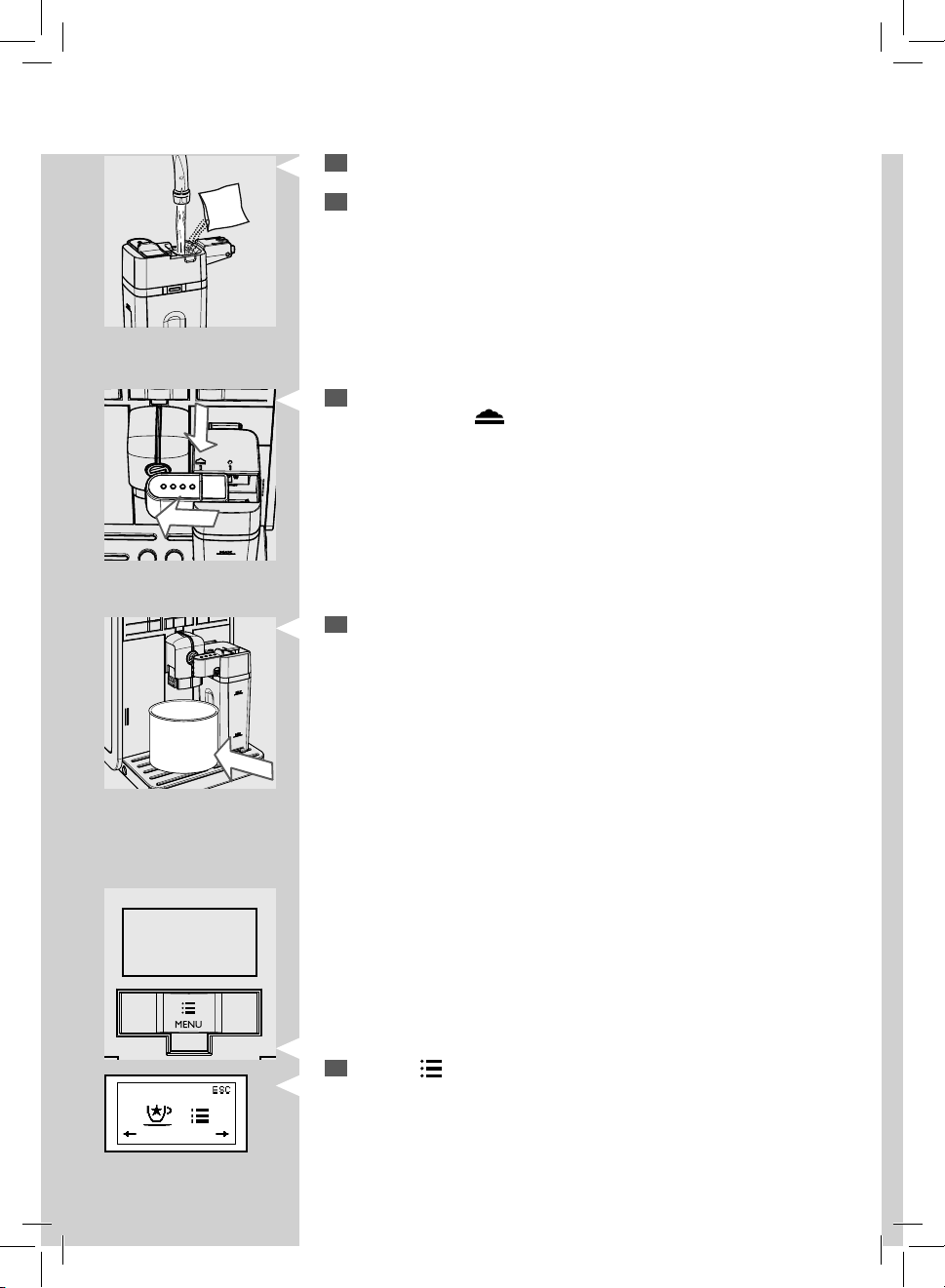

Fill the milk carafe with water up to the maximum level (MAX).
1
Pour the milk cleaner bag into the milk carafe and let it dissolve com-
2
pletely.
Insert the carafe into the machine.
3
the left up to the “
Place a container under the carafe dispenser.
4
” icon.
Pull out the milk carafe dispenser to
Green
Press the “ ” MENU button. This icon is displayed.
5
Page 69
Press the " " button. This icon is displayed.
6
ENGLISH
67
67
Green
GreenGreenGreen
Press the “
The machine reminds you to insert the carafe and remove the carafe
7
” button to select frothed milk.
dispenser by showing these icons in sequence.
This icon is displayed during the preheating time required by the
8
machine.
Green
Once dispensing has been completed, the following screen is displayed
9
to prompt you to start the quick carafe rinse cycle. Press the “
Green
10
to quit the program.
” button
Repeat steps 5 to 9 until the carafe is emptied.
10
Warning:
Never drink the solution dispensed during this step.
Page 70
68
ENGLISH

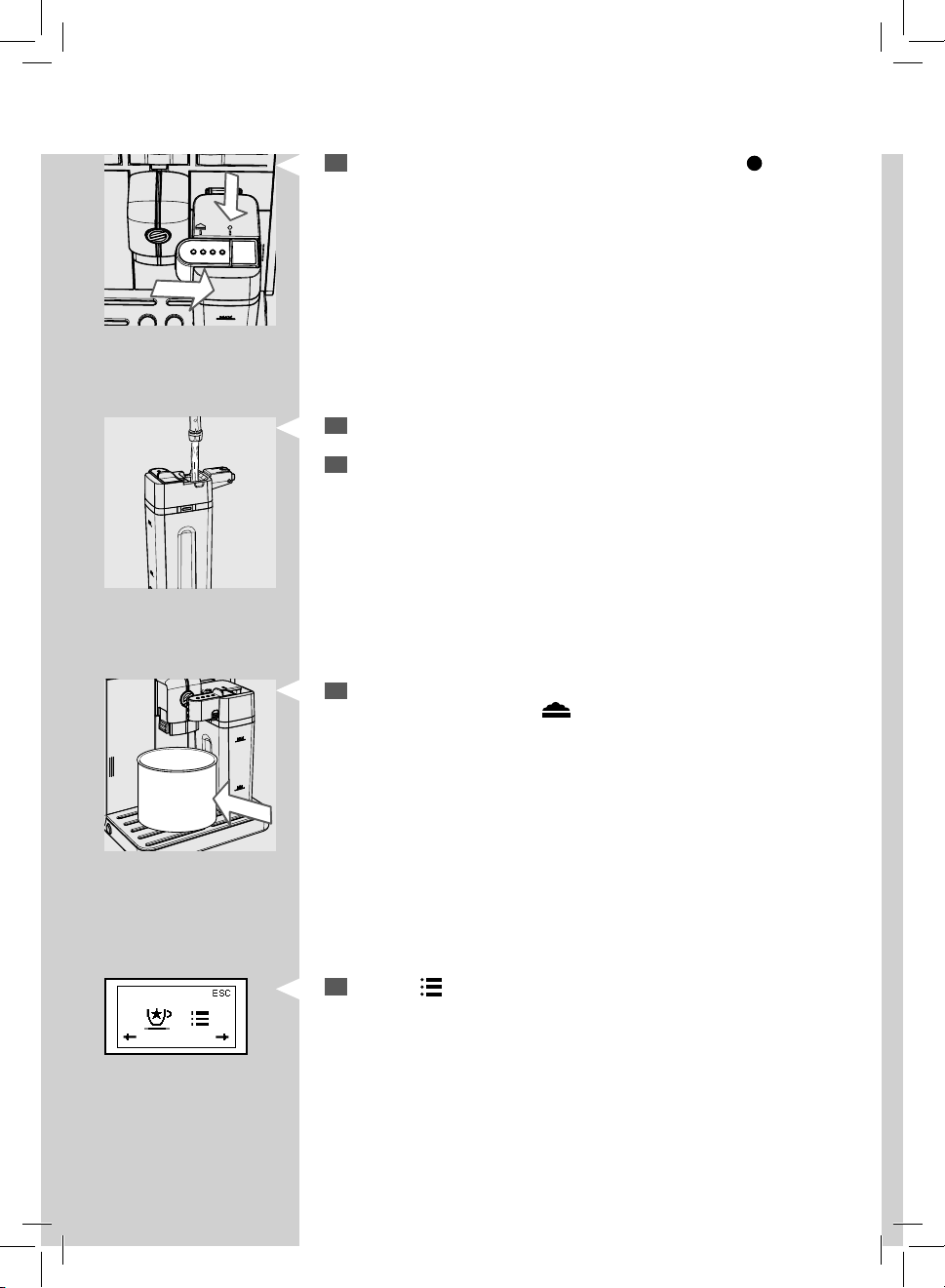

Insert the milk carafe dispenser back by sliding it up to the “ ” icon.
11
Remove the milk carafe and the container from the machine.
12
Rinse and ll the milk carafe with fresh water up to the MAX level.
13
Green
Insert the milk carafe into the machine.
14
penser to the left up to the “
carafe dispenser to start the rinse cycle.
Press the “ ” MENU button. This icon is displayed.
15
Pull out the milk carafe dis-
” icon.
Place a container under the
Page 71

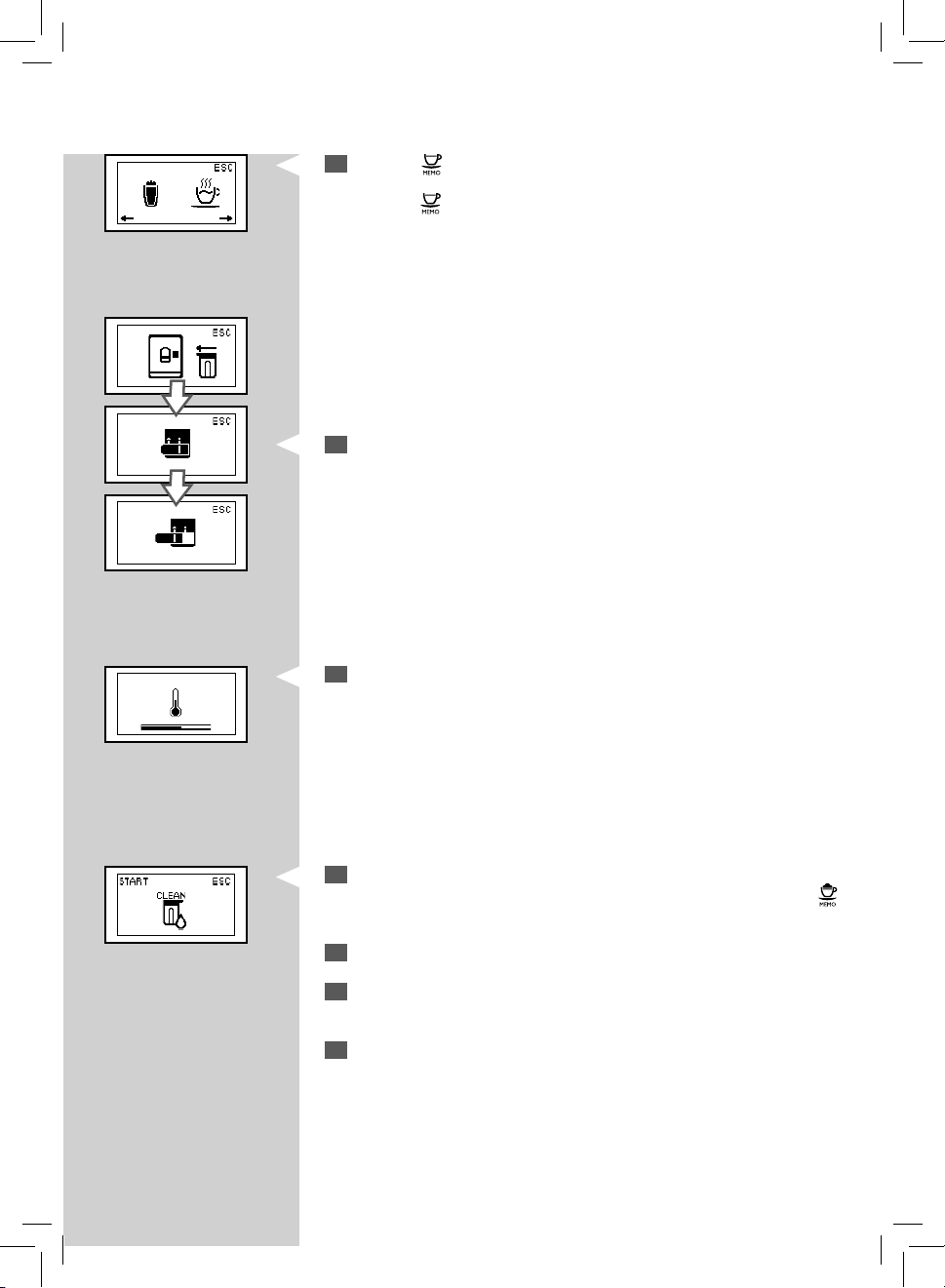

Press the " " button. This icon is displayed.
16
ENGLISH
69
69
Green
GreenGreenGreen
Green
Press the “
The machine reminds you to insert the carafe and remove the carafe
17
” button to select frothed milk.
dispenser by showing these icons in sequence.
This icon is displayed during the preheating time required by the
18
machine.
Once dispensing has been completed, the following screen is dis-
19
played to prompt you to start the quick carafe rinse cycle. Press the “
Green
10
” button to quit the program.
Repeat steps 15 to 19 until the carafe is emptied.
20
Remove the milk carafe and the container from the machine. Repeat
21
steps 12-19 one more time.
Disassemble and wash the milk carafe as described in the “Weekly
22
Cleaning of the Milk Carafe” chapter.
Page 72
70
ENGLISH

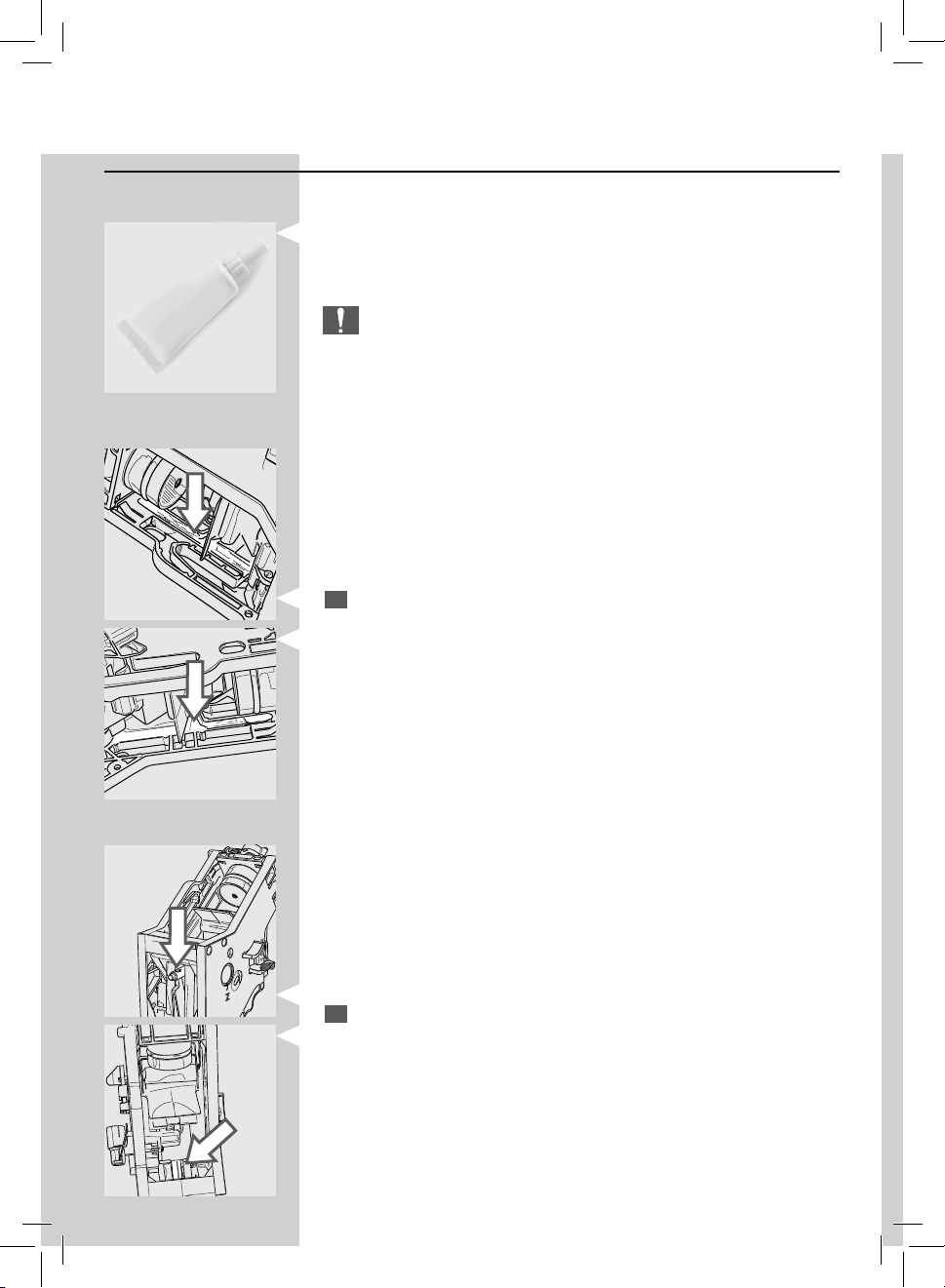

Monthly Lubrication of the Brew Group
Lubricate the brew group after approximately 500 cups of co ee or once a
month.
The grease to lubricate the brew group can be purchased separately. For
further details, please refer to the maintenance products page in this user
manual.
Caution:
Before lubricating the brew group, clean it with fresh water and let it
dry as described in the “Weekly Cleaning of the Brew Group” chapter.
Apply the grease evenly on both side guides.
1
Also lubricate the shaft.
2
Page 73
ENGLISH

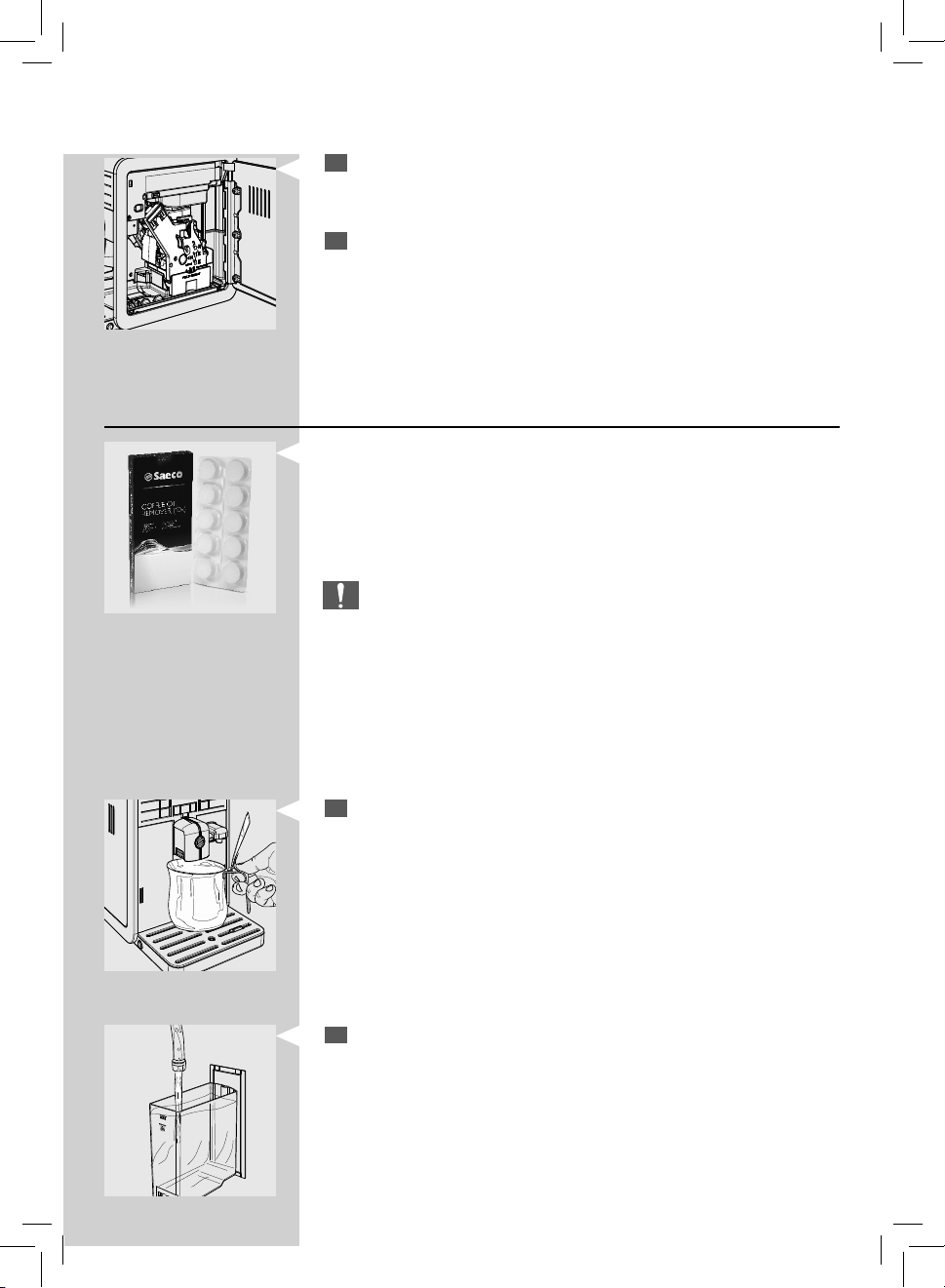

Insert the brew group into its seat until it locks into place (see the
3
“Weekly Cleaning of the Brew Group” chapter). Insert the co ee residues drawer.
Close the service door. Insert the co ee grounds drawer.
4
Monthly Cleaning of the Brew Group with “Co ee Oil Remover”
Besides weekly cleaning, we recommend performing a cleaning cycle
with “Co ee Oil Remover” after approximately 500 cups of co ee or once
a month. This operation completes the maintenance process for the brew
group.
You can purchase the “Co ee Oil Remover” separately. For further details,
please refer to the maintenance products page in this user manual.
Caution:
The “Co ee Oil Remover” tablets are to be used for cleaning only and
do not have a descaling function. For the descaling procedure use the
Saeco descaling solution and follow the procedure described in the
“Descaling” chapter.
71
71
Place a container under the co ee dispensing spout.
1
Make sure the water tank is lled with fresh water up to the “MAX”
2
level.
Page 74

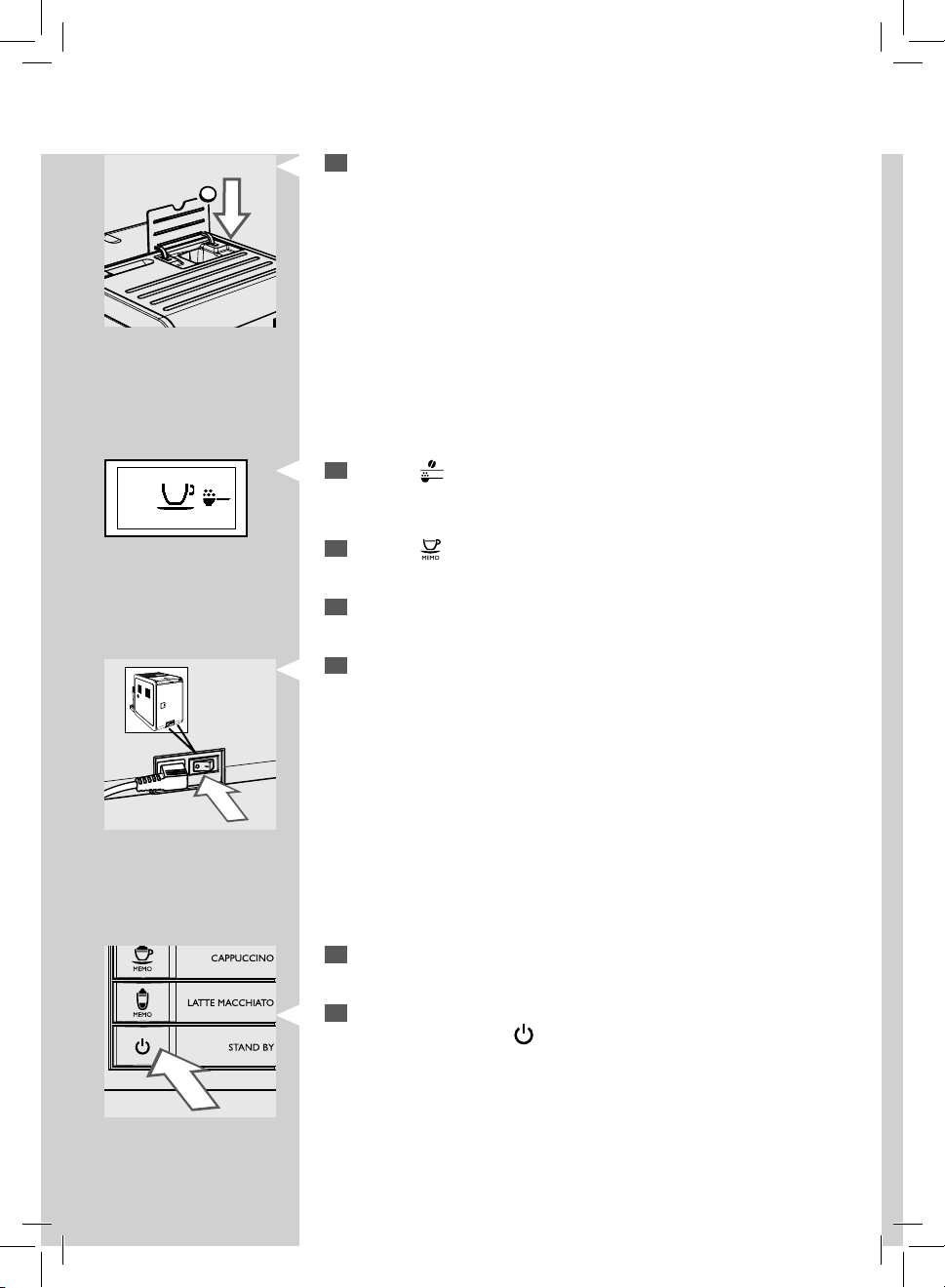

72
ENGLISH
Green
Put a “Co ee Oil Remover” tablet in the pre-ground co ee compart-
3
ment.
Press the “ ” button to select the pre-ground co ee function. Do not
4
add any ground co ee.
Press the “ ” button to start a co ee brewing cycle.
5
Wait until the machine has dispensed half a cup of water.
6
Switch the power button on the back of the machine to “0”.
7
Let the solution take e ect for about 15 minutes. Make sure you dis-
8
card the dispensed water.
Switch the power button on the back of the machine to “I”. To turn on
9
the machine, press the “
Wait until the end of the automatic rinse cycle.
” button.
Page 75
ENGLISH

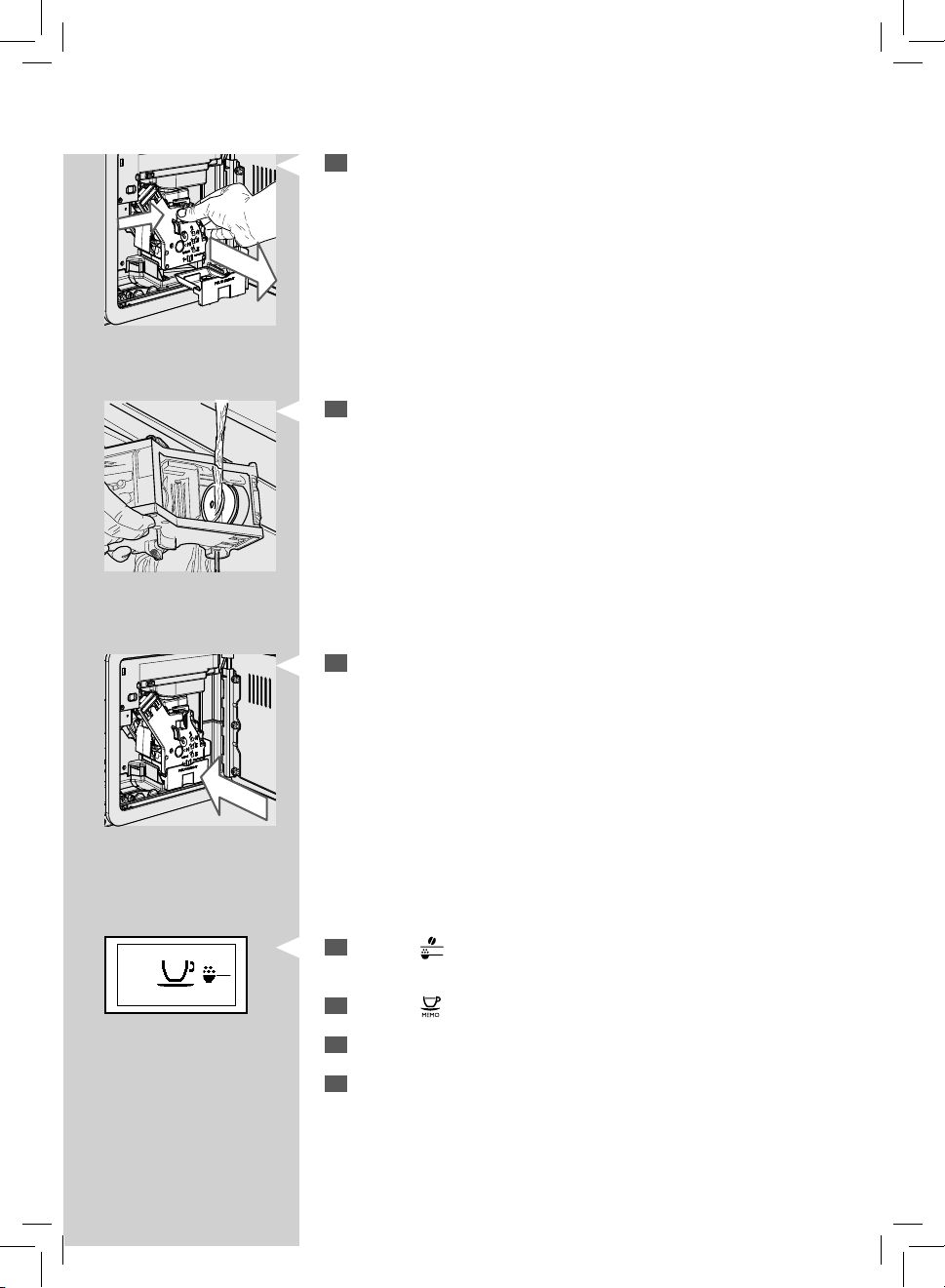

Remove the co ee grounds drawer and open the service door. Remove
10
the co ee residues drawer and then the brew group.
Wash the brew group thoroughly with fresh water.
11
After rinsing the brew group, insert it back into its seat until it locks
12
into place (see the “Weekly Cleaning of the Brew Group” chapter).
Insert the co ee residues drawer and the co ee grounds drawer. Close
the service door.
73
73
Green
Press the “ ” button to select the pre-ground co ee function. Do not
13
add any co ee to the pre-ground co ee department.
Press the “ ” button to start a co ee brewing cycle.
14
Repeat steps 13 to 14 twice. Empty the container.
15
To clean the drip tray, place a “Co ee Oil Remover” tablet inside and
16
ll it 2/3rds full with hot water. Let the cleaning solution take e ect for
about 30 minutes, then rinse thoroughly.
Page 76
74
ENGLISH

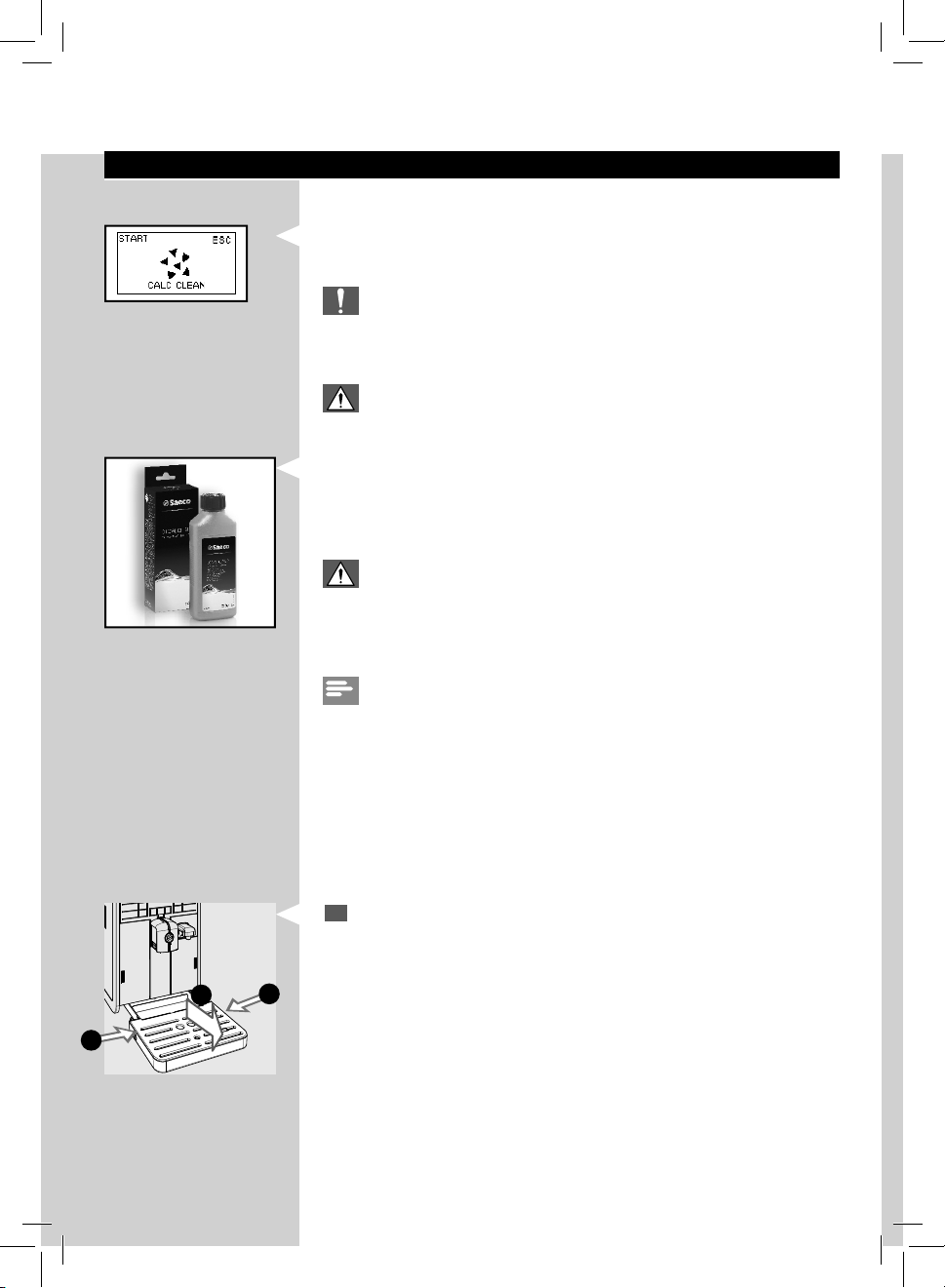

DESCALING
When the “CALC CLEAN” icon is displayed, you need to descale the machine.
The descaling cycle takes approx. 30 minutes.
Yellow
Caution:
Not doing this will ultimately make your machine stop working properly. In this case, repair is NOT covered by warranty.
Warning:
Use the Saeco descaling solution only. Its formula has been designed
to ensure better machine performance. The use of other products may
damage the machine and leave residues in the water.
The Saeco descaling solution can be purchased separately. For further
details, please refer to the maintenance products page in this manual.
Warning:
Never drink the descaling solution or any products dispensed until the
cycle has been carried out to the end. Never use vinegar as a descaling
solution.
Note:
Do not remove the brew group during the descaling process.
To perform the descaling cycle, follow the steps below:
Before descaling:
Empty the drip tray.
1
2
1
1
Page 77

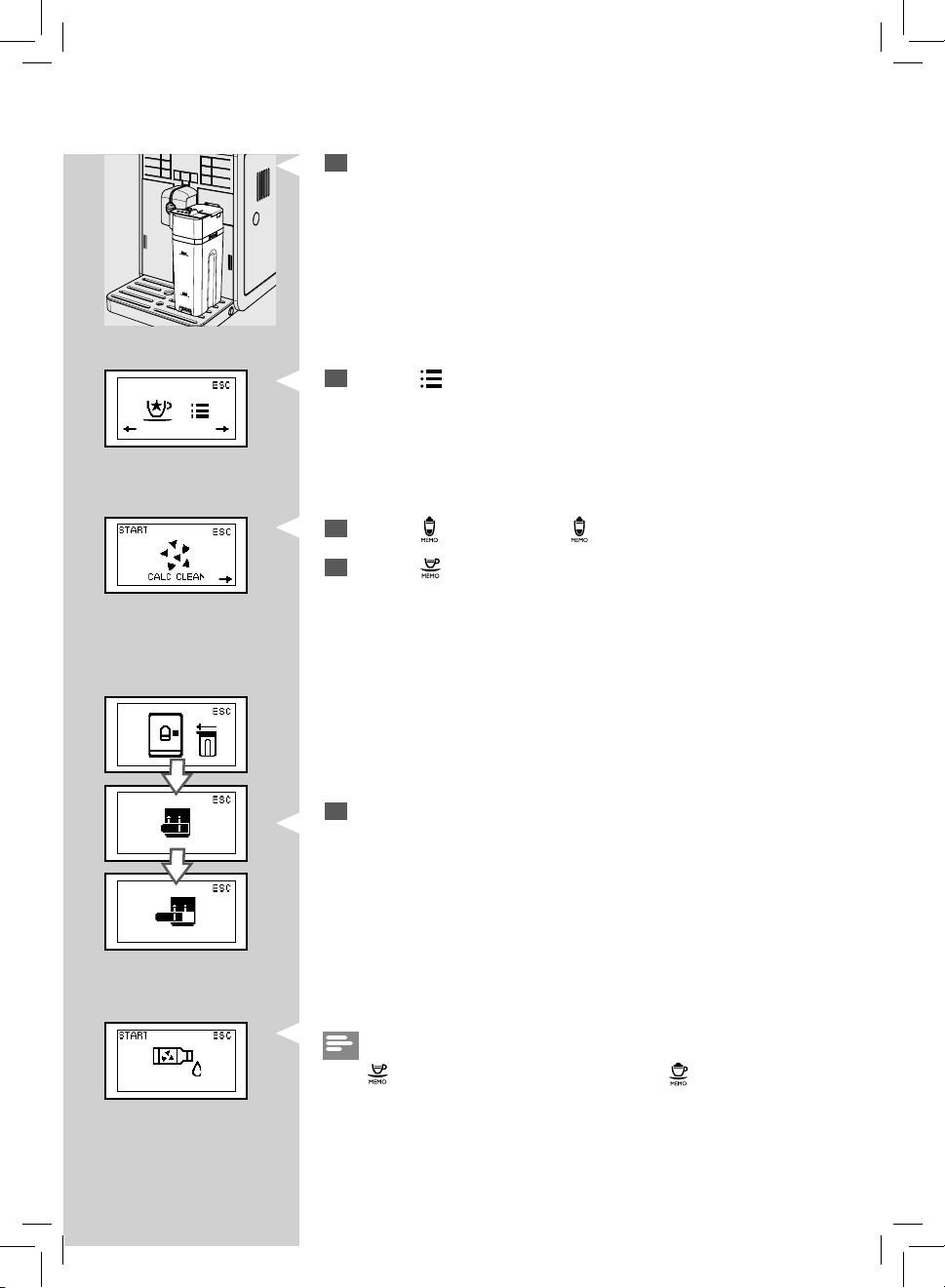

Green
YellowYellowYellowYellow
ENGLISH
Fill the milk carafe with water up to the MIN level and insert it into the
2
machine.
Press the “ ” MENU button. This icon is displayed.
3
Press the " " button. Press the “ ” button until this icon is shown.
4
Press the “ ” button to start the descaling process.
5
75
75
The machine reminds you to insert the carafe and remove the carafe
6
dispenser by showing the following icons.
Note:
If the "
Yellow
"button is pressed by mistake, press the " " button to quit.
Page 78
76
ENGLISH

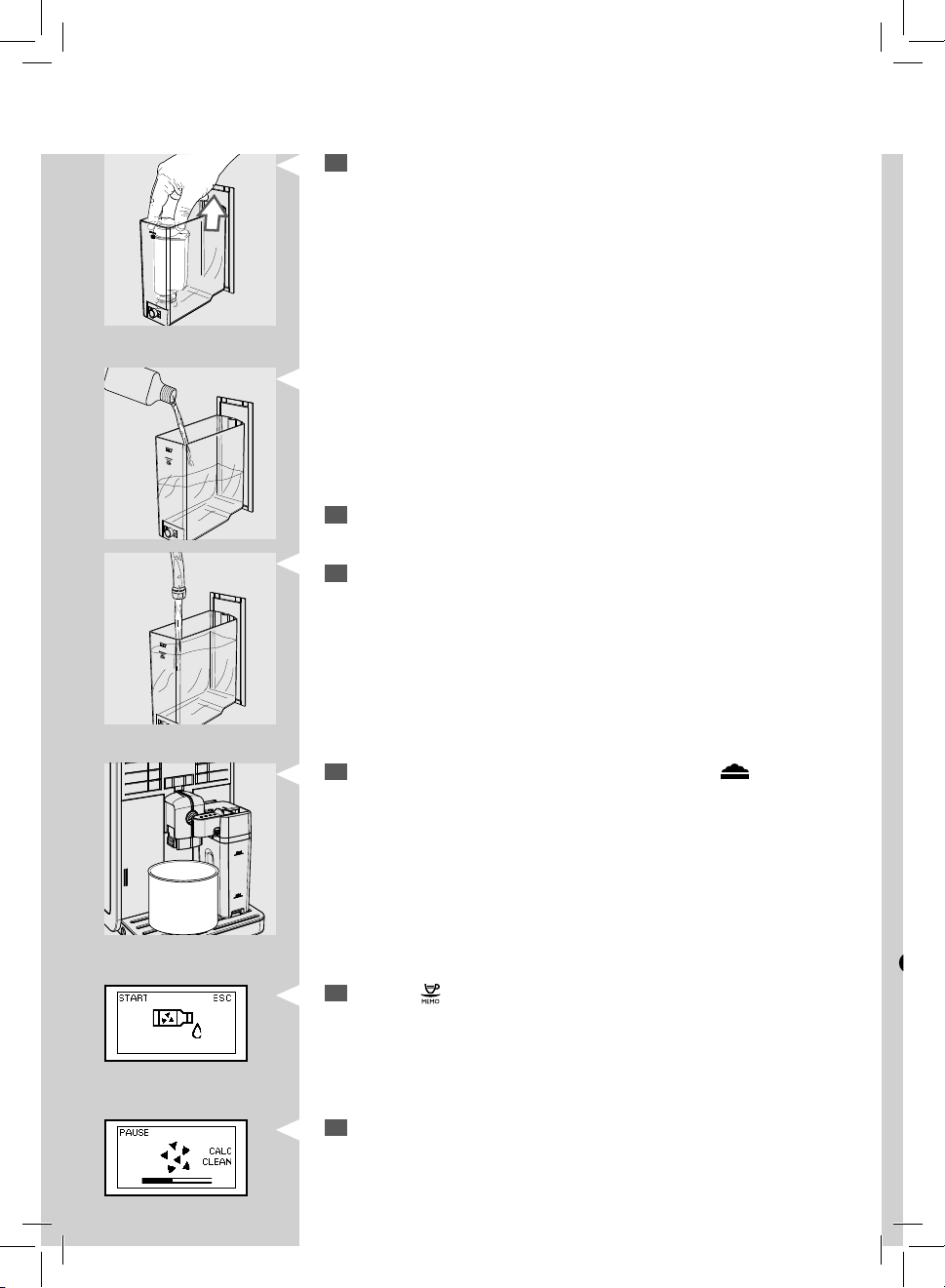

Remove the “INTENZA+” water lter (if any) from the water tank and
7
replace it with the small white original one.
Pour all the descaling solution into the water tank. Then ll the water
8
tank with fresh water up to the CALC CLEAN level.
Put the water tank back into the machine.
9
Pull out the milk carafe dispenser to the left up to the “ ” icon. Place
10
a large container (1.5l) under both the milk carafe dispenser and the
co ee dispensing spout.
Press the “ ” button to start the descaling cycle.
11
The machine will start dispensing the descaling solution at regular
12
intervals. The bar on the display shows the cycle progress.
Yellow Yellow
Page 79

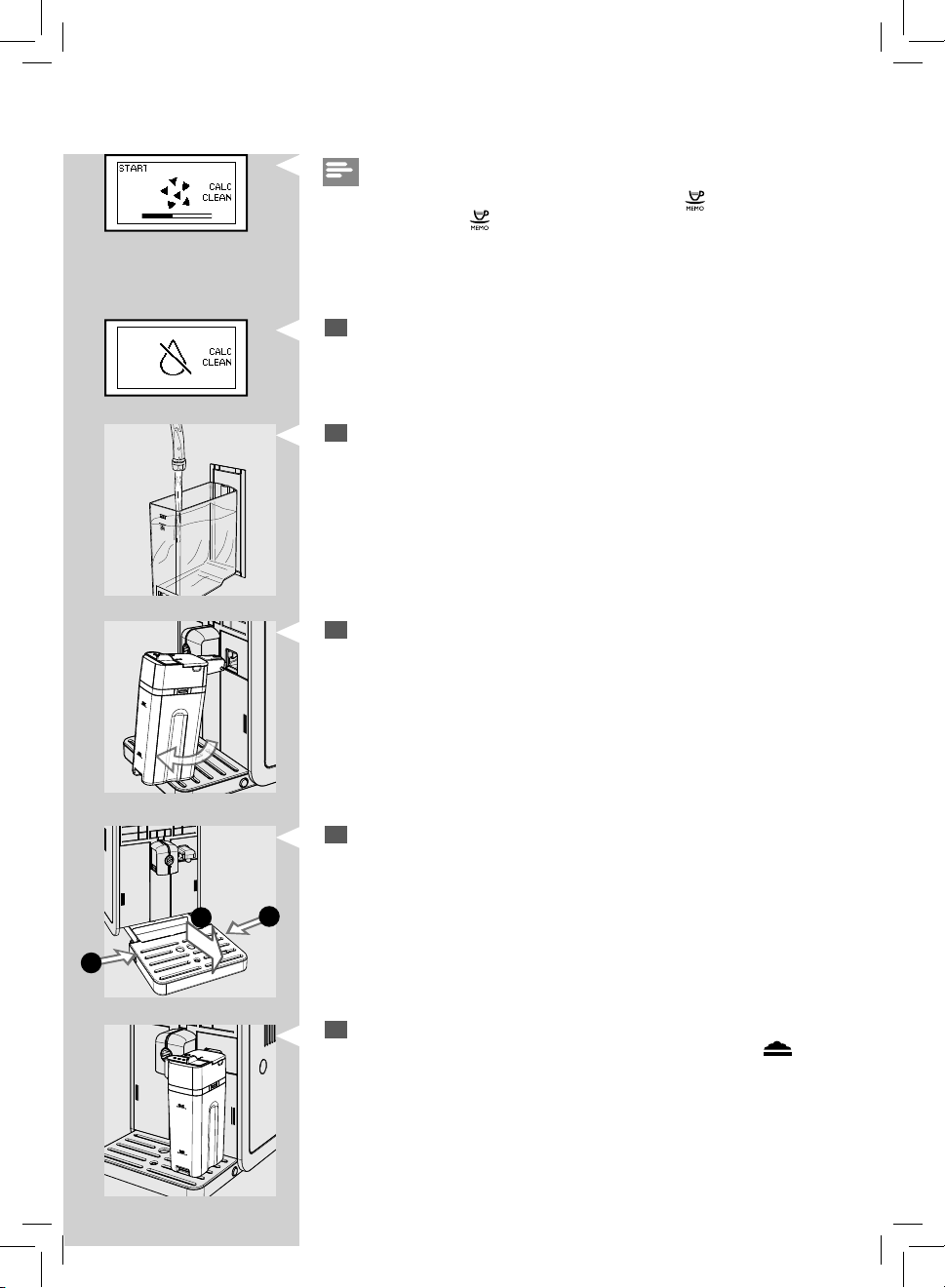

Note:
The descaling cycle may be paused by pressing the
YellowRed
the cycle, press the
tainer or to leave the machine unattended for a short time.
When this icon is displayed, the water tank is empty.
13
Rinse the water tank and ll it with fresh water up to the MAX level. Put
14
it back into the machine.
Remove and empty the container and the milk carafe.
15
“ ” button again
. This allows you to empty the con-
ENGLISH
“ ” button.
77
77
To resume
Empty the drip tray and place it back.
16
2
1
1
Fill the milk carafe with water up to the MIN level and insert it into the
17
machine. Pull out the carafe dispenser to the left up to the
“ ”
icon.
Page 80
78
ENGLISH

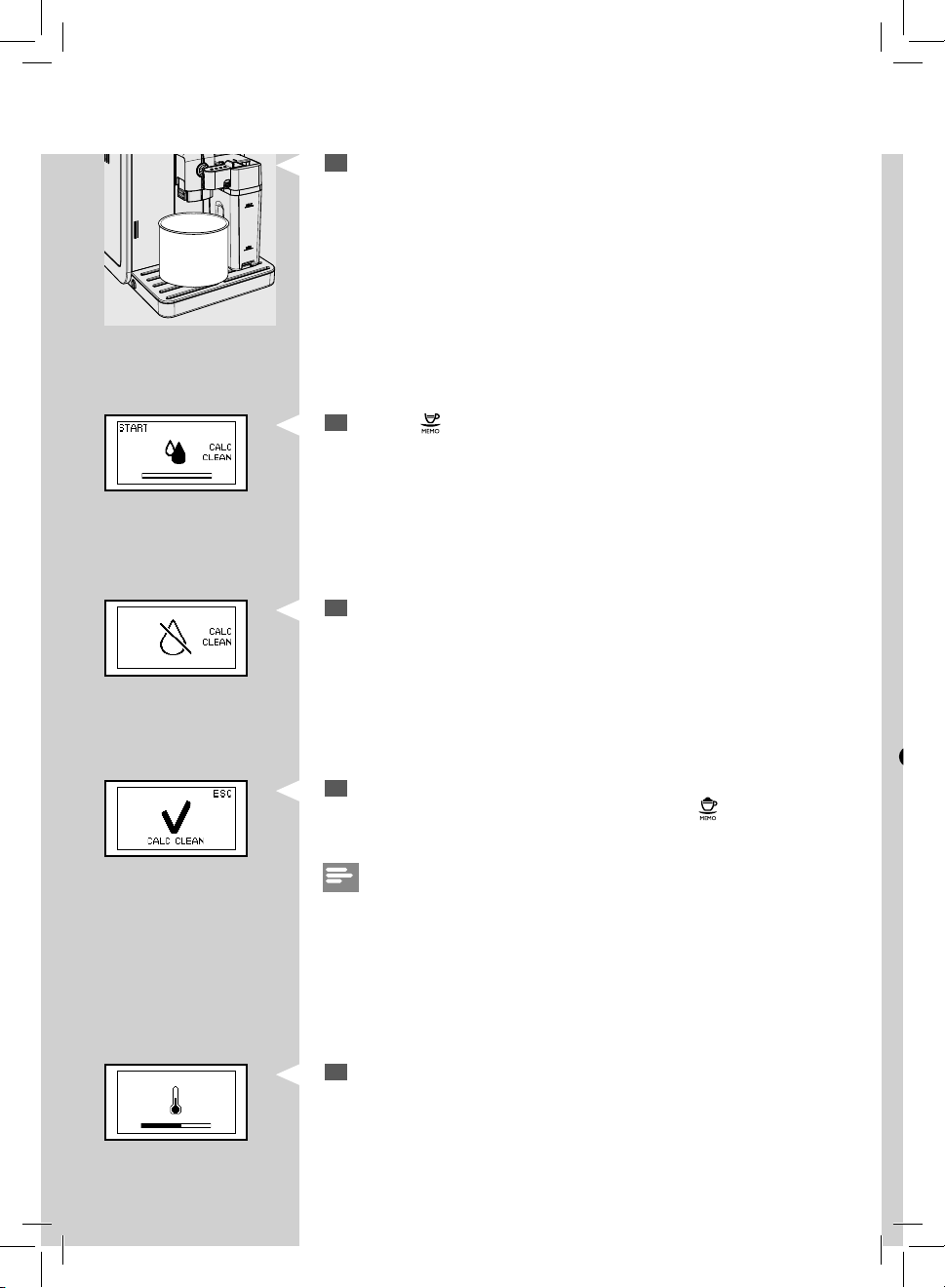

Place the container back into position.
18
Press the “ ” button to start the rinse cycle.
19
Yellow
When this icon is displayed, the water tank is empty. Rinse the water
20
tank and ll it with fresh water up to the MAX level, then put it back
into the machine and repeat step 19.
When the amount of water needed for the rinse cycle has been com-
21
pletely dispensed, this icon is displayed. Press the "
Green Red
Yellow
the descaling cycle.
Note:
If the water tank is not lled up to MAX level, the machine might require
the water tank to be lled up once more in order to complete the rinse
cycle. Fill the water tank and put it back into the machine. Repeat from step
19.
The machine now carries out the warm-up and automatic rinse cycle to
22
prepare for product brewing.
" button to quit
Page 81
ENGLISH

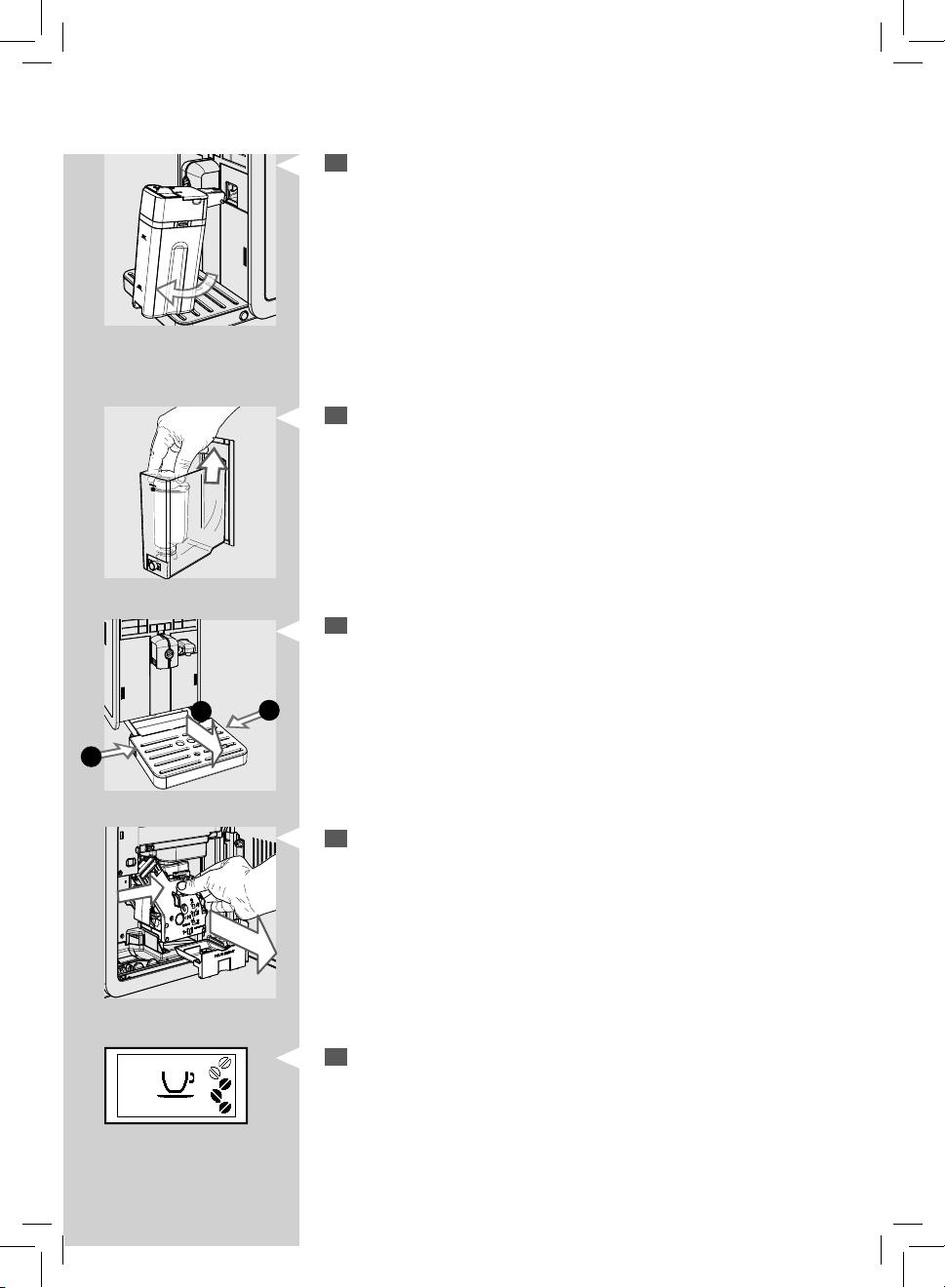

Remove the container. Disassemble and wash the milk carafe as de-
23
scribed in the “Weekly Cleaning of the Milk Carafe” chapter.
Remove the small white lter and place back the “INTENZA+” water
24
lter (if any) into the water tank.
Empty the drip tray and place it back.
25
79
79
2
1
1
Clean the brew group. For more details, please see the “Brew Group
26
Cleaning” chapter.
The machine is ready to brew co ee.
27
Green
Page 82
80
ENGLISH

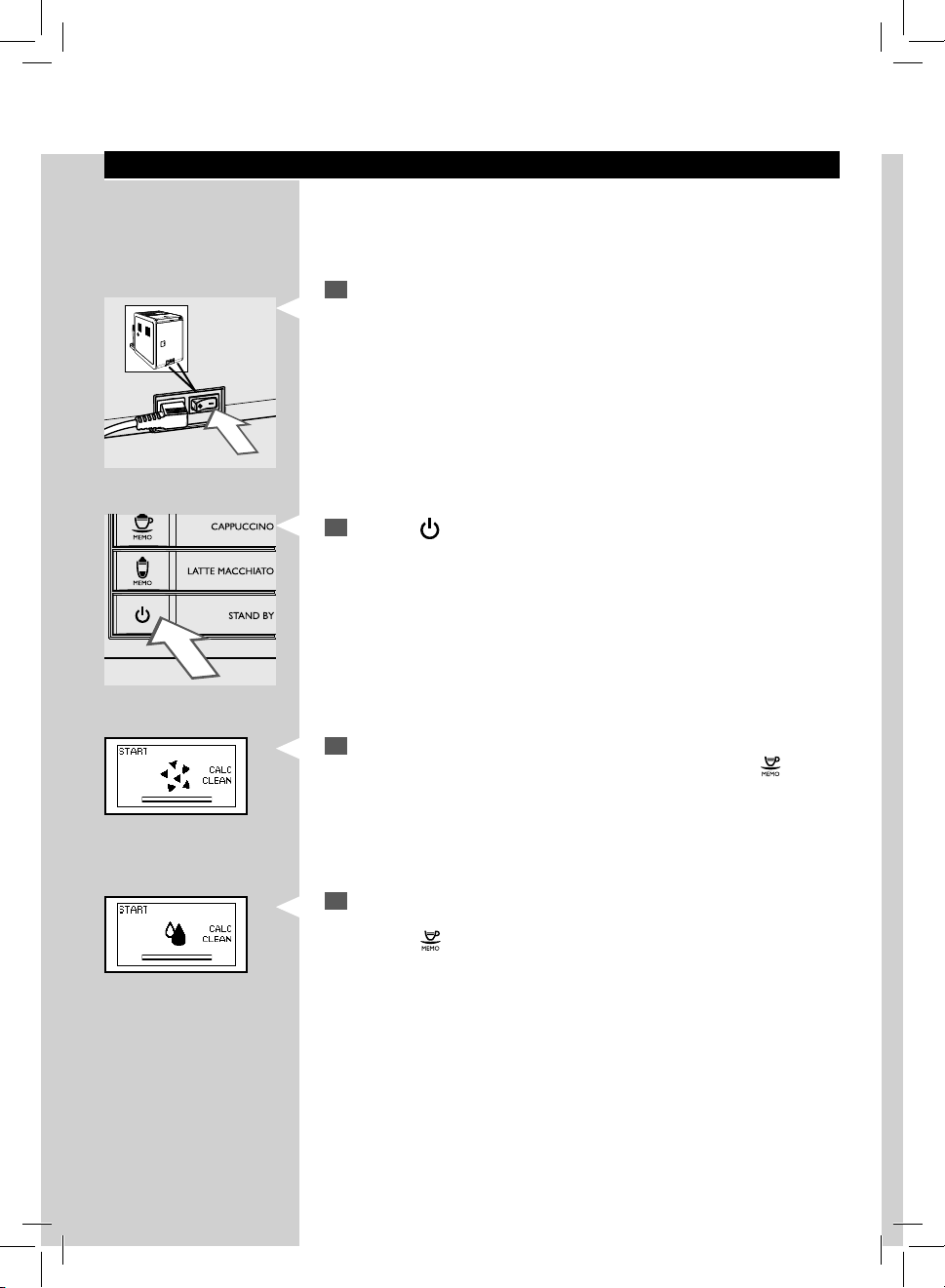

ACCIDENTAL INTERRUPTION OF THE DESCALING CYCLE
Once the descaling process has started, it must be completed; do not turn
o the machine mid-cycle.
If the descaling process is accidentally interrupted (power failure or accidental disconnection of the power cord), follow the steps below.
Check that the power button is set to "I".
1
Press the “ ” button to turn on the machine.
2
YellowYellow
If the cycle was interrupted during the descaling phase, it will be
3
resumed from step 12 of the "Descaling" chapter. Press the “
to restart the cycle.
If the cycle was interrupted during the rinse phase, it will be resumed
4
from step 19 of the "Descaling" chapter.
Press the “
” button to restart the cycle.
” button
Page 83

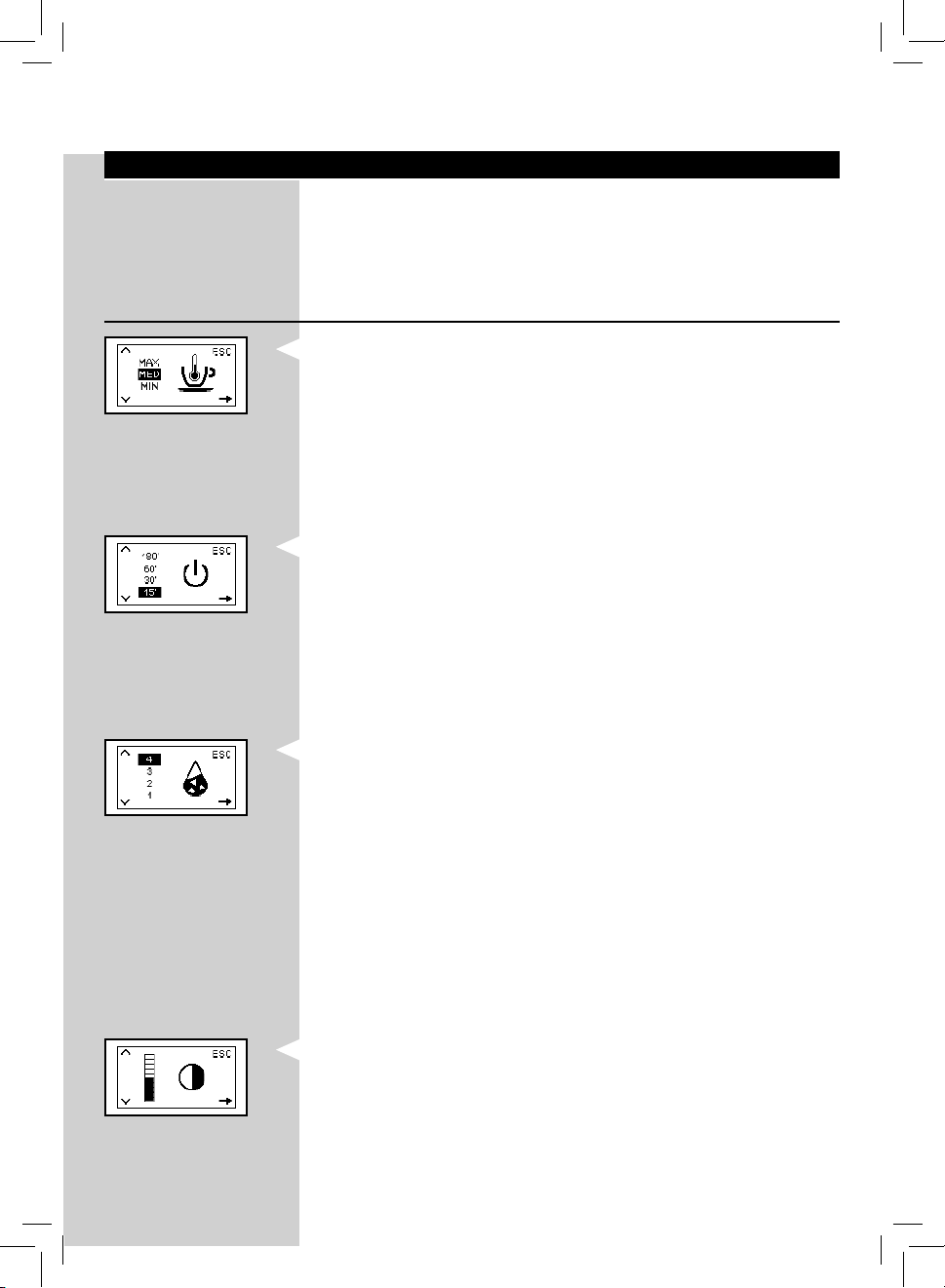

PROGRAMMING
You can customise the machine's functions via the programming menu.
The following settings can be adjusted
Co ee Temperature
This function allows you to adjust the co ee brewing temperature.
Yellow
Timer (stand-by)
This function allows you to adjust the time taken for the machine to go
into stand-by mode after the last brewing.
YellowYellow
ENGLISH
81
81
Water Hardness
This function allows you to adjust the water hardness settings according to
the area where you live.
Yellow
1 = very soft water
2 = soft water
3 = hard water
4 = very hard water
For more details, please see the “Measuring and Programming Water Hardness” chapter.
Contrast
This function allows you to adjust the contrast of the display to better view
the messages.
Page 84
82
ENGLISH

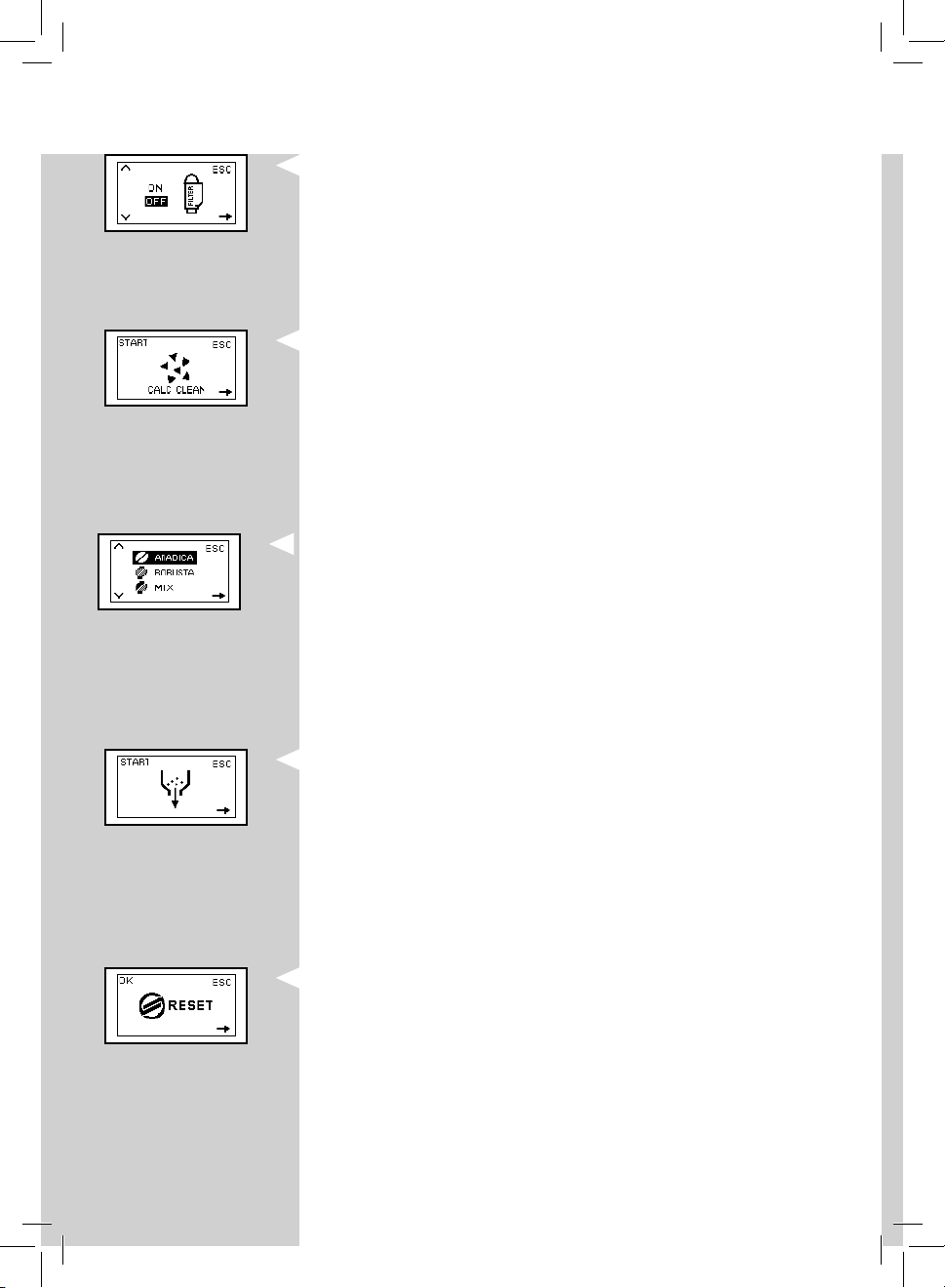

"INTENZA+" Water Filter
This function allows you to manage the “INTENZA+” water lter.
For more details, see the chapter related to lter handling.
YellowYellowYellow
Descaling cycle
This function allows you to run the descaling cycle.
Co ee bean selection
This function allows you to optimize the grinding for selected type of cof-
Yellow
fee bean.
Co ee outlet duct emptying cycle
This function allows you to empty the co ee outlet duct and grinder before changing co ee beans.
Yellow
Factory Settings
This function allows you to reset all factory values.
Page 85
ENGLISH
How to Program the Machine
In this example, it is shown how to program the display contrast. Proceed
in the same way to program the other functions.
The programming menu can only be accessed when the machine is on and
shows this display.
Green
Press the “ ” button to access the menu.
1
Press the “ ” button to access programming.
2
83
83
Yellow
Yellow Green
The main screen will be displayed.
3
Press the “ ” button to scroll the options until the display contrast
4
function is shown.
Page 86
84
ENGLISH

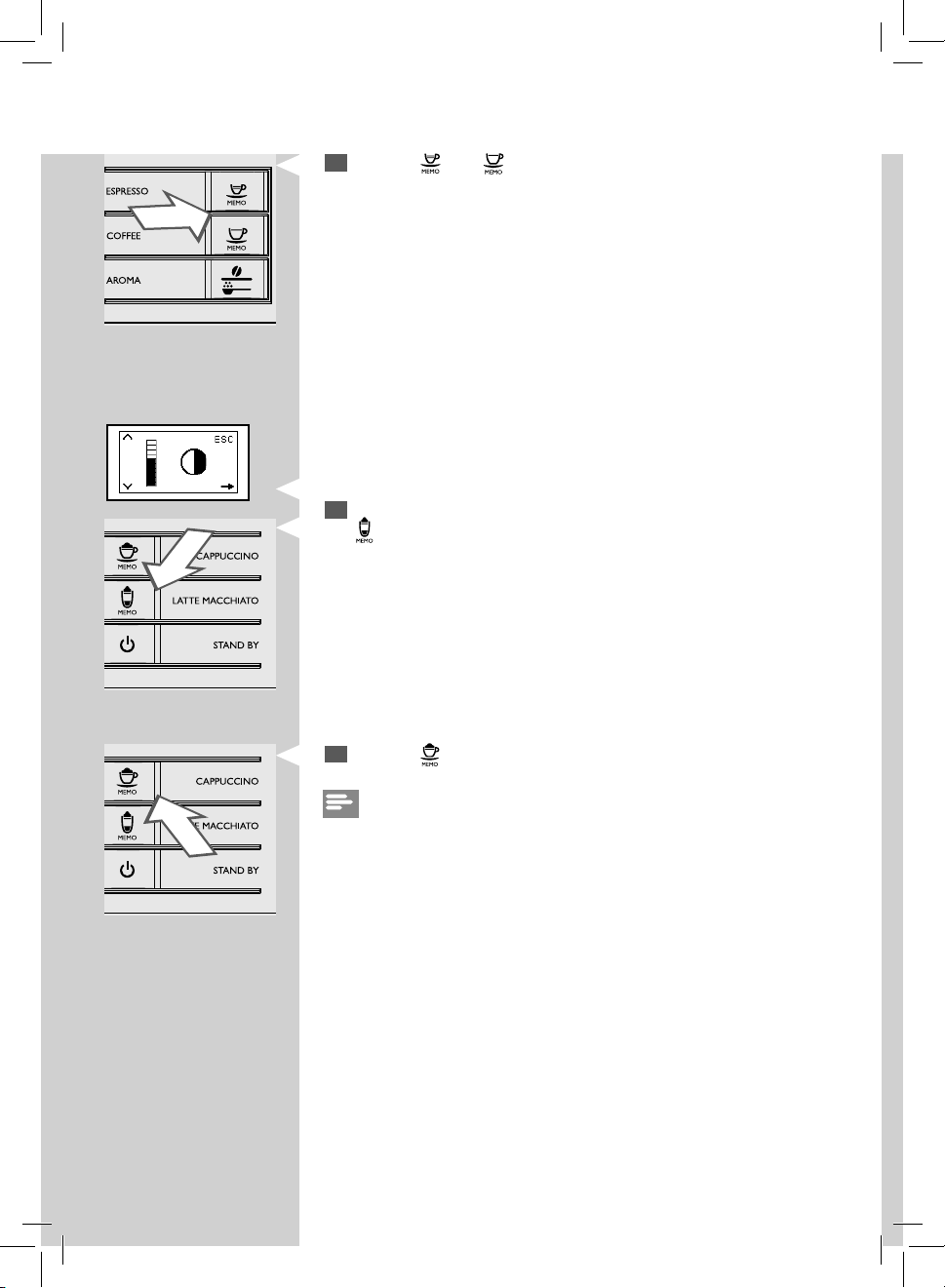

Press the “ ” and “ ” buttons to increase or decrease the value of the
5
function.
Yellow
Once the value has been changed, the “OK” message appears. Press the
6
” button to con rm the change.
“
Press the “ ” button to exit the programming menu.
7
Note:
The machine automatically exits the programming menu if no button is
pressed for 3 minutes. The values that have been changed but not con rmed will not be saved.
Page 87

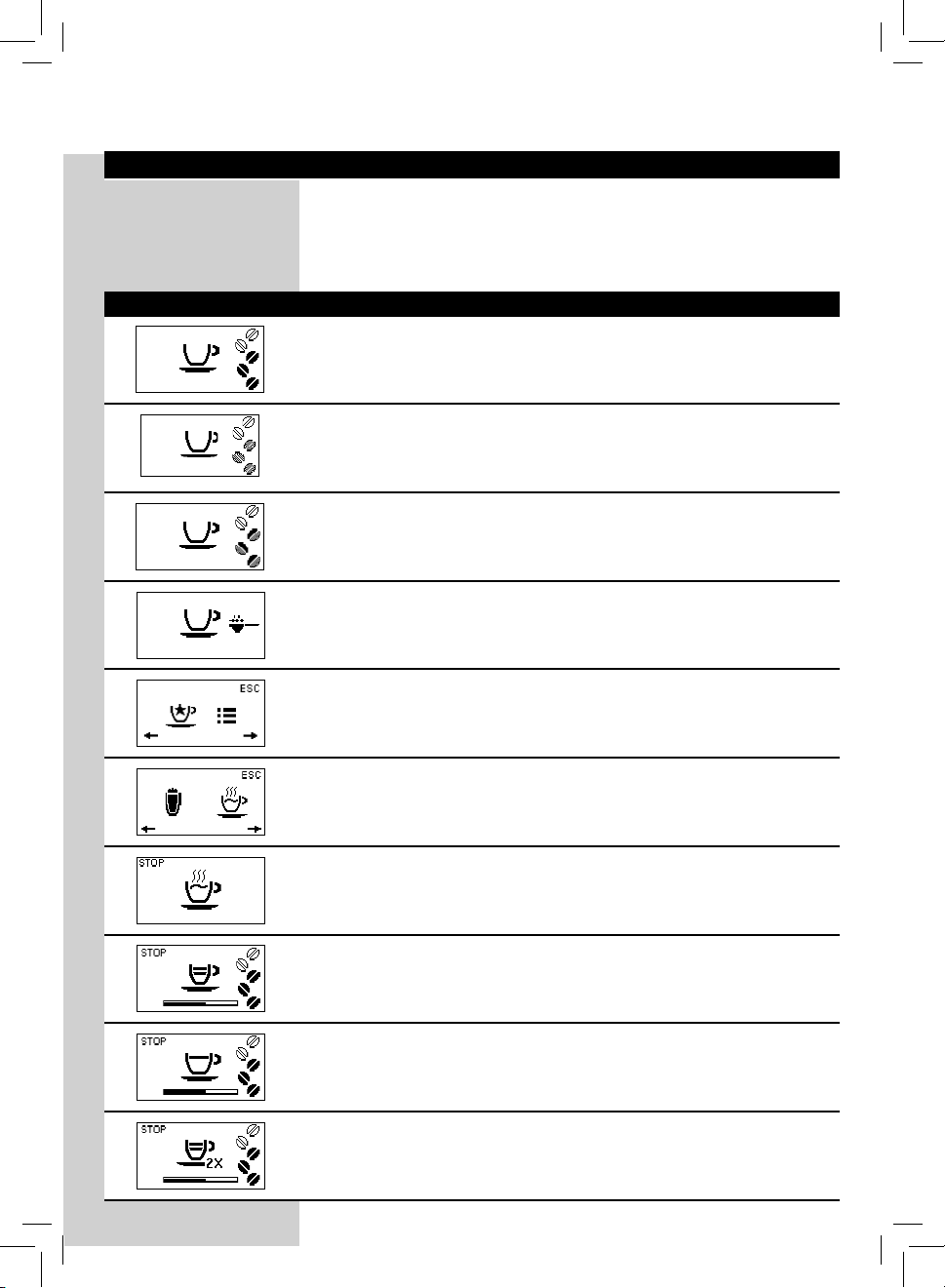

Ready Signals (Green Colour)
The machine is ready to brew co ee using Arabica co ee beans.
The machine is ready to brew co ee using Robusta co ee beans.
The machine is ready to brew co ee using Mixed co ee beans.
The machine is ready to brew pre-ground co ee.
Select the programming menu or special beverages menu.
ENGLISH
MEANING OF THE DISPLAY ICONS
This machine is equipped with a colour-coded system to make the user’s
understanding of the display signals easier.
The icons are colour-coded according to the tra c light principle.
85
85
Frothed milk or hot water selection.
Hot water dispensing.
The machine is brewing one cup of espresso.
The machine is brewing one cup of co ee.
The machine is brewing two cups of espresso.
Page 88
86
ENGLISH

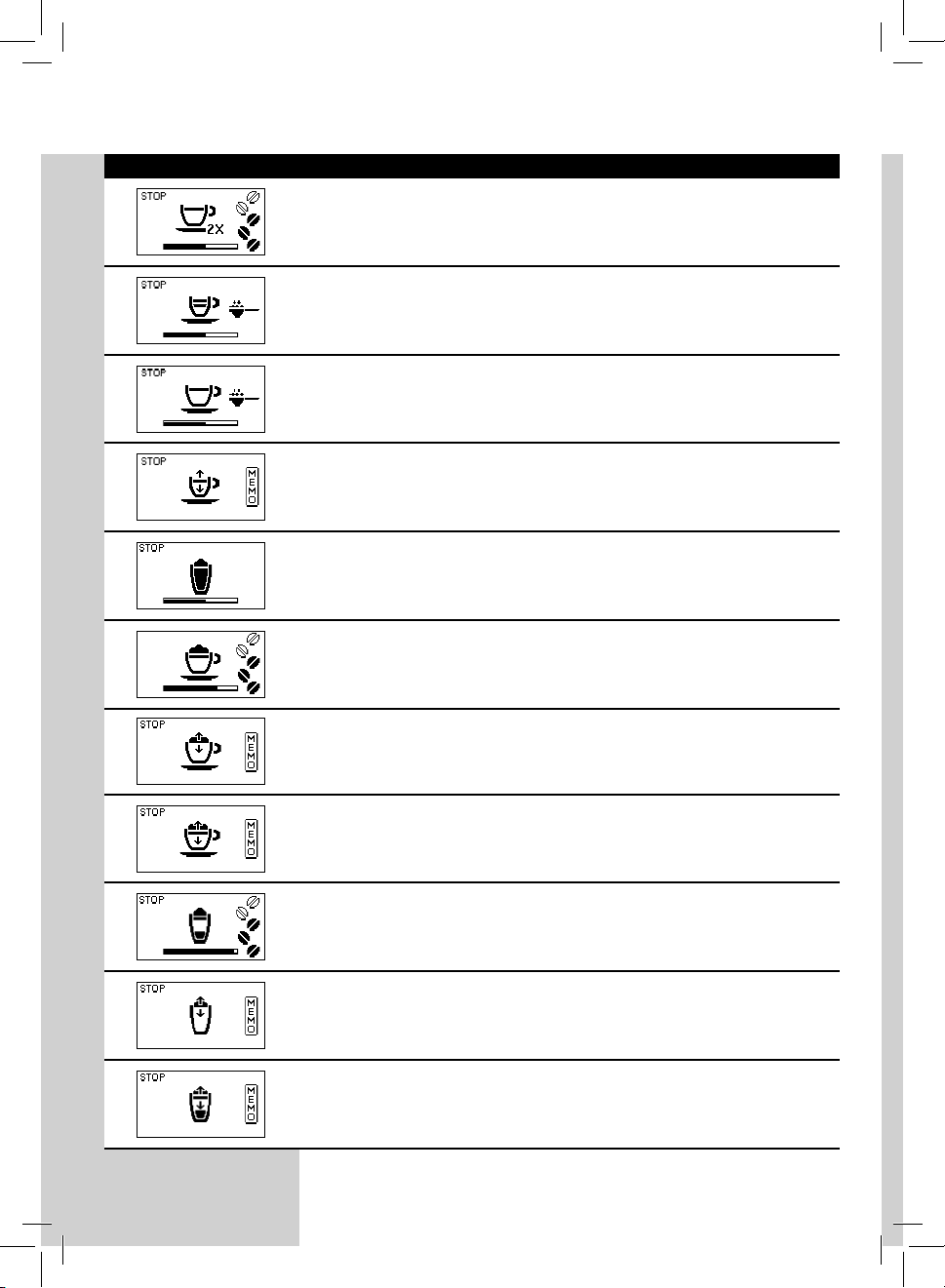

Ready Signals (Green Colour)
The machine is brewing two cups of co ee.
Espresso brewing using pre-ground co ee in progress.
Co ee brewing using pre-ground co ee in progress.
The machine is programming the amount of co ee to be brewed.
Frothed milk dispensing.
The machine is brewing cappuccino.
The machine is programming the amount of milk to be dispensed for a cappuccino.
The machine is programming the amount of co ee to be brewed for a cappuccino.
The machine is brewing Latte Macchiato.
The machine is programming the amount of milk to be dispensed for the
Latte Macchiato.
The machine is programming the amount of co ee to be brewed for the
Latte Macchiato.
Page 89

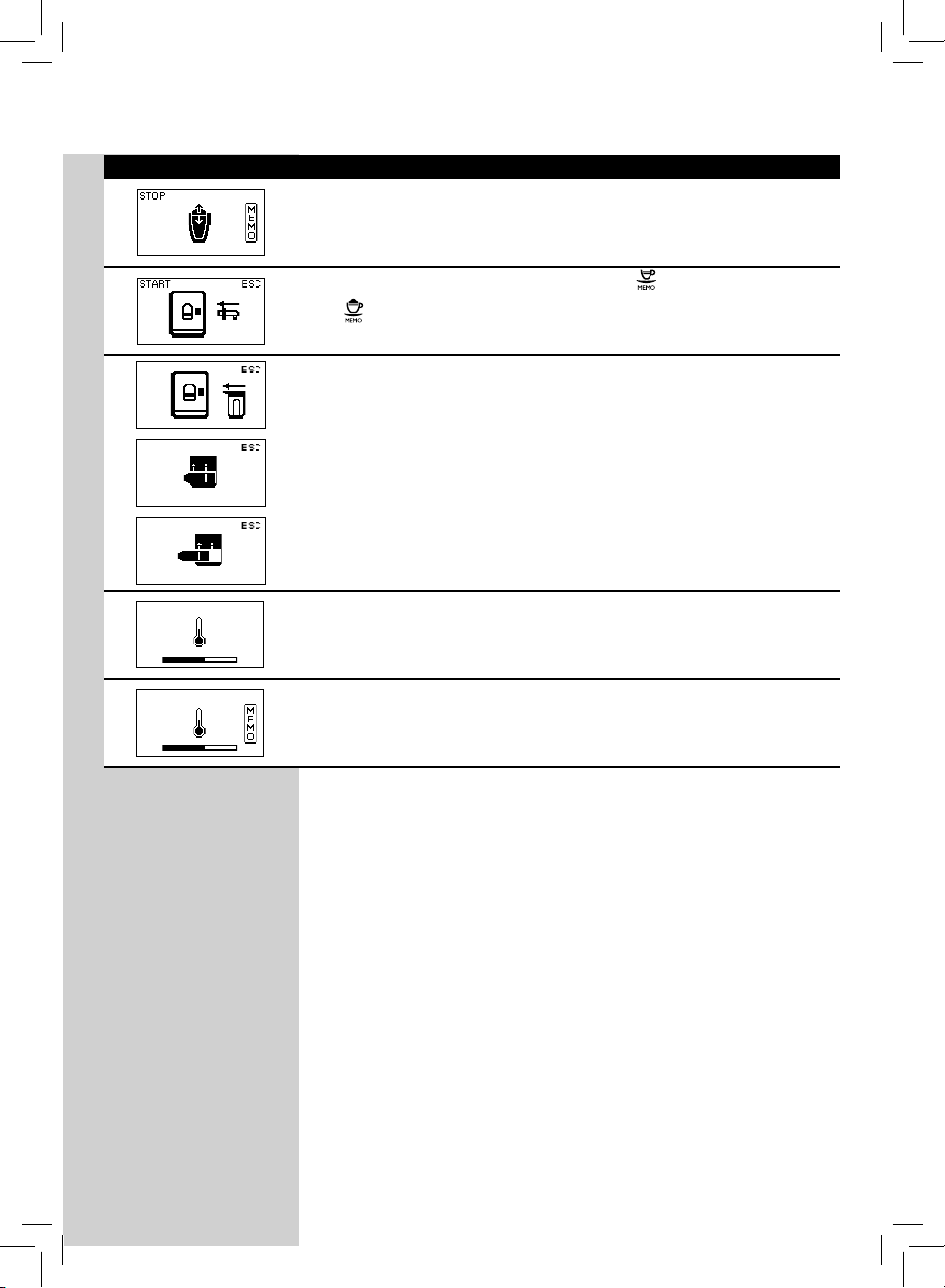

Ready Signals (Green Colour)
The machine is programming the amount of milk to be dispensed for frothed
milk.
Insert the water dispensing spout and press the “ ” button to start dispensing.
Press “
The machine reminds you to insert the carafe and pull out the dispensing
spout.
The machine is warming up to brew beverages or dispense hot water.
” to exit.
ENGLISH
87
87
The machine is warming up during beverages programming.
Page 90
88
ENGLISH

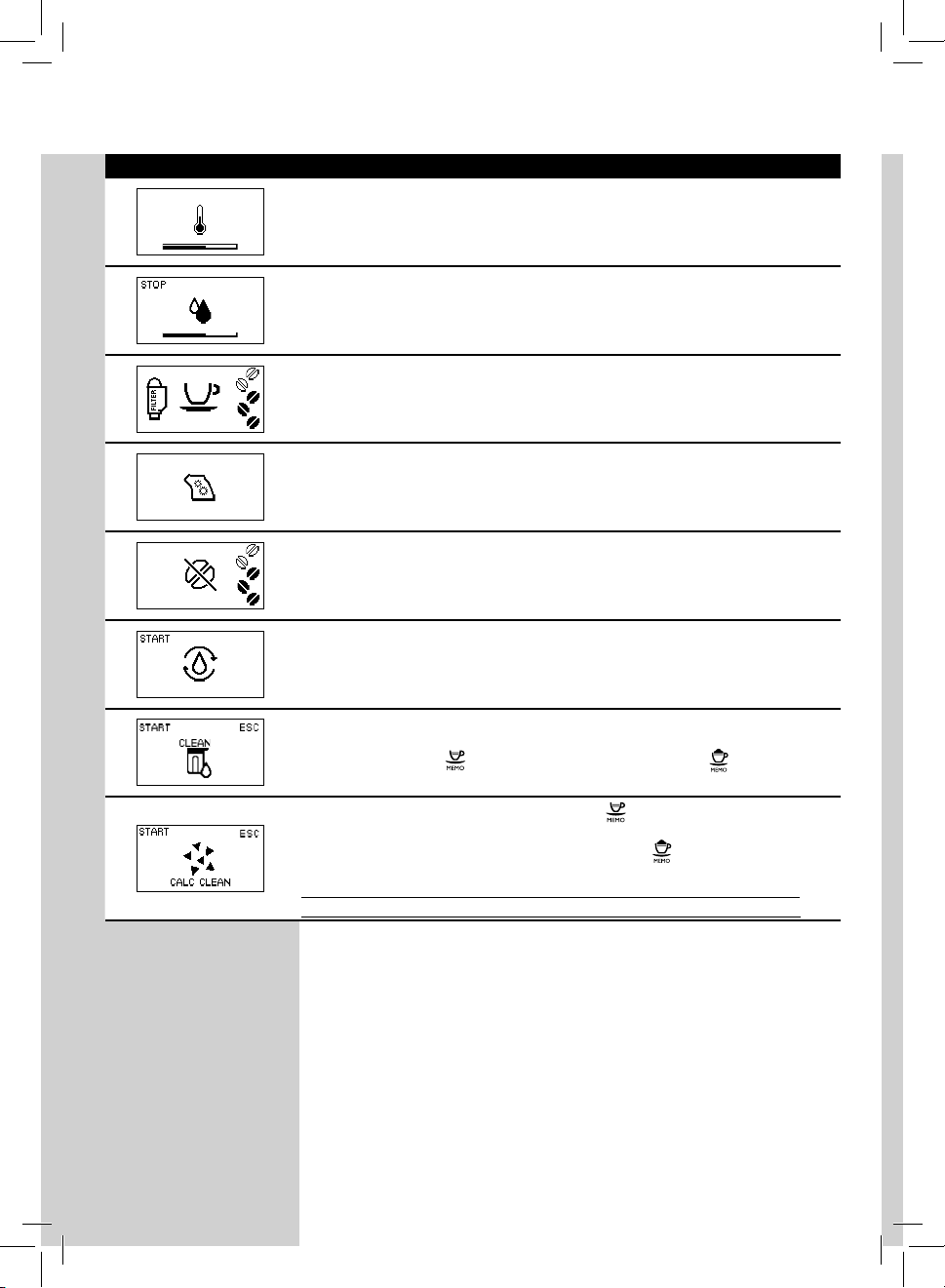

Warning Signals (Yellow Colour)
The machine is warming up.
The machine is performing a rinse cycle. Wait until the machine has completed the cycle.
The machine needs the "INTENZA+" water lter to be replaced.
The brew group is being reset due to machine reset.
Fill the co ee bean hopper with co ee beans and restart the cycle.
Prime the circuit.
The machine requires the carafe dispenser to be rinsed. This screen is
displayed after each milk-based beverage brewing and stays active for 10 seconds only. Press the “
10
” button to start the process or the “ ” button to exit.
You need to descale the machine. Press the “ ” button to start the descaling
process. Follow the steps described in the “Descaling” chapter of this manual.
If you want to descale the machine later, press the “
” button to continue
using the machine.
Please note that not descaling your machine will ultimately make it stop
working properly. In this case repair is NOT covered under your warranty.
Page 91

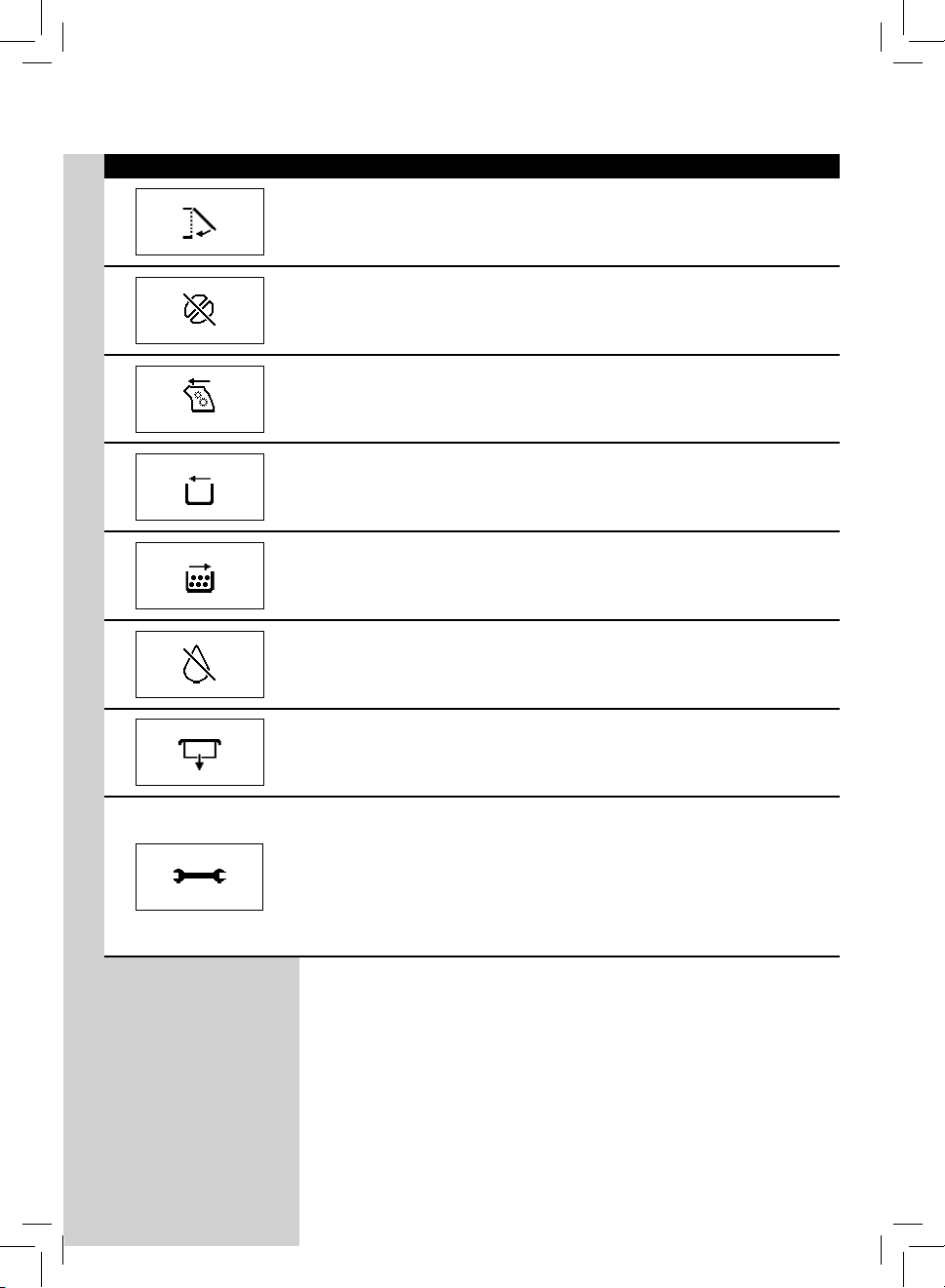

Warning Signals (Red Colour)
Close the service door.
Fill the co ee bean hopper.
The brew group must be inserted into the machine.
Insert the co ee grounds drawer.
Empty the co ee grounds drawer and the co ee residues drawer.
Fill the water tank.
ENGLISH
89
89
Exx
Insert the co ee bean hopper and put the lid back on.
The machine is out of order. The error code is displayed in the right bottom
corner. Turn o the machine. Turn it back on after 30 seconds. Try this 2 or 3
times.
For error codes 1 -3 - 4 - 5, please also refer to the “Troubleshooting” chapter.
If the machine does not start, contact the Philips SAECO hotline in your country and quote the error code shown on the display.
Contact details can be found in the warranty booklet packed separately or at
www.saeco.com/support.
Page 92
90
ENGLISH
TROUBLESHOOTING
This chapter summarizes the most common problems you could encounter with your machine. If you are unable to solve the problem with the
information below, visit www.saeco.com/support for a list of frequently
asked questions or contact the Philips Saeco hotline in your country. Contact details can be found in the warranty booklet packed separately or at
www.saeco.com/support.
Machine actions Causes Solutions
Error Code 1
Co ee grinder blocked.
Error Code 3-4
Brew group blocked, cannot be
pulled out.
Error Code 5
Water circuit error.
Co ee outlet duct clogged. Thoroughly clean the co ee
outlet duct as described in the
“Weekly Cleaning of the Brew
Group” chapter.
The brew group is out of place. Close the service door. Turn
o and back on the machine.
The brew group automatically
returns to the initial position.
Air in the water circuit. Remove and put back the water
tank a few times, making sure
it is properly reinserted. Check
that the water tank compartment is clean.
If the Intenza+ lter is installed,
remove it.
Turn o the machine and put it
back on.
Thereafter place the lter back.
Page 93
ENGLISH
Machine actions Causes Solutions
The machine does not turn on. The machine is not connected to the
The drip tray gets lled although
no water is drained.
The red
played on the machine.
Co ee is not hot enough. The cups are cold. Preheat the cups with hot water.
No hot water is dispensed. The water dispensing spout hole is
Co ee does not have enough
crema.
(see note)
The milk is not frothed. The milk carafe is dirty or not inserted
The brew group cannot be
removed.
The brew group cannot be
inserted.
icon is always dis-
electric network.
The power button is on position "0". Check that the power button is set to "I".
Water is sometimes drained automatically by the machine into the drip tray
to manage the rinsing of the circuits
and ensure optimum machine performance.
The co ee grounds drawer has been
emptied with the machine o .
Temperature is not correctly set. Set the temperature as described in the
The machine circuit is clogged by
limescale.
clogged.
The blend is unsuitable, co ee is not
freshly roasted or the grind is too
coarse.
correctly.
The milk carafe dispenser has not been
removed correctly.
The type of milk used is not suitable for
frothing.
The brew group is out of place. Turn on the machine. Close the service
The co ee grounds drawer is inserted. Remove the co ee grounds drawer
The brew group is not in the o position.
The gearmotor is not in the correct
position.
Connect the machine to the electric
network.
This is a normal behaviour of the machine.
The co ee grounds drawer must always
be emptied with the machine on. Wait
until the
re tting the drawer.
"Programming" chapter.
Descale the machine.
Unclog the co ee dispensing spout hole
with a pin.
Make sure that the machine is o and
has cooled down before performing
this operation.
Change co ee blend or adjust grinding as
explained in the “Adjusting the Ceramic
Co ee Grinder” chapter.
Clean the carafe and insert it correctly.
Check that the milk dispensing spout has
been removed correctly.
Use the type of milk suggested in the
"Milk Carafe" chapter.
door. The brew group automatically
returns to the initial position.
before removing the brew group.
Make sure that the brew group in the
o position, as described in the “Weekly
Cleaning of the Brew Group” chapter.
Insert the drip tray and the co ee
grounds drawer. Close the service door.
Turn on the machine without inserting
the brew group. The gearmotor moves
back to the correct position. Turn o the
machine and reinsert the brew group as
described in the “Weekly Cleaning of the
Brew Group” chapter.
icon is displayed before
91
91
Page 94
92
ENGLISH
Machine actions Causes Solutions
There is a lot of ground co ee
under the brew group.
The machine grinds co ee beans
but no co ee comes out.
(see note)
Co ee is too weak.
(see note)
Co ee is brewed slowly.
(see note)
Co ee leaks out of the co ee
dispensing spout.
The selector switch is blocked. Some co ee beans may have got stuck. Move the selector switch back and forth
The co ee bean hopper cannot
be inserted.
Co ee does not taste like the new
co ee beans.
Co ee is not suitable for automatic
machines.
There is no water. Fill the water tank and prime the circuit
The brew group is dirty. Clean the brew group (see the "Weekly
This might occur when the machine is
automatically adjusting the dose.
The circuit is not primed. Prime the circuit (see the "Using the
The co ee dispensing spout is dirty. Clean the co ee dispensing spout.
This might occur when the machine is
automatically adjusting the dose.
Co ee is too coarse. Change co ee blend or adjust grinding as
The co ee bean hopper selector switch
has been shifted.
The co ee grind is too ne. Change co ee blend or adjust grinding as
The circuits are clogged. Perform a descaling cycle.
The circuit is not primed. Prime the circuit (see the "Using the
The brew group is dirty. Clean the brew group (see the "Weekly
The co ee dispensing spout is clogged. Clean the co ee dispensing spout and
The blade under the co ee bean hopper has been shifted.
There might still be some co ee beans
in the co ee compartment.
The selector switch is not in the correct
position.
The co ee outlet duct and grinder
have not been emptied.
It may be necessary to change the type of
co ee or the co ee grinder settings.
(see the "Using the Machine for the First
Time" chapter).
Cleaning of the Brew Group" chapter).
Brew some cups of co ee as described in
the “Saeco Adapting System” chapter.
Machine for the First Time" chapter).
Brew some cups of co ee as described in
the “Saeco Adapting System” chapter.
explained in the “Adjusting the Ceramic
Co ee Grinder” chapter.
Move the selector switch to the “
position.
explained in the “Adjusting the Ceramic
Co ee Grinder” chapter.
Machine for the First Time" chapter).
Cleaning of the Brew Group" chapter).
its holes.
until the co ee beans are released.
Slide the blade up to the end of the guide
until the hole is covered.
Remove co ee beans.
Shift the selector switch to the open
position
“ ”.
You need to brew at least two cups of
co ee before you can taste the new coffee beans.
”
Page 95
Machine actions Causes Solutions
The icon is shown.
The machine is in demo mode.
The co ee bean hopper selector switch
has been shifted.
The co ee bean hopper and tray are
dirty.
The
“ ” button was pressed and held
for more than 8 seconds.
Move the selector switch to the “
position.
Clean the co ee bean hopper and tray
to remove any co ee residues. ("Weekly
Cleaning of the Co ee Bean Hopper, Tray
and Co ee Compartment" chapter)
Disconnect the power cord and turn the
machine back on.
Note:
These problems can be considered normal if the co ee blend has been
changed or if the machine has just been installed. In this case, wait until
the machine performs a self-adjusting operation as described in the “Saeco
Adapting System” section.
ENGLISH
93
93
”
Page 96
94
ENGLISH
ENERGY SAVING
Stand-by
The Saeco fully automatic espresso co ee machine is designed for energy
saving, as proven by the Class A energy label.
After 15 minutes of inactivity, the machine turns o automatically (unless
a di erent stand-by time has been programmed). If a product has been
brewed, the machine performs a rinse cycle.
In stand-by mode, the energy consumption is below 1Wh.
To turn on the machine, press the
of the machine is set to “I”). If the boiler is cold, the machine performs a
rinse cycle.
“ ” button (if power button on the back
Page 97
ENGLISH
TECHNICAL SPECIFICATIONS
The manufacturer reserves the right to make changes to the technical
speci cations of the product.
95
95
Nominal Voltage - Power Rating Power Supply
Housing material ABS - Thermoplastic
Size (w x h x d) 256 x 350 x 470 mm
Weight 8.5 kg
Power cord length 800 - 1200 mm
Control panel Front panel
Cup size 142
Water tank 1.9 litres - Removable type
Co ee bean hopper capacity 300 g
Co ee grounds drawer capacity 14
Pump pressure 15 bar
Boiler Stainless Steel
Safety devices Thermal fuse
See data plate on the inside of the
service door
WARRANTY AND SERVICE
Warranty
For detailed information on your warranty and related conditions, please
read the warranty booklet supplied separately.
Service
We want to ensure that you remain satis ed with your machine.
If you have not already done so, please register your purchase on
www.saeco.com/welcome. This will allow us to stay in contact with you
and send you cleaning and descaling reminders.
If you need service or support, please visit the Philips website at www.
saeco.com/support or contact the Philips Saeco hotline in your country.
Contact details can be found in the warranty booklet packed separately or
at www.saeco.com/support.
Page 98
96
ENGLISH

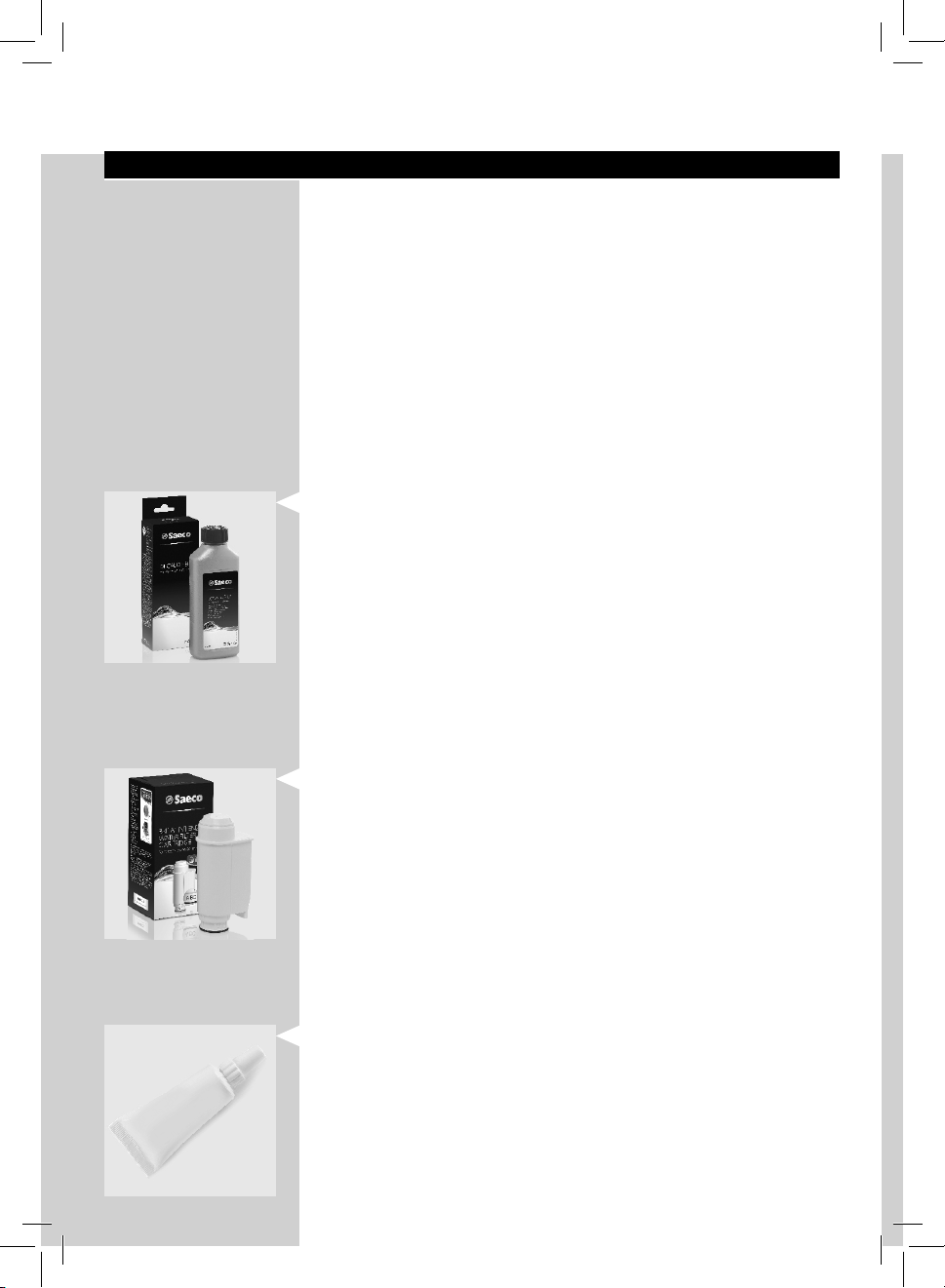

ORDERING MAINTENANCE PRODUCTS
For cleaning and descaling, use Saeco maintenance products only.
purchase the products at the Philips online shop at www.shop.philips.com/
service, from your local dealer or at authorised service centres.
If you have any di culties obtaining maintenance products for your machine, please contact the Philips Saeco hotline in your country.
Contact details can be found in the warranty booklet packed separately or
at www.saeco.com/support.
Overview of maintenance products
- Descaling solution CA6700
You can
- INTENZA+ Water Filter CA6702
- Grease HD5061
Page 99

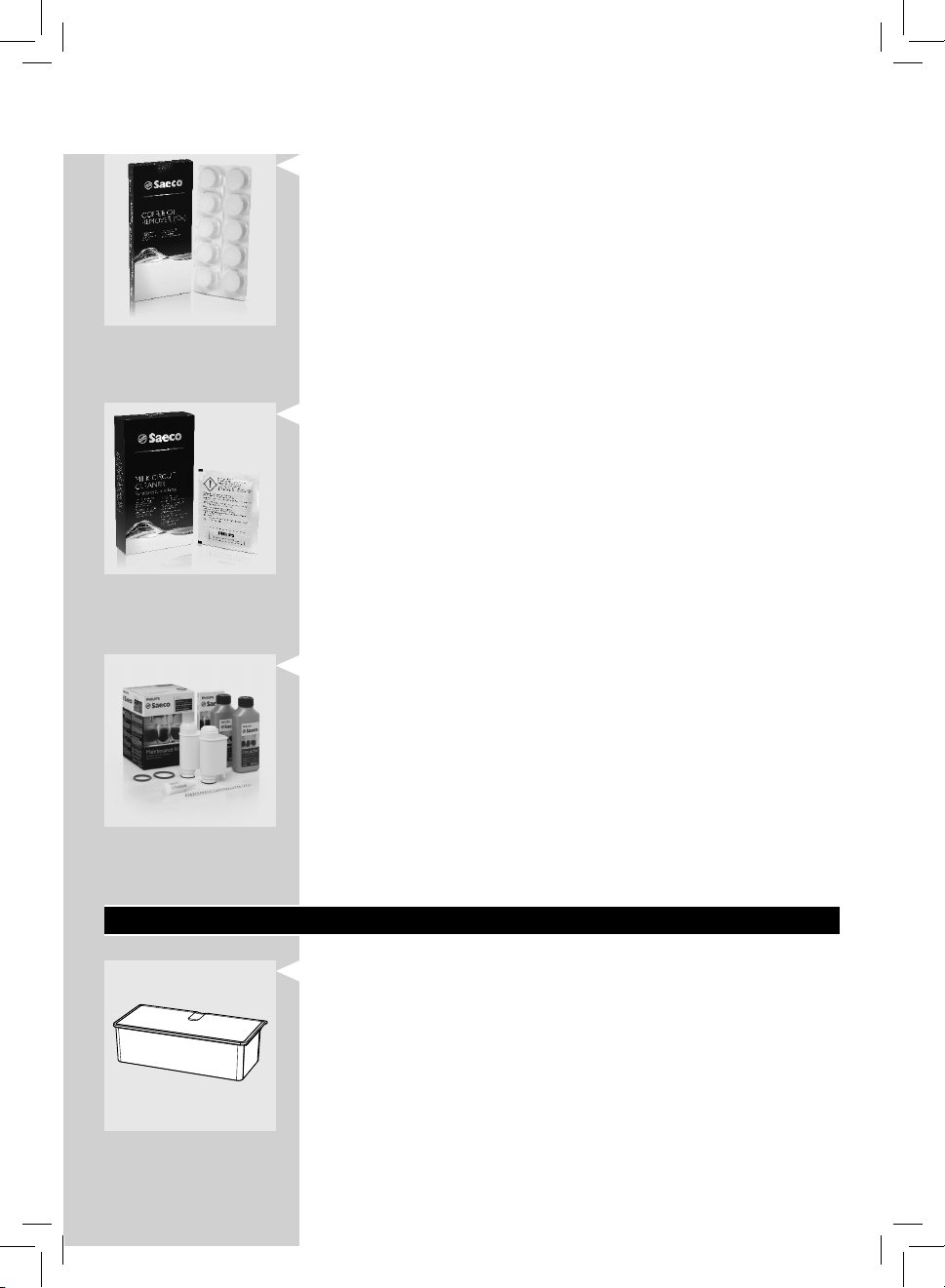

- Co ee Oil Remover CA6704
- Milk Circuit Cleaner CA6705
- Maintenance Kit CA 6706
ENGLISH
97
97
MACHINE ACCESSORIES
- Removable co ee bean hopper CA6803
Page 100
02
The manufacturer reserves the right to make changes without prior notice.
www.philips.com/saeco
Rev.01 del 01-12-14
IT
02
Loading...
