OPERATING INSTRUCTIONS
Type HD8763
Read carefully before using the machine.
02
English
EN
02
Register your product and get support at
www.saeco.com/welcome
Page 2
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always be
followed, including the following:
1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against fire, electric shock and injury to persons do not immerse
cord, plugs, or appliance in water or other liquid.
4. Close supervision is necessary when the appliance is used by or near
children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool
before putting on or taking off parts, and before cleaning the appliance.
6. Do not operate any appliance with a damaged cord or plug or after the
appliance malfunctions, or has been damaged in any manner. Return
appliance to the nearest authorized service facility for examination, repair
or adjustment.
7. The use of accessory attachments not recommended by the appliance
manufacturer may result in fire, electric shock or injury to persons.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot surfaces.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. Always attach plug to appliance first, then plug cord into wall outlet. To
disconnect, turn any control to “off”, then remove plug from wall outlet.
12. Do not use appliance for other than intended use.
13. Save these instructions.
SAVE THESE INSTRUCTIONS
Page 3
CAUTION
This appliance is for household use only. Any servicing, other than cleaning
and user maintenance, should be performed by an authorized service center.
Do not immerse machine in water. To reduce the risk of fire or electric shock,
do not disassemble the machine. There are no parts inside the machine
serviceable by the user. Repair should be done by authorized service personnel
only.
1. Check voltage to be sure that the voltage indicated on the nameplate
corresponds with your voltage.
2. Never use warm or hot water to fill the water tank. Use cold water only.
3. Keep your hands and the cord away from hot parts of the appliance during
operation.
4. Never clean with scrubbing powders or harsh cleaners. Simply use a soft
cloth dampened with water.
5. For optimal taste of your coffee, use purified or bottled water. Periodic
descaling is still recommended every 2-3 months.
6. Do not use caramelized or flavored coffee beans.
INSTRUCTIONS FOR THE POWER
SUPPLY CORD
A. A short power-supply cord (or detachable power-supply cord) is to be
provided to reduce risks resulting from becoming entangled in or tripping
over a longer cord.
B. Longer detachable power-supply cords or extension cords are available
and may used if care is exercised in their use.
C. If a long detachable power-supply cord or extension cord is used,
1. The marked electrical rating of the detachable power-supply cord or
extension cord should be at least as great as the electrical rating of the
appliance
2. If the appliance is of the grounded type, the extension cord should be a
grounding-type 3-wire cord, and
3. The longer cord should be arranged so that it will not drape over the
counter top or table top where it can be pulled on by children or tripped
over.
Page 4
2
ENGLISH
Congratulations on your purchase of a Saeco Minuto One
Touch Milk Carafe fully automatic co ee machine!
To fully bene t from the support that Saeco o ers, please
register your product at www.saeco.com/welcome.
The machine is suitable for preparing espresso co ee using
whole co ee beans, and it is supplied with a milk carafe so
you can brew a perfect cappuccino in a quick and easy way.
In this user manual you will nd all the information you need
to install, use, clean and descale your machine.
CONTENTS
IMPORTANT..................................................................................................... 4
Safety Instructions ....................................................................................................................................4
Warnings ...................................................................................................................................................4
Cautions ....................................................................................................................................................6
Compliance with Standards ......................................................................................................................7
INSTALLATION ................................................................................................. 8
Product Overview ...................................................................................................................................... 8
General Description ................................................................................................................................... 9
PREPARING FOR USE .......................................................................................10
Machine Packaging ................................................................................................................................. 10
Machine Installation ...............................................................................................................................10
USING THE MACHINE FOR THE FIRST TIME ........................................................13
Circuit Priming ........................................................................................................................................13
Automatic Rinse/Self-Cleaning Cycle.......................................................................................................14
Manual Rinse Cycle..................................................................................................................................14
Measuring and Programming Water Hardness ........................................................................................17
“INTENZA+” Water Filter Installation ......................................................................................................18
Replacing the “INTENZA+” Water Filter ...................................................................................................20
ADJUSTMENTS ................................................................................................21
Saeco Adapting System ........................................................................................................................... 21
Adjusting the Ceramic Co ee Grinder ...................................................................................................... 21
Adjusting the Aroma (Co ee Strength) ...................................................................................................22
Adjusting the Co ee Dispensing Spout ................................................................................................... 23
Adjusting the Co ee Length ...................................................................................................................24
Page 5
ENGLISH
BREWING ESPRESSO AND COFFEE ....................................................................25
Brewing Espresso and Co ee Using Co ee Beans ....................................................................................25
Brewing Espresso and Co ee Using Pre-Ground Co ee ...........................................................................26
MILK CARAFE..................................................................................................27
Filling the Milk Carafe .............................................................................................................................27
Inserting the Milk Carafe ......................................................................................................................... 28
Removing the Milk Carafe .......................................................................................................................28
Emptying the Milk Carafe ........................................................................................................................ 29
BREWING A CAPPUCCINO ................................................................................30
Adjusting the Cappuccino Length ............................................................................................................ 32
FROTHING MILK..............................................................................................34
Adjusting the Frothed Milk Length .......................................................................................................... 36
DISPENSING HOT WATER .................................................................................38
CLEANING AND MAINTENANCE ........................................................................40
Daily Cleaning of the Machine ................................................................................................................. 40
Daily Cleaning of the Water Tank ............................................................................................................. 41
Daily Cleaning of the Milk Carafe .............................................................................................................42
Weekly Cleaning of the Machine ............................................................................................................. 45
Weekly Cleaning of the Milk Carafe ......................................................................................................... 45
Weekly Cleaning of the Brew Group ........................................................................................................ 50
Monthly Cleaning of the Milk Carafe .......................................................................................................53
Monthly Lubrication of the Brew Group ..................................................................................................58
Monthly Cleaning of the Brew Group with “Co ee Oil Remover” .............................................................59
Monthly Cleaning of the Co ee Bean Hopper ..........................................................................................62
DESCALING .....................................................................................................62
ACCIDENTAL INTERRUPTION OF THE DESCALING CYCLE .....................................68

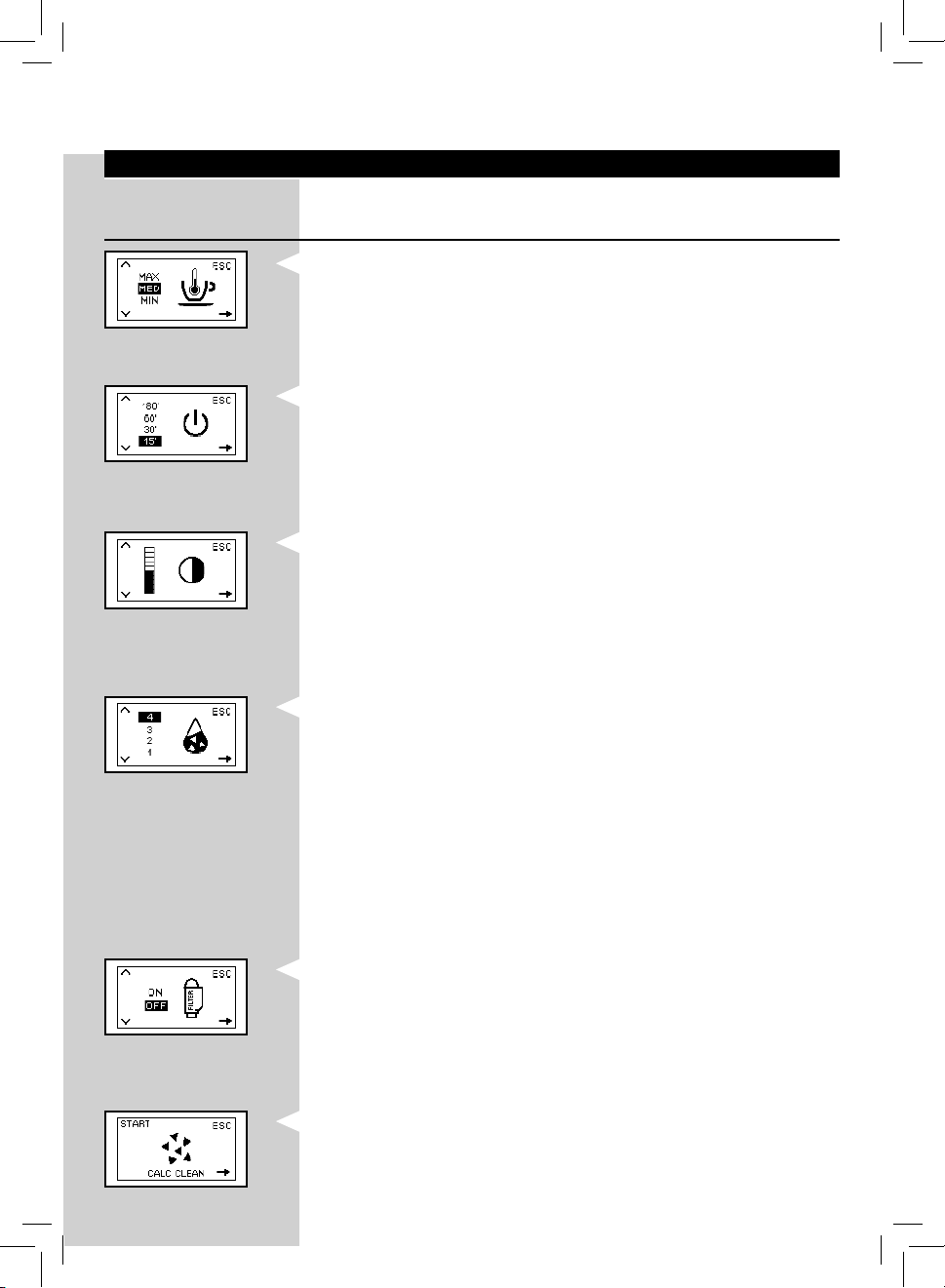

PROGRAMMING ..............................................................................................69
The following settings can be adjusted ................................................................................................... 69
How to Program the Machine .................................................................................................................70

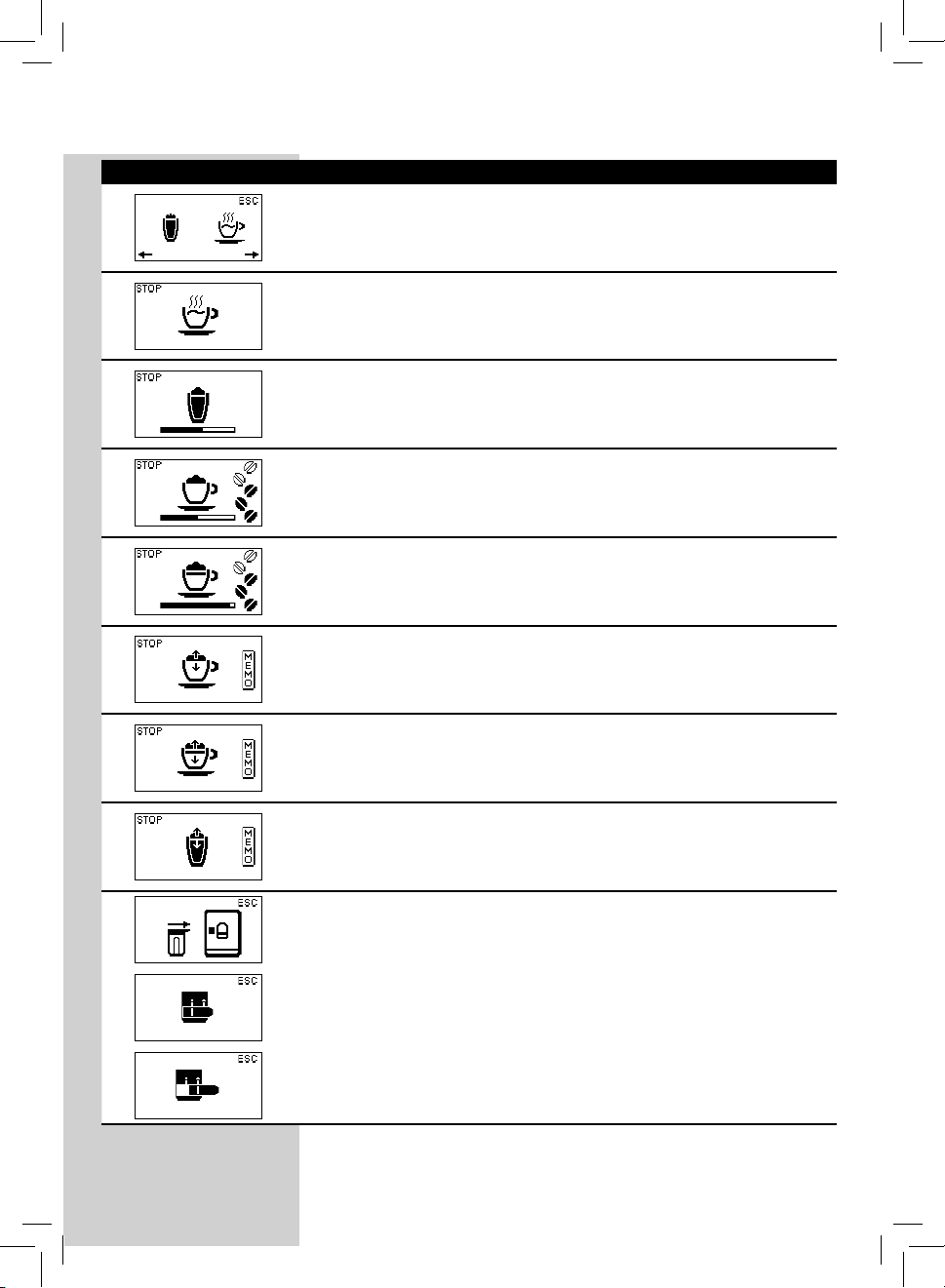

MEANING OF THE DISPLAY ICONS .....................................................................72
TROUBLESHOOTING ........................................................................................76
ENERGY SAVING ..............................................................................................79
Stand-by .................................................................................................................................................79
Disposal .................................................................................................................................................. 79
TECHNICAL SPECIFICATIONS ............................................................................80
WARRANTY AND SERVICE ................................................................................80
Warranty .................................................................................................................................................80
Service .................................................................................................................................................... 80

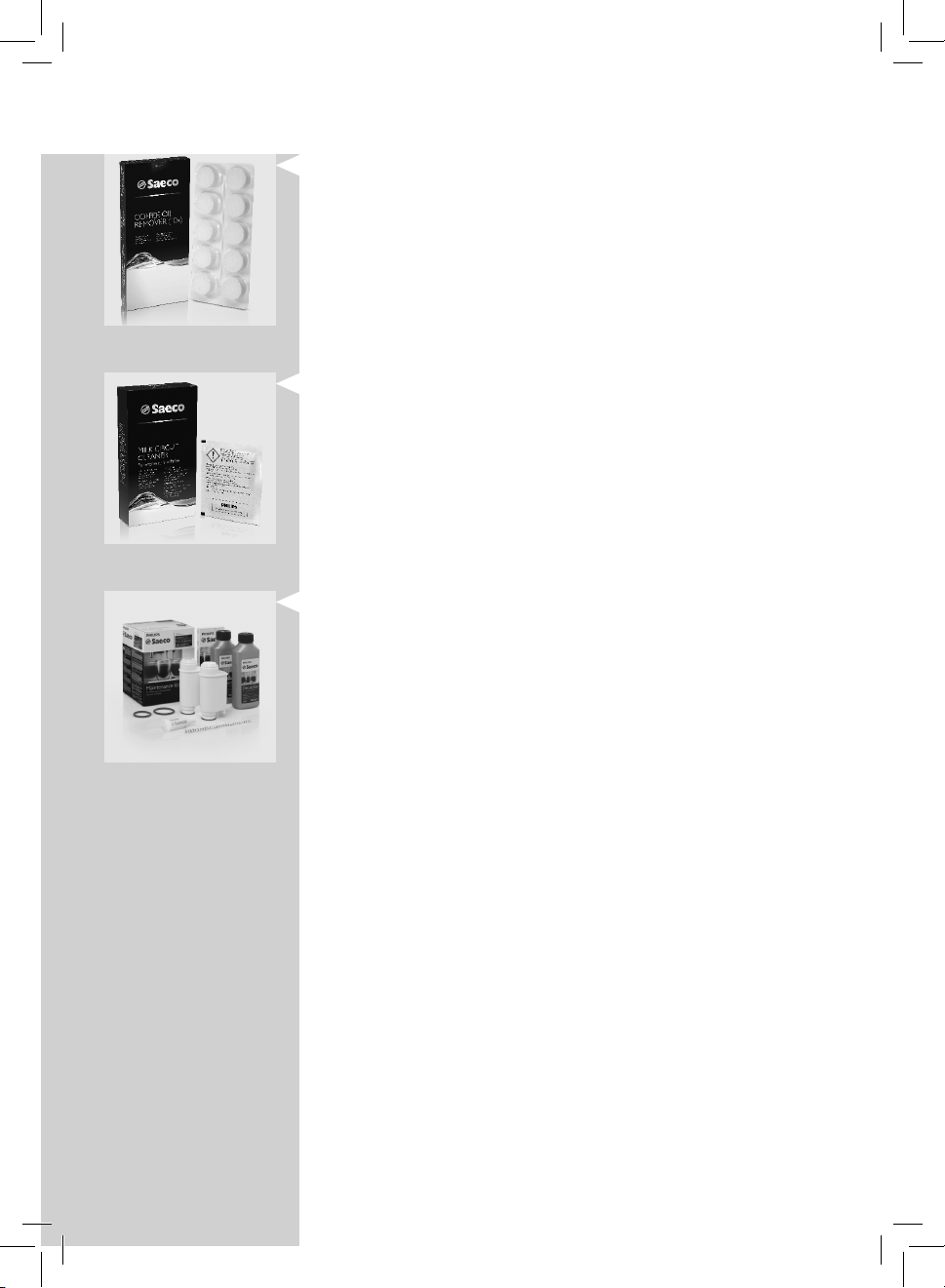

ORDERING MAINTENANCE PRODUCTS ..............................................................81
3
Page 6
4
ENGLISH
IMPORTANT
Safety Instructions
This machine is equipped with safety devices. Nevertheless,
read and follow the safety instructions carefully and only use
the machine properly as described in these instructions to
avoid accidental injury or damage due to improper use of the
machine. Keep this user manual for future reference.
The term WARNING and this icon warn against possible
severe injuries, danger to life and/or damage to the machine.
The term CAUTION and this icon warn against slight
injuries and/or damage to the machine.
Warnings
• Connect the machine to a wall socket with a voltage
matching the technical speci cations of the machine.
• Connect the machine to a earthed wall socket.
• Do not let the power cord hang over the edge of a table or
counter, or touch hot surfaces.
• Never immerse the machine, the mains plug or power cord
in water: Danger of electrical shock!
• Do not pour liquids on the power cord connector.
• Never direct the hot water jet towards body parts: Danger
of burning!
• Do not touch hot surfaces. Use handles and knobs.
• Remove the mains plug from the wall socket:
- if a malfunction occurs;
- If the machine will not be used for a long time;
- before cleaning the machine.
Page 7
ENGLISH
Pull on the mains plug, not on the power cord. Do not
touch the mains plug with wet hands.
• Do not use the machine if the mains plug, the power cord
or the machine itself is damaged.
• Do not make any modi cations to the machine or its
power cord. Only have repairs carried out by a service
centre authorised by Philips to avoid any hazard.
• The machine should not be used by children younger than
8 years old.
• The machine can be used by children of 8 years and upwards
if they have previously been instructed on the correct use of
the machine and made aware of the associated dangers or if
they are supervised by an adult.
• Cleaning and maintenance should not be carried out by
children unless they are more than 8 years old and supervised by an adult.
5
5
• Keep the machine and its power cord out of reach of children under 8 years old.
• The machine may be used by persons with reduced physical, sensory or mental capabilities or lacking su cient
experience and/or skills if they have previously been
instructed on the correct use of the machine and made
aware of the associated dangers or if they are supervised
by an adult.
• Children should be supervised to ensure that they do not
play with the machine.
• Never insert ngers or other objects into the co ee
grinder.
Page 8
6
ENGLISH
Cautions
• The machine is for household use only. It is not intended
for use in environments such as canteens, sta kitchens of
shops, o ces, factories or other work environments.
• Always put the machine on a at and stable surface.
• Do not place the machine on hot surfaces, directly next to
a hot oven, heater units or similar sources of heat.
• Only put roasted co ee beans into the co ee bean hopper.
If ground co ee, instant co ee, raw co ee or any other
substance is put in the co ee bean hopper, it may damage
the machine.
• Let the machine cool down before inserting or removing
any parts.
• Never use warm or hot water to ll the water tank. Use
only cold non-sparkling drinking water.
• Never clean with scrubbing powders or harsh cleaners.
Simply use a soft cloth dampened with water.
• Descale your machine regularly. The machine indicates
when descaling is needed. Not doing this will make your
appliance stop working properly. In this case repair is not
covered under your warranty!
• Do not keep the machine at temperature below 0 °C.
Residue water in the heating system may freeze and cause
damage.
• Do not leave water in the water tank if the machine is
not used over a long period of time. The water can get
contaminated. Use fresh water every time you use the
machine.
Page 9
ENGLISH
Compliance with Standards
The machine complies with art.13 of the Italian Legislative
Decree dated 25 July 2005, no. 151 “Implementation of the
Directives 2005/95/EC, 2002/96/EC and 2003/108/EC on the
restriction of the use of certain hazardous substances in electrical and electronic equipment, as well as waste disposal”.
This machine complies with EU Directive 2002/96/EC.
This Philips appliance complies with all the applicable
standards and regulations relating to the exposure to
electromagnetic elds.
7
7
Page 10
8
INSTALLATION
Product Overview
123
19
20
6
7
8
9
10
5
4
11 12
13
14
21
15
16
31
17
18
22
24 27
25 28
26 29
30
23
Page 11
ENGLISH
General Description
1. Grinder adjustment knob
2. Co ee bean hopper
3. Pre-ground co ee compartment
4. Water tank + Lid
5. Co ee bean hopper lid
6. Control panel
7. Co ee dispensing spout
8. Full drip tray indicator
9. Cup holder grill
10. Drip tray
11. Co ee grounds drawer
12. Brew group
13. Co ee residues drawer
14. Service door
15. Water dispensing spout (removable)
16. Milk carafe
17. Power cord socket
18. Power button
19. Grease for the brew group (optional)
20. Power cord
21. Co ee grinder adjustment key + Pre-ground co ee measuring scoop
+ Tool to clean the co ee outlet duct
22. Water hardness test strip
23. Cleaning brush (optional)
24. Espresso brew button
25. Co ee brew button
26. Cappuccino brew button
27. Special products button
28. "Aroma" - Pre-ground co ee button
29. Menu button
30. ON/OFF button
31. Descaling solution- to be purchased separately
9
9
Page 12
10
ENGLISH
PREPARING FOR USE
Machine Packaging
The original packaging has been designed and constructed to protect the
machine during transport. We recommend keeping the packaging material
for possible future transport.
Machine Installation
Remove the machine from the packaging.
1
For best use, it is recommended to:
2
• Choose a safe, level surface where there will be no danger of overturning the machine or being injured.
• Choose a location that is su ciently well-lit, clean and near an easily reachable socket.
• Allow for a minimum distance from the sides of the machine as
shown in the gure.
Open the water tank lid.
3
Lift the water tank using the handle.
4
Page 13
ENGLISH
Rinse the water tank with fresh water.
5
Fill the water tank with fresh water up to the MAX level and reinsert it
6
into the machine. Make sure it is fully inserted.
Caution:
Never ll the water tank with warm, hot, sparkling water or any other
liquid, as this may cause damage to the water tank and the machine.
Lift the co ee bean hopper lid.
7
Slowly pour the co ee beans into the co ee bean hopper.
8
11
11
Note:
Do not pour too many co ee beans into the co ee bean hopper as this will
reduce the grinding performance of the machine.
Caution:
Only co ee beans must be put into the co ee bean hopper. If ground
co ee, instant co ee, caramelized co ee, raw co ee beans or any
other substance is put in the co ee bean hopper, it may damage the
machine.
Put the lid back on the co ee bean hopper.
9
Insert the plug into the socket located on the back of the machine.
10
1
Insert the plug on the other end of the power cord into a wall socket
11
with suitable power voltage.
2
Page 14
12
ENGLISH
Switch the power button to “I” to turn on the machine. The “ ” button
12
ashes.
To turn on the machine, simply press the “ ” button.
13
Note:
By keeping the button pressed for more than 8 seconds, the machine enters the demo program. To exit the demo, disconnect the power cord and
turn the machine back on.
The control panel indicates that the circuit must be primed.
14
Yellow
Page 15
ENGLISH
USING THE MACHINE FOR THE FIRST TIME
When using the machine for the rst time, the following activities need to
happen:
1) The machine will prime the circuit;
2) The machine will perform an automatic rinse/self-cleaning cycle.
3) You need to perform a manual rinse cycle.
Circuit Priming
During this process, fresh water ows through the internal circuit of the
machine and the machine warms up. This takes a few minutes.
Place an empty container under the co ee dispensing spout and under
1
the water dispensing spout.

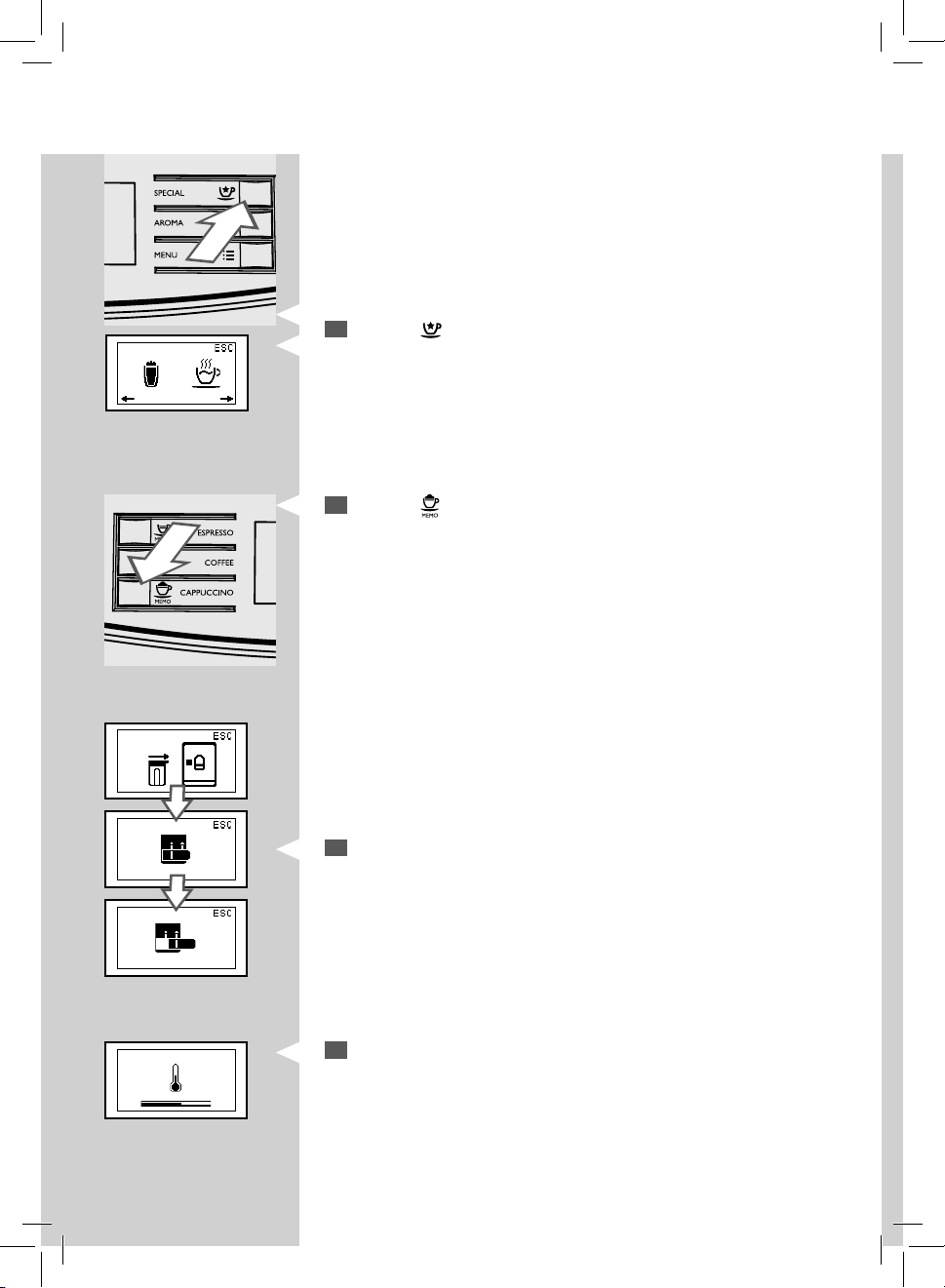

Press the “ ” button to start the circuit priming cycle.
2
13
13
YellowYellowYellow Green
The machine reminds you to install the water dispensing spout.
3
Press the "
The machine will start dispensing hot water.
The bar under the icon shows the operation progress. When the pro-
4
cess has been completed, the machine stops dispensing automatically.
The control panel now shows the machine warm-up icon.
5
" button to con rm.
Page 16
14
ENGLISH
Automatic Rinse/Self-Cleaning Cycle
When warm-up has been completed, the machine automatically performs
a rinse/self-cleaning cycle of the internal circuit with fresh water. This takes
less than a minute.
Place a container under the co ee dispensing spout to catch the small
6
amount of water which will be dispensed.
The machine performs an automatic rinse cycle. Wait for the cycle to
7
nish automatically.
Yellow
Note:
You can stop dispensing by pressing the “
” button.
When the operations described above have been completed, the ma-
8
chine shows this display. You can now perform the manual rinse cycle.
Green
Manual Rinse Cycle
During this process you activate the co ee brewing cycle and fresh water
ows through the water circuit. This takes a few minutes.
Place a container under the co ee dispensing spout.
1
Page 17
Check that the machine shows this display.
2
GreenGreen
Select the pre-ground co ee brewing function by pressing the “ ”
3
button. The machine shows this display.
Note:
Do not add any pre-ground co ee into the compartment.
Press the " " button. The machine will start dispensing water from
4
the co ee dispensing spout.
When dispensing has nished, empty the container. Repeat the opera-
5
tions from step 1 to step 4 twice, then continue with step 6.
Place a container under the water dispensing spout.
6
ENGLISH
15
15
Green
Press the " " button. The machine shows this display.
7
Page 18
16
ENGLISH
Press the “ ” button to start dispensing hot water.
8
This icon is displayed. The machine reminds you to install the water
9
dispensing spout. Check that the water dispensing spout is correctly
Green
Red
installed. Press “
water.
Dispense water until the no water icon appears.
10
Note:
The manual rinse cycle can be stopped by pressing the “
” to con rm. The machine will start dispensing hot
” button.
At the end, ll the water tank again up to the MAX level. Now the ma-
11
chine is ready to brew co ee.
The display to the left will be shown.
Green
Note:
The automatic rinse/self-cleaning cycle is initiated when the machine has
been in stand-by mode, or turned o , for more than 15 minutes.
When you have not used the machine for 2 or more weeks you also have
to perform the manual rinsing cycle At the end of the cycle, it is possible to
brew a co ee.
Page 19
ENGLISH
17
17
Measuring and Programming Water Hardness
Water hardness measuring is very important in order to de ne the descaling frequency and to install the “INTENZA+” water lter (for more details on
the water lter, see next chapter).
To measure the water hardness follow the steps below:
Immerse the water hardness test strip (supplied with the machine) in
1
water for 1 second.
Note:
The test strip can only be used for one single measurement.
Wait for one minute.
2
Check how many squares have changed colour to red and then refer to
3
C
B
the table.
Note:
The numbers on the water hardness test strip correspond to the water
hardness adjustment settings.
More precisely:
1 = 1 (very soft water)
2 = 2 (soft water)
3 = 3 (hard water)
4 = 4 (very hard water)
Intenza Aroma System
A
23 4
Machine Water Hardness Setting
1
The letters correspond to the references that are located at the base of the
“INTENZA+” water lter (see next chapter).
Press the “ ” button and scroll through the options by pressing the “ ”
4
button until the following icon is displayed.
Yellow
Note:
The machine is supplied with a standard water hardness setting, suitable
for most types of water.
Page 20
18
ENGLISH
Press the “ ” button to increase the value and the “ ” button to
5
decrease the value.
Yellow
Green
Press the “ ” button to con rm the setting.
6
Press the ““ ” button to exit the programming MENU. The machine
7
shows this display and is ready to brew.
“INTENZA+” Water Filter Installation
We recommend you to install the “INTENZA+” water lter as this prevents
limescale build-up in your machine and preserves a more intense aroma of
your co ee.
The “INTENZA+” water lter can be purchased separately. For further details, please refer to the maintenance products page in this user manual.
Water is a crucial part of every co ee, so it is very important to always have
it professionally ltered. Using the “INTENZA+” water lter will prevent
mineral deposits from building up and improve your water quality.

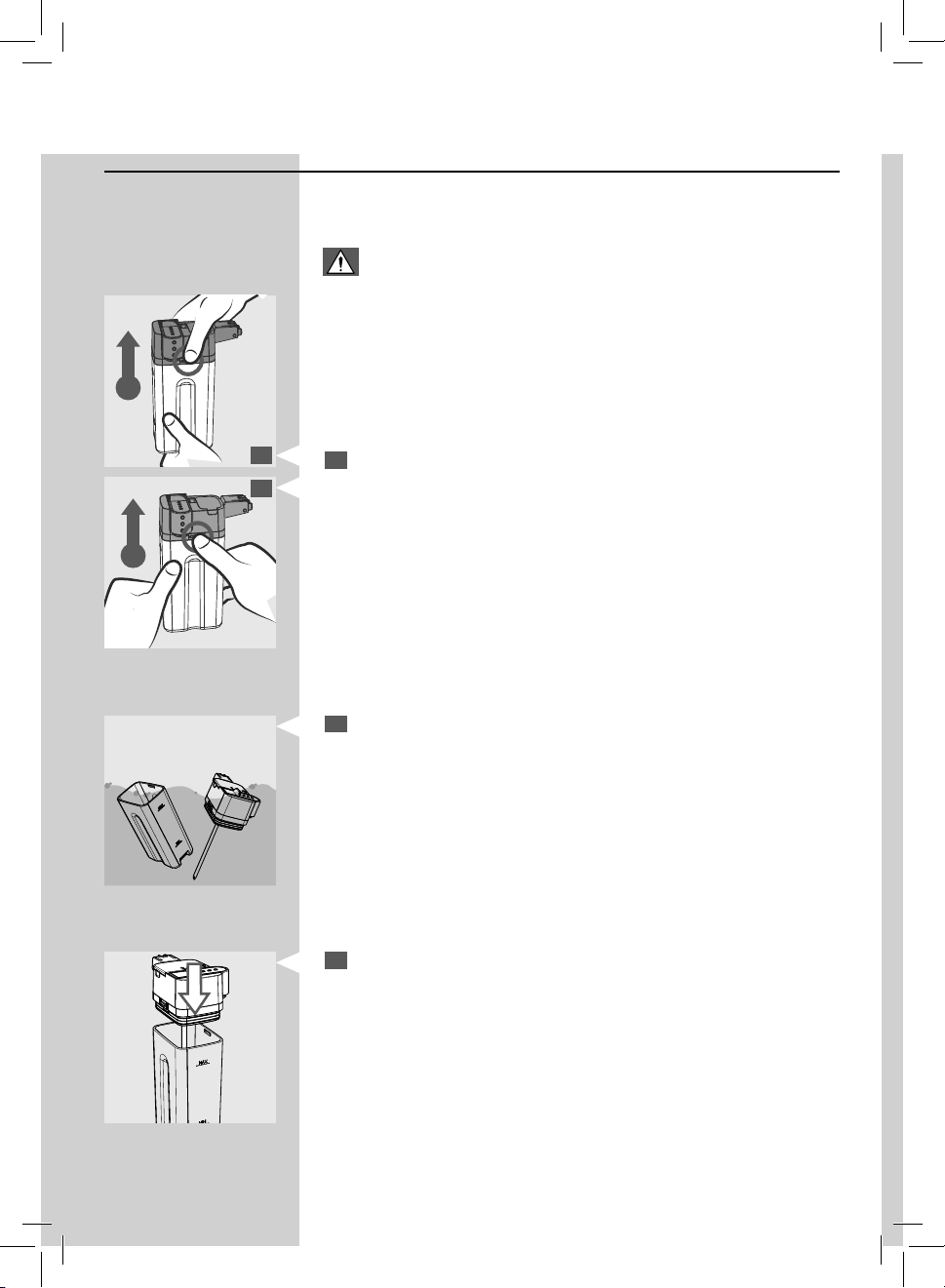

Remove the small white lter from the water tank and store it in a dry
1
place.
Remove the “INTENZA+” water lter from its packaging, immerse it ver-
2
tically (with the opening positioned upwards) in cold water and gently
press the sides so as to let the air bubbles out.
Page 21
ENGLISH
Set the “INTENZA+” water lter according to the measurements per-
3
formed (see previous chapter) and indicated on the base of the lter:
A = soft water – equals 1 or 2 on the test strip
B = hard water (standard) – equals 3 on the test strip
C = very hard water – equals 4 on the test strip
Put the “INTENZA+” water lter into the empty water tank. Press it
4
down until it cannot move any further.
Fill the water tank with fresh water and put it into the machine.
5
Dispense all the water in the water tank by using the hot water func-
6
tion (see the “Dispensing Hot Water” chapter).
Fill the water tank again.
7
19
19
Press the “ ” button and scroll the options by pressing the “ ” button
8
until the following display is shown.
Yellow
Press the “ ” button to select “ON” and press the “ ” button to con-
9
rm.
YellowGreen
To exit, press the “ ” button. The machine shows this display and is
10
ready to brew.
In this way the machine has been programmed to inform the user of
the need to replace the “INTENZA+” water lter.
Page 22
20
ENGLISH
Replacing the “INTENZA+” Water Filter
When the “INTENZA+” water lter needs to be replaced with a new one, the
following icon is displayed.
Replace the “INTENZA+” water lter as described in the previous chap-
1
ter.
Yellow
Press the “ ” button and scroll through the options by pressing the “
2
” button until the following icon is displayed.
YellowYellowGreen

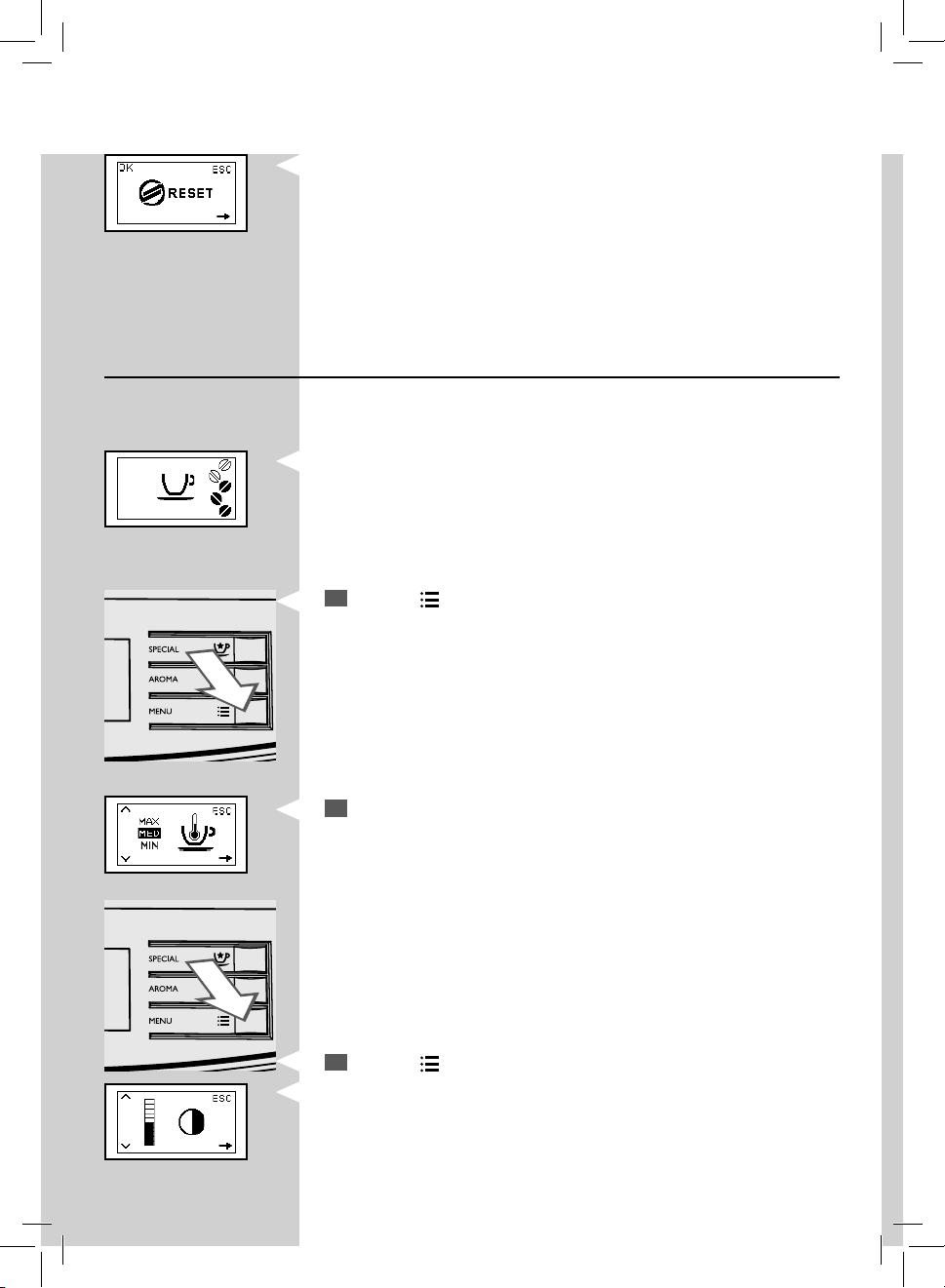

Select the “RESET” option. Press the " " button to con rm.
3
To exit, press the “ ” button. The machine shows this display and is
4
ready to brew.
The machine is now programmed to manage a new “INTENZA+” water
lter.
Note:
If the “INTENZA+” water lter is already installed and you want to remove,
Yellow
but not replace it, select the “OFF” option instead.
If there is no “INTENZA+” water lter installed, insert the small white lter
previously removed into the water tank.
Page 23
ENGLISH
ADJUSTMENTS
The machine allows for certain adjustments so that you can brew the best
tasting co ee possible.
Saeco Adapting System
Co ee is a natural product and its characteristics may change according to
its origin, blend and roast. The machine is equipped with a self-adjusting
system that allows the use of all types of co ee beans available on the
market, except for raw, caramelized and avoured co ee beans.
The machine automatically adjusts itself after brewing several cups of coffee to optimize co ee extraction.
Adjusting the Ceramic Co ee Grinder
Ceramic co ee grinders always guarantee accurate and perfect grinding
and coarseness for every co ee speciality.
This provides full aroma preservation, delivering a truly Italian taste in
every cup.
Warning:
The ceramic co ee grinder contains moving parts that may be dangerous. Do not insert ngers or other objects. Only adjust the ceramic
co ee grinder using the grinder adjustment key.
21
21

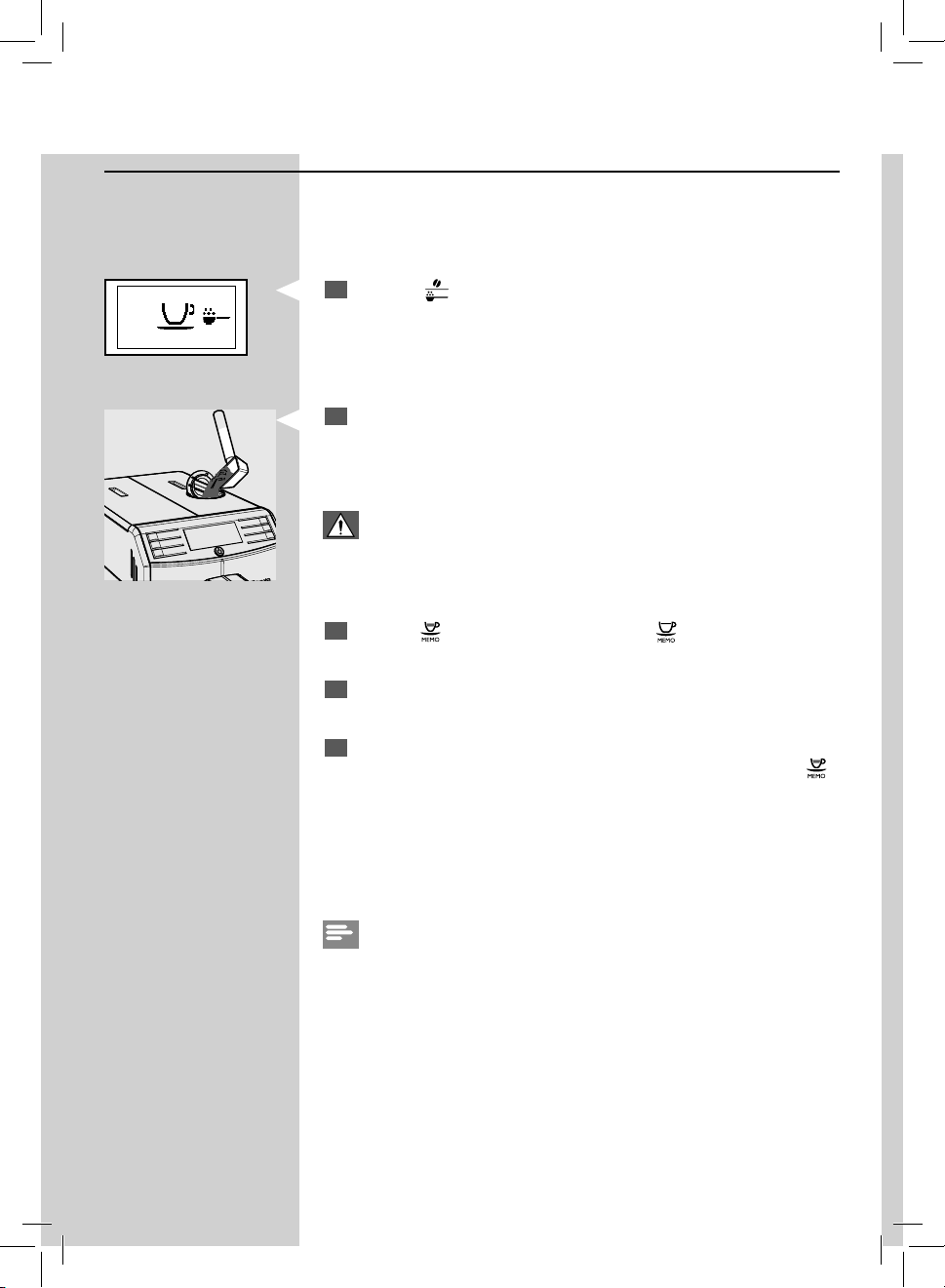

You can adjust the ceramic grinders to set the co ee grinding to your
personal taste.
Warning:
You can only adjust the co ee grinder settings when the machine is
grinding co ee beans.
Place a cup under the dispensing spout.
1
Press the “
” button to brew an espresso.
Page 24
22
ENGLISH
1
2
While the machine grinds the co ee, press and turn the grinder adjust-
2
ment knob placed inside the co ee bean hopper one notch at a time.
Use the special co ee grinder adjustment key supplied. You will taste
the di erence after brewing 2-3 cups of co ee.
The reference marks inside the co ee bean hopper indicate the grind
3
setting. There are 5 di erent grind settings to choose from, from
position 1 for coarse grind - lighter taste to position 2 for ne grind stronger taste. If co ee is watery or is brewed slowly, change the co ee
grinder settings.
Adjusting the Aroma (Co ee Strength)
Choose your favourite co ee blend and adjust the amount of co ee to
be ground according to your personal taste. You can also select the preground co ee function.
Note:
Selection must be made prior to selecting co ee.
Five choices are possible by pressing the “
button is pressed, the aroma changes by one degree, according to the
selected amount:
GreenGreen
= extra mild aroma
= mild aroma
= medium aroma
= strong aroma
= extra strong aroma
= pre-ground co ee
” button. Each time the
Page 25
ENGLISH
Adjusting the Co ee Dispensing Spout
The height of the dispensing spout can be adjusted to better t the
dimensions of the cups that you wish to use.
Move the dispensing spout up or down with your ngers to adjust its
height as shown in the gure.
The recommended positions are:
For the use of small cups;
23
23
For the use of large cups.
Two cups can also be placed under the dispensing spout to brew two cups
of espresso or co ee at the same time.
Page 26
24
ENGLISH
Adjusting the Co ee Length
The machine allows you to adjust the amount of brewed co ee according
to your taste and the size of your cups.
Each time the “
amount of co ee. Each button may be individually programmed for a
speci c brew setting.
Place a cup under the dispensing spout.
1
Keep the “ ” button pressed until the “MEMO” icon appears on the
2
display to program an espresso, or do the same with the “
Green
program a co ee. Then release the button. The machine is in programming mode and starts brewing the selected product.
” or “ ” button is pressed, the machine brews a pre-set
” button to
GreenGreen
Press the “ ” button as soon as the desired amount of espresso or cof-
3
fee is reached.
The previously selected button (“
time it is pressed, the machine will brew the same amount of espresso or
co ee that was just programmed.
” or “ ”) is now programmed; each
Page 27
ENGLISH
25
25
BREWING ESPRESSO AND COFFEE
Before brewing co ee, make sure that there are no warnings shown on the
control panel, and that the water tank and co ee bean hopper are lled.
Brewing Espresso and Co ee Using Co ee Beans
Place 1 or 2 cups under the dispensing spout.
1
To brew an espresso or a co ee, press the “ ” button to select the
2
desired aroma.
Press the “ ” button for an espresso or the “ ” button for a co ee.
3
GreenGreen
To brew 2 cups of espresso or co ee, press the desired button twice
4
consecutively. This icon will be displayed.
Note:
In this operating mode, the machine automatically grinds and doses the
correct amount of co ee. Brewing two espressos or two co ee requires
two grinding and brewing cycles, automatically carried out by the machine.
After the prebrewing cycle, co ee begins to pour out of the dispensing
5
spout.
Co ee brewing stops automatically when the set level is reached.
6
However, it is possible to stop co ee brewing early by pressing the “ ”
button.
Page 28
26
ENGLISH
Brewing Espresso and Co ee Using Pre-Ground Co ee
This function allows you to use pre-ground co ee.
With the pre-ground co ee function you can only brew one co ee at a
time.
Press the ““ ” button to select the pre-ground co ee function.
1
Green
Lift the pre-ground co ee compartment lid and add one level measur-
2
ing scoop of pre-ground co ee.
Use only the measuring scoop supplied with the machine. Then close
the pre-ground co ee compartment lid.
Warning:
Add only pre-ground co ee to the pre-ground co ee compartment.
Other substances and objects may cause severe damage to the machine. Such damage will not be covered by warranty.
Press the “ ” button for an espresso or the “ ” button for a co ee.
3
The brewing cycle starts.
After the prebrewing cycle, co ee begins to pour out of the dispensing
4
spout.
Co ee brewing stops automatically when the set level is reached.
5
However, it is possible to stop co ee brewing early by pressing the “ ”
button.
After brewing, the machine returns to the main menu.
Repeat the steps described above to brew more co ees using pre-ground
co ee.
Note:
If no pre-ground co ee is poured into the pre-ground co ee compartment, only water will be dispensed.
If the dose is excessive or 2 or more scoops of pre-ground co ee are added,
the machine will not brew the product and any ground co ee will be
discharged into the co ee grounds drawer.
Page 29

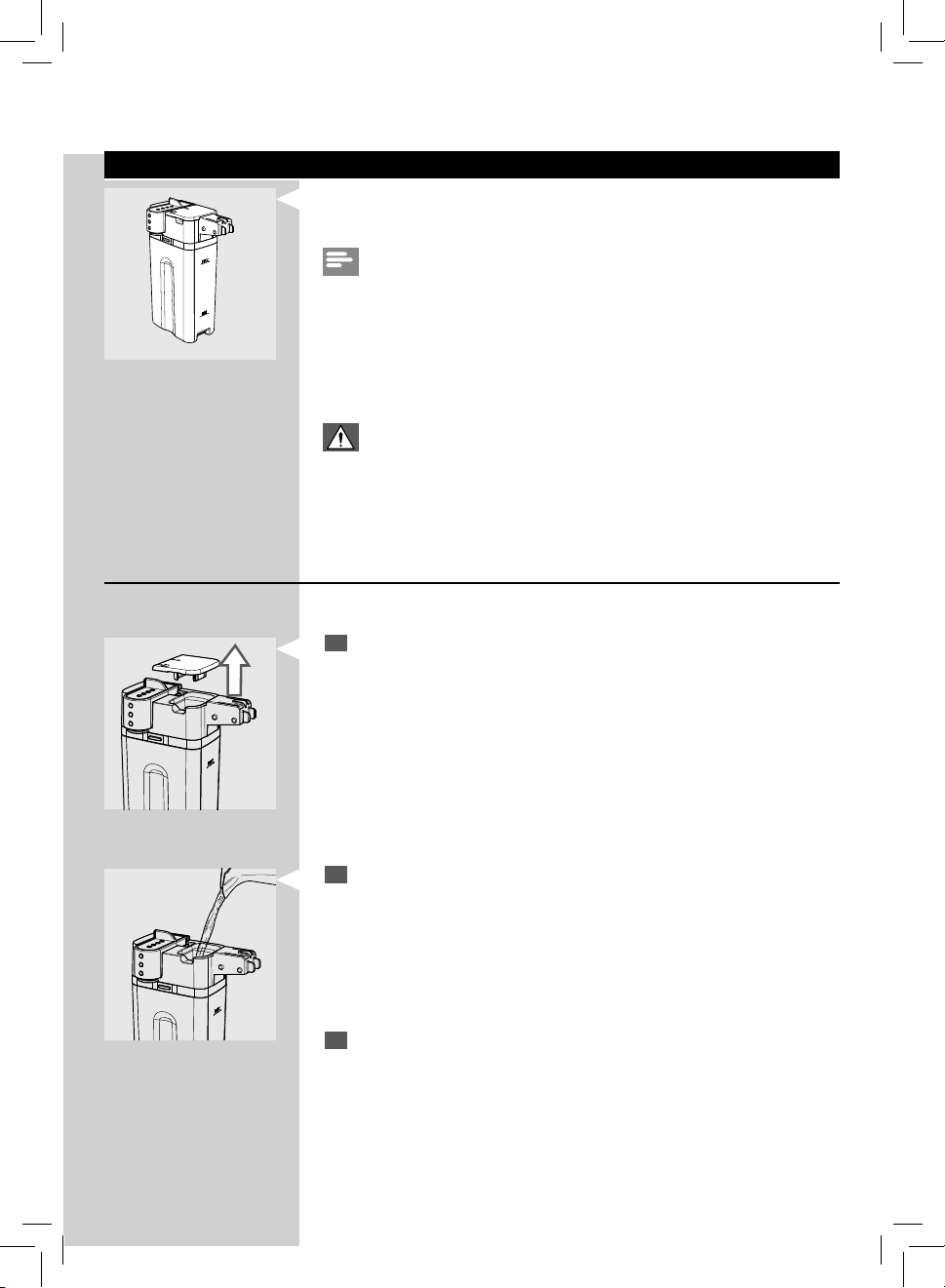

ENGLISH
MILK CARAFE
This chapter explains how to use the milk carafe to prepare a cappuccino
or to froth milk.
Note:
Before using the milk carafe, clean it thoroughly as described in the “Cleaning and Maintenance” chapter.
We recommend that you ll the carafe with cold (~5°C / 41°F) milk with a
protein content of at least 3% to ensure optimum results when preparing
a cappuccino. Whole milk or skimmed milk may be used depending on
individual taste.
Warning:
Do not use any other liquids than water for cleaning or milk.
Filling the Milk Carafe
The milk carafe can be lled before use or even during use.
Lift the carafe lid as shown in the gure.
1
27
27
Pour the milk into the milk carafe: the milk level must be between the
2
minimum (MIN) and maximum (MAX) level indicators shown on the
milk carafe.
The milk carafe is now ready for use.
3
Page 30
28
ENGLISH
1

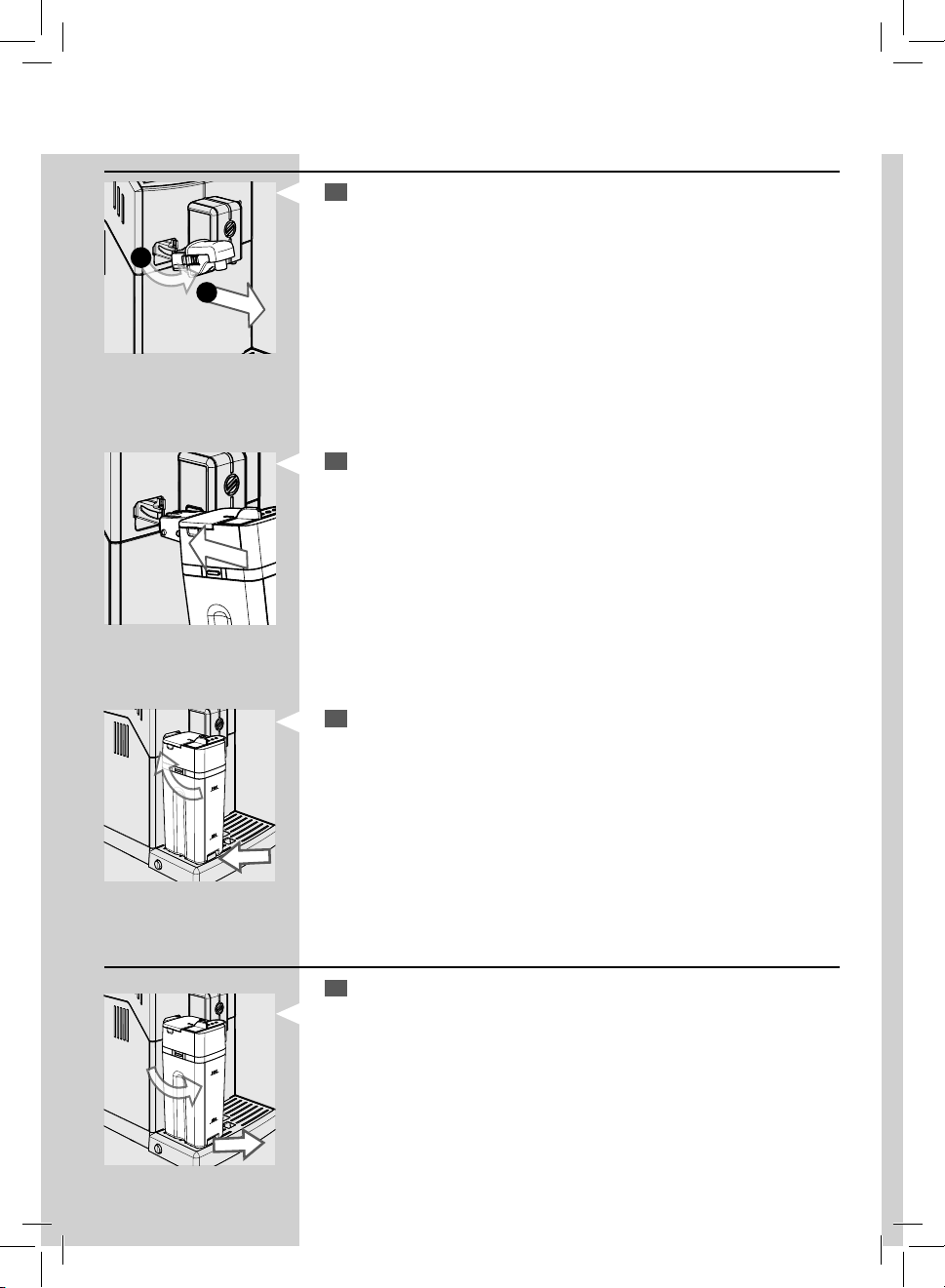

Inserting the Milk Carafe
If installed, remove the water dispensing spout as shown in the gure:
1
- Press the two buttons on the side to unlock it and lift it slightly;
- Pull the water dispensing spout to remove it.
2
Slightly tilt the milk carafe. Insert it all the way into the guides of the
2
machine.
Push the carafe towards the bottom while rotating at the same time,
3
until it is locked at the drip tray.
Do not force the carafe while inserting it.
Removing the Milk Carafe
Rotate the carafe upwards until it releases from the insert in the drip
1
tray. Then remove it.
Page 31
ENGLISH
29
29
Emptying the Milk Carafe
1
A
B
Press one of the release buttons to remove the top of the carafe as
1
shown in the gures (A or B).
1
Lift the top of the carafe. Empty the milk carafe and clean it properly.
2
Note:
After each use, clean the milk carafe as described in the “Cleaning and
Maintenance” chapter.
Page 32
30
ENGLISH

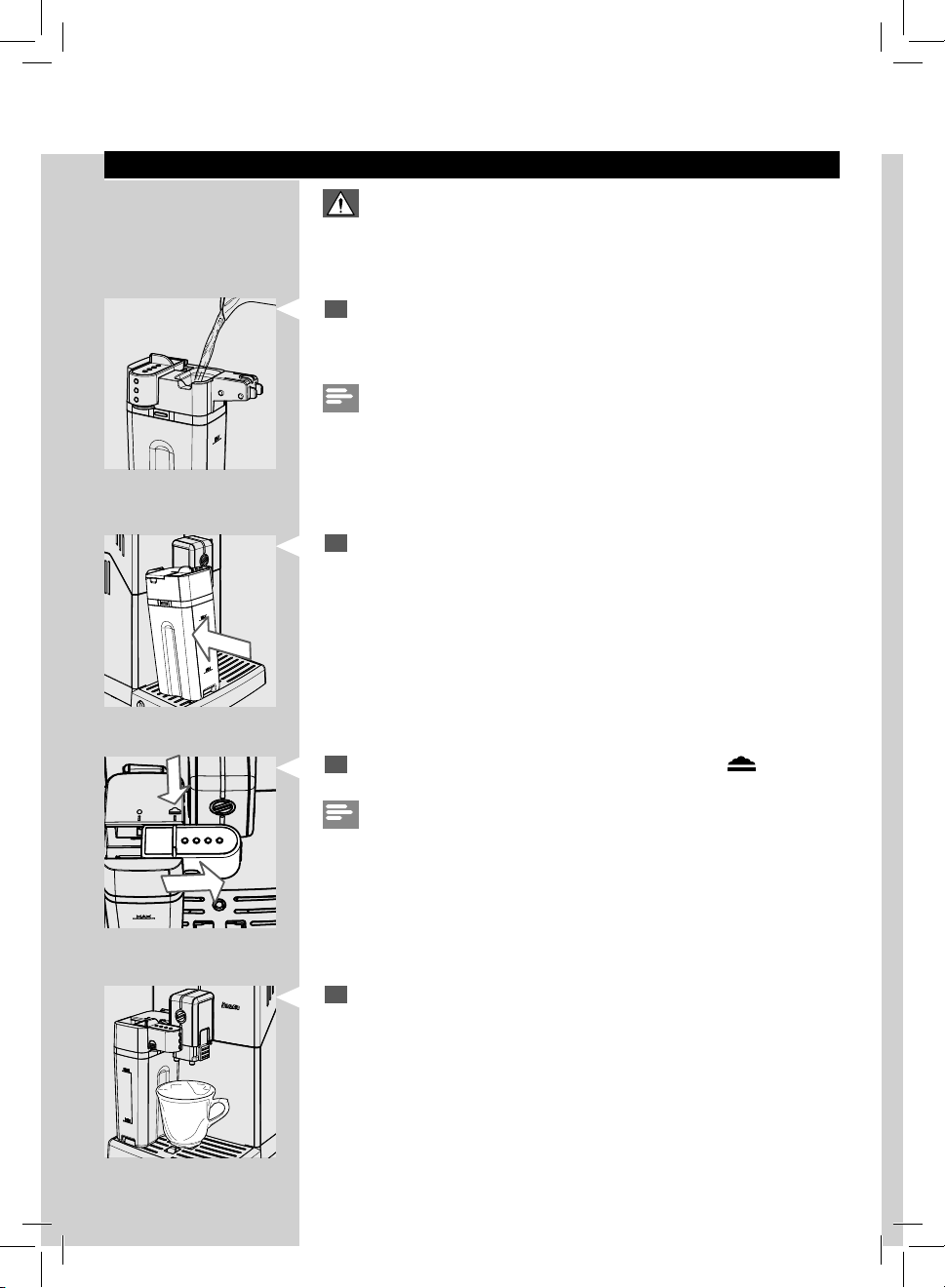

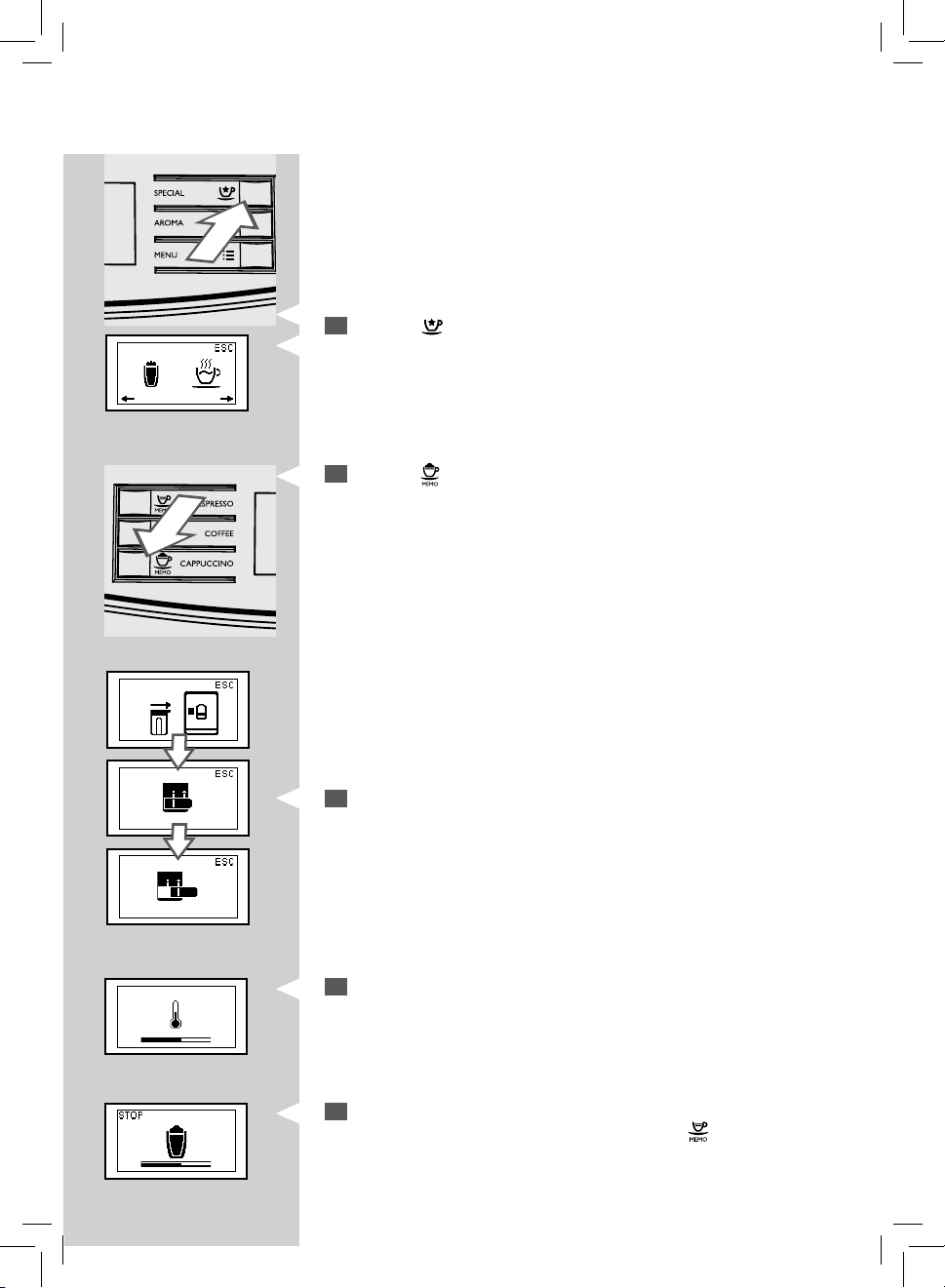

BREWING A CAPPUCCINO
Warning:
Danger of burning! Dispensing may be preceded by jets of milk and
steam. Danger of burning! Wait until the end of the cycle before removing the milk carafe.
Fill the milk carafe with milk. The milk level must be between the mini-
1
mum (MIN) and maximum (MAX) level indicators shown on the milk
carafe.
Note:
Use cold (~5 °C / 41°F) milk with a protein content of at least 3% to ensure
optimum results when preparing a cappuccino. Whole milk or skimmed
milk may be used depending on individual taste.
Insert the carafe into the machine.
2
Pull out the milk carafe dispenser to the right up to the “ ” icon.
3
Note:
If the milk carafe dispenser has not been pulled all the way out, milk may
not be properly frothed.
Place a cup under the dispensing spout.
4
Page 33
GreenGreenGreen
ENGLISH

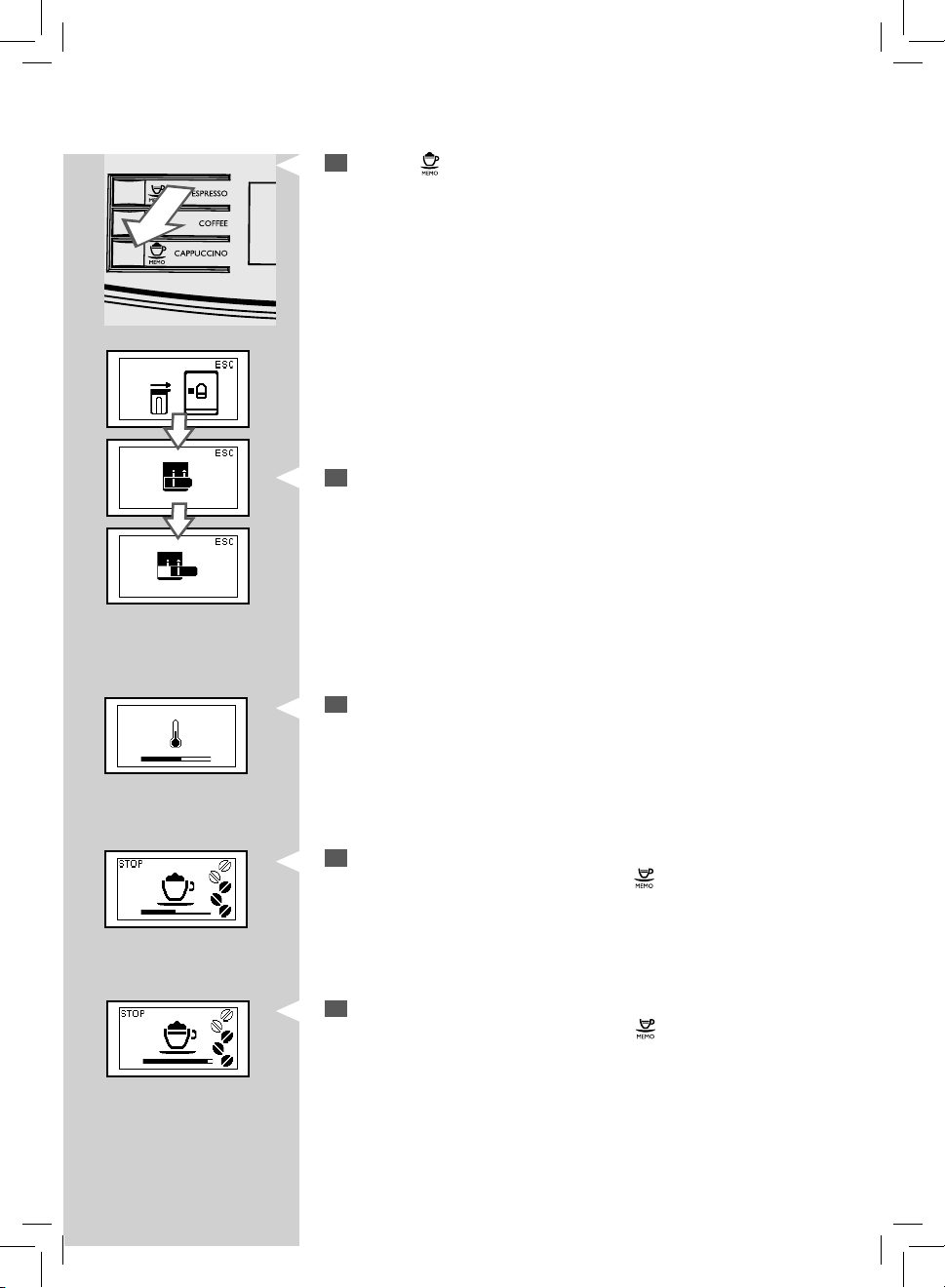

Press the “ ” button to start dispensing.
5
The machine reminds you to insert the carafe and remove the milk
6
carafe dispenser by showing the following icons.
31
31
Green
Green
Green
This icon is displayed during the preheating time required by the
7
machine.
When the following icon is shown, the machine dispenses milk. Dis-
8
pensing can be stopped by pressing the “
Once frothed milk has been dispensed, the machine brews co ee.
9
Brewing can be stopped by pressing the “
” button.
” button.
Page 34

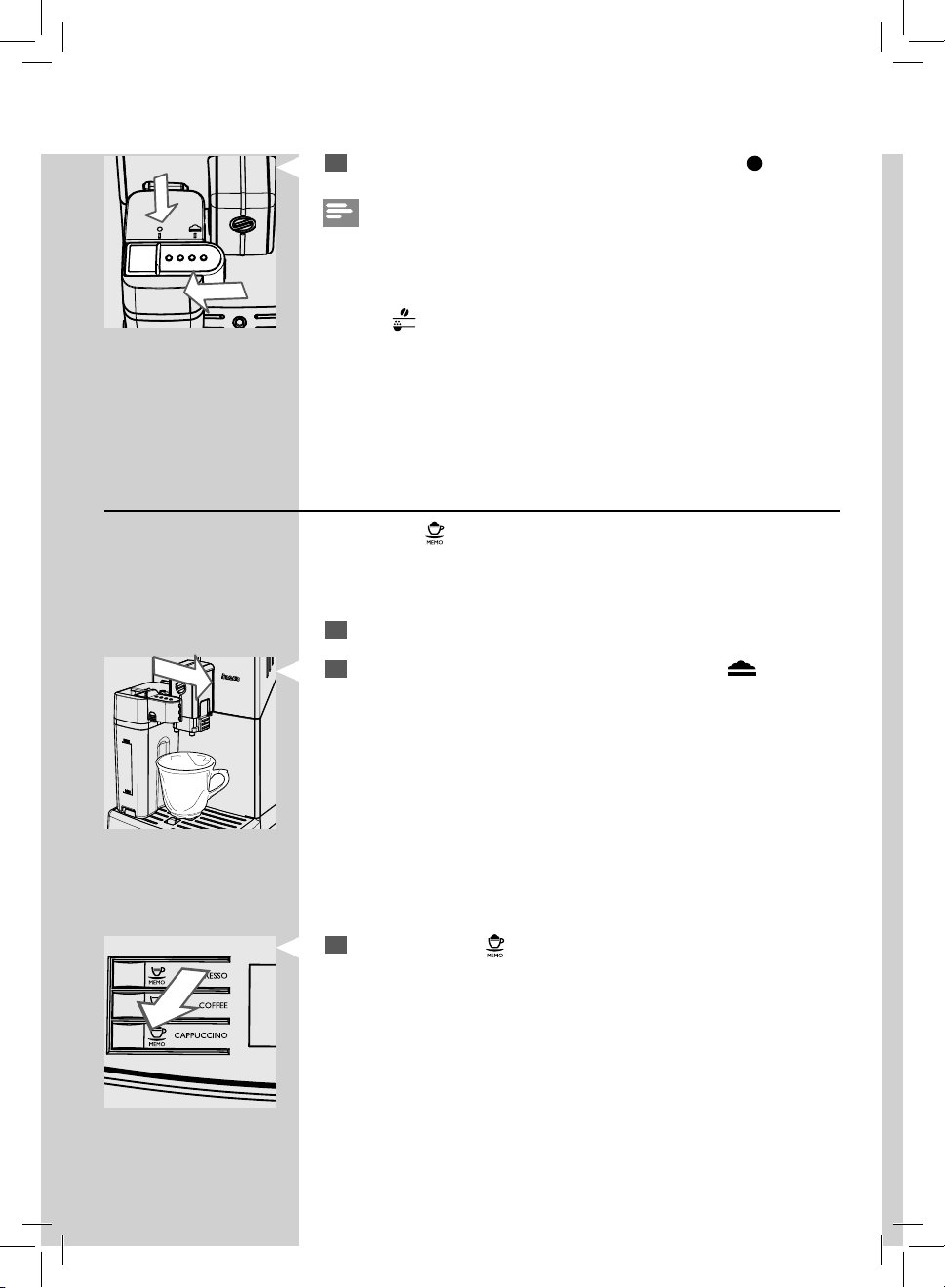

32
ENGLISH
Insert the milk carafe dispenser back by sliding it up to the “ ” icon.
10
Note:
After using the milk carafe, clean it as described in the "Cleaning and Maintenance" chapter.
You can prepare a cappuccino with pre-ground co ee.
Press the “
co ee into the compartment.
” button to select pre-ground co ee and pour pre-ground
Adjusting the Cappuccino Length
Each time the “ ” button is pressed, the machine brews a pre-set quantity
of cappuccino into the cup.
The machine allows you to adjust the amount of cappuccino brewed according to your taste and the size of your cups.
Fill the carafe with milk and insert it into the machine.
1
Pull out the milk carafe dispenser to the right up to the “ ” icon. Place
2
a cup under the dispensing spout.
Press and hold the “ ” button until the “MEMO” icon appears on the
3
display. Then release the button. The machine is now in programming
mode.
Page 35
GreenGreenGreen
GreenGreenGreen Green
ENGLISH

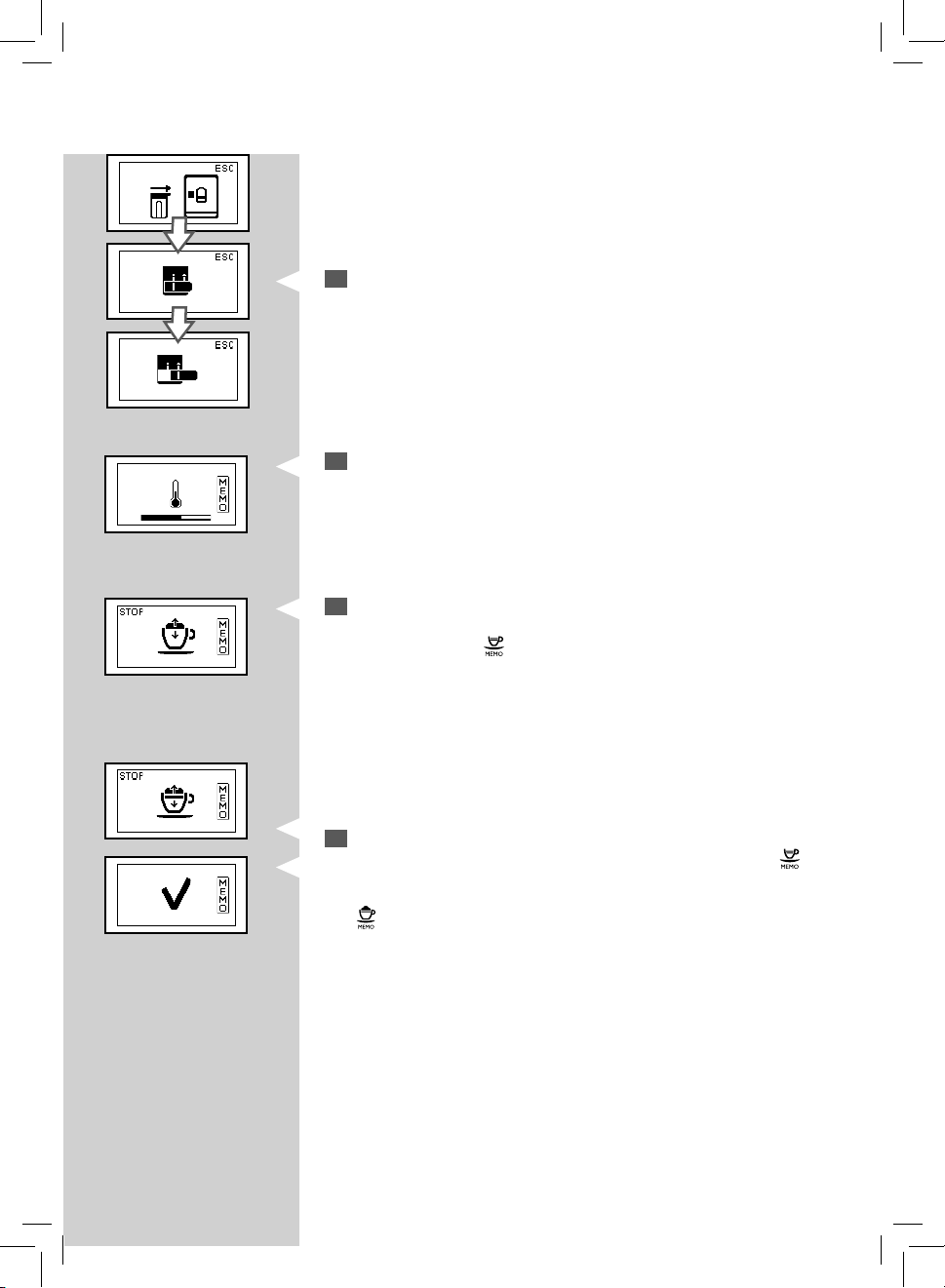

The machine reminds you to insert the carafe and remove the milk
4
carafe dispenser by showing the following icons.
This icon is displayed during the preheating time required by the
5
machine.
When the machine shows this icon, the machine starts dispensing
6
frothed milk into the cup. When the desired quantity of frothed milk is
reached, press the “
” button.
33
33
Once frothed milk has been dispensed, the machine starts brewing
7
co ee. When the desired co ee quantity is reached, press the “
ton.
The “
” button is now programmed. Every time it is pressed, the machine
will brew the same amount of cappuccino that was programmed.
” but-
Page 36
34
ENGLISH
FROTHING MILK
Warning:
Danger of burning! Dispensing may be preceded by jets of milk and
steam. Danger of burning!
Wait until the end of the cycle before removing the milk carafe.
Fill the milk carafe with milk. The milk level must be between the mini-
1
mum (MIN) and maximum (MAX) level indicators shown on the milk
carafe.
Note:
Use cold (~5 °C / 41°F) milk with a protein content of at least 3% to ensure
optimum results when preparing a cappuccino. Whole milk or skimmed
milk may be used depending on individual taste.
Insert the carafe into the machine.
2
Pull out the milk carafe dispenser to the right up to the “ ” icon.
3
Note:
If the milk carafe dispenser has not been pulled all the way out, milk may
not be properly frothed.
Place a cup under the dispensing spout.
4
Page 37
Green
Press the " " button. The machine shows this display.
5
Press the “ ” button to select frothed milk.
6
ENGLISH
35
35
GreenGreenGreen
GreenGreen

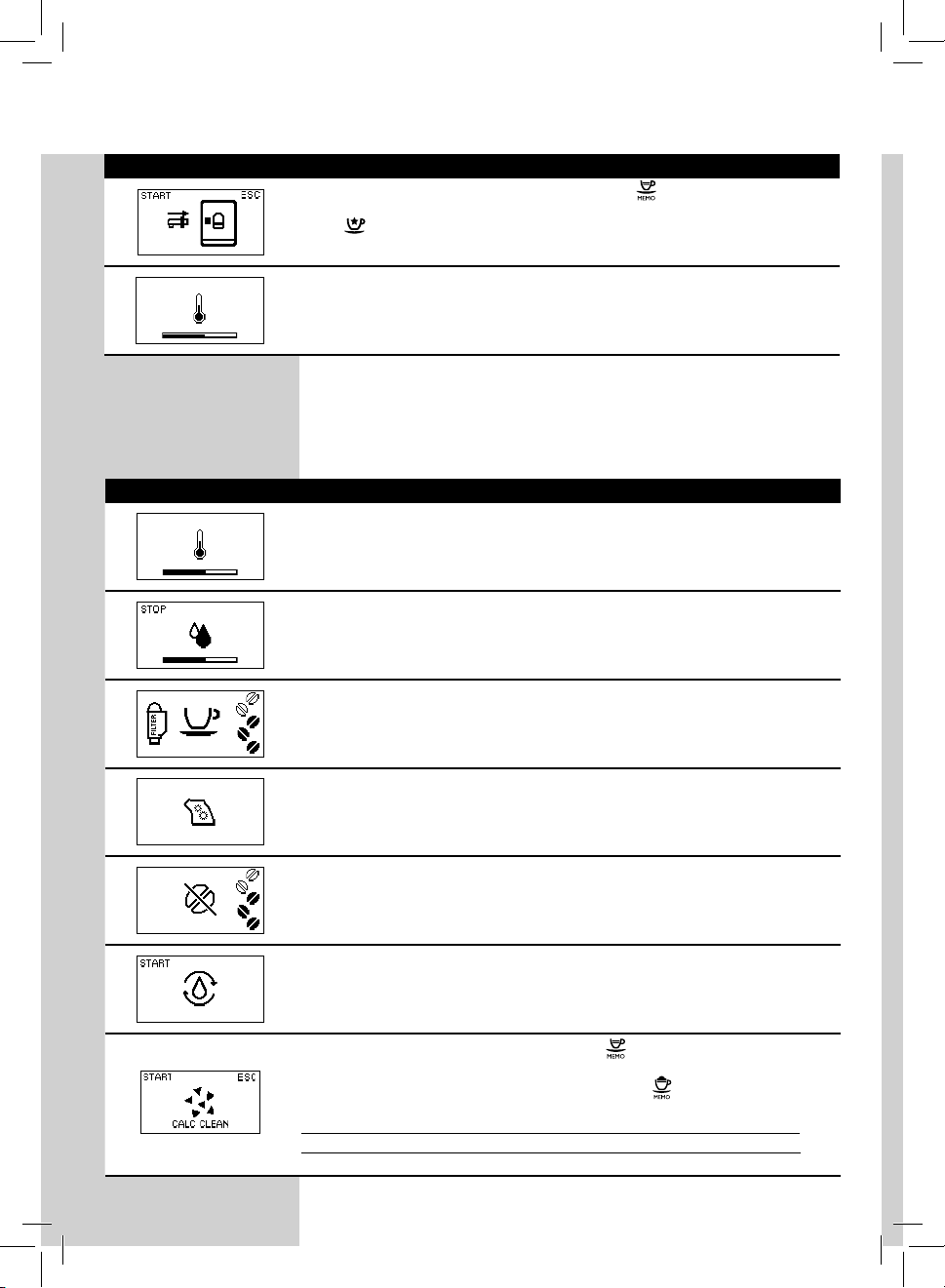

The machine reminds you to insert the carafe and remove the milk
7
carafe dispenser by showing the following icons.
This icon is displayed during the preheating time required by the
8
machine.
The machine dispenses a prede ned quantity of frothed milk into the
9
cup. Dispensing can be stopped by pressing the “
” button.
Page 38
36
ENGLISH

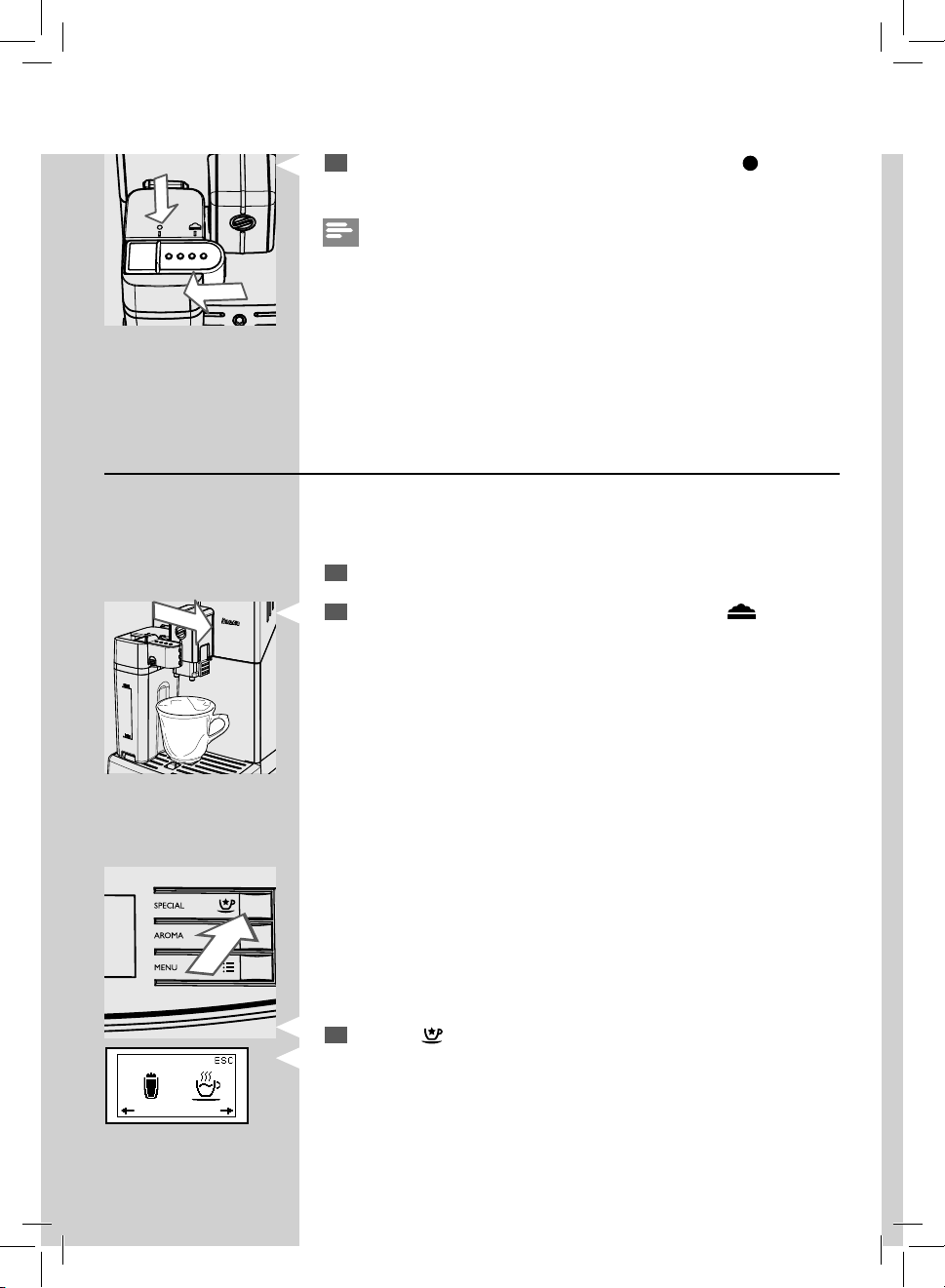

Insert the milk carafe dispenser back by sliding it up to the “ ” icon.
10
Note:
After using the milk carafe, clean it as described in the "Cleaning and Maintenance" chapter.
Adjusting the Frothed Milk Length
Each time this function is selected, the machine dispenses a preset amount
of frothed milk into the cup. The machine allows you to adjust the amount
of frothed milk according to your taste and the size of your cups.
Fill the carafe with milk and insert it into the machine.
1
Pull out the milk carafe dispenser to the right up to the “ ” icon. Place
2
a cup under the dispensing spout.
Green

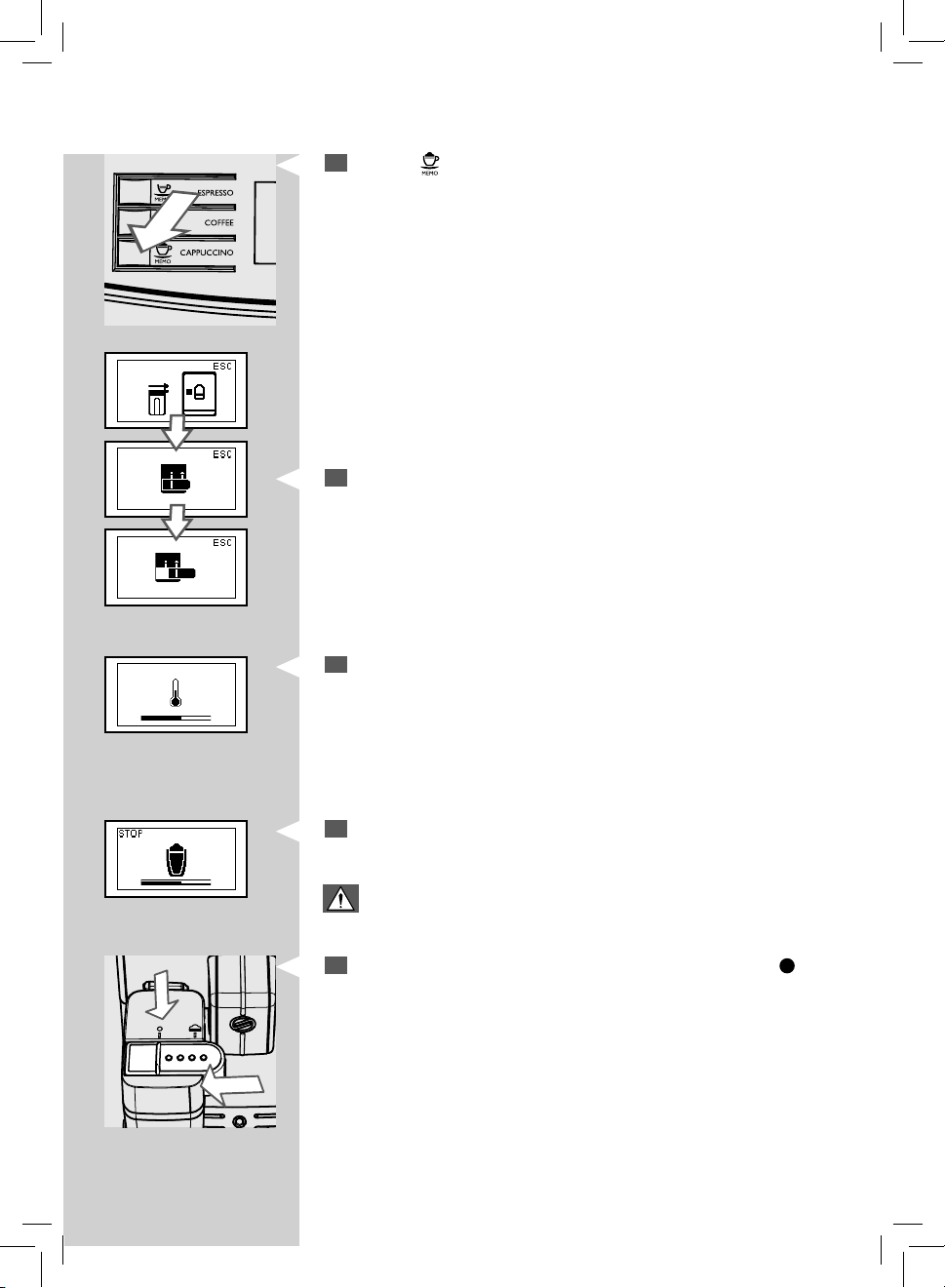

Press the " " button. The machine shows this display.
3
Page 39
GreenGreenGreen
ENGLISH
Press and hold the “ ” button to select frothed milk until the “MEMO”
4
icon appears on the display. Then release the button. The machine is
now in programming mode.

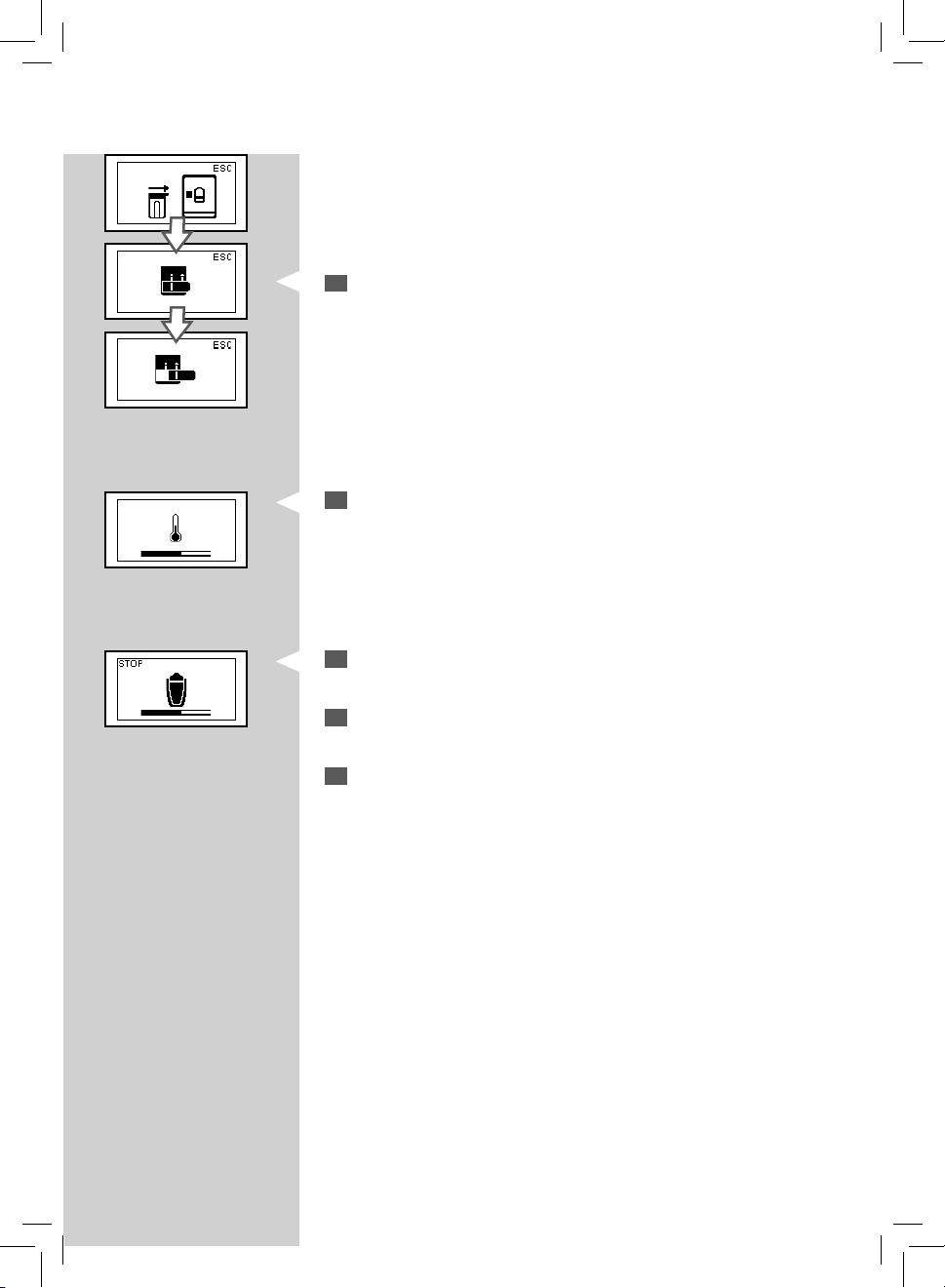

The machine reminds you to insert the carafe and remove the milk
5
carafe dispenser by showing the following icons.
37
37
This icon is displayed during the preheating time required by the
6
machine.
GreenGreenGreen
When the desired amount of frothed milk is reached, press the “ ”
7
button.
button is now programmed. Every time it is pressed, the machine
The
will brew the same amount of frothed milk that was programmed.
Page 40
38
ENGLISH

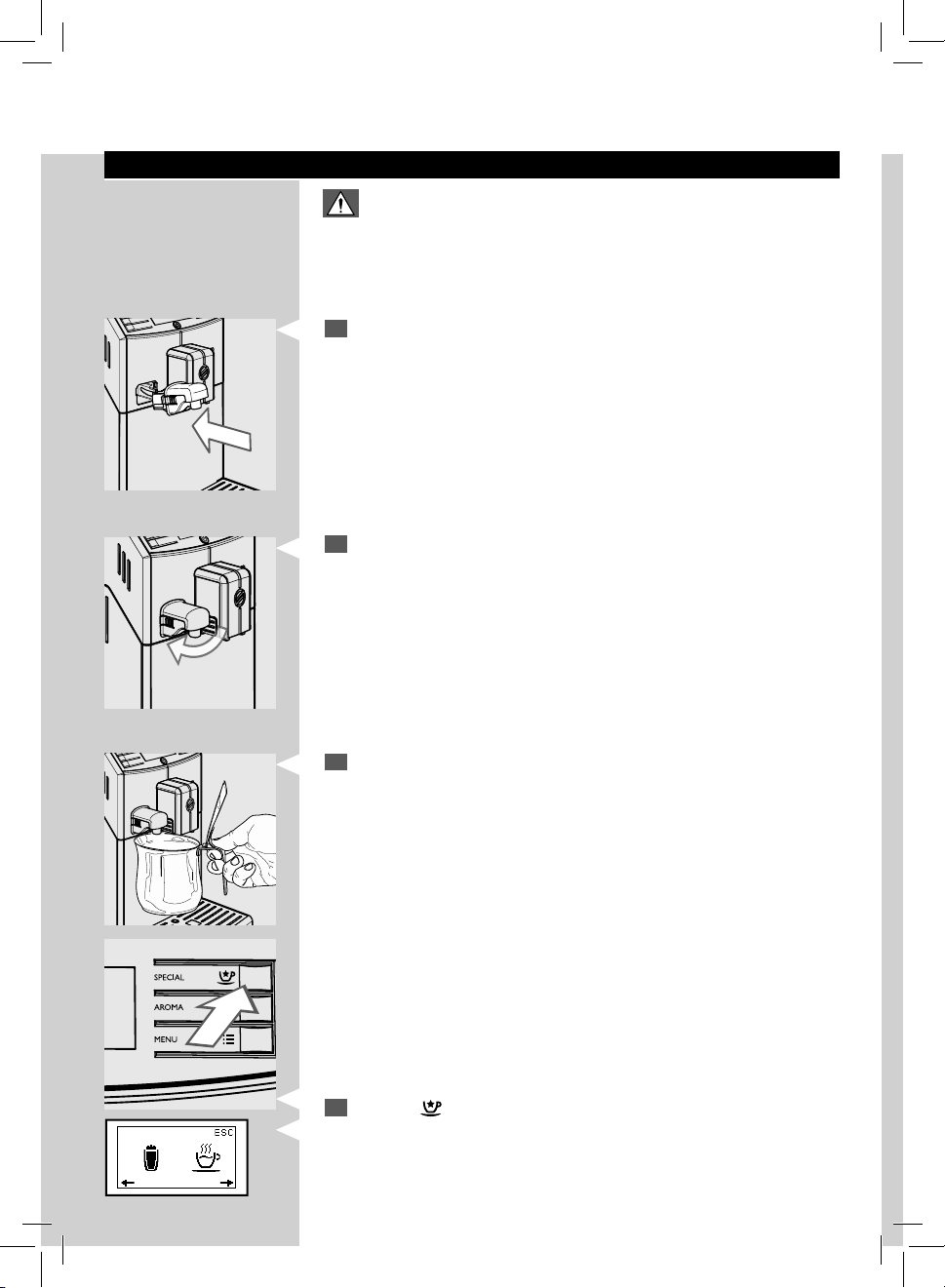

DISPENSING HOT WATER
Warning:
Danger of burning! Dispensing may be preceded by small jets of hot
water and steam. Danger of burning! Wait until the end of the cycle
before removing the water dispensing spout.
Slightly tilt the water dispensing spout and insert it all the way in into
1
the guides of the machine.
Push the water dispensing spout towards the bottom while rotating at
2
the same time, until it is locked in the machine as shown in the gure.
Green
Place a container under the hot water dispensing spout.
3
Press the “ ” button. The machine shows this display.
4
Page 41
Green
ENGLISH
Press the “ ” button to start dispensing.
5
This icon is displayed. The machine reminds you to install the water
6
dispensing spout. Check that the water dispensing spout is correctly
installed. Press “
water.
This icon is displayed during the preheating time required by the
7
machine.
” to con rm. The machine will start dispensing hot
39
39
Green Green
Dispense the desired amount of hot water. To stop dispensing hot
8
water, press the "
" button.
Page 42
40
ENGLISH

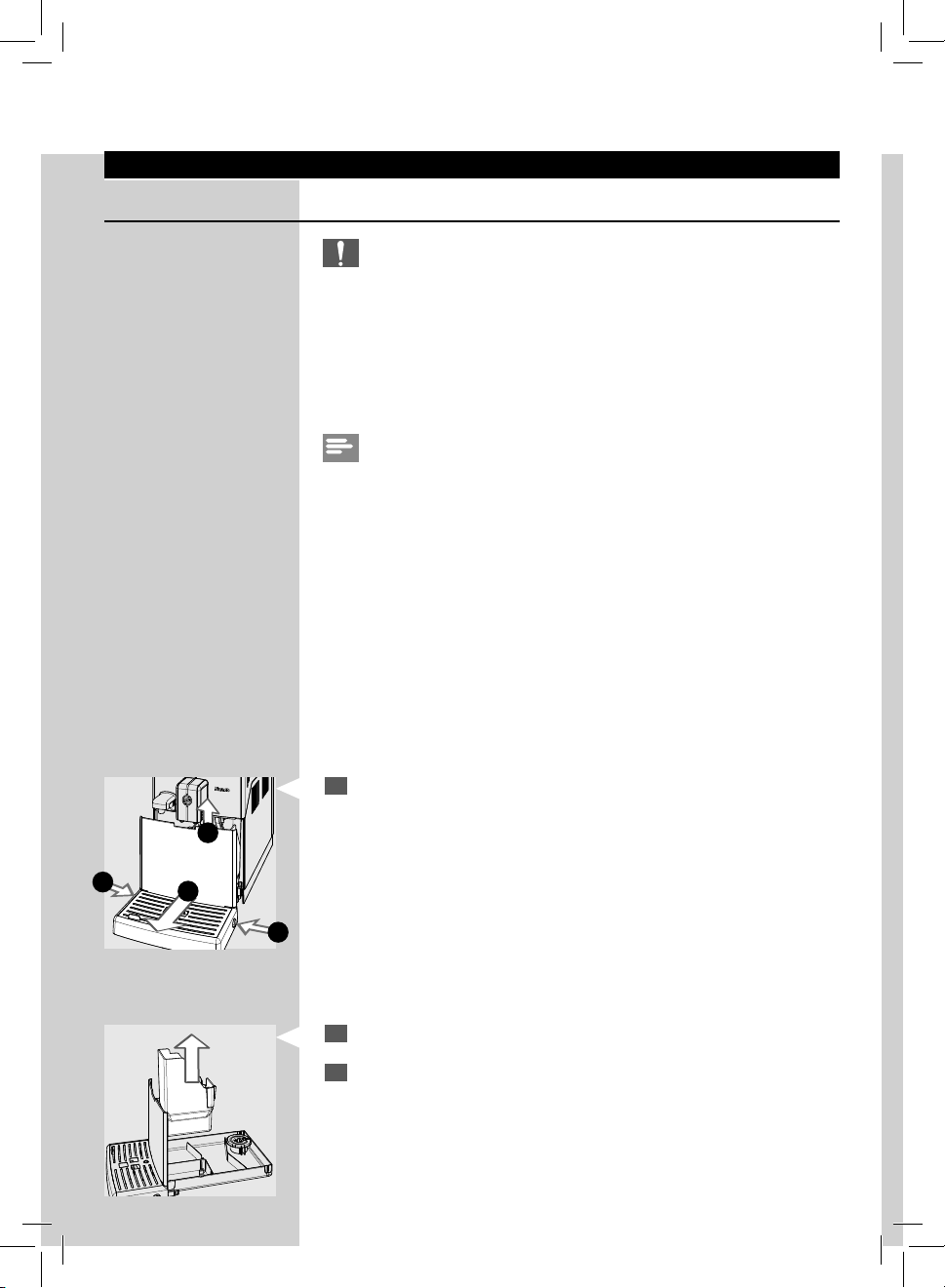

CLEANING AND MAINTENANCE
Daily Cleaning of the Machine
Caution:
Timely cleaning and maintenance of your machine is very important
as it prolongs the lifetime of your machine. Your machine is continuously exposed to moisture, co ee and limescale!
The activities you need to perform and their frequency are described
in detail in this chapter. Not doing this will ultimately make your
machine stop working properly. This repair is NOT covered by your
warranty.
Note:
- Use a soft, dampened cloth to clean the machine.
- Only the cup holder grill and all parts of the carafe described in the
"Weekly Cleaning of the Milk Carafe" section can be washed in the
dishwasher. Any other components must be washed with lukewarm
water.
- Do not immerse the machine in water.
- Do not use alcohol, solvents, and/or abrasive objects to clean the
machine.
- Do not dry the machine and/or its components using a microwave
and/or standard oven.
Empty and clean the co ee grounds drawer and the drip tray daily
1
with the machine turned on.
1
2
3
2
1 Raise the co ee dispensing spout;
2 Press the side buttons;
3 Remove the drip tray.
Other maintenance operations can only be carried out when the machine
is turned o and unplugged.
Remove the co ee grounds drawer and empty it.
2
Empty and clean the drip tray.
3
Page 43
ENGLISH

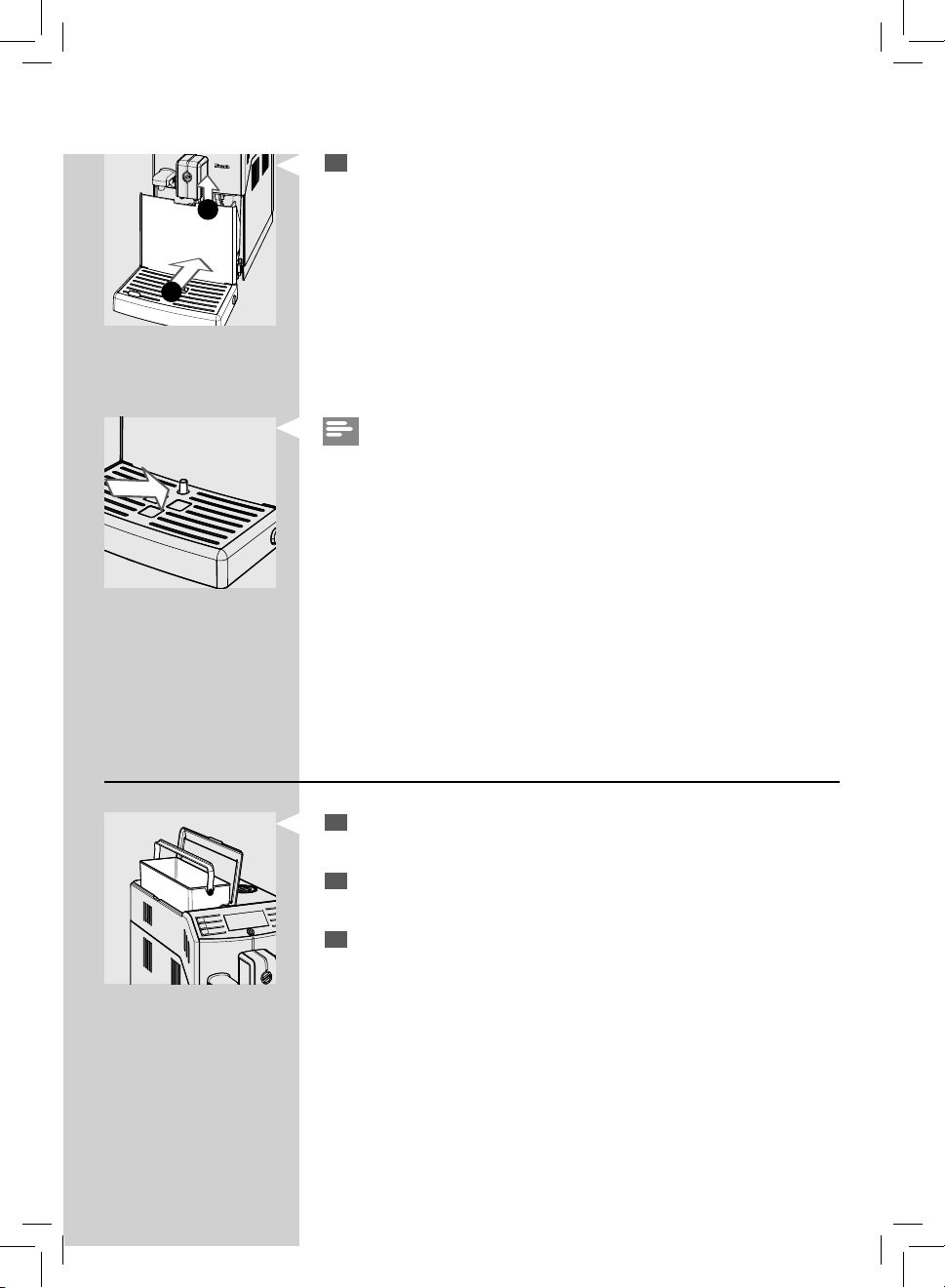

Insert the co ee grounds drawer back into the drip tray and this into
4
the machine.
41
41
1
2
Note:
Also empty the drip tray and co ee grounds drawer when the full drip tray
indicator is raised.
Daily Cleaning of the Water Tank
Remove the small white lter or the “INTENZA+” water lter (if in-
1
stalled) from the water tank and wash it with fresh water.
Put the small white lter or the “INTENZA+” water lter (if installed)
2
back in its housing by gently pressing and turning it at the same time.
Fill the water tank with fresh water.
3
Page 44
42
1
ENGLISH

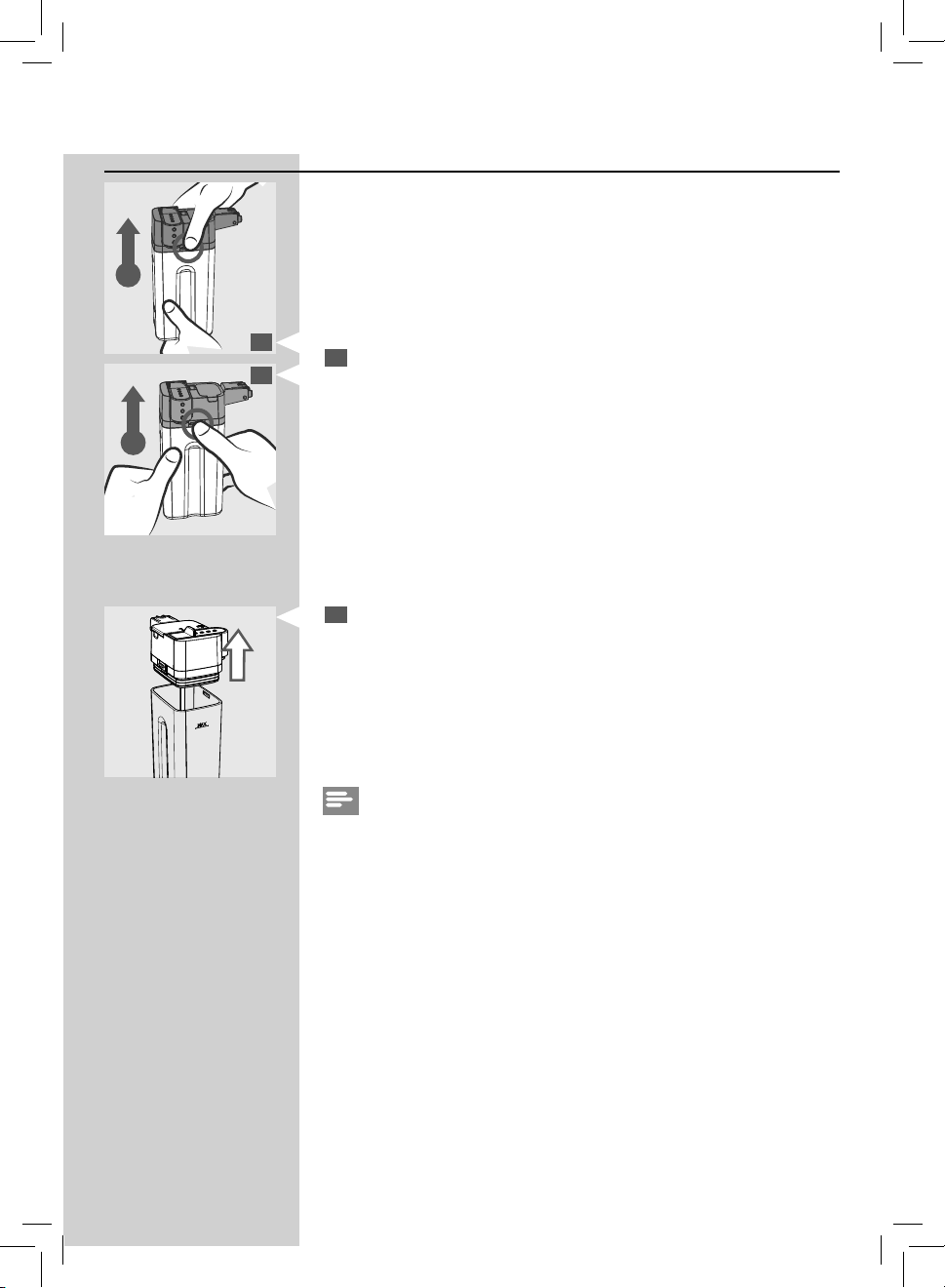

Daily Cleaning of the Milk Carafe
It is important that you clean the milk carafe daily or after each use as it
preserves hygiene and ensures perfect frothed milk consistency.
Warning:
Danger of burning! Dispensing may be preceded by small jets of hot
water and steam. Danger of burning! Wait until the end of the cycle
before removing the milk carafe.
A
B
Press one of the release buttons to remove the top of the carafe as
1
shown in the gures (A or B).
1
Rinse the top of the carafe and the milk carafe with lukewarm water.
2
Remove all milk residues.
Attach the top of the milk carafe, ensuring it is locked into place.
3
Page 45
ENGLISH

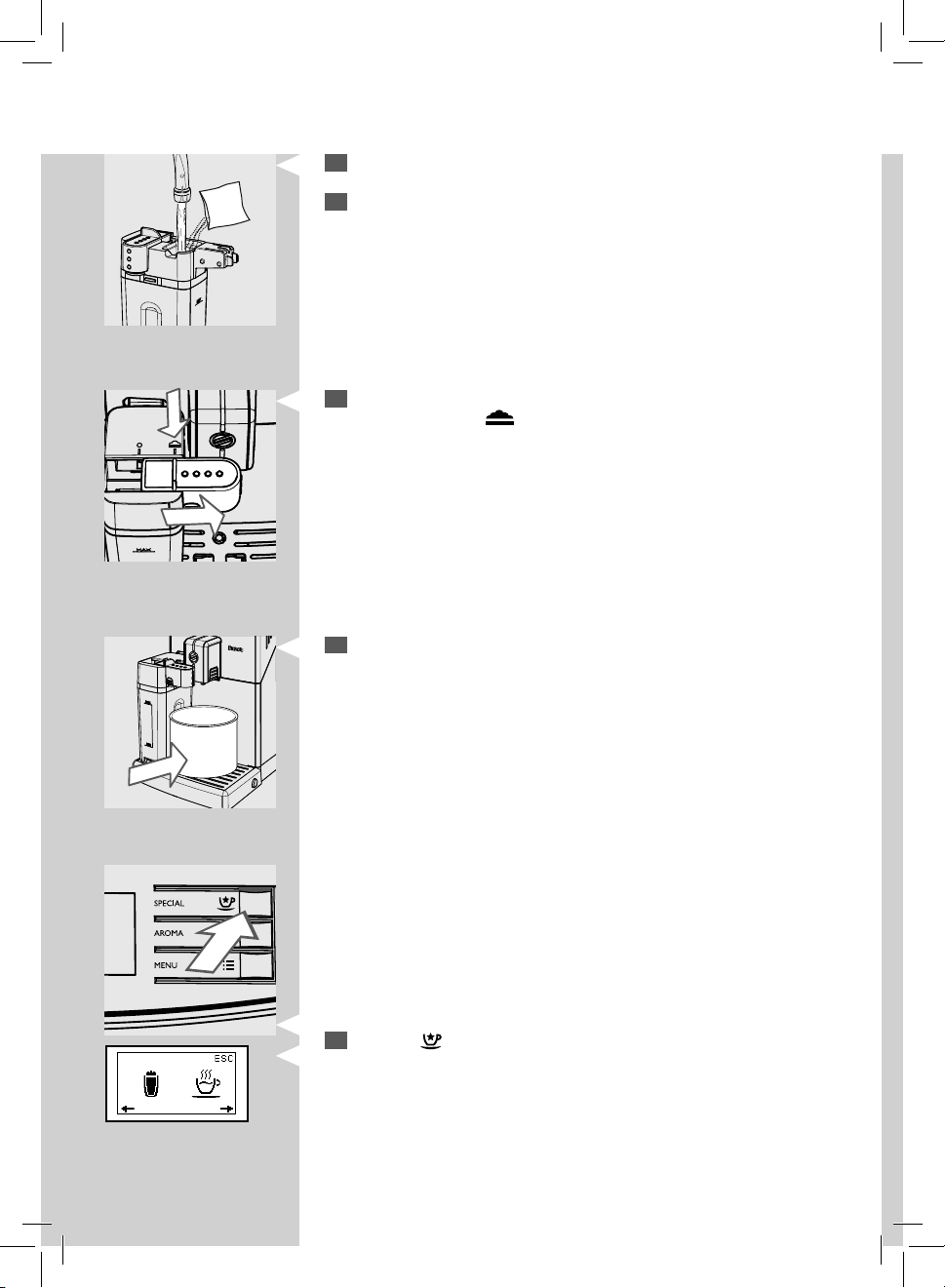

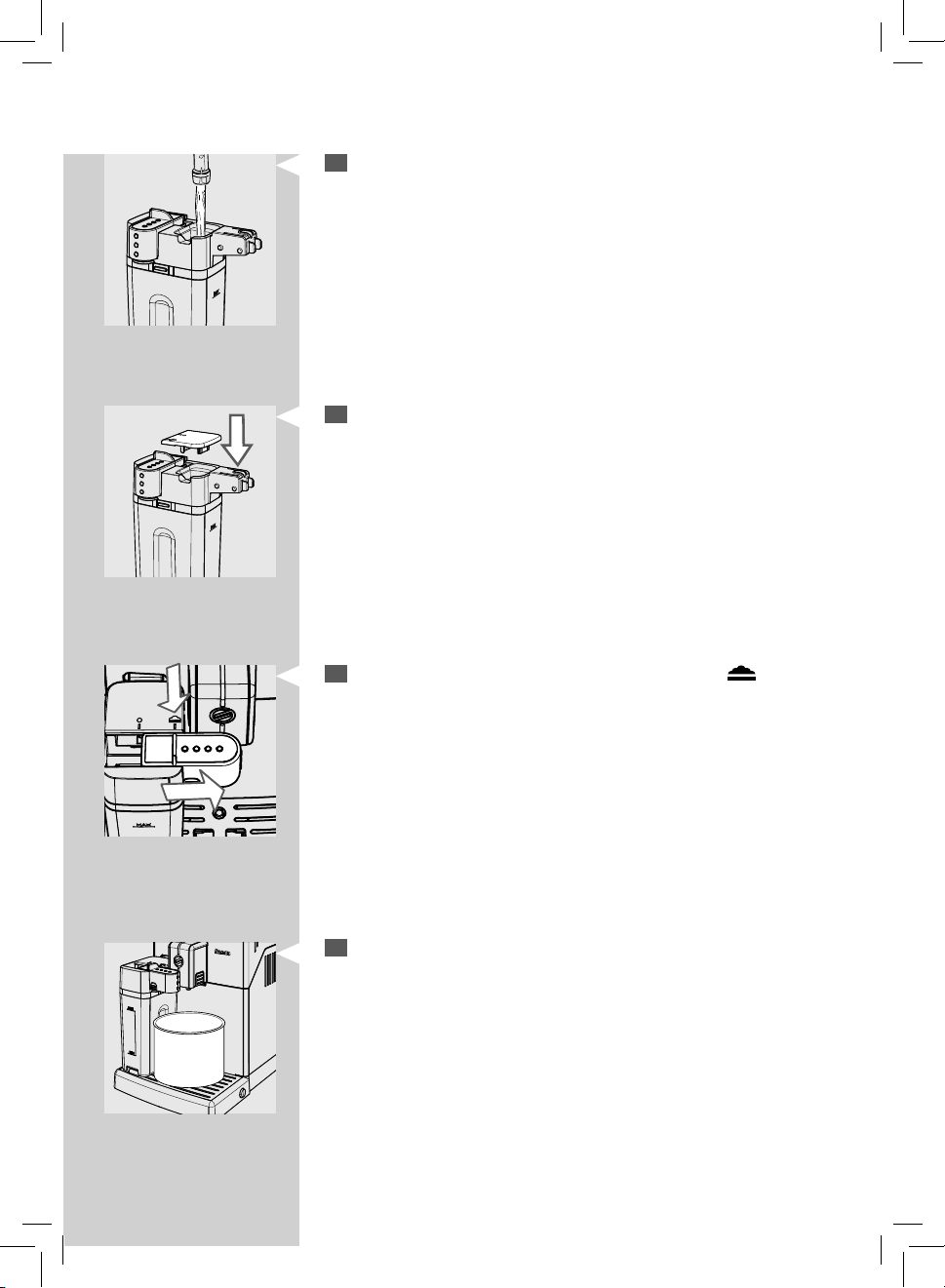

Remove the lid and ll the milk carafe up to the MAX level with fresh
4
water.
Put the lid back onto the milk carafe. Insert the carafe into the
5
machine.
Pull out the milk carafe dispenser to the right up to the “ ” icon.
6
43
43
Place a container under the dispensing spout.
7
Page 46
44
ENGLISH
Green
Press the “ ” button. The machine shows this display.
8
Press the “ ” button to select frothed milk.
9
GreenGreenGreen
Green
The machine reminds you to insert the carafe and remove the milk
10
carafe dispenser by showing the following icons.
This icon is displayed during the preheating time required by the
11
machine.
Page 47

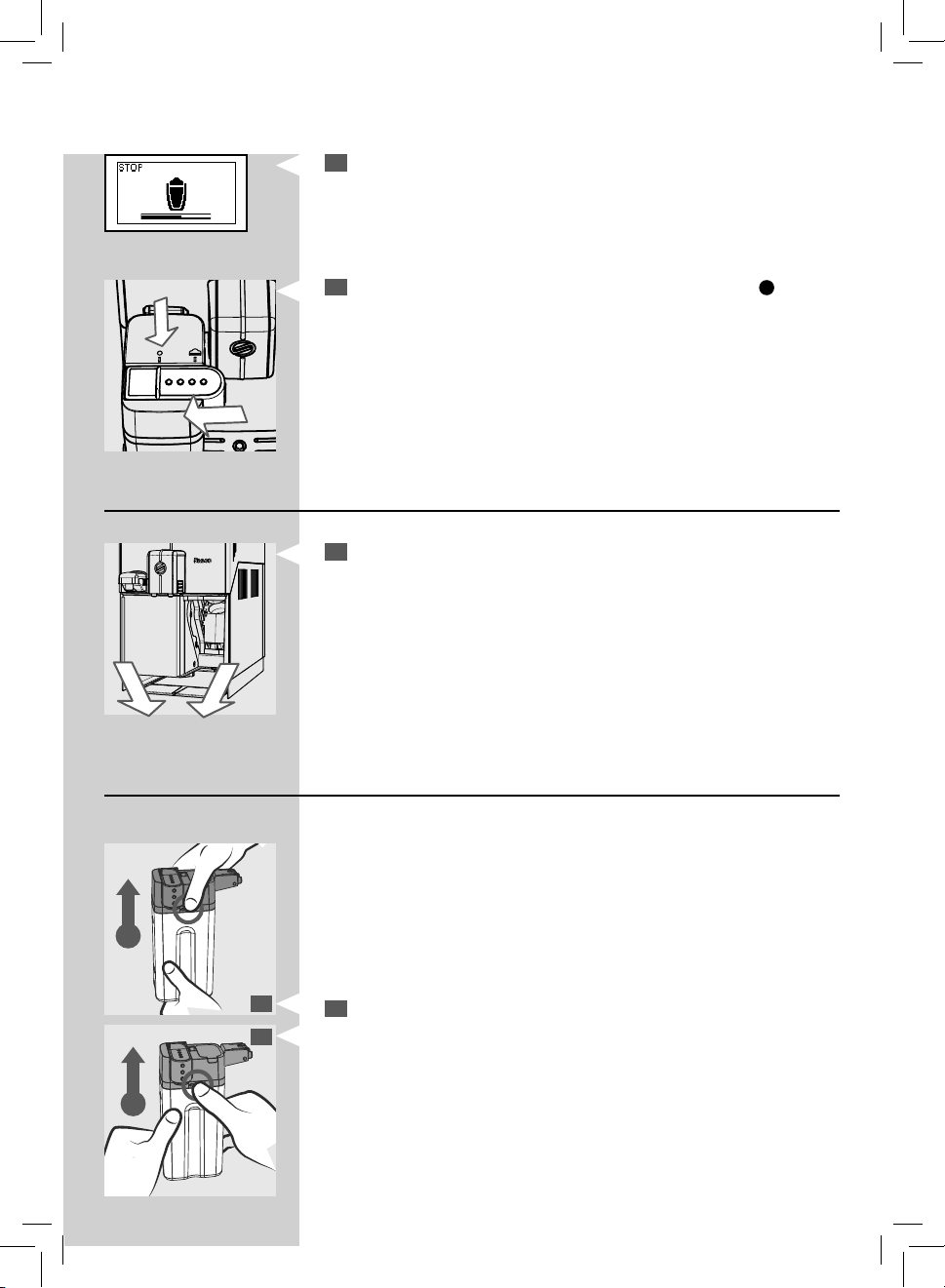

Once the machine stops dispensing water, washing is nished.
12
Green
Insert the milk carafe dispenser back by sliding it up to the “ ” icon.
13
Remove the milk carafe and empty it.
Weekly Cleaning of the Machine
Clean the seat of the drip tray.
1
ENGLISH
45
45
Weekly Cleaning of the Milk Carafe
The weekly cleaning is more thorough since all milk residue is removed
from the dispenser.
1
A
B
Press one of the release buttons to remove the top of the carafe as
1
shown in the gures (A or B).
1
Page 48
46
ENGLISH
A

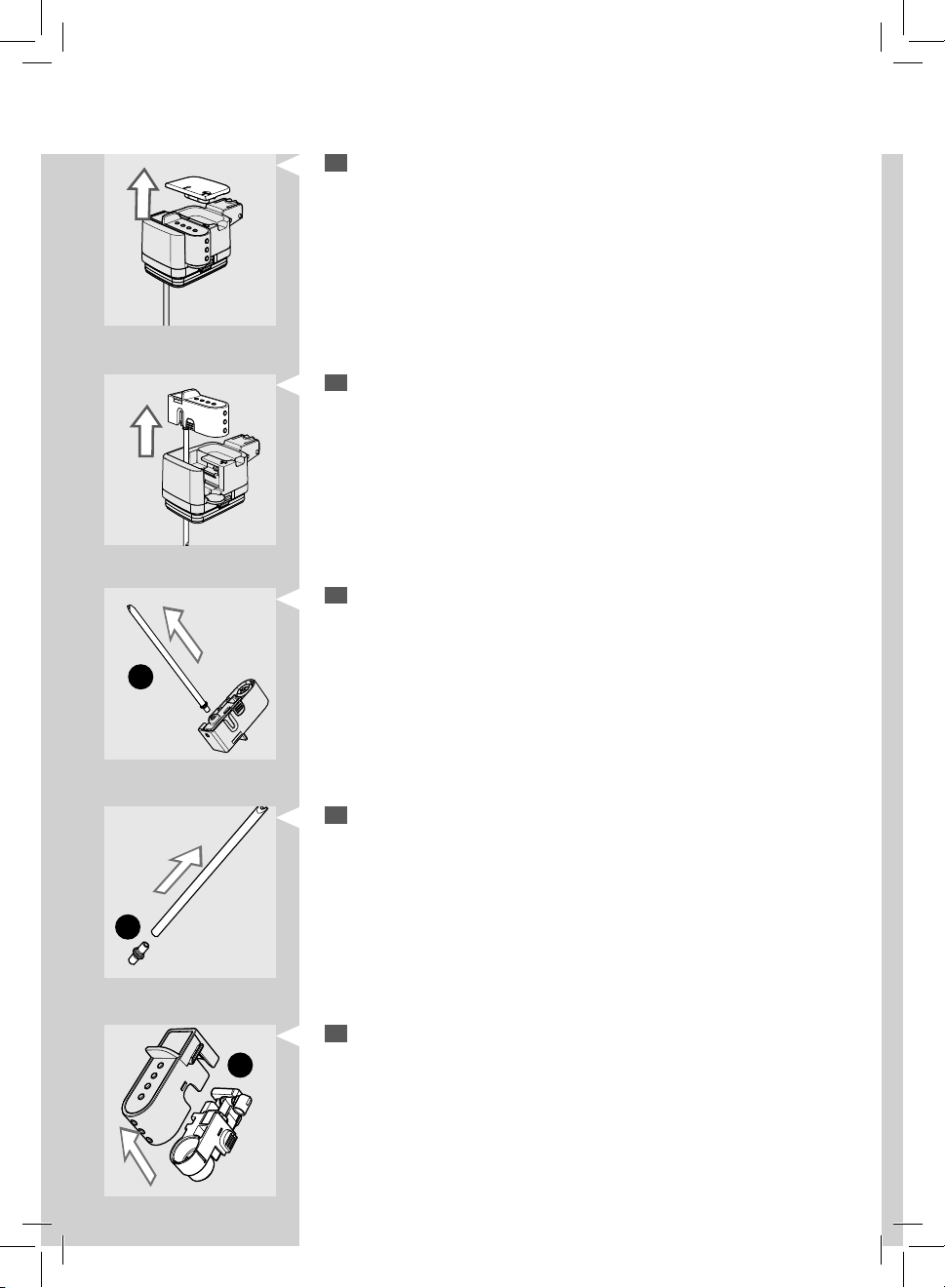

Remove the lid.
2

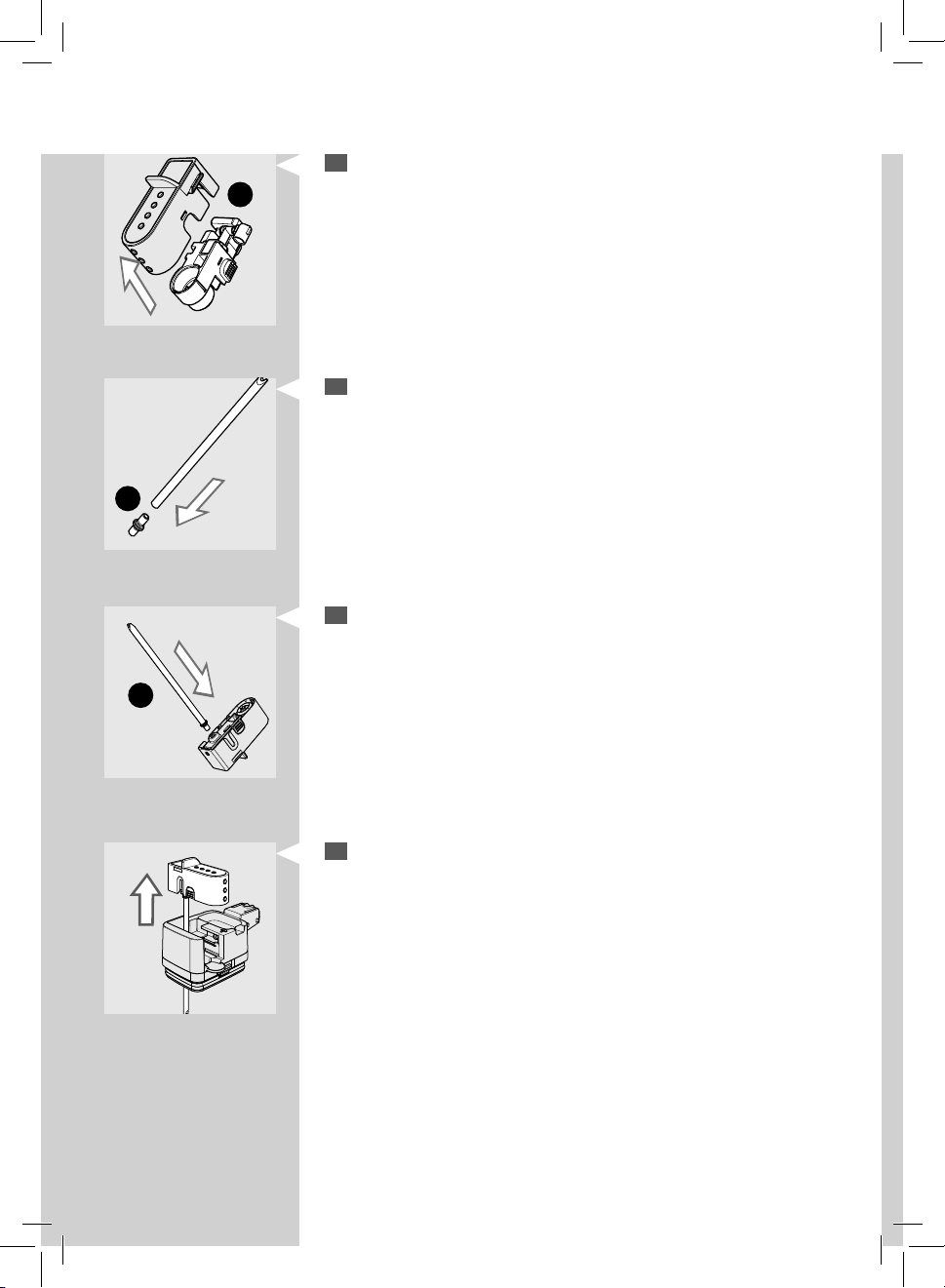

Lift the dispensing spout to remove it from the top of the carafe.
3
The milk carafe dispenser is made up of six parts that must be
disassembled. Each part is indicated by a capital letter (A, B, C, D, E, F),
as shown in the gures below.
Remove the suction tube with the tting (A) from the milk frother.
4
Remove the tting (B) from the suction tube.
5
B
Detach the lid (C) from the milk carafe dispenser by pushing
6
C
downwards while slightly pressing on the sides.
Page 49

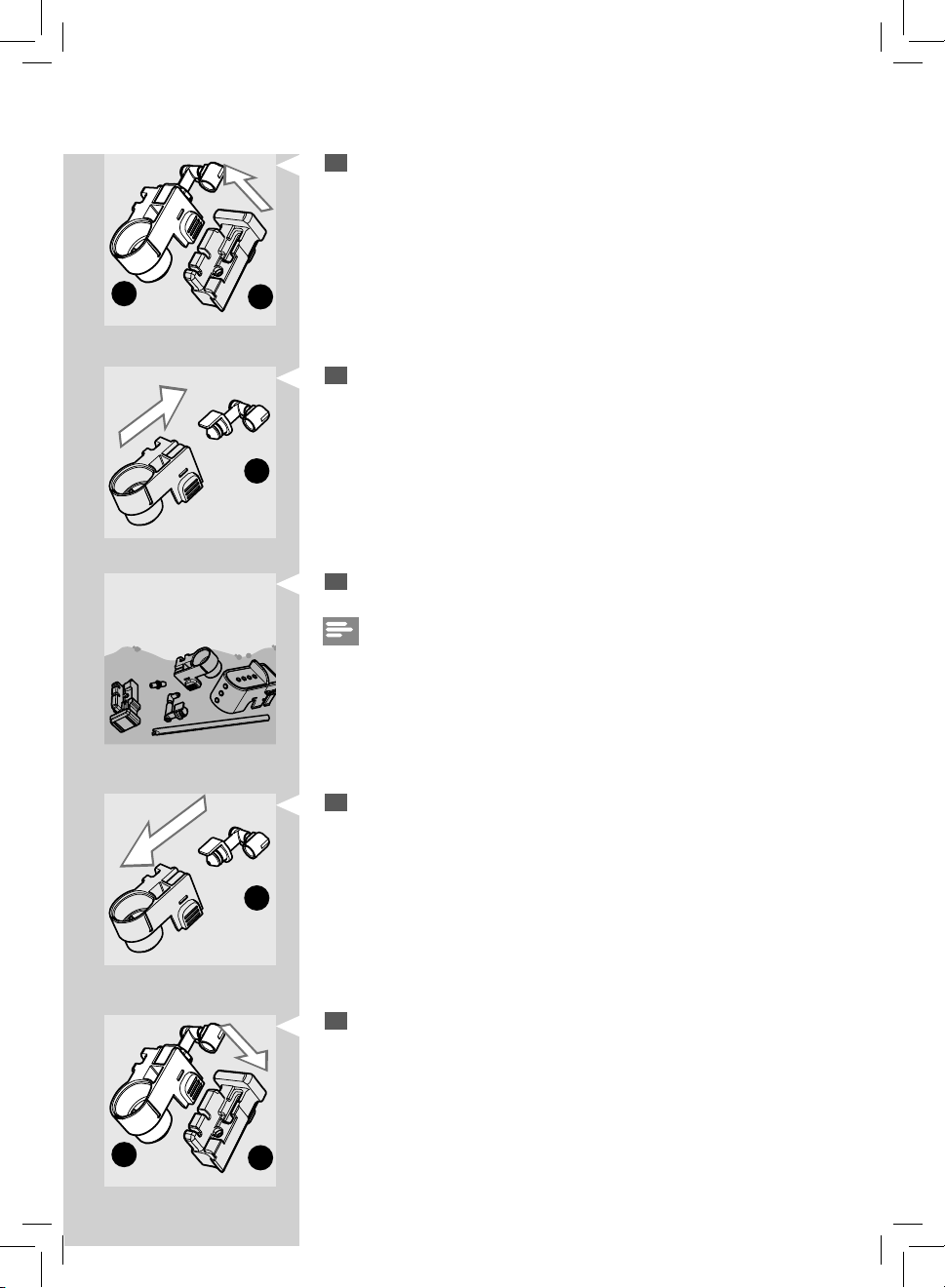

Remove the milk frothing device (D) from the support (E).
7
ENGLISH
47
47
D
E
Remove the tting (F) from the milk frothing device by pulling it
8
outwards.
F
Clean all the parts thoroughly with lukewarm water.
9
Note:
You can also clean individual parts in the dishwasher.
Insert the tting (F) into the milk frothing device by pressing it up to its
10
limit.
F
Insert the milk frothing device (D) into the support (E).
11
D
E
Page 50
48
B
ENGLISH
Attach the top (C) to the milk carafe dispenser.
12
C
Insert the tting (B) into the suction tube.
13
Insert the suction tube with the tting (A) into the milk frother.
14
A
Insert the dispenser into the top part of the carafe.
15
Page 51
ENGLISH
49
49
A
B

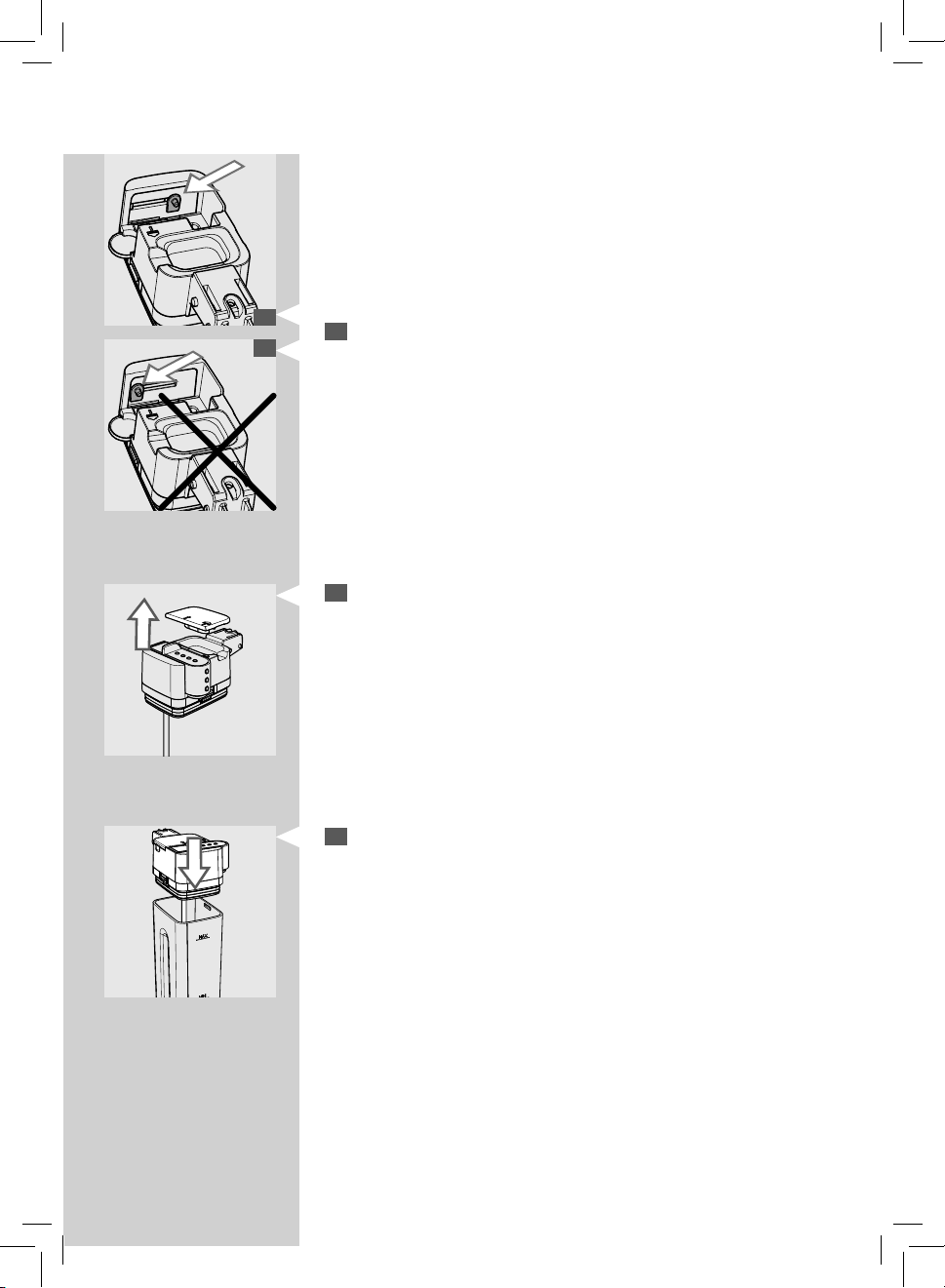

If you cannot install the dispenser at the top of the carafe, the pin is in
16
the wrong position (B). Before installing the dispenser, manually push
the pin to the (A) position.
Insert the lid.
17
Attach the top of the milk carafe, ensuring it is locked into place.
18
Page 52
50
ENGLISH

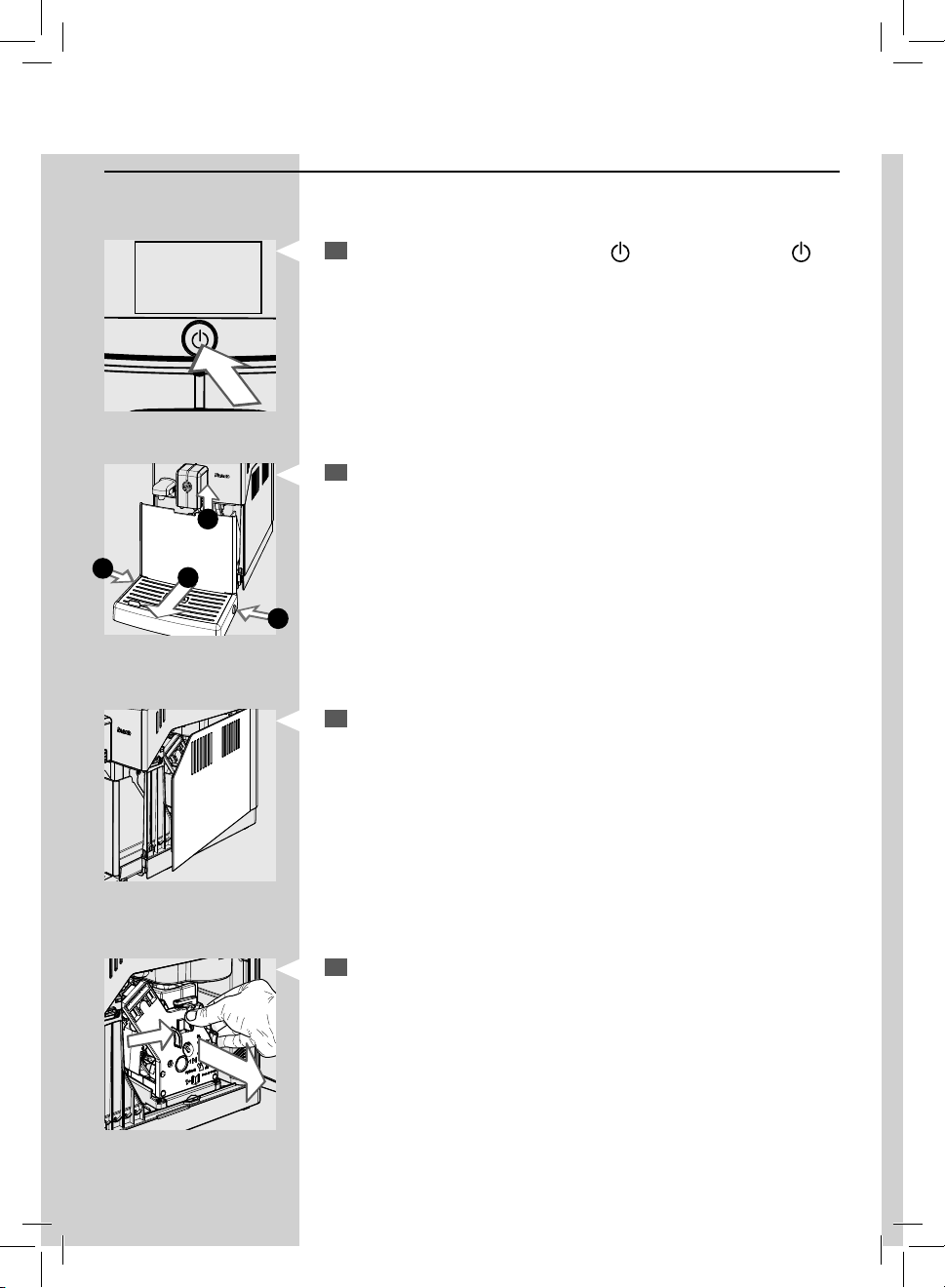

Weekly Cleaning of the Brew Group
The brew group should be cleaned every time the co ee bean hopper is
lled or at least once a week.

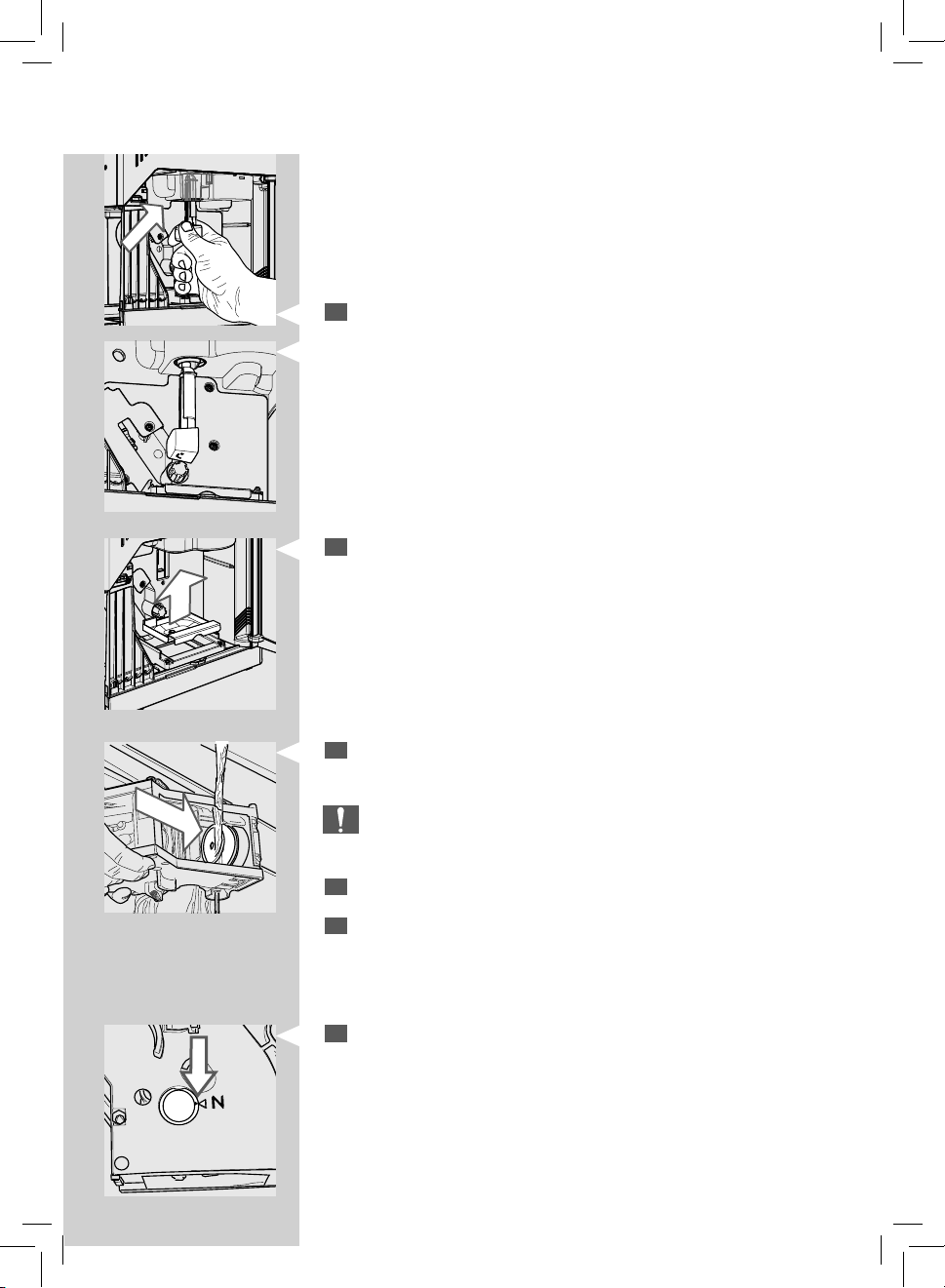

Turn o the machine by pressing the “ ” button. Wait until the “ ”
1
button ashes and unplug the power cord.
Raise the co ee dispensing spout and remove the drip tray and co ee
2
grounds drawer by pressing the side buttons.
1
2
3
2
Open the service door.
3
To remove the brew group, press the «PUSH» button and pull it by the
4
handle. Pull it out horizontally without turning it.
Page 53
ENGLISH
Thoroughly clean the co ee duct outlet with the special cleaning tool
5
supplied with the machine, or with a spoon handle. Make sure that the
cleaning tool is inserted as shown in the gure.
Remove the co ee residues drawer and wash it thoroughly.
6
51
51
Thoroughly wash the brew group with lukewarm water and carefully
7
clean the upper lter.
Caution:
Do not use detergent or soap to clean the brew group.
Let the brew group air-dry thoroughly.
8
Thoroughly clean the inside of the machine using a soft, dampened
9
cloth.
Make sure the brew group is in the o position; the two reference
10
marks must match.
Page 54
52
ENGLISH

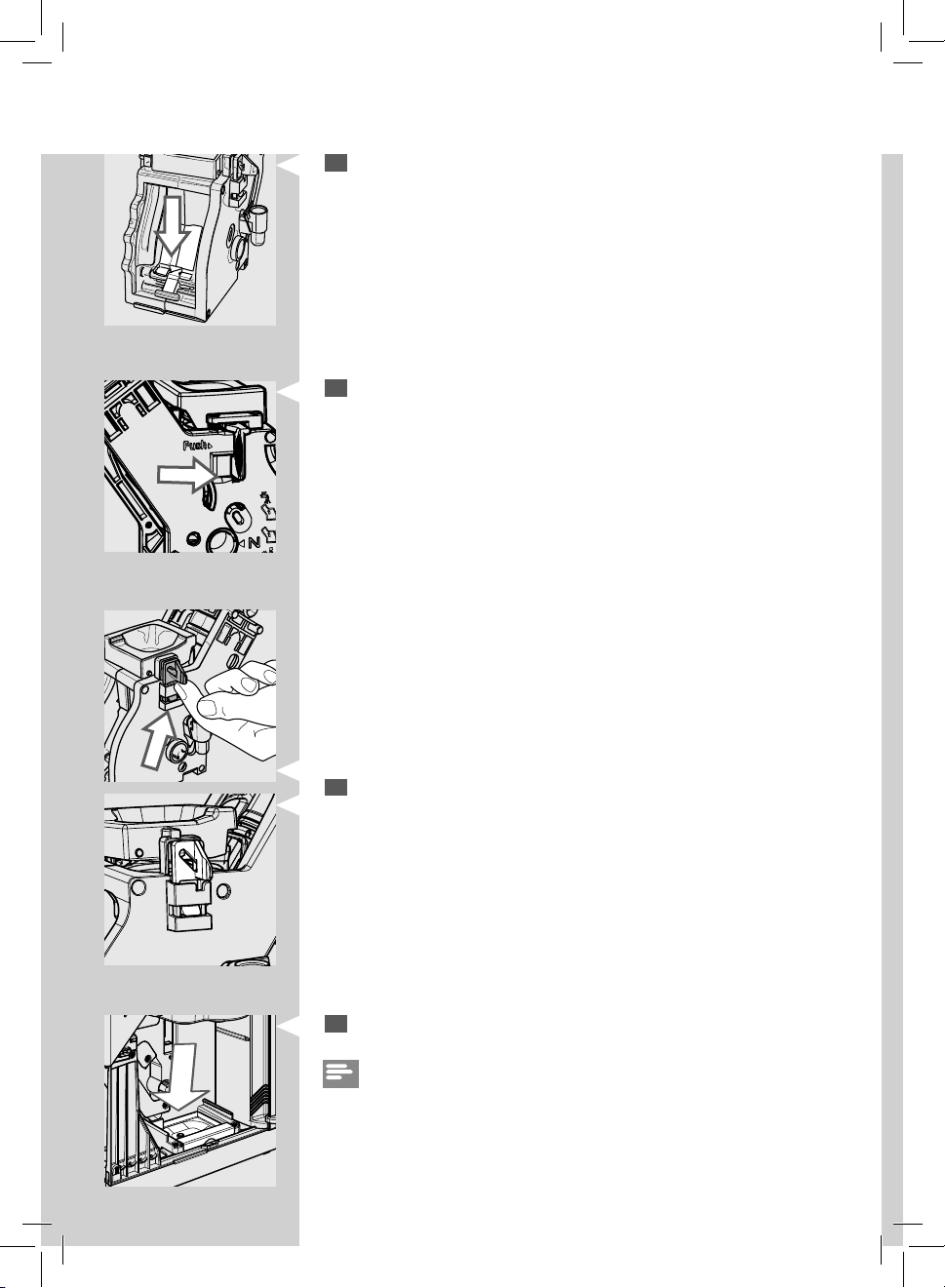

Gently pull down the lever until it is in contact with the brew group
11
base and the two reference marks on the side of the brew group
match.
Press the “PUSH” button rmly.
12
Make sure that the hook which locks the brew group is in the correct
13
position. If it is still in the downward position push it upward until it
locks correctly into place.
Insert the co ee residues drawer into its seat and ensure that it is cor-
14
rectly in place.
Note:
If the co ee residues drawer is not correctly positioned, the brew group
may not t into the machine.
Page 55
ENGLISH

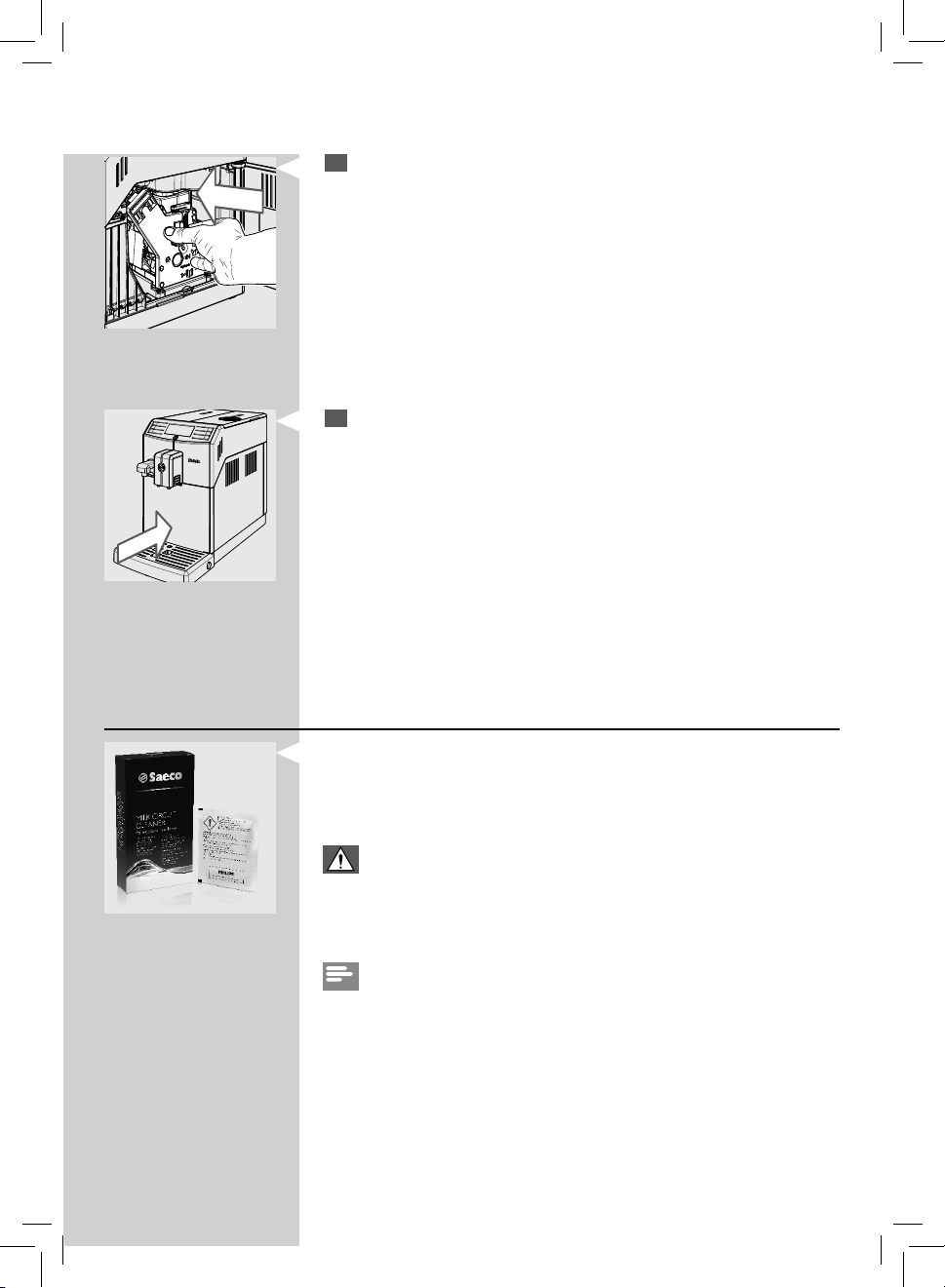

Insert the brew group into its seat again until it locks into place with-
15
out pressing the “PUSH” button.
Insert the co ee grounds drawer with the drip tray back into the ma-
16
chine and close the service door.
53
53
Monthly Cleaning of the Milk Carafe
For the monthly cleaning cycle we recommend using the “Saeco Milk
Circuit Cleaner” to keep the entire circuit clean of milk residues. The “Saeco
Milk Circuit Cleaner” can be purchased separately. Please refer to the
maintenance products page for further details.
Warning:
Danger of burning! Dispensing may be preceded by small jets of hot
water and steam. Danger of burning! Wait until the end of the cycle
before removing the milk carafe.
Note:
Before starting the procedure, make sure that the water tank is lled up to
the MAX level.
Page 56
54
ENGLISH

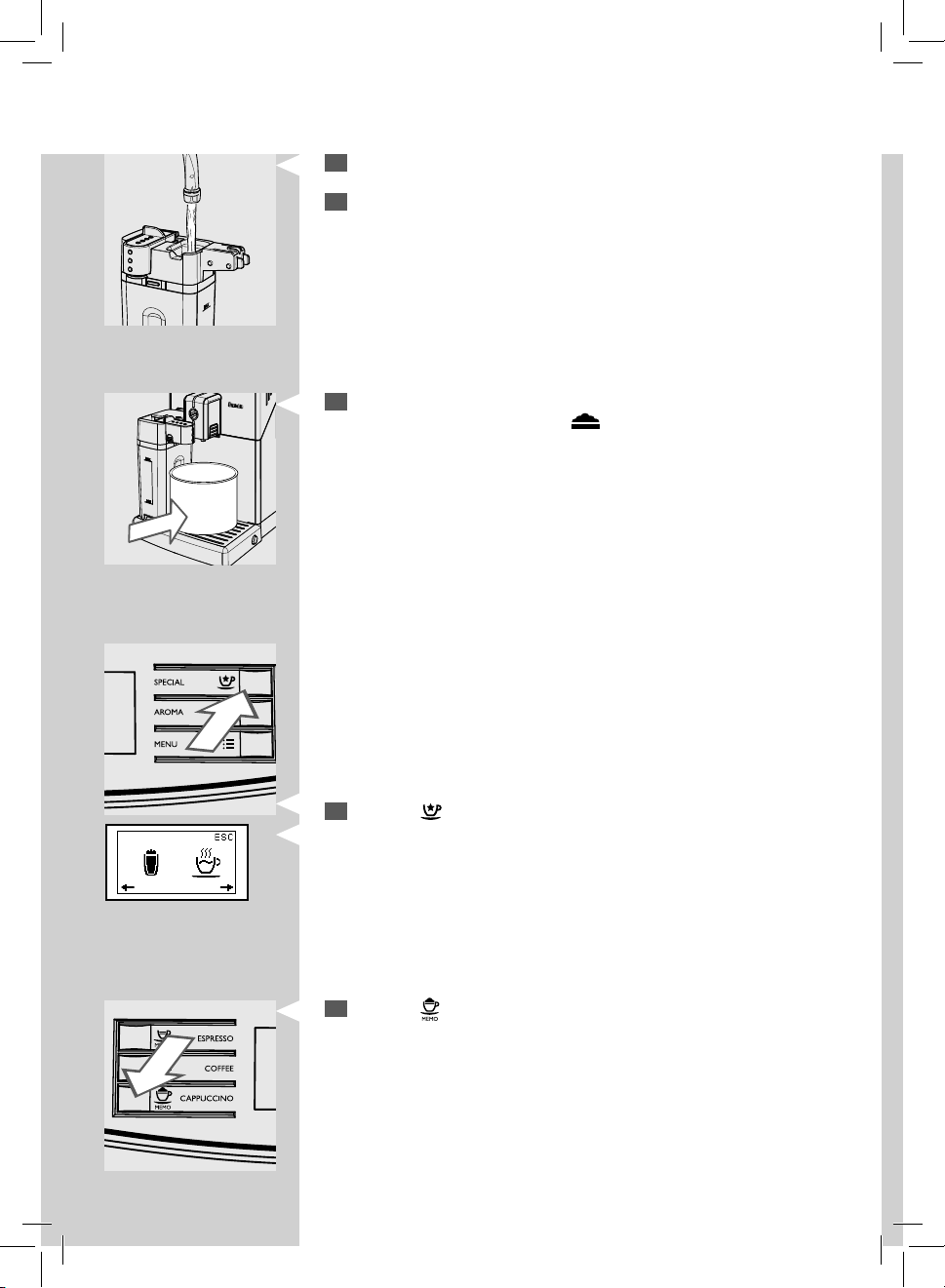

Fill the milk carafe with water up to the maximum level (MAX).
1
Pour the milk cleaner bag into the milk carafe and let it dissolve
2
completely.
Insert the carafe into the machine.
3
the right up to the “
Place a container under the dispensing spout.
4
” icon.
Pull out the milk carafe dispenser to
Green
Press the “ ” button. The machine shows this display.
5
Page 57
GreenGreenGreen
GreenGreen
ENGLISH
Press the “ ” button to select frothed milk.
6
The machine reminds you to insert the carafe and remove the milk
7
carafe dispenser by showing the following icons.
This icon is displayed during the preheating time required by the
8
machine.
55
55
Once the machine stops dispensing water, repeat steps 5 - 8 until the
9
carafe is emptied.
Warning:
Never drink the solution dispensed during this step.
Insert the milk carafe dispenser back by sliding it up to the “ ” icon.
10
Page 58
56
ENGLISH
Remove the milk carafe and the container from the machine.
11
Rinse and ll the milk carafe with fresh water up to the MAX level.
12
Green
Insert the milk carafe into the machine.
13
dispenser to the right up to the “
dispensing spout to start the rinse cycle.
Press the “ ” button. The machine shows this display.
14
Pull out the milk carafe
” icon.
Place a container under the
Press the “ ” button to select frothed milk.
15
Page 59
GreenGreenGreen
GreenGreen
ENGLISH
The machine reminds you to insert the carafe and remove the milk
16
carafe dispenser by showing the following icons.
This icon is displayed during the preheating time required by the
17
machine.
Once the machine stops dispensing water, repeat steps 14 - 16 until
18
the carafe is emptied.
57
57
Remove the milk carafe and the container from the machine. Repeat
19
steps 11 - 16 one more time.
Disassemble and wash the milk carafe as described in the “Weekly
20
Cleaning of the Milk Carafe” chapter.
Page 60
58
ENGLISH

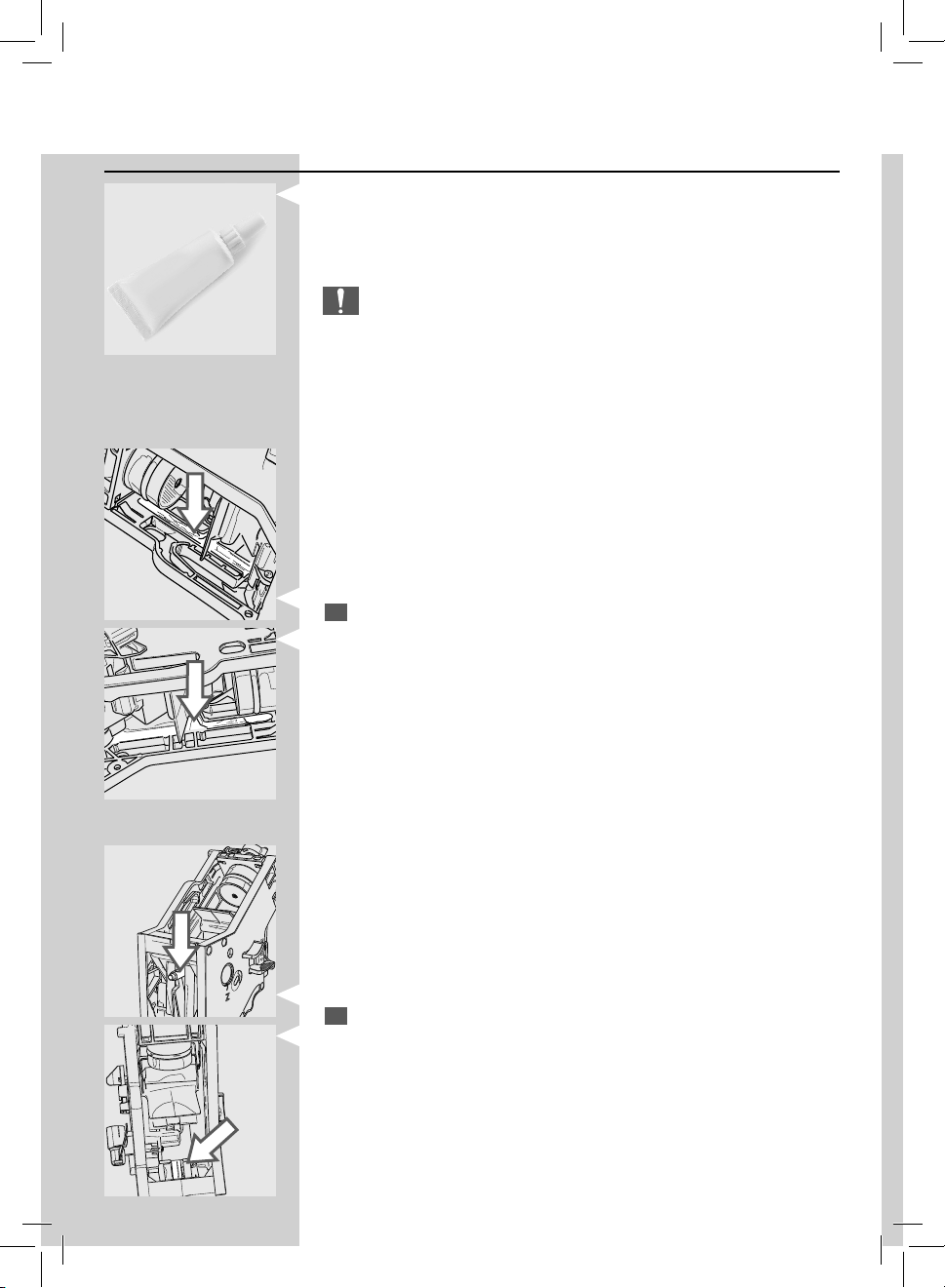

Monthly Lubrication of the Brew Group
Lubricate the brew group after approximately 500 co ees or once a month.
The grease to lubricate the brew group can be purchased separately. For
further details, please refer to the maintenance products page in this user
manual.
Caution:
Before lubricating the brew group, clean it with fresh water and let it
dry, as described in the “Weekly Cleaning of the Brew Group” chapter.

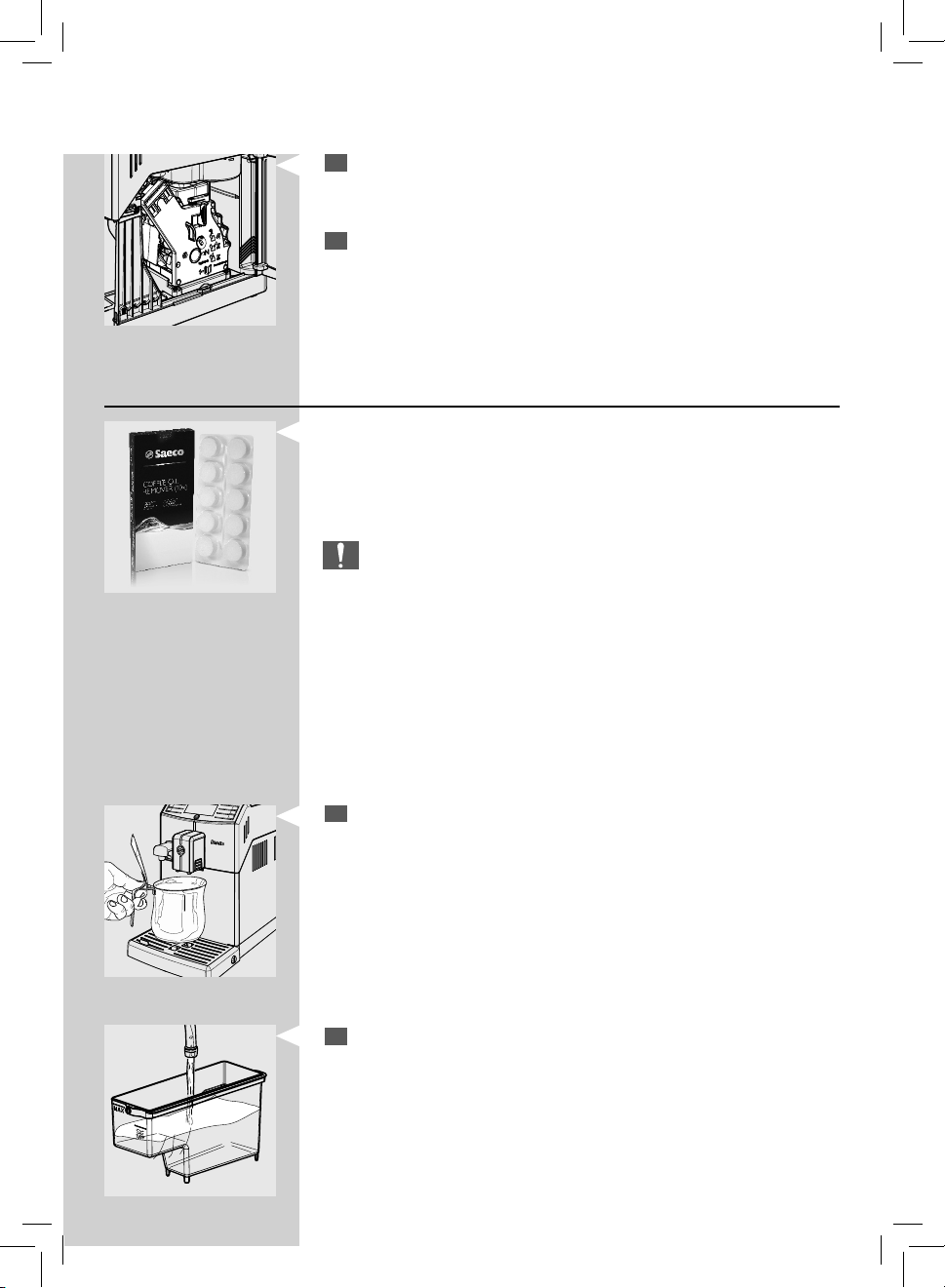

Apply the grease evenly on both side guides.
1
Also lubricate the shaft.
2
Page 61
ENGLISH
Insert the brew group into its seat until it locks into place (see the
3
“Weekly Cleaning of the Brew Group” chapter).
Close the service door and insert the drip tray and co ee grounds
4
drawer.
59
59
Monthly Cleaning of the Brew Group with “Co ee Oil Remover”
Besides weekly cleaning, we recommend running the cleaning cycle with
“Co ee Oil Remover” after approximately 500 co ees or once a month. This
operation completes the maintenance process for the brew group.
You can purchase separately the “Co ee Oil Remover”. For further details,
please refer to the maintenance products page in this user manual.
Caution:
The “Co ee Oil Remover” tablets are to be used for cleaning only and
do not have a descaling function. For the descaling procedure use the
Saeco descaling solution and follow the procedure described in the
“Descaling” chapter.
Place a container under the dispensing spout.
1
Make sure the water tank is lled with fresh water up to the “MAX”
2
level.
Page 62
60
ENGLISH
Green

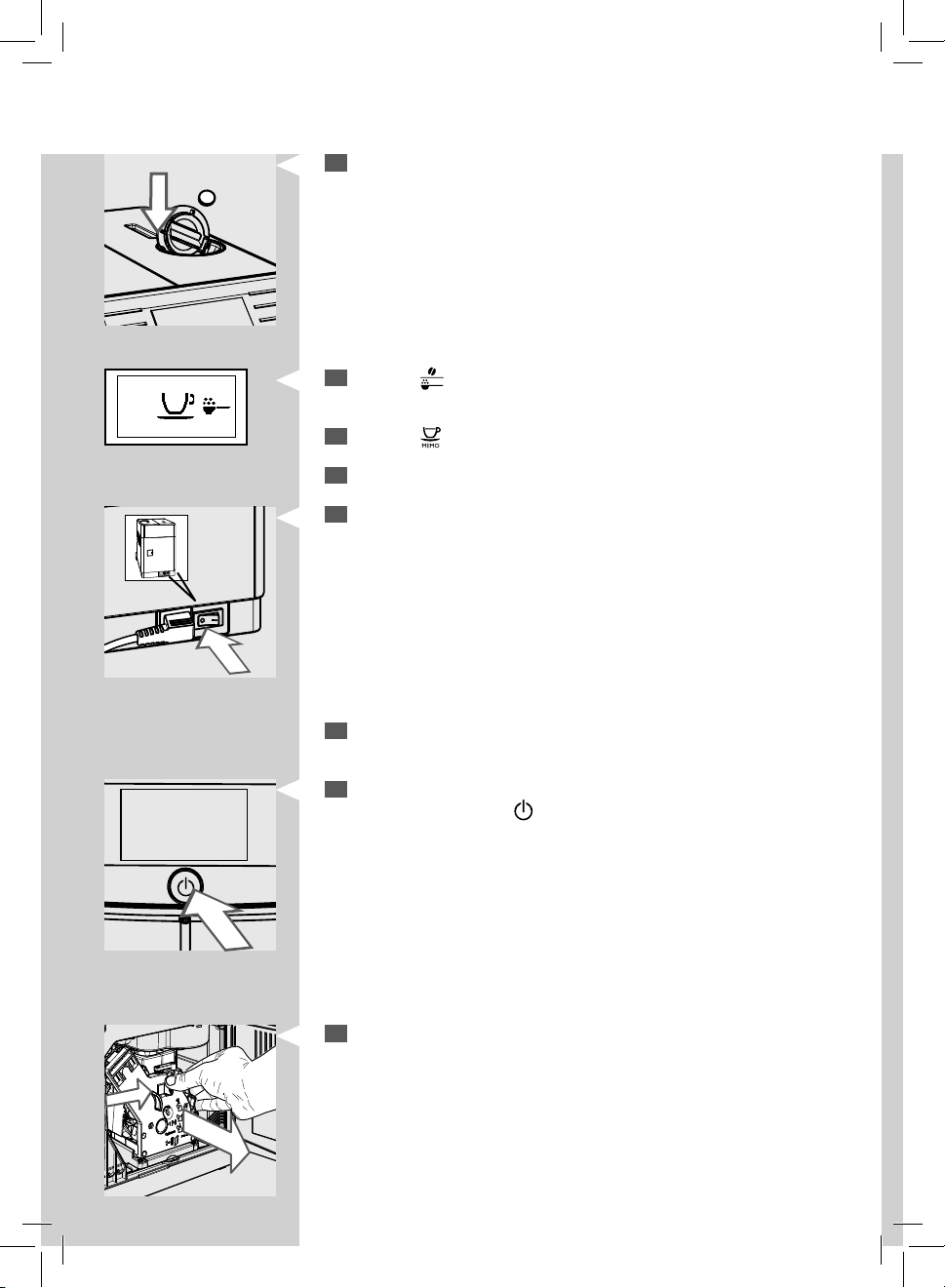

Put a “Co ee Oil Remover” tablet in the pre-ground co ee compart-
3
ment.
Press the “ ” button to select the pre-ground co ee function without
4
adding any ground co ee to the compartment.
Press the “ ” button to start the co ee brewing cycle.
5
Wait until the machine has dispensed half a cup of water.
6
Switch the power button on the back of the machine to “0”.
7
Let the solution take e ect for about 15 minutes. Make sure you dis-
8
card the dispensed water.
Switch the power button on the back of the machine, to “I”. To turn on
9
the machine, press the “
Wait until the end of the automatic rinse cycle.
Remove the drip tray and the co ee grounds drawer, empty them and
10
open the service door. Remove the brew group.
” button.
Page 63
Green
ENGLISH

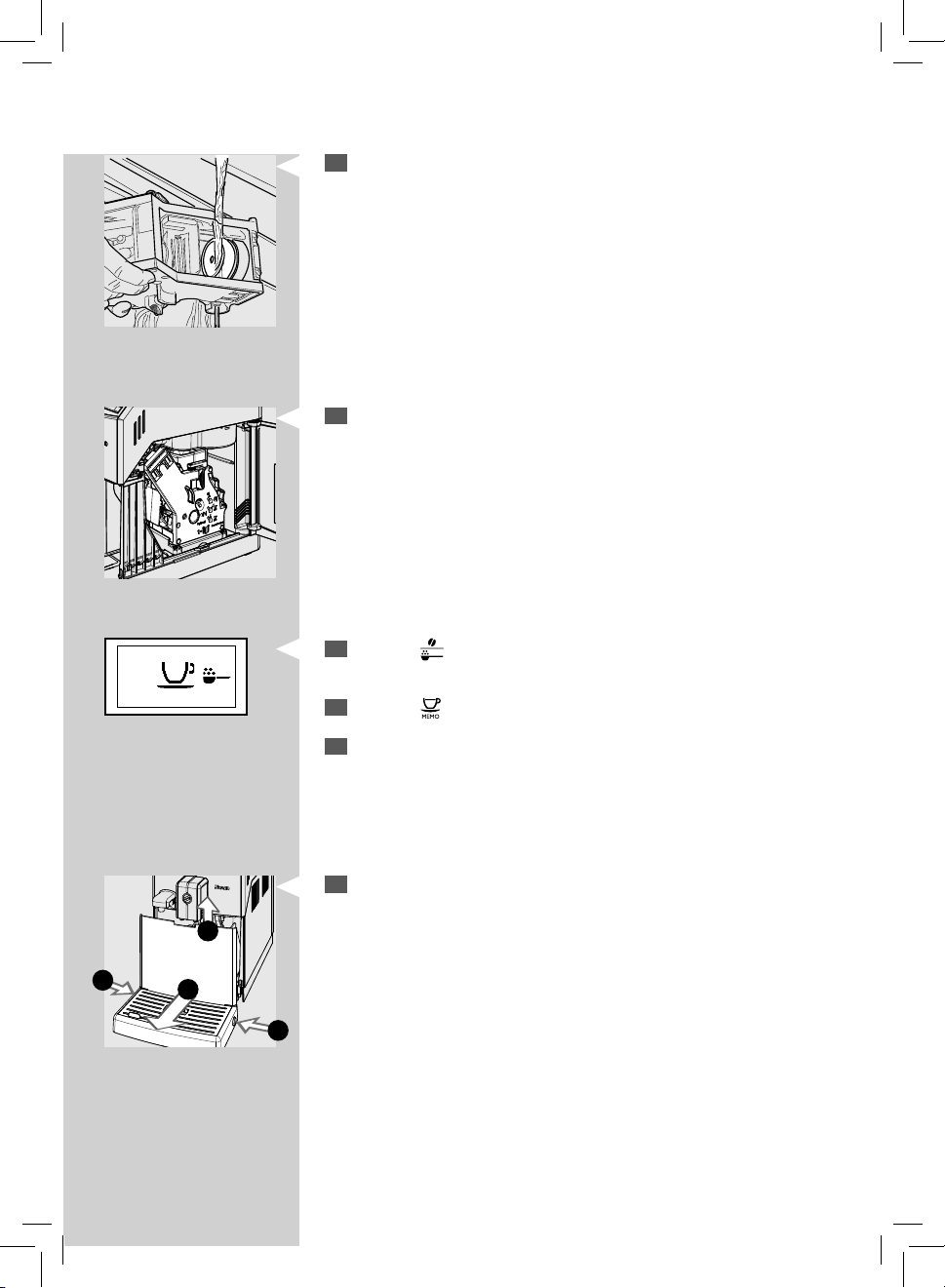

Wash the brew group thoroughly with fresh water.
11
After rinsing the brew group, insert it again into its seat until it locks
12
into place (see “Weekly Cleaning of the Brew Group” chapter). Insert
the drip tray and the co ee grounds drawer. Close the service door.
Press the “ ” button to select the pre-ground co ee function without
13
adding pre-ground co ee into the compartment.
Press the “ ” button to start the co ee brewing cycle.
14
61
61
Repeat steps 13 to 14 twice. Make sure you discard the dispensed
15
water.
To clean the drip tray, place “Co ee Oil Remover” tablet inside and ll
16
it 2/3rds full with hot water. Let the cleaning solution take e ect for
1
2
3
about 30 minutes, then rinse thoroughly.
2
Page 64
62
ENGLISH

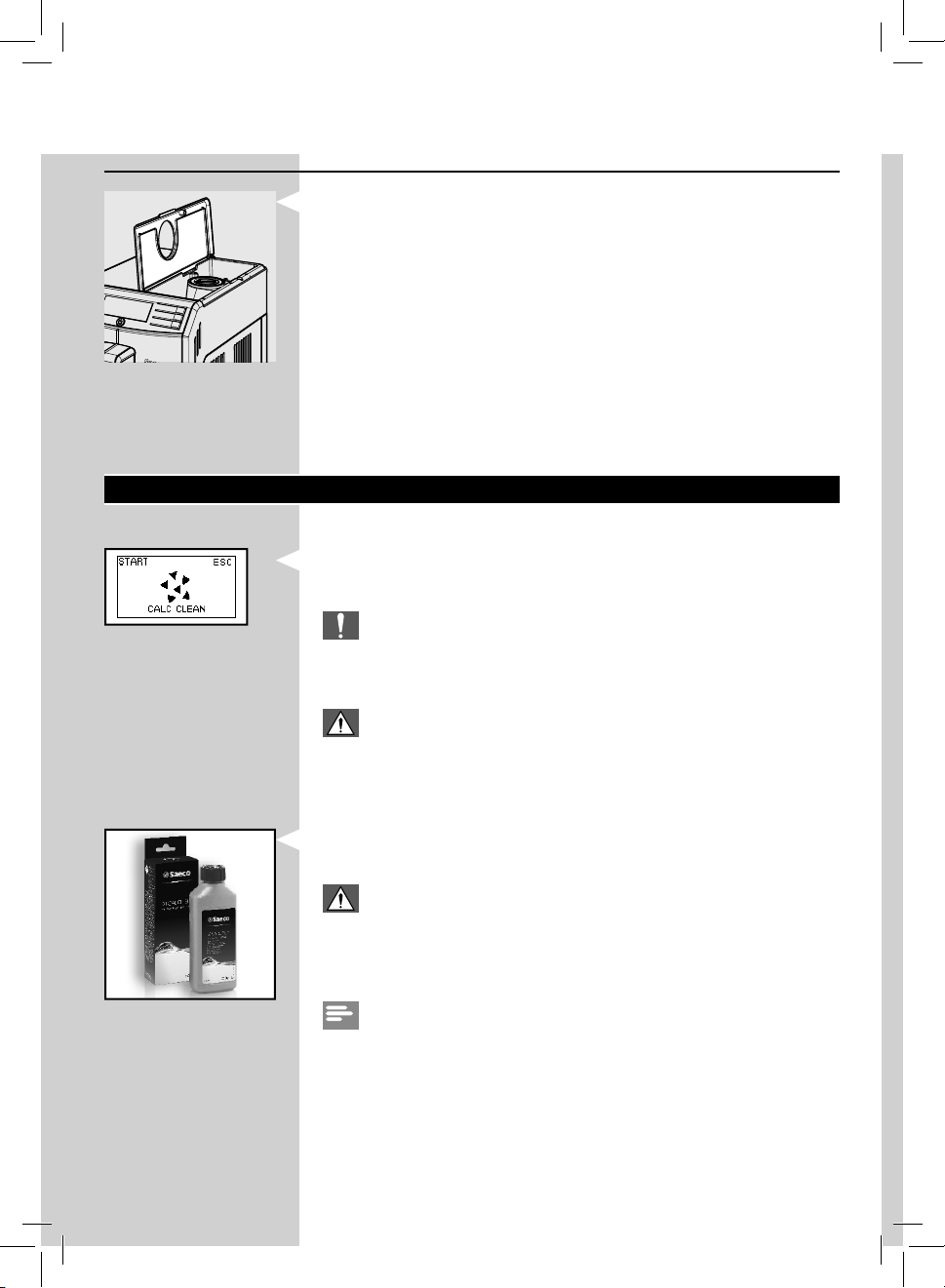

Monthly Cleaning of the Co ee Bean Hopper
Clean the co ee bean hopper once a month when it is empty with a damp
cloth to remove co ee oil. Thereafter re ll it with co ee beans.
DESCALING
When the “CALC CLEAN” icon is displayed, you need to descale the
machine.
The descaling cycle takes approx. 30 minutes.
Yellow
Caution:
Not doing this will ultimately make your machine stop working
properly. In this case, repair is NOT covered by warranty.
Warning:
Use the Saeco descaling solution only. Its formula has been designed
to ensure better machine performance. The use of other products may
damage the machine and leave residues in the water.
The Saeco descaling solution can be purchased separately. For further
details, please refer to the maintenance products page in this manual.
Warning:
Never drink the descaling solution or any products dispensed until the
cycle has been carried out to the end. Never use vinegar as a descaling
solution.
Note:
Do not remove the brew group during the descaling process.
Page 65
ENGLISH

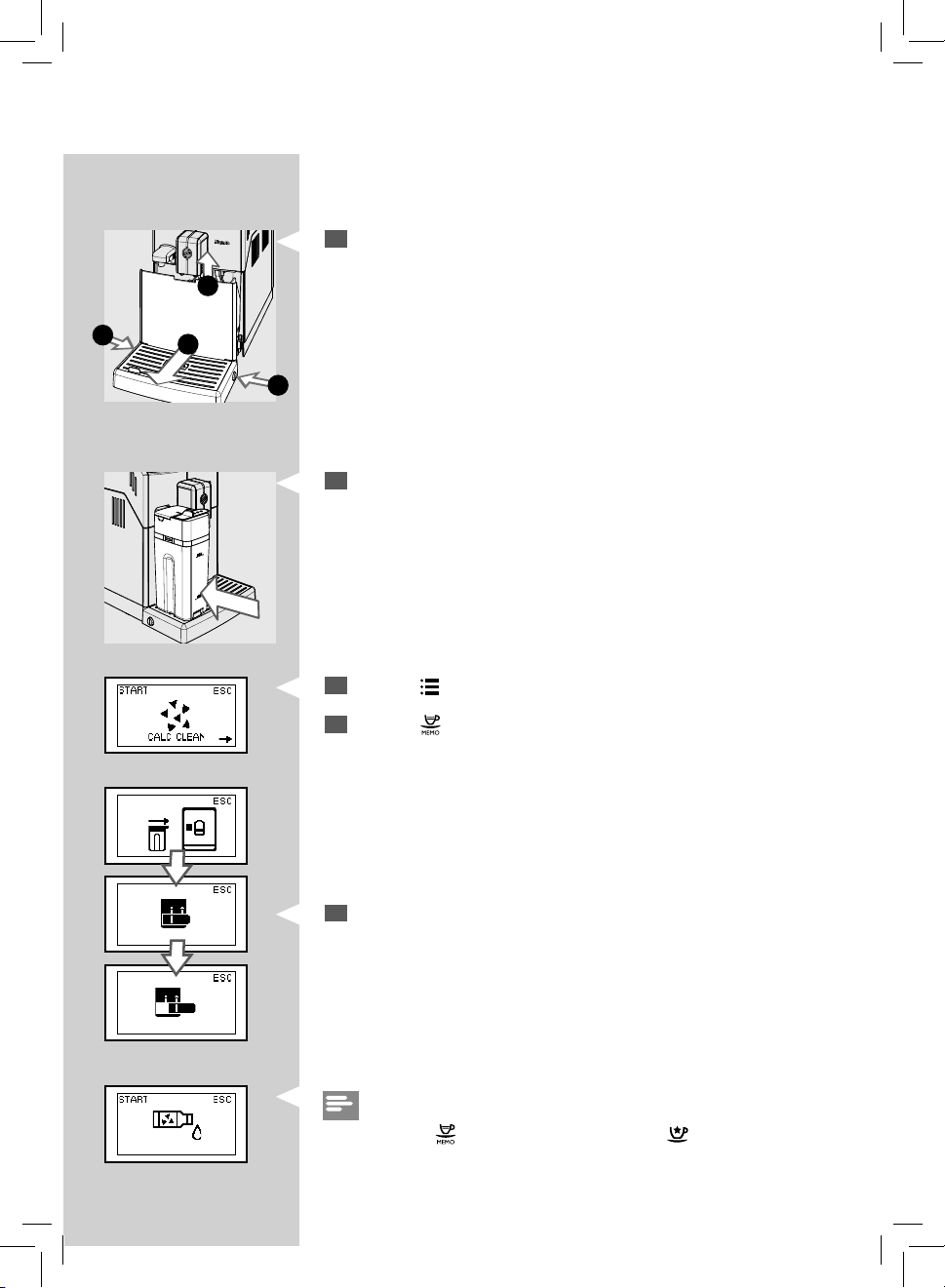

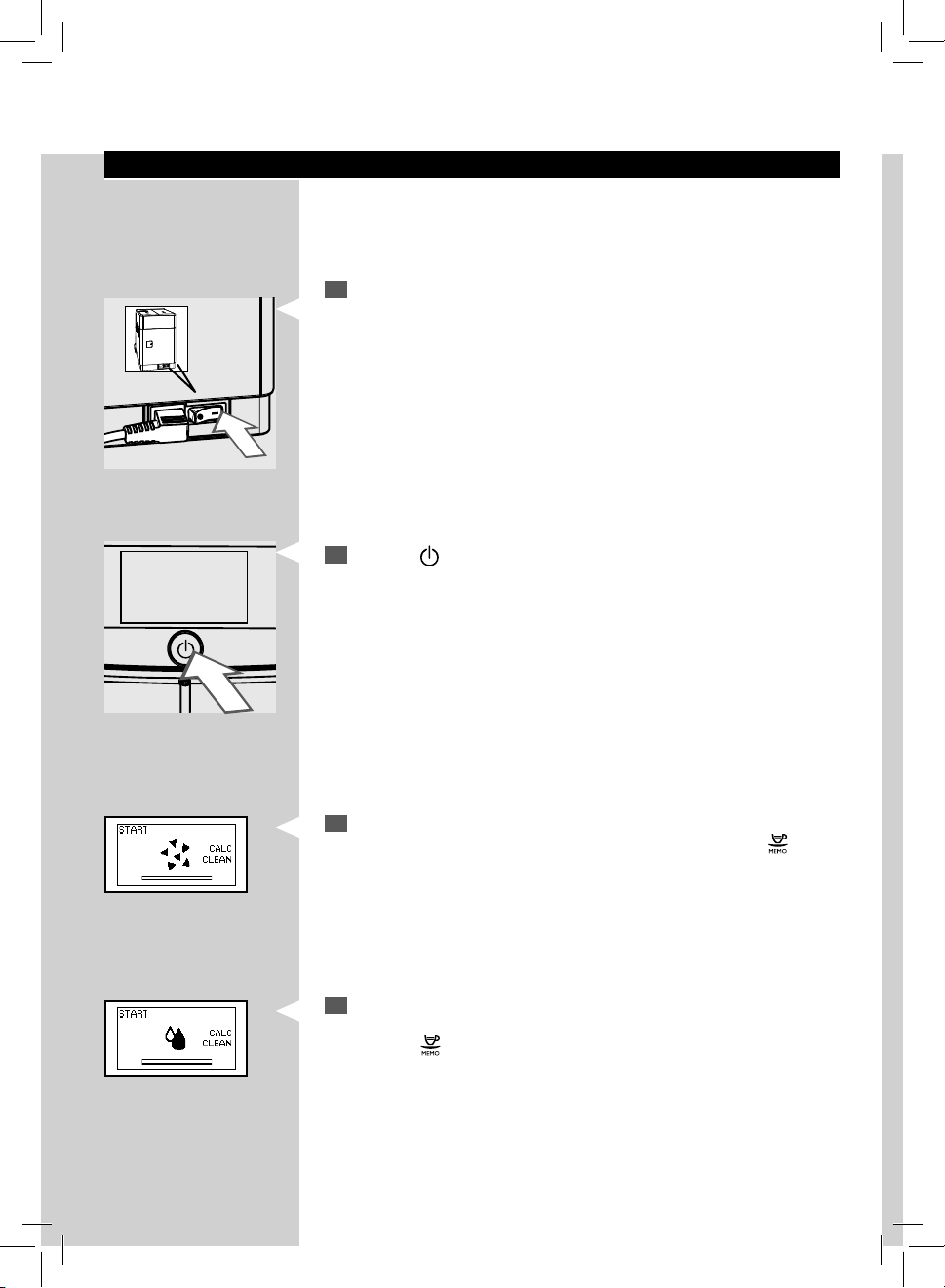

To perform the descaling cycle, follow the steps below:
Before descaling:
1 - Raise the co ee dispensing spout;
1
2 - Press the side buttons;
1
3 - Remove and empty the drip tray and the co ee grounds drawer;
then place them back.
63
63
2
3
2
Fill the milk carafe with water up to the MIN level and insert it into the
2
machine.

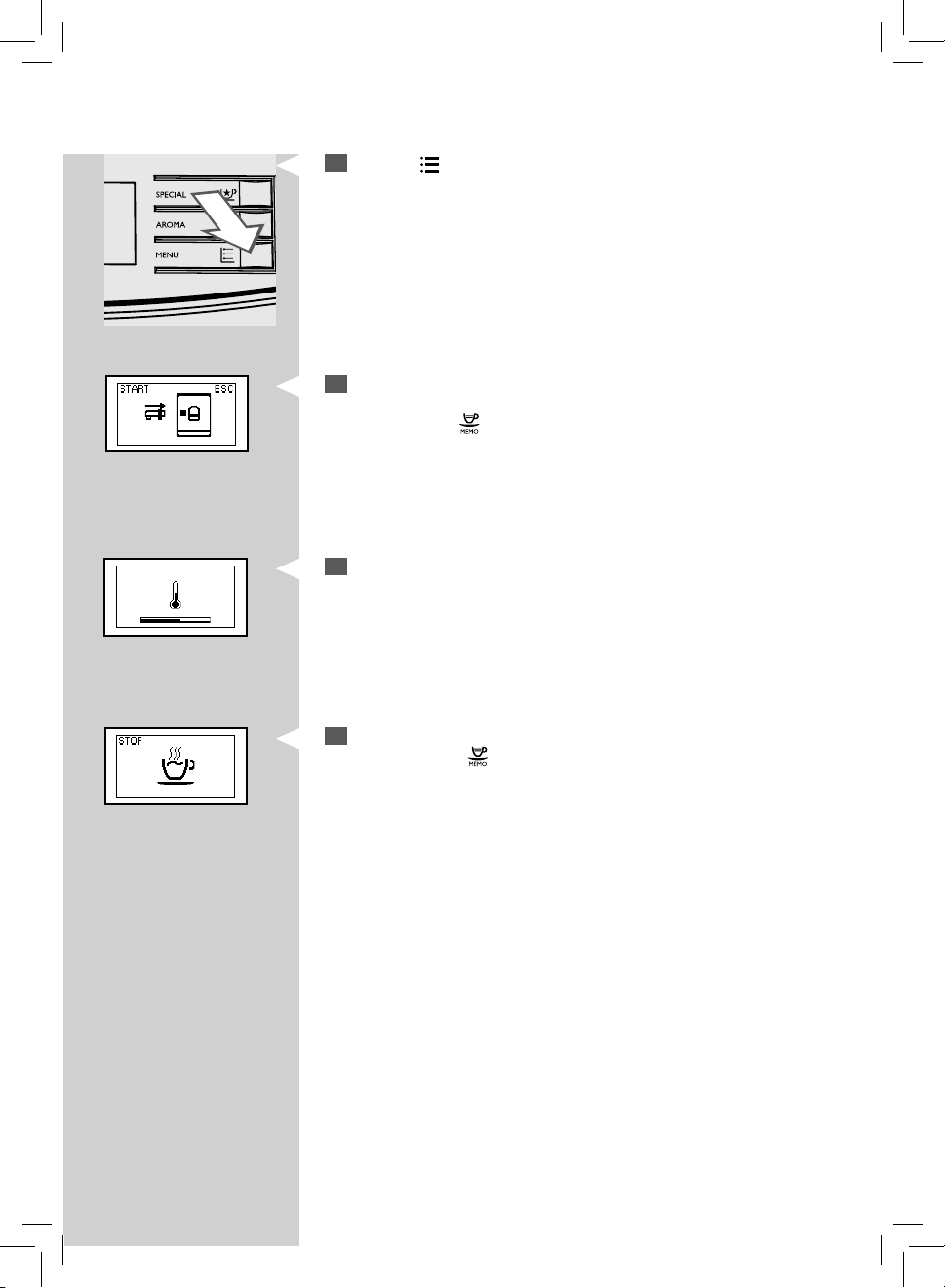

Press the “ ” button until the following display is shown.
3
Press the “ ” button to start the descaling process.
Yellow
YellowYellowYellow
4
Yellow
The machine reminds you to insert the carafe and remove the milk
5
carafe dispenser by showing the following icons.
Note:
If you press the “
” button by mistake, press the “ ” button to quit.
Page 66
64
ENGLISH

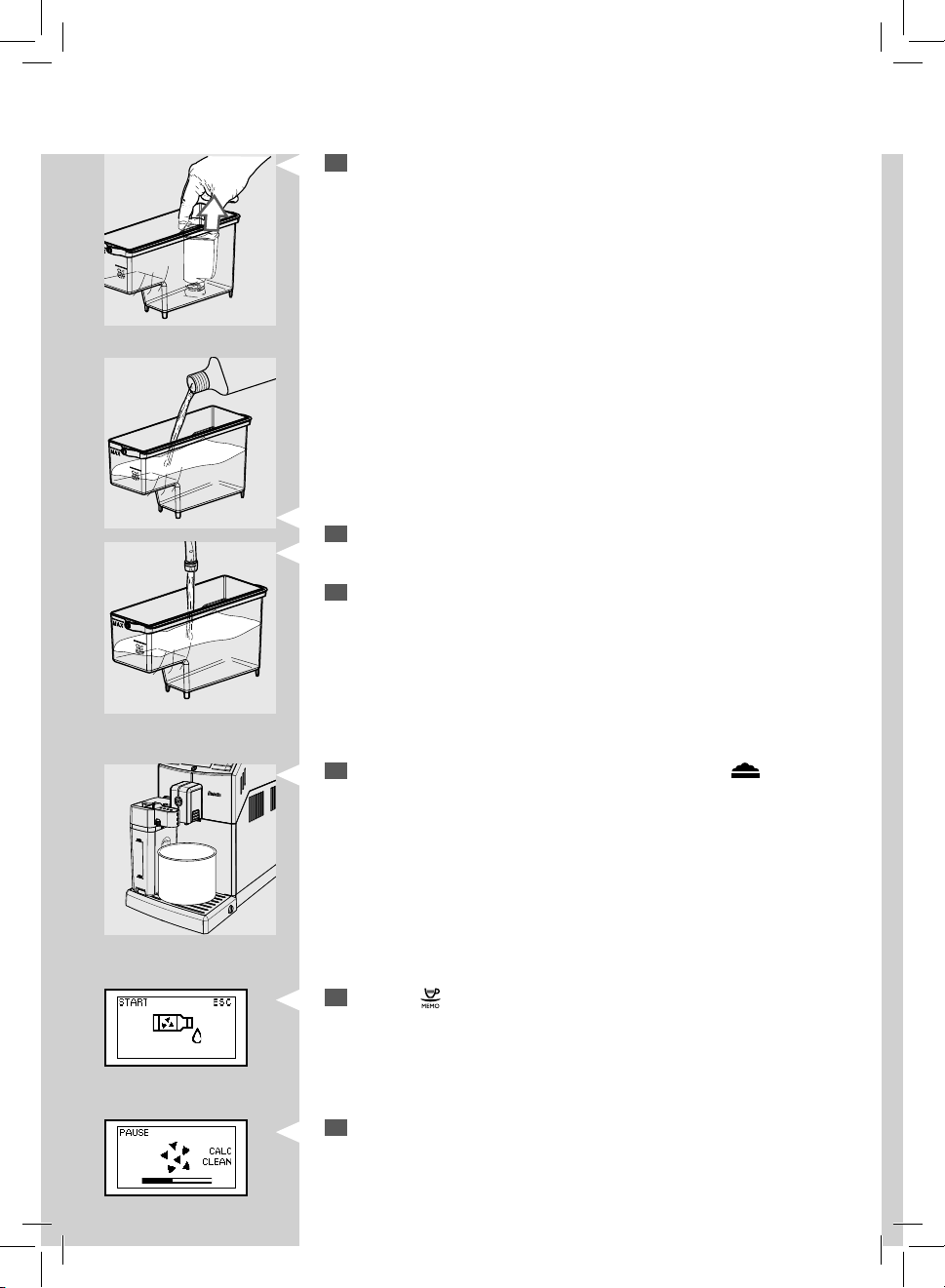

Remove the “INTENZA+” water lter (if any) from the water tank and
6
replace it with the small white original one.
Pour all the descaling solution into the water tank. Then ll the water
7
tank with fresh water up to the CALC CLEAN level.
Put the water tank back into the machine.
8

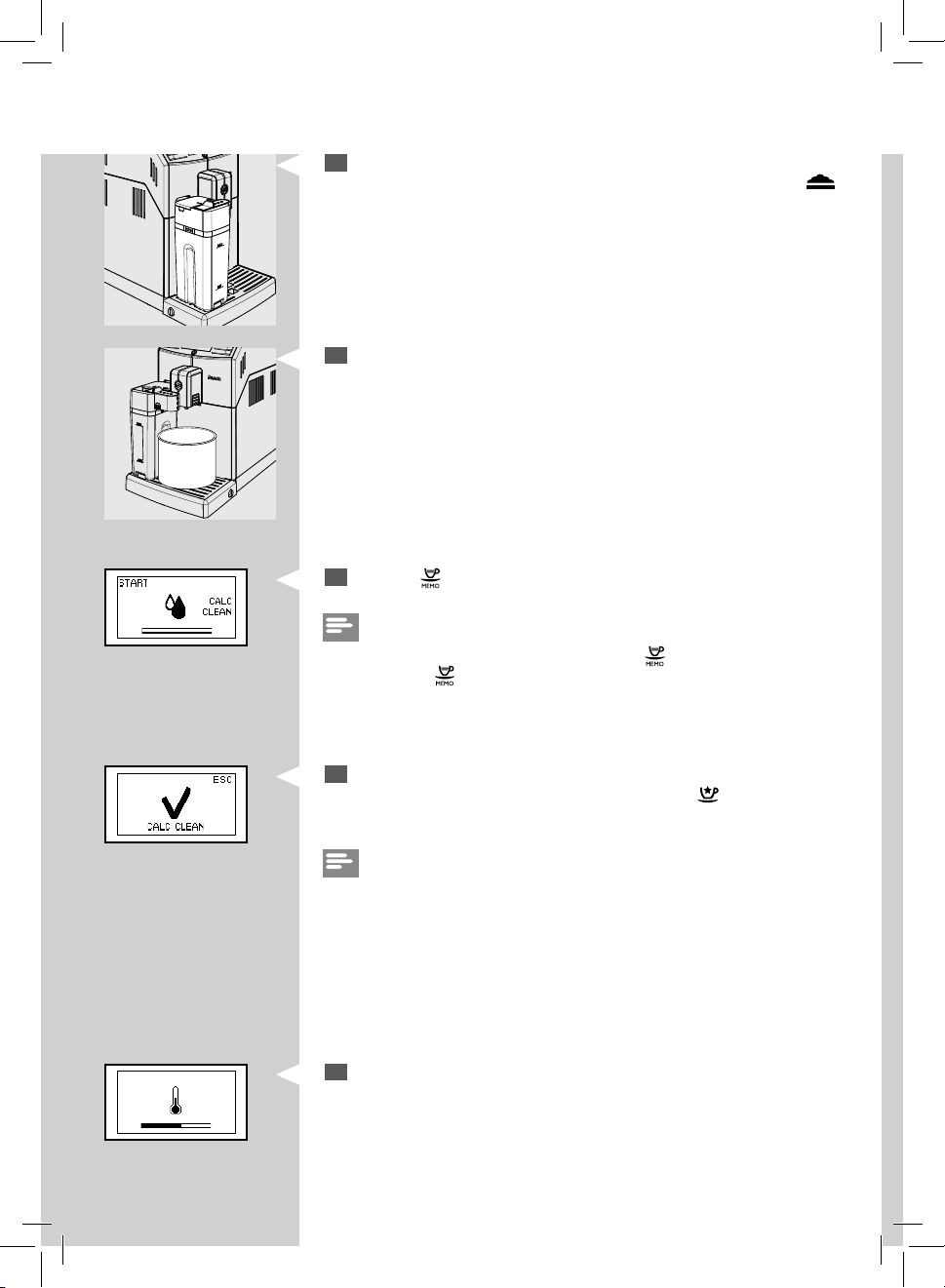

Pull out the milk carafe dispenser to the right up to the “ ” icon.
9
Place a large container (1.5l) under both the milk carafe dispenser and
the co ee dispensing spout.
Press the “ ” button to start the descaling cycle.
10
Yellow
The machine will start dispensing the descaling solution at intervals.
11
The bar on the control panel shows the cycle progress.
Yellow
Page 67

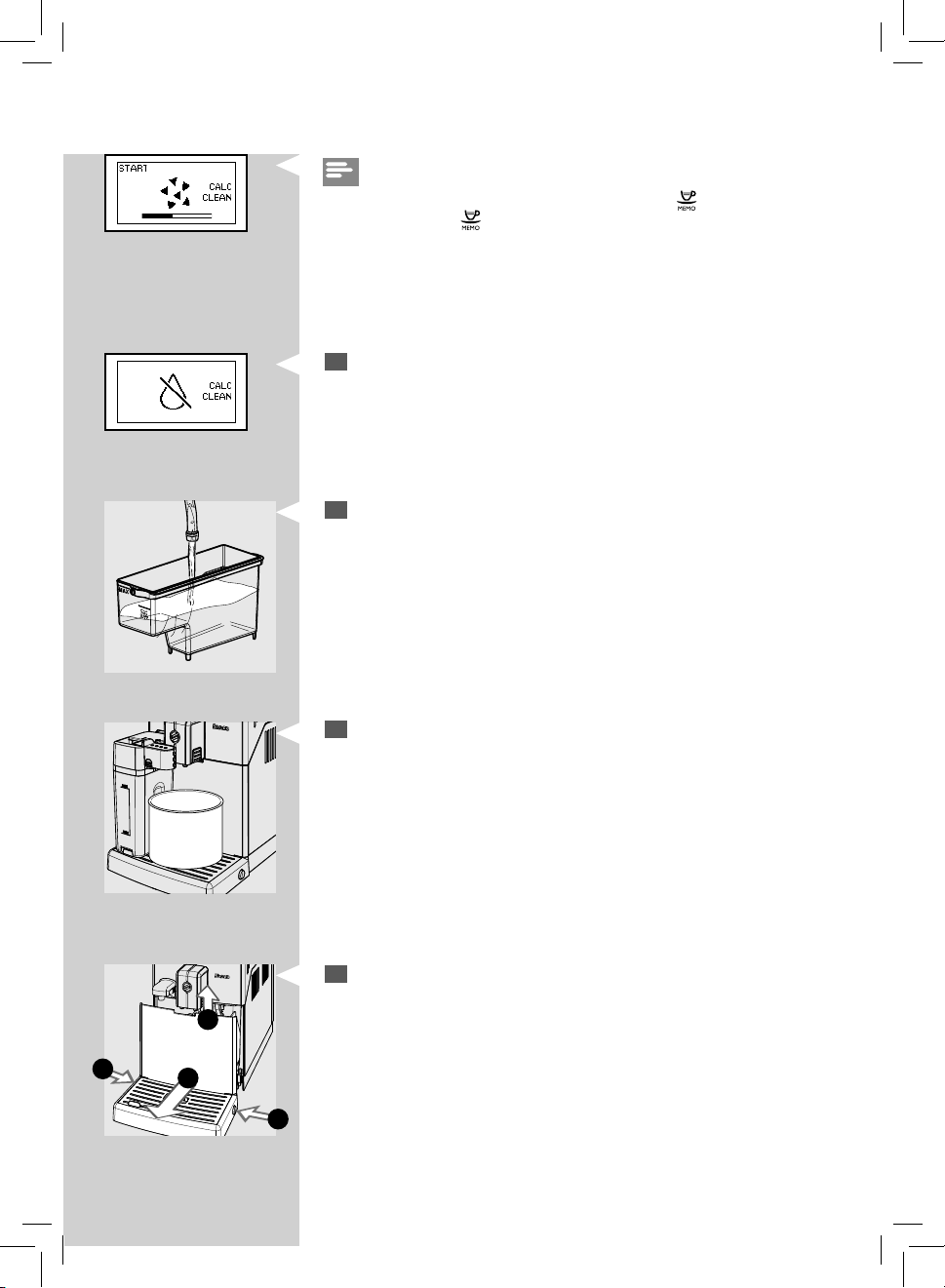

Note:
The descaling cycle may be paused by pressing the
Yellow
the cycle, press the
tainer or to leave the machine unattended for a short time.
When this icon is displayed, the water tank is empty.
12
Red
Remove the water tank, rinse it and ll it with fresh water up to the
13
MAX level. Put it back into the machine.
“ ” button again
. This allows you to empty the con-
ENGLISH
“ ”
button. To resume
65
65

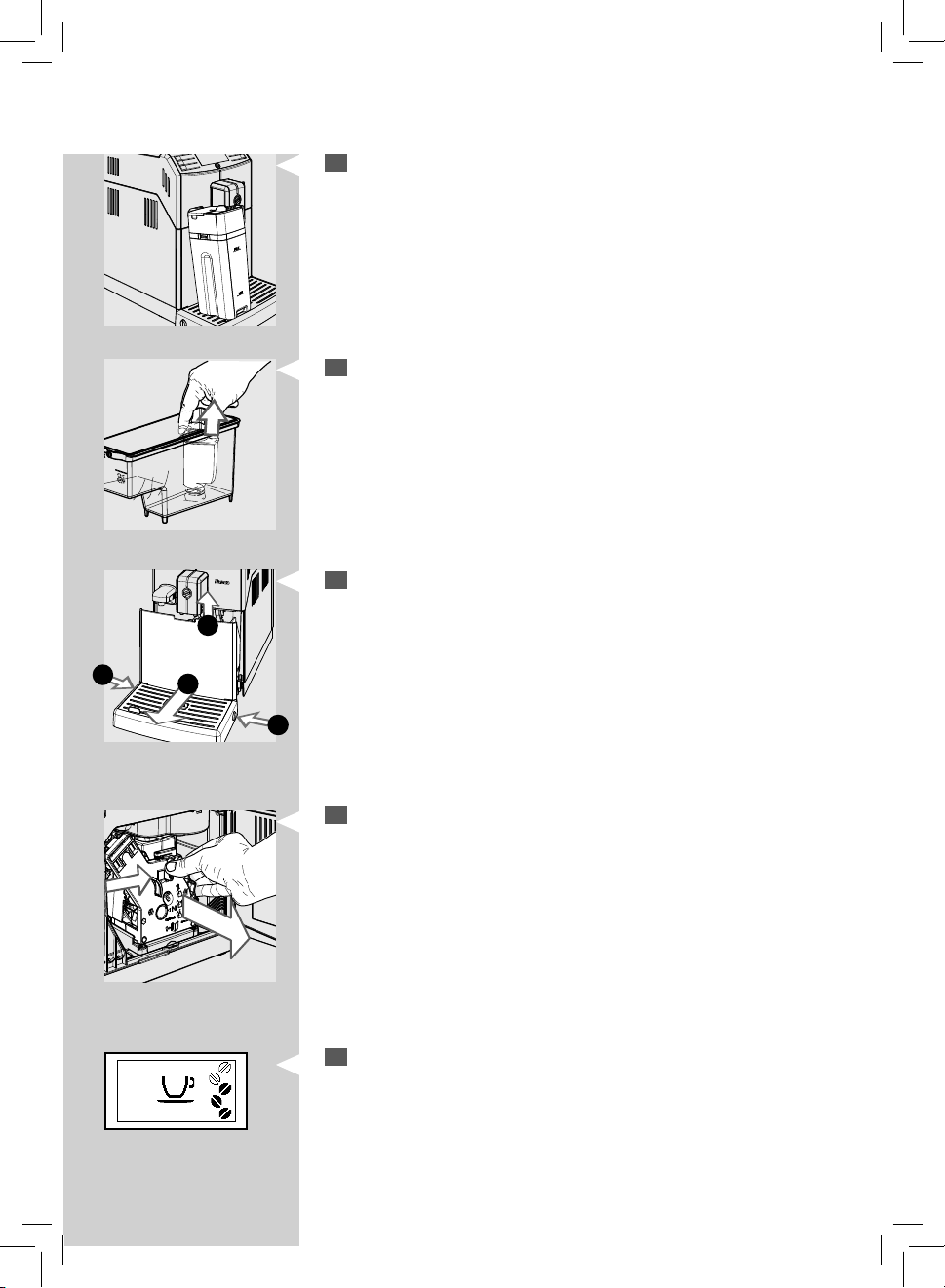

Remove and empty the container and the milk carafe.
14
1 - Raise the co ee dispensing spout;
15
2 - Press the side buttons;
1
2
3
3 - Remove and empty the drip tray and the co ee grounds drawer;
then place them back.
2
Page 68
66
ENGLISH
Fill the milk carafe with water up to the MIN level and insert it into the
16
machine. Pull out the milk carafe dispenser to the right up to the
"
icon.
Place a large container (1.5l) under both the milk carafe dispenser and
17
the co ee dispensing spout.
Press the “ ” button to start the rinse cycle.
18
Note:
The rinse cycle may be paused by pressing the
cycle, press the
to leave the machine unattended for a short time.
“ ” button again
. This allows you to empty the container or
“ ”
button. To resume the
"
When the amount of water needed for the rinse cycle has been com-
19
pletely dispensed, this icon is displayed. Press the “
Green YellowYellow
the descaling cycle.
Note:
Note: If the water tank is not lled up to MAX level, the machine might
require one more rinse cycle. Fill the water tank and put it back into the
machine.
Repeat from point 18.
The machine warms up and performs the automatic rinse cycle.
20
” button to quit
Page 69
ENGLISH
Remove the container. Disassemble and wash the milk carafe as
21
described in the “Weekly Cleaning of the Milk Carafe” chapter.
Remove the small white lter and replace the INTENZA+ water lter
22
(if tted) in the water tank. Rinse it and ll it with fresh water up to the
MAX level. Put it back into the machine.
1 - Raise the co ee dispensing spout;
23
2 - Press the side buttons;
1
3 - Remove and empty the drip tray and the co ee grounds drawer;
then place them back.
67
67
2
3
2
At the end of the descaling cycle, wash the brew group as described in
24
the “Weekly Cleaning of the Brew Group” chapter.
The machine is ready to brew co ee.
25
Green
Page 70
68
ENGLISH
ACCIDENTAL INTERRUPTION OF THE DESCALING CYCLE
Once the descaling process has started, it must be completed; do not turn
o the machine mid-cycle.
If the descaling process is accidentally interrupted (power failure or accidental disconnection of the power cord), follow the steps below.
Check that the power button is set to "I".
1
Press the “ ” button to turn on the machine.
2
YellowYellow
If the cycle was interrupted during the descaling phase, it will be
3
resumed from point 11 of the "Descaling" chapter. Press the “
button to restart the cycle.
If the cycle was interrupted during the rinse phase, it will be resumed
4
from point 18 of the "Descaling" chapter.
Press the “
” button to restart the cycle.
”
Page 71
PROGRAMMING
You can customise the machine's functions via the programming menu.
The following settings can be adjusted
Co ee Temperature
This function allows you to adjust the co ee brewing temperature.
YellowYellowYellowYellowYellowYellow
Timer (stand-by)
This function allows you to adjust the time taken for the machine to go
into stand-by mode after the last brewing.
Contrast
This function allows you to adjust the contrast of the display to better view
the messages.
ENGLISH
69
69
Water Hardness
This function allows you to adjust the water hardness settings according to
the area where you live.
1 = very soft water
2 = soft water
3 = hard water
4 = very hard water
For more details, please see the “Measuring and Programming Water Hardness” chapter.
"INTENZA+" Water Filter
This function allows you to manage the “INTENZA+” water lter.
For more details, see the chapter related to lter handling.
Descaling Cycle
This function allows you to run the descaling cycle.
Page 72
70
ENGLISH
Factory Settings
This function allows you to reset all factory values.
YellowGreenYellowYellow

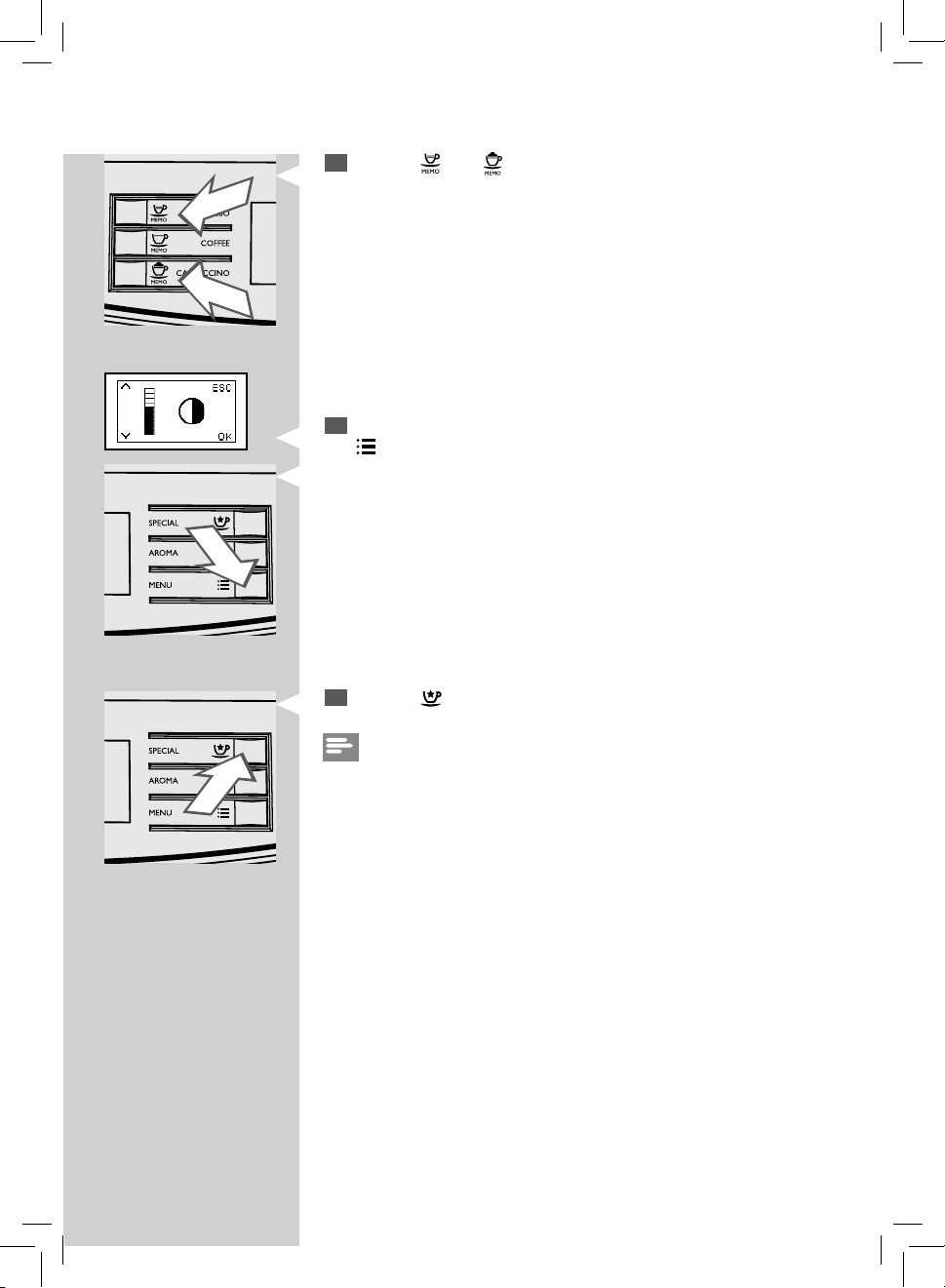

How to Program the Machine
In this example, it is shown how to program the display contrast. Proceed
in the same way to program the other functions.
The programming menu can only be accessed when the machine is on and
shows this display.
Press the “ ” button to access programming.
1
The main screen will be displayed.
2
Press the “ ” button to scroll the options until the display contrast
3
function is shown.
Page 73
ENGLISH
Press the “ ” and “ ” buttons to increase or decrease the value of the
4
function.
Once the value has been changed, the “OK” message appears. Press the
Yellow
5
” button to con rm the change.
“
71
71
Press the “ ” button to exit programming.
6
Note:
The machine automatically exits programming mode if
no button is pressed for 3 minutes. The values that have been changed but
not con rmed won’t be saved.
Page 74
72
ENGLISH

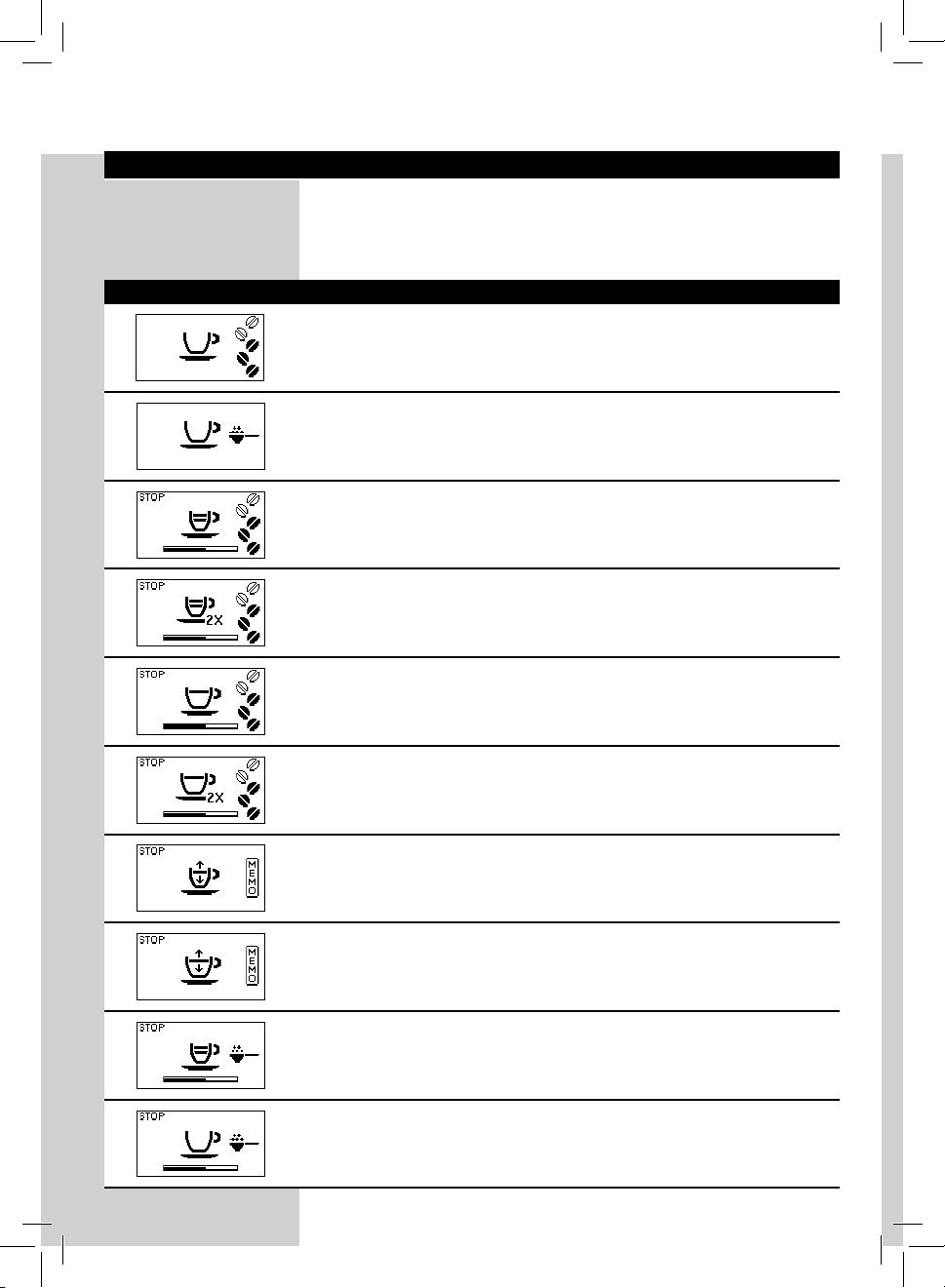

Ready Signals (Green Colour)
MEANING OF THE DISPLAY ICONS
This machine is equipped with a colour-coded system to make the user’s
understanding of the display signals easier.
The icons are colour-coded according to the tra c light principle.
The machine is ready to brew products.
The machine is ready to brew pre-ground co ee.
The machine is brewing one cup of espresso.
The machine is brewing two cups of espresso.
The machine is brewing one cup of co ee.
The machine is brewing two cups of co ee.
The machine is programming the amount of espresso to be brewed.
The machine is programming the amount of co ee to be brewed.
Espresso brewing using pre-ground co ee in progress.
Co ee brewing using pre-ground co ee in progress.
Page 75
Ready Signals (Green Colour)
Frothed milk or hot water selection.
Hot water dispensing.
Frothed milk dispensing.
The machine is frothing milk for a cappuccino.
The machine is brewing co ee for a cappuccino.
The machine is programming the amount of milk to be dispensed for a
cappuccino.
ENGLISH
73
73
The machine is programming the amount of co ee to be brewed for a
cappuccino.
The machine is programming the amount of milk to be dispensed for frothed
milk.
The machine reminds you to insert the carafe and pull out the dispensing
spout.
Page 76
74
ENGLISH
Ready Signals (Green Colour)
Insert the water dispensing spout and press the “ ” button to start
dispensing.
Press “
The machine is warming up to dispense beverages.
Warning Signals (Yellow Colour)
The machine is warming up.
The machine is performing the rinse cycle. Wait until the machine has completed the cycle.
” to exit.
The machine needs the "INTENZA+" water lter to be replaced.
The brew group is being reset due to machine reset.
Fill the co ee bean hopper with co ee beans and restart the cycle.
The machine is priming the circuit.
You need to descale the machine. Press the “ ” button to start the descaling
process. Follow the steps described in the “Descaling” chapter of this manual.
If you want to descale the machine later, press the “
using the machine.
Please note that not descaling your machine will ultimately make it stop
working properly. In this case repair is NOT covered under your warranty.
” button to continue
Page 77

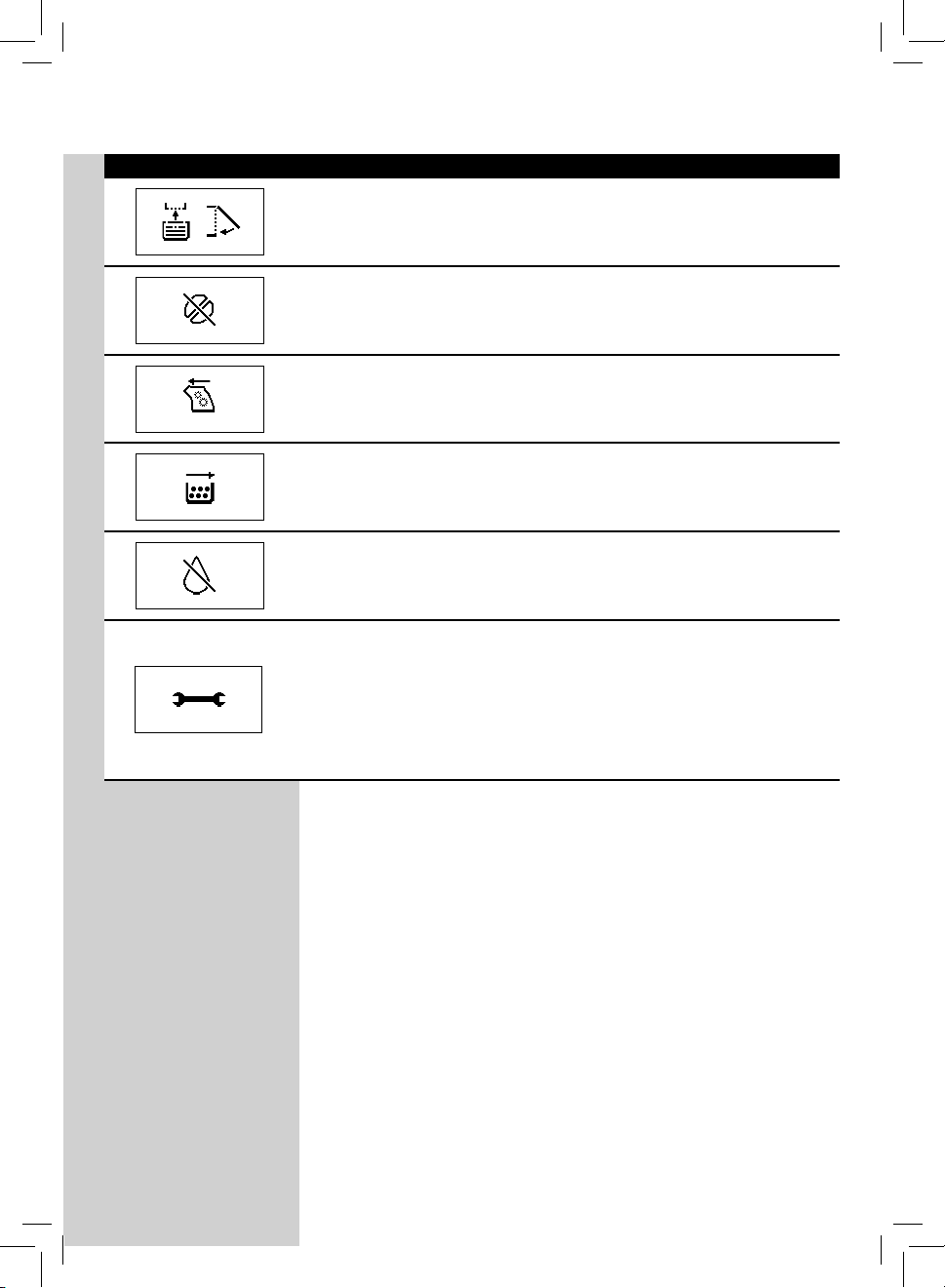

Warning Signals (Red Colour)
Completely insert the drip tray with the co ee grounds drawer into the machine and close the service door.
Fill the co ee bean hopper.
The brew group must be inserted into the machine.
Empty the co ee grounds drawer. Wait 5 seconds before reinserting it.
Fill the water tank.
The machine is out of order. The error code is displayed in the right bottom corner. For error codes 1 -3 - 4 - 5, please refer to the "Troubleshooting"
chapter. For any other error codes, follow the instructions below: Turn o the
machine. Turn it back on after 30 seconds. Try this 2 or 3 times.
Exx
If the machine does not start, contact the Philips SAECO hotline in your
country and quote the error code shown on the display. Contact details can
be found in the warranty booklet packed separately or on www.saeco.com/
support.
ENGLISH
75
75
Page 78
76
ENGLISH
TROUBLESHOOTING
This chapter summarizes the most common problems you could encounter with your machine.
If you are unable to solve the problem with the information below, visit
www.saeco.com/support for a list of frequently asked questions or contact the Philips Saeco hotline in your country.
Contact details can be found in the warranty booklet packed separately or
on www.saeco.com/support.
Machine actions Causes Solutions
Error Code 1
Co ee grinder blocked.
Error Code 3-4
Brew group blocked, cannot be
pulled out.
Error Code 5
Water circuit error.
Co ee outlet duct clogged. Clean the co ee outlet duct
thoroughly as described in the
“Weekly Cleaning of the Brew
Group” chapter.
The brew group is not in the right
position.
Air in the water circuit. Remove and put back the water
The machine circuit is clogged
by limescale.
Close the service door. Turn
the machine o and back on.
The brew group automatically
returns to the initial position.
tank a few times, making sure
it is properly reinserted. Check
that the water tank compartment is clean.
If the Intenza+ lter is installed,
remove it. Turn the machine o
and back on.
Descale the machine.
Page 79
ENGLISH
Machine actions Causes Solutions
The machine does not turn on. The machine is not connected to the
electric network, or the power button is in the “O” position.
The drip tray gets lled although no water is drained.
The red
played on the machine.
Co ee is not hot enough. The cups are cold. Preheat the cups with hot water.
Co ee does not have enough
crema.
(See note)
The machine takes a long time
to warm up or the amount of
water dispensed is too little.
The brew group cannot be
removed.
The brew group cannot be
inserted.
icon is always dis-
Sometimes water is drained automatically by the machine into the
drip tray to manage the rinsing of
the circuits and ensure optimum
machine performance.
The co ee grounds drawer has been
emptied with the machine o .
Temperature is not correctly set. Set the temperature as described in the
The machine circuit is clogged by
limescale.
The blend is unsuitable, co ee is not
freshly roasted or the grind is too
coarse.
The machine circuit is clogged by
limescale.
The brew group is not in the right
position.
The co ee grounds drawer is
inserted.
The brew group is not in the o
position.
The gearbox is not in the correct
position.
Connect the machine to the electric
network and turn the power button to
the “I” position.
This is a normal behaviour of the
machine.
The co ee grounds drawer must always be emptied with the machine on.
Wait until the icon is displayed
before re tting the drawer.
"Programming" chapter.
Descale the machine.
Change co ee blend or adjust the
grind setting as explained in the
“Adjusting the Ceramic Co ee Grinder”
chapter.
Descale the machine.
Turn on the machine. Close the service
door. The brew group automatically
returns to the initial position.
Remove the co ee grounds drawer
before removing the brew group.
Make sure that the brew group in
the o position, as described in the
“Weekly Cleaning of the Brew Group”
chapter.
Insert the drip tray and the co ee
grounds drawer. Close the service door.
Turn on the machine without inserting
the brew group. The gearbox returns
to the correct position. Turn o the
machine and reinsert the brew group
as described in the “Weekly Cleaning of
the Brew Group” chapter.
77
77
Page 80
78
ENGLISH
Machine actions Causes Solutions
The machine grinds co ee
beans but no co ee comes out.
(see note)
Co ee is too weak.
(see note)
Co ee is brewed slowly.
(see note)
Co ee leaks out of the dispensing spout.
Frothed milk is too cold. The cups are cold. Preheat the cups with hot water.
There is no water. Fill the water tank and prime the circuit
(see the "Using the Machine for the
First Time" chapter).
The brew group is dirty. Clean the brew group (see the "Weekly
Cleaning of the Brew Group" chapter).
The circuit is not primed. Prime the circuit (see the "Using the
Machine for the First Time" chapter).
This might occur when the machine
is automatically adjusting the dose.
The dispensing spout is dirty. Clean the dispensing spout.
This might occur when the machine
is automatically adjusting the dose.
The co ee grind is too ne. Change co ee blend or adjust grind-
The circuit is not primed. Prime the circuit (see the "Using the
The brew group is dirty. Clean the brew group (see the "Weekly
The dispensing spout is clogged. Clean the dispensing spout and its
Brew a few cups of co ee as described
in the “Saeco Adapting System” chapter.
Brew a few cups of co ee as described
in the “Saeco Adapting System” chapter.
ing as explained in the “Adjusting the
Ceramic Co ee Grinder” chapter.
Machine for the First Time" chapter).
Cleaning of the Brew Group" chapter).
holes.
The milk is not frothed.
The milk does not come out.
The machine is in demo mode.
The milk carafe is dirty or not
inserted correctly.
The milk carafe dispenser has not
been removed correctly.
The milk carafe is not fully
assembled.
The type of milk used is not suitable
for frothing.
The button was pressed and
held for more than 8 seconds.
Clean the carafe and insert it correctly.
Check that the milk dispensing spout
has been removed correctly.
Make sure that all components have
been correctly assembled.
Use the type of milk suggested in the
"Milk Carafe" chapter.
Disconnect the power cord and turn
the machine back on.
Note:
* These problems can be considered normal if the co ee blend has been
changed or if the machine has just been installed. In this case wait until the
machine performs a self-adjusting operation as described in the "Saeco
Adapting System" chapter.
Page 81
ENGLISH
ENERGY SAVING
Stand-by
The Saeco fully automatic espresso co ee machine is designed for energy
saving, as proven by the Class A energy label.
After 15 minutes of inactivity, the machine turns o automatically (unless
a di erent stand-by time has been programmed). If a product has been
brewed, the machine performs a rinse cycle.
79
79
In stand-by mode, the energy consumption is below 1Wh.
To turn on the machine, press the “
” button (if the power button on the
back of the machine is set to “I”). If the boiler is cold, the machine performs
a rinse cycle.
Disposal
Do not throw away the machine with the normal household waste at the
end of its life, but hand it in at an o cial collection point for recycling. By
doing this, you help to preserve the environment.
- Packaging materials can be recycled.
- Machine: unplug the machine and cut the power cord.
- Deliver the appliance and power cord to a service centre or public
waste disposal facility.
This product complies with EU Directive 2002/96/EC.
The symbol on the product or on its packaging indicates that this product
may not be treated as household waste. Instead, it shall be handed over to
the applicable collection point for the recycling of electrical and electronic
equipment.
By ensuring this product is disposed of correctly, you will help prevent
potential negative consequences for the environment and human health,
which could otherwise be caused by inappropriate waste handling of
this product. For more detailed information about recycling this product,
please contact your local city o ce, your household waste disposal service
or the shop where you purchased the product.
Page 82
80
ENGLISH
TECHNICAL SPECIFICATIONS
The manufacturer reserves the right to make changes to the technical
speci cations of the product.
Nominal Voltage - Power Rating Power Supply
Housing material Thermoplastic material
Size (w x h x d) 215 x 330 x 429 mm
Weight 7.5 kg
Power cord length 800 - 1200 mm
Control panel Front panel
Cup sizes Up to 152 mm
Water tank 1.8 litres - Removable type
Co ee bean hopper capacity 250 g
Co ee grounds drawer capacity 15
Pump pressure 15 bar
Boiler Stainless steel type
Safety devices Thermal fuse
See data plate on the inside of the
service door
WARRANTY AND SERVICE
Warranty
For detailed information on your warranty and related conditions, please
read the warranty booklet supplied separately.
Service
We want to ensure that you remain satis ed with your machine.
If you have not already done so, please register your purchase at
www.saeco.com/welcome. This will enable us to stay in contact with you
and send you cleaning and descaling reminders.
If you need service or support, please visit the Philips website at www.
saeco.com/support or contact the Philips Saeco hotline in your country.
The contact details can be found in the warranty booklet supplied separately or on www.saeco.com/support.
Page 83
ENGLISH
81
81
ORDERING MAINTENANCE PRODUCTS
For cleaning and descaling, use Saeco maintenance products only.
can purchase these products at the Philips online shop (if available in your
country) at www.shop.philips.com/service, your local dealer or at authorised
service centres.
If you have any di culties obtaining maintenance products for your machine, please contact the Philips Saeco hotline in your country.
Contact details can be found in the warranty booklet packed separately or
on www.saeco.com/support.
Overview of maintenance products:
- Descaling solution CA6700
You
- INTENZA+ Water lter cartridge CA6702
- Grease HD5061
Page 84
82
ENGLISH
- Co ee Oil Remover CA6704
- Milk Circuit Cleaner: CA6705
- Maintenance Kit CA 6706
Page 85
Page 86
Page 87
Page 88
02
The manufacturer reserves the right to make changes without prior notice.
www.saeco.com/welcome
Rev.01 del 15-10-14
