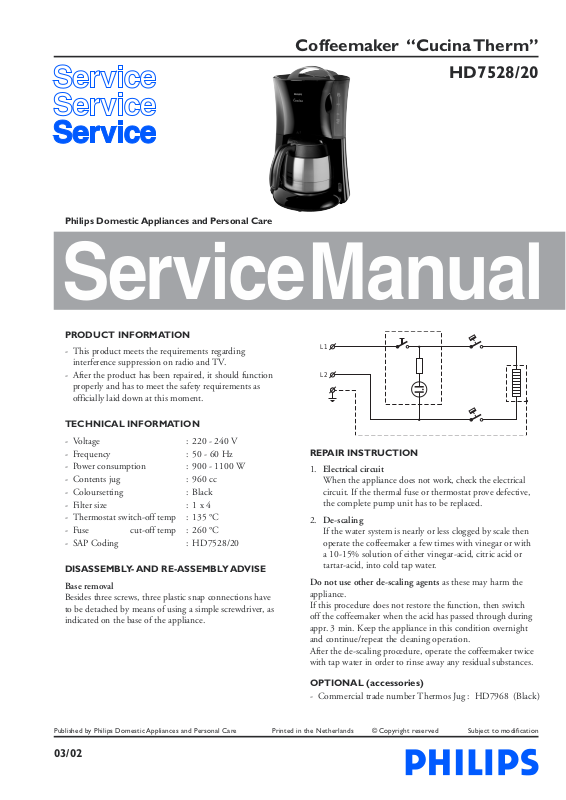

Philips HD7528-20 Service Manual

Coffeemaker “Cucina Therm”

HD7528/20

Philips Domestic Appliances and Personal Care

Service Manual

PRODUCT INFORMATION

- This product meets the requirements regarding interference suppression on radio and TV.

- After the product has been repaired, it should function properly and has to meet the safety requirements as officially laid down at this moment.

TECHNICAL INFORMATION

- Voltage : 220 - 240 V

- Frequency : 50 - 60 Hz

- Power consumption : 900 - 1100 W

- Contents jug : 960 cc

- Coloursetting : Black

- Filter size : 1 x 4

- Thermostat switch-off temp : 135 °C

- Fuse cut-off temp : 260 °C

- SAP Coding : HD7528/20

DISASSEMBLY- AND RE-ASSEMBLY ADVISE

Base removal

Besides three screws, three plastic snap connections have to be detached by means of using a simple screwdriver, as indicated on the base of the appliance.

REPAIR INSTRUCTION

1. Electrical circuit

When the appliance does not work, check the electrical circuit. If the thermal fuse or thermostat prove defective, the complete pump unit has to be replaced.

2. De-scaling

If the water system is nearly or less clogged by scale then operate the coffeemaker a few times with vinegar or with a 10-15% solution of either vinegar-acid, citric acid or tartar-acid, into cold tap water.

Do not use other de-scaling agents as these may harm the appliance. If this procedure does not restore the function, then switch off the coffeemaker when the acid has passed through during appr. 3 min. Keep the appliance in this condition overnight and continue/repeat the cleaning operation. After the de-scaling procedure, operate the coffeemaker twice with tap water in order to rinse away any residual substances.

OPTIONAL (accessories)

- Commercial trade number Thermos Jug : HD7968 (Black)

Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification

03/02

HD7528/20

10 11

Pos Description Service code

Tank lid

Tank Cover, black

Water tank

Cover

Spring Filter hold bracket

Filter cap, black

Switch, black

Seal heatingplate

Seal cover

Locking ring

Lockingplate

= changed

9965 000 15552 9965 000 15553 9965 000 15554 9965 000 15555 9965 000 15556

9965 000 15557 9965 000 15558 9965 000 15559 9965 000 09505 9965 000 15560 9965 000 09506

Pos Description Service code

Spring valve

Hose piece 8 x 2

Connecting piece

Ball

Hose piece 9.8 x 2,7

Pump assy

Base assy

Foot

Thermos Juglid Black

Thermos Jug

Filter without Cap

9965 000 09507 9965 000 16705 9965 000 15561 9965 000 15562 9965 000 15563

9965 000 15564 9965 000 15565 9965 000 15566 9965 000 15567 9965 000 15568

9965 000 16700
