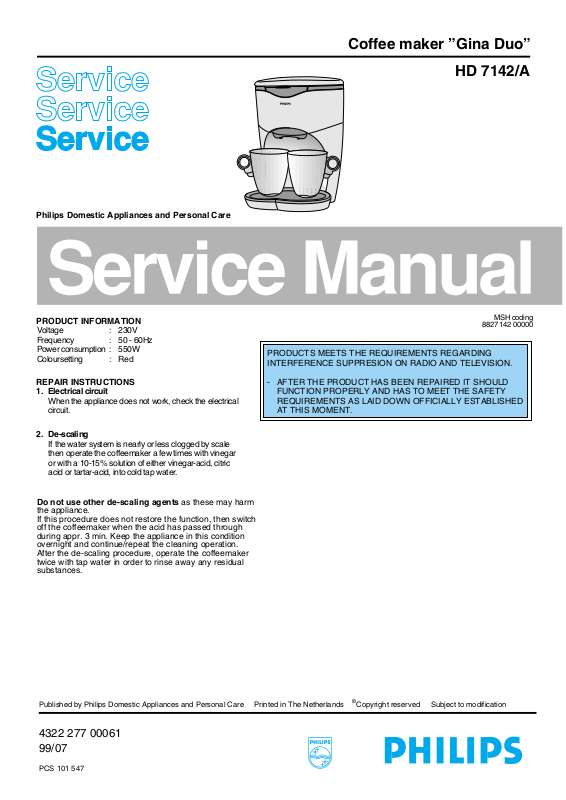

Philips HD7142A Service Manual
Coffee maker ”Gina Duo”
HD 7142/A
Philips Domestic Appliances and Personal Care
PRODUCT INFORMATION
Voltage
Frequency
Power consumption
Coloursetting
REPAIR INSTRUCTIONS
1.
Electrical circuit
When the appliance does not work, check the electrical
circuit.
2.
De-scaling
If the water system is nearly or less clogged by scale
then operate the coffeemaker a few times with vinegar
or with a 10-15% solution of either vinegar-acid, citric
acid or tartar-acid, into cold tap water.
:
230V
:
50 - 60Hz
:
550W
:
Red
MSH coding
8827 142 00000
PRODUCTS MEETS THE REQUIREMENTS REGARDING
INTERFERENCE SUPPRESION ON RADIO AND TELEVISION.
- AFTER THE PRODUCT HAS BEEN REPAIRED IT SHOULD
FUNCTION PROPERLY AND HAS TO MEET THE SAFETY
REQUIREMENTS AS LAID DOWN OFFICIALLY ESTABLISHED
AT THIS MOMENT.
Do not use other de-scaling agents as these may harm
the appliance.
If this procedure does not restore the function, then switch
off the coffeemaker when the acid has passed through
during appr. 3 min. Keep the appliance in this condition
overnight and continue/repeat the cleaning operation.
After the de-scaling procedure, operate the coffeemaker
twice with tap water in order to rinse away any residual
substances.
Published by Philips Domestic Appliances and Personal Care Printed in The Netherlands Copyright reserved Subject to modification
©
4322 277 00061
99/07
PCS 101 547
HD 7142/A
1 532411 6 14 7
10
12
9
13
15
Parlist from the HD 7142
Pos: Description: Service code:
Tank lid
1
Connecting piece
2
Spout
3
Frame
4
Spout pipe
5
Filterholder
6
Syfhon
7
Cup set KF red
8
Mini pump assy (incl. Hose, thermo fuse, bracket etc.)
9
Lampholder assy
10
Light conductor
11
Cord set EU silver
12
Tray
13
Permanent filter
14
Cord support
15
DFU
4222 247 58650
4822 528 11347
4822 529 10438
4222 247 58660
4822 530 10539
4222 247 58670
4822 480 50525
4222 259 32370
4222 259 34101
4822 255 10429
4822 380 10279
4222 246 25470
4222 247 57890
4822 480 10268
4222 247 57900
4822 736 17085
8
PCS 101 547
