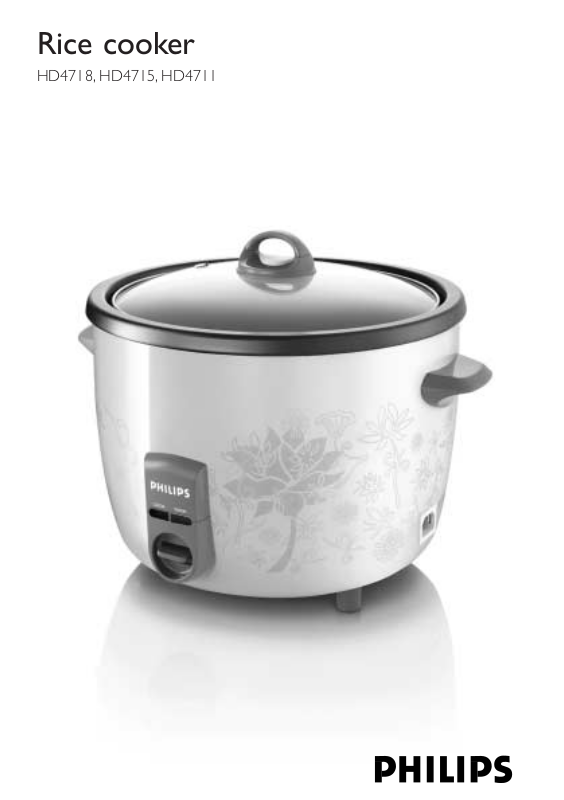

Rice cooker
HD4718, HD4715, HD4711
2
3
1
4
ENGLISH 6
BAHASA MELAYU 10
TI”NG VI◊T 15
20
24
HD4718, HD4715, HD4711
6 ENGLISH
General description (fig. 1)
A Lid handle
B Glass lid
C Steam tray
D Water level indication
E Inner pot
F Main body
G Keep warm light
H Cook light
I Control lever
J Heating element
K Measuring cup
L Rice scoop
M Side handle
N Mains cord connection
O Mains cord
Important
Read these instructions for use carefully before using the appliance and save them for future reference.
Check if the voltage indicated on the appliance corresponds to the local mains voltage before you connect the appliance.
Only connect the appliance to an earthed wall socket.Always ensure the plug is inserted firmly into the wall socket.
If the mains cord is damaged, it must be replaced by Philips, a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard.
Never use any accessories or parts from other manufacturers or which have not been specifically advised by Philips.Your guarantee will become invalid if such accessories or parts have been used.
Only use the rice scoop provided.Avoid using sharp utensils.
Never immerse the housing of the rice cooker in water, nor rinse it under the tap.
Do not expose the rice cooker to high temperatures, nor place it onto a working or still hot stove or cooker.
Make sure the heating element, the magnetic switch and the outside of the inner pot are clean and dry before switching the rice cooker on.
Do not switch the rice cooker on without having inserted the inner pot.
Always unplug the rice cooker and let it cool down before cleaning it.
Do not place the inner pot directly over an open fire to cook rice.
Do not cover the steam vent and the lid while the rice cooker is operating.
Keep the appliance out of the reach of children. Do not let the mains cord hang over the edge of the table or worktop on which the appliance is standing.
This appliance is intended for household use only. If the appliance is used improperly or for professional or semiprofessional purposes or if it is used in a way that is not in accordance with the instructions for use, the guarantee will become invalid and Philips will not accept liability for any damage caused.
Place the rice cooker on a stable, horizontal and level surface.
The accessible surfaces may become hot when the appliance is operating.
Do not plug the appliance in or switch on the mains with wet hands.
Beware of hot steam coming out of the steam vent during cooking or out of the rice cooker when you open the lid.
Always unplug the appliance after use.
Do not lift and move the rice cooker by its handle while it is operating.
ENGLISH 7
Before first use
Remove the sheet between the inner pot and the heating element.
1Clean the parts of the rice cooker thoroughly before using the appliance for the first time (see chapter 'Cleaning'). Make sure all parts are completely dry before you start using the appliance.
Using the appliance
Cooking rice
1 Measure the rice using the measuring cup provided.
Each cup of uncooked rice normally gives 2 bowls of cooked rice. Do not exceed the quantities indicated on the inside of the inner pot. 1 cup of rice is approx. 180ml.
Menu |
Volume/L |
Quantity of rice (cups) |
HD4711 |
1.0 |
1-5 |
|
|
|
HD4715 |
1.8 |
2-10 |
HD4718 |
2.8 |
5-15 |
2 Wash the rice thoroughly.
Use a separate container to wash the rice to avoid damaging the surface of the inner pot.
3Put the pre-washed rice in the inner pot.
4Add water to the level indicated on the scale inside the inner pot that corresponds to the
number of cups of rice used.Then smooth the rice surface.
For instance, if you cook 4 cups of rice, add water up to the 4-cup level indicated on the scale.

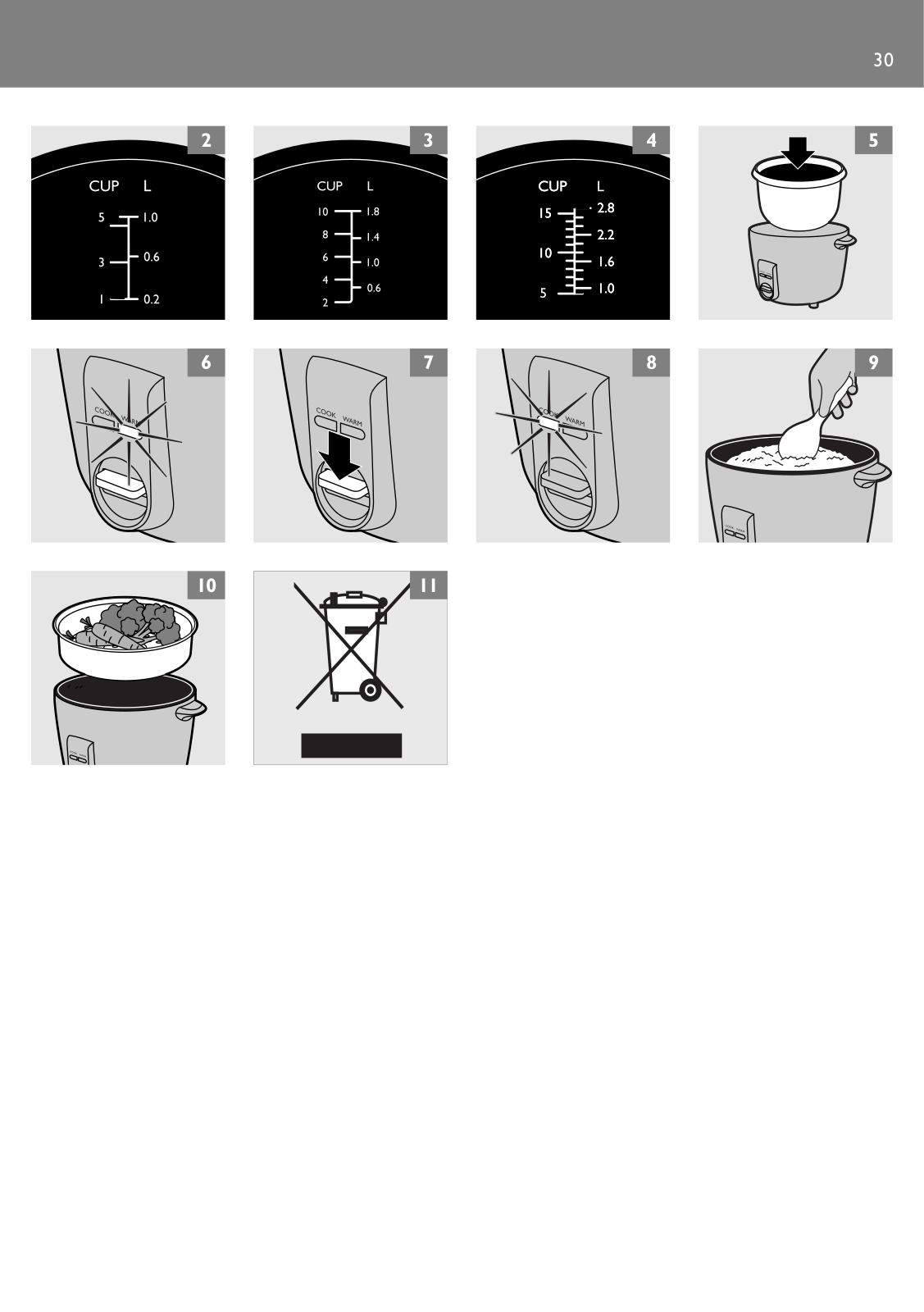

HD4711 (fig. 2).
HD4715 (fig. 3).
HD4718 (fig. 4).
BThe level marked inside the inner pot is just an indication; you can always adjust the water level for different types of rice and your own preference.
5Put the inner pot in the rice cooker. Check if the inner pot is in proper contact with the heating element (fig. 5).
Make sure that the outside of the inner pot is dry and clean and that there is no foreign residue on the heating element or the magnetic switch.
6Put the lid on the rice cooker, put the plug in the wall socket and switch on the mains.
The keep warm light goes on to indicate that the appliance is on (fig. 6).
7Press the control lever down to start the cooking process (fig. 7).
The cook light goes on (fig. 8).
If you fail to press down the control lever the keep-warm light stays on.
8When the cooking process is finished, the cook light goes out and the keep-warm light goes on to indicate that the rice cooker has automatically switched to the keep-warm mode (fig. 6).
9Open the lid and stir the rice to loosen it (fig. 9).
For the best results, do this just after the rice cooker has switched to keep-warm mode.Then close the lid firmly. Stirring the rice allows excess steam to escape.This will give fluffier rice.
10To end the cooking process or the keep-warm mode, pull up the control lever, switch off the mains and remove the mains plug from the wall socket.
8 ENGLISH
Steaming
1Measure 3 cups of water with the measuring cup and pour it into the inner pot.
The amount of water varies according to the quantity of food being steamed. It will take approx. 8 minutes for 3 cups of water to come to the boil.
2Put the food to be steamed on a plate or in the steam tray.
To ensure even steaming, the food should be spread out evenly and should not be piled up.
3 Put the steam tray in the inner pot (fig. 10).
When you combine steaming and rice cooking, make sure you measure out an amount of rice that leaves enough room for the steam tray.The steamed food will be ready when the rice cooking process is finished.
4If you are using a separate plate, put it in the steam tray.
5Close the lid firmly.
6Follow steps 6, 7 and 8 in the section 'Cooking rice'
The steaming time varies according to the quantity of food being steamed.
When the steaming process is finished, the cook light goes out and the keep-warm light goes on to indicate that the appliance has automatically switched to the keep-warm mode.
7To end the cooking process or the keep-warm mode, pull up the control lever, switch off the mains and remove the mains plug from the wall socket.
8Open the lid and carefully remove the steamed food from the plate or steam tray. Use a kitchen glove or a cloth, as the plate and the steam tray will be very hot.
Beware of the hot steam.
Keeping warm
This mode allows you to keep your rice warm for a longer period of time.
When the cooking process is finished, the rice cooker automatically switches to the keepwarm mode.The cook light goes out and the keep-warm light goes on.
We advise you to keep rice warm for not more than 5 hours so as to preserve its taste.
The keep-warm mode will not switch off automatically.
To end the keep-warm mode switch off the mains and unplug the appliance.
Cleaning
Unplug the rice cooker before starting to clean it.
Wait until the rice cooker has cooled down sufficiently before cleaning it.
To protect the surface of the inner pot, do not:
-use the inner pot for washing dishes;
-put vinegar into the pot.
1Take the steam tray and the inner pot out of the body of the appliance.
2Clean the lid, inner pot, steam tray and rice scoop with a sponge or a cloth in hot water with some washing-up liquid.
Do not use abrasive cleaning agents, scourers or metal utensils to clean the inner pot as these will damage the surface of the inner pot.
ENGLISH 9
3 Use only a damp cloth to wipe the outside and inside of the body of the rice cooker.
Never immerse the body of the rice cooker in water, nor rinse it under the tap.Wipe the heating element with a dry cloth.
Environment
Do not throw the appliance away with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this you will help to preserve the environment (fig. 11).
Guarantee & service
If you need information or if you have a problem, please visit the Philips website at www.philips.com or contact the Philips Customer Care Centre in your country (you will find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, turn to your local Philips dealer or contact the Service Department of Philips Domestic Appliances and Personal Care BV.
Troubleshooting
If your rice cooker does not function properly or if the cooking quality is insufficient, consult the table below. If you are unable to solve the problem, please contact the Philips Customer Care Centre in your country.
Problem |
Possible cause |
Solution |
The cook light does not go on. |
There is a connection problem. |
Check if the rice cooker is connected to |
|
|
the mains and if the plug is inserted firmly |
|
|
into the wall socket. |
|
|
|
|
The light is defective. |
Take the appliance to your Philips dealer or |
|
|
a service centre authorised by Philips. |
The keep-warm light does not |
The light is defective. |
Take the appliance to your Philips dealer or |
go on when the cooking |
|
a service centre authorised by Philips. |
process is finished. |
|
|
|
|
|
The rice is not cooked. |
Not enough water has been |
Add water according to the scale on the |
|
added. |
inside of the inner pot (see chapter 'Using |
|
|
the appliance'). |
|
|
|
The cooking process has not started.
The inner pot is not properly in contact with the heating element.
The heating element is damaged.
The rice is too hard or too soft. Not enough or too much water has been added.
The rice is scorched. |
The rice has not been rinsed |
|
well. |
You have failed to press the control lever down.
Make sure that there is no foreign residue on the heating element.
Take the appliance to your Philips dealer or a service centre authorised by Philips.
Add water according to the scale on the inside of the inner pot (see chapter 'Using the appliance').
Rinse the rice until water runs clear.
The rice cooker does not |
The temperature control is |
Take the appliance to your Philips dealer or |
automatically switch to keep- |
defective. |
a service centre authorised by Philips. |
warm mode. |
|
|
|
|
|
The food has not been steamed properly.
There is too much food in the steam tray.
Distribute the food evenly and do not steam too much food at one time.
10 BAHASA MELAYU
Gambaran umum (gamb. 1)
A Tangkai tudung
B Tudung kaca
C Dulang kukus
D Penunjuk aras air
E Periuk dalam
F Jasad utama
G Lampu simpan panas
H Lampu masak
I Tuil kawalan
J Plat pemanas
K Cawan penyukat
L Senduk nasi
M Tangkai sisi
N Sambungan kord sesalur kuasa
O Kord sesalur kuasa
Penting
Baca arahan penggunaan ini dengan teliti sebelum menggunakan perkakas dan simpan untuk rujukan di masa depan.
Periksa sama ada voltan yang ditunjukkan pada perkakas sepadan dengan voltan sesalur setempat sebelum anda menyambungkan perkakas.
Sambungkan perkakas hanya dengan soket dinding terbumi. Sentiasa pastikan plag dimasukkan dengan rapi ke dalam soket.
Jika kord sesalur rosak, ia mesti digantikan oleh Philips, pusat servis yang dibenarkan oleh Philips atau pihak-pihak yang telah diluluskan bagi mengelakkan bahaya.
Jangan guna sebarang aksesori atau alat ganti dari pembuat lain yang tidak dinasihati khas oleh Philips. Jaminan anda akan menjadi tidak sah jika aksesori atau alat ganti sedemikian telah pun digunakan.
Gunakan hanya senduk nasi yang disediakan. Elakkan menggunakan perkakas yang tajam.
Jangan tenggelamkan perumah pemasak nasi di dalam air atau membilasnya di bawah pili air.
Jangan dedahkan pemasak nasi pada suhu yang tinggi, atau letakkannya di atas pemanas atau dapur yang sedang berfungsi atau masih panas.
Pastikan plat pemanas, suis magnet dan bahagian luar periuk dalam bersih dan kering sebelum menghidupkan periuk pemasak nasi.
Jangan hidupkan periuk pemasak nasi tanpa memasukkan periuk dalam.
Cabutkan plag periuk pemasak nasi dan biarkan sehingga sejuk setiap kali sebelum membersihkannya.
Jangan letakkan periuk dalam terus di atas api terbuka untuk memasak nasi.
Jangan tutup bolong stim semasa periuk pemasak nasi sedang beroperasi.
Jauhkan perkakas daripada capaian kanak-kanak. Jangan biarkan kord sesalur kuasa tergantung melepasi pinggir meja atau permukaan kerja tempat perkakas disimpan.
Perkakas ini hanya untuk kegunaan rumah sahaja. Jika perkakas digunakan dengan tidak betul atau bagi tujuan profesional atau (separa) profesional atau penggunaannya tidak selaras dengan arahan penggunaan, jaminan akan terbatal dan Philips tidak akan menerima tanggungjawab terhadap apa-apa kerosakan yang menjadi akibat.
Letakkan periuk pemasak nasi pada permukaan yang stabil, mendatar dan rata.
Permukaan yang dapat dicapai mungkin menjadi panas apabila perkakas beroperasi.
Jangan pasang plag perkakas atau hidupkan sesalur kuasa dengan tangan yang basah.
Berhati-hati dengan stim panas yang keluar dari bolong stim semasa memasak atau yang keluar dari periuk pemasak nasi semasa anda membuka tudungnya.
