PRELIMINARY

■ 21-Button

Total Remote
Control

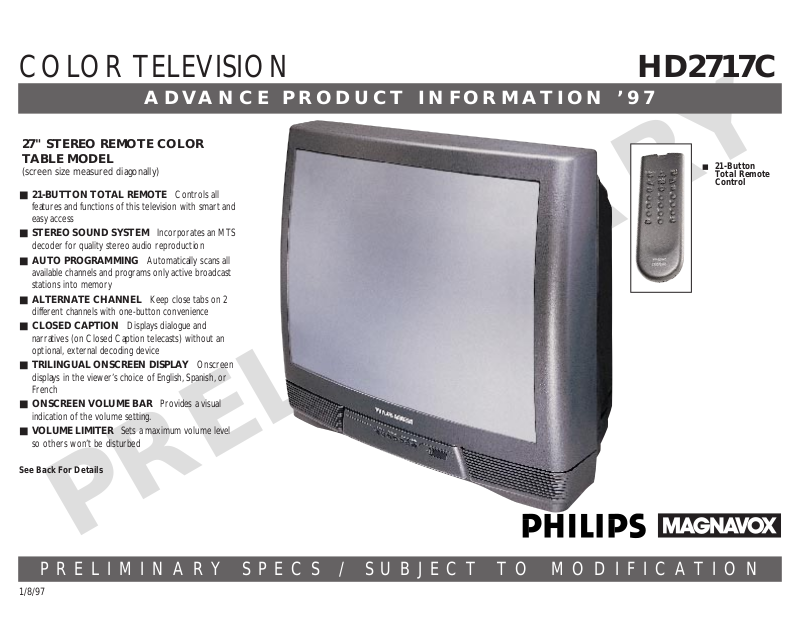

ADVANCE PRODUCT INFORMATION ’97

■

21-BUTTON TOTAL REMOTE Controls all
features and functions of this television with smart and
easy access

■

STEREO SOUND SYSTEM Incorporates an MTS
decoder for quality stereo audio reproduction

■

AUTO PROGRAMMING Automatically scans all
available channels and programs only active broadcast
stations into memory

■

ALTERNATE CHANNEL Keep close tabs on 2
different channels with one-button convenience

■

CLOSED CAPTION Displays dialogue and
narratives (on Closed Caption telecasts) without an
optional, external decoding device

■

TRILINGUAL ONSCREEN DISPLAY Onscreen
displays in the viewer’s choice of English, Spanish, or
French

■

ONSCREEN VOLUME BAR Provides a visual
indication of the volume setting.

■

VOLUME LIMITER Sets a maximum volume level
so others won’t be disturbed

See Back For Details

COLOR TELEVISION HD2717C

1/8/97

27" STEREO REMOTE COLOR
TABLE MODEL

(screen size measured diagonally)

PRELIMINARY SPECS / SUBJECT TO MODIFICATION

COLOR TELEVISION HD2717C

27" STEREO REMOTE COLOR
TABLE MODEL


27'' Dark Glass Flat Square Picture Tube Our 27''

flat square picture tube combines an advanced electron gun
design, 36% transmission dark glass faceplate, black matrix,
specially tinted phosphors, and a 100˚ deflection angle to
provide greater contrast ratio than ever before–as well as a
higher degree of picture sharpness, fine focus, bright detail,
and color picture clarity.

REMOTE CONTROL

■ 21-BUTTON TOTAL REMOTE CONTROL

21-Button Total Remote Controls:

Alternate Channel
Menu display
4-way cursor control
Random channel access
Programmable scan tuning
Closed Caption
Volume control
Volume mute
120-minute sleep timer
Status/exit
Power on/off
(Remote # RC0801/04)

CONVENIENCE

■ ALTERNATE CHANNEL

■ TRILINGUAL ONSCREEN DISPLAY

■ AUTO PROGRAMMING

■ CLOSED CAPTION

■ ONSCREEN VOLUME BAR

Alternate Channel Keep close tabs on 2 different

channels with one-button convenience. Simply select 2
channels using the channel scan (Channel Up/Channel Down)
method or the Direct Access method. Then using the A/CH
button on the remote control, toggle between the
programmed channels.

Trilingual Onscreen Display Onscreen displays assist in

selecting preferred picture performance levels, choice of
regular or cable viewing source, and indicate the activation of
special features. Displays may be put on screen in the viewer’s
choice of English, Spanish, or French.

Auto Programming When activated, this feature

automatically scans all available channels–from regular antenna
or cable–and programs only active broadcast stations into
memory. CHANNEL UP or DOWN buttons, on the remote
or at the set, will then sequence through only those pre­programmed channels.

Closed Caption Activated through a special onscreen

menu, the Closed Caption feature allows the hearing impaired
to read dialogue and narratives (on Closed Caption telecasts)
without the use of an optional, external decoding device.
Program dialogue and narrative material are printed at the
bottom of the screen. Excellent for development of language
skills and private viewing without disturbing others as well.

Onscreen Volume Bar When activated, this feature

displays an onscreen volume bar providing a visual indication
of the volume setting.

SOUND

Stereo Sound System The stereo sound system built

into this television incorporates an MTS decoder which
permits reception and reproduction of broadcast stereo
television programs (where available).

Volume Limiter A great feature for TVs that serve as

part-time monitors for video games, Volume Limiter allows
you to set a maximum volume level that cannot be exceeded,
no matter how loud your kids want to play Dark Thunder!

A/V JACK PANEL

Audio/Video Jack Panel (J700) The A/V jack panel on

the back of this set includes a coaxial RF input for connection
to CATV, CCTV, or indoor/outdoor
antenna system.

Additional Features Include:

• 120-minute sleep timer

• Channel edit

• Total remote menu format tuning with multicolor
onscreen graphics

• 181-channel capability

• 4-way cursor control

• Random channel access

• Programmable scan tuning

• Status recall

• Cable/normal select

• Two 5" oval full-range speakers

UPC: 037849849354
Product Dimensions: 25.7"W x 22.9"H x 19.75"D
Product Weight: 80 lbs.
Carton Dimensions: 30"W x 28"H x 23.5"D
Carton Weight: 83 lbs.
Master Pack: 1

Carton Contains: 27" Stereo Remote Color Table Model TV,
21-Button Remote Control w/Batteries, Operating
Instructions, Warranty Information

Printed in U.S.A.
©1997 Philips Consumer Electronics Co.
A Division of Philips Electronics North America Corp.
Specifications subject to change without notice.
