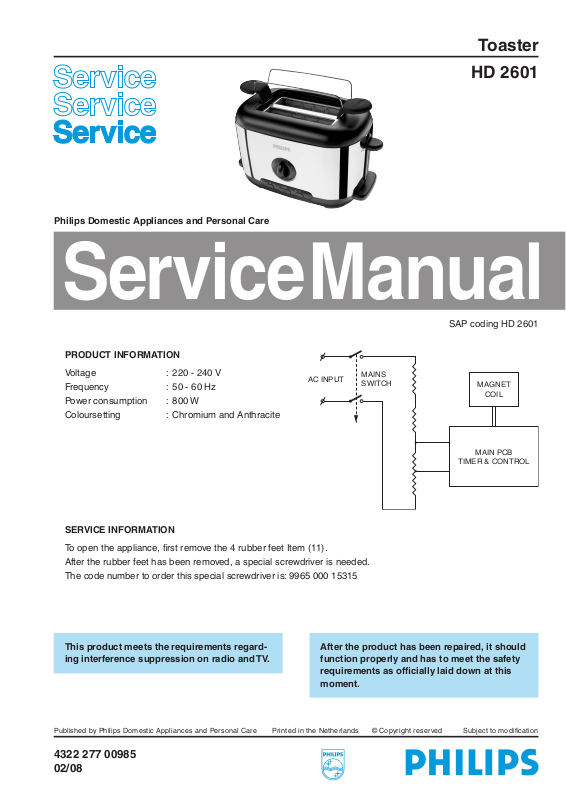

Toaster
HD 2601
Philips Domestic Appliances and Personal Care
Service Manual
PRODUCT INFORMATION
Voltage : 220 - 240 V
Frequency : 50 - 60 Hz
Power consumption : 800 W
Coloursetting : Chromium and Anthracite
SERVICE INFORMATION
To open the appliance, fi rst remove the 4 rubber feet Item (11).
After the rubber feet has been removed, a special screwdriver is needed.
The code number to order this special screwdriver is: 9965 000 15315
AC INPUT
MAINS
SWITCH
SAP coding HD 2601
MAGNET
COIL
MAIN PCB
TIMER & CONTROL
This product meets the requirements regarding interference suppression on radio and TV.
Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification
4322 277 00985
02/08
After the product has been repaired, it should
function properly and has to meet the safety
requirements as offi cially laid down at this
moment.
![](/html/76/76fa/76faaed69f993895a8850f4f6eefde5f5e0734e1367c263b32c44860de0eba90/bg2.png)
HD 2601
1
2
3
5
6
7
8
9
4
10
11
12
Pos Description Service code
1
Bunwarmer Anthracite
2
Control knob cover Anthracite
3
Control knob Anthracite
4
Crumtray complete Anthracite
5
Push slot Anthracite
6
Push knob Anthracite
9965 000 14813
9965 000 14802
9965 000 14803
9965 000 14804
9965 000 14805
9965 000 14806
Pos Description Service code
7
PCB cover
8
Function PCB assembly
9
Future button (3x) Anthracite
10
Main PCB (Magnet unit)
11
Mains switch assy
12
Rubber foot White
9965 000 14807
9965 000 14808
9965 000 14809
9965 000 14810
9965 000 14811
9965 000 14812
