Philips GreenPower LED Series, GreenPower LED production module 120, GreenPower LED production module 150 Application Manual
Page 1
Horticulture
LED Solutions
GreenPower LED
production module
Application Guide
The efficient way to improve
climate and crop control
September 2018
Page 2
Contents
Introduction 3
Product information 4
Dimensions 4
Technical specifications 4
Installation of the system 6
Mounting options 6
Positioning of the modules 7
Use of the connector 8
Connecting the system 9
Cable tree design guidelines 10
Ordering data (except NA and Japan) 11
Modules 11
Accessories 11
Ordering data North America (NA) 12
Modules 12
Accessories 12
Accessory information 13
Accessories for module 13
Accessories for cable tree 13
Crop protection and cleaning products 14
Use of cleaning agents, crop protection products
and other chemicals 14
Cleaning GreenPower LED products 14
Using pesticides, fungicides and insecticides 14
Compliance with international standards 15
2September 2018 Application Guide - Philips GreenPower LED production module
Page 3
Introduction
Especially designed for your vertical growth system, the GreenPower LED production module is the best solution for
new or existing installations. Due to its high energy efficiency and long lifetime, the GreenPower LED production module
is the cost-effective way to improve climate and crop control for indoor cultivation environments.
The GreenPower LED production module is available in several spectral versions and in two lengths; 120 cm and 150 cm.
The GreenPower LED production module is available for two regions:
• North America (NA)
• Rest of world: global, except North America and Japan (ROW)
For each region dedicated accessories (such as cabling, connectors) are available for an easy and quick installation.
This application guide describes all important technical and safety information of the GreenPower LED production module.
3September 2018 Application Guide - Philips GreenPower LED production module
Page 4
H1
Product information
Dimensions
W1
W1
H1
L1
Product name Product dimensions (mm/inch)
L1 L2 L3 D1 Ø D2 Ø D2 Ø W1 H1
D2 (Ø)
L2
4.5 / 0.18
D1 (Ø)
L3
10 / 0.39
32 / 1.26
40 / 1.57
Product
EU NAM
weight
(kg/lbs)
GP LED production module 120 1213 / 47.76 700 / 27.5 64 / 2.52 19 / 0.75 8.7 / 0.34 7.6 / 0.3 40.5 / 1.59 40.2 / 1.58 1.4 / 3.1
GP LED production module 150 1513 / 59.57 700 / 27.5 64 / 2.52 19 / 0.75 8.7 / 0.34 7.6 / 0.3 40.5 / 1.59 40.2 / 1.58 1.7 / 3.7
Technical specifications
Type Photobiological hazard2
Photon flux Efficacy typical1Power
consumption
Radiation
hazard
Minimum viewing distance
(μmol/s) (μmol/J) (W) Retinal Blue (m) (inch)
PM 120
DR/B 120 LB HO 66 3.0 22 Risk Group 2 0.35 14 Exempt group
DR/B/FR 120 LB HO 66 3.0 22 Risk Group 2 0.35 14 Exempt group
DR/B/FR_2 120 MB HO 64 2.7 24 Risk Group 2 0.8 32 Exempt group
DR/W 120 LB HO 66 2.6 25 Risk Group 2 0.5 20 Exempt group
DR/W/FR 120 LB HO 66 2.6 25 Risk Group 2 0.5 20 Exempt group
DR/W 120 LB LO 25 2.5 10 Exempt group N/A N/A Exempt group
PM 150
DR/B 150 LB HO 83 3.0 28 Risk Group 2 0.35 14 Exempt group
DR/B/FR 150 LB HO 83 3.0 28 Risk Group 2 0.35 14 Exempt group
DR/W 150 LB HO 83 2.6 32 Risk Group 2 0.5 20 Exempt group
DR/W/FR 150 LB HO 83 2.6 32 Risk Group 2 0.5 20 Exempt group
DR/W 150 LB LO 31.5 2.5 12.5 Exempt group N /A N/A Exempt group
DR/W 150 LB 62.5 2.6 24 Risk Group 2 0.3 12 Exempt group
FR 150 62.5 2.1 30 Exempt group N/A N/A Exempt group
3
All other radiation
hazards
Specifications Details
Optical
Rated average lifetime
1,4
35.000 hrs, L90B50 (90% flux maintenance)
Electrical
Input voltage 120 - 277 V AC, 50-60 Hz
Power factor > 0,9 (> 0,8 for LO versions @ 277 V)
Inrush current 3.0 A - 0.8 ms 120 V
5.5 A - 0.8 ms 230V
7.0 A - 0.8 ms 277V
Environment
Ambient storage temperature -20 to 85 °C / -4 to 185 °F (T
Ambient operating temperature 0 to 40 °C / 40 to 104 °F (T
Max. case temperature
1
40 °C / 104 °F (T
case
)
storage
operating
Cooling Passively air-cooled
Relative humidity 5-95% RH, no condensation allowed during storage,
operation and application
Ingress protection rating IP66
UL/CSA rating Dry, damp and wet locations
Legend:
GP = GreenPower
PM = Production Module
DR = Deep Red
B = Blue
W = White
FR = Far Red
)
)
LB = Low Blue
HO = High Output
LO = Low Output
1
Efficacy typical / Rated average lifetime / Max. case temperature
@ T
= 25 °C / 77 °F
ambient
2
For more information about photobiological hazard see page 5
3
The luminaire should be positioned at minimum viewing distance,
so that prolonged staring into the light source is not expected.
4
All measured lifetimes are industry standard measurements
indicating average length of operation and not a performance
claim specific to any individual product.
4September 2018 Application Guide - Philips GreenPower LED production module
Page 5
Important
Influencing factors of light output
As ambient temperature increases, both the photon flux and the photon flux maintenance will decrease.
Pollution or damage of optics will also impact the light output.
Thermal protection
The GreenPower LED production module has a built-in thermal protection device. If the temperature of the module
exceeds 50 °C / 122 °F the module will blink a few times and then shut off. After cooling down the module will switch
on again automatically.
Photobiological hazard
Photobiological safety of lamps and lamp systems (EN 62471).
This International Standard describes the photobiological safety of lamps and lamp systems including luminaires.
The rating of the GreenPower LED production module according to this standard can be found in the technical
specifications.
Risk Group 2:
Do not stare at the operating light source.
The philosophical basis for this classification is
that the lamp does not pose a hazard due to
the aversion response to very bright light sources
or due to the thermal discomfort.
Caution: Possibly hazardous optical
radiation emitted from this product.
Do not stare at operating lamp.
May be harmful to the eye.
Light source not replaceable
The light source of this fixture is not replaceable. When the light source reaches its end-of-life, the whole fixture
needs to be replaced.
Cable not replaceable
The external flexible cable or cord of this luminaire cannot be replaced. If the cord is damaged, the luminaire shall be
destroyed.
Not for outdoor use
Modules are not suited to outdoor use (UV effects on material, discoloring).
5September 2018 Application Guide - Philips GreenPower LED production module
Page 6

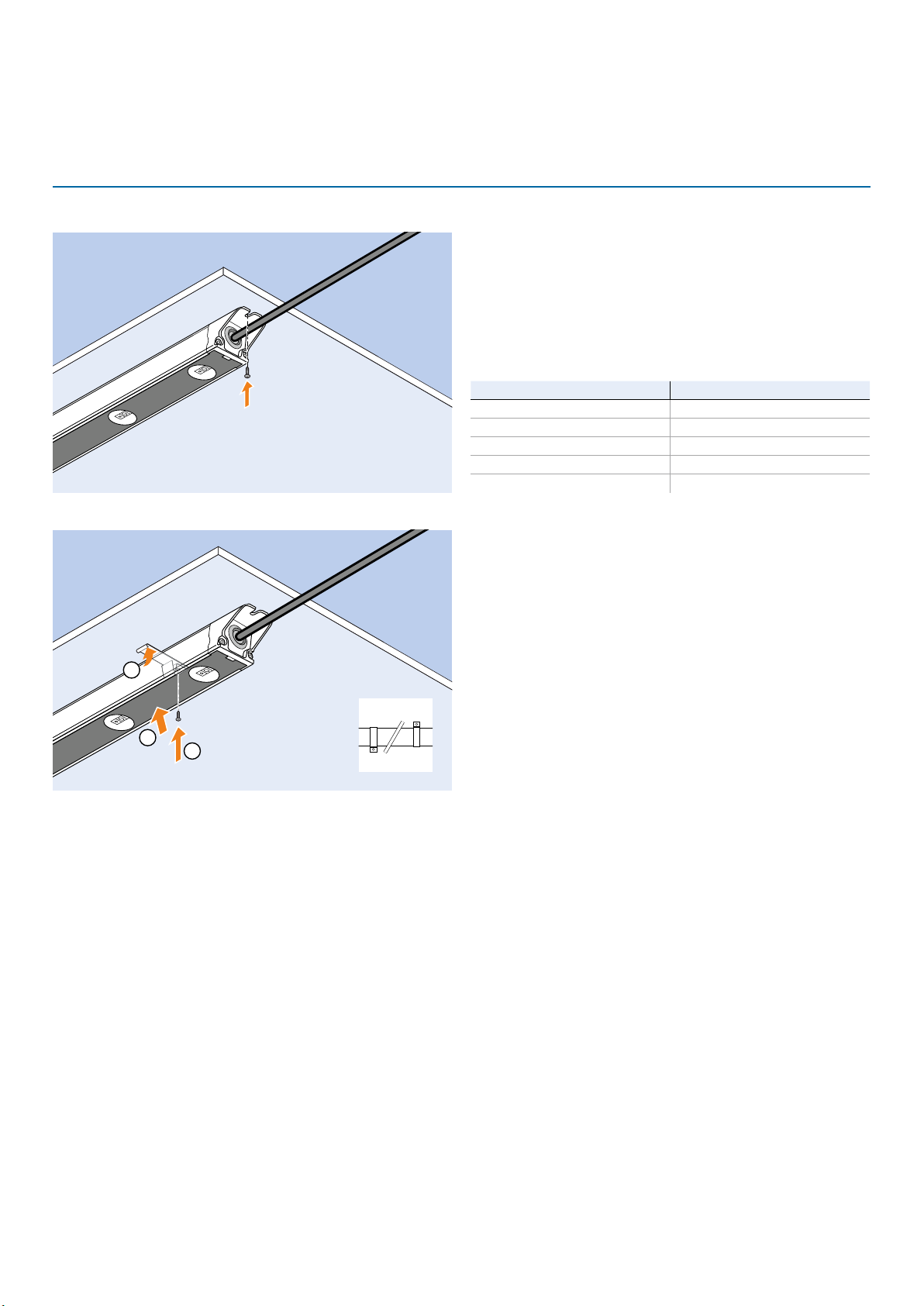

Installation of the system
Mounting options
Option 1
Mount the GreenPower LED production module with bolts
or self-tapping screws, diameter 4.3 mm / 0.17 in. These
screws must be made of austenitic stainless steel to avoid
electrolytic corrosion.
Austenitic stainless steel examples:
AISI / ASTM EN-standard
304, 316 1.4301, 1.4408
321 1.4541
317 1.4438
309 1.4828
310 1.4841
Option 2
Mount the GreenPower LED production module
to a shelf with the mounting bracket. Brackets must be
mounted in alternating order left and right. Number of clips
per module: minimal 2, preferably 3.
1
2
3
6September 2018 Application Guide - Philips GreenPower LED production module
Page 7

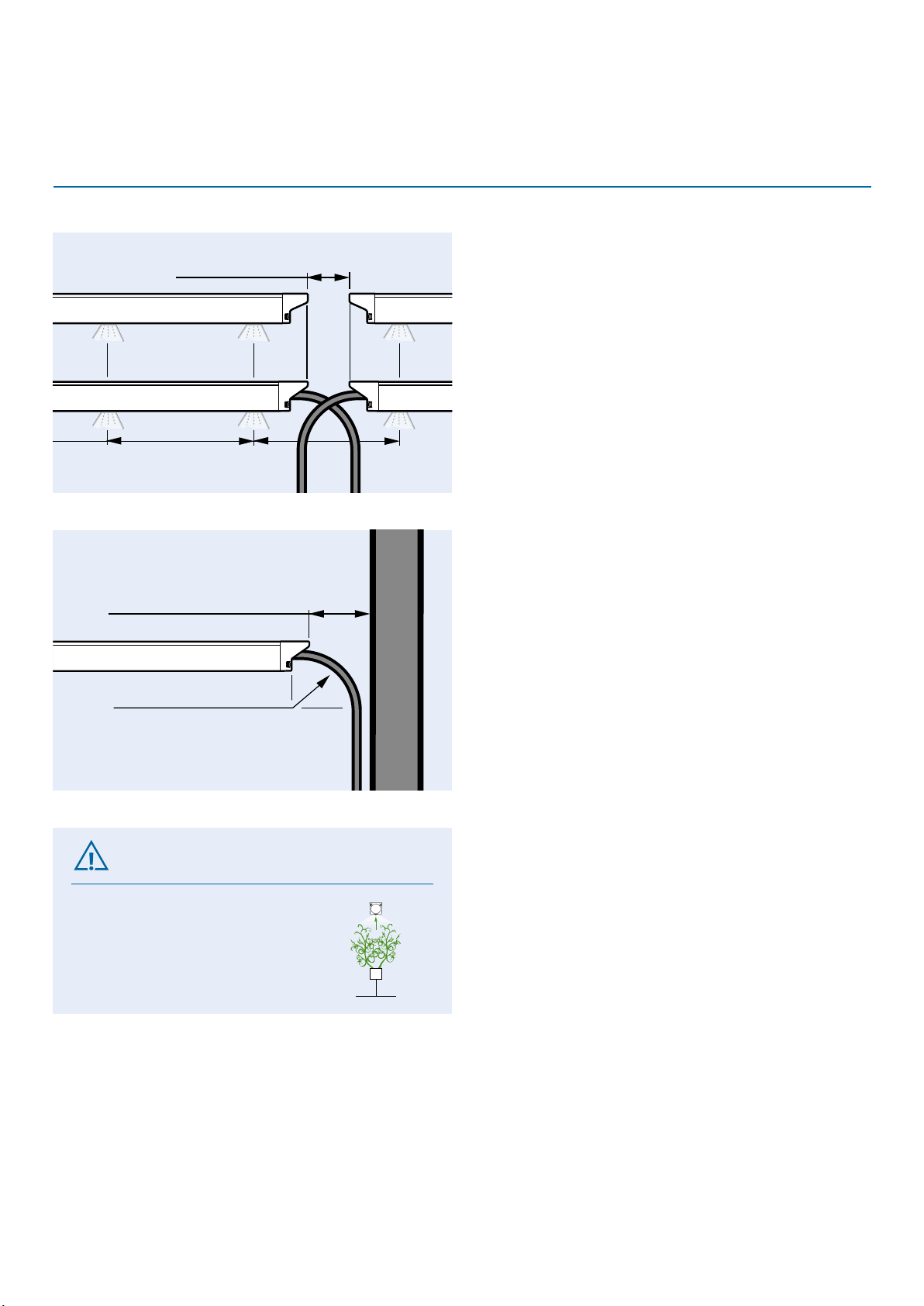

20 mm / 0.79"
(minimal 25 mm / 1")
Positioning of the modules
Distance between modules for consistent spacing of light
points
EQEQ
Mounting clearance from wall or rack with respect to
minimum bending radius.
= 60 mm / 2.4"
R
min
Important
Light direction
Always mount the GreenPower
LED production module
horizontal so that the light
direction is downwards.
7September 2018 Application Guide - Philips GreenPower LED production module
Page 8

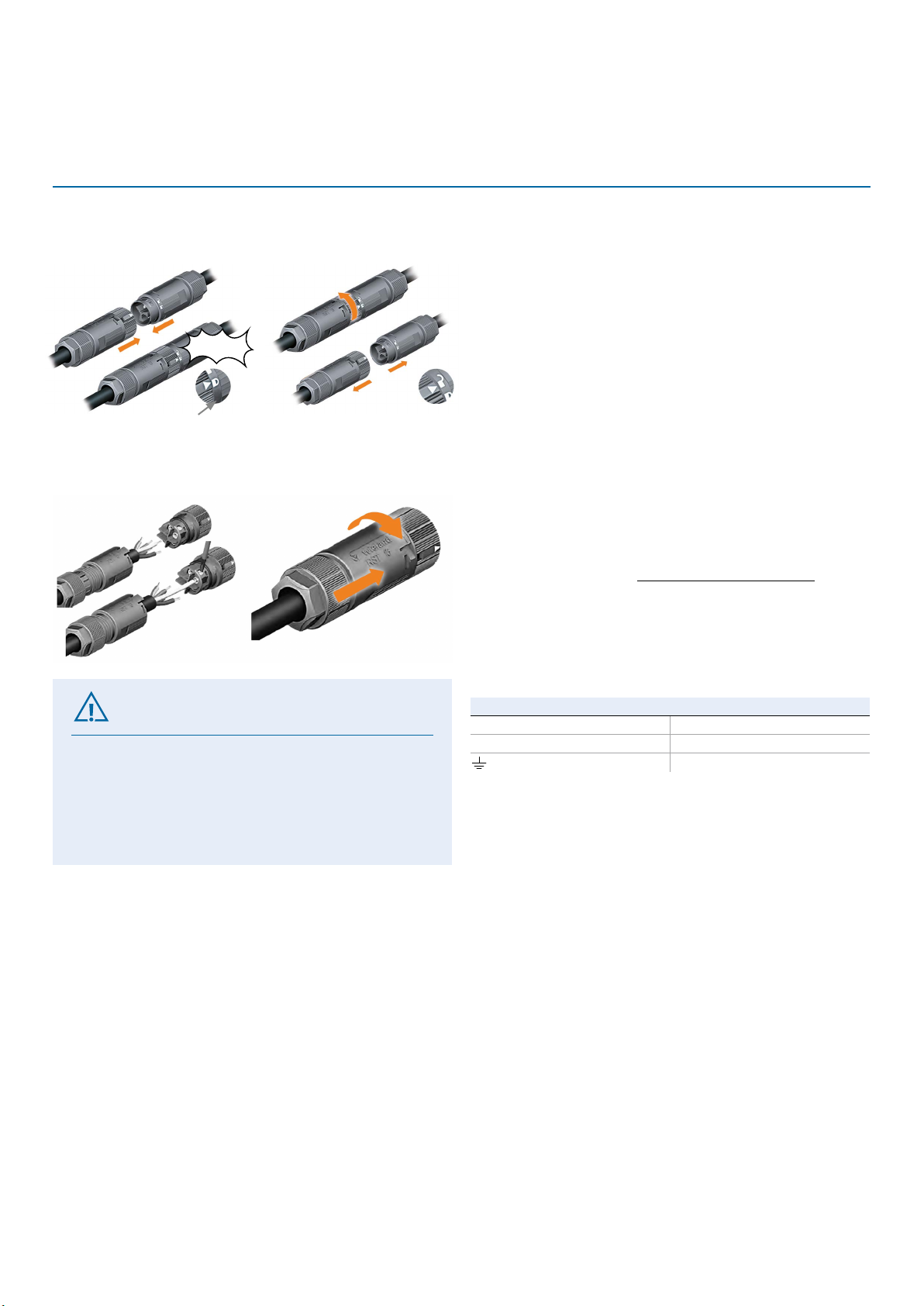

Close Open
Click
Automatic locking mechanism
Important
IP66 and UL/CSA rating
When closing the connector, be certain the two snap
tight for a tight seal. Otherwise, the units are not
protected from moisture and the IP66 and UL/CSA
rating for wet locations will be void.
Use of the connector
The connectors lock automatically when plugged together
and give the user clear feedback on the correct end position.
A slight rotation severs the connection easily.
Wiring the connectors
The housing of the connector has been designed in three
parts. Related technical information and installation
instructions are available from the connector supplier
Wieland Electric GmbH - www.wieland-electric.com
Connector wire terminals
Power connector
L Line
N Neutral
Earth
8September 2018 Application Guide - Philips GreenPower LED production module
Page 9

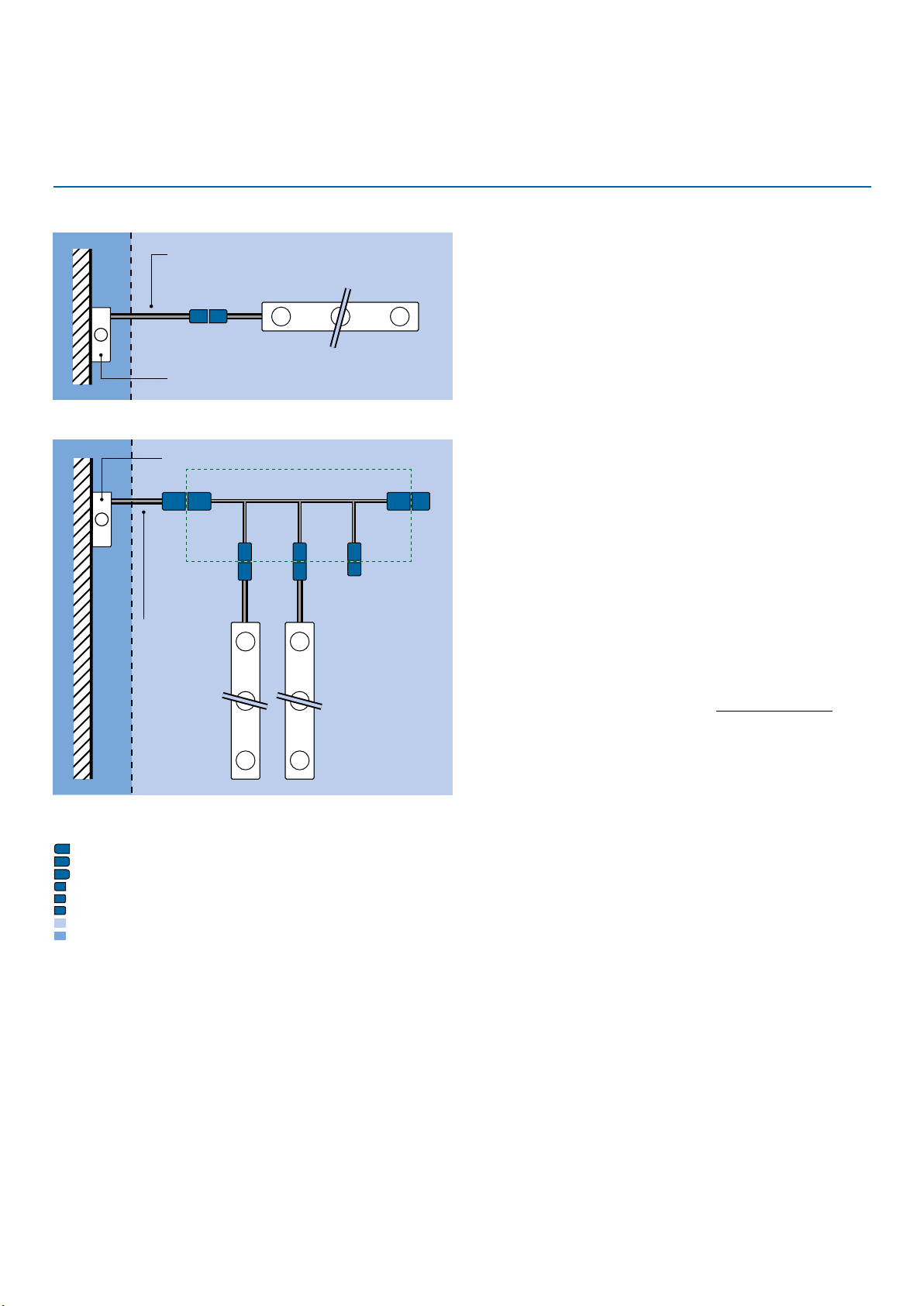

Option 1
Power cable for module length 1.5 m | 4.9 ft
For connecting the module to the mains power, there are
two options:
Connecting the system
M2
F2
1
Option 1 - Power cable for module
Install the GreenPower LED production module by means of
the GreenPower LED power cable for module.
Junction box
Junction box
F2
M2
Cable tree
F2 F2
M2
E2
M1
F1 F1
1
Power cable
for module length
1.5 m | 4.9 ft
Option 2
Legend
F1
= Female connector for cable tree power cable
M1
= Male connector for cable tree power cable
E1
= End cap for cable tree power cable
F2
= Female connector for cable tree branch or for power cable for module
M2
= Male connector of module
E2
= End cap for cable tree branch cable
= IP66 | UL/CSA dry/damp/wet locations
= NOT IP66 | UL/CSA dry/damp/wet locations
Option 2 - Cable tree with 2-10 branches
Install the GreenPower LED production module by means of
the GreenPower LED production 2.1 cable tree. Connect this
E1
cable tree to the grid with the GreenPower LED power cable
for cable tree.
Connect all power cables to a junction box. Make sure all
junction boxes are mounted to a rigid structure. Cables must
be secured by a cord grip / strain relief. Use a cord grip
suitable for use with three conductor and type off cord
suitable for the trade size of the junction box provided by
others, if needed.
Any unused connector (both power and data) must be
secured and sealed with an end cap (see ordering data).
Otherwise the IP66 and UL rating for wet locations will
be void.
9September 2018 Application Guide - Philips GreenPower LED production module
Page 10

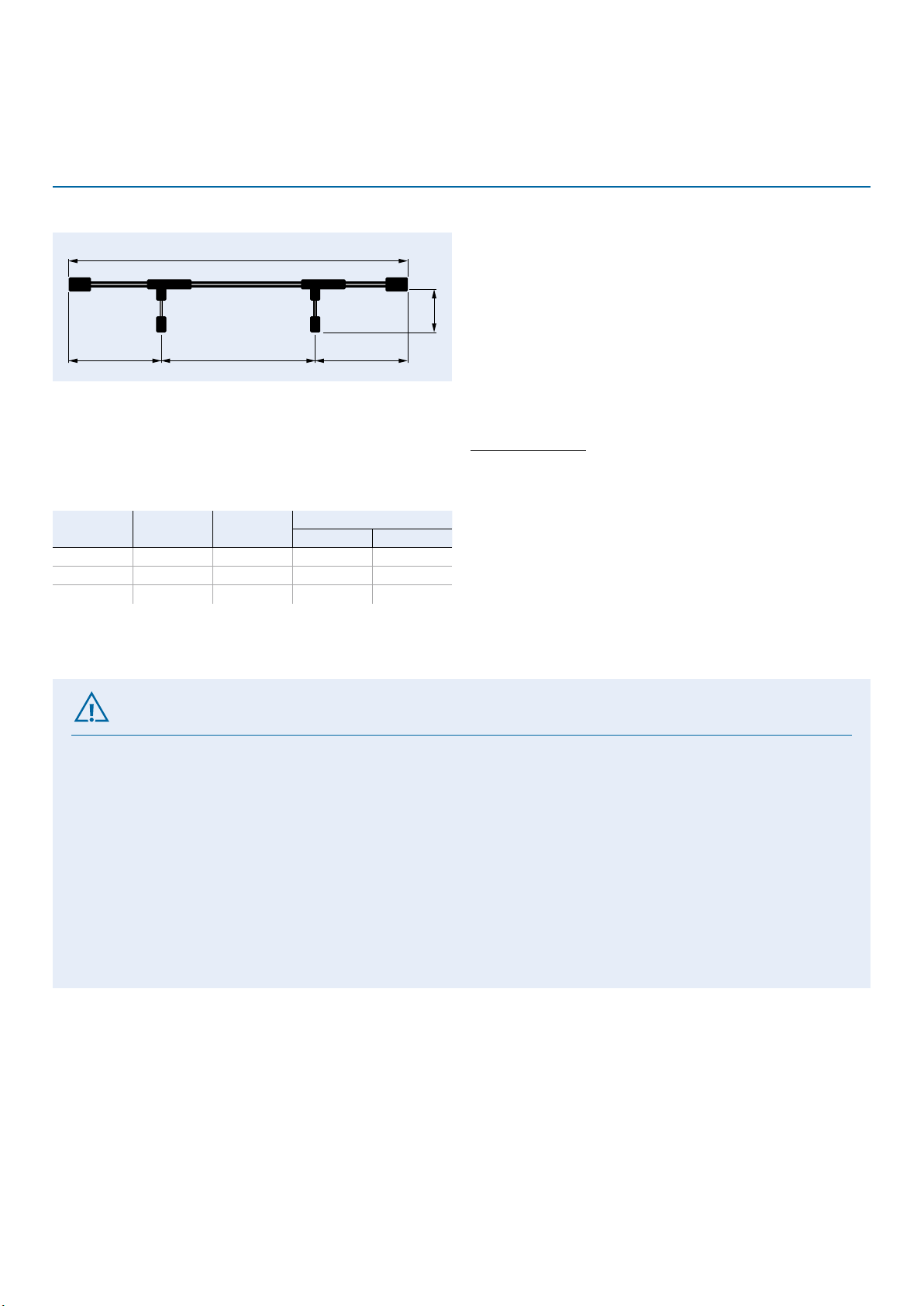

Total length
Mains power cable
Branch cable
Cable tree design guidelines
Cable trees can be customized to create the most optimal
solution for each project. It can be ordered with a minimum
of 2 and a maximum of 10 branches. Lengths A, B, C and D
C
are determined based on the installation layout, with the
following design restrictions:
A
DB
• Total length < 10 m = A + n x B + D (n = number of branches - 1)
• Length A,B,C and D > 0.25 m
For more information (minimum order quantity, ect)
see ordering data.
Please contact your sales representative in case you want to
know more about this solution.
Input voltage Peak current Half peak
width
120 V 3 A 0.8 ms 48 45
230 V 5.5 A 0.8 ms 43 40
277 V 7 A 0.8 ms 34 32
Maximum pieces per breaker
16 A C-type 15 A C-type
Cable trees can be daisy-chained. Maximum load on all
interconnected cable trees may not exceed 20 Amps.
The inrush current for the GreenPower LED production
modules is according to the table, also with
a calculation example of the maximum amount of
GreenPower LED production module on a single circuit
Inrush current with calculation example
breaker.
Important
Turn off and disconnect the power before installation.
Installation must be performed by a qualified electrician in accordance with all national and local electrical and
construction codes and regulations.
• Make sure that power cords are routed in a manner that will prevent incidental damage
• Use wet-rated (IP66) junction boxes which are also suitable for the power cords used in the application.
• Use a strain-relief or power cord grip if needed.
• Use a cable gland suitable for use with three conductor and type off cord suitable for the trade size of the junction
box provided by others, if needed.
• DO NOT connect to live power until installation is complete.
• DO NOT attempt to install or use until you have read and understood the installation instructions of this product
contained in the Quick Installation Guide, this Application Guide and safety labels.
• DO NOT modify or alter the product; doing so will void the warranty.
10September 2018 Application Guide - Philips GreenPower LED production module
Page 11
Ordering data (except NA and Japan)
Modules
Product description
PM 120
GP LED production2.2 DR/B 120 LB HO
GP LED production2.2 DR/B/FR 120 LB HO 9290 016 63406 6 185.0 x 13.9 x 9.6
GP LED production2.2 DR/B/FR_2 9290 016 64106 6 185.0 x 13.9 x 9.6
GP LED production2.2 DR/W 120 LB HO 9290 016 63506 185.0 x 13.9 x 9.6
GP LED production2.2 DR/W/FR 120 LB HO 9290 016 63606 6 185.0 x 13.9 x 9.6
GP LED production2.2 DR/W 120 LB LO 9290 016 64206 6 185.0 x 13.9 x 9.6
PM 150
GP LED production2.2 DR/B 150 LB HO 9290 016 23606 6 185.0 x 13.9 x 9.6
GP LED production2.2 DR/B/FR 150 LB HO 9290 016 39206 6 185.0 x 13.9 x 9.6
GP LED production2.2 DR/W 150 LB HO 9290 016 39306 6 185.0 x 13.9 x 9.6
GP LED production2.2 DR/W/FR 150 LB HO 9290 016 39406 6 185.0 x 13.9 x 9.6
GP LED production2.2 DR/W 150 LB LO 9290 016 64306 6 185.0 x 13.9 x 9.6
GP LED production2.2 DR/W 150 LB 9290 016 79506 6 185.0 x 13.9 x 9.6
GP LED production2.2 FR 150 9290 014 85406 6 185.0 x 13.9 x 9.6
12 NC MOQ (pcs) Box dimensions (cm)
9290 016 63306 6 185.0 x 13.9 x 9.6
Accessories
Product description 12 NC MOQ (pcs) Box dimensions (cm)
Mounting bracket for module
GreenPower LED productionmountingbracket 9290 004 87803 75 18 x 15 x 6.5
Female connector for module
GP LED female connector 1.2 9290 015 33806 36 16.6 x 12.4 x 13.5
Power cable for module
GP LED power cable 5.2.2L150 9290 015 33906 6 27 x 27 x 7
Cable tree
GP LED production2.1 cabletree 234C 9290 015 33506 26 50 x 40 x 20
GP LED production2.1 cabletree 567C 9290 015 33606 26 50 x 40 x 20
GP LED production2.1 cabletree 8910C 9290 015 33706 26 50 x 40 x 20
Female connector for cable tree
GP LED female connector 1.1 9290 015 53906 12 16.6 x 12.4 x 13.5
Power cable for cable tree
GP LED power cable 5.1.2L150 9290 015 54206 6 40 x 30 x 20
End cap for cable tree power cable
GPL toplighting end cap
End cap for cable tree branch cable
GP LED end cap for female 3.2 9290 015 54006 36 16.6 x 12.4 x 13.5
1
This product can be used for both our toplighting modules and as an end cap for the cable tree
Legend:
GP = GreenPower
PM = Production Module
DR = Deep Red
B = Blue
W = White
FR = Far Red
LB = Low Blue
HO = High Output
LO = Low Output
MOQ = Minimum order quantity
1
9290 009 15606 100 20.5 x 1537 x 5.00
11September 2018 Application Guide - Philips GreenPower LED production module
Page 12
Ordering data North America (NA)
Modules
Product description
PM 120
GP LED production2.2 DR/B 120 LB HO NA 9290 016 63706 343624 6 185.0 x 13.9 x 9.6
GP LED production2.2 DR/B/FR 120 LB HO NA 9290 016 63806 343632 6 185.0 x 13.9 x 9.6
GP LED production2.2 DR/W 120 LB HO NA 9290 016 63906 343640 185.0 x 13.9 x 9.6
GP LED production2.2 DR/W/FR 120 LB HO NA 9290 016 64006 343657 6 185.0 x 13.9 x 9.6
PM 150
GP LED production2.2 DR/B 150 LB HO NA 9290 016 39506 342139 6 185.0 x 13.9 x 9.6
GP LED production2.2 DR/B/FR 150 LB HO NA 9290 016 39606 342147 6 185.0 x 13.9 x 9.6
GP LED production2.2 DR/W 150 LB HO NA 9290 016 39706 342154 6 185.0 x 13.9 x 9.6
GP LED production2.2 DR/W/FR 150 LB HO NA 9290 016 39806 342162 6 185.0 x 13.9 x 9.6
Accessories
Product description
Mounting bracket for module
GreenPower LED productionmountingbracket 9290 004 87803 272005 75 18 x 15 x 6.5
Female connector for module
GP LED female connector 1.2 9290 015 33806 343152 36 16.6 x 12.4 x 13.5
Power cable for module
GP LED power cable 5.2.2L150 9290 015 35306 324277 6 27 x 27 x 7
Cable tree
GP LED production2.1 cabletree 234C NA 9290 015 35006 324293 26 50 x 40 x 20
GP LED production2.1 cabletree 567C NA 9290 015 35106 324301 26 50 x 40 x 20
GP LED production2.1 cabletree 8910C NA 9290 015 35206 324319 26 50 x 40 x 20
Female connector for cable tree
GP LED female connector 1.1 9290 015 53906 343715 12 16.6 x 12.4 x 13.5
Power cable for cable tree
GP LED power cable 5.1.2L150 9290 015 54306 324269 6 40 x 30 x 20
End cap for cable tree power cable
GPL toplighting end cap
End cap for cable tree branch cable
GP LED end cap for female 3.2 9290 015 54006 324210 36 16.6 x 12.4 x 13.5
1
12 NC 6 NC (NA) MOQ (pcs) Box dimensions (cm)
12 NC 6 NC (NA) MOQ (pcs) Box dimensions (cm)
9290 009 15606 303966 100 20.5 x 1537 x 5.00
1
This product can be used for both our toplighting modules and as an end cap for the cable tree
Legend:
GP = GreenPower
PM = Production Module
DR = Deep Red
B = Blue
W = White
FR = Far Red
LB = Low Blue
HO = High Output
LO = Low Output
MOQ = Minimum order quantity
12September 2018 Application Guide - Philips GreenPower LED production module
Page 13

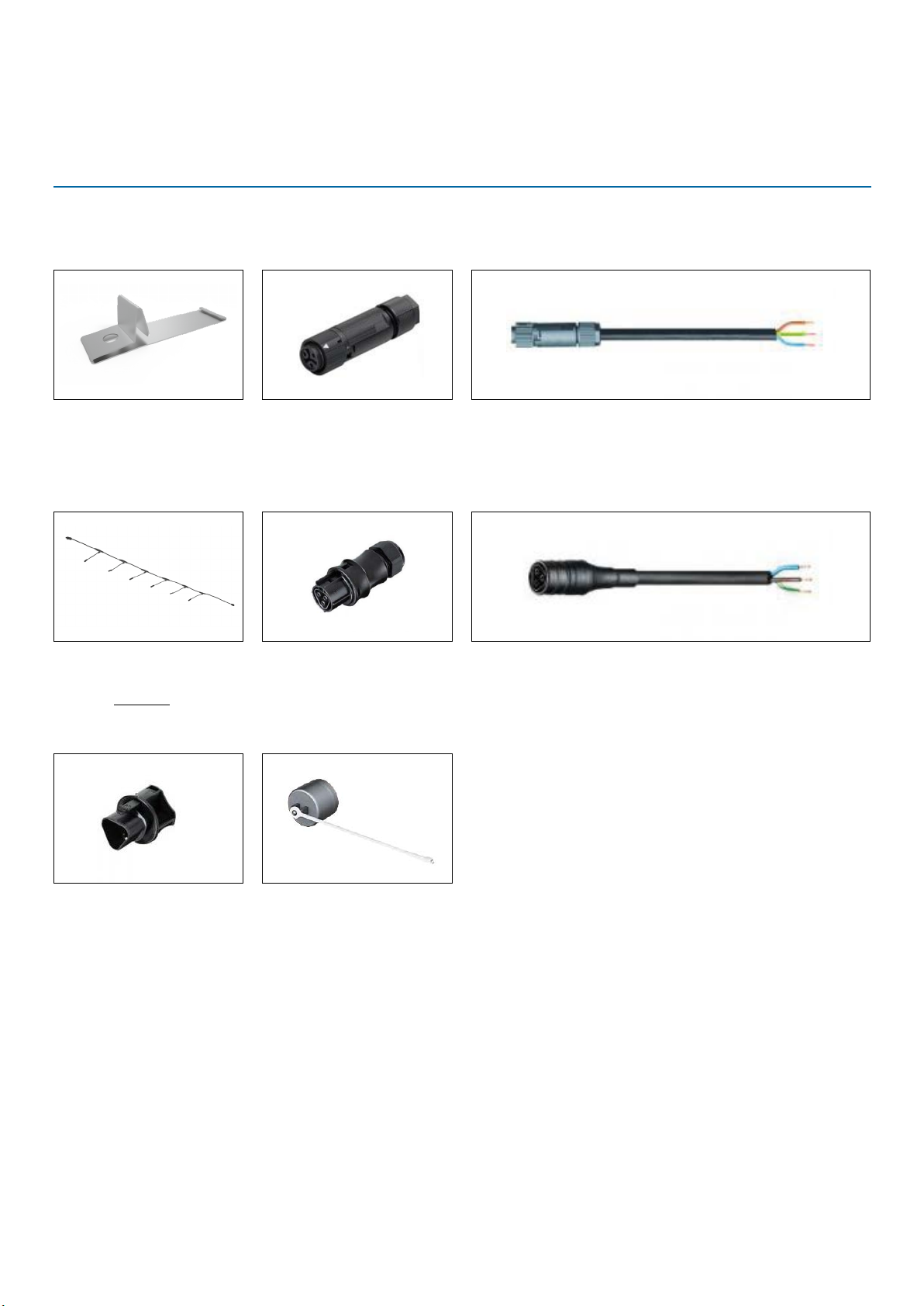

Accessory information
Accessories for module
Mounting bracket for module
Accessories for cable tree
Cable tree
234C: 2 to 4 branches
567C: 5 to 7 branches
8910C: 8 to 10 branches
Dimensions: see page 10 for design
guidelines
Female connector for module
Female connector for cable tree
Power cable for module
Length: 150 cm | 4.92 ft
Power cable for cable tree
Length: 150 cm | 4.92 ft
End cap for cable tree power cable
End cap for cable tree branch cable
13September 2018 Application Guide - Philips GreenPower LED production module
Page 14
Crop protection and cleaning products
Use of cleaning agents, crop protection products and
other chemicals
Philips Horticulture GreenPower LED products are
engineered to meet the highest standards in daily usage and
are compatible with the most commonly used crop
protection products and cleaning products in the field.
However, there are some crop protection products and
cleaning agents that may damage the protective surfaces of
the GreenPower LED products and should be avoided.
Please ensure that you take the following instructions into
account when cleaning the GreenPower LED products, your
facility, or when using crop protectors. Philips maintains a
database of chemicals which have been tested. Please
check the instructions in the blue text box*.
Cleaning GreenPower LED products
• Turn off and disconnect the power before cleaning the
product.
• Use a soft damp cloth and an approved cleaning agent*,
e.g. green/soft soap or ethanol, to remove dust or dirt
from the GreenPower LED product.
• Do not use rough or coarse-grained materials, scouring
pads, bleach or solvents.
• The use of a non-approved cleaning product or solvent
could scratch or damage the GreenPower LED product.
• Do not wipe the GreenPower LED product with a dirty
cloth as this may leave a residue, scratch the lenses or
reduce the light output.
* Approved cleaning agents, crop
protectors and other chemicals
• Please request the most recently approved list of
cleaning agents and crop protection products from
your Philips sales representative, so your cleaning
agent or crop protector can be checked against
those listed in the database.
• If you would like to apply a non-approved crop
protection product, cleaning agent, or other
chemical, or in case of questions about a specific
product, please contact your Philips sales
representative who can advise on the possible
effects on the GreenPower LED products, best
practices and suggest alternatives if needed.
• Note: new crop protection products and cleaning
agents will be added to the list, but the list may not
always reflect the most current brands sold.
• Note: after the use of a non-approved crop protector
or cleaning agent, the GreenPower LED product
warranty will no longer apply.
Using pesticides, fungicides and insecticides
The use of certain crop protection products like pesticides,
fungicides, insecticides, etc. which could come in contact
with the GreenPower LED product (directly or indirectly)
may cause damage to the GreenPower LED products.
14September 2018 Application Guide - Philips GreenPower LED production module
Page 15
Compliance with international standards
The GreenPower LED production module has been tested for and complies with the following international standards:
Test Stress type Standard
Endurance Bump test IEC 60068-2-29 Eb
Vibration test IEC 60068-22-6
Cold temperature storage IEC 60068-2-1 Ab
High temperature storage IEC 60068-22-2 Bb
Damp heat (temp. humidity) IEC 60068-2-30 Db
Temperature shock IEC 60068-2-14 Nb
Ingress protection, IP66 IEC 60529
Quality / Environment Environmental mgt ISO 14001:2004
ROHS Directive 2002/95/EG
EMC EN55015
EN61547
EN61000-3-2
EN61000-3-3
FCC part 15B, Class A
Ansi C63.4:2003
Safety UL8800
UL8750
IEC62471
IEC62778
IEC60598-1
IEC60598-2-1
CSA C22.2 No 250.0-08
Approval marks UL-CSA-CE-RCM
15September 2018 Application Guide - Philips GreenPower LED production module
Page 16
© Philips Lighting Holding B.V. 2018. All rights reserved. Philips reserves the right to make
changes in specifications and/or to discontinue any product at any time without notice or
obligation and will not be liable for any consequences resulting from the use of this publication.
For more information about
Philips Horticulture LED Solutions visit:
www.philips.com/horti
Document order number: 4422 944 04703 D
09/2018
Data subject to change
Write us an e-mail:
[email protected]
Or tweet us:
@PhilipsHorti
Loading...
