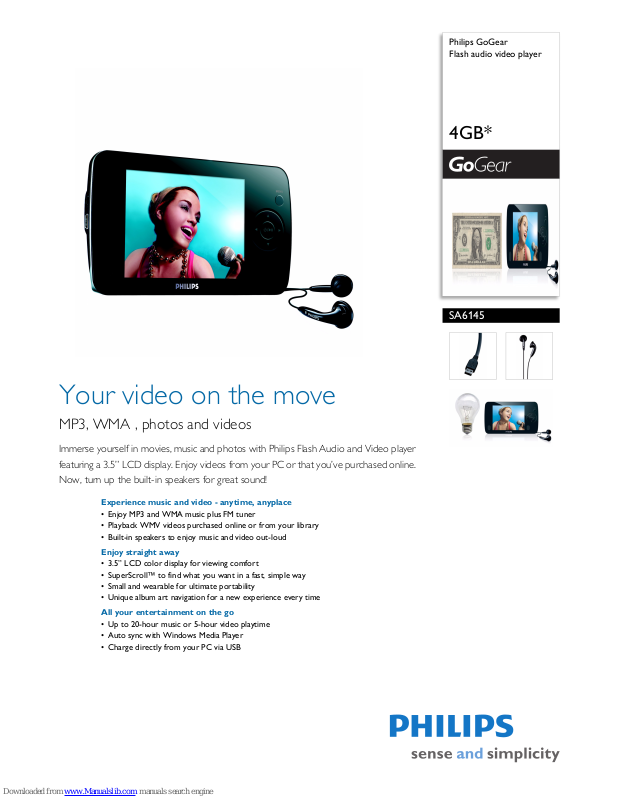

Philips GoGear SA6145 Specifications

Philips GoGear
Flash audio video player

4GB*

SA6145

Your video on the move

MP3, WMA , photos and videos

Immerse yourself in movies, music and photos with Philips Flash Audio and Video player
featuring a 3.5” LCD display. Enjoy videos from your PC or that you’ve purchased online.
Now, turn up the built-in speakers for great sound!

Experience music and video - anytime, anyplace

• Enjoy MP3 and WMA music plus FM tuner

• Playback WMV videos purchased online or from your library

• Built-in speakers to enjoy music and video out-loud

Enjoy straight away

• 3.5” LCD color display for viewing comfort

• SuperScroll™ to find what you want in a fast, simple way

• Small and wearable for ultimate portability

• Unique album art navigation for a new experience every time

All your entertainment on the go

• Up to 20-hour music or 5-hour video playtime

• Auto sync with Windows Media Player

• Charge directly from your PC via USB

Issue date 2009-11-06

Version: 1.0.6

12 NC: 8670 000 34048
UPC: 6 09585 14288 6

© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.

Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.

www.philips.com

Specifications

SA6145/37

Flash audio video player

4GB*

Highlights

SuperScroll™

Double action search keys allow easy speed control
when scrolling through large libraries. You can
choose to move through your playlist one song or
video at a time or just press and hold down a little
harder to SuperScroll™ swiftly to your desired file.

Unique album art navigation

Unique album art navigation for a new experience
every time

Picture/Display

•Backlight

• Resolution: QVGA, 320 x 240 pixels, 65K colours

•Type: LCD

• Diagonal screen size (inch): 3.5 inch

•Lines of text: 7

Sound

• Channel separation: 45 dB

• Equalizer settings: Classic,

Jazz, Funk, Hip Hop,

Rock, Techno

• Frequency response: 60 - 18k Hz

• Signal to noise ratio: > 85 dB

• Output Power: 2 x 3mW

•THD: 1%

• Equalizer customizable

Audio Playback

• Compression format: MP3, WMA

• ID3 Tag support: Album title and artist name

• MP3 bit rates: 8-320 kbps and VBR

• MP3 sample rates: 8, 11.025, 16, 22.050, 24, 32,
44

.1, 48 kHz

• WMA bit rates: 5-320 kbps

• WMA sample rates: 8, 11.025, 16, 22.050, 32, 44.1,
48

kHz

• Digital Rights Management

: Windows Media DRM
for Portable Devices, Supports download &
subscription music services

Audio Capturing

• Audio file format: WAV

• Built-in microphone: mono

• Voice recording: ADPCM

Storage Media

• Built-in memory capacity: 4 GB

• Built-in memory type: NAND Flash

• Music memory capacity, WMA: Upto 1900 songs

Tuner/Reception/Transmission

• Tuner Bands: FM

• Station presets: 20

Connectivity

• Headphone: 3.5 mm

•USB: High speed USB 2.0

Convenience

• Firmware upgradeable

• Function: Keypad lock

• Battery charging indicatio

n: On User Interface

• Battery low indication

•SuperPlay

•Superscroll

•Volume control

Accessories

• CD-ROM: Yes , with IFU, Device Manager, Media

converter & Windows Media Player

• Headphones: AY3815

•Quick start guide

• USB cable: AY3930

Software

• Device manager: to restore and upgrade

• Media Converter for Philips

: Converts following
formats to player : AVI(Microsoft video1 format),
MPEG-1,2,4, DVD(*.vob),MOV,WMV,RM etc.
Needs Quicktime (for MOV) and WMP10 or
above (for WMV) installations.

• Windows Media Player 11

Green Specifications

• Lead-free soldered product

System Requirements

•CD-ROM drive

• Internet connection: Yes (for access to updated
s

upport documents, manuals, future firmware and

PC software upgrades)

• PC OS: Windows XP (SP2) or Windows Vista

• USB: Free USB port

Dimensions

• Blister dimensions (WxDxH): 196 x 30 x 214 mm

• Packaging type: Clamshell

• Product dimensions (WxDxH): 196 x 30 x 214 mm

• Product weight: 0.153 kg

Power

• Battery capacity: 1000mAh

•Battery Type: LI-Polymer

• Playtime on internal battery: Up

to 20 hours audio

or 5 hours video

• Rechargeable: Yes, via USB

Still Picture Playback

• Picture Compression Format: JPEG

•Slide show

Video Playback

• Digital Rights Management: Windows Media DRM
for Portable Devices, Supports
download,subscription & rental video services

• WMV9: Upto 384kbps, 320x240 , 30fps (Other
f

ormats supported by using provided converter

software)

Speaker

• Amplifier: Class D amplifier

• Built-in speaker

• Frequency range: 500 Hz - 18K Hz

• Output Power: 2 x 0.3 W

• Signal/noise ratio: > 60 dB

• Speaker Type: 2 x full range speaker

•

* 1GB = 1 billion bytes; available storage capacity will be less.
* Rechargeable batteries have a limited number of charge cycles and

may eventually need to be replaced. Battery life and number of
charge cycles vary by use and settings.

* Windows Media and the Windows logo are trademarks, or

registered trademarks of Microsoft Corporation in the United States
and/or other countries.

* Actual transfer speed may vary based on your operating system and

software configuration.

* Supports download and subscription services compatible with WMA

DRM10
