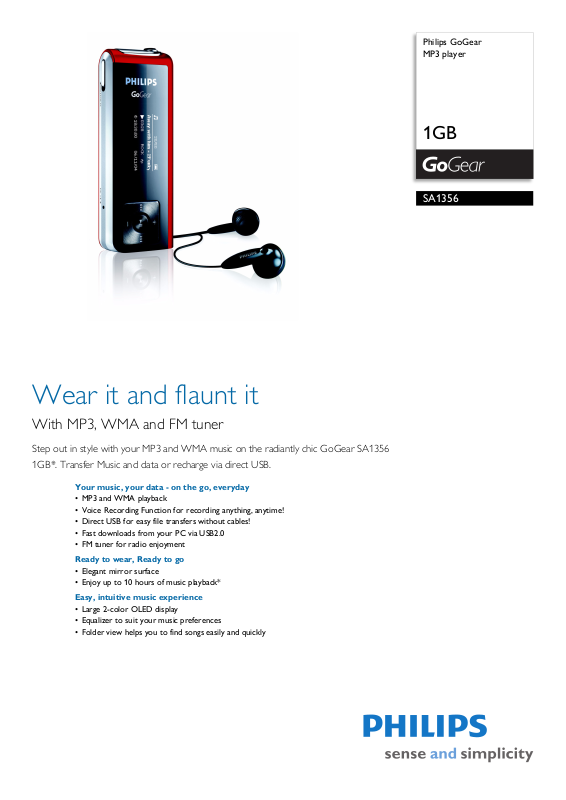

Philips GoGear SA1356, GoGear SA1356/97 Specifications

Philips GoGear
MP3 player

1GB

SA1356

Wear it and flaunt it

With MP3, WMA and FM tuner

Step out in style with your MP3 and WMA music on the radiantly chic GoGear SA1356
1GB*. Transfer Music and data or recharge via direct USB.

Your music, your data - on the go, everyday

• MP3 and WMA playback

• Voice Recording Function for recording anything, anytime!

• Direct USB for easy file transfers without cables!

• Fast downloads from your PC via USB2.0

• FM tuner for radio enjoyment

Ready to wear, Ready to go

• Elegant mirror surface

• Enjoy up to 10 hours of music playback*

Easy, intuitive music experience

• Large 2-color OLED display

• Equalizer to suit your music preferences

• Folder view helps you to find songs easily and quickly

MP3 player

1GB

SA1356/97

Specifications

Picture/Display

•Backlight

• Display screen type: OLED

•Lines of text: 4

• Resolution: 128 x 64 pixels

Sound

• Equalizer customizable

• Equalizer settings: Classic,
Jazz, Rock

• Frequency response: 30-18000 Hz

• Output Power: 2 x 5 mW (16 Ohm)

• Signal to noise ratio: > 85dB

Audio Playback

• Compression format: MP3, WAV, Windows
Media™ Audio

• ID3 Tag support: Track title and artist name

• MP3 bit rates: 8-320 kbps and VBR

• MP3 sample rates: 8, 11.025, 16, 22.050, 32, 44.1,
48 kHz

• WMA bit rates: 5-192 kbps

• WMA sample rates: 8, 11.025, 16, 22.050, 32, 44.1,

kHz

48

Audio Recording

• Audio file format: WAV

• FM recording

• Record your own voice

Audio Capturing

• Built-in microphone: mono

• Voice recording: ADPCM

Storage Media

• Built-in memory capacity: 1 GB

• Built-in memory type: NAND Flash

• Music memory capacity, MP3: Up to 250 tracks

kbps)*

(128

• Music memory capacity, WMA: Up to 380 tracks

bps)*

(64 k

Tuner/Reception/Transmission

• Tuner Bands: FM Stereo

Dance, Funk, Hip Hop,

• Frequency range: 87.5 - 108 MHz

• Number of Preset Channels: 30

• Auto digital tuning

Connectivity

• Headphone: 3.5 mm

• USB: USB 2.0

Convenience

• Firmware upgradeable

• Function: Keypad lock

Accessories

•CD-ROM

• Headphones: AY3809

• Quick start guide: Printed English

• User Guide on CD-ROM: EN, FR, IT, DE, ES, NL,
, PT, PO, RU, HU, Traditional CH , Simplified

SV
CH, TH

Software

• Device manager: Firmware Manager

System Requirements

•CD-ROM drive

• Hard disk space: 50 MB

• Internet connection: Prefereable

• PC OS: Windows Me, 2000 or XP

• Processor: Pentium II or better

•RAM memory: 64 MB

•Sound card

• USB: Free USB port

•Video card

Dimensions

• Product dimensions (W x H x D):

31.5 x 80.5 x 15 mm

• Product weight: 0.04 kg

Power

• Battery capacity: 300mAh

•Battery Type: LI-Polymer

• Charging time: 4 hr

•

Highlights

Voice Recording Function

Voice Recording Function converts your player into
a handy dictation machine. Besides playing music or
listening to radio, you can also record notes or
reminders for work or school, record shopping lists
and phone numbers – even song lyrics. By pressing
the recording button and speaking into the built-in
microphone, voice messages are compressed and
stored either in the built-in internal memory or on
to the external memory card. Voice Recording
Function gives you a highly portable voice recorder
allowing you to record anything, anytime and
anywhere!

Direct USB

Devices with direct USB can be plugged directly into
the USB port of your PC without the need for any
cable. Your computer will automatically recognize
the device as a removable USB mass storage device
(Windows 98 requires additional drivers) allowing
you to easily drag and drop files via Windows
Explorer (or Apple Folders) between your computer
and device. Simply pack your device with music and
data on the go - everyday.

2-color OLED display

2-color OLED display offers color combination (e.g.
yellow and blue) in a super-bright display and also
allows for animation. This makes for easier reading
of the display, and for fun sharing with friends

Equalizer

GoGear Players with Equalizer, utilize technology to
automatically set the optimum sound frequency
balance for a chosen music style. Whether it is Jazz,
Rock or Pop that you are listening to, using the
Equalizer preset setting allows you to enjoy the
optimum sound for that music style.

Issue date 2012-01-20

Version: 2.0.5

12 NC: 8670 000 35664
EAN: 87 12581 38430 2

© 2012 Koninklijke Philips Electronics N.V.
All Rights reserved.

Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.

www.philips.com
