Philips GoGear KEY016 Specifications

Download

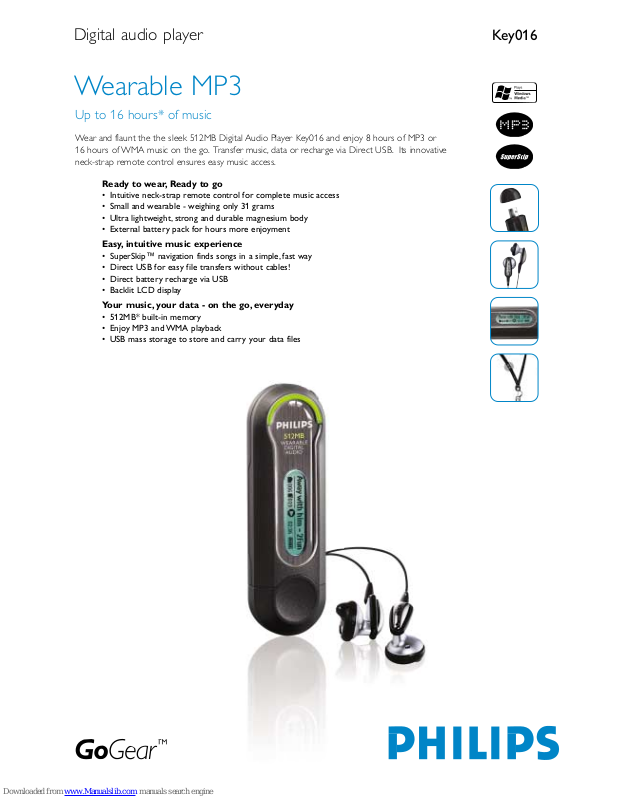

Page 1

Wearable MP3

Ready to wear, Ready to go

• Intuitive neck-strap remote control for complete music access

• Small and wearable - weighing only 31 grams

• Ultra lightweight, strong and durable magnesium body

• External battery pack for hours more enjoyment

Easy, intuitive music experience

• SuperSkip™ navigation finds songs in a simple, fast way

• Direct USB for easy file transfers without cables!

• Direct battery recharge via USB

• Backlit LCD display

Your music, your data - on the go, everyday

• 512MB* built-in memory

• Enjoy MP3 and WMA playback

• USB mass storage to store and carry your data files

Up to 16 hours* of music

Wear and flaunt the the sleek 512MB Digital Audio Player Key016 and enjoy 8 hours of MP3 or 16 hours of WMA music on the go. Transfer music, data or recharge via Direct USB. Its innovative neck-strap remote control ensures easy music access.

Digital audio player Key016

Page 2

Key016/00Digital audio player

Picture / Display

• Backlight color: Blue

• Display Screen Type: LCD Active Matrix FSTN

• Lines of text: 2

Sound

• Frequency response: 30-15000Hz

• Output Power: 2 x 4 mW (16 Ohm)

• Signal to noise ratio: 80

• THD: 1.0

Audio Playback

• Compression format: MP3,WMA

• ID3 Tag support:Track title and artist name

• MP3 bit rates: 8-320 kbps and VBR

• MP3 sample rates: 8, 11.025, 16, 22.050, 32, 44.1, 48 KHz

• WMA bit rates: 5-192

• WMA sample rates : 8, 11.025, 16, 22.050, 32, 44.1, 48 KHz

Storage Media

• Built-in memory capacity: 512MB*

• Built-in memory type: NAND Flash

• Mass storage class compliant

• Music memory capacity, MP3: up to 128 songs*

Connectivity

• Headphone: 3.5 mm

• USB: 1.1

Accessories

• CD-ROM (AY4489)

• External Battery Pack (AY4381)

• Headphones (HE570/77P)

• Neck strap remote control (AY4203)

• Printed User Guide

• Quick start guide

Software

• Musicmatch Jukebox

Green Specifications

• Lead-free soldered product

System Requirements

• CD-ROM drive

• Hard disk space: 50MB

• Mac OS: OS9.2.2 or 10.2.6 or higher

• PC OS: Windows 98 SE, 2000, ME, XP

• Processor: Pentium MMX 166 MHZ or higher

• RAM memory: 96MB RAM

• Sound card

Dimensions

• Casing material: Magnesium

• Master carton dimensions (WxHxD): 160 x 171 x 160 mm

• Master carton quantity: 3

• Packaging dimension (WxHxD): 150 x 150 x 50 mm

• Packaging type: D-box

• Product dimension (WxHxD) : 27 x 88 x 16 mm

• Product weight: 31 g

Power

• Battery capacity: 200 mAh

• Battery type: LI-Polymer

• Charging time: approximately 4 hours

• External battery pack

• External battery type: 1 x AAA

• Playtime on external battery: 7 hours**

• Playtime on internal battery: 6 hours**

Technical specifications Product highlights

Neck-strap remote control

This highly intuitive neck-strap remote control lets you wear your player around your neck and easily take control of your music. It has embedded buttons right on the neck-strap providing access to the most common playback controls: Volume Up,Volume Down, Previous Track, Nec k Track, and Play/Pause.

External battery pack

The External battery pack is a sleek battery pack that snaps snugly onto your player and delivers additional power for music enjoyment on the go. The external battery pack uses a standard alkaline battery from where the player draws power. The result is even longer hours of pure enjoyment.

SuperSkip™

SuperSkip™ navigation find songs in a simple fast way. SuperSkip™ through your playlist on your player at full speed simply by pressing and holding the Track Previous or Track Forward button and find your favorite song in a matter of seconds.

Direct USB

Players with direct USB can be plugged directly into the USB port of your PC without the need for any cable. Your computer will automatically recognize the player as a removable USB mass storage device (Windows 98 needs drivers).

USB direct battery recharge

Direct battery recharge via USB offers ultra convenience when recharging your player. No need to bother with separate chargers or cables, simply plug n' recharge your player directly on your PC.

USB mass storage class

USB mass storage devices offer a convenient way to save, backup and move your files around. The player connects to your computer using a USB connection and does not require any special software to be installed (Windows 98 needs drivers). The player automatically shows up as a removable drive in Windows Explorer or Mac folders allowing you to simply drag and drop files to and from the player.

* Available storage capacity will be less. Capacity based on 4 minutes per song and 64 kbps WMA or 128 kbps MP3 encoding. ** Battery life varies with use

Windows Media and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries.

www.philips.com

EAN 87 10895 83505 3 (/00)
