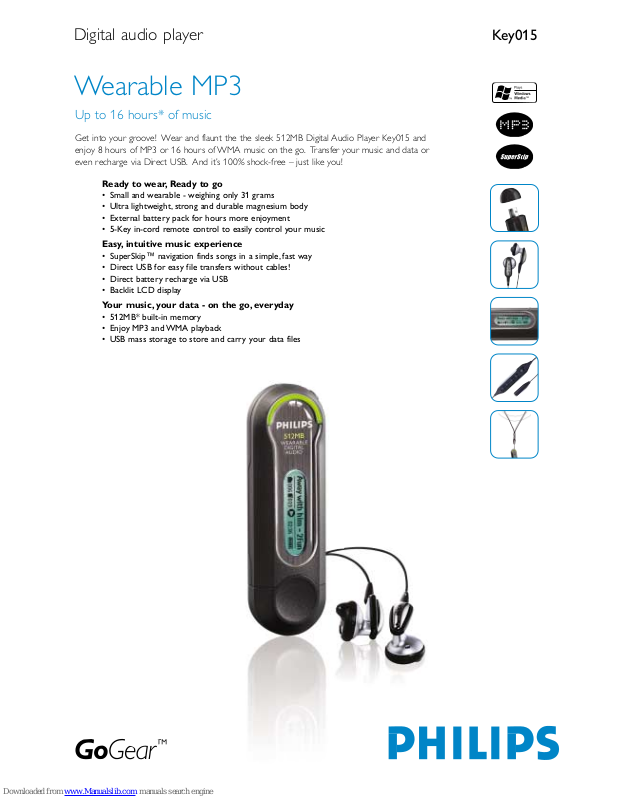

Philips GoGear KEY015 Specifications

Wearable MP3

Ready to wear, Ready to go

• Small and wearable - weighing only 31 grams

• Ultra lightweight, strong and durable magnesium body

• External battery pack for hours more enjoyment

• 5-Key in-cord remote control to easily control your music

Easy, intuitive music experience

• SuperSkip™ navigation finds songs in a simple, fast way

• Direct USB for easy file transfers without cables!

• Direct battery recharge via USB

• Backlit LCD display

Your music, your data - on the go, everyday

• 512MB* built-in memory

• Enjoy MP3 and WMA playback

• USB mass storage to store and carry your data files

Up to 16 hours* of music

Get into your groove! Wear and flaunt the the sleek 512MB Digital Audio Player Key015 and
enjoy 8 hours of MP3 or 16 hours of WMA music on the go. Transfer your music and data or
even recharge via Direct USB. And it’s 100% shock-free – just like you!

Digital audio player Key015

Key015/00/05Digital audio player

Picture / Display

• Backlight color: Blue

• Display Screen Type: LCD Active Matrix FSTN

• Lines of text: 2

Sound

• Frequency response: 30-15000 Hz

• Output Power: 2 x 4 mW (16 Ohm)

• Signal to noise ratio: 80

• THD: 1.0

Audio Playback

• Compression format: MP3,WMA

• ID3 Tag support:Track title and artist name

• MP3 bit rates: 8-320 kbps and VBR

• MP3 sample rates:
8, 11.025, 16, 22.050, 32, 44.1, 48 KHz

• WMA bit rates: 5-192 kbps

• WMA sample rates:
8, 11.025, 16, 22.050, 32, 44.1, 48 KHz

Storage Media

• Built-in memory capacity: 512MB*

• Built-in memory type: NAND Flash

• Mass storage class compliant

• Music memory capacity, MP3:
up to 128 songs*

Connectivity

• Headphone: 3.5 mm

• USB: 1.1

Accessories

• CD-ROM (AY4489)

• External Battery Pack (AY4381)

• Headphone (HE570/77P)

• 5-key in-cord remote control (AY3784)

• Neck strap (AY4215)

• Printed User Guide

• Quick start guide

Software

• Musicmatch Jukebox

Green Specifications

• Lead-free soldered product

System Requirements

• CD-ROM drive

• Hard disk space: 50MB

• Mac OS: OS9.2.2 or 10.2.6 or higher

• PC OS: Windows 98 SE, 2000, ME, XP

• Processor: Pentium MMX 166 MHZ or higher

• RAM memory: 96MB RAM

• Sound card

Dimensions (/00 only)

• Casing material: Magnesium

• Master carton dimensions (WxHxD):
160 x 171 x 160 mm

• Master carton quantity: 3

• Packaging dimensions (WxHxD):
150 x 150 x 50 mm

• Packaging type: D-box

• Product dimension (WxHxD):
27 x 88 x 16 mm

• Product weight: 31 g

Power

• Battery capacity: 200 mAh

• Battery type: LI-Polymer

• Charging time: approximately 4 hours

• External battery type: 1 x AAA

• Playtime on external battery: 7 hours**

• Playtime on internal battery: 6 hours**

Technical specifications Product highlights

External battery pack

The External battery pack is a sleek battery pack
that snaps snugly onto your player and delivers
additional power for music enjoyment on the go.
The external battery pack uses a standard alkaline
battery from where the player draws power.
The result is even longer hours of pure enjoyment.

5-Key in-cord remote control

Philips 5-Key in-cord remote control places access to
playback controls right at your fingertips. The remote
control connects to your player via a compact plug
and uses a standard headphone socket allowing you
to easily and conveniently swap headphones.

SuperSkip™

SuperSkip™ navigation find songs in a simple fast way.
SuperSkip™ through your playlist on your player at
full speed simply by pressing and holding the Track
Previous or Track Forward button and find your favorite
song in a matter of seconds.

Direct USB

Players with direct USB can be plugged directly into the
USB port of your PC without the need for any cable.
Your computer will automatically recognize the player
as a removable USB mass storage device (Windows
98 needs drivers).

USB direct battery recharge

Direct battery recharge via USB offers ultra
convenience when recharging your player. No need to
bother with separate chargers or cables, simply plug n'
recharge your player directly on your PC.

USB mass storage class

USB mass storage devices offer a convenient way to
save, backup and move your files around. The player
connects to your computer using a USB connection
and does not require any special software to be
installed (Windows 98 needs drivers). The player
automatically shows up as a removable drive in
Windows Explorer or Mac folders allowing you to
simply drag and drop files to and from the player.

* Available storage capacity will be less. Capacity
based on 4 minutes per song and 64 kbps WMA or
128 kbps MP3 encoding.
** Battery life varies with use

Windows Media and the Windows logo are
trademarks, or registered trademarks of
Microsoft Corporation in the United States
and/or other countries.

Printed in Hong Kong 2004-05-24
Specifications are subject to change without notice
2004 © Royal Philips Electronics - All rights reserved

www.philips.com

EAN 87 10895 80899 6 (/00)

87 10895 84125 2 (/05)
