Page 1

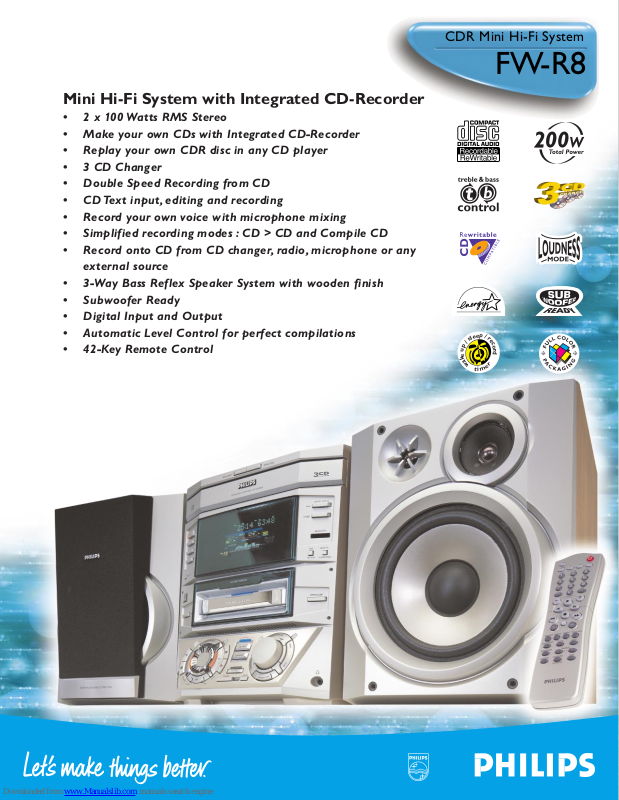

Mini Hi-Fi System with Integrated CD-Recorder
• 2 x 100 Watts RMS Stereo
• Make your own CDs with Integrated CD-Recorder
• Replay your own CDR disc in any CD player
• 3 CD Changer
• Double Speed Recording from CD
• CD Text input, editing and recording
• Record your own voice with microphone mixing
• Simplified recording modes : CD > CD and Compile CD
• Record onto CD from CD changer, radio, microphone or any
external source
• 3-Way Bass Reflex Speaker System with wooden finish
• Subwoofer Ready
• Digital Input and Output
• Automatic Level Control for perfect compilations
• 42-Key Remote Control
CDR Mini Hi-Fi System
FW-R8
p
e
/
e
r
l
e
s
c
/
o
p
r
d
u
e
k
a
w
r
e
t
m
i
Page 2
CDR Mini Hi-Fi System
FW-R8
Sound Enhancement
2 x 100 Watts RMS Stereo
100 watts continuous RMS power output per channel, at
6 Ohms, from 25 Hz-20 kHz, with no more than 10%
Total Harmonic Distor tion (THD).
Integrated Audio CD Recorder
Make your own CD's with Bit-perfect digital quality.
Treble & Bass Control
Bass and Treble allows sound adjustment of high and low
frequencies to personal preferences. Balance allows the
sound adjustment of the left and right speaker.
Loudness and Pure Sound Control
Loudness is dynamic sound adjustment that amplifies
high and low frequencies depending on the volume (the
higher the volume, the less the amplification). Thereby it
creates 'richer' sound impression already at low volume.
Pure Sound Control allows you to switch off all sound
adjustments at the touch of a button.
3-Way Bass Reflex Speaker System
Equipped with one 6
mid range reproduction, one 2
1
/2" woofer for smooth low and
1
/2" ferro-fluid cooled
tweeter and one 1" Polydome tweeter for crisp high
tones.
Automatic Digital Record Level Control
During recording from the internal CDC, the unit
automatically equalises volume levels between CDs, so
that there are no unpleasant volume jumps during
playback of the recorded CD.
Incredible Surround™
Dramatically expands the soundfield to envelop the
listener in their music. With the usual two-speaker setup,
Incredible Surround™ widens the soundstage farther to
the left and right while adding the greater depth of clubs,
concert halls and stadiums for a more exciting
experience.
Subwoofer Ready
Affords easy access to greater dimensions in sound with
output signals available for connection to a subwoofer.
Convenience
Unique 'Recording Studio' Control Console
Ergonomic grouping of all your recording functions in
one easy to find section.
Simplified Recording Mode
CD > CD duplicates entire CD, Compile CD is perfect
for simple compilation.
Double Speed Recording from CD
Make your own CD in half the time.
CD-Text
No more need to look-up the track you want to play or
record in the CD inlay booklet, simply select the track by
name from the display, directly from the disc. The display
can show both artist and title for the entire album as
well as individual tracks. With the CDR Mini Hifi System,
you can also create your own CD Text information for
e.g. your own compilations.
3-Disc CD Changer with Motorized Drawer
Multi-disc play capability provides more than three hours
of continuous music.
CD-Rewritable Compatible
The player offers 100% playback guarantee of CDRewritable CD's over the entire lifetime of the player. Even
CD-RW audio recordings on computers can be used.
Microphone Mixing
Now you can be the STAR! Record your own vocals or
musical instrument. Better still record yourself singing or
playing along with your favorite artist.
Integrated digital tuner
Listen and record your favorite radio stations (record in
FM only).
Digital Clock with Record Timer
Use the built-in digital clock to record that special radio
show from the built-in tuner or any external source
while you are away.
42-Key Remote Control
The ergonomically styled remote control gives you
access to all essential functions, and has a 10-key pad
for entry of CD Text and direct access to track or
tuner presets.
CD Synchro CD Recording
Make a simple synchronised start recording from either
analog or digital sources.
Energy Saving Standby Mode (<2 watts)
Most systems consume 10-15 watts just on standby.
Philips systems consume less than 2 watts of energy on
standby for big saving to the listener.
Shuffle One/All Discs
Plays all selections on a particular disc or multiple discs in
multi-disc players in random order, ignoring the
sequential order in which they were originally recorded.
Design
Design Control
The attractive design focusses direct attention on the
main product function, the CD Recorder drawer. This
emphasis is supported by the logically designed
recording control panel. The large mirror coated display
lens reinforces the high technology aspect of the
product, while the controls are structured logically and
are easy to use. The light wood finishing on the speakers
complements the centre unit design well.
Oversized, MultiColor, Digital FTD Display
This large display is easy to read at any distance with no
distortion or distraction and the multi-color format
makes it easy to recognize different functions at a glance.
Detachable Cloth Speaker Grilles
Detachable cloth covered grilles protect delicate speaker
components with rich, high-tech styling.
Inputs and Outputs
1 x Digital Coax Input
A digital input is foreseen to connect digital sound
sources. The built-in sample rate converter ensures that a
wide range of sources can be connected (e.g. CD players,
DVD players, DAT players etc.).
1 x Digital Coax Output
A digital output connection is foreseen to enable digital
(CD) recordings from any of the digital inputs.
1 x Analog Input
A analog input is foreseen to connect analog sound
sources (e.g. phono, CD, Tape etc)
1 x Analog Line Output
A analog output connection is foreseen to enable analog
recordings from any of the analog inputs.
1 x 3.5mm Microphone jack
A microphone input with level control is provided to
connect any standard microphone to record your own
voice or instrument.
1 x Headphone Jack
Plug in a set of stereo headphones and enjoy your
favorite CD, cassette, or radio station without disturbing
other family members in the room. This convenient
feature allows different people in your household to use
different electronic entertainment media without
interference.
1 x Subwoofer connections
Affords easy access to greater dimensions in sound with
output signals available for connection to a subwoofer.
CDR
TUNER
ABC
1
JKL
4
RST
7
AUX
UPC Code: 0 37849 89364 7
Product Dimensions:
10.4" W x 12.2" H x 13.2" D (electronics)
9.4" W x 12.2" H x 9.8" D (speakers)
Package Dimensions:
22.8" W x 28.3" H x 14.1" D
Product weight: 48.5 lbs.
Carton contains: 3CD Changer + CDR
Mini Hi-Fi System, Multi-Function Remote
Control, Batteries, Operating instr uctions,
Warranty information
Printed in Singapore
Date printed : Oct 1999
©1999 Royal Philips Electronics N.V.
All rights reserved
A Division of Philips Electronics North America Corp.
Specifications subject to change without notice.
In some countries, use of the CDR Mini HiFi System as shown or
mentioned in this leaflet may require the authorisation of copyright
holders.
As an E
NERGY STAR® Par tner, Philips has determined that this product meets the
NERGY STAR® guidelines for energy efficiency.
E
à
PROGRAM SHUFFLE
TIMER ON/OFF
BRIGHTNESS
CD2
CD1
DEF GHI
2
MN
5
UVW
8
SPACE
0
VOLUME
É
í
Ç
Å
NO YES
REPEAT
SLEEP
BALANCE
LR
INCREDIBLE
SURROUND
ë
2
CD3
3
OPQ
6
XYZ
9
TEXT
EDIT
á
TRACK INCR.
MUTE
PURELOUDNESS
