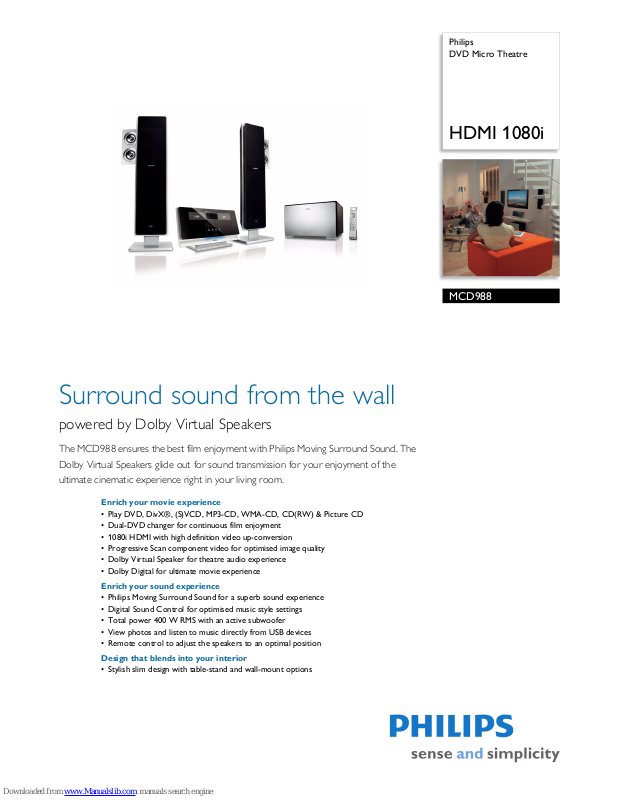

Philips
DVD Micro Theatre

HDMI 1080i

MCD988

Surround sound from the wall

powered by Dolby Virtual Speakers

The MCD988 ensures the best film enjoyment with Philips Moving Surround Sound. The
Dolby Virtual Speakers glide out for sound transmission for your enjoyment of the
ultimate cinematic experience right in your living room.

Enrich your movie experience

• Play DVD, DivX®, (S)VCD, MP3-CD, WMA-CD, CD(RW) & Picture CD

• Dual-DVD changer for continuous film enjoyment

• 1080i HDMI with high definition video up-conversion

• Progressive Scan component video for optimised image quality

• Dolby Virtual Speaker for theatre audio experience

• Dolby Digital for ultimate movie experience

Enrich your sound experience

• Philips Moving Surround Sound for a superb sound experience

• Digital Sound Control for optimised music style settings

• Total power 400 W RMS with an active subwoofer

• View photos and listen to music directly from USB devices

• Remote control to adjust the speakers to an optimal position

Design that blends into your interior

• Stylish slim design with table-stand and wall-mount options

MCD988/12

Highlights

DVD Micro Theatre

HDMI 1080i

1080i HDMI

HDMI stands for High Definition Multimedia
Interface. It is a

direct digital connection that
can carry digital HD video as well as digital
multi-channel audio. By eliminating the
conversion to analogue signals it delivers
perfect picture and sound quality, completely
free from noise. HDMI is fully backwards­compatible with DVI (Digital Video Interface).

Progressive Scan

Progressive Scan doubles the vertical
res

olution of the image resulting in a noticeably
sharper picture. Instead of sending a field
comprising the odd lines to the screen first,
followed by the field with the even lines, it
writes both fields at the same time. A full image
is created instantaneously, using the maximum
resolution. At such a speed, your eye perceives
a sharper picture with no line structure.

Moving Surround Sound

Powered by Dolby Virtual Speaker technology,
Mo

ving Surround Sound expands and enriches

the audio and video experience by adding a
'visual' dimension. Listeners can now
appreciate an immersive surround sound
experience that they can also 'see' with
movement. Essentially, both the top speaker
and the metal bullet speaker heads are
motorised so they actually 'move' together to
recreate a surround sound experience. The
combination of the moving speakers creates a
'sound beaming' effect towards the listener,
effectively widening the sound stage and the
sides of the room.

Dolby Virtual Speaker

Dolby Virtual Speaker is a sophisticated audio
virtualisation

technology that produces rich
and immersive surround sound from a two­speaker system. Highly advanced spatial
algorithms faithfully replicate the sonic
characteristics that occur in an ideal 5.1­channel environment. DVD playback is
enhanced by expanding the 2-channel
environment. When combined with Dolby Pro
Logic II processing, any high-quality stereo

source is transformed into true-to-life, multi­channel surround sound. No need to purchase
extra speakers, wires or speaker stands to
appreciate room-filling sound.

Digital Sound Control

Digital Sound Control offers you a choice of
p

reset Jazz, Rock, Pop and Classical controls
you can use to optimise the frequency ranges
for different musical styles. Each mode uses
graphic equalizing technology to automatically
adjust the sound balance and enhance the most
important sound frequencies in your chosen
music style. Ultimately, Digital Sound Control
makes it easy for you get the most out of your
music by precisely adjusting the sound balance
to match the type of music you are playing.

USB direct

Simply plug your USB device into the system
an

d share your stored digital music and photos

with your family and friends.

Issue date 2011-07-07

Version: 1.0.6

12 NC: 8670 000 29766
EAN: 87 12581 33331 7

© 2011 Koninklijke Philips Electronics N.V.
All Rights reserved.

Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.

www.philips.com

MCD988/12

Specifications

DVD Micro Theatre

HDMI 1080i

Picture/Display

• D/A converter: 12bit, 108MHz

• Picture enhancement: High Def (720p, 1080i),
Video

upsampling, Video upscaling

Sound

• Output Power: Total 400 W RMS

• Sound Enhancement: Moving Speakers, Digital
So

und Control 4 modes, Dynamic Bass Boost,

Loudness, Class "D" Digital Amplifier

• Sound System: Dolby Virtual speaker, Dolby
Digital

Loudspeakers

• Main Speaker: Bass Reflex Speaker System, 2 x 2"
bullet tweeter, 2 x 4" woofer

• Subwoofer type: Active

• Subwoofer driver: 8" woofer

Video Playback

• Playback Media: DivX, DVD+RW, DVD-Video,
Video CD/SVCD, Picture CD

• Disc Playback Modes: A-B Repeat, PBC, Angle,
Zoo

m, Parental control, Disc Menu, Fast Reverse,

Fast Forward, OSD, Slow Reverse, Slow Forward

•DVD Region: 2

•Loader Type: Motorised

• Video Enhancement: Progressive Scan

• Number of Discs: 2

Still Picture Playback

• Picture compression format: JPEG

• Picture enhancement: Slideshow with MP3
play

back

• Playback Media: Picture CD

Audio Playback

• Playback Media: CD, CD-R, CD-RW, MP3-CD,
WMA-CD

• Disc Playback Modes: Rep

eat/one/all/program,

Shuffle Play, 20-Track Programmable

• ID3-tag support

• Loader Type: Front, Motorised

• USB Direct Modes: Fast Reverse/Fast Forward,
Play/Pause, Previou

s/Next, Program Play, Repeat,

Shuffle, Stop

Tuner/reception/transmission

• Tuner Bands: FM Stereo

• Auto digital tuning

• Station presets: 20

• Tuner Enhancements: Auto Store

• RDS: Programme Type, Radio Text, RDS Clock
Set,

Station Name

Connectivity

• Aux in: Line-in, 3.5 mm

• Headphones: 3.5 mm

• Other connections: FM An

tenna, Digital audio
coaxial out, Active subwoofer Pre-out, AV out,
DIN connection, HDMI out

• Video Output - Analogue: Component Y Pb Pr
(c

inch), S-Video (on Hosiden), SCART

• USB: USB host

Convenience

• Alarms: CD Alarm, Sleep timer, Radio Alarm, USB
alarm

• Clock: On main display

• Display Type: VFD display

• OSD Languages: English, French, Spanish, Dutch,
G

erman, Italian, Portuguese, Swedish, Turkish

• Indications: DIM mode

• Wall mountable/Ceiling Throw: Wall Mountable

• Eco Power Standby: 1 watt

Accessories

• Included Accessories: Screws for wall mounting x
2, Audio/Video cable, FM antenna, Guarantee
booklet, Quick Use Guide

• Remote control: 47-key with 2 x AAA batteries

• User manual: 16 languages

Dimensions

• Packaging dimensions (W x H x D):
496 x 1072 x 366 mm

• Set dimensions (W x H x D): 430 x 225 x 141 mm

• Main speaker dimensions (W x H x D):
19

8 x 649 x 163 mm

• Subwoofer dimensions (W x H x D):
43

0 x 265 x 292 mm

• Weight incl. Packaging: 20 kg

Power

• Power supply: 220-240 V, 50 Hz

•
