y
CD1/2/3
MUTE
REPEAT
PROGRAM SHUFFLE
DSC
DBB
DISPLAY
DIM
SLEEP
TITLE
ALBUM
AUX
TUNER
VOL
TIMER
ON/OFF

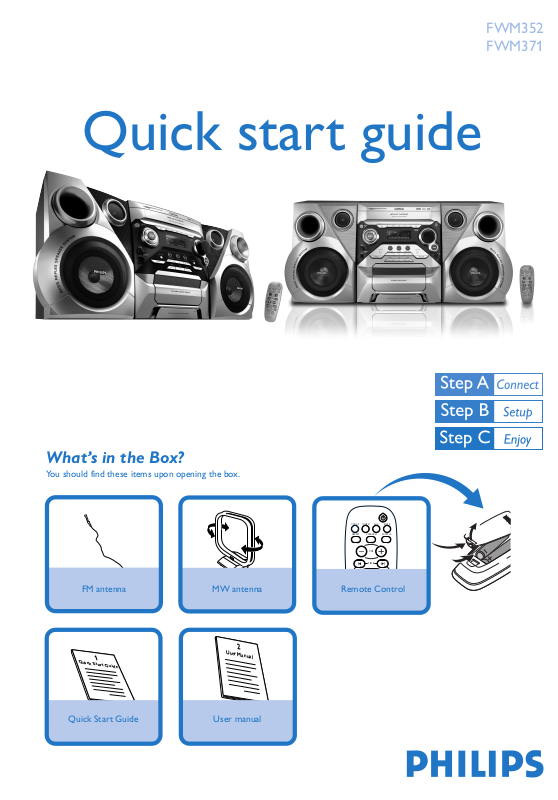

Quick start guide
FWM352
FWM371
What’s in the Box?
You should find these items upon opening the box.
FM antenna MW antenna Remote Control
1
Quick Start Guide
Quick Start Guide
User manual
2
User Manual
Page 2
1
Connect the speaker cables.
2
Connect the MW and FM antennas.
3
Connect the power cable of the system.
Tip
See the User Manual for how to
connect other equipment to this
system.
MW loop
antenna
Speaker
(right)
3
2
AM ANTENNA
FM ANTENNA
AUX/CDR
R L
R
1
AC power cord
L
SPEAKERS 6Ω
-
+
FM wire antenna
Speaker
(left)
SetupSetup
Setting the clock
1
In standby or view clock mode, press CLOCK•TIMER once. In other
source mode, press CLOCK•TIMER twice.
2
Press à or á repeatedly to set the hour.
3
Press í or ë repeatedly to set the minute.
4
Press CLOCK•TIMER again to store the setting.
Page 3
C
Enjoy
Playing a disc
1
Press OPEN•CLOSE to open the disc tray and load up to two
discs on the individual disc trays. To load the third disc, press DISC
CHANGE.
➜ Make sure the label side of each loaded disc is facing up.
2
Press OPEN•CLOSE again to close the disc tray.
3
Use DSC 1/2/3 (or CD 1/2/3 on the remote control) to select a
disc for playback and then press PLAY•PAUSEÉÅ to start
playback.
2
2
1
1
4
To stop playback, press STOP9 .
Programming and tuning to
radio stations
1
Press TUNER to select the tuner source.
2
Press PROGRAM for more than two seconds to program all
available stations in order of waveband.
3
Press í or ë until the desired preset station is displayed.
Tip
Detailed playback features and additional functions are described in the
accompany owner's manual.
PDCC-JS/JW-0601
GB
