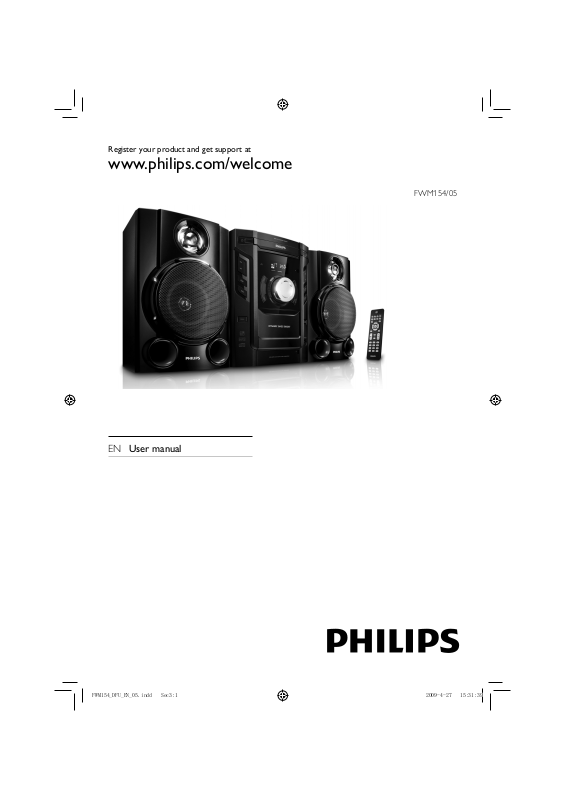

Philips FWM154-05 User Manual

Register your product and get support at

www.philips.com/welcome

FWM154/05

EN User manual

Contents

1 Important 4

Safety 4
Notice 5

2 Your Mini Hi-Fi System 7

Introduction 7
What’s in the box 7
Overview of the main unit 8
Overview of the remote control 9

3 Get started 11

Connect speakers 11
Install remote control batteries 11
Connect power 12
Set the clock 12
Turn on 12

4 Play disc 13

5 Play options 14

Repeat play 14
Random play 14
Program tracks 14

9 Use more of your Mini Hi-Fi System 18

Listen to an external device 18
Record from disc 18
Record from radio 18
Record from external source 18
Set the sleep timer 18
Set the alarm timer 19

10 Product information 20

Specifi cations 20
Supported MP3 disc formats 21
Maintenance 21

11 Troubleshooting 22

English

6 Listen to the radio 15

Tune to a radio station 15
Program radio stations automatically 15
Program radio stations manually 15
Select a preset radio station 15

7 Play tape 16

8 Adjust sound 17

Adjust volume 17
Select a preset sound effect 17
Enhance bass 17
Mute sound 17

EN

3

1 Important

Safety

Important Safety Instructions

a Read these instructions.
b Keep these instructions.
c Heed all warnings.
d Follow all instructions.
e Do not use this apparatus near water.
f Clean only with dry cloth.
g Do not block any ventilation openings.

Install in accordance with the
manufacturer’s instructions.

h Do not install near any heat sources

such as radiators, heat registers, stoves,
or other apparatus (including amplifi ers)
that produce heat.

i Protect the power cord from being

walked on or pinched, particularly at
plugs, convenience receptacles, and
the point where they exit from the
apparatus.

j Only use attachments/accessories

specifi ed by the manufacturer.

k Use only with the cart, stand,

tripod, bracket, or table specifi ed by
the manufacturer or sold with the
apparatus. When a cart is used, use
caution when moving the cart/apparatus
combination to avoid injury from tip­over.

l Unplug this apparatus during lightning

storms or when unused for long periods
of time.

m Refer all servicing to qualifi ed service

personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug
is damaged, liquid has been spilled or
objects have fallen into the apparatus,
the apparatus has been exposed to rain
or moisture, does not operate normally,
or has been dropped.

n Battery usage CAUTION – To prevent

battery leakage which may result in
bodily injury, property damage, or
damage to the unit:

Install all batteries correctly, + and •

- as marked on the unit.
Do not mix batteries (old and new •
or carbon and alkaline, etc.).
Remove batteries when the unit is •
not used for a long time.

o Apparatus shall not be exposed to

dripping or splashing.

p Do not place any sources of danger on

the apparatus (e.g. liquid fi lled objects,
lighted candles).

q This product may contain lead and

mercury. Disposal of these materials
may be regulated due to environmental
considerations. For disposal or recycling
information, please contact your local
authorities or the Electronic Industries
Alliance: www.eiae.org.

Where the MAINS plug or an appliance •
coupler is used as the disconnect device,
the disconnect device shall remain readily
operable.

4

EN

Important notes for users in the U.K.

Mains plug
This apparatus is fi tted with an approved 13
Amp plug. To change a fuse in this type of plug
proceed as follows:

a Remove fuse cover and fuse.

b Fix new fuse which should be a BS1362 3

Amp, A.S.T.A. or BSI approved type.

c Refi t the fuse cover.

If the fi tted plug is not suitable for your socket
outlets, it should be cut off and an appropriate
plug fi tted in its place.
If the mains plug contains a fuse, this should
have a value of 3 Amp. If a plug without a fuse
is used, the fuse at the distribution board should
not be greater than 3 Amp.
Note: The severed plug must be disposed off
to avoid a possible shock hazard should it be
inserted into a 13 Amp socket elsewhere.
How to connect a plug
The wires in the mains lead are coloured with the
following code: blue = neutral (N), brown = live
(L).
As these colours may not correspond with the
colour markings identifying the terminals in your
plug, proceed as follows:

Connect the blue wire to the terminal •
marked N or coloured black.
Connect the brown wire to the terminal •
marked L or coloured red.
Do not connect either wire to the earth •
terminal in the plug, marked E (or e) or
coloured green (or green and yellow).

Before replacing the plug cover, make certain
that the cord grip is clamped over the sheath of
the lead - not simply over the two wires.

Copyright in the U.K.
Recording and playback of material may require
consent. See Copyright Act 1956 and The
performer’s Protection Acts 1958 to 1972.

Warning

Never r emove the casing of this appar atus . •
Never lubricate any part of this apparatus. •
Never place this apparatus on other electrical •
equipment.
Keep this apparatus away from direct sunlight , naked •
fl ames or heat .
Never look into the laser beam inside this apparatus. •
Ensur e that you always have eas y access to the •
power cord, plug or adaptor to disconnect this
apparatus from the power.

Notice

This product complies with the radio
interference requirements of the European
Community.
This product complies with the requirements
of the following directives and guidelines:
2004/108/EC + 2006/95/EC
Any changes or modifi cations made to this
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.

The making of unauthorized copies of
copy-protected material, including computer
programs, fi les, broadcasts and sound
recordings, may be an infringement of
copyrights and constitute a criminal offence.
This equipment should not be used for such
purposes.

English

EN

5

Recycling

Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When you see the crossed-out wheel bin
symbol attached to a product, it means the
product is covered by the European Directive
2002/96/EC:

Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products. The correct
disposal of your old product helps prevent
potentially negative consequences on the
environment and human health.
Your product contains batteries covered by
the European Directive 2006/66/EC , which
cannot be disposed of with normal household
waste.
When you see the crossed-out wheel bin
symbol with the chemical symbol ‘Pb’, it
means that the batteries comply with the
requirement set by the directive for lead:

disposal of batteries helps prevent potentially
negative consequences on the environment
and human health.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and
old equipment.

Windows Media and the Windows logo are
trademarks, or registered trademarks of
Microsoft Corporation in the United States
and/or other countries.
This apparatus includes this label:

Pb

Please inform yourself about the local rules on
separate collection of batteries. The correct

6

EN

2 Your Mini Hi-Fi

System

Congratulations on your purchase, and
welcome to Philips! To fully benefi t from the
support that Philips offers, register your product
at www.Philips.com/welcome.

Introduction

With this unit, you can enjoy audio from discs,
tapes, external devices, or radio stations.
The unit offers you multiple sound effect
settings that enrich sound with Digital Sound
Control (DSC) and Dynamic Bass Boost (DBB).
The unit supports the following media formats:

English

What’s in the box

Check and identify the contents of your
package:

Main unit•
Speaker box x 2•
Remote control•
MP3 link cable•
User manual•
Quick star t guide•

EN

7

Overview of the main unit

i

a

b

c

d

e

f

g

h

j

k

l

m

n

o

p

q

r

a

Turn on the unit, switch to standby •
mode, or switch to Eco power
standby.

b ECO POWER indicator

8

EN

s

c /

Skip to the previous/next track.•
Search within a track/ disc.•
Adjust time.•
