MP3-CD Mini Hi-Fi System
Register your product and get support at
www.philips.com/welcome
User manual
Manual de usuario
Manual do utilizador
FWM143
pg001-pg020_FWM143_55_Eng 2007.7.18, 15:381
México
Es necesario que lea cuidadosamente su instructivo de
manejo.
PRECAUCIÓN - ADVERTENCIA
No abrir, riesgo de choque eléctrico
Verifique que el voltaje de alimentación
sea el requerido para su aparato
Para evitar el riesgo de choque eléctrico, no quite la tapa.
En caso de requerir servicio, dirijase al personal calificado.
Descripción: Minisistema de Audio
Modelo : FWM143/55
Alimentación: 110–127 / 220–240V~; 50–60 Hz
Consumo: 42W
Importador: Philips Mexicana, S.A. de C.V.
Domicilio: Av. La Palma No.6
Localidad y Tel: Edo. de México C.P. 52784
Exportador: Philips Electronics HK, Ltd.
País de Origen: China
Nº de Serie: ______________________________
ATENCIÓN
Col. San Fernando La Herradura
Huixquilucan
Tel.52 69 90 00
LEA CUIDADOSAMENTE ESTE INSTRUCTIVO
ANTES DE USAR SU APARATO.
AVISO IMPORTANTE
Philips Mexicana, S.A. de C .V. no se hace
responsable por daños o desperfectos causados por:
– Maltrato, descuido o mal uso, presencia de
insectos o roedores (cucarachas, ratones etc.).
– Cuando el aparato no haya sido operarado
de acuerdo con el instructivo del uso, fuera
de los valores nominales y tolerancias de las
tensiones (voltaje), frecuencia (ciclaje) de
alimentación eléctrica y las características
que deben reunir las instalaciones auxiliares.
– Por fenómenos naturales tales como:
temblores, in
eléctricas, rayos etc. o delitos causados por
terceros (choques asaltos, riñas
2
pg001-pg020_FWM143_55_Eng 2007.7.18, 15:382
undaciones, incendios, descargas
CAUTION
Use of controls or
adjustments or performance
of procedures other than
herein may result in
hazardous radiation
exposure or other unsafe
operation.
, etc.).
#
4
3
8
$
!
0
*
(
™
)
¡
%
£
5
4
0
1
2
%
$
^
5
@
6
!
§
8
7
3
9
&
pg001-pg020_FWM143_55_Eng 2007.7.18, 15:383
3
Hearing Safety
Listen at a moderate volume.
● Using headphones at a high volume can impair
your hearing. This product can produce sounds
in decibel ranges that may cause hearing loss for
a normal person, even for exposure less than a
minute. The higher decibel ranges are offered
for those that may have already experienced
some hearing loss.
● Sound can be deceiving. Over time your hearing
"comfort level" adapts to higher volumes of
sound. So after prolonged listening, what sounds
"normal" can actually be loud and harmful to
your hearing. To guard against this, set your
volume to a safe level before your hearing
adapts and leave it there.
To establish a safe volume level:
● Set your volume control at a low setting.
● Slowly increase the sound until you can hear it
comfortably and clearly, without distortion.
Listen for reasonable periods of time:
● Prolonged exposure to sound, even at normally
"safe" levels, can also cause hearing loss.
● Be sure to use your equipment reasonably and
take appropriate breaks.
Be sure to observe the following
guidelines when using your headphones.
● Listen at reasonable volumes for reasonable
periods of time.
● Be careful not to adjust the volume as your
hearing adapts.
● Do not turn up the volume so high that you
can't hear what's around you.
● You should use caution or temporarily
discontinue use in potentially hazardous
situations.
● Do not use headphones while operating a
motorized vehicle, cycling, skateboarding, etc.; it
may create a traffic hazard and is illegal in many
areas.
4
pg001-pg020_FWM143_55_Eng 2007.7.18, 15:384

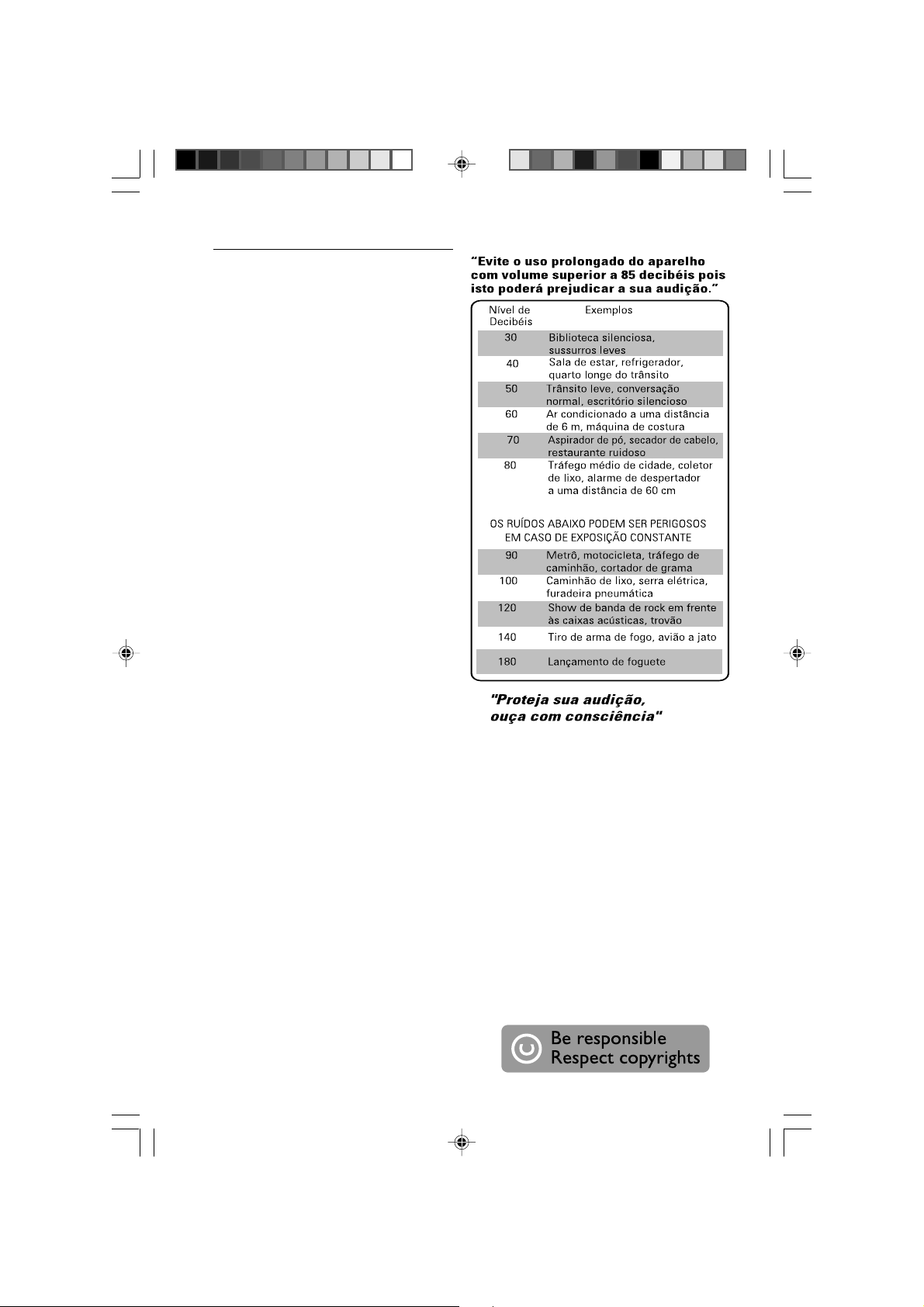

The making of unauthorized copies of copyprotected material, including computer
programmes, files, broadcasts and sound
recordings, may be an infringement of
copyrights and constitute a criminal offence.
This equipment should not be used for such
purposes.
Index
English ------------------------------------------------ 6
Español --------------------------------------------- 21
Português ------------------------------------------ 36
English
Por tuguês Español
Congratulations on your purchase and
welcome to Philips!
To fully benifit from the support that
Philips offers, register your product at
www.philips.com/welcome.
pg001-pg020_FWM143_55_Eng 2007.7.18, 15:385
5
Contents
English
General Information
Environmental information ................................ 7
Supplied accessories ............................................ 7
Safety information ................................................ 7
Preparation
Rear connections ................................................. 8
Optional connection ........................................... 9
Inserting batteries into the remote control... 9
Controls
Controls on the system and remote
control .................................................................. 10
External sources
Listening to external source ............................ 16
Clock/Timer
Setting the clock ................................................. 17
Setting the timer ................................................. 17
Activating and deactivating TIMER ................. 17
Activating and deactivating SLEEP .................. 17
Maintenance.............................................. 18
Specifications ........................................... 18
Basic Functions
Switching the system on ................................... 11
Power-saving automatic standby ..................... 11
Adjusting volume and sound............................ 11
CD/MP3 Operation
Playing a disc ........................................................ 12
Selecting a different track ................................. 12
Finding a passage within a track ...................... 12
Playing an MP3 disc ...................................... 12-13
Different play modes: Shuffle and Repeat ..... 13
Programming track numbers ........................... 13
Reviewing the programme ............................... 13
Erasing the programme ..................................... 13
Radio Reception
Tuning to radio stations .................................... 14
Ta pe Operation/Recording
Ta pe playback ...................................................... 15
General information on recording ................. 15
Synchro start CD recording ............................ 15
Recording from the radio................................. 16
Tr oubleshooting .............................. 19-20
6
pg001-pg020_FWM143_55_Eng 2007.7.18, 15:386
General Information
IMPORTANT!
PLEASE NOTE THAT THE VOLTAGE
SELECTOR LOCATED AT THE REAR OF
THIS SYSTEM IS PRESET AT 220V FROM
THE FACTORY. FOR COUNTRIES THAT
OPERATE AT 110V-127V, PLEASE ADJUST
TO 110V-127V BEFORE YOU SWITCH ON
THE SYSTEM.
Supplied accessories
–2 speaker boxes
– remote control
Environmental Information
All unnecessary packaging has been omitted. We
have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene (bags,
protective foam sheet).
Your system consists of materials which can be
recycled and reused if disassembled by a
specialized company. Please obser ve the local
regulations regarding the disposal of packaging
materials, exhausted batteries and old
equipment.
Safety Information
● Before operating the system, check that the
operating voltage indicated on the typeplate (or
the voltage indication beside the voltage
selector) of your system is identical with the
voltage of your local power supply. If not, please
consult your dealer.
● Place the system on a flat, hard and stable
surface.
● Place the system in a location with adequate
ventilation to prevent internal heat build-up in
your system. Allow at least 10 cm (4 inches)
clearance from the rear and the top of the unit
and 5 cm (2 inches) from each side.
● The ventilation should not be impeded by
covering the ventilation openings with items,
such as newspapers, table-cloths, curtains, etc.
● Do not expose the system, batteries or discs to
excessive moisture, rain, sand or heat sources
caused by heating equipment or direct sunlight.
● No naked flame sources, such as lighted candles,
should be placed on the apparatus.
● No objects filled with liquids, such as vases, shall
be placed on the apparatus.
● The apparatus shall not be exposed to dripping
or splashing.
● Install this unit near the AC outlet and where the
AC power plug can be reached easily.
● If the system is brought directly from a cold to a
warm location, or is placed in a very damp room,
moisture may condense on the lens of the disc
unit inside the system. Should this occur, the CD
player would not operate normally. Leave the
power on for about one hour with no disc in the
system until normal playback is possible.
● The mechanical parts of the set contain self-
lubricating bearings and must not be oiled or
lubricated.
● When the system is switched to Standby
mode, it is still consuming some power.
To disconnect the system from the
power supply completely, remove the AC
power plug from the wall socket.
English
pg001-pg020_FWM143_55_Eng 2007.7.18, 15:387
7
Preparations
English
speaker
(right)
Rear connections
The type plate is located at the back of the
system.
A Pow er
– Before connecting the AC power cord to the
wall outlet, ensure that all other connections
have been made.
– If your system is equipped with a Voltage
Selector, set the VOLTAGE SELECTOR to the
local power line voltage.
WARNING!
–For optimal performance, use only the
original power cable.
–Never make or change any connections
with the power switched on.
To avoid overheating of the system, a safety
circuit has been built in. Therefore, your
system may switch to Standby mode
automatically under extreme conditions. If
this happens, let the system cool down
before reusing it (not available for all versions).
speaker
(left)

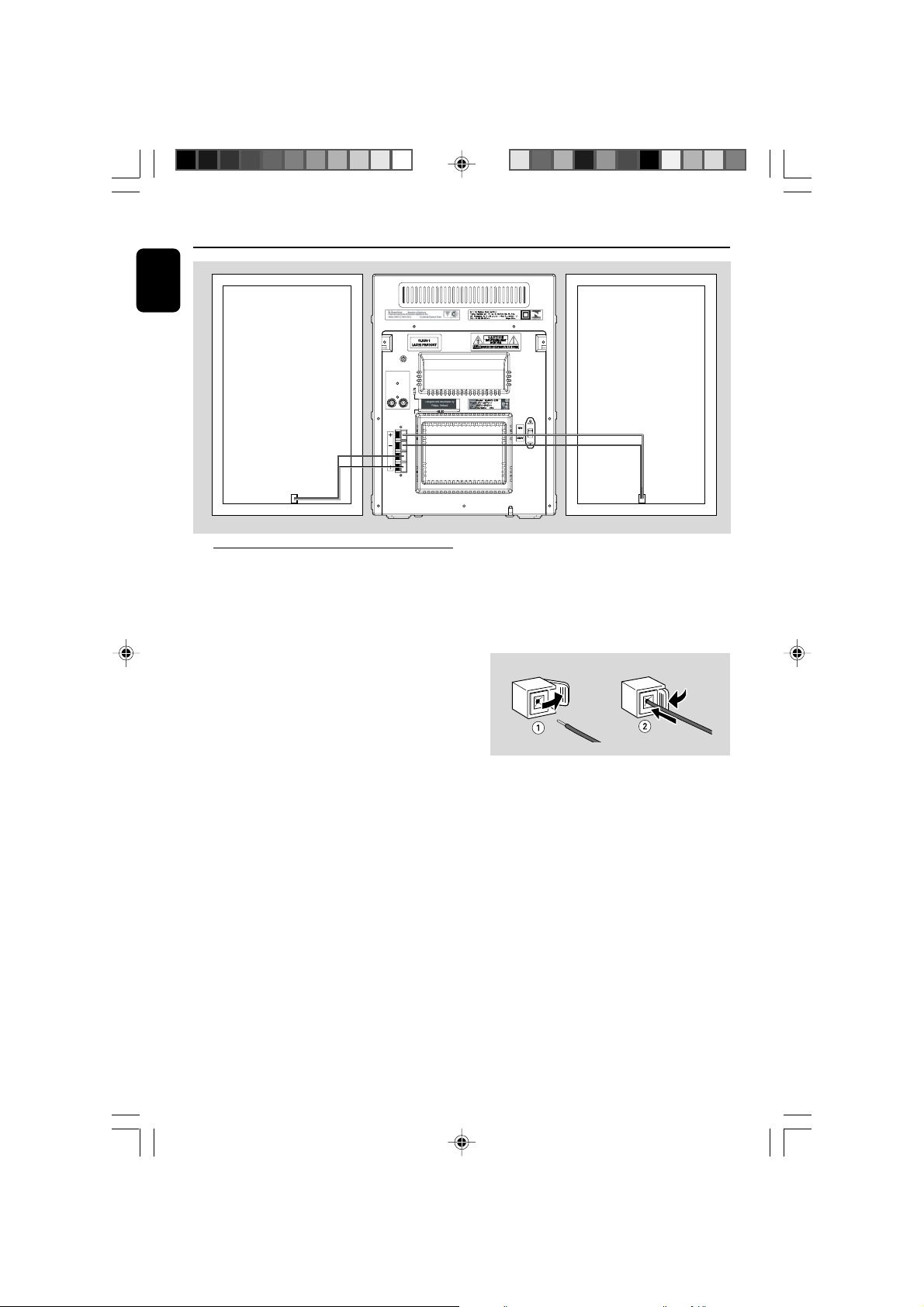

B Speakers Connection
Front Speakers
Connect the speaker wires to the SPEAKERS
terminals, right speaker to "R" and left speaker to
"L", coloured (marked) wire to "+" and black
(unmarked) wire to "-".
● Fully insert the stripped por tion of the speaker
wire into the terminal as shown.
Notes:
–For optimal sound performance, use the
supplied speakers.
– Do not connect more than one speaker to any
one pair of +/- speaker terminals.
– Do not connect speakers with an impedance
lower than the speakers supplied. Please refer to
the SPECIFICATIONS section of this manual.
8
pg001-pg020_FWM143_55_Eng 2007.7.18, 15:388
Preparations
Optional connection
The optional equipment and connecting cords
are not supplied. Refer to the operating
instructions of the connected equipment for
details.

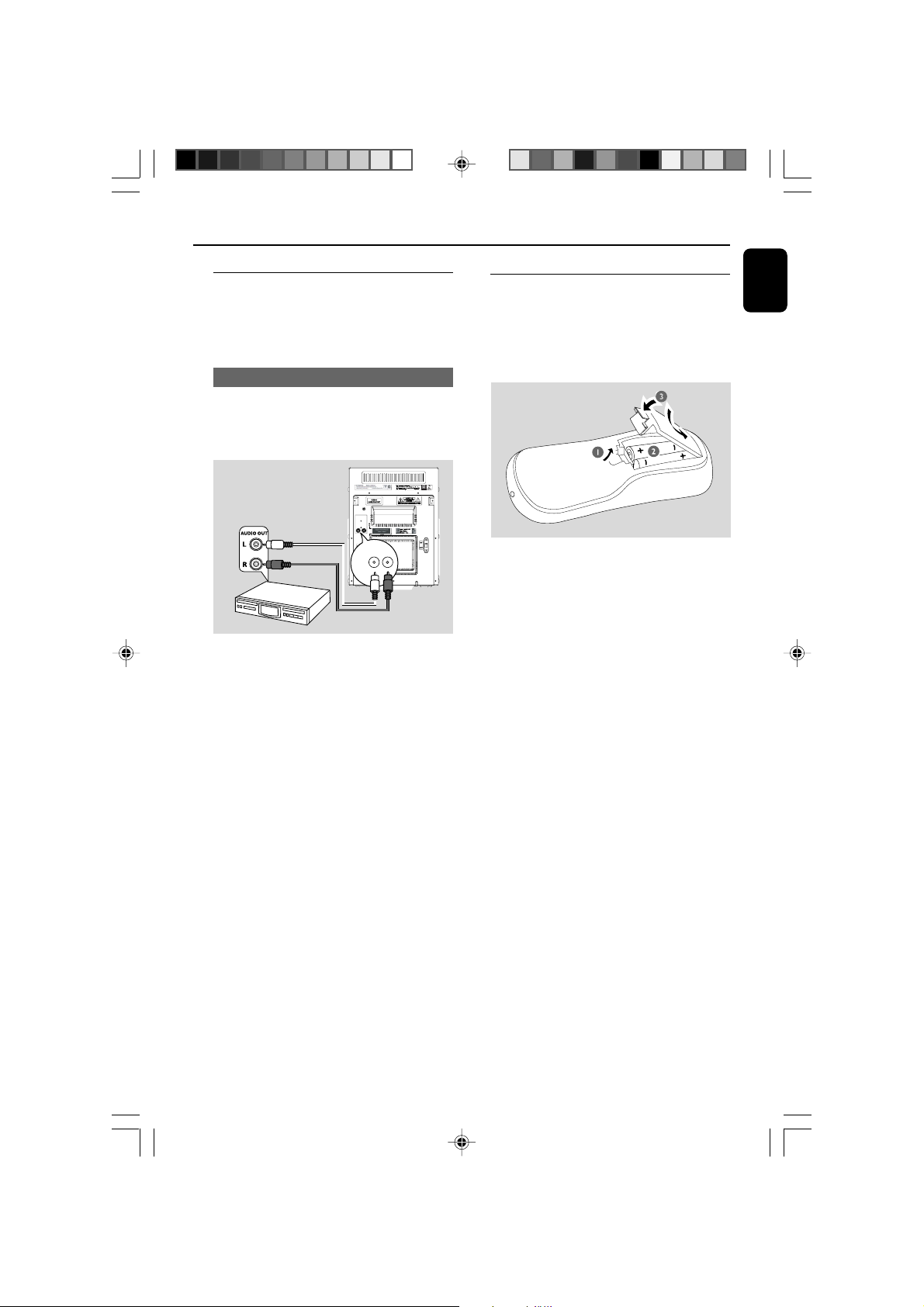

Connecting external equipment
Use a cinch cable to connect AUX IN to the
analogue audio out terminals of an external
equipment (TV, VCR, Laser Disc player, DVD
player or CD Recorder).
L R
AUX IN
L R
AUX
IN
Note:
– If you are connecting equipment with a mono
output (a single audio out terminal), connect it to
the AUX left terminal. Alternatively, you can use a
“single to double” cinch cable (the output sound
still remain mono).
Inserting batteries into the
remote control
Insert two batteries type R03 or AAA into the
remote control with the correct polarity as
indicated by the “+”and“-” symbols inside
the battery compar tment.
CAUTION!
– Remove batteries if they are exhausted
or will not be used for a long time.
– Do not use old and new or different
types of batteries in combination.
– Batteries contain chemical substances,
so they should be disposed of properly.
English
pg001-pg020_FWM143_55_Eng 2007.7.18, 15:389
9

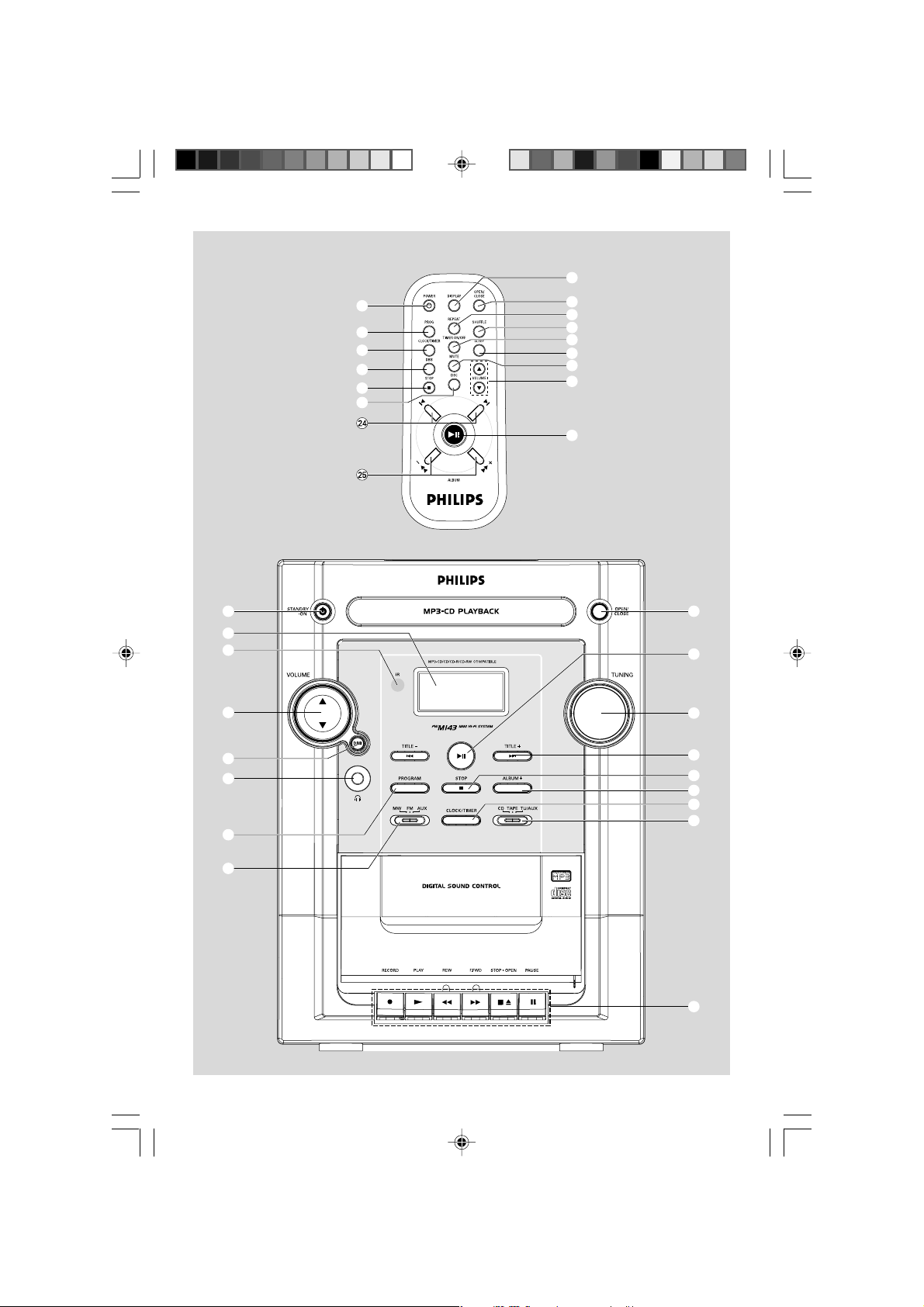

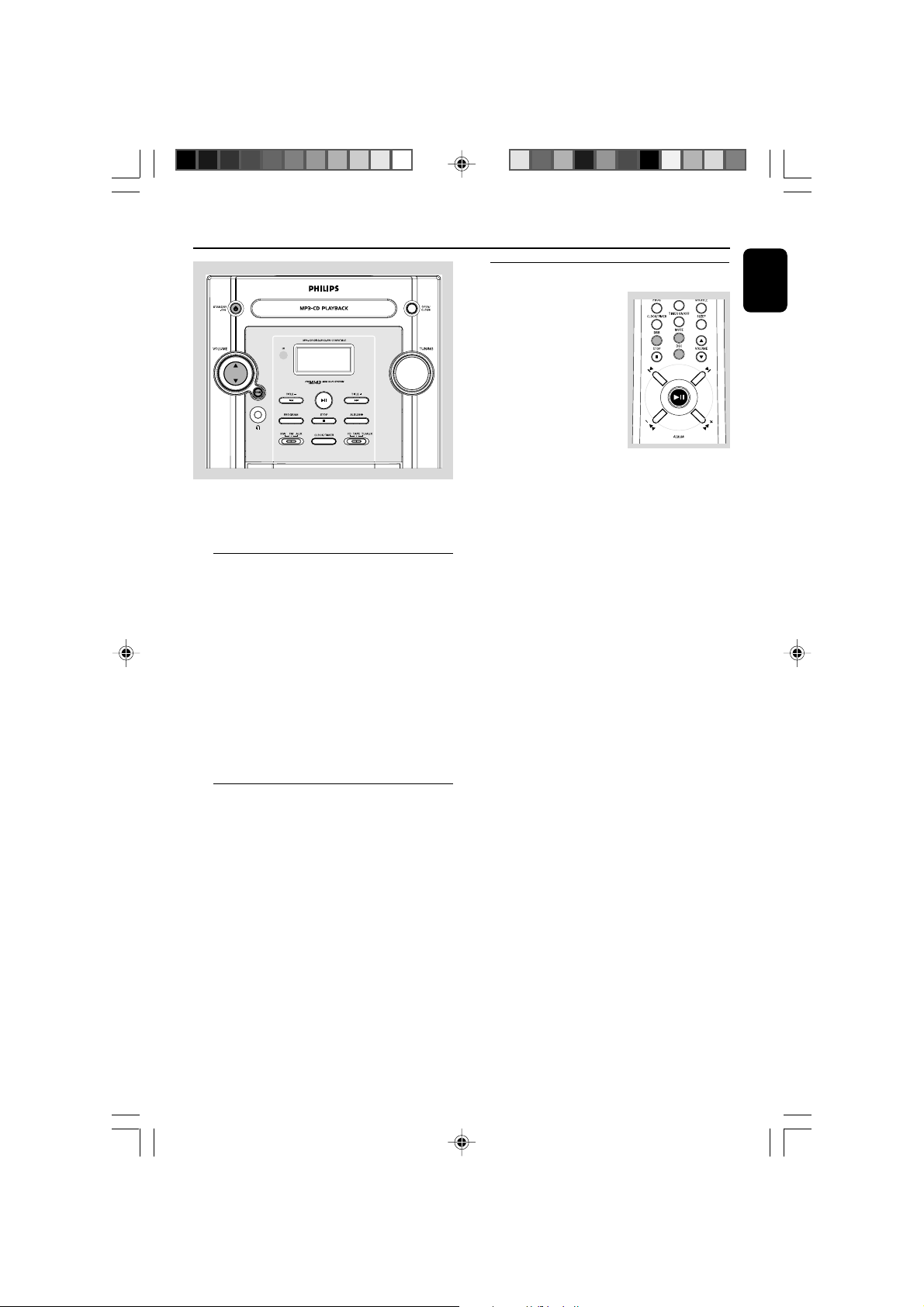

Controls (illustrations on page 3)
English
Controls on the system and
remote control
1 LCD Display
– shows the status of the system.
2 iR SENSOR
– infrared sensor for remote control.
3 PROGRAM (PROG)
for CD ................. programs tracks and reviews the
program.
4 STANDBY-ON y (POWER y)
– switches the system to standby/on.
5 2;
for CD/MP3 ..... star ts or pauses CD playback.
6 TITILE-/+ ¡1 / 2™
for CD/MP3 ..... skips to the beginning of a
current track/previous/ next
track (title).
(press and hold) fast searches
back and forward within a track/
disc.
for clock/timer .. adjusts the hours and minutes
for clock / timer functions.
7 Source selector (CD/ TAPE/TUNER/AUX)
– selects the respective sound source for CD/
TAPE/ TUNER/AUX.
8 CLOCK/TIMER
– sets the clock or timer function.
9 Mode selector (MW/FM/AUX)
for Tuner ............. selects waveband: MW or FM.
for AUX .............. selects the AUX mode.
0 OPEN/CLOSE
– open/close the CD door.
! STOP 9
for CD/MP3 ..... stops CD playback or erases a
CD program.
@ TUNING
– tunes to a radio station.
# DISPLAY
– display the current time.
$ DBB (Dynamic Bass Boost)
– enhances the bass.
% VOLUME 3/4
– adjusts the volume level.
^ n
– connect headphones.

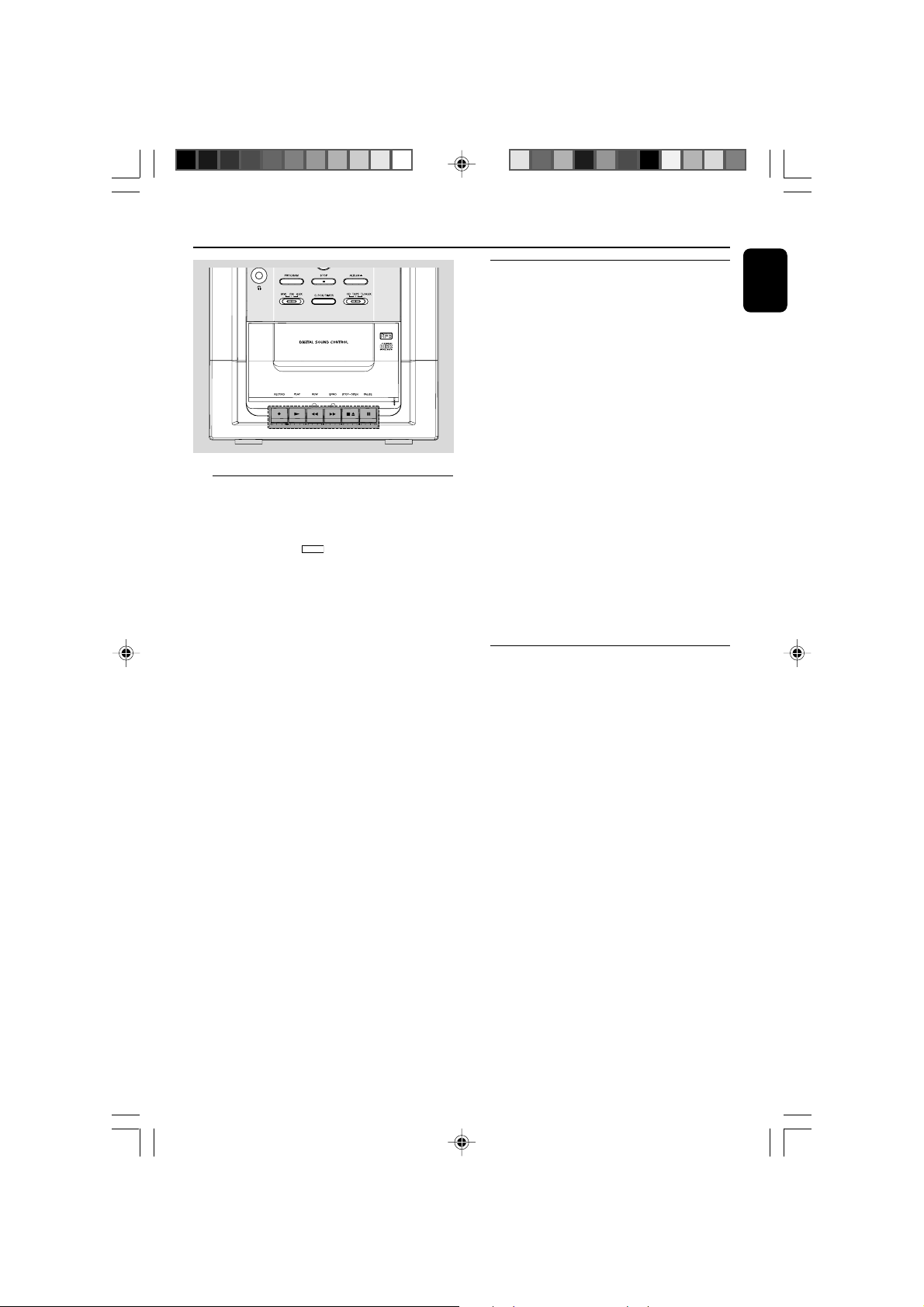

& Ta pe Deck Operation
RECORD 0 ....... star ts recording.
PLAY 2 ................. starts playback.
REW à /F.FWD á
......................................
STOP•OPEN 9/
...................................... stops the tape; opens the tape
PAUSEÅ ............ pauses recording or playback.
fast rewinds/forwards the tape
compartment.
* REPEAT
for CD/MP3 ..... repeats a track/CD programme/
entire CD.
( SHUFFLE
for CD/MP3 ..... plays CD tracks in random order.
) SLEEP
– activates/deactivates or selects the sleeper time.
¡ MUTE
– switches playback sound off and on.
™ TIMER ON/OFF
– activates/deactivates the timer.
£ DSC (Digital Sound Control)
– selects sound characteristics: CLASSIC/JAZZ/
POP/ROCK.
≤ í/ë
for CD/MP3 ..... skips to the beginning of a
current track/previous/next track
for CD/MP3 ..... (press and hold) fast searches
for clock/timer adjusts the hours and minutes
for clock/timer functions.
(title).
back and forward within a track/
CD.
∞ ALBUM-/+ 5 /6
for MP3 ............... selects an album.
§ ALBUM+
for MP3 ............... selects an album upward.
.
10
pg001-pg020_FWM143_55_Eng 2007.7.18, 15:3810
Basic Functions

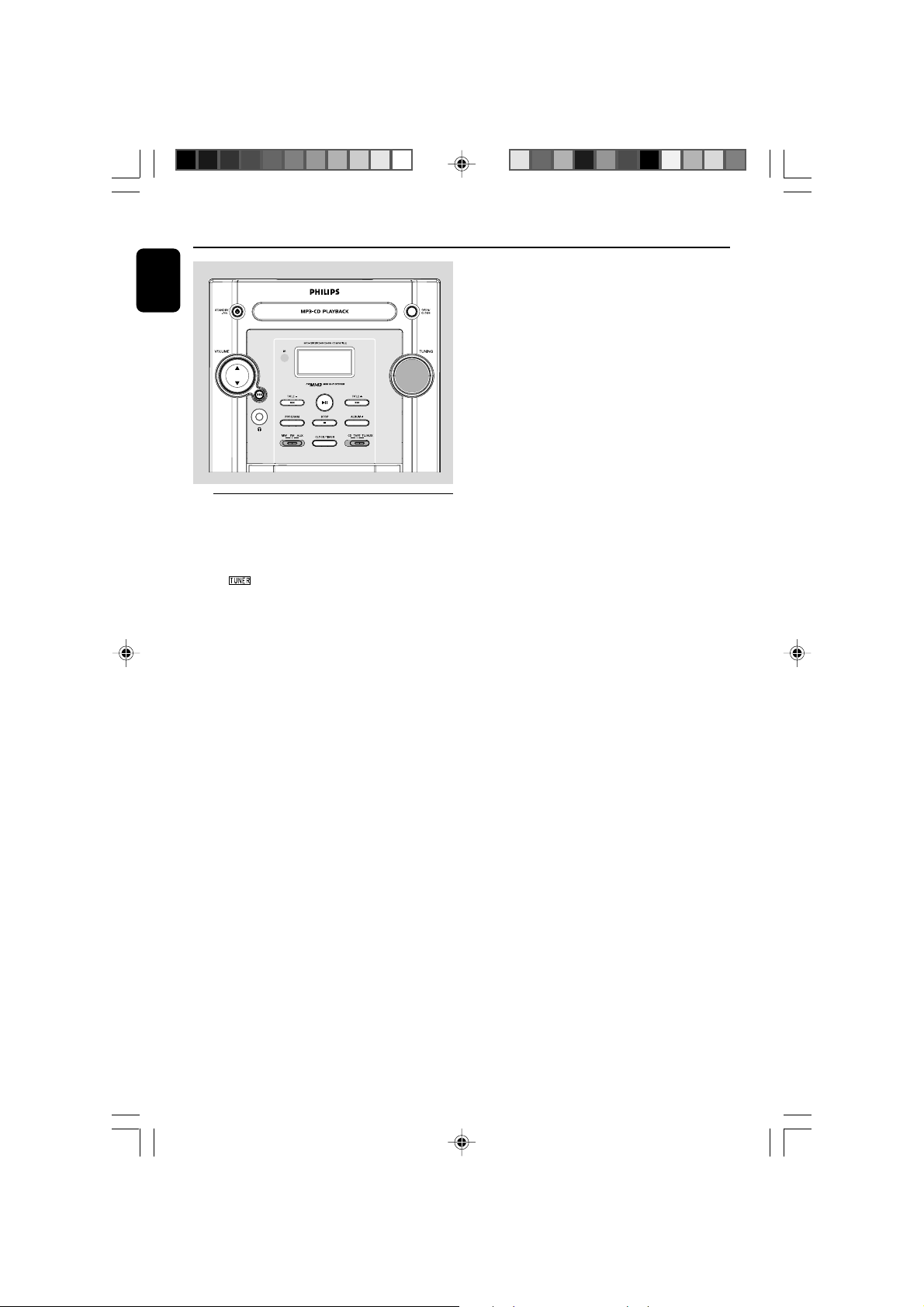

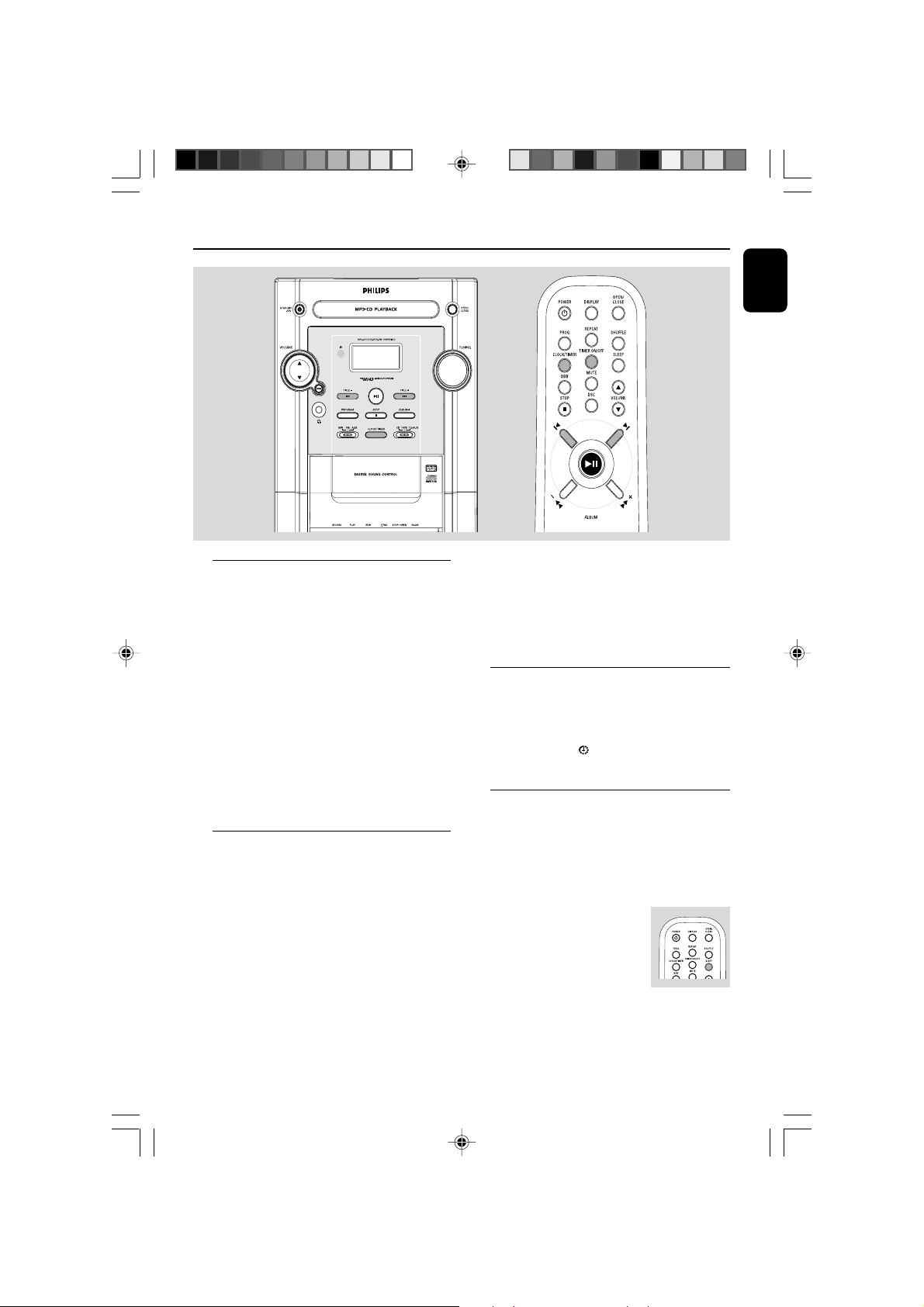

Adjusting volume and sound
1 Press VOLUME 3/4 to
increase or decrease
volume.
➜ Display shows the
volume level UoL and a
number from 0-40.
2 Press DBB to switch bass
enhancement on or off.
➜ Display shows: DBB if
the DBB is activated.
English
IMPORTANT:
Before you operate the system, complete
the preparation procedures.
Switching the system on
● Press STANDBY-ON y (POWER y on the
remote).
➜ The system will switch to the last selected
source.
To switch the system to standby mode
● Press STANDBY-ON y (POWER y on the
remote).
➜ The volume level (up to a maximum volume
level of 15), interactive sound settings, last
selected source and tuner presets will be
retained in the player's memory.
Power-saving automatic standby
The power-saving feature automatically switches
to standby 30 minutes after a tape or CD
playback has ended and no control is operated.
3 Press DSC on the remote to repeatedly to
select the desired sound effect: CLASSIC, JAZZ,
POP or ROCK.
4 Press MUTE on the remote control to stop
sound playback instantly.
➜ Playback will continue without sound and the
display shows MUTE.
● To start sound playback you can:
– press MUTE again;
– adjust the volume controls.
pg001-pg020_FWM143_55_Eng 2007.7.18, 15:3811
11
CD/MP3 Operation
English

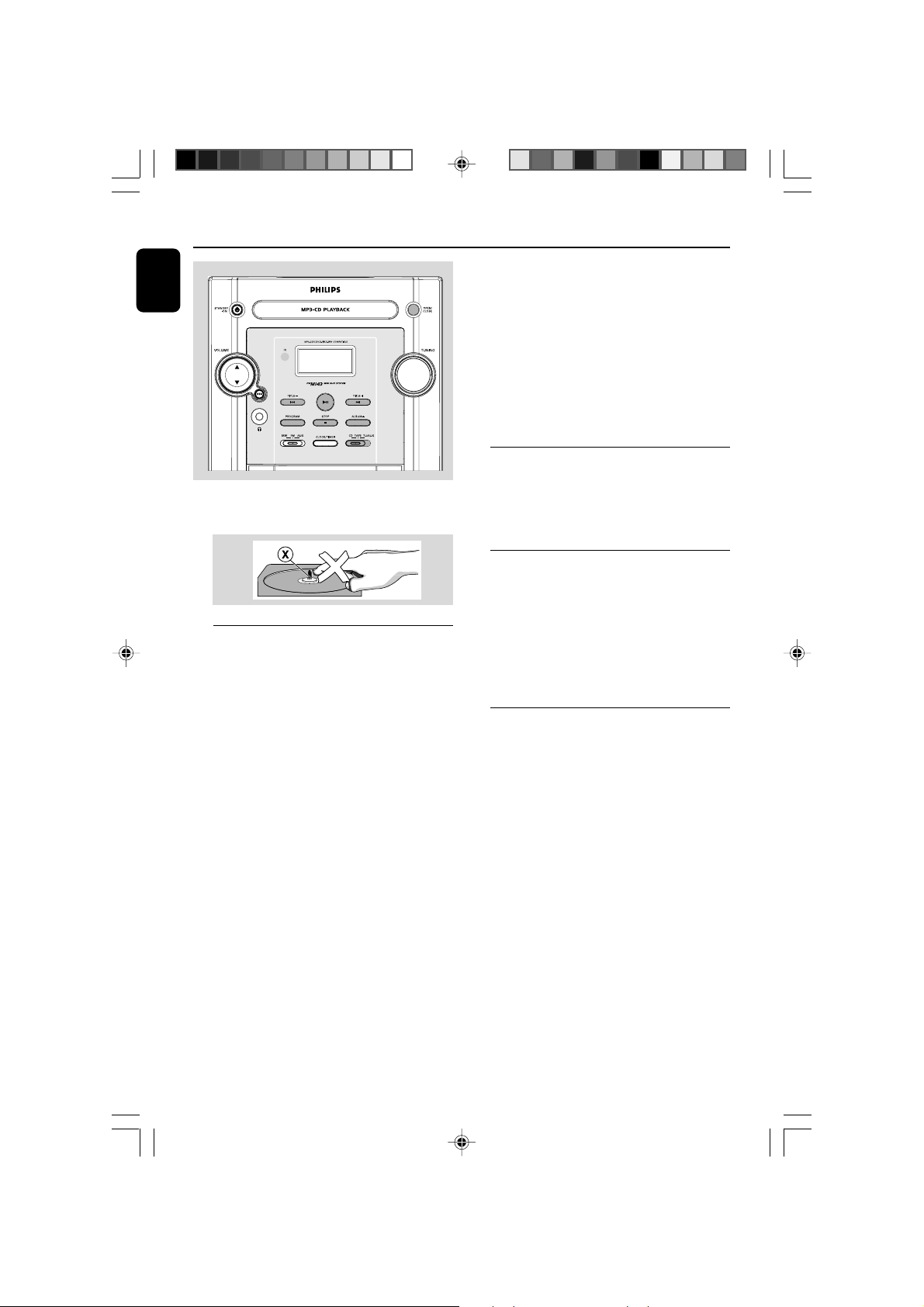

IMPORTANT:
The lens of the CD player should never be
touched.
Playing a disc
This CD player plays Audio Discs including CDRecordables, CD-Rewritables and MP3 CD.
¶ CD-ROM, CD-I, CDV, VCD, DVD or computer
CDs, however, are not possible.
1 Adjust the source selector to select CD source.
2 Press OPEN/CLOSE on the system to open
the CD compartment.
➜ OPEN is displayed when you open the CD
compartment.
3 Insert a disc with the printed side facing up and
press OPEN/CLOSE to close the CD door.
➜ rEAd is displayed as the CD player scans
the contents of a disc, and then the total number
of tracks and playing time (or the total number
of albums and tracks for MP3 disc) are shown.
4 Press 2; to start playback.
➜ The current track number and elapsed
playing time of the track are displayed during disc
playback.
5 To pause playback press 2;. Press 2; again to
resume play.
➜ The display freezes and the elapsed playing
time flashes when playback is interrupted.
6 To stop disc playback, press STOP 9.
Note: CD playback will also stop when;
– the CD door is opened.
– the disc has reached the end.
– you select another source: TAPE, TUNER, AUX.
– you select standby.
Selecting a different track
● Press TITILE-/+ ¡1 or 2™ (í/ë on the
remote) once or repeatedly until the desired
track number appears in the display.
● Press 2; to start playback.
Finding a passage within a track
1 Press and hold down TITILE-/+ ¡1 or 2™
(í/ë on the remote).
➜ The disc is played at high speed and low
volume.
2 When you find the passage you want, release
TITILE-/+ ¡1 or 2™ (í/ë on the remote).
➜ Normal playback continues.
Playing an MP3 disc
1 Load an MP3 disc.
➜ The disc reading time may exceed 10
seconds due to the large number of songs
compiled into one disc.
➜ "XX YYY" is displayed. XX is the current
album number and YYY is the current track
number.
2 Press ALBUM+ (ALBUM-/+ 5 /6 on the
remote) to select a desired album.
3 Press TITILE-/+ ¡1 / 2™ (í/ë on the
remote) to select a desired track.
➜ The album number will change accordingly as
you reach the first track of an album by pressing
TITILE- 4 (í on the remote) or the last
track of an album by pressing TITILE+ ¢
(ë on the remote).
4 Press 2; to start playback.
12
pg001-pg020_FWM143_55_Eng 2007.7.18, 15:3812
CD/MP3 Operation
Supported MP3 disc formats:
– ISO9660, Joliet, UDF 1.5
– Maximum title number: 511 (depending on
filename length)
– Maximum album number: 99
– Suppor ted sampling frequencies: 32 kHz, 44.1
kHz, 48 kHz
– Suppor ted Bit-rates: 32~256 (kbps), variable
bitrates
Different play modes: SHUFFLE
and REPEAT
You can select and change the various play
modes before or during playback.
REPEAT ............ plays the current track
continuously
REPEAT ALL ... repeats the entire disc/
programme
SHUF ................ tracks of the entire disc are
played in random order
SHUF and REPEAT ALL repeats the entire
disc/programme continuously in
random order
1 To select your play mode, press SHUFFLE or
REPEAT on the remote control before or
during playback until the display shows the
desired function.
2 Press 2; to start playback if in the STOP
position.
3 To return to normal playback, press SHUFFLE
or REPEAT on the remote control until the
various SHUFFLE/ REPEAT modes are no longer
displayed.
● You can also press STOP 9 to cancel your play
mode.
Programming track numbers
Programme in the STOP position to select and
store your disc tracks in the desired sequence. If
you like, store any track more than once. Up to
20 tracks can be stored in the memory.
1 In the STOP position, press PROGRAM
(PROG on the remote) to enter the
programming mode.
2 Use TITILE-/+ ¡1 / 2™ (í/ë on the
remote) to select your desired track number.
➜ The selected track number and PROG flash on
the display panel.
3 Press PROGRAM (PROG on the remote
control) to confirm the track number to be
stored.
4 Repeat steps 2-3 to select and store all desired
tracks.
5 To start playback of your disc programme, press
2;.
Note:
– If you wish, you can add further tracks to your
current program. Make sure you are in the STOP
position, and that you have not exceeded 20
tracks.
Erasing the programme
You can erase the programme by:
● pressing STOP 9 once in the STOP mode;
● pressing STOP 9 twice during playback;
● opening the CD compar tment;
● selecting another sound source
➜PROG disappears from the display.
English
pg001-pg020_FWM143_55_Eng 2007.7.18, 15:3813
13
Radio Reception
English
Tuning to radio stations
1 Adjust the source selector to select TU/AUX.
2 Adjust the mode selector to select your desired
waveband: MW or FM.
➜ is displayed.
3 Adjust the TUNING control knob to tune to a
desired radio frequency.
Note:
– The system is equipped with a built-in MW
antenna and a fixed FM antenna. For optimal MW
reception, adjust the position of the whole set until
the strongest signal is found. For optimal FM
reception, fully extend and adjust the position of
the FM antenna until the strongest signal is found.
14
pg001-pg020_FWM143_55_Eng 2007.7.18, 15:3814
Tape playback
1 Adjust the source selector to select TA PE
source.
➜ Display: shows
operation.
TAPE
throughout tape
2 Press STOP•OPENÇç to open the tape
door.
3 Inser t a recorded tape and close the tape door.
➜ Load the tape with the open side downward
and the full spool to the left.
4 Press PLAY 2 to start playback.
5 To pause, press PA USE Å. Press again to
resume.
6 Press REW à or F.FWD á to fast wind
tape in either direction.
7 To stop the tape, press STOP•OPENÇç.
Notes:
– During playback, the keys are automatically
released at the end of a tape. To switch off the set,
press STANDBY-ON y (POWER y on the
remote).
– During fast forwarding/rewinding, the keys will
not be released at the end of a tape. To stop fast
winding, press STOP•OPEN 9/.
Ta pe Operation / Recording
General information on
recording
● Recording is permissible insofar as copyright or
other rights of third parties are not infringed.
● For recording, use only NORMAL (IEC type I)
tapes on which the tabs have not yet been
broken. This deck is not suited for recording on
METAL (IEC IV) type tapes.
● The best recording level is set automatically.
Altering the VOLUME or DBB controls will not
affect the recording in progress.
● The recording sound quality might differ
depending on the quality of your recording
source and the recording tape.
● At the very beginning and end of the tape, no
recording will take place during the 7 seconds
when the leader tape passes the recorder heads.
● To protect a tape from accidental erasure, have
the tape in front of you and break out the left
tab. Recording on this side is no longer possible.
If, however, you wish to record over this side
again, cover the tabs with a piece of adhesive
tape.
Synchro start CD recording
1 Adjust the source selector to select CD source.
2 Inser t a disc and if desired, programme track
numbers.
3 Press STOP•OPENÇç to open the tape
door.
4 Inser t a suitable tape into the deck and close the
tape door.
5 Press RECORD 0 to start recording.
➜ Playing of the CD programme star ts
automatically from the beginning of the CD
after 7 seconds. It is not necessary to start the
CD player separately.
English
pg001-pg020_FWM143_55_Eng 2007.7.18, 15:3815
15
Ta pe Operation / Recording
English
To select and record a particular passage
within a CD track:
● Press and hold down on REW à or F.FWD
á. Release the control when you recognize the
passage you want.
● To interrupt CD playback press 2; .
● Recording starts from this exact point in the
track when you press RECORD 0.
6 To pause, press PA USE Å. Press again to
resume.
7 To stop recording, press STOP•OPENÇç.
External sources
Recording from the radio
1 Tune to the desired radio station (see Tuning to
radio stations).
2 Press STOP•OPENÇç to open the tape
door.
3 Inser t a suitable tape into the deck and close the
tape door.
4 Press RECORD 0 to start recording.
5 To pause, press PA USE Å Press again to
resume.
6 To stop recording, press STOP•OPENÇç.
Listening to external source
1 Connect the audio out terminals of the external
equipment (TV, VCR, Laser Disc player, DVD
player or CD Recorder) to the AUX IN
terminals of your system.
2 Adjust the source selector to select TU/AUX.
3 Adjust the mode selector to select AUX .
➜ "AUX" is displayed.
Note:
– All the sound control features (DSC or DBB, for
example) are available for selection.
– Refer to the operating instructions for the
connected equipment for details.
For Recording, please refer to “Tape
Operation/Recording”.
16
pg001-pg020_FWM143_55_Eng 2007.7.18, 15:3816
Clock/Timer
English
Setting the clock
1 In any mode, press CLOCK/TIMER twice.
➜ The clock digits for the hours flash.
2 Press TITILE-/+ ¡1 / 2™ (í/ë on the
remote) to set the hours.
3 Press CLOCK/TIMER again.
➜ The clock digits for the minutes flash.
4 Press TITILE-/+ ¡1 / 2™ (í/ë on the
remote)to set the minutes.
5 Press CLOCK/TIMER to confirm the time.
Note:
– If the clock has not been set, 0:00 will be
displayed.
Setting the timer
● The system can be used as an alar m clock. CD
or TUNER can be set to switch on at a preset
time. The clock time needs to be set first before
the timer can be used.
● If no button is pressed within 7 seconds during
timer setup, the system will exit timer setting
mode automatically.
1 In active mode, press and hold CLOCK/
TIMER for more than 2 seconds.
2 Press TITILE-/+ ¡1 / 2™ (í/ë on the
remote) to set the hours.
3 Press CLOCK/TIMER again.
➜ The clock digits for the minutes flash.
4 Press TITILE-/+ ¡1 / 2™ (í/ë on the
remote)to set the minutes.
5 Press CLOCK/TIMER to confirm the time
➜ The timer is now set and activated.
Activating and deactivating
TIMER
● In standby or during playback, press
TIMER ON/OFF once.
➜ Display shows if activated, and disappears if
deactivated.
Activating and deactivating
SLEEP
The sleep timer enables the system to switch off
by itself after a set period of time
● Press SLEEP on the remote control repeatly to
select desired time before system shuts off.
➜ Display shows SLEEP and
series of time options for
selection:120, 90, 60, 45,30,
15, OFF.
● To deactivate, press SLEEP on
the remote control once or more until ‘OFF’ is
shown, or press STANDBY-ON y (POWER
y on the remote).
17
pg001-pg020_FWM143_55_Eng 2007.7.18, 15:3817

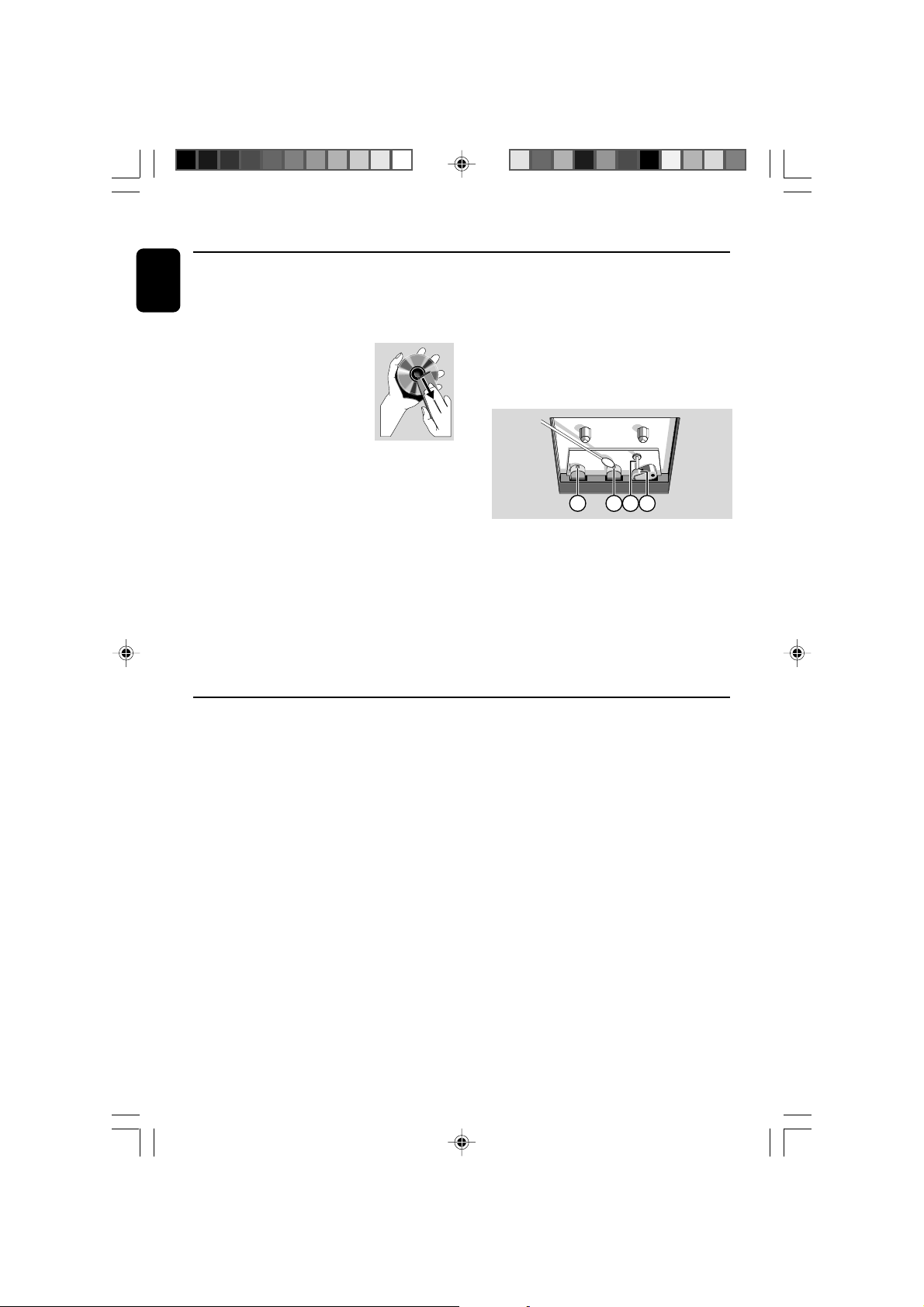

Maintenance
English
Cleaning the Cabinet
● Use a soft cloth slightly moistened with a mild
detergent solution. Do not use a solution
containing alcohol, spirits, ammonia or abrasives.
Cleaning Discs
● When a disc becomes dir ty,
clean it with a cleaning cloth.
Wipe the disc from the centre
out.
● Do not use solvents such as
benzene, thinner, commercially
available cleaners, or antistatic spray intended
for analogue records.
Cleaning the Heads and the Tape Paths
● To ensure good recording and playback quality,
clean the heads A, the capstan(s) B, and
pressure roller(s) C after every 50 hours of
tape operation.
● Use a cotton swab slightly moistened with
cleaning fluid or alcohol.
● You can also clean the heads by playing a
cleaning tape once.
Cleaning the disc lens
● After prolonged use, dirt or dust may
accumulate at the disc lens. To ensure good
playback quality, clean the disc lens with Philips
CD Lens Cleaner or any commercially available
cleaner. Follow the instructions supplied with
cleaner.
Specifications
AMPLIFIER
Output power ....................................... 2 x 20 W RMS
Signal-to-noise ratio .......................... ≥ 62 dBA (IEC)
Frequency response ......... 63 – 16000 Hz, ± 3 dB
Impedance loudspeakers ......................................... 8 Ω
Impedance headphones ................. 32 Ω – 1000 Ω
CD PLAYER
Frequency range .................................. 63 – 16000 Hz
Signal-to-noise ratio ............................................ 65 dBA
TUNER
FM wave range ...................................87.5 – 108 MHz
MW wave range ............................... 522 – 1710 KHz
A A B C
Demagnetising the heads
● Use a demagnetising tape available at your
dealer.
SPEAKERS
Bass reflex system
Dimensions (w x h x d) . 190 x 292 x 182 (mm)
GENERAL INFORMATION
AC Power ............................ 110 – 127 / 220 – 240 V
....................................................... 50/60 Hz Switchable
Dimensions (w x h x d) .. 220 x 292 x 285 (mm)
Weight (with/without speakers) ..................................
............................................................... approx. 4.9 / 2.3 kg
Specifications and external appearance are
subject to change without notice.
TAPE DECK
Frequency response
Normal tape (type I) ...... 125 – 8000 Hz (8 dB)
Signal-to-noise ratio
Normal tape (type I) .................................... 35 dBA
Wow and flutter ......................................... ≤ 0.4% DIN
18
pg001-pg020_FWM143_55_Eng 2007.7.18, 15:3818
Tr oubleshooting
WARNING
Under no circumstances should you try to repair the system yourself, as this will invalidate the
warranty. Do not open the system as there is a risk of electric shock.
If a fault occurs, first check the points listed below before taking the system for repair. If you
are unable to remedy a problem by following these hints, consult your dealer or service centre.
Problem Solution
CD OPERATION
“No disc” is displayed. – Inser t a disc.
– Check if the disc is inser ted upside down.
–Wait until the moisture condensation at the lens
has cleared.
– Replace or clean the disc, see “Maintenance”.
– Use a finalised CD-RW, CD-R or MP3 CD.
RADIO RECEPTION
Radio reception is poor. – Increase the distance between the Mini HiFi
System and your TV or VCR.
TAPE OPERATION / RECORDING
Recording or playback cannot be made. – Clean deck par ts, see “Maintenance”.
– Use only normal (IEC I) tape for recording.
– Apply a piece of adhesive tape over the missing
tab space.
English
GENERAL
The system does not react when buttons – Remove and reconnect the AC power plug and
are pressed. switch on the system again.
Sound cannot be heard or is of poor – Adjust the volume.
quality. – Disconnect the headphones.
– Check that the speakers are connected correctly.
– Check if the stripped speaker wire is clamped.
The left and right sound outputs are – Check the speaker connections and location.
reversed.
pg001-pg020_FWM143_55_Eng 2007.7.18, 15:3819
19
Troubleshooting
English
The remote control does not function – Reduce the distance between the remote control
The timer is not working. – Set the clock correctly.
The Clock/Timer setting is erased. –Power has been interrupted or the power cord
and the system.
– Inser t the batteries with their polarities
(+/– signs) aligned as indicated.
–Replace the batteries.
–Point the remote control directly toward
IR sensor on the front of the system.
– Press TIMER ON/OFF to switch on the timer.
– If a recording is in progress, stop the recording.
has been disconnected. Reset the clock/timer.
20
pg001-pg020_FWM143_55_Eng 2007.7.18, 15:3820
English
Español
English
Por tuguês
Meet Philips at the Internet
http://www.philips.com
PageBack_FWM143_Eng 2007.7.23, 15:3594
FWM143
CLASS 1
LASER PRODUCT
Printed in China
PDCC-LL-0727
Loading...
