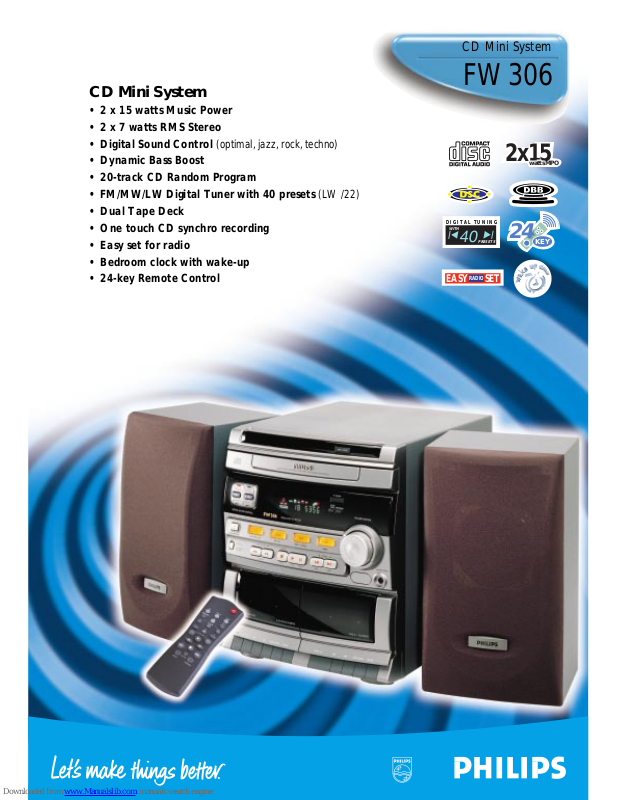

Page 1
CD Mini System
• 2 x 15 watts Music Power
• 2 x 7 watts RMS Stereo
• Digital Sound Control (optimal, jazz, rock, techno)
• Dynamic Bass Boost
• 20-track CD Random Program
• FM/MW/LW Digital Tuner with 40 presets (LW /22)
• Dual Tape Deck
• One touch CD synchro recording
• Easy set for radio
• Bedroom clock with wake-up
• 24-key Remote Control
CD Mini System
FW306
2x 15
DIGITAL TUNING
WITH
40
RADIO
PRESETS
SETEASY
24
wattswatts
KEY
MPO
Page 2
CD Mini System
standard product information
CD Mini System
FW306
amplifier
• 2 x 15 watts Music Power
• 2 x 7 watts RMS, ±10% THD, 3 Ohm, 1 kHz
• Digital Sound Control
(optimal, jazz, rock, techno)
• Dynamic Bass Boost
compact disc player
• motorized front CD loading
• bit-check D/A converter
• 20-track CD random program
• play modes (repeat/shuffle/program)
tuner
• FM/MW/LW Digital Tuner with 40 presets
(LW /22)
• easy set/auto store for radio
tape deck
• Dual T ape Deck
• high and normal speed dubbing
• CD synchro recording
• automatic recording level control
• electronic speed control
Digital Sound Control
(optimal, jazz, rock, techno)
Digital Sound Control (or DSC) offers
different sound settings tailored for
specific musical styles.
loudspeaker boxes
• 4" woofer
connections
• stereo headphones : 3.5mm stereo jack
• video/aux : cinch type sockets
general
• multicolor FTD display
• clock/timer
• wake-up with CD or tuner
• 24-key Remote Control
/21M /21 /22B /30 /34B
Asia Pacific
Australia/NZ
Middle East/S Africa
Latam
Europe
E Europe
Mexico
tuner
FM65.81-74MHz •
FM87.5-108MHz ••
MW522-1602kHz ••
LW153-279kHz
FM75 Ohm clickfit
mains supply
120/230V 50~60Hz
230V/50Hz
general
made in sticker
TV VOLUME
TV
PAUSE
DBB
Å
VOLUME
É
í
Ç
à
SHUFFLE
REPEAT PROGRAM
2
TUNERTAPE 1/2CD
MUTEAUXBRIGHTNESS
+-
DSC
ë
á
•
•
•
••
••
•
Dynamic Bass Boost
Boosting bass response as much as 8
decibels (nearly 3 times more than
normal). Dynamic Bass Boost yields full
rich tonal quality at all volume levels.
EAN: 87 10101 35827 7 (/22B)
EAN: 87 10101 35828 4 (/34B)
Product Dimensions:
265mm W x 310mm H x 305 mm D (center unit)
180mm W x 310mm H x 165 mm D (speakers)
Package Dimensions:
562mmW x 410mm H x 400mm D
Product weight: 11 kg
Carton contains: CD Mini System, Multi-Function Remote Control,
Batteries, Operating instructions, Warranty information
Printed in Singapore
Date Printed : Sept 1998
Specifications subject to change without notice.
© 1998 Koninklijke Philips Electronics N.V.
All rights reserved.
