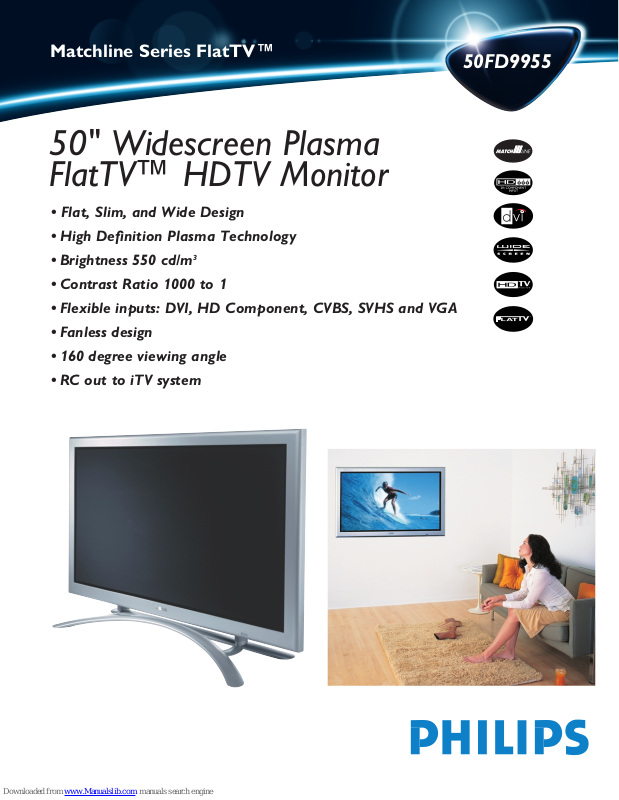

Matchline Series FlatTV™
50" Widescreen Plasma
FlatTV™ HDTV Monitor
• Flat, Slim, and Wide Design
• High Definition Plasma Technology
• Brightness 550 cd/m
3
• Contrast Ratio 1000 to 1
• Flexible inputs: DVI, HD Component, CVBS, SVHS and VGA
• Fanless design
• 160 degree viewing angle
• RC out to iTV system
50FD9955
50FD9955
Page 2
Picture Quality
High Definition Plasma Technology
Resolution of 1365x768 supports all of today’s High Definition sources.
Brightness 550 cd/m
3
(nits)
The high light output of this PDP Plasma FlatTV™ delivers exceptional detail even in
well lit rooms.
Contrast Ratio 1000 to 1
Higher Contrast delivers increased depth to the picture, resulting in greater dimensionality
(more 3D or life-like). In addition, the greater contrast delivers a picture that is far less
washed out in appearance.
• Video standards: NTSC 3.58 (M), NTSC 4.43, PAL4.43
(B, G, D, H, I, N), PAL 3.58 (M, N), SECAM
• 16:9 Widescreen format
• 5 level Auto Picturetm: (Soft, natural, rich,
personal, and multimedia)
• Tri-mode Tint control
• Anti Reflective (non-glare) screen
• Viewing Angle: 160 degrees
Ease of Use
Flat, Slim, and Wide Design
At 4 inches thick, this FlatTV™ offers more screen in less space than
ever before.
Fanless Design
No fan noise to distract during those quieter moments
in the Video.
• Included Wall Mount Kit – Flat to wall
• RC out to iTV system
• Dynamic Graphical User Interface
• RS232 connection
• Ergonomic Remote Control
• English/French/Spanish menu
• Closed Caption viewing
This television receiver provides display of television closed captioning in
accordance with 15.119 of the FCC rules.
Sound Quality
This FlatTV is meant to be the video portion of a complete system or the
display device in commercial applications - as such it has no speakers.
Connectivity
• DVI-d input
• 1 Set of HD Component Video Inputs YPbPr or RGB Plus H and V
• 1 set of SD Component Video Inputs
• SVHS input
• 2 Composite video Inputs
• RGB Input: VGA 640x480 60, 72, 75, 85 Hz
VGA 640x400 70 Hz
VGA 640x350 70 Hz
Wide VGA 856x480 60 Hz
Wide VGA 800x450 65 Hz
Wide VGA 1024x600 60 Hz
Wide VGA 1360x765 60 Hz
MAC 640x480 66.67 Hz
MAC 832x624 74.55 Hz
MAC 1024x768 74.93 Hz
MAC 1152x870 75 Hz
SVGA 800x600 56, 60, 72, 75, 85 Hz
XGA 1024x768 60, 70, 75, 85 Hz
SXGA 1280x1024 60, 72 Hz (Analog)
60 Hz (DVI)
• UPC: 0 37849 92556 0
• Product Dimensions: 48.9"W x 30.2"H x 4.3"D
• Product Weight: 101.5 lbs.
• Carton Dimensions: 54.8"W x 36.0"H x 17"D
• Carton Weight: 145 lbs.
• Carton contains: Remote Control w/ batteries, operating
instructions, warranty information,
wall mount
• Country of Origin: Japan
AutoSound™, AutoPicture™, AutoMute™, AutoLock™, FlatTV™,
ActiveControl™, and Digital Crystal Clear III™ are trademarks of
Philips Consumer Electronics Company
Printed in the U.S.A.
©2003 Philips Consumer Electronics Company
Specifications subject to change without notice.
www.philips.com or AOL keyword: philips
50" Widescreen Plasma
FlatTV™ HDTV Monitor
RC_U_039
jack panel
➢ Optional FTR9955 e-Box delivers superior picture with Digital Natural
motion and the convenience of one cable hookup
➢ Optional Matchline FTR9965 e-Box delivers all of the benefits of the FTR9955
PLUS the ultimate in picture performance with Pixel Plus and 2 Tuner Split
Window PIP
➢ Optional TC50FL02 Television Stand (shown on front) provides the ideal
solution to table top television placement with an emphasis on high design
and safety.
50FD9955
50FD9955
