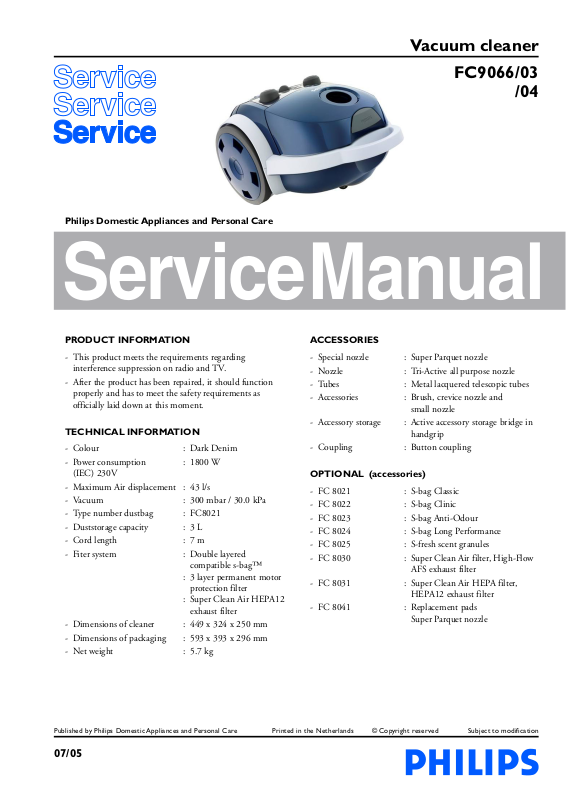

Philips fc9066_03,04 Datasheet

Vacuum cleaner

FC9066/03

/04

Philips Domestic Appliances and Personal Care

Service Manual

PRODUCT INFORMATION

- This product meets the requirements regarding interference suppression on radio and TV.

- After the product has been repaired, it should function properly and has to meet the safety requirements as officially laid down at this moment.

TECHNICAL INFORMATION

- Colour : Dark Denim

- Power consumption : 1800 W (IEC) 230V

- Maximum Air displacement : 43 l/s

- Vacuum : 300 mbar / 30.0 kPa

- Type number dustbag : FC8021

- Duststorage capacity : 3 L

- Cord length : 7 m

- Fiter system : Double layered compatible s-bag™ : 3 layer permanent motor protection filter : Super Clean Air HEPA12 exhaust filter

- Dimensions of cleaner : 449 x 324 x 250 mm

- Dimensions of packaging : 593 x 393 x 296 mm

- Net weight : 5.7 kg

ACCESSORIES

- Special nozzle : Super Parquet nozzle

- Nozzle : Tri-Active all purpose nozzle

- Tubes : Metal lacquered telescopic tubes

- Accessories : Brush, crevice nozzle and small nozzle

- Accessory storage : Active accessory storage bridge in handgrip

- Coupling : Button coupling

OPTIONAL (accessories)

- FC 8021 : S-bag Classic

- FC 8022 : S-bag Clinic

- FC 8023 : S-bag Anti-Odour

- FC 8024 : S-bag Long Performance

- FC 8025 : S-fresh scent granules

- FC 8030 : Super Clean Air filter, High-Flow AFS exhaust filter

- FC 8031 : Super Clean Air HEPA filter, HEPA12 exhaust filter

- FC 8041 : Replacement pads Super Parquet nozzle

Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification

07/05

FC9066/03/04

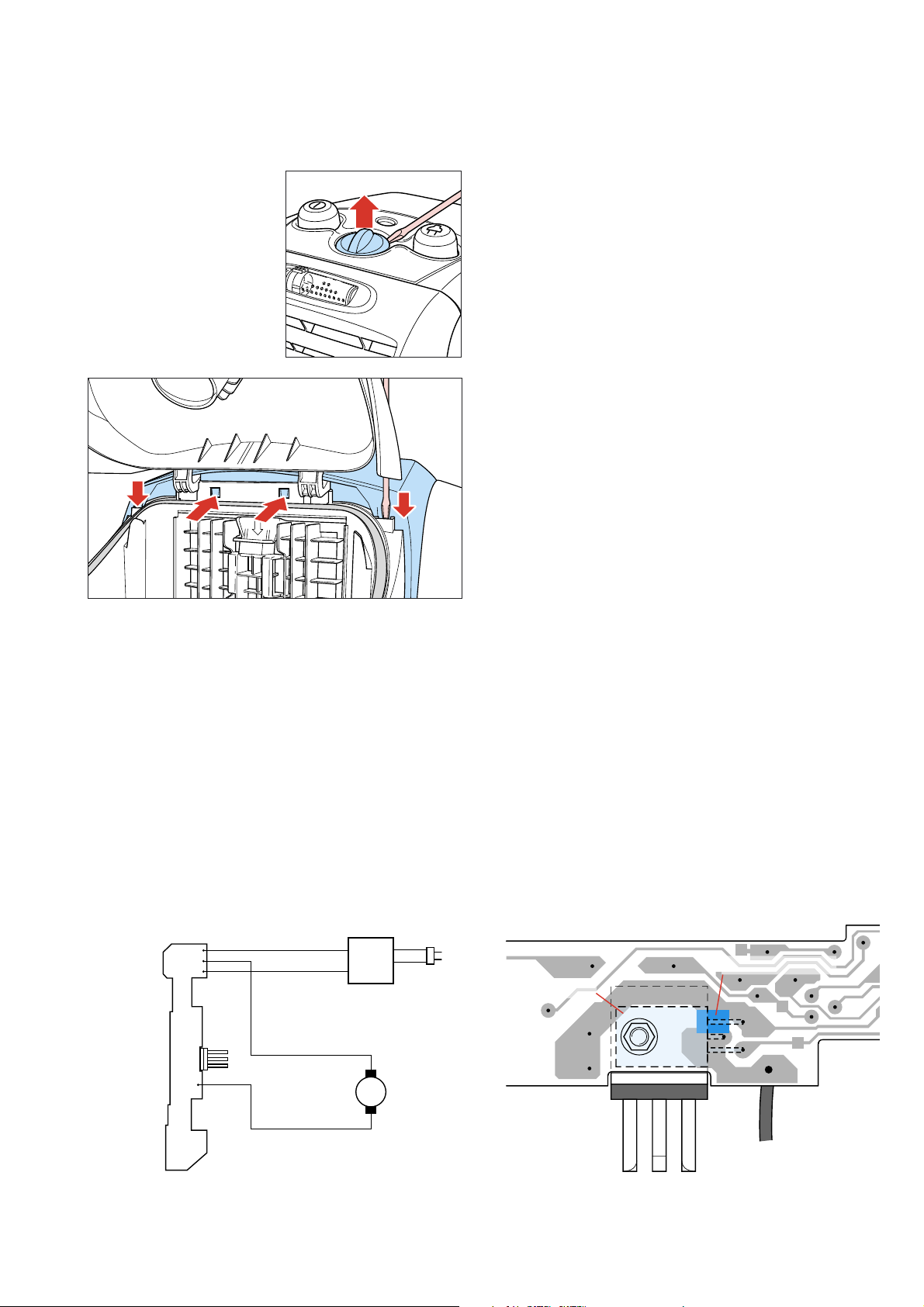

DISASSEMBLY- AND RE-ASSEMBLY ADVISE

- To open the apliance, First remove the filter cover (item 24) then remove the vario knob button (item 11) with a screwdriver as shown in the picture.

- To remove the button panel (item 13), first loosen mounting screws (A), now by using a screwdriver unlock the 4 snap connection and separate the panel from the housing. (see picture)

- Display cover (item 12) now can easely be removed from the button panel.)

- To remove the motor, you need a torx screwdriver with a

14.5cm long shank. Screwdriver 9965 000 08332 can be used.

REPAIR INSTRUCTION

- Cotton dustbags, are used in countries in which paper dustbags are not available.

- If the reel half spring unit is replaced, shaft G must be lubricated with silicone grease. Do not apply any silicone grease to or spill any grease on terminals (39) or conductors (38).

- Item 37 is provided with a long cord-winder spring, but both long and short cords can be used in combination with this spring. (L = 9.3 m)

- Depending on the original cord, the spare cord must be shortened to the length of the original cord.

- The cord winder spring must be tensioned to the maximum level and then be rewound approx. 1.5 turn

- Item 10, air valve, opens to cool the motor if the air displacement is too low or if the airflow is blocked.

- To adjust the telescopic tube (item 46) to the required length, push the adjustment collar in the direction of the arrow while sliding the top section of the telescopic tube into or out of the lower section.

- If the function of the electronic control unit (item 15) is not required, the Triac must be short-circuited in the manner shown in the circuit diagram.

- When the vacuum cleaner is used to suck up fine dust the pores of the dustbag may become clogged, causing the passage of air through the dustbag to become obstructed. As a result, the dustbag-full indicator will indicate that the dustbag needs to be replaced, eventhough the dustbag is not full at all.

ELECTRICAL DIAGRAM

MOTOR POWER

MODULE

Brown

CORD WINDER

Blue

Black

Black/White

Short-circuit

Triac

M

2-7

PARTS LIST

FC9066/03/04

Pos Service code Description

1

4322 005 22510

2

4322 003 29700

3

4322 000 67810

4

4322 003 23840

5

4322 000 37300

6

4322 003 23820

7

4322 003 27540

8

4322 003 23650

9

4322 000 09750

10

4322 005 19550

11

4322 003 23660

12

4322 005 22850

13

4322 003 29660

14

4322 003 23900

15

4322 006 22740

16

4322 003 23640

17

4322 003 27520

18

4322 003 27510

19

4322 003 27530

20

4322 003 29640

21

4322 005 17010

22

4322 005 15150

23

4322 003 24690

24

4322 003 29670

25

4322 004 92920

Dustcover / Pr / Dark denim Dustcover lock / Select grey DB detector spring DB detector Triple inletﬁ lter

Inlet grille Dustchamber / Fresh grey Cordwinder Knob / Select grey Pedal spring DBFI/Valve assy Jewel FL

Vario knob / Select grey Display c. Transp.Colourless / Pr Button panel / Dark denim Adjuster PCB assy mb turn 220-240 V

Switch knob / Select grey Back panel / Fresh grey Cord outlet / Fresh grey Lowerhousing back / Fresh grey Lowerhousing / Dark denim

Caster assy / Select grey Cyl. ass. fra. blck / Li. purple Filter cover lock / Select grey Filter cover fr. / Dark denim HEPA ﬁ lter

Pos Service code Description

26

4322 001 73360

27

4322 000 38790

28

4322 003 23220

29

4322 000 38760

30

4322 000 38770

31

4322 003 23880

32

4322 001 73520

33

4322 001 73400

34

4322 006 97940

35

4322 000 38820

36

4322 003 23870

37

4322 009 07940

38

4322 009 07950

39

4322 009 07970

40

4322 006 01720

41

4322 006 01410

42

4322 003 18850

43

4322 005 17090

44

4322 004 22510

45

4322 001 99120

46

4322 007 45550

47

4322 004 22570

48

4322 003 18870

49

4322 005 12530

50

4322 004 22560

51

4322 004 23190

52

4322 005 11040

53

8838 041 01010

54

4322 004 23250

55

4322 007 16000

56

4322 003 23830

57

4322 003 26030

Exhaust sealing Silencer 4 wall backpanel S-class H-sealing Silencer 1 wall Silencer 2 bottom

Motorhousing top inside Buffer back green Bufferring fr. Ans-Atlas Motor 1761 Domel 220-240 V Silencer 3

Motorhousing Bottom ans Reel half spring unit (L = 9 m) Reel half contact unit Contact ring plate U.K. / H.K. L = 9.3 m

Euro 4.8 mm pins L = 9.3 m Curved bend B1 Curved bend / Hose assy Telescopic tube Silver, Standard Coupling bush

Coupling spring Plumeau assy Crevicle nozzle Accessory bridge assy Small nozzle

Tri-active nozzle low white Polishing disc (opt.) Polishing brushes (opt.) Super Parquet nozzle, Standard Leaf spring assy

DB-holder Motor Bracket

3-7

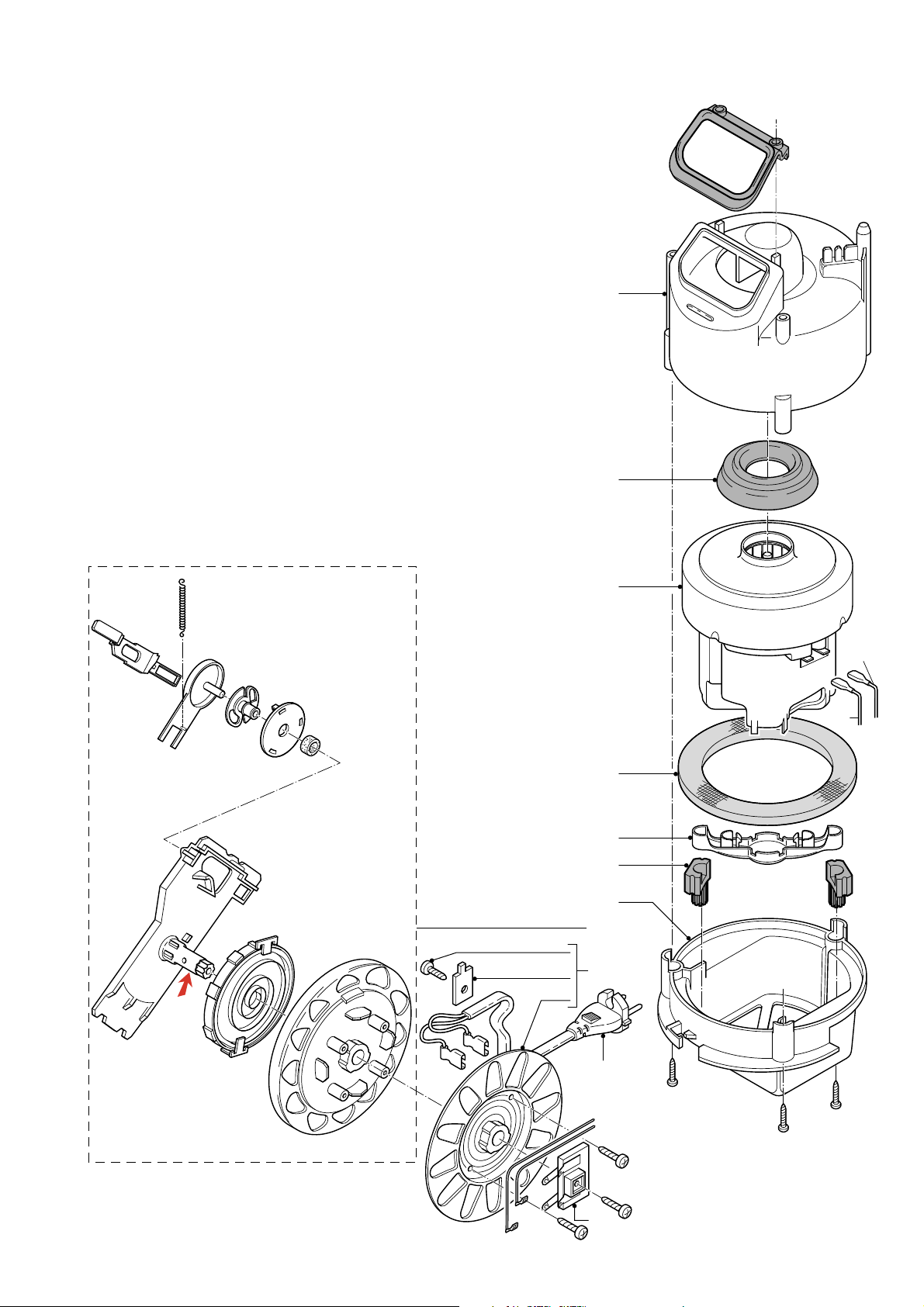

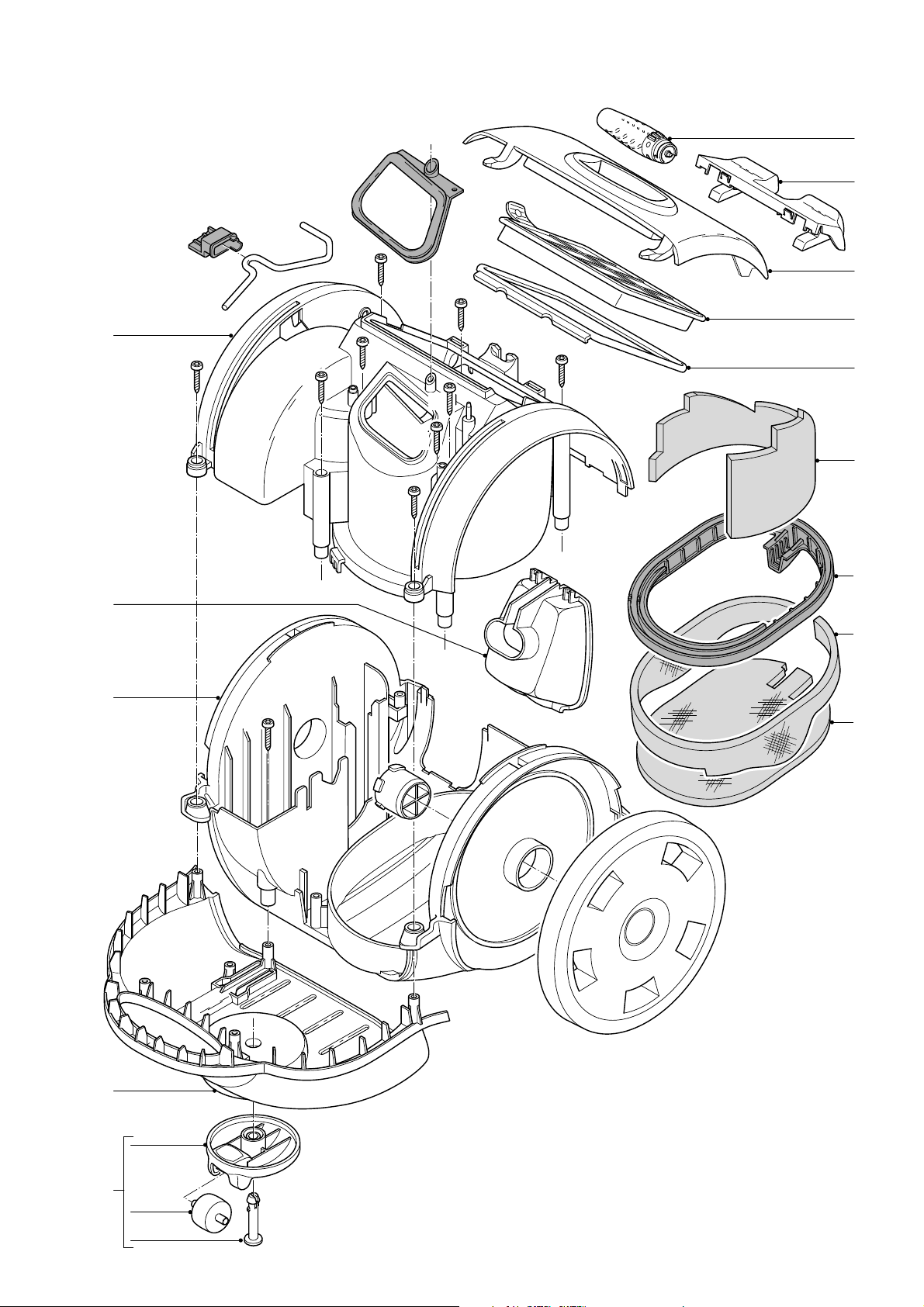

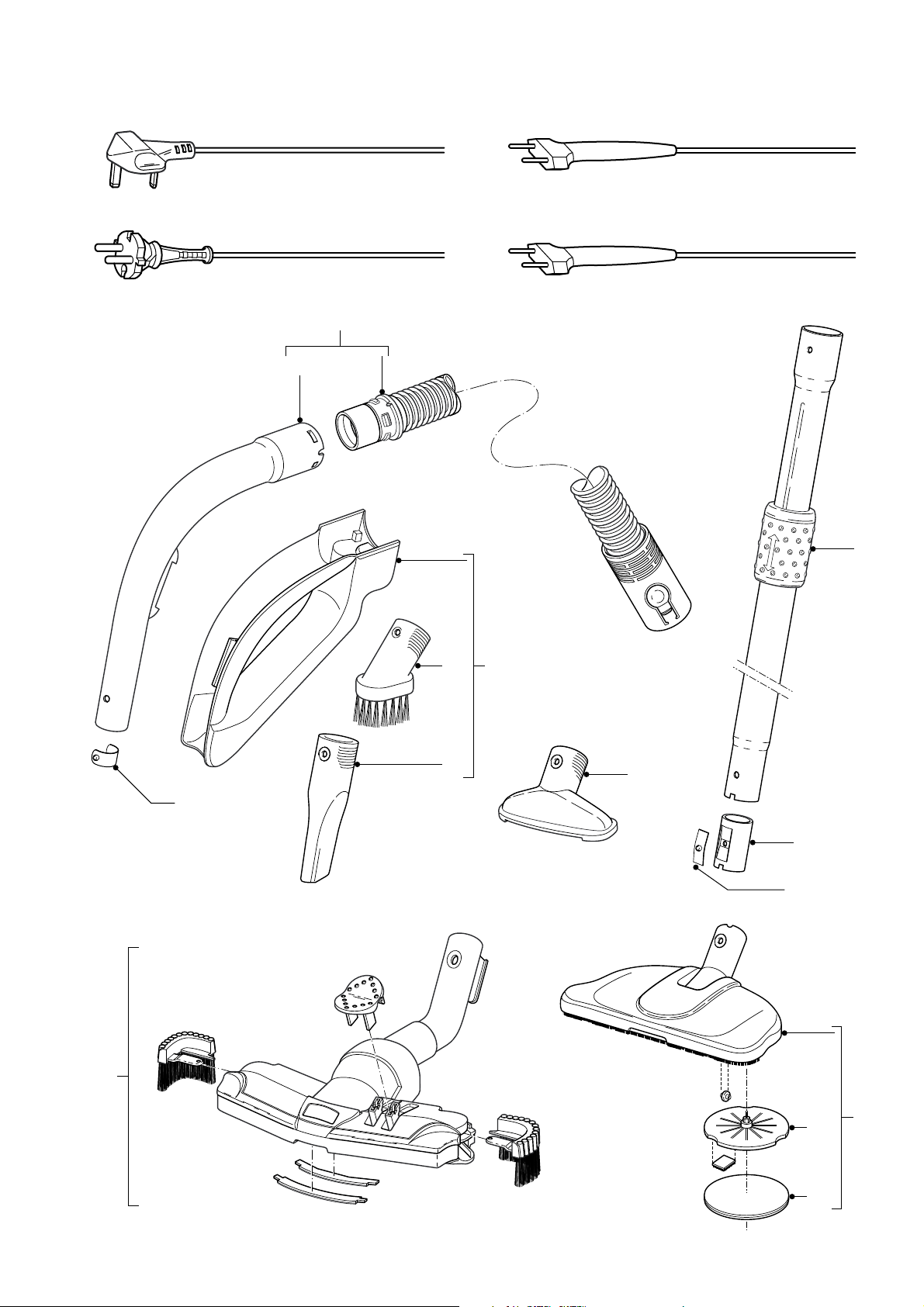

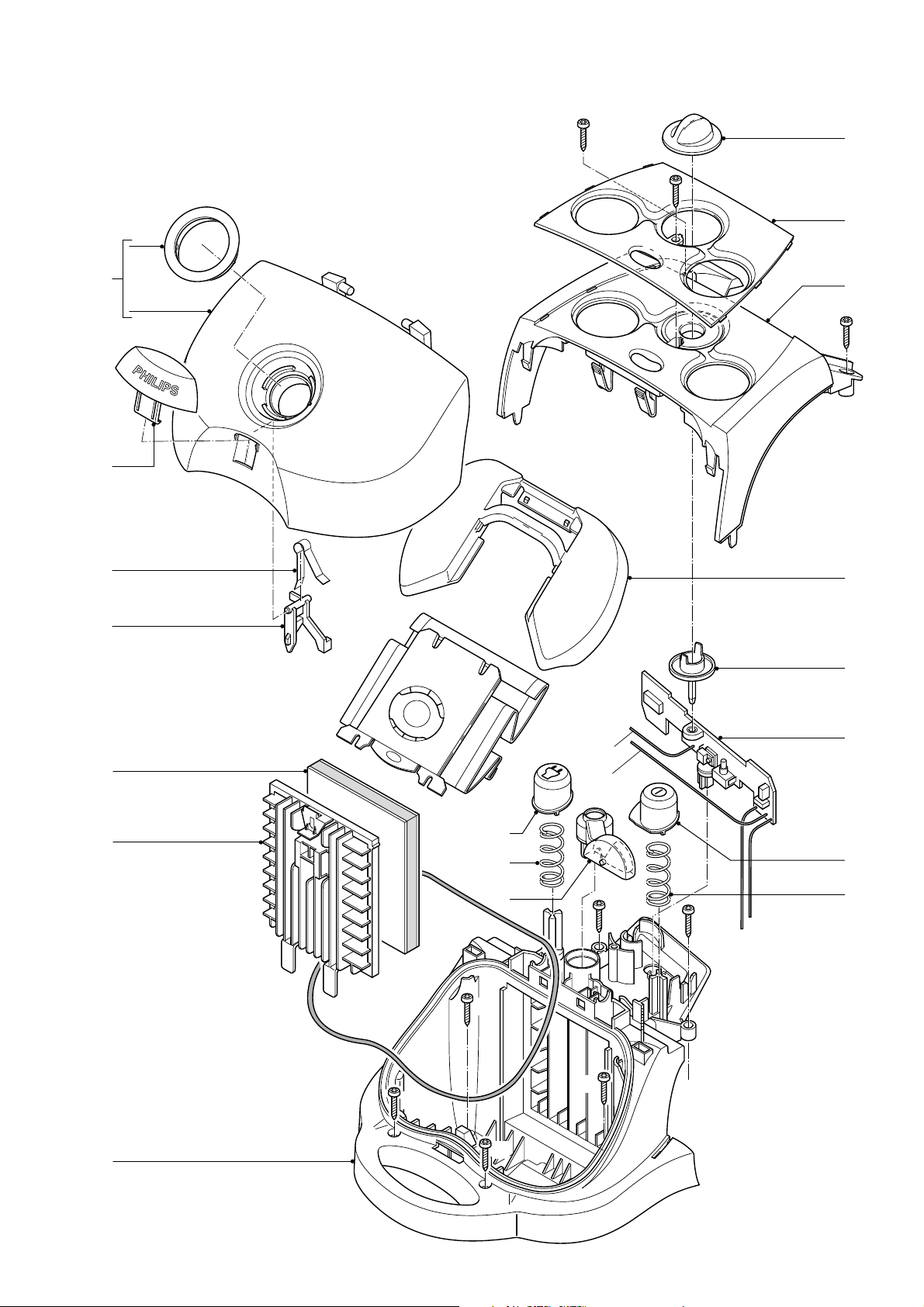

EXPLODED VIEW

FC9066/03/04

A

11

A

12

1

13

A

2

3

56

4

14

Y

Black/

5

6

8

White Black

9

10

B

blue

brown

Z

15

16

9

B

7

B

4-7

EXPLODED VIEW

FC9066/03/04

22

23

17

18

19

C

D

C

24

25

26

27

28

29

30

20

21

5-7

EXPLODED VIEW

FC9066/03/04

31

33

G

34

Black/ White

Black

Y

35

57

32

36 37

38

F

40 41,

E

blue

Z

brown

E

F

39

F

6-7

EXPLODED VIEW

FC9066/03/04

40U.K. / H.K.

Europe Ø 4.8mm 41

43

42

Swiss

Italy

44

51

55

48

4947

50

45

46

52

53

54

7-7
