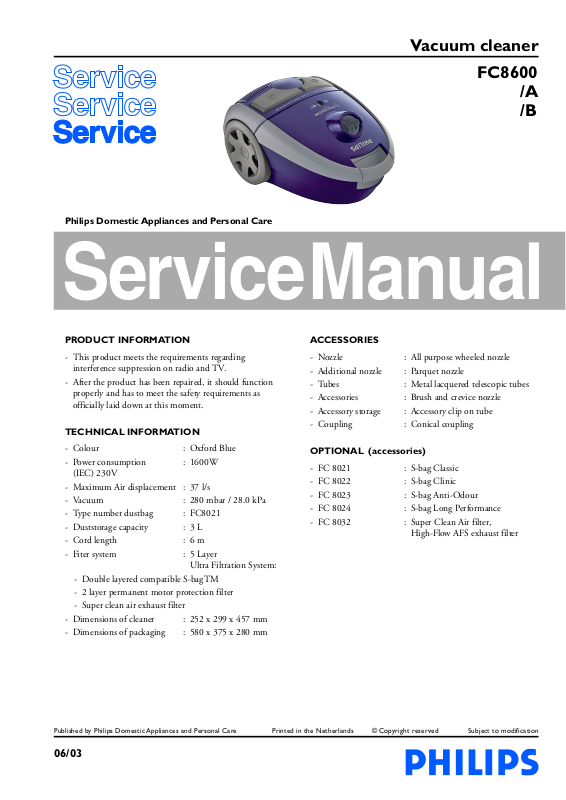

Vacuum cleaner
FC8600
/A
/B
Philips Domestic Appliances and Personal Care
Service Manual
PRODUCT INFORMATION
- This product meets the requirements regarding
interference suppression on radio and TV.
- After the product has been repaired, it should function
properly and has to meet the safety requirements as
officially laid down at this moment.
TECHNICAL INFORMATION
- Colour : Oxford Blue
- Power consumption : 1600W
(IEC) 230V
- Maximum Air displacement : 37 l/s
- Vacuum : 280 mbar / 28.0 kPa
- Type number dustbag : FC8021
- Duststorage capacity : 3 L
- Cord length : 6 m
- Fiter system : 5 Layer
Ultra Filtration System:
- Double layered compatible S-bagTM
- 2 layer permanent motor protection filter
- Super clean air exhaust filter
- Dimensions of cleaner : 252 x 299 x 457 mm
- Dimensions of packaging : 580 x 375 x 280 mm
ACCESSORIES
- Nozzle : All purpose wheeled nozzle
- Additional nozzle : Parquet nozzle
- Tubes : Metal lacquered telescopic tubes
- Accessories : Brush and crevice nozzle
- Accessory storage : Accessory clip on tube
- Coupling : Conical coupling
OPTIONAL (accessories)
- FC 8021 : S-bag Classic
- FC 8022 : S-bag Clinic
- FC 8023 : S-bag Anti-Odour
- FC 8024 : S-bag Long Performance
- FC 8032 : Super Clean Air filter,
High-Flow AFS exhaust filter
Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification
06/03
Page 2
FC8600 /A /B
DISASSEMBLY- AND RE-ASSEMBLY ADVISE
- Open the appliance, first pull off the Atilla insert, after that
screw (A) under the insert can be removed with a
screwdriver
- After removing the filtercover the second screw (B) for
releasing the backpanel can be removed.
- The dustcover, button panel, bumper and the PCB’s can
now easily be removed.
- The upperhousing (dustchamber + motorhousing) can be
released by removing 6 screws (C).
- The wires for the motor are placed under the sealing ring of
the motor.
- The sealing ring is placed in two grooves, which are made in
the lower housing.
- When you re-assemble then make sure that the wires for the
motor are placed underneath the sealing ring.
REPAIR INSTRUCTION
- Cotton dustbags, are used in countries in which paper
dustbags are not available.
- If the reel half spring unit is replaced, shaft F must be
lubricated with silicone grease. Do not apply any silicone
grease to or spill any grease on terminals (26) or conductors
(25).
- The cord winder spring must be tensioned to the maximum
level and then be rewound approx. 1.5 turn.
- Item 8, air valve, opens to cool the motor if the air
displacement is too low or if the airflow is blocked.
- When the vacuum cleaner is used to suck up fine dust the
pores of the dustbag may become clogged, causing the
passage of air through the dustbag to become obstructed.
As a result, the dustbag-full indicator will indicate that the
dustbag needs to be replaced, eventhough the dustbag is not
full at all.

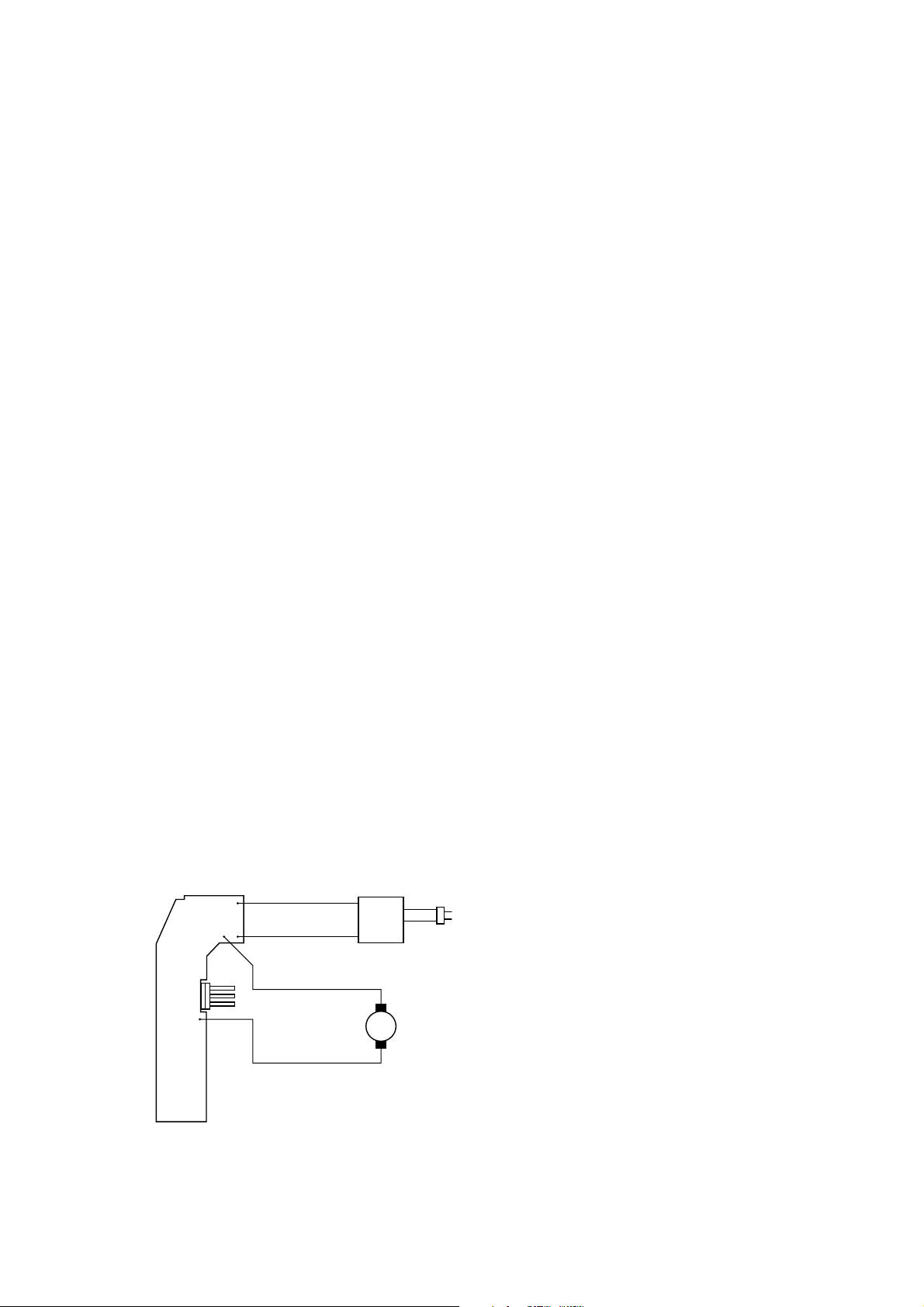

ELECTRICAL DIAGRAM
MOTOR
POWER
MODULE
Blue
Brown
Black
Black/White
CORD WINDER
M
2-6
Page 3
PARTS LIST
FC8600 /A /B
Pos Service code Description
1
4341 009 00870
2
4322 000 38830
3
4322 003 26070
4
4322 003 25850
5
4322 003 26250
6
4322 003 26680
8
4322 005 18050
9
4322 006 22960
9a
4341 003 02390
10
4322 001 73480
11
4322 005 18150
12
4322 003 25900
13
4322 003 25910
14
4322 003 25830
15
4322 000 09970
16
4322 003 25840
17
4322 001 73440
18
4322 006 97670
19
4322 000 38780
20
4322 001 73470
Dustcover assy Oxford blue
Duo fi lter
Inlet grille
Dustbag carrier
Back grille Oxford blue
Atilla Insert Oxford blue
DBF assy
PCB assy 220 - 240 V 50/60 Hz
Switch lever
Dustchamber seal
Back panel pr. Oxford blue
Bumper back
Buttons
Cord outlet
Button spring
Upper housing
Motor buffer front bl.
ANS 1451 230 Ultramid
Silencer 3 compas bl.
Motorpot seal
Pos Service code Description
21
4322 003 26160
22
4322 001 72900
23
4322 005 17840
24
4322 005 18670
25
4322 005 17430
26
4322 005 17910
27
4322 006 01720
28
4322 006 01410
29
4341 005 01240
30
4341 004 20420
31
4341 004 20170
32
4322 004 23160
33
4822 530 10229
34
4322 004 91010
35
4322 005 18070
Lower housing Oxford blue
Buffer
Caster assy
Reel half spring unit
Reelh. cordside assy
Contact plate assy
U.K. / H.K. L = 9.3 m
Euro 4.8 mm pins L = 9.3 m
Bend handle
Hose assy extruded
Crevice nozzle 118 conical
RD 262 neutr. conical/hook
Steel tube 55 cm
Electr. fi lter
AFS support assy
= changed
3-6
Page 4

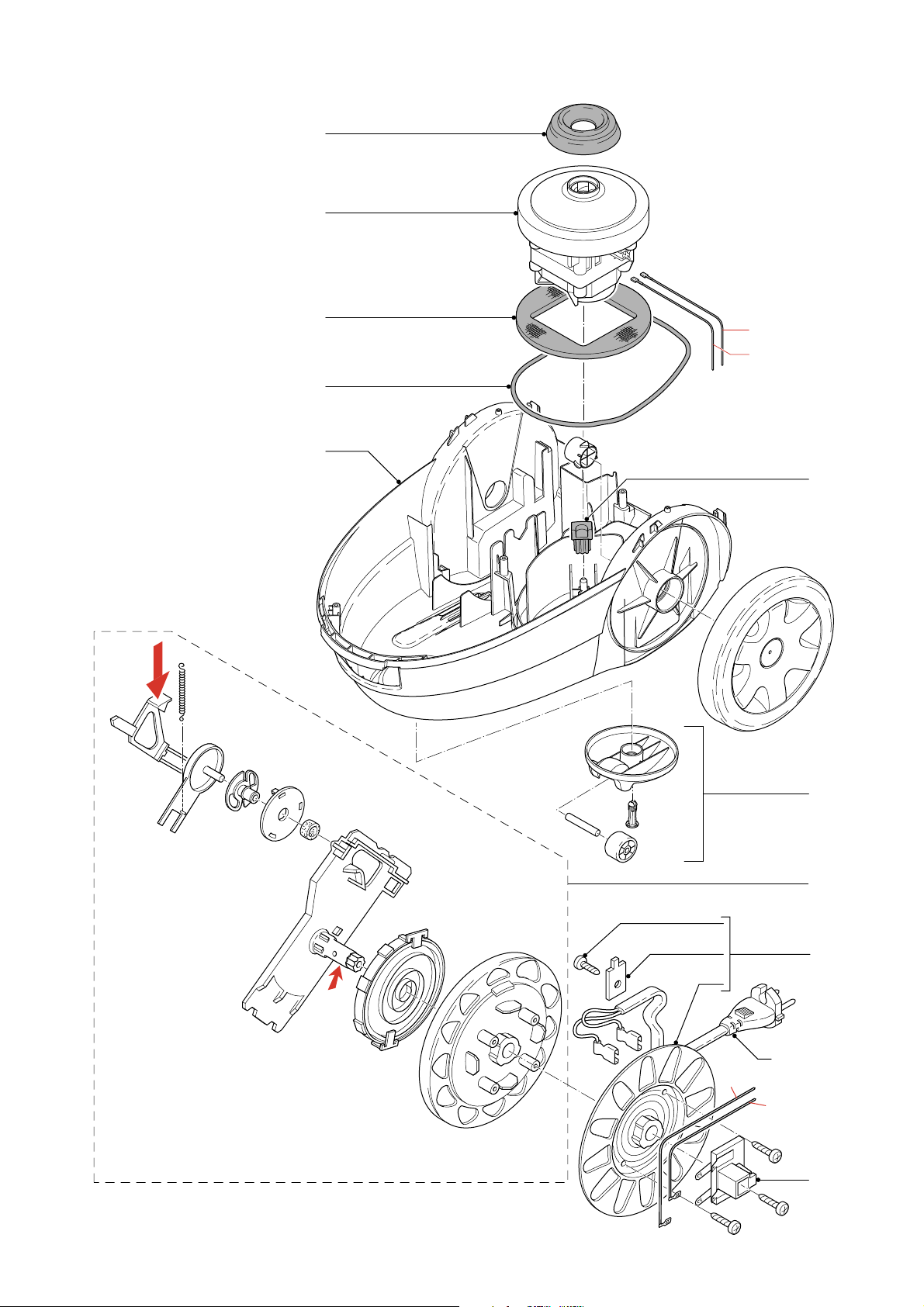

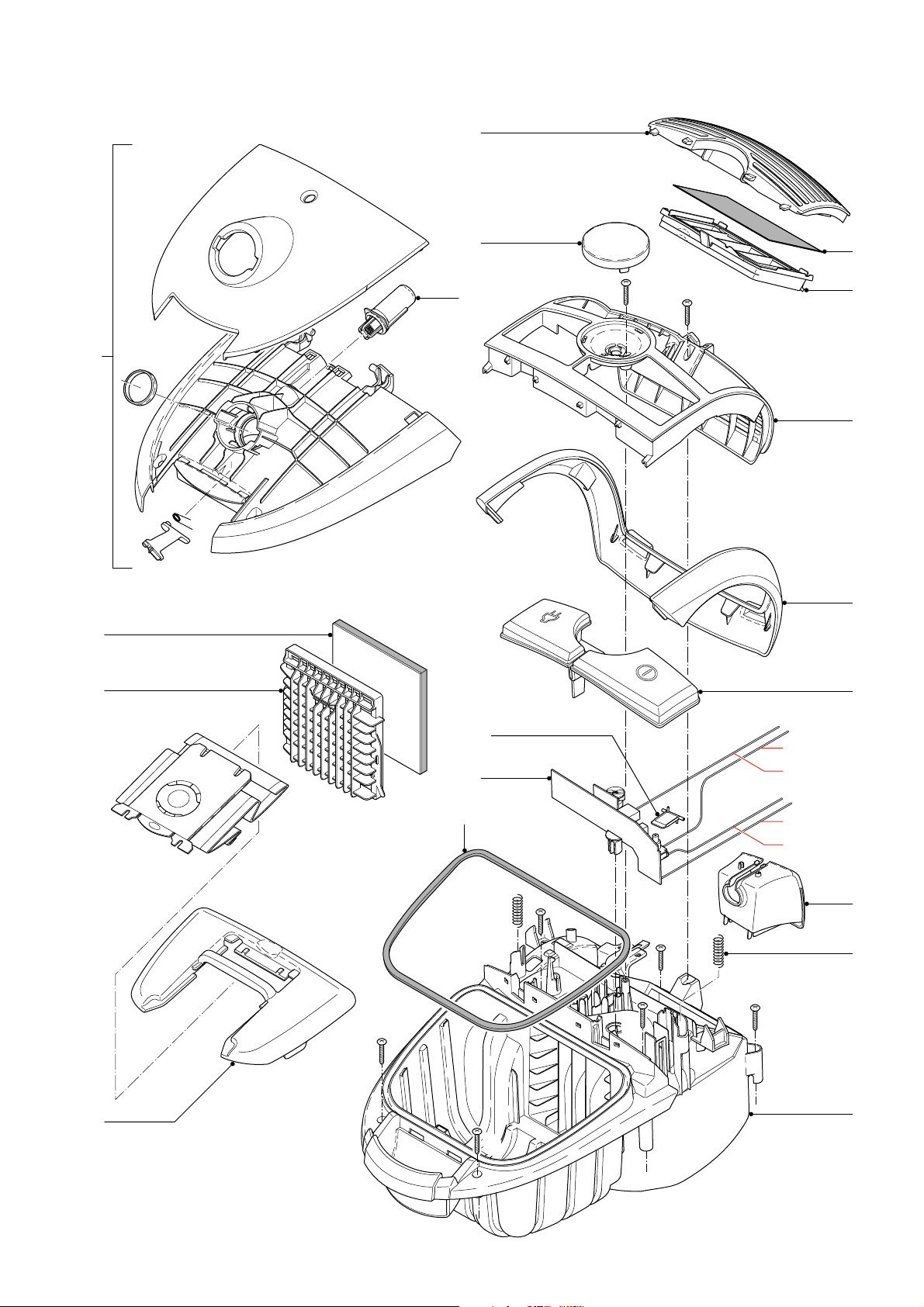

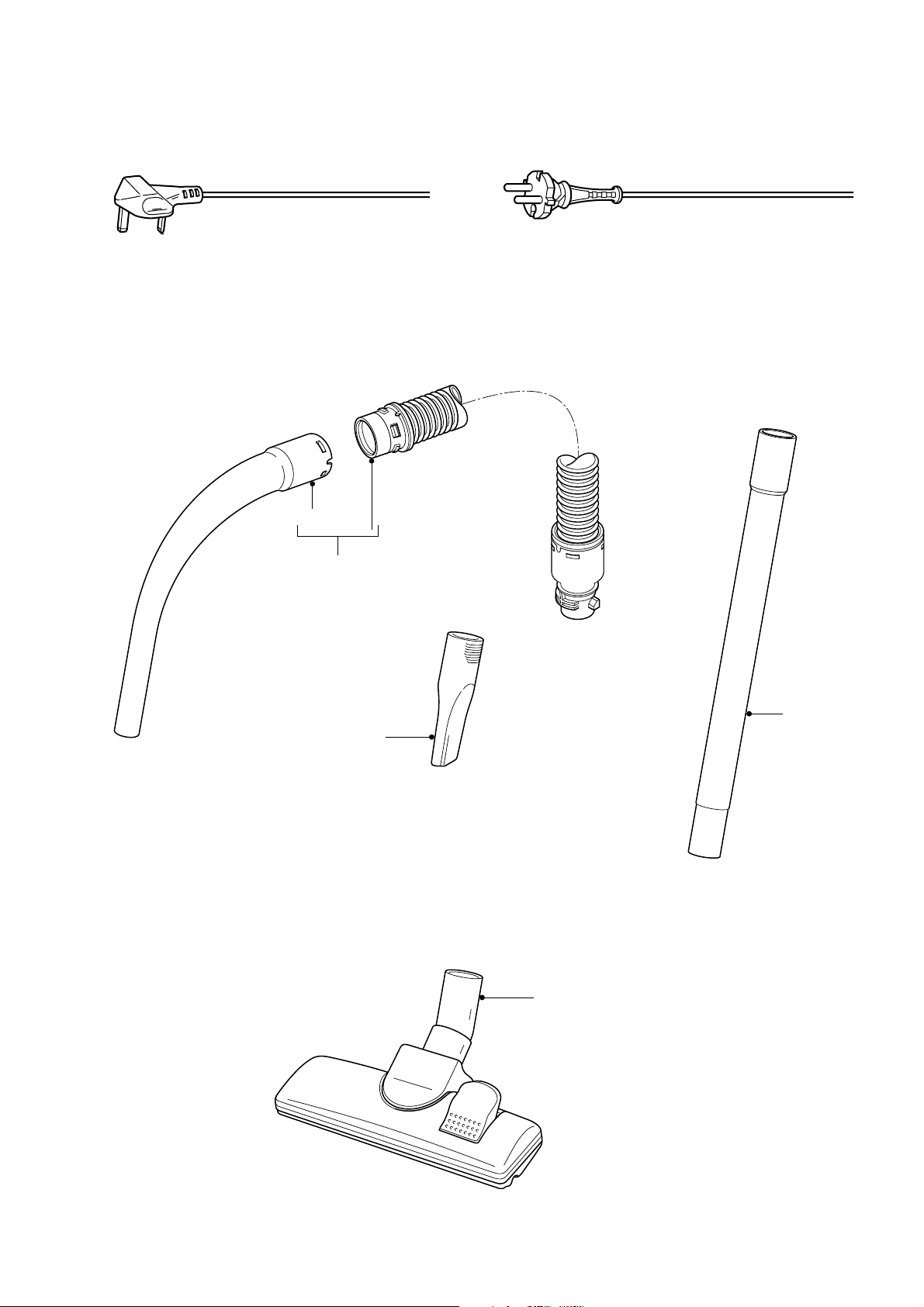

EXPLODED VIEW
FC8600 /A /B
5
6
8
A
B
34
35
1
11
12
2
3
13
9a
9
Black
Black/White
Y
X
10
C
C
C
C
4
C
Blue
Brown
14
15
C
16
4-6
Page 5
EXPLODED VIEW
FC8600 /A /B
17
18
19
20
21
Black/White
Black
X
22 (2x)
23
24
25
D
F
27+28
Blue
Y
Brown
E
26
E
E
5-6
Page 6
EXPLODED VIEW
FC8600 /A /B
29
30
27 H.K. / U.K.
Korea / Europe 28
31
33
32
6-6
