FC8189

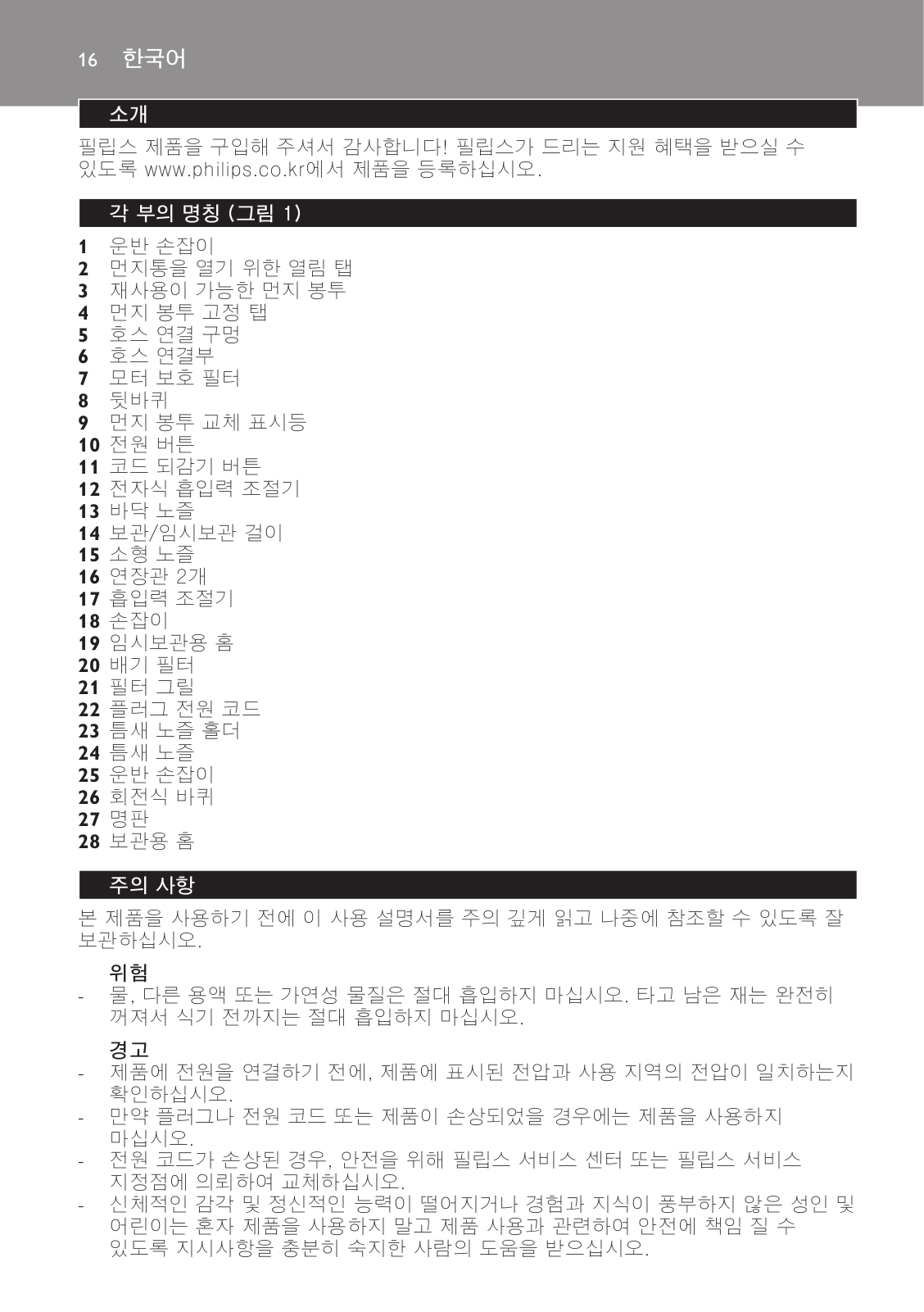

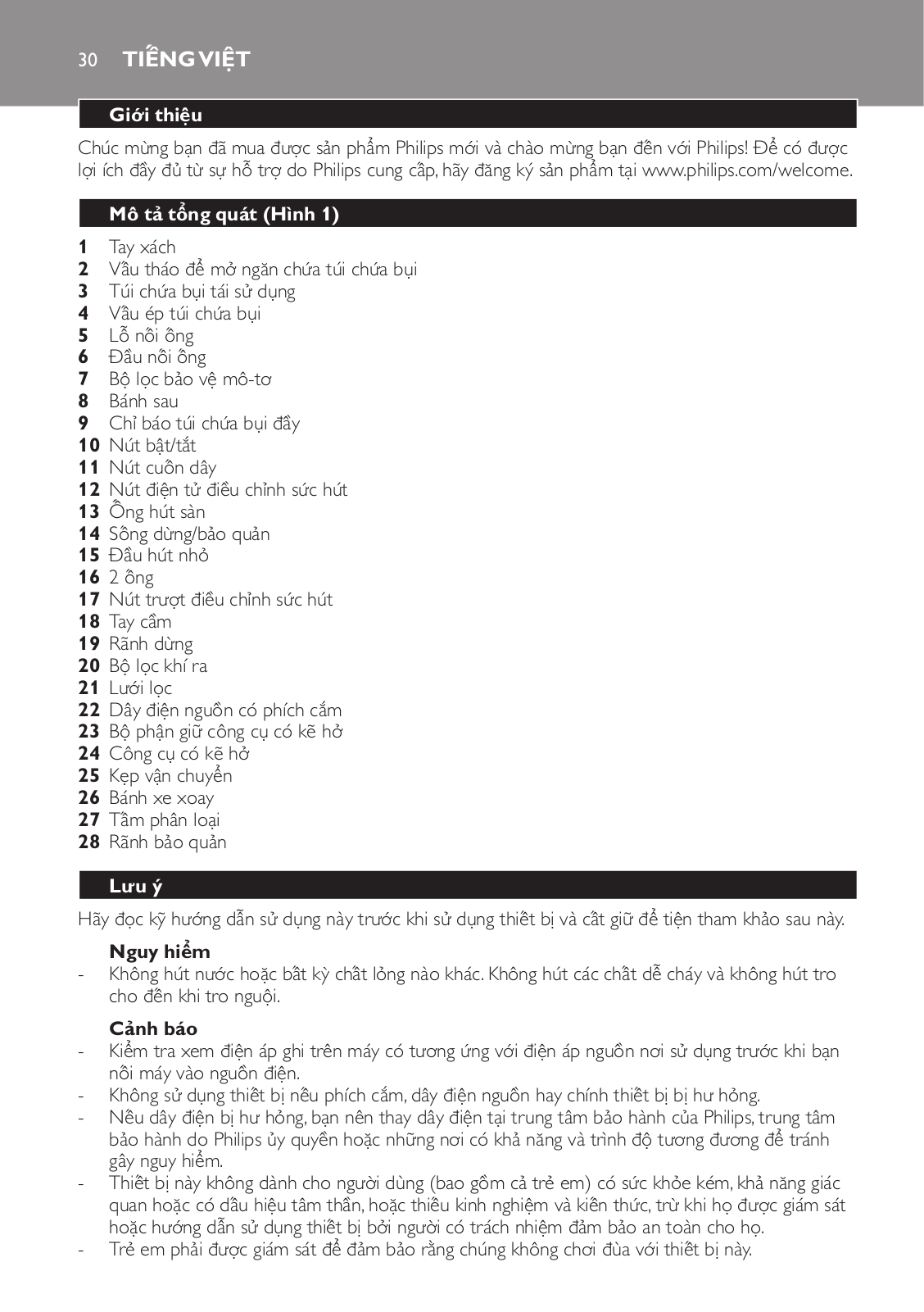

Congratulations on your purchase and welcome to Philips!To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

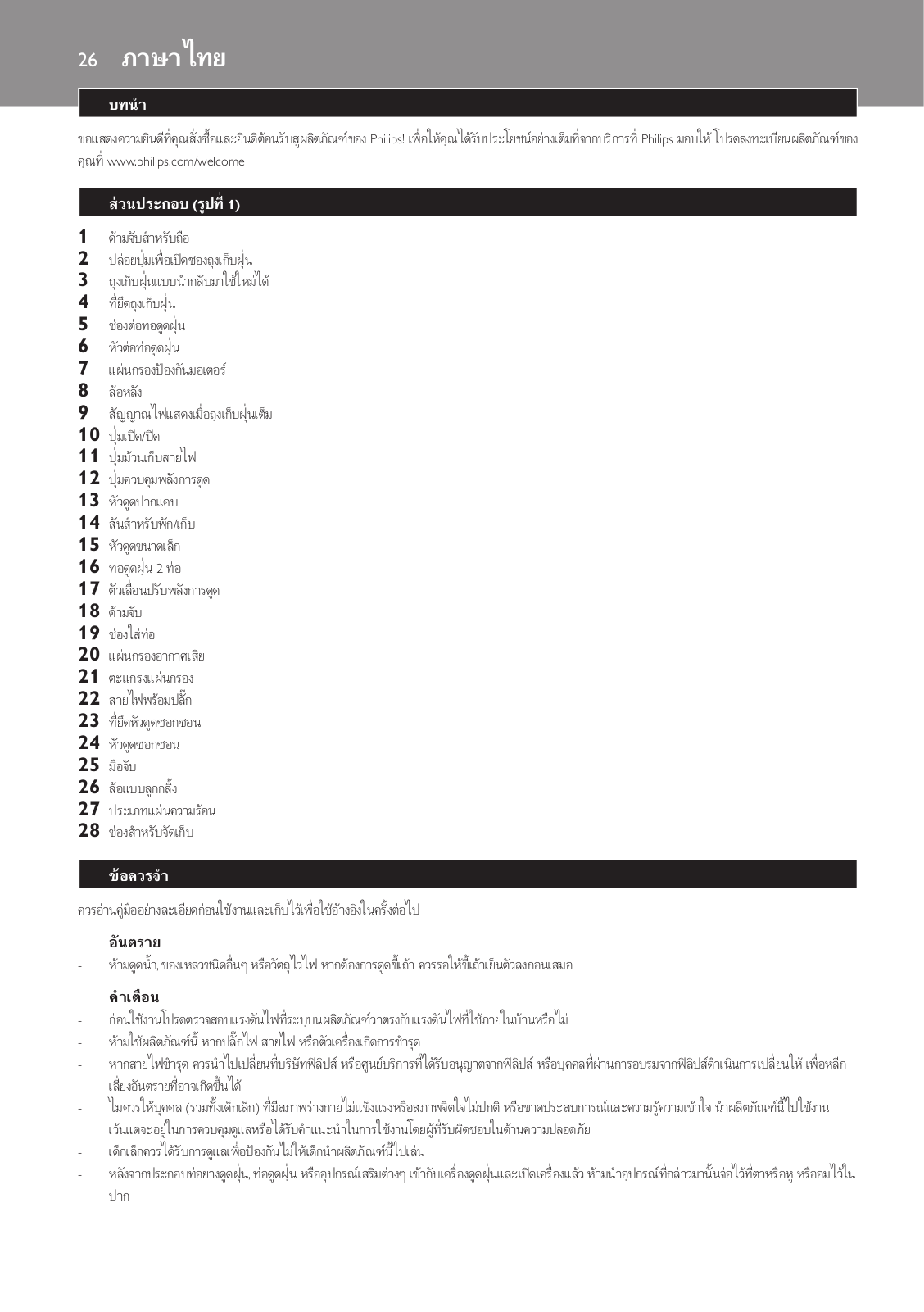

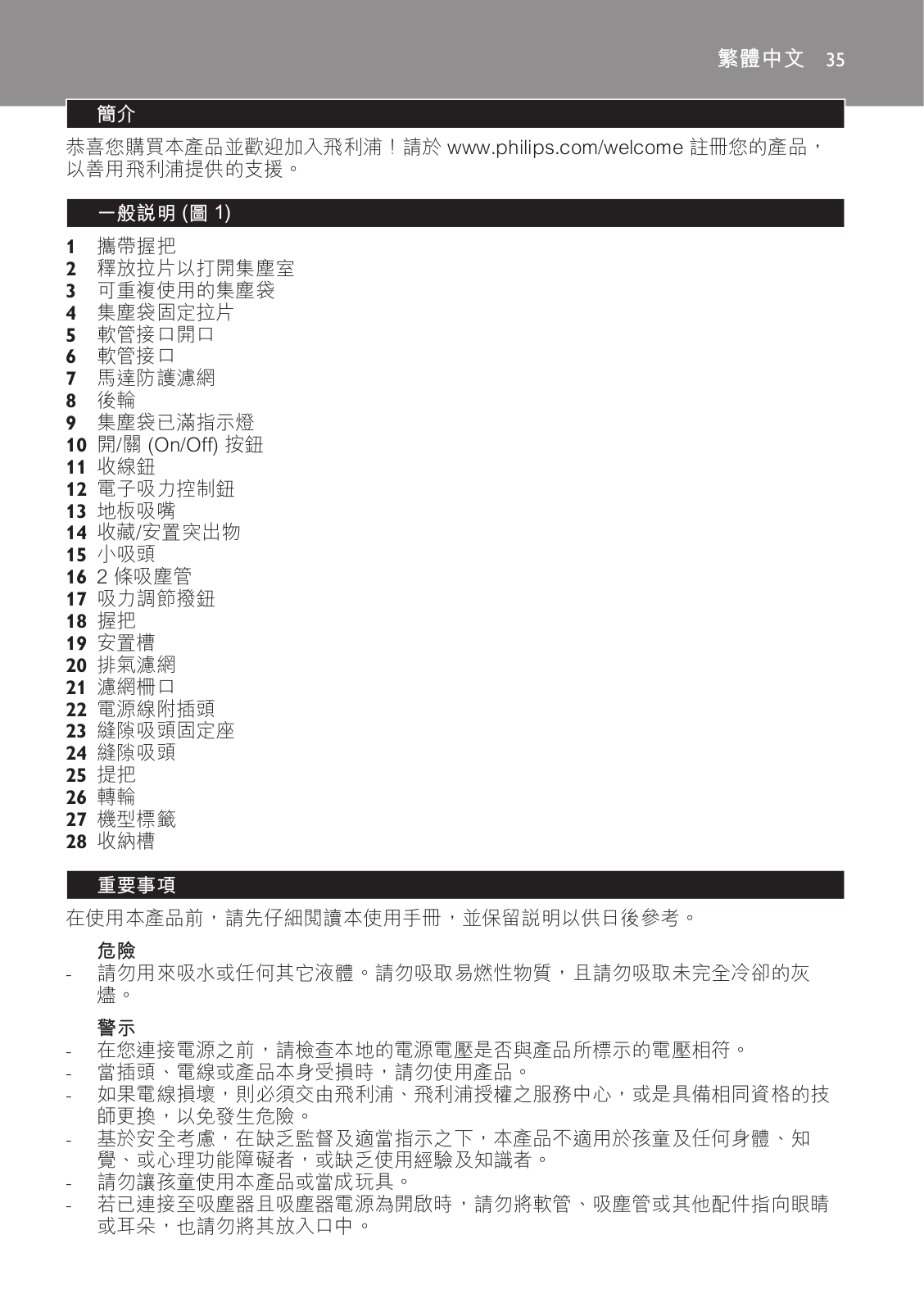

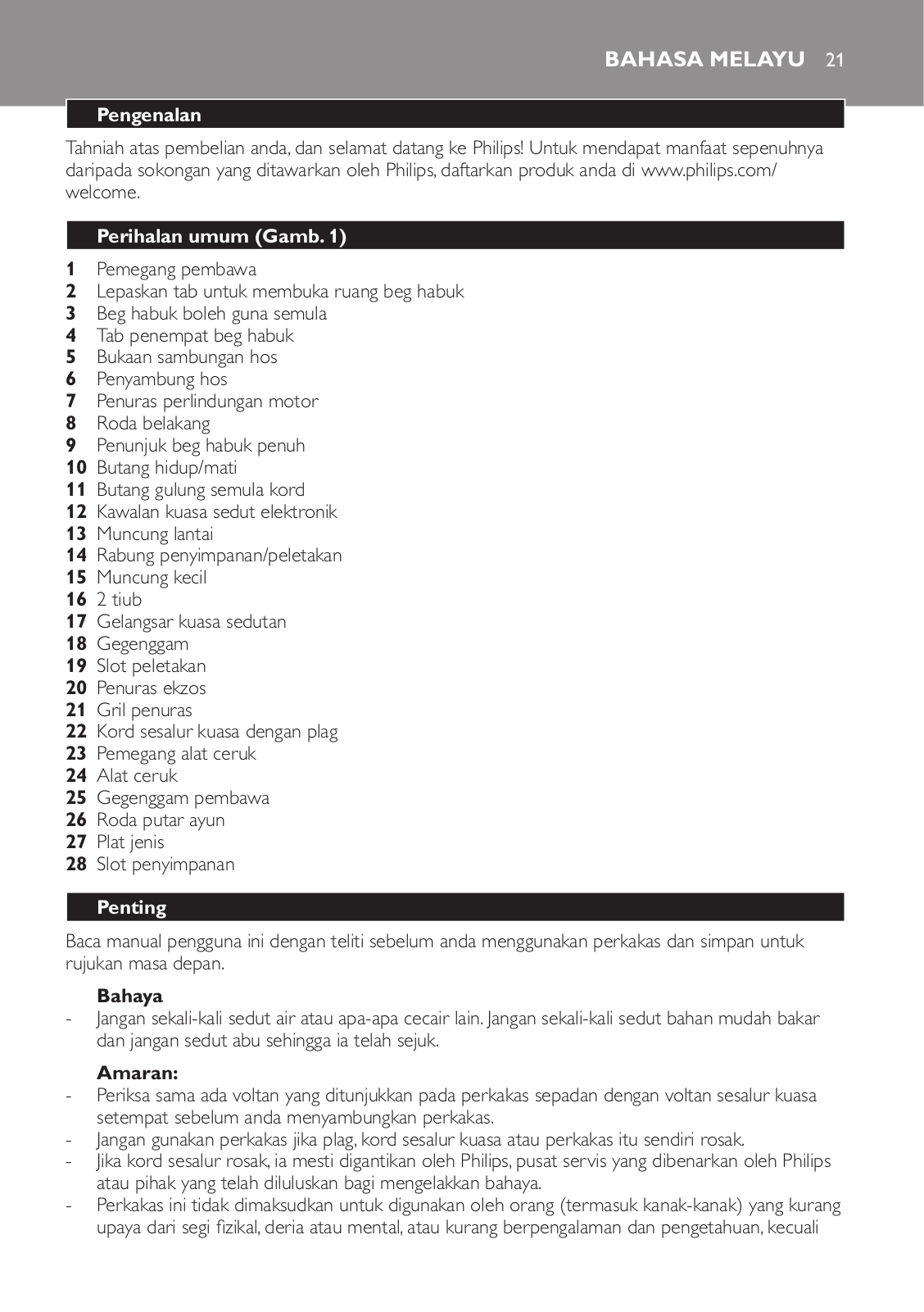

1Carrying handle
2 Release tab to open dustbag compartment
3Reusable dustbag
4Dustbag fixation tab
5 Hose connection opening
6Hose connector
7 Motor protection filter
8Rear wheel
9 Dustbag-full indicator
10On/off button
11Cord rewind button
12Electronic suction power control
13Floor nozzle
14Storage/parking ridge
15Small nozzle
162 tubes
17Suction power slide
18Handgrip
19Parking slot
20Exhaust filter
21Filter grille
22Mains cord with plug
23Crevice tool holder
24Crevice tool
25Carrying grip
26Swivel wheel
27Type plate
28Storage slot
Read this user manual carefully before you use the appliance and save it for future reference.
-- Never suck up water or any other liquid. Never suck up flammable substances and do not suck up ashes until they are cold.
-- Check if the voltage indicated on the appliance corresponds to the local mains voltage before you connect the appliance.
-- Do not use the appliance if the plug, the mains cord or the appliance itself is damaged.
-- If the mains cord is damaged, you must have it replaced by Philips, a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard.
-- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

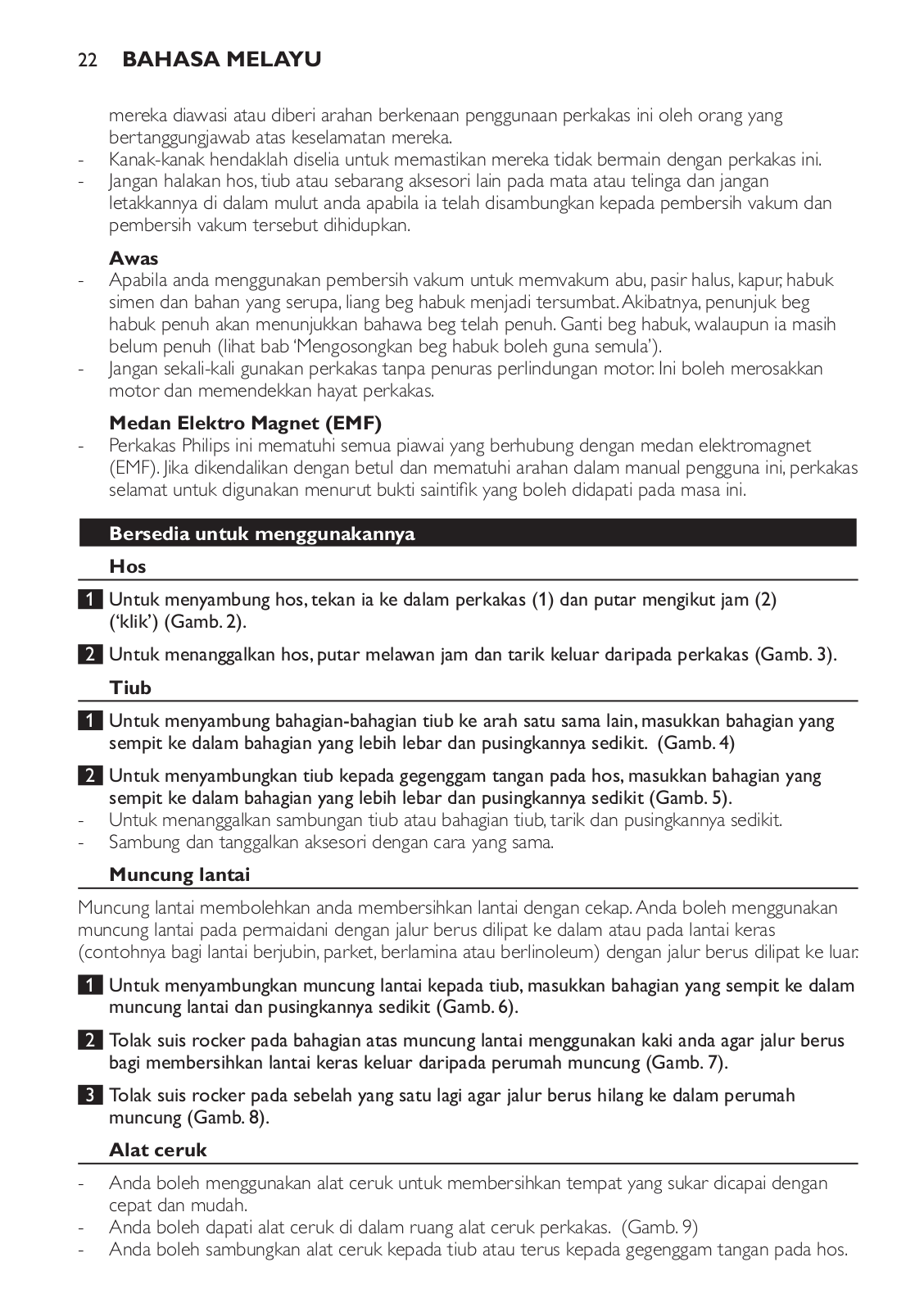

-- Children should be supervised to ensure that they do not play with the appliance.
English 7
-- Do not point the hose, the tube or any other accessory at the eyes or ears nor put it in your mouth when it is connected to the vacuum cleaner and the vacuum cleaner is switched on.

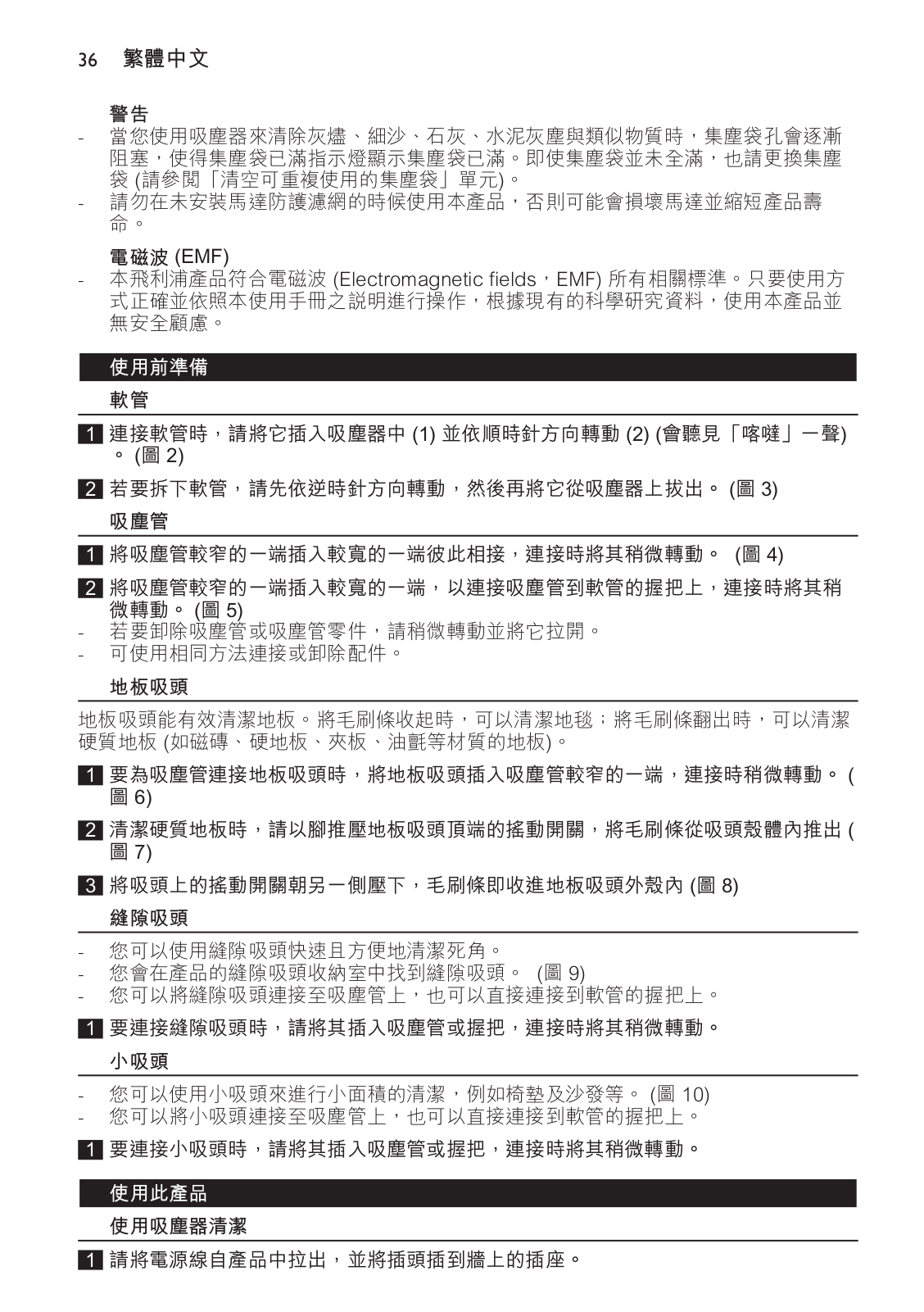

-- When you use the vacuum cleaner to vacuum ashes, fine sand, lime, cement dust and similar substances, the pores of the dustbag become clogged.As a result, the dustbag-full indicator will indicate that the dustbag is full. Replace the dustbag, even if it is not full yet (see chapter ‘Emptying the reusable dustbag’).
-- Never use the appliance without the motor protection filter.This damages the motor and shortens the life of the appliance.
-- This Philips appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.

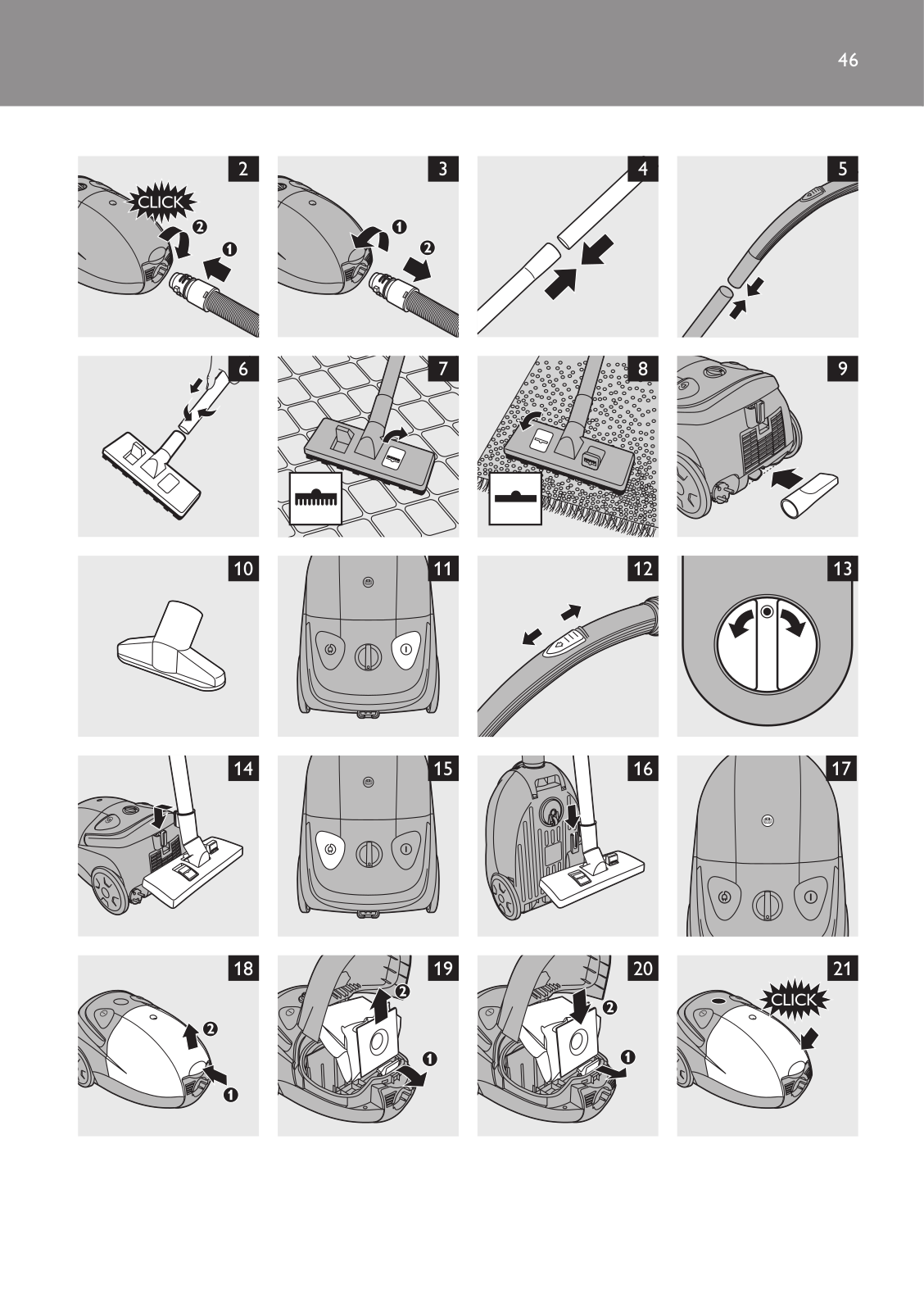

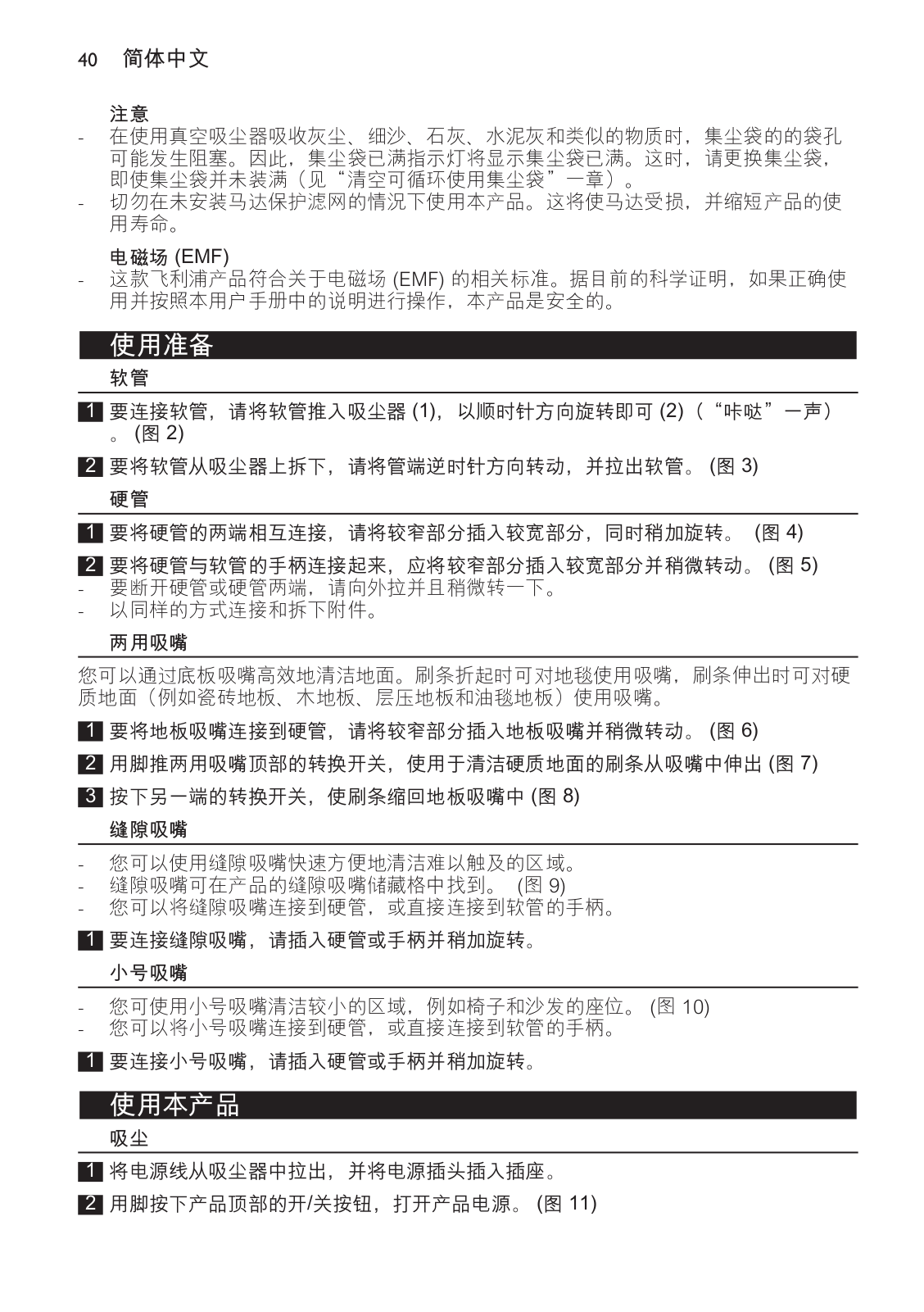

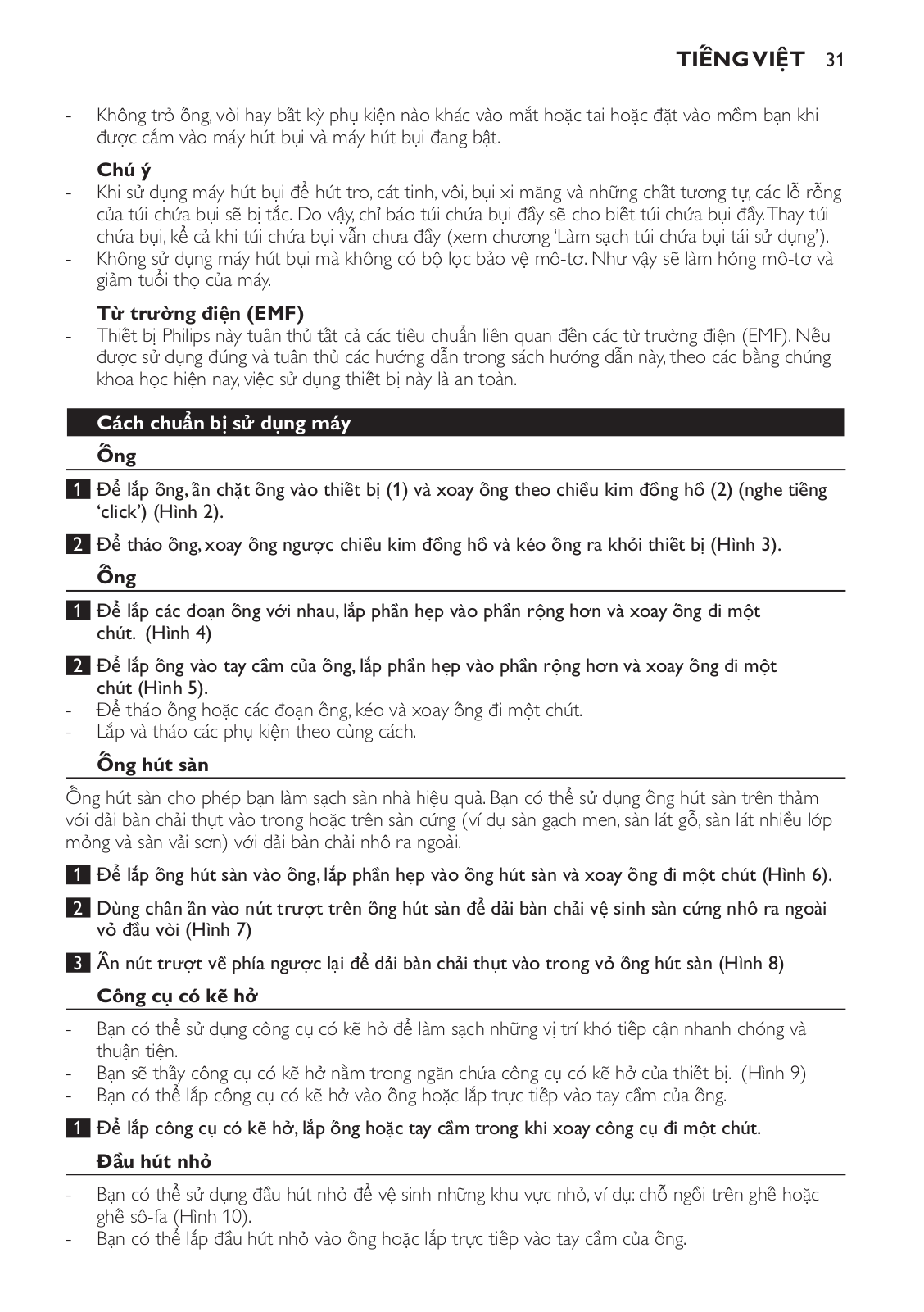

1 To connect the hose,push it into the appliance (1) and turn it clockwise (2) (‘click’) (Fig. 2).
2To disconnect the hose,turn it anticlockwise and pull it out of the appliance (Fig. 3).
1To connect the tube parts to each other,insert the narrow section into the wider section and turn it a little. (Fig. 4)
2To connect the tube to the handgrip of the hose,insert the narrow section into the wider section and turn it a little (Fig. 5).
-- To disconnect the tube or tube parts, pull and turn a little. -- Connect and disconnect the accessories in the same way.
The floor nozzle enables you to clean the floor efficiently.You can use the floor nozzle on carpet with the brush strips folded in or on hard floors (for instance for tiled, parqueted, laminated and linoleumed flooring) with the brush strips folded out.
1To connect the floor nozzle to the tube,insert the narrow section into the floor nozzle and turn a little (Fig. 6).
2Push the rocker switch on top of the floor nozzle with your foot to make the brush strip for cleaning hard floors come out of the nozzle housing (Fig. 7)
3Push the rocker switch on the other side to make the brush strip disappear into the floor nozzle housing (Fig. 8)
-- You can use the crevice tool to clean hard-to-reach places quickly and conveniently. -- You find the crevice tool in the crevice tool compartment of the appliance. (Fig. 9) -- You can connect the crevice tool to the tube or directly to the handgrip of the hose.

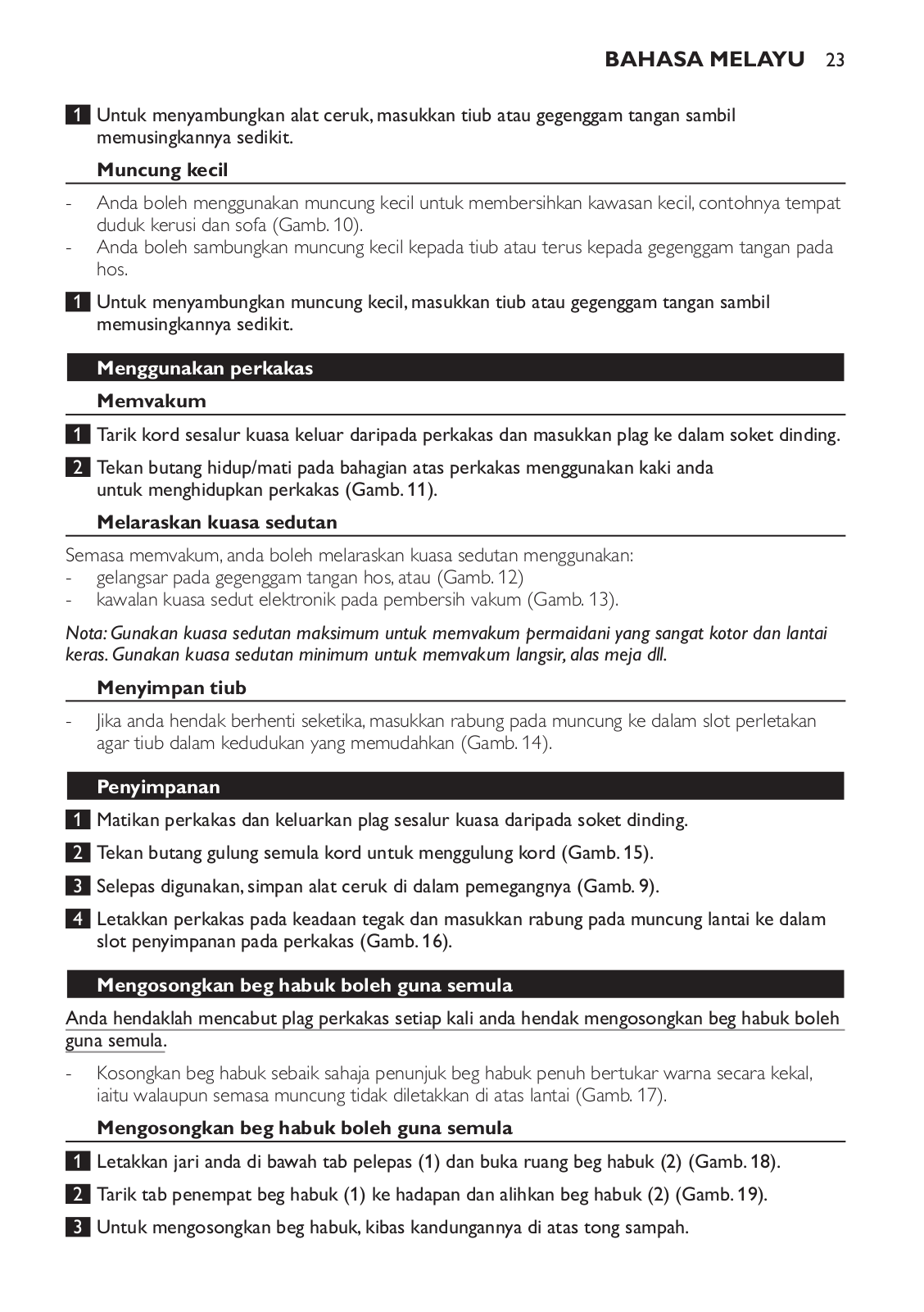

1 To connect the crevice tool, insert the tube or handgrip while turning it a little.

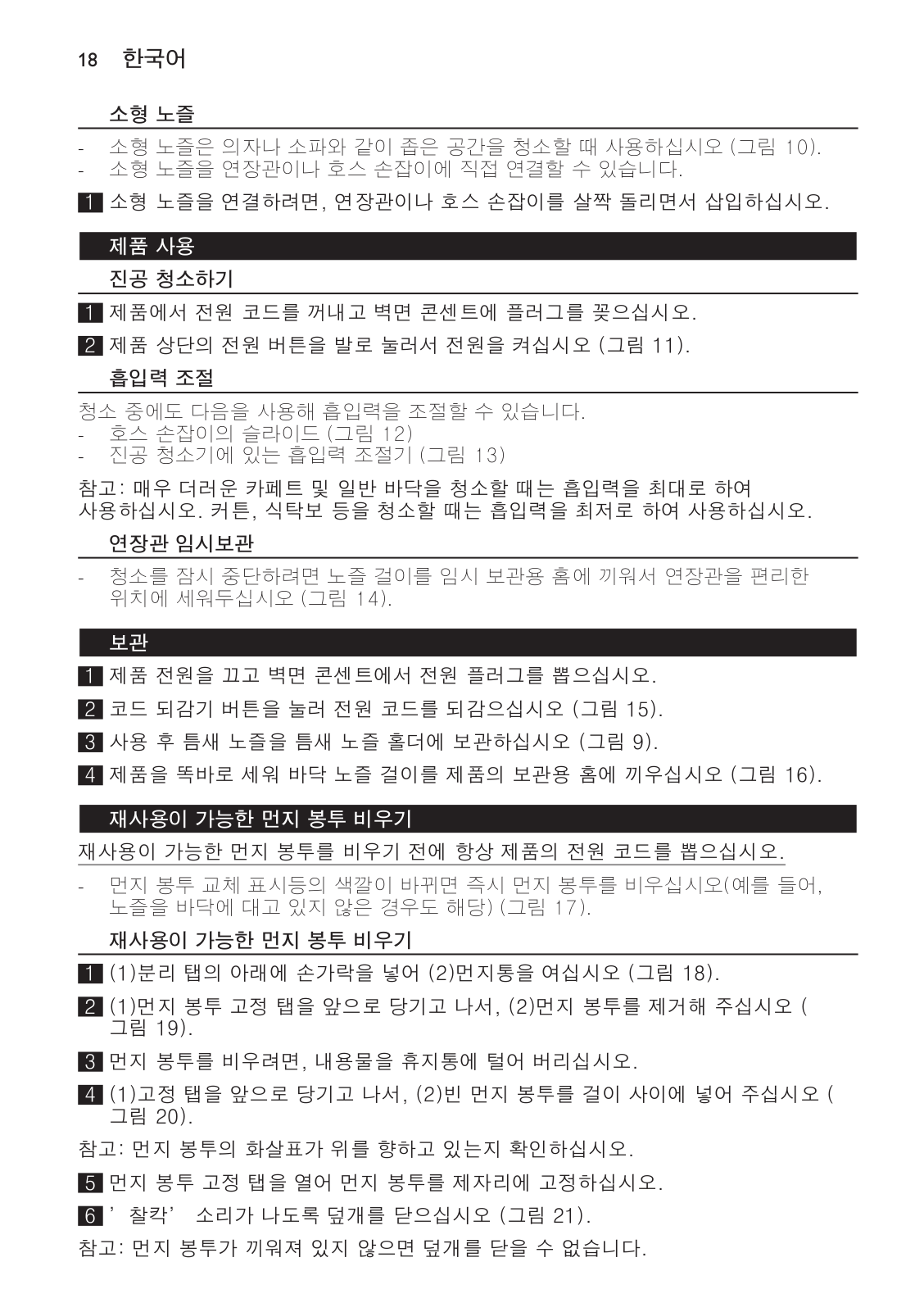

-- You can use the small nozzle to clean small areas, e.g. the seats of chairs and sofas (Fig. 10). -- You can connect the small nozzle to the tube or directly to the handgrip of the hose.
8 English
1 To connect the small nozzle,insert the tube or handgrip while turning it a little.
1 Pull the mains cord out of the appliance and put the plug in the wall socket.

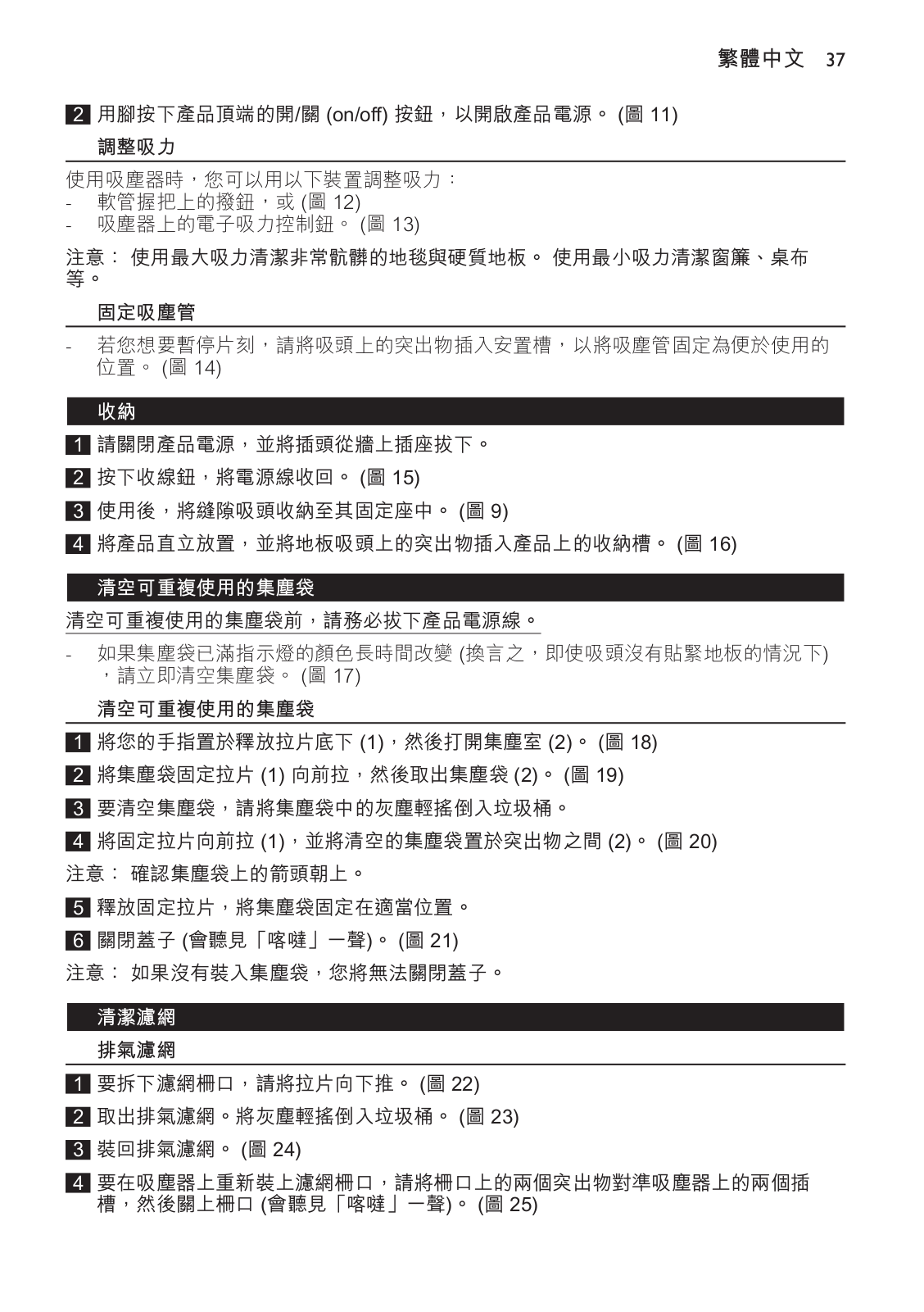

2Press the on/off button on top of the appliance with your foot to switch on the appliance (Fig. 11).
During vacuum cleaning, you can adjust the suction power with: -- the slide on the handgrip of the hose, or (Fig. 12)
-- the electronic suction power control on the vacuum cleaner (Fig. 13).
Note:Use maximum suction power to vacuum very dirty carpets and hard floors. Use minimum suction power to vacuum curtains,tablecloths etc.
-- If you want to pause for a moment, insert the ridge on the nozzle into the parking slot to park the tube in a convenient position (Fig. 14).
1 Switch off the appliance and remove the mains plug from the wall socket. 2 Press the cord rewind button to rewind the mains cord (Fig. 15).
3 After use,store the crevice tool in its holder (Fig. 9).
4Put the appliance in upright position and insert the ridge on the floor nozzle into the storage slot on the appliance (Fig. 16).
Always unplug the appliance before you empty the reusable dustbag.
-- Empty the dustbag as soon as the dustbag-full indicator has changed colour permanently, i.e. even when the nozzle is not placed on the floor (Fig. 17).
1 Place your fingers under the release tab (1) and open the dustbag compartment (2) (Fig. 18). 2 Pull the dustbag fixation tab (1) forward and remove the dustbag (2) (Fig. 19).
3 To empty the dustbag,shake the contents out over a dustbin.
4 Pull the fixing tab forwards (1) and place the empty dustbag between the ridges (2) (Fig. 20).
Note:Make sure the arrow on the dustbag points upwards.
5 Release the fixing tab to fix the dustbag in position. 6 Close the cover (‘click’) (Fig. 21).
Note:You cannot close the cover if no dustbag has been inserted.
English 9

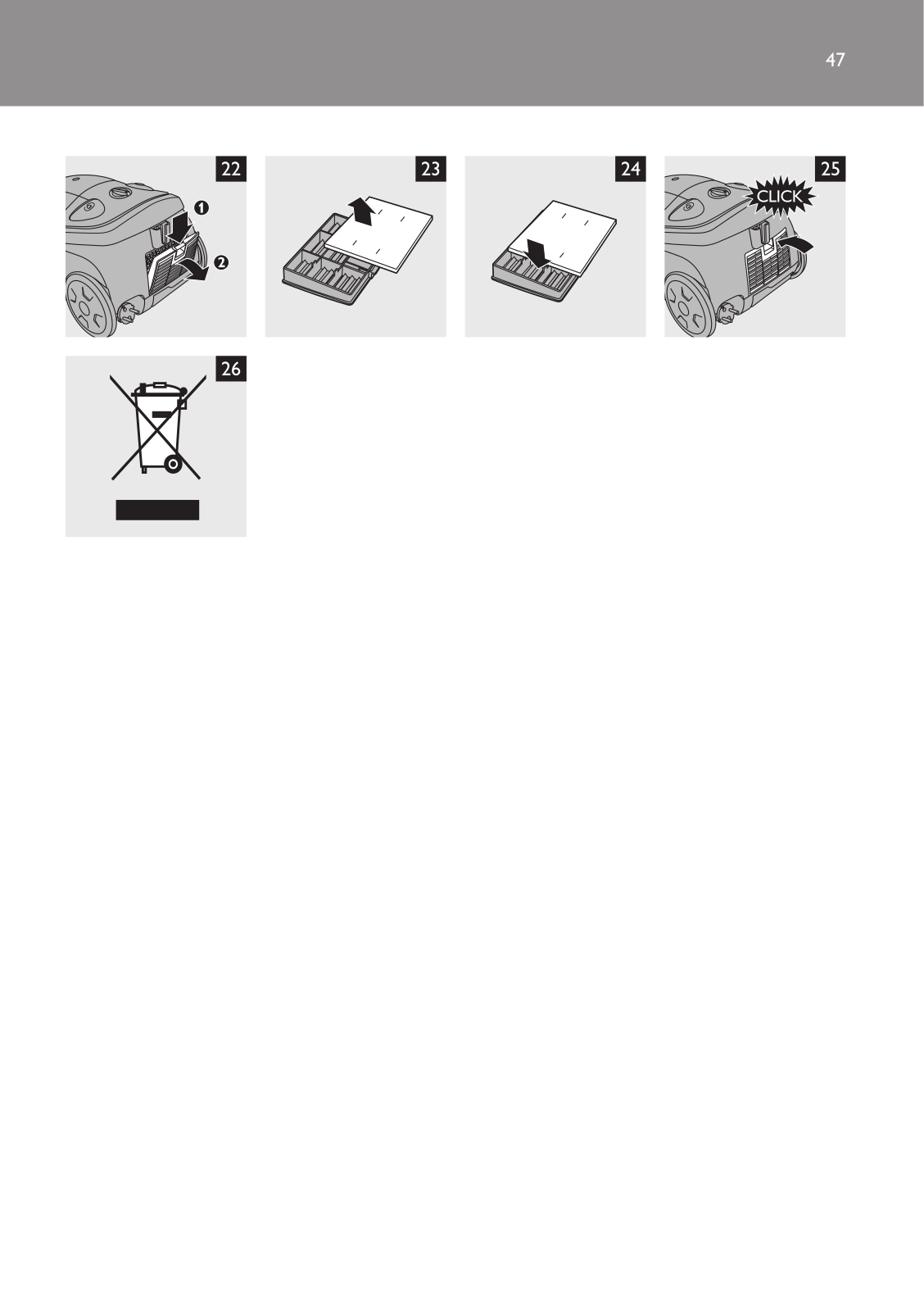

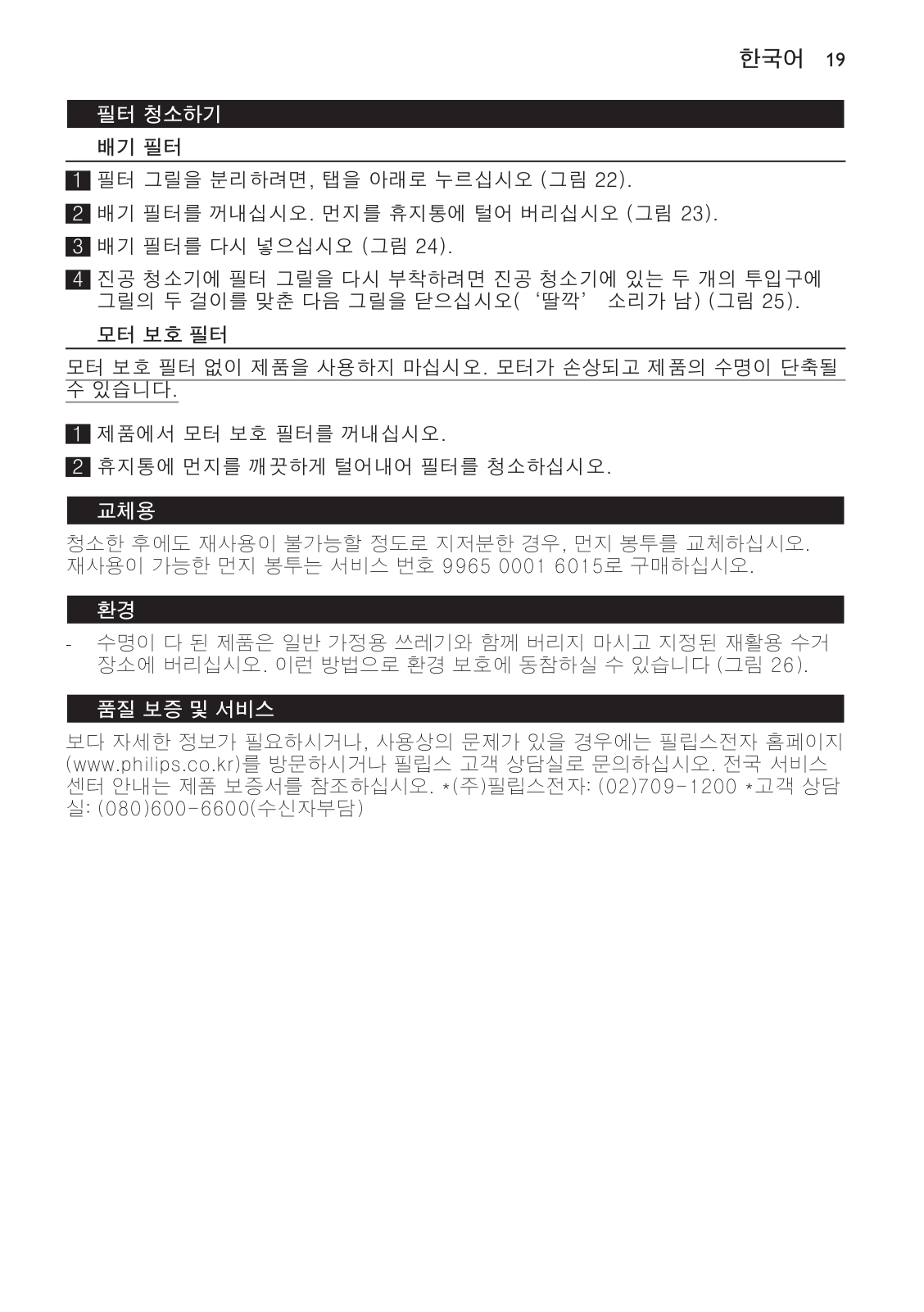

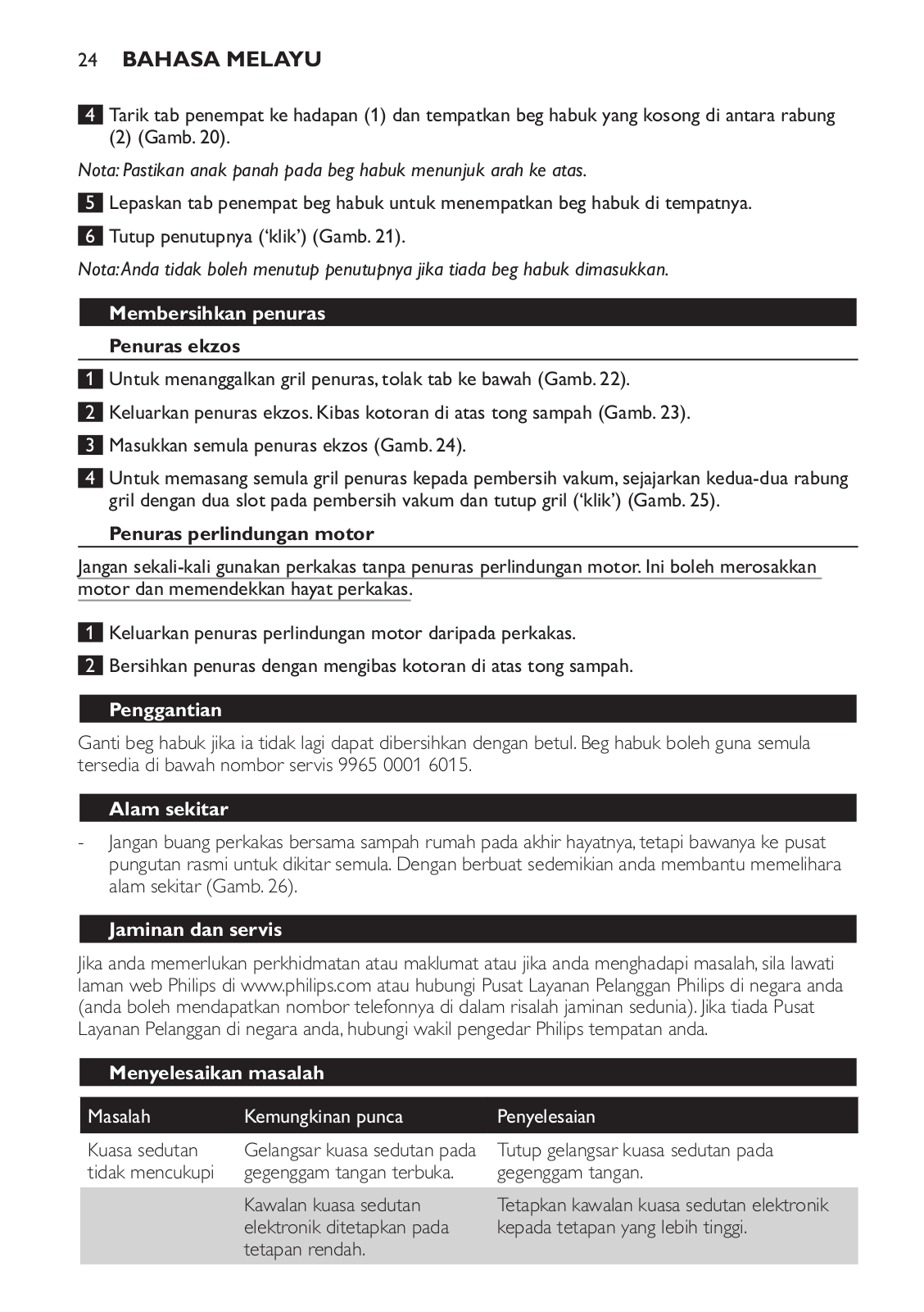

1 To detach the filter grille,push the tab downwards (Fig. 22).
2 Take out the exhaust filter.Shake out the dirt over a dustbin (Fig. 23). 3 Put back the exhaust filter (Fig. 24).
4To reattach the filter grille to the vacuum cleaner,align the two ridges of the grille with the two slots on the vacuum cleaner and close the grille (‘click’) (Fig. 25).

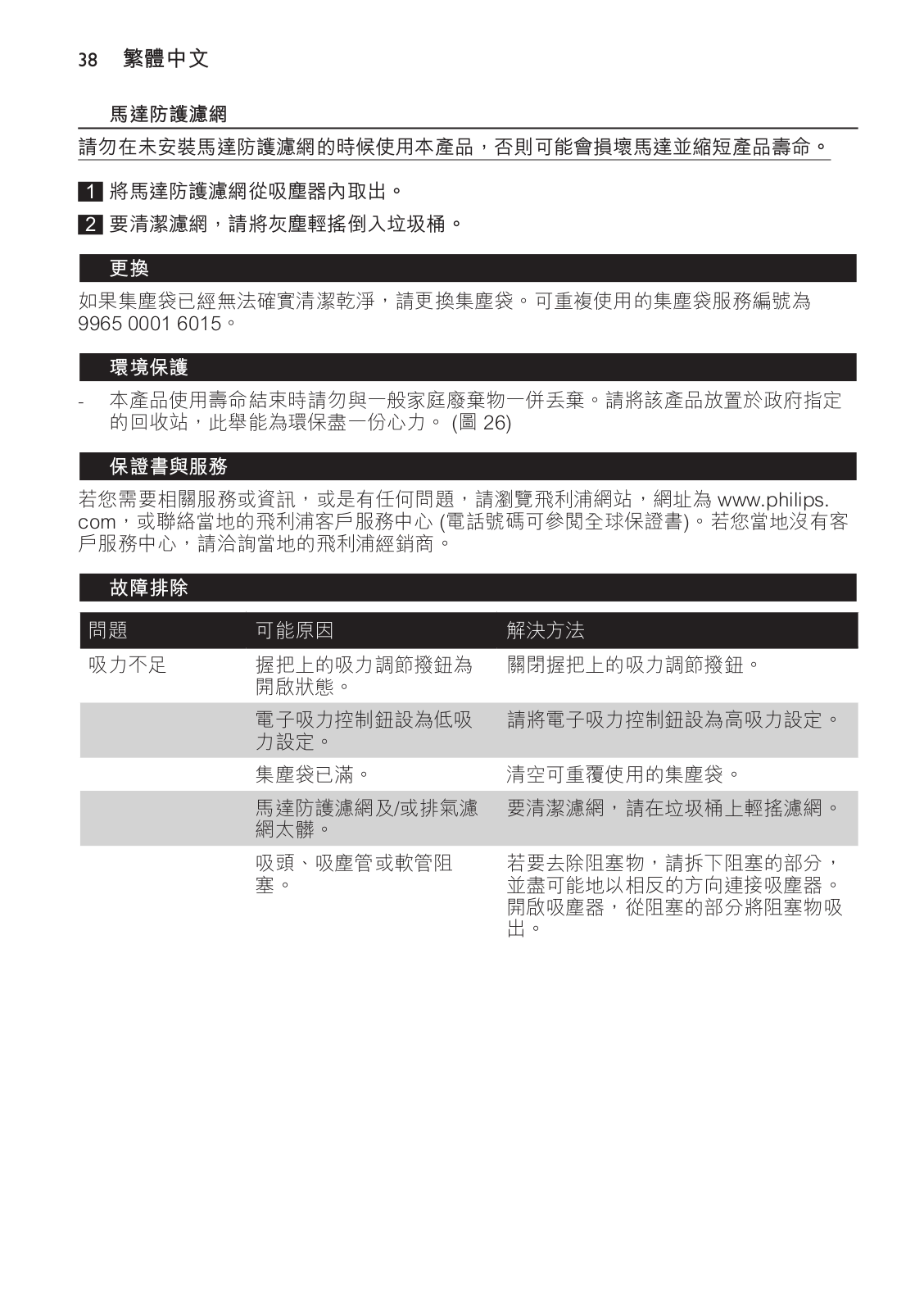

Never use the appliance without the motor protection filter.This damages the motor and shortens the life of the appliance.

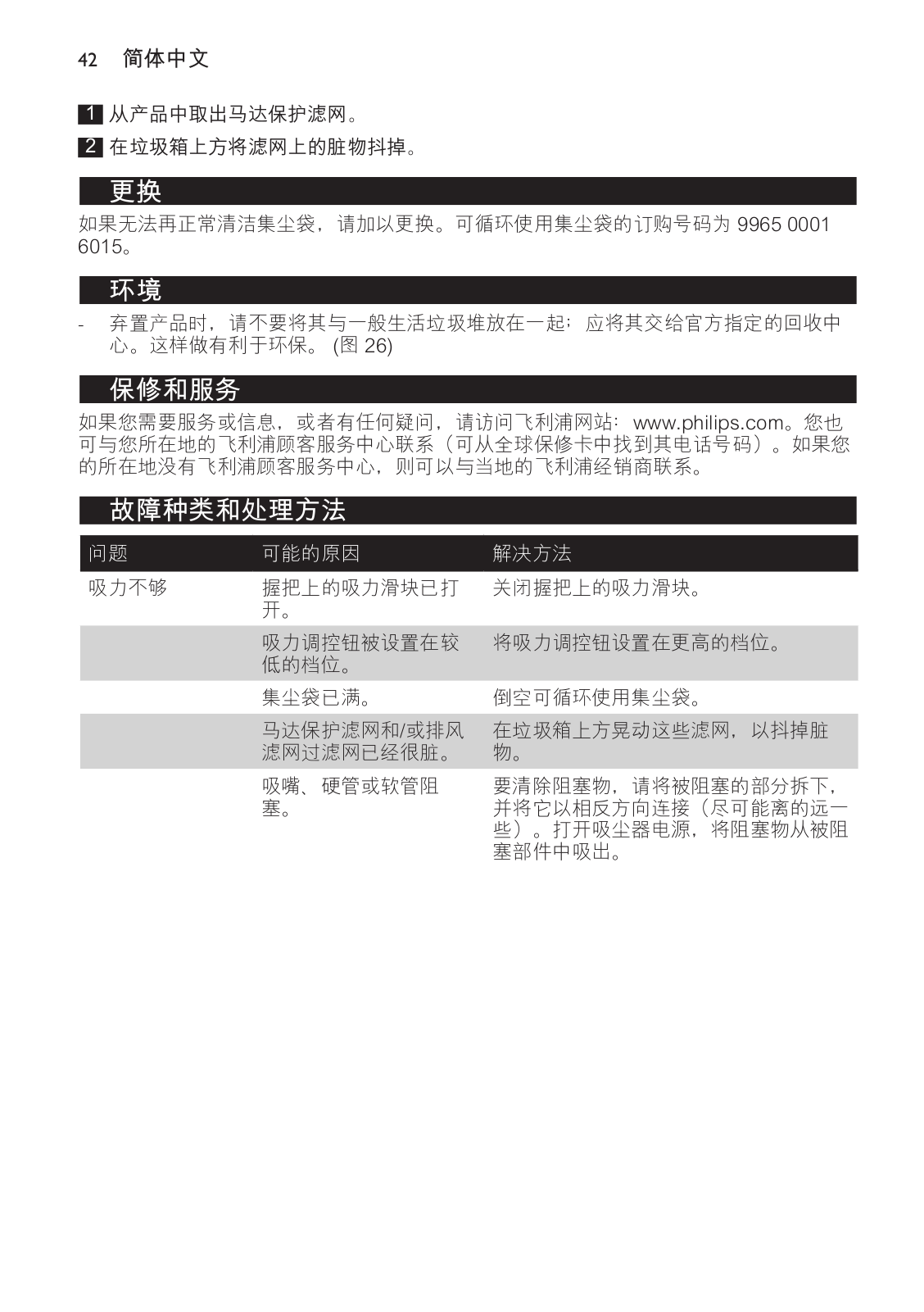

1 Take the motor protection filter out of the appliance.
2 Clean the filter by shaking the dirt out of it over a dustbin.
Replace the dustbag if it can no longer be cleaned properly. Reuseable dustbags are available under service number 9965 0001 6015.

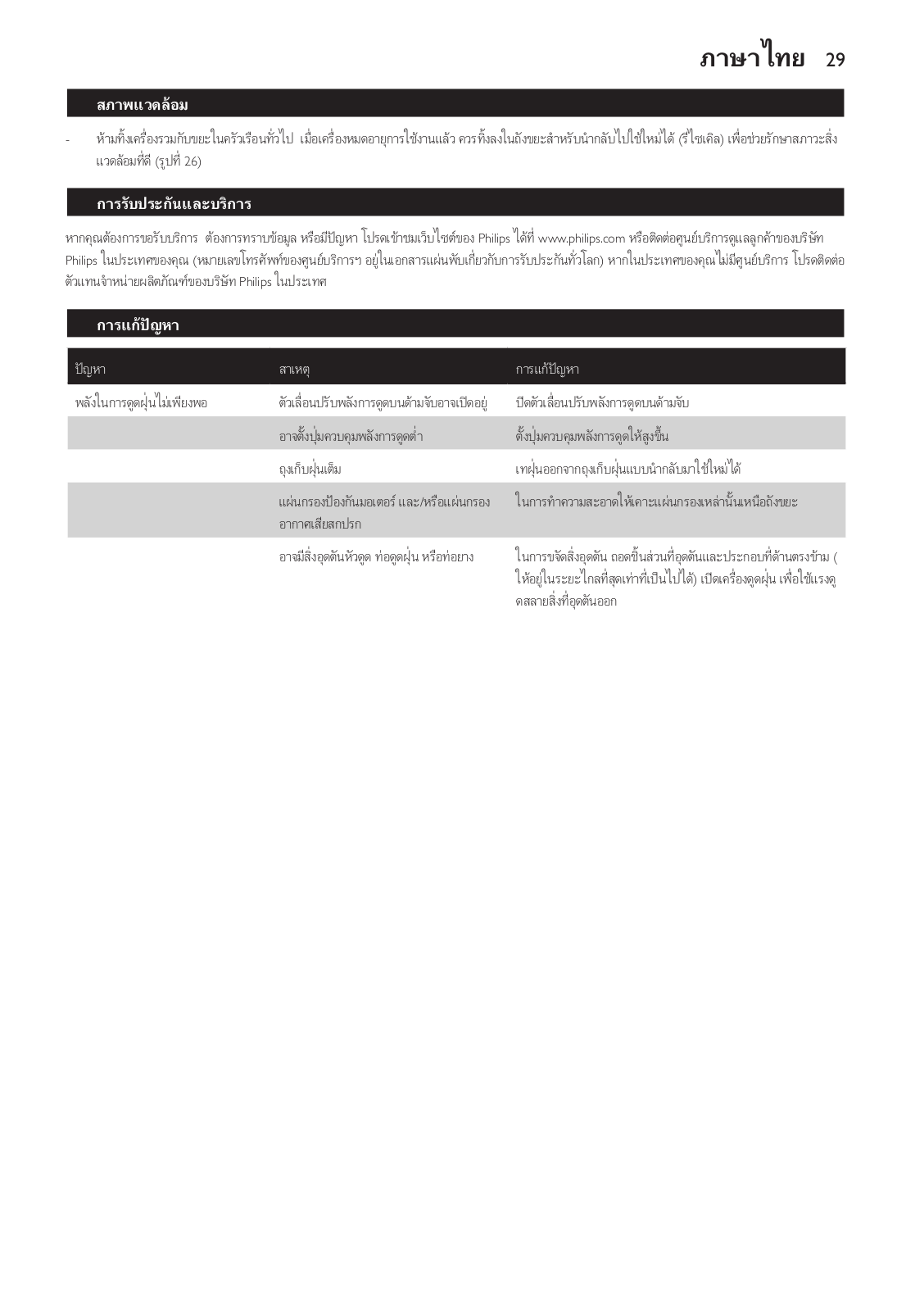

-- Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment (Fig. 26).
If you need service or information or if you have a problem, please visit the Philips website at www. philips.com or contact the Philips Consumer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Consumer Care Centre in your country, go to your local Philips dealer.

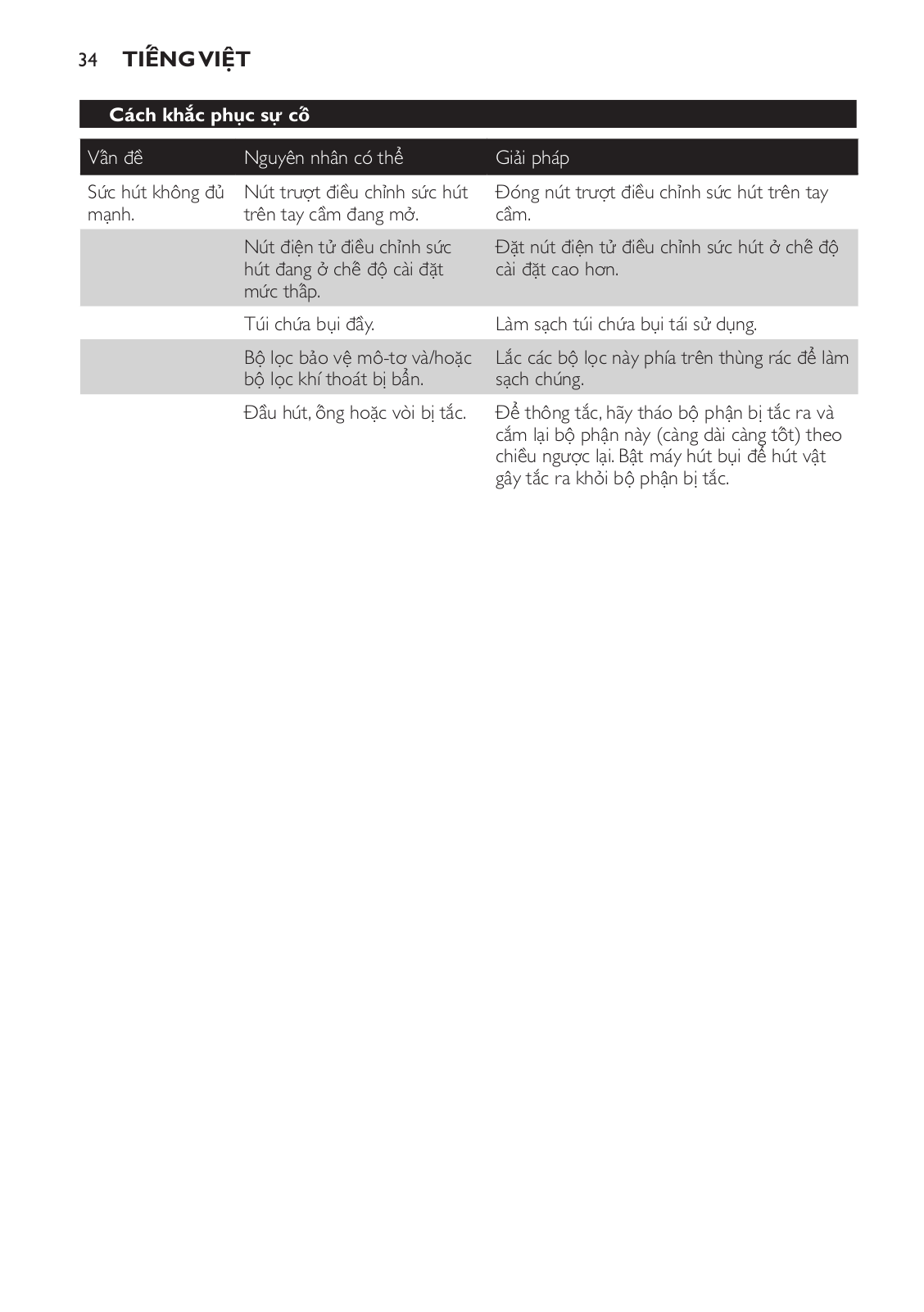

Problem |
Possible cause |
Solution |
The suction |
The suction power slide on |
Close the suction power slide on the |
power is |
the handgrip is open. |
handgrip. |
insufficient |
|
|
|
The electronic suction power |
Set the electronic suction power control to |
|
control is set to a low setting. |
a higher setting. |
|
The dustbag is full. |
Empty the reusable dustbag. |
|
The motor protection filter |
Shake these filters over a dustbin to clean |
|
and/or the exhaust filter is |
them. |
|
dirty. |
|
10 English
Problem |
Possible cause |
Solution |
The nozzle, tube or hose is blocked up.
To remove the obstruction, disconnect the blocked-up item and connect it (as far as possible) the other way around. Switch on the vacuum cleaner to suck the obstruction out of the blocked-up item.
Selamat atas pembelian Anda dan selamat datang di Philips! Untuk memanfaatkan sepenuhnya dukungan yang ditawarkan Philips, daftarkan produk Anda di www.philips.com/welcome.
1Gagang pengangkat
2 Tab pelepas untuk membuka wadah kantong debu
3 Kantong debu pakai-ulang
4 Tab pengunci kantong debu
5 Lubang sambungan selang
6Konektor selang
7 Filter pelindung motor
8Roda belakang
9 Indikator kantong debu penuh
10Tombol on/off
11Tombol penggulung kabel
12Kontrol daya isap elektronik
13Nozel lantai
14Tonjolan untuk menyimpan/meletakkan
15Nozel kecil
162 pipa
17Pengatur daya isap
18Pegangan
19Slot penahan
20Filter keluaran udara
21Kisi filter
22Kabel listrik dengan steker
23Penahan alat celah
24Alat celah
25Pegangan untuk membawa
26Roda putar
27Pelat jenis
28Slot penyimpanan
Bacalah petunjuk penggunaan ini secara saksama sebelum Anda menggunakan alat dan simpan untuk referensi di kemudian hari.
-- Jangan sekali-kali menyedot air atau cairan lain apa pun. Jangan sekali-kali menyedot bahan yang mudah terbakar dan jangan menyedot abu rokok bila abu belum dingin.
-- Periksalah apakah voltase pada alat sesuai dengan voltase listrik di rumah Anda, sebelum menghubungkan alat.
-- Jangan gunakan alat ini jika steker, kabel listrik atau alat rusak.
-- Jika rusak, kabel listrik harus diganti oleh Philips, pusat layanan resmi Philips atau orang yang mempunyai keahlian sejenis agar terhindar dari bahaya.
-- Alat ini tidak dimaksudkan untuk digunakan oleh orang (termasuk anak-anak) dengan cacat fisik, indera atau kecakapan mental yang kurang, atau kurang pengalaman dan pengetahuan, kecuali jika mereka diberikan pengawasan atau petunjuk mengenai penggunaan alat oleh orang yang bertanggung jawab bagi keselamatan mereka.
12 Indonesia
-- Anak kecil harus diawasi untuk memastikan mereka tidak bermain-main dengan alat ini.
-- Jangan arahkan selang, pipa atau aksesori manapun ke mata atau telinga atau memasukkannya ke dalam mulut sewaktu terhubung ke penyedot debu dan penyedot debu dalam keadaan menyala.
-- Bila Anda menggunakan penyedot debu untuk menyedot abu, pasir halus, kapur cat tembok, debu semen dan bahan sejenisnya, pori-pori kantong debu menjadi tersumbat. Akibatnya indikator kantong debu akan menunjukkan bahwa kantong debu sudah penuh. Ganti kantong debu tersebut, sekalipun jika belum penuh (lihat bab‘Mengosongkan kantong debu pakai-ulang’).
-- Jangan sekali-kali menggunakan alat tanpa filter pelindung motor. Ini dapat merusak motor dan memperpendek masa pakai alat.
-- Alat Philips ini mematuhi semua standar yang berkenaan dengan medan elektromagnet (EMF). Jika ditangani dengan benar dan sesuai dengan instruksi petunjuk penggunaan ini, alat tersebut aman digunakan berdasarkan pada bukti ilmiah yang kini tersedia.
1Untuk memasang selangnya,tekan ke alat (1) dan putar searah jarum jam (2) (hingga berbunyi ‘klik’) (Gbr. 2).
2Untuk melepas selangnya,putar berlawanan arah jarum jam hingga lepas dari alat (Gbr. 3).
1Untuk menghubungkan komponen pipanya,masukkan bagian yang sempit ke bagian yang lebih lebar dan putar sedikit. (Gbr. 4)
2 Untuk memasang pipa ke pegangan pada selang,masukkan bagian yang sempit ke bagian yang lebih lebar dan putar sedikit (Gbr. 5).
-- Untuk melepas pipanya atau komponen pipa, tarik dan putar sedikit. -- Pasang dan lepas aksesori dengan cara yang sama.
Nozel lantai memungkinkan Anda membersihkan lantai dengan efisien.Anda dapat menggunakan nozel lantai pada karpet dengan strip sikat terlipat masuk atau pada lantai keras (misalnya untuk lantai ubin, lantai kayu, lantai laminasi dan lantai linolium) dengan strip sikat terlipat keluar.
1Untuk memasang nozel lantai ke pipa,masukkan bagian yang sempit ke nozel lantai dan putar sedikit (Gbr. 6).
2Tekan sakelar jungkit di bagian atas nozel lantai dengan kakiAnda agar strip sikat untuk membersihkan lantai keras keluar dari rumah nozel (Gbr. 7).
3Tekan sakelar jungkit di sisi satunya agar strip sikat masuk ke rumah nozel lantai (Gbr. 8).
-- Anda dapat menggunakan alat celah untuk membersihkan tempat-tempat yang sulit dijangkau dengan cepat dan mudah.
-- Anda dapat menemukan alat celah ini di wadah alat celah pada alat. (Gbr. 9) -- Anda dapat memasang alat celah ke pipa atau langsung ke pegangan pada pipa.
1 Untuk memasang alat celah, masukkan pipa atau pegangannya sambil diputar sedikit.
Indonesia 13
-- Anda dapat menggunakan nozel kecil untuk membersihkan area yang kecil, misalnya tempat duduk di kursi dan sofa (Gbr. 10).
-- Anda dapat memasang nozel kecil ke pipa atau langsung ke pegangan pada pipa.
1Untuk memasang nozel kecil, masukkan pipa atau pegangannya sambil diputar sedikit.
1Tarik keluar kabel listrik dari alat dan masukkan steker pada stopkontak dinding.
2Tekan tombol on/off di bagian atas alat dengan kakiAnda untuk menghidupkan alat (Gbr. 11).
Selama menyedot debu,Anda dapat menyesuaikan daya isap dengan: -- Pengatur pada pegangan di pipa, atau (Gbr. 12)
-- Kontrol daya isap elektronik pada penyedot debu (Gbr. 13).
Catatan:Gunakan daya isap maksimum untuk menyedot karpet dan lantai keras yang sangat kotor. Gunakan daya isap minimum untuk menyedot debu pada gorden,taplak meja,dsb.
-- Jika Anda ingin berhenti sejenak, sisipkan bubungan pada nozel ke dalam slot penahan untuk memarkir pipa pada posisi yang nyaman (Gbr. 14).
1 Matikan alat dan lepaskan steker listrik dari stopkontak dinding.
2 Tekan tombol penggulung kabel untuk menggulung kabel listrik (Gbr. 15). 3 Setelah digunakan,simpanlah alat celah ini di penahannya (Gbr. 9).
4Letakkan alat ini dalam posisi tegak dan masukkan tonjolan pada nozel lantai ke slot penyimpanan pada alat (Gbr. 16).
Cabut selalu steker alat sebelumAnda mengosongkan kantong debu pakai-ulang.
-- Kosongkan kantong debu bila indikator kantong debu penuh telah berubah warna secara permanen, misalnya, sekalipun nozel tidak diletakkan di atas lantai (Gbr. 17).
1 Letakkan jariAnda di bawah tab pelepas (1) dan bukalah wadah kantong debu (2) (Gbr. 18). 2 Tarik tab pengunci kantong debu (1) majukan dan lepaskan kantong debu (2) (Gbr. 19).
3 Untuk mengosongkan kantong debu,guncangkan isinya di atas tempat sampah.
4Tarik tab pengunci ke arah depan (1) dan letakkan kantong debu kosong di antara tonjolan (2) (Gbr. 20).
Catatan:Pastikan tanda panah pada kantong debu menghadap ke atas.
5 Lepaskan tab pengunci untuk mengunci kantong debu pada posisinya.
6 Rapatkan penutupnya (hingga berbunyi‘klik’) (Gbr. 21).
14 Indonesia
Catatan:Anda tidak dapat merapatkan penutupnya jika kantong debu belum dimasukkan.
1 Untuk melepas kisi filter,tekan tab ke bawah (Gbr. 22).
2 Keluarkan filter keluaran udara.Guncanglah isinya di atas tempat sampah (Gbr. 23). 3 Pasang kembali filter keluaran udara (Gbr. 24).
4Untuk memasang kembali kisi filter ke penyedot debu,sejajarkan kedua tonjolan pada kisinya dengan kedua slot pada penyedot debu dan tutuplah kisinya (hingga berbunyi‘klik’) (Gbr. 25).
Jangan sekali-kali menggunakan alat tanpa filter pelindung motor.Ini dapat merusak motor dan memperpendek masa pakai alat.
1 Keluarkan filter pelindung motor dari alat.
2 Bersihkan filter dengan mengguncang isinya di atas tempat sampah.
Ganti kantong debu jika tidak dapat lagi dibersihkan dengan benar. Kantong debu pakai-ulang tersedia dengan nomor servis 9965 0001 6015.
-- Jangan buang alat bersama limbah rumah tangga biasa jika alat sudah tidak bisa dipakai lagi, tetapi serahkan ke tempat pengumpulan barang bekas yang resmi untuk didaur ulang. Dengan melakukan hal ini,Anda ikut membantu melestarikan lingkungan (Gbr. 26).
Jika Anda membutuhkan servis atau informasi atau mengalami masalah, harap kunjungi situs web Philips di www.philips.com atau hubungi Pusat Layanan Konsumen Philips di negara Anda (Anda dapat menemukan nomor teleponnya dalam leaflet garansi internasional). Jika tidak ada Pusat Layanan Konsumen di negara Anda, kunjungi dealer Philips setempat.
Masalah |
Kemungkinan penyebab |
Solusi |
|
|
|
Daya isap tidak |
Pengatur daya isap pada |
Tutuplah pengatur daya isap pada pegangannya. |
memadai |
pegangannya terbuka. |
|
|
Kontrol daya isap elektronik |
Setel kontrol daya isap elektronik ke setelan |
|
disetel ke setelan rendah. |
yang lebih tinggi. |
|
Kantong debu sudah penuh. |
Kosongkan kantong debu pakai-ulang. |
|
Filter pelindung motor dan/ |
Guncanglah filter ini di atas tempat sampah |
|
atau filter saluran udara |
untuk membersihkannya. |
|
sudah kotor. |
|
|
|
Indonesia 15 |
Masalah |
Kemungkinan penyebab |
Solusi |
|
Nozel, pipa atau selang |
Untuk menyingkirkan penghalang tersebut, |
|
tersumbat. |
lepaskan item yang tersumbat dan pasanglah |
|
|
(bila memungkinkan) dengan cara lain. |
|
|
Hidupkan penyedot debu untuk mengisap |
|
|
penghalang agar lepas dari item yang |
|
|
tersumbat. |
