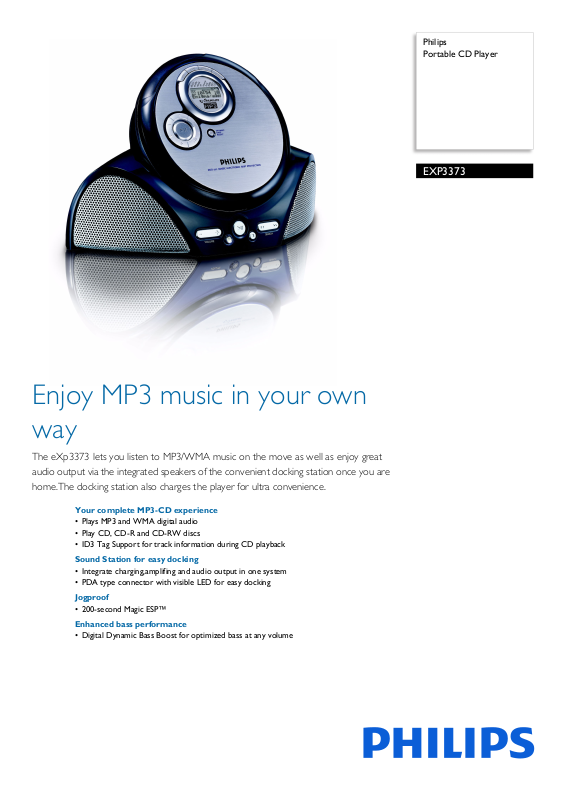

Philips
Portable CD Player
EXP3373
Enjoy MP3 music in your own
way
The eXp3373 lets you listen to MP3/WMA music on the move as well as enjoy great
audio output via the integrated speakers of the convenient docking station once you are
home.The docking station also charges the player for ultra convenience.
Your complete MP3-CD experience
• Plays MP3 and WMA digital audio
• Play CD, CD-R and CD-RW discs
• ID3 Tag Support for track information during CD playback
Sound Station for easy docking
• Integrate charging,amplifing and audio output in one system
• PDA type connector with visible LED for easy docking
Jogproof
• 200-second Magic ESP™
Enhanced bass performance
• Digital Dynamic Bass Boost for optimized bass at any volume
Page 2
Portable CD Player
Magic ESP
EXP3373/15
Specifications
Sound
• Acoustic Feedback
• D/A converter: 1-bit
• Frequency response: 20 - 20 000 Hz
• Output Power: 2 x 5mW RMS(earphone)
• Output power (RMS): 2x1.5 W(Sound Station)
• Signal to noise ratio: > 85dB
• Sound Enhancement: Digital Dynamic Bass Boost
• Total Sound Power (RMS): 3 W
• Volume Control: digital
Audio Playback
• Playback Media: CD, CD-R, CD-RW, MP3-CD,
WMA
• Disc Playback Modes: 50-Track Programmable,
ast Forward/Backward, Hold, Next/Previous
F
Album Search, Next/Previous Track Search,
Repeat one/album/all, Resume Playback from stop,
Shuffle album/all
• Electronic Skip Protection(CD): 45 seconds
• File systems supported: ISO-9660, Jolliet, UDF
• ID3-tag support
• Magic ESP (MP3-CD): 100 seconds
• MP3 bit rates: 32 - 320 kbps
• WMA bit rates: 32 - 192 kbps
Connectivity
• DC in: 4.0 mm, 6.5V(Sound Station)
• Headphone: 3.5 mm
•Line-out: 3,5 mm
Convenience
• Display Type: LCD
• Indications: album name, album number, artis
battery status, Cd functions, DBB, ESP, file
name,
name, sound titles, time, track
Accessories
• AC/DC Adaptor: AY3195(1.2A)
• Batteries: AY3363(Ni-MH rechargable)
• CD-ROM: AY4484(Musicmatch)
• Docking Station: 2x1.5w output Sound Station
• Headphones: SBC HE225(with volumn control)
• Included accessories: User Manual
Dimensions
• Ebox dimensions (W x H x D): 0 x 0 x 0 mm
• Housing: Heat Resistant Body
• Master carton dimensions: 342 x 293 x 270 mm
• Master carton weight: 4 kg
• Master carton quantity: 2
• Packaging dimensions (W x H x D):
8 x 269 x 165 mm
25
• Packaging type: D-box
• Primary component dimensions (W x H x D):
0 x 0 x 0 mm
• Primary component width: 0 mm
• Primary component weight: 0 kg
• Product dimension (WxDxH) inch:
7.5x137.5x23.3mm(CD Player)
13
•Product weight: 0 kg
Power
• Battery Playing Time CD: 10h(2xAA alkaline
batteries)
• Battery Playing Time MP3-CD: 2
batteries)
• Battery Playing time (WMA): 20h(2xAA alkaline
atteries)
b
• Battery type: AA, AAA, LR03, LR6, UM3, UM4
• Kind of Battery: Rechargeable
• Rechargeable
•
0h(2xAA alkaline
Highlights
Plays MP3 & WMA digital audio
Plays MP3 and WMA digital audio
Play CDs, CD-R and CD-RW
Philips is known for making products which are
compatible with many discs available in the market.
This audio system lets you enjoy music from
CD,CD-R and CD-RW. CD-RW (CD-Rewritable
Compatible) means that your audio system can play
both CD-Recordable (CD-R) and CD-Rewritable
(CD-RW) discs. CD-R discs are recordable once and
can be played on any audio CD player while CD-RW
discs can be recorded and rewritten multiple times
and can only be played back on compatible audio CD
players.
ID3 Tag Support
Players with ID3 Tag Support have an LCD screen
that displays a text readout of the artist name and
the title of the track currently being played so you
can easily identify songs on your player. They show
both numerical and text information in an easy-toread format allowing you to conveniently view the
artist name and track title. ID3 Tag Support lets you
quickly and easily identify and navigate through the
large num ber of file s on your M P3-CD or WMA -CD.
Intergrated sound system
Integrate charging,amplifing and audio output in one
system
PDA type connector
PDA type connector with visible LED for easy
docking
200-second Magic ESP™
Magic Electronic Skip Protection™ is a convenient
feature that ensures skip-free music even when your
MP3-CD player is subjected to knocks and jolts
while you are jogging or on the move. Devices with
Magic Electronic Skip Protection™ have an
intelligent electronic buffer that can store different
digital music formats such as MP3, WMA and CDDA.
The buffer adjusts both its contents and laser spin
speeds automatically to guarantee uninterrupted
music listening.
Issue date 2014-02-07
Version: 1.0.2
12 NC: 9073 101 01519
EAN: 87 10895 83842 9
Digital Dynamic Bass Boost
Digital Dynamic Bass Boost is an intelligent bass
booster that delivers maximum bass enhancement at
high volumes without sound distortion and at low
volumes without compromising on bottom-end bass
frequencies. Technologically advanced electronics
constantly monitor volume and bass levels, precisely
calibrating both to prevent sound distortion, thus
producing optimized bass. Digital Dynamic Bass
Boost enables the enjoyment of superb bass
performance - regardless of the chosen volume level.
