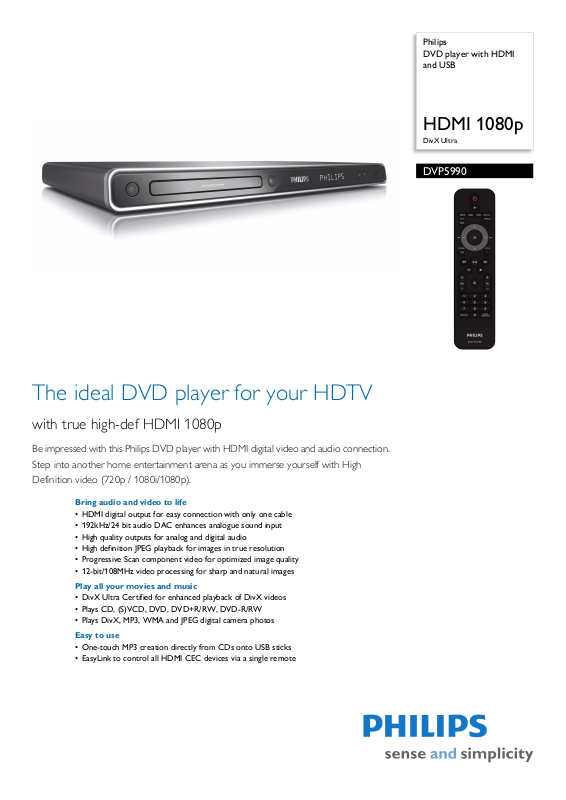

Page 1

Philips DVD player with HDMI and USB

HDMI 1080p

DivX Ultra

DVP5990

The ideal DVD player for your HDTV

with true high-def HDMI 1080p

Be impressed with this Philips DVD player with HDMI digital video and audio connection. Step into another home entertainment arena as you immerse yourself with High Definition video (720p / 1080i/1080p).

Bring audio and video to life

• HDMI digital output for easy connection with only one cable

• 192kHz/24 bit audio DAC enhances analogue sound input

• High quality outputs for analog and digital audio

• High definition JPEG playback for images in true resolution

• Progressive Scan component video for optimized image quality

• 12-bit/108MHz video processing for sharp and natural images

Play all your movies and music

• DivX Ultra Certified for enhanced playback of DivX videos

• Plays CD, (S)VCD, DVD, DVD+R/RW, DVD-R/RW

• Plays DivX, MP3, WMA and JPEG digital camera photos

Easy to use

• One-touch MP3 creation directly from CDs onto USB sticks

• EasyLink to control all HDMI CEC devices via a single remote

Page 2

DVD player with HDMI and USB

HDMI 1080p DivX Ultra

Highlights

DVP5990/12

HDMI for simple AV connection

HDMI stands for High Definition Multimedia Interface. It is a can carry digital HD video as well as digital multichannel audio. By eliminating the conversion to analog signals it delivers perfect picture and sound quality, completely free from noise. HDMI is fully backward-compatible with (Digital Video Interface) DVI.

DivX Ultra Certified

With DivX support, you are able to enjoy D

ivX encoded videos in the comfort of your living room. The DivX media format is an MPEG4-based video compression technology that enables you to save large files like movies, trailers and music videos on media like CD-R/ RW, and DVD recordable discs. DivX Ultra combines DivX playback with great features like integrated subtitles, multiple audio languages, multiple tracks and menus into one convenient file format.

direct digital connection that

192kHz/24 bit audio DAC

192KHz sampling enables you to have an accurate re curves. Together with a 24-bit resolution, more information is captured from the original analogue sound wave form, giving a much richer audio reproduction.

High definition JPEG playback

High definition JPEG playback lets you view your as high as two megapixels. Now you can view your digital pictures in absolute clarity, without loss of quality or detail - and share them with friends and family in the comfort of your living room.

Plays it all

Play virtually any media format you want w

hether they be DivX, MP3s, WMA or JPEGs. Experience the unbeatable convenience of great playability, and the luxury of sharing media files on your TV or home theater system

- in the comfort of your living room.

presentation of the original sound

pictures on your television in resolutions

Progressive Scan

Progressive Scan doubles the vertical resoluti

on of the image resulting in a noticeably sharper picture. Instead of sending a field comprising the odd lines to the screen first, followed by the field with the even lines, both fields are written at one time. A full image is created instantaneously, using the maximum resolution. At such a speed, your eye perceives a sharper picture with no line structure.

EasyLink

EasyLink lets you control multiple devices with o

ne remote. It uses HDMI CEC industrystandard protocol to share functionality between devices through the HDMI cable. With one touch of a button, you can operate all your connected HDMI CEC enabled equipment simultaneously. Functions like standby and play can now be carried out with absolute ease.

Page 3

DVD player with HDMI and USB

HDMI 1080p DivX Ultra

Specifications

DVP5990/12

Picture/Display

• D/A converter: 12 bit, 108 MHz

• Picture enhancement: Progressi (720p, 1080i, 1080p), Video Upscaling(720p, 1080i/ p)

ve scan, High Def

Sound

• D/A converter: 24 bit, 192 kHz

• Signal to noise ratio: > 90

• Distortion and Noise (1kHz): > 65 dB

• Crosstalk (1kHz): > 70 dB

• Dynamic Range (1kHz): > 80 dB

• Sound System: Dolby Digital

• Frequency response: 30-20000 Hz

Video Playback

• Playback Media: CD, CD-R/CD-RW, Video CD/ SVCD, DVD, DivX, DVD+R/+RW, DVD-R/-RW, DVD-Video

• Compression formats: MPE DivX 4.x, DivX 5.x, DivX 6.0, DivX Ultra

• Video disc playback system: PAL, NTSC

G1, MPEG2, DivX 3.11,

Audio Playback

• Playback Media: CD, MP3-CD, MP3-DVD, CD-R/ RW, WMA-CD, Audio CD

• Compression format: Dolby Digital, MP3, PCM, WMA

• MP3 bit rates: 32 - 320 kbps

Still Picture Playback

• Playback Media: DVD+R/+RW, DVD-R/-RW, CDR/RW, Picture CD, Kodak Picture CD

• Picture Compression Format: JPEG

• Picture Enhancement: Flip p Slideshow with MP3 playback, High Definition

hotos, Rotate, Zoom,

Resolution

Multimedia Applications

• Multimedia connections: USB memory class device

• Playback Formats: DivX, MP3, JPEG Still pictures

Connectivity

• Rear Connections: Analog audio Left/Right out, Composite video (CVBS) output, HDMI output, Digital coaxial out, ComponentVideo out Progressive, Scart

Convenience

• Child Protection: Parental Control, Child Lock

• On-Screen Display languages: Danish, Dutch,

glish, Finnish, French, German, Italian,

En Norwegian, Portuguese, Spanish, Swedish, Turkish, Polish

Accessories

• Included accessories: 2 x AAA Batteries, Quick start guide, Remote Control, User Manual, Warranty Leaflet

Dimensions

•Set dimensions (W x H x D): 435 x 38 x 210 mm

• Packaging dimensions (W x H x D):

0 x 82 x 296 mm

• Set weight: 1.4 kg

• Weight incl. Packaging: 0 kg

Power

• Power supply: 50Hz, 230V

• Power consumption: < 12 W

• Standby power consumption: < 1.0 W

•

Issue date 2012-01-20

Version: 1.0.16

12 NC: 8670 000 36074 EAN: 87 12581 38737 2

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.
