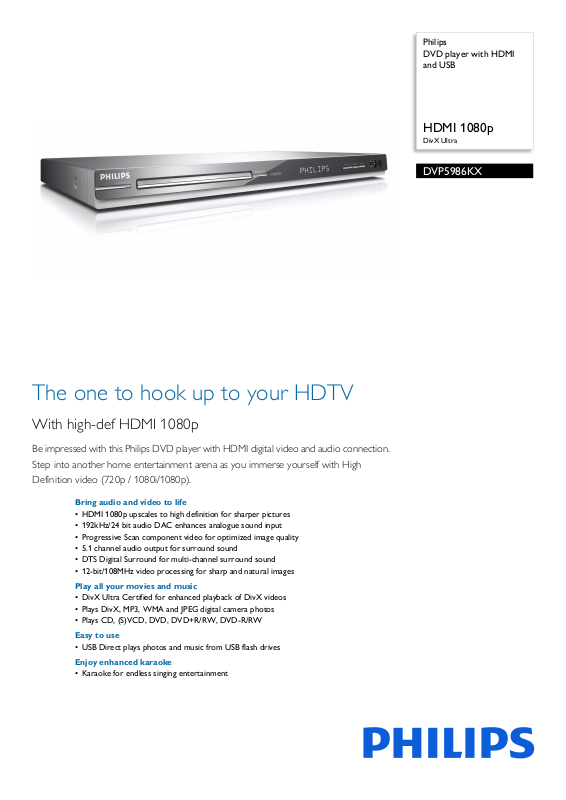

Page 1
Philips
DVD player with HDMI
and USB
HDMI 1080p
DivX Ultra
DVP5986KX
The one to hook up to your HDTV
With high-def HDMI 1080p
Be impressed with this Philips DVD player with HDMI digital video and audio connection.
Step into another home entertainment arena as you immerse yourself with High
Definition video (720p / 1080i/1080p).
Bring audio and video to life
• HDMI 1080p upscales to high definition for sharper pictures
• 192kHz/24 bit audio DAC enhances analogue sound input
• Progressive Scan component video for optimized image quality
• 5.1 channel audio output for surround sound
• DTS Digital Surround for multi-channel surround sound
• 12-bit/108MHz video processing for sharp and natural images
Play all your movies and music
• DivX Ultra Certified for enhanced playback of DivX videos
• Plays DivX, MP3, WMA and JPEG digital camera photos
• Plays CD, (S)VCD, DVD, DVD+R/RW, DVD-R/RW
Easy to use
• USB Direct plays photos and music from USB flash drives
Enjoy enhanced karaoke
• Karaoke for endless singing entertainment
Page 2
DVD player with HDMI and USB
HDMI 1080p DivX Ultra
Highlights
DVP5986KX/51
DivX Ultra Certified
With DivX support, you are able to enjoy
D
ivX encoded videos in the comfort of your
living room. The DivX media format is an
MPEG4-based video compression technology
that enables you to save large files like movies,
trailers and music videos on media like CD-R/
RW, and DVD recordable discs. DivX Ultra
combines DivX playback with great features
like integrated subtitles, multiple audio
languages, multiple tracks and menus into one
convenient file format.
Plays it all
Play virtually any media format you want w
hether they be DivX, MP3s, WMA or JPEGs.
Experience the unbeatable convenience of
great playability, and the luxury of sharing
media files on your TV or home theater system
- in the comfort of your living room.
HDMI 1080p
HDMI 1080p upscaling delivers images that are
cr
ystal clear. Movies in standard definition can
now be enjoyed in true high definition
resolution - ensuring more details and more
true-to-life pictures. Progressive Scan
(represented by "p" in "1080p') eliminates the
line structure prevalent on TV screens, again
ensuring relentlessly sharp images. To top it
off, HDMI makes a direct digital connection
that can carry uncompressed digital HD video
as well as digital multichannel audio, without
conversions to analog - delivering perfect
picture and sound quality, completely free
from noise.
192kHz/24 bit audio DAC
192KHz sampling enables you to have an
accurate re
curves. Together with a 24-bit resolution,
more information is captured from the original
analogue sound wave form, giving a much
richer audio reproduction.
Progressive Scan
Progressive Scan doubles the vertical
resoluti
sharper picture. Instead of sending a field
comprising the odd lines to the screen first,
presentation of the original sound
on of the image resulting in a noticeably
followed by the field with the even lines, both
fields are written at one time. A full image is
created instantaneously, using the maximum
resolution. At such a speed, your eye perceives
a sharper picture with no line structure.
5.1 channel audio output
5.1 channel audio output for surround sound
Karaoke
The Karaoke feature on your DVD player
p
rovides endless entertainment and maximum
audio and singing enjoyment.You can enhance
your performance by adding an ‘echo’ effect to
your voice. The key controls allows you to
choose the optimal key for your personal vocal
range.
USB Direct
Simply plug your device into the USB port on
your Phili
and photos will be played directly from the
device. Now you can share your favorite
moments with family and friends.
ps DVD system. Your digital music
Page 3
DVD player with HDMI and USB
HDMI 1080p DivX Ultra
Specifications
DVP5986KX/51
Picture/Display
• D/A converter: 12 bit, 108 MHz
• Picture enhancement: Progressi
upsampling, High Def (720p, 1080i, 1080p), Smart
Picture, Video upscaling
ve scan, Video
Sound
• D/A converter: 24 bit, 192 kHz
• Frequency response: 30-20000 Hz
• Signal to noise ratio: 90
• Distortion and Noise (1kHz): 65 dB
• Crosstalk (1kHz): 70 dB
• Dynamic Range (1kHz): 80 dB
•Sound System: Dolb
y Digital, DTS
Video Playback
• Playback Media: CD, CD-R/CD-RW, Video CD/
SVCD, DVD, DVD+R/+RW, DVD-R/-RW, DivX,
DVD-Video
• Compression formats: MPE
DivX 4.x, DivX 5.x, DivX 6.0, DivX Ultra
• Video disc playback system: PAL, NTSC
G1, MPEG2, DivX 3.11,
Audio Playback
• Playback Media: CD, MP3-CD, MP3-DVD, WMACD, CD-R/RW, Audio CD
• Compression format: PCM,
WMA, DTS
• MP3 bit rates: 32 - 320 kbps
MP3, Dolby Digital,
Still Picture Playback
• Playback Media: DVD+R/+RW, DVD-R/-RW, CDR/RW, Picture CD, Kodak Picture CD
• Picture Compression Format: JPEG
• Picture Enhancement: Flip p
hotos, Rotate, Zoom,
High Definition Resolution, Slideshow with MP3
playback
Connectivity
• Front / Side connections: Microphone
• Rear Connections: Composite video (CVBS)
utput, Digital coaxial out, ComponentVideo out
o
Progressive, Analog audio Multi-channel out,
HDMI output
Convenience
• Child Protection: Child Lock, Parental Control
• On-Screen Display languages: En
Russian
• Karaoke: MIC volume
glish, Polish,
Power
• Power supply: 230V, 50Hz
• Power consumption: < 12 W
• Standby power consumption: < 0.8 W
Accessories
• Included accessories: Audio/Video cable, Quick
start guide, World Wide Warranty leaflet, Remote
Control, 2 x AAA Batteries, User Manual
Dimensions
•Set dimensions (W x H x D): 435 x 38 x 210 mm
• Packaging dimensions (W x H x D):
0 x 82 x 296 mm
49
Multimedia Applications
• Multimedia connections: USB memory class device
• Playback Formats: DivX, JPEG Still pictures, MP3
•
Issue date 2014-02-10
Version: 1.0.8
12 NC: 8670 000 29784
EAN: 87 12581 33343 0
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
