Philips DVP 5150 User Manual

DVP 5150

DVD Video Player

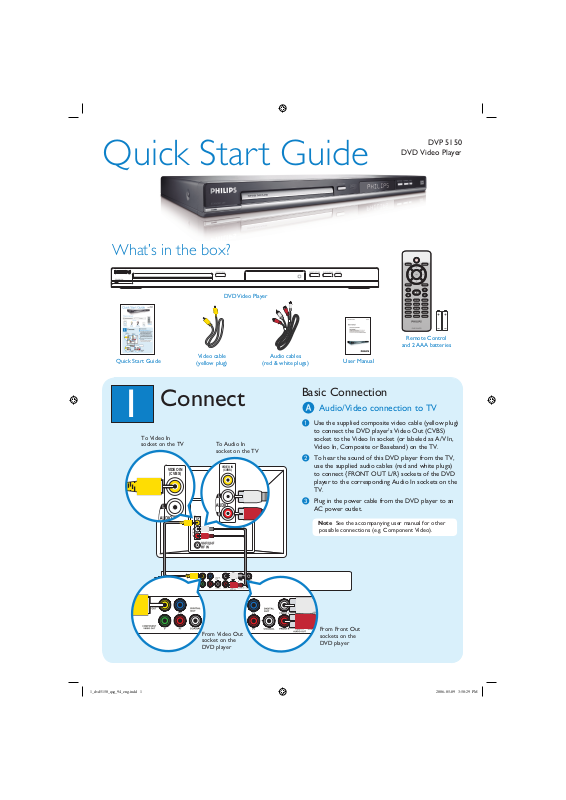

Quick Start Guide

What’s in the box?

DVD Video Player

Remote Control

and 2 AAA batteries

User Manual

Quick Start Guide

Video cable

(yellow plug)

Audio cables

(red & white plugs)

VIDEO IN

(CVBS)

Connect

A Use the supplied composite video cable (yellow plug)

to connect the DVD player’s Video Out (CVBS) socket to the Video In socket (or labeled as A/V In, Video In, Composite or Baseband) on the TV.

B To hear the sound of this DVD player from the TV,

use the supplied audio cables (red and white plugs) to connect {FRONT OUT L/R} sockets of the DVD player to the corresponding Audio In sockets on the TV.

C Plug in the power cable from the DVD player to an

AC power outlet.

Note See the accompanying user manual for other

possible connections (e.g. Component Video).

Basic Connection

Audio/Video connection to TV

To Video In socket on the TV To Audio In

socket on the TV

From Video Out socket on the DVD player

From Front Out sockets on the DVD player

VIDEO IN

(CVBS)

VIDEO IN

(CVBS)

1_dvd5150_qsg_94_eng.indd 11_dvd5150_qsg_94_eng.indd 1 2006-05-09 3:50:29 PM2006-05-09 3:50:29 PM

Enjoy

Need help?

User Manual

For more product information refer to the user manual of the DVD player

Online

Go to www.philips.com/support

SL/0619/94_01

Set up

Finding the viewing channel

A Press 2 on the DVD player’s remote control. B Switch on the TV. C Press SETUP on the DVD player’s remote control.

Go to General Setup Page

Disc Lock

Display Dim

Program

OSD Language

Sleep

DIVX(R) Vod Code

Volum e

- - General Setup Page - -

D Press ‘0’ on the TV’s remote control, then repeatedly

press the Channel Down button until you see the DVD background screen. This is the correct viewing channel for the DVD player.

Note For some TVs, to  nd the correct viewing channel, you can keep pressing the AV or SELECT buttons, If still unable to  nd the correct viewing channel, check the connections again or check your TV’s user manual.

Language preference setup

Use the DVD player’s remote control

to select the desired On-screen language, Audio language, Subtitle language and Menu language

you preferred.

Selecting On-screen language

Press X to select {General Setup Page}.

B Press S

to highlight {OSD Language}, then press X.

Set OSD Language English

Disc Lock

Display Dim

Program

OSD Language ENGLISH

Sleep

DIVX(R) Vod Code

Volum e

- - General Setup Page - -

C Press S

to select a language and press OK.

Note The On-screen language for the setup menu will

remain once you set it, regardless of various disc languages.

Start playback

A Playback may start automatically when a disc has

been loaded in the disc tray.

Note If a disc menu appears on the TV:

1) Press S T W X to scroll through the options

available in the DVD menu.

2) Press PLAY/PAUSE XÅ on the option you

want to start playback

B Press PLAY/PAUSE

XÅ

start playback.

C To stop playback, press

STOP Ç.

D Press DISC MENU to go

back to the disc menu anytime.

Troubleshooting

For more troubleshooting tips, see the user manual.

No power

• Check if the AC power cord is properly connected.

• Press the STANDBY-ON on the front of the DVD player to turn on the power.

No picture

• Check connection to TV and ensure the plugs are  rmly in place.

No sound or distorted sound

• Adjust the volume

• Check audio connections are in the correct input source.

Remote control does not work

• Check the batteries are loaded correctly or replace the batteries with new ones.

• Reduce the distance between the remote control and the DVD player.

• Point the remote control directly toward the IR sensor.
