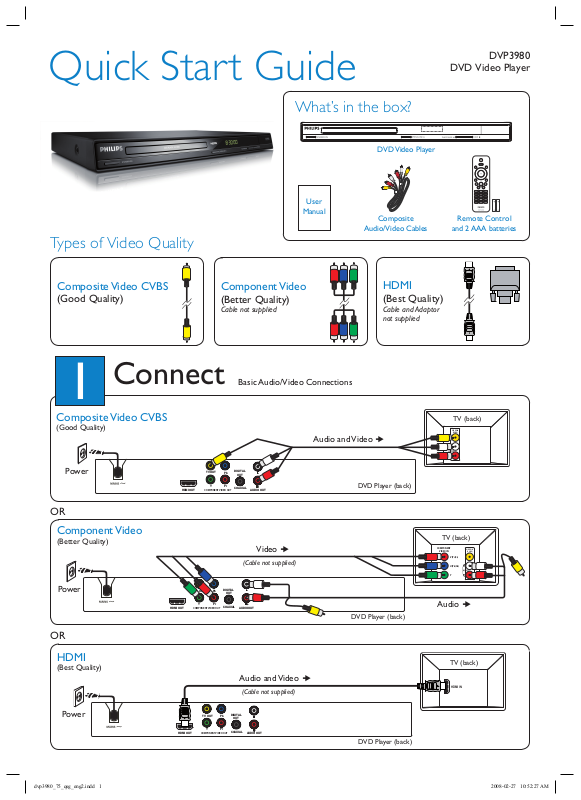

Quick Start Guide
What’s in the box?
User
Manual
Types of Video Quality
DVD Video Player
Composite
Audio/Video Cables
DVP3980
DVD Video Player
Remote Control
and 2 AAA batteries
Composite Video CVBS
(Good Quality)
Connect
1
Composite Video CVBS
(Good Quality)
Power
OR
Component Video
(Better Quality)
Power
HDMI OUT
HDMI OUT
TV OUT
COMPONENT VIDEO OUT
TV OUT
Pb
PrY
COMPONENT VIDEO OUT
Component Video
(Better Quality)
Cable not supplied
Basic Audio/Video Connections
DIGITAL
Pb
OUT
PrY
COAXIAL
AUDIO OUT
Video
x
(Cable not supplied)
DIGITAL
OUT
COAXIAL
AUDIO OU T
Audio and Video
DVD Player (back)
DVD Player (back)
HDMI
(Best Quality)
Cable and Adaptor
not supplied
x
TV (back)
VIDEO IN
(CVBS)
TV (back)
COMPONENT
VIDEO IN
V (Pr/Cr)
U (Pb/Cb)
Y
Audio
x
VIDEO IN
(CVBS)
OR
HDMI
(Best Quality)
Audio and Video
(Cable not supplied)
DIGITAL
Pb
OUT
PrY
COAXIAL
AUDIO OUT
HDMI OUT
TV OUT
COMPONENT VIDEO OUT
Power
dvp3980_75_qsg_eng2.indd 1dvp3980_75_qsg_eng2.indd 1 2008-02-27 10:52:27 AM2008-02-27 10:52:27 AM
x
DVD Player (back)
TV (back)
HDMI IN
Page 2
2
Set up
Enjoy
3
Finding the viewing channel
A
A Press STANDBY ON on this unit to turn it on.
B Turn on the TV. Use the TVs remote control to
select the correct viewing channel.
Note To search for the correct viewing channel,
press the Channel Down button on the TVs remote
control repeatedly (or AV, SELECT,
you see the Video In channel.
Select the display language on the
B
button) until
°
screen
A Press SETUP.
The { General Setup Page } appears.
General Setup Page
Disc Lock
OSD Language
Sleep ENGLISH
Lip Sync
Volume
Auto Standby
DivX(R) VOD Code
B Use ST keys to select { OSD Language } and press
X.
C Use ST keys to select a language and press OK to
confirm. (For Philips ‘EasyLink’ TV, { Auto } must be
selected.)
D Press SETUP to exit.
Note The language set here is only for the menus
that are shown on the TV while operating this unit, not
for the DVD disc menu.
Auto (ENG)
Start disc playback
A
A Playback may start automatically when a disc has
been loaded in the disc tray.
Note If a disc menu appears on the TV, use
STW X keys to navigate in the DVD menu.
B Press
C To stop playback, press
u
to start playback.
.
Troubleshooting
For more troubleshooting tips,
see the user manual.
No power
• Check if the AC power cord is properly connected.
• Press the STANDBY-ON on the front panel of this
unit to turn on the power.
No picture
• Check connection to TV and ensure the plugs are
rmly in place.
No sound or distorted sound
• Check audio connections and make sure that the
connected audio device is turned on.
• For HDMI connection, check if your TVs HDMI or
Digital setting is set to ON. Contact your TV
manufacturer for detailed information.
Remote control does not work
• Check the batteries are loaded correctly or replace
the batteries with new ones.
• Reduce the distance between the remote control
and this unit.
• Point the remote control directly toward the IR
sensor.
There are various setup options (Audio Setup, Video Setup,
Preference Setup) available on this unit. Refer to the user
manual for more information.
Need help?
User Manual
See the user manual that came with your Philips DVD Player.
Online
Register your product and get support at www.philips.com/welcome.
