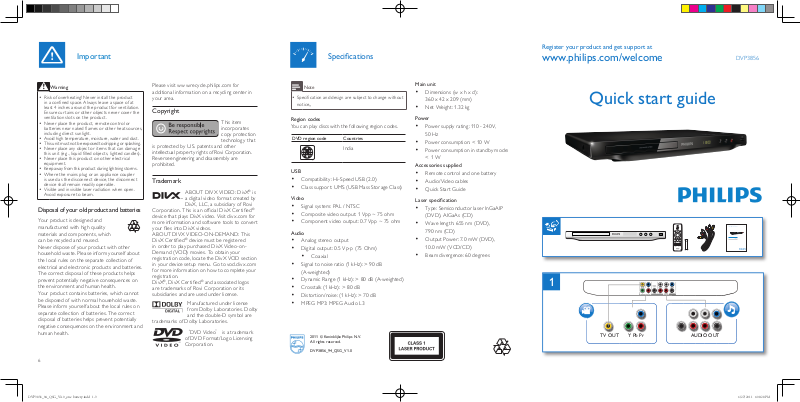

Register your product and get support at
www.philips.com/welcome
Quick start guide
DVP3856
Register your product and get support at
www.philips.com/welcom
e
DVP 3820
EN User manual
TV OUTY Pb PrPb PrTV OUT
Y
AUDIO OUT
O
UTDIO
1
2011 © Koninklijke Philips N.V.
All rights reserved.
DVP3856_94_QSG_V1.0
6
Important
Warning
•
Risk of overheating! Never install the product
in a conned space. Always leave a space of at
least 4 inches around the product for ventilation.
Ensure cur tains or other objects never cover the
ventilation slots on the product.
Never place the product, remote control or
•
batteries near naked ames or other heat sources,
including direct sunlight.
Avoid high temperature, mois ture, water and dust.
•
This unit must not be exposed to dripping or splashing. •
Never place any object or items that can damage •
this unit (e.g., liquid lled objects, lighted candles).
Never place this product on other electrical
•
equipment.
Keep away from this product during lightning storms.
•
Where the mains plug or an appliance coupler •
is used as the disconnect device, the disconnect
device shall remain readily operable.
Visible and invisible laser radiation when open.
•
Avoid exposure to beam.
Disposal of your old product and batteries
Your product is designed and
manufactured with high quality
materials and components, which
can be recycled and reused.
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products and batteries.
The correct
disposal of these products helps
prevent potentially negative consequences on
the environment and human health.
Your product contains batteries, which cannot
be disposed of with normal household waste.
Please inform yourself about the local rules on
separate collection of batteries. The correct
disposal of batteries helps prevent potentially
negative consequences on the environment and
human health
.
Note
•
Specication and design are subject to change without
notice。
Region codes
You can play discs with the following region codes.
DVD region code Countries
India
USB
Compatibility: Hi-Speed USB (2.0)
•
Class suppor t: UMS (USB Mass Storage Class)•
Video
Signal system: PAL / NTSC
•
Composite video output: 1 Vpp ~ 75 ohm•
Component video output: 0.7 Vpp ~ 75 ohm•
Audio
Analog stereo output
•
Digital output: 0.5 Vp-p (75 Ohm)•
Coaxial•
Signal to noise ratio (1 kHz): > 90 dB •
(A-weighted)
Dynamic Range (1 kHz): > 80 dB (A-weighted)
•
Crosstalk (1 kHz): > 80 dB•
Distortion/noise: (1 kHz): > 70 dB•
MPEG MP3: MPEG Audio L3•
Specications
Main unit
Dimensions (w x h x d):
•
360 x 42 x 209 (mm)
Net Weight: 1.32 kg
•
Power
Power supply rating: 110 - 240V,
•
50 Hz
Power consumption: < 10 W
•
Power consumption in standby mode: •
< 1 W
Accessories supplied
Remote control and one battery
•
Audio/Video cables•
Quick Start Guide•
Laser specication
Type: Semiconductor laser InGaAIP
•
(DVD), AIGaAs (CD)
Wave length: 655 nm (DVD),
•
790 nm (CD)
Output Power: 7.0 mW (DVD),
•
10.0 mW (VCD/CD)
Beam divergence:
60 degrees•
Please visit www.recycle.philips.com for
additional information on a recycling center in
your area.
Copyright
This item
incorporates
copy protection
technology that
is protected by U.S. patents and other
intellectual property rights of Rovi Corporation.
Reverse engineering and disassembly are
prohibited.
Trademark
ABOUT DIVX VIDEO: DivX® is
a digital video format created by
DivX, LLC, a subsidiary of Rovi
Corporation. This is an ofcial DivX Cer tied
®
device that plays DivX video. Visit divx.com for
more information and software tools to conver t
your les into DivX videos.
ABOUT DIVX VIDEO-ON-DEMAND: This
DivX Cer tied
®
device must be registered
in order to play purchased DivX Video-onDemand (VOD) movies.
To obtain your
registration code, locate the DivX VOD section
in your device setup menu. Go to vod.divx.com
for more information on how to complete your
registration.
DivX
®
, DivX Cer tied® and associated logos
are trademarks of Rovi Corporation or its
subsidiaries and are used under license.
Manufactured under license
from Dolby Laboratories. Dolby
and the double-D symbol are
trademarks of Dolby Laboratories.
‘DVD Video’ is a trademark
of DVD Format/Logo Licensing
Corporation.
DVP3856_94_QSG_V4.0_one battery.indd 1-3 6/27/2011 6:08:28 PM
Page 2

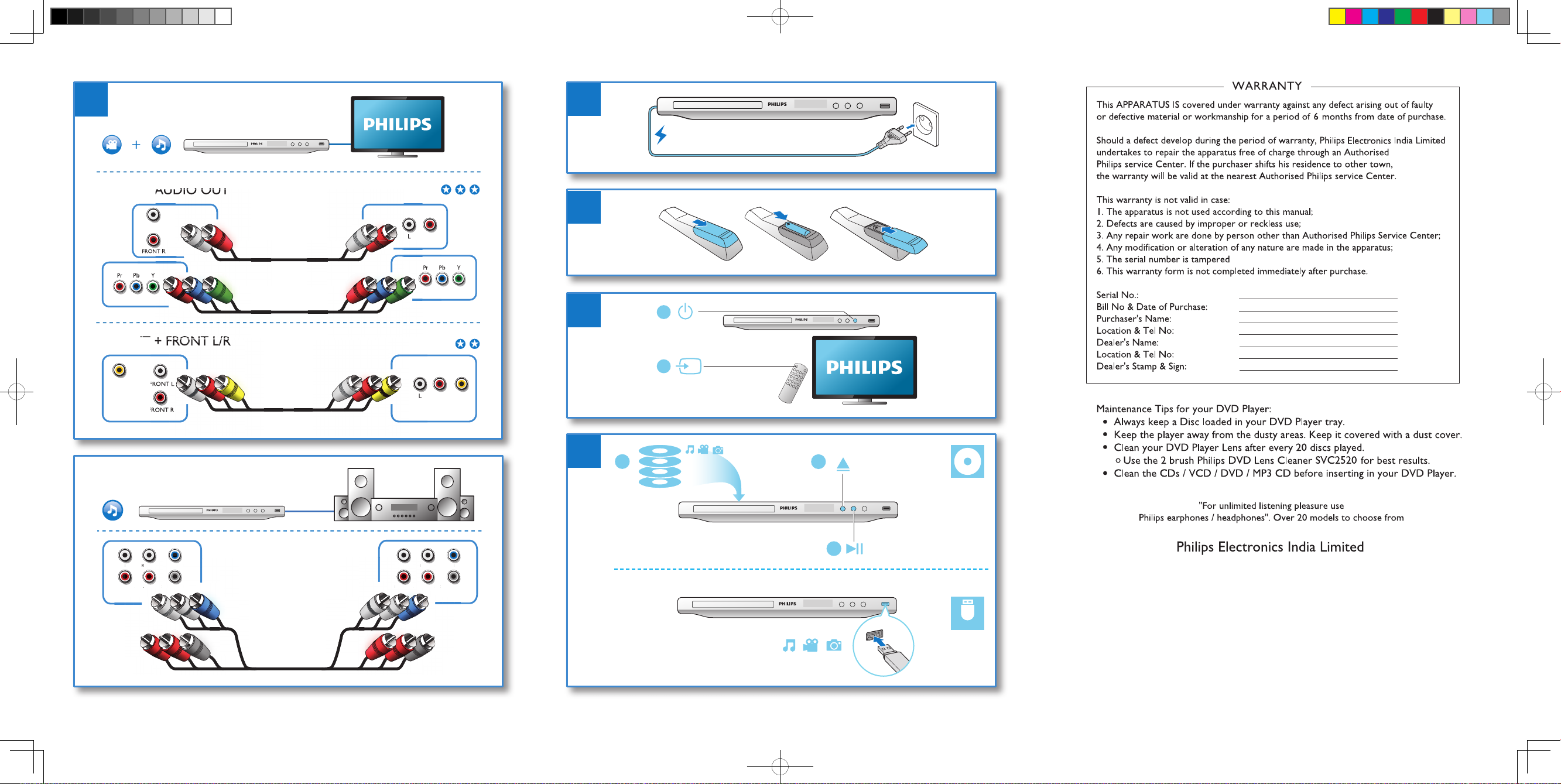

Pr Pb Y + AUDIO OUT
TV OUT + FRONT L/R
FRONT
R
L R
L R VIDEO
FRONT L
FRONT R
TV OUT
FRONT L
DVD
VCD
CD
1
2
3
SOURCE
TV
1
2
2
4
5
6
3
For any sales or service related queries:
Visit us on web at www.philips.com/support or
Call us on Te l No. 1860-180-1111
1800-102-2929
“standard call rates apply”
Email: [email protected]
USB
FRONT L
FRONT R
REAR L
REAR R
CENTER
SUBWOOFER
FRONT L
FRONT R
REAR L
REAR R
CENTER
SUBWOOFER
NT
L
T
R
REAR R
S
C
ENTER
UBWOOFER
C
EN
S
UBW
O
REAR R
FRONT
LFRO
NT
R
DVP3856_94_QSG_V4.0_one battery.indd 4-6 6/27/2011 6:08:51 PM
