Page 1
Register your product and get support at
www.philips.com/welcome
DVP3620
DVP3621
User manual
Page 2
Before you connect this DVD player, read and understand all accompanying instructions.
2
Page 3
R t d t d t t t
TVOUT
Y
C
O
A
O
UT
A
wwwph lps com/wecome
DV3 20
1
2 x AAA
TV OUT
Y Pb Pr
N U l
C AXIAL
AUDIO OUT
3
Page 4
2
Pr Pb Y + AUDIO OUT
L R L R
TV OUT + AUDIO OUT
V OUT
L R V OUT
4
L R VIDEO
Page 5
3
2 x AAA
4
DVP3621 DVP3620
5
2
SOURCE
TV
5
Page 6
6
12
DVD
VCD
CD
MP3 / JPEG
USB
3
MP3
USB
Disc
Create
Setup
4

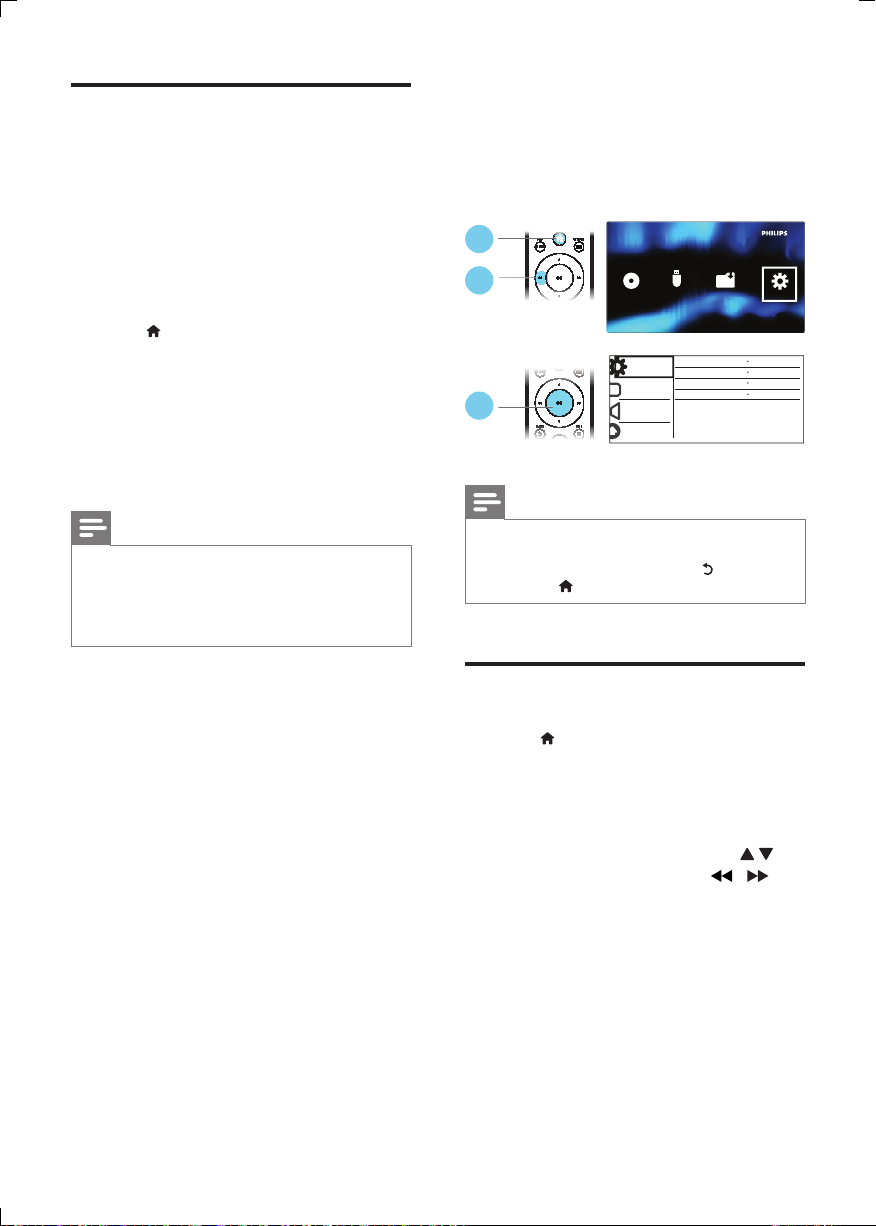

1
2
MP3
USB
Disc
Create
Setup
3
6
Page 7
Contents
1 Hookup and play 2-6
2 Use your DVD player 8
Basic play control 8
Video options 9
Play a musical slideshow 9
Repeat play 9
Skip play 9
Record audio les from CD to USB 10
3 Change settings 10
General (sleep, standby...) 10
Picture 11
Sound 11
Preference (languages, parental
control...) 11
4 Software update 12
5 Specications 13
6 Troubleshooting 14
7 Safety and important notice 15
7EN
Page 8
2 Use your DVD
During play, press the following buttons to
control the player.
player
Congratulations on your purchase, and
welcome to Philips! To fully benet from the
support that Philips offers, register your product
at www.philips.com/welcome.
Basic play control

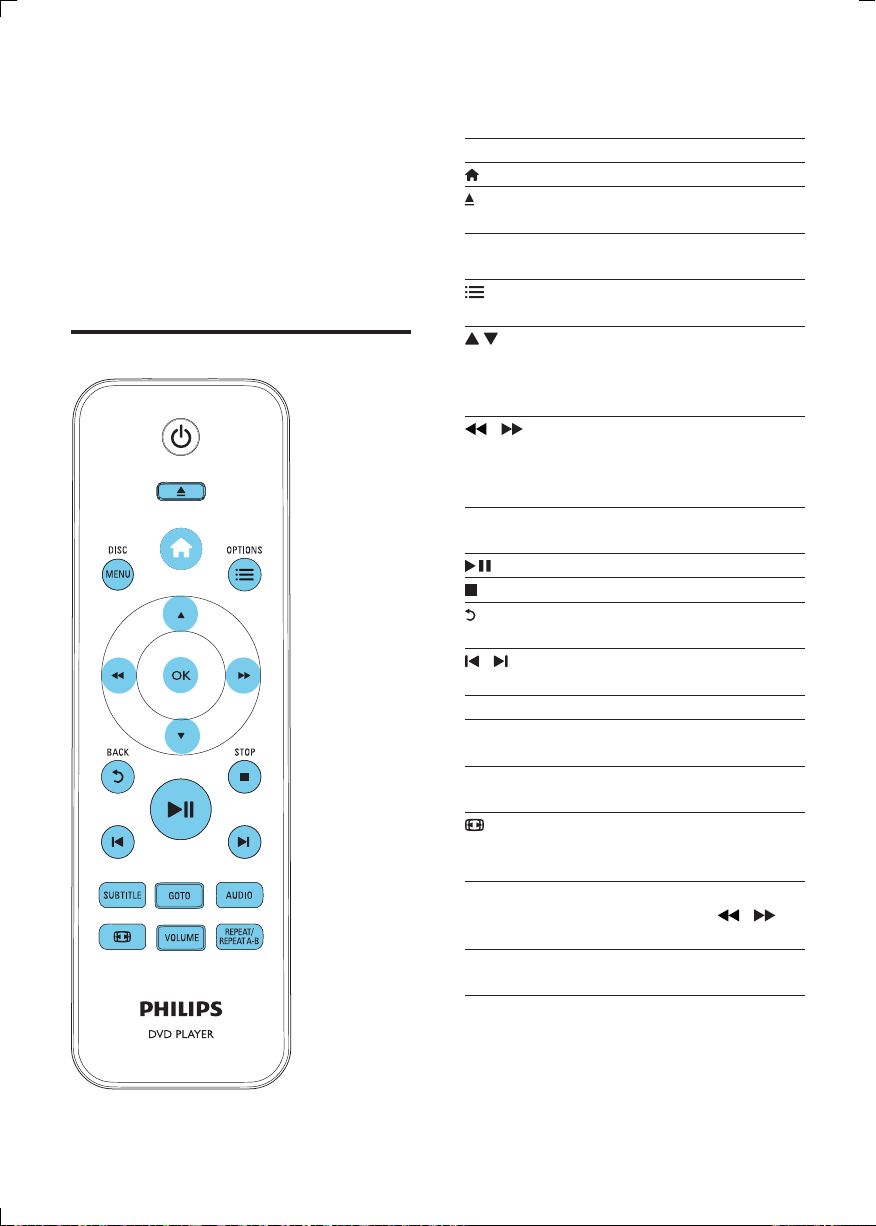

Button Action
Access the home menu.
Open or close the disc
compartment.
DISC MENU Access or exit the disc
menu.
OPTIONS Access more options
during video play.
Navigate the menus.
Slow forward or backward.
Press repeatedly to change
a search speed.
/ Navigate the menus.
Fast forward or backward.
Press repeatedly to change
a search speed.
OK Conrm a selection or
entry.
Start, pause or resume play.
STOP Stop play.
BACK Return to a previous
display menu.
/ Skip to the previous or
next track, chapter or le.
SUBTITLE Select a subtitle language.
GOTO Skip to a title, a chapter or
a track.
AUDIO Select an audio language or
channel.
Fit the picture display to
the TV screen.
Zoom the picture in or out.
VOLUME Activate volume control,
REPEAT/REPEAT
A-B
and then press
change a volume level.
Select a repeat play option.
/ to
8 EN
Page 9
Video options
Repeat play
During video play, press OPTIONS to
access the following options.
• [Info]: Display the current play information.
• [PBC]: Display or skip the content menu
for VCD and SVCD.
• [Aspect ratio]: Select a picture display
format to t the TV screen.
• [Volume]: Change a volume level.
• [Angle]: Select a camera angle from which
video is viewed.
Play a musical slideshow
Play music and pictures simultaneously to create
a musical slideshow.
1 From a disc or connected USB storage
device, play a music le.
2 Press to navigate to the picture les.
3 Select a picture from the same disc or
USB, and press OK to start slideshow.
4 Press to stop slideshow.
5 Press again to stop music play.
Control photo play
During a photo slideshow, use the remote
control to control the play.
Button Action
Rotate a picture horizontally/
vertically.
/ Rotate a picture anti-clockwise/
clockwise.
OPTIONS
OK Start or resume a play.
Access to select [Color] to
display a picture in color or black
and white.
Access to select [Photo preview]
to display pictures in thumbnail.
Zoom in or out of a photo.
Play pauses in zoom mode.
Stop a play.
During play, press REPEAT/REPEAT A-B
repeatedly to select a repeat play option.
• Repeat the current title, chapter, or track.
• Repeat all the contents on a disc or a USB
storage device.
• Repeat play for a specic section.
To Repeatplayforaspecicsection
1 Press REPEAT/REPEAT A-B repeatedly to
select
as a start point.
2 Press REPEAT/REPEAT A-B again to select
as an end point.
» The repeat play of the marked section
starts.
3 To cancel repeat play, press REPEAT/
REPEAT A-B until
Note
Repeat play of the marked section is only possible
•
within a title or track.
is displayed.
Skip play
You can skip play to a specic title, chapter or
track.
1 During play, press GOTO.
» An input eld bar is displayed, and "0"
blinks.
2 Press to select a digit as a title,
chapter, or track number.
3 After a digit is selected, press / to
change a digit position.
4 If necessar y, repeat step 2 and 3 to
complete the input of a title, chapter, or
track number.
5 Press OK.
» The play skips to the selected title,
chapter or track.
9EN
Page 10
RecordaudiolesfromCD
to USB
3 Change settings
You can record audio les from an audio CD to
a USB storage device. Audio les are recorded
in .mp3 format.
1 Connect a USB storage device to this
player.
2 Load a disc, and start disc play.
3 Press , and select [Create MP3], and then
press OK.
4 Follow the on-screen instructions to
complete an recording.
» A new folder is automatically created
in the USB storage device to store all
the recorded MP3 les.
Note
During recording, do not press any button.
•
• DTS CDs and copy-protected CDs cannot be
converted.
• Write-protected or password-protected USB devices
cannot be used to store MP3 les.
This section helps you change the settings of
this player.
1
2
3
Note
You cannot change a menu option that is grayed out.
•
• To access [Preferences], stop the disc play.
• To return to the previous menu, press . To exit the
menu, press
Disc
General
Video
Audio
Preference
.
MP3
USB
Crea e
Disc Lock
OSD Language English
Sleep Timer
Auto Standby
Unlock
Off
On
Setup
General (sleep, standby...)
1
Press .
2 Select [Setup] > [General] to access the
general setup options.
• [Disc Lock]: Lock or unlock a disc for
play. To play a locked disc, you need
to input your password: press
to enter a digit, and press
change a digit position. The default
password is "136900".
• [OSD Language]: Select a language for
on-screen menu.
• [Sleep Timer]: Set a period of time for
this player to switch automatically to
standby mode from play.
• [Auto Standby]: Enable or disable auto
standby. If enabled, this player switches
automatically to standby after 15
/ to
10 EN
Page 11
minutes of inactivity (for example, in
pause or stop mode).
1
Press .
2 Select [Setup] > [Video] to access the
video setup options.
• [TV System]: Select a TV system that
matches your TV. By default, this setting
matches the common TVs in your
country.
• [Aspect ratio]: Select a picture display
format to t the TV screen.
• [Progressive]: Turn on or off the
progressive scan mode. If a progressive
scan TV is connected to this player,
turn on the progressive scan mode.
• [Picture Setting]: Select a predened
color setting, or customize a setting.
• [Closed Caption]: Enable this feature
to show the sound effects in subtitles.
Applicable only when both a disc and a
TV support this feature.
Note
To achieve progressive scan pictures, make sure that
•
your TV suppor ts the progressive scan feature, and
your TV is connected to this player through the Y/Pb/
Pr connectors.
connected through the COAXIAL
connector.
• [Digital Output] - Select a type
of digital output: [Off] - Disable
digital output; [All] - Support
multi-channel audio formats;
[PCM Only] - Downmix to two-
channel audio signal.
• [LPCM Output] - Select a LPCM
(Linear Pulse Code Modulation)
output sampling rate. The higher
the sampling rate, the better the
sound quality. [LPCM Output]
is enabled only when [PCM
Only] is selected under [Digital
Output].
• [Volume]: Change a volume level.
• [Sound Mode]: Select a preset sound
effect.
• [Night Mode]: Select quiet or full
dynamic sound. Night mode decreases
the volume of loud sound and
increases the volume of soft sound
(such as speech).
Note
Night mode is only available for Dolby encoded DVD
•
discs.
Preference (languages,
parental control...)
Sound
1
Press .
2 Select [Setup] > [Audio] to access the
audio setup options.
• [Analogue Output]: Select an audio
format for sound output when this
player is connected through the
AUDIO OUT L/R connectors.
• [Digital Audio]: Select an audio format
for sound output when this player is
1
Press .
2 Select [Setup] > [Preferences] to access
the preference setup options.
• [Audio]: Select an audio language for
video.
• [Subtitle]: Select a subtitle language for
video.
• [Disc Menu]: Select a menu language
for a video disc.
• [Parental Control]: Restrict access
to discs that are encoded with
11EN
Page 12
ratings. Input "136900" to access the
restriction options: when the password
eld is highlighted, press OK to enter
an input stage, press
digit and press
digit position.
• [PBC]: Display or skip the content
menu for VCD and SVCD.
• [Password]: Set or change a password
to play a restricted disc. Input "136900"
if you do not have a password or if you
have forgotten your password.
• [Version Info]: Display the software
version for this player.
• [Default]: Reset all settings to the
factory default, except for the settings
for [Disc Lock], [Parental Control]
and [Password].
Note
If your preferred language is not available for disc
•
language, audio or subtitle, you can select [Others]
from the menu options and input 4-digit language code
which can be found at the back of this user manual.
• The rating levels are country-dependent. To allow all
discs to be played, select [8 Adult].
to select a
/ to change a
4 Software update
Note
Power supply must not be interrupted during software
•
update.
To check for updates, compare the current
software version of this player with the latest
software version (if available) at the Philips
website.
1 Press .
2 Select [Setup] > [Preferences] > [Version
Info], and then press OK.
3 Write down the model name and the
software version number.
4 Visit www.philips.com/support to check for
the latest software version, using the model
name and software version number.
5 Refer to the upgrade instructions given
on the website to complete the software
update.
12 EN
Page 13
5 Specifications
Note
Specications are subject to change without notice
•
Region code
This player can play discs with the following
region code.
DVD region code Countries
Latin America
Playable media
• DVD, DVD-Video, VCD, SVCD, Audio CD
• DVD+R/+RW, DVD-R/-RW, DVD+R/-R
DL (Dual Layer), CD-R/-RW (maximum
299 folders and 648 les)
• USB storage device
File format
• Video: MPEG 1, MPEG 2
• Audio: .mp3, .wma
• Picture: jpg, jpeg
USB
• Compatibility: Hi-Speed USB (2.0)
• Class support: USB Mass Storage Class
• File system: FAT16, FAT32
• Maximum number of albums/folders: 299
• Maximum number of tracks/titles: 648
• Support USB HDD (Hard Disc Drive): an
external power source may be needed
Video
• Signal system: PAL, NTSC
• Composite video output: 1 Vp-p (75 Ohm)
• Component video output: 0.7 Vp-p
(75 Ohm)
Audio
• 2-channel analog output
• Audio Front L&R : 2 Vrms (47k Ohm)
• Digital output: 0.5 Vp-p (75 Ohm)
• Coaxial
• Sampling frequency:
• MP3: 22.05 kHz, 24 kHz, 32 kHz,
44.1 kHz 48 kHz
• WMA: 44.1 kHz, 48 kHz
• Constant bit rate:
• MP3: 8 kbps - 320 kbps
• WMA: 32 kbps - 192 kbps
Main unit
• Dimensions (W x H x D): 310 x 39 x
203 (mm)
• Net Weight: 1.35 kg
Power
• Power supply rating: AC 110-240V~,
50/60 Hz
• Power consumption: 10 W
• Power consumption in standby mode:
0.5 W
Accessories supplied
• Remote control and 2 batteries
• User manual
• AV cables
Laserspecication
• Type: Semiconductor laser InGaAIP (DVD),
AIGaAs (CD)
• Wave length: 658 nm (DVD), 790 nm
(CD)
• Output Power: 7.0 mW (DVD), 10.0 mW
(VCD/CD)
• Beam divergence: 60 degrees
13EN
Page 14
6 Troubleshooting
Warning
•
Risk of electric shock. Never remove the casing of the
player.
To keep the warranty valid, never try to repair
the player yourself.
If you have problems using this player, check the
following points before you request service. If
you still have a problem, register your player and
get support at www.philips.com/support.
If you contact Philips, you will be asked for the
model and serial number of this player. The
model number and serial number are on the
back of this player. Write the numbers here:
Model No. _____________________________
Serial No. _____________________________
No picture.
• Refer to the TV user manual for how to
select the correct video input channel.
• If you have turned on the progressive scan
or changed a TV system setting, switch
back to the default setting: 1) Press
open the disc compartment. 2) Press
DISC MENU (for progressive scan) or
SUBTITLE (for TV system).
No sound output from the TV.
• Make sure that the audio cables are
correctly connected between this player
and the TV.
Disc cannot be read.
• Make sure that this player supports the
disc (see "Specications" > "Playable
media").
• For a recorded disc, make sure that the
disc is nalized.
A USB storage device cannot be read.
• Make sure that the format of the USB
storage device is compatible with this
player (see "Specications" > "USB").
to
• Make sure that the le system on the USB
storage device is supported by this player
(see "Specications" > "USB").
Files cannot be displayed or read.
• Make sure that the number of les or
folders does not exceed the supported
limit of this player (maximum 648 les or
299 folders).
• Make sure that this player supports these
les (see "Specications" > "File format").
14 EN
Page 15
7 Safety and
important
notice
Read and understand all instructions before
you use this DVD player. If damage is caused by
failure to follow the instructions, the warranty
does not apply.
Safety
Risk of electric shock!
• Never expose the product and accessories
to rain or water. Never place liquid
containers, such as vases, near the product.
If liquids are split on or into the product,
disconnect it from the power outlet
immediately. Contact Philips Consumer
Care to have the product checked before
use.
• Never place the product and accessories
near naked ames or other heat sources,
including direct sunlight.
• Never insert objects into the ventilation
slots or other openings on the product.
• Where the mains plug or an appliance
coupler is used as the disconnect device, it
shall remain readily operable.
• Disconnect the product from the power
outlet before lightning storms.
• When you disconnect the power cord,
always pull the plug, never the cable.
Riskofshortcircuitorre!
• Before you connect the product to the
power outlet, make sure that the power
voltage matches the value printed on the
back of the product.
• Avoid applying pressure on the power
plugs. Loose power plugs can cause arcing
or re.
Risk of injury or damage to the product!
• To avoid exposure to laser radiation, do
not disassemble.
• Do not touch the optical lens inside the
disc compartment.
• Never place the product or any objects
on power cords or on other electrical
equipment.
• If the product is transported in
temperatures below 5°C, unpack the
product and wait until its temperature
matches room temperature before
connecting it to the power outlet.
Risk of overheating!
• Never install this product in a conned
space. Always leave a space of at least four
inches around the product for ventilation.
Make sure that curtains or other objects
never cover the ventilation slots on the
product.
Risk of contamination!
• Remove the batteries if at or if the
remote control is not to be used for a long
time.
• Batteries contain chemical substances. They
should be disposed of properly.
Risk of swallowing batteries!
• The product/remote control may contain a
coin type battery, which can be swallowed.
Keep the battery out of reach of children
at all times!
Care for your product
• Do not insert any objects other than discs
into the disc compartment.
• Do not insert warped or cracked discs into
the disc compartment.
• Remove discs from the disc compartment
if you are not using the product for an
extended period of time.
• Only use microber cloth to clean the
product.
15EN
Page 16
Care of the environment
Trademarks
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products and batteries.
The correct disposal of these products helps
prevent potentially negative consequences on
the environment and human health.
Your product contains batteries, which cannot
be disposed of with normal household waste.
Please inform yourself about the local rules on
separate collection of batteries. The correct
disposal of batteries helps prevent potentially
negative consequences on the environment and
human health.
Please visit www.recycle.philips.com for
additional information on a recycling center in
your area.
Copyright
Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol
are trademarks of Dolby Laboratories.
'DVD Video' is a trademark of DVD Format/
Logo Licensing Corporation.
This item incorporates copy protection
technology that is protected by U S. patents
and other intellectual property rights of
Rovi Corporation. Reverse engineering and
disassembly are prohibited.
16 EN
Page 17
Abkhazian 6566
Language Code
Afar 6565
Afrikaans 6570
Amharic 6577
Arabic 6582
Armenian 7289
Assamese 6583
Avestan 6569
Aymara 6589
Azerhaijani 6590
Bahasa Melayu 7783
Bashkir 6665
Belarusian 6669
Bengali 6678
Bihari 6672
Bislama 6673
Bokmål, Norwegian 7866
Bosanski 6683
Brezhoneg 6682
Bulgarian 6671
Burmese 7789
Castellano, Español 6983
Catalán 6765
Chamorro 6772
Chechen 6769
Chewa; Chichewa; Nyanja 7889
9072
Ё᭛
Chuang; Zhuang 9065
Church Slavic; Slavonic 6785
Chuvash 6786
Corsican 6779
Česky 6783
Dansk 6865
Deutsch 6869
Dzongkha 6890
English 6978
Esperanto 6979
Estonian 6984
Euskara 6985
Faroese 7079
Français 7082
Frysk 7089
Fijian 7074
Gaelic; Scottish Gaelic 7168
Gallegan 7176
Georgian 7565
Gikuyu; Kikuyu 7573
Guarani 7178
Gujarati 7185
Hausa 7265
Herero 7290
Hindi 7273
Hiri Motu 7279
Hrwatski 6779
Ido 7379
Interlingua (International)7365
Interlingue 7365
Inuktitut 7385
6976
Inupiaq 7375
Irish 7165
Íslenska 7383
Italiano 7384
Ivrit 7269
Japanese 7465
Javanese 7486
Kalaallisut 7576
Kannada 7578
Kashmiri 7583
Kazakh 7575
Kernewek 7587
Khmer 7577
Kinyarwanda 8287
Kirghiz 7589
Komi 7586
Korean 7579
Kuanyama; Kwanyama 7574
Kurdish 7585
Lao 7679
Latina 7665
Latvian 7686
Letzeburgesch; 7666
Limburgan; Limburger 7673
Lingala 7678
Lithuanian 7684
Luxembourgish; 7666
Macedonian 7775
Malagasy 7771
Magyar 7285
Malayalam 7776
Maltese 7784
Manx 7186
Maori 7773
Marathi 7782
Marshallese 7772
Moldavian 7779
Mongolian 7778
Nauru 7865
Navaho; Navajo 7886
Ndebele, North 7868
Ndebele, South 7882
Ndonga 7871
Nederlands 7876
Nepali 7869
Norsk 7879
Northern Sami 8369
North Ndebele 7868
Norwegian Nynorsk; 7878
Occitan; Provencal 7967
Old Bulgarian; Old Slavonic 6785
Oriya 7982
Oromo 7977
Ossetian; Ossetic 7983
Pali 8073
Panjabi 8065
Persian 7065
Polski 8076
Português 8084
Pushto 8083
Russian 8285
Quechua 8185
Raeto-Romance 8277
Romanian 8279
Rundi 8278
Samoan 8377
Sango 8371
Sanskrit 8365
Sardinian 8367
Serbian 8382
Shona 8378
Shqip 8381
Sindhi 8368
Sinhalese 8373
Slovensky 8373
Slovenian 8376
Somali 8379
Sotho; Southern 8384
South Ndebele 7882
Sundanese 8385
Suomi 7073
Swahili 8387
Swati 8383
Svenska 8386
Tagalog 8476
Tahitian 8489
Tajik 8471
Tamil 8465
Tatar 8484
Telugu 8469
Thai 8472
Tibetan 6679
Tigrinya 8473
To nga (Tonga Islands) 8479
Tsonga 8483
Tswana 8478
Türkçe 8482
Turkmen 8475
Tw i 8487
Uighur 8571
Ukrainian 8575
Urdu 8582
Uzbek 8590
Vietnamese 8673
Volapuk 8679
Walloon 8765
Welsh 6789
Wolof 8779
Xhosa 8872
Yiddish 8973
Yoruba 8979
Zulu 9085
17EN
Page 18
Specifications are subject to change without notice
© 2012 Koninklijke Philips Electronics N.V.
All rights reserved.
DVP3620/3621_55_UM_V1.0
Loading...
