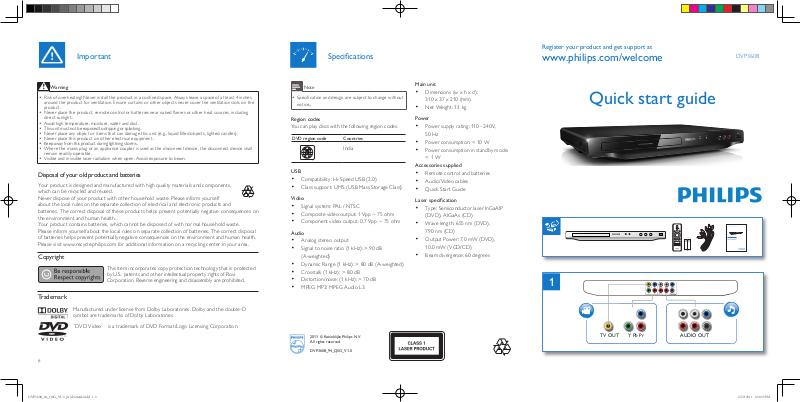

Page 1
TV OUTY Pb PrPb PrTV OUT
Y
AUDIO OUT
A
DIO OU
T
Register your product and get support at
www.philips.com/welcom
e
DVP 3820
EN User manual
Register your product and get support at
www.philips.com/welcome
Quick start guide
DVP3608
1
2011 © Koninklijke Philips N.V.
All rights reserved.
DVP3608_94_QSG_V1.0
6
Important
Note
•
Specication and design are subject to change without
notice。
Region codes
You can play discs with the following region codes.
DVD region code Countries
India
USB
Compatibility: Hi-Speed USB (2.0)
•
Class suppor t: UMS (USB Mass Storage Class)•
Video
Signal system: PAL / NTSC
•
Composite video output: 1 Vpp ~ 75 ohm•
Component video output: 0.7 Vpp ~ 75 ohm•
Audio
Analog stereo output
•
Signal to noise ratio (1 kHz): > 90 dB •
(A-weighted)
Dynamic Range (1 kHz): > 80 dB (A-weighted)
•
Crosstalk (1 kHz): > 80 dB•
Distortion/noise: (1 kHz): > 70 dB•
MPEG MP3: MPEG Audio L3•
Specications
Main unit
Dimensions (w x h x d):
•
310 x 37 x 210 (mm)
Net Weight: 1.1 kg
•
Power
Power supply rating: 110 - 240V,
•
50 Hz
Power consumption: < 10 W
•
Power consumption in standby mode: •
< 1 W
Accessories supplied
Remote control and batteries
•
Audio/Video cables•
Quick Start Guide•
Laser specication
Type: Semiconductor laser InGaAIP
•
(DVD), AIGaAs (CD)
Wave length: 655 nm (DVD),
•
790 nm (CD)
Output Power: 7.0 mW (DVD),
•
10.0 mW (VCD/CD)
Beam divergence: 60
degrees•
Warning
•
Risk of overheating! Never install the product in a conned space. Always leave a space of at least 4 inches
around the product for ventilation. Ensure curtains or other objects never cover the ventilation slots on the
product.
Never place the product, remote control or batteries near naked ames or other heat sources, including
•
direct sunlight.
Avoid high temperature, moisture, water and dust.
•
This unit must not be exposed to dripping or splashing. •
Never place any object or items that can damage this unit (e.g., liquid lled objects, lighted candles). •
Never place this product on other electrical equipment. •
Keep away from this product during lightning storms. •
Where the mains plug or an appliance coupler is used as the disconnect device, the disconnec t device shall •
remain readily operable.
Visible and invisible laser radiation when open. Avoid exposure to beam.
•
Disposal of your old product and batteries
Your product is designed and manufactured with high quality materials and components,
which can be recycled and reused.
Never dispose of your product with other household waste. Please inform yourself
about the local rules on the separate collection of electrical and electronic products and
batteries. The correct dispos
al of these products helps prevent potentially negative consequences on
the environment and human health.
Your product contains batteries, which cannot be disposed of with normal household waste.
Please inform yourself about the local rules on separate collection of batteries. The correct disposal
of batteries helps prevent potentially negative consequences on the environment and human health.
Please
visit www.recycle.philips.com for additional information on a recycling center in your area.
Copyright
This item incorporates copy protection technology that is protected
by U.S. patents and other intellectual property rights of Rovi
Corporation. Reverse engineering and disassembly are prohibited.
Trademark
Manufactured under license from Dolby Laboratories. Dolby and the double-D
symbol are trademarks of Dolby Laboratories.
‘DVD Video’ is a trademark of DVD Format/Logo Licensing Corporation.
DVP3608_94_QSG_V1.0_two batteris.indd 1-3 6/27/2011 6:06:05 PM

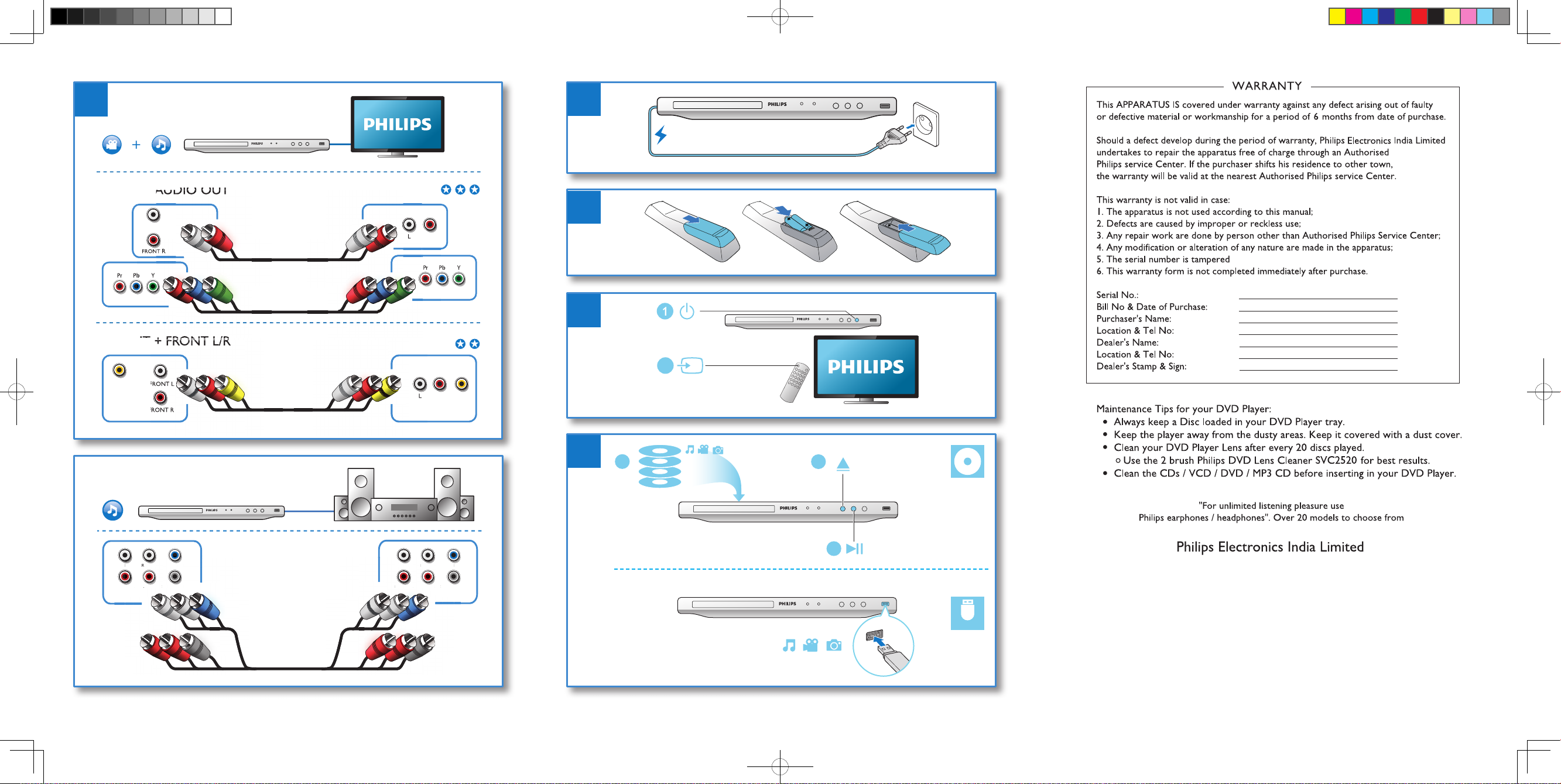

Page 2
Pr Pb Y + AUDIO OUT
TV OUT + FRONT L/R
L R VIDEO
FRONT L
FRONT R
TV OUT
FRONT
R
L R
FRONT L
DVD
VCD
CD
1
2
3
SOURCE
TV
2
2
4
5
6
3
For any sales or service related queries:
Visit us on web at www.philips.com/support or
Call us on Te l No. 1860-180-1111
1800-102-2929
“standard call rates apply”
Email: [email protected]
USB
FRONT L
FRONT R
REAR L
REAR R
CENTER
SUBWOOFER
FRONT L
FRONT R
REAR L
REAR R
CENTER
SUBWOOFER
NT
LT R
REAR R
S
C
ENTE
R
UBWOOFER
C
EN
S
UBW
O
REAR R
FRONT
LFRO
NT
R
DVP3608_94_QSG_V1.0_two batteris.indd 4-6 6/27/2011 6:06:14 PM
