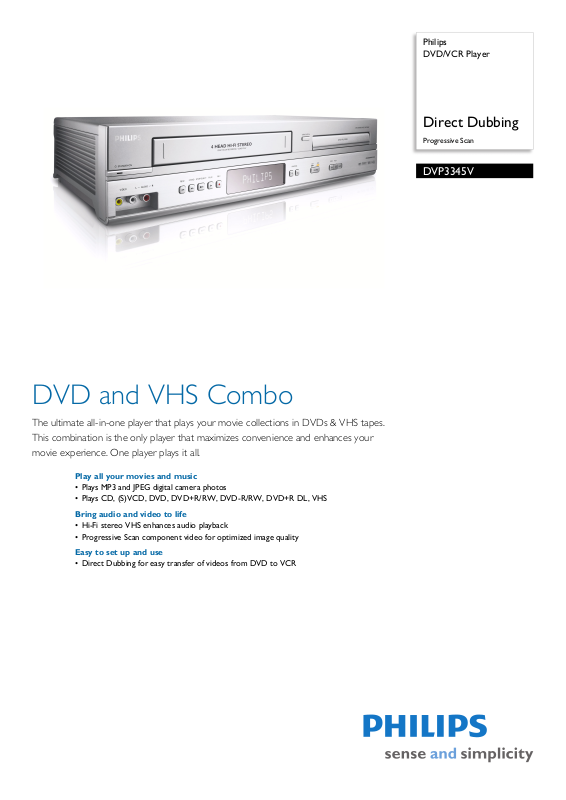

Page 1
Philips
DVD/VCR Player
Direct Dubbing
Progressive Scan
DVP3345V
DVD and VHS Combo
The ultimate all-in-one player that plays your movie collections in DVDs & VHS tapes.
This combination is the only player that maximizes convenience and enhances your
movie experience. One player plays it all.
Play all your movies and music
• Plays MP3 and JPEG digital camera photos
• Plays CD, (S)VCD, DVD, DVD+R/RW, DVD-R/RW, DVD+R DL, VHS
Bring audio and video to life
• Hi-Fi stereo VHS enhances audio playback
• Progressive Scan component video for optimized image quality
Easy to set up and use
• Direct Dubbing for easy transfer of videos from DVD to VCR
Page 2
DVD/VCR Player
Direct Dubbing Progressive Scan
DVP3345V/F7
Specifications
Picture/Display
• D/A converter: 10 bit / 54MHz
• Picture enhancement
Sound
• D/A converter: 24 bit, 192 kHz
• Frequency response: 20 - 20 000 Hz
• Signal to noise ratio: 90
• Dynamic Range (1kHz): >80 dB
•THD: -80dB
Video Playback
• Playback Media: CD-R/CD-RW, DVD-R/-RW,
DVD+R/+RW, DVD-Video, Video CD/SVCD,
VHS Tapes
• Compression formats: MPEG1
• Video disc playback system: NTSC
• Number of Video Heads: 4
• Video tape playback system: NTSC
Audio Playback
• Playback Media: Audio CD, CD-R/RW, DVD-R/RW, DVD+R/+RW
• Compression format: MP3, WMA, Dolby Digital,
PCM
• Number of Audio Heads: 2 Hi-Fi
Still Picture Playback
• Playback Media: CD-R/RW
• Picture Compression Format: JPEG
• Picture Enhancement: Rotate, Slideshow, Zoom
: Progressive scan
Connectivity
•Front / Side connections: Audio L/R in, CVBS in
• Rear Connections: Analog audio Left/Right out,
mponent Video output, Composite video
Co
(CVBS) output, Digital coaxial out, S-Video out,
Analog audio Left/Right in, Composite video
(CVBS) input
Convenience
• Programming/Timer Enhancements: Daily/Weekly
Repeat Program, One Touch Recording
Power
• Power supply: 120V, 60Hz
• Power consumption: 21 W
• Standby power consumption: 3.8 W
Accessories
• Included accessories: 2 x AA Batteries, Audio/
Video cable, Quick start guide, Remote Control,
User Manual, Warranty Leaflet
Dimensions
•Set dimensions (W x H x D): 435 x 94 x 233 mm
• Set weight: 2.7 kg
• Packaging dimensions (W x H x D):
9 x 182 x 342 mm
53
• Weight incl. Packaging: 3.4 kg
Container Loading
• Container 20 feet: 900
• Container 40 feet: 1800
• Container 40 feet (HC): 2000
•
Highlights
Progressive Scan
Progressive Scan doubles the vertical resolution of
the image resulting in a noticeably sharper picture.
Instead of sending a field comprising the odd lines to
the screen first, followed by the field with the even
lines, both fields are written at one time. A full image
is created instantaneously, using the maximum
resolution. At such a speed, your eye perceives a
sharper picture with no line structure.
Hi-Fi stereo VHS
Hi-Fi Stereo VHS plays back true stereo VHS
Issue date 2013-01-26
Version: 1.0.3
12 NC: 8670 000 53186
UPC: 6 09585 17230 2
© 2013 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
