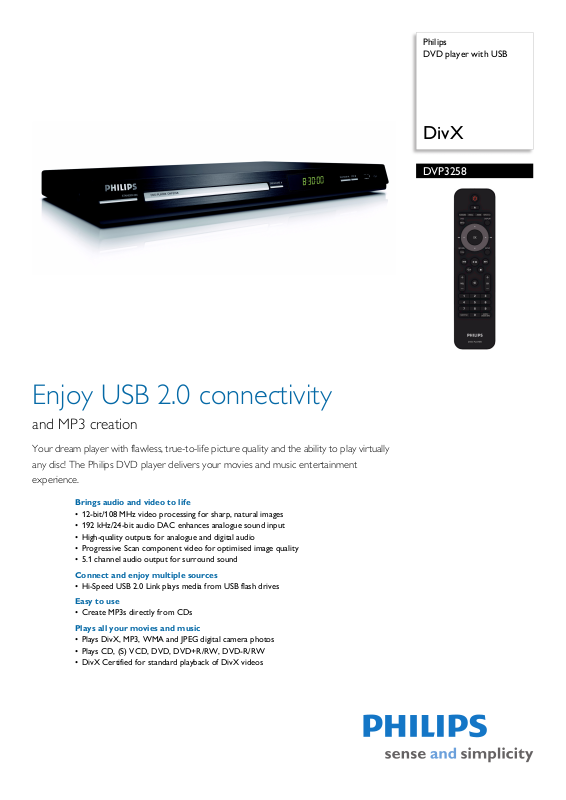

Page 1
Philips
DVD player with USB
DivX
DVP3258
Enjoy USB 2.0 connectivity
and MP3 creation
Your dream player with flawless, true-to-life picture quality and the ability to play virtually
any disc! The Philips DVD player delivers your movies and music entertainment
experience.
Brings audio and video to life
• 12-bit/108 MHz video processing for sharp, natural images
• 192 kHz/24-bit audio DAC enhances analogue sound input
• High-quality outputs for analogue and digital audio
• Progressive Scan component video for optimised image quality
• 5.1 channel audio output for surround sound
Connect and enjoy multiple sources
• Hi-Speed USB 2.0 Link plays media from USB flash drives
Easy to use
• Create MP3s directly from CDs
Plays all your movies and music
• Plays DivX, MP3, WMA and JPEG digital camera photos
• Plays CD, (S) VCD, DVD, DVD+R/RW, DVD-R/RW
• DivX Certified for standard playback of DivX videos
Page 2
DVD player with USB
DivX
DVP3258/96
Highlights
Plays it all
Play virtually any media format you want - whether it
is DivX, MP3, WMA or JPEG. Experience the
unbeatable convenience of great playability, and the
luxury of sharing media files on your TV or home
theatre system - in the comfort of your living room.
192 kHz/24-bit audio DAC
192 kHz sampling enables you to have an accurate
representation of the original sound curves.
Together with a 24-bit resolution, more information
is captured from the original analogue sound wave
form, giving a much richer audio reproduction.
Progressive Scan
Progressive Scan doubles the vertical resolution of
the image resulting in a noticeably sharper picture.
Instead of sending a field comprising the odd lines to
the screen first, followed by the field with the even
lines, it writes both fields at the same time. A full
image is created instantaneously, using the maximum
resolution. At such a speed, your eye perceives a
sharper picture with no line structure.
5.1 channel audio output
5.1 channel audio output for surround sound
Create MP3s
Convert the contents of your favourite CDs to MP3
files on your Philips product, and store it directly on
a thumbdrive or on your portable media player
through a USB cable. Enjoy the convenience of
creating MP3 files right in your living room, without
a PC, and even while the CD is playing.
Hi-Speed USB 2.0 Link
The Universal Serial Bus or USB is a protocol
standard that is conveniently used to link PCs,
peripherals and consumer electronic equipment. HiSpeed USB devices have a data transfer rate of up to
480 Mbps - up from the 12 Mbps of original USB
devices. With Hi-Speed USB 2.0 Link, all you have to
do is plug in your USB device, select the movie,
music or photo and play away.
Specifications
Picture/Display
• D/A converter: 12-bit, 108 MHz
• Picture enhancement: Progressive Scan, Video
ampling
ups
Sound
• D/A converter: 24-bit, 192 kHz
• Frequency response: 30-20,000 Hz
• Signal to noise ratio: > 90
• Distortion and Noise (1 kHz): > 65 dB
• Crosstalk (1 kHz): > 70 dB
• Dynamic Range (1 kHz): > 80 dB
•Sound System: Dolb
Video Playback
• Playback Media: CD, CD-R/CD-RW, Video CD/
SVCD, DVD, DivX, DVD+R/+RW, DVD-R/-RW,
DVD-Video
• Compression formats: MPEG1, MPEG2, DivX 3.11,
DivX 4.x, Div
• Video disc playback system: PAL, NTSC
Audio Playback
• Playback Media: CD, MP3-CD, MP3-DVD, WMA-
CD, CD-R/RW, Audio CD
• Compression format: MP3, Dolby Digital, PCM,
WMA
• MP3 bit rates: 32 - 320 kbps
Still Picture Playback
• Playback Media: DVD+R/+RW, DVD-R/-RW, CD-
R/RW, Picture CD, Kodak Picture CD
• Picture compression format: JPEG
• Picture enhancement: Flip phot
Slideshow
Connectivity
• Rear Connections: Digital coaxial out, Composite
video (CVBS) output, ComponentVideo out
Progressive, Analogue audio multi-channel out
• Front/Side connections: USB
Convenience
• Child Protection: Child Lock, Parental Control
• On-Screen Display languages
Chinese
Power
• Power supply: 110-240V, 50/60 Hz
• Power consumption: < 10 W
• Standby power consumption: < 1 W
Accessories
• Included Accessories: Audio/Video cable, 2 x AAA
Batteries, Remote Control, World Wide
Warranty leaflet, User manual
y Digital, DTS
X 5.x, DivX 6.0
os, Rotate, Zoom,
: English, Simplified
Issue date 2009-04-22
Version: 1.0.5
12 NC: 8670 000 41813
EAN: 87 12581 43926 2
© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
Dimensions
• Set dimensions (W x H x D): 360 x 37 x 209 mm
• Packaging dimensions (W x H x D):
5 x 82 x 282 mm
41
Multimedia Applications
• Multimedia connections: USB memory class device
• Playback Formats: DivX, JPEG Still pictures, MP3
•
