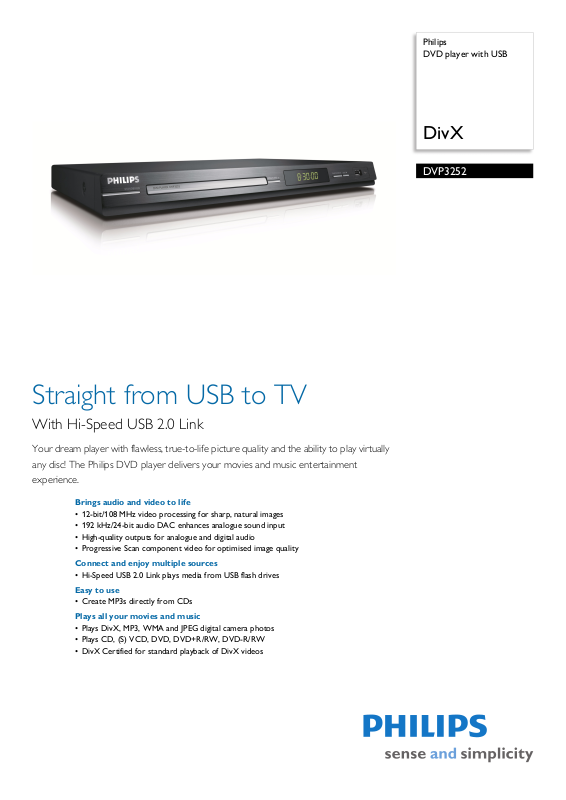

Page 1
Philips
DVD player with USB
DivX
DVP3252
Straight from USB to TV
With Hi-Speed USB 2.0 Link
Your dream player with flawless, true-to-life picture quality and the ability to play virtually
any disc! The Philips DVD player delivers your movies and music entertainment
experience.
Brings audio and video to life
• 12-bit/108 MHz video processing for sharp, natural images
• 192 kHz/24-bit audio DAC enhances analogue sound input
• High-quality outputs for analogue and digital audio
• Progressive Scan component video for optimised image quality
Connect and enjoy multiple sources
• Hi-Speed USB 2.0 Link plays media from USB flash drives
Easy to use
• Create MP3s directly from CDs
Plays all your movies and music
• Plays DivX, MP3, WMA and JPEG digital camera photos
• Plays CD, (S) VCD, DVD, DVD+R/RW, DVD-R/RW
• DivX Certified for standard playback of DivX videos
Page 2
DVD player with USB
DivX
DVP3252/75
Specifications
Picture/Display
• D/A converter: 12-bit, 108 MHz
• Picture enhancement: Progressive Scan, Video
ampling
ups
Sound
• D/A converter: 24-bit, 192 kHz
• Frequency response: 30-20,000 Hz
• Signal to noise ratio: >90
• Distortion and Noise (1 kHz): >65 dB
• Crosstalk (1 kHz): >70 dB
• Dynamic Range (1 kHz): >80 dB
• Sound System: Dolby Digital
Video Playback
• Playback Media: CD, CD-R/CD-RW, Video CD/
SVCD, DVD, DivX, DVD+R/+RW, DVD-R/-RW,
DVD-Video
• Compression formats: MPE
DivX 4.x, DivX 5.x, DivX 6.0
• Video disc playback system: PAL, NTSC
Audio Playback
• Playback Media: CD, MP3-CD, MP3-DVD, WMA-
CD, CD-R/RW, Audio CD
• MP3 bit rates: 32 - 320 kbps
• Compression format: MP3, Dolby Digital, PCM,
WMA
Still Picture Playback
• Playback Media: DVD+R/+RW, DVD-R/-RW, CD-
G1, MPEG2, DivX 3.11,
R/RW, Picture CD, Kodak Picture CD
• Picture compression format: JPEG
• Picture enhancement: Flip
Slideshow
photos, Rotate, Zoom,
Multimedia Applications
• Playback Formats: DivX, JPEG Still pictures, MP3
Connectivity
• Rear Connections: Analogue audio Left/Right out,
ComponentVideo out Progressive, Composite
video (CVBS) output, Digital coaxial out
Convenience
• Child Protection: Child Lock, Parental Control
• On-Screen Display languages: English
Power
• Power consumption: < 10 W
• Power supply: 50 Hz, 230-240 V
• Standby power consumption: < 1 W
Accessories
• Included Accessories: 2 x AAA Batteries, Remote
Control, User manual, Audio/Video cable, World
Wide Warranty leaflet
Dimensions
• Packaging dimensions (W x H x D):
415 x 82 x 282 mm
•Set dimensions (W x H x D): 360 x 37 x 209 mm
•
Highlights
Plays it all
Play virtually any media format you want - whether it
is DivX, MP3, WMA or JPEG. Experience the
unbeatable convenience of great playability, and the
luxury of sharing media files on your TV or home
theatre system - in the comfort of your living room.
192 kHz/24-bit audio DAC
192 kHz sampling enables you to have an accurate
representation of the original sound curves.
Together with a 24-bit resolution, more information
is captured from the original analogue sound wave
form, giving a much richer audio reproduction.
Progressive Scan
Issue date 2009-04-22
Version: 1.0.10
12 NC: 8670 000 36014
EAN: 87 12581 38689 4
Progressive Scan doubles the vertical resolution of
the image resulting in a noticeably sharper picture.
Instead of sending a field comprising the odd lines to
the screen first, followed by the field with the even
lines, it writes both fields at the same time. A full
image is created instantaneously, using the maximum
resolution. At such a speed, your eye perceives a
sharper picture with no line structure.
Create MP3s
Convert the contents of your favourite CDs to MP3
files on your Philips product, and store it directly on
a thumbdrive or on your portable media player
through a USB cable. Enjoy the convenience of
creating MP3 files right in your living room, without
a PC, and even while the CD is playing.
© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
