Philips DVP3166-94, DVP3166, DVP3166X-94, DVP3166X User Manual

Download
Page 1

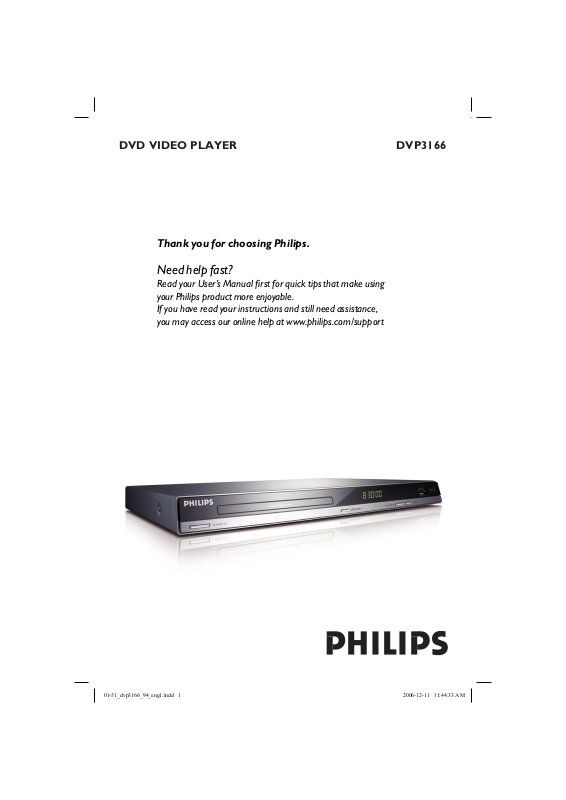

DVD VIDEO PLAYER
Thank you for choosing Philips.
Need help fast?
Read your User’s Manual rst for quick tips that make using your Philips product more enjoyable. If you have read your instructions and still need assistance, you may access our online help at www.philips.com/support
DVP3166DVD VIDEO PLAYER
Page 2
This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
2
Page 3
Index
English ------------------------------------------6
English
Page 4
General Information
English
Environmental Information
All unnecessary packaging has been
omitted. The packaging has been made easy to separate into two materials; cardboard (box) and polyethylene (bags, protective foam sheet).
Your DVD player consists of materials
which can be recycled and reused if disassembled by a specialised company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.
Manufactured under license from Dolby Laboratories, “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
Windows Media and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries.
Laser Safety
This unit employs a laser. Due to possible
eye injury, only a quali ed service person should remove the cover or attempt to service this device.
NOTE: Pictures shown maybe different between countries.
CAUTION: WARNING LOCATION: ON THE BACKPLATE OF THE SET
NEVER MAKE OR CHANGE CONNECTIONS WITH THE POWER SWITCHED ON.
“DTS” and “DTS Digital Out” are registered trademarks of DTS, Inc.
DivX Certied products: “DivX ”, “DivX Certied” and associated logos are trademarks of DivX , Inc. and are used under license.
For Customer Use: Read carefully the information located at the bottom or rear of your DVD Video player and enter below the Serial No. Retain this information for future reference.
Model No. DVP 3166 Serial No. ___________________
Speci cations are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.
LASER
Type Semiconductor laser InGaAlP (DVD) AIGaAs (CD) Wave length 658 nm (DVD) 790 nm (CD) Output Power 7.0 mW (DVD)
10.0 mW (VCD/CD) Beam divergence 60 degrees
4
01-51_dvp3166_94_eng1.indd 401-51_dvp3166_94_eng1.indd 4 2006-12-28 2:51:02 PM2006-12-28 2:51:02 PM
Page 5
Language Code
English
5
Page 6
Contents
English
Care and Safety Information
Setu p .......................................................................................................................................................................8
Cleaning discs ....................................................................................................................................................... 8
General Information
Accessories supplied .......................................................................................................................................... 9
Region codes .........................................................................................................................................................9
Connections
Connecting to television ..................................................................................................10~11
Using Composite Video jacks (CVBS) .........................................................................................................10
Using Component Video jacks (YPbPr) ......................................................................................................10
Using an accessory RF modulator ................................................................................................................ 11
Connecting the power cord ...................................................................................................12
Optional connections
Connecting to a Multi-channel Receiver ............................................................................. 12
Receiver has a Dolby Digital decorder .......................................................................................................12
Connecting to an stereo system ...........................................................................................13
Stereo system has Right/Left Audio In jacks .............................................................................................13
Connecting to a digital AV receiver .....................................................................................13
Receiver has a PCM, Dolby Digital or MPEG decoder ........................................................................... 13
Connecting a USB Flash Drive or USB mass storage device ...........................................14
Using USB port ..................................................................................................................................................14
Product Overview
Front and Rear panels .............................................................................................................15
Remote Control ....................................................................................................................... 16
Getting Started
Step 1: Inserting Batteries .....................................................................................................17
Using the remote control to operate the system .................................................................................... 17
Step 2: Finding your viewing channel ...................................................................................17
Step 3: Setting up Progressive Scan feature .......................................................................18
Step 4: Selecting the matching color system ......................................................................19
Step 5: Setting the language ..................................................................................................20
On-screen display (OSD) language ..............................................................................................................20
Audio, Subtitle and Disc menu languages ...................................................................................................20
Playback from Disc
Playable discs ...........................................................................................................................21
Supported formats ............................................................................................................................................21
Playback Features
Starting disc playback .............................................................................................................22
Basic playback controls ..........................................................................................................22
Pausing playback.................................................................................................................................................22
Selecting title/chapter/track ...........................................................................................................................22
Stopping playback ..............................................................................................................................................22
Operations for video playback ..............................................................................................23
Using the Disc Menu ........................................................................................................................................23
Zooming in ..........................................................................................................................................................23
Resuming playback from the last stopped point .......................................................................................23
Slow Motion ........................................................................................................................................................23
Forward / Reverse Searching .........................................................................................................................23
Selecting various repeat functions .......................................................................................24
Repeat play mode ..............................................................................................................................................24
Repeating a section within a chapter/track ................................................................................................24
Viewing the disc playback information ......................................................................... 25 ~26
Using the OSD menu .......................................................................................................................................25
Title/Chapter/Track selection .......................................................................................................................25
Time Search ........................................................................................................................................................25
Audio/Subtitle.....................................................................................................................................................25
Angle .....................................................................................................................................................................25
Time Display .......................................................................................................................................................26
Preview .................................................................................................................................................................26
6
Page 7
Contents
Viewing Audio CD playback information ............................................................................27
Disc Go To / Track Go To / Track Selection ............................................................................................. 27
Special DVD Features .............................................................................................................27
Playing a Title ......................................................................................................................................................27
Changing the Audio Language ........................................................................................................................ 27
Subtitle .................................................................................................................................................................27
Special VCD and SVCD Feature ...........................................................................................28
Playback Control (PBC) ..................................................................................................................................28
Playing a DivX
USB mass storage device .......................................................................................................29
Compability of USB device .............................................................................................................................29
Playing from USB  ash drive or USB memor y card reader .............................................30
Playing MP3/WMA/JPEG Picture CD ............................................................................. 31-32
General Operation ...........................................................................................................................................31
Playback selection .............................................................................................................................................31
Playback with multi-angles (JPEG) ................................................................................................................32
Preview Function ( JPEG) .................................................................................................................................32
Zoom picture (JPEG) .......................................................................................................................................32
Playing MP3/WMA music and JPEG picture simultaneously .................................................................32
DVD Menu Options
Using the General setup menu ....................................................................................... 33~34
Locking / Unlocking the disc for viewing ....................................................................................................33
OSD Language ....................................................................................................................................................33
Slee p ......................................................................................................................................................................34
Volume ..................................................................................................................................................................34
DivX
Using the Audio setup menu .......................................................................................... 35~37
Analog Output ...................................................................................................................................................35
Digital Audio Setup ................................................................................................................................... 35~36
Sound Mode ........................................................................................................................................................36
CD Upsampling ..................................................................................................................................................37
Night Mode – turning on/off ..........................................................................................................................37
Using the Video setup menu ........................................................................................... 38~40
TV Type ................................................................................................................................................................38
Setting the TV Display .....................................................................................................................................38
Progre ssive ..........................................................................................................................................................39
Picture Setting ............................................................................................................................................39~40
Using the Preference setup menu .................................................................................40 ~42
Subtitle / Audio / Disc Menu ..........................................................................................................................41
Paren tal ................................................................................................................................................................41
PBC ........................................................................................................................................................................42
MP3/JPEG Menu .................................................................................................................................................42
Changing the Password ....................................................................................................................................42
Setting DivX
Restoring to the original settings..................................................................................................................42
Sound and Volume Controls ..................................................................................................43
Setting the speaker’s channels .......................................................................................................................43
Others
Soft ware Upgrade ...................................................................................................................44
Speci cations ...........................................................................................................................45
Troubleshooting ............................................................................................................... 46~ 47
Frequently Asked Questions (USB) .....................................................................................48
Gloss ary ....................................................................................................................................49
®
disc .................................................................................................................28
®
VOD registration code .......................................................................................................................34
®
Subtitle font .............................................................................................................................42
English
7
Page 8
Care and Safety Information
English
DANGER! High voltage! Do not open the device. You run the risk of getting an electric shock.
The machine does not contain any user-serviceable parts. Please leave all maintenance work to quali ed personnel.
Setup
Finding a suitable location
– Place the set on a  at, hard and stable
surface. Do not place the set on a carpet.
– Do not put any equipment or heavy
objects on top of the set.
– Do not position the set on top of
other equipment that might heat it up (such as receiver or ampli er). Do not put anything under the set
–
(such as CDs, magazines).
– Install this unit near the AC outlet and
where the AC power plug can be reached easily.
Space for ventilation
– Place the apparatus in a location with
adequate ventilation to prevent internal heat build up. Allow at least 10 cm (4.0”) clearance from the rear and the top of the set and 5cm (2.0”) from the left and right to prevent overheating.
5cm (2.0")
10cm (4.0")
10cm (4.0")
Cleaning discs
Some problems occur because the disc inside the player is dirty (frozen picture, sound disruptions, picture distortions). To avoid these problems, discs should be cleaned on a regular basis.
To clean a disc, use a micro  bre cleaning cloth and wipe the disc from the center to the edge in a straight line.
CAUTION!
Do not use solvents such as benzene, thinner, commercially available cleaners, or anti-static sprays intended for analog discs. Since the optical unit (laser) of the DVD player operates at a higher power than regular DVD or CD players, cleaning CDs intended for DVD or CD players may damage the optical unit (laser). Therefore, refrain from using a cleaning CD.
5cm (2.0")
Avoid high temperatures, moisture,
water and dust
– Apparatus shall not be exposed to
dripping or splashing.
– Do not place any sources of danger
on the apparatus (such as liquid  lled objects, lighted candles).
8
Page 9
General Information
ALL
4
ALL
ALL
5
6
ALL
1
ALL
ALL
2
3
Accessories supplied
Composite video cable
(yellow) and
Audio cables
(white, red)
Remote
control and
two AAA
batteries
Region codes
This DVD player is designed to support the Region Management System. Check the regional code number on the disc package. If the number does not match the player’s region number (see table below), the player may be unable to playback the disc.
Tips: – It may not be possible to play CD-R/RW or DVD-R/RW in all cases due to the type of disc or condition of the recording. – If you are having trouble playing a certain disc, remove the disc and try a different one. Improper formatted disc will not played on this DVD player.
Region
U.S.A. and Canada regions
U.K and Europe regions
Discs that can
be played
English
Asia Paci c, Taiwan, Korea
Australia, New Zealand, Latin America
Russia and India regions
China, Calcos Islands, Walls and Futuna
Islands
9
Page 10
Connections
English
Connecting to television
COMPONENT
S-VIDEO
IN
COMPONENT VIDEO IN
S-VIDEO
IN
V (Pr/Cr)
AUDIO OUT
U (Pb/Cb)
VIDEO IN
Y
IMPORTANT! – You only need to make one video connection from the following options, depending on the capabilities of your television. – Connect the DVD player directly to the television.
Using Composite Video jacks (CVBS)
A
Use the composite video cable (yellow)
to connect the DVD player’s TV OUT (CVBS) jack to the video input jack (or labeled as A/V In, Video In, Composite or Baseband) on the television (cable supplied).
B To hear sound of this DVD player
through your television, use the audio cables (white/red) to connect FRONT OUT (L/R) jacks of the DVD player to the corresponding AUDIO IN jacks on the television (cable supplied).
VIDEO IN
1
TV OUT
COMPONENT VIDEO OUT
TV OUT
COMPONENT VIDEO OUT
S-VIDEO
VIDEO IN
COMPONENT
VIDEO IN
IN
V (Pr/Cr)
AUDIO
IN
U (Pb/Cb)
Y
2
DIGITAL
FRONT L
REAR L
OUT
COAXIAL
CENTER
FRONT R
REAR R
SUBWOOFER
AUDIO OUT
VIDEO IN
V (Pr/Cr)
AUDIO
IN
U (Pb/Cb)
Y
2
DIGITAL
FRONT L
REAR L
OUT
COAXIAL
CENTER
FRONT R
REAR R
SUBWOOFER
AUDIO OUT
COMPONENT
VIDEO IN S-VIDEO IN
V (Pr/Cr)
AUDIO OUT
U (Pb/Cb)
VIDEO IN
Y
1
IMPORTANT! – The progressive scan video quality is only possible when using YPbPr and a progressive scan television is required.
Using Component Video jacks (YPbPr)
A
Use the component video cables (red/
blue/green) to connect the DVD player’s YPbPr jacks to the component video input jacks (or labeled as YPbPr) on the television (cable not supplied).
B To hear sound of this DVD player
through your television, use the audio cables (white/red) to connect FRONT OUT (L/R) jacks of the DVD player to the corresponding AUDIO IN jacks on the television (cable supplied).
C Proceed to page 18 for detailed
progressive scan setup.
TIPS: Before making or changing any connections, make sure that all the devices are disconnected
from the power outlet.
10
Page 11
Connections (continued)
English
RF coaxial cable to TV
ANT IN
2
Back of RF Modulator
(example only)
AUDIO IN
TO TVANT IN
VIDEO
IN
R L
CH3 CH4
ANT IN
4
TV OUT
COMPONENT VIDEO OUT
DIGITAL
COAXIAL
1
3
FRONT L
REAR L
FRONT R
CENTER
REAR R
SUBWOOFER
AUDIO OUT
OUT
IMPORTANT! – If your television only has a single Antenna In jack (or labeled as 75 ohm or RF In,) you will need an RF modulator in order to view the DVD playback on the television. See your electronics retailer or contact Philips for details on RF modulator availability and operations.
Using an accessory RF modulator
Use the composite video cable (yellow)
A
to connect the DVD player’s TV OUT (CVBS) jack to the video input jack on the RF modulator.
B Use the RF coaxial cable (not supplied) to
connect ANTENNA OUT or TO TV jack on the RF modulator to the ANTENNA IN jack on the television.
C To hear sound of this DVD player
through your TV, use the audio cables (white/red) to connect FRONT OUT (L/ R) jacks of the DVD player to the corresponding AUDIO IN jacks on the RF modulator (cable supplied).
D Connect the Antenna or Cable TV
service signal to the ANTENNA IN or RF IN jack on the RF modulator. (It may have been connected to your TV previously. Disconnect it from the TV).
TIPS: Before making or changing any connections, make sure that all the devices are disconnected
from the power outlet.
11
Page 12
Connections (continued)
English
Connecting the power cord
TV OUT
COMPONENT VIDEO OUT
After everything is connected properly, plug in the AC power cord to the power outlet.
Never make or change any connections with the power switched on.
When no disc is loaded, press
STANDBY-ON on the DVD player front panel. “– – –” may appear on the display panel.
DIGITAL
COAXIAL
OUT
Connecting to a Multi Channel Receiver
Receiver
TV OUT
COMPONENT VIDEO OUT
Receiver has a Dolby Digital decoder
A
Select one of the video connections
(CVBS VIDEO IN or COMPONENT VIDEO IN) depending on the options available on your television.
B Connect the Audio Out Left and Right
jack for Front and Rear speakers to the corresponding input jacks on your receiver (cable not supplied).
C Connect the Audio Out for Center
speaker and Subwoofer to the corresponding inputs on your receiver (cable not supplied).
D Set the DVD player {Analog Output} to
{Multi-channel} to enable playback of DVDs recorded in Multi-channel. (see page 35 ‘Analog output’).
MULTICHANNEL AUDIO IN
CENTER
FRONT REAR
SUBW.
FRONT REAR
DIGITAL
FRONT L
REAR L
OUT
COAXIAL
CENTER
FRONT R
REAR R
SUBWOOFER
AUDIO OUT
Tip: – If the subwoofer has its own ampli er, connect directly to the subwoofer Audio Out on the DVD Player.
TIPS: Before making or changing any connections, make sure that all the devices are disconnected
from the power outlet.
12
Page 13
Optional connections
Connecting to an stereo system
STEREO
AUDIO
IN
DIGITAL
DIGITAL
FRONT L
TV OUT
COMPONENT VIDEO OUT
Stereo system has right/ left Audio In jacks
A
Select one of the video connections
(CVBS VIDEO IN or COMPONENT VIDEO IN) depending on the options available on your television.
B Use the audio cables (white/red) to
connect FRONT OUT (L/R) jacks of the DVD Player to the corresponding AUDIO IN jacks on the stereo system (cable supplied).
REAR L
OUT
FRONT R
REAR R
COAXIAL
AUDIO OUT
CENTER
SUBWOOFER
Connecting to a digital AV receiver
AV Receiver
TV OUT
COMPONENT VIDEO OUT
Receiver has a PCM, Dolby Digital or MPEG decoder
A
Select one of the video connections
(CVBS VIDEO IN or COMPONENT VIDEO IN) depending on the options available on your television.
B Connect the COAXIAL jack of the DVD
player to the corresponding Digital Audio In jack on your receiver (cable not supplied).
C Set the DVD player’s digital output to
PCM-Only or ALL depending on the capabilities of your receiver (see page 36 {Digital Output}).
AUDIO
IN
DIGITAL
DIGITAL
FRONT L
REAR L
OUT
COAXIAL
CENTER
FRONT R
REAR R
SUBWOOFER
AUDIO OUT
English
Tip: – If the audio format of the Digital Output does not match the capabilities of your receiver, the receiver will produce a strong, distorted sound or no sound at all.
TIPS: Before making or changing any connections, make sure that all the devices are disconnected
from the power outlet.
13
Page 14
Optional connections (continued)
English
Connecting a USB Flash Drive or USB mass storage device
Using USB port
You can only view the content of following supported USB devices through this DVD player.
A Connect the supported USB device
directly to the USB port on the front panel (as shown on the above illustration).
B Press USB button on the remote
control in order to view the  les stored in the supported USB device.
C Stop the playback before removing the
supported USB device from the USB port.
USB extension cable
(Optional accessory - not supplied)
Tips: – The USB port supports playback of JPEG/ MP3/WMA/DivX – Not all Portable audio/video players and Digital cameras are supported. – While connected to a card reader, only one card can be read at the same time. – If non-supported USB device is plugged in, ‘Device Not Supported’ will be displayed. – If the USB device does not  t into the USB port, a USB extension cable is required. – The format FAT16, FAT32 can be supported by USB and not NTFS.
®
 les.
TIPS: Before making or changing any connections, make sure that all the devices are disconnected
from the power outlet.
14
Page 15
Front and Rear Panels
Product Overview
English
STANDBY-ON 2
– Turns on the player or switches
to standby mode
Disc Tray
OPEN/CLOSE
ç
– Opens or closes the disc tray.
Display panel
– Shows information about the
current status of the DVD player.
Mains ~ (AC Power Cord) – Connect to a standard AC outlet
TV OUT (CVBS)
– Connect to CVBS Video input of
a television
YPbPr (Component Video Out)
– Connect to YPbPr input of a
television
USB Port
– Input of the supported USB device
STOP
– Stops playback
PLAY/PAUSE u
– Starts or pauses playback.
IR Sensor
– Point the remote control towards
this sensor
Multi-channel Audio Out
– Center speaker, subwoofer, front
and rear speakers multi-channel
connection
COAXIAL (Digital audio out)
– Connect to coaxial AUDIO input
of a digital audio equipment
DIGITAL
FRONT L
REAR L
FRONT R
CENTER
REAR R
SUBWOOFER
AUDIO OUT
TV OUT
COMPONENT VIDEO OUT
OUT
COAXIAL
15
Page 16
Product Overview (continued)
English
Remote Control
– Enters or exits the disc
– Switches on or off the
playback control mode (for
– Con rms an entry or
RETURN/TITLE
– To go back to previous
menu/ show title menu
– Skips to the previous title/
– Press and hold to fast
u PLAY/PAUSE
– Starts or pauses playback
– To access subtitle language
system menu (DVD)
DISC MENU
contents menu
VCD 2.0 only)
OK
selection
PREV í
chapter/ track
backward
STOP
– Stops playback
SUBTITLE
2
– To switch the DVD player
to standby mode or ON
DISPLAY
– Displays information on TV
screen during playback
W X
– Cursor buttons for moving
to the left or right, do a fast forward/reverse search.
S T
– Cursor buttons for moving
up/down, do a slow forward/backward
SETUP
– Enters or exits the system
setup menu
NEXT ë
– Skips to the next title/
chapter/track
– Press and hold to fast
forward
USB
– Access the content of the
connected USB device and exit from USB mode
ZOOM
– Enlarge a picture on the TV
screen
REPEAT
– Select various repeat mode
REPEAT A-B
– Repeat playback a speci c
section on a disc
Alphanumeric keypad
– Selects numbered items in
a menu
AUDIO
– Selects an audio language
(DVD/VCD) or an audio channel
16
Page 17

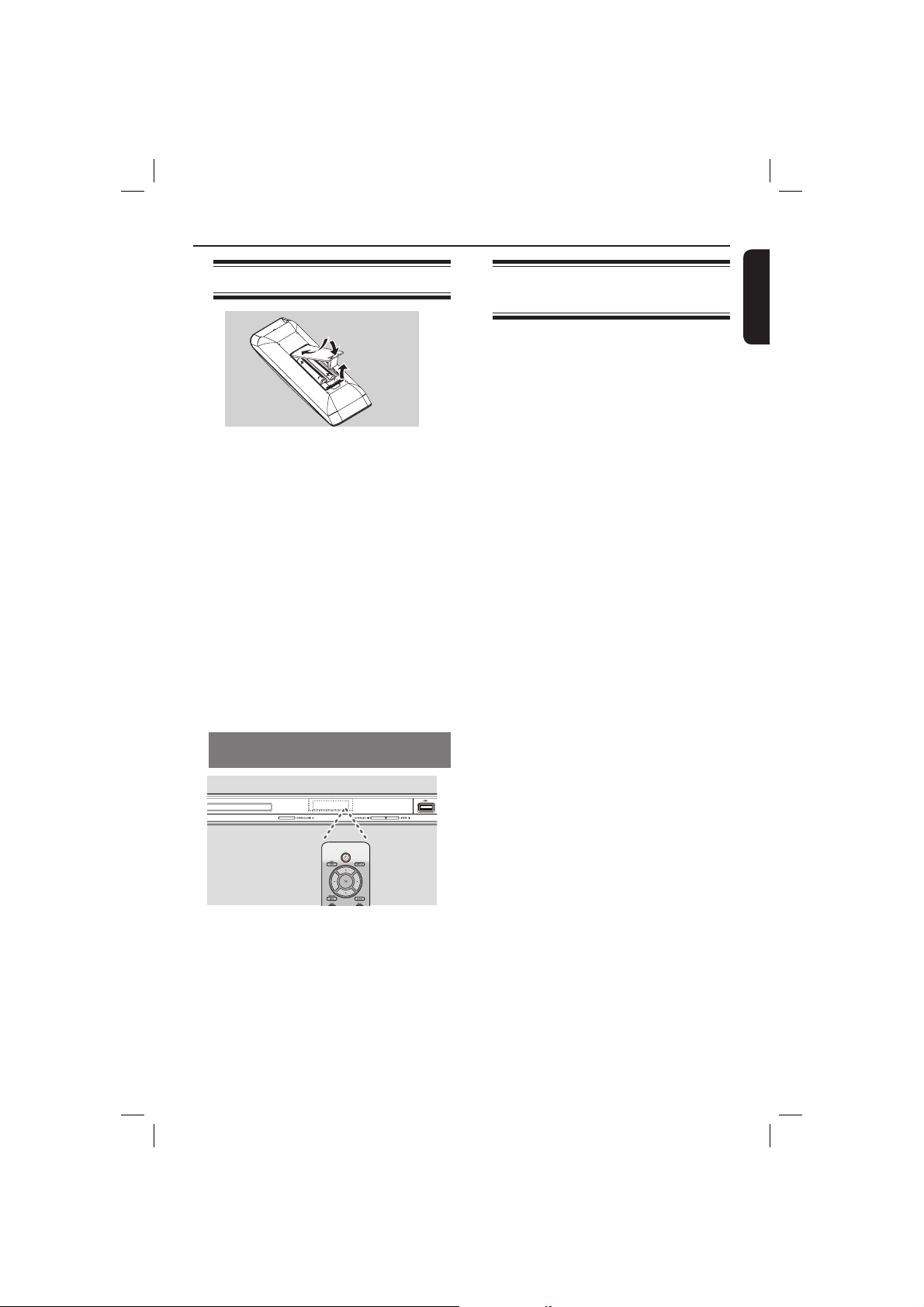

Getting Started
Step 1 : Inserting Batteries
A Open the battery compartment.
B Insert two batteries type R03 or AAA,
following the indications (+ –) inside the compartment.
C Close the cover.
CAUTION! – Remove batteries if they are exhausted or if the remote is not to be used for a long time. – Do not use old and new or different types of batteries in combination. – Batteries contain chemical substances, so they should be disposed of properly.
Using the remote control to operate the system
Step 2 : Finding your viewing channel
English
A Press STANDBY-ON 2 on the DVD
player to turn it on.
B Turn on the TV and set it to the correct
video-in channel. You should see the blue DVD background screen.
Usually these channel are between the
lowest and highest channels and may be called FRONT, A/V IN, VIDEO. See your TV’s manual for more details.
Or, you may go to channel 1 on your
TV, then press the Channel down button repeatedly until you see the Video In channel.
Or, the TV remote control may have
a button or turn that chooses different video modes.
Or, set the TV to channel 3 or 4 if
you are using an RF modulator.
C If you are using external equipment, (such
as audio system or receiver), turn it on and select the appropriate input source for the DVD player output. Refer to the equipment user’s manual for detail.
A Aim the remote control directly at the
remote sensor (IR) on the front panel.
B Do not put any objects between the
remote control and the DVD player while operating the DVD player.
17
Page 18
Getting Started (cont inued)
English
Step 3 : Setting up Progressive Scan feature
(for Progressive Scan TV only)
The progressive scan displays twice the number of frames per seconds than interlaced scanning (ordinary normal TV system). With nearly double the number of lines, progressive scan offers higher picture resolution and quality.
Before you start...
– Ensure that you have connected this DVD player to a progressive scan TV using the Y Pb Pr connection (see page
10). – Ensure that you have completed the basic installation and setup.
A Turn on your TV and set to interlace
mode (refer to your TV user manual).
B Press STANDBY-ON 2 on the
remote control to turn on the DVD player.
C Select the correct video-in channel.
The DVD background menu appears.
D Press SETUP.
E Press X to select { Video Setup Page }.
Video Setup Page
TV Type
TV Display
Progressive On
Picture Setting Off
G Select { On }, then press OK to con rm.
The menu will appear on the TV.
ACTIVATING PROGRESSIVE SCAN:
1.ENSURE YOUR TV HAS PROGRESSIVE SCAN.
2.CONNECT USING YPBPR(GBR) VIDEO CABLE.
3.IF THERE IS A DISTORTED PICTURE, WAIT 15 SECONDS FOR AUTO RECOVERY.
OK CANCEL
H Press W to highlight { OK } and press
OK to con rm.
I Turn on your TV progressive scan mode
(refer to your TV user manual).
The menu will appear on the TV.
CONFIRM AGAIN TO USE PROGRESSIVE
SCAN. IF PICTURE IS GOOD,
PRESS OK BUTTON ON REMOTE.
OK CANCEL
J Press W to highlight { OK } and press
OK to con rm.
The setup is now completed and you
can start enjoy the high quality picture.
To deactivate Progressive Scan manually:
Wait for 15 seconds for the auto
recovery.
OR
A Press OPEN/CLOSE ç on the DVD
player to open the disc tray.
B Press numeric keypad ‘1’ on the
remote control for few seconds.
The DVD background screen appears.
Tip: – There are some progressive scan TVs and High-De nition TVs that are not fully
F Press S T repeatedly to select
{ Progressive }, then press X.
compatible with this unit, resulting in the unnatural picture when playing back a DVD VIDEO disc in the progressive scan mode. In such a case, turn off the progressive scan feature on both the DVD player and your TV.
TIPS: The underlined option is the factory default setting. Press W to go back to previous menu item. Press SETUP to exit the menu item.
18
Page 19
Step 4 : Selecting the matching color system
The color system of the DVD player, disc and TV should match in order for the disc to play. Before changing the TV system, determine the color system of your TV.
Getting Started (cont inued)
E Select a setting and press OK.
Follow the instructions show on the
TV to con rm the selection.
CHANGING PAL TO NTSC:
1.ENSURE THAT YOUR TV SUPPORTS NTSC STANDARD.
2.IF THERE IS A DISTORTED PICTURE DISPLAYED ON THE TV , WAIT 15 SECONDS FOR AUTO RECOVERY.
OK CANCEL
English
Video Setup Page
TV Type PAL
TV Display MULTI
Progressive NTSC
Picture Setting
A Press SETUP.
B Press X to select { Video Setup Page }.
C Press S T repeatedly to select { TV
Type }, then press X.
D Use S T to select one of the options
below:
{ PAL }
Select this if the connected TV has the PAL color system. It will change the video signal of an NTSC disc and output it to PAL format.
{ NTSC }
Select this if the connected TV has the NTSC color system. It will change the video signal of a PAL disc and output it to NTSC format.
{ Multi }
Select this if the connected TV is compatible with both NTSC and PAL (multi-system). The output format will be in accordance with the video signal of the disc.
CONFIRM AGAIN TO USE NEW TV
TYPE SETTING.
OK CANCEL
F Press W to highlight { OK } and press
OK to con rm.
To reset to default TV color system:
Wait for 15 seconds for the auto
recovery.
OR
A Press OPEN/CLOSE ç on the DVD
player to open the disc tray.
B Press numeric keypad ‘3’ on the
remote control for few seconds.
The DVD background menu appears.
Tips: – Before changing the current TV colour setting, ensure that your TV supports the ‘selected TV Type’ system. – If there is no proper picture on your TV, wait for 15 seconds for auto recovery.
TIPS: The underlined option is the factory default setting. Press W to go back to previous menu item. Press SETUP to exit the menu item.
19
Page 20
Getting Started (cont inued)
English
Step 5 : Setting the language
The language options are different depending on your country or region. It may not correspond to the illustrations shown on the user manual.
On-screen display (OSD) language
Select this to change the language of this
DVD player screen display menu. The menu language (on-screen display) for the system will remain as you set it.
General Setup Page
Disc Lock
OSD Language ENGLISH
Sleep
Volume
DivX(r) VOD Code
A Press SETUP.
B Press S T to select { OSD Language },
then press X.
C Use S T to select a language and press
OK to con rm.
Audio, Subtitle and Disc menu languages
You can choose your preferred language
or sound track from audio, subtitles and disc menu languages. If the selected language is not available on the disc, the disc’s default language will be used instead.
Preference Page
Audio English
Subtitle Chinese
Disc Menu French
Parental Spanish
PBC
Mp3 / Jpeg Nav Polish
Password Italian
Portuguess
A Press STOP Ç twice to stop playback,
(if any), then press SETUP on the remote control.
B Press X to select { Preference Page }.
C Press S T to highlight one of the
options below, then press X.
{ Audio }
Select this to change disc sound track language.
{ Subtitle }
Select this to change the subtitle language.
{ Disc Menu }
Select this to change the language of the disc menu.
D Use S T to select a language and press
OK to con rm.
If the language you want is not in
the list, then select { Others }, then use the numeric keypad (0-9) on the remote to enter the 4-digit language code ‘XXXX’ (see page 5 ‘Language Code’) and press OK.
E Repeat steps C - D for other language
settings.
TIPS: The underlined option is the factory default setting. Press W to go back to previous menu item. Press SETUP to exit the menu item.
20
Page 21
IMPORTANT! – If the inhibit icon
appears on the TV screen when a button is pressed, it means the function is not available on the current disc or at the current time. – DVD discs and players are designed with regional restrictions. Before playing a disc, make sure the disc is for the same zone as your player.

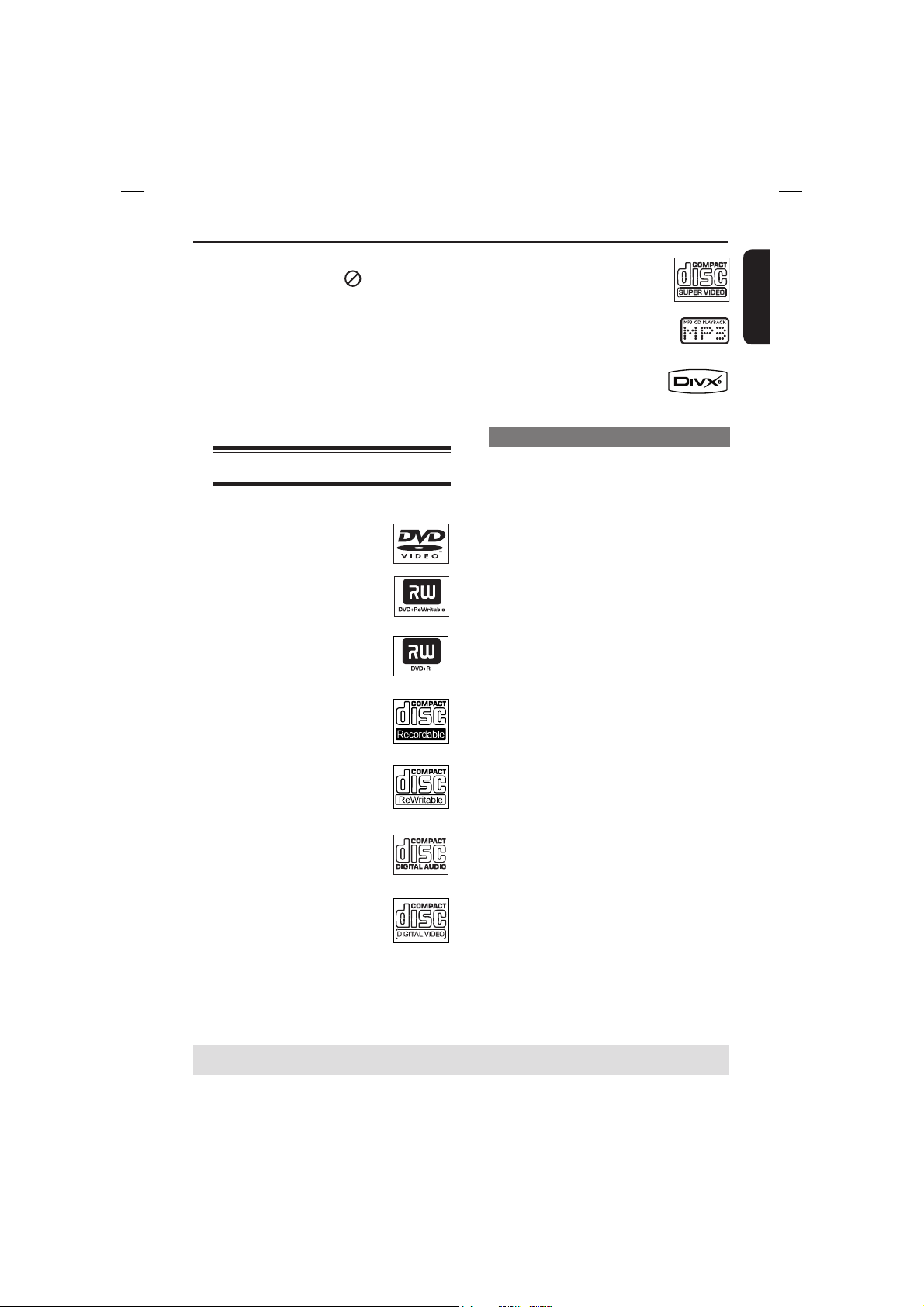

Playable discs
Using this DVD player, you can playback on the following discs:
DVD Video (Digital Versatile
Disc)
DVD±RW (DVD Rewritable)
Audio/Video format or MP3/WMA/JPEG/DivX®  les.
DVD±R (DVD Recordable)
Audio/Video format or MP3/WMA/JPEG/DivX®  les.
CD-R (CD-Recordable)
Audio/Video format or MP3/WMA/JPEG/DivX®  les.
CD-RW (CD-Rewritable)
Audio/Video format or MP3/WMA/JPEG/DivX®  les.
Audio CD (Compact Disc
Digital Audio)
Video CD
(Formats 1.0, 1.1, 2.0)
Playback from Disc
Super Video CD
MP3-Disc
®
DivX
Disc
(DivX® 3.11, 4.x, 5.x and 6.0)
Supported formats
MP3/WMA tracks
– The  le extensions has to be ‘.mp3’,
‘.wma’ – JPEG/ISO format – Maximum 14 characters display. – Supported bit-rate; 32 – 320 kbps (MP3) 32 – 192 kbps (WMA)
JPEG pictures
– The  le extensions has to be ‘.JPG’
and not ‘.JPEG.’ – JPEG/ISO format – It can only display DCF-standard still
pictures or JPEG pictures such as
TIFF.
DivX
®
movies
– The  le extensions has to be ‘.AVI,’
‘.MPG,’ or ‘.MP4.’ – DivX
®
3.11, 4.x, 5.x and 6.0 – Q-pel accurate motion compensation – Global Motion Compensation (GMC)
playback.
Tips: – Maximum 100 sessions for CD and 10 multi border for DVD are supported. – For DVD-R and DVD-RW multi border, only  nalized disc are supported. – For DVD+R and DVD+RW multi border both  nalized and un nalized disc are NOT supported.
English
TIPS: Some discs cannot be played on this DVD player due to the con guration and characteristics of
the disc, or due to the condition of recording and authoring software that was used.
21
Page 22
Playback Features
English
Starting disc playback
A Turn on the TV to the correct program
number for the DVD player (e.g. ‘EXT’, ‘0’, ‘AV’).
B Press STANDBY-ON 2 to turn on
the DVD player.
C Press OPEN/CLOSE ç on the front of
the DVD player.
You can also hold down the STOP
button on the remote control to open and close the disc tray.
D Place a disc into the disc tray with the
label facing up, then press OPEN/ CLOSE ç.
For double-sided discs, load the side
which you want to play facing up.
E Playback may start automatically.
If not, press PLAY/PAUSE u.
If a disc menu appears on the TV, see
page 23 'Using the Disc Menu'.
If the child lock was activated for the
inserted disc, you have to enter your six­digit password (see page 42).
For more playback features, see pages
22~32.
Tips: – Do not overturn the DVD player while disc loading, playing or ejecting. – Do not close the disc tray manually even if the power switched off.
Basic playback controls
Unless otherwise stated, all operations described are based on Remote Control use.
Pausing playback
During playback, press PLAY/PAUSE
A
u to pause playback and display a still picture.
Sound will be muted.
B To resume normal playback, press
PLAY/PAUSE u again.
Selecting title/chapter/track
During playback, press PREV í to go
to the beginning of the currect chapter/ track, press PREV í again to go to the previous title/chapter/track.
Press NEXT ë to go to the next
chapter/track.
Press DISPLAY to display the disc
information text line for title/chapter/ track (example - 00/08).
Use alphanumeric keypad (0-9) to
enter valid title/chapter/track number.
The playback skips to the selected
title/chapter/track.
Stopping playback
Press STOP
Tips: – Screen saver will start automatically if the disc playback is stopped/paused for about 5 minutes. – The player will automatically switch to Power Standby mode if you do not press any buttons for about 15 minutes after the disc has stopped playing.
.
TIPS: The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.
22
Page 23
Playback Features (continued)
Operations for video playback
Using the Disc Menu
Depending on the disc, a menu may appear on the TV screen once you load in the disc.
To select a playback feature or item
Use S T W X keys or numeric
keypad (0-9) on the remote, then press OK to start playback.
To access or remove the menu
Press DISC MENU on the remote.
Zooming in
This function allows you to enlarge the picture on the TV screen and to pan through the enlarged picture.
A During playback, press ZOOM
repeatedly to display the picture with different scales.
Use S T W X keys to pan through
the enlarged picture.
Playback will continue.
B Press ZOOM repeatedly to return to
the original size.
Resuming playback from the last stopped point
Resume playback of the last 5 discs is possible, even if the disc was ejected (open), standby or power cut off. Auto resume is active for DVD,VCD,SVCD,CD types of discs.
Load one of the last 5 discs.
‘Play from start, press [PREV]’ appears
during playback for  rst 10 seconds.
During the message appears on the TV
screen, press PREV to start playback from the beginning.
Playback restarts from the  rst title
(DVD) or the beginning of the title/ track (VCD/CDDA/SVCD).
To cancel resume mode
In stop mode, press STOP Ç again.
Tip: – To remove the message from the TV screen, press DISPLAY.
Slow Motion
You can slow forward or slow reverse a disc during playback and select a different speed.
®
For DivX
A Press S T during playback to select the
required speed: 1/2, 1/4, 1/8 or 1/16 (forward [DivX®,DVD,VCD,SVCD] or backward [DVD]).
Sound will be muted.
B To return to normal speed, press PLAY/
PAUSE u.
Forward / Reverse Searching
You can fast forward or fast reverse a disc during playback and select a desired search speed.
For DivX
MP3,WMA
A Press W X directly or press í ë for 2
seconds during playback to select the required speed: 2X, 4X, 8X, 16X or 32X (backward or forward).
Sound will be muted (DVD/VCD/
SVCD/DivX®) or intermittent (MP3/ WMA/CD).
B To return to normal speed, press PLAY/
PAUSE u.
,DVD,VCD,SVCD
®
,DVD,VCD,SVCD,CD,
English
TIPS: The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.
23
Page 24
Playback Features (continued)
English
Selecting various repeat functions
Repeat play mode
The repeat play options vary depending on the disc type.
A While playing a disc, press REPEAT
continuously to choose a repeat options.
For DVD
– Chapter (currently playing chapter) – Title (currently playing title) – All (entire disc) – Shuf e (random playback) – Off (cancel)
For Video CD
– Track (currently playing track) – All (entire disc) – Shuf e (random playback) – Off (cancel)
For Audio CD
– Track (currently playing track) – All (entire disc) – Off (cancel)
For MP3/WMA
– Repeat One (currently playing  le) – Repeat Folder (current folder) – Folder (playing all  les in one folder
once)
– Single (currently playing  le once).
For JPEG, DivX
In STOP mode, – Repeat One (currently playing  le) – Repeat Folder (current folder) – Folder (playing all  les in one folder
once) – Single (currently playing  le once). In PLAY mode, – Repeat One (currently playing  le) – Repeat All (all  les in the selected
folder) – Repeat Off (playing all  les in one
folder once) – Single (currently playing  le once).
B To cancel repeat playback, press STOP
Ç.
Tip: – For VCD, repeat playback is not possible if the PBC mode is switched on.
Repeating a section within a chapter/track
You can repeat the playback of a speci c segment within a title/chapter track. To do this, you must mark the start and end of the segment you want.
A While playing a disc, press REPEAT A-
B at your chosen starting point.
B Press REPEAT A-B again at your
chosen end point.
The section A and B can be set only
within the same chapter/track.
The section will now repeat
continuously.
C To exit the sequence, press REPEAT A-
B.
®
TIPS: The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.
24
Page 25
Playback Features (continued)
Viewing the disc playback information
Using the OSD menu
OSD menu shows the disc playback information (for example, title or chapter number, elapsed playing time, audio/ subtitle language), a number of operations can be done without interrupting disc playback.
During playback, press DISPLAY on the
remote control.
The available disc information appears
on the TV screen with the following sequence.
MENU
Title 01/01
Chapter 01/01
Audio 5.1CH Others
Subtitle Off
Bitrate 61 Total Elapsed 0:48:59
MENU
Track 01/21
Disc Time 1:12:32
Track Time 0:02:29
Repeat ab Off
Bitrate 61 Total Elapsed 0:48:59
(DVD)
(VCD)
Time Search
A
Press S T to select {TT Time} / {CH
Time} / {Disc Time} or {Track Time}, then press X to access.
B Use the alphanumeric keypad 0-9 to
input the valid time (such as 0:34:27).
The playback skips to the chosen
time.
Audio / Subtitle
A
Press S T to select {Audio} or
{Subtitle}, then press X to access.
B Press S T to select one language.
C Press OK to con rm.
The current audio or subtitle language
will be changed to the selected
language.
Angle
A
Press S T to select {Angle}, then press
X to access.
B Use the alphanumeric keypad 0-9 to
input a valid number.
Playback will go to the selected angle.
English
Title/Chapter/Track selection
A
Press S T to select {Title} / {Chapter}
or {Track}, then press X to access.
B Use the alphanumeric keypad 0-9 to
input a valid number (e.g. 04/05).
The playback skips to the chosen title/
chapter/track.
TIPS: The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.
25
Page 26
Playback Features (continued)
English
Time Display
z Press S T to select {Time Disp.} (Time
Display), then press X to access.
Î Depending on the disc in the DVD
player, the following display types appear on the TV screen.
For DVD
– TT Elapsed (elapsed playing time of
current Title)
– TT Remain (remaining playing time of
current Title)
– CH Elapsed (elapsed playing time of
current Chapter)
– CH Remain (remaining playing time of
current Chapter)
For VCD/SVCD
– Total Elapsed (elapsed playing time of
current Disc)
– Total Remain (remaining playing time
of current Disc)
– Single Elapsed (elapsed playing time of
current Track)
– Single Remain (remaining playing time
of current Track)
Preview
The preview function allows you to reduce the picture of 6 tracks enough to display in a full screen.
A Press S T to select {Preview}, then
press X to access.
Î The preview menu appears on the TV
screen.
Select Digest Type:
Title Digest
Chapter Digest
Title Interval
Chapter Interval
(DVD example) (Video CD example)
Select Digest Type:
Track Digest
Disc Interval
Track Interval
B Press S T to select the preview type,
then press OK.
Î The picture of each segment will
appears on the TV screen.
01
02 03
ABC
04
05 06
DEF
(example of 6 thumbnail pictures display for DVD chapter digest preview type)
C Press S T W X to select a track or
input your selected track number using the alphanumeric keypad (0-9), then press OK.
Î Playback will start automatically on
the selected track.
TIPS: The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.
26
01-51_dvp3166_94_eng1.indd 2601-51_dvp3166_94_eng1.indd 26 2006-12-11 1:02:28 PM2006-12-11 1:02:28 PM
Page 27
Playback Features (continued)
Viewing Audio CD playback information
This function displays audio disc information on the TV screen during playback.
During playback, press DISPLAY.
A list of available disc information
appears on the TV screen.
Disc Go To / Track Go To / Track Selection
A
Press DISPLAY repeatedly to select an
option.
B Enter minutes and seconds from left to
right in the time edit box using alphanumeric keypad 0-9.
Playback will change to the chosen
time or to the selected track.
For Audio CD
– Disc Go To: XX/XX (enable to select
any part within the disc)
– Track Go To: XX/XX (enable to
select any part within the current track)
– Select Track: XX/TT (enable to select
any track within the disc)
Special DVD Features
Playing a Title
A
Press DISC MENU.
The disc title menu appears on the TV
screen.
B Use S T W X keys or alphanumeric
keypad 0-9 to select a play option.
C Press OK key to con rm.
Changing the Audio Language
For DVD
Press AUDIO repeatedly to select
different audio languages.
Changing the Audio Channel For VCD
Press AUDIO to select the available
audio channels provided by the disc (MONO LEFT, MONO RIGHT, MIX­MONO, STEREO).
Subtitles
Press SUBTITLE repeatedly to select
different subtitle languages.
English
TIPS: The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.
27
Page 28
Playback Features (continued)
English
Special VCD and SVCD Feature
Playback Control (PBC)
For VCD with Playback Control
(PBC) feature (version 2.0 only)
Press DISC MENU to toggle between
‘PBC ON’ and ‘PBC OFF’.
If you select ‘PBC ON’, the disc menu
(if available) will appear on the TV.
Use the PREV í / NEXT ë to go
to previous/next page or use the
alphanumeric keypad 0-9 to select a
play option.
During playback, pressing RETURN/
TITLE will return to the menu screen (if
PBC is on).
If you want to skip the index menu
and playback directly from the beginning,
Press DISC MENU key on the remote
control to turn to PBC off.
Playing a DivX® disc
This DVD player supports the DivX® movie playback that you download from your computer onto a CD-R/RW or DVD±R/RW (see page 34 for more information).
A Load a DivX® disc.
The data disc menu appears on the
TV screen.
B Press S T to select the folder and press
OK to open the folder.
C Press S T to select a track/ le.
D Press OK to con rm.
Press SUBTITLE on the remote
control will turn on or off the subtitle.
If multilingual subtitles are embedded on
the DivX® disc, pressing SUBTITLE will change the subtitle language during playback.
If multi audio are embedded on the
DivX® disc, pressing AUDIO repeatedly to select different audio language during playback.
Tips: – Subtitle  les with the following  lename extensions (.srt, .smi, .sub, .ssa, .txt) are supported but do not appear on the  le navigation menu. – The subtitle  lename (.sub) have to be saved under the same  lename as the movie (.avi) in the same folder. [For example, Folder A: abc.avi and abc.sub]
TIPS: The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.
28
Page 29
Playback Features (continued)
USB mass storage device
When connecting a USB mass storage device to the DVD player, you can enjoy the device’s stored music through the DVD player.
Compatible USB mass storage device:
– USB  ash memory (USB 2.0 or USB
1.1)
– USB  ash players (USB 2.0 or USB
1.1)
– memory cards (requires an additional
card reader to work with this DVD player).
Supported formats:
– USB or memory  le format FAT16,
FAT 32 (sector size: 2K bytes)
The DVD player will not play or support
the following:
– Empty albums: an empty album is an
album that does not contain MP3/ WMA  les and will not be shown in the display.
– Non-supported  le formats are
skipped. This means that e.g.: Word document ‘.doc’ or MP3  les with
extension ‘.dlf’. – AAC, PCM and WAV audio  les. – DRM protected WMA  les. – WMA  les in Lossless format.
Compatibility of USB device
Not all Portable audio/video players and
Digital cameras are supported.
If a non-supported device is connected,
the TV screen will display ‘Device Not Supported’.
The USB port can supports the playback
of JPEG/MP3/WMA  les and are able to read ‘.avi’, ‘.mp4’ and ‘.mpg’ container.
Copy protected contents are not
playable.
English
TIPS: The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.
29
Page 30
Playback Features (continued)
English
Playing from USB  ash drive or USB memory card reader
You can play or view the data  les (JPEG, MP3 or WMA) in the USB  ash drive or USB memory card reader through this DVD player. However, editing and copying the data  les are not possible.
A During disc playback, insert a USB mass
storage device into the USB port (see page 14).
Î ‘Press USB key to select device’ will
appear on the TV screen.
B Press USB on the remote control to
access the data in the drive.
Î A  le menu that contains all
supported  les will appears on the TV
screen.
Î The word USB1 will be highlighted
on the menu (only one USB mass
storage device is connected).
00:00 00:00
001/005
\
01
02
03
072
z The DVD player will access the USB mass
storage device directly when a USB device is plug in and if there is no disc playing.
Tip: – A total of 300 folders and maximum of 648 titles can be supported.
Transfer of music  les from PC to a
USB mass storage device
z By dragging and dropping music  les, you
can easily transfer your favorite music from PC to a USB mass storage device.
z For  ash player, you can also use its
music management software for the music transfer.
z However, those WMA  les may not be
playable for compatibility reasons.
Disc USB1
C Press S T to select a  le, then press
OK to con rm.
D Press USB on the remote control to exit
from the menu and switch to disc playback.
TIPS: The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.
30
01-51_dvp3166_94_eng1.indd 3001-51_dvp3166_94_eng1.indd 30 2006-12-11 1:04:14 PM2006-12-11 1:04:14 PM
Page 31
Playing MP3/WMA/JPEG Picture CD
This DVD player can playback MP3, WMA and JPEG  les on a personally recorded CD-R/RW disc, commercial CD or USB device.
IMPORTANT!
You have to turn on your TV and set to the correct Video In channel. (See page 17 ‘Finding your viewing channel’).
General Operation
Load a disc or plug in an USB device.
A
Î The disc reading time may exceed 30
seconds due to the complexity of the
directory/ le con guration.
Î The data disc menu appears on the
TV screen.
01:42 04:40 128kbps 001/020
\MP3_files_128kbs
--
MP3 Music 1
MP3
MP3 Music 2
MP3
Picture 1
Playback Features (continued)
E Press OK to con rm.
Tip: – If the playing  le is not selected, the ID3/ Meta information will disappear.
Playback selection
During playback, you can;
z Press PREV í / NEXT ë to select
the previous/next track/ le in the current folder.
z Press PLAY/PAUSE u repeatedly to
pause/resume playback.
English
B Press PREV í / NEXT ë to go to
previous / next page of the menu.
C Press S T to select the folder and press
OK to open the folder.
D Press S T to select a track/ le.
z If a jpeg  le is selected, a preview will
appear on the TV screen.
z If a MP3/WMA  le is selected, ID3 (MP3 -
including at least title, singer and album) and Meta data (WMA - including title, artist, copyright and comment) information appears on the TV screen.
TIPS: The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.
31
01-51_dvp3166_94_eng1.indd 3101-51_dvp3166_94_eng1.indd 31 2006-12-11 1:04:17 PM2006-12-11 1:04:17 PM
Page 32
Playback Features (continued)
English
Playback with multi-angles (JPEG)
During playback, press S T W X to
rotate the picture on the TV screen.
S:  ip the picture vertically by 180º T:  ip the picture horizontally by 180º W: rotate the picture anti-clockwise by
90º X: rotate the picture clockwise by 90º
Tips: – It may not be possible to play certain MP3/JPEG disc due to the con guration and characteristics of the disc or condition of the recording. – It is normal to experience an occasional ‘skip’ while listening to your MP3 disc. – For multi-session discs with different formats, only the  rst session will be available.

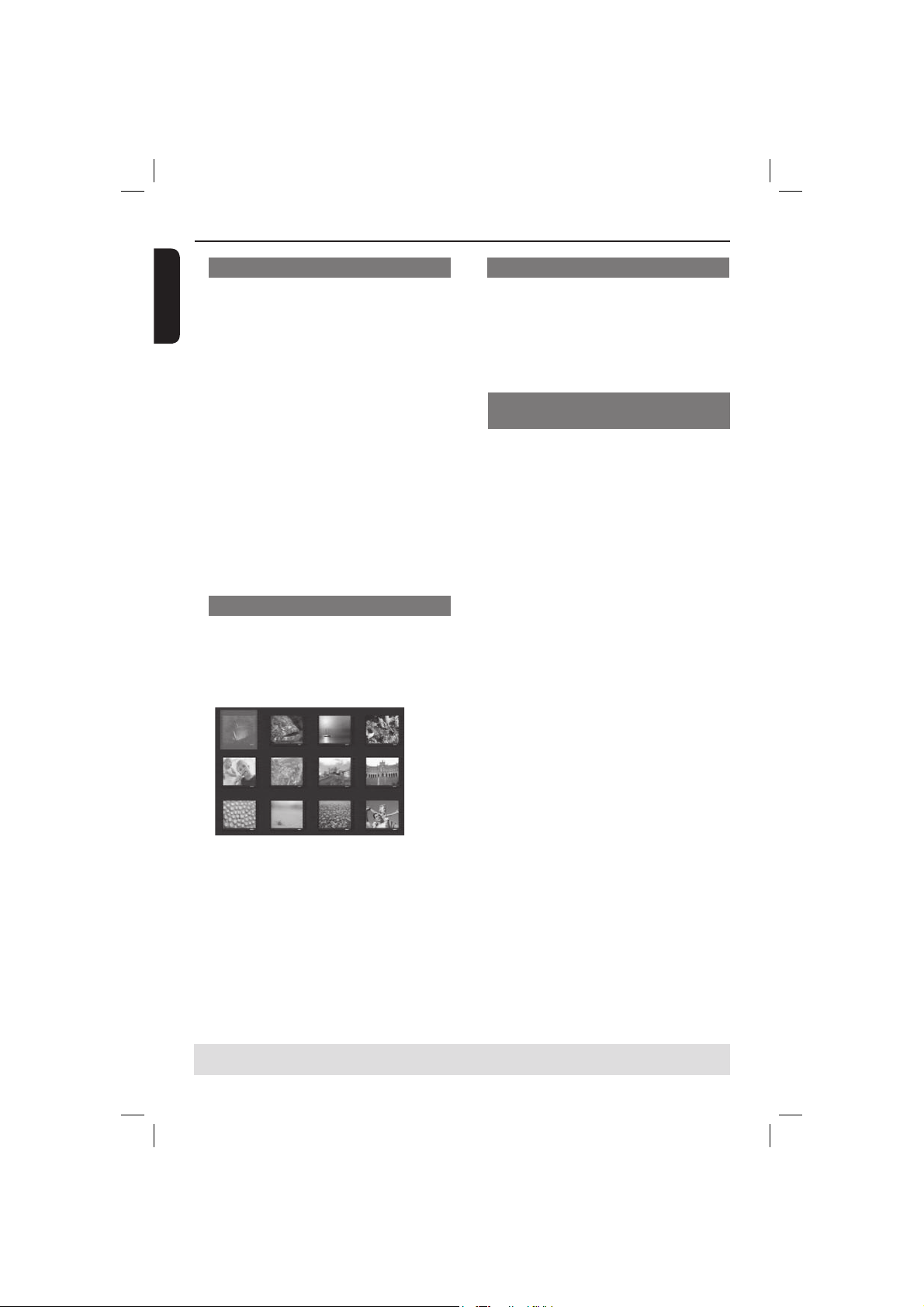

Preview Function (JPEG)
This function shows the content of the current folder or the whole disc.
A Press DISPLAY during playback.
12 thumbnail pictures will appear on
the TV screen.
Zoom picture (JPEG)
During playback, press ZOOM
repeatedly to display the picture with different scales.
Use S T W X to view the zoomed
picture.
Playing MP3/WMA music and JPEG picture simultaneously
Load a disc that contains MP3/WMA
A
music and JPEG picture  les.
The disc menu appears on the TV
screen.
B Select an MP3/WMA track.
C During MP3/WMA music playback, select
a picture  le on the TV screen and press OK.
A slide show will start at the same
time as the MP3/WMA audio  le is playing.
D To quit simultaneous playback, press
STOP Ç to stop the slide show.
E Press STOP Ç again to stop the audio.
Tips: – Some  les on Kodak or JPEG disc may be distorted during playback due to the con guration and characteristics of the disc. – During simultaneous playback, fast forward / reverse or slow forward is not available.
B Press PREV í / NEXT ë to display
the other pictures on the previous / next page.
C Press S T W X to select one of the
picture and press OK to start playback.
D Press DISC MENU to return to Picture
CD menu.
TIPS: The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.
32
Page 33
DVD Menu Options
This DVD Player setup is carried out via the TV, enabling you to customize the DVD player to suit your particular requirement.
Using the General setup menu
A Press SETUP on the remote control.
The system setup menu appears.
General Setup Page
Disc Lock
OSD Language
Sleep
Volume
DivX(r) VOD Code
B Press W X to select { General Setup
Page }.
C Press S T to select an item, then press
X to access.
Example: { OSD Language }
The options for the selected item
appears.
If the selection in the menu is greyed
out, that means the feature is not
available or not possible to change at
the current state.
D Use S T to select a setting and press
OK to con rm.
Example: { English }
The setting is selected and setup is
complete.
E To exit, press SETUP.
Locking/Unlocking the disc for viewing
Not all discs are rated or coded by the disc maker. You can prevent a speci c disc from playing by locking the disc. Up to 20 discs can be locked.
A In ‘General Setup Page’, press S T to
select { Disc Lock }, then press X.
{ Lock }
Select this to block the playback of the current disc. Subsequent access to a locked disc requires six-digit password. The default password is '136900' (see page 42 'Changing the password').
{ Unlock }
Select this to unlock the disc and allow future playback.
B Use S T to select a setting and press
OK to con rm.
OSD Language
This menu contains various language options for the language displayed on the screen. For details, see page 20.
English
TIPS: The underlined option is the factory default setting. Press W to go back to previous menu item. Press SETUP to exit the menu item.
33
Page 34
DVD Menu Options (cont inued)
English
Sleep
Sleep function allows you to turn off the DVD player automatically after a preset time.
A In ‘General Setup Page’, press S T to
select { Sleep }, then press X.
{ 15 Mins }
Turn off the DVD player after 15 minutes.
{ 30 Mins }
Turn off the DVD player after 30 minutes.
{ 45 Mins }
Turn off the DVD player after 45 minutes.
{ 60 Mins }
Turn off the DVD player after 60 minutes.
{ Off }
Turn off the sleep function.
B Use S T to select a setting and press
OK to con rm.
Volume
This option allows you to adjust the volume level between 0 to 20.
A In ‘General Setup Page’, press S T to
select { Volume }, then press X.
‘Volume Control Page’ appears on the
TV screen.
B Press W X to adjust the volume level
between 0 to 20, the default setting is 20.
DivX® VOD registration code
DivX® VOD registration code allows you to rent and purchase movies using the DivX® service from the internet. For more information, visit website; http://vod.divx.com
A In ‘General Setup Page’, press S T to
select { DivX(R) VOD Code }, then press X.
The registration code will appear.
B Press OK to exit.
C Use the registration code to rent or
purchase the movies from DivX
®
VOD
service at http://vod.divx.com.
Follow the instructions and download
the movie from your computer onto a CD-R/DVD±R(W) for playback on this DVD player.
Tips: – All the downloaded movies from DivX
®
Registration can only be played back on this DVD player. – Time search feature is not available during
®
movie playback.
DivX
TIPS: The underlined option is the factory default setting. Press W to go back to previous menu item. Press SETUP to exit the menu item.
34
Page 35
DVD Menu Options (cont inued)
Using the Audio setup menu
A Press SETUP on the remote control.
The system setup menu appears.
Audio Setup Page
Analog Output
Digital Audio Setup
Sound Mode
Speaker Setup
CD Upsampling Night Mode
B Press W X to select { Audio Setup
Page }.
C Press S T to select an item, then press
X to access.
Example: { Night Mode }
The options for the selected item
appears.
If the selection in the menu is greyed
out, that means the feature is not
available or not possible to change at
the current state.
D Use S T to select a setting and press
OK to con rm.
Example: { On }
The setting is selected and setup is
complete.
E To exit, press SETUP.
Analog Output
This option allows you to set the stereo analog output of your DVD player.
A In ‘Audio Setup Page’, press S T to
select { Analog Output }, then press X.
{ Stereo }
Select this option when output delivers sound from only the two front speakers.
{ LT/RT }
Select this option if your DVD player is connected to a Dolby Pro Logic decoder.
{ V SURR }
Allows the DVD player to use virtual surround sound effects.
{ Multi-channel }
Select this to enable Multi-channel output.
B Use S T to select a setting and press
OK to con rm.
Digital Audio Setup
The options included in Digital Audio Setup are: {Digital Output} and {LPCM Output}.
A In ‘Audio Setup Page’, press S T to
select { Digital Audio Setup }, then press X.
B Press S T to select an item, then press
X to access.
C Use S T to select a setting and press
OK to con rm.
English
TIPS: The underlined option is the factory default setting. Press W to go back to previous menu item. Press SETUP to exit the menu item.
35
Page 36
DVD Menu Options (cont inued)
Digital Output
English
Set the Digital Output according to your optional audio equipment connection.
{ All }
Select this if the connected device has a built-in multichannel decoder that supports one of the multichannel audio format (Dolby Digital, MPEG-2).
{ PCM Only }
Select this if the connected device is not capable of decoding multichannel audio. The DVD player will convert the Dolby Digital and MPEG-2 multichannel signals to PCM (Pulse Code Modulation).
{ Off }
To deactivate the digital audio output. For example, if you use the AUDIO OUT sockets to connect to a TV or stereo system.
LPCM Output
If you connect the DVD player to a PCM compatible receiver via the digital terminals, such as coaxial or optical etc, you may need to adjust ‘LPCM Output’.
{ 48K }
Playback a disc recorded at the sampling rate of 48kHz.
{ 96K }
Playback a disc recorded at the sampling rate of 96kHz. This rate can only be achieved in Stereo-Classic (Flat) mode.
Tip: – Discs are recorded at a certain sampling rate. The higher the sampling rate, the better sound quality. LPCM Output can be selected only when PCM Only is activated.
Sound Mode
The options included in Sound Mode Setup are {3D}, {Movie Mode}, {Music Mode}.
A In ‘Audio Setup Page’, press S T to
select { Sound Mode }, then press X.
B Press S T to select an item, then press
X to access.
C Use S T to select a setting and press
OK to con rm.
3D
This function provides a virtual surround sound experience using just two speakers.
{ Off } – { Living Room } – { Hall }
– { Arena } – { Church }
Movie Mode
Provides various Movie sound effects.
{ Off } – { Sci-Fic } – { Action } –
{ Drama } – { Concert }
Music Mode
Select a Sound Mode that matches the type of music you are playing. These preset Sound Modes adjust the frequency bands of the audio to enhance your favorite music. Provides various Music sound effects.
{ Off } – { Digital } – { Rock } –
{ Classic } – { Jazz }
Speaker Setup
This menu contains setup options for your audio output which makes the speaker setup system reproduce high quality surround sound. For details, see page 43.
TIPS: The underlined option is the factory default setting. Press W to go back to previous menu item. Press SETUP to exit the menu item.
36
Page 37
DVD Menu Options (cont inued)
CD Upsampling
This feature allows you to convert your music CD to a higher sampling rate using sophisticated digital signal processing for better sound quality.
A In ‘Audio Setup Page’, press S T to
select { CD Upsampling }, then press X.
{ Off }
Select this to disable CD Upsampling.
{ 88.2 kHz (x2) }
Select this to convert the sampling rate of the CDs twice higher than the original.
{ 176.4 kHz (x4) }
Select this to convert the sampling rate of the CDs four times higher than the original.
B Use S T to select a setting and press
OK to con rm.
Tip: – CD Upsampling feature is only applicable to stereo output setting when playing CD disc.
Night Mode - turning on/off
This mode optimizes playback of sound at low volume. High volume outputs will be softened and low volume outputs are brought upward to an audible level.
A In ‘Audio Setup Page’, press S T to
select { Night Mode }, then press X.
{ On }
Select this to set low volume output. This feature is only available for movie discs with Dolby Digital mode.
{ Off }
Turns off night mode feature. Select this to enjoy the surround sound with its full dynamic range.
B Use S T to select a setting and press
OK to con rm.
English
TIPS: The underlined option is the factory default setting. Press W to go back to previous menu item. Press SETUP to exit the menu item.
37
Page 38
DVD Menu Options (cont inued)
English
Using the Video setup menu
A Press SETUP on the remote control.
The system setup menu appears.
Video Setup Page
TV Type
TV Display
Progressive
Picture Setting
B Press W X to select { Video Setup
Page }.
C Press S T to select an item, then press
X to access.
Example: { TV Type }
The options for the selected item
appears.
If the selection in the menu is greyed
out, that means the feature is not
available or not possible to change at
the current state.
D Use S T to select a setting and press
OK to con rm. Example: { PAL }
The setting is selected and setup is
complete.
E To exit, press SETUP.
TV Type
This menu contains the options for selecting the color system that matches the connected TV. For details, see page
19.

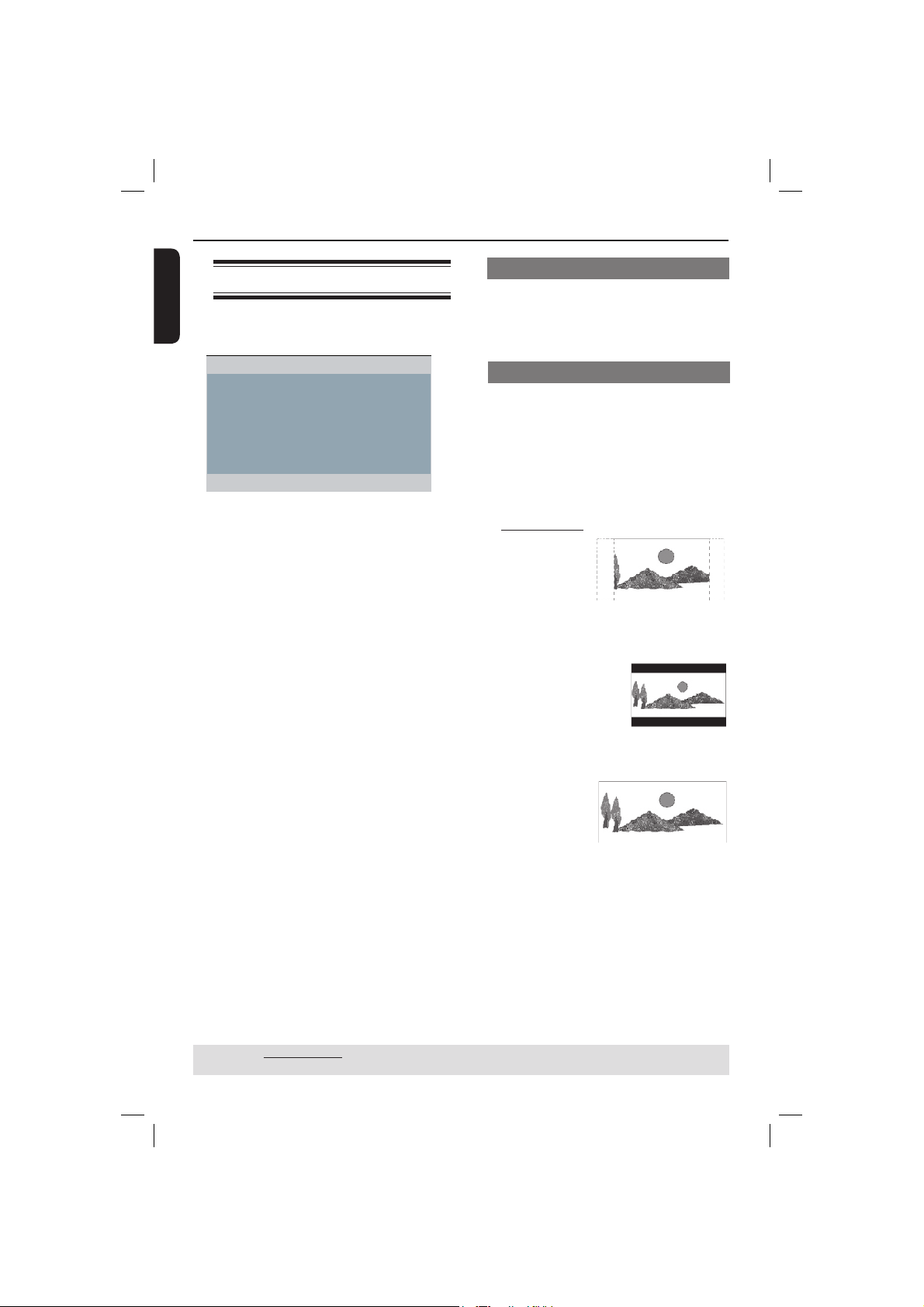

Setting the TV Display
The picture shape can be adjusted to  t your TV and the format must be available on the playback disc. Otherwise, the TV display will not affect the picture during playback.
A In ‘Video Setup Page’, press S T to
select { TV Display }, then press X.
{ 4:3 Pan Scan }
Select this if you have a normal TV and want both sides of the picture to be trimmed or formatted on the TV screen.
{ 4:3 Letter Box }
Select this if you have a normal TV. A ‘wide­screen’ display with black bars on the top and bottom will be displayed on the TV screen.
{ 16:9 }
Select this for wide-screen TV (frame ratio 16:9).
B Use S T to select a setting and press
OK to con rm.
TIPS: The underlined option is the factory default setting. Press W to go back to previous menu item. Press SETUP to exit the menu item.
38
Page 39
DVD Menu Options (cont inued)
Progressive
In the progressive scan mode, you can enjoy the high quality picture with less  ickers. It only works when you have connected the DVD player’s YPbPr jacks to your TV that supports the progressive video input. Otherwise, a distorted picture will appear on the TV. For proper progressive scan set up, see page 18.
A In ‘Video Setup Page’, press S T to
select { Progressive }, then press X.
{ Off }
To disable Progressive Scan function.
{ On }
To enable Progressive Scan function.
B Use S T to select a setting and press
OK to con rm.
Follow the instructions shown on the
TV screen to con rm the selection (if
any).
If a distorted picture appears on the
TV screen, wait for 15 seconds for
auto recovery.
Picture Setting
This DVD player provides four prede ned sets of picture color settings.
A In ‘Video Setup Page’, press S T to
select { Picture Setting }, then press X.
{ Standard }
Select this for a preset standard picture setting.
{ Vivid }
Select this to make the picture brighter.
{ Cool }
Select this to make the picture softer.
{ Personal }
Select this to personalize your picture color by adjusting the brightness, contrast, tint and color (saturation).
B Use S T to select a setting and press
OK to con rm.
C If you select {PERSONAL}, then proceed
to steps
The ‘personal picture setup’ menu
D~G.
appears.
Personal Picture Setup
Brightness 0
Contrast 0
Tint 0
Color 0
English
TIPS: The underlined option is the factory default setting. Press W to go back to previous menu item. Press SETUP to exit the menu item.
39
Page 40
DVD Menu Options (cont inued)
D Press S T to highlight one of the
English
following options.
BRIGHTNESS
Increase the value to brighten the picture or vice versa. Choose zero (0) for average setting.
CONTRAST
Increase the value to sharpen the picture or vice versa. Choose zero (0) to balance the contrast.
TINT
Increase the value to darken the picture or vice versa. Choose zero (0) for average setting.
COLOR
Increase the value to enhance the color in your picture or vice versa. Choose zero (0) to balance the color.
E Press W X to adjust the setting that best
suits your personal preference.
F Repeat steps D~E for adjusting other
color features.
G Press OK to con rm.
Using the Preference setup menu
A Press STOP Ç twice to stop playback,
(if any), then press SETUP on the remote control.
The system setup menu appears.
Preference Page
Audio
Subtitle
Disc Menu
Parental
PBC
Mp3 / Jpeg Nav
Password
B Press W X to select { Preference
Page }.
C Press S T to select an item, then press
X to access.
Example: { Parental }
The options for the selected item
appears.
If the selection in the menu is greyed
out, that means the feature is not available or not possible to change at the current state.
D Use S T to select a setting and press
OK to con rm.
Example: { 8 Adult }
The setting is selected and setup is
complete.
E To exit, press SETUP.
TIPS: The underlined option is the factory default setting. Press W to go back to previous menu item. Press SETUP to exit the menu item.
40
Page 41
DVD Menu Options (cont inued)
Subtitle/Audio/Disc Menu
These menus contains various language options for audio, subtitle and disc menu which may be recorded on the DVD. For details, see page 20.
Parental
Depending on the DVD, you may be asked to change the parental level while playing the disc. The rating levels are from 1 to 8 and are country dependent. You can prohibit the playing of certain discs that are not suitable for your children, or have certain discs played with alternative scenes.
A In ‘Preference Page’, press S T to select
{ Parental }, then press X.
Preference Page
Audio 1 KID SAFE
Subtitle 2 G
Disc Menu 3 PG
Parental 4 PG13
PBC 5 PGR
Mp3 / Jpeg Nav 6 R
Password 7 NC17
B Use S T to select a rating level and
press OK to con rm.
Select { 8 Adult } to disable parental
level and allow all discs to play.
C Use the alphanumeric keypad 0-9 to
enter the six-digit password (see page 42 ‘Changing the Password’), then press OK to con rm.
DVDs that are rated higher than the level
you selected will not play unless you enter your six-digit password.
Rating Explanations
{ 1.Kid Safe }
Childsafe; acceptable for viewers of all ages.
{ 2. G }
General Audience; recommended as acceptable for viewers of all ages.
{ 3. PG }
Parental Guidance suggested.
{ 4. PG – 13 }
Unsuitable for children under age 13.
{ 5. PG – R }
Parental Guidance; recommended that parents restrict children under 17 from viewing.
{ 6. R }
Restricted; recommended only when supervised by a parent or adult guardian.
{ 7. NC – 17 }
No Children under age 17; not recommended viewing for children under age 17.
{ 8. Adult }
Mature Material; should be viewed only by adults due to graphic sexual material, violence or language.
Tips: – This feature will not limit viewing if the disc manufacturer did not code the disc. – VCD, SVCD, CD have no level indication, so parental control has no effect on these type of discs. This also applies to most illegal DVDs. – Some DVDs are not coded with a rating though the movie rating may be printed on the disc cover. The rating level feature does not prohibit play of such discs.
English
TIPS: The underlined option is the factory default setting. Press W to go back to previous menu item. Press SETUP to exit the menu item.
41
Page 42
DVD Menu Options (cont inued)
English
PBC
You can set the PBC to {On} or {Off}. This feature is available only on SVCD or Video CD 2.0 with playback control (PBC) feature. For details, see page 28.
MP3/JPEG Menu
MP3/JPEG Navigator can be set only if the disc is recorded with menu. It allows you to select different display menu for easy navigation.
A In ‘Preference Page’, press S T to select
{ MP3/JPEG Nav }, then press X.
{ Without Menu }
Select this to display all the  les contained in the MP3/Picture CD.
{ With Menu }
Select this to display only the folder menu of the MP3/Picture CD.
B Use S T to select a setting and press
OK to con rm.
Changing the Password
You need to enter your six-digit password to play a prohibited disc or if prompted for a password. The same default password is used for both Parental and Disc Lock.
A In ‘Preference Page’, press S T to select
{ Password }, then press X to select { Change }.
B Press OK and the menu appears on the
TV screen.
Old Password
New Password
Confirm PWD
OK
C Use the alphanumeric keypad 0-9 to
enter the six-digit password.
When doing this for the  rst time,
enter the default password ‘136900’.
If you forget your old six-digit password,
enter the default password ‘136900’.
D Enter the new six-digit password.
E Enter the new six-digit password a
second time to con rm.
The new six-digit password will now
take effect.
F Press OK to con rm.
Setting the DivX® subtitle font
You can set the font type that supports the recorded DivX® subtitle.
A In ‘Preference Page’, press S T to select
{ DivX® Subtitle }, then press X.
{ Standard }
Albanian, Danish, Dutch, English, Finnish, French, Gaelic, German, Italian, Kurdish (Latin), Norwegian, Portuguese, Spanish, Swedish and Turkish.
B Press OK to con rm.
Restoring to the original settings
Setting the { Default } function will reset all options and your personal settings to the factory defaults, except your Parental and Disc Lock.
A In ‘Preference Page’, press S T to select
{ Default }, then press X to select { Reset }.
B Press OK to con rm.
All settings will now reset to factory
defaults.
TIPS: The underlined option is the factory default setting. Press W to go back to previous menu item. Press SETUP to exit the menu item.
42
Page 43
Setting the speaker’s channels
You can adjust the delay times (center and rear only) and volume level for individual speakers. These adjustments let you optimises the sound according to your surroundings and setup.
IMPORTANT!
The speaker settings only available on Multi-channel audio outputs.
A Press SETUP.
B Press X repeatedly to select { Audio
Setup Page }.
C Press S T to highlight { Speaker
Setup }, then press X.
Audio Setup Page
Analog Output
Digital Audio Setup
Sound Mode
Speaker Setup
CD Upsampling
Night Mode
Speaker Setup Page
Front Speakers Large
Center Speaker Small
Rear Speakers
Subwoofer
Speakers Volume
Speakers Delay
Sound and Volume Controls
{Subwoofer} On – when a subwoofer is connected. Off –when no subwoofer is connected.
{Speakers Volume} Volume Level setting for individual
speakers (-6dB ~ +6dB).
Speaker Setup Page
Front Left +6dB
Front Right +6dB
Center +6dB
Subwoofer 0dB
Rear Right +6dB
Rear Left +6dB
{Speakers Delay} Delay times setting in relation to the
listening position or distance for center and rear speakers (1m ~ 10m).
Speaker Setup Page
Center 1.0M
Subwoofer 1.0M
Rear Left 1.0M
Rear Right 1.0M
F Press W X to adjust the setting that best
suit your surround sound needs.
G Press OK to con rm.
English
D Enter its submenu by pressing X.
E Press S T to highlight one of the
options below at a time, then press X.
{Front Speakers, Center Speaker, Rear
Speakers}
Off – when no speaker is connected.
Tips: – Use the longer delay time settings when the rear speakers are closer to the listener than the front speakers. – The test tone will be automatically generated to help you judge the sound level of each speaker.
Large – when connected speakers can
produce low frequency signals below 120Hz.
Small – when connected speakers cannot
produce low frequency signals below 120Hz.
TIPS: The underlined option is the factory default setting. Press W to go back to previous menu item. Press SETUP to exit the menu item.
43
Page 44
Others
English
Software upgrade
Periodically Philips will issue software upgrade to enhance your user experience.
IMPORTANT!
– Power supply must not be interrupted during upgrade!
To check the current software version of
this DVD player;
A Press OPEN/CLOSE ç on the DVD
player to open the disc tray.
The disc tray will open.
B Press numeric keypad ‘55’ on the
remote control.
The  le name of the software installed
in the DVD player appears on the TV
screen.
To download and install the latest
software to the DVD player;
A Visit the Philips website ‘www.philips.
com/support’ to check the availability of the latest software upgrade.
B Download the software to a CD-R.
C Insert the CD-R to the disc slot.
The menu appears on the TV screen.
Upgrade File Detected
Upgrade?
Press Play to start
D Press PLAY/PAUSE u to download
the latest software in the DVD player.
The DVD player will re-start
automatically once the download
complete.
44
Page 45
Speci cations
TV STANDARD (PAL/50Hz) (NTSC/60Hz)
Number of lines 625 525 Playback Multistandard (PAL/NTSC)
VIDEO PERFORMANCE
Video DAC 12 bit, 108 MHz YPbPr 0.7 Vpp ~ 75 ohm Video Output 1Vpp ~ 75 ohm
VIDEO FORMAT
Digital MPEG 2 for DVD,SVCD Compression MPEG 1 for VCD DivX
DVD 50Hz 60Hz
Horiz. resolution 720 pixels 720 pixels Vertical resolution 576 lines 480 lines
VCD 50Hz 60Hz
Horiz. resolution 352 pixels 352 pixels Vertical resolution 288 lines 240 lines
AUDIO FORMAT
Digital MPEG/ AC-3/ compressed PCM Digital 16, 20, 24 bits fs, 44.1, 48, 96 kHz MP3(ISO 9660) 96, 112, 128, 256 kbps & variable bit rate fs, 32, 44.1, 48 kHz Analog Sound Stereo Dolby Surround compatible downmix from Dolby Digital multi-channel sound
®
AUDIO PERFORMANCE
DA Converter 24 bit, 192 kHz DVD fs 96 kHz 4Hz- 44kHz fs 48 kHz 4Hz- 22kHz SVCD fs 48 kHz 4Hz- 22kHz fs 44.1kHz 4Hz- 20kHz CD/VCD fs 44.1kHz 4Hz- 20kHz Signal-Noise (1kHz) > 90 dB Dynamic range(1kHz) > 80 dB Crosstalk (1kHz) > 80 dB Distortion/noise (1kHz) > 80 dB MPEG MP3 MPEG Audio L3
CONNECTIONS
YPbPr Output Cinch 3x Video Output Cinch (yellow) Audio Output(L+R) Cinch (white/red) Digital Output 1 coaxial IEC60958 for CDDA / LPCM IEC61937 for MPEG 1/2, Dolby Digital
6 channal analog output
Audio Front L/R Clinch (white/red) Audio Rear L/R Clinch (white/red) Audio Center Clinch (blue) Audio Subwoofer Clinch (black)
CABINET
Dimensions (w x h x d) 360 x 37 x 210 mm Weight Approximately 2 kg
POWER CONSUMPTION
Power Supply Rating 110V – 240V; 50/60Hz Power consumption < 10 W Power consumption in < 1 W Standby mode
English
45
Page 46
Troublesh oot ing
English
WARNING
Under no circumstances should you try to repair the system yourself, as this will invalidate the warranty. Do not open the system as there is a risk of electric shock.
If a fault occurs,  rst check the points listed below before taking the system for repair. If you are unable to remedy a problem by following these hints, consult your dealer or Philips for help.
Problem Solution
No power.
Remote control does not work.
No picture.
The picture is distorted or black & white during playback.
No sound.
Disc does not play.
The aspect ratio of the screen cannot be changed.
– Press STANDBY-ON button on the front of the DVD
player to turn on the system.
– Make sure the AC outlet has power.
– Aim the remote control directly at the sensor on the front
of the DVD player (not towards TV).
– Remove any obstacles between DVD player and the remote
control. – Batteries are weak, replace the batteries. – Check the polarities of the batteries are as indicated on the
remote control (± signs).
– Turn on your TV and set to the correct Video In channel
for the DVD player. You may go to Channel 1 on your TV,
then press the channel down button on your TV’s remote
control until you see the TV program. – Check the video connection between the DVD player and
the TV.
– The disc does not match with the TV color system standard
(PAL/NTSC). – The disc is dirty, clean the disc. – Sometimes a small amount of picture distortion may
appear. This is not a malfunction. – To deactivate progressive scan function manually;
1) Turn off your TV progressive scan mode (or set to
interlace mode)
2) Press OPEN/CLOSE to open the DVD player disc tray.
3) Press the alphanumeric keypad ‘1’ for few seconds.
– Check the audio connections, the red and white jacks are
connected correctly. – Set the Digital output correctly, based on the equipment you connected to the DVD player.
– Insert the disc with the label facing up. – Wrong region code. – Wrong disc type. Read chapter “Playback - Playable discs”
for details. – Make sure the disc is not scratched or warped. Clean the
disc or replace a new one. – Check if the disc is defective by trying another disc.
– The aspect ratio is  xed on the DVD disc. – Depending on the TV, it may not be possible to change the
aspect ratio.
Need Help? Visit us at www.philips.com/support
46
Page 47
Troublesh oot ing (continued)
Problem Solution
Not able to select some items in the setup/system menu.
The DVD player does not start playback.
Picture freezes momentarily during playback.
Unable to select Progressive Scan on/ off.
®
Unable to play DivX
No sound during DivX
movies.
®
movies
playback.
An DivX® movies does not repeat.
Certain DivX® files does not play or are skipped.
The contents of the USB  ash drive cannot be read
Slow operation of the USB  ash drive
– Press STOP button twice before selecting the setup/system
menu.
– Depending on the disc availability, some menu items cannot
be selected.
– Insert a readable disc with the playback side facing down. – Check the disc type, color system (PAL/NTSC) and region
code. – Check for any scratches or smudges on the disc. – Press SETUP to turn off the setup menu screen. – You may need to enter the password in order to change the
parental rating level or to unlock the disc for playback. – Moisture may have condensed inside the system. Remove the
disc and leave the system turned on for about an hour. – Disconnect the power cord from the power outlet for a few
minutes. Reconnect the power cord and try to operate again
as usual.
– Check the disc for  ngerprint/scratches and clean with a soft
cloth wiping from center to edge.
– Check that the output of the video signal is turn to
{ YPbPr }.
®
– Check that the DivX
mode with DivX – Check that the DivX
 le is encoded in ‘Home Theatre’
®
5.x encoder.
®
movie downloaded is a complete  le.
– The audio codec may not be supported by this DVD player.
– Check that  le size of the movie does not exceed the  le size
of the disc during downloading.
– Make sure the  le name extension is correct. You can check
this using a computer with CD-ROM. – The player is designed to playback DVD, VCD, CD audio,
MP3 and DivX
®
discs only. Other digital audio formats such as liquid audio, RM (RealMedia), WAV or non-audio  les like ‘.doc’, ‘.txt’, ‘.pdf’ are not supported.
– Try to play the problem DivX
do not work, the source file appears to be corrupt.
– Try to download the file again from a different source, or if
you have created the file yourself, create the file again and make sure the settings are correct.
– The USB  ash drive format is not compatible with the DVD
player.
– Drive is formatted with a different  le system. (e.g. NTFS)
– Big  le size or high solution USB  ash driver takes longer
time to read and display on the TV screen.
®
files, on a computer. If they
English
Need Help? Visit us at www.philips.com/support
47
Page 48
Frequently Asked Questions (USB)
English
Why does it take so long to display the contents on my USB device?
– This could be due to the large numbers
of  les (>500  les/folders) or size of the  les (>1MB.)
– There could be other non-supported  les
in the device that the system is trying to read/display.
What if un-supported devices (e.g. USB mouse, keyboards) are plugged into the player?
– The device may cause the player to be
unstable. Remove the unsupported device and unplug the mains cord. Wait for a few minutes before reconnecting the mains cord and power on the player again.
Why does the  le name appear to be different from what was displayed on my computer (e.g. from “Good Bye. jpg” to “Good_B~1.jpg”)?
– The length of the  le name is restricted
by the  le system of the device (FAT16), which only supports eight (8) characters.
– The computer may be able to display the
full  le name as the operating system can convert the  le system.
Is simultaneous USB and Disc playback possible?
– This is not possible due to memory
limitation. In addition, a different user interface will be needed in order to function and in order to be simple enough to use.
What happens when I plug in a USB HDD?
– HDD is not supported as the large
storage capacity makes navigation very dif cult. Transfer the music  les (mp3) and photos (jpg) into a  ash drive.
Why does the system fail to detect my USB portable music player?
– The portable music player may require
propriety software that is bundled with our player in order to access the contents (eg. playlist.)
What types of  le does the player support?
– We support only FAT16 and FAT32, not
NTFS.
Why can’t I rotate the pictures in my device?
– In order to rotate the pictures in the
USB device, the picture must contain EXIF information, stored by most digital cameras. This EXIF information may have been removed when you edit or copy the picture from other devices using editing programs.
Why can’t the player play some of my music  les, photos or movies?
– The music  les may not be playable
because of different formats and encoding bit-rates. Similarly, the photos may be of low resolution or too high resolution for the player to support.
48
Page 49
Glossary
Analog: Sound that has not been turned into
numbers. Analog sound varies, while digital sound has speci c numerical values. These jacks send audio through two channels, the left and right.
Aspect ratio: The ratio of vertical and horizontal sizes of a displayed image. The horizontal vs. vertical ratio of conventional TVs. is 4:3, and that of wide­screens is 16:9.
AUDIO OUT Jacks: Jacks on the back of the DVD System that send audio to another system (TV, Stereo, etc.).
Bit Rate: The amount of data used to hold a given length of music; measured in kilobits per seconds, or kbps. Or, the speed at which you record. Generally, the higher the bit rate, or the higher the recording speed, the better the sound quality. However, higher bit rates use more space on a Disc.
Chapter: Sections of a picture or a music piece on a DVD that are smaller than titles. A title is composed of several chapters. Each chapter is assigned a chapter number enabling you to locate the chapter you want.
Component Video Out Jacks: Jacks on the back of the DVD System that send high-quality video to a TV that has Component Video In jacks (R/G/B, Y/Pb/ Pr, etc.).
Disc menu: A screen display prepared for allowing selection of images, sounds, subtitles, multi-angles, etc recorded on a DVD.
Digital: Sound that has been converted into numerical values. Digital sound is available when you use the DIGITAL AUDIO OUT COAXIAL or OPTICAL jacks. These jacks send audio through multiple channels, instead of just two channels as analog does.
®
DivX
3.11/4.x/5.x/6.0: The DivX® codec is a
patent-pending, MPEG-4 based video compression technology, developed by DivX can shrink digital video to sizes small enough to be transported over the internet, while maintaining high visual quality.
Dolby Digital: A surround sound system developed by Dolby Laboratories containing up to six channels of digital audio (front left and right, surround left and right, center and subwoofer).
DTS: Digital Theatre Systems. This is a surround sound system, but it is different from Dolby Digital. The formats were developed by different companies.
JPEG: A very common digital still picture format. A still-picture data compression system proposed by the Joint Photographic Expert Group, which features small decrease in image quality in spite of its high compression ratio.
®
Networks, Inc., that
MP3: A  le format with a sound data compression system. ‘MP3’ is the abbreviation of Motion Picture Experts Group 1 (or MPEG-1) Audio Layer 3. By using MP3 format, one CD-R or CD-RW can contain about 10 times as much data volume as a regular CD can.
Multichannel: DVD is speci ed to have each sound track constitute one sound  eld. Multichannel refers to a structure of sound tracks having three or more channels.
Parental Control: A function of the DVD to limit playback of the disc by the age of the users according to the limitation level in each country. The limitation varies from disc to disc; when it is activated, playback will be prohibited if the software’s level is higher than the user-set level.
PCM (Pulse Code Modulation): A system for converting analog sound signal to digital signal for later processing, with no data compression used in conversion.
Playback control (PBC): Refers to the signal recorded on video CDs or SVCDs for controlling reproduction. By using menu screens recorded on a Video CD or SVCD that supports PBC, you can enjoy interactive-type software as well as software having a search function.
Progressive Scan: It displays all the horizontal lines of a picture at one time, as a signal frame. This system can convert the interlaced video from DVD into progressive format for connection to a progressive display. It dramatically increases the vertical resolution.
Region code: A system for allowing discs to be played back only in the region designated beforehand. This unit will only play discs that have compatible region codes. You can  nd the region code of your unit by looking on the product label. Some discs are compatible with more than one region (or ALL regions).
Title: The longest section of a picture or music feature on DVD, music, etc., in video software, or the entire album in audio software. Each title is assigned a title number enabling you to locate the title you want.
TV OUT jack: Jack on the back of the DVD System that sends video to a TV.
WMA: Windows Media Audio. Refers to an audio compression technology developed by Microsoft Corporation. WMA data can be encoded by using Windows Media Player version 9 or Windows Media Player for Windows XP. Files are recognized by their  le extension “WMA.”
English
49
Page 50
English
50
Page 51
Meet Philips at the Internet
http://www.philips.com/support
DVP 3166
CLASS 1
LASER PRODUCT
English
SgpSL-0650/94-2
51
